Mercedes-Benz ML320. Service manual - part 340





AR54.65-P-0002GH

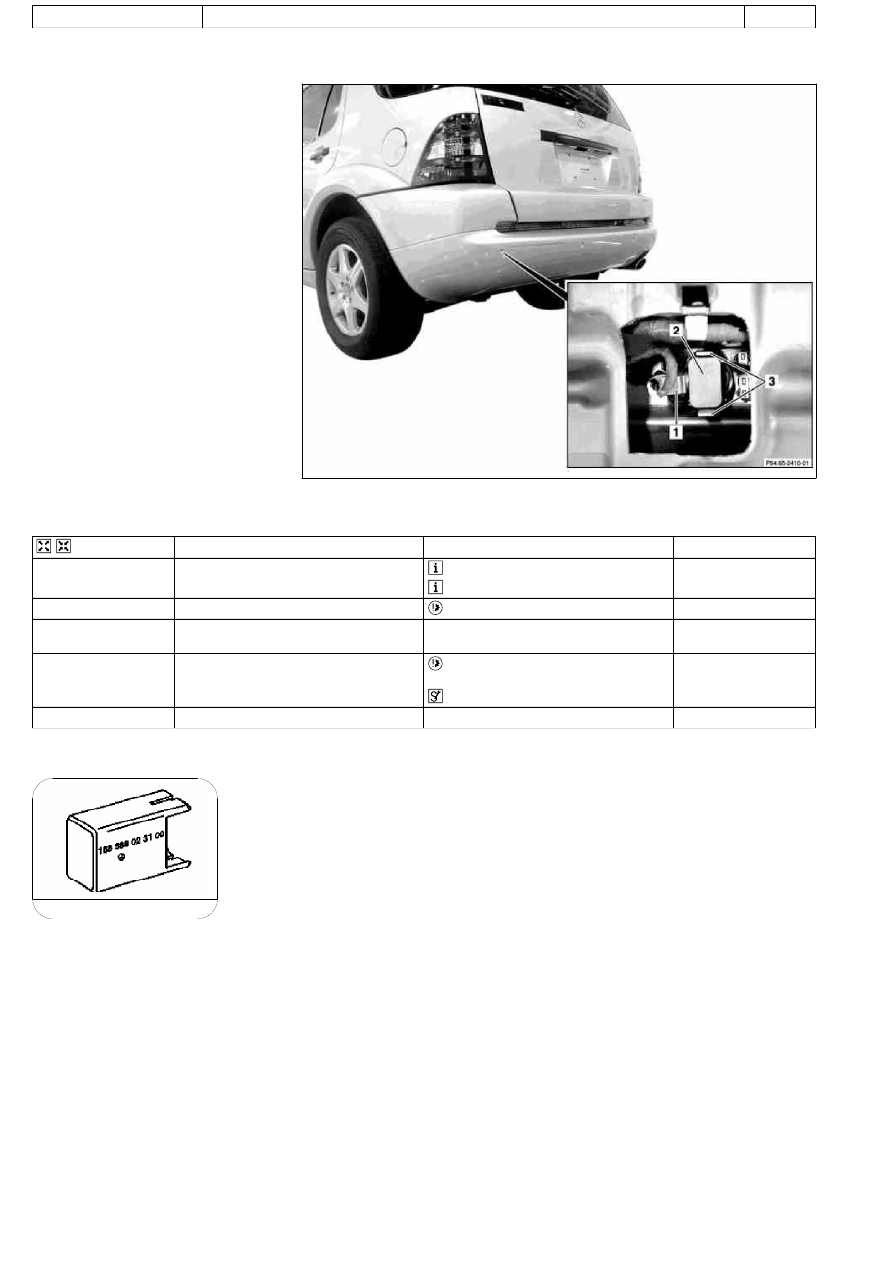

Remove/install Parktronic system (PTS) sensors in rear bumper

19.4.01

MODEL

163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

P54.65-2412-06

1

Plug connection

2

Parktronic system sensor

3

Retaining clamps



Remove/install

1

Remove rear bumper

 with styling package, code U49.

AR88.20-P-2200GJ

As of 01.09.01.

AR88.20-P-2200GK

2

Put down bumper safely in a suitable place

 Do not damage paintwork.

3

Disconnect connector (1) from Parktronic
system sensor(2)

4

Remove Parktronic system sensor (2) from
the bumper

 Bo not brake off the retaining clamps (3).

 Release tool

*168589023100

5

Install in the reverse order

Release tool

168 589 02 31 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR88.20-P-2200GJ

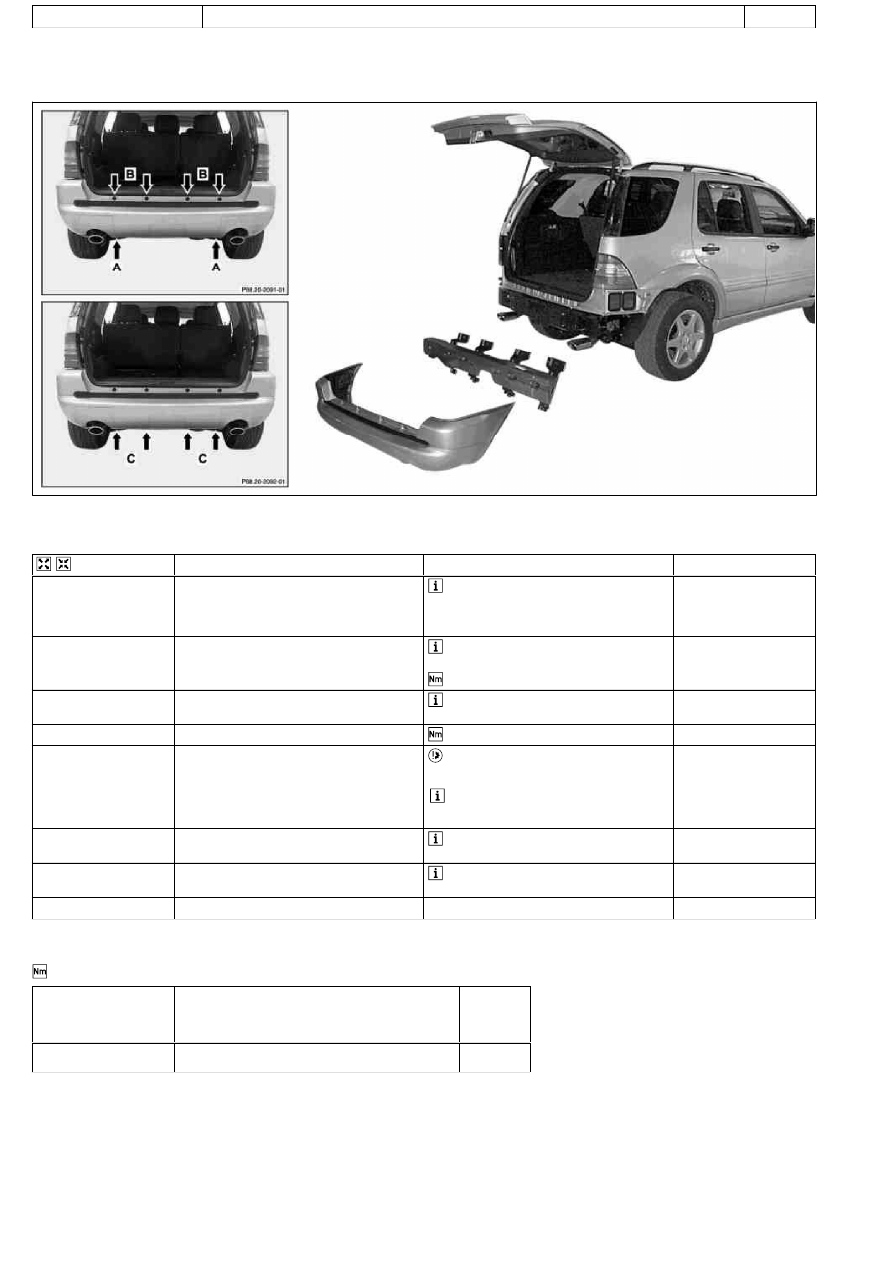

Remove/install rear bumper

6.4.99

MODEL

163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL

163.174

P88.20-2090-09



Remove/install

1.1

Separate antenna of emergency call system
E-Call connector

 Only with E-call emergency call system,

code 349. The connector is located behind
the side flap of the right C-pillar paneling at
the jack socket point.

2

Unscrew screws (A) on energy absorber
retaining straps at bottom of cross member

 2 each.



*BA88.20-P-1005-01B

3

Pull cover strip off of screws (B) at top of
bumper

 Velcro strips

4

Unscrew screws (B) at top of bumper



*BA88.20-P-1005-01B

5

Pull bumper to the rear and remove

 Do not damage paintwork/wiring harness.



Installation: Align bumper at tailgate and

at taillamps.

6.1

Remove rubber seal of antenna of emergency
call system E-Call on right at body

 Only with emergency call system E-Call,

Code 349.

7.1

Disconnect connector from Parktronic system

 Only with Parktronic system (PTS), code

220a. Remove left rubber seal at body.

8

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1005-01B

Screws, rear bumper to frame

Nm

8

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR88.20-P-2200GJ

Remove/install rear bumper

6.4.99

MODEL

163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL

163.174

P88.20-2090-09



Remove/install

1.1

Separate antenna of emergency call system
E-Call connector

 Only with E-call emergency call system,

code 349. The connector is located behind
the side flap of the right C-pillar paneling at
the jack socket point.

2

Unscrew screws (A) on energy absorber
retaining straps at bottom of cross member

 2 each.



*BA88.20-P-1005-01B

3

Pull cover strip off of screws (B) at top of
bumper

 Velcro strips

4

Unscrew screws (B) at top of bumper



*BA88.20-P-1005-01B

5

Pull bumper to the rear and remove

 Do not damage paintwork/wiring harness.



Installation: Align bumper at tailgate and

at taillamps.

6.1

Remove rubber seal of antenna of emergency
call system E-Call on right at body

 Only with emergency call system E-Call,

Code 349.

7.1

Disconnect connector from Parktronic system

 Only with Parktronic system (PTS), code

220a. Remove left rubber seal at body.

8

Install in the reverse order



Bumper

Number

Designation

Model 163

BA88.20-P-1005-01B

Screws, rear bumper to frame

Nm

8

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR88.20-P-2000GJ

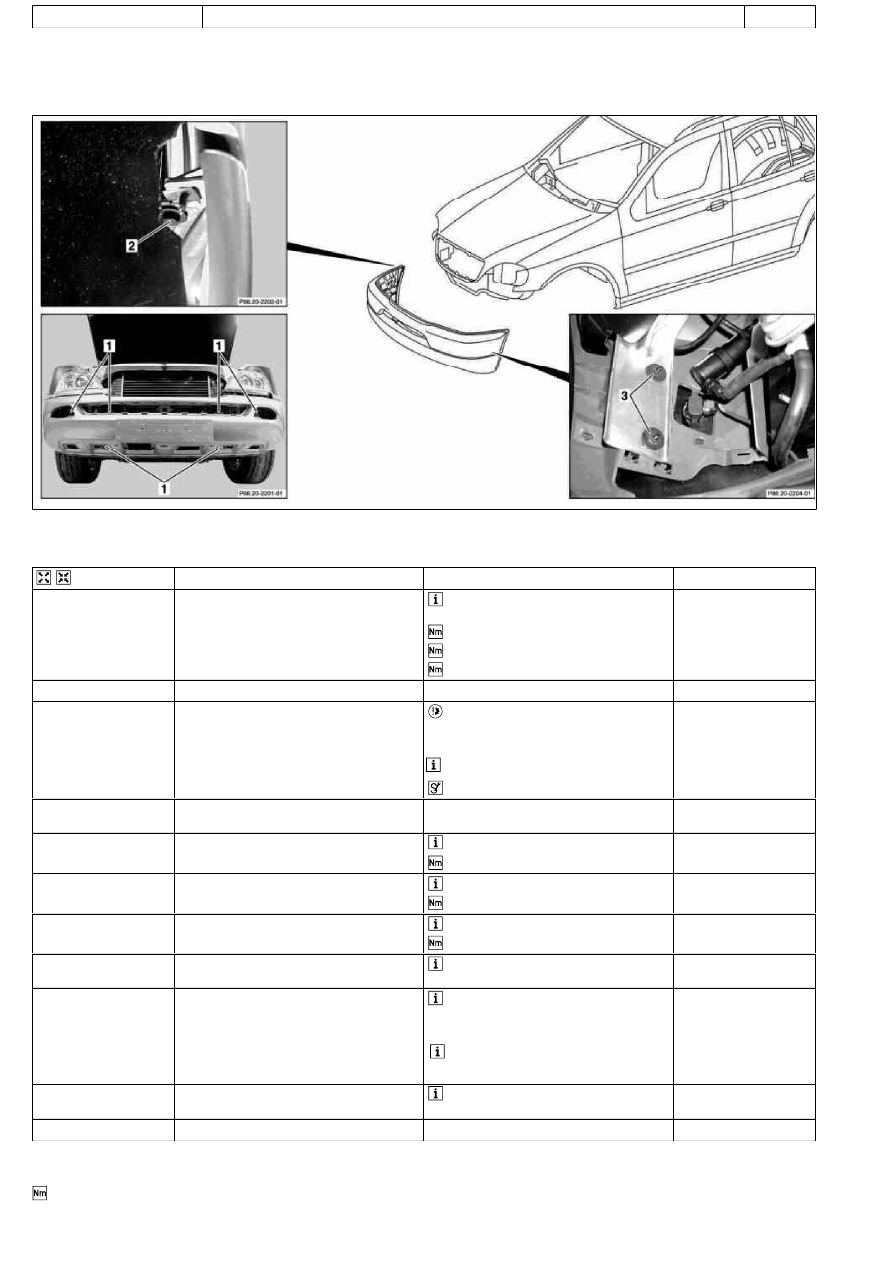

Remove/install front bumper

26.2.01

MODEL

163.113 /154 #A as of 289565,

163.113 #X as of 754620,
163.128 /154 /157 /175 except CODE (U49) Styling package

P88.20-2203-09



Remove/install

1.1

Remove brush guard together with underride
guard

 If installed.

AR88.30-P-2000-01GI



*BA88.30-P-1003-01A



*BA88.30-P-1015-01A



*BA88.30-P-1016-01A

2

Remove fog lamps

AR82.10-P-5103GI

3

Remove front bumper grille.

 Carefully remove bumper grille so that

bumper grille and mounts cannot be damaged.

 Remove with correspondingly formed hook.

 Pulling hook

*140589023300

4

Remove outdoor temperature sensor from
bumper.

5

Unscrew screws (1)



At front side of bumper.



*BA88.20-P-1009-01B

6

Unscrew bolt (2)

 At inner bumper corners.



*BA88.20-P-1002-01B

7

Unscrew nuts (3).

 At inner sides of bumper.



*BA88.20-P-1001-01B

8

Loosen side mount on bumper from body.

 Loosen only one side. Move mount

toward inside.

9

Remove bumper toward front.

 Do not damage paint. Do not damage

Parktronic connection cable if present.



Installation: Observe correct installation

position of fog lamps.

10.1

Disconnect connector from Parktronic system



Only with Parktronic system (PTS), code

220a.

11

Install in the reverse order



Detachable body components, underride guard

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
