Mercedes-Benz ML320. Service manual - part 346





AR68.20-P-2220GI

Remove/install rear beverage holder

9.5.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

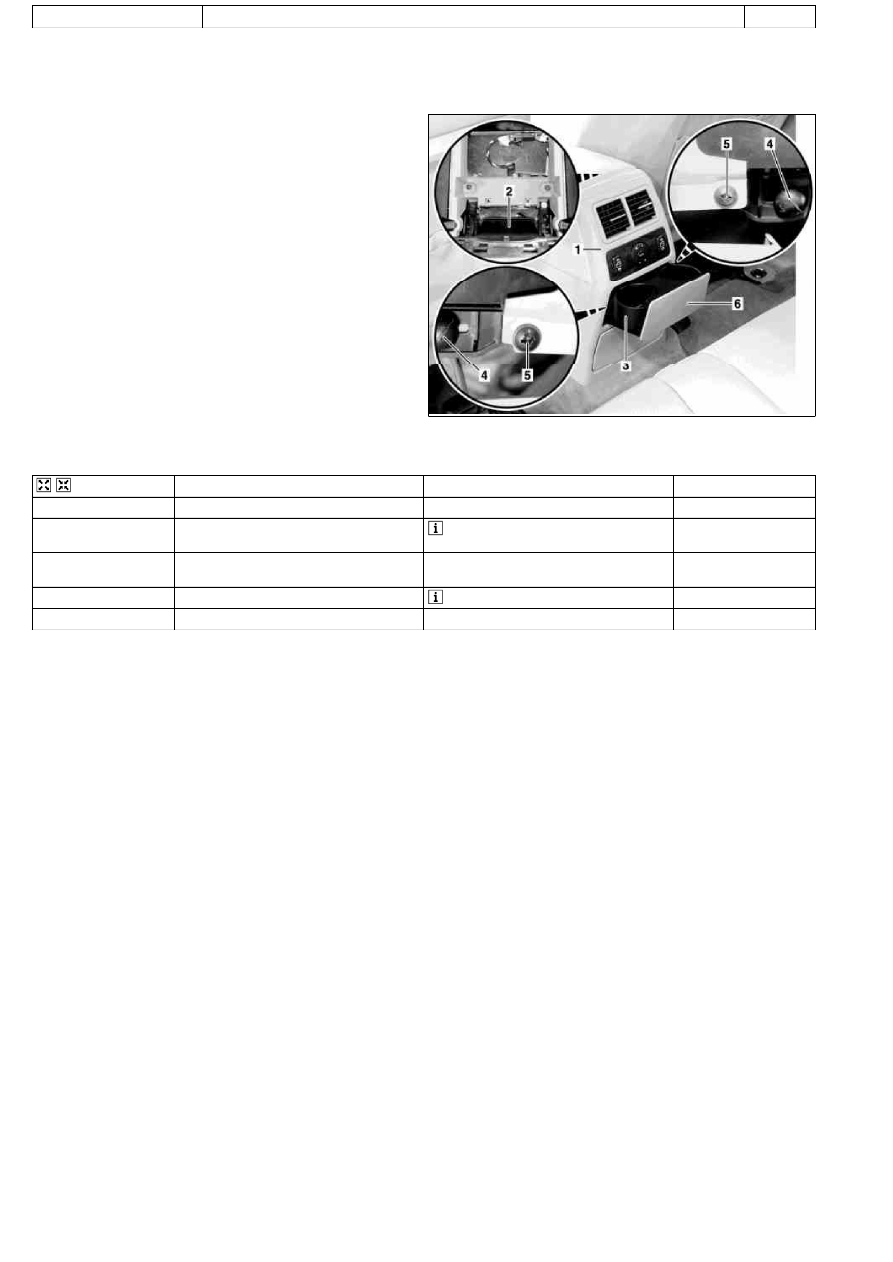

P68.20-2497-11

1

Rear center console.

2

Air nozzle

3

Beverage holder

4

Ball joint

5

Bolts

6

Paneling



Remove/install

1

Remove rear center console (1)

AR68.20-P-2020GI

2

Separate air nozzle (2) from beverage holder
(3)

 Loosen ball joint (4) from bottom of

beverage holder.

3

Unscrew bolts (5) from sides of beverage
holder

4

Remove beverage holder (3)

 Press onto paneling (6).

5

Install in the reverse order

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.20-P-2210GH

Remove/install rear center console switch module

25.5.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

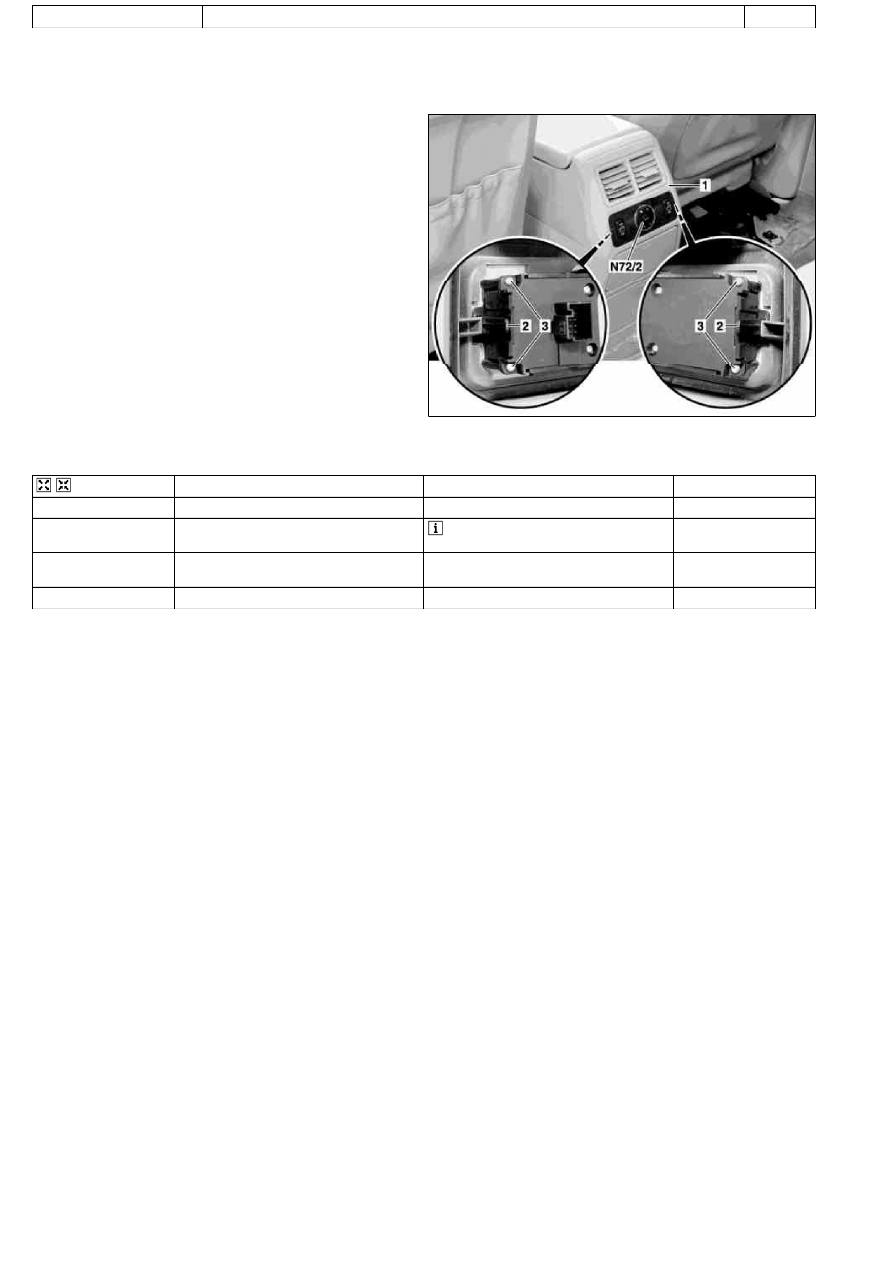

P68.20-2495-11

1

Rear center console.

2

Retaining clamps

3

Bolts

N72/2

RCP [HBF] control module



Remove/install

1

Remove rear center console (1)

AR68.20-P-2020GI

2

Remove retaining clamps RCP control
module (N72/2) from rear center console (1)

 Press retaining clamps (2) toward inside.

3

Unscrew bolts (3) on RCP control module
(N72/2) from cover

4

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.20-P-2020GI

Remove/install rear center console

18.5.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

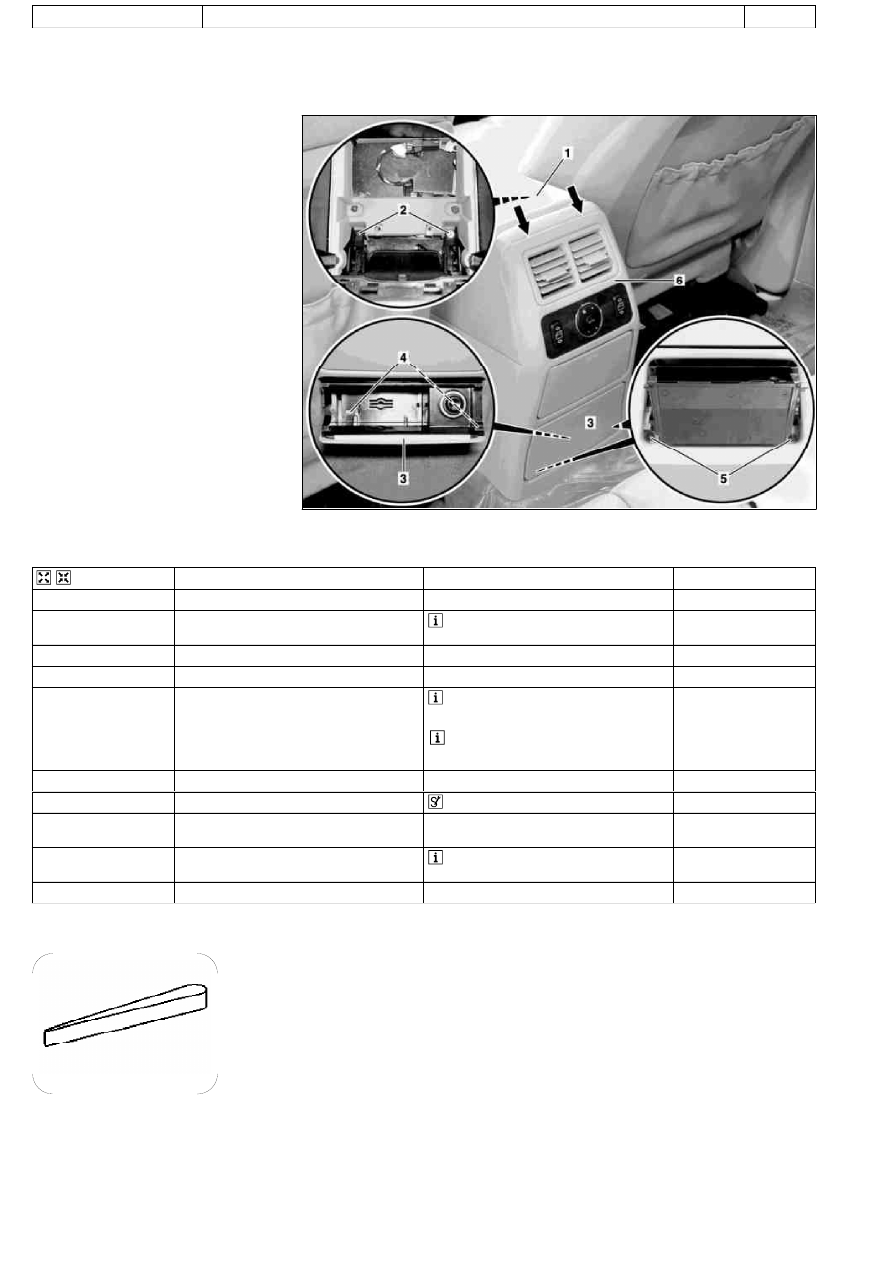

P68.20-2493-06

1

Armrest cover

2

Bolts

3

Ashtray paneling

4

Clips

5

Bolts

6

Rear section of center console



Remove/install

1

Remove armrest lid (1)

AR68.20-P-2370GH

2

Remove stowage box on center console

 Press center pin approx. 4 mm down,

then remove rivet upward

3

Remove bolts (2) from beverage holder

4

Remove ashtray inner section

5

Remove ashtray paneling (3)

 Danger of breaking clips (4).

 Loosen clips (4) and pull bottom edge of

cover toward rear and remove upward

6

Remove bolts (5)

7

Unclip rear center console (6) at top (arrows).

 Long wedge

*115589035900

8

Remove rear center console (6) from center
console

9

Disconnect connector from rear control panel
control module and ashtray

 Disconnect connector for rear ashtray

from ashtray housing

10

Install in the reverse order

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR72.29-P-0001GI

Remove/install switch group on center console

23.4.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

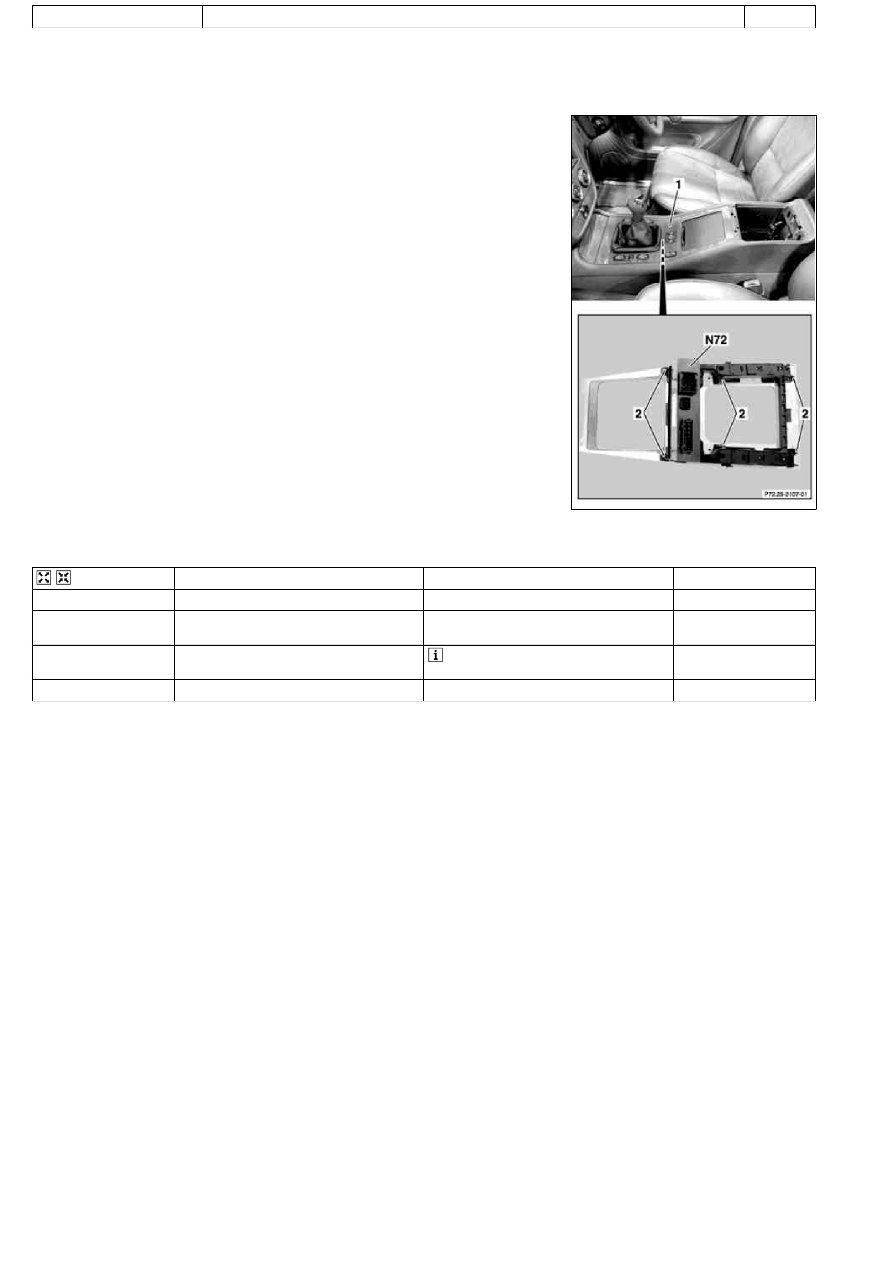

1

Cover

2

Bolts

N72 Lower control field control module

P72.29-2108-03



Remove/install

1

Remove cover (1) on gearshift lever

AR68.20-P-2310GI

2

Remove screws (2) at the lower side of the
lower control panel control module (N72)

3

Detach lower control panel control module
(N72) from the cover

 The lower control panel control module

can only be replaced as a unit.

4

Install in the reverse order

Copyright DaimlerChrysler AG  10.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
