Mercedes-Benz ML320. Service manual - part 321





 Seat belts/emergency tensioning retractors

Parts ordering notes

RETROFITTING TELEPHONE CONSOLE - AZ82.70-P-0001-01A

compartment cover and
unscrew the bolt in the
bracket

8

Remove cover for the CD
changer and unscrew bolt
behind the cover in the
top left corner







Install





9

Retrofitting D2B wiring
harness for CD changer

 Risk of fracture! Do

not kink or stretch the
D2B fiber optic cable.

 Install caps on fiber

optic cable connector and
equipment connection.

AZ82.64-P-0001-01MA



Cover fiber optic cable



AR82.95-P-0005-01A

10

Retrofit CD changer in
trunk



AZ82.64-P-0001-05MA

11

Complete vehicle
(following steps 8 to 1)





12

Carry out start-up and
function test

 Code CD changer to

vehicle with STAR
DIAGNOSIS.



Number

Designation

Model 210 up to
08/99

Model 163 as of
09/99

BA91.40-P-1001-
01D

Belt end fitting
screw

NM 35

35

Part no.

Designation

Quantity

KG82 Group 82 (see EPC)

CD changer

1

KG82 Group 82 (see EPC)

Wiring harness, fiber optic cable

1

KG82 Group 82 (see EPC)

Holder for CD changer

1

KG54 (see EPC)

Contact spring

1

KG82 Group 82 (see EPC)

Coupling, 10-pin

1

KG82 Group 82 (see EPC)

Plug (radio)

1

KG82 Group 82 (see EPC)

Plug (CD changer)

1

KG82 Group 82 (see EPC)

Protective cap

2

KG82 Group 82 (see EPC)

Clip fastener for screw plug

1

KG82 Group 82 (see EPC)

Clip fastener for bracket

2



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Model 163 up to 31.8.00 for Nokia 3110 portable CTEL

1. Place assembly plate (10) onto telephone console (12) as shown in figure and align to size: a=20 mm and

b=55 mm. Mark hole pattern and drill with 2.5 dia. bit.

2. Attach assembly plate (10) to telephone console (12) with screws (11).

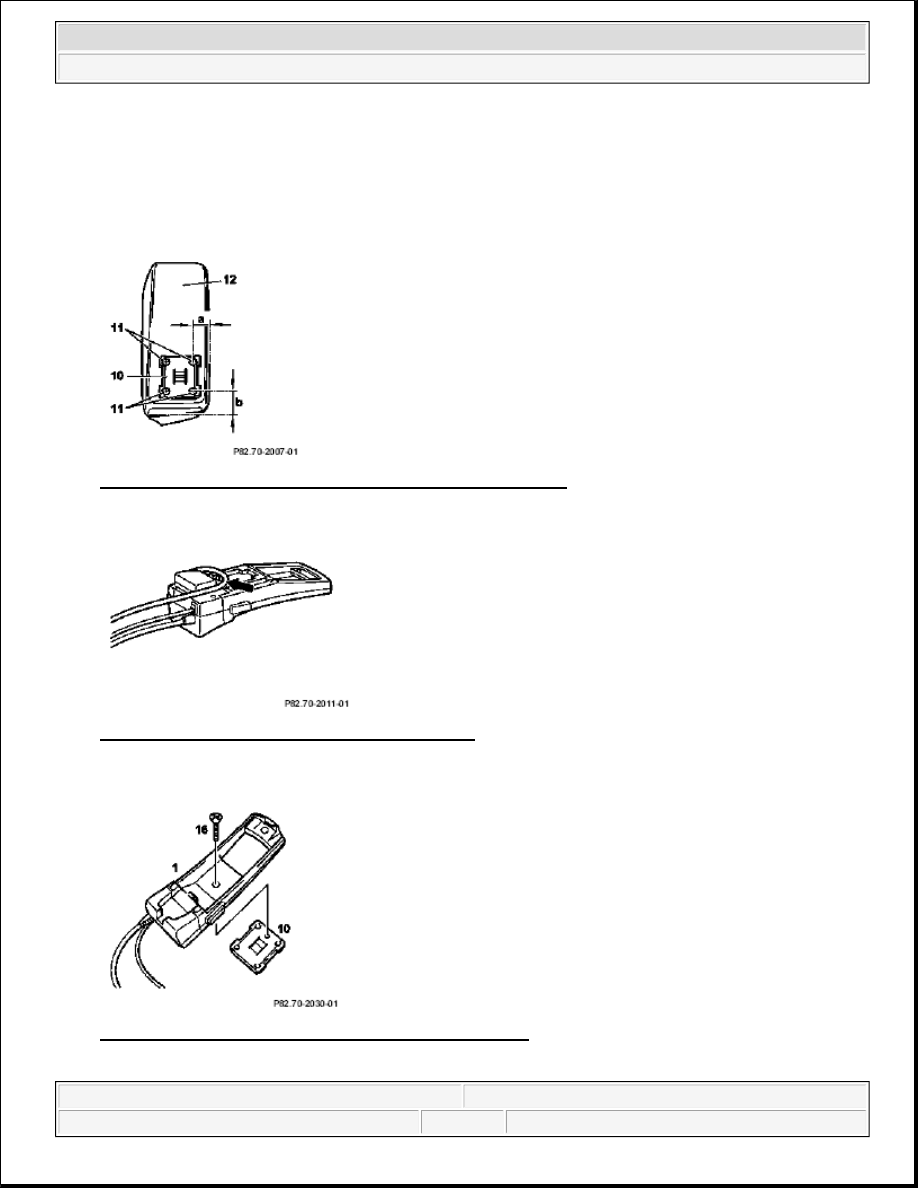

Fig. 349: Identifying Telephone Console And Assembly Plate

3. Plug connection cable into mount and route to the rear in a curve (arrow) as shown in figure.

Fig. 350: Plugging Connection Cable Into Mount

4. Fasten mount (1) to assembly plate (10) with locating screw (16).

Fig. 351: Identifying Fasten Mount And Assembly Plate

5. Install holder (1) on telephone console (12) and stick the antenna lead (17) as well as the connection cable



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



(2) into the console with felt (arrows).

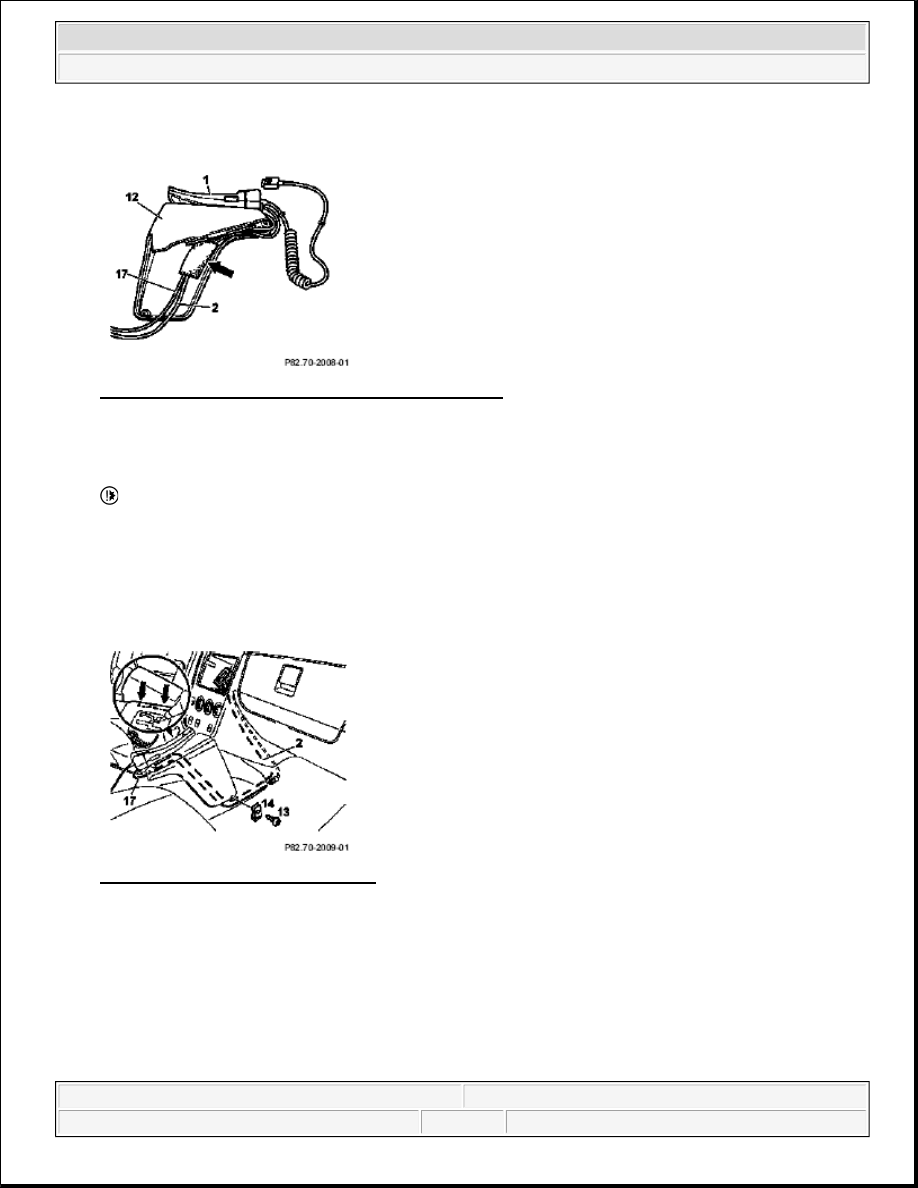

Fig. 352: Identifying Holder And Telephone Console

6. Push telephone console below wood trim cover (arrows) and press against right tunnel wall.

7. Mark hole for screw (13) and drill with Ø 5 mm.

 When drilling pull tunnel wall outward slightly so that parts behind cannot be damaged.

8. Install clip nut (14) on tunnel wall and install screw (13).

9. Connect antenna cable (17) to vehicle antenna cable.

10. Push connection cable (2) and antenna cable (17) below tunnel wall, route along existing wiring to radio

slot and stick the connector of the antenna cable tight with felt.

Fig. 353: Pushing Connection Cable

RETROFITTING TELEPHONE CONSOLE - AZ82.70-P-0001-01C

Model 163 as of 1.12.99 up to 31.8.00 for Nokia 6090 fixed installation CTEL

1. Remove cover (1 a) from telephone handset mount (1).

2. Insert assembly plate (10) below into mount (1).



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



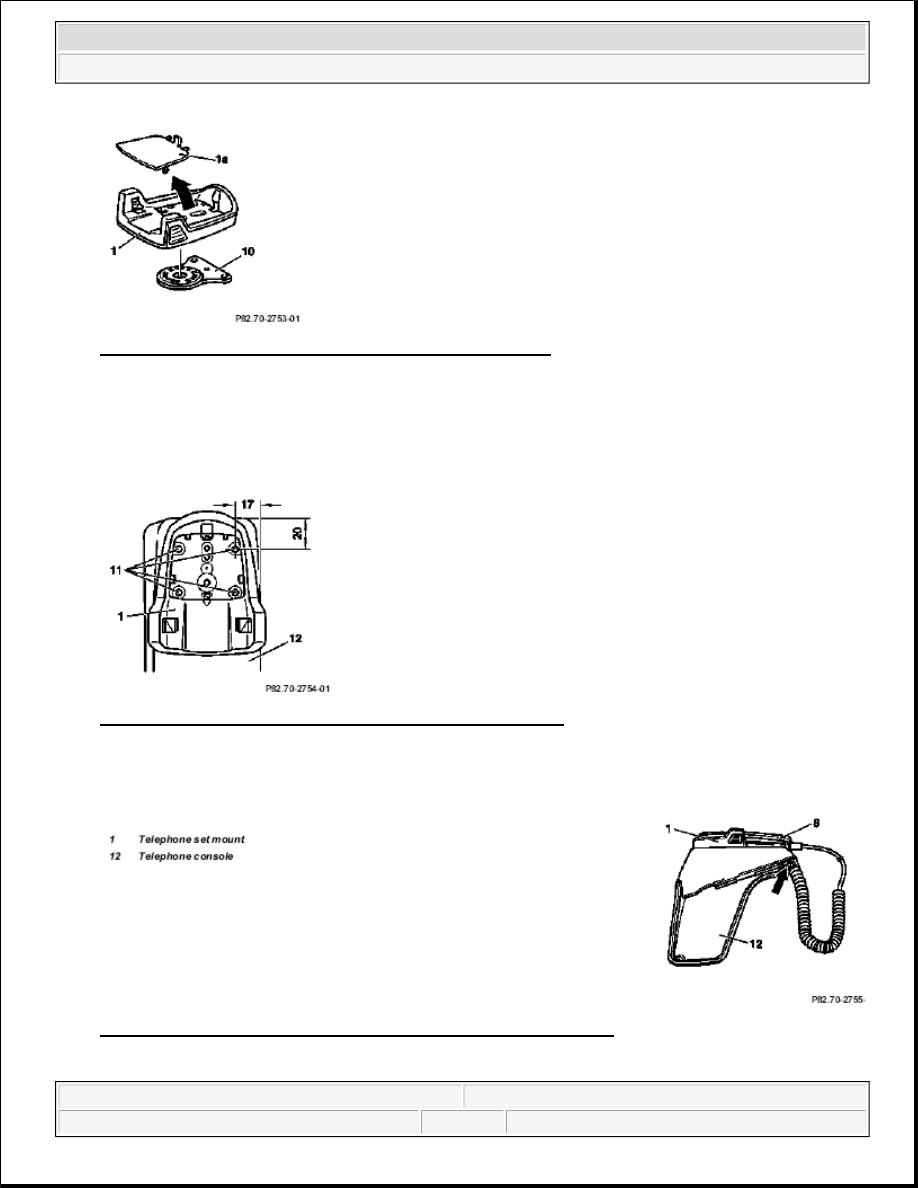

Fig. 354: Identifying Cover For Telephone Handset Mount

3. Place mount (1) onto telephone console (12) as shown in figure and align. Mark hole pattern and drill

with 2.5 dia. bit.

4. Attach mount (1) to telephone console (12) with screws (11).

5. Insert cover (1a) again.

Fig. 355: Identifying Mount, Telephone Console And Screws

6. Install telephone handset (8), insert spiral cable as shown in figure with the fifth spiral into the opening of

the telephone console and fix in place with adhesive felt (arrow).

Fig. 356: Identifying Telephone Console And Telephone Set Mount

7. Insert plug connection of telephone wiring harness (2) into bottom part of housing as shown in figure and



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
