Mercedes-Benz ML320. Service manual - part 320





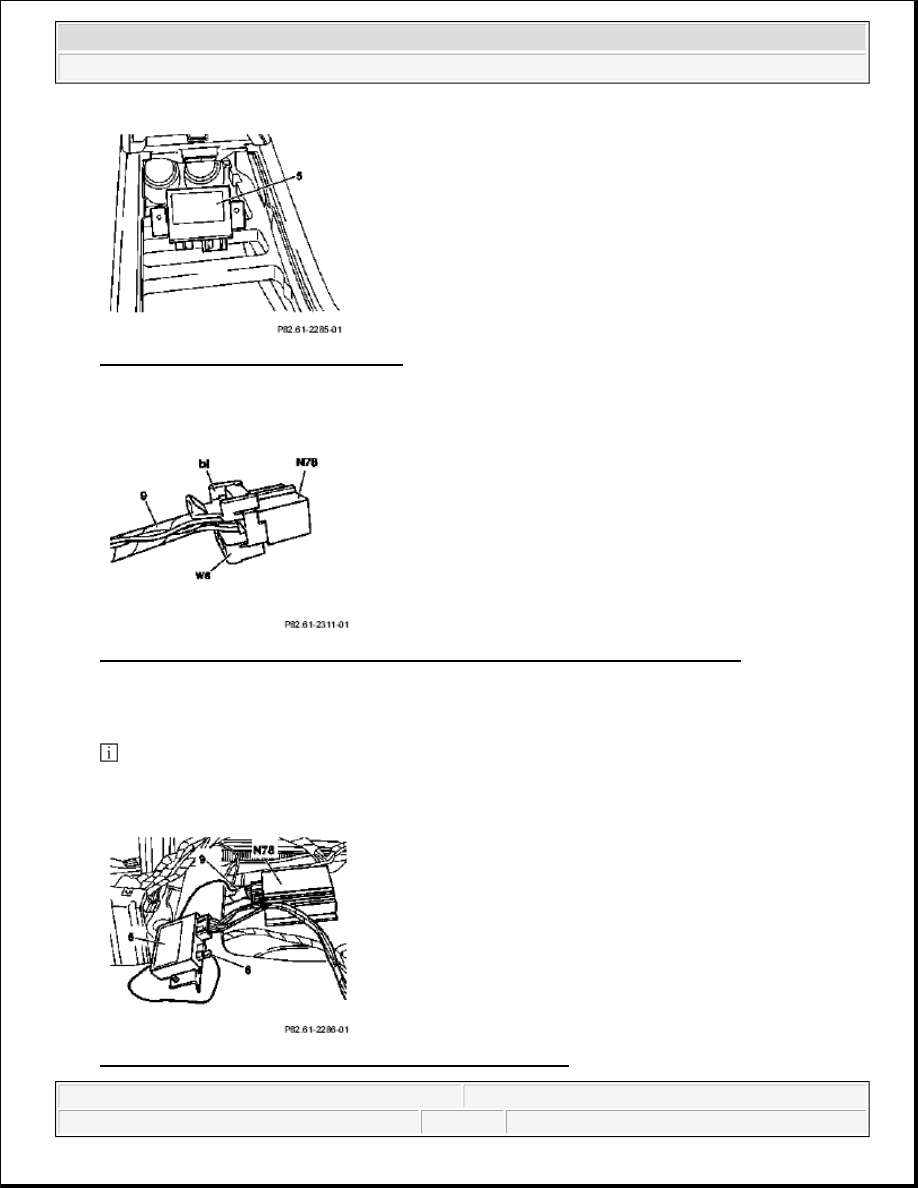

Fig. 344: Identifying CAN Bus Adapter

11. Install white (ws) and blue (bl) fuse on connector for transfer case control module (N78) from CAN bus

wiring harness (9) as shown in figure.

Fig. 345: Identifying Transfer Case Control Module And CAN Bus Wiring Harness

12. Disconnect connector from transfer case control module (N78) and connect CAN bus wiring harness (9)

between transfer case control module (N78) and standard wiring harness.

 Illustrated without center console

13. Connect CAN connector (6) from CAN bus wiring harness (9) to CAN bus adapter (5).

Fig. 346: Identifying CAN Bus Adapter And CAN Connector



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFITTING TRAFFIC PRO NAVIGATION SYSTEM - AZ82.61-P-0002H

MODEL 163 up to 30.6.00

except CODE (810) Sound system

except CODE (819) 6-disk CD changer

except CODE (316) MB GSM cellular telephone (D2B)

except CODE (317) GSM portable cellular telephone (D2B)

System illustration with telephone and GPS roof antenna

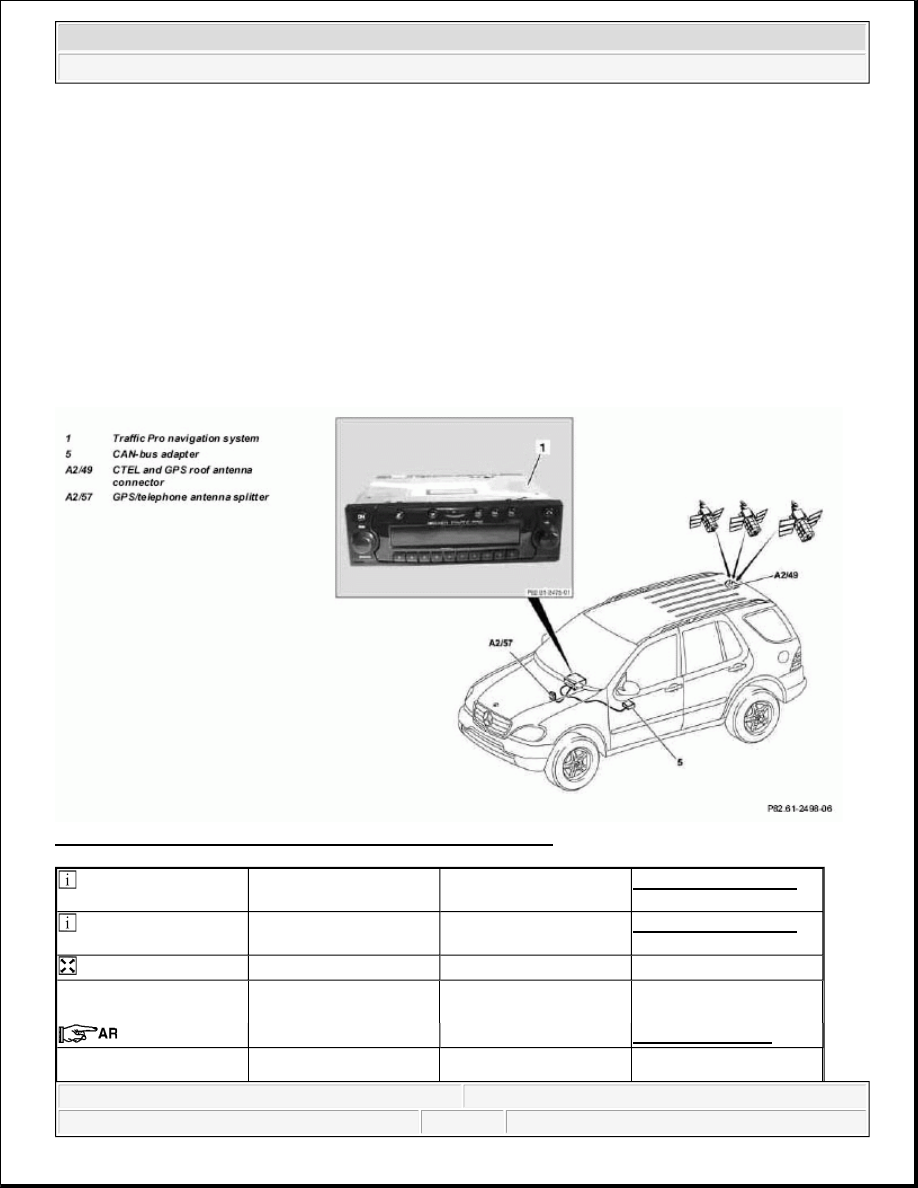

Fig. 347: Identifying Traffic Pro Navigation System Components



See notes on radio
connector pin assignment

Models 163.

AH82.61-P-0001-05A



Notes on Traffic Pro
navigation system

Models 129, 140, 163,
168, 170, 202, 208, 210.

AH82.61-P-0002-01A



Removal





1

Disconnect ground cable
of battery











AR54.10-P-0003A

2

Remove radio







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Parts ordering notes

RETROFITTING CD CHANGER - AZ82.64-P-0001MA

MODEL 163 as of 1.7.99

in combination with Audio 10, Audio 30 radio or COMAND operating and display system and D2B fiber
optical cable








AR82.60-P-7502EA

3

Remove center console











AR68.20-P-2000GH



Install





4

Retrofit global
positioning system (GPS)
antenna on roof

 for vehicles with

engine 111 or to 9.99

AN82.61-P-7474-04AZ

5

Retrofit Traffic Pro
wiring harness

Vehicles with automatic
transmission.

AZ82.61-P-0002-01H





Vehicles with manual
transmission.

AZ82.61-P-0002-01HH

6

Fit remaining parts to
vehicle 3-1





7

Enable radio code

 See operating

instructions.



8

Start up Auto-Pilot-
System

 See operating

instructions from Becker
company



Part no.

Designation

Quantity

B6 782 30 24

Traffic Pro navigation system
parts kit

1

Group 82 (see EPC)

CTEL and GPS antenna

1

Group 82 (see EPC)

Antenna lead from splitter to radio 1

Group 82 (see EPC)

Adapter wiring harness (without
sound system) (vehicles with
engine 111 or up to 9.99)

1

Group 82 (see EPC)

CAN bus wiring harness (vehicles
with engine 111 or up to 9.99)

1

Group 82 (see EPC)

CAN bus adapter (vehicles with
engine 111 or up to 9.99)

1

A011 545 80 26

Contact spring (radio)

2

Commercially available

Green lead 0.5 mm

2



2m

Group 82 (see EPC)

Antenna splitter

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



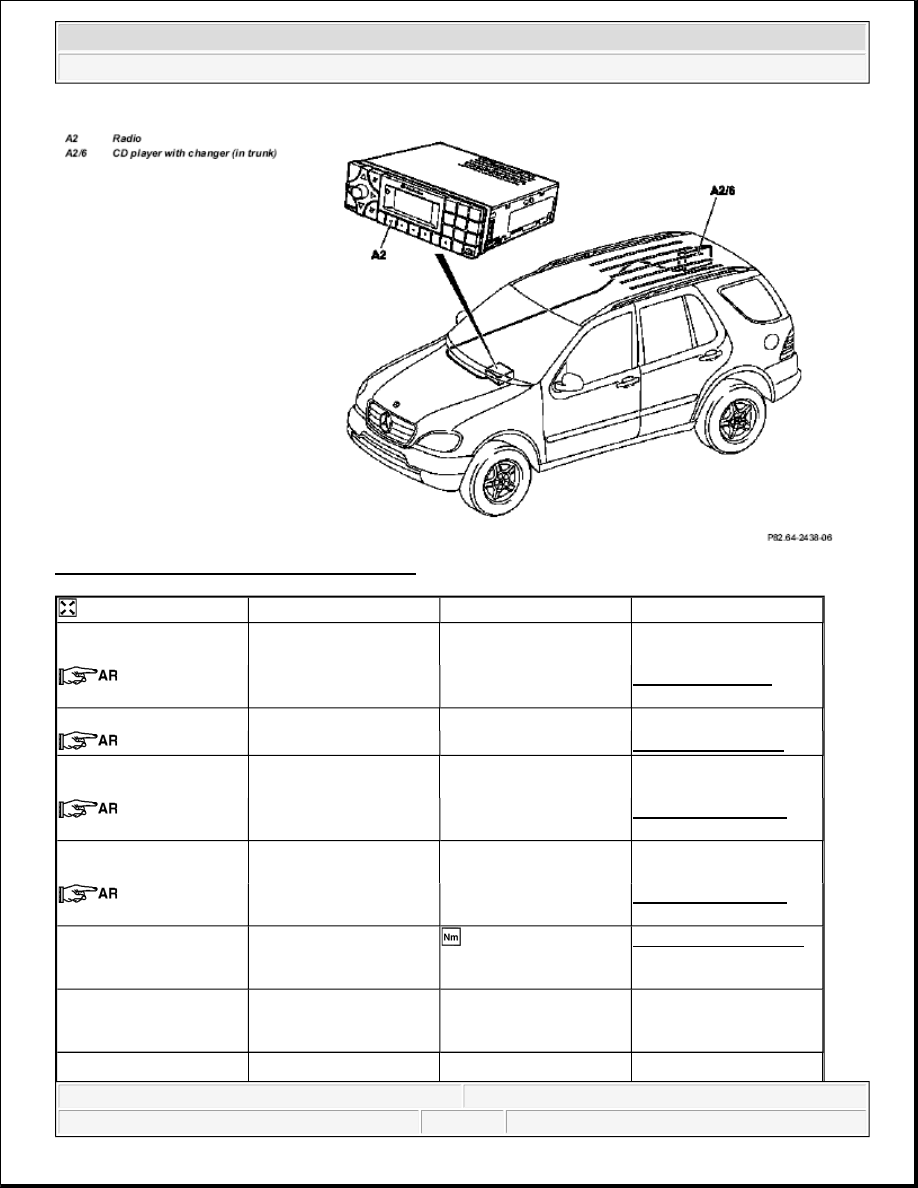

Fig. 348: Identifying CD Changer Components



Remove





1

Disconnect ground cable
of battery







Disconnect ground lead
from battery



AR54.10-P-0003A

2

Remove radio







Remove/install radio



AR82.60-P-7502EA

3

Remove right side
paneling in footwell







Remove/install paneling
in footwell



AR68.30-P-4010GH

4

Remove right-hand side
entrance strip







Remove/install door sill
molding



AR68.30-P-4100GH

5

Unscrew the bolt for the
outer rear seat belt on the
right side



*BA91.40-P-1001-01D

6

Remove the front load
compartment hooks on
the right C-pillar





7

Remove load







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
