Mercedes-Benz ML320. Service manual - part 318





with multifunction
button below (*)





 The unit switches

automatically to service
mode

Voice T *

8

GAL test

Press automatic button
(A) repeatedly until
GAL TEST appears

GAL TEST *





Confirm GAL TEST
with multifunction
button below (*)

0 R1





 The display means:

Vehicle standing still.
The number following
R means:
Direction of motion
1 = forward, 2 =
backward







Drive vehicle forwards
while keeping track of
numbers

e. g. 1220 R1





Drive vehicle
backwards while
keeping track of
numbers

e. g. 890 R2





Press multifunction
button (<--)

GAL TEST *

9

Initialize GPS

Press automatic button
(A) repeatedly until
GPS INIT appears

GPS INIT *





Conform GPS INIT
with multifunction
button below (*)

Enter LOCATION.....





Enter the closest
digitalized town with
population of more than
50,000 with the
multifunction keys

Esslingen





A number in front of

the location indicates
that there are several
locations with the same
name

1 Esslingen/Bittburg

2 Esslingen am Neckar





Press repeatedly to
reach the right location

2 Esslingen am Neckar



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



with the automatic
button (A) (allow
running letters to run
until they finish)





Press multifunction
button below (*)

Enter street name.....





Enter closest digitalized
street name or
CENTER or TRAIN
STATION
 with the
multifunction buttons

Train station





A number in front of

the street indicates that
there are several streets
with the same name







Press automatic button
(A) repeatedly until the
right street name
appears (allow running
letters to run until they
finish)







Press multifunction
button below (*) until
message appears. . . .

Please switch off radio and

ignition for 1 minute





 First switch off unit

and then ignition



10

Start engine

 Drive vehicle

outside under free sky



11

Activate service module Press mode button (M)

repeatedly until
NAVIGATE appears

NAVIGATE





Press automatic button
(A) repeatedly until
CONFIG appears

CONFIG 1 2 3 4 5 6 7 8*





Confirm CONFIG with
multifunction key
below (*)

SYSTEM 1 2 3 4 5 6 7 8 *





Confirm SYSTEM
with multifunction
button (GHI) and
(MNO)

MODULE T *





Press automatic button
(A) repeatedly until
GPS TEST appears

GPS TEST *

12

Perform GPS antenna

Confirm GPS TEST

FIX OK



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFITTING TRAFFICSTAR NAVIGATION SYSTEM - AZ82.61-P-0001I

MODEL 163 up to 30.6.99 except CODE (819) 6-disk CD changer in trunk

System illustration

test

with multifunction
button below (*)





 If the test is

erroneous the following
messages can appear:
No GPS: GPS antenna
incorrectly connected
NO FIX: GPS antenna
cannot receive satellites







Press multifunction
button (<--)

GPS TEST *





Press mode button (M)
repeatedly until
NAVIGATE appears

NAVIGATE

13

Calibration drive

 The duration of the

calibration drive is
dependent on the
vehicle model and the
number of times the
direction is changed. It
can be between 30 km
and 100 km and can be
interrupted as long as
desired at any time.

Calibration status not

achieved [0]

14

Calibration status
achieved

When the calibration

status [2] is reached the
unit automatically
requests entry of the
location.

Please enter location.....



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



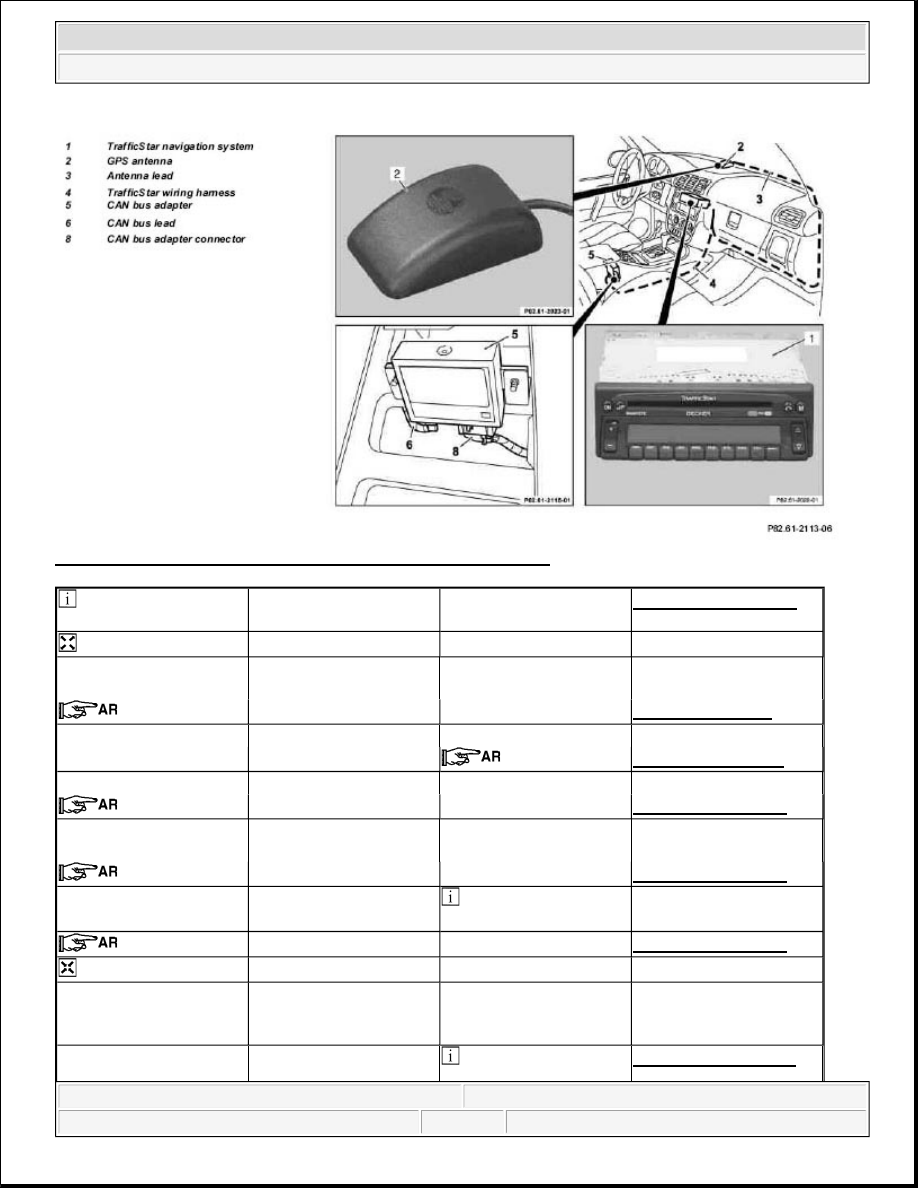

Fig. 336: Identifying Trafficstar Navigation System Components



Notes on TrafficStar
navigation system

Models 129, 140, 163,
168, 170, 202, 208, 210

AH82.61-P-0001-03A



Removal





1

Disconnect ground lead
from battery











AR54.10-P-0003A

2

Remove radio











AR82.60-P-7502EA

3

Remove center console











AR68.20-P-2000GH

4

Remove cover below
right instrument panel











AR68.10-P-1520GH

5

Remove paneling from
A-pillar

 Only in area of

instrument panel









AR68.30-P-4050GH



Installation





6

Retrofit TrafficStar GPS
antenna on instrument
panel



AZ82.61-P-0001-01F

7

Connect TrafficStar radio

 Only on vehicles with  AZ82.61-P-0001-02G
