Mercedes-Benz ML320. Service manual - part 319





Parts ordering notes

RETROFITTING TRAFFIC PRO WIRING HARNESS - AZ82.61-P-0002-01H

Model 163 with transmission 722 up to 30.6.2000

1. Prepare adapter wiring harness (4) as shown in figure.

2. Cut off orange (or) lead for reverse lamp signal (2) at connector (C) and provide with contact spring.

 Connector (C) no longer required after cutting off.

and navigation system

sound system





 Only on vehicles

without sound system

AZ82.61-P-0001-02I

8

Reassemble vehicle, 5-1



9

Carrying out start-up and
function check



AZ82.61-P-0001-04A

Part no.

Designation

Quantity

B6 782 2500

TrafficStar navigation system
parts kit

1

B6 782 2514

TrafficStar navigation system with
precious wood finish, burr walnut
veneer

1

B6 782 2519

CAN bus adapter parts kit

1

B6 782 2595

TrafficStar wiring harness with
sound system

1

B6 782 2594

TrafficStar wiring harness without
sound system

1

B6 782 2596

CAN bus wiring harness

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



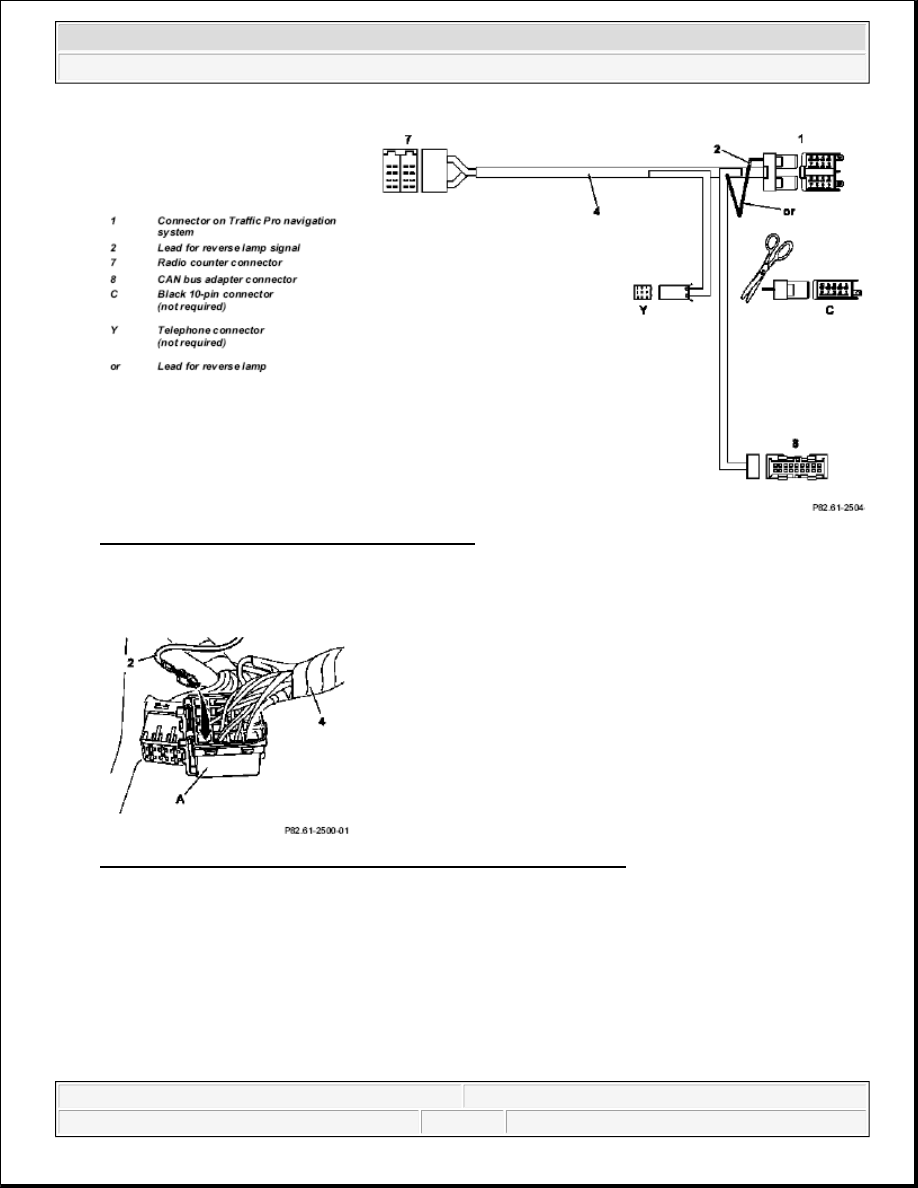

Fig. 337: Identifying Traffic Pro Wiring Harness

3. Insert contact spring of orange lead for reverse lamp signal (2) into radio connector (A) chamber 2 of

adapter wiring harness (4).

Fig. 338: Identifying Radio Connector And Adapter Wiring Harness

4. Route adapter wiring harness (4) in vehicle along existing wires as shown in figure.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



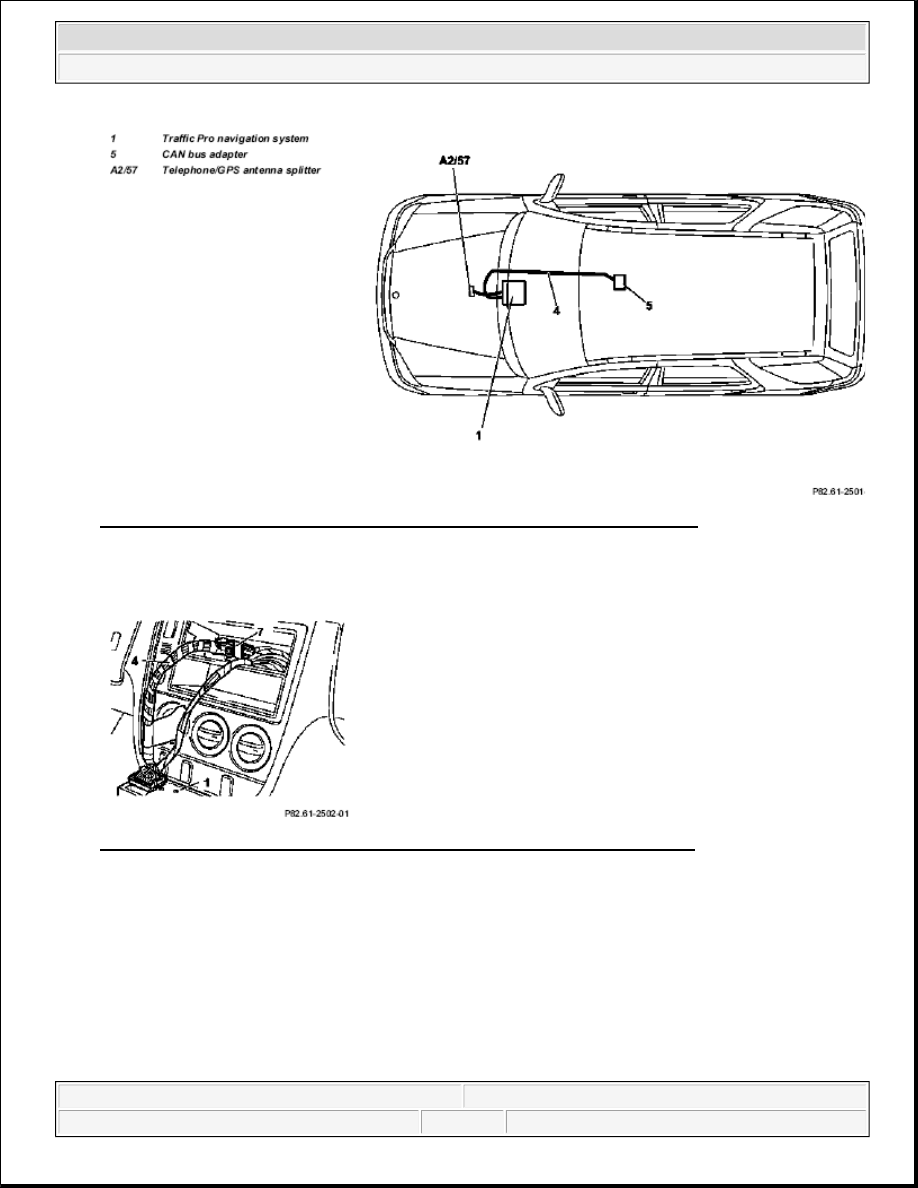

Fig. 339: Identifying Telephone/GPS Antenna Splitter And CAN Bus Adapter

5. Connect adapter wiring harness (4) to radio counter connector (7) on standard wiring harness and Traffic

Pro navigation system (1).

Fig. 340: Identifying Adapter Wiring Harness And Radio Counter Connector

6. Connect antenna extension lead (41) to Traffic Pro navigation system as shown in figure.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



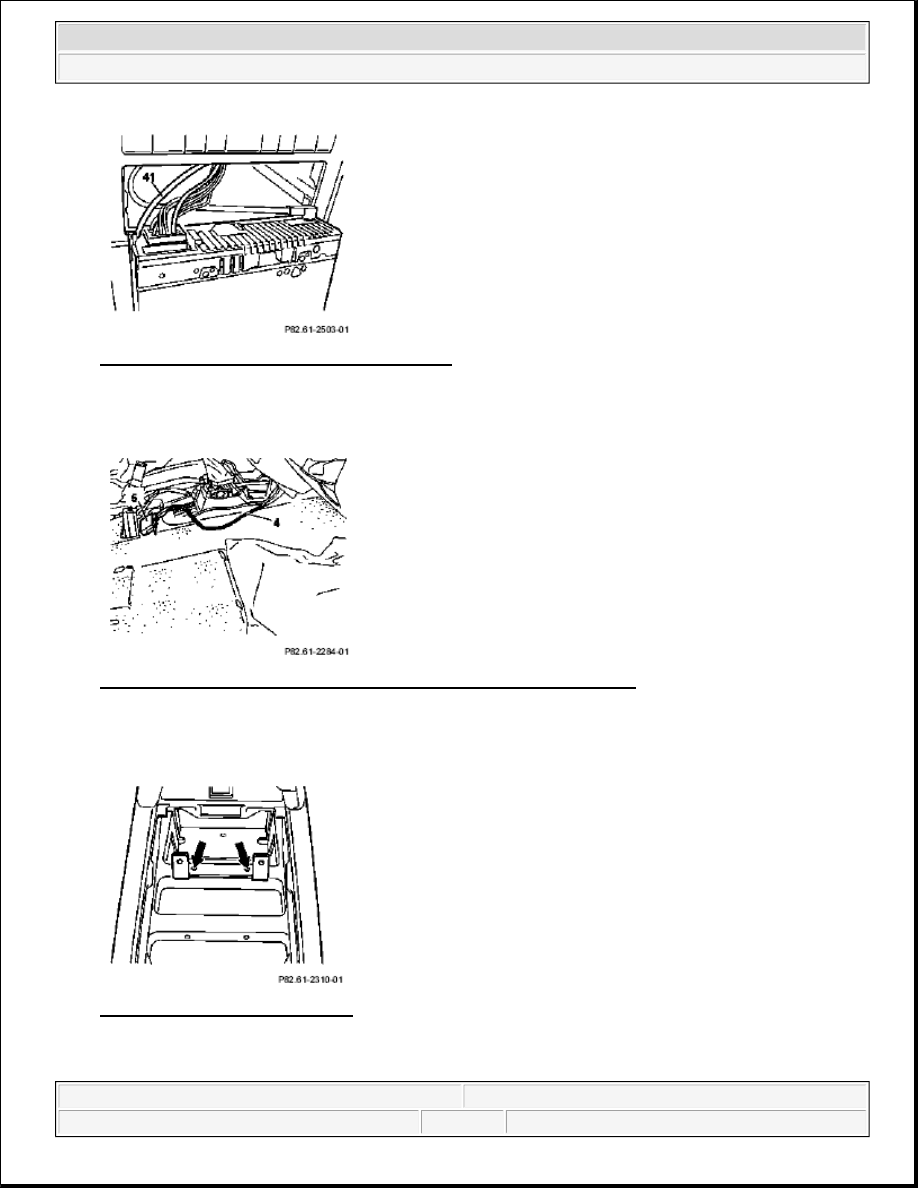

Fig. 341: Identifying Antenna Extension Lead

7. Route tieout to CAN bus adapter (5) from adapter wiring harness (4) as shown in figure toward rear on

middle tunnel.

Fig. 342: Identifying CAN Bus Adapter And Adapter Wiring Harness

8. Position CAN bus adapter mount on center console brace as shown in figure and mark holes (arrows).

9. Drill 6.2 mm dia. mounting holes

Fig. 343: Identifying Mark Holes

10. Fasten CAN bus adapter (5) with self-tapping screws from CAN bus adapter parts kit.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
