Mercedes-Benz ML320. Service manual - part 317





8. Separate green lead (gn) from CAN bus adapter connector (8).

9. Tie TrafficStar (4) wiring harness on at height of shift gate and pull out green lead (gn).

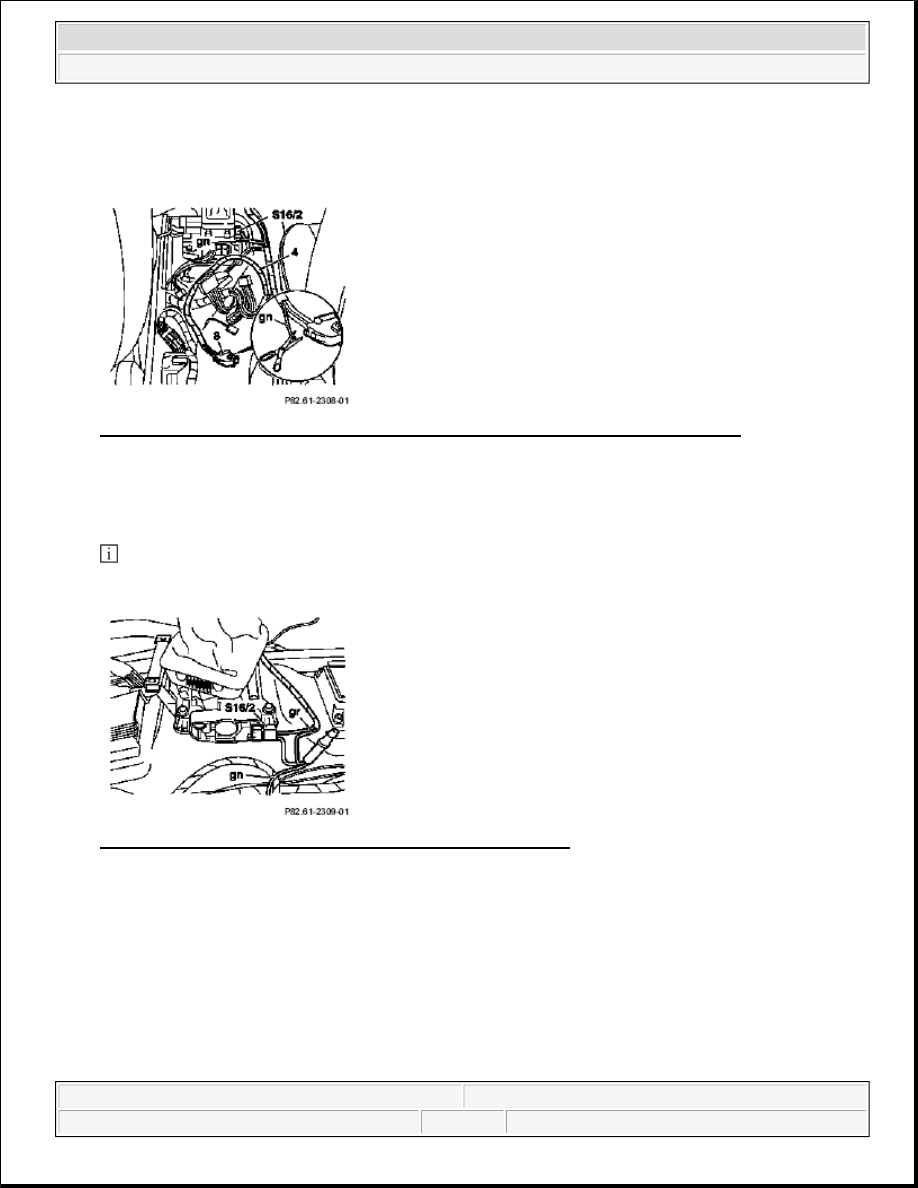

Fig. 329: Identifying CAN Bus Adapter Connector And Trafficstar Wiring Harness

10. Route green lead (gn) to back-up lamp switch (S16/2).

11. Connect lower gray lead (gr) from connector with assignment 2 for back-up lamp switch (S16/2) to green

lead (gn) using solder connector.

 The connector for the back-up lamp switch (S16/2) has two gray leads, the lower of the two leads is

for the switched back-up lamp signal.

Fig. 330: Identifying Back-Up Lamp Switch And Green Lead

12. Connect connector (8) and lead (6) to CAN bus adapter (5).

13. Install center console.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



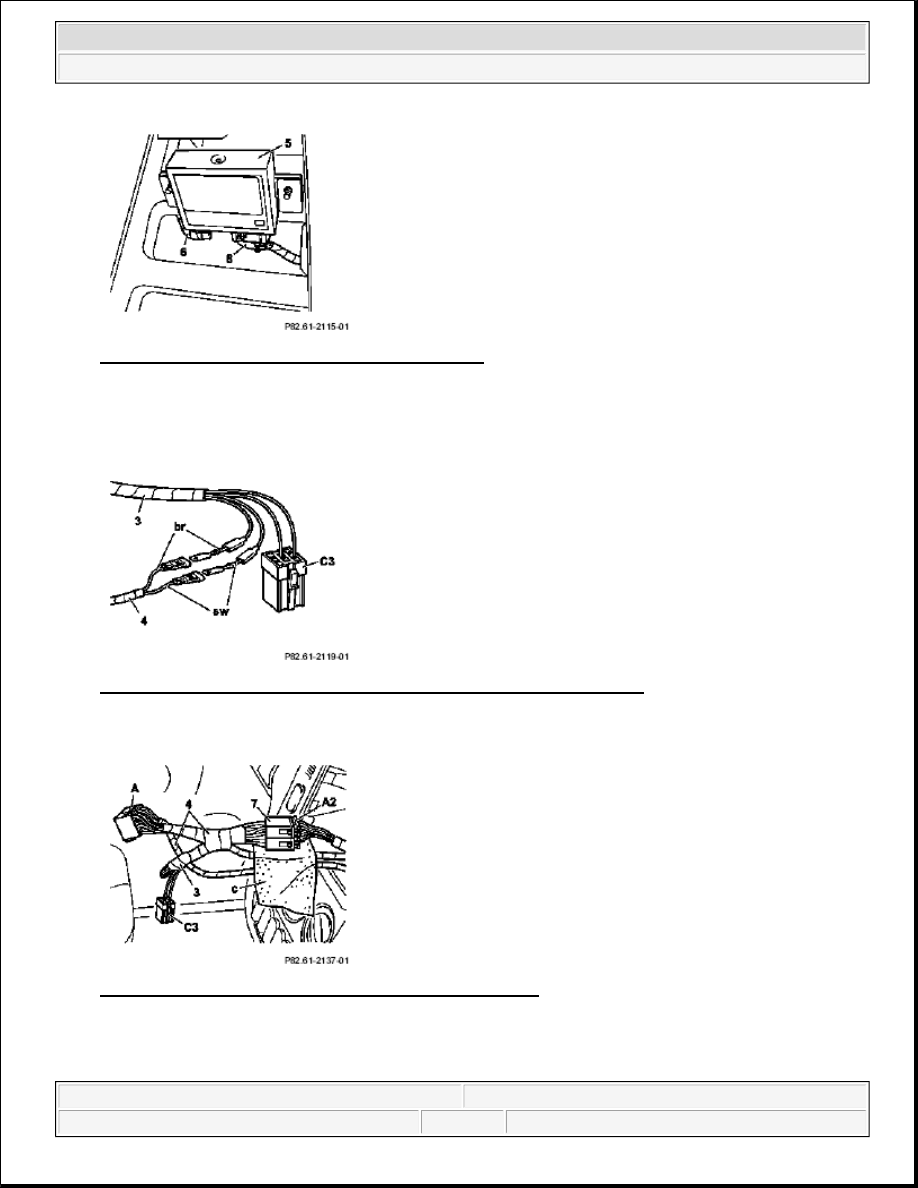

Fig. 331: Identifying CAN Bus Adapter And Lead

14. Connect brown and black wire (br, sw) from GPS antenna lead (3) with brown and black lead (br, sw)

from TrafficStar wiring harness (4) and slide flat plug insulations together.

15. Attach flat plug connectors and GPS antenna lead (3) to TrafficStar wiring harness (4) with felt.

Fig. 332: Identifying GPS Antenna Connector And GPS Antenna Lead

16. Install counter plug (7) from TrafficStar wiring harness (4) to radio connector (A2) and wrap with felt (c).

Fig. 333: Identifying Radio Connector And Counter Plug

17. Connect radio connector (A) and GPS antenna connector (C3) with TrafficStar radio and navigation

system (1).

18. Connect radio antenna.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



19. Install TrafficStar (1) radio and navigation system.

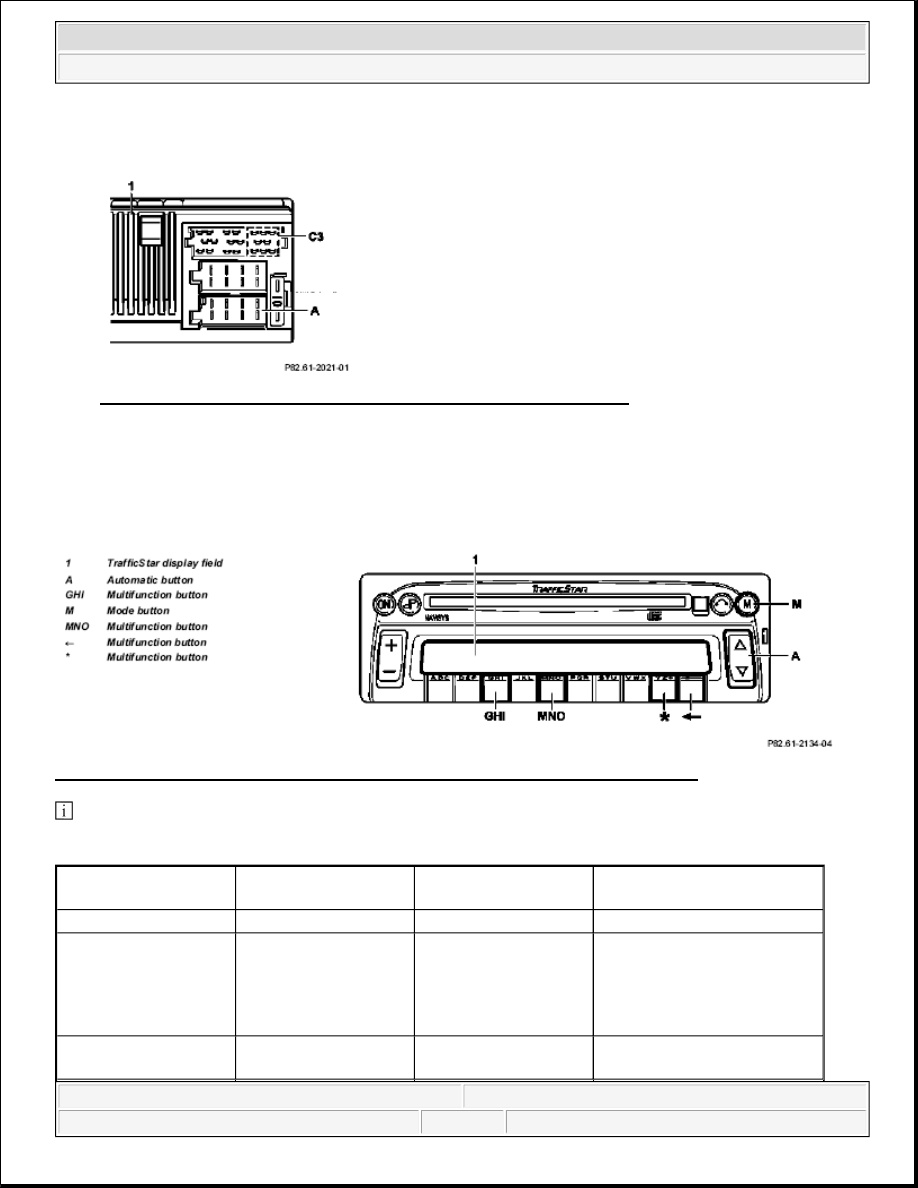

Fig. 334: Identifying GPS Antenna Connector And Sound Connector

CARRYING OUT START-UP AND FUNCTION CHECK - AZ82.61-P-0001-04A

Models 129, 140, 163, 168, 170, 202, 208, 210

System description

Fig. 335: Identifying Trafficstar Display Field, Automatic Button And Mode Button

 Step 5 for initial start-up only applies for equipment which has already been installed in a vehicle and on

which initial calibration has been performed.



Start-up step

Entry with TrafficStar
keys

Feedback on TrafficStar

display field

1

Start engine





2

Switch on TrafficStar

Enter code (see CODE
card) with
multifunction buttons
below the numbers on
the display field.

CODE 1 2 3 4 5 6 7 8

3

Insert navigation CD
into TrafficStar

Loading time approx. 1
min.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



4

Activate service mode

Press mode button (M)
repeatedly until
NAVIGATE appears

NAVIGATE





Press automatic button
(A) repeatedly until
CONFIG appears

CONFIG 1 2 3 4 5 6 7 8*





Confirm CONFIG with
multifunction button
below (*)

SYSTEM 1 2 3 4 5 6 7 8*





Confirm SYSTEM
with multifunction
button (GHI) and
(MNO)

MODULE *

5

Erase initial calibration

 Applies only when

initial calibration has
been performed on the
unit








Press automatic button
(A) repeatedly until
NEW CAL appears

NEW CAL *





Confirm NEW CAL
with multifunction
button below (*)

CAUTION CALIBRATION

WILL BE ERASED





Hold multifunction
button below (*)
depressed until the
following message
appears

 Initial calibration is

then erased and the
unit can be
recalibrated.


CALIBRATION ERASED





Press multifunction
button (<--)

NEW CAL *





Press automatic button
(A) repeatedly until
MODUL T appears

MODULE T *

6

Perform module test

Confirm MODUL T
with multifunction
button below (*) Press
multifunction button (<-
-)

MODULE OK

MODULE T *

7

Perform voice test

Press automatic button
(A) repeatedly until
VOICE T appears

VOICE T *





Confirm VOICE T

Voice output
