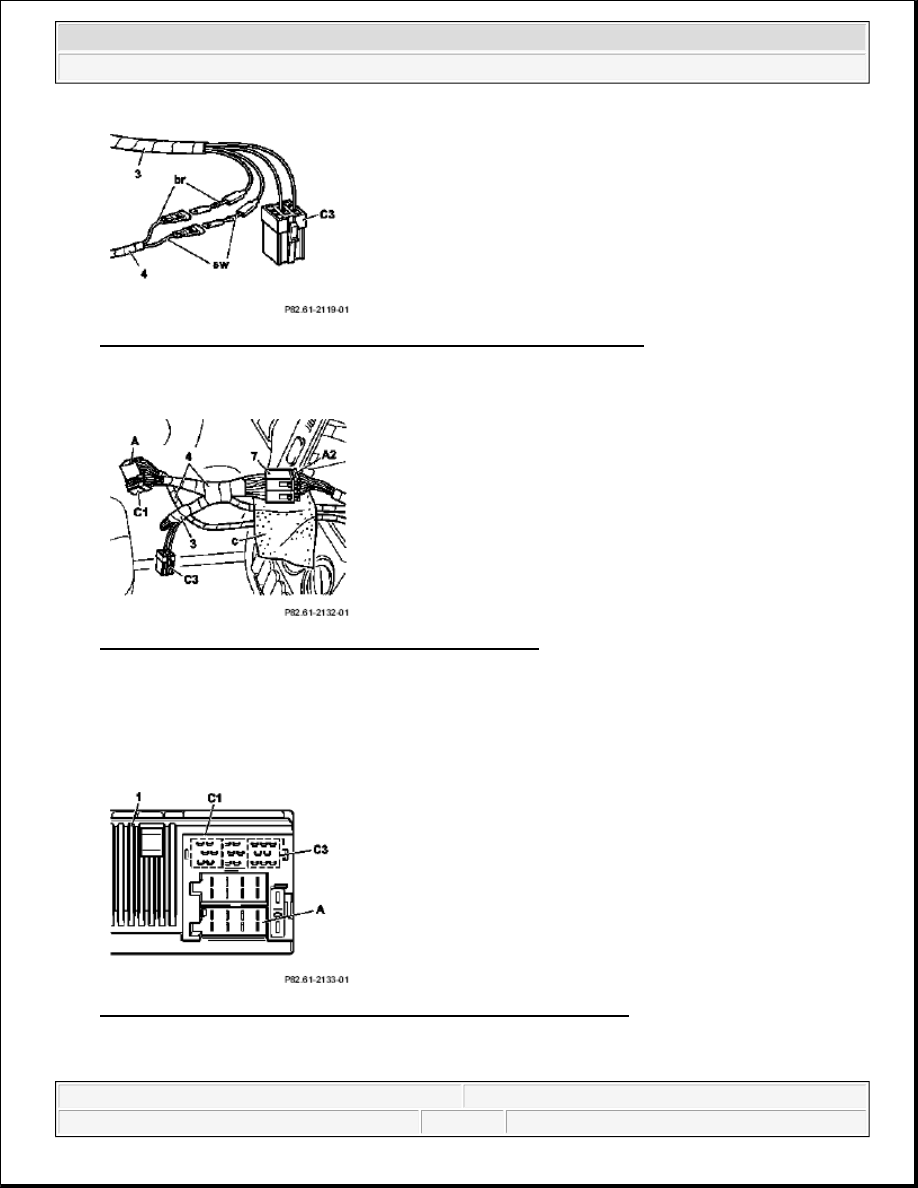

Fig. 320: Identifying GPS Antenna Connector And GPS Antenna Lead

16. Install counter plug (7) from TrafficStar wiring harness (4) to radio connector (A2) and wrap with felt (c).

Fig. 321: Identifying Radio Connector And Counter Plug

17. Plug radio connector (A) and yellow sound connector (C1) as well as blue GPS antenna connector (C3)

from TrafficStar wiring harness (4) into TrafficStar radio and navigation system (1).

18. Connect radio antenna.

19. Install TrafficStar (1) radio and navigation system.

Fig. 322: Identifying GPS Antenna Connector And Sound Connector

RETROFITTING TRAFFICSTAR RADIO AND NAVIGATION SYSTEM - AZ82.61-P-0001-02I



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Model 163

System illustration

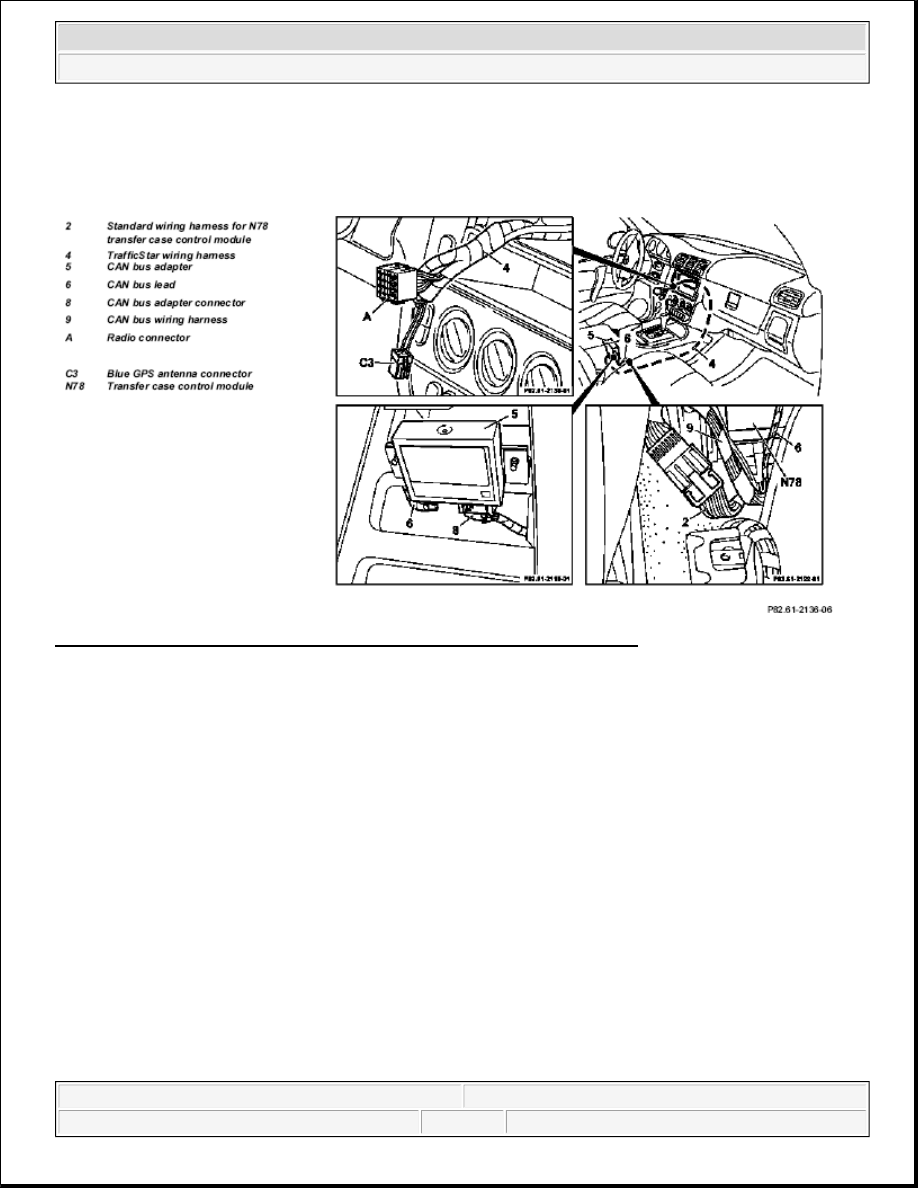

Fig. 323: Identifying Trafficstar Radio And Navigation System Components

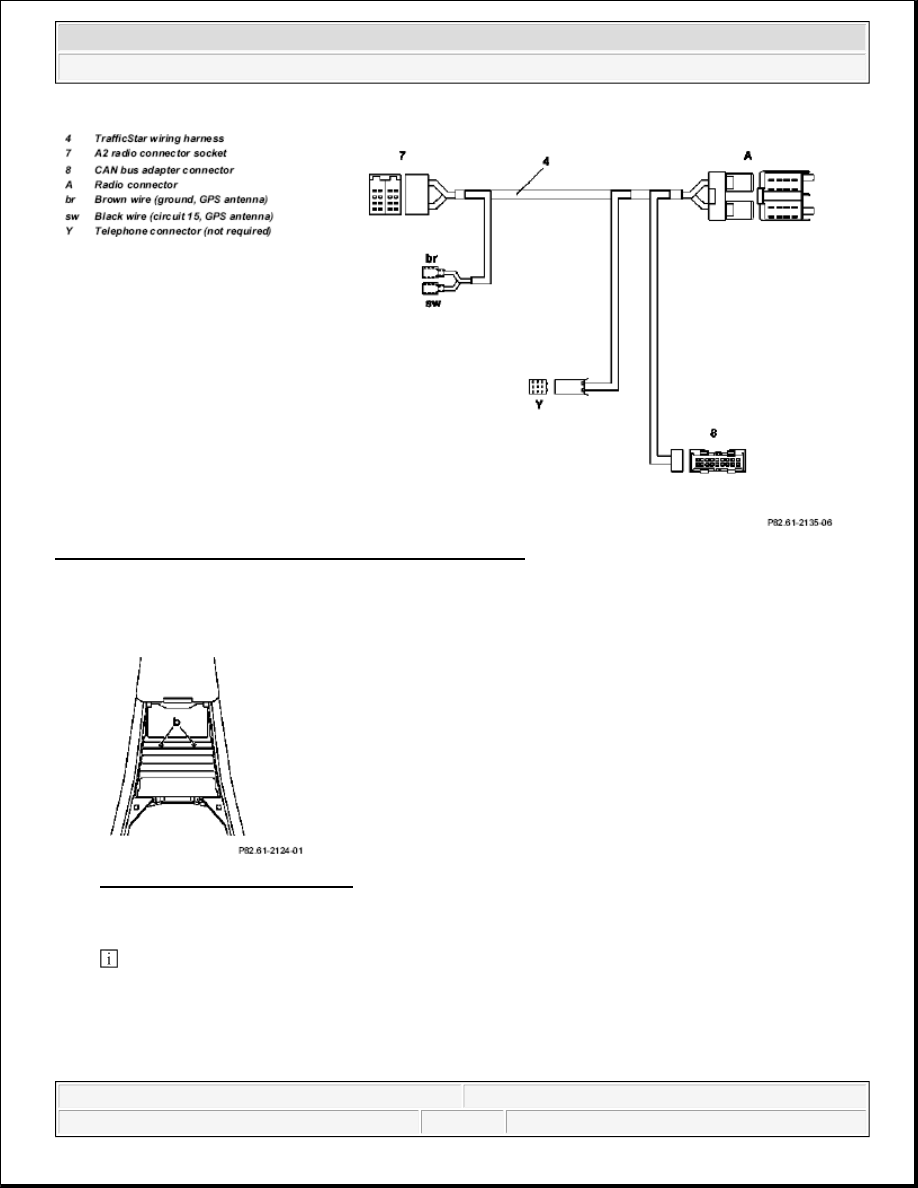

TrafficStar wiring harness without sound



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Fig. 324: Identifying Trafficstar Wiring Harness With Sound

1. Position CAN bus adapter (5) in center of center console strut and mark holes (b).

2. Drill holes (b) with 6.2 mm dia. bit.

Fig. 325: Identifying Mark Holes

3. Fasten CAN bus adapter (5) to center console strut with two self-tapping screws (a) from parts kit.

 Screw screws through strut from below into CAN bus adapter mount.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

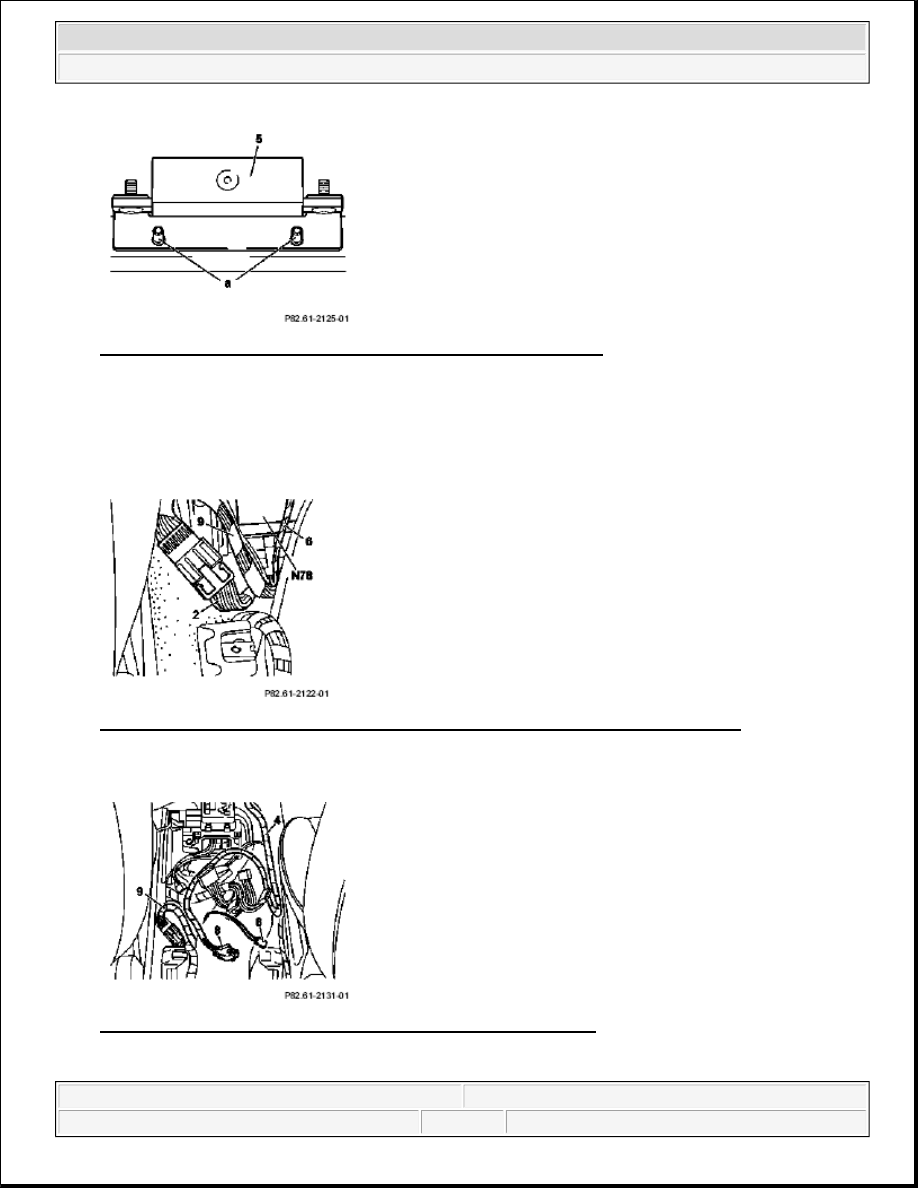

Fig. 326: Identifying CAN Bus Adapter And Self-Tapping Screws

4. Disconnect standard wiring harness (2) from transfer case control module (N78).

5. Connect CAN bus (9) wiring harness between transfer case control module (N78) and standard wiring

harness (2).

6. Route CAN bus (6) lead on fan duct.

Fig. 327: Identifying Transfer Case Control Module And CAN Bus Wiring Harness

7. Route connector (8) for TrafficStar wiring harness (4) from radio shaft along fan duct to center console.

Fig. 328: Identifying Trafficstar Wiring Harness And Connector

Steps 8-10 apply only for vehicles with manual transmission
