Mercedes-Benz ML320. Service manual - part 314





material (8)

18

Plug remaining antenna
cable of FM modulator
(9) into radio





19

Install radio (A2)







Remove/install radio



AR82.60-P-7502EA

20

Retrofit video monitor (2)
and wiring harness of
video monitor (C)

 With glass version of

electric sliding/tilting
roof, code 414a.

AZ82.60-P-0004-02A





 Except glass version

of electric sliding/ tilting
roof, code 414a.

AZ82.60-P-0004-02B

21

Secure upper right B-
pillar paneling

 Ensure that the lugs of

the seat belt height
adjustment are located
correctly in the recess
clearance of the paneling.



22

Install right front handle



23

Install right sun visor







Remove/install sun visor

AR68.60-P-5480GH

24

Install right front A-pillar
cover







Remove/install paneling
on A-pillar



AR68.30-P-4050GH

25

Re-secure upper area of
rubber door seal





26

Route wiring harness of
video/DVD player (B),
additional interface
module (4) and wiring
harness of video monitor
(C) later

 Up to VIN A289564,

X754619.

AZ82.60-P-0004-03A





 As of VIN A289565,

X754620.

AZ82.60-P-0004-03B

27

Retrofit auxiliary
interface module (4) in
center console

 Up to VIN A289564,

X754619.

AZ82.60-P-0004-04A





 As of VIN A289565,

X754620.

AZ82.60-P-0004-04B

28

Install center console
insulating mat





29

Install center console







Remove/install center
console



AR68.20-P-2000GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



30.1

Plug in plug of additional
interface module and
secure the wiring harness
of the additional interface
module (10) to the clip
(11) together with the
wiring harness of the rear
power windows in the
center console

 Up to VIN A289564,

X754619.



30.2

Insert auxiliary interface
module (13) connector
and route between center
console mount (14) and
center console.

 As of VIN A289565,

X754620.



31.1

Secure auxiliary interface
module plug in the left
rear corner of the ashtray
housing using self-
adhesive foamed material
(12)

 Up to VIN A289564,

X754619.



32

Open ashtray and cup
holder and close to check
correct function





33

Attach side shade of the
60% bench





34.1

Retrofit video player (3)

AZ82.60-P-0004-05A







*BA91.12-P-1005-03A







BA91.12-P-1008-03A

34.2

Retrofit DVD player



AZ82.60-P-0005-01GH

35

Install 40% rear seat







Remove and install bench

AR91.12-P-1010GI





 Torx bit set

Fig. 309

36

Install remaining covers
under rear seat bench

Replace cover under rear
seat bench at rear with
cover from the
conversion kit.





Remove and install cover
on bottom of rear seat





AR91.12-P-1100GH

37

Disconnect ground lead
from battery







Disconnect ground lead
from battery



AR54.10-P-0003A

38

Retrofit voltage supply
for central interface
module (1)



AZ82.60-P-0004-06A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



 Rear seats

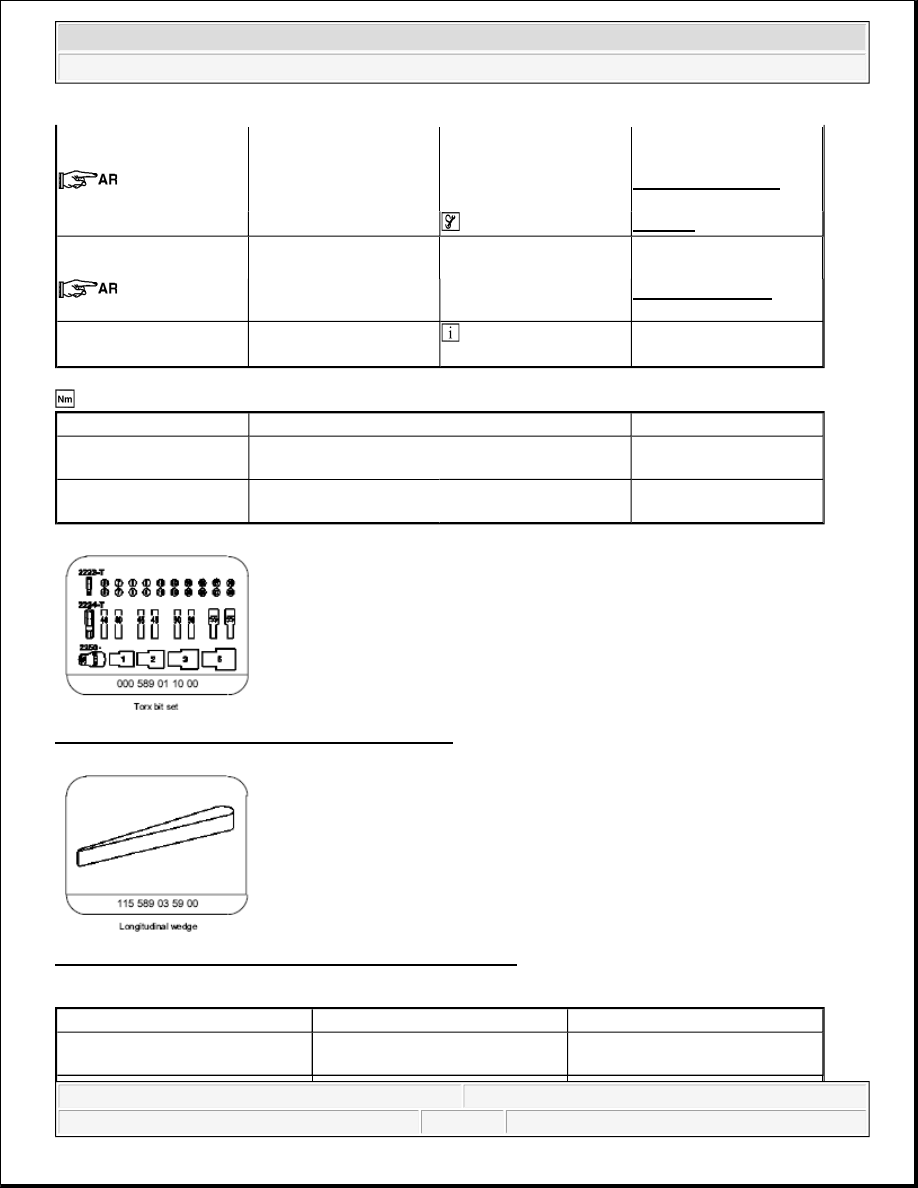

Fig. 309: Identifying Torx Bit Set (000 589 01 10 00)

Fig. 310: Identifying Longitudinal Wedge (115 589 03 59 00)

Parts ordering notes

39

Install glove
compartment







Remove/install glove
compartment



AR68.10-P-1400GI





 Torx bit set

Fig. 309

40

Connect ground cable for
battery







Disconnect ground lead
from battery



AR54.10-P-0003A

41.1

Initialize DVD player

 As of VIN A289565,

X754620.

AZ82.60-P-0004-07GH

Number

Designation

Model 163 as of 09/99

BA91.12-P-1005-03A

Nuts for rear seat console
on vehicle floor

NM 40

BA91.12-P-1008-03A

Screws for rear seat
console on vehicle floor

NM 40

Part no.

Designation

Quantity

B6 782 6500

Monitor, anthracite/orion, with 2
earphones (NTSC)

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



RETROFITTING TRAFFICSTAR RADIO AND NAVIGATION SYSTEM - AZ82.61-P-0001-02G

Model 163

B6 782 6501

Monitor, java, with 2 earphones
(NTSC)

1

B6 782 6505

DVD player (national code 1),
with bracket

1

B6 782 6506

Video player (NTSC), with
bracket

1

B6 782 6507

Earphones (NTSC)

1

B6 782 6508

Radio-controlled earphones
(NTSC)

1

B6 782 6530

Floor covering at bottom of rear
seat, orion (only with video
player) (NTSC)

1

B6 782 6531

Floor covering at bottom of rear
seat, anthracite (only with video
player) (NTSC)

1

B6 782 6532

Floor covering at bottom of rear
seat, Java (only with video player)
(NTSC)

1

B6 782 6536

Monitor, anthracite/orion, with 2
earphones (PAL)

1

B6 782 6537

Monitor, java, with 2 earphones
(PAL)

1

B6 782 6538

DVD player (national code 2),
with bracket

1

B6 782 6539

Video player (PAL), with bracket 1

B6 782 6540

Floor covering at bottom of rear
seat, orion (only with video
player) (PAL)

1

B6 782 6541

Floor covering at bottom of rear
seat, anthracite (only with video
player) (PAL)

1

B6 782 6542

Floor covering at bottom of rear
seat, Java (only with video player)
(PAL)

1

B6 782 6545

Earphones (PAL)

1

B6 782 6551

Central interface module

1

B6 782 6570

Supplementary kit as of VIN
A289565, X754620 (PAL)

1

B6 782 6571

Supplementary kit as of VIN
A289565, X754620 (NTSC)

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
