Mercedes-Benz ML320. Service manual - part 313





10.

1. Insert red relay module (8) for power supply cable in position 7 in fuse unit (7).

Only on vehicles on which running boards are installed

2. Remove cable and fuse from red relay module (8) and install in free locations of present red replay

module in position 7 of fuse unit (7).

11. Insert attached 10 A fuse into fuse holder with voltage supply cable.

12. Unscrew nut (9) at terminal 31.

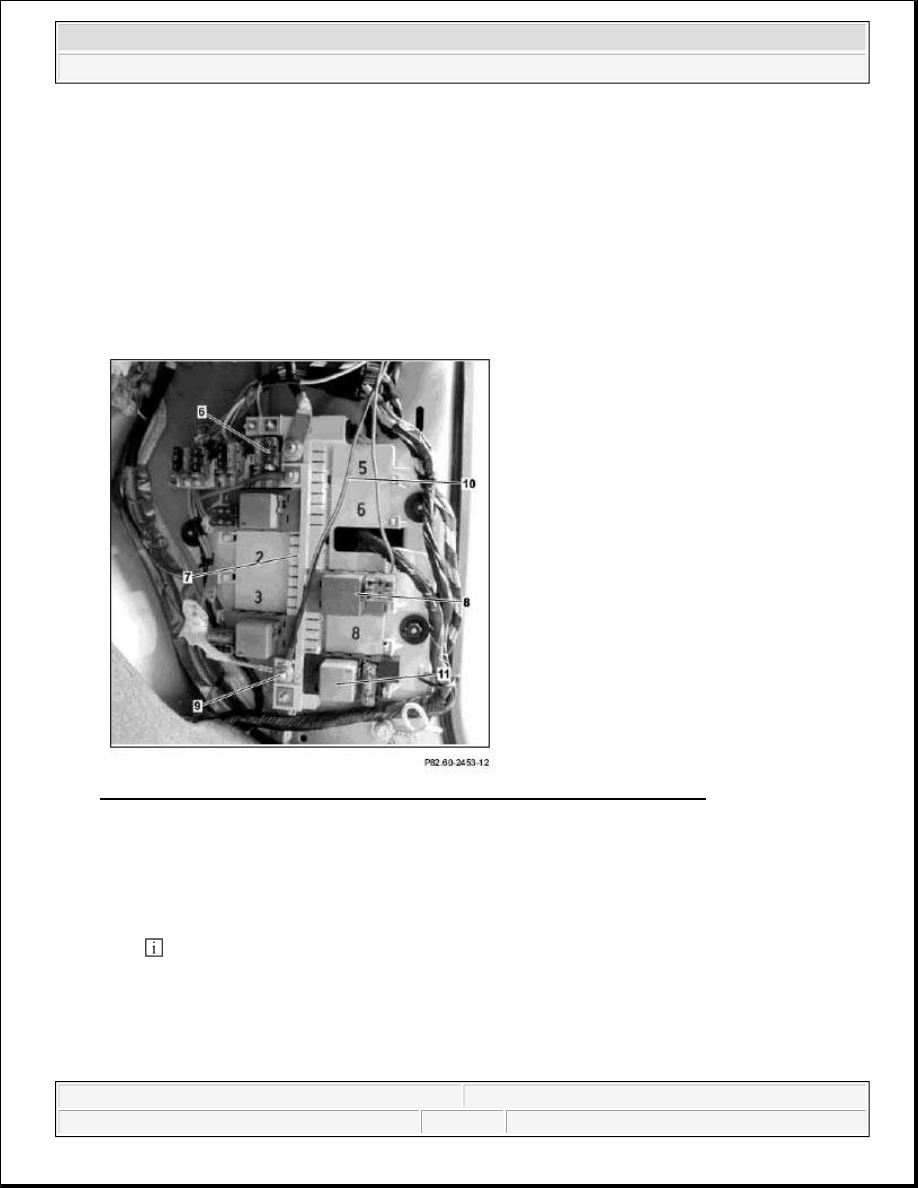

Fig. 304: Identifying Fuse Holder, Red Relay Module And Black Relay Module

13. Connect ground cable (10) of the interface module wiring harness to terminal 31.

14. Install nut (9) on terminal 31.

15.

1. Insertblack relay module (11) into location 9 of fuse unit (7).

 Only if relay is not yet present.

16. Install fuse unit cover in right-side footwell.

RETROFIT VEHICLE VIDEO SYSTEM - AZ82.60-P-0004A

MODELS 163.136 /154 /172 1A as of 145273, 163.136 /154 /172 1X as of 708319,



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



163.113 /128 /157 /174 /175 1#

left hand drive vehicle

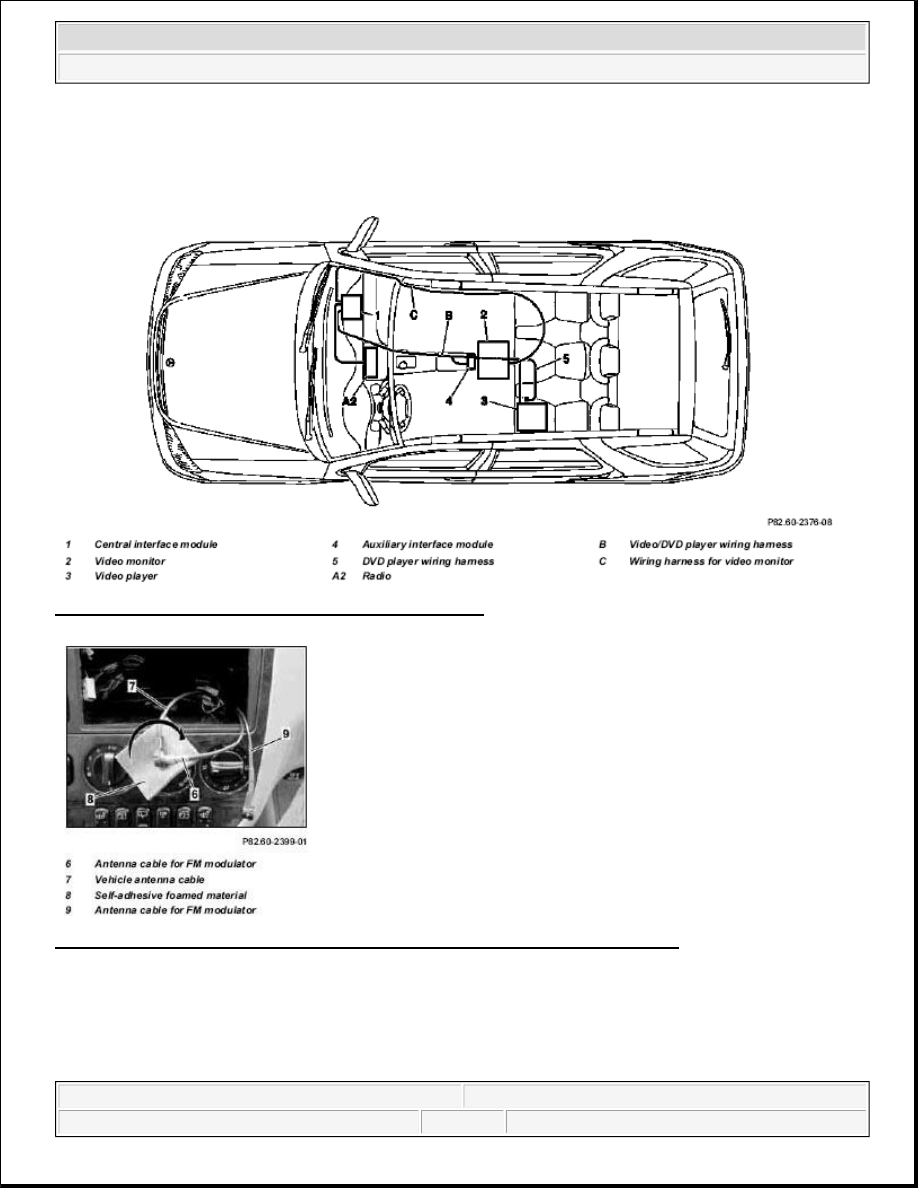

Fig. 305: Identifying Vehicle Video System Components

Fig. 306: Identifying Vehicle Antenna Cable And Self-Adhesive Foamed Material



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



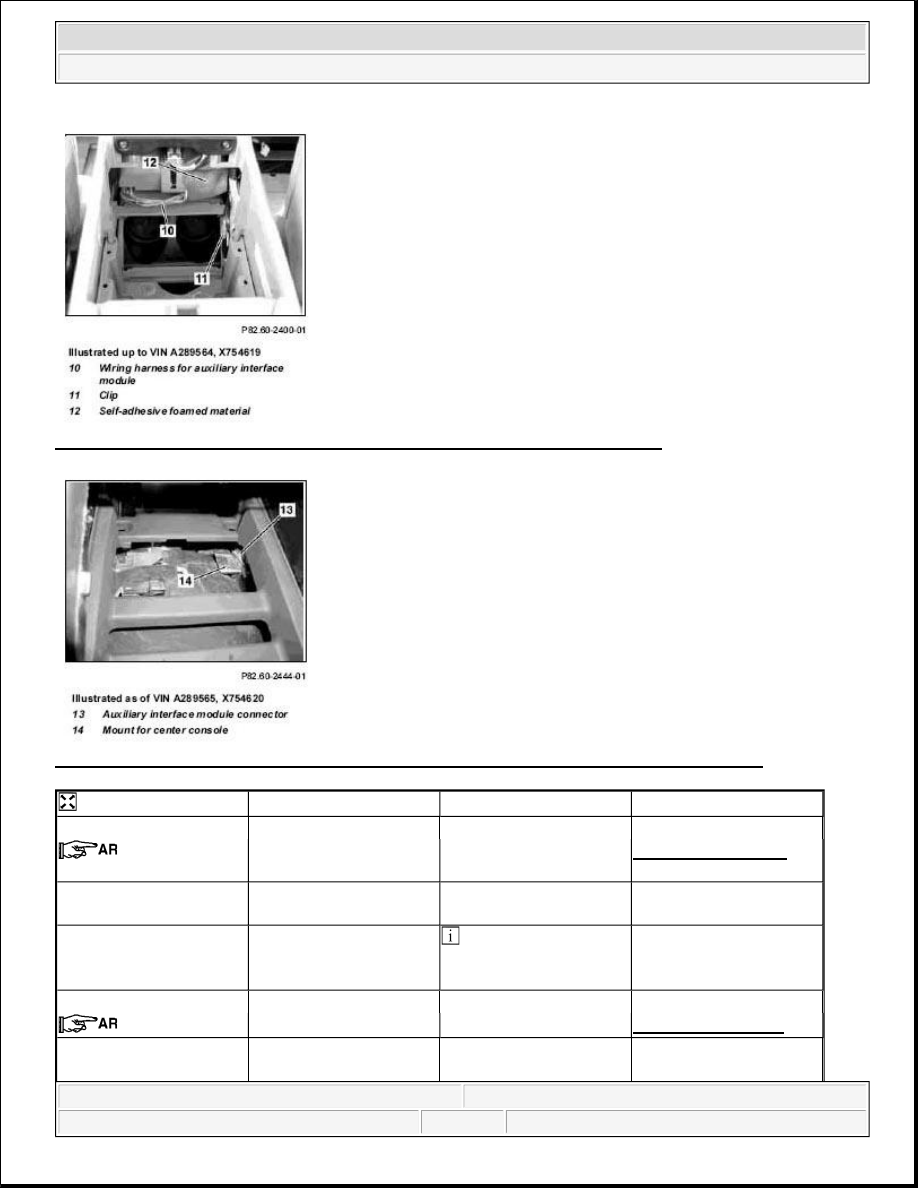

Fig. 307: Identifying Wiring Harness For Auxiliary Interface Module And Clip

Fig. 308: Identifying Auxiliary Interface Module Connector And Mount For Center Console



Remove





1

Remove center console







Remove/install center
console



AR68.20-P-2000GH

2

Remove center console
insulating mat





3

Remove rear air duct

 Up to VIN A289564,

X754619. 2 screws at
rear air duct.



4

Remove radio (A2)







Remove/install radio



AR82.60-P-7502EA

5

Remove glove
compartment







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me





Remove/install glove
compartment



AR68.10-P-1400GI





 Torx bit set

Fig. 309

6

Loosen upper section of
right front door rubber
seal





7

Remove A-pillar paneling
on right







Remove/install paneling
on A-pillar



AR68.30-P-4050GH





 Long wedge

Fig. 155

8

Remove right sun visor







Remove/install sun visor

AR68.60-P-5480GH

9

Remove right front
handle

 Open covers for

handles, press down clip
on each side of handle, at
the same time press
handle upward and pull
out.



10

Remove edge guard for
tilting/sliding roof cutout





11

Release upper right B-
pillar paneling





12

Remove covers at lower
rear seat

 Do NOT remove

center cover for lower
40% seat. Do NOT
reinstall curtain on 60%
front bench seat.





Remove and install cover
on bottom of rear seat



AR91.12-P-1100GH

13

Release side shade at the
60% bench

 Fold shade upward so

that the working area is
not obstructed.



14

Remove 40% rear seat







Remove and install bench

AR91.12-P-1010GI





 Torx bit set

Fig. 309



Install





15

Retrofit central interface
module (1)



AZ82.60-P-0004-01A

16

Insert antenna cable for
FM modulator (6) into
vehicle antenna cable (7)





17

Cover connector with
self-adhesive foamed







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
