Mercedes-Benz ML320. Service manual - part 311





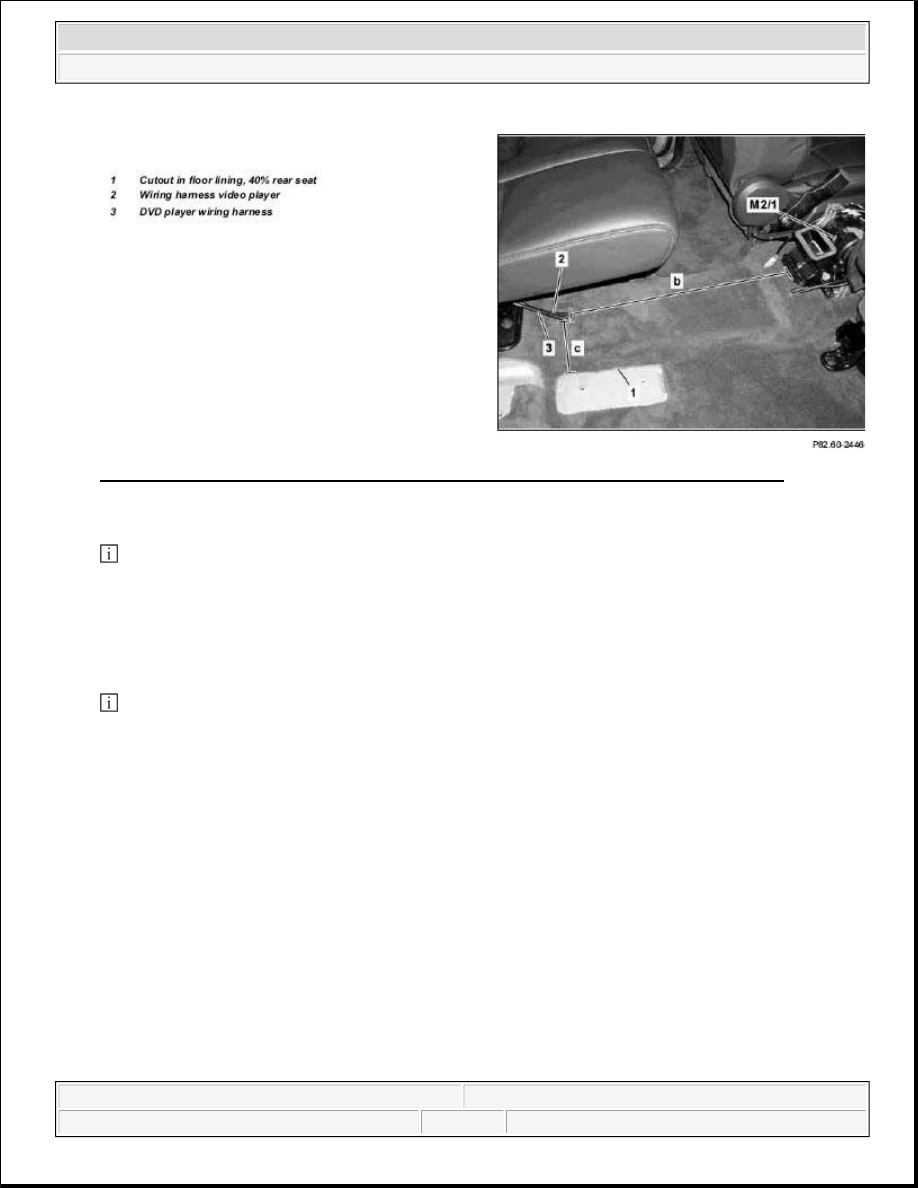

Fig. 295: Identifying Dimension (b=510 mm) From Center Of Rear Blower Motor (M2/1)

3. Starting at the marking cut the floor lining towards the left-hand side of the vehicle (d=70 mm).

 The incision should be located in the center of the transmission tunnel.

4. Cut floor lining from center of previous incision (d=70 mm) to vehicle rear (e=30 mm).

5. Route wiring harness video player (2) and wiring harness DVD player (3) from the incision to the rear of

the rear blower motor (M2/1) to the cutout in the floor lining under the 40% rear seat under the floor
lining.

 Put down wiring harness for later routing.

Do not route wiring harness for additional interface module under the floor lining.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Fig. 296: Identifying Rear Blower Motor And DVD Player Wiring Harness

6. Route wiring harness for additional interface module (4), wiring harness video player (2) and wiring

harness DVD player (3) together along the rear air duct (5).

7. Route wiring harness for additional interface module (4) on top side of left-hand junction of rear air duct.

8. Route wiring harness video player (2) and wiring harness DVD player (3) on top side of right-hand

junction of rear air duct.

9. Fasten wiring harness to top side of rear air duct (5) with attached, self-adhesive foamed material (6).

10. Fasten video player and DVD player wiring harness to outside of bracket on center console (7) using

attached self-adhesive foamed material (6).



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



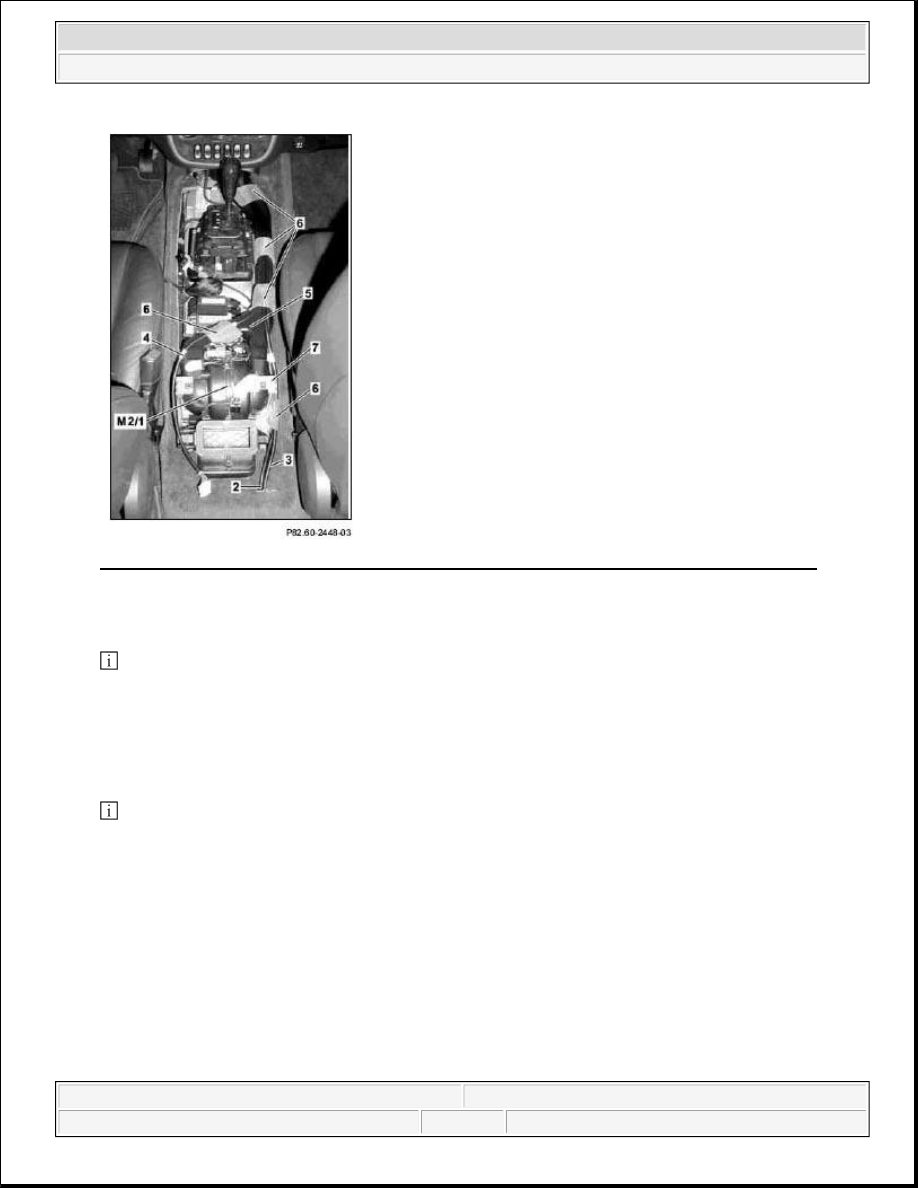

Fig. 297: Identifying Self-Adhesive Foamed Material, Rear Blower Motor And Rear Air Duct

11. Route wiring harness video player (2) and wiring harness DVD player (3) to the cutout below the 60%

rear seat and upwards out of the floor lining.

 The wiring harness must be routed as straight and flat as possible in the recess of the transmission

tunnel below the floor lining.

12. Slide any protruding floor lining cutouts under the wiring harnesses.

13. Fasten the blue marked wiring harness video player (2) and the red marked wiring harness DVD player

(3) to the seat frame of the 60% rear seat using the attached self-adhesive retaining clips (8) and tie straps.

 The white adhesive tape marking on the wiring harness video player (2) and the red adhesive tape

marking on the wiring harness DVD player (3) represent the positions for the retaining clips and tie
straps.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



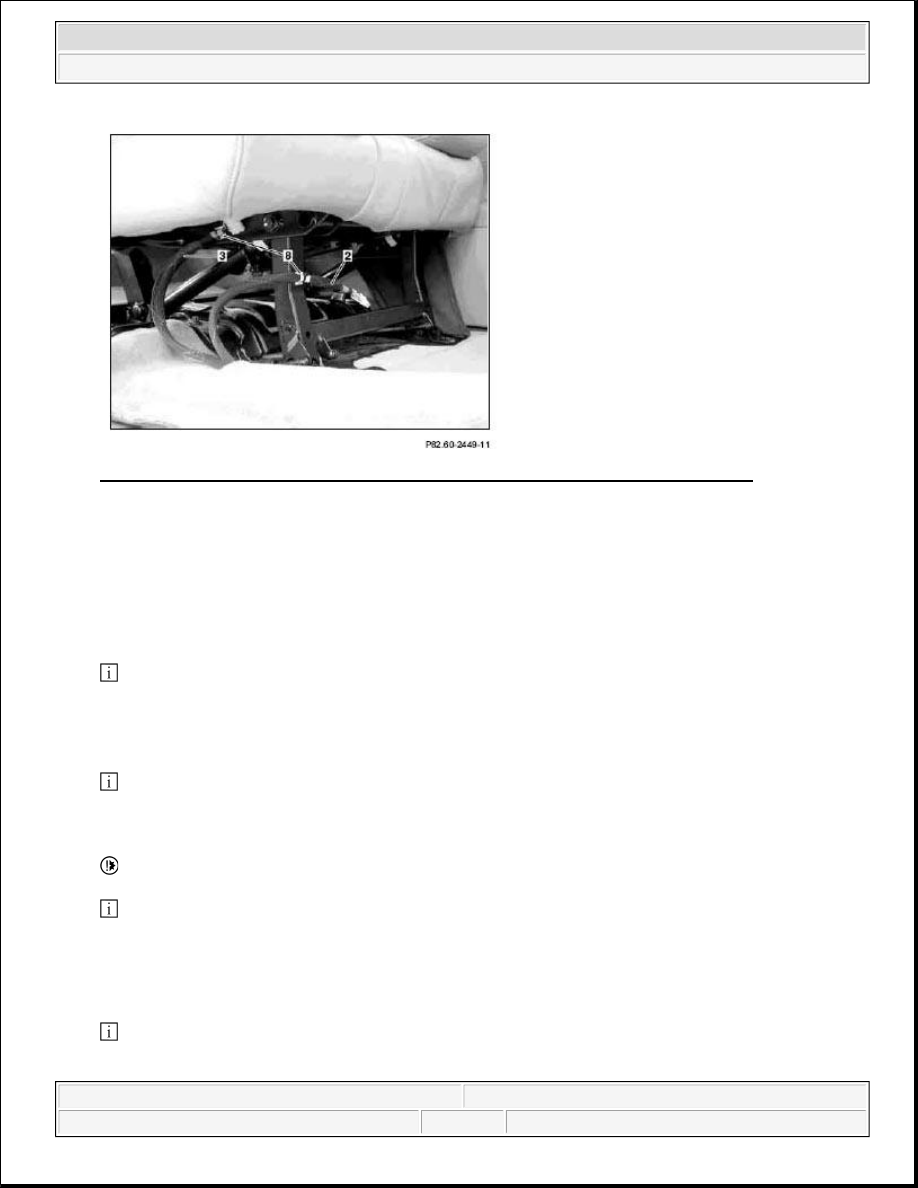

Fig. 298: Identifying Self-Adhesive Retaining Clips And DVD Player Wiring Harness

RETROFIT AUXILIARY INTERFACE MODULE - AZ82.60-P-0004-04A

Model 163.113/136 /154 /172 /174 #A as of 145273 289564,

Model 163.113 /136 /154 /172 #X as of 708319 up to 754619

1. Place center console (1) on workbench.

 Ensure that the center console is not damaged or dirty.

2. Remove rear ashtray insert.

3. Open ashtray flap completely.

 Press retaining spring (3) downward.

4. Insert auxiliary interface module (4) into ashtray flap (2) and secure with bolts (5).

 Do not overtighten bolts.

 Previously installed bolts must be removed before installing the auxiliary interface module. Guide

wiring harness through lower right corner of the ashtray opening. Guide retaining spring (3) through
between board and cover panel.

5. Close ashtray flap.

 Press retaining spring (3) downward.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
