Mercedes-Benz ML320. Service manual - part 312





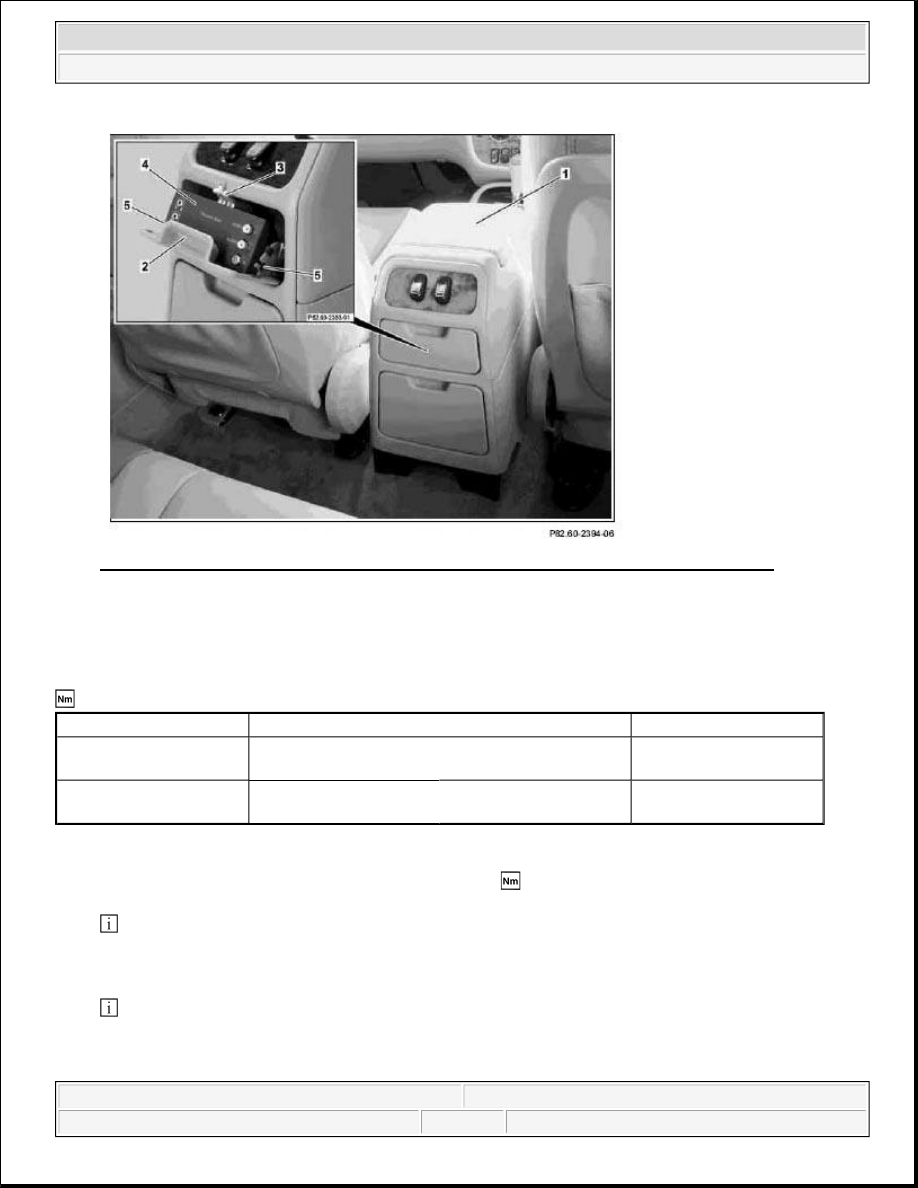

Fig. 299: Identifying Center Console, Auxiliary Interface Module And Retaining Spring

RETROFIT VIDEO PLAYER - AZ82.60-P-0004-05A

Model 163.136 /154 /172 #A as of 145273, Models 163.136 /154 /172 #X as of 708319, Models
163.113/128 /157 /174 /175


 Rear seats

1. Unscrew rear nut (1) and bolt (2) from 60% rear seat.

2. Position bracket (3)and secure with bolt (2) and nut (1)

 .

 Insert bolt with Loctite. Replace nut.

3. Install covers under the 60% rear bench.

 Replace center cover at rear seat bench at bottom with cover from the conversion kit. Do NOT install

shade at front at the 60% bench.

Number

Designation

Model 163 as of 09/99

BA91.12-P-1005-03A

Nuts for rear seat console
on vehicle floor

NM 40

BA91.12-P-1008-03A

Screws for rear seat
console on vehicle floor

NM 40



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

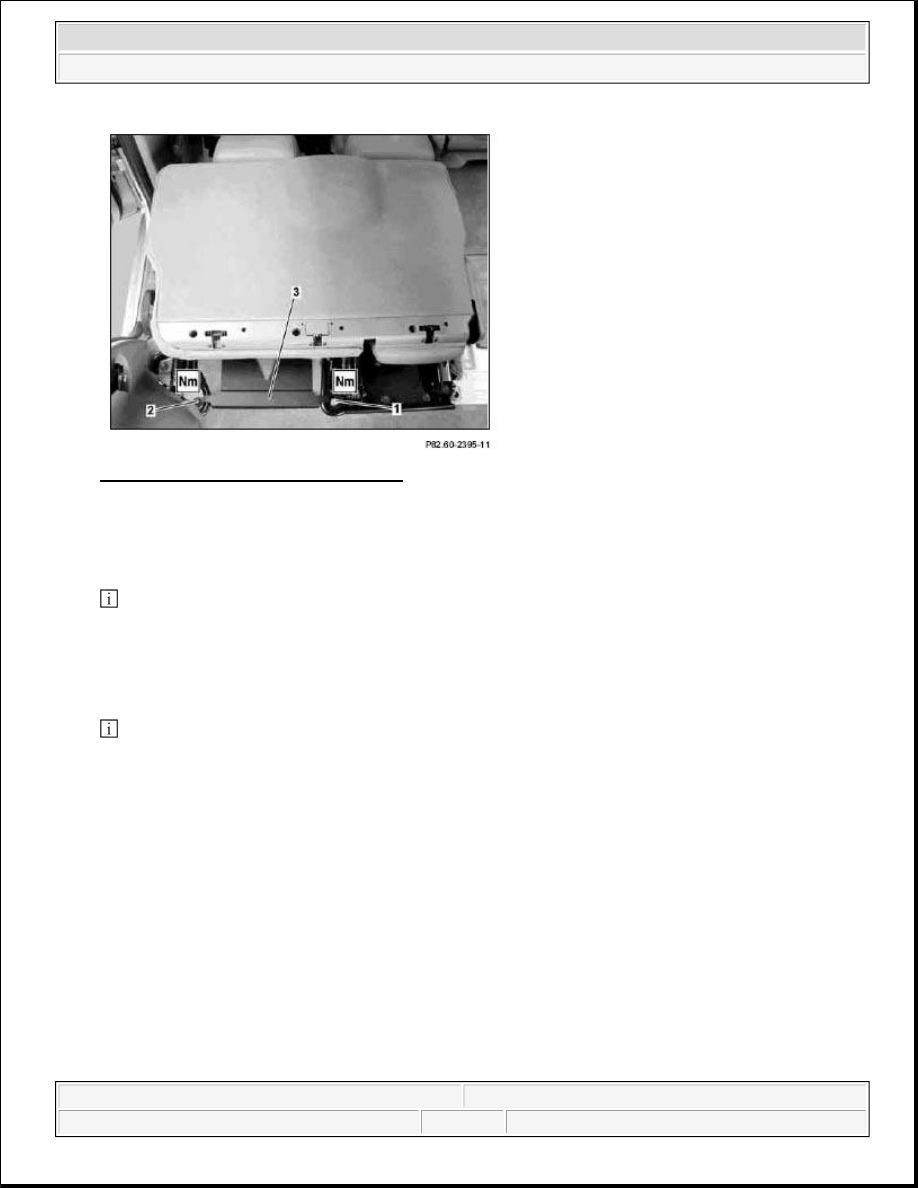

Fig. 300: Identifying Rear Seat Bracket

4. Apply transparent protective foil in area of locking arm (5) of video/DVD player to crossmember of seat

frame (4).

5. Slide video/DVD player (6) into bracket under the 60% rear seat.

 Ensure that the guide on the underside of the playback unit is moved into the V-shaped cutout in the

bracket.

6. Fold locking arm (5) above seat frame crossmember (4).

7. Install striker (7) for seat adjustment.

 Before installation ensure that the seat is completely to the rear because after installation adjustment is

no longer possible. Striker should be installed approximately 5 mm to the left of the video player, with the
flat side facing the video player.

8. Insert corresponding plug, video or DVD, into the playback unit.



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

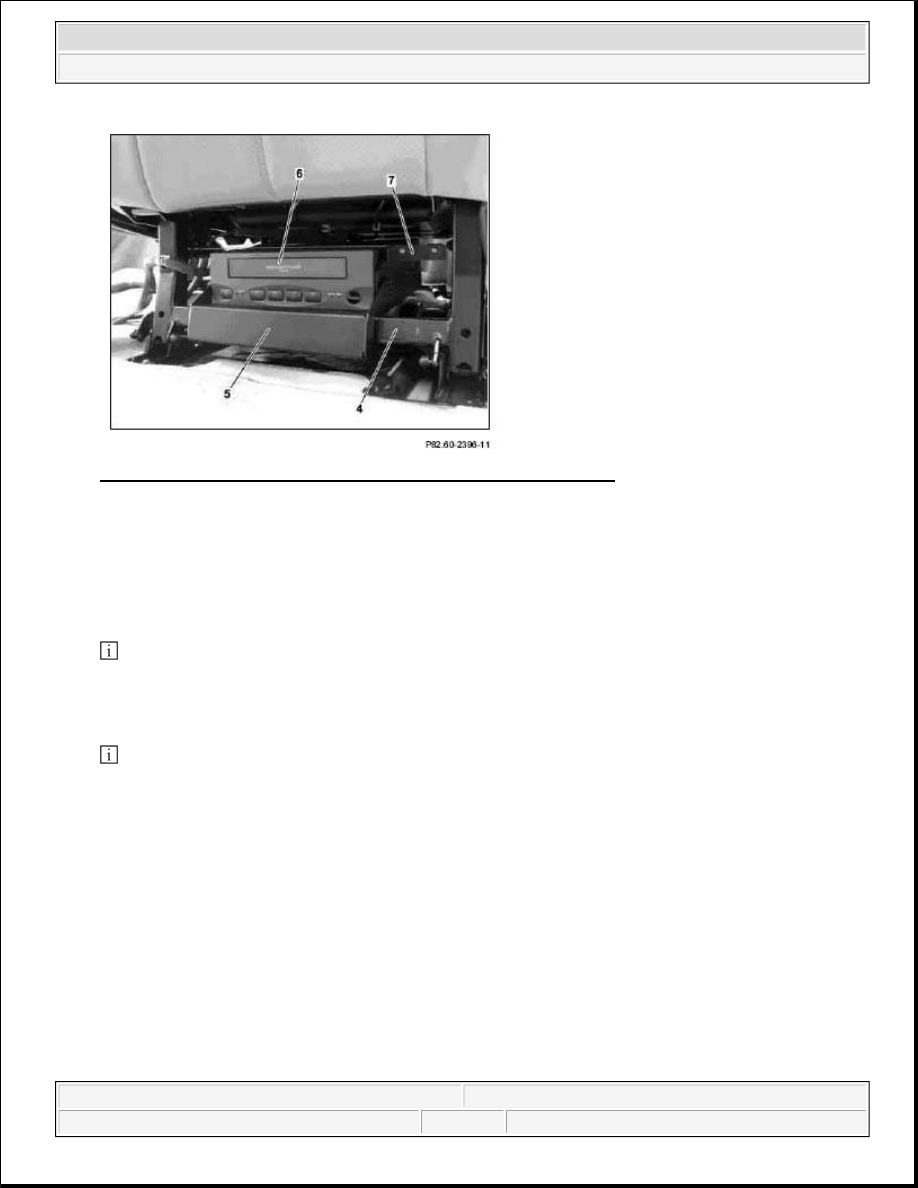

Fig. 301: Identifying Video/DVD Player, Striker And Locking Arm

RETROFIT VOLTAGE SUPPLY FOR CENTRAL INTERFACE MODULE - AZ82.60-P-0004-06A

Model 163.136 /154 /172 #A as of 145273, Models 163.136 /154 /172 #X as of 708319, Models
163.113/128 /157 /174 /175


1. Remove cover for fuse unit in right footwell.

 Turn arresting mechanisms counterclockwise and move out cover to the rear.

2. Route plug for voltage supply (1) for the interface module of the fuse unit into the glove compartment

opening.

 Guide cable under the right-hand instrument panel support (2).

View of left-hand steering installation



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me

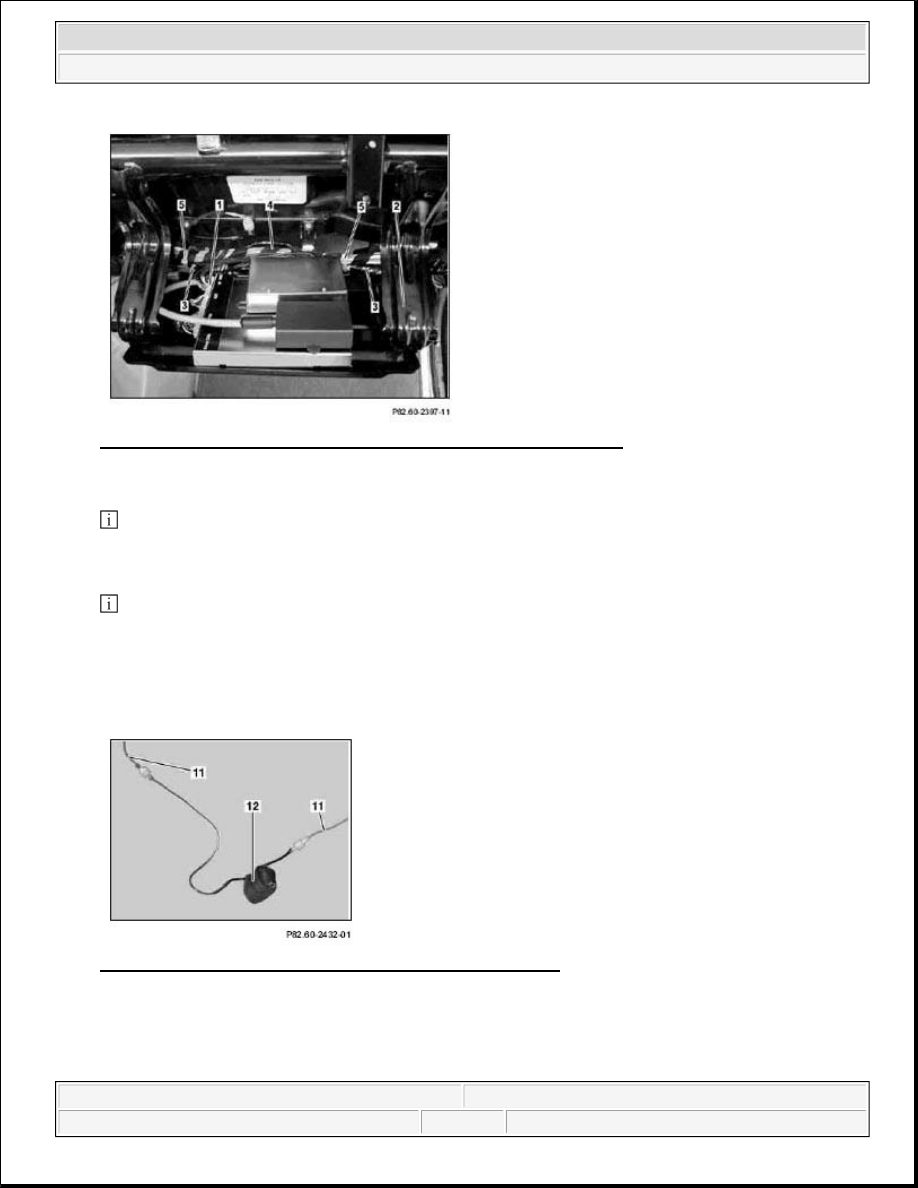

Fig. 302: Identifying Voltage Supply And Instrument Panel Support

3. Insert plug into interface module.

 Input on interface module marked.

4. Secure all wiring harnesses (3) of the video system to the interior wiring harness (4) with tie straps.

 Fastening points are marked with white adhesive tape on the wiring harnesses.

5. Disconnect connector in the voltage supply cable (11) from the relay module.

6. Insert noise filter (12) into the voltage supply cable (11).

7. Secure noise filter (12) under the right-hand instrument panel support with tie straps.

Fig. 303: Identifying Noise Filter And Voltage Supply Cable

8. Install fuse holder (6) of the voltage supply cable in position f9 of the fuse unit (7).

9. Insert 7.5 A fuse supplied into fuse holder.

Only on vehicles on which running boards are not installed



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
