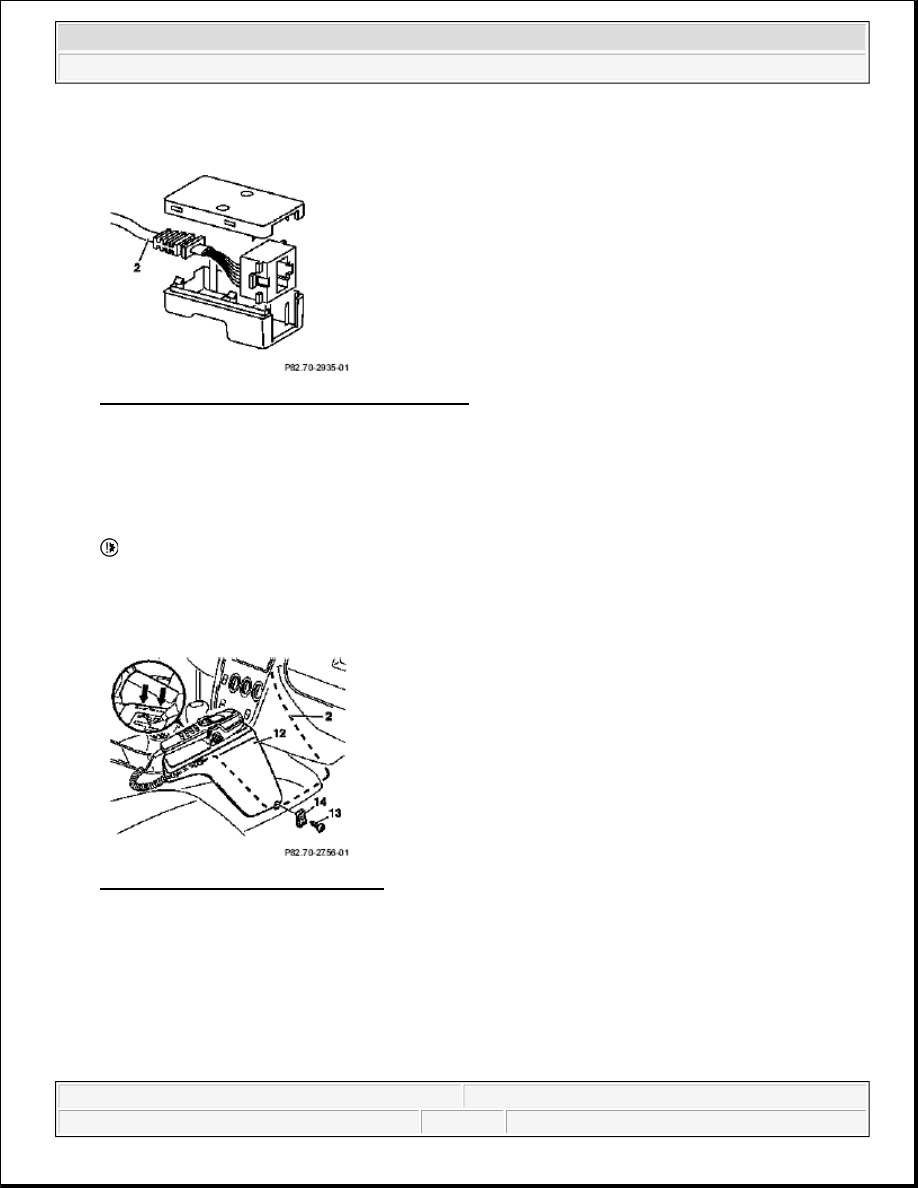

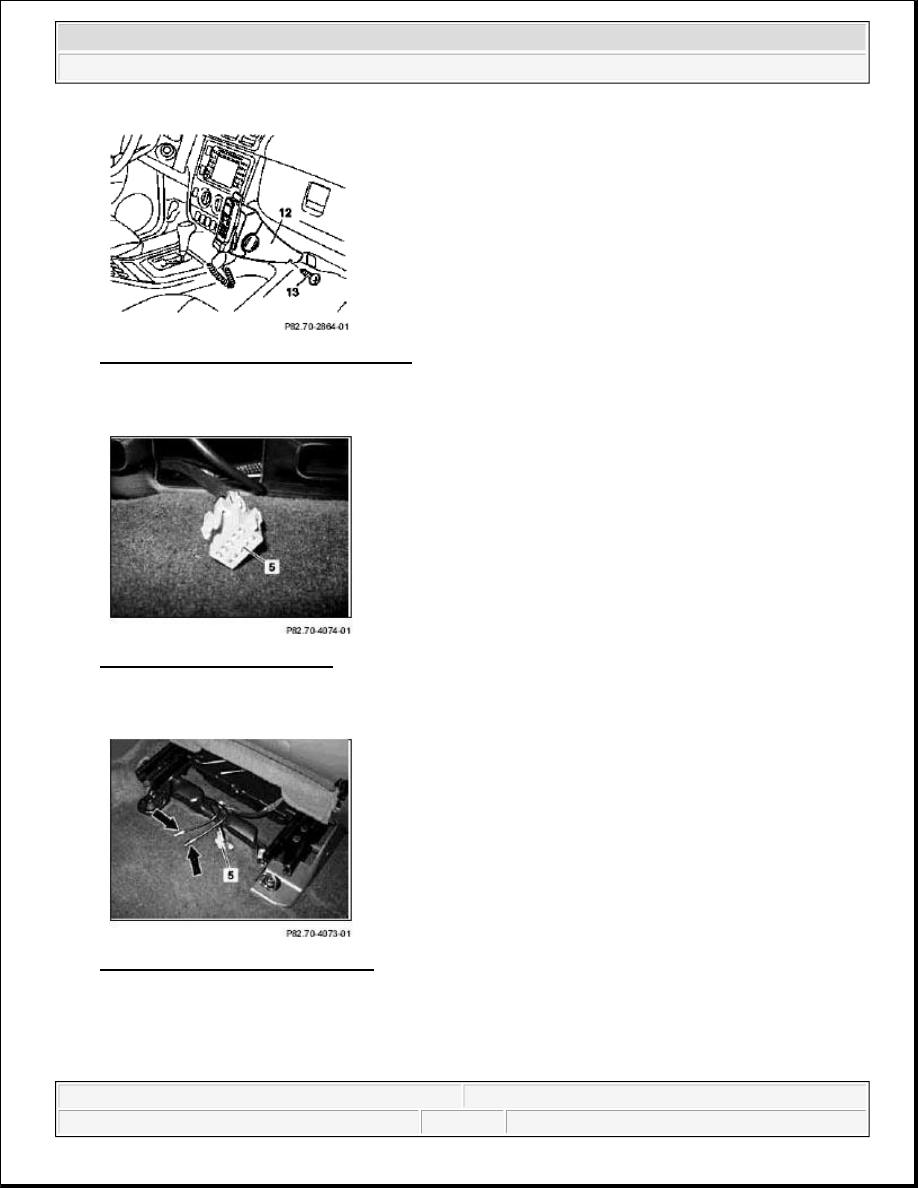

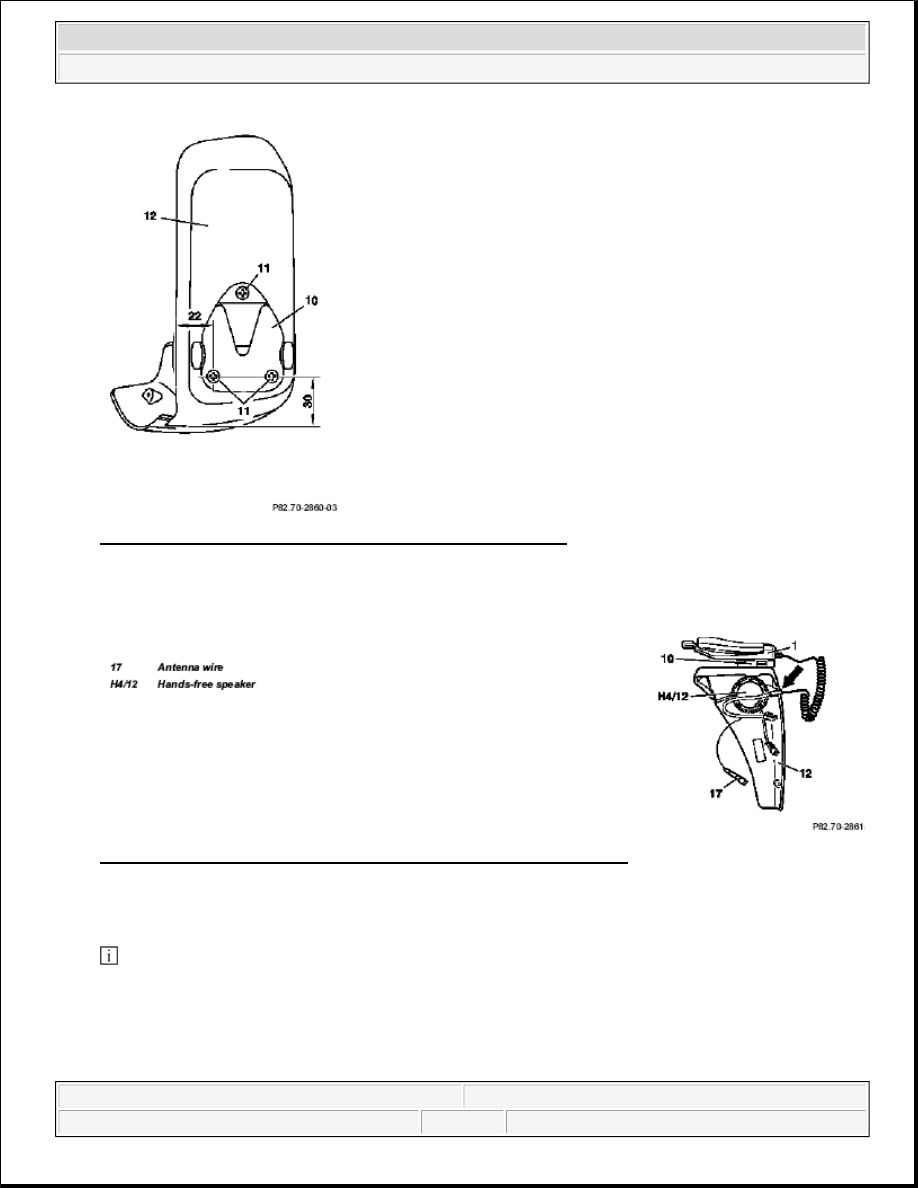

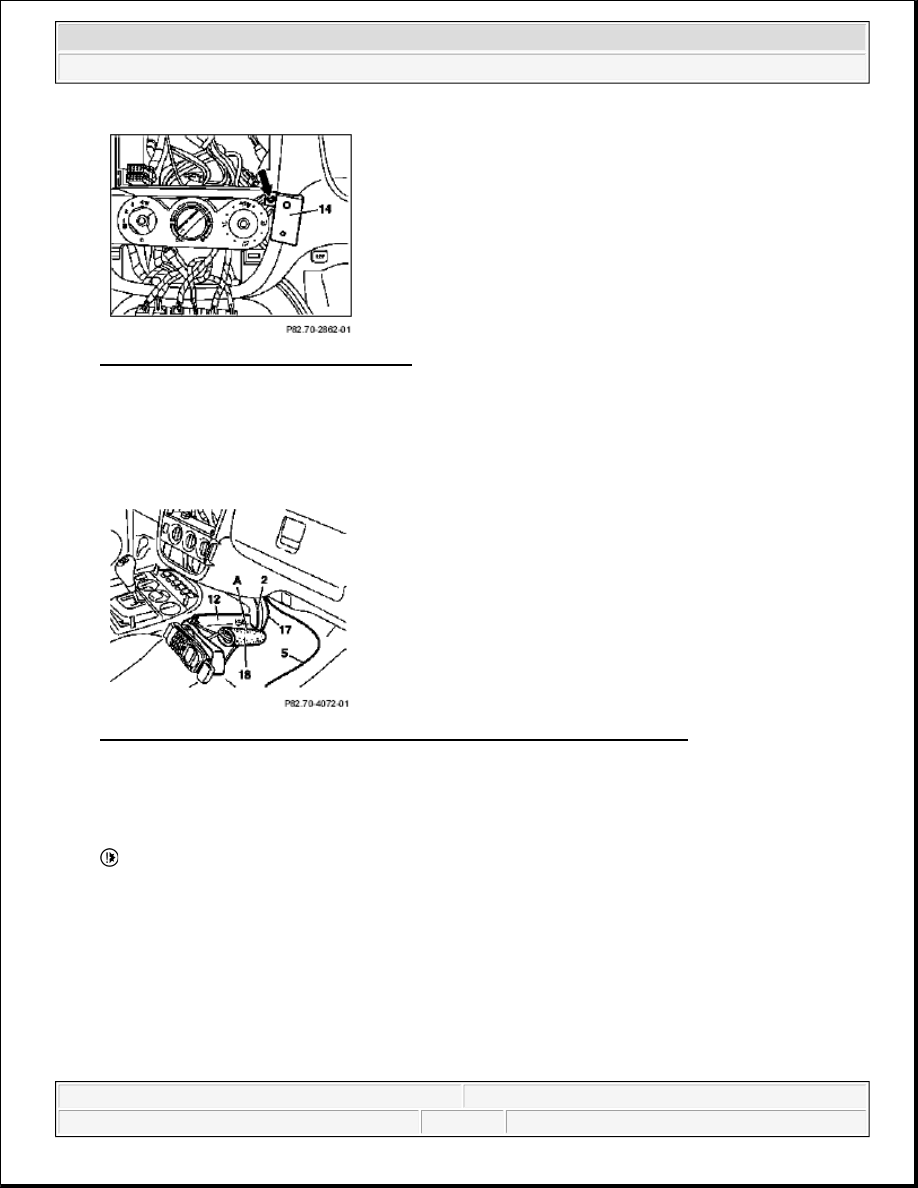

fit on top part of housing. Fig. 357: Identifying Telephone Wiring Harness 8. Fit connection cable of telephone wiring harness (2) to spiral cable (comes from radio slot). Pull foam rubber grommet over connector. 9. Push telephone console (12) below the wood trim cover (arrows) and press against right tunnel wall. 10. Mark hole for screw (13) and drill with Ø 5 mm. When drilling, pull tunnel wall out slightly so that parts behind cannot be damaged. 11. Install clip nut (14) on tunnel wall and install screw (13). 12. Push connection cable (2) below tunnel wall. Fig. 358: Pushing Telephone Console RETROFIT TELEPHONE CONSOLE - AZ82.70-P-0001-01G MODEL 163 as of 1.10.01 1. Lay assembly plate (10) on telephone console (12) and align as shown in figure. Mark hole pattern and drill with 2.5 dia. bit. 2. Screw assembly plate (10) onto telephone console (12) with screws (11).
