Mercedes-Benz ML320. Service manual - part 287

REMOVING AND INSTALLING WASHER FLUID RESERVOIR OF WINDSHIELD WASHER SYSTEM - AR82.35-P-6000GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with 7.6 L reservoir

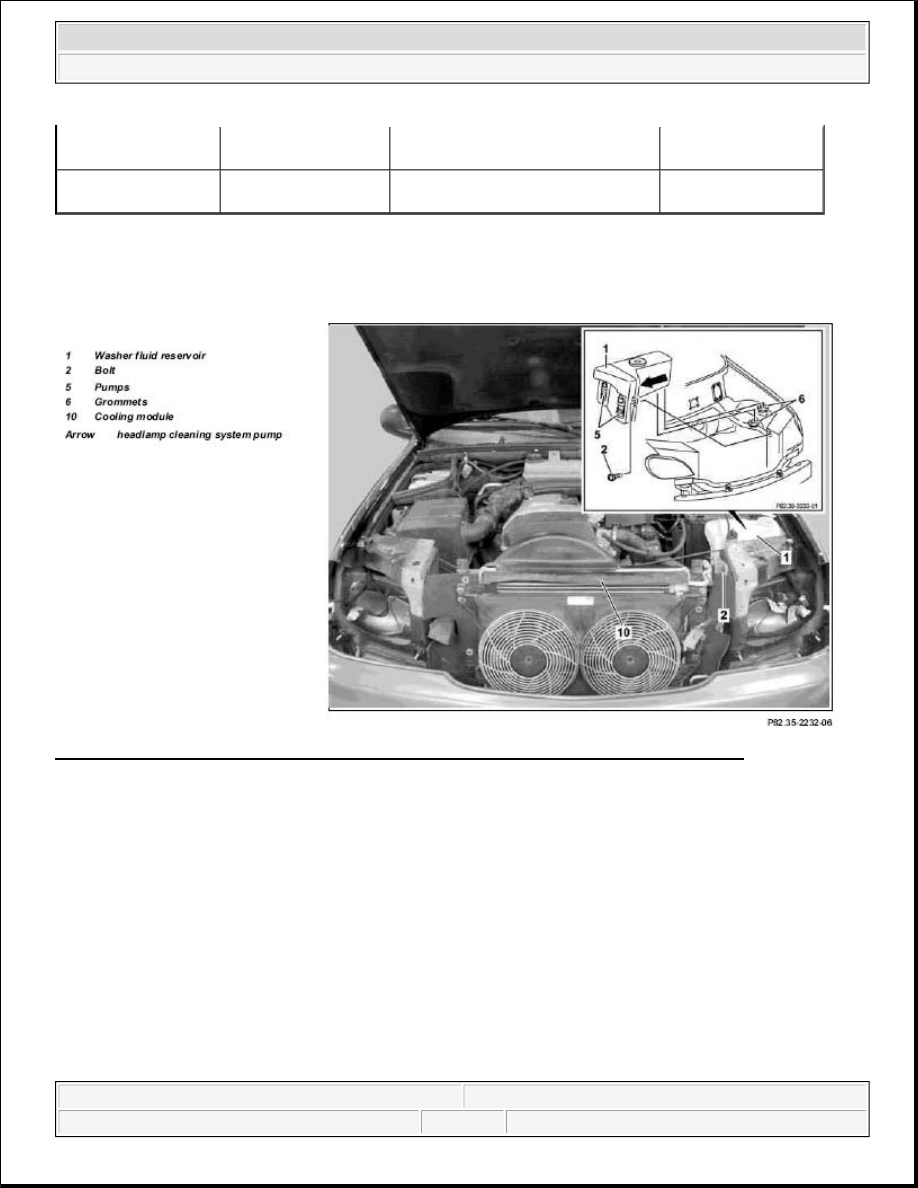

Fig. 187: Identifying Washer Fluid Reservoir Of Windshield Washer System Components

not be removed, otherwise this
damages the lens.

Install in the reverse
order

2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

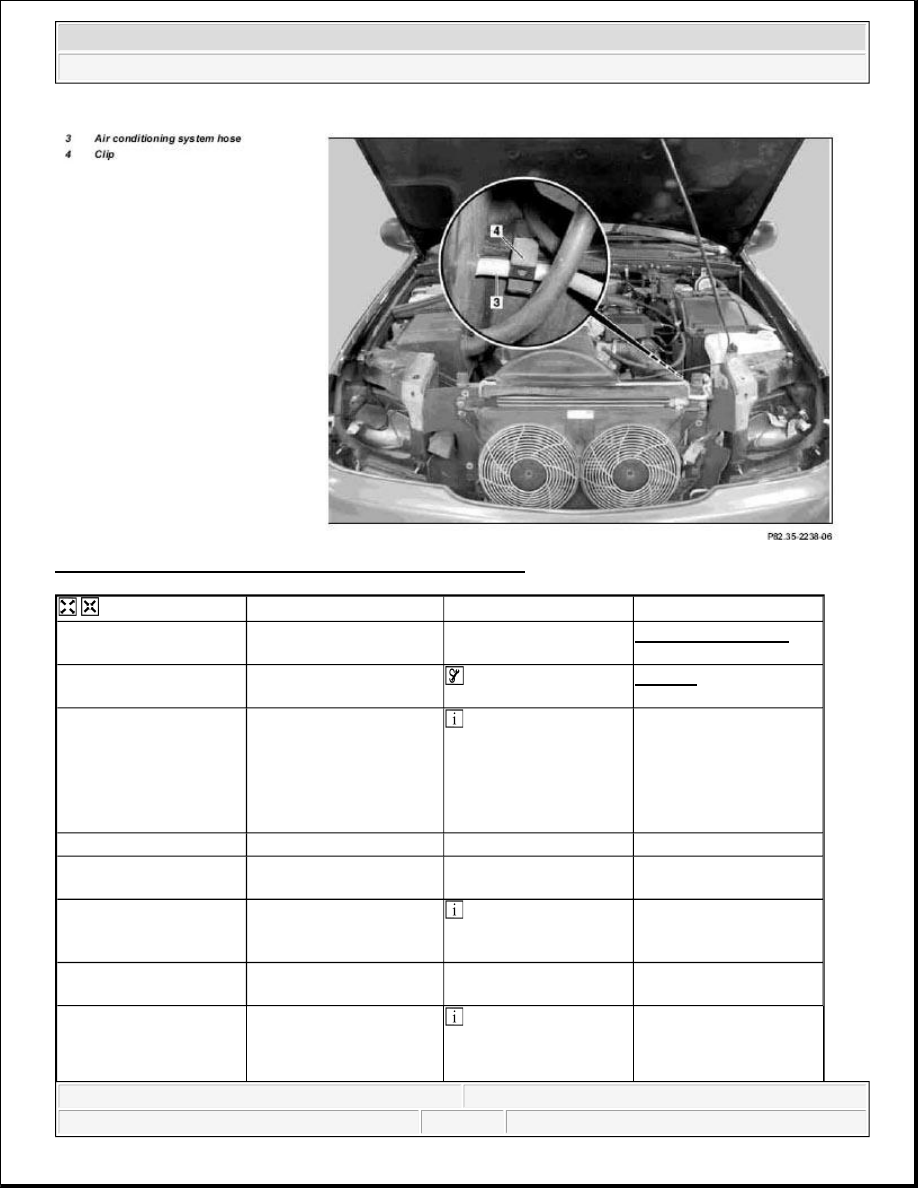

Fig. 188: Identifying Air Conditioning System Hose And Clip

Remove/Install

Remove upper frame cross
member

AR62.30-P-2300GH

Drain the washer fluid
reservoir

Manual pump

Fig. 189

Disconnect connectors
and hoses from pumps (5)

Loosen wiring harness

from the side of the
washer fluid reservoir. If
fitted, disconnect plug
from washer fluid level
indicator switch.

Unscrew bolt (2)

Loosen air conditioning
hose (3) from clip (4)

6.1

Remove covers and
locking clips from fuse
and relay module

Only Model 163.128.

Detach cooling module
(10) from lower grommets

Remove washer fluid
reservoir (1)

Loosen washer fluid

reservoir (1)from lower
grommets (6). Lift up

2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

Fig. 189: Identifying Hand Pump (210 589 00 71 00)

CODING RADIO - AR82.60-P-7502-01A

1. If the radio is disconnected from the power supply, it is not operational when re-connected. After

switching on the ignition and the radio, the readout CODE appears in the display.

2. The code number for the radio is advised to you on the enclosed CODE CARD.

3. To enter the first digit of the code number, you have to continue pressing station button 1 until the correct

digit appears in the display. Adopt the same procedure for the second, third and fourth digits.

4. Once you have entered the correct code number with the station buttons 1, 2, 3, 4 and confirmed the entry

with the SEEK button (press down), the readout CODE disappears. The radio can now be operated.

5. If you enter a wrong code three times, you must wait 15 minutes before making a new entry. In addition,

if 9 incorrect entries are made, the radio will then not operate for 24 hours. During this time the radio and
the ignition (terminal 15) must remain switched on.

CODING RADIO - AR82.60-P-7502-01B

1. If the radio is disconnected from the power supply, it cannot be operated by simply reconnecting. After

switching on the ignition and the radio the word "CODE" appears in the display on the radio.

2. The code number for the radio is given on the enclosed CODE CARD.

3. Enter the code number with the station button, e.g. number 1, station button 1.

After entering the first number the word "CODE" disappears and the number entered appears followed

by 4 dashes. The next character to be entered flashes. After entering all five numbers, the first character

cooling module with the
help of an assistant. Press
washer fluid reservoir
inwards and pull straight
upwards.
Installation: Ensure that
the washer fluid reservoir
(1) is correctly seated in
the grommets (6) and
side clip.

Install in the reverse order

2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

starts flashing again. In this state the code number can be written over as frequently as desired. A
correction can be made only by entering the complete code number again.

4. Confirm code number:

Press TUNE, AUTO/SEEK or SC button. The radio automatically switches on and indicates the radio
station or frequency stored with station button 1.

5. If an incorrect code number is entered and confirmed, the word "CODE" appears again on the display. If

an incorrect code is entered three times the word "WAIT" appears on the display and the radio locks up
for approx. 10 min. If the code is entered incorrectly three times again the radio locks up again for 10
min. Three more incorrect entries (a total of 9 incorrect attempts) increase the lock-up time to 60 min.
Another three incorrect entries lock up the radio for another 60 min.

The waiting time runs only when the radio is switched on.

CODING RADIO - AR82.60-P-7502-01GH

1. If the power supply to the radio is interrupted the radio will not operate when reconnected. After

switching on the ignition the word "CODE" appears on the radio display.

2. The code number for this radio is given on the included code card.

3. Enter the code number with the station buttons, e.g. number 1 = station button 1..

4. After entering the first digit the word "CODE" disappears and the number entered is displayed followed

by four dashes. Enter the next numbers with the corresponding station buttons. After entering the five
digit code number compare the code number with the number on the display. At this point the code
number can be written over as frequently as necessary for correction. If the wrong code number has been
entered, enter the entire code number again.

5. Confirm entry of correct code number with " < " or " > " button.

6. If the wrong code number has been entered and confirmed the word "CODE" appears again on the display

and the code must be entered again.

7. After entering the code incorrectly three times the word "WAIT" appears on the display and the radio is

disabled for approx. 10 minutes. After entering the incorrect code three times again the radio is disabled
for approx. 60 minutes.

The disable time runs down only with the radio switched off.

REMOVE/INSTALL RADIO - AR82.60-P-7502EA

MODEL 129 with single-block unit, 2nd generation two-component unit control element and MB radios

MODEL 163 with CODE (257) Hi-Line radio with CODE (259) Premium radio with Bose sound system
with CODE (352) COMAND operating and display system with CODE (353) Audio 30 APS with CODE
(357) Navigation system - additional unit with CODE (522) Modular control system (MCS) radio USA
with CODE (750) MB Audio 30 RDS radio with CODE (752) Becker Mexico 2000 radio with traffic news
decoder with CODE (753) MB Audio 30 RDS radio with CODE (756) MB Audio 10 RDS radio with CD
compartment
