Mercedes-Benz ML320. Service manual - part 288





MODEL 168 with CODE (353) Audio 30 APS with CODE (750) MB Audio 30 radio with TP/RDS with
CODE (752) MB Audio 30 radio without TP/RDS with CODE (753) MB Audio 10 CC radio with TP/RDS
with CODE (754) MB Audio 10 CC radio without TP/RDS with CODE (756) MB Audio 10 CD radio with
TP/RDS with CODE (758) MB Audio 5 radio with CODE (759) MB Audio 5 TP radio with RDS


MODEL 170 with CODE (510) MB Exquisite radio with traffic news decoder, with RDS (Becker) with
CODE (512) MB Special radio with traffic news decoder, with RDS with CODE (515) MB Classic radio
with traffic news decoder, with RDS with CODE (516) MB Classic radio without traffic news decoder
with CODE (755) MB Special radio with CD tray


MODEL 202 with CODE (510) MB Exquisite radio with traffic news decoder, with RDS (Becker) with
CODE (512) MB Special radio with traffic news decoder, with RDS with CODE (515) MB Classic radio
with traffic news decoder, with RDS with CODE (516) MB Classic radio without traffic news decoder
with CODE (750) Becker Europa 2000 radio with CODE (751) Becker Grand Prix 2000 radio with RDS


MODEL 208 with CODE (510) MB Exquisite radio with traffic news decoder, with RDS (Becker) with
CODE (512) MB Special radio with traffic news decoder, with RDS with CODE (515) MB Classic radio
with traffic news decoder, with RDS with CODE (516) MB Classic radio without traffic news decoder


MODEL MODEL 210 with CODE (510a) MB Exquisite radio with traffic news decoder, with RDS
(Becker) with CODE (512a) MB Special radio with traffic news decoder, with RDS with CODE (515a)
MB Classic radio with traffic news decoder, with RDS with CODE (516a) MB Classic radio without
traffic news decoder with CODE (750a) MB Audio 30 RDS radio with CODE (753) MB Audio 30 RDS
radio with CODE (756a) MB Audio 10 RDS radio with CD compartment


MODELS
463.200 /204 /206 /207 /208 /209 /220 /221 /224 /225 /227 /228 /230 /231 /232 /233 /240 /241 /243 /244 /245 /24
with CODE (ER5) MB "Classic" radio or standard class stereo cassette radio with CODE (ER6) MB
"Special" radio or mid-class stereo cassette radio with CODE (ER7) MB "Exquisite" radio or comfort
class stereo cassette radio


MODEL 414.700 with CODE (EF8) Sound 10 radio with CODE (EF9) Sound 20 radio with CODE (EG5)
Sound 30 radio with CODE (EG6) Audio 10 comfort radio, D2B networked with CODE (EU0) Sound 30
radio with single CD drive with CODE (EF2) Audio 10 RDS with CD insertion slot




2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



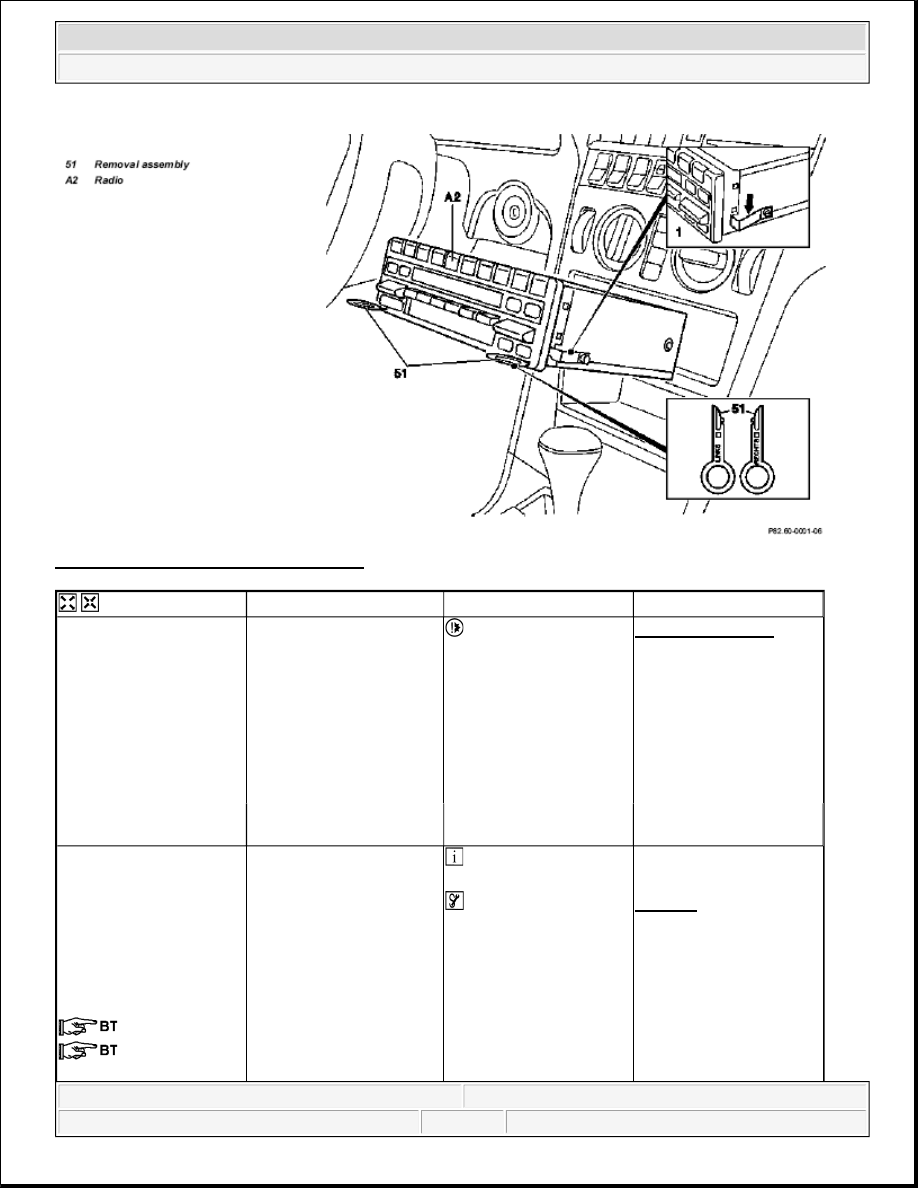

Fig. 190: Identifying Radio Components





Remove/Install





1

Disconnect battery ground
cable

 On model 163, 210,

insulate cable terminal
for ground lead to
prevent unintentional
contact between
disconnected ground lead
and ground point W10

AR54.10-P-0003A





Model 463 except
463.241 with code 979

AR54.10-P-0003G





Model 463.241 with code
979

AR54.10-P-0003PV

2

Pull out radio (A2)

 Insert removal fixture

(51) for this purpose.









Fig. 191





Push back retaining
springs (arrow) on
removed radio (A2) and
pull out removal fixture
(51).





MB radio

Model 202

BT82.60-P-9309-01A



MB radio

as of 02/97

BT82.60-P-9309-01B



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



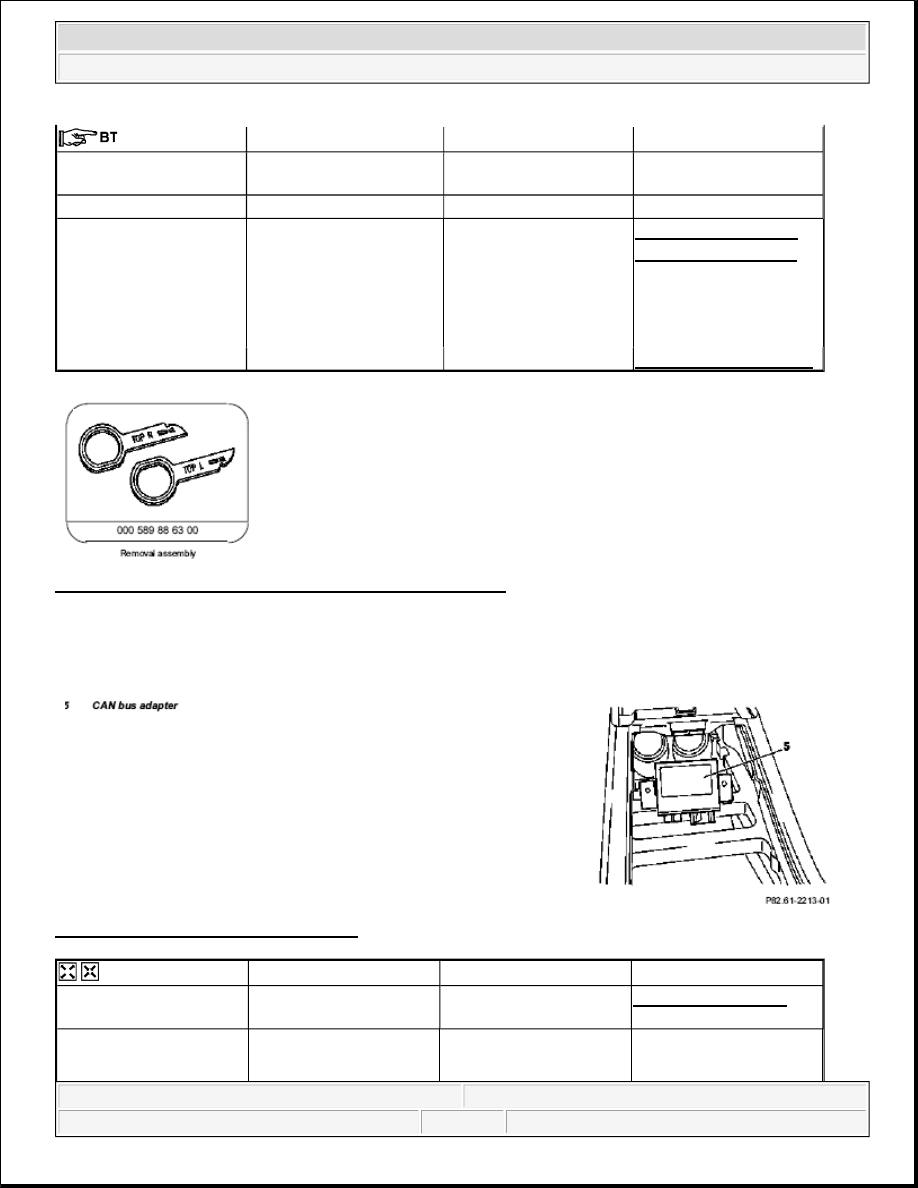

Fig. 191: Identifying Removal Assembly (000 589 88 63 00)

REMOVING AND INSTALLING CAN BUS ADAPTER - AR82.61-P-7413G

MODEL 163 with CODE (353) Audio 30 APS

Fig. 192: Identifying CAN Bus Adapter



MB radio

MODEL 129 as of 02/91 BT82.60-P-9309-01C

3

Disconnect electrical
connectors





4

Install in the reverse order



5

Enter radio code

Code 750, 751

AR82.60-P-7502-01A





Code 510a, 512a, 515a,
516a, 755, ER5, ER6,
ER7

AR82.60-P-7502-01B





Model 129

AR82.60-P-7502-01C





Model 168, 414

AR82.60-P-7502-01GC





Model 163

AR82.60-P-7502-01GH





Removal, installation





1

Remove cover on shift
lever



AR68.20-P-2310GH

2

Disconnect electrical
connector on CAN bus







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL ANTENNA FOR GLOBAL POSITIONING SYSTEM (GPS) ON VEHICLES WITH APS - AR82.61-P-
7474GI

MODEL 163.113 /154 /172 /174 #A as of 145273 up to 289564, 163.113 /154 /172 #X as of 708319 up to
754619, 163.136/157 with CODE (353) Audio 30 APS with CODE (357) Navigation system - additional
unit with CODE (349) E-call emergency call system


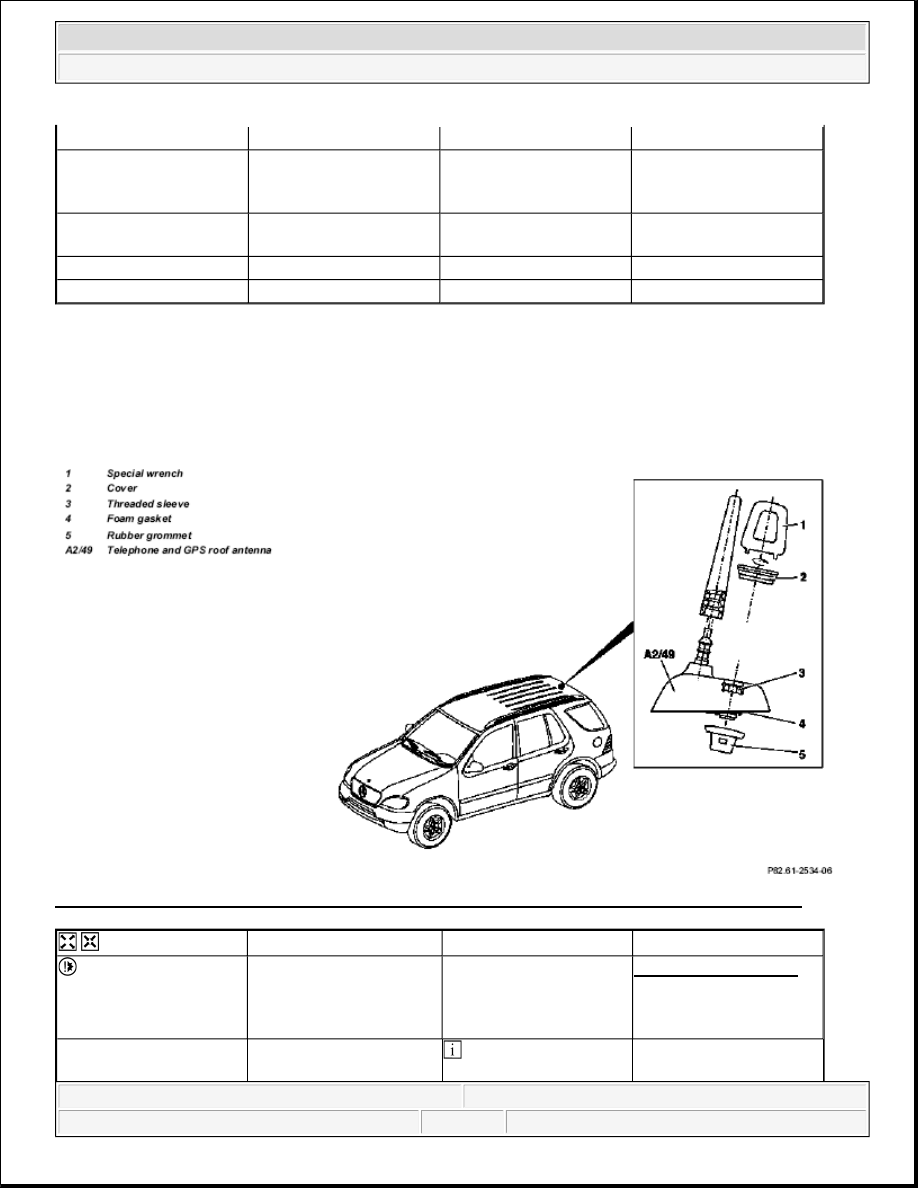

Fig. 193: Identifying Antenna For Global Positioning System On Vehicles With APS Components

adapter (5)

3

Unscrew screws (2 each)
from CAN bus adapter
(5)





4

Remove CAN bus
adapter (5)





5

Install in opposite order





6

Check for proper function







Remove/install







Information on preventing
damage to electronic
components due to
electrostatic discharge



AH54.00-P-0001-01A

1

Unscrew cover (2) using
special wrench (1)

 Installation: Screw in

cover (2) until it is flush





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
