Mercedes-Benz ML320. Service manual - part 285





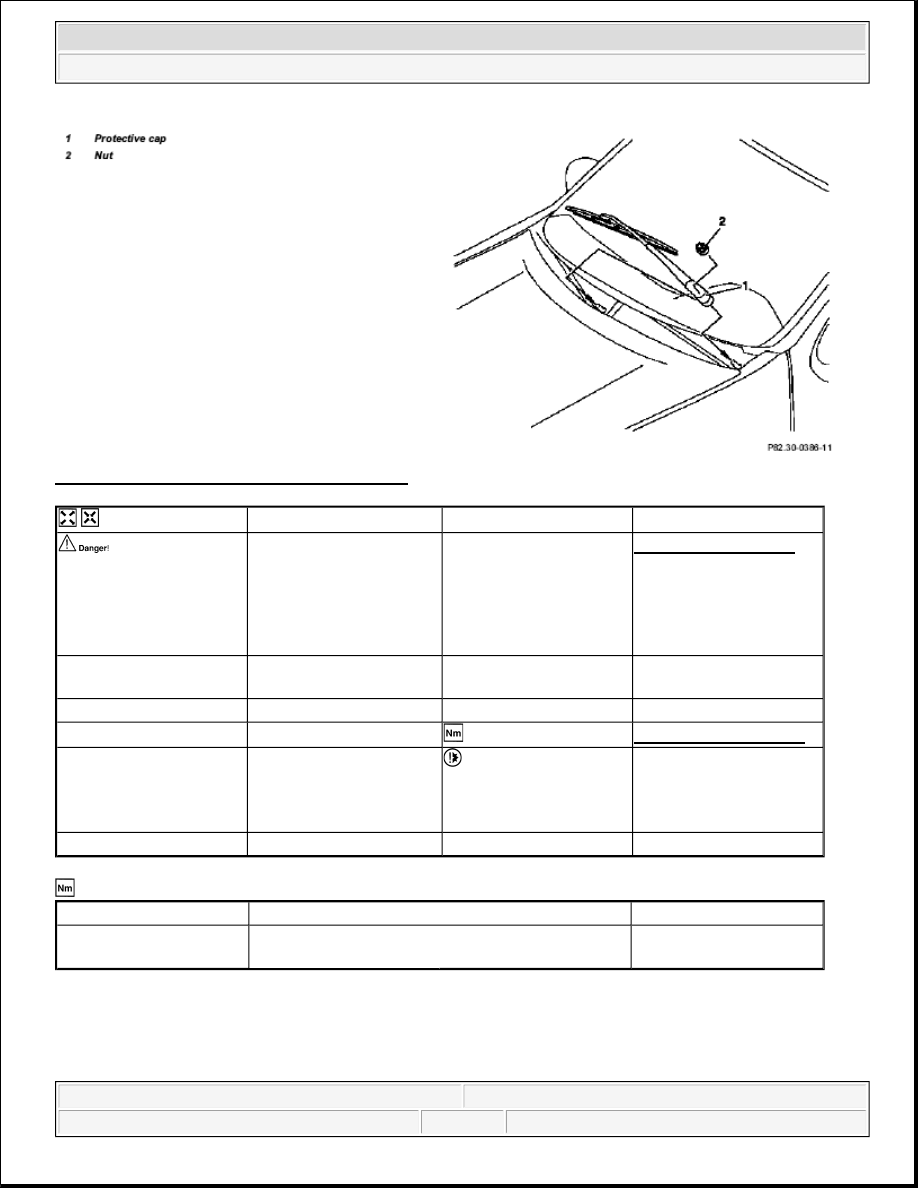

Fig. 177: Identifying Wiper Arm Components

 Windshield wipers

REMOVE/INSTALL WIPER SYSTEM - AR82.30-P-6400GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175





Remove/install







Injury hazard by
trapping or crushing, in
extreme cases with loss of
limbs when reaching into
windshield wiper
mechanism

Always remove ignition
key when working on
windshield wiper
mechanism.

AS82.30-Z-0001-01A

1

Ensure that wiper motor is
in park position





2

Open protective cap (1)





3

Unscrew nut (2)



*BA82.30-P-1002-01C

4

Takeoff wiper arm

 Hold wiper arm on

mounting section to
avoid hitting against
windshield.



5

Install in the reverse order



Number

Designation

Model Series 163

BA82.30-P-1002-01C

Nut for wiper arm on
windshield

Nm 18



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



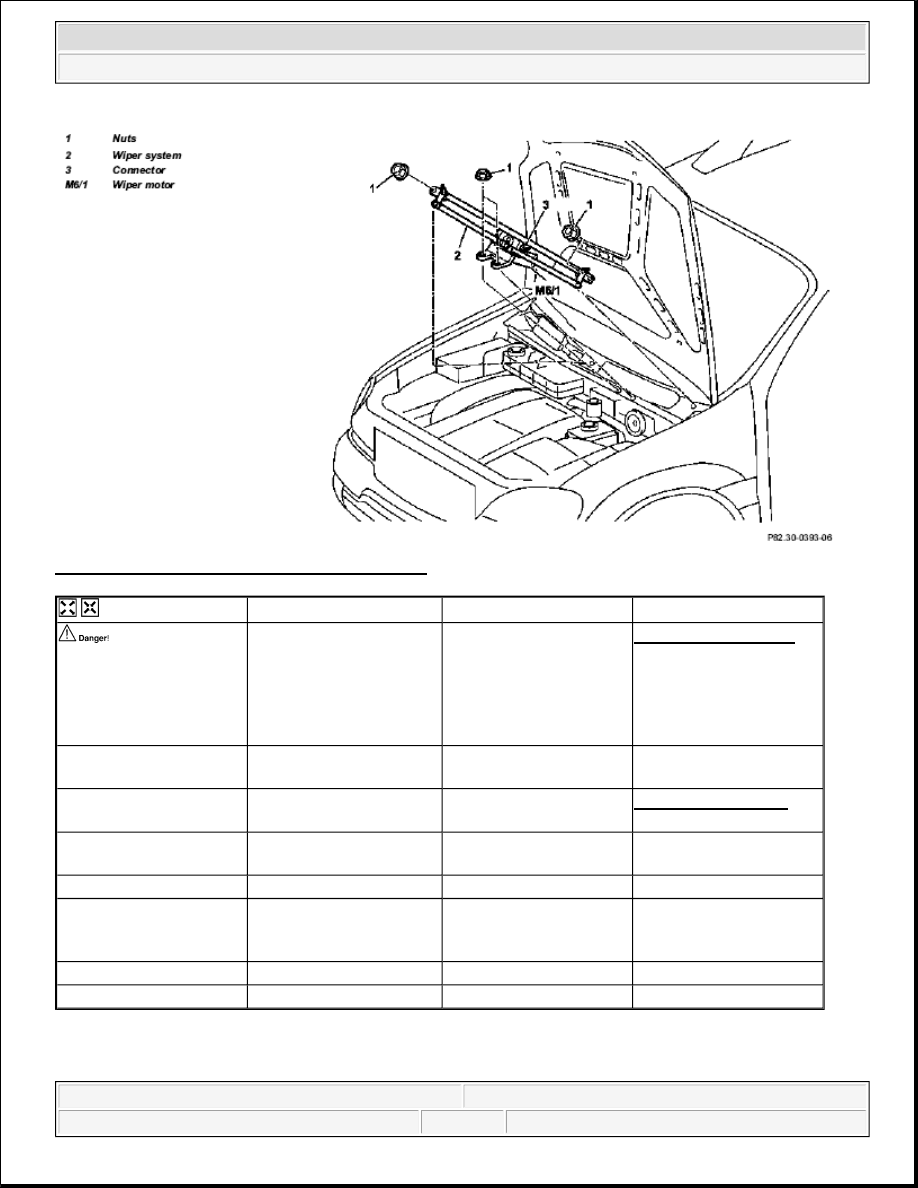

Fig. 178: Identifying Wiper System Components

MOVE WIPER MOTOR TO PARKING POSITION - AR82.30-P-6800-01E





Remove/install







Injury hazard by
trapping or crushing, in
extreme cases with loss of
limbs when reaching into
windshield wiper
mechanism

Always remove ignition
key when working on
windshield wiper
mechanism.

AS82.30-Z-0001-01A

1

Ensure that wiper motor is
in park position





2

Remove cover on air
intake



AR83.25-P-1405GH

3

Unscrew nuts(1) on wiper
arm





4

Lift wiper system (2)





5

Disconnect connector (3)
from the wiper motor
(M6/1)





6

Remove wiper system (2)



7

Install in the reverse order





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Illustrated on model 163

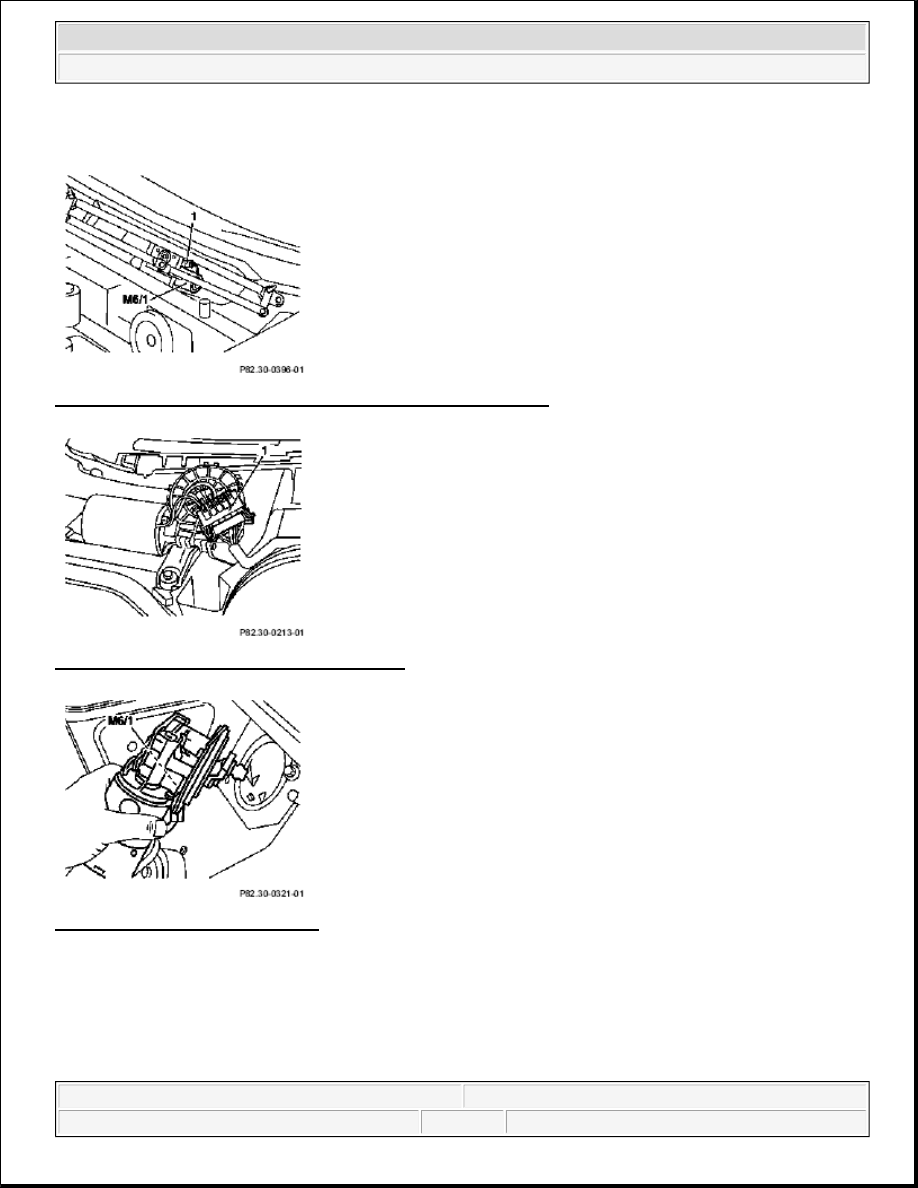

Fig. 179: Identifying Wiper Motor Connector And Wiper Motor

Fig. 180: Identifying Wiper Motor Connector

Fig. 181: Identifying Wiper Motor

1. Connect wiper motor (M6/1) to wiper motor connector (1).

2. Hold wiper motor (M6/1) using the left hand.

3. Switch on ignition.

4. Set combination switch to "stage 1".

5. Turn combination switch back to "level 0".



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



6. If the wiper motor (M6/1) is in the park position, switch off the ignition.

7. Detach wiper motor connector (1) from wiper motor (M6/1).

REMOVING AND INSTALLING WIPER MOTOR - AR82.30-P-6800GH

MODEL 163

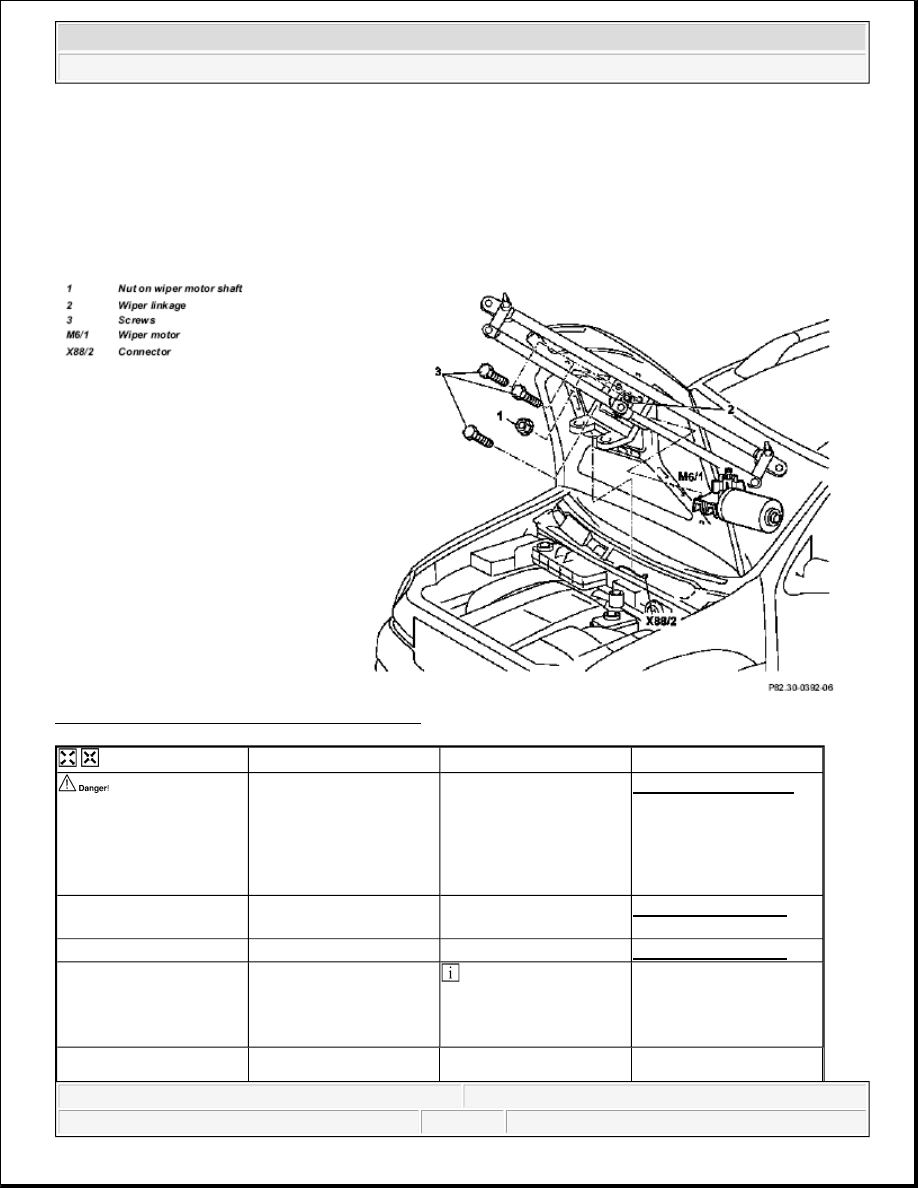

Fig. 182: Identifying Wiper Motor Components





Removal, installation







Injury hazard from
pinching and crushing, in
extreme cases extremities
can even be cut off when
caught in windshield
wiper mechanism.

Always remove ignition
key before working on
windshield wiper
mechanism.

AS82.30-Z-0001-01A

1

Remove cover on air
intake



AR83.25-P-1405GH

2

Remove wiper system



AR82.30-P-6400GH

3

Unscrew nut on wiper
motor shaft (1)

 Installation: Align

lever on wiper motor
shaft vertically
downward.



4

Unscrew screws (3) on







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
