Fig. 168: Identifying Pulling Hooks (140 589 02 33 00)

REMOVING AND INSTALLING LICENSE PLATE LAMPS - AR82.10-P-5161GH

MODEL 163





 Pulling hook

Fig. 168

3

Disconnect electrical
connector (3) from fog
lamp





4

Pull off grommets (4)

 Installation: Ensure

that the grommets are
installed loosely and
without kinks.



5

Install in the reverse order



6

Check fog lamp
adjustment and adjust if
necessary







Check and correct
headlamp adjustment



AP82.10-P-8260GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



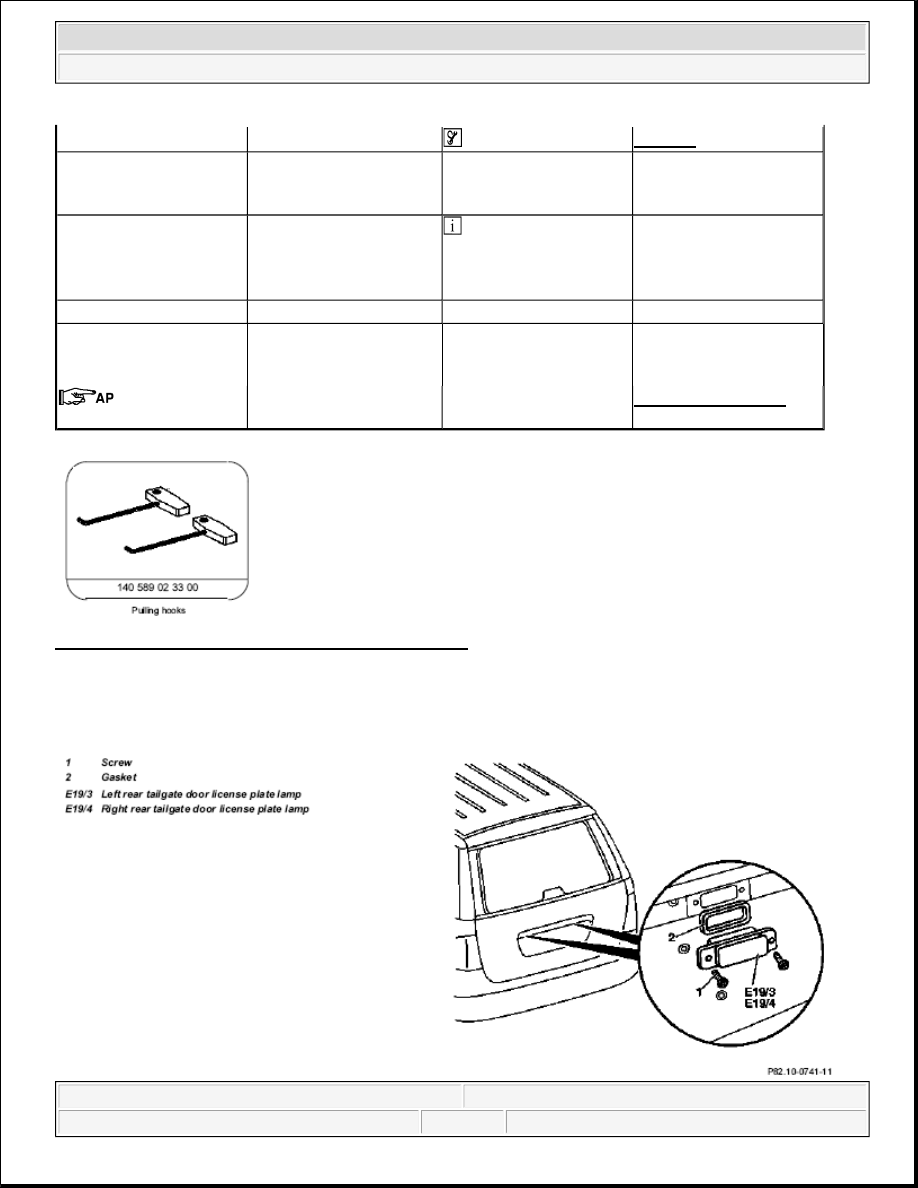

Fig. 169: Identifying License Plate Lamp Components

REMOVING AND INSTALLING CENTER HIGH-MOUNTED STOP LAMP - AR82.10-P-5375GH

MODEL 163

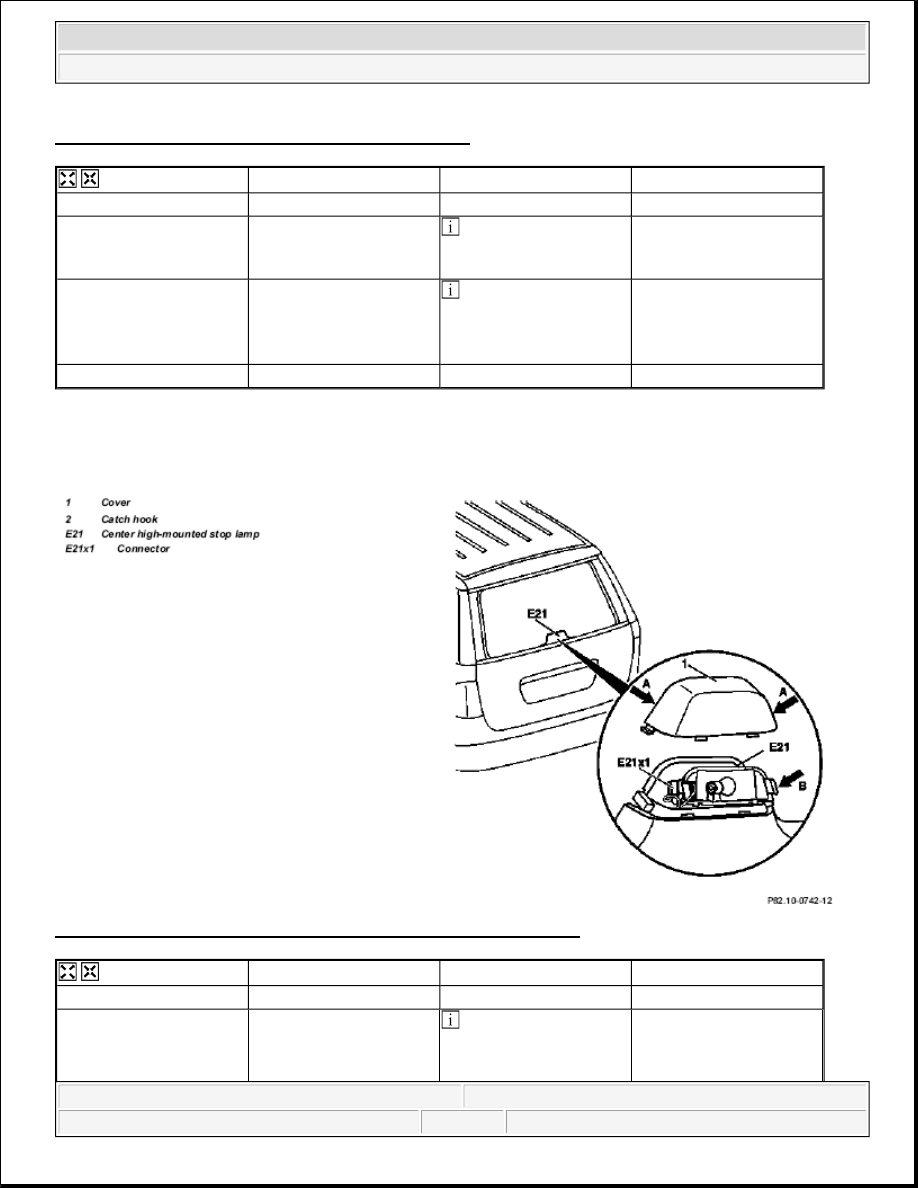

Fig. 170: Identifying Center High-Mounted Stop Lamp Components





Removal, installation





1

Unscrew screws (1)





2

Pry out license plate lamp
(E19/3, E19/4) with
suitable tool

 e.g. plastic wedge



3

Reinstall in opposite
order

 Installation: Check

gasket (2) for license
plate lamp for condition
and proper seating.



4

Check for proper function







Removal, installation





1

Open tailgate





2

Remove cover (1) for
center high-mounted stop
lamp(E21)

 Press cover in on right

and left (arrow A) until
catch hooks (2) are





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL TELESCOPING NOZZLE FOR HEADLAMP CLEANING SYSTEM - AR82.15-P-6100GH

MODELS 163.113 /128 /154 /157 /172 /175 with CODE (600a) Headlamp cleaning system

MODEL 163.174

Fig. 171: Identifying Headlamp Cleaning System Components

released

3

Disconnect electrical
connector (E21x1)





4

Release center high-
mounted stop lamp on
left (arrow B) and twist to
right out of housing





5

Reinstall in opposite
order





6

Check for proper function







Remove/Install





1

Remove the front bumper with visual enhancement

package, code U49.

AR88.20-P-2000GI





As of VIN A289565,
X754620.

AR88.20-P-2000GJ



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVING AND INSTALLING FRONT DOME LAMP - AR82.20-P-0110GH

MODEL 163

Fig. 172: Identifying Front Dome Lamp Components

2

Remove retaining clip (2)
and water hose (1) from
telescopic nozzle





3

Unscrew screws (3) from
mount of telescopic nozzle





4

Remove cover (4) from
telescopic nozzle

 Risk of breakage!
 Press telescopic

nozzle upward to obtain
access to the retaining
lugs for the cover from
above



5

Remove telescopic nozzle
(5) together with mount





6.1

Remove mount from
telescoping nozzle

 Only when the

telescopic nozzle is
replaced.



7

Install in the reverse order







Removal, installation





1

Remove overhead control
panel (1)



AR82.20-P-1100GH

2

Remove bulb (2)







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
