Mercedes-Benz ML320. Service manual - part 282

INSTALLING AUXILIARY CABLE HARNESS ON SIDE WALL TAILLAMP - AR82.10-P-4920-01GH

Models 163.154/174 as of VINA289565 to VIN A371934, model 163.175 up to VIN A371934 with USA
version code 494a

1. Insert plug (1) of auxiliary cable harness (2) in socket (3) of side-marker lamp.

2. Insert the plug on the other end of the wiring harness in the free connection pins in the opening (4) of the

lamp support (5).

 The brown line (ground) should be on the outside. Ensure that the plugs are completely pushed onto

the connection pins.

3. Seal the lines and opening (4) with a thermoplastic adhesive gun.

 Give the adhesive sufficient time to dry before installing the taillamp.

distance of the cover to
the bumper is even.

5

Unhook left front
headlamp unit (E1) or
right front headlamp unit
(E2) from the hole (arrow
B) using drift (4) and pull
forwards





6

Disconnect headlamp
harness connector (X24)





7

Remove headlamp unit
toward front





8

Install in the reverse order



9

Perform function check





10

Check and correct
headlamp adjustment







Check and correct
headlamp adjustment



AP82.10-P-8260GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



Fig. 164: Identifying Auxiliary Cable Harness On Side Wall Taillamp

REMOVE/INSTALL SIDE WALL TAILLAMP - AR82.10-P-4920GH

MODEL 163

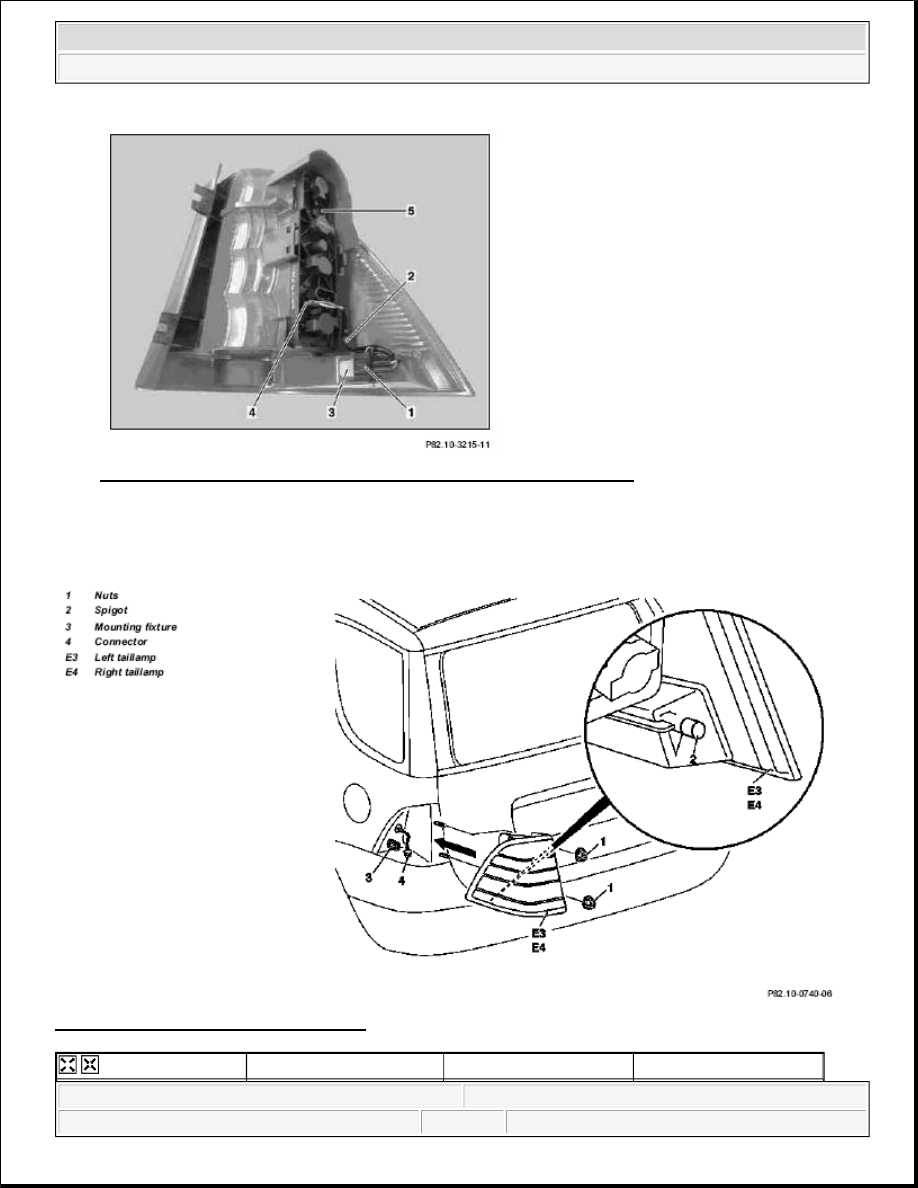

Fig. 165: Identifying Side Wall Taillamp





Remove/Install







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL FOG LAMP - AR82.10-P-5103GH

MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL 163.174

Fig. 166: Identifying Fog Lamp Components

1

Open rear flap





2

Unscrew nuts(1)





3

Pull back left taillamp
(E3) or right taillamp (E4)

 Installation: Insert

spigot (2) in the support
(3).



4

Unplug connector (4)





5

Take out taillamp





6.1

Install auxiliary wiring
harness

 Only if the taillamp is

replaced. Only on USA
version vehicles, code
494a and as of VIN
A289565 up to A371934.

AR82.10-P-4920-01GH

7

Install in the reverse order



8

Perform function check









Remove/Install







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL FOG LAMP - AR82.10-P-5103GI

MODELS 163.113/154#A as of 289565, 163.113 /154 #X as of 754620, 163.128/157/175

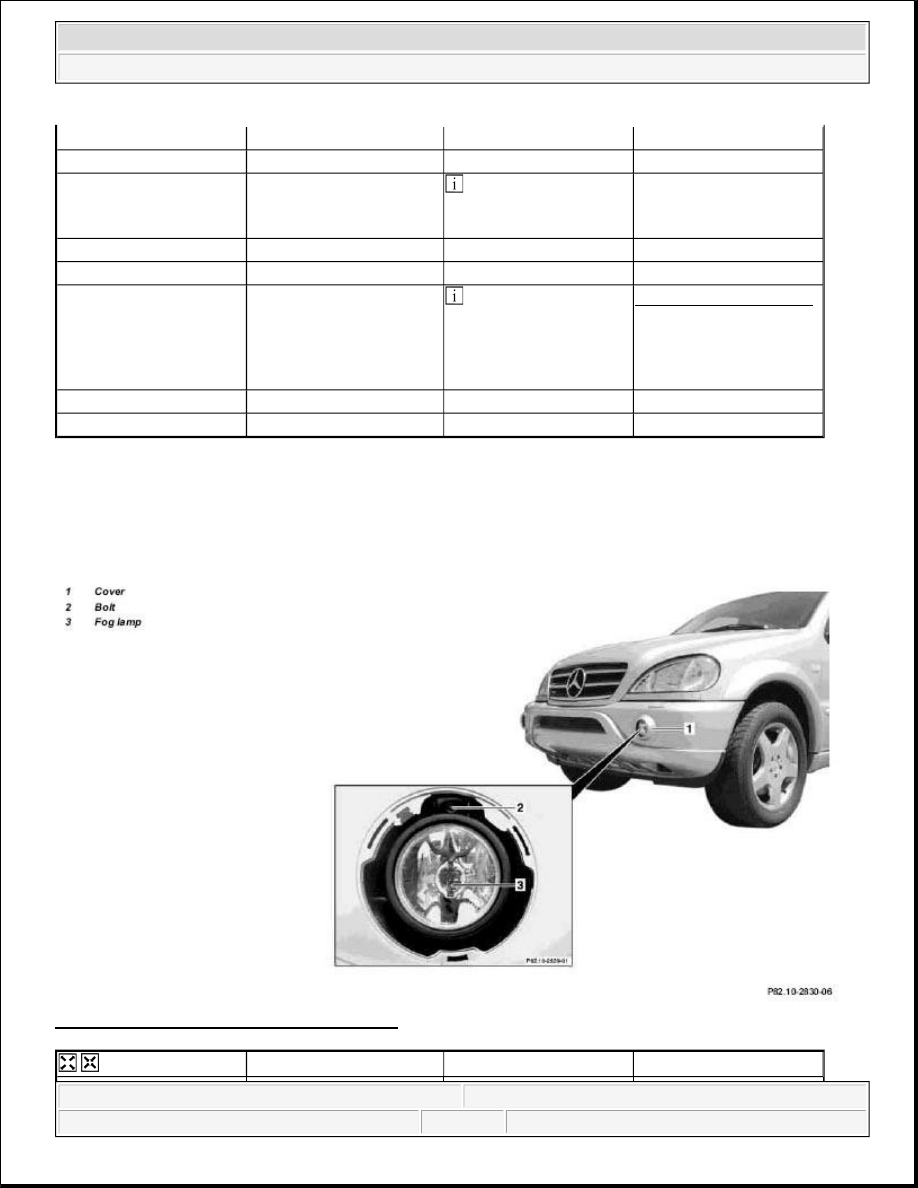

Fig. 167: Identifying Fog Lamp Components

1

Remove cover (1)





2

Unscrew bolt (2)





3

Remove fog lamp (3)
from bumper





4

Disconnect connector





5

Install in the reverse order







Remove/install





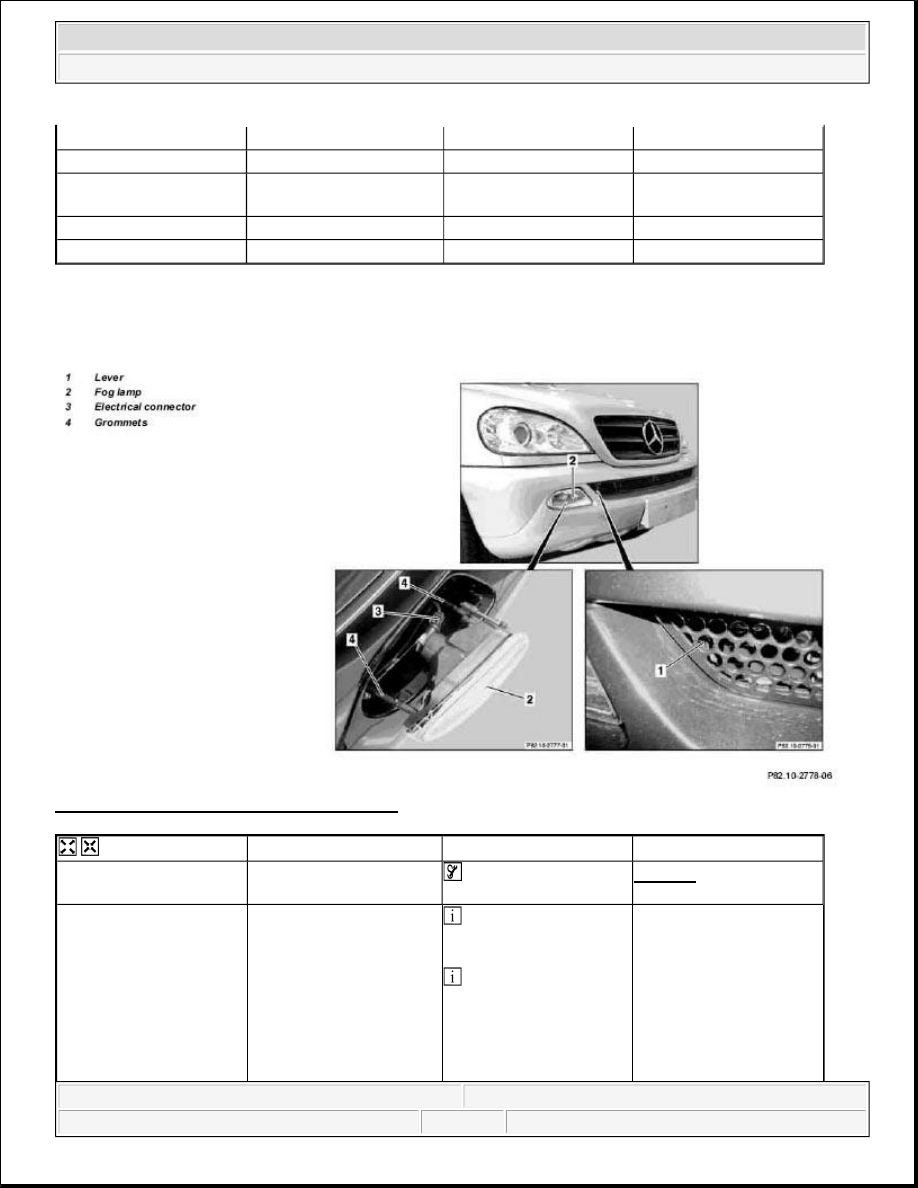

1

Press lever (1) to release
the fog lamp (2)

 Pulling hook

Fig. 168

2

Disconnect fog lamp (2)
from front bumper

Exercise caution when

pulling at the edges of the
fog lamp.

 Installation: First

notch in the fog lamp at
the edges. Ensure that the
lever (1) securely holds
the fog lamp in place.
