Mercedes-Benz ML320. Service manual - part 280





MODELS 163.154 /172 /113 with CODE (612b) Xenon headlamp unit

MODELS 163.174/175/128/157

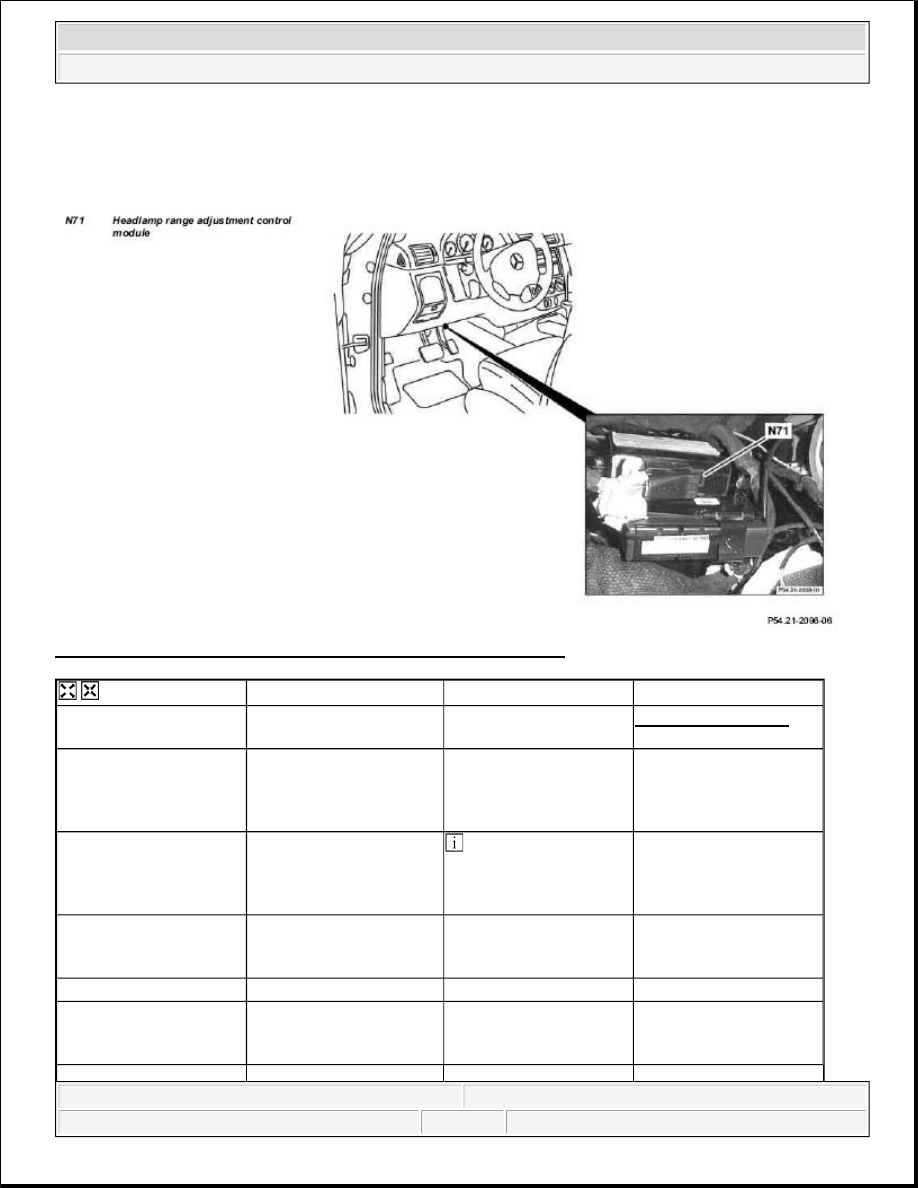

Fig. 157: Identifying Headlight Beam Adjustment Control Module





Remove/Install





1

Remove cover below
instrument panel (left)



AR68.10-P-1500GH

2

Disconnect connector
from headlamp range
adjustment control module
(N71)





3

Unscrew headlamp range
adjustment control module
from mount of extended
activity module (EAM)

 2 nuts.



4

Remove headlamp range
adjustment control module
(N71)





5

Install in the reverse order



6

Adjust headlamp into zero
position using STAR
DIAGNOSIS







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL ELECTRIC HEADLAMP RANGE ADJUSTMENT MOTOR - AR82.10-P-4082GH

MODEL 163.154 /172 /113 with CODE (612) Xenon headlamp unit

MODEL 163.174/175/128/157

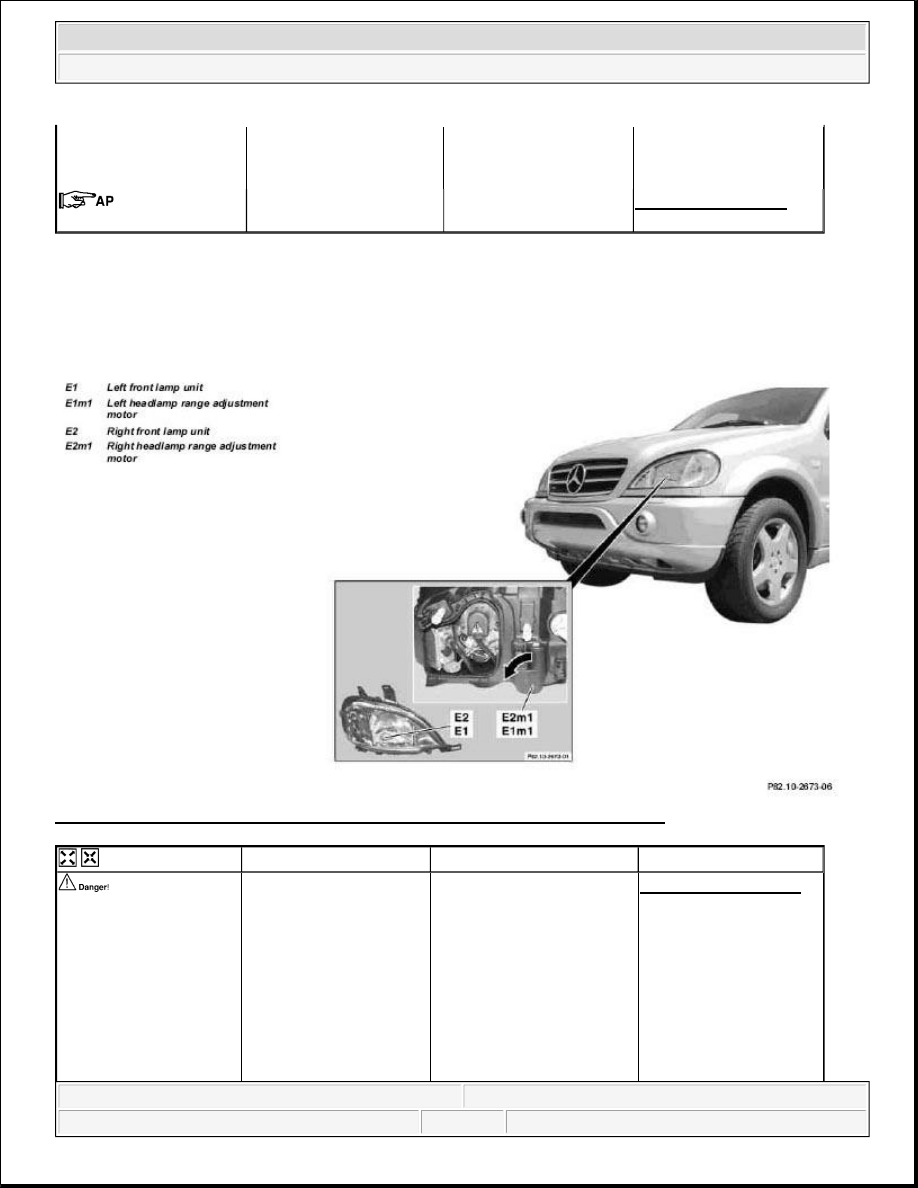

Fig. 158: Identifying Electric Headlamp Range Adjustment Motor Components

7

Inspect headlamp
adjustment, correct if
necessary.







Check and correct
headlamp adjustment



AP82.10-P-8260GH





Remove/install







Risk of death caused by
high voltage levels
present at xenon
headlamps.
Risk of explosion/fire
hazard
 through highly
flammable material in the
area of damaged xenon
bulbs
Risk of injury through

Do not come into contact
with parts that are under
high voltage. Persons with
active electronic implants
(e.g. heart pacemakers)
must never work on xenon
headlamps. Switch off
complete lighting system.
Wear insulating safety
shoes, safety glasses and

AS82.10-Z-0001-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL XENON HEADLAMP CONTROL UNIT - AR82.10-P-4632GH

MODEL 163.113 #X up to 754619, 163.113 /154 #A up to 289564, 163.172 with CODE (612) Xenon

UV light, hot
components on xenon
headlamps and glass
splinters when xenon
bulbs burst
Risk of poisoning
through inhalation of
mercury vapor and
swallowing of or skin
contact with toxic salts
and mercury compounds

protective gloves. Remove
highly inflammable
materials from the hazard
area. Ensure that the
workplace is sufficiently
ventilated.

1

Remove left front lamp
unit (E1) or right front
lamp unit (E2)



AR82.10-P-4730GH

2

Remove cover from rear
of lamp unit





3

Turn left headlamp range
adjustment motor
(E1m1) or right
headlamp range
adjustment motor
(E2m1) to right and
remove from left front
lamp unit (E1) or right
front lamp unit (E2)

 Left side: 1/4 clockwise

rotation. Right side: 1/4
counterclockwise rotation.



4

Unhook adjusting
support and remove left
headlamp range
adjustment motor
(E1m1) or right
headlamp range
adjustment (E2m1)





5

Install in the reverse
order





6

Set headlamps to zero
position using STAR
DIAGNOSIS





7

Inspect headlamp
adjustment, correct if
necessary.







Check and correct
headlamp adjustment



AP82.10-P-8260GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



headlamp unit

MODEL 163.174 #A up to 289564

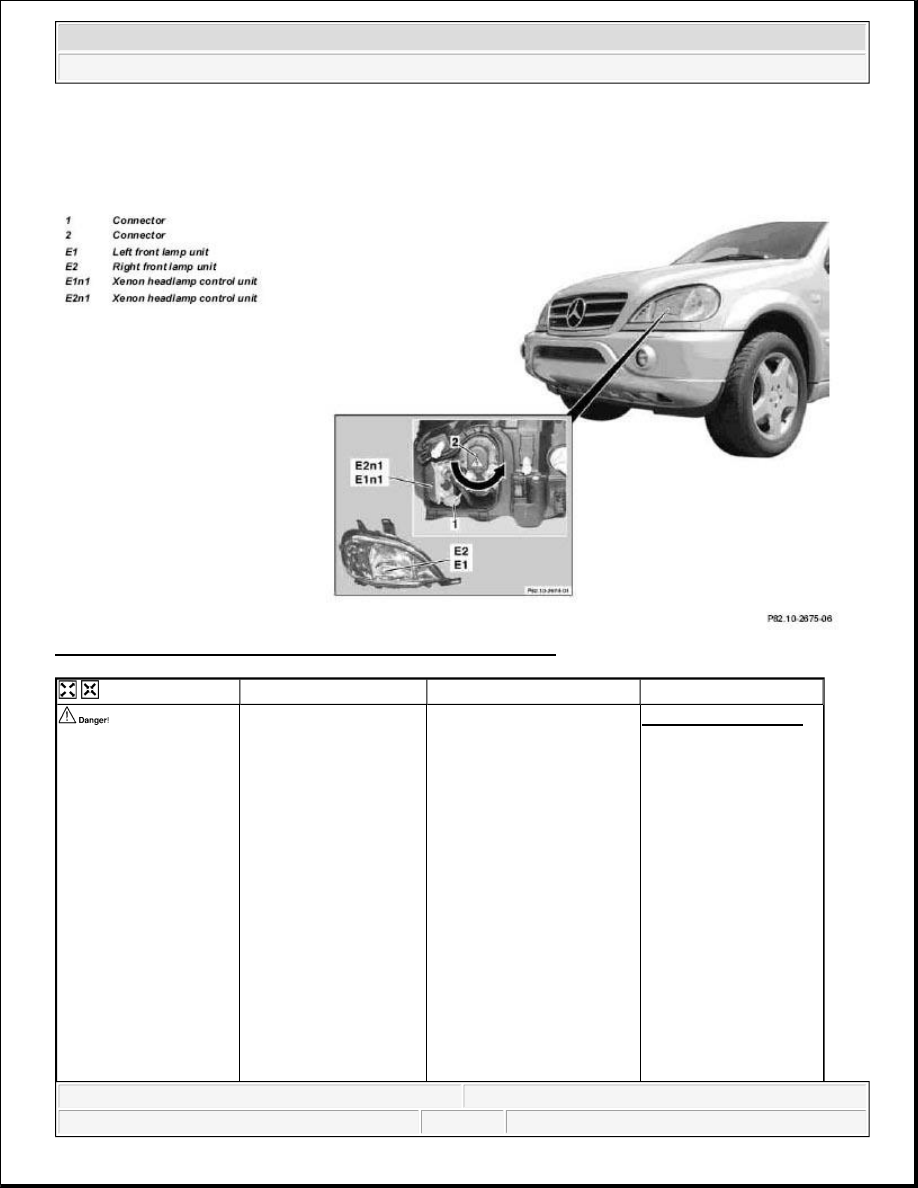

Fig. 159: Identifying Xenon Headlamp Control Unit Components





Remove/install







Risk of death caused by
high voltage levels
present at xenon
headlamps.
Risk of explosion/fire
hazard
 through highly
flammable material in
the area of damaged
xenon bulbs.
Risk of injury through
UV light, hot
components on xenon
headlamps and glass
splinters when xenon
bulbs burst.
Risk of poisoning
through inhalation of
mercury vapor and

Do not come into contact
with parts that are under
high voltage. Persons with
active electronic implants
(e.g. heart pacemakers) must
never work on xenon
headlamps. Switch off
complete lighting system.
Wear insulating safety
shoes, safety glasses and
protective gloves. Remove
highly inflammable
materials from the hazard
area. Ensure that the
workplace is sufficiently
ventilated.

AS82.10-Z-0001-01A



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
