Mercedes-Benz ML320. Service manual - part 279





REMOVING AND INSTALLING BULBS OF HEADLAMP UNIT - AR82.10-P-1201GH

MODEL 163.113 /136 /154 /172 /174 up to 31.8.01

rear doors



Remove, install
AM/FM amplifier

MODEL 163

AR82.62-P-
8347GH



Replace fiber
optical cable
(D2B) between
radio and sound
amplifier (after
testing)

MODEL 163...

AR82.62-P-
8350GH



Remove/install
CD player with
changer

MODEL 163 with CODE (819) 6-disc CD
changer

AR82.64-P-
7507GH



Fiber optical
cable (D2B)
replace complete
(after testing)

MODEL 163...

AR82.70-P-
0005GH



Fiber optical
cable (D2B)
replace complete
(after testing)

MODEL 163...

AR82.70-P-
0005GI



Fiber optical
cable (D2B)
replace complete
(after testing)

MODEL 163...

AR82.70-P-
0005GJ



Remove/install
antenna splitter

MODEL 163.113/136 /154 /157 /172 /174

AR82.70-P-
8953GH



Remove/install
electronic
compass

MODEL 163...

AR82.85-P-
7371GH



Remove/install
control module
for E-Call
emergency call
system

MODEL 163...

AR82.95-P-
0008GH



Replace fiber
optical cable
(D2B) between
the radio and E-
call control
module/CTEL
[TEL] interface
(after testing)

MODEL 163...

AR82.95-P-
0015GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



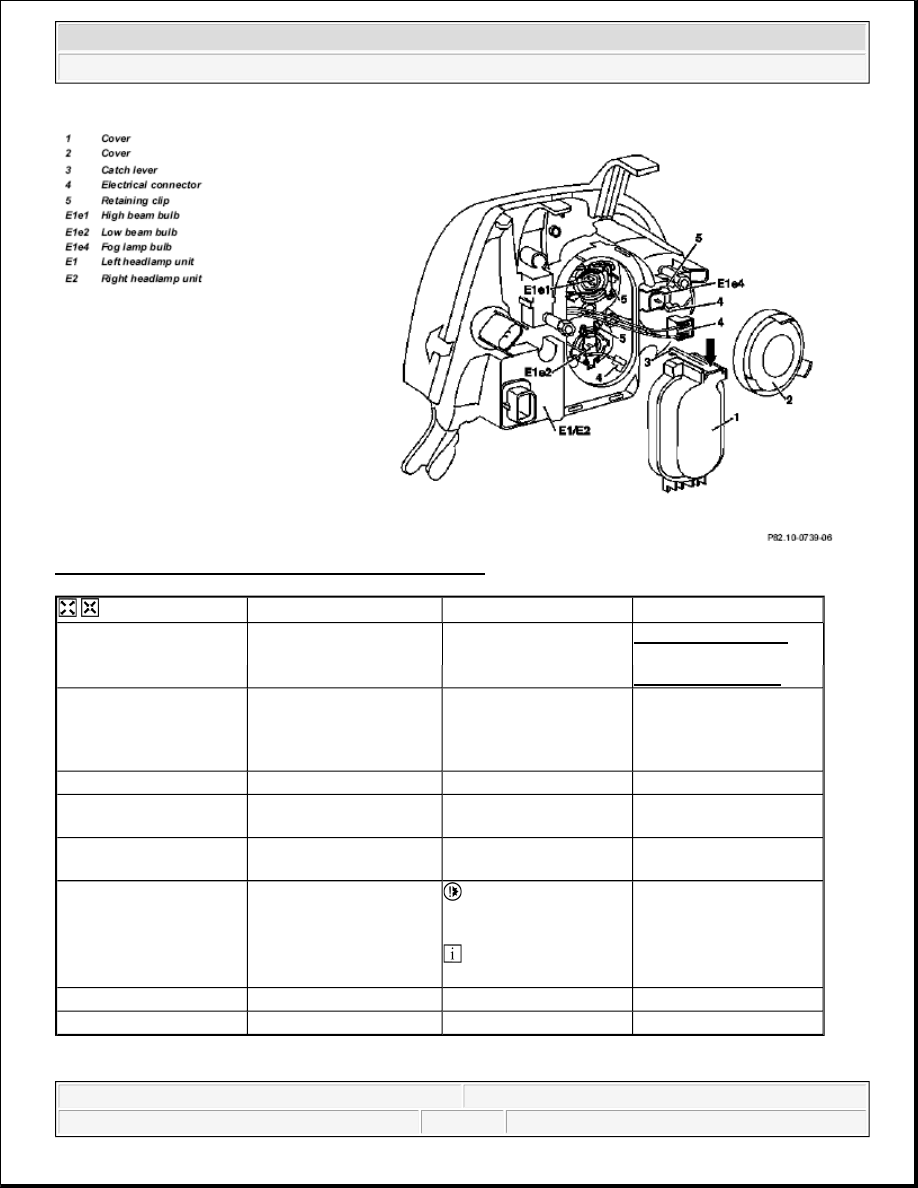

Fig. 153: Identifying Headlamp Unit Bulbs Components

REMOVE/INSTALL FOG LAMP BULB - AR82.10-P-1825GH





Remove/install





1

Open hood and raise to
vertical position

Up to 31.08.99

AR88.40-P-1000GH





As of 01.09.99

AR88.40-P-1000GI

2

Release cover (1) by
pressing on catch lever (3,
direction of arrow) and
remove





3

Remove cover (2)





4

Disconnect electrical
connectors (4) for bulbs





5

Open retaining clips (5)
for bulbs





6

Remove bulbs (E1e1,
E1e2, E1e4)

 Do not touch bulbs

with bare fingers, use
grease-free, soft cloth.

 Installation: Ensure

bulb is correctly installed.



7

Install in the reverse order



8

Perform function check







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



MODEL 163.113/128/1 /154 /157 /172 /175 with CODE (U49) Styling package

MODEL 163.174

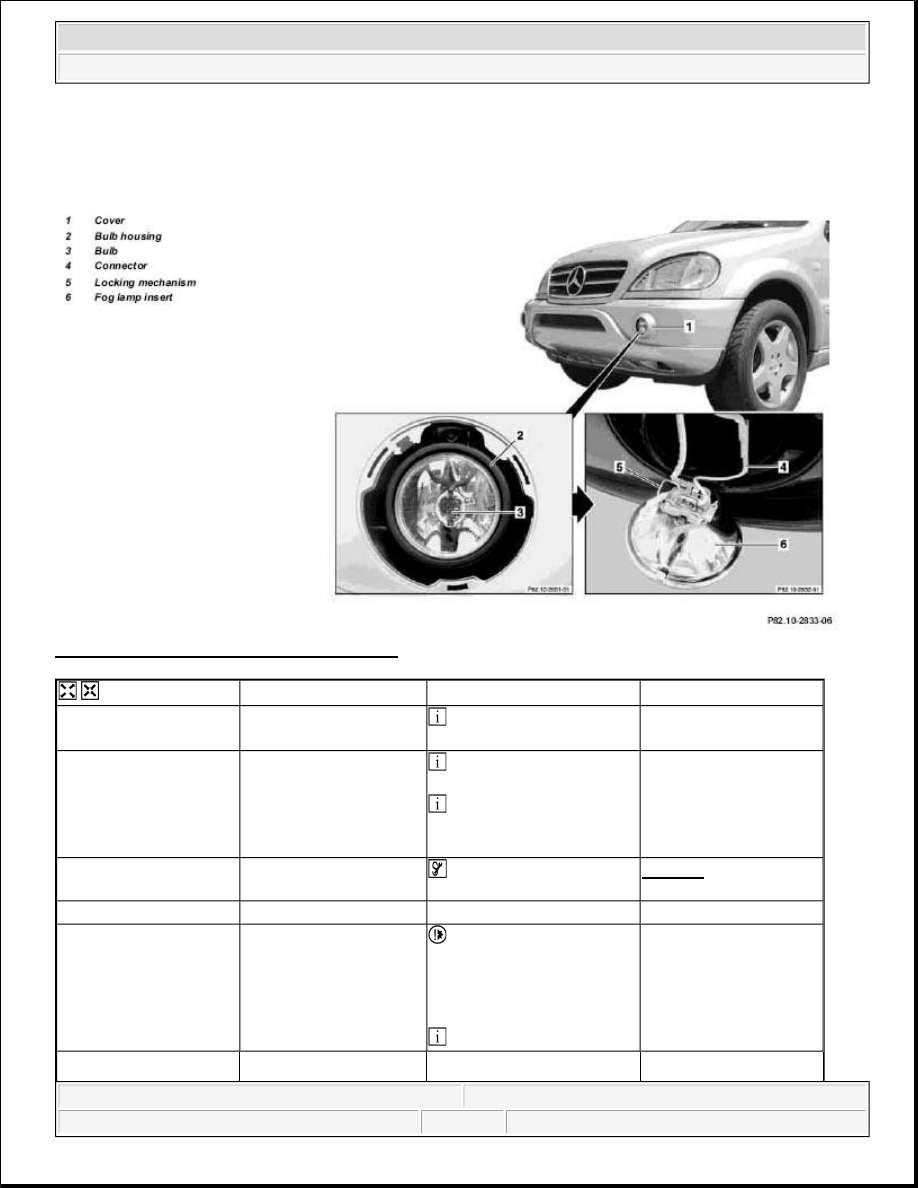

Fig. 154: Identifying Fog Lamp Components





Remove/install





1

Remove cover (1) from
bumper

 Do not break retaining

lugs.



2

Remove bulb housing (2)

 To unlock, rotate

counterclockwise.

 Installation: Ensure that

the locking device has
locked securely.



3

Remove fog lamp insert
(6) from housing

 Installation wedge

Fig. 155

4

Disconnect connector (4)



5

Remove bulb on the
back of the fog lamp
insert (6)

Do not hold the bulb with

bare fingers, as fingerprints
bake and leave behind
opaqueness on the bulb. Use
a soft, lint-free cloth.

 Lock securely.



6

Install in the reverse







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



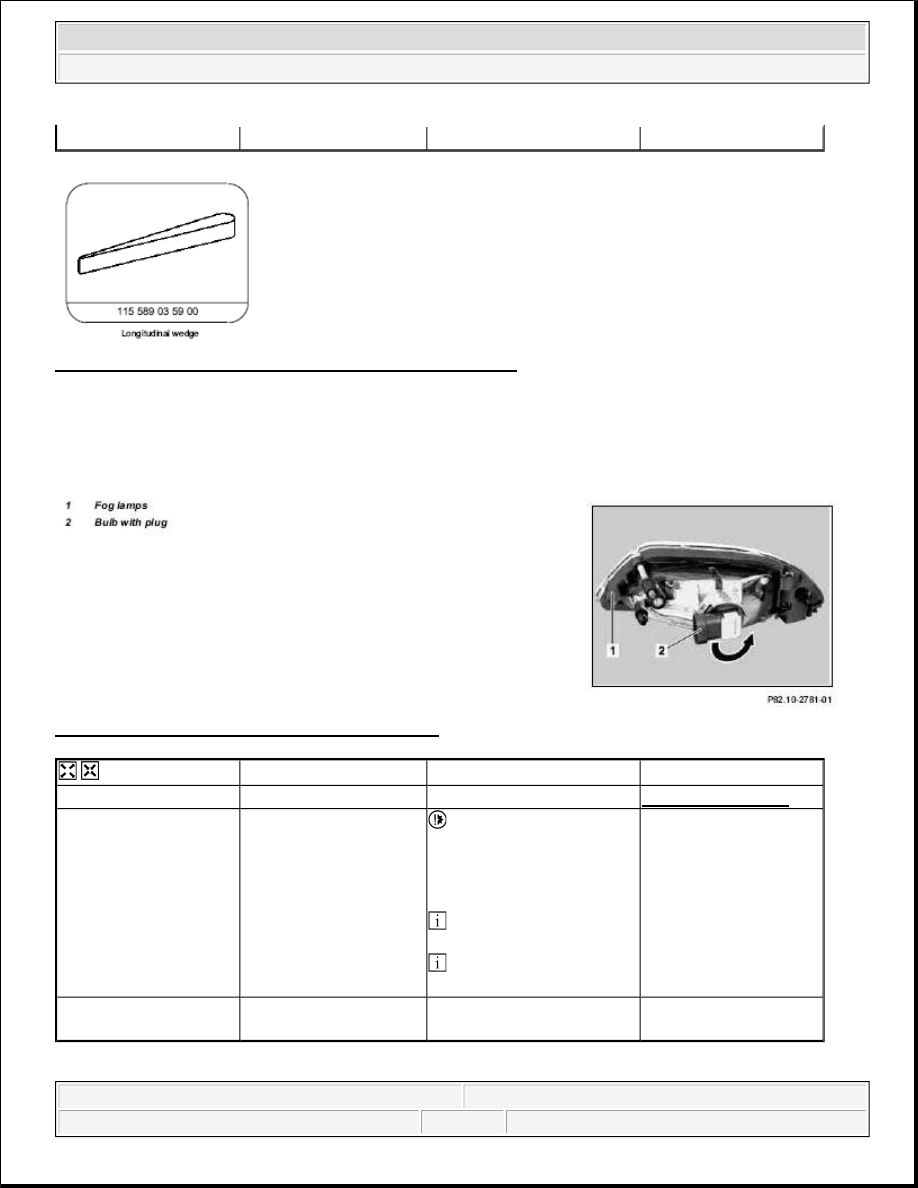

Fig. 155: Identifying Longitudinal Wedge (115 589 03 59 00)

REMOVE/INSTALL FOG LAMP BULB - AR82.10-P-1825GI

MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 #A as of 289565, 163.154 #X as of
754620, 163.128/157/175


Fig. 156: Identifying Fog Lamp Bulb Components

REMOVE/INSTALL HEADLIGHT BEAM ADJUSTMENT CONTROL MODULE - AR82.10-P-4081GH

order





Remove/install





1

Remove fog lamp (1)



AR82.10-P-5103GI

2

Remove bulb with plug
(2)

Do not hold the bulb with

bare fingers, as fingerprints
bake and leave behind
opaqueness on the bulb. Use
a soft, lint-free cloth.

 To unlock, rotate

counterclockwise.

 The bulb and plug are

one unit.



3

Install in the reverse
order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
