Mercedes-Benz ML320. Service manual - part 284





CHANGE REAR DOME LAMP - AR82.20-P-0113-01GH

1. Put dome lamp on workbench.

2. Remove all stiffening ribs (1) on edge.

Only for vehicles with lamella roof, code 417a.

3.1 Measure 13 mm (a) from the front edge and mark.

Only for vehicles with lamella roof, code 417a.

4.1 Cut dome lamp at the mark.

5 Deburr all cutting edges.

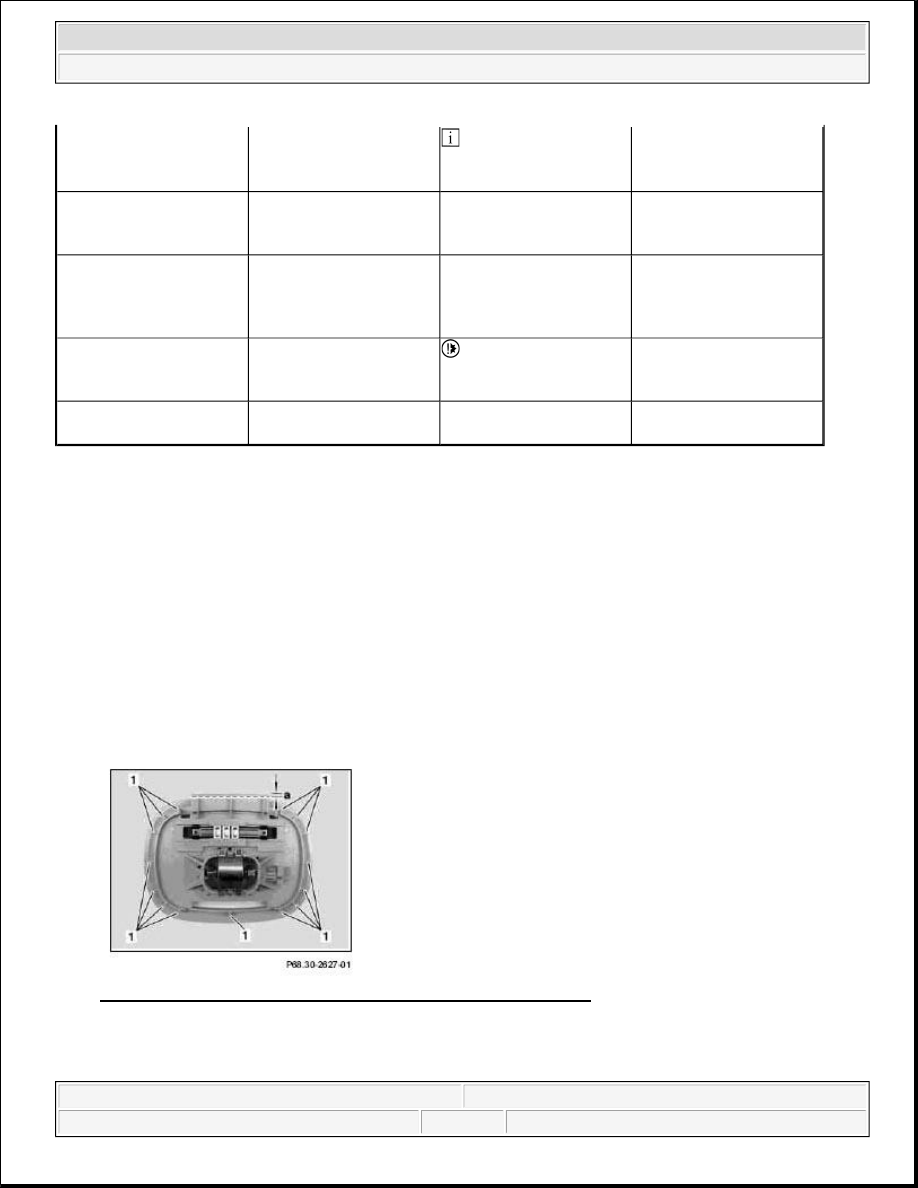

Fig. 173: Identifying Rear Dome Lamp Stiffening Ribs On Edge

REMOVE/INSTALL REAR DOME LAMP - AR82.20-P-0113GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

3

Release socket (3) for
bulb (2) by pressing in

 The bulb socket is

clipped to the overhead
control panel.



4

Pull dome lamp switch
(4) off of reflector
housing (6)





5

Unscrew screws (5) from
reflector housing (6) on
left and right on overhead
control panel (1)





6

Pry reflector housing (6)
out of overhead control
panel (1)

 Avoid damaging

reflector housing



7

Reinstall in opposite
order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



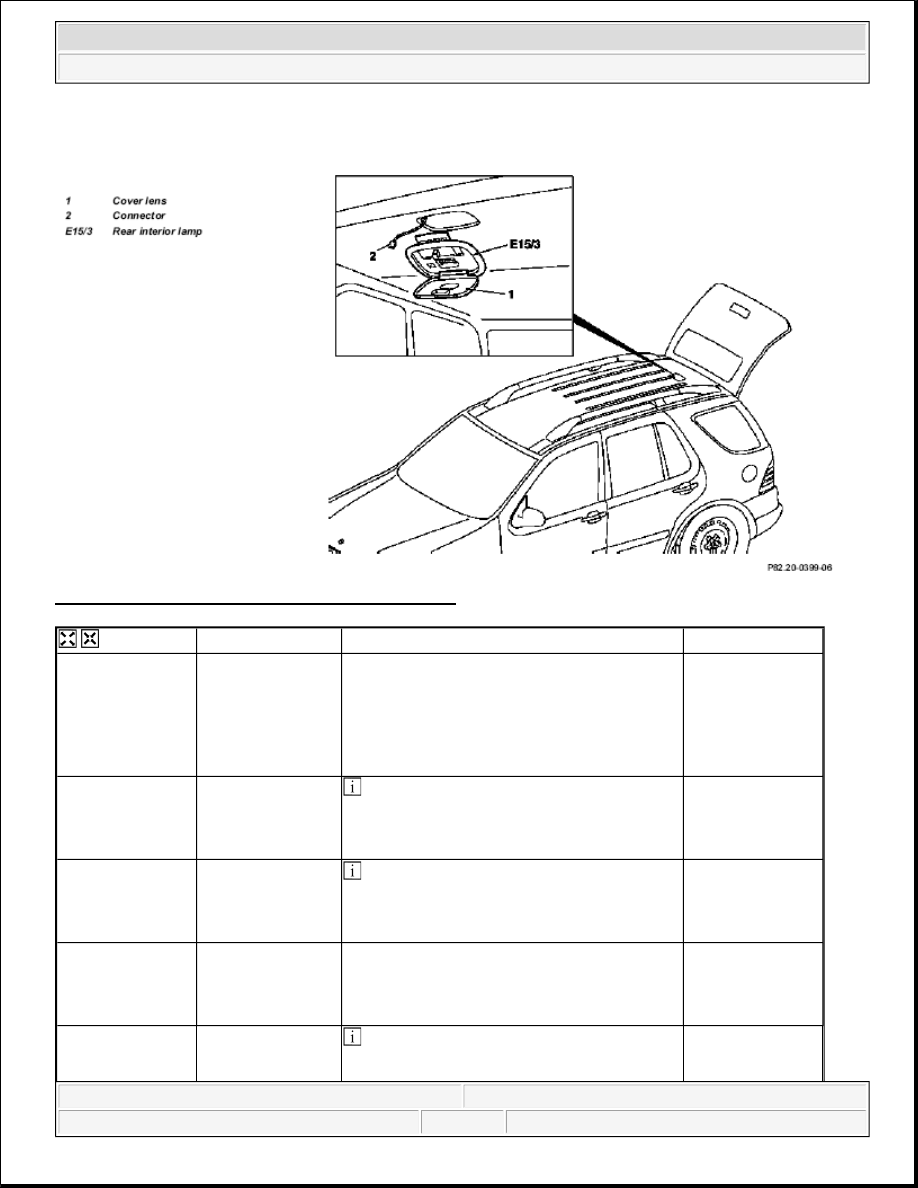

Shown on model 163 without Parktronic system (PTS), code 220a

Fig. 174: Identifying Rear Dome Lamp Components





Remove/Install





1

Prize off glass
cover (1) of the
rear interior lamp
(E15/3) and fold up
until it reaches the
limit stop





2.1

Disconnect
connector from
Parktronic system
warning display

 Only with Parktronic system (PTS), code

220a.



3

Remove rear
interior lamp
(E15/3) from
inside roof lining

 For removal pull dome lamp on rear

housing edge downward and simultaneously
forward.



4

Remove connector
(2) from rear
interior lamp
(E15/3)





5

Install in the
reverse order

 Installation: If dome lamp is replaced in

models 163.113 /128 /136 /154 /172 /174 /175





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



REMOVE/INSTALL FRONT OVERHEAD CONTROL PANEL - AR82.20-P-1100GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

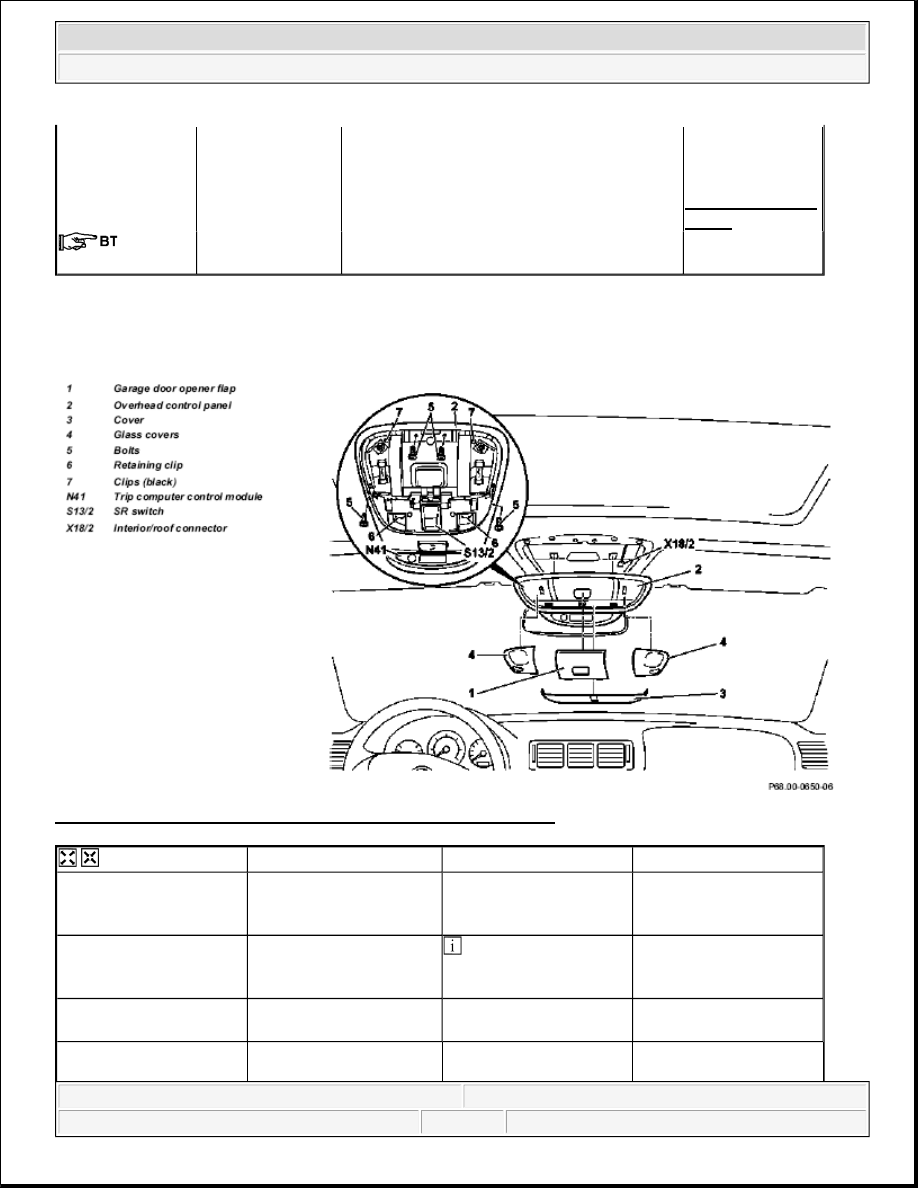

Fig. 175: Identifying Front Overhead Control Panel Components

without Parktronic system (PTS), code 220a
up to vehicle identification number
A346574: ?





Changing dome lamp in the rear

AR82.20-P-0113-
01GH



Changing dome
lamp in the rear



BT82.20-P-0001-
03GH





Remove/install





1

Remove garage door
opener flap (1) from
overhead control panel (2)





2

Unclip cover (3) on the
sliding/tilting roof switch
(S13/2)

 4 clips.



3

Unclip glass covers (4)
from interior lights





4

Unscrew screws (5)







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me



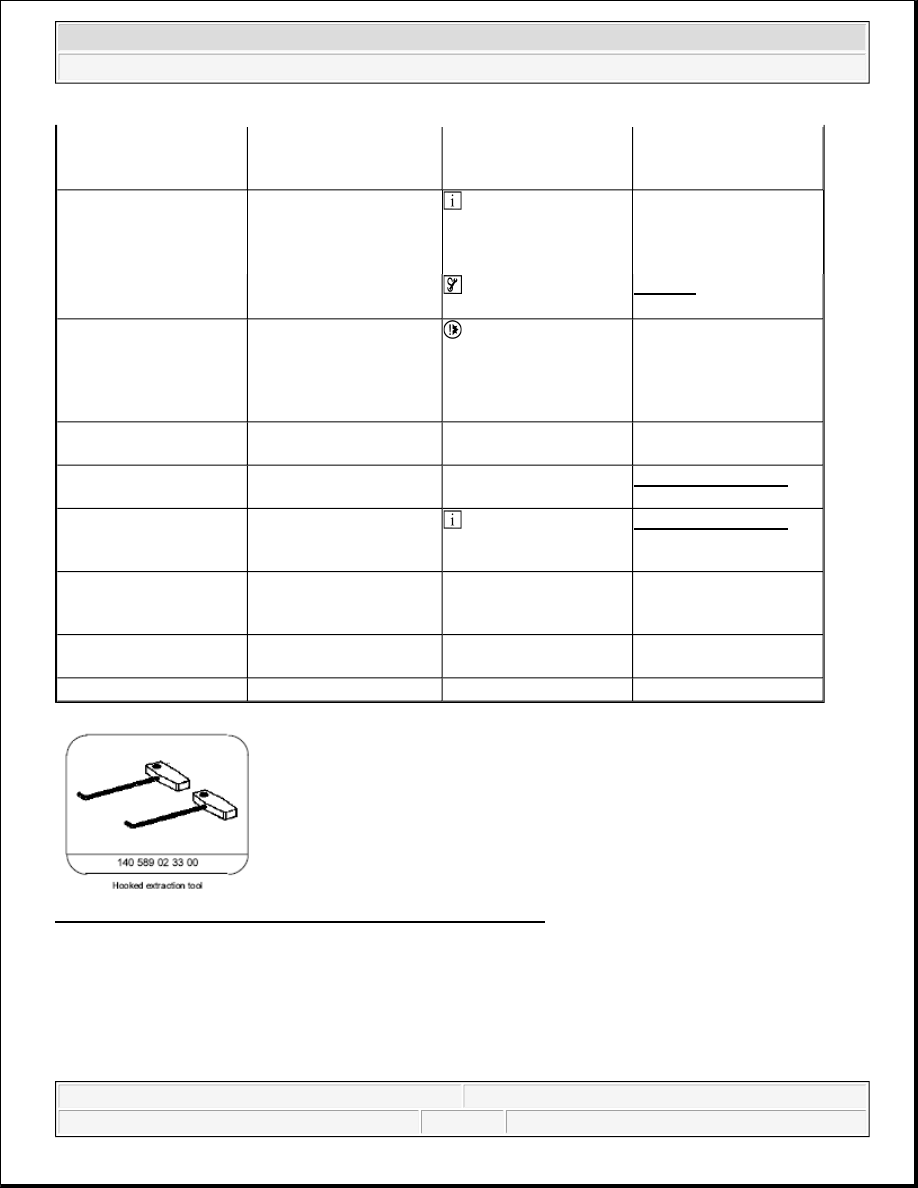

Fig. 176: Identifying Hooked Extraction Tool (140 589 02 33 00)

REMOVING AND INSTALLING WIPER ARM - AR82.30-P-6100GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

below garage door opener
flap (1) and glass covers
(4)

5

Unclip clips (black) (7)
next to the light switches

 Installation:

Counterhold mounting
plate with puller hooks
inside of headliner.







 Hooked extraction

tool

Fig. 168

6

Press both retaining clips
(6) to rear and
simultaneously press
overhead control panel (2)
to front

 Position narrow

plastic wedge or
screwdriver in front of
retaining lugs.



7

Remove overhead control
panel (2) downward





8

Remove sliding/tilting
roof switch (S13/2)



AR77.20-P-0001GH

9.1

Remove trip computer
control module (TRIP)
(N41)

 With code 245, trip

computer, only.

AR54.50-P-0001GH

10

Detach interior/roof
connector (X18/2) from
overhead control panel (2)





11

Remove overhead control
panel (2)





12

Install in the reverse order





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis



me
