Mercedes-Benz ML320. Service manual - part 202





Fig. 152: R/P Lock, Function (Locking Position)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.


Function Of R Lock

Above a speed of approximately 10km/h the R/P locking solenoid (89) is actuated by the electronic selector
lever module control module (N15/5). See Fig. 152. The R/P lock lever (90) is turned to the lock position (shift
from "N" to "R"). The tab on the lock lever (R lock) (90c) locks (R-lock (69c) the locking disc (69). The
selector lever (80) cannot be shifted into selector lever position "R".



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

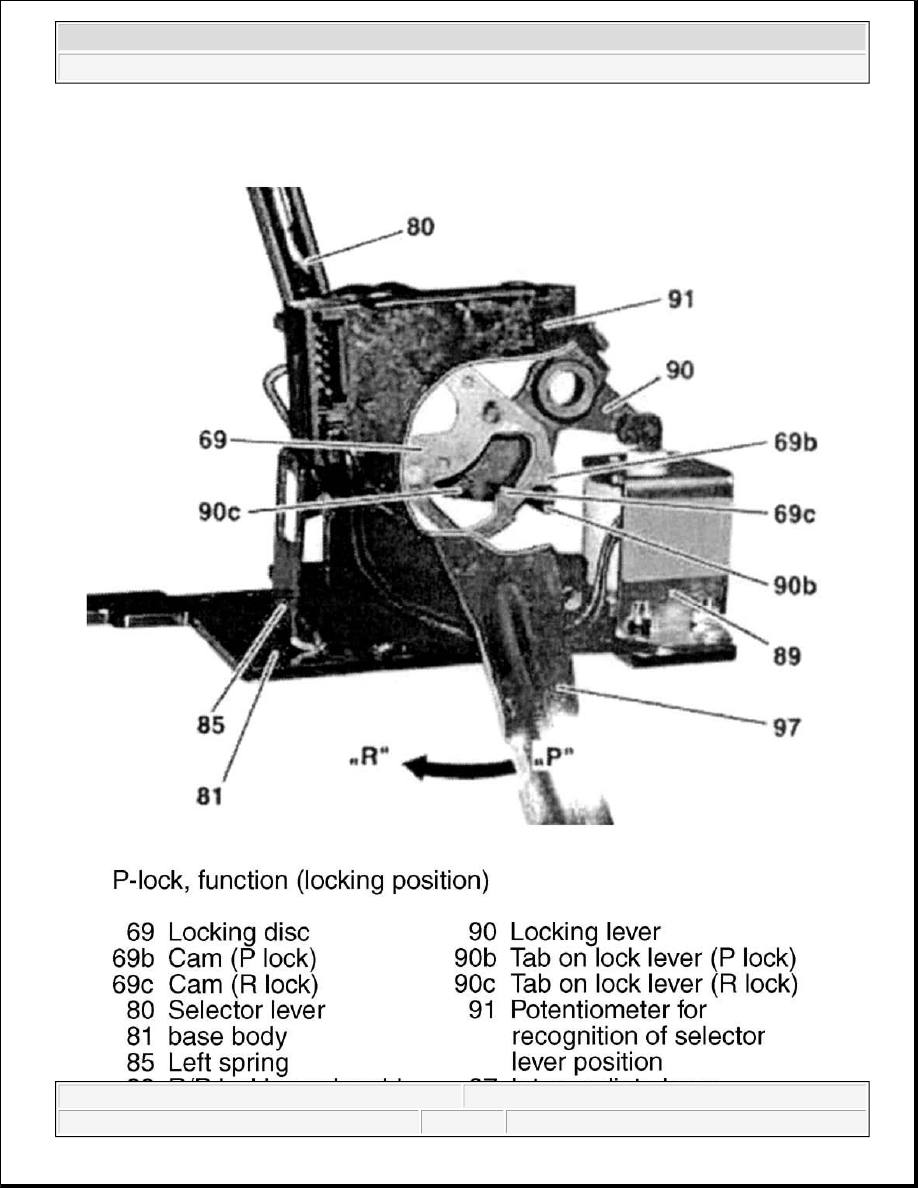

Fig. 153: P-Lock, Function (Locking Position)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.


Function Of P Lock

The selector lever position "P" is locked whenever R/P locking solenoid (89) is not actuated by the electronic
selector lever module control module (N15/5). See Fig. 153. The prerequisites for this are as follows:

No voltage supply to the electronic selector lever module control module (N15/5).

Brake pedal not depressed.

Under these conditions the locking lever (90) is in the locking position (P-lock).

The web on the locking lever (P-lock) (90b) locks the locking disc (69). It is not possible to shift the selector
lever (80) out of selector lever position "P".

Position Display, Location/Task

Transmission with touch shift.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

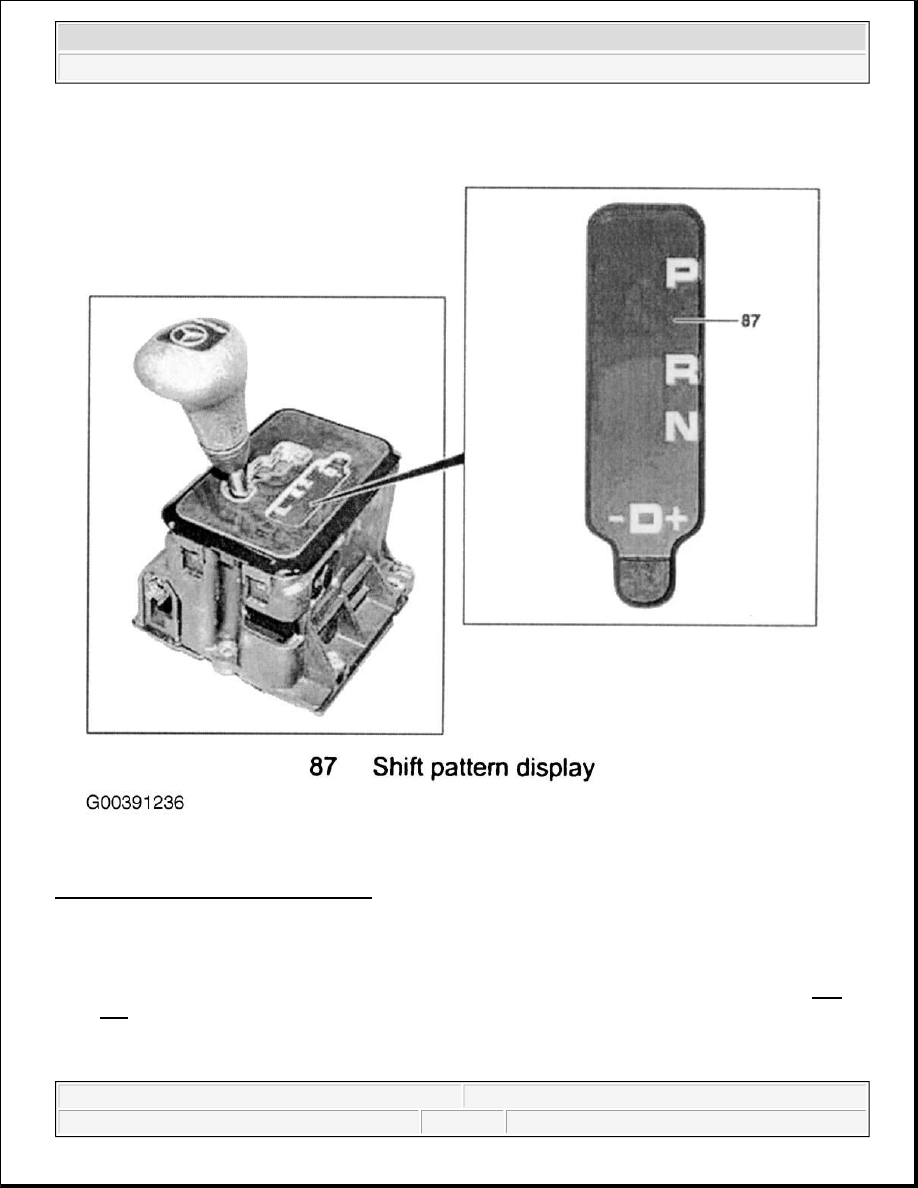

Fig. 154: Position Display, Location/Task
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Position Display, Location

The position display (selector scheme symbols (87)) is accommodated in the floor shift cover. See Fig.
154
. In addition a gear display is located in the instrument cluster (A1).

Position Display, Task
