Mercedes-Benz ML320. Service manual - part 200





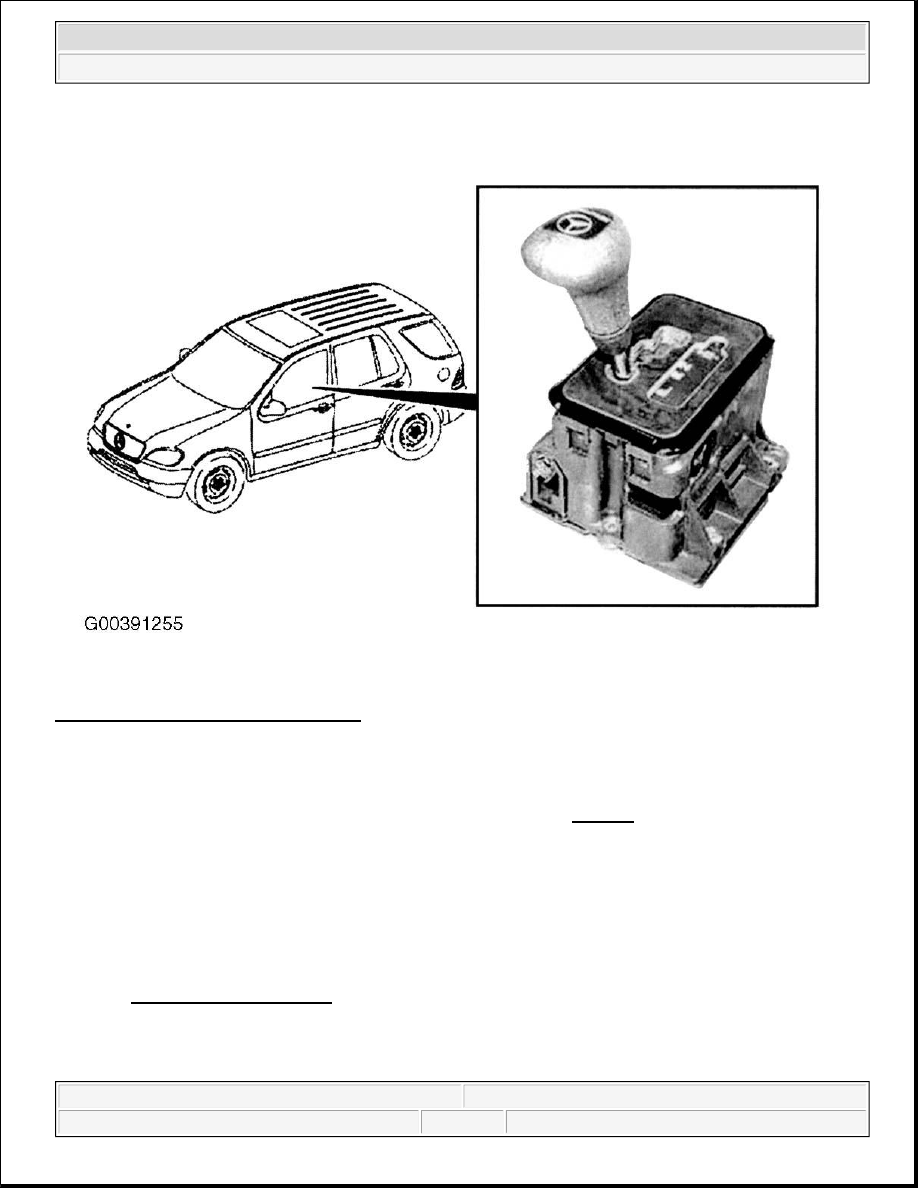

Fig. 147: Floor Shift (With Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Floor Shift, Location

The floor shift is located in the center console of the vehicle. See Fig. 147

Floor Shift, Task

The floor shift is the central control for the driver to influence the shift program of the automatic
transmission.

Floor Shift, Design

See FLOOR SHIFT, DESIGN

Floor Shift, Function

See FLOOR SHIFT, FUNCTION.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Floor Shift, Design

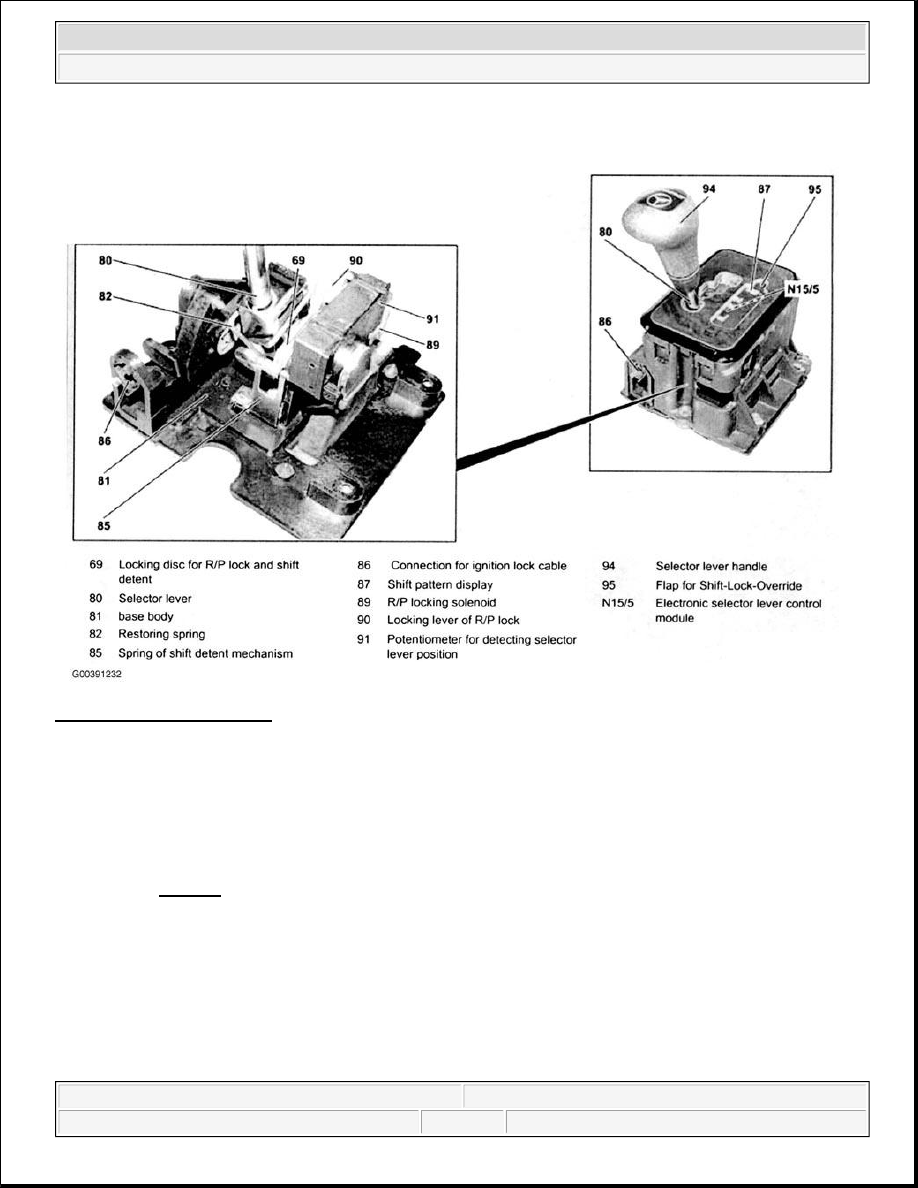

Fig. 148: Floor Shift, Design
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Floor Shift, Function

Operation

The selector lever is guided and positioned in the shift gate. All the selector lever positions are recognized by
the electronic selector lever module control module (N15/5), coded and transmitted to the ETC control module
via CAN. See Fig. 149. In parallel to sending via CAN the selector lever positions "P", "R", "N", and "D" are
passed on mechanically to the range selector lever on the transmission side by means of a shift rod.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

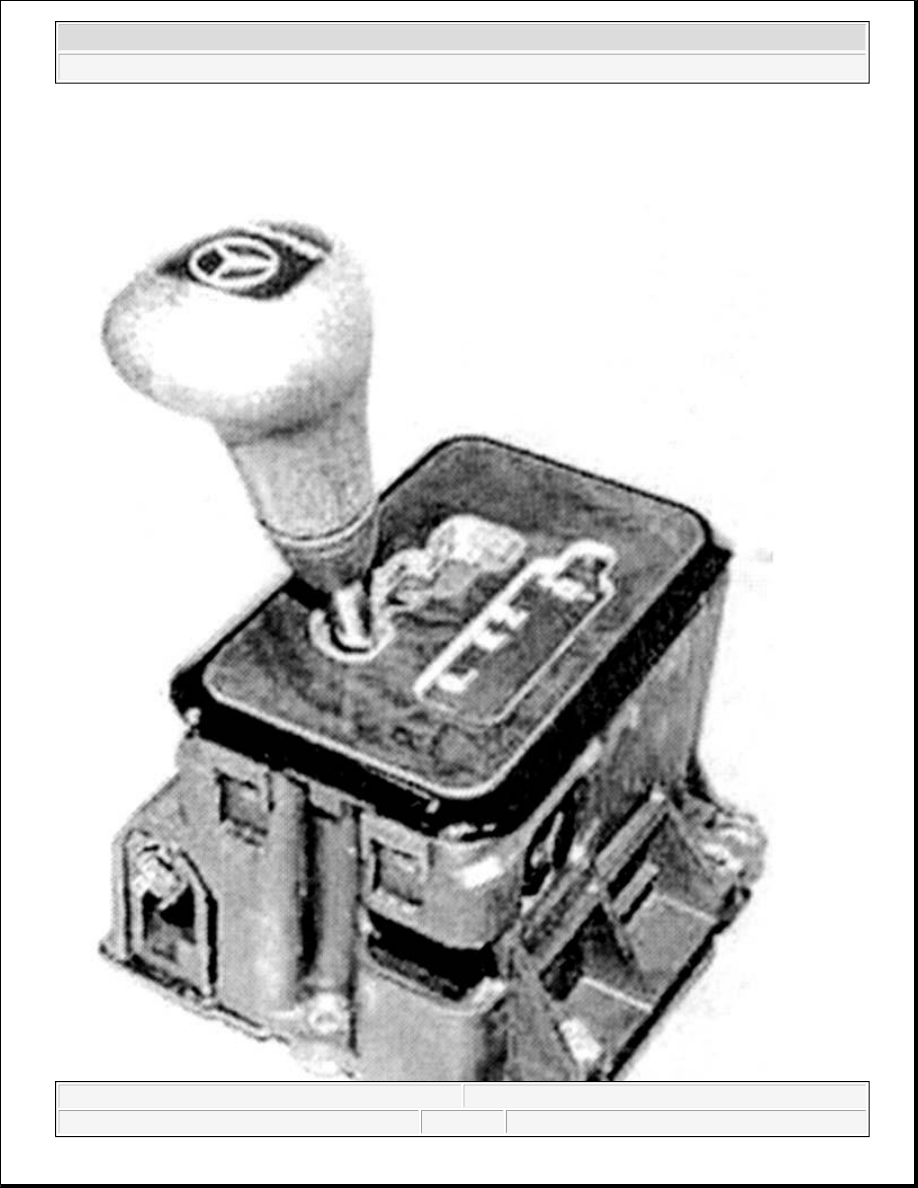

Fig. 149: Floor Shift, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location/Task/Design/Function Of R/P Lock (Without Touch Shift)

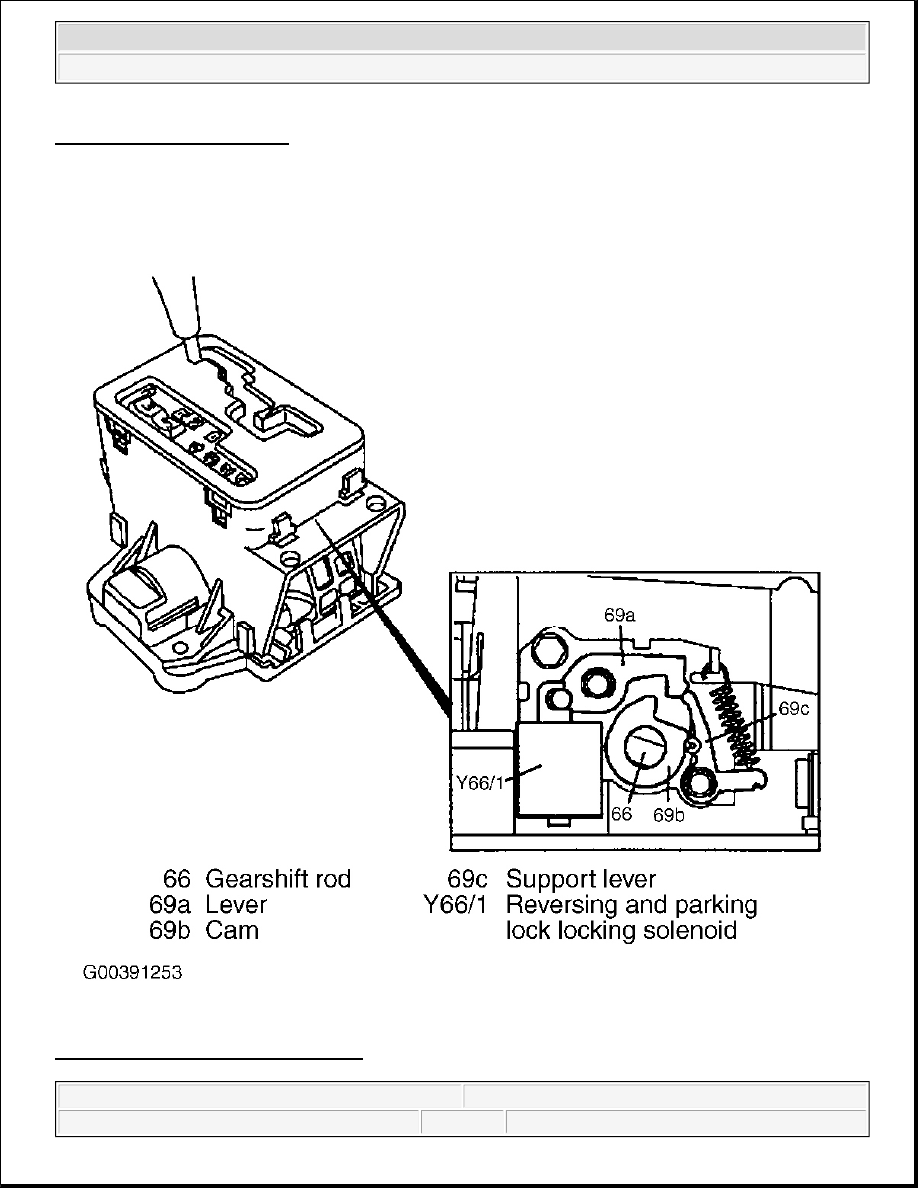

Fig. 150: R/P Lock Without Touch Shift
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
