Mercedes-Benz ML320. Service manual - part 201





R/P Lock, Location

The R/P lock is located in the floor shift. See Fig. 150

R/P Lock,Task

Prevents unintentional shifts to the selector lever positions "R" and "P" at driving speeds in excess of
approximately 10 km/h.

R/P Lock, Design

The R/P lock consists of:

The cam (69b) which is rigidly connected to the shift shaft (66).

The lever (69s).

The reverse and parking lock solenoids (Y66/1).

The support lever (69c).

R/P Lock, Function

See R/P LOCK, FUNCTION (WITHOUT TOUCH SHIFT).

R/P Lock, Function (Without Touch Shift)



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

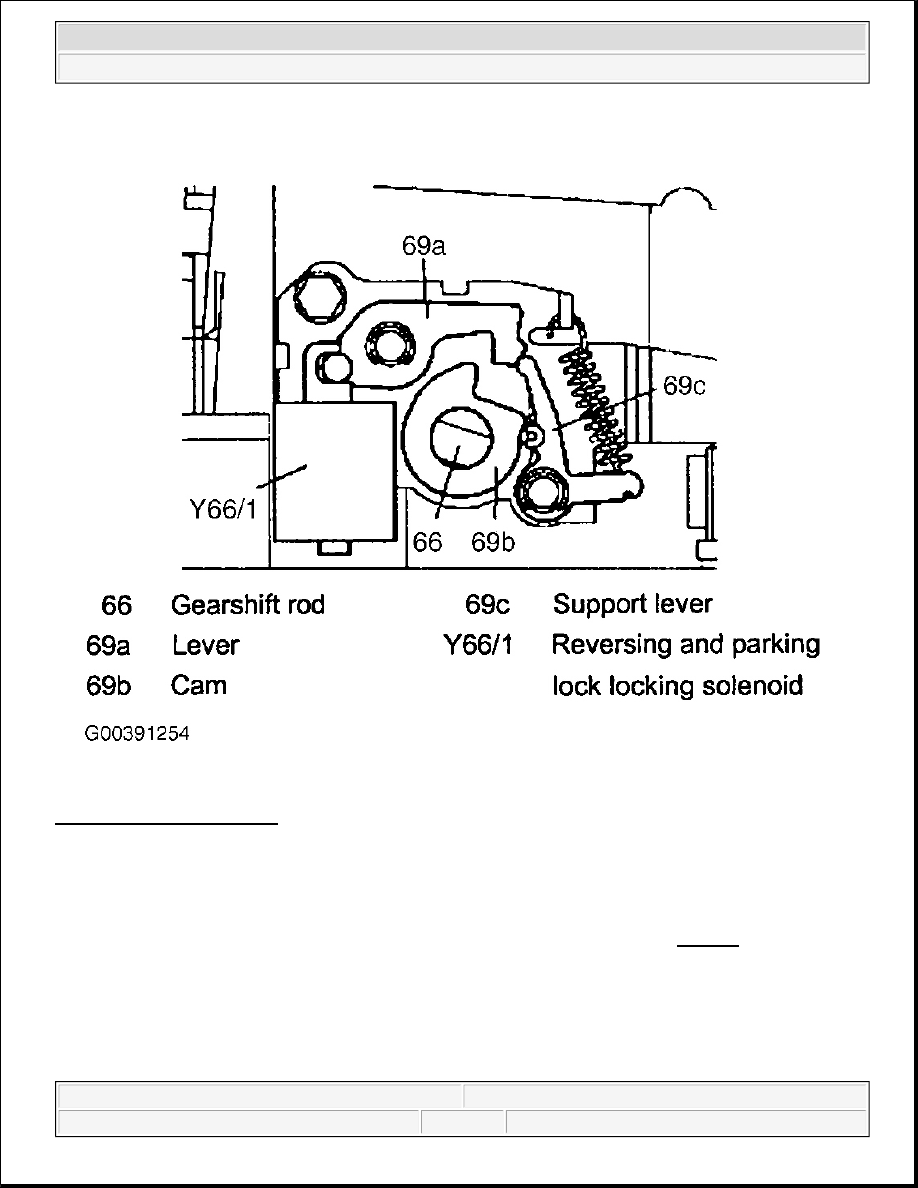

Fig. 151: R/P Lock, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Operation

The reverse and parking lock solenoid (Y66/1) is actuated via the ETC control module (N15/3) and moves the
lever (69a) in the direction of the cam (69b) so that the shift shaft (66) is blocked. See Fig. 151. When de-
energized, the support lever (69c) holds the lever (69a) in position to prevent it from engaging by itself when
exposed to severe shocks.

Location/Task/Design/Function Of R/P Lock (With Touch Shift)

R/P Lock, Location




2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



The R/P lock is integrated in the electronic selector lever module control module (N15/5).

R/P Lock, Task

Depending on the condition the R/P lock prevents shifting out of selector lever position "P" or changing
into selector lever position "R" from "N".

R/P Lock, Design

The R/P lock consists of:

The locking disc (69) rigidly connected to the selector lever (80).

The locking lever (90).

The R/P locking solenoid (89).

R/P Lock, Function

See R/P LOCK, FUNCTION.

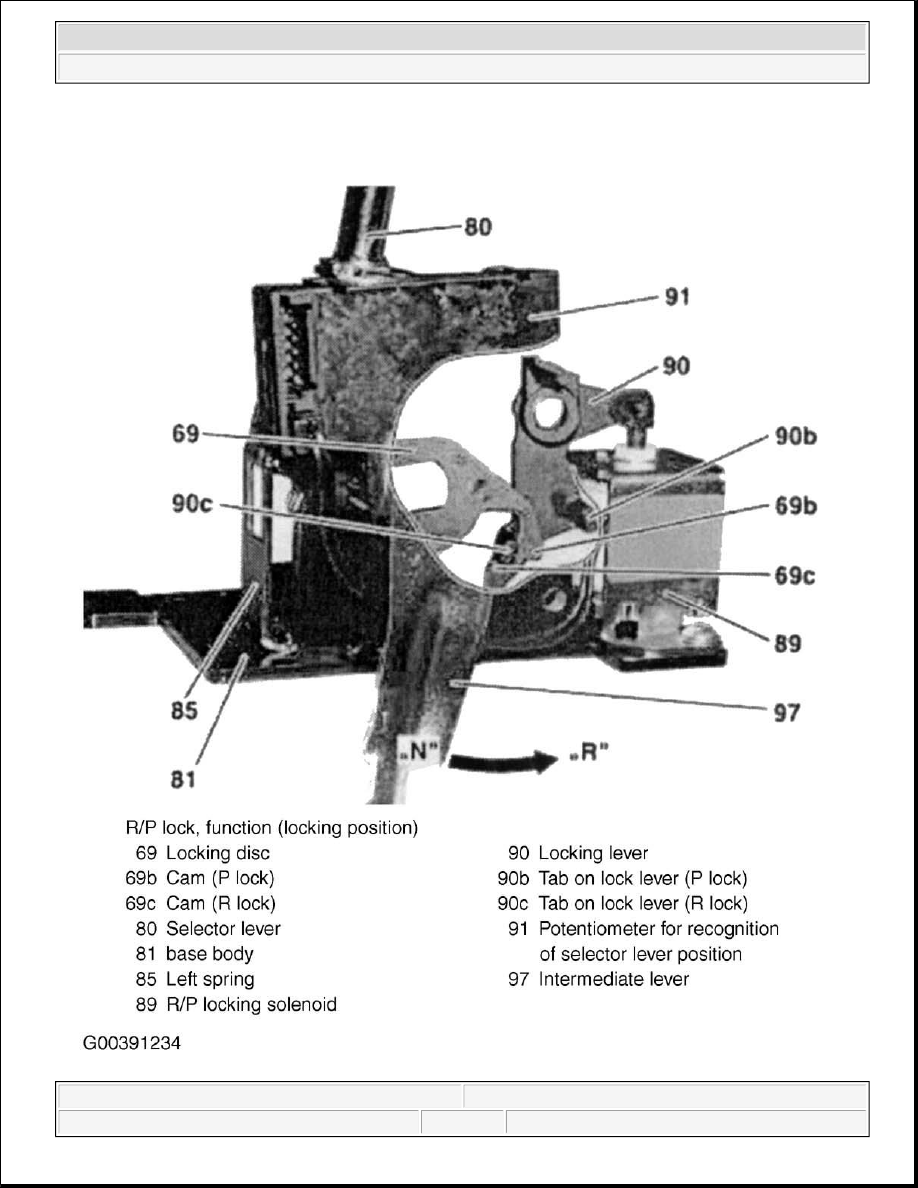

R/P Lock, Function (With Touch Shift)



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
