Mercedes-Benz ML320. Service manual - part 198







2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

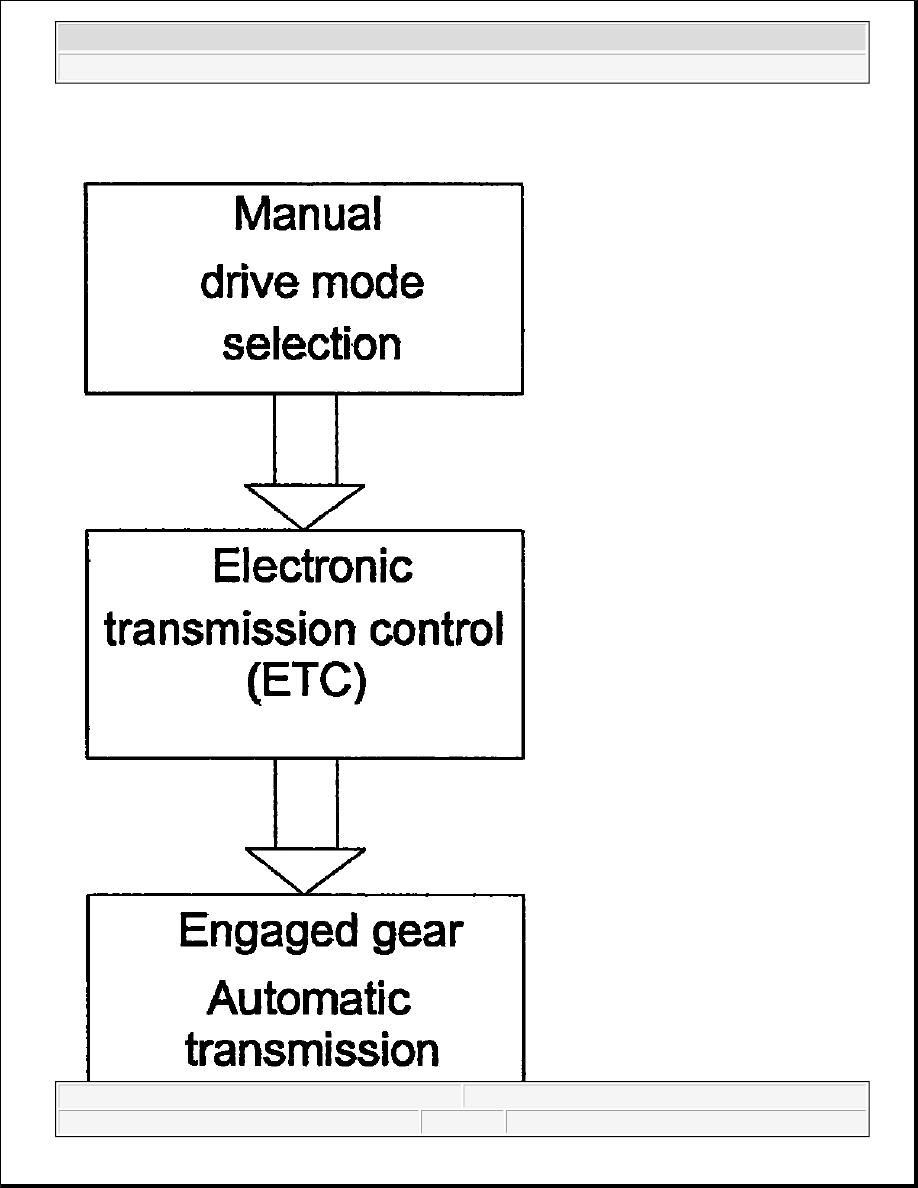

Fig. 142: Manual Drive Mode Selection, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.


Operation

With the selector lever on the floor shift it is possible to adapt the automatic gearshift sequence to suit specific
operating conditions. Although the selector lever position can be changed the forward gears while driving, the
electronic transmission control (ETC) prevents over-revving of the engine. See Fig. 142

Floor Shift, Location/Task/Design/Function

See .

Reverse Lamp Switch, Location/Task/Function

See REVERSE LAMP SWITCH, LOCATION/TASK/FUNCTION

Shift Detent Mechanism, Location/Task/Design/Function

See SHIFT DETENT MECHANISM, LOCATION/TASK/DESIGN/FUNCTION (WITHOUT
TOUCH SHIFT)

D-4 Shift Isolating Mechanism, Location/Task/Design/Function

See D-4 SHIFT ISOLATING MECHANISM, LOCATION/TASK/DESIGN/FUNCTION

Location/Task/Design/Function Of R/P Lock

See LOCATION/TASK/DESIGN/FUNCTION OF R/P LOCK (WITHOUT TOUCH SHIFT)

Position Sensor, Location/Task/Function

See POSITION SENSOR, LOCATION/TASK/FUNCTION

Transmission Range Recognition Switch, Location/Task/Design/Function

See TRANSMISSION RANGE RECOGNITION SWITCH,
LOCATION/TASK/DESIGN/FUNCTION

ETC Control Module, Location/Task

See ETC CONTROL UNIT, LOCATION/TASK.

Floor Shift, Location/Task/Design/Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



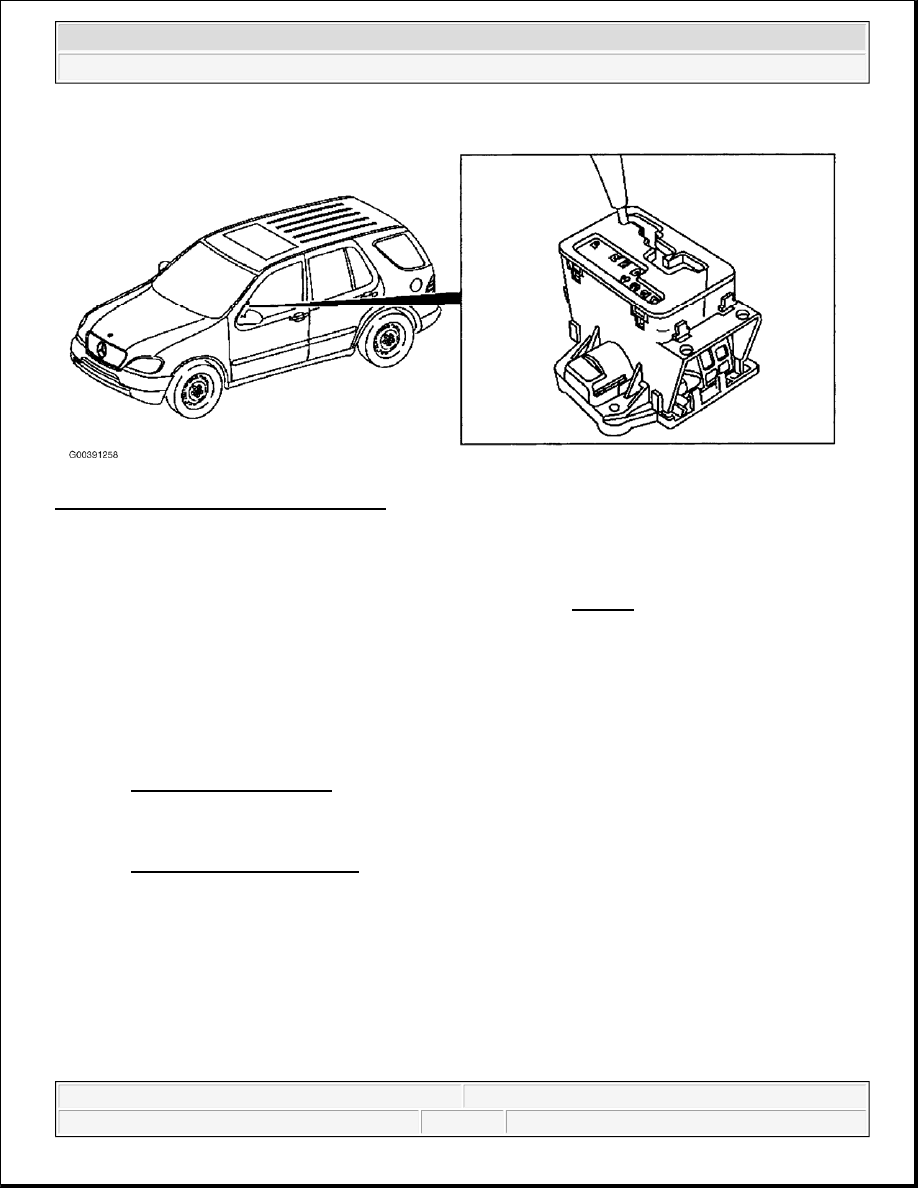

Fig. 143: Floor Shift (Without Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Floor Shift, Location

The floor shift is located in the center console of the vehicle. See Fig. 143

Floor Shift, Task

The floor shift is the central control for the driver to influence the shift program of the automatic
transmission.

Floor Shift, Design

See FLOOR SHIFT, DESIGN

Floor Shift, Function

See FLOOR SHIFT, FUNCTION.

Floor Shift, Design



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

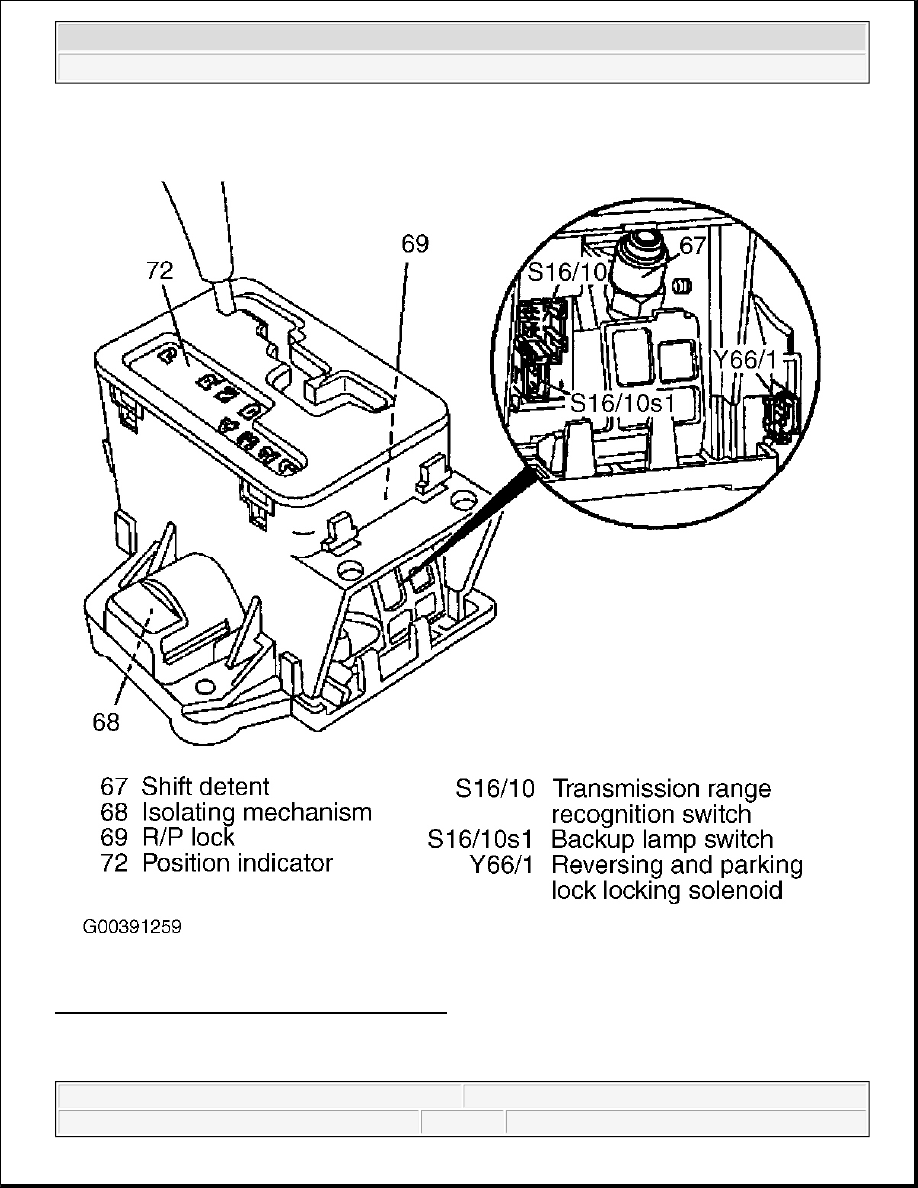

Fig. 144: Floor Shift, Design (Without Touch Shift)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Floor Shift, Function



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
