Mercedes-Benz ML320. Service manual - part 203





Via the selector scheme symbols (87) the alternative selector lever positions and their sequence are shown
symbolically.

ETC Control Unit, Location/Task

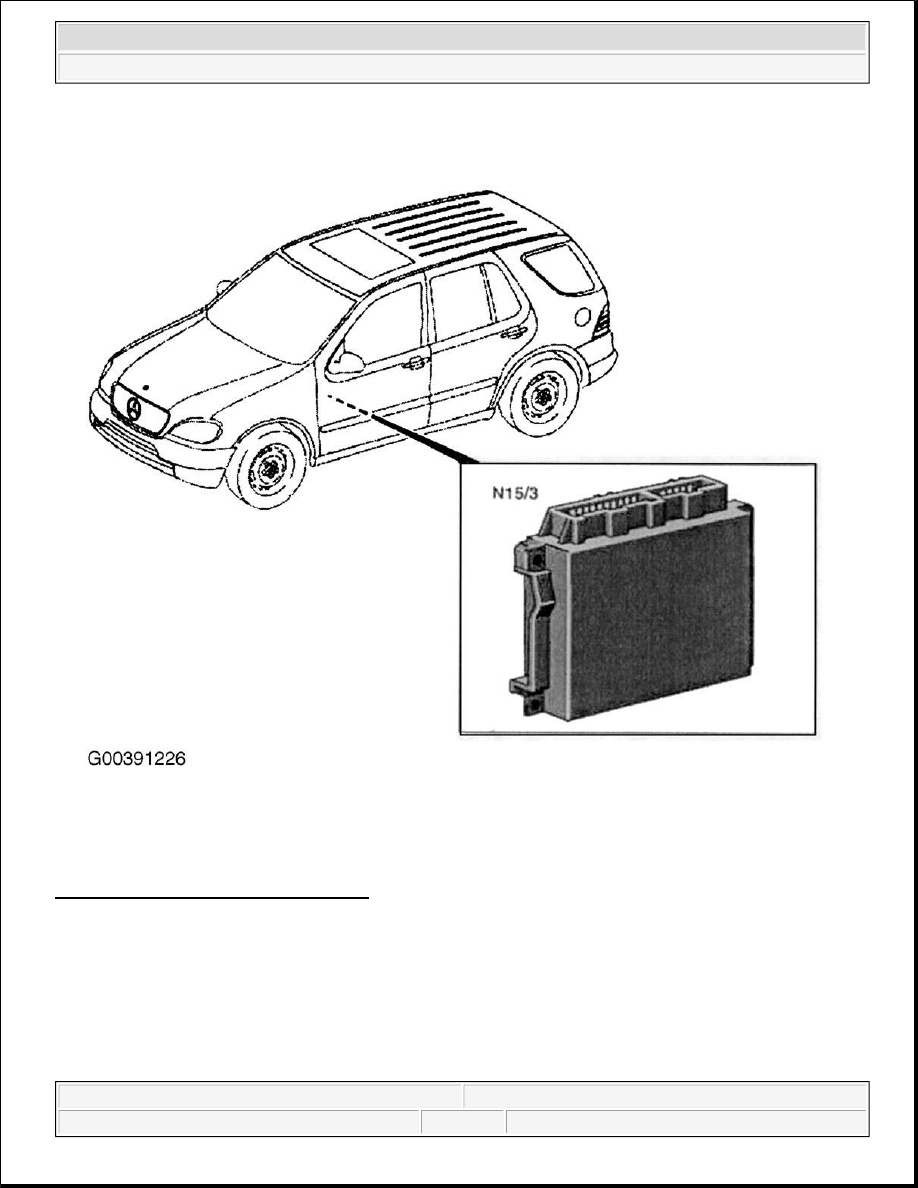

Fig. 155: ETC Control Unit, Location/Task
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

ETC Control Unit, Location

See ETC Control Unit, Location

ETC Control Unit, Task

See ETC Control Unit, Task or ETC Control Unit, Task .

ETC Control Unit, Location



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

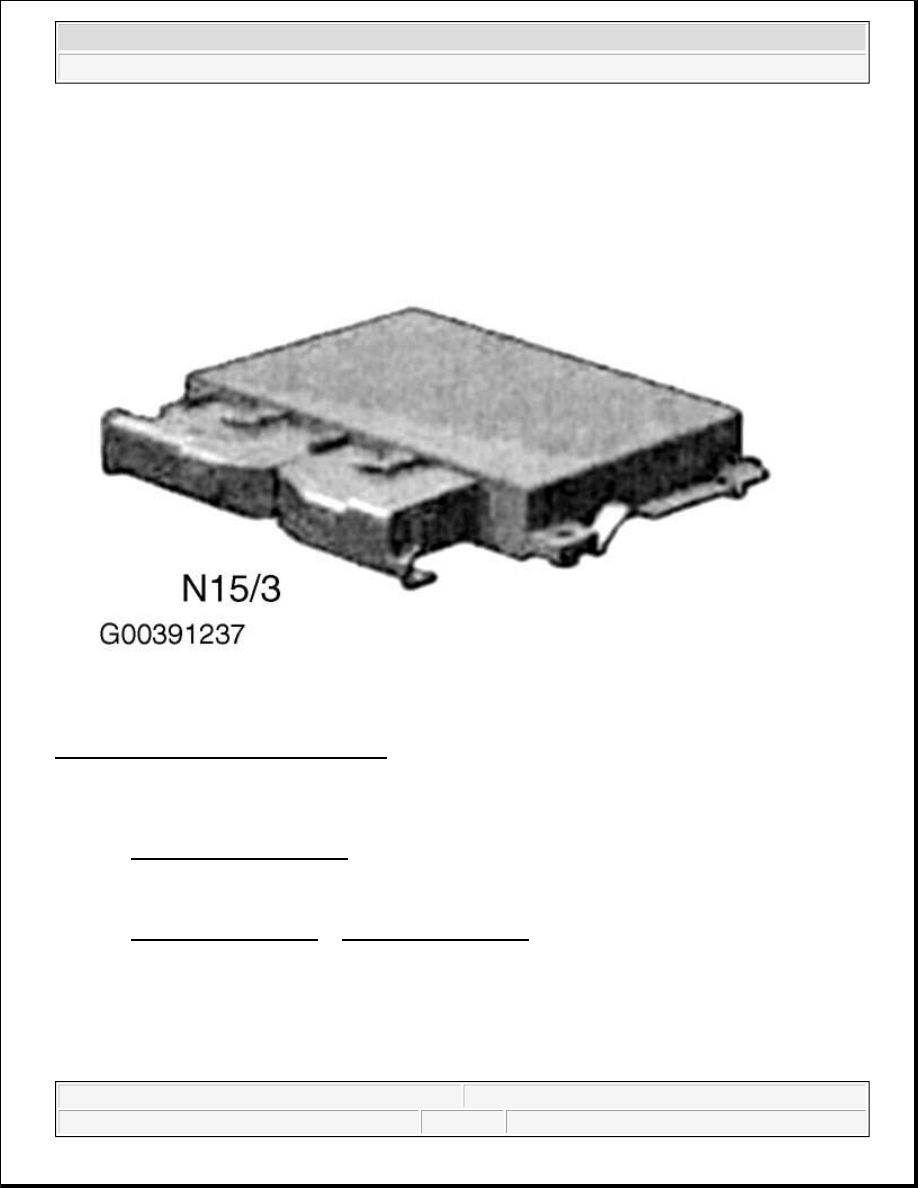

Fig. 156: ETC Control Module, Location
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The ETC control module (N15/3) is installed in the left footwell, on the heater/air conditioning housing.

ETC Control Unit, Task

Transmission 722.6 in model 163 with touch shift



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me

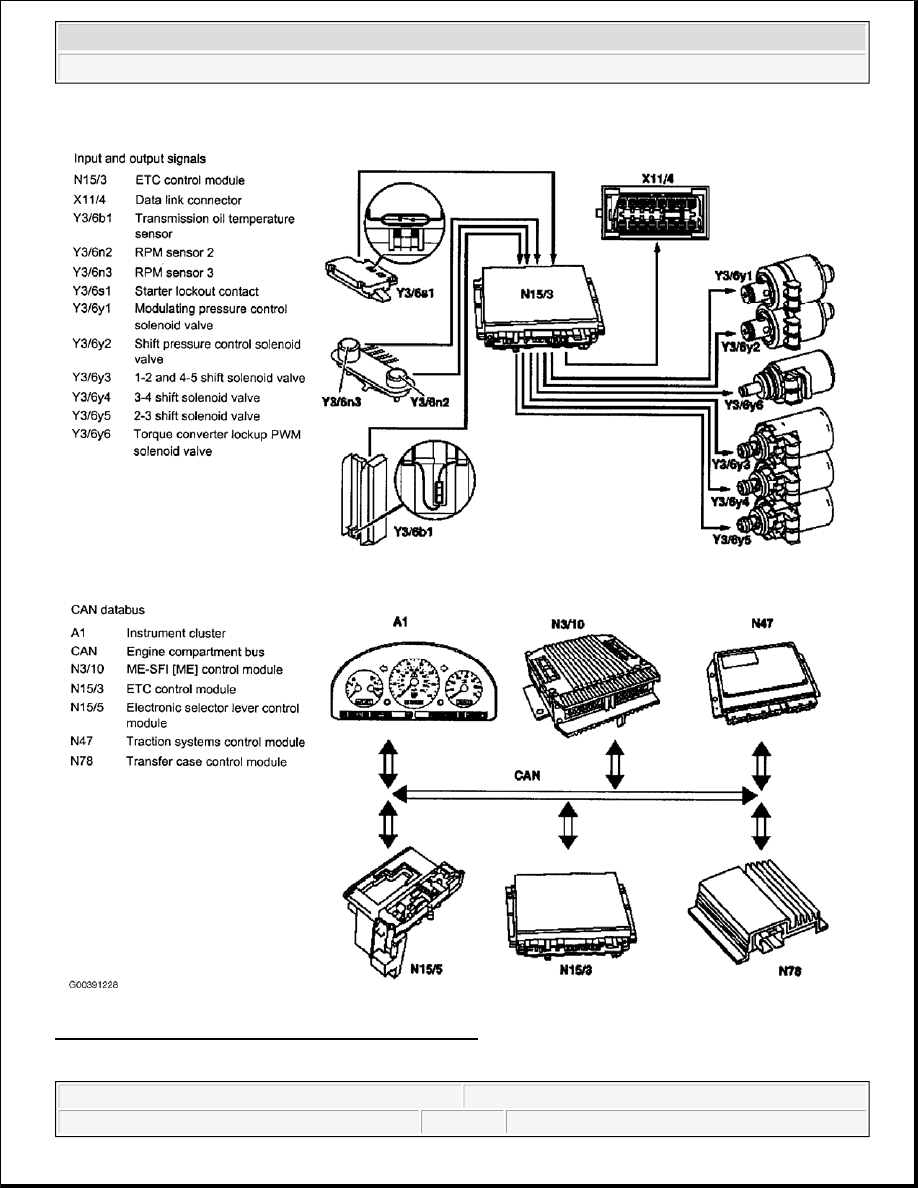

Fig. 157: ETC Control Module, Task With Touch Shift
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me



Task

The ETC control module (N15/3) determines the instantaneous operating condition of the vehicle and controls
all gearshift sequences taking into account the ease of shifting and the driving situation. This involves receiving,
converting and transmitting various digital and analog signals. See Fig. 157

It receives operating data in the form of input signals from:

Starter Lock-Out Contact (Y3/6S1)

RPM Sensor 2 (Y3/6N2)

RPM Sensor 3 (Y3/6N3)

Transmission Oil Temperature Sensor (Y3/6B1)

In addition there is a connection via the engine compartment bus to the:

Instrument Cluster (A1)

ME-SFI Control Module (N3/10) or CDI Control Module (N3/9)

The solenoid valves for the modulating and shift pressure and for the gear changes are actuated by the ETC
control module (N15/3).

The pressure required is calculated from all input signals, adjusted to the torque to be transferred. The following
information from other systems is then processed:

ME-SFI Control Module (N3/10) or CDI Control Module (N3/9):

Engine Torque

Engine Speed

Accelerator Pedal Position

Gear Shift

Engine Status

Electronic selector lever module control module (N15/5):

Kickdown Switch (S16/6)

Selector Lever Position P/N

Traction system control module (N47):

Transmission Ratio

Speeds

Instrument cluster (A1):



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662



me
