JAC S2. Elctrical Wiring diagrams - part 13





                                                                              Wiper and Washer Device

Wiper and Washer Device

































      184









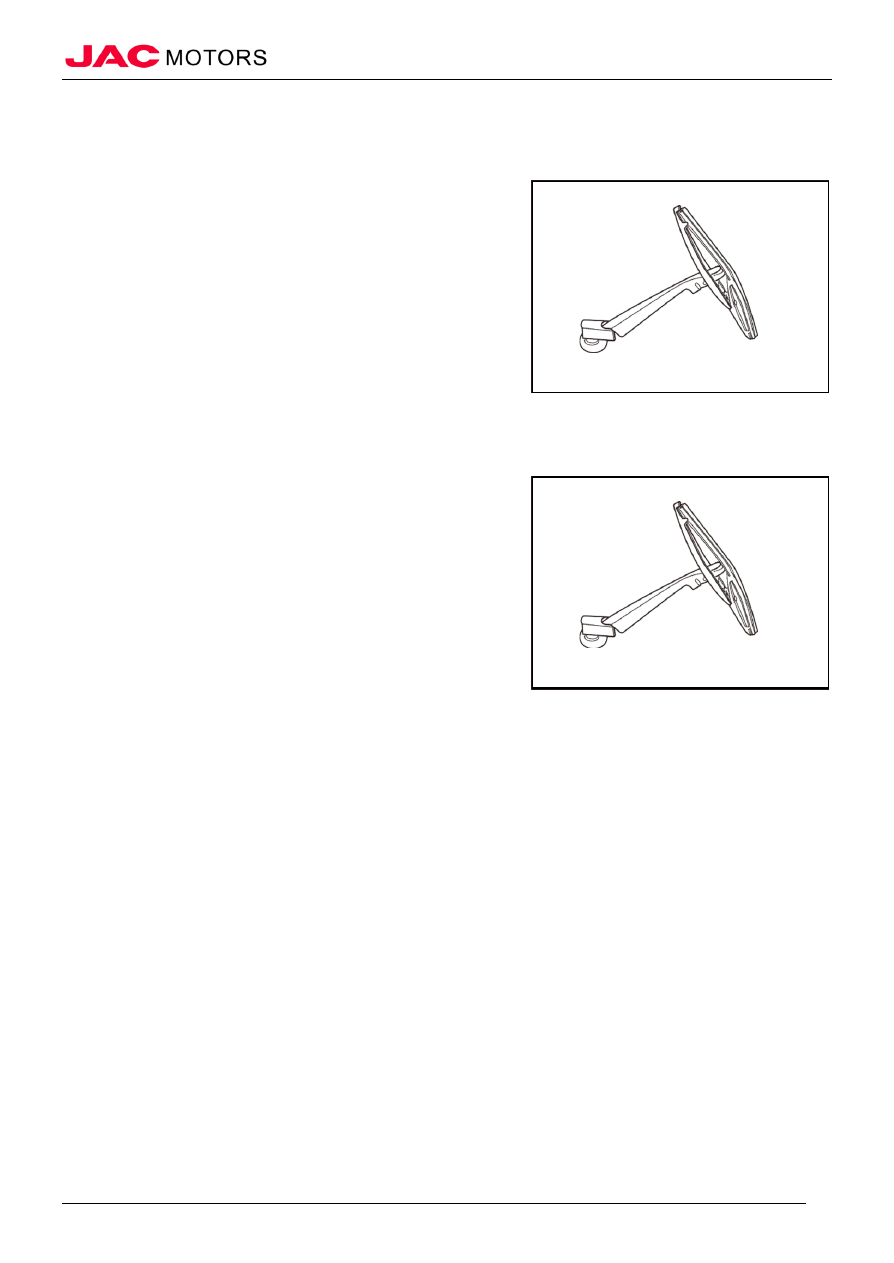

XI、Rear Wiper Blade Assembly



(I)Removal



1. Remove rear wiper blade assembly

1). Lift rear wiper arm;

2). Turn rear wiper blade assembly;

3). Take down rear wiper blade assembly;














(II)Installation



1. Install rear wiper blade assembly

1). Lift rear wiper arm;

2). Align groove of rear wiper blade to rear wiper arm, and turn

rear wiper blade assembly. Ensure to be installed in place;





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      185

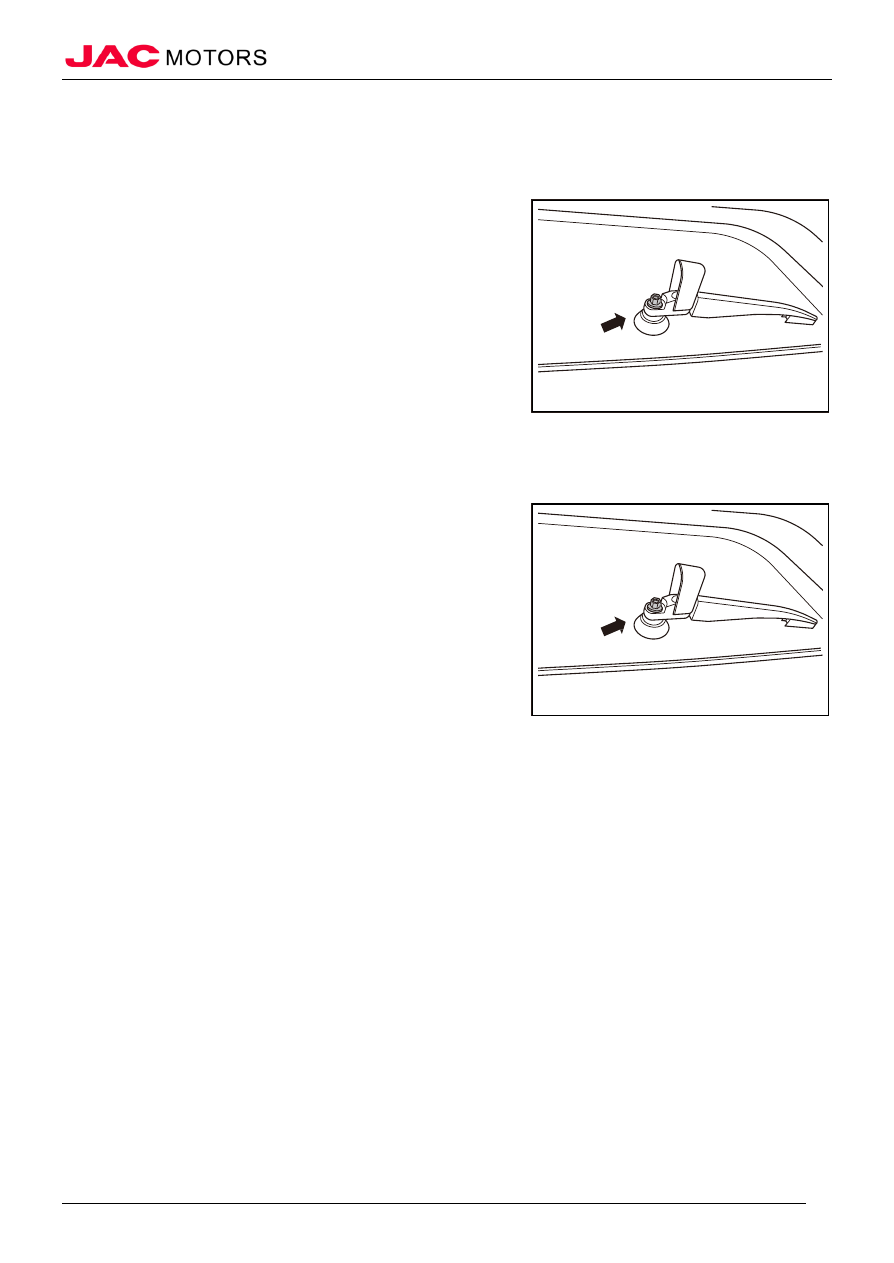

XII、Rear Wiper Arm Assembly



(I)Removal



1. Remove rear wiper blade assembly    Refer to “Rear wiper blade assembly”

2. Remove rear wiper arm assembly

1). Pry nut cover of rear wiper arm assembly;

2). Remove fixed nut of rear wiper arm assembly, and take down

rear wiper arm assembly;














(II)Installation



1. Install rear wiper arm assembly

1). Place rear wiper arm assembly to installation position, and

tighten fixed nut of rear wiper arm assembly;

2). Cover nut cover of rear wiper arm assembly;











2. Install rear wiper blade assembly





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      186





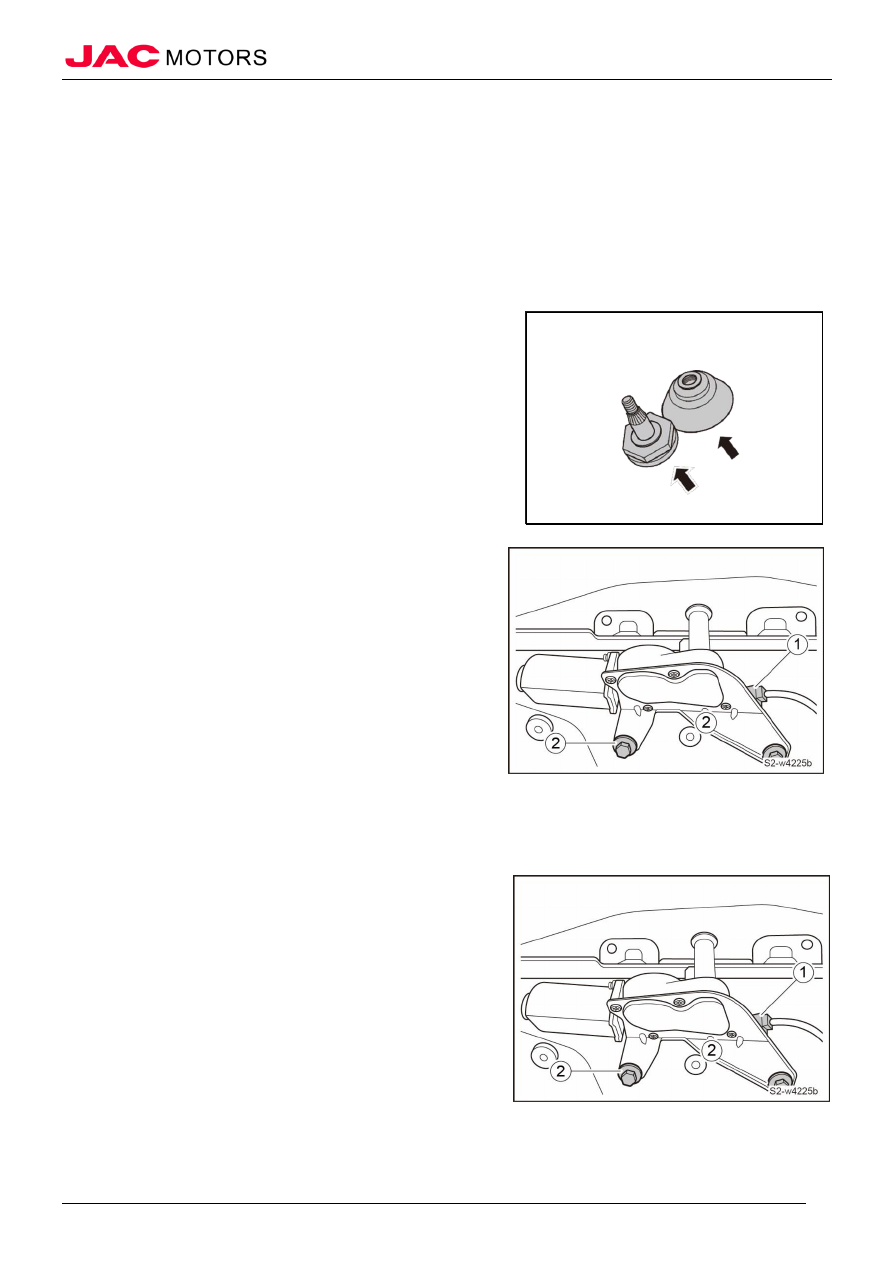

XIII、Rear Wiper Motor Assembly



(I)Removal



1. Open tail door

2. Open engine cabin cover

3. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

4. Remove rear wiper arm assembly    Refer to “Rear wiper arm assembly”

5. Remove tail door trim panel assembly    Refer to “Tail door trim panel assembly”

6. Remove rear wiper motor assembly

1). Pry sealing cover of rear wiper motor assembly;

2). Remove fixed nut of rear wiper motor assembly and rear windshield assembly;



















3). Disconnect wiring harness connector  ①  of rear wiper

motor assembly;

4). Remove 2 fixed bolts  ②  of rear wiper motor assembly and

vehicle body;

5). Take down rear wiper motor assembly;


















(II)Installation



1. Install rear wiper motor assembly

1). Place rear wiper motor assembly to installation position, and

tighten 2 fixed bolts  ②  of rear wiper motor assembly and

vehicle body;

2). Connect wiring harness connector  ①  of rear wiper motor

assembly;
















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      187

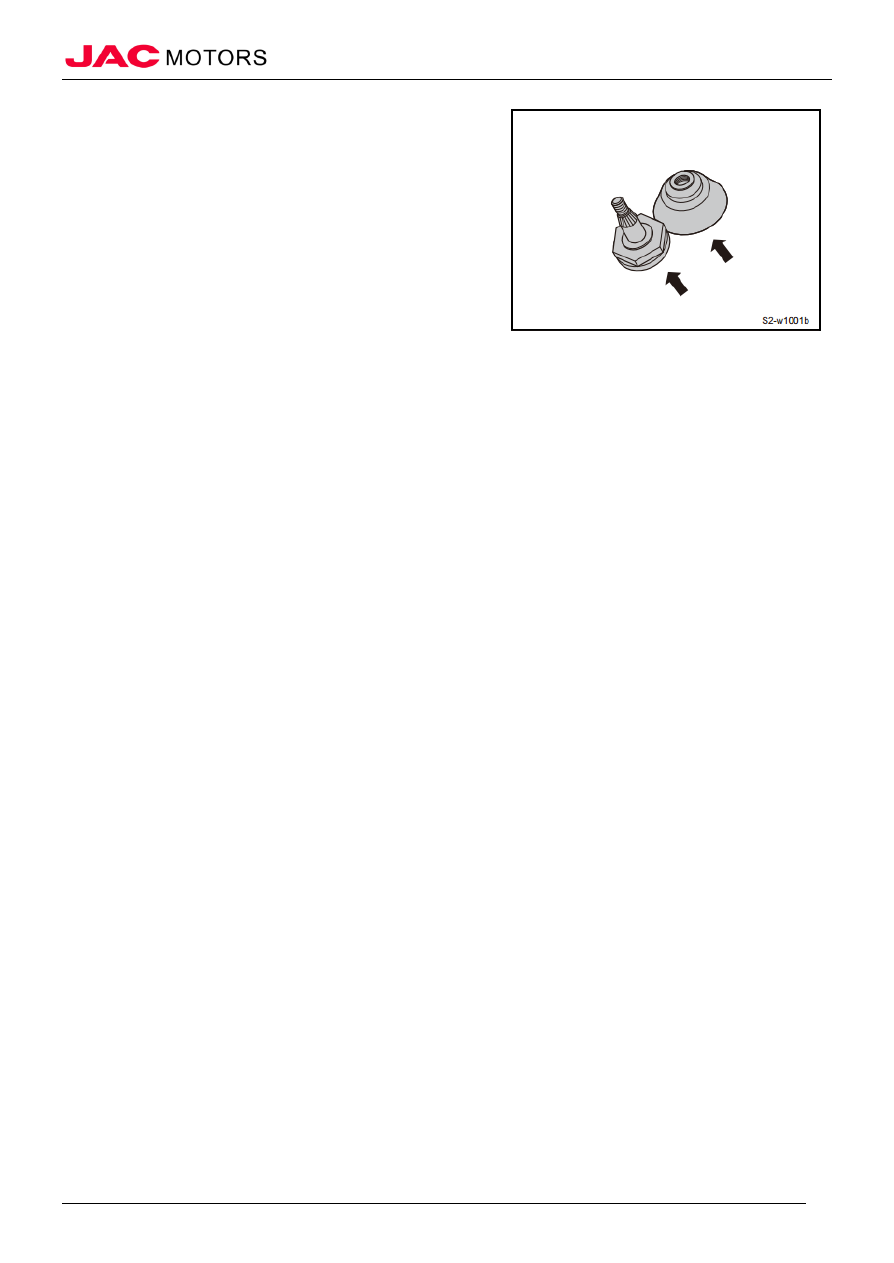

3). Tighten fixed nut of rear wiper motor assembly and rear windshield assembly;

4). Install sealing cover of rear wiper motor assembly;













2. Install tail door trim panel assembly

3. Close tail door

4. Install rear wiper arm assembly

5. Connect battery negative electrode

6. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      188

XIV、Rear Windshield Spraying Nozzle



Refer to “High position brake light”.



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      189

Engine Anti-theft System




I、Summary



(I)Structure overview



Engine anti-theft system is through two electronic encryption ways, namely Transponder and anti-theft controller (IMMO),

IMMO  and  ECM,  to  achieve  anti-theft  function.  After  IMMO  through  wireless  authentication  with  Transponder,  wired

authentication with ECM, and if is authentic, ECM will ignition and injection fuel normally; if not, vehicle will not start,  thus to

achieve encryption anti-theft to make vehicle more reliable and safer.



Anti-theft system consists of 4 units: anti-theft indicating light (integrated in dashboard), anti-theft controller, transponder and

anti-theft interaction coil; detail constitution is shown below:



Component name

Number

Remark

Anti-theft controller

Installed in lower tube beam bracket of dashboard

Transponder

Separately installed in two keys

Anti-theft interaction coil

Installed in ignition switch

Warning indicating light

Integrated in combination meter



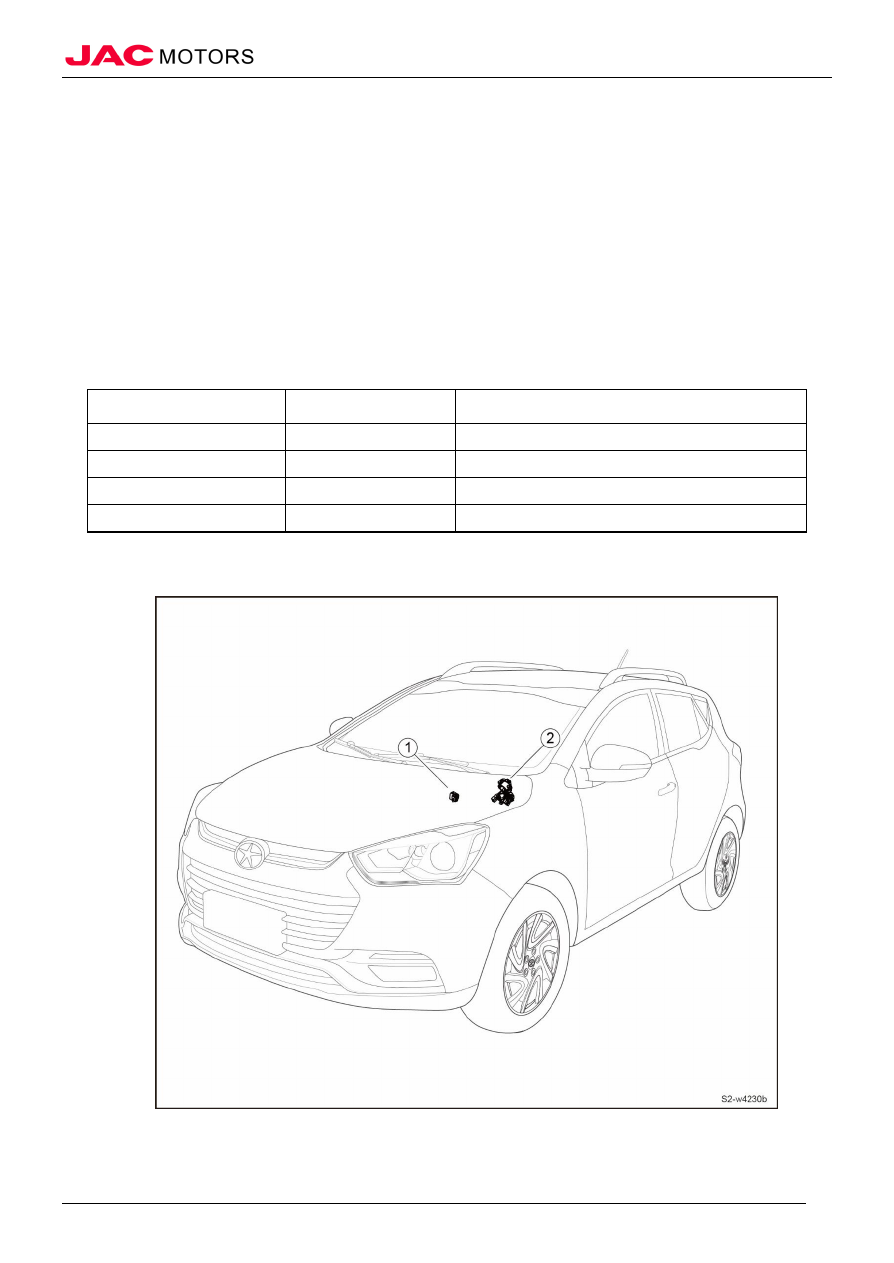

Component position







































                    1. Anti-theft controller                                                        2. Anti-theft interaction coil







-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      190

(II)Operation principle



When  turning  key  from  OFF  to  ON,  electronic  anti-theft  controller  assembly  outputs  anti-theft  authentication  signal,

transforms  anti-theft  authentication  signal  to  corresponding  magnetic  field  through  electronic  anti-theft  interaction  coil,

transponder obtains energy and information in magnetic field, and produces magnetic field by interior coil after deciphering and

encrypting information, electronic anti-theft interaction coil transforms magnetic field produced by transponder to electric signal,

and  transports  the  signal  to  electronic  anti-theft  controller  assembly.  Electronic  anti-theft  controller  assembly  deciphers  and

certificate after receiving transponder information, if data is coincident, authentication is passed, or else authentication failed.



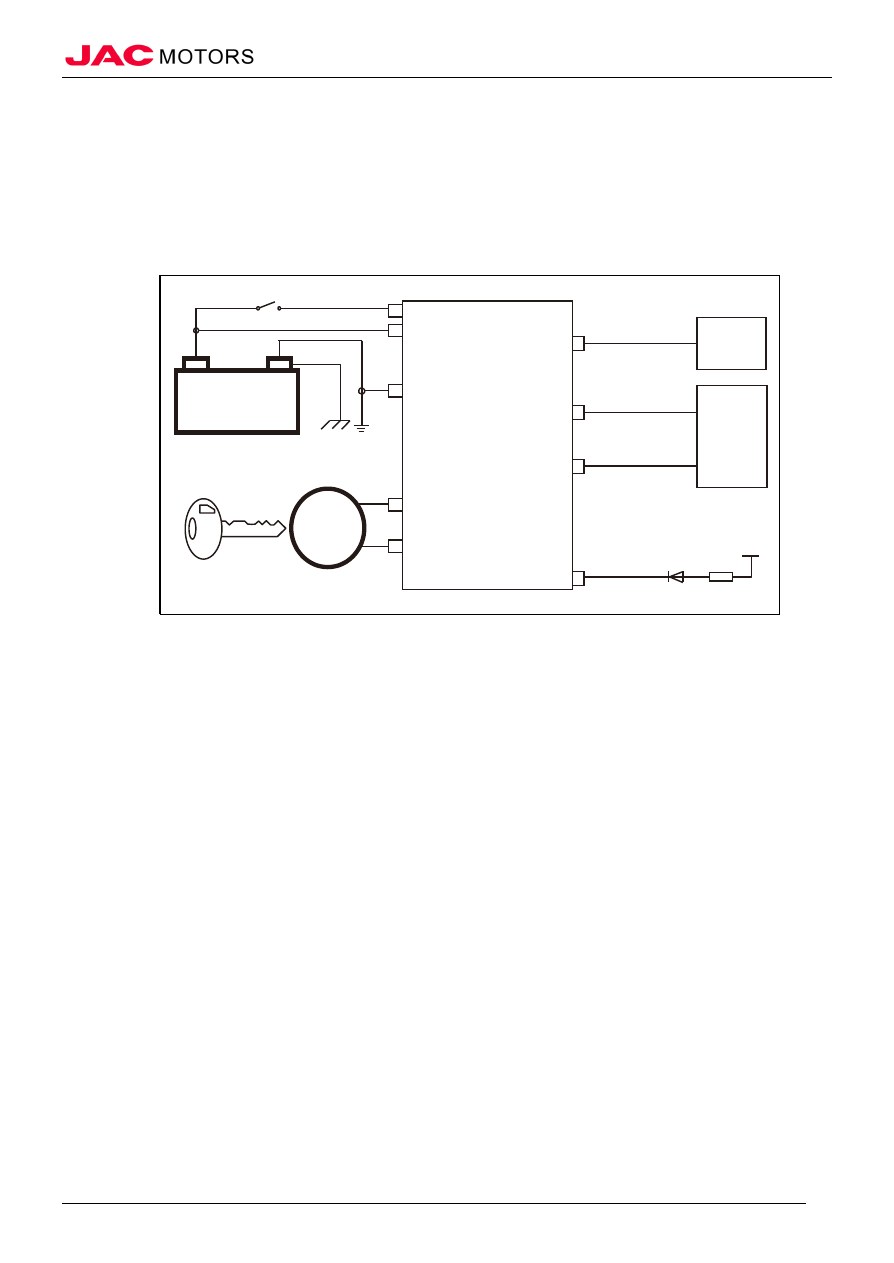

Electrical Principle Diagrammatic Sketch











+Ub





lgnition switch



KL.15



KL.30

K_Line

Eol/ Tester





-



KL.31



Battery



W_Line






key with



Transponder









Coil



Antenna








Coil A

Coil B














LSD



R_Line











LED



ECM









+Ub












(III)Maintenance Note



Re-match if replacing key, anti-theft controller and any part of engine control module, and detail matching process

please refer to diagnosis device using instruction.

Note: 3 kinds of twinkling mode of IMMO indicating light: When vehicle KL.30 is on, key is in KL.15 OFF, indicating light

twinkles in every 5s, each period indicating light is on for 250ms; When key to KL.15 ON, if anti-theft authentication is passed,

indicating  light  is  off,  and  keep  in  always  off  state;  if  authentication  failed,  indicating  light  twinkles  in  every  5s,  each  period

indicating light is on for 250ms, vehicle can’t start. If authentication failed and vehicle can’t start, please contact to maintenance

technical personal to diagnose system. (Note: KL.15 is “ON”, KL.30 is battery power supply, KL.31 is negative electronic)







-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      191



II、Troubleshooting



(I)Troubleshooting list



No  Fault phenomenon

Fault reason analysis

Solution

Remark

1



Engine

anti-theft

indicating light is on



Combination meter



Maintain combination meter







2



Engine

anti-theft

indicating  light  always
twinkles,  engine  can’t
start



Transponder



Maintain transponder



Refer  to  “engine
anti-theft
indicating

light

always

twinkles,

engine can’t start”



Anti-theft interaction coil



Maintain anti-theft interaction coil



Anti-theft controller



Maintain  Anti-theft  controller 检修 防

盗控制器



 Engine ECU



Maintain engine ECU



Wiring harness connector



Maintain wiring harness connector



3



Anti-theft  system  often
can’t  detect  effective
key



Anti-theft interaction coil



Maintain anti-theft interaction coil





Anti-theft controller



Maintain anti-theft controller





4



Key can’t be matched



Transponder



Maintain transponder





Anti-theft interaction coil



Maintain anti-theft interaction coil





Anti-theft controller



Maintain anti-theft controller







(II)Troubleshooting Flow Chart



Engine anti-theft indicating light always twinkles, engine can’t start



Step

Check content

Measure

Judging specification

Next step

Yes

No

Check  anti-theft
controller  power
supply

Check fuse IF11, IF25

Check  whether  fuse  IF11,
IF25 is fused
Fuse rated value: IF11, IF25
rated value is 10A

Next
step

Turn to step 4

Check  fuse  IF11,
IF25  circuit  short
circuit fault

Measure  wiring  harness  resistance  of
fuse  IF11,  IF25  and  vehicle  body
grounding

Resistance  standard  value:
more than 10kΩ

Next
step

Check

and

maintain  circuit
short circuit fault
and replace rated
current fuse

Test  engine  to
start

Start engine

Whether

engine

starts

normally

System
is
normal

Next step

Check  anti-theft
controller
grounding

Measure

resistance

of

anti-theft

controller  wiring  harness  connector
M15-7 and vehicle body grounding

Resistance  standard  value:
less than 1Ω

Turn  to
step 6

Next step

Check  anti-theft
controller
grounding circuit

Check  open  circuit  fault  of  anti-theft
controller  wiring  harness  M15-7  and
vehicle body grounding

Whether

engine

starts

normally

System
is
normal

Next step

6





Check  electronic
anti-theft
interaction coil



Disconnect  electronic  anti-theft
interaction  coil  wiring  harness
connector,

and

measure

coil

resistance by multimeter



Resistance  standard  value:
5~10Ω



Turn

to

step   8



Replace
electronic  anti-
theft
interaction coil



7



Test  engine  to
start

Start engine

Whether

engine

starts

normally

System
is
normal

Next step



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      192

Step

Check content

Measure

Judging specification

Next step

Yes

No

8



Check  circuit  of
electronic  anti-
theft  interaction
coil

wiring

harness
connector

and

anti-theft
system
controller
wiring

harness

connector



Measure

resistance

between

electronic  anti-theft  interaction
coil  wiring  harness  connector
M16-2

and

anti-theft

system

controller

wiring

harness

connector M15-6 by multimeter

Measure

resistance

between

electronic  anti-theft  interaction
coil  wiring  harness  connector
M16-1

and

anti-theft

system

controller

wiring

harness

connector M15-1 by multimeter



Resistance  standard  value:
less than   1Ω



Turn

to

step 10



Maintain  circuit
open circuit fault



9



Test  engine  to
start

Start engine

Whether

engine

starts

normally

System
is
normal

Next step



10



Check

serial

communication
circuit  between
anti-theft
controller

and

engine

control

module



Measure

serial

communication

circuit

resistance

between

electronic  anti-theft  interaction
coil  wiring  harness  connector
M16-5 and ECU connector A22 -46
by multimeter

Measure

serial

communication

circuit  resistance  between  anti -
theft  controller  wiring  harness
connector

M15-4

and

ECU

connector A22-75 by multimeter



Resistance  standard  value:
less than   1Ω



Next step



Maintain  circuit
open circuit fault



11



Test  engine  to
start

Start engine

Whether

engine

starts

normally

System
is
normal

Next step



12



Replace  engine
anti-theft
system

control

module



Replace  engine  anti-theft  system
control  module,  carry  out  engine
anti-theft system program



Whether

engine

starts

normally

System
is
normal

Next step



13



Replace  anti-theft
controller



R ep l ace  an t i - t h e ft   co n t r o l l er ,
car r y

o u t

en gi n e

an t i - t h eft

s ys t e m  p r o gr a m



Whether

engine

starts

normally

System
is
normal

Next step



14



Ensure  system  is
normal













-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      193



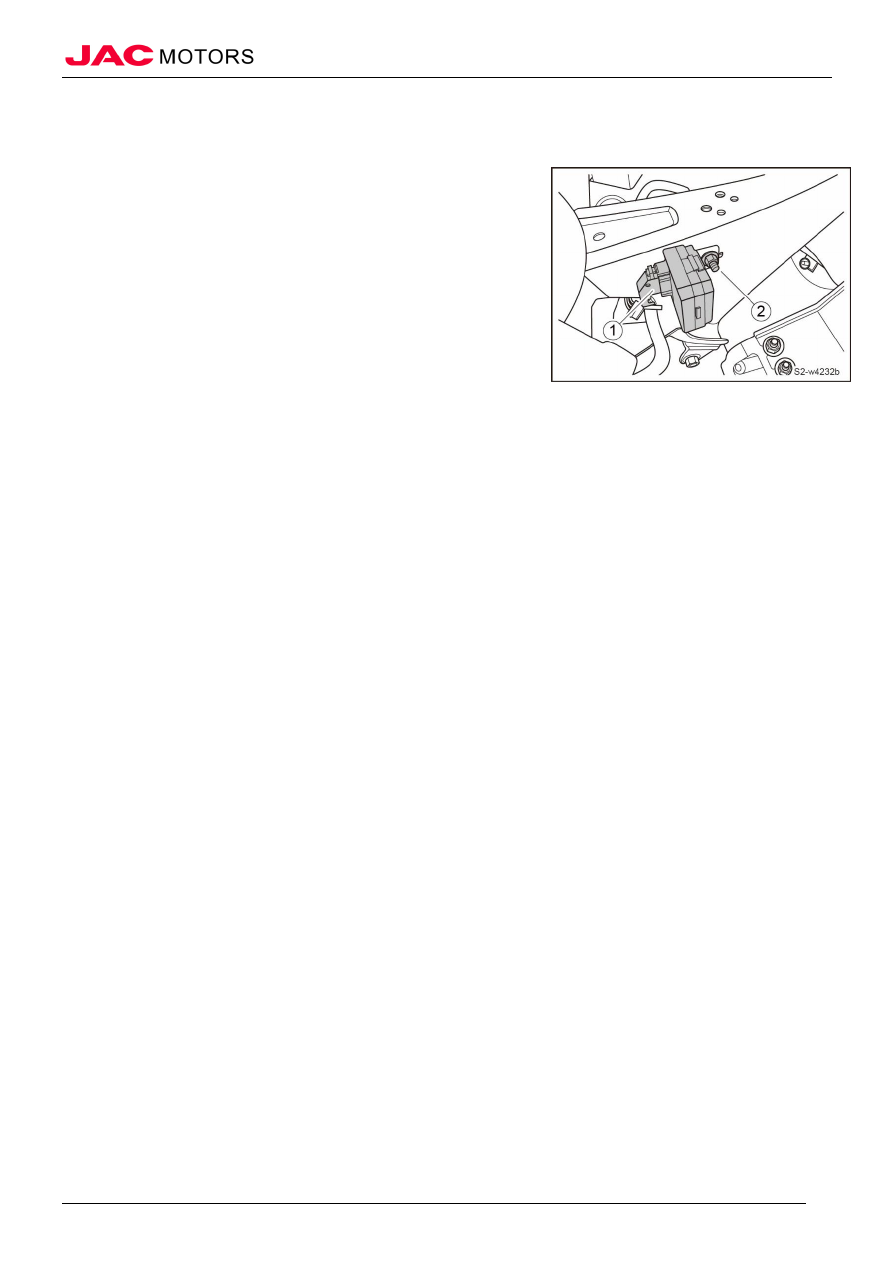

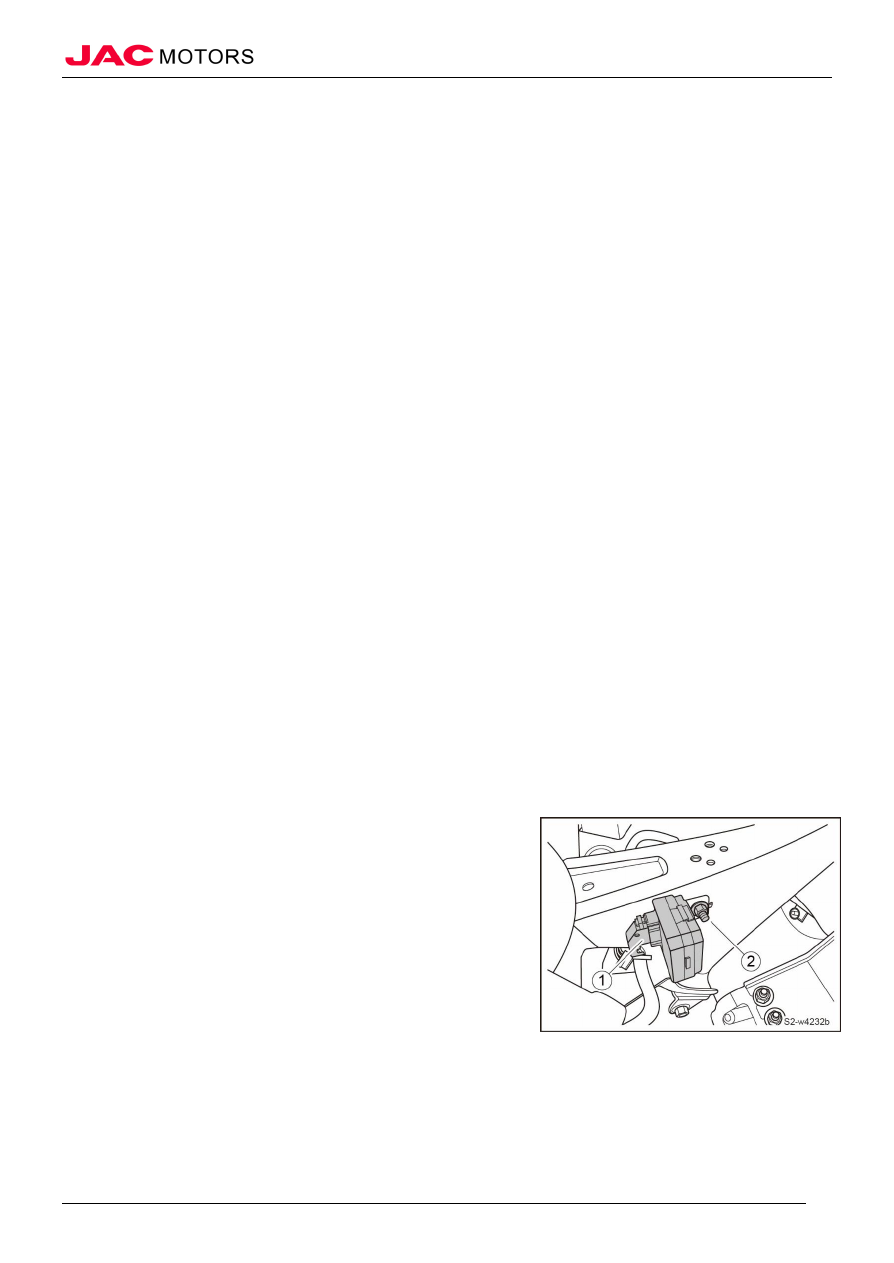

III、Anti-theft Controller



(I)Removal



1. Open engine cabin cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Remove front extension plate    Refer to “Auxiliary dashboard assembly”

4. Remove saucer cover plate assembly    Refer to “Auxiliary dashboard assembly”

5. Remove front storage box assembly    Refer to “Auxiliary dashboard assembly”

6. Remove auxiliary dashboard assembly    Refer to “Auxiliary dashboard assembly”

7. Remove driver’s side air bag assembly    Refer to “Driver’s side air bag assembly”

8. Remove steering wheel assembly    Refer to “Steering wheel assembly”

9. Remove upper and lower jacketing of steering column    Refer to “Jacketing of steering column”

10. Remove threshold guard plate assembly of front door    Refer to “Threshold guard plate assembly of front door”

11. Remove lower trim plate assembly of A column    Refer to “Lower trim plate assembly of A column”

12. Remove upper trim plate assembly of A column    Refer to “Upper trim plate assembly of A column”

13. Remove end cover of dashboard    Refer to “End cover of dashboard”

14. Remove central right trim plate assembly    Refer to “Central right trim plate assembly”

15. Remove glove box assembly    Refer to “Glove box assembly”

16. Remove A/C controller assembly    Refer to “A/C controller assembly”

17. Remove audio panel assembly    Refer to “Audio panel assembly”

18. Remove audio assembly    Refer to “Audio assembly”

19. Remove central left trim plate assembly    Refer to “Central left trim plate assembly”

20. Remove combination meter    Refer to “Combination meter”

21. Remove lower guard plate assembly of driver’s side    Refer to “lower guard plate assembly of driver’s side”

22. Remove central cover assembly    Refer to “Central cover assembly”

23. Remove front passenger’s side air bag    Refer to “front passenger’s side air bag”

24. Remove dashboard assembly    Refer to “Dashboard assembly”

25. Remove anti-theft controller

1). Disconnect anti-theft controller wiring harness connector  ①;

2). Remove anti-theft controller fixed nut  ②, and take down anti-theft

controller;

























-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      194



(II)Installation


1. Install anti-theft controller



1). Install anti-theft controller to bracket and tighten nut  ②;

2). Connect anti-theft controller wiring harness connector  ①;



















2. Install dashboard assembly

3. Install front passenger’s side air bag

4. Install central cover assembly

5. Install lower guard plate assembly of driver’s side

6. Install combination meter

7. Install central left trim plate assembly

8. Install audio assembly

9. Install audio panel assembly

10. Install A/C controller assembly

11. Install glove box assembly

12. Install central right trim plate assembly

13. Install end cover of dashboard

14. Install upper trim plate assembly of A column

15. Install lower trim plate assembly of A column

16. Install threshold guard plate assembly of front door

17. Install jacketing of steering column

18. Install steering wheel assembly

19. Install driver’s side air bag assembly

20. Install auxiliary dashboard assembly

21. Install front storage box assembly

22. Install saucer cover plate assembly

23. Install front extension plate

24. Connect negative electrode of battery

25. Close engine hood cover



-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      195



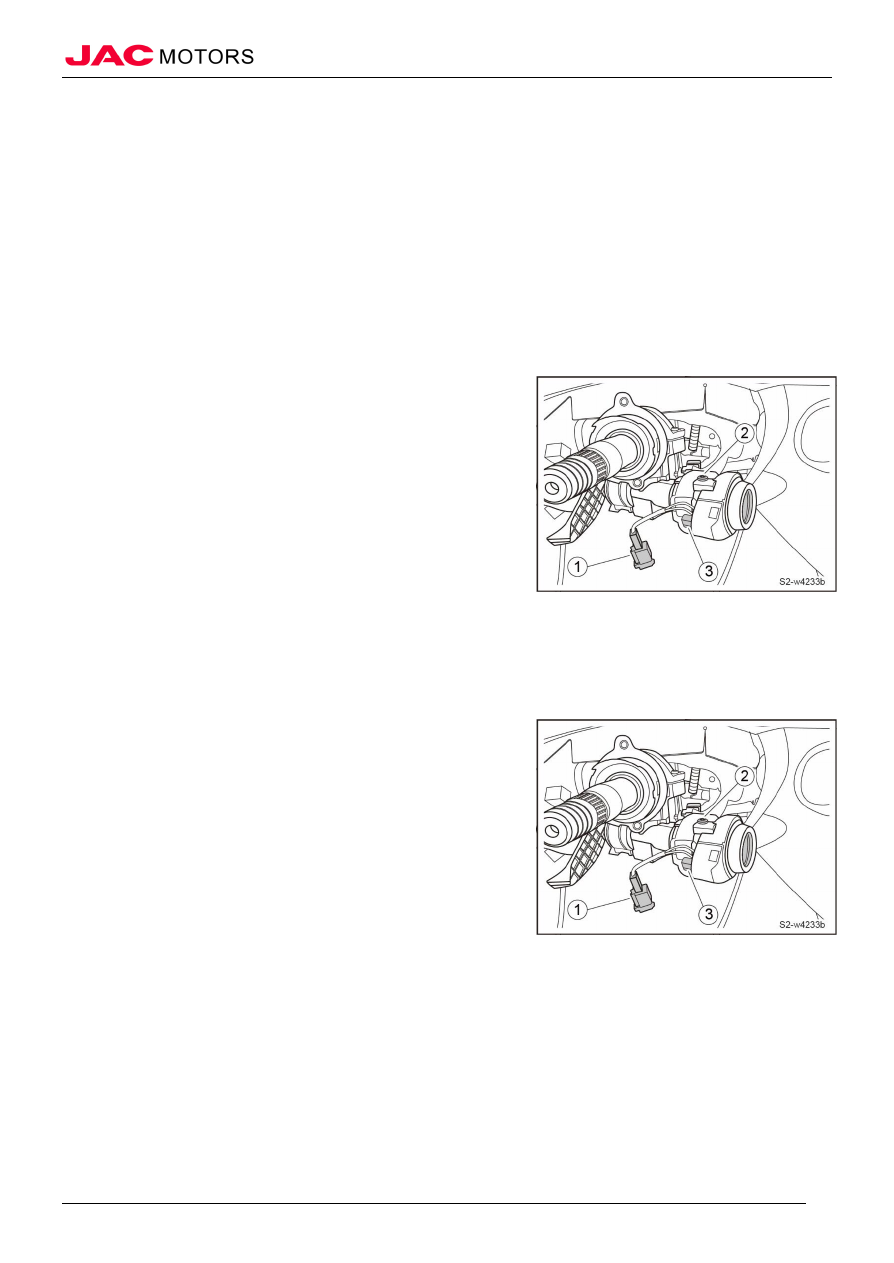

IV、Anti-theft Interaction Coil



(I)Removal



1. Open engine cabin cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Remove driver’s side air bag assembly    Refer to “Driver’s side air bag assembly”

4. Remove steering wheel assembly    Refer to “Steering wheel assembly”

5. Remove upper and lower jacketing of steering column    Refer to “Jacketing of steering column”

6. Remove clock spring    Refer to “Clock spring”

7. Remove combination switch    Refer to “Combination switch”

8. Remove anti-theft interaction coil

1). Disconnect anti-theft interaction coil wiring harness connector
①;

2). Remove fixed bolt  ②  of anti-theft interaction coil and ignition

switch assembly;

3). Pull out ignition switch backlight③, and take down anti-theft

interaction coil;























(II)Installation



1. Install anti-theft interaction coil

1). Install ignition switch backlight  ③  to installation hole;

2). Place anti-theft interaction coil to installation position, and tighten

fixed bolt  ②;

3). Connect anti-theft interaction coil wiring harness connector

①;







2. Install combination switch

3. Install clock spring

4. Install upper and lower jacking of steering column

5. Install steering wheel assembly

6. Install driver’s side air bag assembly

7. Connecting battery negative electrode

8. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------



Engine Anti-theft System



Engine Anti-theft System







      196

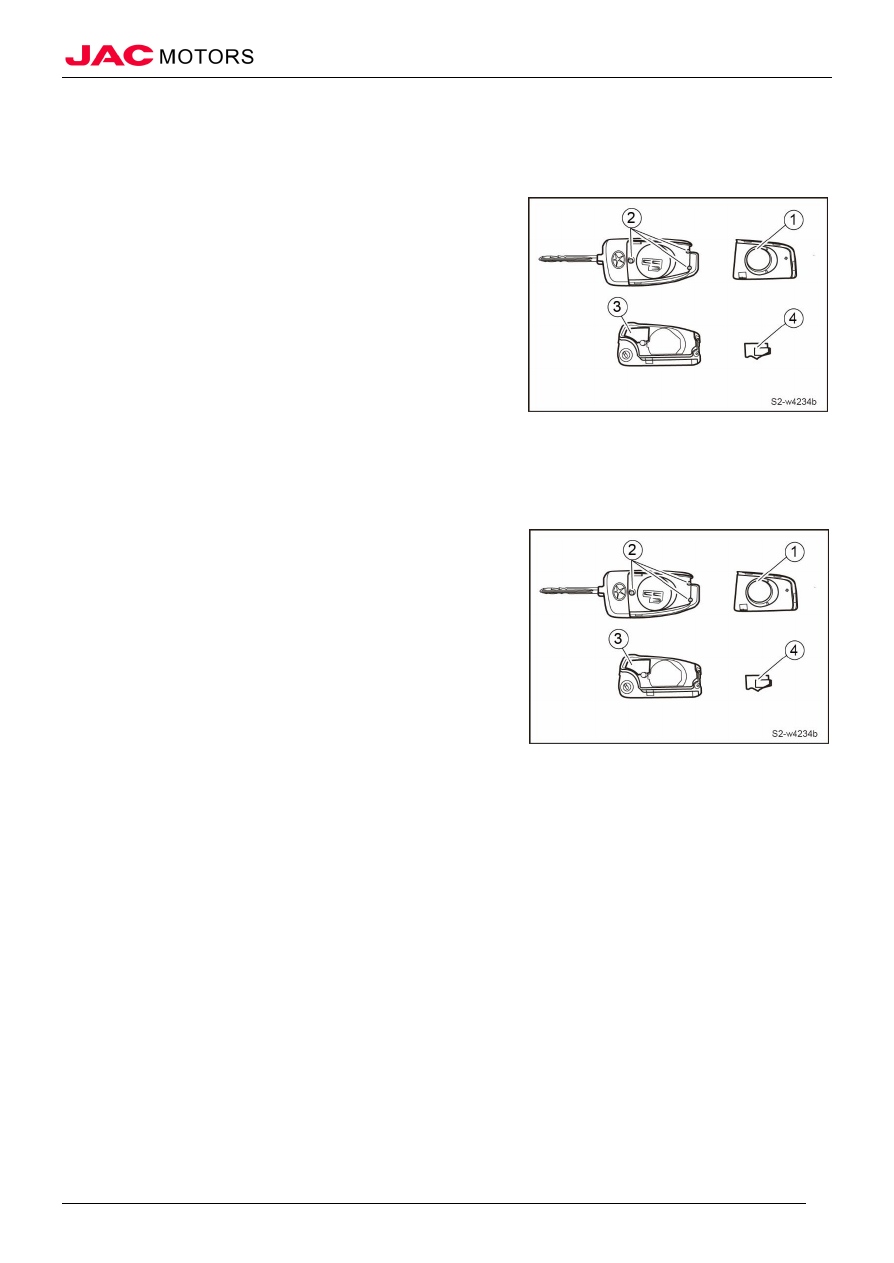

V、Transponder



(I)Removal



△ Note        When removing transponder, be careful that spring drops down.



1. Remove transponder

1). Open remote control key rear cover  ①;

2). Remove 3 fixed bolts  ②  in remote control key inner

housing;





3). Remove remote control key inner housing  ③;

4). Take out chip, transponder  ④  from remote control key inner housing groove;

(II)Installation



1. Install transponder

1). Install transponder  ④  and chip to remote control key inner

housing groove  ③;

2). Install remote control key inner housing to remote control key

base;





3). Tighten 3 fixed bolts  ②  in remote control key;

4). Install remote control key rear cover  ①;









-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      197

Tire Pressure Monitoring System



I、Summary



(I)Structure Summary

Tire pressure monitoring system is monitoring pressure and temperature inside tire, warning if exceed set value (indicator light

on meter indicates warning state), and helping driver to know tire state actual time, reducing accident due to tire failure, and adding
security of vehicle.

There are 3 units in TPMS system: warning indicating light (integrated in dashboard), TPMS controller, TPMS sensor; detail

constitutions are shown as below



Component Name

Number

Remark

TPMS controller

Installed below auxiliary dashboard

TPMS sensor

Partly installed in four tires

Warning indicating light

Integrated in combination meter (2 indicating light)
1. Tire warning indicating light
2. TPMS warning indicating light

Warning Indicating Light Indicating

Symbol (meter)

Indicating light type

Indicating type



Tire pressure abnormal

Fast air leakage:Twinkle

Low pressure:Always on

High pressure:Always on

High temperature:Always on



System fault

Sensor battery low power:Always on

Sensor failure:Always on

High frequency receiving failure:Always on

Communication between controller and meter disconnected:Always on



Warning Type and Description



Warning Type

Description

Fast air leakage

When system running, one or some tires pressure drop over 30kPa in one minute, send fast air
leakage warning; pressure stay same or up, remove fast air leakage warning

Low pressure

When system running, one or some tires pressure lower than 75% g (165kpa) of manufacturer
specified  cold  air pressure  value,  send  low  pressure  warning;  pressure  to normal,  remove  low
pressure warning

High pressure

When system running, one or some tires pressure higher than 125% (275kpa) of manufacturer
specified cold air pressure value, send high pressure warning; pressure to normal, remove high
pressure warning

High temperature

When  system  running,  one  or  some  tires  pressure  higher  than  85

℃,  send  high  temperature

warning; temperature to normal, remove high temperature warning

Sensor battery low power

When system running, one or some tires sensor battery power lower than a certain value, send
low battery power warning; battery power to normal, remove low battery power warning

Sensor failure

When system running, not receive one or two sensor effective data in 5-10 minutes(other sensor
can receive effective data), send sensor failure warning; receive all sensor effective data, remove
sensor failure warning

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      198

Warning Type

Description

High frequency receiving failure



When system running, controller not receive one or two sensor effective data in 20 minutes, send
high frequency receiving failure warning; receive any sensor effective data, remove sensor failure
warning





1.  Ignition switch ON/ST, if has bindinged four sensor, indicator light and TPMS system failure light ON at the same time, and OFF
after 2s.

2.  Ignition switch ON/ST, if has not bindinged four sensor, indicator light ON and OFF after 2s, TPMS system failure light twinkle
in the cycle of 2s.

3.  Into sensor learning mode, two indicator light ON at the same time(light up), after binding successfully, two indicator light OFF
at the same time.

4.  When vehicle running, system and pressure is normal, two indicator light not ON.

5.  Remove warning, warning indicator light OFF accordingly.

6.  System is divided into 3 level according to warning condition priority(1

st

 level is the highest);

1

st

 level: fast air leakage

2nd level: low pressure, high pressure, high temperature

3rd level: sensor battery power low, sensor failure, high frequency receive failure

When indicating warning status, preferredly light high level warning indicator light, and two indicator light not both ON at the
same time.

7.  After warning happened (accordingly indicator light ON), if ignition switch off and start again, system clear all warning status
indicating, detect again.

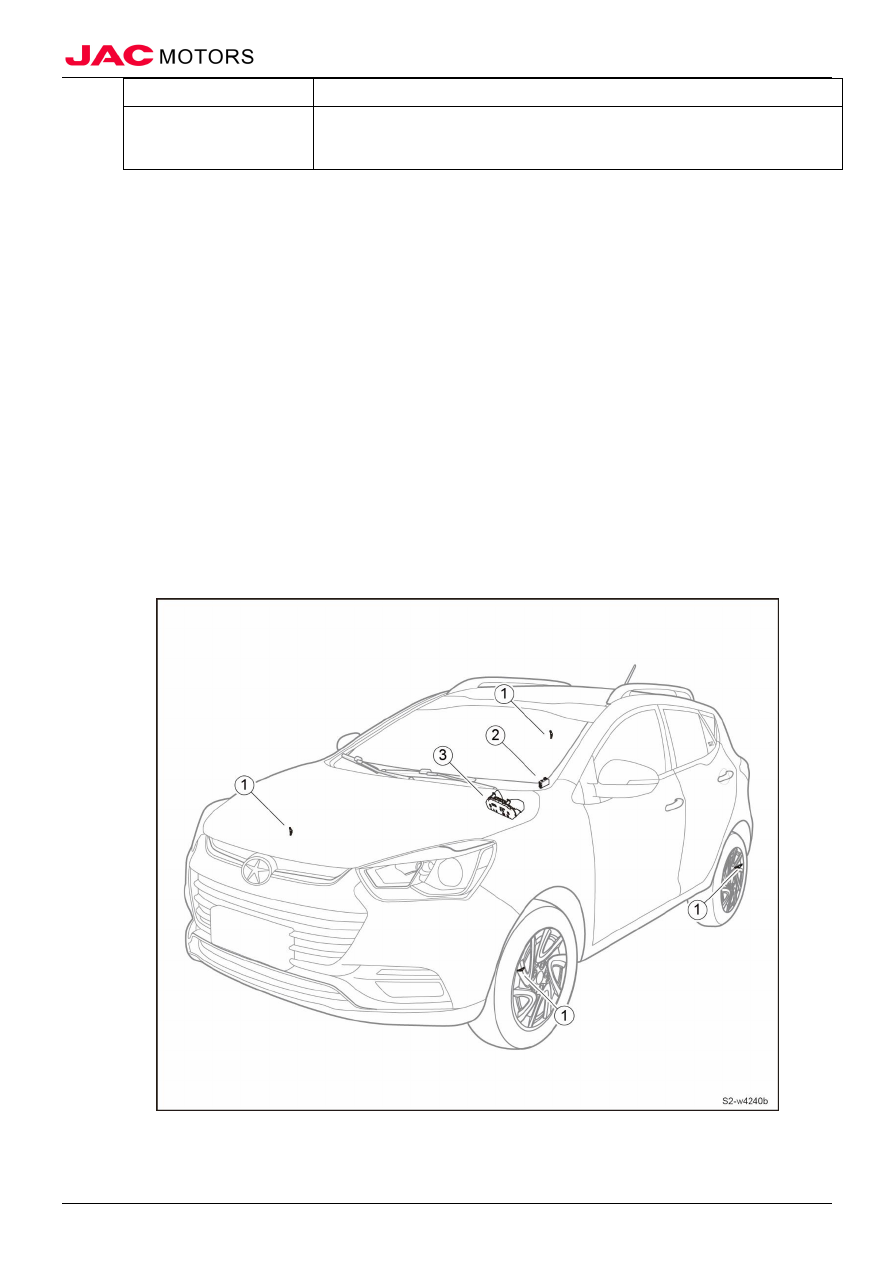

Component Position

































1. TPMS sensor                            2. TPMS controller                              3. Combination meter




-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      199



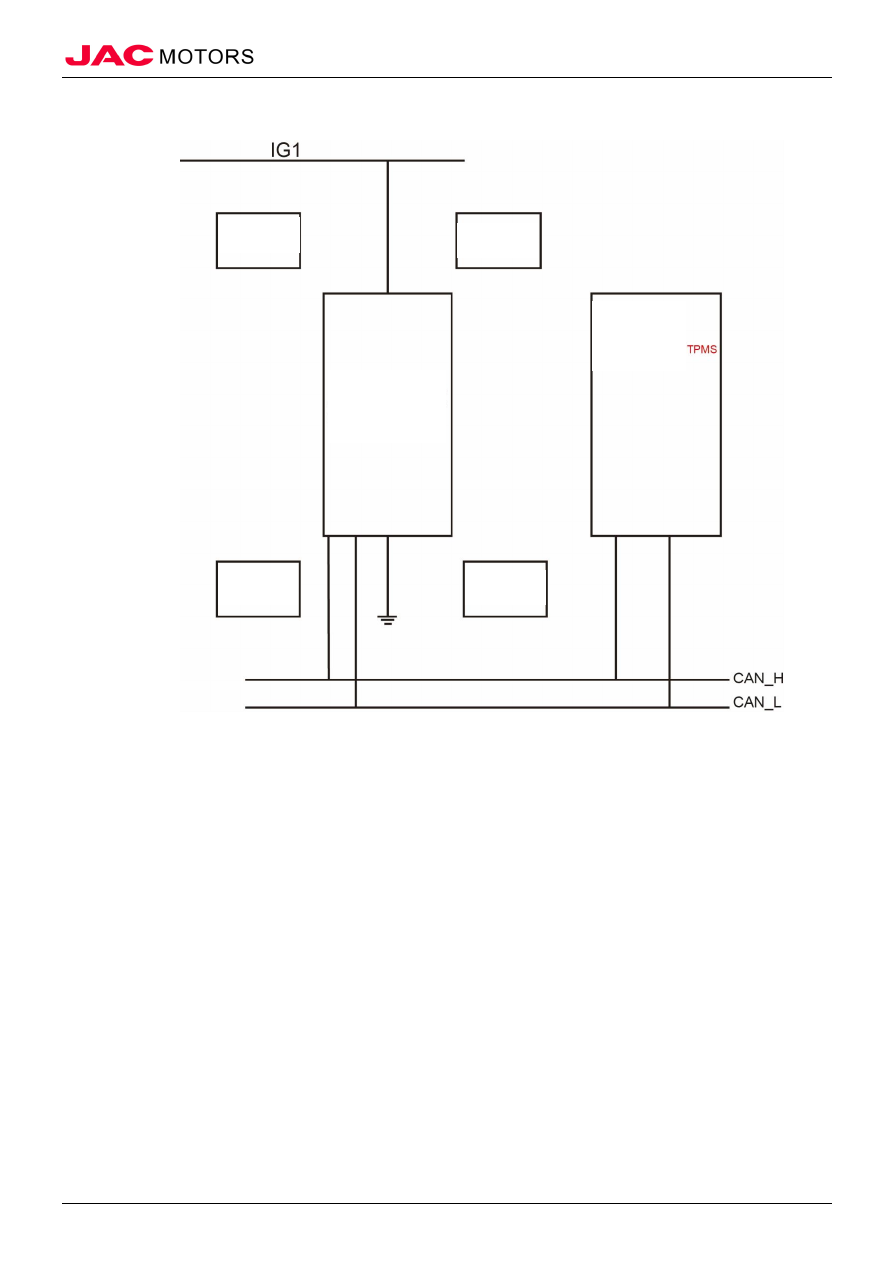

(II)Operation Principle











































(III)Maintenance Note

TPMS system is Tire Pressure Monitoring auxiliary System, the transmission of signal complete through high frequency

signal. When high frequency signal is interfered by same frequency electromagnetic field, and at interfered status for long time, it
will send system failure warning; when vehicle drive away from strong electromagnetic field, warning status will be removed
automatically, it is normal.

When driving on bumpy road, vehicle turning, all tires stress differently, causing tire pressure too high or too low in the

meantime, system sometimes will warning occasionally. When driving on flat and straight road, if pressure is normal, it will
remove warning, it is normal.

When parking vehicle for a long time, tire pressure is normal and there is no obvious change, and doesn’t receive any sensor

data in continuous 20min, TPMS indicating light will be on; after vehicle driving, sensors start to transmit data, TPMS indicating
light will be off, which is normal.





Tire  pressure
sensor

Tire  pressure
sensor

Tire

pressure

indicating light
TPMS
indicating light

TPMS controller

Tire  pressure
sensor

Tire  pressure
sensor

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     11      12      13      14     ..
