                                                                              Wiper and Washer Device

Wiper and Washer Device

































      168

(II)Operation Principle

Front Wiper Schematic Diagram
































(III)Torque Parameter



No.

Item

Torque  (N·m)

Front wiper motor and connecting rode mechanism assembly fixed bolt

10~12

Wiper arm assembly installation nut

13~17

Washing liquid pot fixed bolt

8~10



(IV)Maintenance Note



1.  Before disassembling wiper motor and connecting rod assembly, ensure connecting rod stop at autostop position.
2.  Before installing wiper motor and connecting rod, ensure to connect wiper motor and wiring harness connector, when

connecting you will hear “clatter” sound, it means good connect.

3.  When installing wiper arm and blade assembly, it need to supply power to wiper motor, after wiper motor working for 10s, close

wiper switch by operating combination switch rightly, to make wiper motor stop at autostop position.

4.  Wiper blade is installed to window’s fixed position.
5.  If wiper blade work    not normally, use good cleaner or gentle cleaner cleaning door window and wiper blade, and thoroughly
clean with clean water.
6.  When maintaining washing pump, be careful not damage washing pump seal ring.
7.  Before add water to storing box, check filter whether there is outside impurity or pollution. Clean filter if needed.
8.  Before installing washing motor, check whether there is impurity or pollution, if needed, clean filter and wiper motor.














Wiper
combination
switch

Washing motor

Front wiper motor

Front wiper high
speed relay

Front

wiper

relay

Front

wiper

motor

Without CAN (L)

With CAN (H)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      169

II、Troubleshooting



(I)Troubleshooting List



NO.



Fault phenomenon



Fault reason analysis



Solution



Remark



1



Stop work



Moving part stuck



Remove stuck fault





Power supply disconnected, connector pin drop



Connect power supply



Motor burn down



Replace new motor



2



Abnormal

sound,

work abnormally



Motor interior abnormal sound happen



Replace motor





Connecting rod has friction phenomenon when
moving



Remove friction phenomenon



Wiper blade and window has abnormal sound



Clean window



3



When  wiping,  wiper
blade

has

shaking

phenomenon



Window and wiper blade resistance too high



Clean window and wiper blade, or replace
wiper blade





Regulate  relative  angle  of  wiper  arm
and window, or replace wiper arm





4



Wiper

blade

not

horizontal  when  back
to original position



Relative position of wiper blade changed



After motor back to original position, take
down wiper arm and re-install, keep wiper
blade horizontal





5



Wiping not clean



Window not clean



Clean window





Wiper blade worn seriously



Replace  wiper blade(replace  wiper blade
every three month is proposed)



6



No

matter

what

position  wiper  switch
is,  wiper  and  washer
not work



Whether  engine  compartment  electrical  box
fuse and indoor electrical box fuse is damaged



Replace fuse



Refer

to

“Wiper
and
washing
motor  not

work”



Other circuit fault



Remove fault that caused by other circuit



Motor  power  supply  and  grounding  not
abnormal



Check  whether  pin  and  grounding  pin
voltage is normal



Wiper motor and washer motor damaged



Replace wiper motor and washer motor



Wiper switch damaged



Replace wiper switch



7



Only  front wiper high
speed not work



Wiper motor 4

th

 pin and 1

st

pin not connected



Replace wiper motor



Refer

to

“Front
wiper  high
speed

not

work



Wiper  motor  pin  4

th

  and  wiper  combination

switch connect not connected



Maintain  or  replace  motor  pin  4

th

  and

combination switch connected wire



Wiper  combination  switch  9

th

and  10

th

  pin  not

connected



Replace combination switch



Connected  wire  between  combination  switch
10

th

 pin and grounding point not connected



Maintain  or  replace  connected  wire
between  wiper  combination  switch  10

th



pin and grounding point



8



Only  front  wiper  low  Wiper motor 3rd pin and 1st pin not connected  Replace wiper motor

Refer

to

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      170

NO.



Fault phenomenon



Fault reason analysis



Solution



Remark



speed not work



Wiper  motor  3

rd

  pin  and  wiper  combination

switch connected wire not normal



Maintain  or  replace  motor  3

rd

pin  and

wiper combination switch connected wire



“Front
wiper  low
speed

not

work”



Wiper combination switch 3

rd

 pin and 10

th

 pin

not connected



Replace combination switch



Connected  wire  between  wiper  combination
switch  10

th

  pin  and  grounding  point  not

connected



Maintain  or  replace  connected  wire
between  wiper  combination  switch  10

th



pin and grounding point



9



Only

front

wiper

intermittence

not

work



Conduction of wiper combination switch pin is
not normal



Replace wiper combination switch



Refer

to

“Front
wiper
interimitte
mce

not

work”



Connected  wire  between  wiper  combination
switch 8

th

 pin and BCM is not breakover



Maintain  or  replace  connected  wire
between wiper combination switch 8

th

 pin

and BCM



Connected wire between wiper is not breakover



Maintain  or  replace  connected  wire
between wiper relay and BCM



Wiper relay pin not connected with ground



Wiper relay



Replace BCM



10



Wiper always on



Wiper

combination

switch

all

switch

conduction is not normal



Replace wiper combination switch





Connected  wire  between  wiper  combination
switch and wiper motor is not normal



Replace wiper motor



Connected  wire  between  wiper  combination
switch and wiper motor is not normal



Maintain  or  replace  connected  wire
between  wiper  combination  switch  and
wiper motor



11



Washer  motor  not
work



Washer motor power supply not normal



Maintain or replace power supply circuit
of washer motor





Wiper combination switch 10

th

 pin and 11

th

 not

conduct



Replace wiper combination switch



Connected  wire  between  wiper  combination
switch and washer motor is not normal



Maintain  or  replace  connected  wire
between  wiper  combination  switch  and
washer motor



Washer motor damaged



Replace washer motor



















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      171

(II)Troubleshooting Flow Chart



Wiper and washer motor not work



Step

Detect content

Solution

Judging specification

Next step

Yes

No

1



Check  battery  power
supply capacity



Measure battery voltage



Voltage standard: 11~14 V



Next step



Battery  charging
or replace battery



2



Check

intermittent

fault



Check  wiper  motor,  wiper
combination  switch,  whether
wiper  motor  wiring  harness
connector is loosen?



Whether loosen or drop?



Connect

wiring

harness  connector
again tightly



Next step



3



Check  wiper  motor,
washer motor fuse



Disassemble

fuse,

check

whether fuse is fused?



Whether fuse is fused?



Replace

fused

fuse



Next step



4



Replace

wiper

combination

switch,

whether

fault

is

removed?



Install new wiper combination
switch, ignition switch to ON,
operate  wiper  combination
switch



Whether  front  and  rear
wiper  and  washer  motor  is
working?



Fault removed



Next step



5



Replace  front  and  rear
wiper

motor

and

washer  motor,  whether
fault is removed?



Install  new  front  and  rear
wiper  motor  and  washer
motor,

operate

wiper

combination switch



Whether  front  and  rear
wiper  and  washer  motor  is
working?



Fault removed



Next step



6



Replace BCM, whether
fault is removed?



Install  new  BCM,  operate
wiper combination switch



Whether  front  and  rear
wiper  and  washer  motor  is
working?



Fault removed



Next step



7



Replace

wiring

harness,  whether  fault
is removed?



Install  new  wiring  harness,
operate  wiper  combination
switch



Whether  front  and  rear
wiper  and  washer  motor  is
working?



Fault removed







Front wiper high speed not work



Step

Detect content

Solution

Judging specification

Next step

Yes

No

1



Check

front

wiper

motor

high

speed

working power supply

Disconnect front wiper motor
wiring  harness  connector,
ignition  switch  to  ON,  turn
wiper  combination  switch  to
front

wiper

high

speed.

Measure

voltage

between

front  wiper  motor  wiring
harness  connector  E09-4  and
ground

Voltage standard:11~14V
Whether  voltage  is  accord
with standard?

Replace

front

motor

Turn to step 3

2



Replace  front  wiper
motor,  whether  fault  is
removed?

Install new front wiper motor,
ignition  switch  to  ON,  turn
wiper  combination  switch  to
front wiper high speed

Whether  front  wiper  high
speed work?

Fault removed

Next step

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      172

Step

Detect content

Solution

Judging specification

Next step

Yes

No

3



Check  connected  wire
between  front  wiper
motor  wiring  harness
connector  E09-4  and
front  wiper  high  speed
relay  ER04-87(L)  pin
or BCM wiring harness
connector  M33-15(H)
pin

Measure  resistance  between
front  wiper  motor  wiring
harness  connector  E09-4  and
front  wiper  high  speed  relay
ER04-87(L)  pin  or  BCM
wiring

harness

connector

M33-15(H) pin

Standard  resistance:  less
than 1Ω

Next step

Maintain

or

replace

wiring

harness

4



Measure

circuit

between

combination

switch  wiring  harness
connector  M11-9  pin
and

BCM

wiring

harness

connector

M32-15(L)  pin  (BCM
not with CAN) or M31-
13(H) pin

Measure  resistance  between
combination  switch  wiring
harness  connector  M11-9  pin
and  BCM  wiring  harness
connector

M32-15(L)

pin

(BCM not with CAN) or M31-
13(H) pin

Standard  resistance:  less
than 1Ω

Next step

Maintain

or

replace

wiring

harness

5



Replace  front  wiper
high

speed

relay,

whether

fault

is

removed?

Install  new  front  wiper  high
speed relay, ignition switch to
ON,  turn  wiper  combination
switch  to  front  wiper  high
speed

Whether  front  wiper  high
speed work?

Fault removed

Next step

6



Replace  front  wiper
combination

switch,

whether

fault

is

removed?

Install  new  front  wiper  high
speed relay, ignition switch to
ON,  turn  wiper  combination
switch  to  front  wiper  high
speed

Whether  front  wiper  high
speed work?

Fault removed

Next step

7



Replace BCM, whether
fault is removed?

Install  new  BCM,  ignition
switch  to  ON,  turn  wiper
combination  switch  to  front
wiper high speed

Whether  front  wiper  high
speed work?

Fault removed

Next step



Front wiper high speed not work



Step

Detect content

Solution

Judging specification

Next step

Yes

No

1



Check

front

wiper

motor

low

speed

working power supply



Disconnect front wiper motor
wiring  harness  connector,
ignition  switch  to  ON,  turn
wiper  combination  switch  to
front

wiper

low

speed.

Measure  voltage  between
front  wiper  motor  wiring
harness  connector  E09-3  and
ground



Voltage standard:11~14V



Replace

front

motor



Turn to step 3



2



Replace  front  wiper
motor,  whether  fault  is
removed?



Install new front wiper motor,
ignition  switch  to  ON,  turn
wiper  combination  switch  to
front wiper low speed



Whether  front  wiper  high
speed work?



Fault removed



Next step



-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      173

Step

Detect content

Solution

Judging specification

Next step

Yes

No

3



Check  connected  wire
between  front  wiper
motor  wiring  harness
connector  E09-3  and
front  wiper  high  speed
relay

EPDR4-87a(L)

pin  or  BCM  wiring
harness connector M31-
21(H) pin



Measure  resistance  between
front  wiper  motor  wiring
harness  connector  E09-3  and
front  wiper  high  speed  relay
EPDR4-87a(L)  pin  or  BCM
wiring

harness

connector

M31-21(H) pin



Standard  resistance:  less
than 1Ω



Next step



Maintain

or

replace

wiring

harness



4



Measure

circuit

between

combination

switch  wiring  harness
connector  M11-3  pin
and

BCM

wiring

harness

connector

M32-3(L)  pin  or  M31-
16(H) pin



Measure  resistance  between
combination  switch  wiring
harness  connector M11-3  pin
and  BCM  wiring  harness
connector  M32-3(L)  pin  or
M31-16(H) pin



Standard  resistance:  less
than 1Ω



Next step



Maintain

or

replace

wiring

harness



5



Replace  front  wiper
high

speed

relay,

whether

fault

is

removed?



Install  new  front  wiper  high
speed relay, ignition switch to
ON,  turn  wiper  combination
switch  to  front  wiper  low
speed



Whether  front  wiper  low
speed work?



Fault removed



Next step



6



Replace

front

wiper

combination

switch,

whether

fault

is

removed?



Install  new  front  wiper  high
speed relay, ignition switch to
ON,  turn  wiper  combination
switch  to  front  wiper  low
speed



Whether  front  wiper  low
speed work?



Fault removed



Next step



7



Replace BCM, whether
fault is removed?



Install  new  BCM,  ignition
switch  to  ON,  turn  wiper
combination  switch  to  front
wiper low speed



Whether  front  wiper  low
speed work?



Fault removed







Front wiper intermittent speed not work



Step

Detect content

Solution

Judging specification

Next step

Yes

No

1



Check

front

wiper

motor

intermittent

speed  working  power
supply



Disconnect front wiper motor
wiring  harness  connector,
ignition  switch  to  ON,  turn
wiper  combination  switch  to
front

wiper

low

speed.

Measure  voltage  between
front  wiper  motor  wiring
harness  connector  E09-3  and
ground



Voltage standard:11~14V



Replace

front

motor



Turn to step 3



2



Replace  front  wiper
motor,  whether  fault  is
removed?



Install new front wiper motor,
ignition  switch  to  ON,  turn
wiper  combination  switch  to
front wiper intermittent speed



Whether

front

wiper

intermittent speed work?



Fault removed



Next step



-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      174

Step

Detect content

Solution

Judging specification

Next step

Yes

No

3



Check  connected  wire
between  front  wiper
motor and BCM

Measure  resistance  between
wiper  motor  wiring  harness
connector  E09-3  and  BCM
wiring

harness

connector

ER4-87a(L)  pin  or  H23-
21(H) pin

Standard  resistance:  less
than

1Ω,

Whether

resistance  is  accord  with
standard?

Next step

Maintain

or

replace

wiring

harness

4



Check  circuit  between
wiper

combination

switch and BCM

Measure  resistance  between
wiper  combination  switch
M11-8  pin  and  BCM  wiring
harness connector M32-19(L)
pin or M03-21(H) pin

Standard  resistance:  less
than 1Ω

Next step

Maintain

or

replace

wiring

harness

5



Check  circuit  between
wiper

combination

switch and body ground

Measure  resistance  between
wiper  combination  switch
wiring

harness

connector

M11-10 pin and vehicle body
ground

Standard  resistance:  less
than

1Ω,

Whether

resistance  is  accord  with
standard?

Next step

Maintain

or

replace

wiring

harness

6



Replace  front  wiper
combination

switch,

whether

fault

is

removed?

Install  new  front  wiper  high
speed relay, ignition switch to
ON,  turn  wiper  combination
switch

to

front

wiper

intermittent speed

Whether

front

wiper

intermittent speed work?

Fault removed

Next step

7



Replace BCM, whether
fault is removed?

Install  new  BCM,  ignition
switch  to  ON,  turn  wiper
combination  switch  to  front
wiper intermittent speed

Whether

front

wiper

intermittent speed work?

Fault removed








-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      175



III、Front Wiper Blade Assembly



(I)Removal



1. Remove front wiper blade assembly

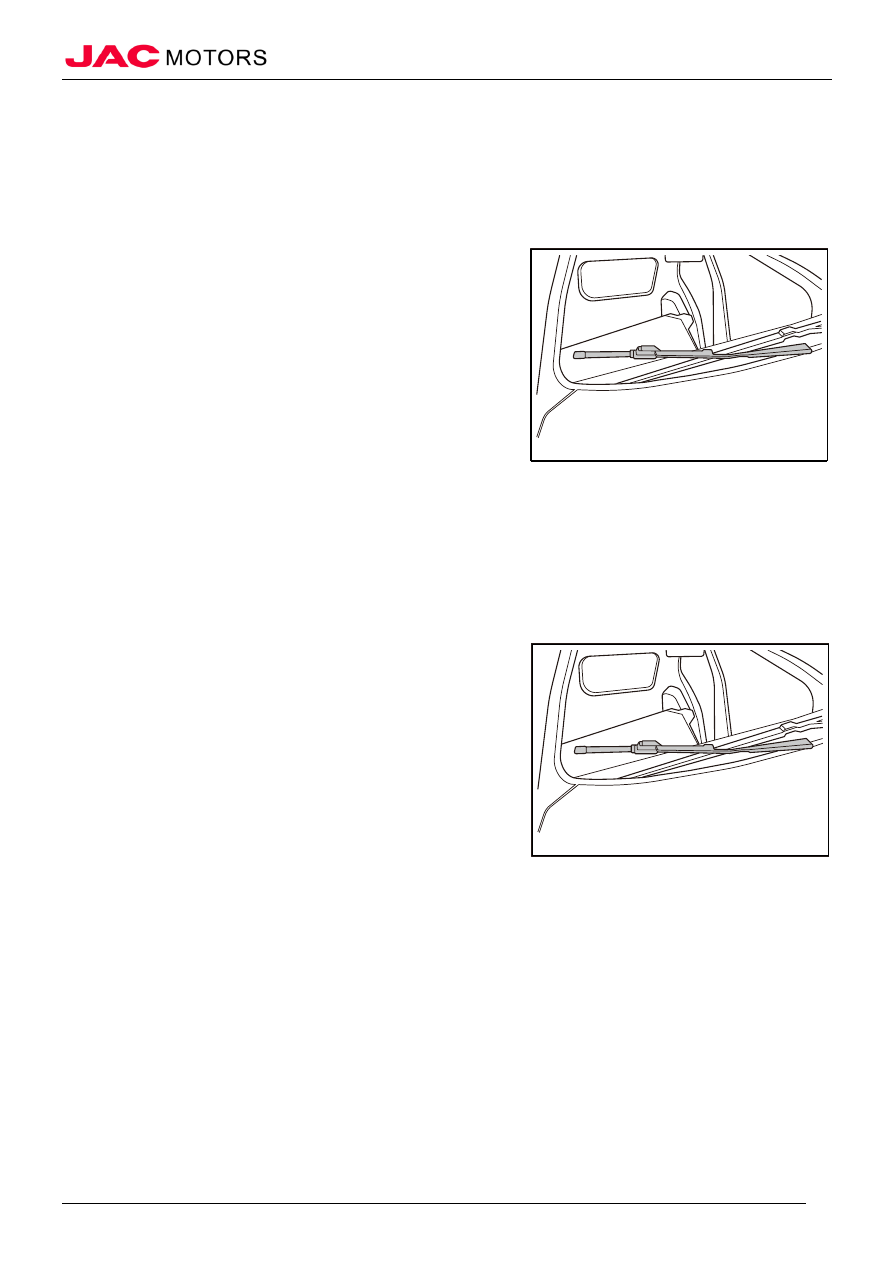

1). Lift up front wiper arm;

2). Press connection point, pull upward, and disconnect connection of front wiper blade and arm;

3). Take down front wiper blade assembly;

△ Note

Don’t operate wiper blade violently when

removing, or else it will damage wiper blade and
effect wiping.
















(II)Installation


1. Install front wiper blade assembly

1). Insert wiper blade into slipping sleeve of wiper arm, and ensure to be connected in place;

2). Put off front wiper arm;

△ Note

Wiper blade installed to front windshield is installed in location point, which is installed in place.






















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      176

















IV、Front Wiper Arm Assembly



(I)Removal



1. Remove front wiper blade assembly    Refer to “Front wiper blade assembly”

2. Remove front wiper arm assembly

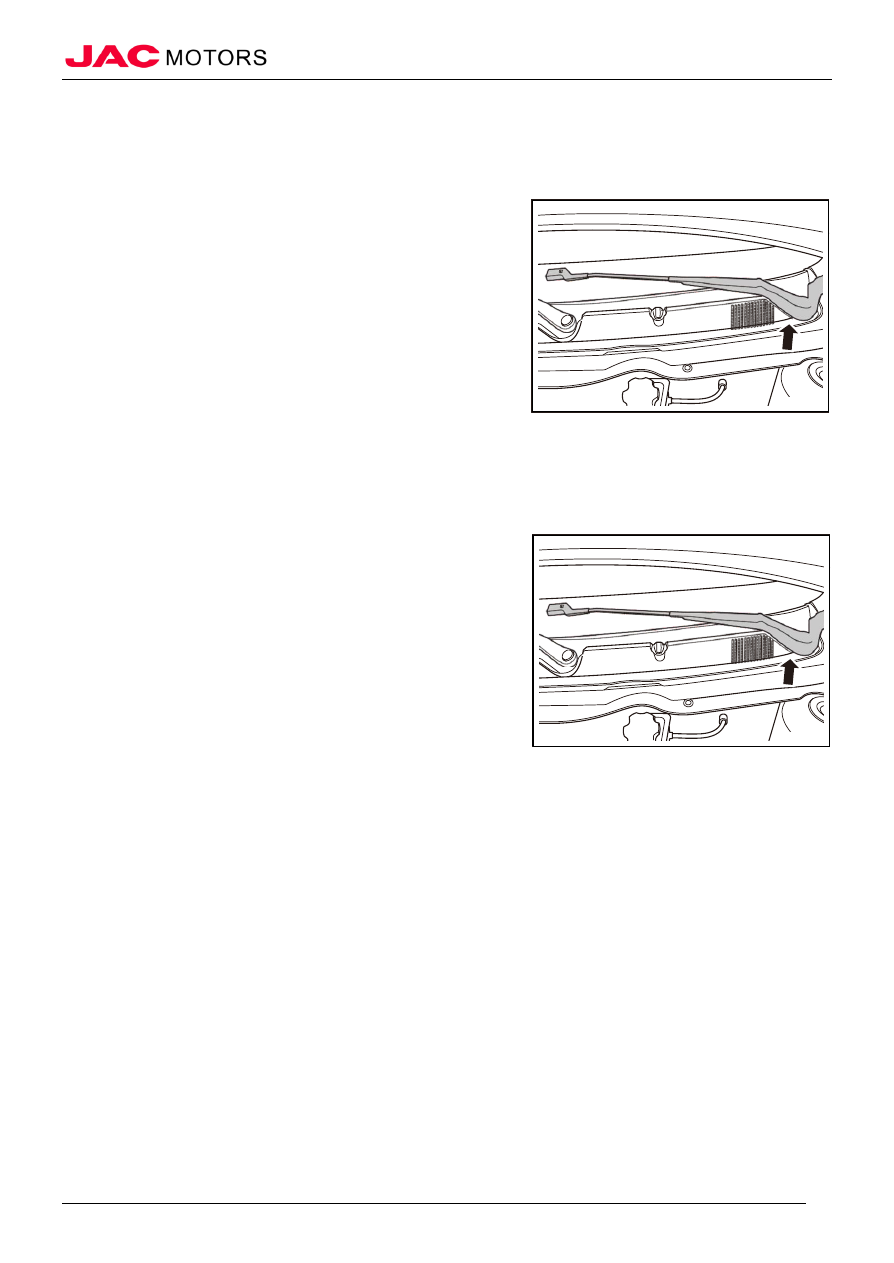

1). Pry front wiper bonnet;

2). Mark on front wiper arm and fixed nut, remove front wiper

arm fixed nut, and take down front wiper arm assembly;















(II)Installation



1. Install front wiper arm assembly

1). Install front wiper arm assembly and tighten fixed nut to marked position;

Tighten torque

13~17N·m

2). Install front wiper bonnet;

△Note    First supply power to wiper motor before installing to

let wiper motor work about 10s, and then operate
combination  switch  to  close  wiper  to  let  wiper
motor stop at stop position.











2. Install front wiper blade assembly





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      177

V、Front Wiper Connecting Rode Mechanism Assembly



(I)Removal



1. Open engine cabin cover

2. Remove front wiper arm assembly    Refer to “Front wiper arm assembly”

3. Remove ventilation cover plate    Refer to “Ventilation cover plate”

4. Remove front wiper connecting rode mechanism assembly

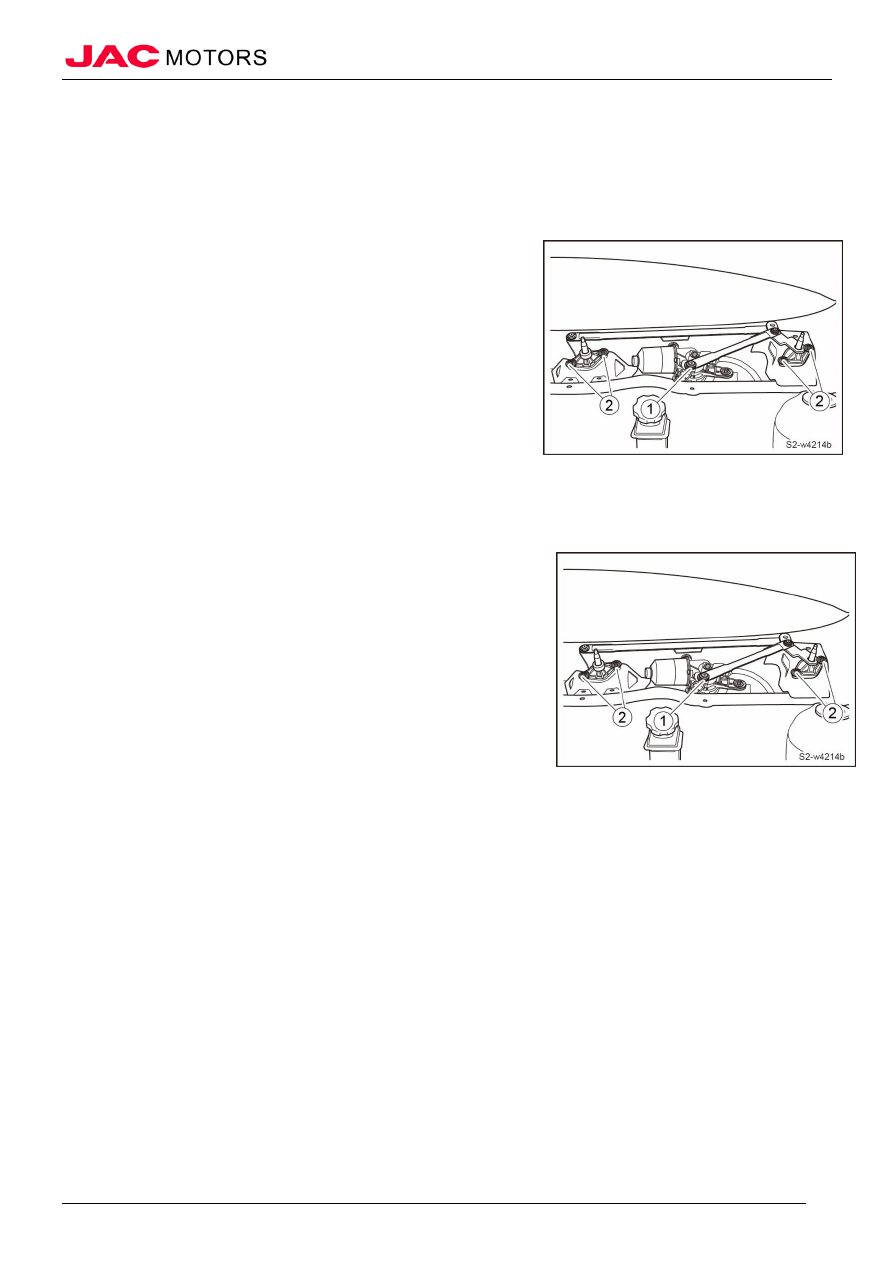

1). Disconnect connection ball head  ①  of front wiper connecting
rode mechanism assembly and motor;

2). Remove 4 fixed bolts  ②  of front wiper connecting rode
mechanism assembly;

3). Take down front wiper connecting rode mechanism assembly;

△ Note

Ensure connecting rod is in automatic stop position

when removing.















(II)Installation



1. Install front wiper connecting rode mechanism assembly

1). Place front wiper connecting rode mechanism assembly to installation
position, and tighten 4 fixed bolts  ②  of front wiper connecting rode
mechanism assembly;

Tighten torque

10~12N·m

2). Connect connection ball head  ①  of front wiper connecting rode
mechanism assembly and motor;









2. Install ventilation cover plate

3. Install front wiper connecting rode mechanism assembly

4. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      178

VI、Front Wiper Motor Assembly



(I)Removal



1. Open engine cabin cover

2. Remove battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove front wiper arm assembly    Refer to “Front wiper arm assembly”

4. Remove ventilation cover    Refer to “Ventilation cover”

5. Remove front wiper connecting rod mechanism assembly    Refer to “Front wiper connecting rod mechanism assembly”

6. Remove front wiper motor assembly

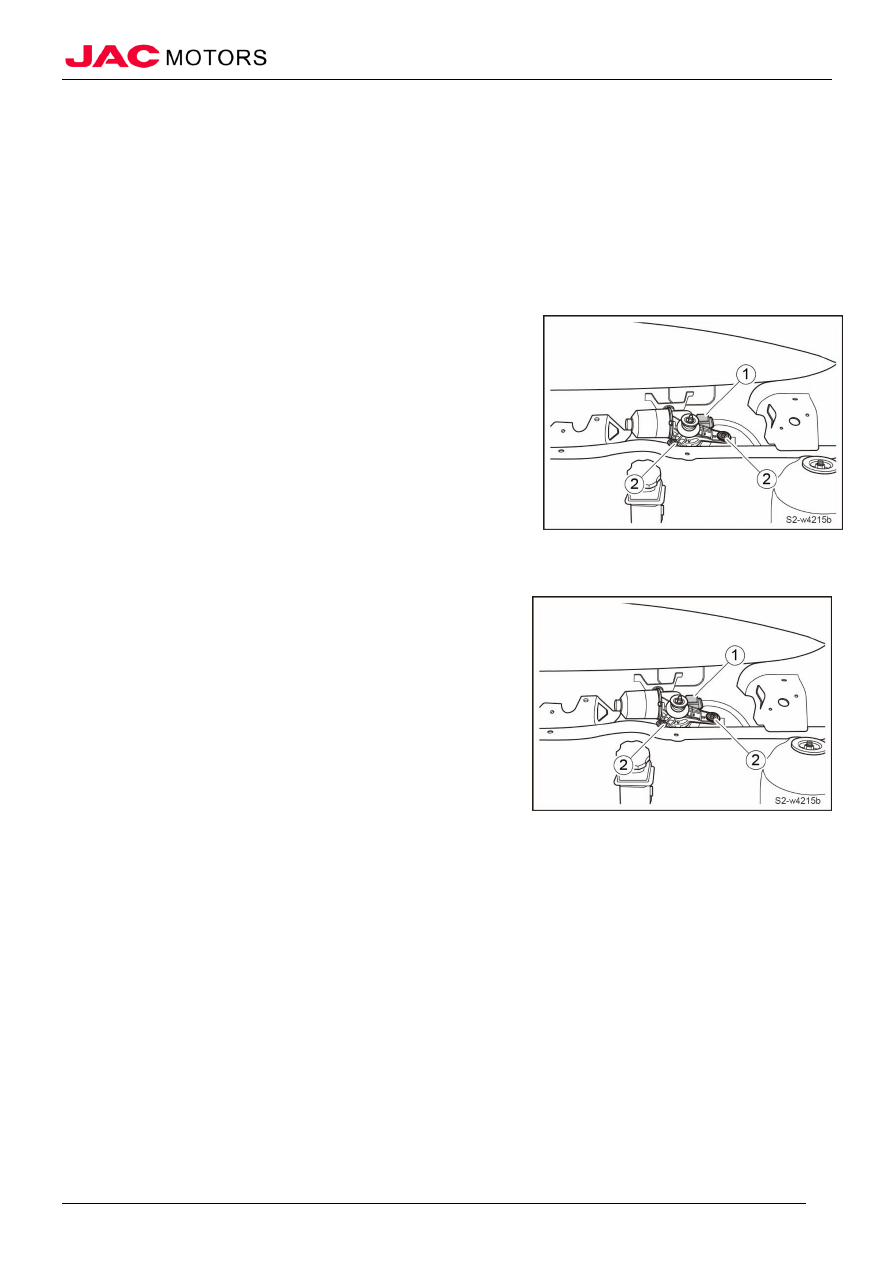

1). Remove wiring harness connector  ①  of front wiper motor assembly;

2). Remove 2 fixed bolts  ②  of front wiper motor assembly;

3). Take down front wiper motor assembly;



















(II)Installation



1. Install front wiper motor assembly

1). Place front wiper motor assembly to installation position, and
tighten 2 fixed bolts  ②  of front wiper motor assembly;

Tighten torque

10~12N·m



2). Connect wiring harness connector  ①  of front wiper motor
assembly;






















2. Install front wiper connecting rod mechanism assembly

3. Install ventilation cover

4. Install front wiper arm assembly

5. Connect battery negative electrode

6. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      179

VII、Front Windshield Nozzle



(I)Removal



Refer to ventilation cover.





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      180

VIII、Front Washing Water Pipe Assembly



(I)Removal



1. Open engine cabin cover

2. Remove front wiper arm assembly    Refer to “Front wiper arm assembly”

3. Remove ventilation cover    Refer to “Ventilation cover”

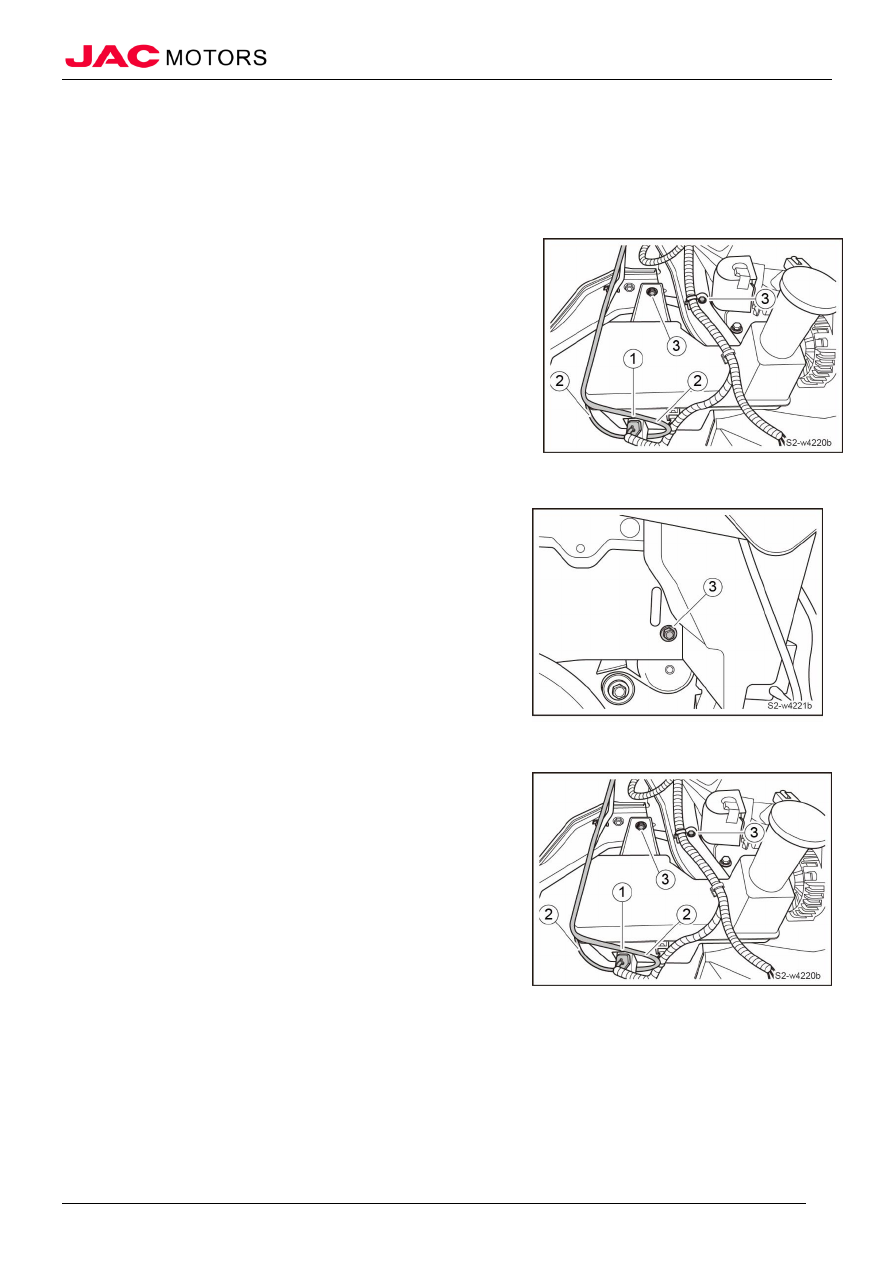

4. Remove front washing water pipe assembly

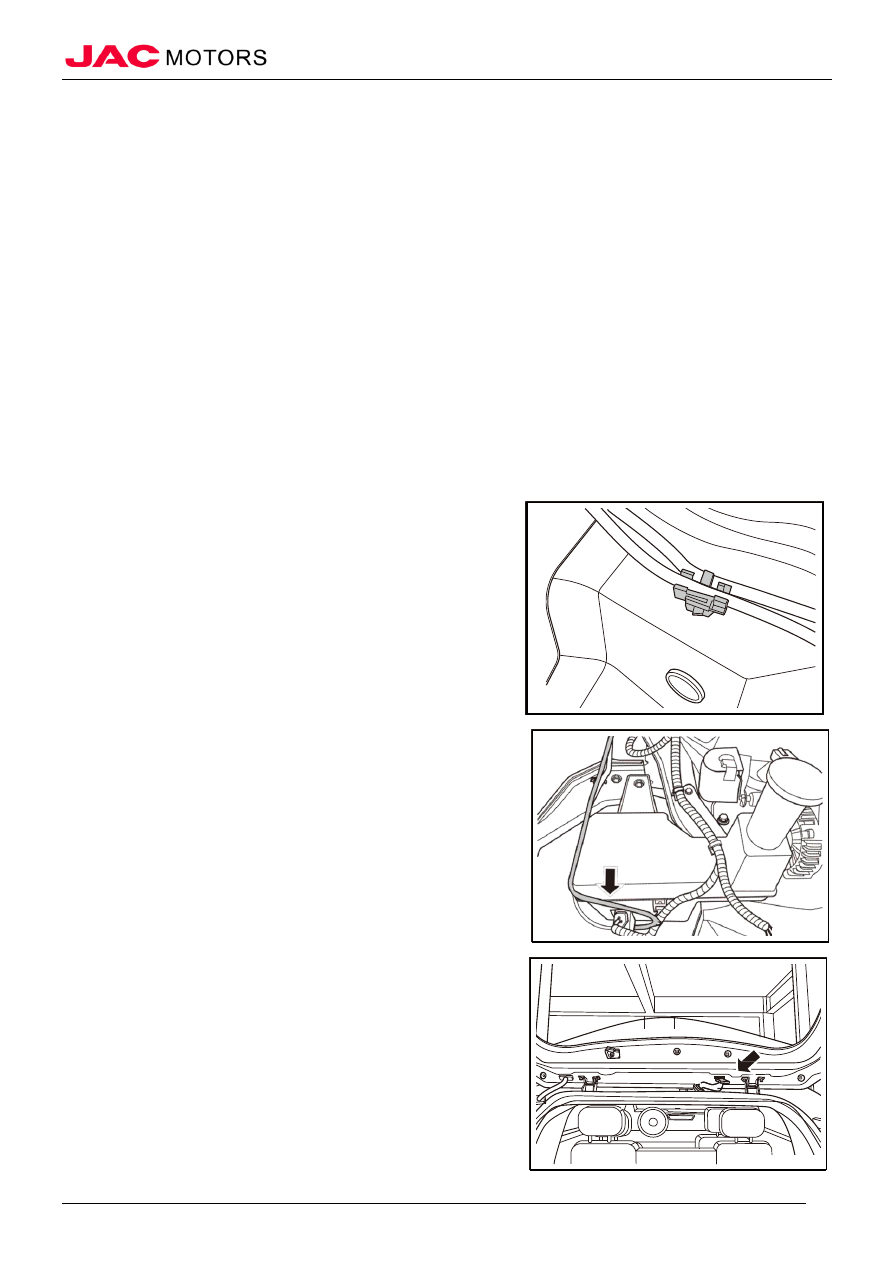

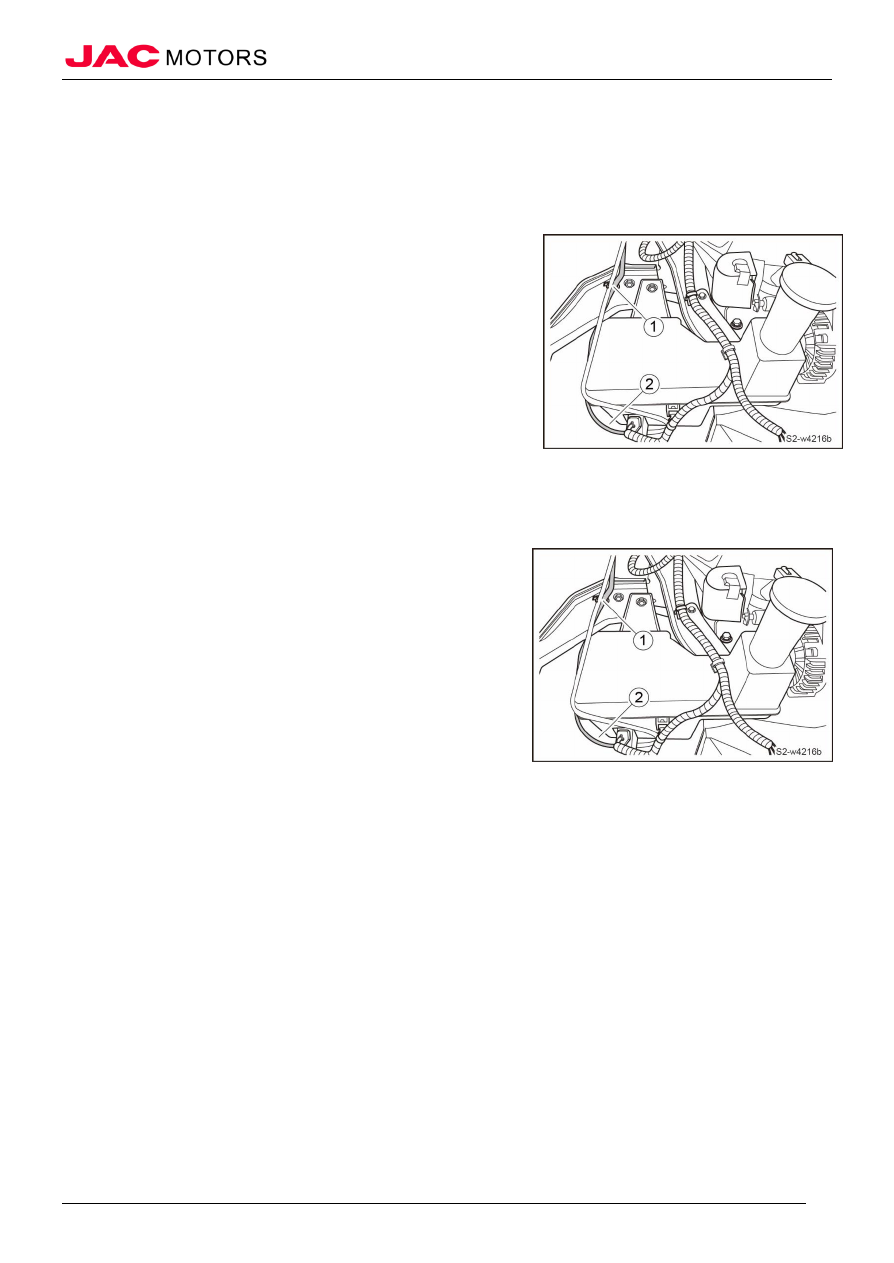

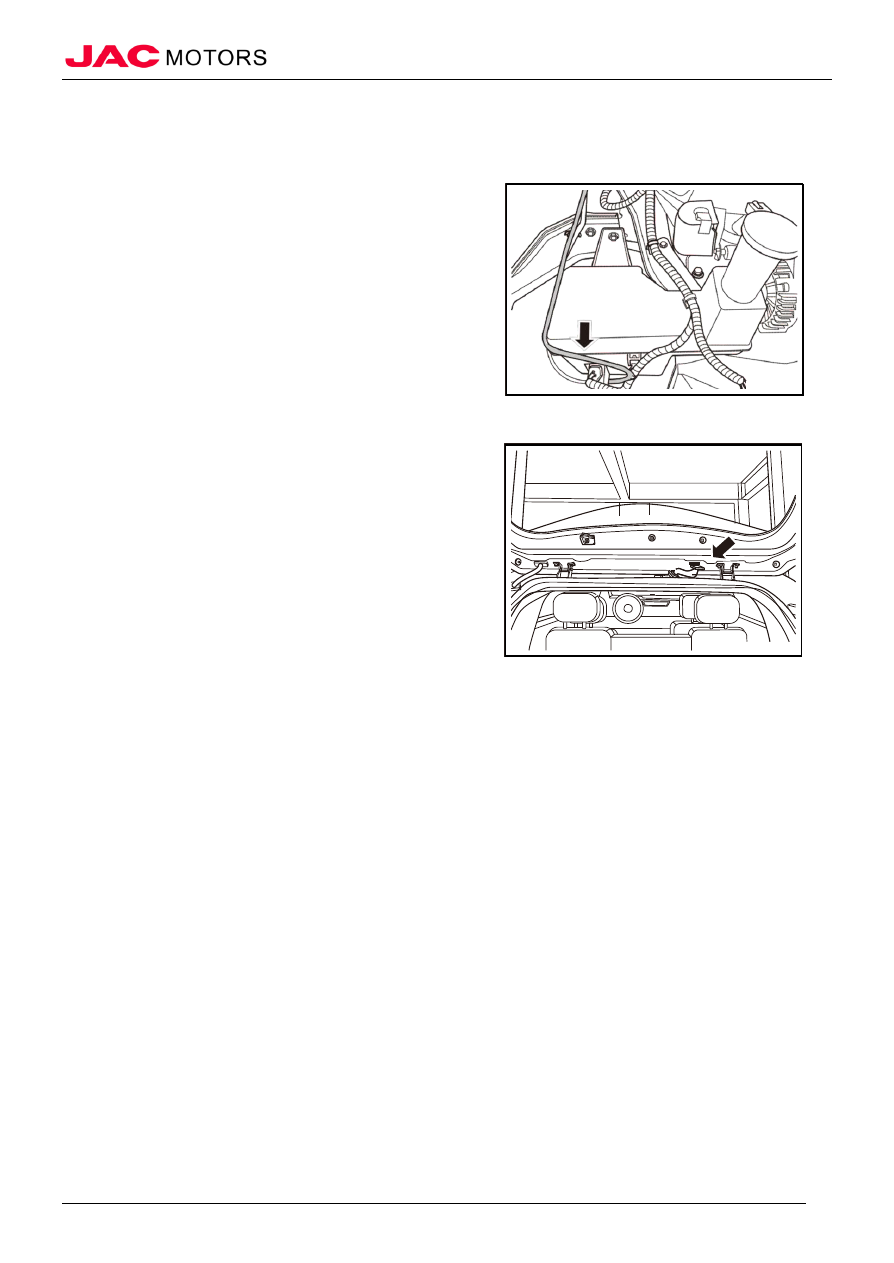

1). Remove fixed buckles  ①  of front washing water pipe assembly

and vehicle body;

2). Disconnect connection  ②  of front washing water pipe assembly

and washing motor;

3). Take down front washing water pipe assembly;



















(II)Installation



1. Install front washing water pipe assembly

1). Connect front washing water pipe assembly  ②  and washing

motor;



2). Install fixed buckle  ①  of front washing water pipe assembly

and vehicle body;










2. Install ventilation cover
3. Install front wiper arm assembly
4. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      181





IX、Rear Washing Water Pipe Assembly



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove front wheel cover (right)    Refer to “Front wheel cover”

4. Remove glove box assembly    Refer to “Glove box assembly”

5. Remove front door threshold panel assembly (right)    Refer to “front door threshold panel assembly”

6. Remove lower trim panel assembly (right) of A pillar    Refer to “Lower trim panel assembly of A pillar”

7. Remove rear door threshold panel assembly (right)    Refer to “Rear door threshold panel assembly”

8. Remove lower trim panel assembly (right) of B pillar    Refer to “Lower trim panel assembly of B pillar”

9. Remove rear seat cushion assembly    Refer to “Rear seat assembly”

10. Remove rear seat backrest assembly    Refer to “Rear seat assembly”

11. Remove fixed bracket assembly (right) under rear seat backrest    Refer to “Upper trim panel assembly of C pillar”

12. Remove upper trim panel assembly (right) of C pillar    Refer to “Upper trim panel assembly of C pillar”

13. Remove lower trim panel assembly (right) of C pillar    Refer to “Lower trim panel assembly of C pillar”

14. Remove upper trim panel assembly (right) of A pillar    Refer to “Upper trim panel assembly of A pillar”

15. Remove upper trim panel assembly (right) of B pillar    Refer to “Upper trim panel assembly of B pillar”

16. Remove sun visor assembly (left/right)    Refer to “Sun visor assembly”

17. Remove platfond handle assembly (right front/left rear/right rear)    Refer to “Platfond handle assembly”

18. Remove front top light assembly    Refer to “Front top light assembly”

19. Remove platfond assembly    Refer to “Platfond assembly”

20. Remove rear washing water pipe assembly

1). Remove fixed buckle of rear washing water pipe assembly

and vehicle body;













2). Disconnect connection of rear washing water pipe assembly

and washing motor;














3). Pull out water pipe sleeve, and disconnect connection of rear

water pipe and vehicle water pipe;

4). Take down rear washing water pipe assembly;





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      182





(II)Installation



1. Install rear washing water pipe assembly

1). Place rear washing water pipe assembly to installation

position;

2). Connect rear washing water pipe assembly and washing

motor;

3). Install fixed buckle of rear washing water pipe assembly and

vehicle body;












4). Connect rear washing water pipe assembly and vehicle body

water pipe, and install water pipe sleeve;














2. Install platfond assembly

3. Install front top light assembly

4. Install platfond handle assembly (right front, left rear, right rear)

5. Install sun visor assembly (left/right)

6. Install upper trim panel assembly (right) of B pillar

7. Install upper trim panel assembly (right) of A pillar

8. Install upper trim panel assembly (right) of C pillar

9. Install lower trim panel assembly (right) of C pillar

10. Install fixed bracket assembly (right) of rear seat backrest

11. Install rear seat backrest assembly

12. Install rear seat cushion assembly

13. Install lower trim panel assembly (right) of B pillar

14. Install rear door threshold panel assembly (right)

15. Install lower trim panel assembly (right) of A pillar

16. Install front door threshold panel assembly (right)

17. Install glove box assembly

18. Install front wheel cover (right)

19. Connect battery negative electrode

20.Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                              Wiper and Washer Device

Wiper and Washer Device

































      183

X、Washing Liquid Pot and Motor Assembly



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove front wheel cover (right)    Refer to “Front wheel cover”

4. Remove washing liquid pot and motor assembly

1). Disconnect wiring harness connector  ①  of washing liquid pot and

motor assembly;

2). Disconnect connection  ②  of washing motor and front/rear

washing water pipe;

3). Remove 3 fixed bolts  ③  of washing liquid pot and motor
assembly and vehicle body;











4). Take down washing liquid pot and motor assembly;

















(II)Installation



1. Install washing liquid pot and motor assembly

1). Place washing liquid pot and motor assembly to installation

position, and tighten 3 fixed bolts  ③  of washing liquid pot

and motor assembly and vehicle body;

Tighten torque

8~10N·m

2). Connect connection  ②  of washing motor and front/rear washing

water pipe;

3). Connect wiring harness connector  ①  of washing liquid pot and

motor assembly;
△ Note  Before installing washing motor, check whether there is

impurity or pollution, if necessary, clean washing motor.





2. Install front wheel cover (right)

3. Connect battery negative electrode

4. Close engine cabin cover







-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     10      11      12      13     ..
