JAC S2. Elctrical Wiring diagrams - part 14







Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      200



II、Troubleshooting



(I)Troubleshooting List



No.

Fault phenomenon

Fault reason analysis

Solution

Remark

Turn  ignition  switch  to
“ON”,  tire  pressure
warning indicating light
and  TPMS  indicating
light are on at the same
time  for    2s,  and  not
off

Original packing receptor on vehicle hasn’t
been learnt binding.

Use handheld learning tool, obtain all tire
sensors ID again, binding receptor
controller.



Ever  replaced  receptor  controller,  and  the
receptor  controller  hasn’t  been  leant
binding.

Tire  pressure  warning
indicating light twinkle

When  driving,  injury  of  prick  holes  and
segmentation  happen  to  tire,  tire  pressure
fast drop

Must stop vehicle as soon as possible and
check all tire and pressure.

When  vehicle  stop(ignition  switch  to
ON/START), tire has decompression

After  air  pressure  stop  decompressing  or
inflated,

it

will

remove

warning

automatically.



Tire  pressure  warning

indicator  light  always

on

When  vehicle  stop(ignition  switch  to
ON/START),  tire  has  decompression,
causing pressure too low.

Inflate  tire  to  actual  air  pressure  value.
(There  is  tire  pressure  on  tire  pressure
label)

When  vehicle  stop(ignition  switch  to
ON/START), tire pressure too high, causing
pressure too high.

Inflate tire to actual air pressure value.

When  driving  on  bumpy  road,  vehicle
turning,  all  tires  stress  differently,  causing
tire  pressure  too  high  or  too  low  in  the
meantime.

Drive to flat and straight road, if pressure
is  normal,  it  will  remove  warning
automatically.

When  driving,  detected  tire  pressure  not
enough (tire not inflated for a long time or
tire damaged causing air leakage).

Must stop vehicle as soon as possible and
check all tire and pressure.



When  vehicle  driving  high  speed  and
overloaded, causing tire over heat.

Reduce speed, reduce vehicle load.

When  driving,  air  pressure  not  enough,
friction  force  increased,  causing  tire  over
heat.

Must stop vehicle as soon as possible and
check all tire and pressure.



4



TPMS  indicating  light
is always on



One  or  more  tire  pressure  sensor  battery
power is lower than a certain value.

Replace sensor, and learn binding again.

Refer  to  “TPMS
indicating light is
always on”



In  four  tires,  one  or  two  tires  not  installed
tire pressure sensor

Re-install sensor, and learn binding again.

In four tires, one or two tires installed error
(namely sensor ID and receiving controller
ID not match)

Replace  tire  position,  and  learn  binding
again.

In four tires, one or two tires pressure sensor
failure, can’t transport data.

Replace sensor, and learn binding again.

High  frequency  module  of  receiving
controller  damaged,  can’t  receive  any
sensor data in continuous 20 minutes.

Detect  receiving  controller,  if  need
replace  receiving  controller,  must  learn
binding again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      201

No.

Fault phenomenon

Fault reason analysis

Solution

Remark

Four tire sensors ID and receiving controller
ID all not match, can’t receive any effective
sensor data in continuous 20 minutes.

Learn binding again.

When  parking  vehicle  for  a  long  time,  tire
pressure  is  normal  and  there  is no  obvious
change, and doesn’t receive any sensor data
in continuous 20min.

It’s  normal  phenomenon,  after  vehicle
driving,  sensors  start  to  transmit  data,
warning

state

will

be

removed

automatically

Drive  in  same  frequency  interfered
area(interference  strong  and  continuous),
such  as  airport,  radio  transmit  tower  etc.,
may cover sensor signal.

After  leaving  same  frequency  interfered
area,  warning  status  will  be  removed
automatically.

Receiving  controller  wiring  harness  bad
connect

Detect receiving controller connector, and
connect again.

5



Turn  ignition  switch
from  OFF  to  ON,
indicator light not on

Dashboard indicator light failure

Detect dashboard, if dashboard damaged,

replace dashboard.

Refer  to  “When
tire  pressure  is
serious  shortage,
tire

pressure

warning
indicating light is

not on”





(II)Troubleshooting Flow Chart



TPMS Indicating Light is Always On



No.

Inspection content

Measure

Judging specification

Next step

Yes

No

1



Check battery voltage

Use  multimeter  to  measure  battery
voltage

Standard

voltage

value:

11~14V

Next step

Check battery or
charging system

2



Check  TPMS  control  unit
battery

Use  multimeter  measure  voltage
between TPMS control unit wiring
harness  connector  F17-8  and  body
GND

Standard

voltage

value:

11~14V

Next step

Check

fuse,

maintain

or

replace

wiring

harness

3



Check  TPMS  control  unit
GND

Use  multimeter  measure  resistance
between F17-9 and body GND

Standard  resistance  value:

less than    1Ω

Next step

Repair

or

replace

wiring

harness

4



Replace TPMS control unit

Disconnect battery negative pole
cable, replace TPMS control unit,
learn to binding tire pressure
monitoring sensor again.

Whether system is normal

System is normal  Next step

5



Check  power  supply  and
GND circuit of combination
meter

Check  whether  power  supply  and
GND  circuit  of  combination  meter
is normal

Standard

voltage

value:

11~14V
Standard  resistance  value:
less than    1Ω

Next step

Repair

or

replace  wiring
harness

6



Replace combination meter

Whether system is normal

System is normal  Next step

7



Replace

tire

pressure

monitoring sensor

Replace  tire  pressure  monitoring
sensor, learn to binding tire pressure
monitoring sensor again.

Whether system is normal

System is normal





-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      202

Tire pressure warning indicating light not on when wheel tire pressure is seriously insufficient



No.

Inspection content

Measure

Judging specification

Next step

Yes

No

1



Check battery voltage

Use  multimeter  to  measure  battery
voltage

Standard

voltage

value:

11~14V

Next step

Check battery or
charging system

2



Check

wiring

harness

between combination meter
and TPMS control module

Disconnect  TPMS  control  module
wiring  harness  connector  F17  and
combination  meter  wiring  harness
connector

M07,

and

measure

resistance  between  TPMS  control
module  wiring  harness  connector
F17-6  and  combination  meter
wiring harness connector M07-1

Standard  resistance  value:
less than    1Ω

Next step

Repair

or

replace

wiring

harness

3



Check  TPMS  control  unit
battery

Use  multimeter  measure  voltage
between TPMS control unit wiring
harness  connector  F17-8  and  body
GND

Standard  voltage  value:
11~14V

Next step

Check  fuse  and
repair or replace
wiring harness

4



Check  TPMS  control  unit
GND

Use  multimeter  measure  resistance
between F17-9 and body GND

Standard  resistance  value:
less than    1Ω

Next step

Repair

or

replace

wiring

harness

5



Replace TPMS control unit

Disconnect  battery  negative  pole
cable,  replace  TPMS  control  unit,
learn  to  binding  tire  pressure
monitoring sensor again.

Whether system is normal

System is normal  Next step

6



Check  power  supply  and
GND circuit of combination
meter

Check  whether  power  supply  and
GND  circuit  of  combination  meter
is normal

Standard

voltage

value:

11~14V
Standard  resistance  value:
less than    1Ω

Next step

Repair

or

replace

wiring

harness

7



Replace combination meter

Whether system is normal

System is normal  Next step

8



Replace

tire

pressure

monitoring sensor

Replace  tire  pressure  monitoring
sensor, learn to binding tire pressure
monitoring sensor again.

Whether system is normal

System is normal







-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      203

III、

TPMS Controller



(I)Removal



1

. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery electrode”

3. Remove front expansion plate assembly    Refer to “Front expansion plate assembly”

4. Remove saucer cover plate assembly    Refer to “Saucer cover plate assembly”

5. Remove front storage box assembly    Refer to “Front storage box assembly”

6. Remove auxiliary dashboard assembly    Refer to “Auxiliary dashboard assembly”

7. Remove TPMS controller

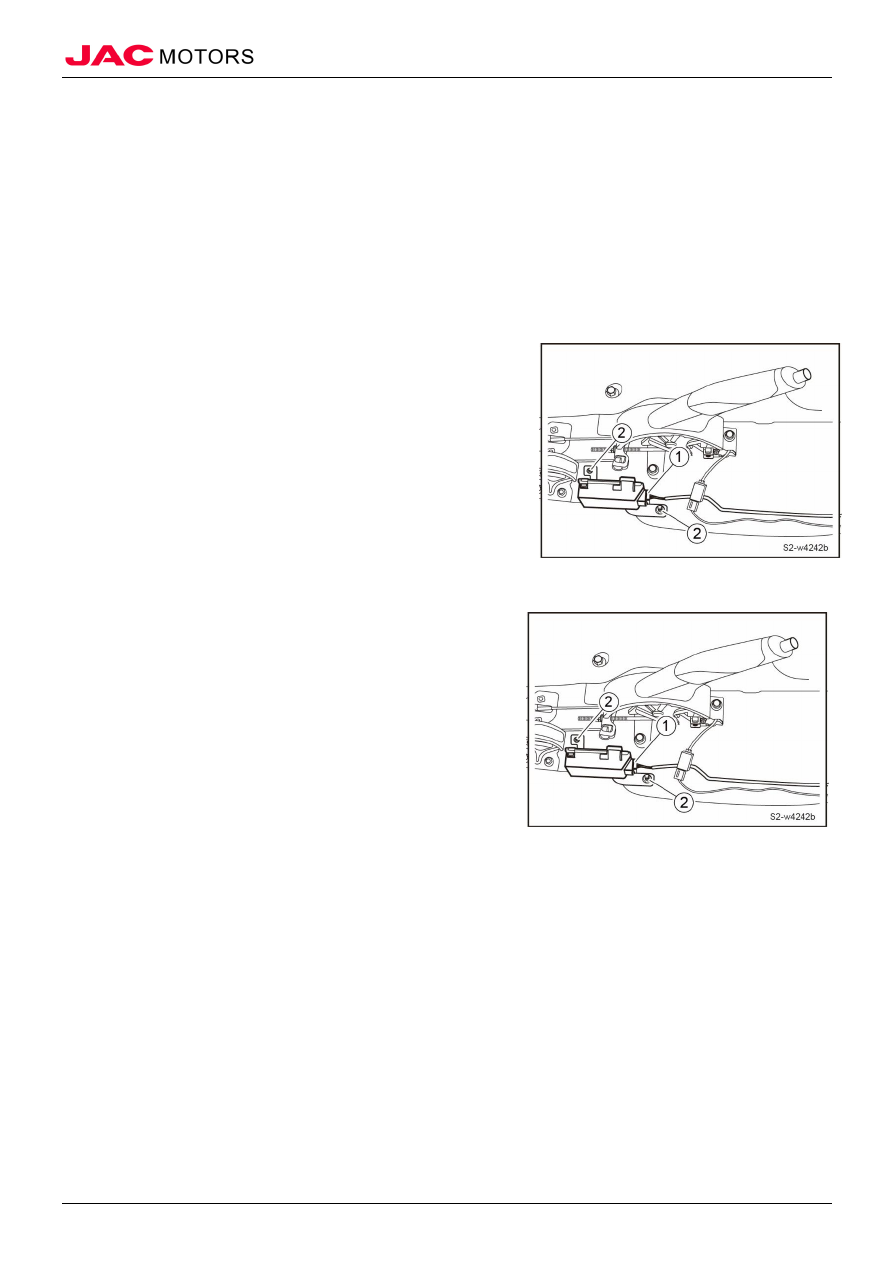

1). Disconnect wiring harness connector  ①  of TPMS controller;

2). Remove 2 fixed nuts  ②  of TPMS controller, and take down

TPMS controller;

















(II)Installation



1. Install TPMS controller

1). Install fixed nuts  ②  of TPMS controller;

2). Connect wiring harness connector  ①  of TPMS controller;











2. Install auxiliary dashboard assembly

3. Install front storage box assembly

4. Install saucer cover plate assembly

5. Install front expansion plate assembly

6. Connect battery negative electrode

7. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      204





IV、TPMS Sensor



(I)Removal



1

. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery electrode”

3. Remove vehicle wheel    Refer to “Vehicle wheel”

4. Remove TPMS sensor

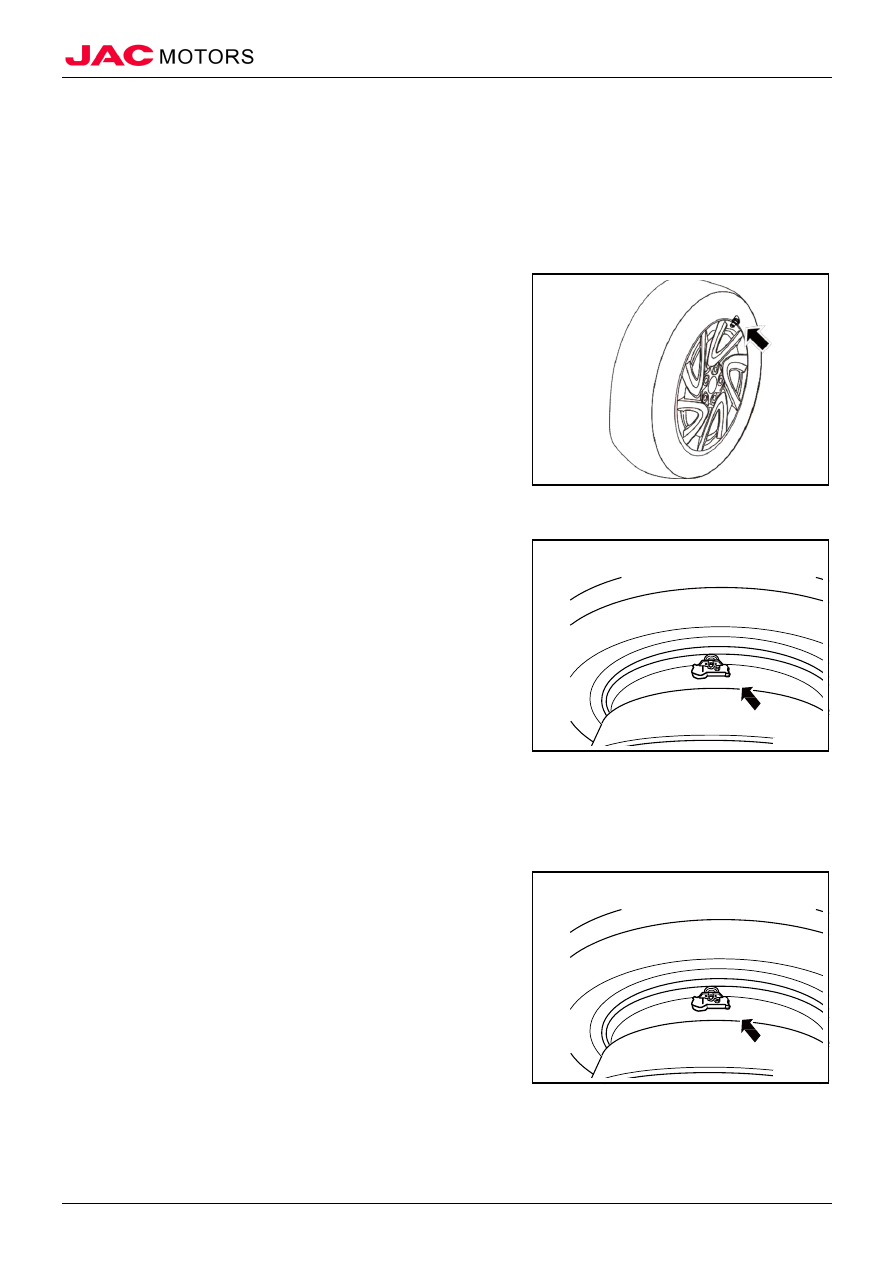

1). Remove tire, and remove fixed nut of TPMS sensor from

outside of wheel rim;





















2). Take down TPMS sensor from inside of wheel rim;

















(II)Installation



1. Install TPMS sensor

1). Install TPMS sensor from inside of wheel rim;



























-------------------------------------------------------------------------------------------------------------------------------------------------------------



Tire Pressure Monitoring System



Tire Pressure Monitoring System





                      205





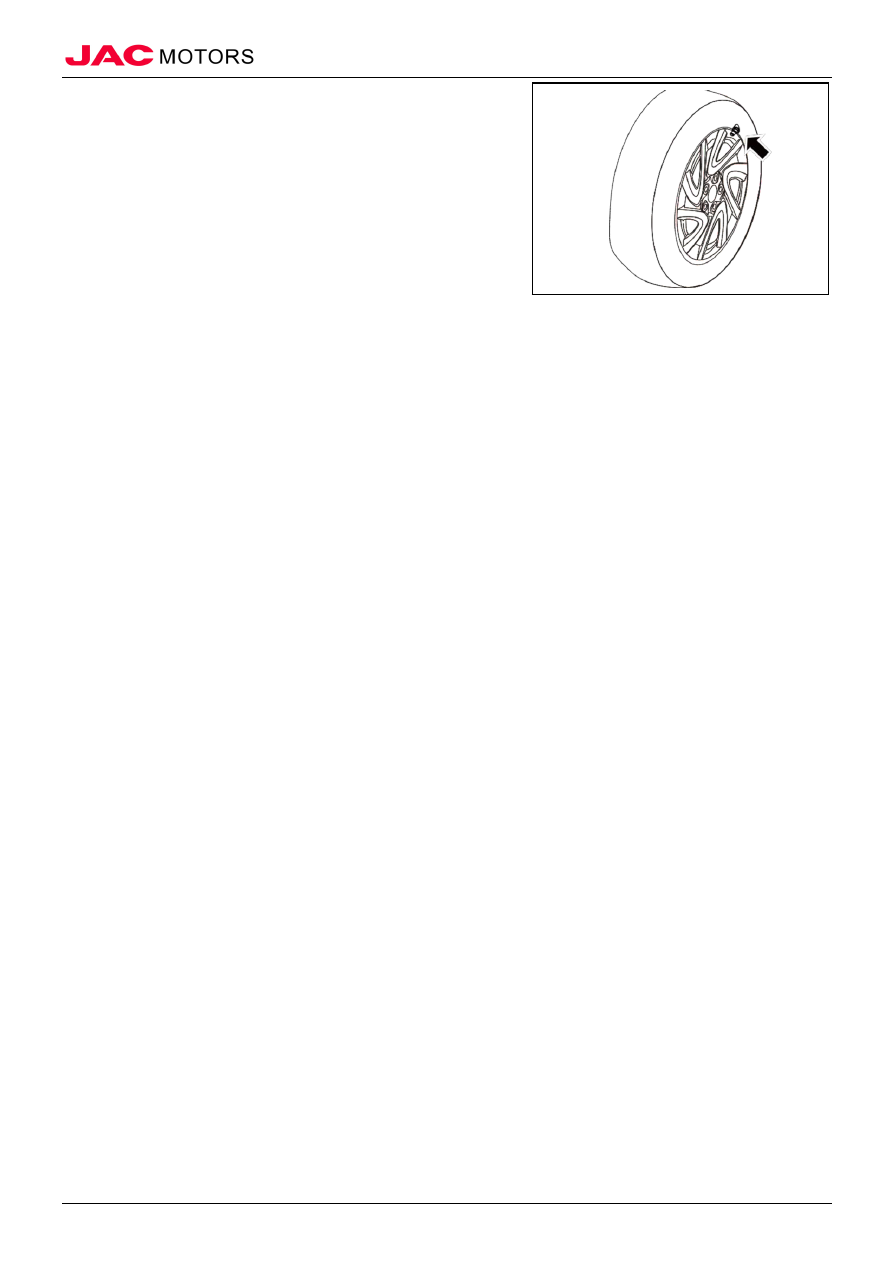

2). Install tire, tighten fixed nut of TPMS sensor from outside of

wheel rim;

△ Note

Install seal rubber of sensor and wheel rim tightly,
and ensure sealability of tire.









2. Install vehicle wheel

3. Connect battery negative electrode

4. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------
