JAC S2. Elctrical Wiring diagrams - part 7





                                                                                                      BCM Device

BCM Device





                      88

1. Remote Control or Mechanism Key Lock

When defended, whether horn tweets is achieving by configuration, default not tweet.

When in undefended state, after BCM receiving valid remote control lock signal or driver’s side mechanism key lock signal,

if five doors and engine hood cover are all closed, four door are lock, two side turning lights twinkle once, twinkle period is 1s, in
which 0.5s on, 0.5s off, horn tweets 10ms. If BCM receiving remote control unlock order in twinkling period, light twinkling turns
into unlock twinkling procedure; if any other door is not closed after driver’s side door closed, lock motor works, turning light not
twinkles. After all doors are closed, perform confirmed action again (if there is key inserting, left front door open or central control
unlock/lock, cancel performing confirmed action again), namely two side turning light twinkle once, twinkle period is 1s, in which
0.5s on, 0.5s off, and horn tweets 10ms.

When in defended state, after BCM receiving valid remote control lock signal, BCM still carry out lock action, and perform

confirmed action, namely lock motor works, two side turning lights twinkle once, twinkle period is 1s, in which 0.5s on, 0.5s off,
and horn tweets 10ms.

2. Remote Control or Mechanism Key Unlock

When defended, after BCM receiving valid remote control unlock signal or driver’s side mechanism key unlock signal, four

doors unlock, BCM is undefended and perform confirmed action, namely two side turning lights twinkle twice and then off. Each
twinkle period is 1s, in which 0.5s on, 0.5s off, and horn tweets 10ms.

When undefended, after BCM receiving valid remote control unlock signal or driver’s side mechanism key unlock signal,

BCM is undefended and perform confirmed action, namely two side turning lights twinkle twice and then off.

In undefended state, after BCM receiving valid remote control unlock signal or driver’s side mechanism key unlock signal,

BCM unlock, two side turning light correspondingly twinkle twice.

3. Automatic Lock Function

When vehicle speed up to presetting value n (there are 40kn/h and 15km/h in EEPROM, default value is 15km/h, realized by

configuration), if driver’s side lock motor is unlock, when driver’s door is closed, BCM will automatically lock vehicle door.

4.    Re-defended Function

If there is not 5 doors and engine hood cover opening or key inserted ignition switch, then try to lock by remote control (Please

refer to remote control lock).

5. Remote Control Tail Door Unlock

After receiving remote control tail door open signal in defended state, relieve defended state; after receiving tail door unlock

signal in 30s, carry out 500ms open tail door motor; When not open rear tail door over 30s or open rear tail door and then close
rear tail door, get into defended state again, and can’t unlock through tail door unlock signal.

In undefended state, if driver’s side door lock is locked, after receiving remote control opening tail door signal, receiving tail

door unlock signal in 30s, carry out 500ms open tail door motor; When not open rear tail door over 30s or open rear tail door and
then close rear tail door, get into defended state again, and can’t unlock through tail door unlock signal.

In undefended state, if driver’s side door lock is locked, after receiving remote control opening tail door signal, carry out

500ms opening tail door motor. Remote control opening tail door signal is prior to judgment of driver’s side door lock state.

6. Central Control Unlock/Lock Function

When in defended state or warning state, central control unlock/lock is invalid.

Central control switch control lock:

After BCM receiving central control lock switch signal in undefended state, if five doors and engine hood all are closed, then

lock four doors; if driver’s door is not closed, lock motor doesn’t work; if other doors or engine hood cover is not closed,  lock
motor works. If lock motor is already in lock state, after BCM receiving central control lock switch signal, lock motor locks again.

Central control switch control unlock:

After BCM receiving central control unlock switch signal in undefended state, four doors motor unlock. If four doors are in

unlock state, after BCM receiving central control unlock switch signal, lock motor unlock again.

7. Pulling Key Unlock Function

After key pulled out from ignition switch, BCM drive door lock motor to unlock four doors.

8. Collision Force Unlock Function

When ignition switch is in “ON”, after BCM receiving valid collision signal, BCM forces to open four door lock; shield central

control unlock function and remote control unlock function.

When BCM detecting ignition switch changing from “ON” to “OFF” to “ON”, recover automatic lock function, central control

lock function and remote control lock function and mechanism key lock function (collision is prior).





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      89

9. Anti-mistaking Lock Function

When driver’s side door open, detecting key inserted into switch and left front door lock state both exist, carry out 3 unlock

order immediately, and every unlock intermittence is 0.5s.



Auxiliary System

1. Rear Defrost Control

Rear  defrost  is  mainly  to  be  convenient  for  customer  to  remove  frost  and  snow  on  rear  windshield.  Rear  defrost  function

description:

1) Each time BCM power on again, rear defrost output is closed.

2) Precondition of rear defrost output starting is that generator L terminal is valid.

3) Rear defrost switch signal transmitted by A/C controller is 200ms±5% high voltage. If prior to front and rear defrost output

closed, precondition of satisfying 2) described above, receive rear defrost switch signal once, rear defrost output opens; if prior to
front and rear defrost output open, receive rear defrost switch signal once, rear defrost output closes.

4) If always not receive rear defrost switch signal in the state of rear defrost output open, rear defrost output automatically

closes after lasting open for 20min.

2. Electrical Power Window Control

1)It can open when ignition switch is “ON”

2)Left front door doesn’t open but can start in 30s after ignition switch “ON”-“OFF”, if left front door opens or 30s time is

up, it closes, and can’t operate window to up and down.

3. Anti-pinching Motor Control

Through LIN bus, obey to LIN2.0 protocol, BCM is used as main node to use first route LIN. BCM displays corresponding
DTC after receiving corresponding signal, BCM displays DTC by judging WL_SWICHES_FAULT_FL.

4. Instruction Brake Signal Retransmission

After collecting instruction brake hardwire signal, BCM transmits instruction brake signal to CAN network. Detail description is

that: put down instruction brake to make vehicle in driving state, at this time switch is in hanged state; pulling up instruction brake is low
voltage (GND). BCM retransmits the state to CAN network meter.

5. Reversing Signal Retransmission

After collecting reversing signal, BCM transmits reversing gear position signal to CAN network.

When reversing gear position switch signal is valid Vbattery(KL.30), BCM transmits corresponding reversing  gear position

ReverseSw=0x1 to CAN network; when reversing gear position switch signal is hanged, BCM transmits corresponding reversing
gear position ReverseSw=0x0 to CAN network.

6. Engine Hood Cover Signal Retransmission

BCM collects switch state of engine hood cover, and transmits corresponding CAN signal. When engine hood cover is open,

EMS should be not start.



Vehicle Body Anti-theft System

Vehicle  body  warning  module  is  to  realize  warning  function  when  vehicle  in  all  kinds  of  abnormal  states.  Once  warning

module is activated, audible and visual warning will start and remind customer to restrain starting function at the same time.

Warning function description (hazard warning light twinkle period is 1s, in which 0.5s on, 0.5s off):

1) When five doors and engine hood cover are all closed, use remote controller or driver’s side key to lock, hazard warning

light twinkle once, horn tweet 10ms, and in defended state; if driver’s side door is closed but other doors or engine hood cover is
not closed, use remote controller to lock door, door is locked, and at this time in defended waiting state; when all doors and engine
hood cover are all closed, hazard warning light twinkles once, horn tweens 10ms and get into defended state.

2)  In  defended  state,  five  doors  or  engine  hood  cover  open,  or detect  key  inserting  signal,  vehicle  will  warning,  and  start

restrain relay output enable restrain starting; alarm whistle warning period: tweet T1(27±2sec), interval T2(10±1sec); tweet  and
hazard  warning  light  twinkle,  warning  for 3  periods  (activate  warning  condition  in  3  periods,  not repeat  calculate  time).  In  the
condition of after warning 3 periods finishing and satisfied with defended, BCM gets into defended state, close tweet, and starting
restrain is closed; in the condition of after warning 3 periods finishing but not satisfied with defended, BCM gets into defended
waiting state, starting restrain still open, and activate warning condition not warning again.





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      90

3) Use remote control to unlock or driver’s side key unlock/lock to relieve warning state, four doors open, hazard warning

light twinkle twice.

4) Use remote control tail door unlock signal to relieve warning state, and hazard warning light twinkle twice.

5) In warning state, if five doors and engine hood cover are open, press lock button of remote controller, then exit warning

state,  all  doors  are  locked,  right  and  left  side  turning  light  twinkle  once,  horn  tweet  10ms,  anti-theft  relay  closed,  and  get  into
defended state again.

In warning state, if five doors and engine hood cover are open, press lock button of remote controller, then exit warning state,

all doors are locked, anti-theft relay closed, horn stop warning, and after all door closed, right and left side turning light twinkle
once, and get into defended state; In warning state, if driver’s side door is open, press lock button of remote controller, then exit
warning state, don’t carry on lock order, anti-theft relay is closed, and horn stop warning.

6) In warning state, use remote controller or mechanism key to unlock and relieve warning, unlock relay output unlock signal,

door is in unlock state; relieve warning state, hazard warning light twinkle twice, alarm whistle stop alarming.

7) When cutting off power supply and power on again, should be back to state before power off.

8) In the state of defended,, after carrying on undefended by remote control to unlock or driver’s side key to unlock, any door

or engine hood cover is not open in 30s or key insert into ignition lock and gets into defended state again.

9) When door and engine hood cover are closed and ignition switch inserting, carry on mechanism key to unlock, BCM carries

on unlock/lock output, but not carry on release defended function.



(III)Technical Parameter

1. Dormancy and Arouse Strategy

Three conditions satisfying at the same time can get into dormancy state:

1. Function satisfies dormancy condition;

2. CAN network satisfies dormancy condition;

3. LIN network satisfies dormancy condition.

In which function satisfies dormancy condition is:

1)Pull out key (this condition only for BCM without PEPS), there is no output in interior/exterior light and front/rear wiper,

there is no output request in door lock, anti-theft warning is not triggered, rear defrost is not open, and electrical power window is
not enabled. Last 60s and not change.

2)BCM is not in diagnosis mode

Before BCM getting into dormancy state, close all output signals. After getting into dormancy, all input signals can arouse
BCM from dormancy.

1)Switch signal: key inserting signal, IG2, IG1, ACC, hazard warning light switch, position light switch, mechanism key

lock/unlock switch signal, four doors+ engine hood cover+ rear trunk door state switch, rear trunk unlock switch, driver door lock
state, brake light switch, central control lock

2)CAN network  (Including PEPS signal):CAN interrupt arouse

3)RKE:There is remote control order

4)Diagnosis:Get into diagnosis mode

LIN arouse:After BCM arousing, LIN arouses.

2. Bus and Diagnosis

BCM supplies diagnosis of CAN-line to be convenient to maintenance of BCM. Diagnosis parts need the following functions:

· Parameter configuration  (EEPROM read/write)

· Read DTC and clear DTC

· IO Control

· BCM controller information

· Off assembly line matching function



· ECU reset

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      91

Support one CAN bus to be as terminal nod on network, and don’t use network terminal (namely there is no terminal
resistance) in this project, one LIN bus to be as network main nod.

3. Voltage Abnormal Treatment Strategy

Normal  working  voltage  of  BCM  is  9V-16V,  and  is  carried  on  according  to  voltage  management  strategy  established  by

platform, and there are five states:

Normal voltage: 9-16V;

High voltage: higher than 16V momently, more than 40ms, but back to normal voltage in 440ms;

Low voltage: lower than 9V momently, more than 40ms, but back to normal voltage in 80ms;

Overvoltage: higher than 16V for long, more than 440ms, but don’t back to normal voltage;

Undervoltage: lower than 9V for long, more than 80ms, but don’t back to normal voltage;

1. Permit to output in the state of normal voltage/high voltage/low voltage

2. Close output in the state of overvoltage/undervoltage, recover output after system voltage back to normal.

Working voltage range of CAN network: 7-17.5V; working voltage range of LIN network: 7-16V; working voltage of
DTC: 8-16V.

4. Short Circuit and Open Circuit Protection Strategy

To high side output, detect short circuit and open circuit when On-stage. Once detecting short circuit or open circuit, counter

starts to counting, and when gets up to a certain value, it can be judged as open circuit or short circuit, and display corresponding
DTC. When detecting short circuit to power supply, once detecting short circuit to power supply, counter starts to counting,  and
when gets up to a certain value, it can be judged as short circuit to power supply, and display corresponding DTC.

To SPI low side output, we only need to read diagnosis information of its storage to judge.

When in Off-stage, if diagnosis bit is low, it indicates output is open circuit, and counter starts to counting at the same time,

and when gets up to a certain value, it can be judged as open circuit, and display corresponding DTC. When in On-stage, if diagnosis
bit is high, it indicates output is short circuit to power supply, and counter starts to counting at the same time, and when gets up to
a certain value, it can be judged as short circuit to power supply, and display corresponding DTC.

5. Remote Control and Learning Code

To high configuration vehicle with PEPS, BCM doesn’t supply remote control function; to low configuration vehicle without
PEPS, BCM supplies remote control function.

BCM module includes remote control module, used radio frequency is 433.92MHz±100kHz. There are 3 buttons on remote

control key, including four doors unlock function, four doors lock function, and tail door unlock function.

When  waiting  for  first  key  learning,  right  turning  light  is  always  on;  when  waiting  for  second  key  learning,  right  and  left

turning light are always on; when learning success, right and left turning light are off. Through diagnosis order or when fixed time
is up, then exit learning state, remote control matching finish.

1. Once Routine can learn two keys.

2. If Routine time is more than 2 minutes, BCM exit this time Routine, and learned successful key will be wrote to EEPROM.



3. As long as key learn successfully, older keys will lose efficiency totally.

4. Press any key to learn code.

5. There are 2 exiting conditions: one is 2 minutes time, the other is diagnosis finishing order.

Ensure remote distance to be 20m. First develop without exterior antenna, and add exterior antenna if vehicle test not satisfy
with customer’s requirement.





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      92

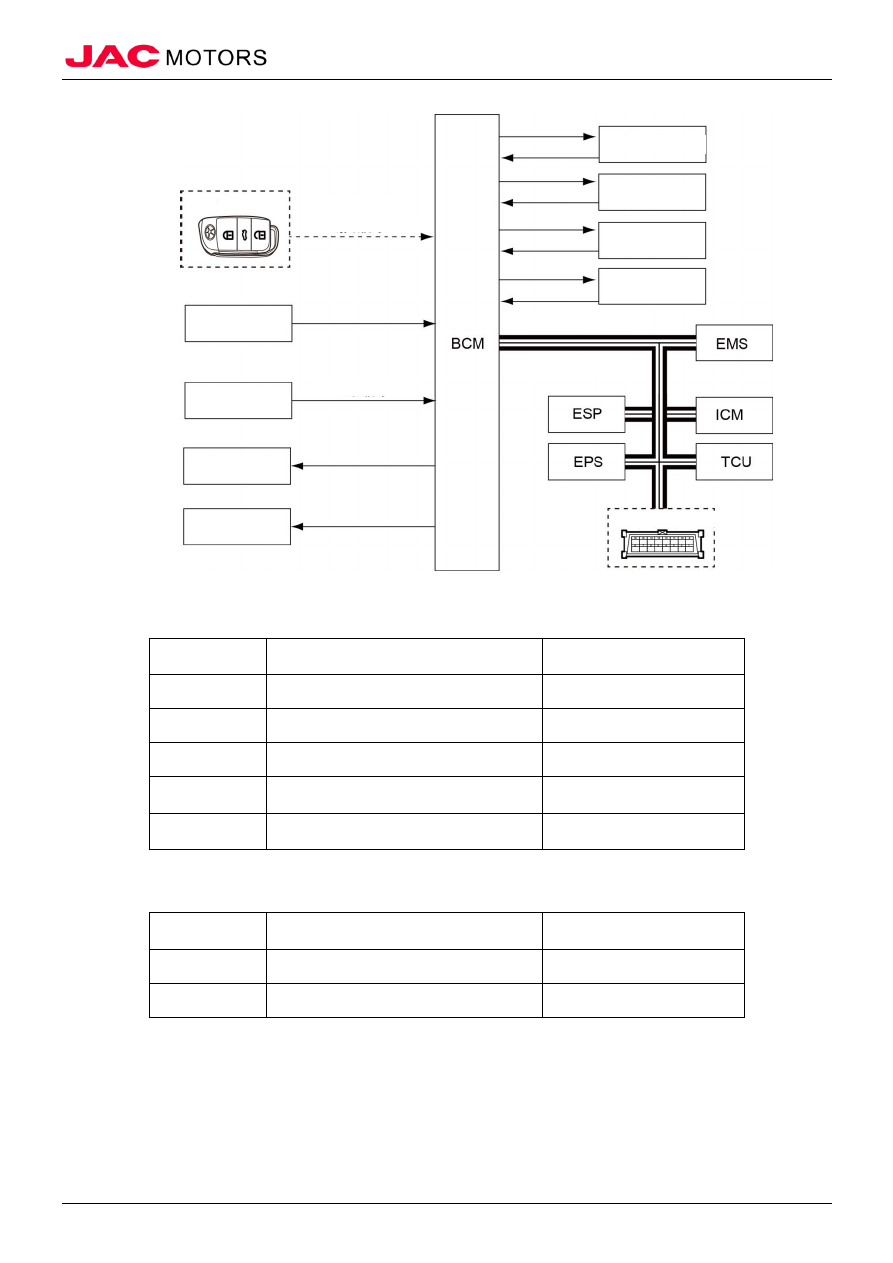

Electrical Principle Schematic







































(IV)Technical Parameter

No.

Parameter

Value

Rated voltage

DC 12V

Using voltage range

DC 9V~16V

Static state current

≤ 6mA

Working temperature

-40  ℃  ~+80  ℃

Storage temperature

-40  ℃  ~+85  ℃



(V)Torque Parameter

No.

Item

Torque (N·m)

Vehicle body controller fixed bolt

5~8

Vehicle body controller fixed nut

5~8






Key

Ignition switch

SRS module

Defrost relay

Horn relay

Collision signal

Lighting system

Wiper system

Central

control

door lock system

Electrical  power
window system

Vehicle speed

CAN bus

Diagnosis connector

Radio frequency
signal

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      93

II、Troubleshooting

(I)Troubleshooting List



No.



Fault phenomenon



Fault reason analysis



Solution

Remark

1



Light,  wiper,  central
control, wiper system
all lose effective



Power supply or grounding circuit fault



Check relevant circuit



Refer  to  wiper,

central  control,
wiper  system  all
lose effective



Battery power supply fault



Check charging system



BCM controller fault



Replace BCM controller



(II)Troubleshooting Flow Chart

Light, wiper, central control, wiper system all lose effective





Failure

phenomenon:

light/wiper/center
control all failed

Check BCM fuse
IF01-10A/IF03-
15A/IF08-
20A/IF35-25A

Check BCM power supply,
measure  voltage  of  pin
IF01-10A/IF03-15A/IF08-
20A/IF35-25A  of  BCM
wiring connector.
Standard voltage: 11-14V

Check BCM grounding, measure
resistance

of

BCM

wiring

connector grounding pin (M31-4/
M32-8/  M33-22)  and  vehicle
body grounding
Standard resistance: less than 1Ω

Replace BCM

Fault removed

Whether

accord

with standard value

Whether

accord

with standard value

Whether fuse is
fused

Check short circuit
fault of fuse circuit
and replace fuse

Maintain circuit fault between
pin

IF01-10A/

IF03-15A/

IF08-20A/ IF35-25A of BCM
wiring connector and fuse.

Maintain circuit fault of BCM
wiring  connector  grounding
pin (M31-4/ M32-8/ M33-22)
and vehicle body grounding

No

No

No

Yes

Yes

Yes

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      94





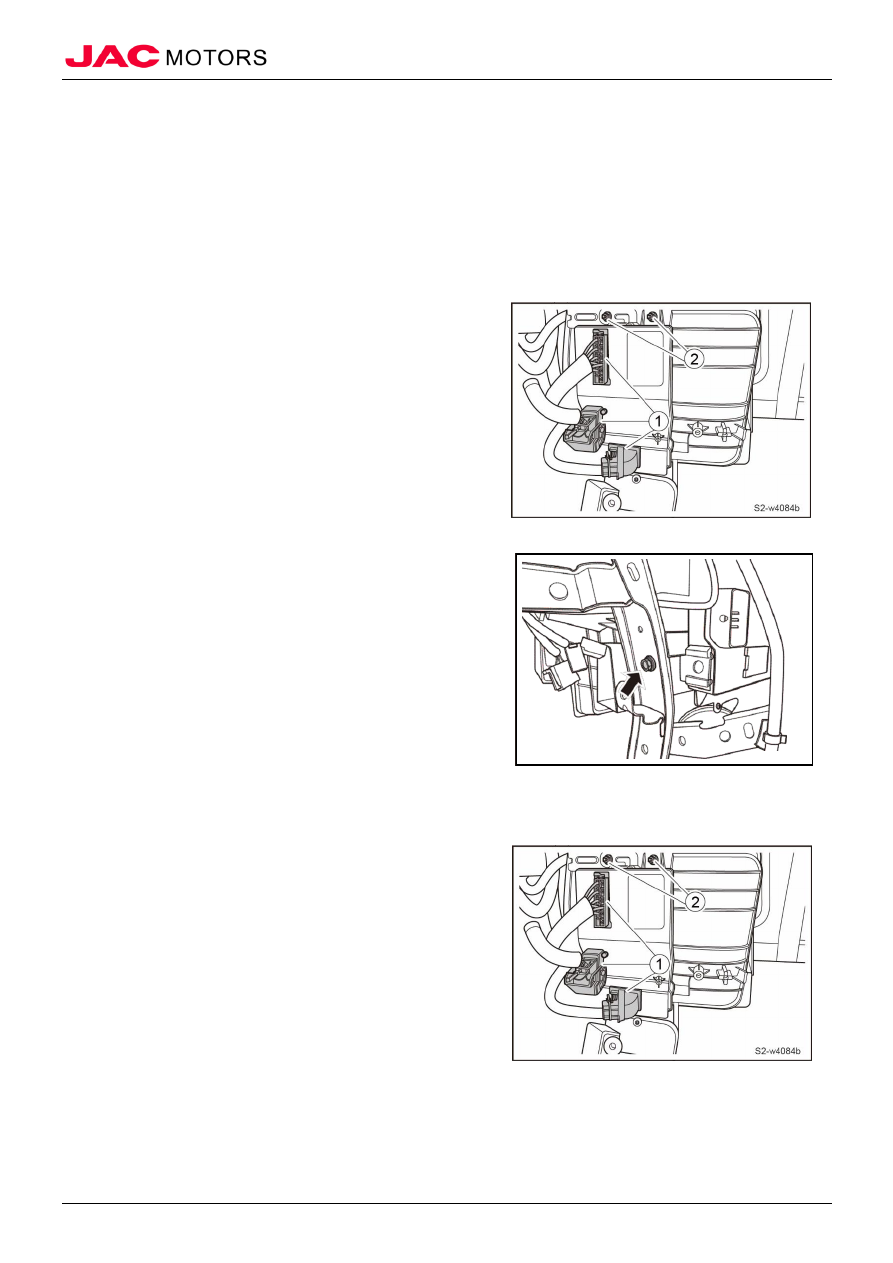

III、BCM Controller Assembly

(I)Removal

1. Open engine hood cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove A/C controller assembly    Refer to “A/C controller assembly”

4. Remove vehicle body controller assembly

1). Disconnect wiring harness connector  ①  of BCM controller assembly;

2). Remove 2 fixed nuts  ②  of BCM controller assembly;





















3). Remove left side fixed bolt of BCM controller assembly;

4). Take down BCM controller assembly;















(II)Installation

1. Install BCM controller assembly

1). Place BCM controller assembly to installation position, and
tighten 2 fixed nuts  ②  of BCM controller assembly;

Tighten torque

5~8N·m

2). Tighten wiring harness connector  ①  of BCM controller
assembly;













-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                                      BCM Device

BCM Device





                      95





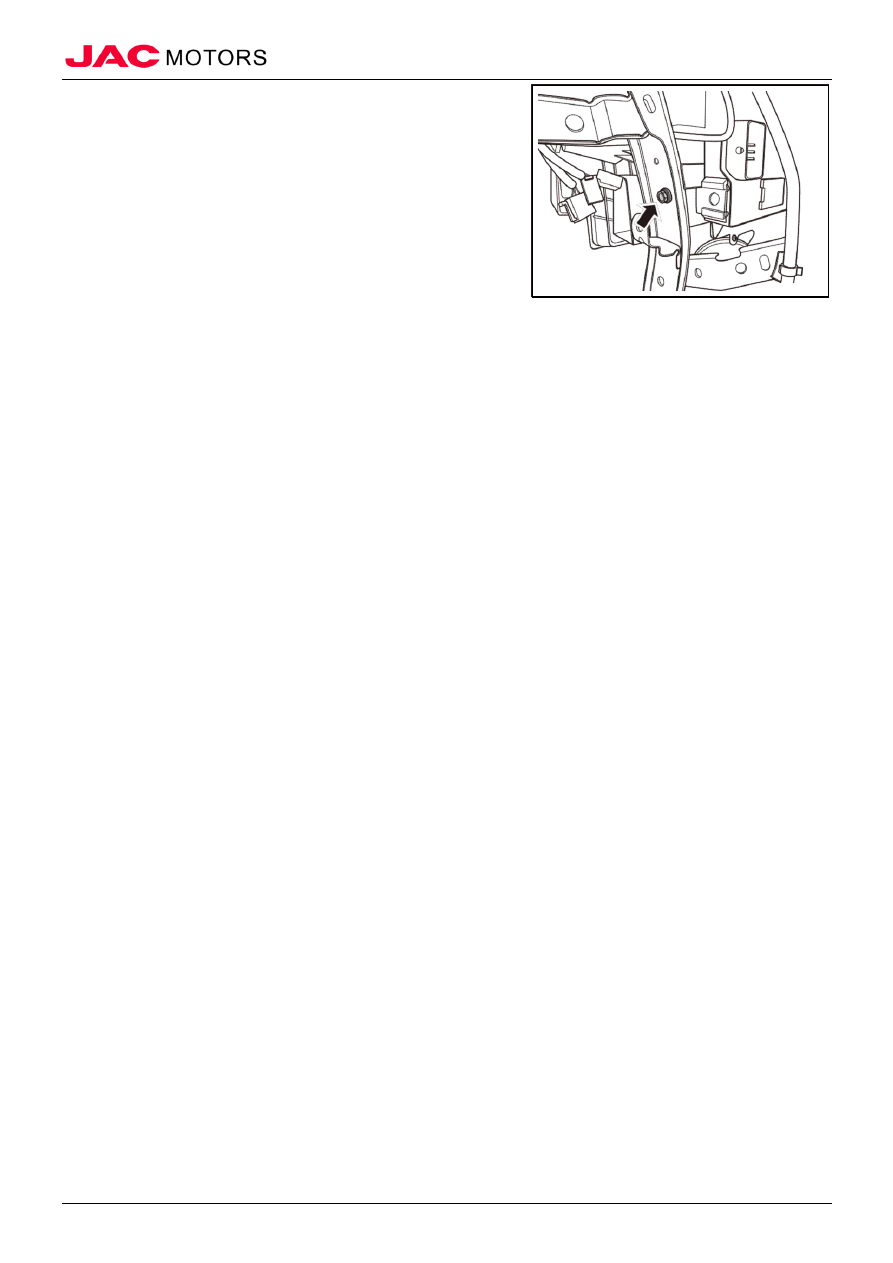

3). Tighten fixed bolt of BCM controller assembly;

Tighten torque

5~8N·m









2. Install A/C controller assembly

3. Connect battery negative electrode

4. Close engine hood cover

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    96

Combination Switch, Alternation Switch



I、Summary

(I)Structure Outline

1. Light Control Switch

Control left/right turning light, front headlight, front fog light, side turning light, overtaking light signal. In the mode of front

headlight working, there are two functions, namely high beam changing to low beam, low beam changing to high beam.

1)  Turning light

There  are  two  upward  (right  turning)  and  two  downward  (left  turning)  position  on  turning  signal  operating  lever.  These

positions are used to transmit turning signal.

Push operating lever upward or downward to send turning signal. When turning is over, operating lever will automatically

return. Arrowhead on combination meter will twinkle, displaying turning direction.

If need to send turning signal or changing road signal, pull operating lever upward or downward to the end. When turning

finish, operating lever will return automatically. When driver send turning or changing road signal, if turning arrowhead twinkling
too fast, it indicates signal light may be damaged, other driver will not see sent turning signal. If some lamp bulb is burnt, please
replace to avoid traffic. When driver send turning or changing road signal, turning arrowhead on combination meter not twinkle,
please check whether lamp bulb is damaged, and then check fuse.

2)Front headlight/Low beam light converter

If switch headlight from low beam to high beam, pull turning signal/multifunctional operating lever away from driver. When

high beam is on, if ignition switch is on, combination meter will display high beam light signal.

If switch headlight from high beam to low beam, pull turning signal/multifunctional operating lever to driver.

3)Overtaking twinkle

The  function  can  send  overtaking  signal  to  drivers  in  front  by  high  beam  headlight.  When  use  the  function,  pull  signal/

multifunctional operating lever to driver until headlight high beam is on, and then loosen operating lever, headlight off.

4) Front fog light

After turning front fog light switch to “ON”, front fog light is on, and display front fog light signal on combination meter.

Only when front fog light switch is “ON” can operate rear fog light switch on combination meter to make rear fog light on.

2. Wiper Control Switch

1)Operate mode of controlling wiper (Wiping, intermittent, low speed, high speed).

When wiper is in intermittent position, there are five kinds of intermittent time regulating.

When  turn  ignition  switch  to  ON,  can  operate  front  windshield wiper.  Use  right  side  operating bar  of  steering  column  to

operate front windshield wiper.

HI (High):Turn operating bar to this position, can carry on high speed wiping.

LO (Low):Turn operating bar to this position, can carry on stably low speed wiping.

INT (Intermittent): Turn operating bar to this position, can select delayed wiping one circulation.

Turning middle of wiper operating bar to LO can increase delayed time, and turning to HI can decrease delayed time. Only

when operating bar in INT can regulate wiping speed.

2)Front windshield washing liquid

In the condition of turning ignition switch to ON and pull front windshield wiper washing liquid operating bar to driver, to

wipe front windshield, and windshield wiper washing liquid will spray out from front windshield spraying nozzle.

3)Rear wiper switch

Turn switch to ON can open rear wiper function.

△ Note

In cooling weather, if front windshield not pre-heated, don’t use wiper, or washing liquid will be frozen on

front windshield, and shelter driver’s vision.

△ Note

When loosen operating bar, washer will stop work, but wiper will continue to wiping about 3 circulations,

and then stop or recovery to the used wiping speed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    97


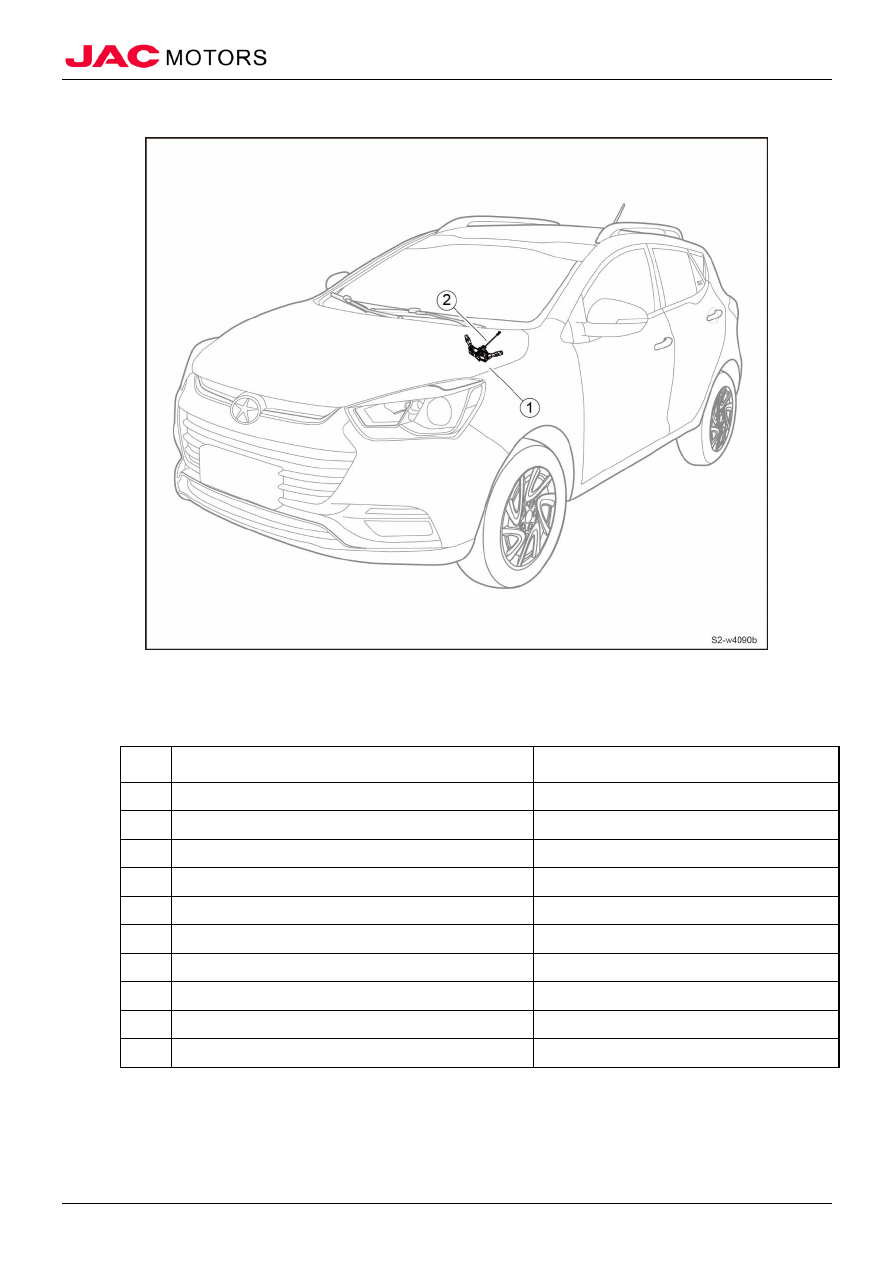

Component Position























1. Combination switch assembly

2. Clock spring




Alternation switch device figure



No

Name

Position

Multifunction steering wheel switch

Located in steering wheel

Rearview mirror regulating switch

Integrated in lower guard panel of driver’s side

Window regulator main control switch assembly

Located in left front vehicle door handle panel

Window regulator switch

Located in vehicle door handle panel

Tail door switch assembly

Located in tail door

Warning light assembly

Located in central right side trim panel

Headlight height regulating switch

Integrated in lower guard panel of driver’s side

Light regulating switch

Integrated in lower guard panel of driver’s side

Door contact switch

Located in vehicle door frame

10

ESP switch

Integrated in lower guard panel of driver’s side








-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    98

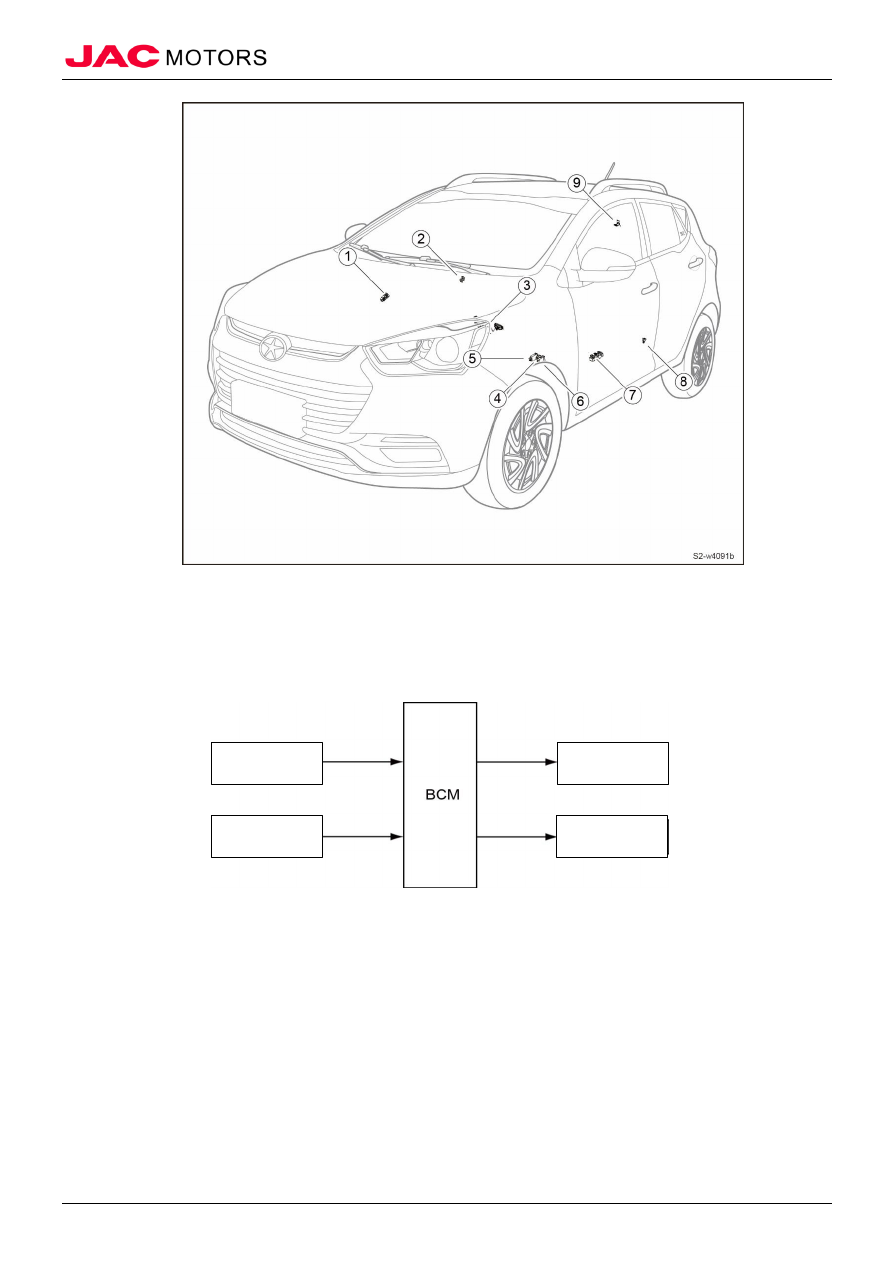

Component Position



































1. Window regulator switch                        6. Headlight height regulating switch
2. Warning light switch                                7. Window regulator main control switch assembly
3. Multifunction steering wheel switch        8. Door contact switch
4. Rearview mirror regulating switch          9. Tail door switch assembly
5. Light regulating switch



(II)Operation Principle
















(III)Maintenance Note





1. Must disconnect battery negative electrode and waiting for at least 1 min before removing electrical wiring harness connector,

or else it may damage vehicle.



2. When disassemble and assemble components, use cloth to protect disassembled components to prevent to be damaged.



3. When disassemble metal clips from trim, use cloth wrap screwdriver blade. Pay attention to not damage vehicle body

component.



4. Be careful not to damage vehicle body component.



5. When installing vehicle body trim component, first ensure clips are tightly installed into panel hole of vehicle body, and
press them in carefully.



6. When disassemble and assemble some components that one person can’t complete, need two person to operate to avoid
drop.



7. Please don’t use too much power when disassemble some components, because it may cause component deformation.



Light  adjusting
switch

Light  electrical
device

Wiper  electrical
device

Wiper  adjusting
switch

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    99

II、Troubleshooting



(I)Troubleshooting List



No



Fault phenomenon



Fault reason analysis



Solution

Remark

1



Headlight lose efficacy



Combination switch fault



Replace combination switch





Turning light lose efficacy



Fog light lose efficacy



Turning light not return



Wiper regulating lose efficacy



Washing lose efficacy









-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    100

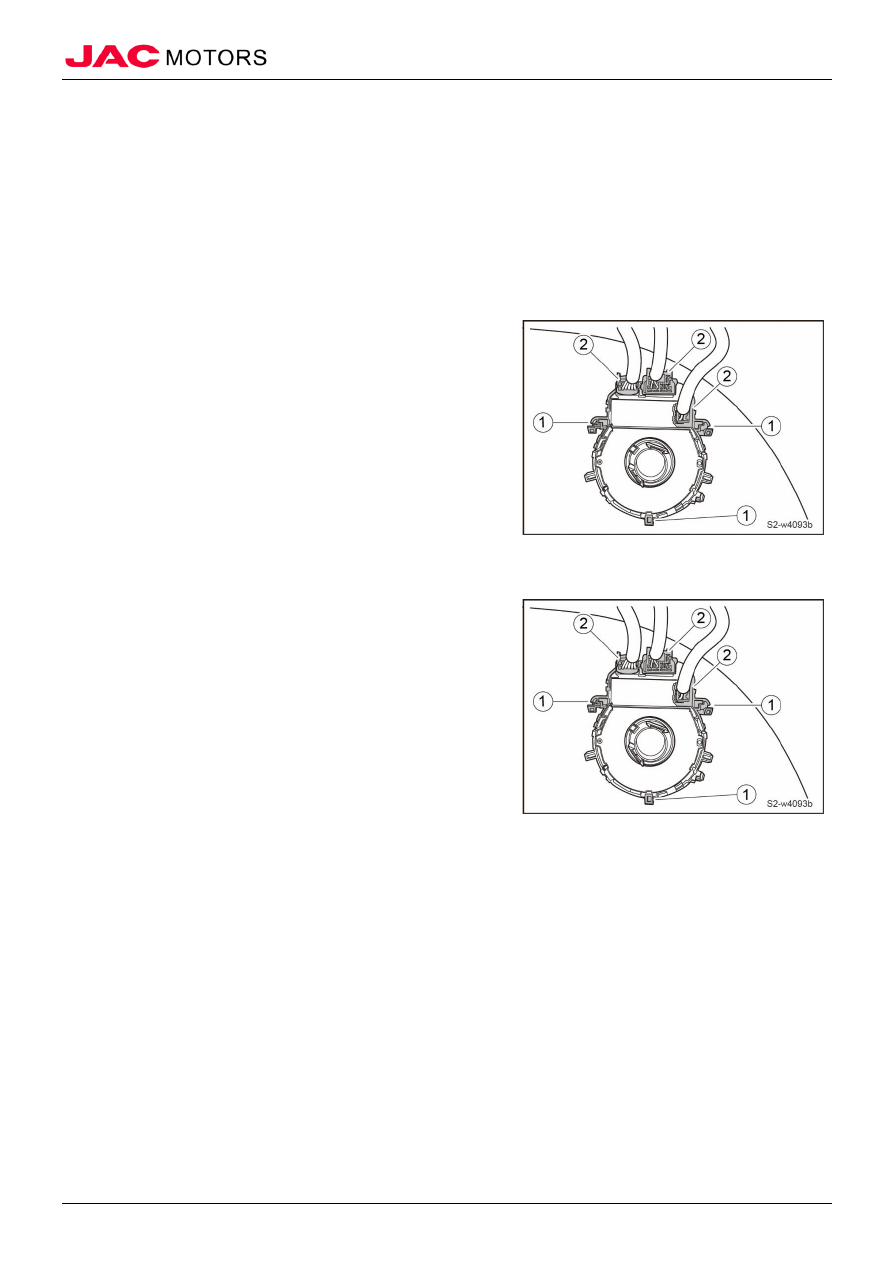

III、Clock Spring



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”
3. Remove driver’s air bag assembly    Refer to “driver’s air bag assembly”

4. Remove steering wheel assembly    Refer to “Steering wheel assembly”

5. Remove upper/lower jacking of steering column    Refer to “Steering column jacking”

6. Remove clock spring

1). Pry 3 clips  ①  of clock spring, disconnect clock spring wiring harness connector  ②, and take down clock spring;

△  Note

Ensure 3 clips is pried off totally, thus can take down clock spring, or else it will damage clock spring.























(II)Installation



1. Install clock spring

1). Connect clock spring wiring harness connector, install clock
spring, and ensure clips are connected in place.

2). Ensure direction of front wheel is right ahead, and clock spring
is in the middle (turn clockwise to the end, and then turn 3 rings
anticlockwise).












2. Install upper/lower jacketing of steering column

3. Install steering wheel assembly

4. Four-wheel alignment

5. Install driver’s air bag assembly

6. Connect battery negative electrode

7. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    101

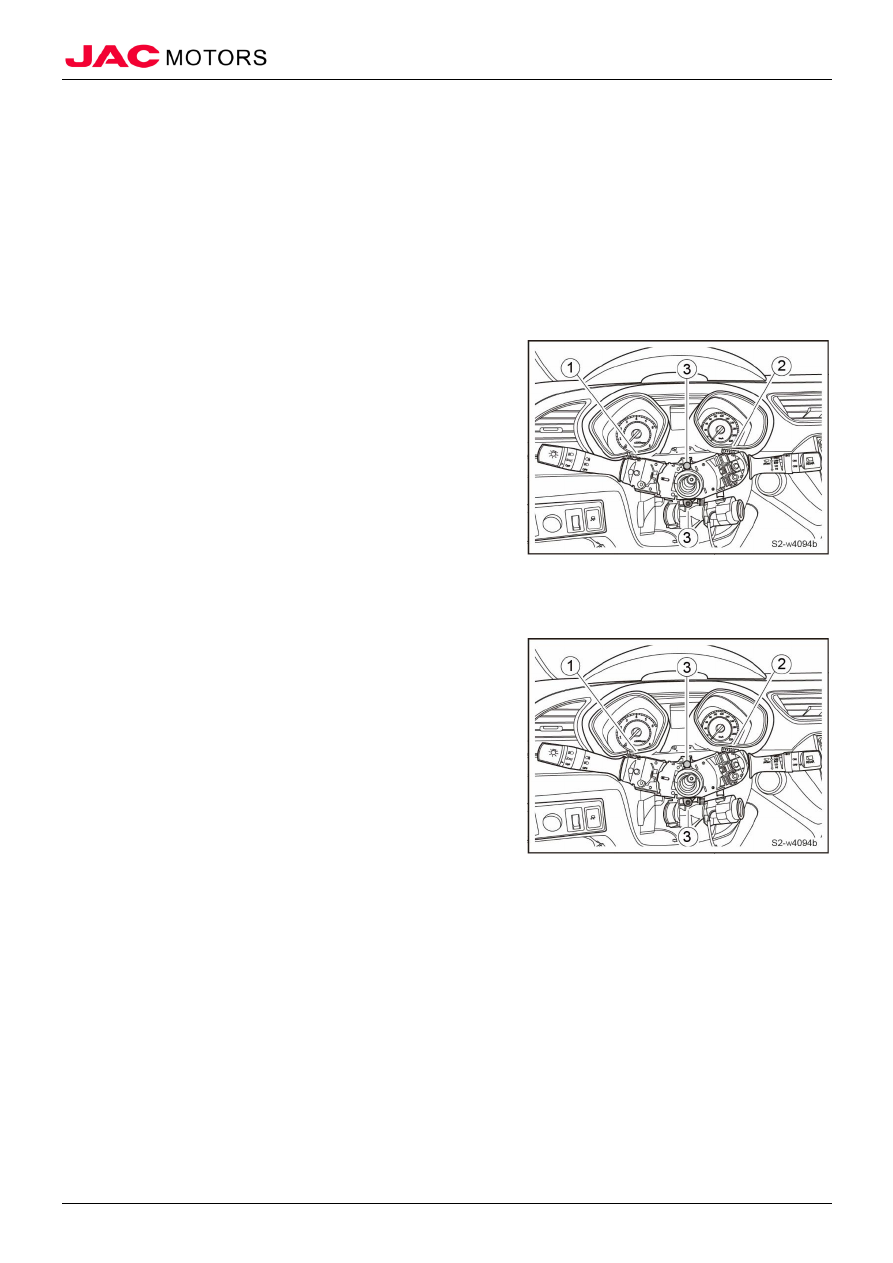

IV、Combination Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”
3. Remove driver’s air bag assembly    Refer to “driver’s air bag assembly”

4. Remove steering wheel assembly    Refer to “Steering wheel assembly”

5. Remove upper/lower jacking of steering column    Refer to “Steering column jacking”

6. Remove clock spring    Refer to “Clock spring”

7. Remove combination switch

1). Disconnect light control switch wiring harness connector  ①  and wiper control switch wiring harness connector  ②;

2). Remove 2 fixed bolts  ③  of combination switch, and take down combination switch;



















(II)Installation



1. Install combination switch

1). Place combination switch to installation position, and tighten 2

fixed bolts  ③;

Tighten torque

N·m



2). Connect light control switch wiring harness connector  ①  and

wiper control switch wiring harness connector  ②;










2. Install clock spring

3. Install upper/lower jacketing of steering column

4. Install steering wheel assembly

5. Four-wheel alignment

6. Install driver’s air bag assembly

7. Connect battery negative electrode

8. Close engine cabin cover





(III)Test



1. Operate light switch operating handle of combination switch to test working condition of all lights and switches:

2. When light operating lever at "OFF", all exterior illumination lights and night illumination lights of electrical devices will off.

3. When light operating lever at small light, vehicle clearance light, front/rear position light, license plate light, dashboard
illumination and night illumination lights of electrical devices will on, if in driving condition, side mark light will on at the same
time.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    102

4. Light operating lever at small light, when pressing front(rear) fog light switch, all front(rear) fog light will on.



5. When light operating lever at headlight, headlight low beam on, at the same time all small lights keep in on condition, at this
time turn operating lever downward 6°, headlight high beam on, turn operating lever back and turn operating lever upward 6°,
high beam on instantly, switch return automatically after loosening the operating lever.

6. Turn light operating lever front(rear) 15°, all right(left) turning light will start twinkle, at the same time right(left) turning
indicating light on dashboard will twinkle, if turn back operating lever, light will stop twinkling. Turn operating lever front (rear)
9°, right (left) turning light turns on instantly, switch return automatically after loosening the operating lever.

7. Press warning switch, all turning light will twinkle at the same time, at the same time right(left) turning indicating light on
dashboard will twinkle.

8. Operating combination switch wiper/washer, detect working condition of wiper and washer:

1). When operating lever at “OFF”, wiper and washer not work.

2). When operating lever at “INT”, wiper rod will intermittently work for a certain time interval.

3). Rotate intermittent time adjusting button, making time change between”FAST” and ”SLOW”, intermittent time of wiper rod
working will change.

4). When operating lever at “LO”, wiper rod will work in low speed.

5). When operating lever at “HI”, wiper rod will work in high speed.

6). Press washing button at the bottom of handle when wiper is working at the same time, turn combination switch right control
handle to the body in the shifting direction of 6.5°, washer nozzle will spray washing liquid to front windshield.







-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    103









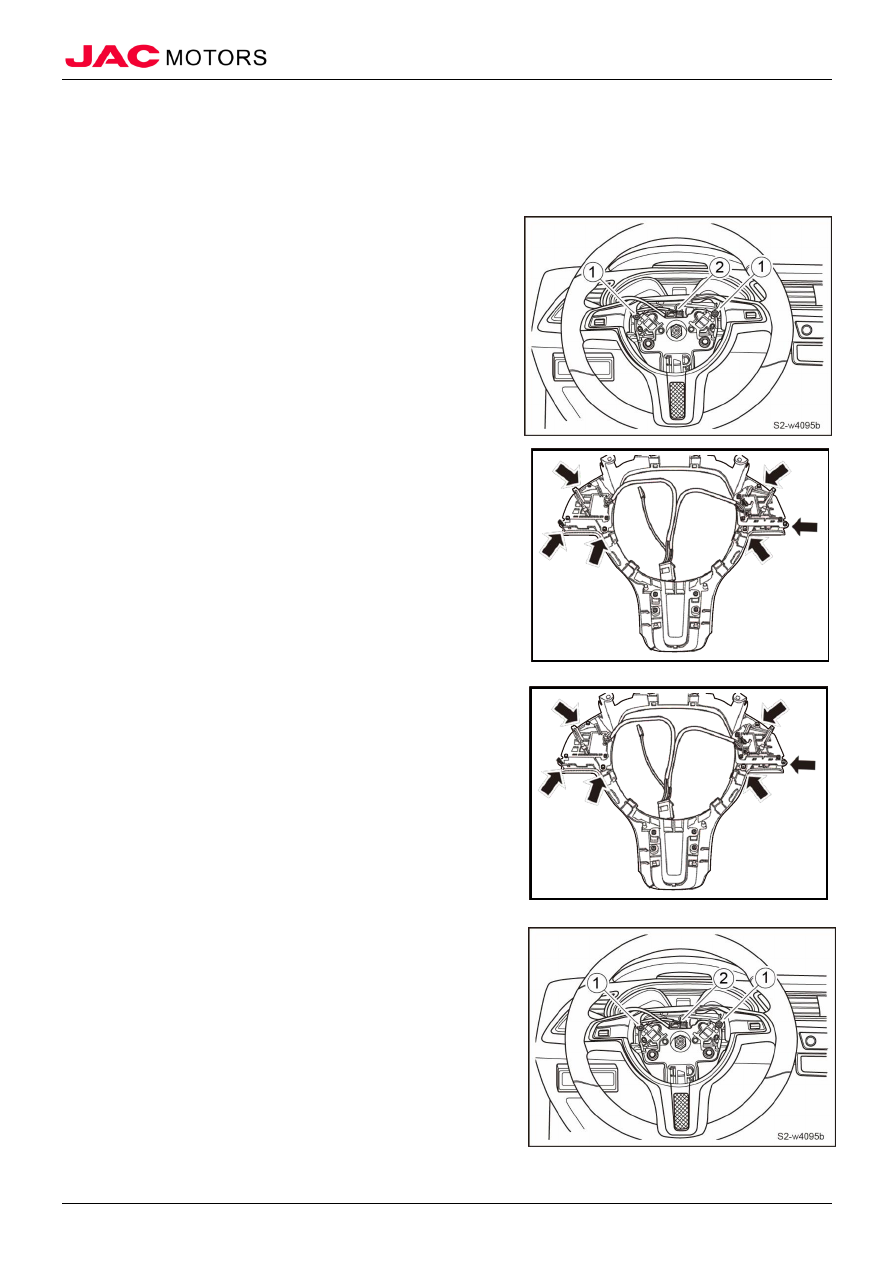

V、Multifunction Steering Wheel Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove driver’s air bag assembly    Refer to “driver’s air bag assembly”

4. Remove multifunction steering wheel switch

1). Remove 2 fixed bolts  ①  of multifunction steering wheel

switch trim cover and steering wheel assembly;

2). Disconnect wiring harness connector  ②  of multifunction

steering wheel switch;











3). Pry multifunction steering wheel switch trim cover, remove

6 fixed bolts of multifunction steering wheel switch and

trim cover, and take down multifunction steering wheel

switch;











(II)Installation



1. Install multifunction steering wheel switch

1). Install multifunction steering wheel switch to trim cover,

and tighten 6 fixed bolts;

















2). Install multifunction steering wheel switch trim cover, and

tighten 2 fixed bolts  ①;

3). Connect wiring harness connector  ②  of multifunction

steering wheel switch;







2. Install driver’s air bag assembly

3. Connect battery negative electrode

4. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
