JAC S2. Elctrical Wiring diagrams - part 8





                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    104

VI、Rearview Mirror Regulating Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove left front door threshold guard panel assembly    Refer to “Left front door threshold guard panel assembly”

4. Remove left front side vehicle door frame rubber strip    Refer to “Vehicle door frame rubber strip”

5. Remove lower trim panel of A pillar    Refer to “Lower trim panel of A pillar”

6. Remove dashboard left end cover    Refer to “Dashboard left end cover”

7. Remove lower guard panel assembly of driver’s side    Refer to “Lower guard panel assembly of driver’s side”

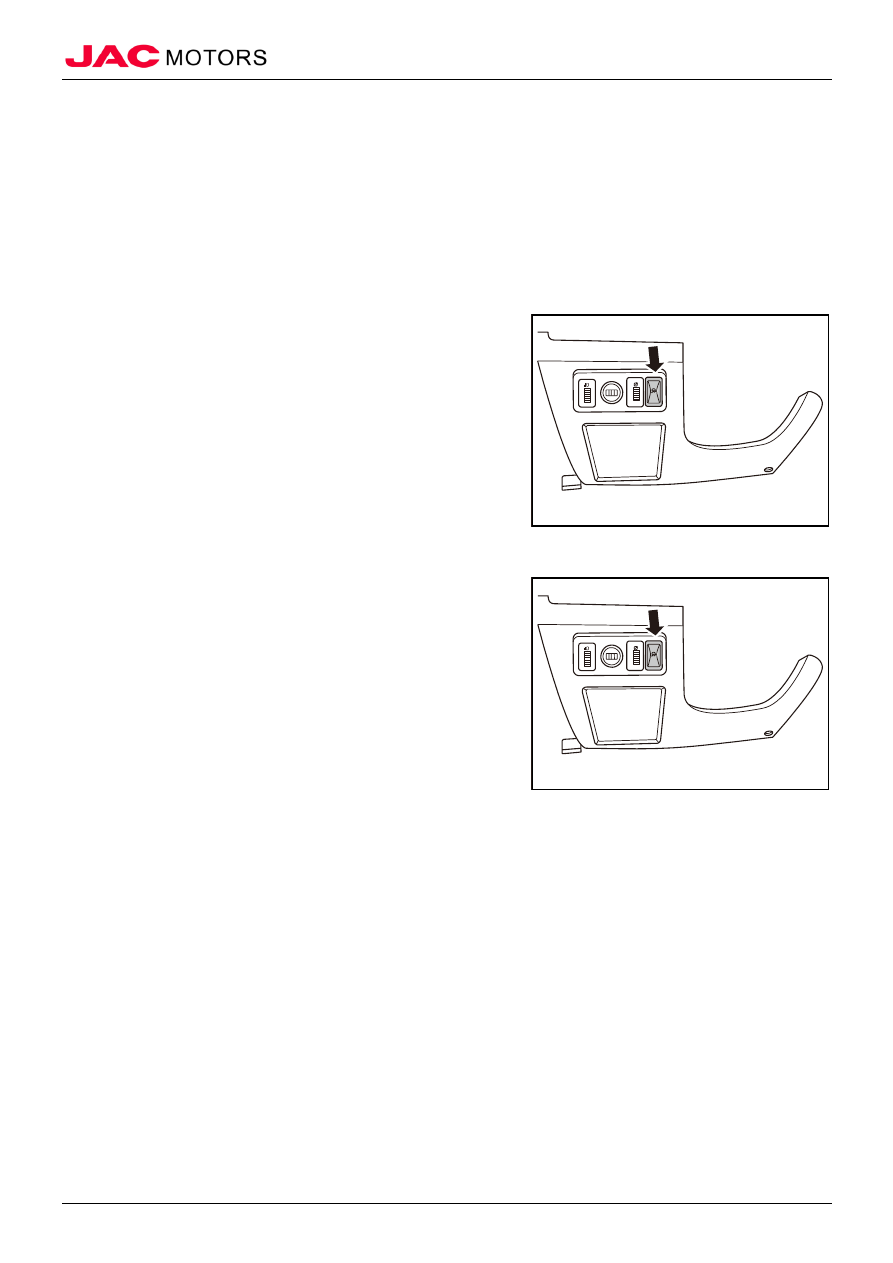

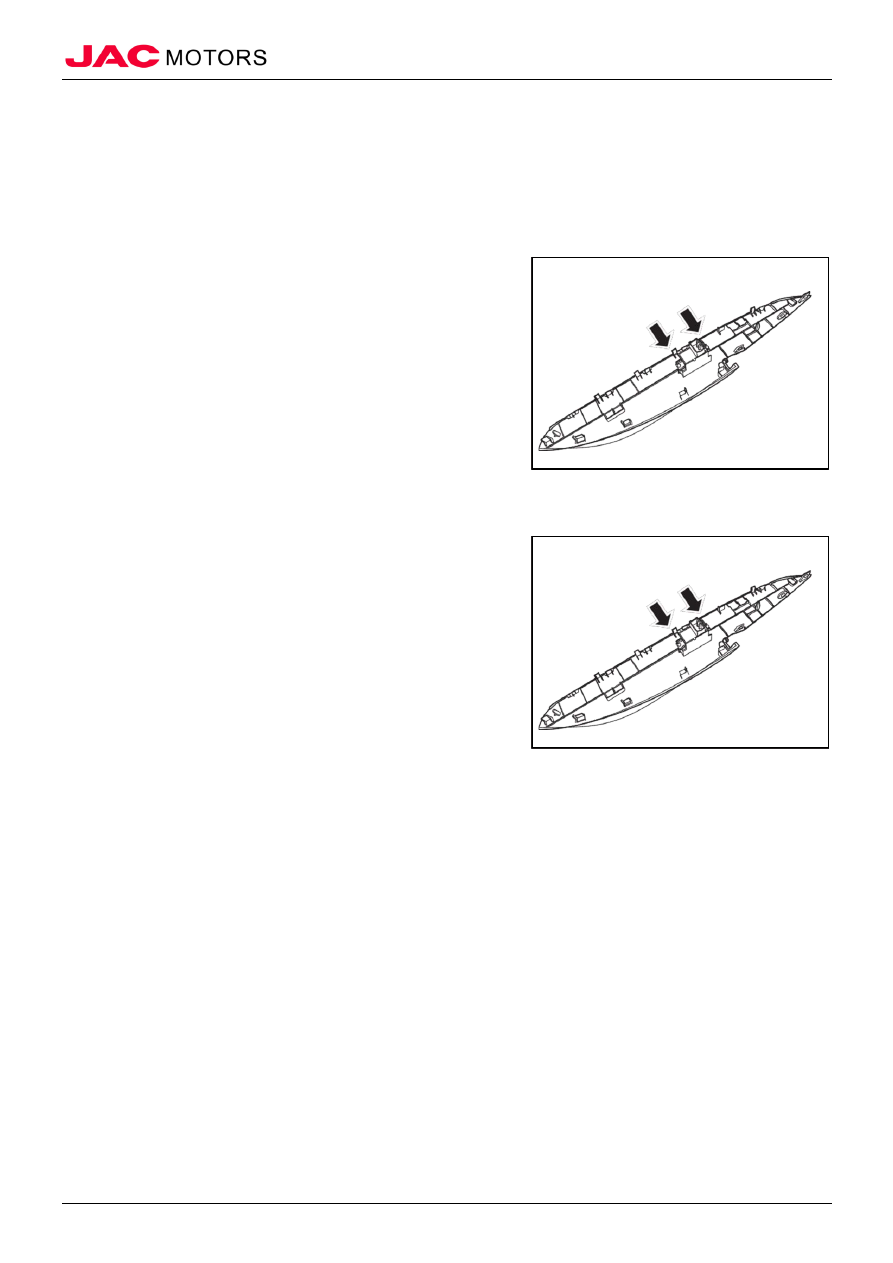

8. Remove rearview regulating switch

1). Disconnect jack catch of rearview regulating switch and

lower guard panel assembly of driver’s side, and take

down rearview regulating switch from behind side;

















(II)Installation



1. Install rearview regulating switch

1). Install rearview regulating switch from behind side, and

ensure jack catch is connected in place;



















2. Install lower guard panel assembly of driver’s side

3. Install dashboard left end cover

4. Install lower trim panel of A pillar

5. Install left front side vehicle door frame rubber strip

6. Install left front door threshold guard panel assembly

7. Connect battery negative electrode

8. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    105









VII、Window Regulator Main Control Switch Assembly



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove left front door inclined handle    Refer to “Front door inclined handle”

4. Remove left front door handle    Refer to “Right door handle”

5. Remove window regulator main control switch assembly

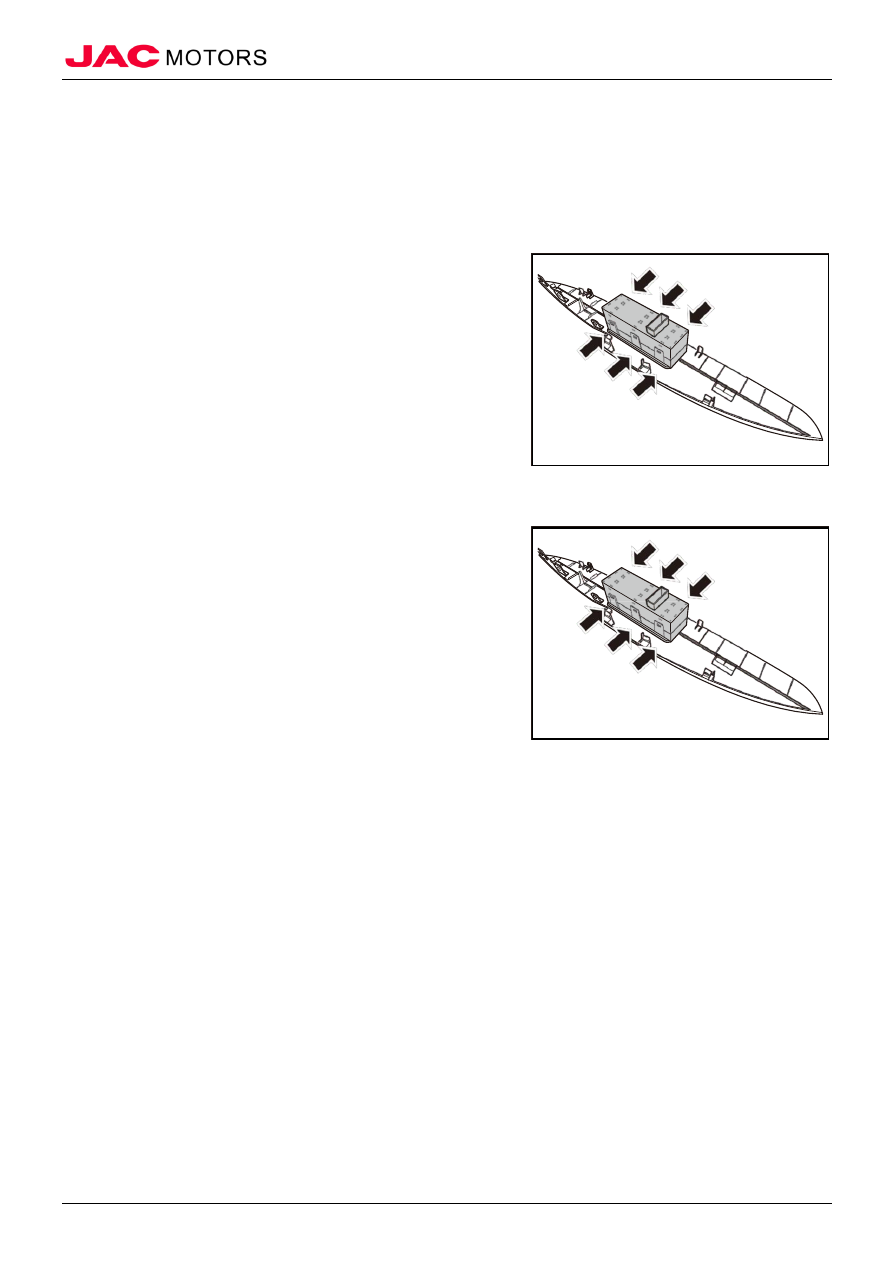

1). Pry 6 buckles of window regulator main control switch

assembly, disconnect connection of window regulator

main control switch assembly and switch panel, and take

down window regulator main control switch assembly;













(II)Installation



1. Install window regulator main control switch assembly

1). Install window regulator main control switch assembly to

left front door switch panel, and ensure to be installed in

place;

△ Note  Check whether all buttons function are normal after

installing. If not or can’t work, please re-install or

replace.









2. Install left front door handle

3. Install left front door inclined handle

4. Connect battery negative electrode

5. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    106









VIII、Window Regulator Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove right front door inclined handle    Refer to “Front door inclined handle”

4. Remove right front door handle    Refer to “Right door handle”

5. Remove window regulator switch

1). Remove 2 fixed bolts of window regulator switch;

2). Take down window regulator switch;
















(II)Installation



1. Install window regulator switch

1). Place window regulator switch to installation position, and

tighten 2 fixed bolts of window regulator switch;














2. Install right front door handle

3. Install right front door inclined handle

4. Connect battery negative electrode

5. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    107

IX、Tail Door Switch Assembly



(I)Removal



1. Open rear tail door

2. Open engine cabin cover

3. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

4. Remove tail door trim panel assembly    Refer to “Tail door trim panel assembly”

5. Remove tail door switch assembly

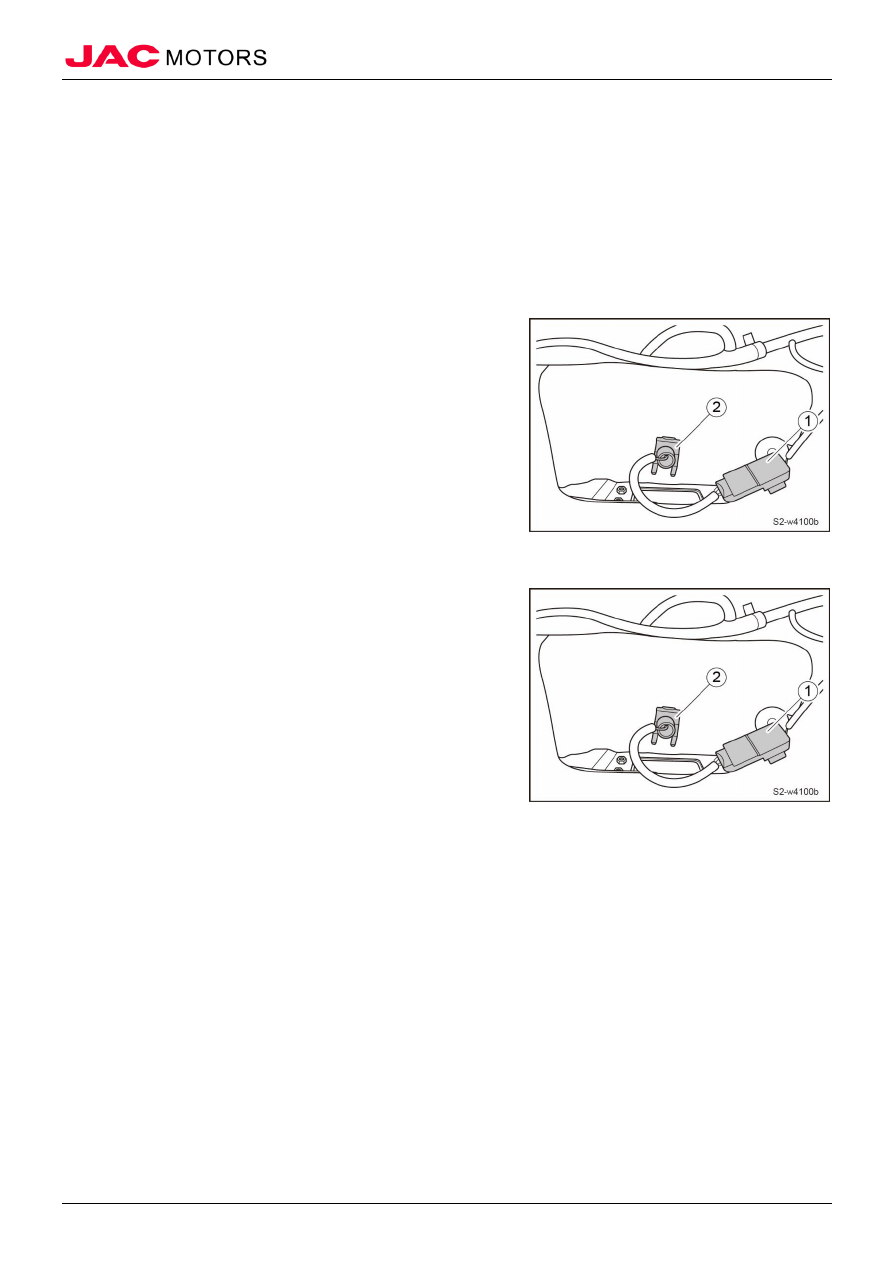

1). Disconnect wiring harness connector  ①  of tail door switch;

2). Remove fixed bracket  ②  of tail door switch assembly;

3). Take down tail door switch assembly from outside vehicle;




















(II)Installation



1. Install tail door switch assembly

1). Place tail door switch assembly to installation hole, and install

fixed bracket  ②  of tail door switch assembly;

2). Connect wiring harness connector  ①  of tail door switch

assembly;











2. Install tail door trim panel assembly

3. Close rear tail door

4. Connect battery negative electrode

5. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    108

X、Warning Light Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove central right side trim panel assembly    Refer to “Central right side trim panel assembly”

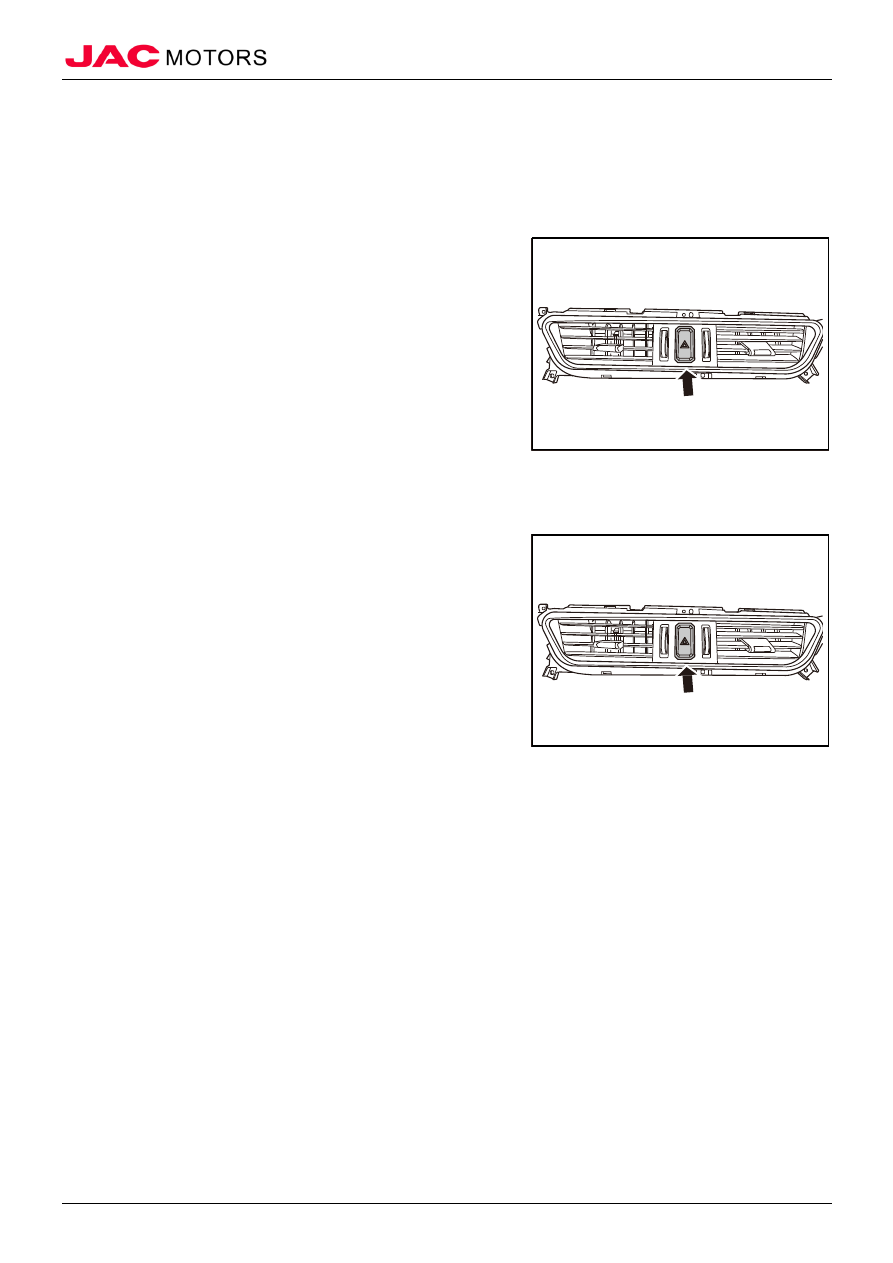

4. Remove warning light switch

1). Disconnect jack catch of warning light switch and central

right side trim panel assembly, and take down warning

light switch from front side;
















(II)Installation



1. Install warning light switch

1). Install warning light switch from front side, and ensure jack

catch is installed in place;















2. Install central right side trim panel assembly

3. Connect battery negative electrode

4. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    109

XI、Headlight Height Regulating Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove left front door threshold guard panel assembly    Refer to “Left front door threshold guard panel assembly”

4. Remove left front side vehicle door frame rubber strip    Refer to “Vehicle door frame rubber strip”

5. Remove lower trim panel of A pillar    Refer to “Lower trim panel of A pillar”

6. Remove dashboard left end cover    Refer to “Dashboard left end cover”

7. Remove lower guard panel assembly of driver’s side    Refer to “Lower guard panel assembly of driver’s side”

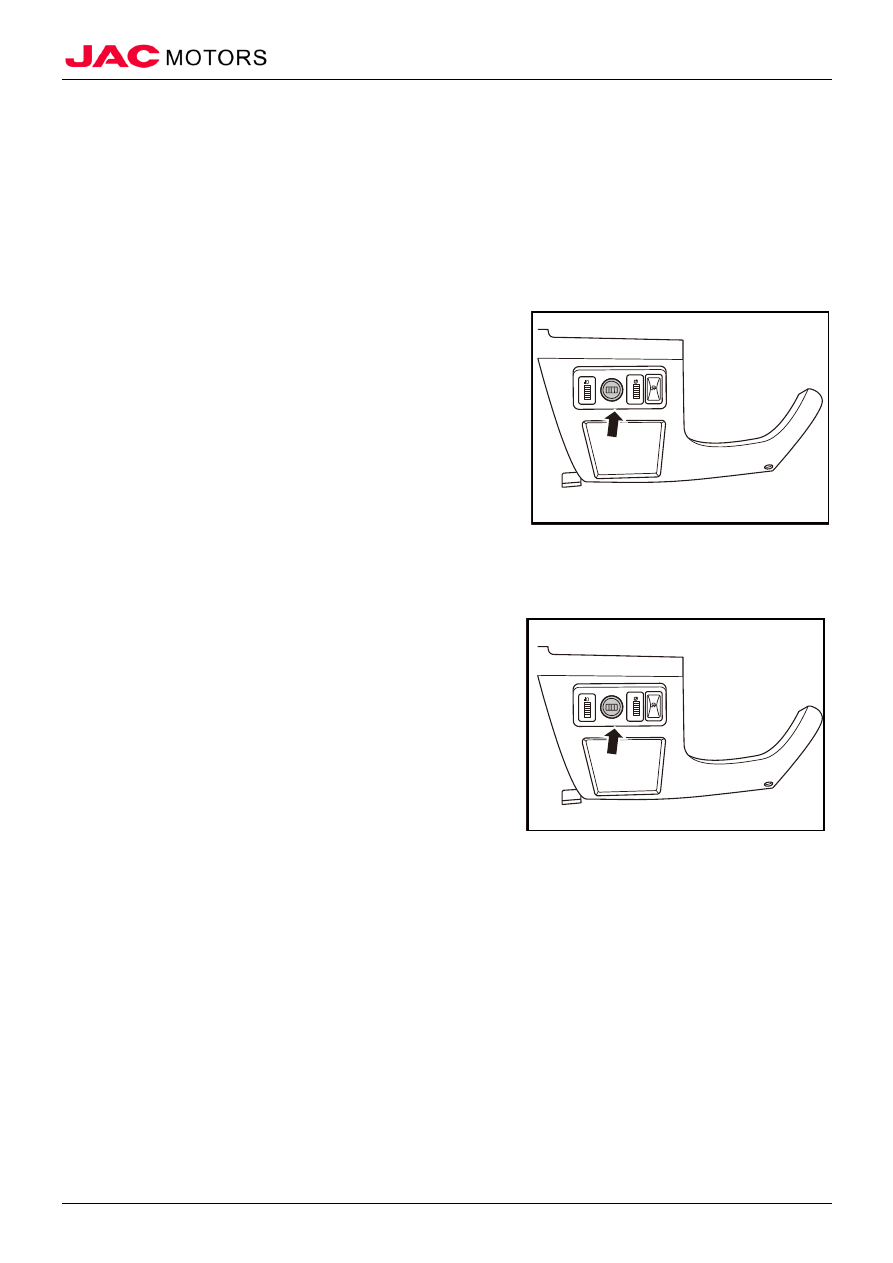

8. Remove headlight height regulating switch

1). Disconnect jack catch of headlight height regulating switch

and lower guard panel assembly of driver’s side, and

take down headlight height regulating switch from front

side;

















(II)Installation



1. Install headlight height regulating switch

1). Install headlight height regulating switch in front, and

ensure jack catch is connected in place;


















2. Install lower guard panel assembly of driver’s side

3. Install dashboard left end cover

4. Install lower trim panel of A pillar

5. Install left front side vehicle door frame rubber strip

6. Install left front door threshold guard panel assembly

7. Connect battery negative electrode

8. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    110

XII、Light Regulating Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove left front door threshold guard panel assembly    Refer to “Left front door threshold guard panel assembly”

4. Remove left front side vehicle door frame rubber strip    Refer to “Vehicle door frame rubber strip”

5. Remove lower trim panel of A pillar    Refer to “Lower trim panel of A pillar”

6. Remove dashboard left end cover    Refer to “Dashboard left end cover”

7. Remove lower guard panel assembly of driver’s side    Refer to “Lower guard panel assembly of driver’s side”

8. Remove light regulating switch

1). Disconnect jack catch of light regulating switch and lower

guard panel assembly of driver’s side, and take down

light regulating switch;
















(II)Installation



1. Install light regulating switch

1). Install light regulating switch in front, and ensure jack catch

is connected in place;














2. Install lower guard panel assembly of driver’s side

3. Install dashboard left end cover

4. Install lower trim panel of A pillar

5. Install left front side vehicle door frame rubber strip

6. Install left front door threshold guard panel assembly

7. Connect battery negative electrode

8. Close engine cabin cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    111

XIII、Door Contact Switch



(I)Removal



1.  Open engine cabin cover

2. Disconnect battery negative electrode

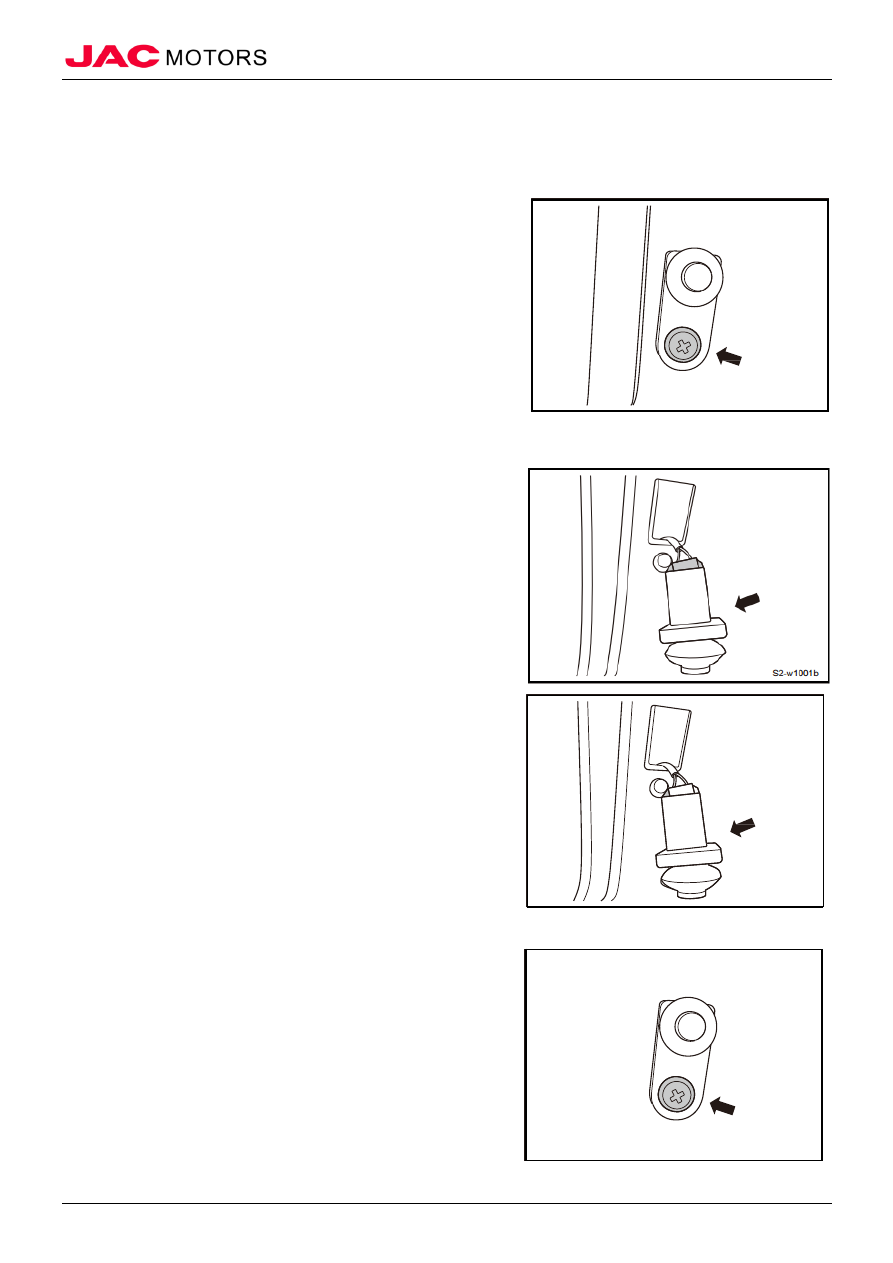

3. Remove door contact switch

1). Remove fixed bolt of door contact switch;














2). Disconnect wiring harness connector of door contact

switch, and take down door contact switch;
















(II)Installation



1. Install door contact switch

1). Connect wiring harness connector of door contact switch,

and place door contact switch to installation position

hole;
















2). Tighten fixed bolt of door contact switch;

Tighten torque

9~11N·m








2. Connect battery negative electrode

3. Close engine cabin cover






-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                      Combination Switch, Alternation Switch

Combination Switch, Alternation Switch









    112

XIV、ESP Switch



(I)Removal



1. Open engine cabin cover

2. Disconnect battery negative electrode    Refer to “Disconnection and connection of battery electrode”

3. Remove left front door threshold guard panel assembly    Refer to “Left front door threshold guard panel assembly”

4. Remove left front side vehicle door frame rubber strip    Refer to “Vehicle door frame rubber strip”

5. Remove lower trim panel of A pillar    Refer to “Lower trim panel of A pillar”

6. Remove dashboard left end cover    Refer to “Dashboard left end cover”

7. Remove lower guard panel assembly of driver’s side    Refer to “Lower guard panel assembly of driver’s side”

8. Remove ESP switch

1). Disconnect jack catch of ESP switch and lower guard panel

assembly of driver’s side, and take down ESP switch;
















(II)Installation



1. Install ESP switch

1). Install ESP switch in front, and ensure jack catch is

connected in place.
















2. Install lower guard panel assembly of driver’s side

3. Install dashboard left end cover

4. Install lower trim panel of A pillar

5. Install left front side vehicle door frame rubber strip

6. Install left front door threshold guard panel assembly

7. Connect battery negative electrode

8. Close engine cabin cover



-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    113

Illumination System




I、Summary



(I)Structure Overview



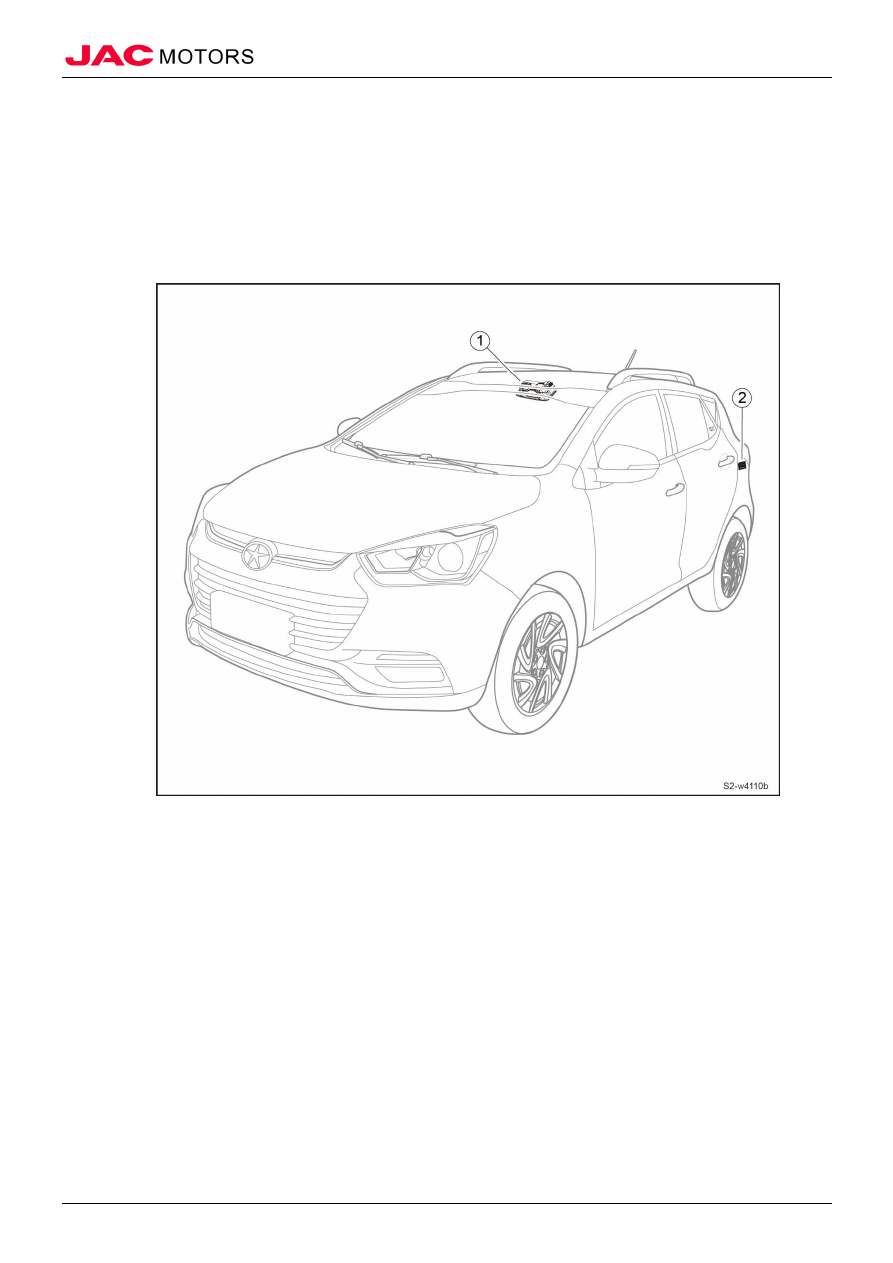

Interior illumination component position figure











































1. Front top light

2. Trunk light





-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    114

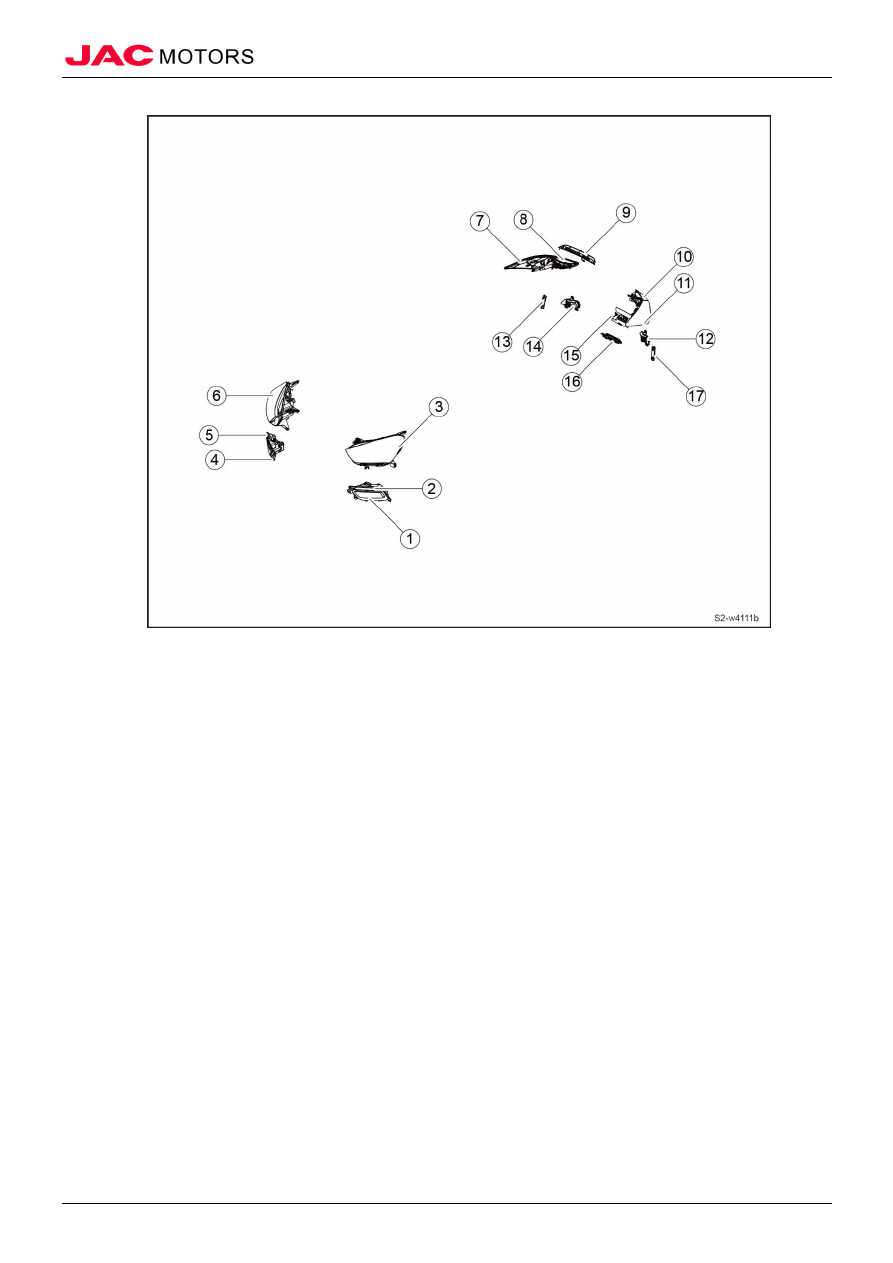

Exterior illumination component position figure







































1. Left front fog light                                        10. Left rear tail door combination light

2. Left daylight driving light                            11. Left rear side wall combination light

3. Left front combination light                        12.Left reversing light

4. Right front fog light                                    13.Right rear reflector

5. Right daylight driving light                        14. Right reversing light

6. Right front combination light                      15. License plate light

7. Right rear side wall combination light        16. Rear fog light

8. Right rear tail door combination light          17. Left rear reflector

9. High position brake light





-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    115

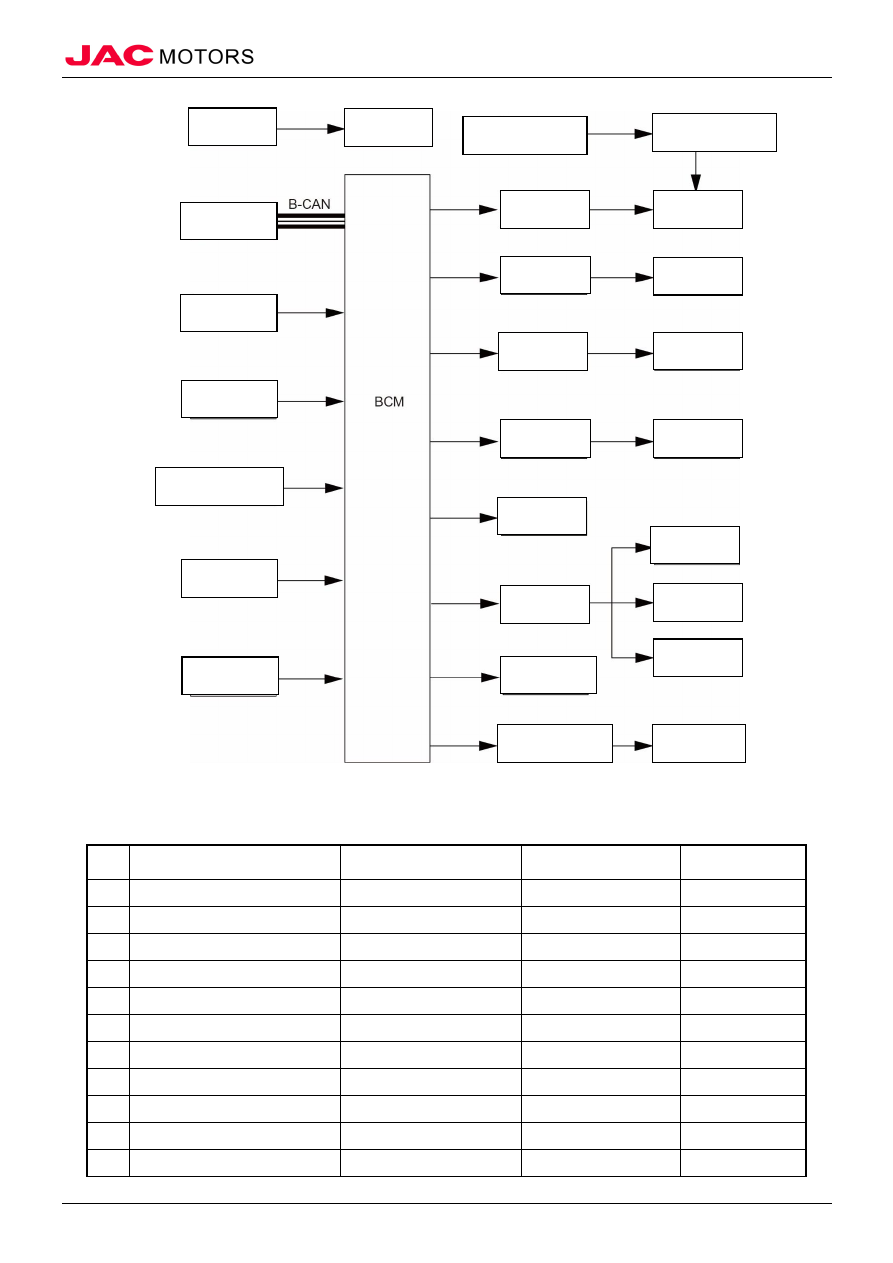

(II)Operation Principle



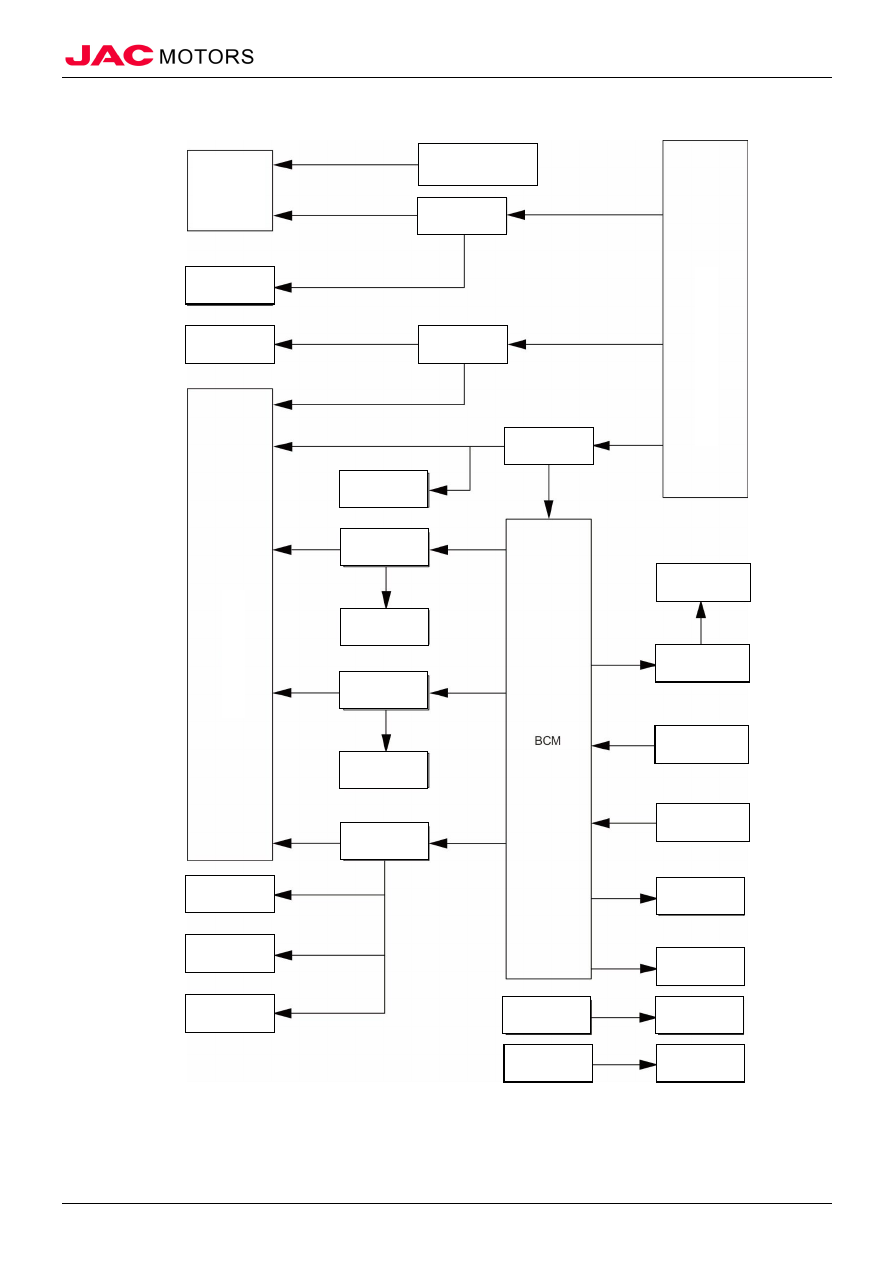

Electrical schematic diagram (vehicle type without CAN)
























































Front
headlight
regulating
motor

Front  headlight
regulating switch

Low  beam
light relay

Low  beam
light

High  beam
light relay

High  beam
light

Warning
light relay

Turning
light

Front

fog

light relay

C

om
bi

nat
ion m

et

er



Light

 com

bi

nat
ion s

w

itch


Front

fog

light

Rear

fog

light relay

Rear

fog

light

Small  light
relay

Small light

License
plate light

Brake  light
switch

Brake light

Reversing
light

Interior  top
light

Door light

Door  control
switch

Generator

Daylight
driving relay

Daylight
driving

Backlight
light

Reversing
light switch

-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    116

Electrical schematic diagram (vehicle type with CAN)

















































(III)Technical Parameter



No.



Name

Light bulb type

Power

Light color

1



High beam light

H7

2×55W

White

2



Low beam light

H7

2×55W

White

3



Front turning light

PY21W

2×21W

Amber

4



Front position light

W5W

2×5W

White

5



Front fog light

H8

2×35W

White

6



Daylight driving light

LED

2×5.6W

White

7



Rear position light/Brake light

P21/5W

2×21W+2×5W

Red

8



Rear turning light

P21W

2×21W

Amber

9



Rear position light

W5W

2×5W

White

10

Rear fog light

LED

5.6W

Red

11

Reversing light

P21W

2×21W

White

Reversing
light switch

Reversing
light

Combination
meter

Generator

Door  control
switch

Light combination
switch

Brake

light

switch

Warning light
switch

Daylight driving
light relay

Brake light

Small  light
relay

Turning
light relay

Small light

License
plate light

Backlight
light

Daylight
driving light

Rear

fog

light relay

Rear

fog

light

Front

fog

light relay

Front

fog

light

High  beam
light relay

High  beam
light

Low  beam
light relay

Low  beam
light

Headlight
regulating switch

Headlight
regulating motor

-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    117

No.



Name

Light bulb type

Power

Light color

12

License plate light

W5W

2×5W

White

13

High position brake light

LED

1.7W

Red

14

Front top light

C10W

2×10W

White

15

Trunk light

KHA

5W

White



(IV)Torque Parameter



No.

Item

Torque  (N·m)

Front combination light fixed bolt

3~5

Front fog light fixed bolt

1~3

Daylight driving light

1~3



(V)Maintenance Note



1. Must disconnect battery negative electrode and waiting for at least 1 min before removing electrical wiring harness connector,

or else it may damage vehicle.

2. When disassemble and assemble components, use cloth to protect disassembled components to prevent to be damaged.
3. When disassemble metal clips from trim, use cloth wrap screwdriver blade. Pay attention to not damage vehicle body

component.

4. When disassemble and assemble some components that one person can’t complete, need two person to operate to avoid drop.
5. Please don’t use too much power when disassemble some components, because it may cause component deformation.
6. Don’t let light bulb and rear cover disassemble too long time from light, because dust, moisture, fog etc. Entering into light

may infect light function. After disassemble light bulb in front combined light reflecting shade, please install new light bulb.

7. Light combination light is semi-closed type, and use replaceable halogen light bulb. Replacing light bulb can be operated in

engine cabin, but it’s better to replace after removing.

8. Don’t touch window casing, and only can handle plastic seat of light bulb when operating light bulb.
9. Don’t shake or turn light bulb when removing.





-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    118

II、Troubleshooting



(I)Troubleshooting List



No.  Fault phenomenon

Fault reason analysis

Solution

Remark

1



Front headlight, fog
light, small light,
turning light not
work



Light filament fused



Replace light bulb



Refer to light not
work(front
headlight,

fog

light, small light,
turning light)



Fuse fused



Replace fuse



Power supply not connected, wiring harness
connector loosen



Maintain circuit fault



Relay not work



Replace relay



Light switch not work



Replace light switch



Light switch circuit fault



Maintain light switch circuit fault



BCM fault



Replace BCM



2



Reversing light not
work



Reversing light fuse fused



Replace fuse



Refer to
reversing light
not work



Reversing switch installation incorrect



Adjust to install reversing light switch



Reversing switch damaged



Replace reversing light switch



Reversing light filament fused



Replace light bulb



3



Brake light not work



Brake light fuse fused



Replace brake light fuse



Refer to brake
light not work



Brake switch installation incorrect



Adjust to install brake switch



Brake switch damaged



Replace brake light switch



Brake light filament fused



Replace light bulb




(II)Illumination system fuse, relay, wiring harness connector list



No.

Light

Fuse

Relay

Wiring harness connector and PIN

Left low beam light

IF16 20A

IR03

E05-8

Right low beam light

E20-8

Left high beam light

IF17 15A

IR04

E05-10

Right high beam light

E20-10

Left front position light

IF04 10A

IR08

E05-7

Left rear position light

E09-6

Left rear inside position light

T12-1

Left license plate light

RB02-1

Right front position light

IF04 10A

E20-7

10

Right rear position light

F28-6

11

Right rear inside position light

T17-1

12

Right license plate light

RB05-1

13

Left front turning light

E05-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------



    Illumination System



Illumination System









    119

No.

Light

Fuse

Relay

Wiring harness connector and PIN

14

Left side turning light

D02-1

15

Left rear turning light

F09-4

16

Right front turning light

E20-2

17

Right side turning light

D11-1

18

Right rear turning light

F28-4

19

Reversing light

IF20 10A

RB01-1/RB08-1

20

Reversing light switch

C24

21

Left brake light

F09-5

22

Right brake light

F28-5

23

High position brake light

T01-1

24

Brake light switch

E11

25

Left front fog light

IF07 15A

IR10

E03-1

26

Right front fog light

E23-1

27

Rear fog light

IF38 10A

IR09

RB04-1





(III)Troubleshooting Flow Chart


Front headlight, fog light, turning light not working



Step

Detect content

Solution

Judging specification

Next step

Yes

No

Confirm

fault

phenomenon



Ignition  switch  at  relevant
position,  light  switch  turn  to
relevant light position



Whether relevant light is on



Next step



Turn to step 3



Check

intermittent

fault



Check and deal with relevant
wiring  harness  connector
loosen condition









Check  relevant  light
fuse



Remove relevant light fuse



Whether fuse is fused



Replace fuse, turn
to next step



Turn to step   5



Check  whether  fault  is
removed

after

replacing fuse

Turn Light switch to relevant
light position

Whether relevant light is on

Fault is removed

Next step

Check  relevant  light
bulb



Dismount  light  bulb,  check
filament



Whether filament is fused



Replace  relevant
light bulb, turn to
next step



Turn to step   7



Check  whether  fault  is
removed  after  replacing
relevant light bulb



Turn Light switch to relevant
light position



Whether relevant light is on

Fault is removed

Next step

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     6      7      8      9     ..
