JAC S2. Elctrical Wiring diagrams - part 5





                                                                                  Air-conditioning Device

Air-conditioning Device































      56







2. Install blower housing assembly

1). Install 3 fixed bolts of blower housing assembly;














3. Install A/C host assembly

4. Install dashboard beam

5. Install main wiring harness assembly

6. Install ventilation cover plate assembly

7. Install front wiper arm assembly

8. Install dashboard assembly

9. Install front passenger’s side air bag

10. Install central cover assembly

11. Install lower guard plate assembly of driver’s side

12. Install combination meter

13. Install central left trim plate assembly

14. Install audio assembly

15. Install audio panel assembly

16. Install A/C controller assembly

17. Install glove box assembly

18. Install central right trim plate assembly

19. Install end cover of dashboard

20. Install upper trim plate assembly of A column

21. Install lower trim plate assembly of A column

22. Install threshold guard plate assembly of front door

23. Install combination switch assembly

24. Install jacketing of steering column

25. Install steering wheel assembly

26. Install driver’s side air bag assembly

27. Install auxiliary dashboard assembly

28. Install front storage box assembly

29. Install saucer cover plate assembly

30. Install front extension plate

31. Fill refrigerant, refrigeration oil

32. Connect negative electrode of battery

33. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      57





XVII、Evaporator Core Assembly



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Recycle refrigerant, refrigeration oil    Refer to “Refrigerant, refrigeration oil”

4. Remove front extension plate    Refer to “Auxiliary dashboard assembly”

5. Remove saucer cover plate assembly    Refer to “Auxiliary dashboard assembly”

6. Remove front storage box assembly    Refer to “Auxiliary dashboard assembly”

7. Remove auxiliary dashboard assembly    Refer to “Auxiliary dashboard assembly”

8. Remove driver’s side air bag assembly    Refer to “Driver’s side air bag assembly”

9. Remove steering wheel assembly    Refer to “Steering wheel assembly”

10. Remove jacketing of steering column    Refer to “Jacketing of steering column”

11. Remove combination switch assembly    Refer to “Combination switch”

12. Remove threshold guard plate assembly of front door    Refer to “Threshold guard plate assembly of front door”

13. Remove lower trim plate assembly of A column    Refer to “Lower trim plate assembly of A column”

14. Remove upper trim plate assembly of A column    Refer to “Upper trim plate assembly of A column”

15. Remove end cover of dashboard    Refer to “End cover of dashboard”

16. Remove central right trim plate assembly    Refer to “Central right trim plate assembly”

17. Remove glove box assembly    Refer to “Glove box assembly”

18. Remove A/C controller assembly    Refer to “A/C controller assembly”

19. Remove audio panel assembly    Refer to “Audio panel assembly”

20. Remove audio assembly    Refer to “Audio assembly”

21. Remove central left trim plate assembly    Refer to “Central left trim plate assembly”

22. Remove combination meter    Refer to “Combination meter”

23. Remove lower guard plate assembly of driver’s side    Refer to “lower guard plate assembly of driver’s side”

24. Remove central cover assembly    Refer to “Central cover assembly”

25. Remove front passenger’s side air bag    Refer to “front passenger’s side air bag”

26. Remove dashboard assembly    Refer to “Dashboard assembly”

27. Remove front wiper arm assembly    Refer to “Front wiper arm assembly”

28. Remove ventilation cover plate assembly    Refer to “Ventilation cover plate assembly”

29. Remove main wiring harness assembly    Refer to “Main wiring harness assembly”

30. Remove dashboard beam    Refer to “Dashboard beam”

31. Remove A/C host assembly

32. Remove mode motor    Refer to “Mode motor”

33. Remove temperature motor assembly    Refer to “Temperature motor assembly”

34. Remove evaporator core assembly

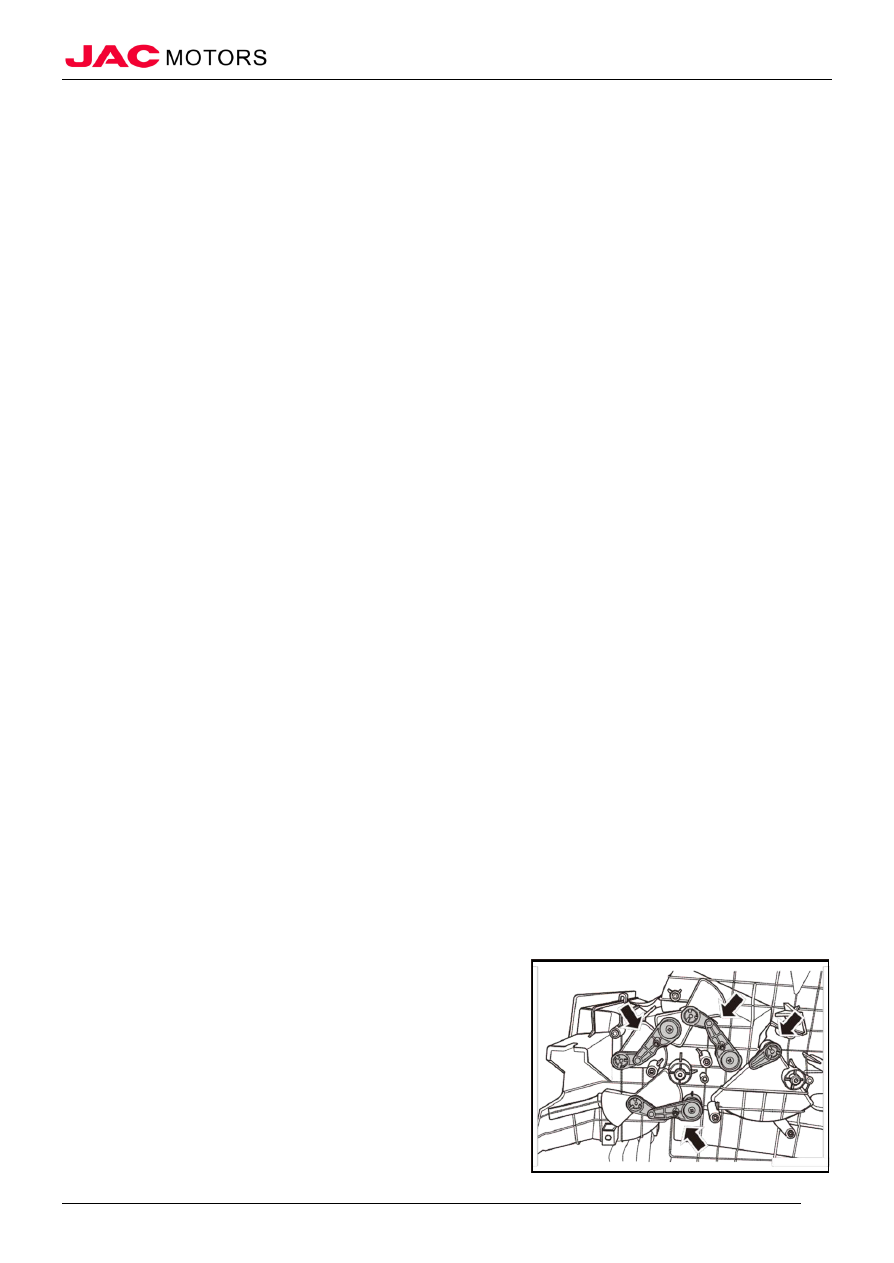

1). Remove air door connecting rod;















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      58



















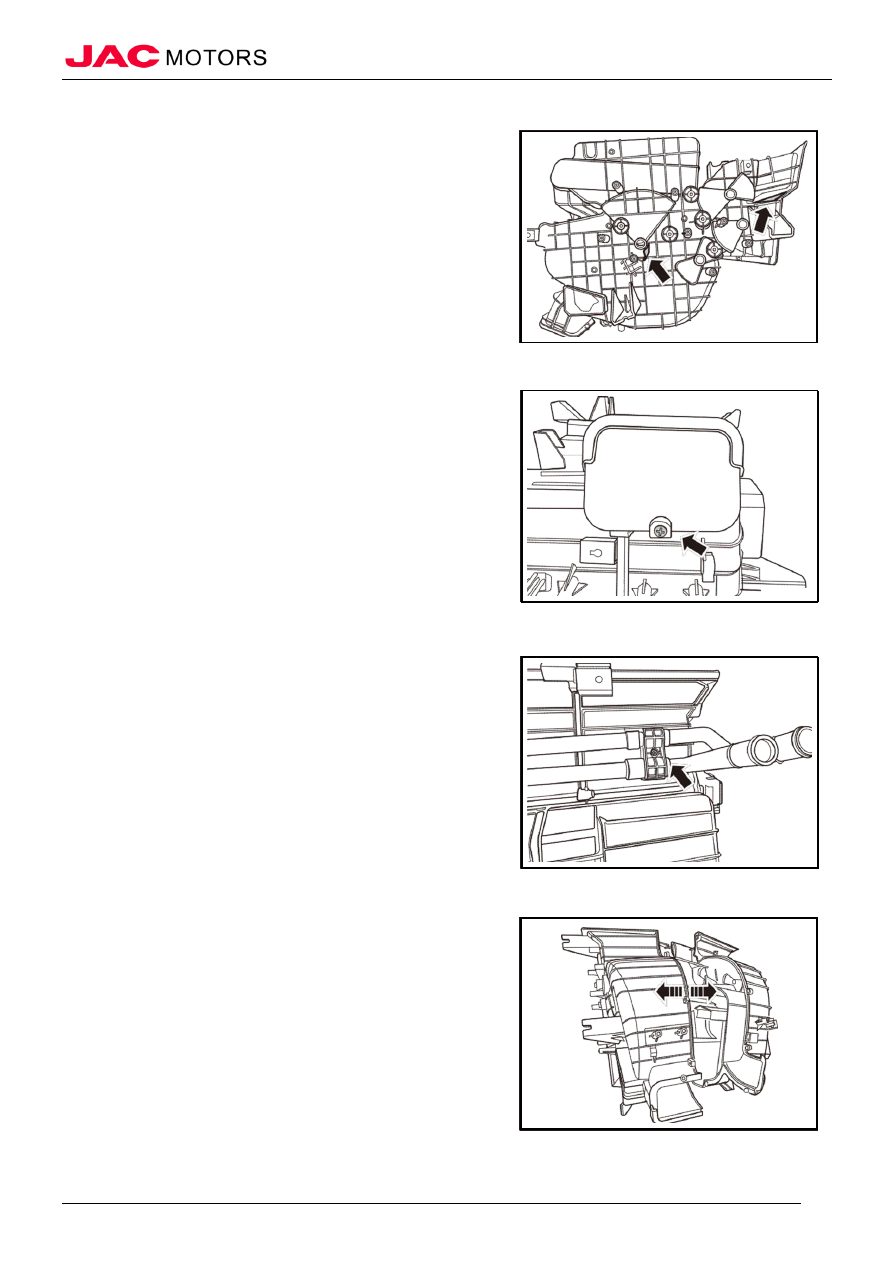

2). Remove 15 fixed bolts of left/right housing

△ Caution     Two bolts shown in the figure is hidden, please don’t leave out!


















3). Remove fixed bolt of air duct guard plate, and take down air duct guard plate;





















4). Remove fixed bolt of heater water pipe clamp, and take down water pipe clamp;



















5). Separate left and right housing, and take down air duct;






















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      59



















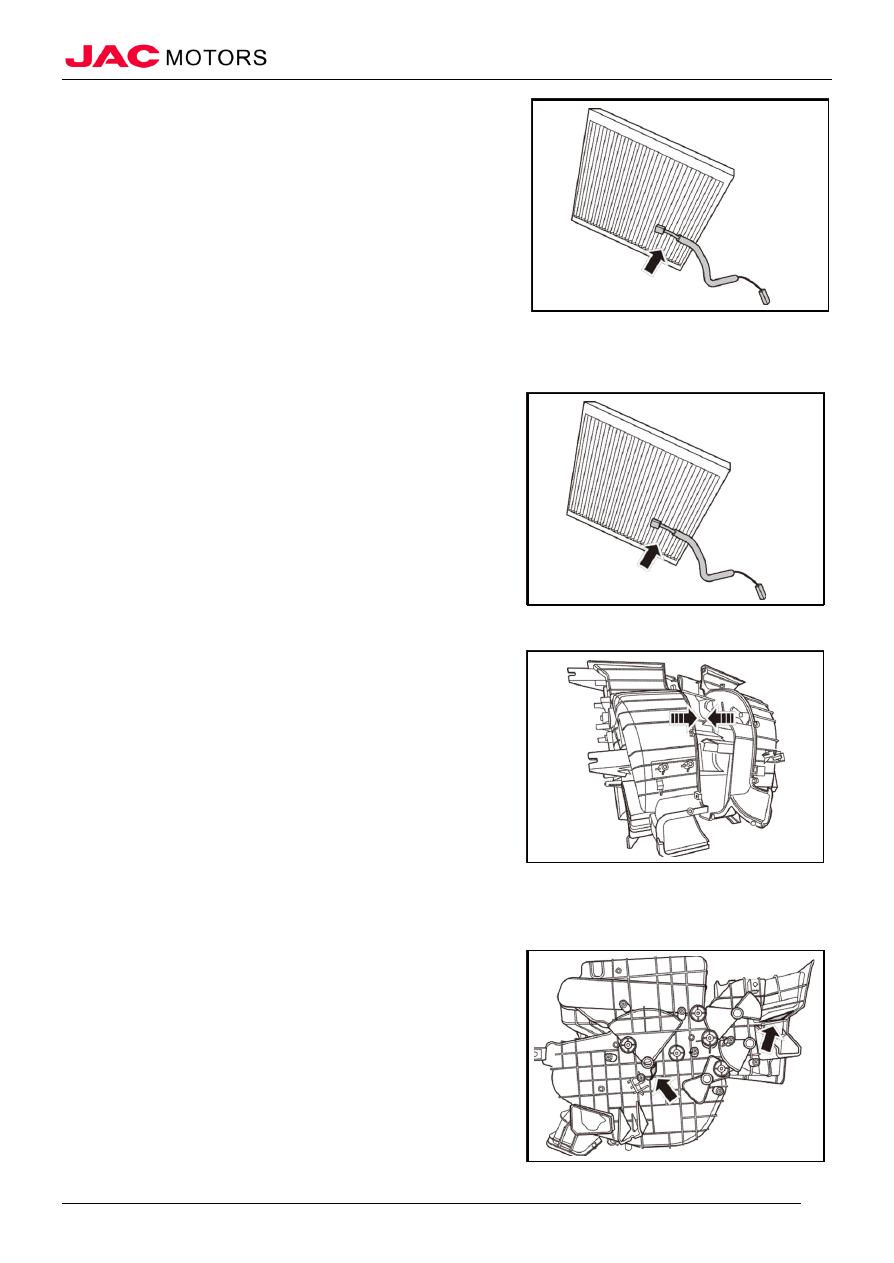

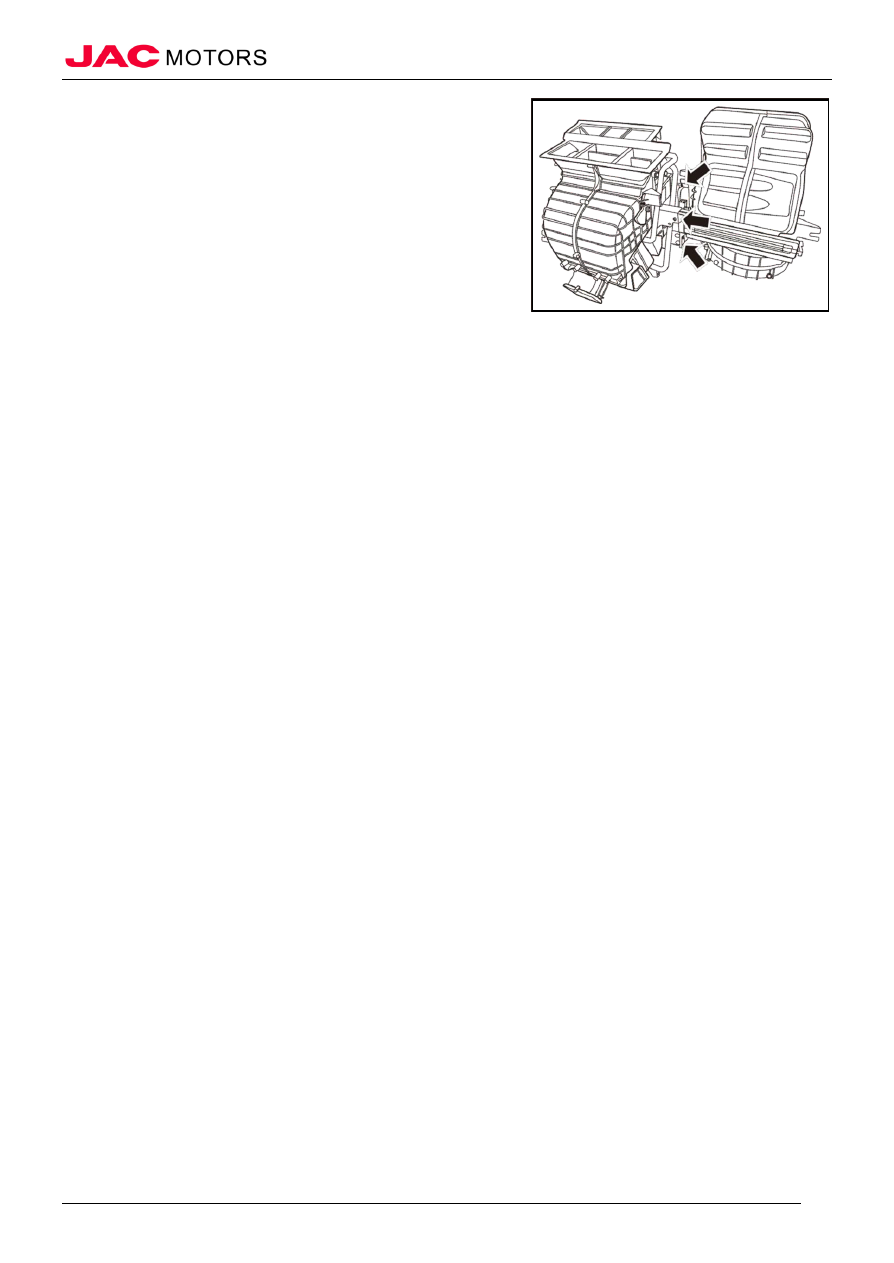

6). Pull out temperature sensor bulb;
















(II)Installation



1. Install evaporator core assembly

1). Place evaporator core assembly to installation position, and install temperature sensor bulb;


















2). Install air duct assembly, and install left and right housing;




















3). Install 15 fixed bolts of left and right housing;

△ Caution  Two bolts shown in the figure is hidden, please don’t leave out!



















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      60











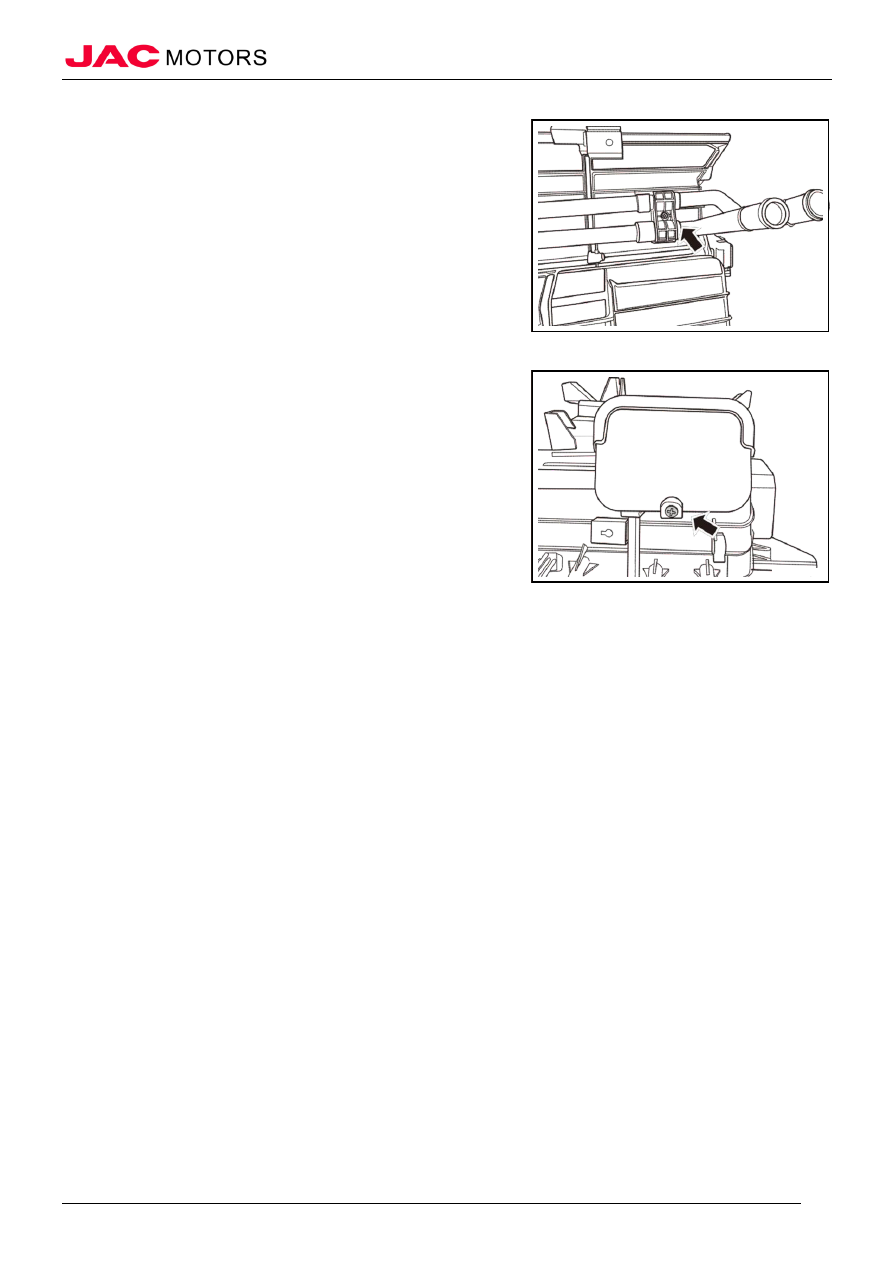

4). Install water pipe clamp, and tighten fixed bolt of heater water pipe clamp;

















5). Install air duct guard plate, tighten fixed bolt of air duct guard plate;

6). Install air duct connecting rod;













2. Install temperature motor assembly

3. Install mode motor

4. Install A/C host assembly

5. Install dashboard beam

6. Install main wiring harness assembly

7. Install ventilation cover plate assembly

8. Install front wiper arm assembly

9. Install dashboard assembly

10. Install front passenger’s side air bag

11. Install central cover assembly

12. Install lower guard plate assembly of driver’s side

13. Install combination meter

14. Install central left trim plate assembly

15. Install audio assembly

16. Install audio panel assembly

17. Install A/C controller assembly

18. Install glove box assembly

19. Install central right trim plate assembly

20. Install end cover of dashboard

21. Install upper trim plate assembly of A column

22. Install lower trim plate assembly of A column

23. Install threshold guard plate assembly of front door

24. Install combination switch assembly

25. Install jacketing of steering column

26. Install steering wheel assembly

27. Install driver’s side air bag assembly

28. Install auxiliary dashboard assembly

29. Install front storage box assembly

30. Install saucer cover plate assembly

31. Install front extension plate

32. Fill refrigerant, refrigeration oil

33. Connect negative electrode of battery

34. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      61













XVIII、Condenser



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Recycle refrigerant, refrigeration oil    Refer to “Refrigerant, refrigeration oil”

4. Discharge engine coolant    Refer to “Replacement of engine coolant”

5. Remove upper cover plate of front bumper    Refer to “Upper cover plate of front bumper”

6. Remove front bumper assembly    Refer to “Front bumper”

7. Remove ventilation hose of radiator    Refer to “Ventilation hose of radiator”

8. Remove left front hood of engine    Refer to “Left front hood of engine”

9. Remove right front hood of engine    Refer to “Right front hood of engine”

10. Remove radiator fan assembly    Refer to “radiator fan assembly”

11. Remove radiator assembly    Refer to “Radiator assembly”

12. Remove condenser

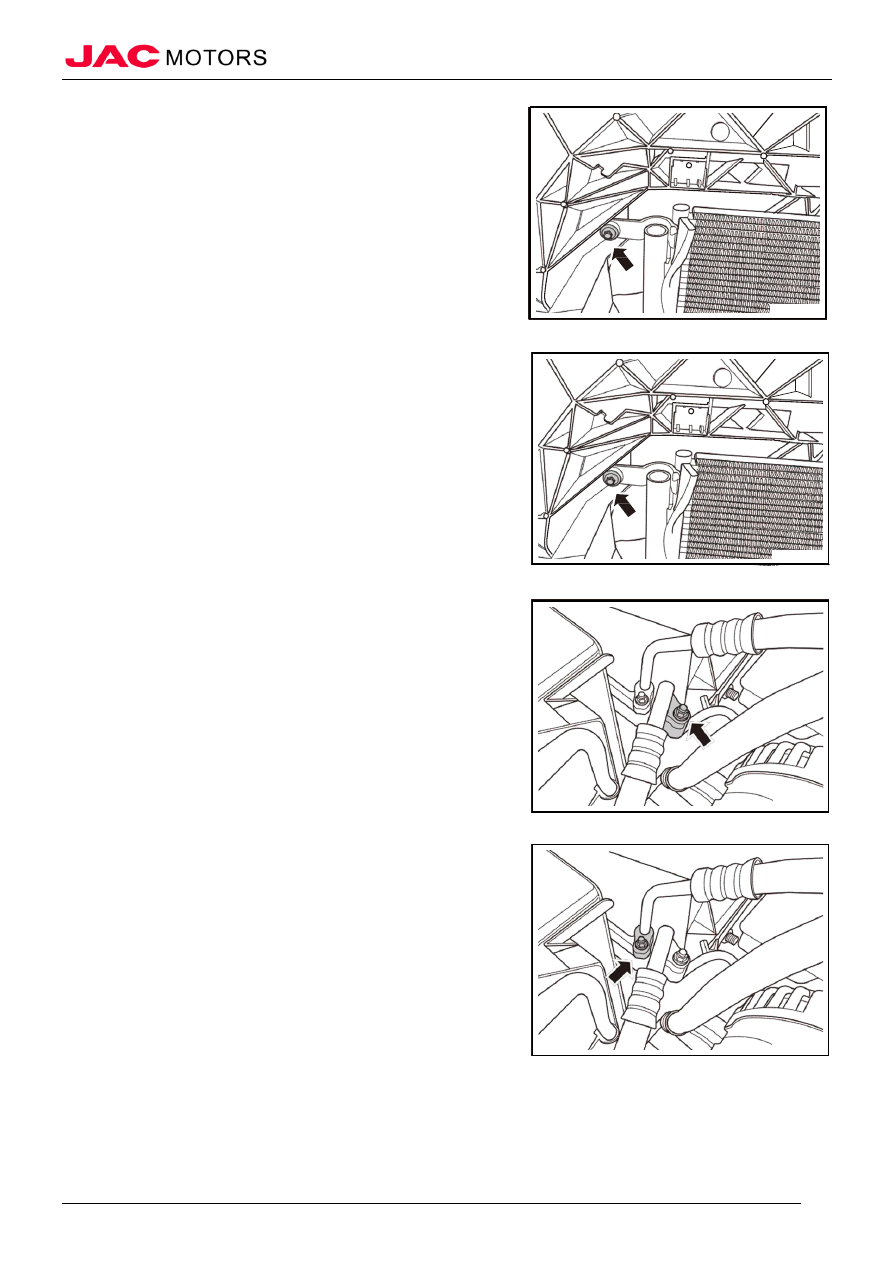

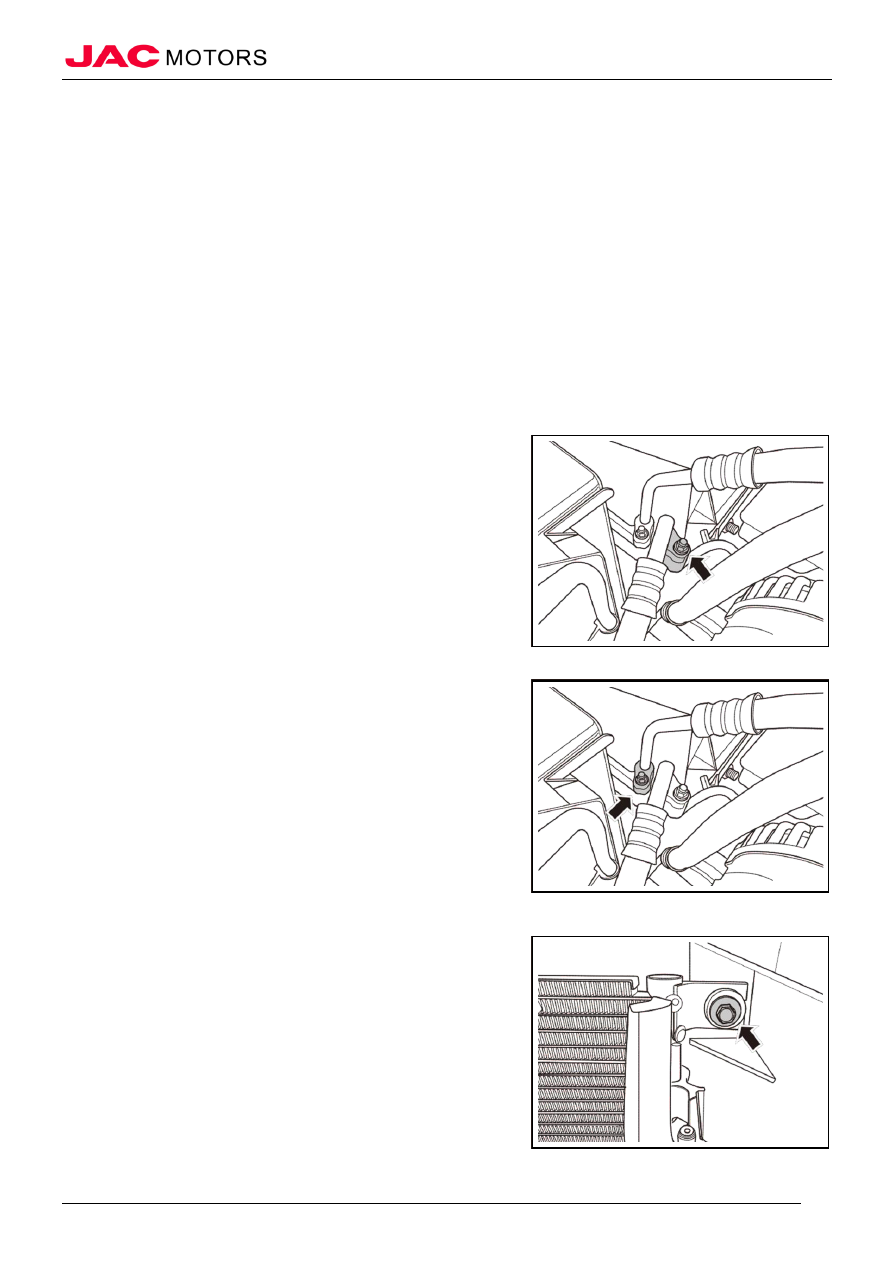

1). Remove fixed nut of exhausting pipe assembly and condenser assembly;



















2). Remove fixed nut of pipe and expansion valve assembly and condenser assembly;





















3). Remove fixed bolt of right side of condenser and front module;





















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      62



























4). Remove fixed bolt of left side of condenser and front module;

5). Take out condenser assembly;











(II)Installation

1. Install condenser

1). Place condenser assembly to installation position, and tighten left and right installation bolt of condenser;



















2). Tighten fixed nut of exhausting pipe assembly and condenser assembly;



















3). Tighten fixed nut of pipe and expansion valve assembly and condenser assembly;





2. Install radiator assembly

3. Install radiator fan assembly

4. Install engine left front hood

5. Install engine right front hood

6. Install ventilation hose of radiator

7. Install front bumper assembly

8. Install upper cover plate of front bumper

9. Fill engine coolant

10. Fill refrigerant, refrigeration oil

11. Connect negative electrode of battery

12. Close engine hood cover



-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      63

















XIX、Air Filter



(I)Removal



1. Remove glove box assembly    Refer to “Glove box assembly”
2. Remove air filter

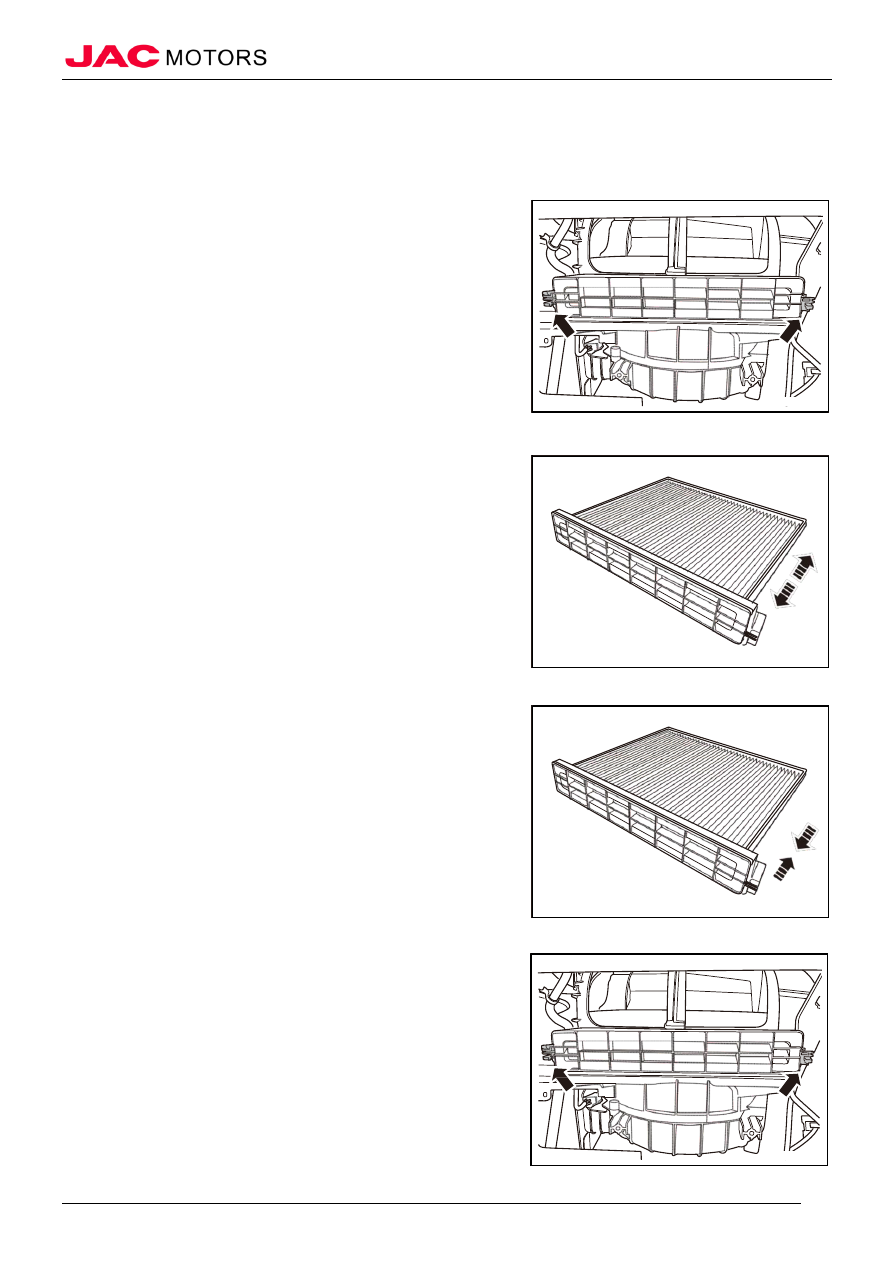

1). Remove buckles of air filter cover, and remove air filter cover;














2). Take air filter out from air filter cover;














(II)Installation



1. Install air filter
1). Install air filter into air filter cover;














2). Install air filter cover;








2. Install glove box assembly






-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      64





XX、Compressor Assembly



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery electrode”

3. Recycle refrigerant, refrigeration oil    Refer to “Refrigerant, refrigeration oil”

4. Remove engine right front hood cover    Refer to “Engine front hood cover”

5. Remove generator belt    Refer to “Generator belt”
6. Remove compressor assembly

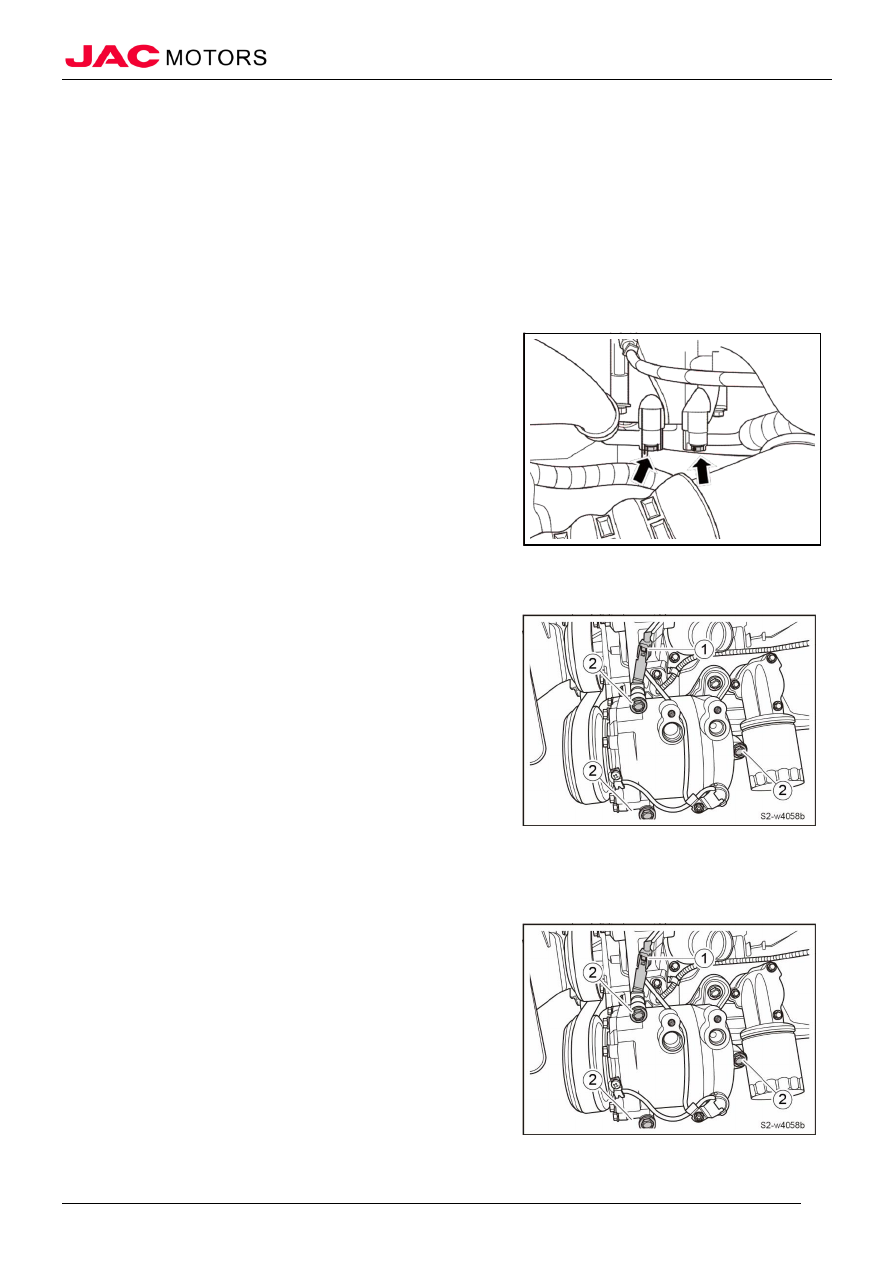

1). Remove fixed bolt connected compressor and pipe and expansion valve assembly;

2). Remove fixed bolt connected compressor and exhausting pipe assembly;




















3). Disconnect wiring harness connector  ①  of compressor assembly;

4). Remove compressor assembly and 3 fixed bolts  ②, and

take down compressor assembly;
















(II)Installation



1. Install compressor assembly
1). Place compressor assembly to installation position, and

tighten 3 fixed bolts  ②;

2). Connect wiring harness connector  ①  of compressor

assembly;













-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      65

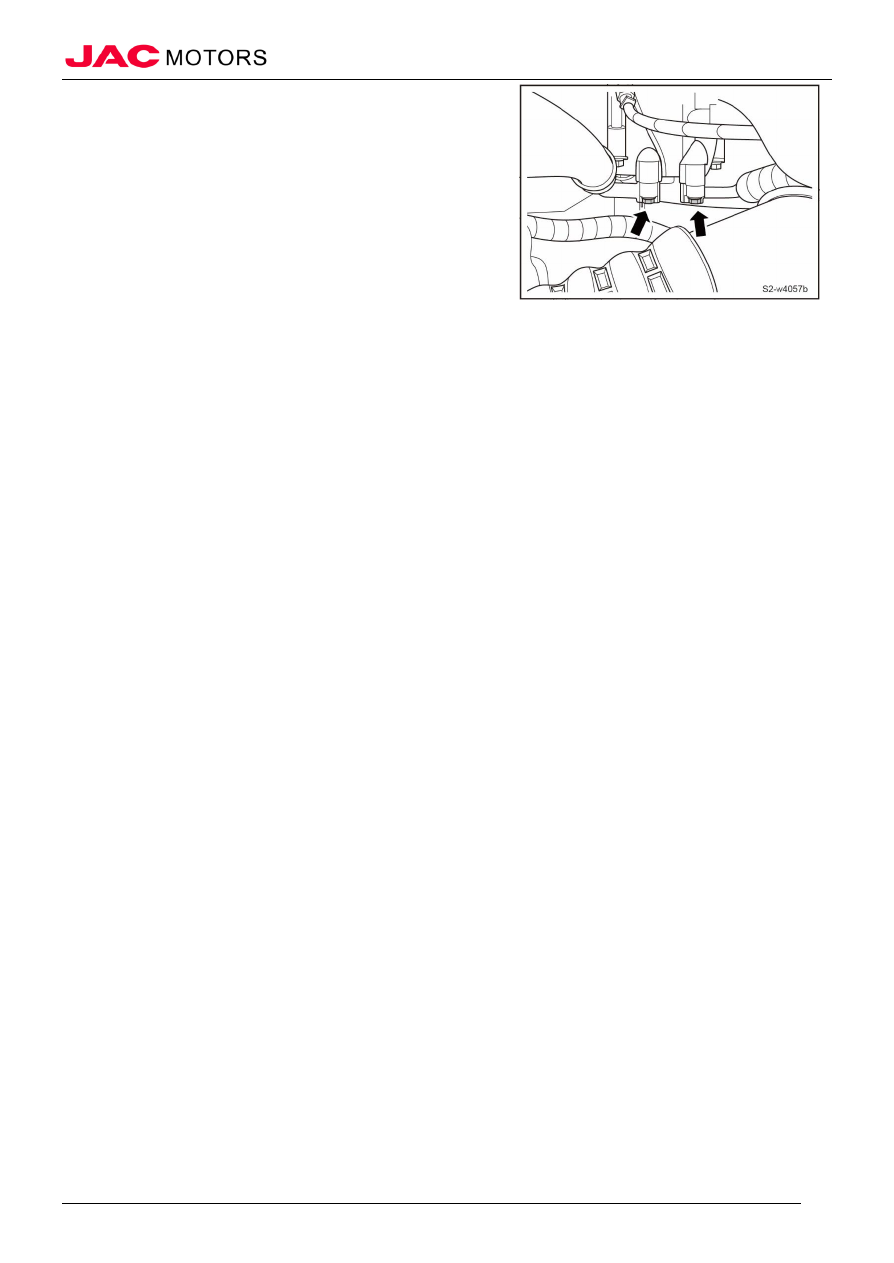

3). Install fixed bolt connected compressor and pipe and
expansion valve assembly;
4). Install fixed bolt connected compressor and exhausting pipe
assembly;















2. Install generator belt
3. Install right front hood cover of engine
4. Fill refrigerant, refrigeration oil
5. Connect negative electrode of battery
6. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      66









XXI、Compressor Bracket



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery electrode”

3. Recycle refrigerant, refrigeration oil    Refer to “Refrigerant, refrigeration oil”

4. Remove engine right front hood cover    Refer to “Engine front hood cover”

5. Remove generator belt    Refer to “Generator belt”
6. Remove compressor assembly

7. Remove compressor bracket

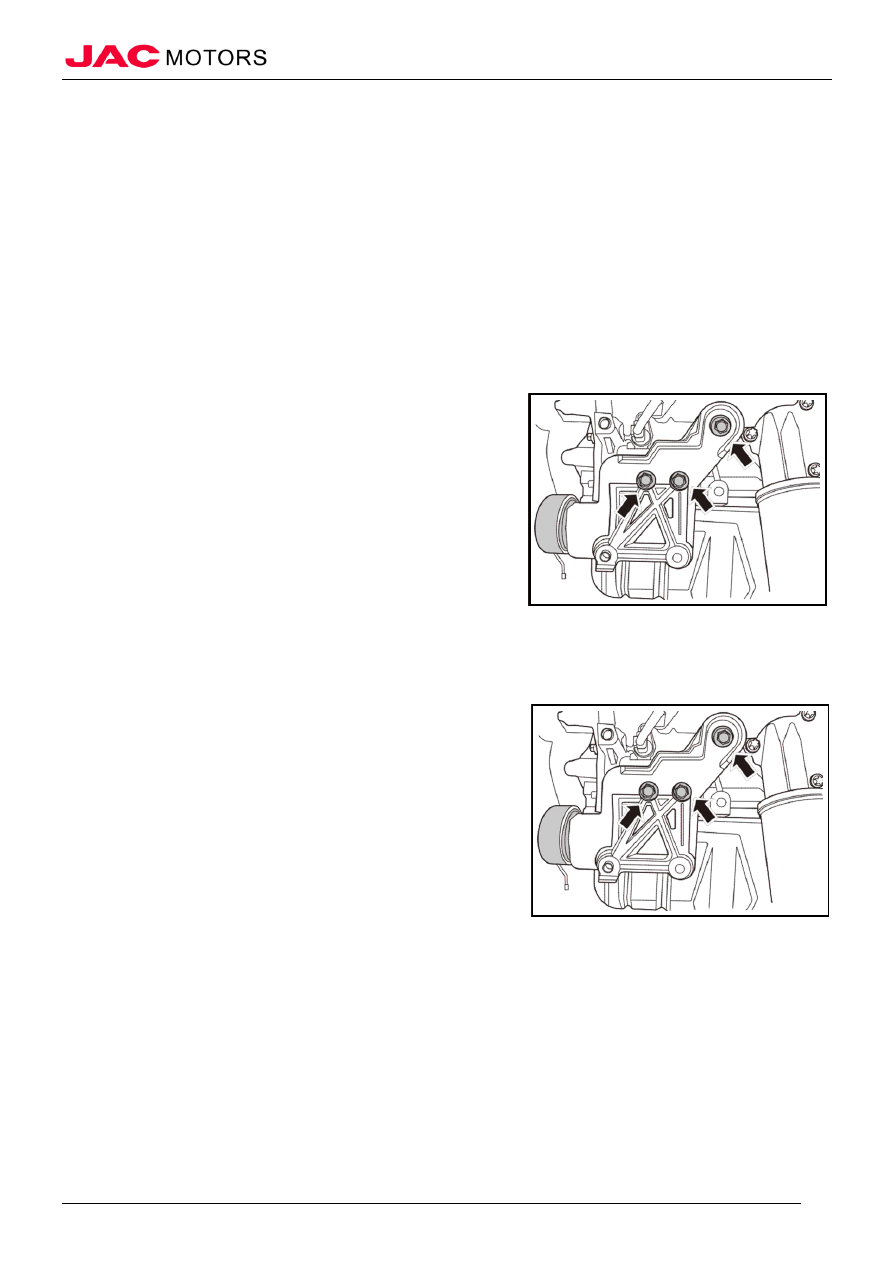

1). Remove 3 fixed bolts of compressor bracket and

engine, and take down compressor bracket and idler

pulley;

2). Remove fixed bolt, and separate compressor bracket and idler pulley;

















(II)Installation



1. Install compressor bracket

1). Place compressor bracket to installation position, and tighten 3 fixed bolts;

2). Install idler pulley, and tighten fixed bolt;















2. Install compressor assembly

3. Install generator belt

4. Install right front hood cover of engine

5. Fill refrigerant, refrigeration oil

6. Connect negative electrode of battery

7. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      67





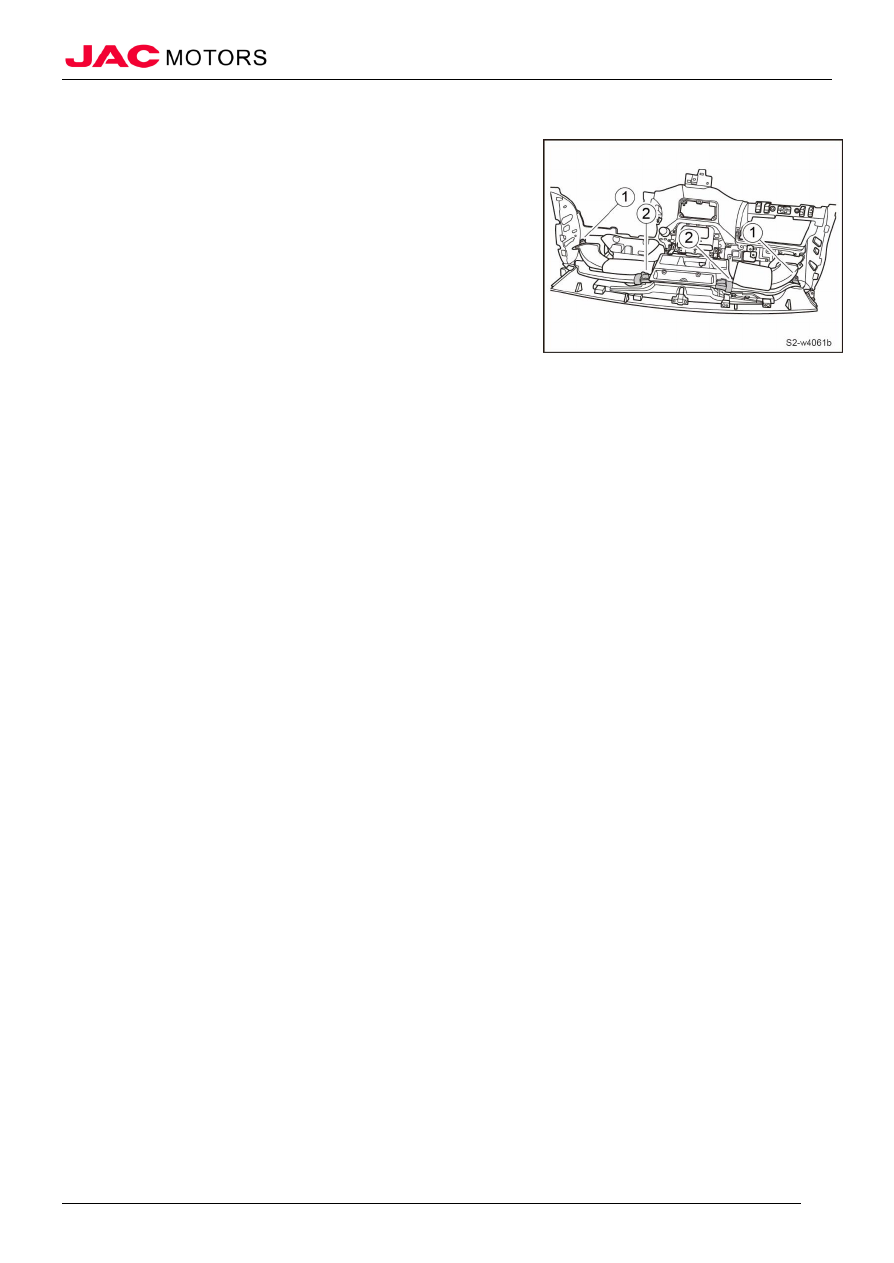

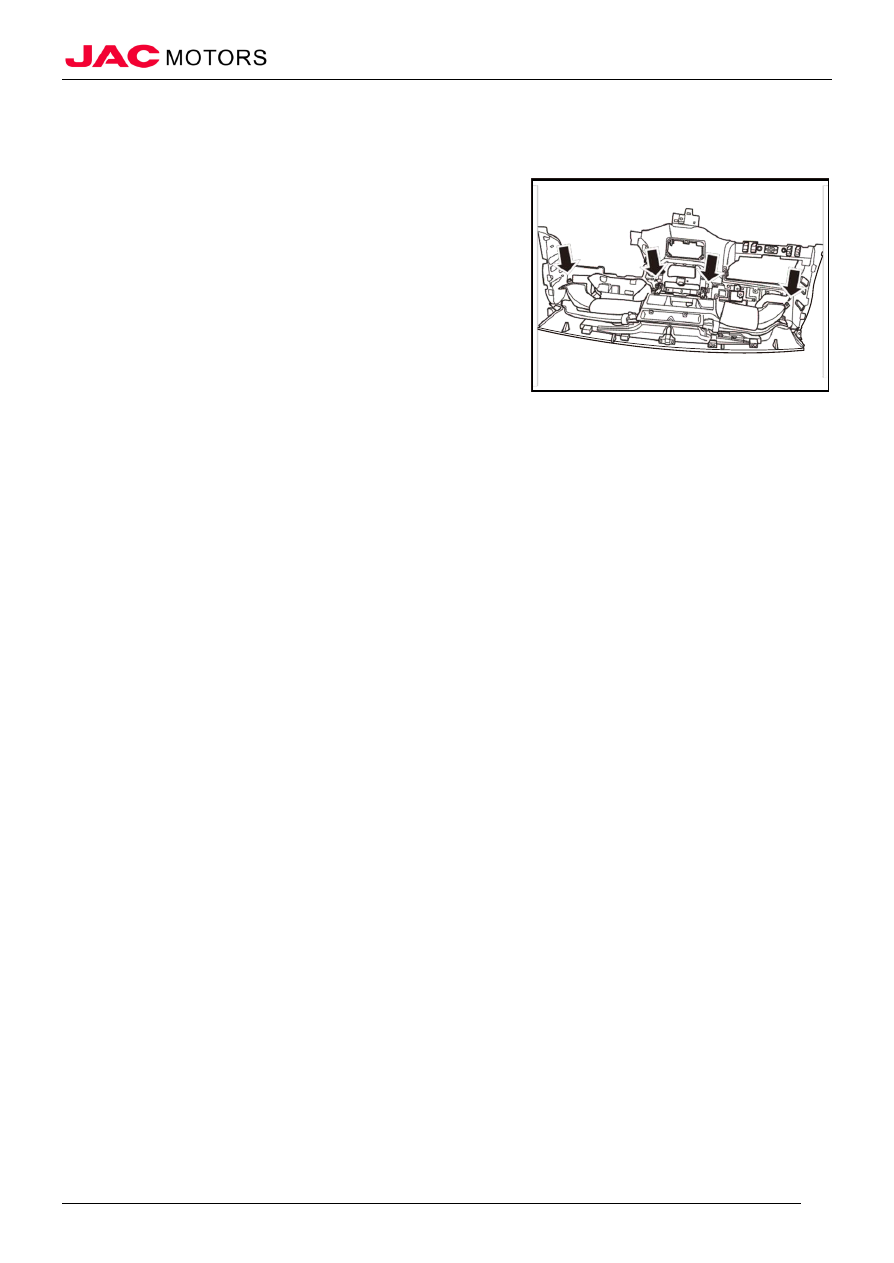

XXII、Blowing Face Air Duct Assembly



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Remove front extension plate    Refer to “Auxiliary dashboard assembly”

4. Remove saucer cover plate assembly    Refer to “Auxiliary dashboard assembly”

5. Remove front storage box assembly    Refer to “Auxiliary dashboard assembly”

6. Remove auxiliary dashboard assembly    Refer to “Auxiliary dashboard assembly”

7. Remove driver’s side air bag assembly    Refer to “Driver’s side air bag assembly”

8. Remove steering wheel assembly    Refer to “Steering wheel assembly”

9. Remove jacketing of steering column    Refer to “Jacketing of steering column”

10. Remove combination switch assembly    Refer to “Combination switch”

11. Remove threshold guard plate assembly of front door    Refer to “Threshold guard plate assembly of front door”

12. Remove lower trim plate assembly of A column    Refer to “Lower trim plate assembly of A column”

13. Remove upper trim plate assembly of A column    Refer to “Upper trim plate assembly of A column”

14. Remove end cover of dashboard    Refer to “End cover of dashboard”

15. Remove central right trim plate assembly    Refer to “Central right trim plate assembly”

16. Remove glove box assembly    Refer to “Glove box assembly”

17. Remove A/C controller assembly    Refer to “A/C controller assembly”

18. Remove audio panel assembly    Refer to “Audio panel assembly”

19. Remove audio assembly    Refer to “Audio assembly”

20. Remove central left trim plate assembly    Refer to “Central left trim plate assembly”

21. Remove combination meter    Refer to “Combination meter”

22. Remove lower guard plate assembly of driver’s side    Refer to “lower guard plate assembly of driver’s side”

23. Remove central cover assembly    Refer to “Central cover assembly”

24. Remove front passenger’s side air bag    Refer to “front passenger’s side air bag”

25. Remove dashboard assembly    Refer to “Dashboard assembly”

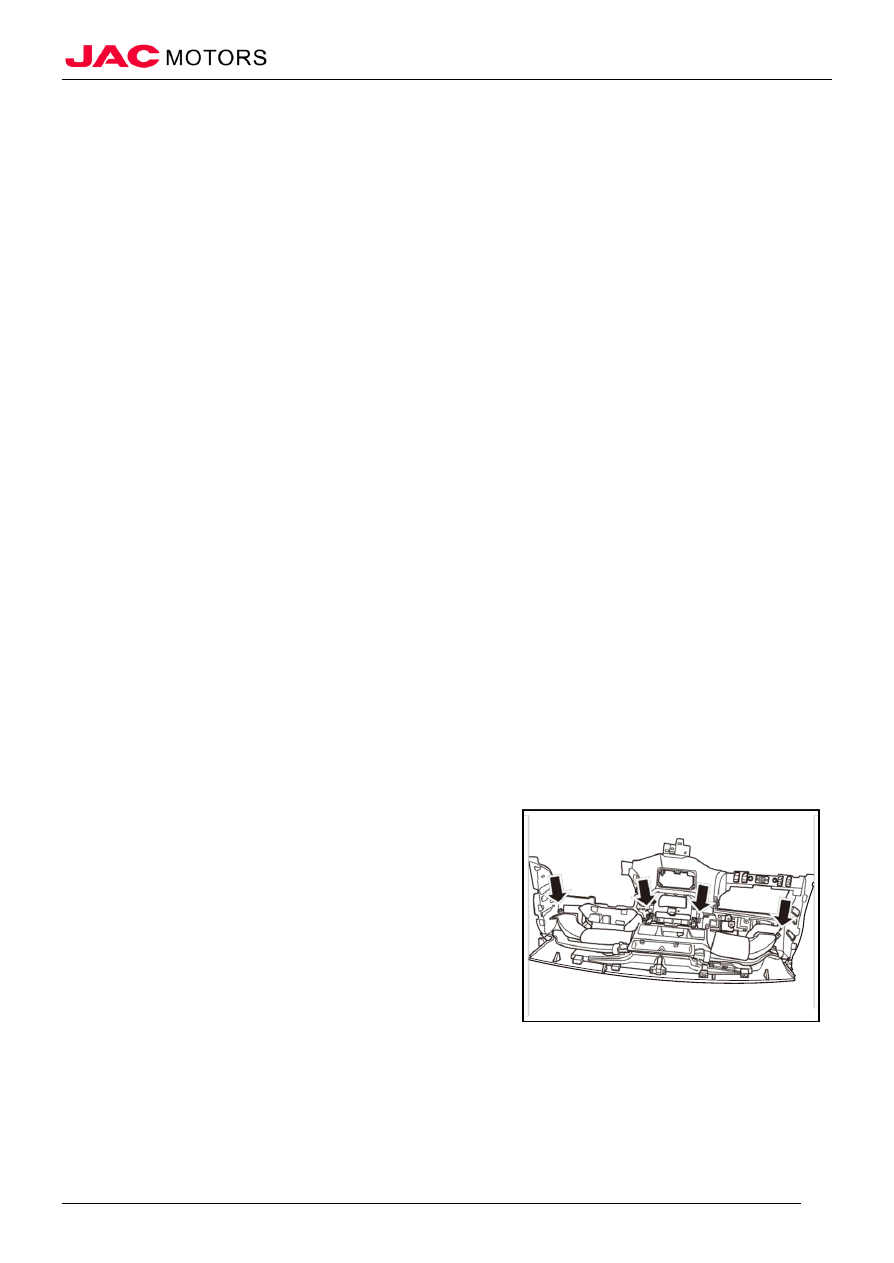

26. Remove blowing face air duct assembly

1). Remove 4 fixed bolts of blowing face air duct

assembly and dashboard;

2). Take down blowing face air duct assembly;

















-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      68





(II)Installation


1. Install blowing facing air duct assembly



1). Place blowing face air duct assembly to installation position, and tighten 4 fixed bolts;
















2. Install dashboard assembly

3. Install front passenger’s side air bag

4. Install central cover assembly

5. Install lower guard plate assembly of driver’s side

6. Install combination meter

7. Install central left trim plate assembly

8. Install audio assembly

9. Install audio panel assembly

10. Install A/C controller assembly

11. Install glove box assembly

12. Install central right trim plate assembly

13. Install end cover of dashboard

14. Install upper trim plate assembly of A column

15. Install lower trim plate assembly of A column

16. Install threshold guard plate assembly of front door

17. Install combination switch assembly

18. Install jacketing of steering column

19. Install steering wheel assembly

20. Install driver’s side air bag assembly

21. Install auxiliary dashboard assembly

22. Install front storage box assembly

23. Install saucer cover plate assembly

24. Install front extension plate

25. Connect negative electrode of battery

26. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      69



XXIII、Defrost Air Pipe Assembly of Left/Right Side



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Remove front extension plate    Refer to “Auxiliary dashboard assembly”

4. Remove saucer cover plate assembly    Refer to “Auxiliary dashboard assembly”

5. Remove front storage box assembly    Refer to “Auxiliary dashboard assembly”

6. Remove auxiliary dashboard assembly    Refer to “Auxiliary dashboard assembly”

7. Remove driver’s side air bag assembly    Refer to “Driver’s side air bag assembly”

8. Remove steering wheel assembly    Refer to “Steering wheel assembly”

9. Remove jacketing of steering column    Refer to “Jacketing of steering column”

10. Remove combination switch assembly    Refer to “Combination switch”

11. Remove threshold guard plate assembly of front door    Refer to “Threshold guard plate assembly of front door”

12. Remove lower trim plate assembly of A column    Refer to “Lower trim plate assembly of A column”

13. Remove upper trim plate assembly of A column    Refer to “Upper trim plate assembly of A column”

14. Remove end cover of dashboard    Refer to “End cover of dashboard”

15. Remove central right trim plate assembly    Refer to “Central right trim plate assembly”

16. Remove glove box assembly    Refer to “Glove box assembly”

17. Remove A/C controller assembly    Refer to “A/C controller assembly”

18. Remove audio panel assembly    Refer to “Audio panel assembly”

19. Remove audio assembly    Refer to “Audio assembly”

20. Remove central left trim plate assembly    Refer to “Central left trim plate assembly”

21. Remove combination meter    Refer to “Combination meter”

22. Remove lower guard plate assembly of driver’s side    Refer to “lower guard plate assembly of driver’s side”

23. Remove central cover assembly    Refer to “Central cover assembly”

24. Remove front passenger’s side air bag    Refer to “front passenger’s side air bag”

25. Remove dashboard assembly    Refer to “Dashboard assembly”

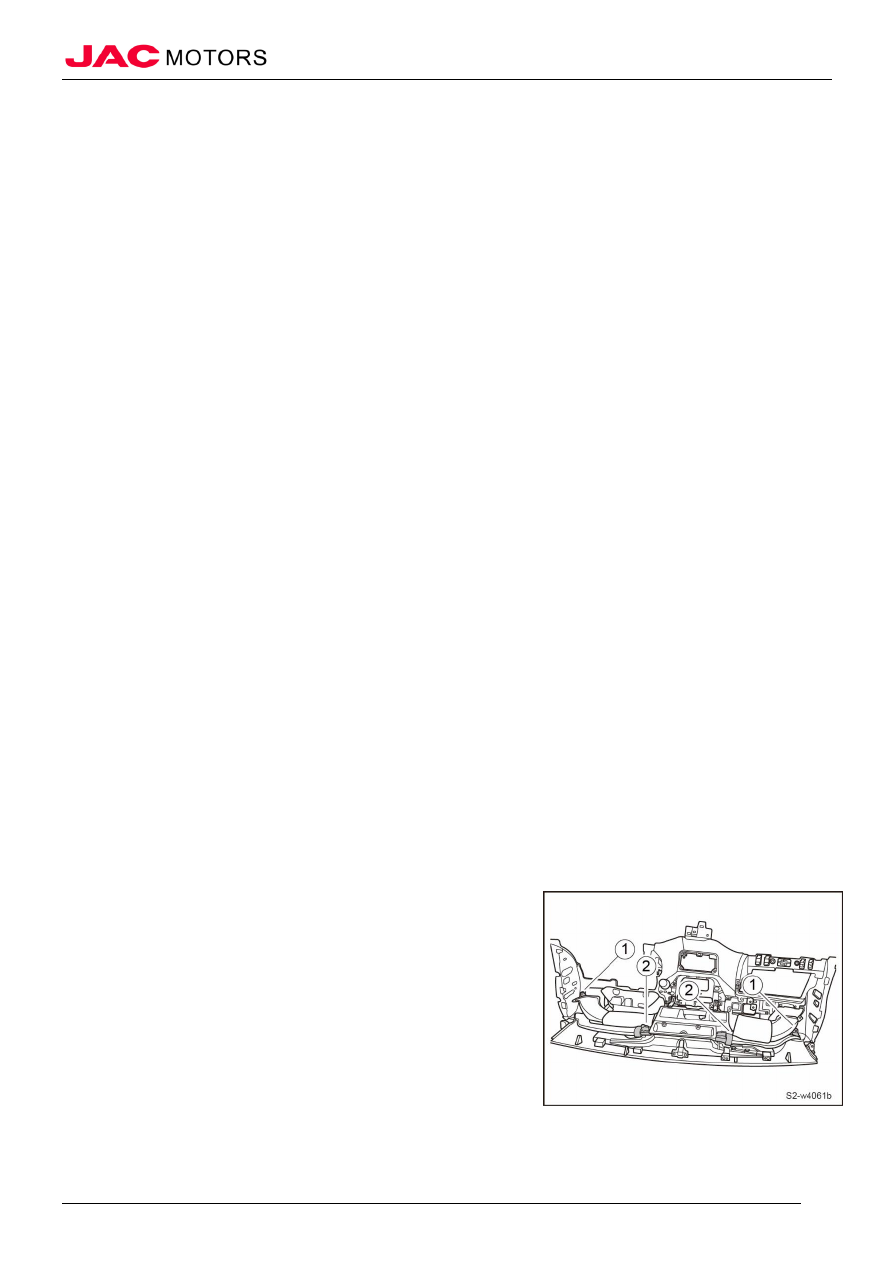

26. Remove defrost air pipe assembly of left/right side

1). Remove fixed bolt  ①  of defrost air pipe assembly of left/right side and dashboard;

2). Disconnect connection  ②  of defrost air pipe assembly of left/right side and front defrost air pipe assembly;

3). Take down defrost air pipe assembly of left/right side;




























-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      70

(II)Installation



1.

Install defrost air pipe assembly of left/right side

1). Connect defrost air pipe assembly of left/right side and front defrost
air pipe assembly  ②;

2). Connect fixed bolt  ①  of defrost air pipe assembly of left/right side

and dashboard;

















2. Install dashboard assembly

3. Install front passenger’s side air bag

4. Install central cover assembly

5. Install lower guard plate assembly of driver’s side

6. Install combination meter

7. Install central left trim plate assembly

8. Install audio assembly

9. Install audio panel assembly

10. Install A/C controller assembly

11. Install glove box assembly

12. Install central right trim plate assembly

13. Install end cover of dashboard

14. Install upper trim plate assembly of A column

15. Install lower trim plate assembly of A column

16. Install threshold guard plate assembly of front door

17. Install combination switch assembly

18. Install jacketing of steering column

19. Install steering wheel assembly

20. Install driver’s side air bag assembly

21. Install auxiliary dashboard assembly

22. Install front storage box assembly

23. Install saucer cover plate assembly

24. Install front extension plate

25. Connect negative electrode of battery

26. Close engine hood cover





-------------------------------------------------------------------------------------------------------------------------------------------------------------

                                                                                  Air-conditioning Device

Air-conditioning Device































      71





XXIV、Front Defrost Air Pipe Assembly



(I)Removal



1. Open engine hood cover

2. Disconnect negative electrode of battery    Refer to “Disconnection and connection of battery cable”

3. Remove front extension plate    Refer to “Auxiliary dashboard assembly”

4. Remove saucer cover plate assembly    Refer to “Auxiliary dashboard assembly”

5. Remove front storage box assembly    Refer to “Auxiliary dashboard assembly”

6. Remove auxiliary dashboard assembly    Refer to “Auxiliary dashboard assembly”

7. Remove driver’s side air bag assembly    Refer to “Driver’s side air bag assembly”

8. Remove steering wheel assembly    Refer to “Steering wheel assembly”

9. Remove jacketing of steering column    Refer to “Jacketing of steering column”

10. Remove combination switch assembly    Refer to “Combination switch”

11. Remove threshold guard plate assembly of front door    Refer to “Threshold guard plate assembly of front door”

12. Remove lower trim plate assembly of A column    Refer to “Lower trim plate assembly of A column”

13. Remove upper trim plate assembly of A column    Refer to “Upper trim plate assembly of A column”

14. Remove end cover of dashboard    Refer to “End cover of dashboard”

15. Remove central right trim plate assembly    Refer to “Central right trim plate assembly”

16. Remove glove box assembly    Refer to “Glove box assembly”

17. Remove A/C controller assembly    Refer to “A/C controller assembly”

18. Remove audio panel assembly    Refer to “Audio panel assembly”

19. Remove audio assembly    Refer to “Audio assembly”

20. Remove central left trim plate assembly    Refer to “Central left trim plate assembly”

21. Remove combination meter    Refer to “Combination meter”

22. Remove lower guard plate assembly of driver’s side    Refer to “lower guard plate assembly of driver’s side”

23. Remove central cover assembly    Refer to “Central cover assembly”

24. Remove front passenger’s side air bag    Refer to “front passenger’s side air bag”

25. Remove dashboard assembly    Refer to “Dashboard assembly”

26. Remove defrost air pipe assembly of left/right side    Refer to “Defrost air pipe assembly of left/right side”

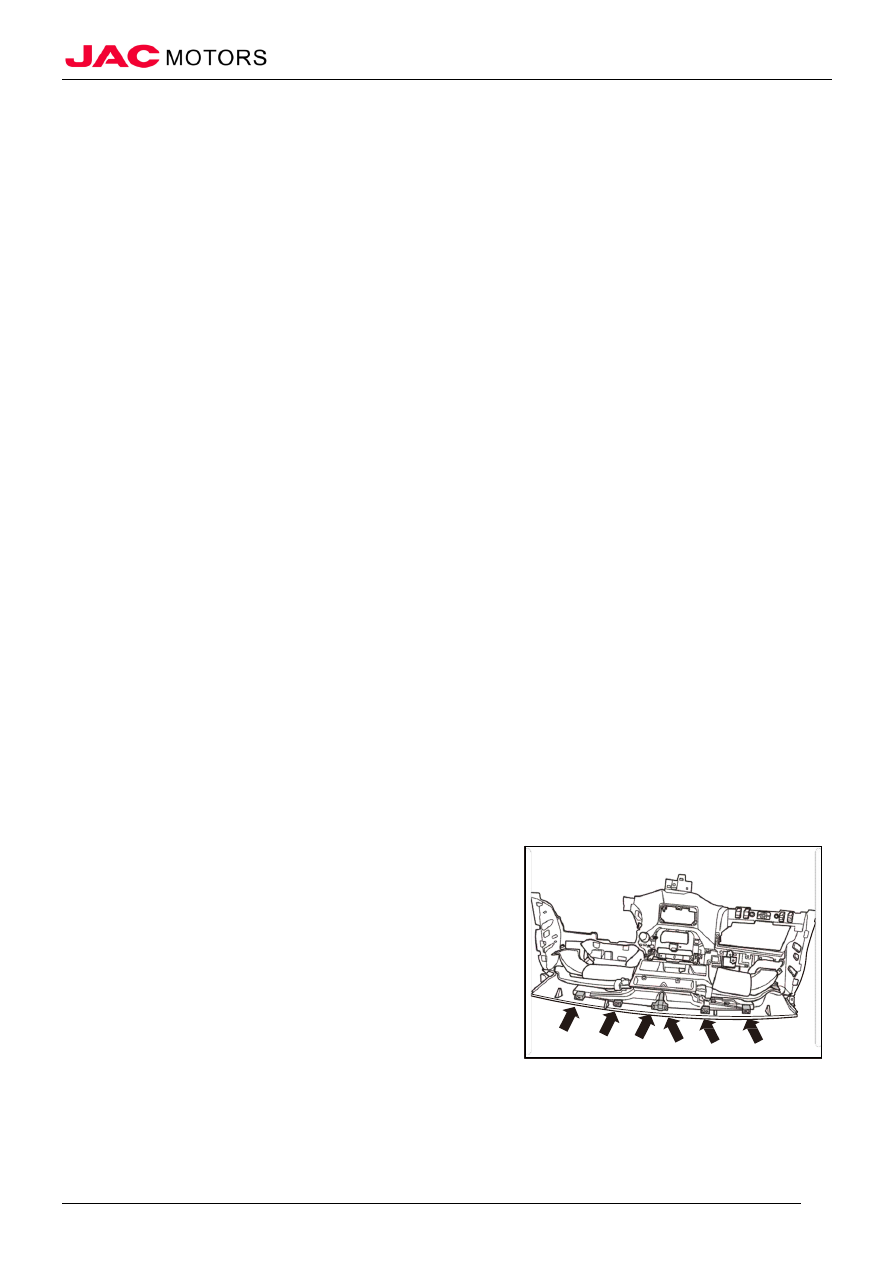

27. Remove front defrost air pipe assembly

1). Remove 6 fixed bolts of front defrost air pipe assembly and dashboard;

2). Take down front defrost air pipe assembly;








-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
