5-118

Starting and driving

*1: The 4LO and 4HI indicator may flash alternately. Stop the vehicle and be sure to turn the 4WD shift switch after the transmission shift
lever has been shifted to the N (Neutral) position. If the indicator keeps flashing after the 4WD shift procedure, drive slowly without abrupt
maneuvers for a while. Then the indicator will illuminate or turn off.
· Avoid making a turn or abrupt starts while shifting to the 4LO position. Otherwise the gears may grind, damaging the drive system.
*2: While changing in and out of the 4LO position, the engine must be running. Otherwise, the shift will not take place and the 4LO indicator
will not be on or flashing.
*3: Make sure that the 4LO indicator turns on when shifting the 4WD shift switch to the 4L position. The Vehicle Dynamic Control (VDC) off
indicator light will also turn on when 4L is selected. (See “Vehicle Dynamic Control (VDC) system” (P.5-135).)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The 4WD shift switch is used to select the
4WD mode depending on the driving condi-
tions. There are 3 types of drive modes
available, AUTO, 4HI and 4LO.
The 4WD shift switch electronically controls
the transfer case operation. Rotate the
switch to move between each mode, AUTO,
4H and 4L.

You must depress the 4WD shift switch to
select 4L, and the vehicle MUST be sta-
tionary and the shift lever in the N (Neutral)
position when changing into or out of 4L.

WARNING

.

When parking, apply the parking
brake before stopping the engine
and make sure that the 4WD shift
indicator is on and the ATP warning
light turns off. Otherwise, the vehicle
could unexpectedly move even if the
automatic transmission is in the P
(Park) position.

.

The 4LO and 4HI indicators must
stop blinking and the 4LO or 4HI
indicator must remain illuminated or
turn off before shifting the transmis-
sion into gear. If the shift lever is
shifted from the N (Neutral) position
to any other gear while the 4LO and
4HI indicators are blinking alter-

nately, the vehicle may move unex-
pectedly.

CAUTION

.

Never shift the 4WD shift switch
between 4L and 4H while driving.

.

The 4HI position provides greater
traction. Avoid excessive speed, as it
will cause increased fuel consumption
and higher oil temperatures, and
could damage drivetrain component.
Speeds over 62 MPH (100 km/h) in
4HI is not recommended.

.

The 4LO position provides maximum
traction. Avoid raising vehicle speed
excessively, as the maximum speed is
approximately 31 MPH (50 km/h).

.

When driving straight, shift the 4WD
shift switch to the AUTO or 4H
position. Do not move the 4WD shift
switch when making a turn or rever-
sing.

.

Do not shift the 4WD shift switch
(between AUTO and 4H) while driv-
ing on steep downhill grades. Use the
engine brake and low automatic
transmission gears for engine brak-
ing.

.

Do not operate the 4WD shift switch
(between AUTO and 4H) with the
rear wheels spinning.

.

Do not drive on dry hard surface
roads in the 4HI or 4LO position.
Driving on dry hard surfaces in 4HI or
4LO may cause unnecessary noise
and tire wear. INFINITI recommends
driving in the AUTO position under
these conditions.

.

The 4WD transfer case may not be
shifted between 4HI and 4LO at low
ambient temperatures and the 4LO
and 4HI indicators may blink even
when the 4WD shift switch is shifted.
After driving for a while you can
change the 4WD shift switch be-
tween 4H and 4L.

When driving on rough roads,

.

Drive carefully according to the road

surface conditions.

When the vehicle is stuck,

.

Place stones or wooden blocks under the

tires to free the vehicle.

.

Set the 4WD shift switch to 4H or 4L.

.

If it is difficult to free the vehicle, repeat

forward and backward movement to
increase the movement.

Starting and driving

5-119

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-120

Starting and driving

.

If the vehicle is stuck deep in mud, tire

chains may be effective.

CAUTION

.

Do not spin the tires excessively.
Tires will sink deep into the mud,
making it difficult to free the vehicle.

.

Avoid shifting gears with the engine
running at high speeds as this may
cause malfunction.

SSD1048

4WD SHIFT SWITCH

.

Shift the 4WD shift switch to either the

AUTO, 4H or 4L position, depending on
driving conditions.

.

With the switch set to the AUTO posi-

tion, distribution of torque to the front
and rear wheels changes automatically,
depending on road conditions encoun-
tered [ratio; 0 : 100 (2WD)

?

50 : 50

(4WD)]. This results in improved driving
stability.

.

When the vehicle is stopped after mak-

ing a turn, you may feel a slight jolt after
the shift lever is shifted to N (Neutral) or
P (Park) position. This occurs because
the transfer clutch is released and not

because of a malfunction.

CAUTION

.

When driving straight, shift the 4WD
shift switch to the AUTO or 4H
position. Do not move the 4WD shift
switch when making a turn or rever-
sing. If the 4WD shift switch is
operated while making a turn, accel-
erating or decelerating or if the
ignition switch is placed in the OFF
position while in the AUTO, 4H or 4L,
you may feel a jolt. This is not a
malfunction.

.

Do not shift the 4WD shift switch
while driving on steep downhill
grades. Use the engine brake and
low automatic transmission gears
for engine braking.

.

Do not operate the 4WD shift switch
with the rear wheels spinning.

.

Before placing the 4WD shift switch
in the 4H position from AUTO,
ensure the vehicle speed is less than
62 MPH (100 km/h). Failure to do so
can damage the 4WD system.

.

Never shift the 4WD shift switch
between 4L and 4H while driving.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

Engine idling speed is high while
warming up the engine. Be especially
careful when starting or driving on
slippery surfaces with the 4WD shift
switch in AUTO.

WAF0362X

4WD shift indicator

4WD SHIFT INDICATOR

The 4WD shift indicator is displayed in the
vehicle information display.
The indicator should turn off within a few
seconds after placing the ignition switch in
the ON position.
While the engine is running, the 4WD shift
indicator will illuminate the position selected
by the 4WD shift switch. (See the 4WD shift
procedure list shown in the “INFINITI all-
mode 4WD

®

system” (P.5-117).)

.

The 4WD shift indicator may blink while

shifting from one drive mode to the
other. When the shifting is completed,
the 4WD shift indicator will come on. If
the indicator does not come on immedi-
ately, make sure the area around the
vehicle is safe, and drive the vehicle
straight, accelerate or decelerate or
move the vehicle in reverse, then shift
the 4WD shift switch.

.

If the 4WD warning light comes on, the

4WD shift indicator turns off.

4WD WARNING LIGHT

Warning light

Comes on or

blinks when:

Illuminates

There is a mal-

function in the

4WD system

Blinks rapidly

The transfer case
oil temperature is

abnormally high

Blinks slowly

The difference in
wheel rotation is

large

The 4WD warning light is located in the
meter.
The 4WD warning light comes on when the
ignition switch is placed in the ON position.
It turns off soon after the engine is started.

Starting and driving

5-121

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-122

Starting and driving

If any malfunction occurs in the 4WD system
when the ignition switch is placed in the ON
position, the 4WD warning light will either
remain illuminated or blink.
If the 4WD warning light comes on, the
4WD shift indicator turns off.
High-temperature transfer case oil makes
the 4WD warning light blink rapidly (about
twice per second). If the warning light blinks
rapidly during operation, stop the vehicle in a
safe place immediately. Then if the light
turns off after a while, you can continue
driving.
A large difference between the diameters of
front and rear wheels will make the 4WD
warning light blink slowly (about once per
two seconds). Change the 4WD shift switch
to AUTO and do not drive fast.

CAUTION

.

If the 4WD warning light comes on or
blinks slowly during operation or
rapidly after stopping the vehicle for
a while, have your vehicle checked as
soon as possible. It is recommended
you visit an INFINITI retailer for this
service.

.

Shifting between 4HI and 4LO is not
recommended when the 4WD warn-

ing light turns on.

.

When the 4WD warning light comes
on, the 2WD mode may be engaged
even if the 4WD shift switch is in
AUTO or 4H. Be especially careful
when driving. If corresponding parts
are malfunctioning, the 4WD mode
will not be engaged even if the 4WD
shift switch is shifted.

.

Do not drive the vehicle in the 4HI or
4LO position on dry hard surface
roads. Driving on dry, hard surfaces
in 4HI or 4LO may cause unnecessary
noise, tire wear and increased fuel
consumption.

If the 4WD warning light turns on
when driving on dry hard surface
roads:

— in the AUTO or 4HI position, shift

the 4WD shift switch to AUTO.

— in the 4LO position, stop the

vehicle and shift the transmission
shift lever to the N (Neutral)
position and shift the 4WD shift
switch to AUTO.

.

If the 4WD warning light is still on
after the above operation, have your
vehicle checked as soon as possible. It
is recommended you visit an INFINITI
retailer for this service.

.

The transfer case may be damaged if
you continue driving with the warn-
ing light blinking.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

.

Never rely solely on the hill start
assist system to prevent the vehicle
from moving backward on a hill.
Always drive carefully and atten-
tively. Depress the brake pedal when
the vehicle is stopped on a steep hill.
Be especially careful when stopped
on a hill on frozen or muddy roads.
Failure to prevent the vehicle from
rolling backwards may result in a loss
of control of the vehicle and possible
serious injury or death.

.

The hill start assist system is not
designed to hold the vehicle at a
standstill on a hill. Depress the brake
pedal when the vehicle is stopped on
a steep hill. Failure to do so may
cause the vehicle to roll backwards
and may result in a collision or serious
personal injury.

.

The hill start assist system may not
prevent the vehicle from rolling back-
wards on a hill under all load or road
conditions. Always be prepared to
depress the brake pedal to prevent
the vehicle from rolling backwards.
Failure to do so may result in a
collision or serious personal injury.

The hill start assist system automatically
keeps the brakes applied to help prevent the
vehicle from rolling backwards in the time it
takes the driver to release the brake pedal
and apply the accelerator when the vehicle is
stopped on a hill.
The hill start assist system will operate
automatically under the following condi-
tions:

.

The transmission is shifted to a forward

or reverse gear.

.

The vehicle is stopped completely on a hill

by applying the brake.

The maximum holding time is 2 seconds.
After 2 seconds the vehicle will begin to roll
back and the hill start assist system will stop
operating completely.
The hill start assist system will not operate
when the transmission is shifted to the N
(Neutral) or P (Park) position or on a flat and
level road.
When the Vehicle Dynamic Control (VDC)
warning light illuminates in the meter, the hill
start assist system will not operate. (See
“Warning lights, indicator lights and audible
reminders” (P.2-11).)

Starting and driving

5-123

HILL START ASSIST SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-124

Starting and driving

SD1006MA

WARNING

.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They
may ignite and cause a fire.

.

Never leave the engine running while
the vehicle is unattended.

.

Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious accidents.

.

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

.

Safe parking procedures require that
both the parking brake be applied
and the transmission be placed in the
P (Park) position. Failure to do so

could cause the vehicle to move
unexpectedly or roll away and result
in an accident.

.

Make sure the automatic transmis-
sion shift lever has been pushed as far
forward as it can go and cannot be
moved without depressing the foot
brake pedal.

1. Firmly apply the parking brake.
2. Move the shift lever to the P (Park)

position.

3. To help prevent the vehicle from rolling

into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.

.

HEADED DOWNHILL WITH CURB:

Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.

.

HEADED UPHILL WITH CURB:

Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.

.

HEADED UPHILL OR DOWNHILL,

NO CURB:

Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if it moves.

PARKING/PARKING ON HILLS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Push the ignition switch to the OFF

position.

SIC4474

The TOW mode should be used when pulling
a heavy trailer or hauling a heavy load.
Driving the vehicle in the TOW mode with
no trailer/load or light trailer/light load will
not cause any damage. However, fuel econ-
omy may be reduced, and the transmission/
engine driving characteristics may feel unu-
sual.

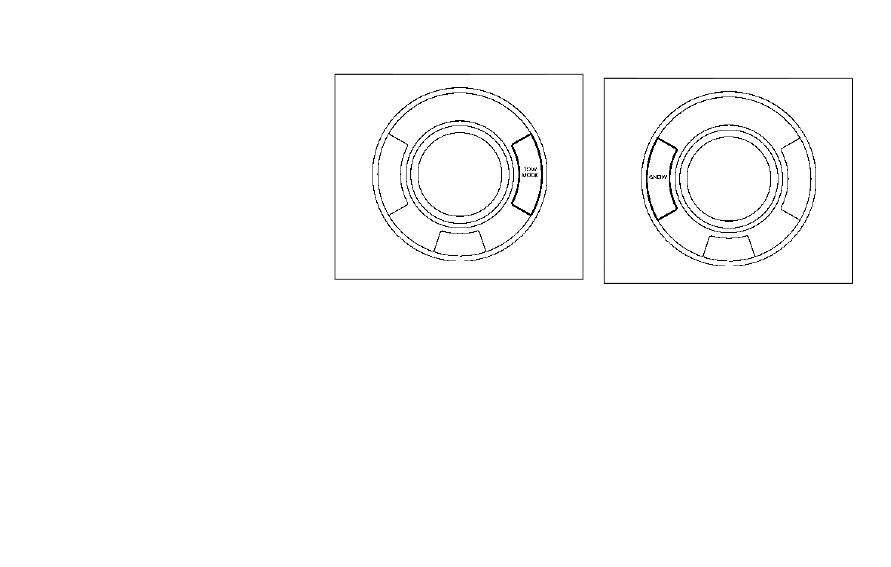

Push the TOW mode switch to activate
TOW mode. The indicator light on the TOW
mode switch illuminates when the TOW
mode is selected. Push the TOW mode
switch again to turn the TOW mode off.
TOW mode is automatically canceled when
the ignition switch is placed in the OFF
position.

SIC4454

For driving or starting the vehicle on snowy
roads or slippery areas, turn the SNOW
mode on.
To turn the SNOW mode on, push the
SNOW mode switch. The SNOW mode
indicator on the vehicle information display
will illuminate. When the SNOW mode is
activated, engine output is controlled to
avoid wheel spin.
To turn the SNOW mode off, push the
switch and the indicator will turn off. Turn
the SNOW mode off for normal driving and
fuel economy.

Starting and driving

5-125

TOW MODE

SNOW MODE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-126

Starting and driving

NOTE:

When the SNOW mode is activated, the
Lane Departure Prevention (LDP), Blind
Spot Intervention (BSI), Distance Control
Assist (DCA), and Intelligent Cruise Control
(ICC) systems will be turned off automati-
cally if the vehicle is equipped with them.

SSD0622

The sonar system sounds a tone to inform
the driver of obstacles near the bumper.
When the sonar system is turned on, the
sonar view will automatically appear in the
touch screen display when the camera is
activated.

WARNING

.

The sonar system is a convenience
but it is not a substitute for proper
parking.

.

The driver is always responsible for
safety during parking and other

maneuvers. Always look around and
check that it is safe to do so before
parking.

.

Read and understand the limitations
of the sonar system as contained in
this section. The colors of the sonar
indicator indicates different dis-
tances to the object.

.

Inclement weather or ultrasonic
sources such as an automatic car
wash, a truck’s compressed-air
brakes or a pneumatic drill may affect
the function of the system; this may
include reduced performance or a
false activation.

FRONT AND REAR SONAR SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

The sonar system is designed as an
aid to the driver in detecting large
stationary objects to help avoid da-
maging the vehicle.

.

The sonar system is not designed to
prevent contact with small or moving
objects. Always move slowly. The
system will not detect small objects
below the bumper, and may not
detect objects close to the bumper
or on the ground.

.

The sonar system may not detect the
following objects: fluffy objects such
as snow, cloth, cotton, glass-wool,
etc.; thin objects such as rope, wire
and chain, etc.; or wedge-shaped
objects.

.

The front and rear sonar sensors
detect the distance between the
vehicle and the obstacle by detecting
the sound wave reflected from the
surface of an obstacle. When there is
a sound such as horn, or an ultrasonic
source (such as sonar of other vehi-
cles) around the vehicle, the sonar
sensors may not detect objects prop-
erly.

If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or bent,
the sensing zone may be altered causing

inaccurate measurement of obstacles or
false alarms.

CAUTION

.

Excessive noise (such as audio system
volume or an open vehicle window)
will interfere with the tone and it may
not be heard.

.

Keep the sonar sensors (located on
the bumper fascia) free from snow,
ice and large accumulations of dirt.
Do not clean the sonar sensors with
sharp objects. If the sensors are
covered, the accuracy of the sonar
function will be diminished.

SYSTEM OPERATION

The system informs with a visual and audible
signal of front obstacles when the shift lever
is in the D (Drive) position and both front and
rear obstacles when the shift lever is in the R
(Reverse) position.

Sonar Operation Table

WAF0775X

The system is deactivated at speeds above 6
MPH (10 km/h). It is reactivated at lower
speeds.
The intermittent tone will stop after 3
seconds when an obstacle is detected by
only the corner sensor and the distance does
not change. The tone will stop when the
obstacle get away from the vehicle.
When the object is detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking increases. When the vehicle is very
close to the object, the indicator stops
blinking and turns red, and the tone sounds

Starting and driving

5-127

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-128

Starting and driving

continuously.

SONAR FUNCTION SETTINGS

The camera aiding sonar function settings
can be changed using the following proce-
dures.
1. Push the MENU button on the INFINITI

controller.

2. Touch the "Settings" key on the touch

screen display.

3. Touch the "Parking Sonar" key.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Available setting items:

Setting item

Action

Parking Sonar

When this item is turned on, the front and rear sonar is activated.
When this item is turned off (indicator turns off), the front and rear sonar is deactivated. The amber markers are displayed at
the corners of the vehicle icon. When the Around View

®

Monitor is activated next time after placing the ignition switch in the

ON position, a gray sonar icon will briefly flash on the touch screen display, indicating that the sonar system is off.

Auto Show Sonar Image

When the sonar detects an object while this item is turned on, the Around View

®

Monitor will interrupt the current view in

the display to show the surround area of the vehicle.

Front Only

When this item is turned on, only the front sonar is activated. The amber markers are displayed at the rear corners of the
vehicle icon.

Distance

Adjust the sensitivity level of the sonar.

Volume

Adjust the tone volume of the sonar.

NOTE:

Do not adjust any of the Parking Sonar settings while the vehicle is moving. Make sure the parking brake is firmly applied.

Starting and driving

5-129

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-130

Starting and driving

WAF0783X

Example

TURNING ON AND OFF THE SO-
NAR FUNCTION

When the “P” key

is touched, the indicator

light

on the key will turn off and the sonar

will turn off temporarily. The Moving Object
Detection (MOD) and the Back-up Collision
Intervention (BCI) systems will also be
turned off at the same time. See “Moving
Object Detection (MOD)” (P.4-22) and
“Back-up Collision Intervention (BCI)” (P.5-
53).
When the “P” key

is touched again, the

indicator light

will turn on and the sonar

will turn back on.

In the cases below, the sonar will be turned
back on automatically:

.

When the shift lever is in the R (Reverse)

position.

.

When the CAMERA button is pushed

and a screen other than the camera view
is shown on the display.

.

When vehicle speed decreases below

approximately 5 MPH (8 km/h).

.

When the ignition switch is placed in the

OFF position and turned back to the ON
position again.

To prevent the sonar system from activating
altogether, use the sonar system settings
menu. See “Sonar system settings” (P.4-19).
When both Sonar and the MOD system are
deactivated from the settings menu, the "P"
key

will disappear from the display. (See

“Sonar system settings” (P.4-19) and “MOD
function settings” (P.4-25).)

WAF0776X

Example

When the corner of the vehicle moves closer
to an object, the corner sonar indicator
appears. When the center of the vehicle
moves close to an object, the center sonar (if
so equipped) indicator

appears.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAF0777X

Example

The system indicators

will appear when

the vehicle moves closer to an object.

SONAR LIMITATIONS

WARNING

Listed below are the system limitations
for the sonar system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

Read and understand the limitations
of the sonar system as contained in
this section. Inclement weather may

affect the function of the sonar
system; this may include reduced
performance or a false activation.

.

The sonar system is deactivated at
speeds above 6 MPH (10 km/h). It is
reactivated at lower speeds.

.

Inclement weather or ultrasonic
sources such as an automatic car
wash, a truck’s compressed-air
brakes or a pneumatic drill may affect
the function of the sonar system; this
may include reduced performance or
a false activation.

.

The sonar system is not designed to
prevent contact with small or moving
objects. Always move slowly. The
system will not detect small objects
below the bumper or on the ground.

.

The sonar system may not detect the
following objects: fluffy objects such
as snow, cloth, cotton, glass-wool,
etc.; thin objects such as rope, wire
and chain, etc.; or wedge-shaped
objects; complex-shaped objects or
multiple objects in close.

.

The sonar system may not detect
objects at speed above 3 MPH (5
km/h) and may not detect certain
angular or moving objects.

.

The sonar system may not operate in
the following conditions:

— When rain, snow, ice, dirt, etc.

adheres to the sonar sensor.

— When a loud sound is heard in the

area around the vehicle.

— When the surface of the obstacle

is diagonal to the front or rear of
the vehicle.

— When a sonar sensor or the area

around the sensor is extremely hot
or cold.

.

The sonar system may unintention-
ally operate in the following condi-
tions:

— When there is overgrown grass in

the area around the vehicle.

— When there are bumps, protru-

sions or manhole covers on the
road surface.

— When the vehicle drives through

a draped flag or a curtain.

— When there is an accumulation of

snow or ice behind the vehicle.

— When driving on a steep hill.

Starting and driving

5-131

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-132

Starting and driving

SYSTEM TEMPORARILY UNA-
VAILABLE

When sonar blockage is detected, the sys-
tem will be deactivated automatically.
The system is not available until the condi-
tions no longer exist.
The sonar sensors may be blocked by
temporary ambient conditions such as
splashing water, mist or fog. The blocked
condition may also be caused by objects
such as ice, frost or dirt obstructing the
sonar sensors.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

SYSTEM MAINTENANCE

The sonar sensors are located on the front
and rear bumpers. (See “Exterior front” (P.0-
3) and “Exterior rear” (P.0-5).)

.

Always keep the area near the sonar

sensors clean.

.

If the sonar sensors are dirty, wipe them

off with a soft cloth while being careful
to not damage them.

.

The sonar sensors may be blocked by

temporary ambient conditions such as
splashing water, mist or fog. The blocked
condition may also be caused by objects

such as ice, frost or dirt obstructing the
sonar sensors. Check for and remove
objects obstructing the area around the
sonar sensors.

.

Do not subject the area around the sonar

sensors to strong impact. Also, do not
remove or disassemble the sonar sen-
sors. If the sonar sensors and peripheral
areas are deformed in an accident, etc.,
have the sonar sensors checked by an
INFINITI retailer.

.

Do not attach stickers (including trans-

parent material), install accessories or
apply additional paint on the sonar
sensors and their surrounding areas. This
may cause a malfunction or improper
operation.

.

When washing the vehicle using a high-

pressure washer, do not apply direct
washer pressure on the sonar sensors.
This may cause a malfunction of the
sonar sensors.

WARNING

If the engine is not running or is turned
off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.

The power assisted steering uses a hydraulic
pump, driven by the engine, to assist steer-
ing.
If the engine stops or the drive belt breaks,
you will still have control of the vehicle.
However, much greater steering effort is
needed, especially in sharp turns and at low
speeds.

POWER STEERING

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BRAKING PRECAUTIONS

The brake system has two separate hydrau-
lic circuits. If one circuit malfunctions, you
will still have braking ability at two wheels.
You may feel a small click and hear a sound
when the brake pedal is fully depressed
slowly. This is not a malfunction and in-
dicates that the brake assist mechanism is
operating properly.

Hydraulically-assisted brakes

The hydraulically-assisted brake system is
designed to use a hydraulic pump driven
electrically, to assist braking. If the engine
stops, you can stop the vehicle by depressing
the foot brake pedal. However, greater foot
pressure on the foot brake pedal will be
required to stop the vehicle. The stopping
distance will be longer.

Wet brakes

When the vehicle is washed or driven
through water, the brakes may get wet. As
a result, your braking distance will be longer
and the vehicle may pull to one side during
braking.
To dry brakes, drive the vehicle at a safe
speed while lightly tapping the brake pedal
to heat-up the brakes. Do this until the
brakes return to normal. Avoid driving the
vehicle at high speeds until the brakes

function correctly.

PARKING BRAKE BREAK-IN

Break in the parking brake shoes whenever
the stopping effect of the parking brake is
weakened or whenever the parking brake
shoes and/or drums/rotors are replaced, in
order to assure the best braking perfor-
mance.
This procedure is described in the vehicle
service manual. It is recommended you visit
an INFINITI retailer for this service.

Using the brakes

Avoid resting your foot on the brake pedal
while driving. This will cause overheating of
the brakes, wearing out the brake and pads
faster and reduce gas mileage.
To help save the brakes and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going
down a slope or long grade. Overheated
brakes may reduce braking performance and
could result in loss of vehicle control.

WARNING

.

While driving on a slippery surface,
be careful when braking, accelerating
or downshifting. Abrupt braking or
accelerating could cause the wheels

to skid and result in an accident.

.

If the engine is not running or is
turned off while driving, the power
assist for the brakes will not work.
Braking will be harder.

Starting and driving

5-133

BRAKE SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-134

Starting and driving

BRAKE ASSIST

When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force
than a conventional brake booster even with
light pedal force.

WARNING

The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the
driver’s responsibility to stay alert, drive
safely and be in control of the vehicle at
all times.

ANTI-LOCK BRAKING SYSTEM
(ABS)

WARNING

.

The Anti-lock Braking System (ABS)
is a sophisticated device, but it
cannot prevent accidents resulting
from careless or dangerous driving
techniques. It can help maintain ve-
hicle control during braking on slip-
pery surfaces. Remember that
stopping distances on slippery sur-

faces will be longer than on normal
surfaces even with ABS. Stopping
distances may also be longer on
rough, gravel or snow covered roads,
or if you are using tire chains. Always
maintain a safe distance from the
vehicle in front of you. Ultimately,
the driver is responsible for safety.

.

Tire type and condition may also
affect braking effectiveness.

— When replacing tires, install the

specified size of tires on all four
wheels.

— When installing a spare tire, make

sure that it is the proper size and
type as specified on the Tire and
Loading Information label. See
“Tire and loading information la-
bel” (P.10-13).

— For detailed information, see

“Wheels and tires” (P.8-27).

The Anti-lock Braking System (ABS) controls
the brakes so the wheels do not lock during
hard braking or when braking on slippery
surfaces. The system detects the rotation
speed at each wheel and varies the brake
fluid pressure to prevent each wheel from
locking and sliding. By preventing each
wheel from locking, the system helps the

driver maintain steering control and helps to
minimize swerving and spinning on slippery
surfaces.

Using the system

Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The
ABS will operate to prevent the wheels from
locking up. Steer the vehicle to avoid
obstacles.

WARNING

Do not pump the brake pedal. Doing so
may result in increased stopping dis-
tances.

Self-test feature

The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic
feature that tests the system each time you
start the engine and move the vehicle at a
low speed in forward or reverse. When the
self-test occurs, you may hear a “clunk”
noise and/or feel a pulsation in the brake
pedal. This is normal and does not indicate a
malfunction. If the computer senses a mal-
function, it switches the ABS off and

BRAKE ASSIST

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

illuminates the ABS warning light on the
instrument panel. The brake system then
operates normally, but without anti-lock
assistance.
If the ABS warning light illuminates during
the self-test or while driving, have the
vehicle checked. It is recommended you visit
an INFINITI retailer for this service.

Normal operation

The ABS operates at speeds above 3 to 6
MPH (5 to 10 km/h). The speed varies
according to road conditions.
When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic pres-
sure. This action is similar to pumping the
brakes very quickly. You may feel a pulsation
in the brake pedal and hear a noise from
under the hood or feel a vibration from the
actuator when it is operating. This is normal
and indicates that the ABS is operating
properly. However, the pulsation may indi-
cate that road conditions are hazardous and
extra care is required while driving.

The Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver inputs
and vehicle motion. Under certain driving
conditions, the VDC system helps to perform
the following functions.

.

Controls brake pressure to reduce wheel

slip on one slipping drive wheel so power
is transferred to a non slipping drive
wheel on the same axle.

.

Controls brake pressure and engine out-

put to reduce drive wheel slip based on
vehicle speed (traction control function).

.

Controls brake pressure at individual

wheels and engine output to help the
driver maintain control of the vehicle in
the following conditions:
— understeer (vehicle tends to not follow

the steered path despite increased
steering input)

— oversteer (vehicle tends to spin due to

certain road or driving conditions).

The VDC system can help the driver to
maintain control of the vehicle, but it cannot
prevent loss of vehicle control in all driving
situations.
When the VDC system operates, the VDC
warning light

in the instrument panel

flashes so note the following:

.

The road may be slippery or the system

may determine some action is required to
help keep the vehicle on the steered path.

.

You may feel a pulsation in the brake

pedal and hear a noise or vibration from
under the hood. This is normal and
indicates that the VDC system is working
properly.

.

Adjust your speed and driving to the road

conditions.

If a malfunction occurs in the system, the
VDC warning light

illuminates in the

instrument panel. The VDC system automa-
tically turns off.
The VDC OFF switch is used to turn off the
VDC system. The VDC off indicator
illuminates to indicate the VDC system is off.
When the VDC switch is used to turn off the
system, the VDC system still operates to
prevent one drive wheel from slipping by
transferring power to a non slipping drive
wheel. The VDC warning light

flashes if

this occurs. All other VDC functions are off,
and the VDC warning light

will not flash.

The VDC system is automatically reset to on
when the ignition switch is placed in the off
position then back to the on position.
When the 4L position is selected with the
4WD shift switch, the VDC system is
disabled and the VDC off indicator light
illuminates (for 4WD models).
See “Vehicle Dynamic Control (VDC) warn-
ing light” (P.2-18) and “Vehicle Dynamic
Control (VDC) off indicator light” (P.2-18).

Starting and driving

5-135

VEHICLE DYNAMIC CONTROL
(VDC) SYSTEM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-136

Starting and driving

The computer has a built-in diagnostic
feature that tests the system each time you
start the engine and move the vehicle
forward or in reverse at a slow speed. When
the self-test occurs, you may hear a “clunk”
noise and/or feel a pulsation in the brake
pedal. This is normal and is not an indication
of a malfunction.

WARNING

.

The VDC system is designed to help
improve driving stability but does not
prevent accidents due to abrupt
steering operation at high speeds or
by careless or dangerous driving
techniques. Reduce vehicle speed
and be especially careful when driving
and cornering on slippery surfaces
and always drive carefully.

.

Do not modify the vehicle’s suspen-
sion. If suspension parts such as
shock absorbers, struts, springs, sta-
bilizer bars, bushings and wheels are
not INFINITI recommended for your
vehicle or are extremely deteriorated,
the VDC system may not operate
properly. This could adversely affect
vehicle handling performance, and
the VDC warning light

may

illuminate.

.

If brake related parts such as brake
pads, rotors and calipers are not
INFINITI recommended or are extre-
mely deteriorated, the VDC system
may not operate properly and the
VDC warning light

may illumi-

nate.

.

If engine control related parts are not
INFINITI recommended or are extre-
mely deteriorated, the VDC warning
light

may illuminate.

.

When driving on extremely inclined
surfaces such as higher banked cor-
ners, the VDC system may not oper-
ate properly and the VDC warning
light

may illuminate. Do not drive

on these types of roads.

.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the VDC warning light

may

illuminate. This is not a malfunction.
Restart the engine after driving onto
a stable surface.

.

If wheels or tires other than the
INFINITI recommended ones are
used, the VDC system may not oper-
ate properly and the VDC warning
light

may illuminate.

.

The VDC system is not a substitute
for winter tires or tire chains on a

snow covered road.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SIC4455

VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH

The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system ON for most
driving conditions.
When the vehicle is stuck in mud or snow,
the VDC system reduces the engine output
to reduce wheel spin. The engine speed will
be reduced even if the accelerator is de-
pressed to the floor. If maximum engine
power is needed to free a stuck vehicle, turn
the VDC system off.
To turn off the Vehicle Dynamic Control
(VDC) system, push the VDC OFF switch.
The VDC off indicator light

will illumi-

nate.
Push the VDC OFF switch again or restart
the engine to turn ON the system.

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
deicer through the key hole. If the lock
becomes frozen, heat the key before insert-
ing it into the key hole or use the Intelligent
Key system.

ANTIFREEZE

In the winter when it is anticipated that the
outside temperature will drop below 32°F
(0°C), check antifreeze to assure proper
winter protection. For additional informa-
tion, see “Engine cooling system” (P.8-4).

BATTERY

If the battery is not fully charged during
extremely cold weather conditions, the bat-
tery fluid may freeze and damage the
battery. To maintain maximum efficiency,
the battery should be checked regularly. For
additional information, see “Battery” (P.8-
11).

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without
antifreeze, drain the cooling system, includ-
ing the engine block. Refill before operating
the vehicle. For details, see “Engine cooling
system” (P.8-4).

Starting and driving

5-137

COLD WEATHER DRIVING

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-138

Starting and driving

TIRE EQUIPMENT

SUMMER tires have a tread designed to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your
vehicle on snowy or icy roads, INFINITI
recommends the use of MUD & SNOW or
ALL SEASON tires on all four wheels. It is
recommended you consult an INFINITI re-
tailer for the tire type, size, speed rating and
availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.

Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow tires.

Tire chains may be used. For details, see
“Tire chains” (P.8-35).

For four-wheel drive

If you install snow tires, they must also be
the same size, brand, construction and tread
pattern on all four wheels.

SPECIAL WINTER EQUIPMENT

It is recommended that the following items
be carried in the vehicle during winter:

.

A scraper and stiff-bristled brush to

remove ice and snow from the windows
and wiper blades.

.

A sturdy, flat board to be placed under

the jack to give it firm support.

.

A shovel to dig the vehicle out of

snowdrifts.

.

Extra window washer fluid to refill the

reservoir tank.

DRIVING ON SNOW OR ICE

WARNING

.

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip”
under these conditions. Try to avoid
driving on wet ice until the road is
salted or sanded.

.

Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels will
lose even more traction.

.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pave-
ment.

.

Allow greater following distances on
slippery roads.

.

Watch for slippery spots (glare ice).
These may appear on an otherwise
clear road in shaded areas. If a patch
of ice is seen ahead, brake before
reaching it. Try not to brake while on
the ice, and avoid any sudden steer-
ing maneuvers.

.

Do not use the cruise control on
slippery roads.

.

Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.

ENGINE BLOCK HEATER (if so
equipped)

Engine block heaters are used to assist in
cold temperature starting.
The engine block heater should be used
when the outside temperature is 20°F
(−7°C) or lower.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To use the engine block heater

1. Turn the engine off.
2. Open the hood and unwrap the engine

block heater cord.

3. Plug the engine block heater cord into a

grounded 3-wire, 3-pronged extension
cord.

4. Plug the extension cord into a Ground

F a u l t I n t e r r u p t ( G F I ) p r o t e c t e d ,
grounded 110-volt AC (VAC) outlet.

5. The engine block heater must be plugged

in for at least 2 - 4 hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.

6. Before starting the engine, unplug and

properly store the cord to keep it away
from moving parts.

WARNING

.

Do not use your engine block heater
with an ungrounded electrical system
or a 2-pronged adapter. You can be
seriously injured by an electrical
shock if you use an ungrounded
connection.

.

Disconnect and properly store the
engine block heater cord before

starting the engine. Damage to the
cord could result in an electrical shock
and can cause serious injury.

.

Use a heavy-duty 3-wire, 3-pronged
extension cord rated for at least 10A.
Plug the extension cord into a Ground
Fault Interrupt (GFI) protected,
grounded 110-VAC outlet. Failure
to use the proper extension cord or
a grounded outlet can result in a fire
or electrical shock and cause serious
personal injury.

Starting and driving

5-139

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-140

Starting and driving

MEMO

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-2

In case of emergency

SIC2574

Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights will
flash.

WARNING

.

If stopping for an emergency, be sure
to move the vehicle well off the road.

.

Do not use the hazard warning
flashers while moving on the highway
unless unusual circumstances force
you to drive so slowly that your
vehicle might become a hazard to
other traffic.

.

Turn signals do not work when the
hazard warning flasher lights are on.

The flasher can be actuated with the ignition
switch in any position.
When an impact that could activate the
supplemental air bags is detected, the
hazard warning flasher lights blink automa-
tically. If the hazard warning flasher switch is
pushed twice, the hazard warning flashers
will turn off.

WARNING

Do not turn the hazard warning flasher
switch to off until you can make sure
that it is safe to do so. Also, the hazard
flasher warning may not blink automa-
tically depending on the force of impact.

Some state laws may prohibit the use of the
hazard warning flasher switch while driving.

In the event of a roadside emergency,
Roadside Assistance Service is available to
you. Please refer to your Warranty Informa-
tion Booklet (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada) for
details.

HAZARD WARNING FLASHER SWITCH

ROADSIDE ASSISTANCE PROGRAM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:

.

Rapidly push the push-button ignition

switch 3 consecutive times in less than
1.5 seconds, or

.

Push and hold the push-button ignition

switch for more than 2 seconds.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit and the “Tire Pressure Low Add
Air” warning appears in the vehicle informa-
tion display, one or more of your tires is
significantly under-inflated. If the vehicle is
being driven with low tire pressure, the
TPMS will activate and warn you of it by
the low tire pressure warning light. This
system will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
For more details, see “Warning lights, in-
dicator lights and audible reminders” (P.2-
11) and “Tire Pressure Monitoring System
(TPMS)” (P.5-5).

WARNING

.

If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and

increase the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still illuminates while driving
after adjusting the tire pressure, a
tire may be flat. If you have a flat tire,
replace it with a spare tire as soon as
possible.

.

Since the spare tire is not equipped
with the TPMS, when a spare tire is
mounted or a wheel is replaced, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The light
will remain on after 1 minute. Have
your tires replaced and/or TPMS
system reset as soon as possible. It
is recommended you visit an INFINITI
retailer for these services.

.

Replacing tires with those not origin-
ally specified by INFINITI could affect
the proper operation of the TPMS.

.

Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may

In case of emergency

6-3

EMERGENCY ENGINE SHUT OFF

FLAT TIRE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-4

In case of emergency

cause a malfunction of the tire pres-
sure sensors.

CHANGING A FLAT TIRE

If you have a flat tire, follow the instructions
below.

Stopping the vehicle

1. Safely move the vehicle off the road and

away from traffic.

2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the

parking brake. Move the shift lever to the
P (Park) position.

4. Turn off the engine.
5. Raise the hood to warn other traffic, and

to signal professional road assistance
personnel that you need assistance.

6. Have all passengers get out of the

vehicle and stand in a safe place, away
from traffic and clear of the vehicle.

WARNING

.

Make sure the parking brake is
securely applied and the automatic
transmission is in the P (Park) posi-
tion.

.

Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.

.

Never change tires if oncoming traf-
fic is close to your vehicle. Wait for
professional road assistance.

MCE0001A

Blocking wheels

Place suitable blocks

at both the front and

back of the wheel diagonally opposite the
flat tire to prevent the vehicle from moving
when it is jacked up.

WARNING

Be sure to block the wheel as the vehicle
may move and result in personal injury.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

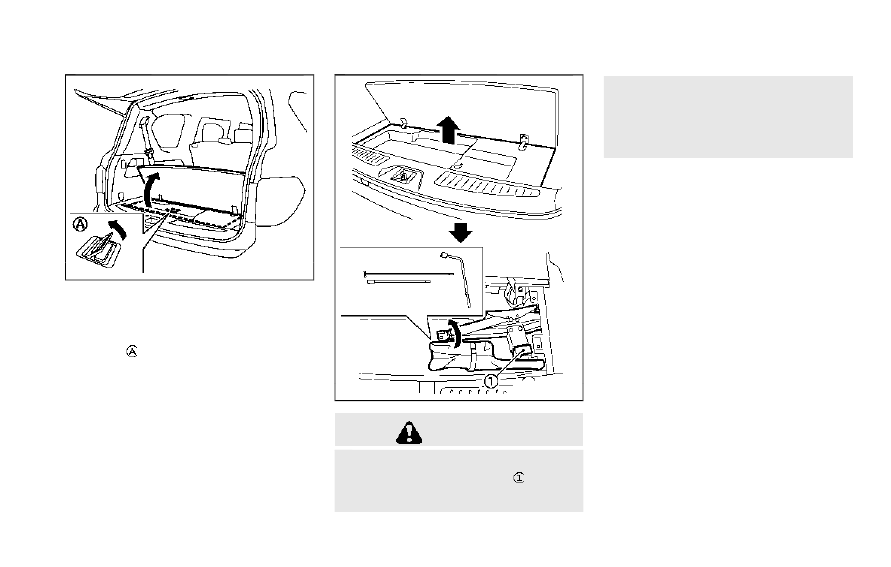

JVE0219X

Getting the spare tire and tools

1. Open the liftgate.
2. Raise the cargo floor board using the

handle

.

JVE0431X

WARNING

When removing jacking tools, be sure
the rubber sound suppressor

, used to

control jack stand from rattling against
metal, is not attached to the jacking tool.

If rubber sound suppressor remains on
jack when vehicle is being jacked up, the
vehicle will be unstable and may fall off
jack stand causing serious injury of
death.

3. Remove the cargo floor cover.
4. Remove the jacking tools.

In case of emergency

6-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-6

In case of emergency

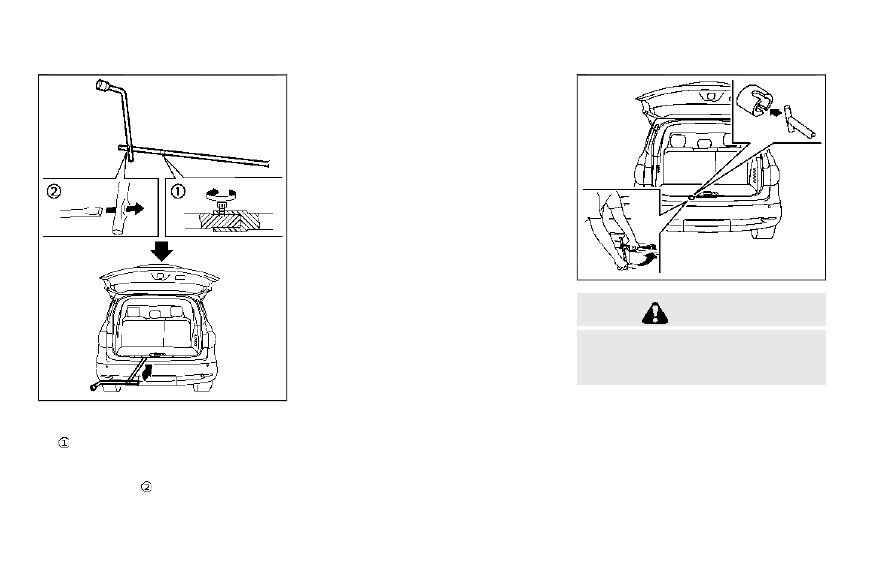

JVE0423X

5. Securely screw to connect the T-shaped

end of the jack rod and the extension bar

as illustrated.

6. Fit the square end of the jack rod into the

square hole of the wheel nut wrench to
form a handle

.

7. Locate the oval opening above the

middle of the rear bumper.

8. Place the T-shaped end of the jack rod

through the opening and direct it to-
wards the spare wheel winch assembly,
located directly above the spare wheel.

SCE0916

CAUTION

Do not insert the jack rod straight as it is
designed to be inserted at an angle as
shown.

9. Seat the T-shaped end of the jack rod

into the T-shaped opening of the spare
wheel winch. Apply pressure to keep the
jack rod engaged in the spare wheel
winch and turn the jack rod counter-
clockwise to lower the spare wheel.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

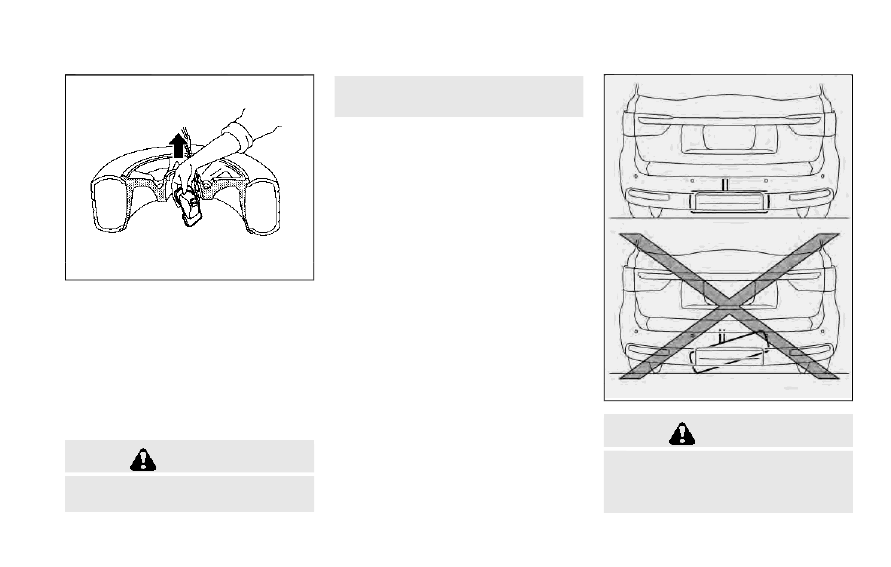

SCE0377

10. Once the spare wheel is completely

lowered, remove the jack rod and reach
under the vehicle to remove the hanging
plate.

11. Carefully slide the spare wheel from

under the rear of the vehicle.

After preparing the spare tire, to remove the
rod, pull out the rod while moving the rod to
the right and left with the screw of the
extension facing the side.

CAUTION

When storing the wheel, make sure that
the hanging plate is in the center of the

wheel and then lift it up into the storage
area.

JVE0436X

CAUTION

When storing the wheel, be sure to
mount the wheel horizontally. Securing
the wheel that is in a tilted position as
illustrated may cause looseness and

In case of emergency

6-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6-8

In case of emergency

dropping of the wheel while driving.
Lower the wheel on the ground again,
and make sure that the hanging plate is
properly set. Hang the wheel again and
make sure that the wheel is held hor-
izontally, then store the wheel.

Jacking up the vehicle and removing
the damaged tire

WARNING

.

Never get under the vehicle while it is
supported only by the jack. If it is
necessary to work under the vehicle,
support it with safety stands.

.

Use only the jack provided with your
vehicle to lift the vehicle. Do not use
the jack provided with your vehicle on
other vehicles. The jack is designed
for lifting only your vehicle during a
tire change.

.

Use the correct jack-up points. Never
use any other part of the vehicle for
jack support.

.

Never jack up the vehicle more than
necessary.

.

Never use blocks on or under the jack.

.

Do not start or run the engine while
vehicle is on the jack, as it may cause
the vehicle to move. This is especially
true for vehicles with limited slip
differentials.

.

Do not allow passengers to stay in
the vehicle while it is on the jack.

Carefully read the caution label attached to
the jack body and the following instruc-
tions.

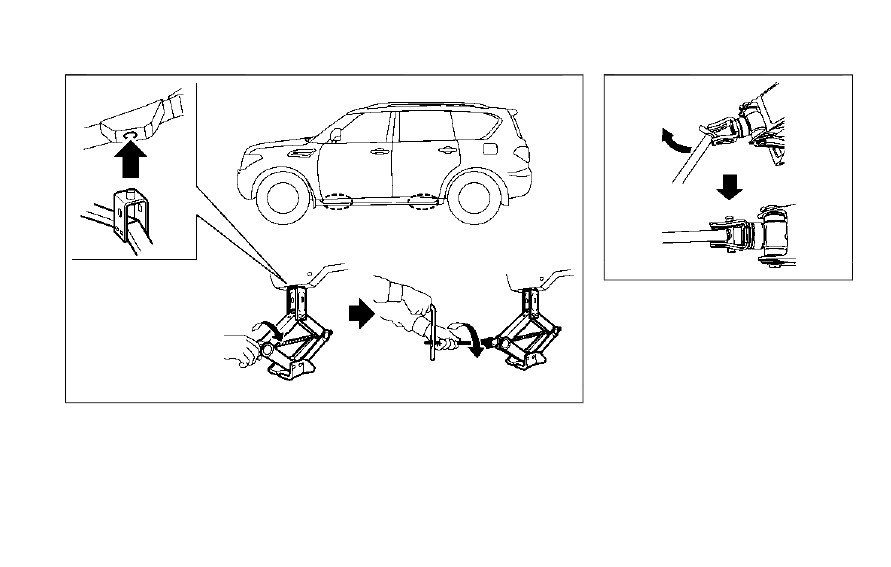

SCE0875

Jack-up point

1. Place the jack directly under the jack-up

points as illustrated.

The jack should be used on level firm
ground.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SCE0876

2. Loosen each wheel nut one or two turns

by turning counterclockwise with the
wheel nut wrench.

Do not remove the

wheel nuts until the tire is off the
ground.

NCE130

3. Install the assembled jack rod into the

jack as shown.

4. Carefully raise the vehicle until the

clearance between the tire and ground
is achieved.

5. To lift the vehicle, securely hold the jack

lever and rod with both hands and turn
the jack lever.

NOTE:

Before jacking up the vehicle, make sure the
ignition switch is placed in the OFF position.
If the vehicle is lifted up with the engine
running, the auto-leveling suspension will
become disabled after 120 seconds. To
reset the auto-leveling suspension, cycle

In case of emergency

6-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     12      13      14      15     ..
