Infiniti QX80 (2023 year). Manual in english - page 11





5-22

Starting and driving

WARNING

.

Be sure the parking brake is fully
released before driving. Failure to do
so can cause brake failure and lead to
an accident.

.

Do not release the parking brake
from outside the vehicle.

.

Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully en-
gaged.

.

To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly
become high enough to cause a sig-
nificant risk of injury or death to
people and pets.

SPA2331

To apply:

Fully depress the parking brake

pedal

.

To release:

1. Firmly apply the foot brake

.

2. Depress the parking brake pedal

and

the parking brake will be released.

3. Before driving, be sure the brake warning

light goes out.

WARNING

Failure to follow the warnings and
instructions for proper use of the LDW
system could result in serious injury or
death.

.

This system is only a warning device
to inform the driver of a potential
unintended lane departure. It will not
steer the vehicle or prevent loss of
control. It is the driver’s responsibility
to stay alert, drive safely, keep the
vehicle in the traveling lane, and be in
control of the vehicle at all times.

PARKING BRAKE

LANE DEPARTURE WARNING (LDW)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS1142X

The LDW system will operate when the
vehicle is driven at speeds of approximately
37 MPH (60 km/h) and above, and the lane
markings are clearly visible on the road.
The LDW system monitors the lane markers
on the traveling lane using the camera unit
located above the inside mirror.
The LDW system warns the driver that the
vehicle is beginning to leave the driving lane
with an indicator and a steering wheel
vibration. (See “LDW system operation”
(P.5-24).)

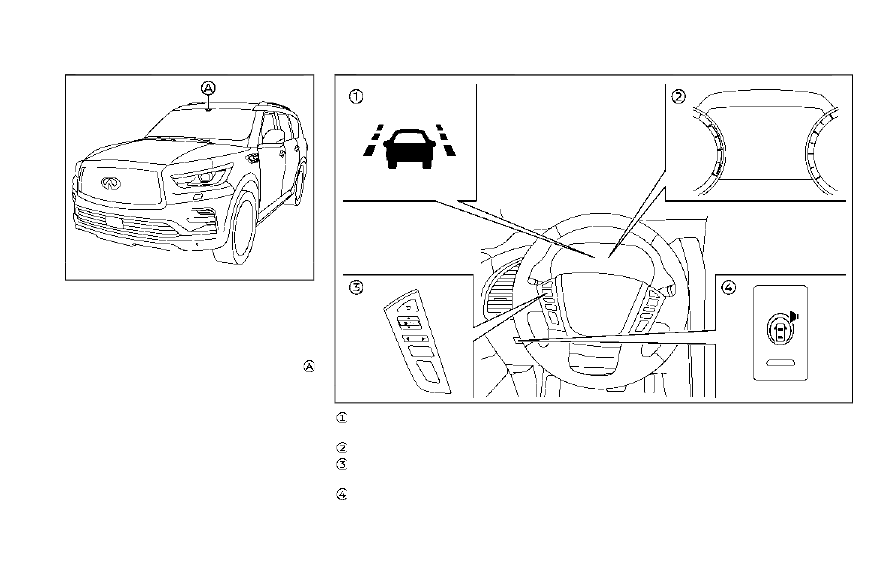

WAF0730X

LDW indicator (on the vehicle informa-
tion display)
Vehicle information display

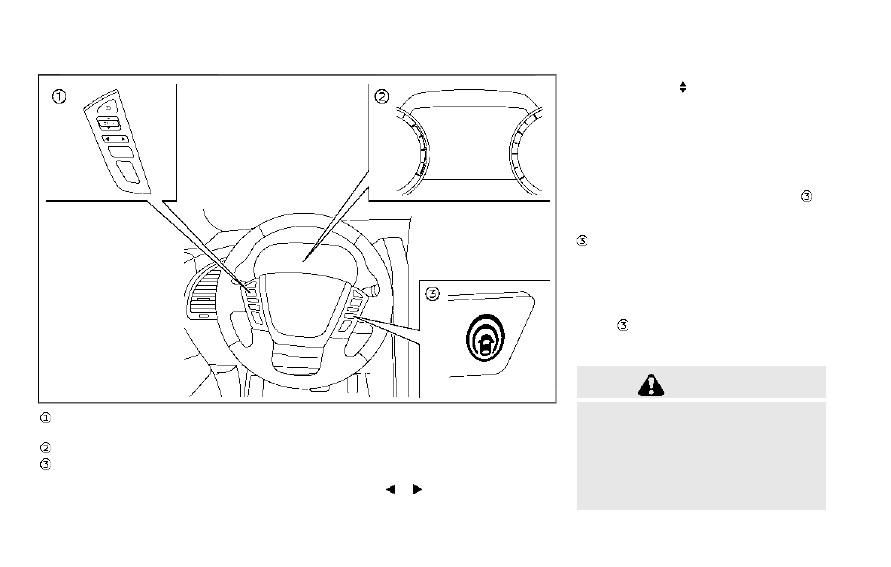

Steering-wheel-mounted controls (left
side)
Warning systems switch

Starting and driving

5-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-24

Starting and driving

LDW SYSTEM OPERATION

The LDW system provides a lane departure
warning function when the vehicle is driven
at speeds of approximately 37 MPH (60
km/h) and above and the lane markings are
clear. When the vehicle approaches either
the left or the right side of the traveling lane,
the steering wheel will vibrate and the LDW
indicator on the vehicle information display
will blink to alert the driver.
The warning function will stop when the
vehicle returns inside of the lane markers.

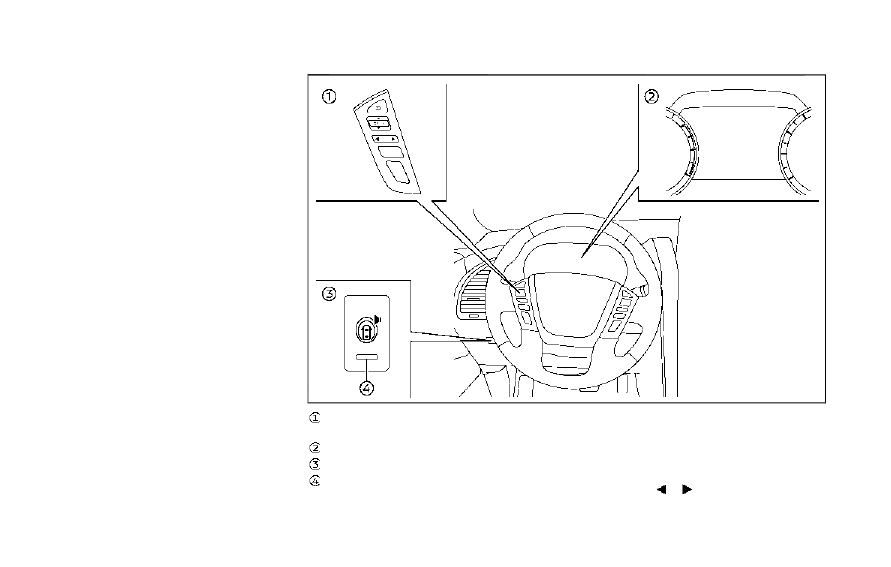

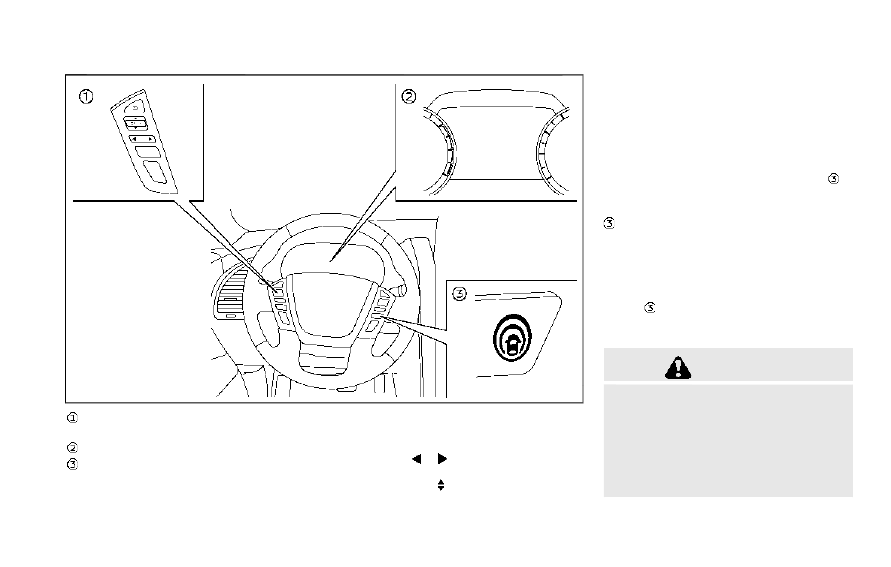

WAF0731X

Steering-wheel-mounted controls (left
side)
Vehicle information display
Warning systems switch
Warning systems ON indicator light

HOW TO ENABLE/DISABLE THE
LDW SYSTEM

Perform the following steps to enable or
disable the LDW system.
1. Push the

button until “Settings”

appears in the vehicle information dis-

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

play. Use the

button to select “Driver

Assistance”. Then push the OK button.

2. Select “Lane” and push the OK button.
3. Select “Warning(LDW)” and push the OK

button.

The warning systems switch

is used to

turn on and off the LDW system when it is
activated on the vehicle information display.
When the warning systems switch

is

turned off, the warning systems ON indica-
tor light

on the switch is off.

The warning systems switch

will turn on

and off the LDW and BSW systems at the
same time.

NOTE:

If you disable the LDW system, the system
will remain disabled the next time you start
the vehicle’s engine.

LDW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the LDW system. Failure to follow
the warnings and instructions for proper
use of the LDW system could result in
serious injury or death.

.

The system will not operate at speeds
below approximately 37 MPH (60
km/h) or if it cannot detect lane
markers.

.

Do not use the LDW system under
the following conditions as it may not
function properly:

— During bad weather (rain, fog,

snow, etc.).

— When driving on slippery roads,

such as on ice or snow.

— When driving on winding or un-

even roads.

— When there is a lane closure due

to road repairs.

— When driving in a makeshift or

temporary lane.

— When driving on roads where the

lane width is too narrow.

— When driving without normal tire

conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, non-stan-
dard wheels).

— When the vehicle is equipped with

non-original brake parts or sus-
pension parts.

— When towing a trailer or other

vehicle.

.

The system may not function prop-
erly under the following conditions:

— On roads where there are multi-

ple parallel lane markers; lane
markers that are faded or not
painted clearly; yellow painted
lane markers; non-standard lane
markers; or lane markers covered
with water, dirt, snow, etc.

— On roads where discontinued lane

markers are still detectable.

— On roads where there are sharp

curves.

— On roads where there are sharply

contrasting objects, such as sha-
dows, snow, water, wheel ruts,
seams or lines remaining after
road repairs. (The LDW system
could detect these items as lane
markers.)

— On roads where the traveling lane

merges or separates.

— When the vehicle’s traveling di-

rection does not align with the
lane marker.

— When traveling close to the ve-

hicle in front of you, which ob-

Starting and driving

5-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-26

Starting and driving

structs the lane camera unit de-
tection range.

— When rain, snow, dirt or object

adheres to the windshield in front
of the lane camera unit.

— When the headlights are not

bright due to dirt on the lens or
if the aiming is not adjusted
properly.

— When strong light enters the lane

camera unit. (For example, the
light directly shines on the front
of the vehicle at sunrise or sun-
set.)

— When a sudden change in bright-

ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)

SYSTEM TEMPORARILY UNA-
VAILABLE

Condition A:

If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F (40°C)) and then
started, the LDW system may be deacti-
vated automatically, the LDW indicator will
flash and the following message will appear

in the vehicle information display.

.

“Not Available: High Camera Temp”

When the interior temperature is reduced,
the LDW system will resume operating
automatically and the LDW indicator will
stop flashing.

Condition B:

The warning function of the LDW system is
not designed to work under the following
conditions:

.

When you operate the lane change signal

and change traveling lanes in the direc-
tion of the signal. (The LDW system will
become operable again approximately 2
seconds after the lane change signal is
turned off.)

.

When the vehicle speed lowers to less

than approximately 37 MPH (60 km/h).

Action to take:

After the above conditions have finished and
the necessary operating conditions are sa-
tisfied, the LDW system will resume.

SYSTEM MALFUNCTION

If the LDW system malfunctions, it will
cancel automatically and “Malfunction”
warning message will appear in the vehicle
information display. If the warning message
appears, pull off the road to a safe location
and stop the vehicle. Place the ignition

switch in the OFF position and restart the
engine. If the warning message continues to
appear, have the system checked. It is
recommended that you visit an INFINITI
retailer for this service.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SSD0453

SYSTEM MAINTENANCE

The lane camera unit

for the LDW system

is located above the inside mirror.
To keep the proper operation of the LDW
system and prevent a system malfunction,
be sure to observe the following:

.

Always keep the windshield clean.

.

Do not attach a sticker (including trans-

parent material) or install an accessory
near the camera unit.

.

Do not place reflective materials, such as

white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane markers.

.

Do not strike or damage the areas around

the camera unit. Do not touch the
camera lens or remove the screw located
on the camera unit. If the camera unit is
damaged due to an accident, it is re-
commended that you visit an INFINITI
retailer.

WARNING

Failure to follow the warnings and
instructions for proper use of the LDP
system could result in serious injury or
death.

.

The LDP system will not steer the
vehicle or prevent loss of control. It is
the driver’s responsibility to stay
alert, drive safely, keep the vehicle
in the traveling lane, and be in control
of the vehicle at all times.

.

The LDP system is primarily intended
for use on well-developed freeways
or highways. It may not detect the
lane markers in certain road, weath-
er, or driving conditions.

Starting and driving

5-27

LANE DEPARTURE PREVENTION
(LDP) (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-28

Starting and driving

JVS1142X

The LDP system must be turned on with the
dynamic driver assistance switch on the
steering wheel, every time the ignition is
placed in the ON position.
The LDP system will operate when the
vehicle is driven at speeds of approximately
37 MPH (60 km/h) and above, and only
when the lane markings are clearly visible on
the road. The LDP system warns the driver
when the vehicle has left the center of the
traveling lane with an indicator and steering
wheel vibration. The system helps assist the
driver to return the vehicle to the center of
the traveling lane by applying the brakes to
the left or right wheels individually (for a
short period of time).

The LDP system monitors the lane markers
on the traveling lane using the camera unit
located above the inside mirror.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

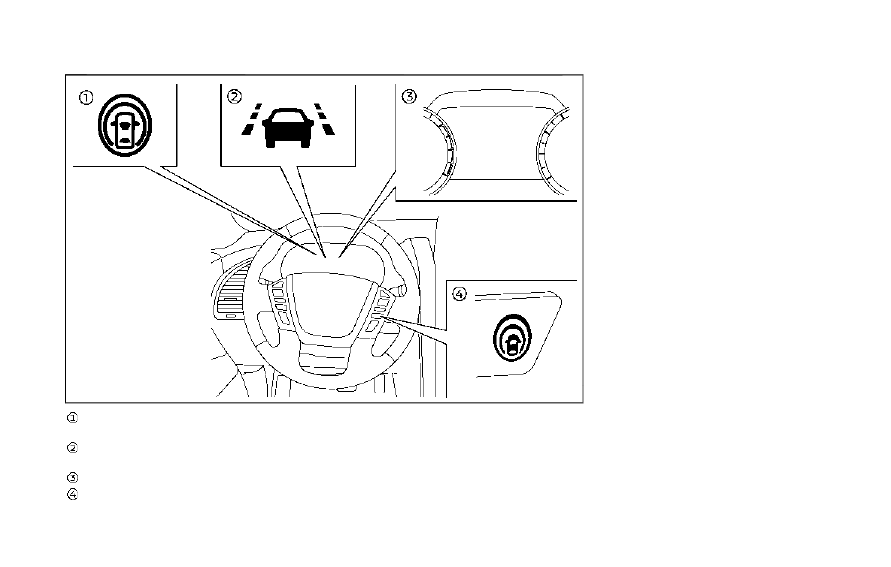

WAF0735X

LDP ON indicator (on the vehicle
information display)
LDP indicator (on the vehicle informa-
tion display)
Vehicle information display
Dynamic driver assistance switch

LDP SYSTEM OPERATION

The LDP system operates above approxi-
mately 37 MPH (60 km/h) and when the
lane markings are clear. When the vehicle
approaches either the left or the right side of
the traveling lane, steering wheel will vibrate
and the LDP indicator (orange) on the
vehicle information display will blink to alert
the driver. Then, the LDP system will auto-
matically apply the brakes for a short period
of time to help assist the driver to return the
vehicle to the center of the traveling lane.
To turn on the LDP system, push the
dynamic driver assistance switch on the
steering wheel after starting the engine.
The LDP ON indicator on the vehicle
information display will illuminate. Push the
dynamic driver assistance switch again to
turn off the LDP system. The LDP ON
indicator will turn off.

Starting and driving

5-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-30

Starting and driving

WAF0736X

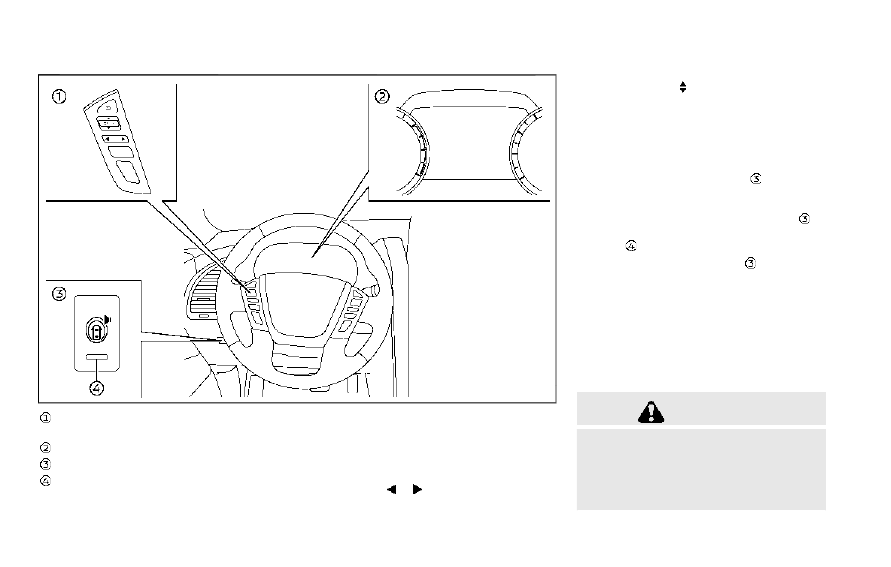

Steering-wheel-mounted control (left
side)
Vehicle information display
Dynamic driver assistance switch

HOW TO ENABLE/DISABLE THE
LDP SYSTEM

Perform the following steps to enable or
disable the LDP system.
1. Push the

button until “Settings”

appears in the vehicle information dis-

play. Use the

button to select “Driver

Assistance.” Then push the OK button.

2. Select “Lane” and push the OK button.
3. Select “Prevention(LDP)” and push the

OK button.

4. Push the dynamic driver assistance

switch to turn the system on or off.

The dynamic driver assistance switch

is

used for the LDP, BSI, and DCA systems.
When the dynamic driver assistance switch

is pushed, the BSI and DCA system will

also turn on or off simultaneously. The LDP
system can be individually set to on or off on
the vehicle information display.
If the system is set to off, the system will not
turn on even if the dynamic driver assistance
switch

is pushed to on.

LDP SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the LDP system. Failure to follow the
warnings and instructions for proper use
of the LDP system could result in serious
injury or death.

.

The LDP system may activate if you
change lanes without first activating

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

your turn signal or, for example, if a
construction zone directs traffic to
cross an existing lane marker. If this
occurs you may need to apply correc-
tive steering to complete your lane
change.

.

Because the LDP may not activate
under the road, weather, and lane
marker conditions described in this
section, it may not activate every
time your vehicle begins to leave its
lane and you will need to apply
corrective steering.

.

The LDP system will not operate at
speeds below approximately 37 MPH
(60 km/h) or if it cannot detect lane
markers.

.

When the LDP system is operating,
avoid excessive or sudden steering
maneuvers. Otherwise, you could lose
control of the vehicle.

.

Do not use the LDP system under the
following conditions as it may not
function properly:

— During bad weather (rain, fog,

snow, etc.).

— When driving on slippery roads,

such as on ice or snow.

— When driving on winding or un-

even roads.

— When there is a lane closure due

to road repairs.

— When driving in a makeshift or

temporary lane.

— When driving on roads where the

lane width is too narrow.

— When driving without normal tire

conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, non-stan-
dard wheels).

— When the vehicle is equipped with

non-original brake parts or sus-
pension parts.

— When towing a trailer or other

vehicle.

— On roads where there are multi-

ple parallel lane markers; lane
markers that are faded or not
painted clearly; yellow painted
lane markers; non-standard lane
markers; or lane markers covered
with water, dirt, snow, etc.

— On roads where discontinued lane

markers are still detectable.

— On roads where there are sharp

curves.

— On roads where there are sharply

contrasting objects, such as sha-
dows, snow, water, wheel ruts,
seams or lines remaining after
road repairs. (The LDP system
could detect these items as lane
markers.)

— On roads where the traveling lane

merges or separates.

— When the vehicle’s traveling di-

rection does not align with the
lane marker.

— When traveling close to the ve-

hicle in front of you, which ob-
structs the lane camera unit
detection range.

— When rain, snow or dirt adheres

to the windshield in front of the
lane camera unit.

— When the headlights are not

bright due to dirt on the lens or
if the aiming is not adjusted
properly.

— When strong light enters the lane

camera unit. (For example, the
light directly shines on the front
of the vehicle at sunrise or sun-
set.)

Starting and driving

5-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-32

Starting and driving

— When a sudden change in bright-

ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)

While the LDP system is operating, you may
hear a sound of brake operation. This is
normal and indicates that the LDP system is
operating properly.

SYSTEM TEMPORARILY UNA-
VAILABLE

Condition A:

The warning and assist functions of the LDP
system are not designed to work under the
following conditions:

.

When you operate the lane change signal

and change the traveling lanes in the
direction of the signal. (The LDP system
will be deactivated for approximately 2
seconds after the lane change signal is
turned off.)

.

When the vehicle speed lowers to less

than approximately 37 MPH (60 km/h).

Action to take:

After the above conditions have finished and
the necessary operating conditions are sa-
tisfied, the warning and assist functions will
resume.

Condition B:

The assist function of the LDP system is not
designed to work under the following con-
ditions (warning is still functional):

.

When the brake pedal is depressed.

.

When the steering wheel is turned as far

as necessary for the vehicle to change
lanes.

.

When the vehicle is accelerated during

the LDP system operation.

.

When the Intelligent Cruise Control (ICC)

a p p r o a c h w a r n i n g o c c u r s ( i f s o
equipped).

.

When the hazard warning flashers are

operated.

.

When driving on a curve at high speed.

Action to take:

After the above conditions have finished and
the necessary operating conditions are sa-
tisfied, the LDP system application of the
brakes will resume.

Condition C:

If the following message appears in the
vehicle information display, a chime will
sound and the LDP system will be turned
off automatically.

.

"Not Available: Poor Road Conditions":

— When the VDC system (except TCS

function) or ABS operates.

.

"Currently unavailable/Currently not

available":
— When the VDC system is turned off.
— When the SNOW mode switch is

turned on.

— When the 4WD shift switch is in the

4H or 4L position (for 4WD models).

Action to take:

When the above conditions no longer exist,
turn off the LDP system. Push the dynamic
driver assistance switch again to turn the
LDP system back on.

Temporary disabled status at high tem-
perature:

If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F (40°C)) and then the
LDP system is turned on, the LDP system
may be deactivated automatically and the
following message will appear on the vehicle
information display:

.

“Not Available: High Camera Temp”

When the interior temperature is reduced,
the system will resume operating automati-
cally.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM MALFUNCTION

If the LDP system malfunctions, it will cancel
automatically. The LDP indicator (orange)
will illuminates and the “Malfunction” warn-
ing message will appear in the vehicle
information display.
If the LDP indicator (orange) illuminates, pull
off the road to a safe location. Turn the
engine off and restart the engine. If the LDP
indicator (orange) continues to illuminate,
have the LDP system checked. It is recom-
mended that you visit an INFINITI retailer
for this service.

SSD0453

SYSTEM MAINTENANCE

The lane camera unit

for the LDP system

is located above the inside mirror. To keep
the proper operation of the LDP system and
prevent a system malfunction, be sure to
observe the following:

.

Always keep the windshield clean.

.

Do not attach a sticker (including trans-

parent material) or install an accessory
near the camera unit.

.

Do not place reflective materials, such as

white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane markers.

.

Do not strike or damage the areas around

the camera unit. Do not touch the
camera lens or remove the screw located
on the camera unit. If the camera unit is
damaged due to an accident, it is re-
commended that you visit an INFINITI
retailer.

Starting and driving

5-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-34

Starting and driving

WARNING

Failure to follow the warnings and
instructions for proper use of the BSW
system could result in serious injury or
death.

.

The BSW system is not a replacement
for proper driving procedure and is
not designed to prevent contact with
vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the
direction your vehicle will move to
ensure it is safe to change lanes.
Never rely solely on the BSW system.

The BSW system helps alert the driver of
other vehicles in adjacent lanes when chan-
ging lanes.

JVS1146X

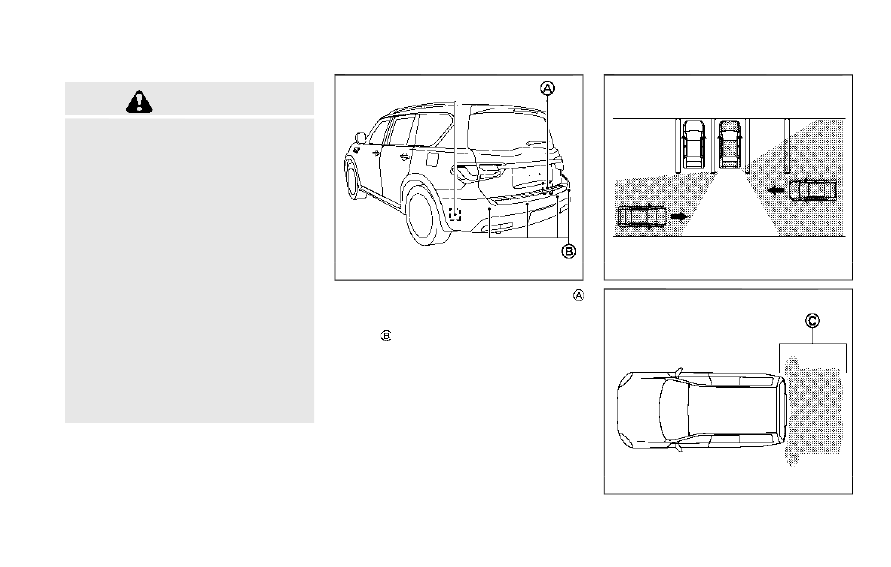

The BSW system uses radar sensors
installed near the rear bumper to detect
other vehicles in an adjacent lane.

SSD1030

Detection zone

The radar sensors can detect vehicles on
either side of your vehicle within the detec-
tion zone shown as illustrated. This detec-
tion zone starts from the outside mirror of
your vehicle and extends approximately 10
ft (3.0 m) behind the rear bumper, and
approximately 10 ft (3.0 m) sideways.
When the turn signal is activated, the
detection zone may extend more than
approximately 10 ft (3.0 m).

BLIND SPOT WARNING (BSW)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAF0722X

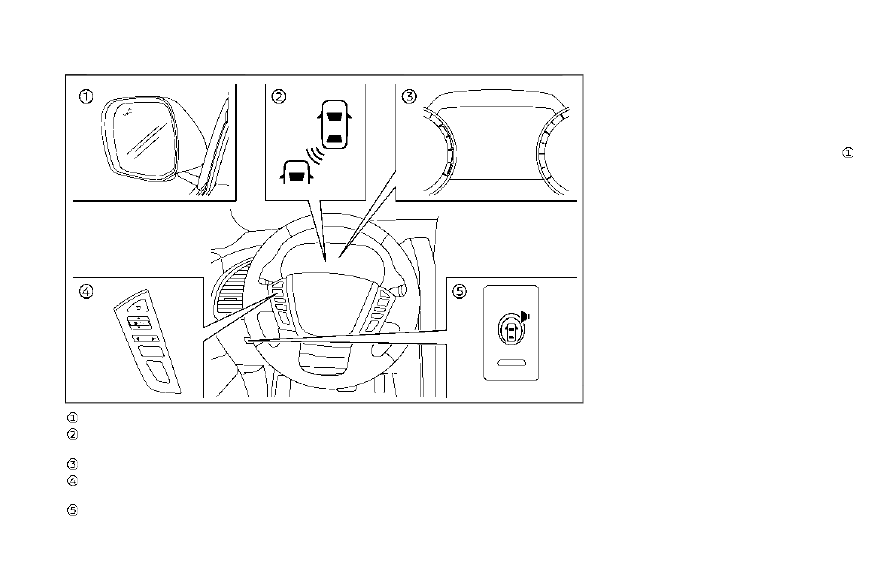

Side indicator light
BSW indicator (on the vehicle informa-
tion display)
Vehicle information display
Steering-wheel-mounted controls (left
side)
Warning systems switch

BSW SYSTEM OPERATION

The BSW system operates above approxi-
mately 20 MPH (32 km/h).
If the radar sensors detect a vehicle in the
detection zone, the side indicator light
illuminates.
If the turn signal is then activated, the
system chimes (twice) and the side indicator
light flashes. The side indicator light con-
tinues to flash until the detected vehicle
leaves the detection zone.
The side indicator light illuminates for a few
seconds when the ignition switch is placed in
the ON position.
The brightness of the side indicator light is
adjusted automatically depending on the
brightness of the ambient light.

Starting and driving

5-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-36

Starting and driving

WAF0731X

Steering-wheel-mounted controls (left
side)
Vehicle information display
Warning systems switch
Warning systems ON indicator light

HOW TO ENABLE/DISABLE THE
BSW SYSTEM

Perform the following steps to enable or
disable the BSW system.
1. Push the

button until “Settings”

appears in the vehicle information dis-

play. Use the

button to select “Driver

Assistance”. Then push the OK button.

2. Select “Blind Spot” and push the OK

button.

3. Select “Warning(BSW)” and push the OK

button.

The warning systems switch

is used to

turn on and off the BSW system when it is
activated on the vehicle information display.
When the warning systems switch

is

turned off, the warning systems ON indica-
tor light

on the switch is off.

The warning systems switch

will turn on

and off the LDW and BSW systems at the
same time.

NOTE:

The system will retain current settings in
the vehicle information display even if the
engine is restarted.

BSW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the BSW system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

.

The BSW system cannot detect all
vehicles under all conditions.

.

The radar sensors may not be able to
detect and activate BSW when cer-
tain objects are present such as:

— Pedestrians, bicycles, animals.

— Vehicles such as motorcycles, low

height vehicles, or high ground
clearance vehicles.

— Oncoming vehicles.

— Vehicles remaining in the detec-

tion zone when you accelerate
from a stop.

— A vehicle merging into an adja-

cent lane at a speed approxi-
mately the same as your vehicle.

— A vehicle approaching rapidly

from behind.

— A vehicle which your vehicle over-

takes rapidly.

— A vehicle that passes through the

detection zone quickly.

— When overtaking several vehicles

in a row, the vehicles after the
first vehicle may not be detected
if they are traveling close to-
gether.

.

The radar sensor’s detection zone is
designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect
vehicles in an adjacent lane. When
driving in a narrow lane, the radar
sensors may detect vehicles driving
two lanes away.

.

The radar sensors are designed to
ignore most stationary objects, how-
ever objects such as guardrails, walls,
foliage and parked vehicles may oc-
casionally be detected. This is a
normal operation condition.

.

The following conditions may reduce
the ability of the radar to detect
other vehicles:

— Severe weather

— Road spray

— Ice/frost/dirt build-up on the

vehicle

.

Do not attach stickers (including
transparent material), install acces-
sories or apply additional paint near
the radar sensors. These conditions
may reduce the ability of the radar to
detect other vehicles.

.

When towing a trailer or other ve-
hicle, turn the BSW system off to
prevent the occurrence of an unex-

pected accident resulting from sud-
den system operation.

.

Excessive noise (for example, audio
system volume, open vehicle window)
will interfere with the chime sound,
and it may not be heard.

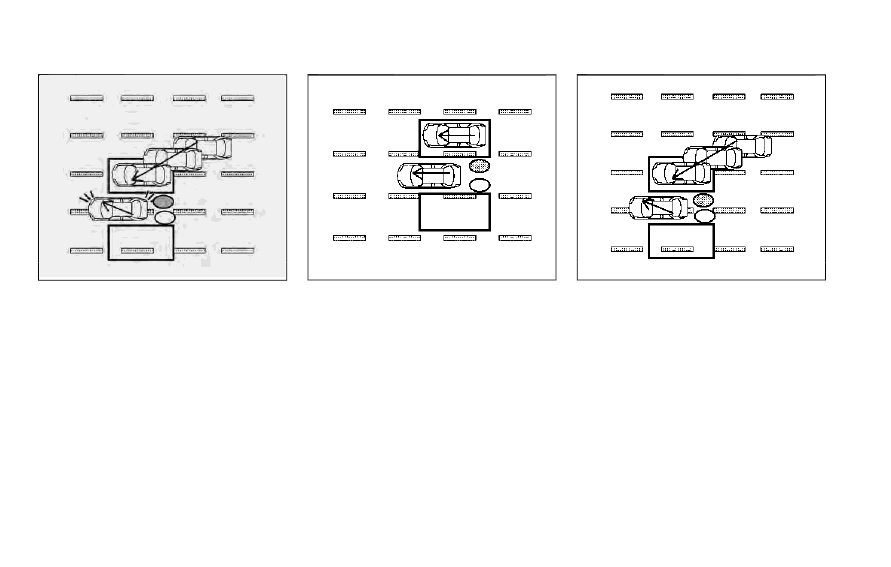

BSW DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

Starting and driving

5-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-38

Starting and driving

JVS0737X

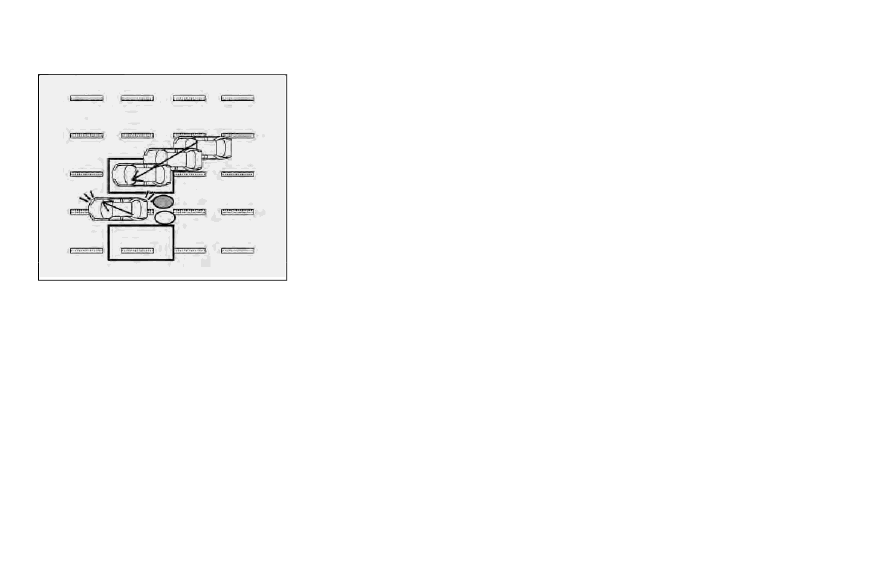

Illustration 1 – Approaching from behind

Another vehicle approaching from
behind

Illustration 1: The side indicator light illumi-
nates if a vehicle enters the detection zone
from behind in an adjacent lane.

JVS0738X

Illustration 2 – Approaching from behind

Illustration 2: If the driver activates the turn
signal while another vehicle is in the detec-
tion zone, then the system chimes (twice)
and the side indicator light flashes.

NOTE:

The radar sensors may not detect vehicles
which are approaching rapidly from behind.

JVS0739X

Illustration 3 – Overtaking another vehicle

Overtaking another vehicle

Illustration 3: The side indicator light illumi-
nates if you overtake a vehicle and that
vehicle stays in the detection zone for
approximately 3 seconds.
The radar sensors may not detect slower
moving vehicles if they are passed quickly.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0740X

Illustration 4 – Overtaking another vehicle

Illustration 4: If the driver activates the turn
signal while another vehicle is in the detec-
tion zone, then the system chimes (twice)
and the side indicator light flashes.

NOTE:

.

When overtaking several vehicles in a

row, the vehicles after the first vehicle
may not be detected if they are travel-
ing close together.

.

The radar sensors may not detect slower

moving vehicles if they are passed
quickly.

.

If the driver activates the turn signal

before a vehicle enters the detection
zone, the side indicator light will flash

but no chime will sound when the other
vehicle is detected.

JVS0741X

Illustration 5 – Entering from the side

Entering from the side

Illustration 5: The side indicator light illumi-
nates if a vehicle enters the detection zone
from either side.

Starting and driving

5-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-40

Starting and driving

WAF0555X

Illustration 6 – Entering from the side

Illustration 6: If the driver activates the turn
signal while another vehicle is in the detec-
tion zone, then the system chimes (twice)
and the side indicator light flashes.

NOTE:

The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.

SYSTEM TEMPORARILY UNA-
VAILABLE

When radar blockage is detected, the BSW
system will be turned off automatically, a
chime will sound and the “Unavailable Side
Radar Obstruction” warning message will
appear in the vehicle information display.
The system is not available until the condi-
tions no longer exist.
The radar sensors may be blocked by
temporary ambient conditions such as
splashing water, mist or fog. The blocked
condition may also be caused by objects
such as ice, frost or dirt obstructing the radar
sensors.

NOTE:

If the BSW system stops working, the Blind
Spot Intervention

®

(BSI) system (if so

equipped) will also stop working.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

SYSTEM MALFUNCTION

When the BSW system malfunctions, it will
be turned off automatically, the BSW in-
dicator illuminates and the “Malfunction”
warning message will appear in the vehicle
information display.

NOTE:

If the BSW system stops working, the Blind
Spot Intervention

®

(BSI) system (if so

equipped) will also stop working.

Action to take:

Stop the vehicle in a safe location, turn the
engine off and restart the engine. If the
message continues to appear, have the BSW
system checked. It is recommended that you
visit an INFINITI retailer for this service.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS1146X

SYSTEM MAINTENANCE

The two radar sensors

for the BSW

system are located near the rear bumper.
Always keep the area near the radar sensors
clean.
The radar sensors may be blocked by
temporary ambient conditions such as
splashing water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-

tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors.
It is recommended you contact an INFINITI
retailer if the area around the radar sensors
is damaged due to a collision.

Radio frequency statement

For USA:

FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:

(1)

this device may not cause harmful
interference, and

(2) this device must accept any interfer-

ence received, including interference
that may cause undesired operation.

CAUTION TO USERS

Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.

For Canada:

IC: 4135A-SRR3B
This device contains licence-exempt trans-
mitter(s)/receiver(s) that comply with Inno-
vation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation

is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference,
including interference that may cause un-
desired operation of the device.
Radiofrequency radiation exposure informa-
tion:
This equipment complies with radiation ex-
posure limits set forth for an uncontrolled
environment. This equipment should be in-
stalled and operated with minimum distance
of 20 cm between the radiator and your
body.

Starting and driving

5-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-42

Starting and driving

WARNING

Failure to follow the warnings and
instructions for proper use of the BSI
system could result in serious injury or
death.

.

The BSI system is not a replacement
for proper driving procedures and is
not designed to prevent contact with
vehicles or objects. When changing
lanes, always use the side and rear
mirrors and turn and look in the
direction your vehicle will move to
ensure it is safe to change lanes.
Never rely solely on the BSI system.

.

There is a limitation to the detection
capability of the radar. Not every
moving object or vehicle will be
detected. Using the BSI system under
some road, ground, lane marker,
traffic or weather conditions could
lead to improper system operation.
Always rely on your own operation to
avoid accidents.

The BSI system helps alert the driver of other
vehicles in adjacent lanes when changing
lanes, and helps assist the driver to return
the vehicle to the center of the traveling
lane.

JVS1149X

The BSI system uses radar sensors
installed near the rear bumper to detect
other vehicles in an adjacent lane. In addition
to the radar sensors, the BSI system uses a
camera

installed behind the windshield to

monitor the lane markers of your traveling
lane.

SSD1030

Detection zone

The radar sensors can detect vehicles on
either side of your vehicle within the detec-
tion zone shown as illustrated.
This detection zone starts from the outside
mirror of your vehicle and extends approxi-
mately 10 ft (3.0 m) behind the rear bumper,
and approximately 10 ft (3.0 m) sideways.

BLIND SPOT INTERVENTION

®

(BSI) (if so equipped)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

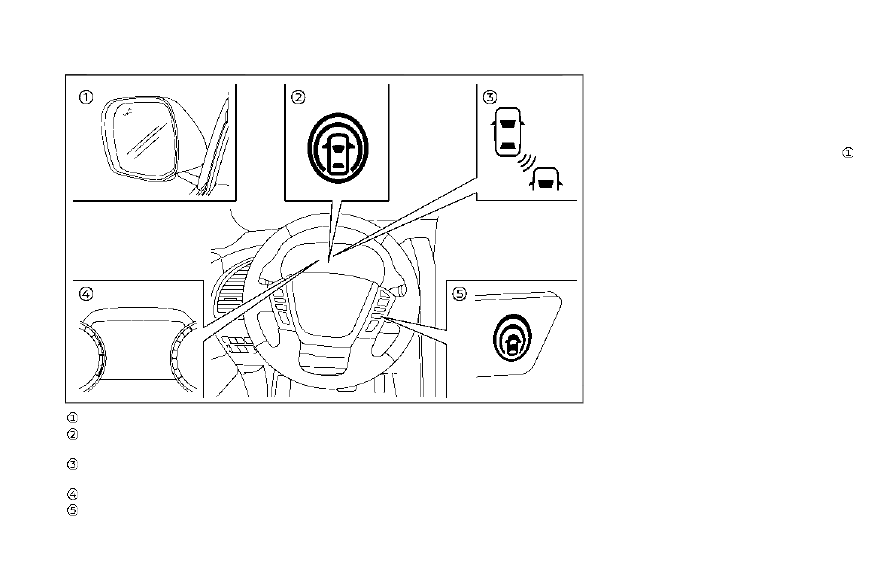

WAF0737X

Side indicator light
BSI ON indicator light (on the vehicle
information display)
BSI indicator (on the vehicle informa-
tion display)
Vehicle information display
Dynamic driver assistance switch

BSI SYSTEM OPERATION

The BSI system operates above approxi-
mately 37 MPH (60 km/h).
If the radar sensors detect a vehicle in the
detection zone, the side indicator light
illuminates.
If the turn signal is then activated, the
system chimes (twice) and the side indicator
light flashes. The side indicator light con-
tinues to flash until the detected vehicle
leaves the detection zone.
If the BSI system is ON and your vehicle
approaches a lane marker while another
vehicle is in the detection zone, the system
chimes (three times) and the side indicator
light flashes. Then the BSI system slightly
applies the brakes to help return the vehicle
back to the center of the driving lane. The
BSI system operates regardless of turn
signal usage.

NOTE:

.

BSI warning and system application will

only be activated if the side indicator
light is already illuminated when your
vehicle approaches a lane marker. If
another vehicle comes into the detection
zone after your vehicle has crossed a
lane marker, no BSI warning or system
application will be activated. (See “BSI
driving situations” (P.5-47).)

Starting and driving

5-43

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-44

Starting and driving

.

The BSI system is typically activated

earlier than the Lane Departure Preven-
tion (LDP) system (if so equipped) when
your vehicle is approaching a lane mar-
ker.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAF0736X

Steering-wheel-mounted control (left
side)
Vehicle information display
Dynamic driver assistance switch

HOW TO ENABLE/DISABLE THE
BSI SYSTEM

1. Push the

button until “Settings”

appears in the vehicle information dis-
play. Use the

button to select “Driver

Assistance.” Then push the OK button.

2. Select “Blind Spot” and push the OK

button.

3. Select “Intervention(BSI)” and push the

OK button.

4. Push the dynamic driver assistance

switch to turn the system on or off.

The dynamic driver assistance switch

is

used for the LDP, BSI, and DCA systems.
When the dynamic driver assistance switch

is pushed, the LDP and DCA system will

also turn on or off simultaneously. The BSI
system can be individually set to on or off on
the vehicle information display.
If the system is set to off, the system will not
turn on even if the dynamic driver assistance
switch

is pushed to on.

BSI SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the BSI system. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

The BSI system cannot detect all
vehicles under all conditions.

Starting and driving

5-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-46

Starting and driving

.

The radar sensors may not be able to
detect and activate BSI when certain
objects are present such as:

— Pedestrians, bicycles, animals.

— Vehicles such as motorcycles, low

height vehicles, or high ground
clearance vehicles.

— Vehicles remaining in the detec-

tion zone when you accelerate
from a stop.

— Oncoming vehicles.

— A vehicle merging into an adja-

cent lane at a speed approxi-
mately the same as your vehicle.

— A vehicle approaching rapidly

from behind.

— A vehicle which your vehicle over-

takes rapidly.

— A vehicle that passes through the

detection zone quickly.

.

The radar sensor’s detection zone is
designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect
vehicles in an adjacent lane. When
driving in a narrow lane, the radar
sensors may detect vehicles driving
two lanes away.

.

The radar sensors are designed to
ignore most stationary objects, how-
ever objects such as guardrails, walls,
foliage and parked vehicles may oc-
casionally be detected. This is a
normal operation condition.

.

The following conditions may reduce
the ability of the radar to detect
other vehicles:

— Severe weather

— Road spray

— Ice/frost/dirt build-up on the

vehicle

.

Do not attach stickers (including
transparent material), install acces-
sories or apply additional paint near
the radar sensors. These conditions
may reduce the ability of the radar to
detect other vehicles.

.

The camera may not detect lane
markers in the following situations
and the BSI system may not operate
properly.

— On roads where there are multi-

ple parallel lane markers; lane
markers that are faded or not
painted clearly; yellow painted
lane markers; non-standard lane
markers; lane markers covered
with water, dirt, snow, etc.

— On roads where discontinued lane

markers are still detectable.

— On roads where there are sharp

curves.

— On roads where there are sharply

contrasting objects, such as sha-
dows, snow, water, wheel ruts,
seams or lines remaining after
road repairs.

— On roads where the traveling lane

merges or separates.

— When the vehicle’s traveling di-

rection does not align with the
lane markers.

— When traveling close to the ve-

hicle in front of you, which ob-
structs the lane camera unit
detection range.

— When rain, snow or dirt adheres

to the windshield in front of a lane
camera unit.

— When the headlights are not

bright due to dirt on the lens or
if aiming is not adjusted properly.

— When strong light enters a lane

camera unit. (For example: light
directly shines on the front of the
vehicle at sunrise or sunset.)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

— When a sudden change in bright-

ness occurs. (For example: when
the vehicle enters or exits a tunnel
or under a bridge.)

.

Do not use the BSI system under the
following conditions because the sys-
tem may not function properly.

— During bad weather. (For exam-

ple: rain, fog, snow, etc.)

— When driving on slippery roads,

such as on ice or snow, etc.

— When driving on winding or un-

even roads.

— When there is a lane closure due

to road repairs.

— When driving in a makeshift or

temporary lane.

— When driving on roads where the

lane width is too narrow.

— When driving with a tire that is

not within normal tire conditions
(for example, tire wear, low tire
pressure, installation of spare tire,
tire chains, non-standard wheels).

— When the vehicle is equipped with

non-original steering parts or sus-
pension parts.

— When towing a trailer or other

vehicle.

.

Excessive noise (for example, audio
system volume, open vehicle window)
will interfere with the chime sound,
and it may not be heard.

BSI DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

JVS0737X

Illustration 1 - Approaching from behind

Another vehicle approaching from
behind

Illustration 1: The side indicator light illumi-
nates if a vehicle enters the detection zone
from behind in an adjacent lane.

Starting and driving

5-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-48

Starting and driving

JVS0738X

Illustration 2 - Approaching from behind

Illustration 2: If the driver activates the turn
signal then the system chimes (twice) and
the side indicator light flashes.

JVS0760X

Illustration 3 - Approaching from behind

Illustration 3: If the BSI system is on and your
vehicle approaches a lane marker while
another vehicle is in the detection zone, the
system chimes (three times) and the side
indicator light flashes. Then the BSI system
slightly applies the brakes to help return the
vehicle back to the center of the driving lane.

NOTE:

The radar sensors may not detect vehicles
which are approaching rapidly from behind.

JVS0739X

Illustration 4 - Overtaking another vehicle

Overtaking another vehicle

Illustration 4: The side indicator light illumi-
nates if you overtake a vehicle and that
vehicle stays in the detection zone for
approximately 3 seconds.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JVS0740X

Illustration 5 - Overtaking another vehicle

Illustration 5: If the driver activates the turn
signal while another vehicle is in the detec-
tion zone, then the system chimes (twice)
and the side indicator light flashes.

JVS0761X

Illustration 6 - Overtaking another vehicle

Illustration 6: If the BSI system is on and your
vehicle approaches a lane marker while
another vehicle is in the detection zone, the
system chimes (three times) and the side
indicator light flashes. The BSI system
activates to help return the vehicle back to
the center of the driving lane.

NOTE:

.

When overtaking several vehicles in a

row, the vehicles after the first vehicle
may not be detected if they are travel-
ing close together.

.

The radar sensors may not detect slower

moving vehicles if they are passed
quickly.

JVS0741X

Illustration 7 - Entering from the side

Entering from the side

Illustration 7: The side indicator light illumi-
nates if a vehicle enters the detection zone
from either side.

NOTE:

The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.

Starting and driving

5-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-50

Starting and driving

WAF0555X

Illustration 8 - Entering from the side

Illustration 8: If the driver activates the turn
signal while another vehicle is in the detec-
tion zone, then the side indicator light
flashes and a chime will sound twice.

NOTE:

If the driver activates the turn signal before
a vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when another vehicle is detected.

JVS0761X

Illustration 9 - Entering from the side

Illustration 9: If the BSI system is on and your
vehicle approaches the lane marker while
another vehicle is in the detection zone, the
system chimes (three times) and the side
indicator light flashes. The BSI system
activates to help return the vehicle back to
the center of the driving lane.

JVS0742X

Illustration 10 - Entering from the side

Illustration 10: The BSI system will not
operate if your vehicle is on a lane marker
when another vehicle enters the detection
zone. In this case only the BSW system
operates.

NOTE:

.

The radar sensors may not detect a

vehicle which is traveling at about the
same speed as your vehicle when it
enters the detection zone.

.

BSI will not operate or will stop operat-

ing and only a warning chime will sound
under the following conditions.

When the brake pedal is depressed.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the vehicle is accelerated dur-
ing BSI system operation

When steering quickly

When the ICC, DCA, PFCW or FEB
warnings sound.

When the hazard warning flashers
are operated.

When driving on a curve at a high
speed.

When the BSW system is turned off.

SYSTEM TEMPORARILY UNA-
VAILABLE

When any of the following messages appear
on the vehicle information display, a chime
will sound and the BSI system will be turned
off automatically.

.

“Not Available: Poor Road Conditions”:

When the VDC system (except traction
control system function) or ABS oper-
ates.

.

“Currently unavailable/Currently not

available”:
— When the VDC system is turned off.
— When the SNOW mode is selected.
— When the 4WD shift switch is in the

4H or 4L position. (4WD models)

.

“Not Available: High Camera Temp”:

If the vehicle is parked in direct sunlight
under high temperature conditions (over

approximately 104°F (40°C)).

.

“Unavailable Side Radar Obstruction”:

When side radar blockage is detected.

Turn off the BSI system and turn it on again
when the above conditions no longer exist.

SYSTEM MALFUNCTION

When the BSI system malfunctions, it will be
turned off automatically, the BSI indicator
illuminates and a chime will sound, and the
“Malfunction” warning message will appear
in the vehicle information display.

Action to take:

Stop the vehicle in a safe location and push
the park button to engage the P (Park)
position. Turn the engine off and restart the
engine. If the warning message continues to
appear, It is recommended you visit an
INFINITI retailer for this service.

JVS1149X

SYSTEM MAINTENANCE

The two radar sensors

for the BSI system

are located near the rear bumper. Always
keep the area near the radar sensors clean.
The radar sensors may be blocked by
temporary ambient conditions such as
splashing water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors.
Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.

Starting and driving

5-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5-52

Starting and driving

Do not strike or damage the area around the
radar sensors.
It is recommended you visit an INFINITI
retailer if the area around the radar sensors
is damaged due to a collision.
The lane camera unit

for BSI system is

located above the inside mirror. To keep the
proper operation of BSI and prevent a
system malfunction, be sure to observe the
following:

.

Always keep the windshield clean.

.

Do not attach a sticker (including trans-

parent material) or install an accessory
near the camera unit.

.

Do not place reflective materials, such as

white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane markers.

.

Do not strike or damage the areas around

the camera unit. Do not touch the
camera lens or remove the screw located
on the camera unit. It is recommended
you contact an INFINITI retailer if the
camera unit is damaged due to an
accident.

Radio frequency statement

For USA:

FCC ID: OAYSRR3B
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:

(1)

this device may not cause harmful
interference, and

(2) this device must accept any interfer-

ence received, including interference
that may cause undesired operation.

CAUTION TO USERS

Changes or modifications not expressly
approved by the party responsible for com-
pliance could void the user’s authority to
operate the equipment.

For Canada:

IC: 4135A-SRR3B
This device contains licence-exempt trans-
mitter(s)/receiver(s) that comply with Inno-
vation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation
is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference,
including interference that may cause un-
desired operation of the device.
Radiofrequency radiation exposure informa-

tion:
This equipment complies with radiation ex-
posure limits set forth for an uncontrolled
environment. This equipment should be in-
stalled and operated with minimum distance
of 20 cm between the radiator and your
body.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and
instructions for proper use of the BCI
system could result in serious injury or
death.

.

The BCI system is not a replacement
for proper driving procedure, is not
designed to prevent contact with
vehicles or objects and does not
provide full brake power. When back-
ing out of parking spaces, always use
the inside and rear mirrors and turn
and look in the direction you will
move. Never rely solely on the BCI
system.

.

There is a limitation to the detection
capability of the radar or the sonar.
Using the BCI system under some
road, ground, traffic or weather con-
ditions could lead to improper system
operation. Always rely on your own
operation to avoid accidents.

The BCI system can help alert the driver of
an approaching vehicle or objects behind the
vehicle when the driver is backing out of a
parking space.

JVS1152X

The BCI system uses radar sensors
installed on both sides near the rear bumper
to detect an approaching vehicle and sonar
sensors

to detect objects in the rear.

JVS0173X

JVS0698X

Starting and driving

5-53

BACK-UP COLLISION
INTERVENTION (BCI)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
