3-42

Pre-driving checks and adjustments

MEMO

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Monitor, climate, audio, phone and voice re-

cognition systems

INFINITI InTouch

®

Owner’s Manual ........................... 4-3

Safety note ......................................................................... 4-3
Around View

®

Monitor ................................................... 4-4

Around View

®

Monitor system operation ........... 4-5

Around View

®

Monitor settings ........................... 4-12

Around View

®

Monitor system limitations ........ 4-14

System maintenance ................................................ 4-16

Camera aiding sonar function ..................................... 4-17

Sonar system operation .......................................... 4-18
Turning on and off the sonar function ............... 4-18
Sonar system settings .............................................. 4-19
Sonar system limitations ......................................... 4-21
System maintenance ................................................ 4-21

Moving Object Detection (MOD) .............................. 4-22

MOD system operation ........................................... 4-23
Turning on and off the MOD system ................. 4-24
MOD function settings ............................................ 4-25
MOD system limitations ......................................... 4-25
System maintenance ................................................ 4-26

Ventilators ........................................................................ 4-27

Center ventilators ..................................................... 4-27
Side ventilators .......................................................... 4-27
Rear ventilators ......................................................... 4-27

Heater and air conditioner .......................................... 4-28

Automatic air conditioner ...................................... 4-30

Rear automatic air conditioning system ........... 4-32
Operating tips .......................................................... 4-35
Linking Intelligent Key ........................................... 4-35
In-cabin microfilter ................................................. 4-35
Servicing climate control ....................................... 4-35

Antenna ............................................................................ 4-36

Window antenna ..................................................... 4-36
Satellite radio antenna .......................................... 4-36

Car phone or CB radio ................................................. 4-37
Rear Seat Infotainment (RSI) (if so equipped) ....... 4-37

Welcome ................................................................... 4-38
Getting started ....................................................... 4-38
Control description ................................................ 4-43
Remote control operation ................................... 4-44
Remote control buttons ....................................... 4-45
Wireless headphone operation .......................... 4-46
General operation ................................................... 4-47
Video operation ...................................................... 4-48
HDMI/MHL connection ....................................... 4-49
USB/SD card operation ....................................... 4-50
Slingplayer

®

.............................................................. 4-56

Miracast

®

.................................................................. 4-58

Using the mobile application on your
mobile device ............................................................ 4-59
SmartStream ............................................................ 4-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAE0902X

Refer to the digital INFINITI InTouch

®

Own-

er’s Manual using the QR code on this page
(US only), or your printed INFINITI InTouch

®

Owner’s Manual (if so equipped). This man-
ual includes the following information.

.

Navigation system

.

Audio system

.

Bluetooth

®

Hands-Free Phone System

.

Apple CarPlay

®

.

Android Auto

TM

.

INFINITI InTouch

®

Services

.

SiriusXM Traffic

TM

.

SiriusXM

®

Travel Link

.

SiriusXM

®

Radio

.

Amazon Alexa

.

Viewing information

.

Other settings

.

Voice recognition

.

General system information

WARNING

.

Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.

.

Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.

.

In case you notice any foreign object
in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system im-
mediately. It is recommended you
visit an INFINITI retailer for servi-
cing. Ignoring such conditions may
lead to accidents, fire, or electric
shock.

.

Park the vehicle in a safe location and
apply the parking brake to view the
images on the touch screen display.

Do not attempt to operate the system in
extreme temperature conditions [below
−4°F (−20°C) and above 158°F (70°C)].
Operating this system under these condi-
tions may result in system malfunctions.

Monitor, climate, audio, phone and voice recognition systems

4-3

INFINITI INTOUCH

®

OWNER’S MANUAL

SAFETY NOTE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-4

Monitor, climate, audio, phone and voice recognition systems

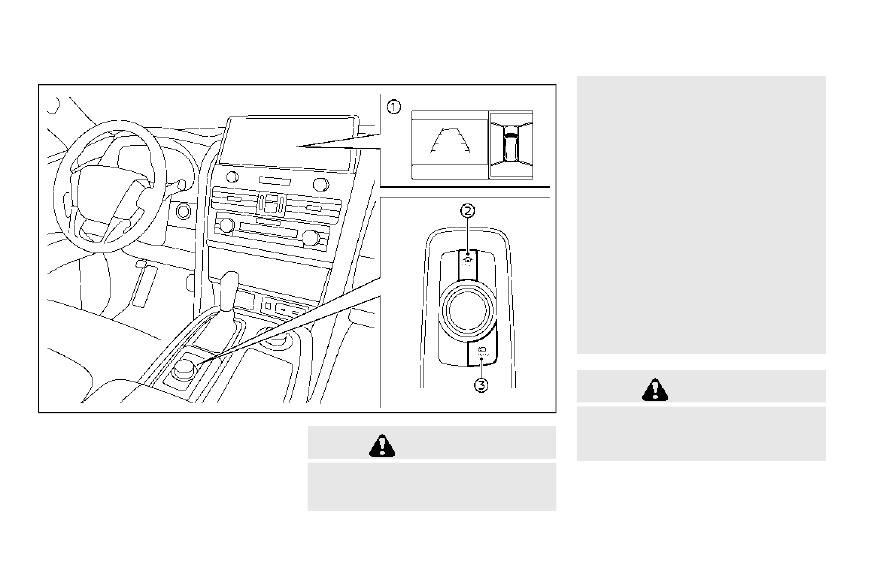

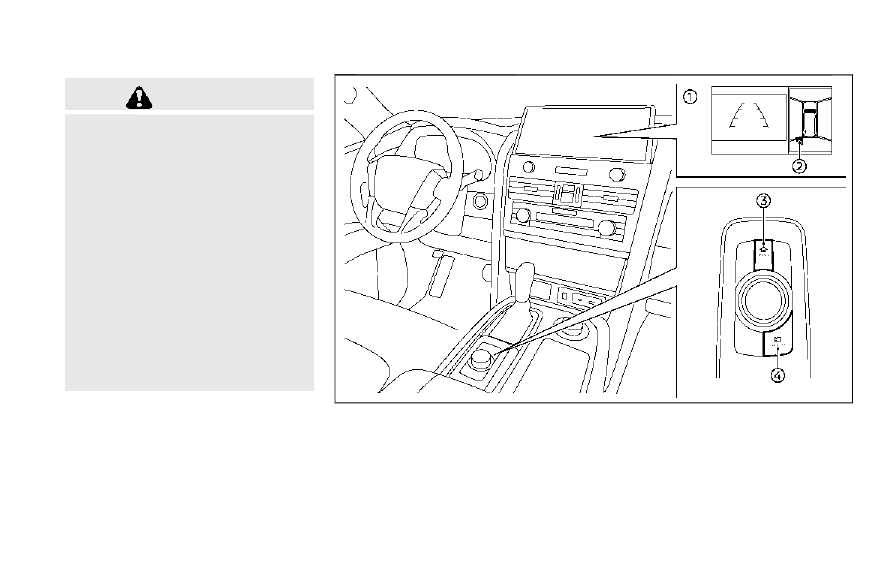

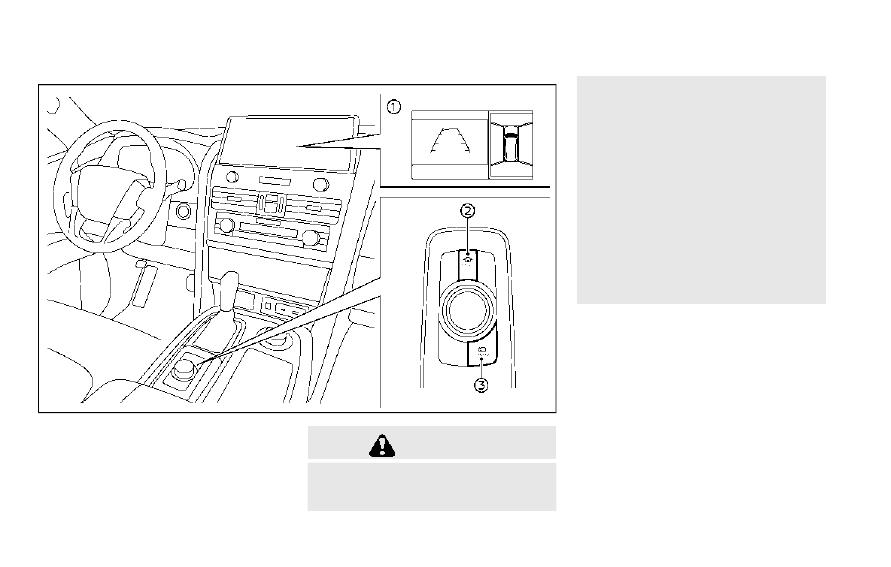

WAE0767X

1. Touch screen display
2. MENU button
3. CAMERA button

WARNING

Failure to follow the warnings and
instructions for the proper use of the
Around View

®

Monitor system could

result in serious injury or death.

.

The Around View

®

Monitor is a

convenience feature and is not a
substitute for proper vehicle opera-
tion because it has areas where
objects cannot be viewed. The four
corners of the vehicle in particular,
are areas where objects do not al-
ways appear in the bird’s-eye, front,
or rear views. Always check your
surroundings to be sure that it is safe
to move before operating the vehicle.
Always operate the vehicle slowly.
Always look out the windows and
check mirrors to be sure that it is safe
to move.

.

The driver is always responsible for
safety during parking and other
maneuvers.

CAUTION

Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.

The Around View

®

Monitor system is de-

signed as an aid to the driver in situations
such as slot parking or parallel parking.

AROUND VIEW

®

MONITOR

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The monitor displays various views of the
position of the vehicle in a split screen
format. All views are not available at all
times.

Available views:

.

Front view

An approximately 150-degree view of
the front of the vehicle.

.

Rear view

An approximately 150-degree view of
the rear of the vehicle.

.

Bird’s-eye view

The surrounding view of the vehicle from
above.

.

Front-side view

The view around and ahead of the front
passenger’s side wheel.

.

Front-wide view

An approximately 180-degree view of
the front of the vehicle.

.

Rear-wide view

An approximately 180-degree view of
the rear of the vehicle.

WAE0291X

To display the multiple views, the Around
View

®

Monitor system uses cameras

located in the front grill, on the vehicle’s
outside mirrors and one just above the
vehicle’s license plate.

AROUND VIEW

®

MONITOR SYS-

TEM OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse)
position or push the CAMERA button to
operate the Around View

®

Monitor.

The screen displayed on the Around View

®

Monitor will automatically return to the
previous screen 3 minutes after the CAM-
ERA button has been pushed with the shift

lever in a position other than the R (Reverse)
position.

Available views

WARNING

.

The distance guide line and the
vehicle width line should be used as
a reference only when the vehicle is
on a paved, level surface. The dis-
tance viewed on the monitor is for
reference only and may be different
than the actual distance between the
vehicle and displayed objects.

.

Use the displayed lines and the bird’s-
eye view as a reference. The lines and
the bird’s-eye view are greatly af-
fected by the number of occupants,
fuel level, vehicle position, road con-
dition and road grade.

.

If the tires are replaced with different
sized tires, the predictive course lines
and the bird’s-eye view may be dis-
played incorrectly.

.

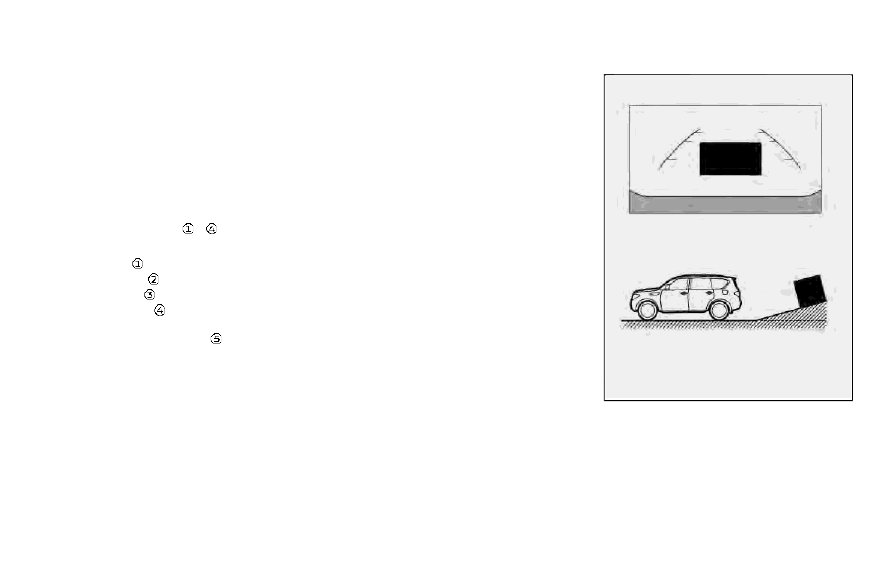

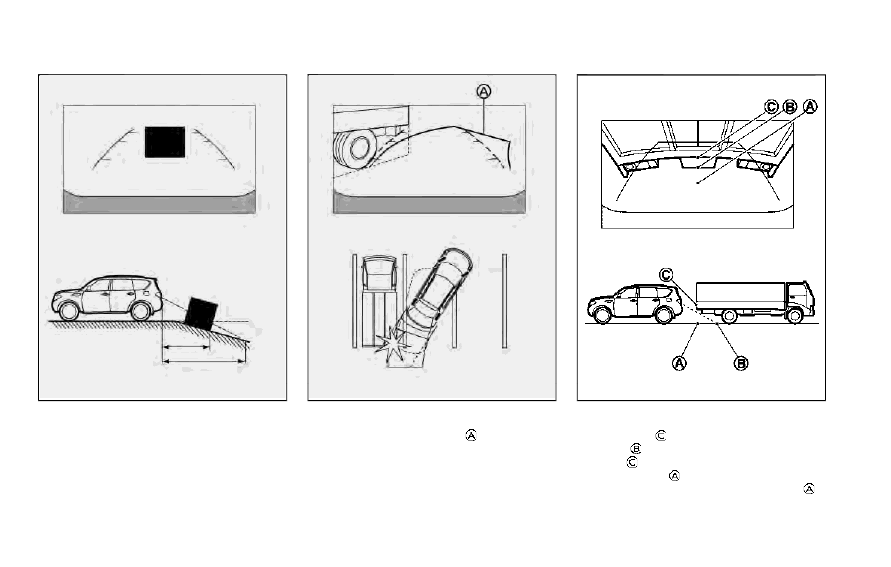

When driving the vehicle up a hill,
objects viewed in the monitor are
farther than they appear. When driv-
ing the vehicle down a hill, objects
viewed in the monitor are closer than
they appear.

Monitor, climate, audio, phone and voice recognition systems

4-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-6

Monitor, climate, audio, phone and voice recognition systems

.

Objects in the rear view will appear
visually opposite compared to when
viewed in the rear view and outside
mirrors.

.

Use the mirrors or actually look to
properly judge distances to other
objects.

.

The distance between objects viewed
in the rear view differs from actual
distance because a wide-angle lens is
used.

.

On a snow-covered or slippery road,
there may be a difference between
the predictive course lines and the
actual course line.

.

The vehicle width and predictive
course lines are wider than the actual
width and course.

.

The displayed lines on the rear view
will appear slightly off to the right
because the rearview camera is not
installed in the rear center of the
vehicle.

SAA1840

Front view

WAE0216X

Rear view

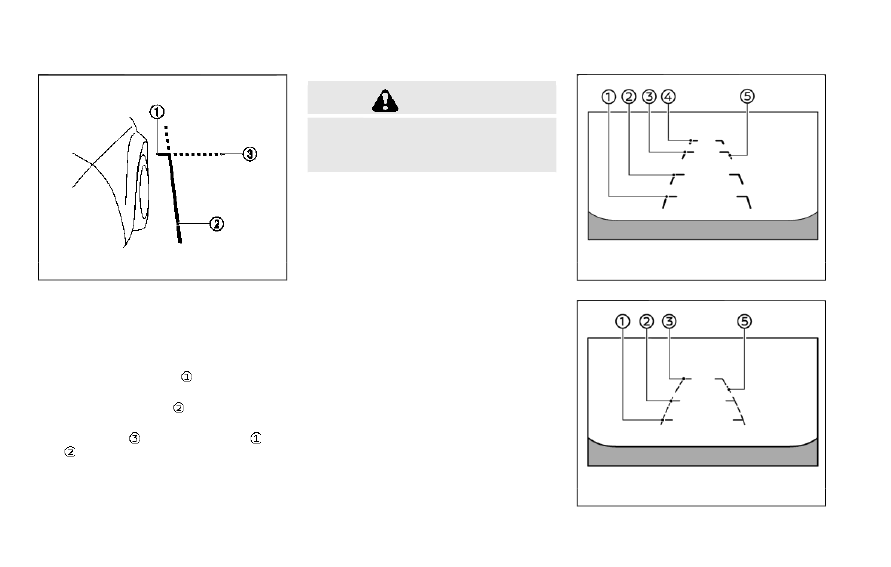

Front and rear view:

Guiding lines that indicate the approximate
vehicle width and distances to objects with
reference to the vehicle body line

, are

displayed on the monitor.

Distance guide lines

-

:

Indicate distances from the vehicle body.

.

Red line

: approx. 1.5 ft (0.5 m)

.

Yellow line

: approx. 3 ft (1 m)

.

Green line

: approx. 7 ft (2 m)

.

Green line

(front view only): approx. 10

ft (3 m)

Vehicle width guide lines

:

Indicate the approximate vehicle width.

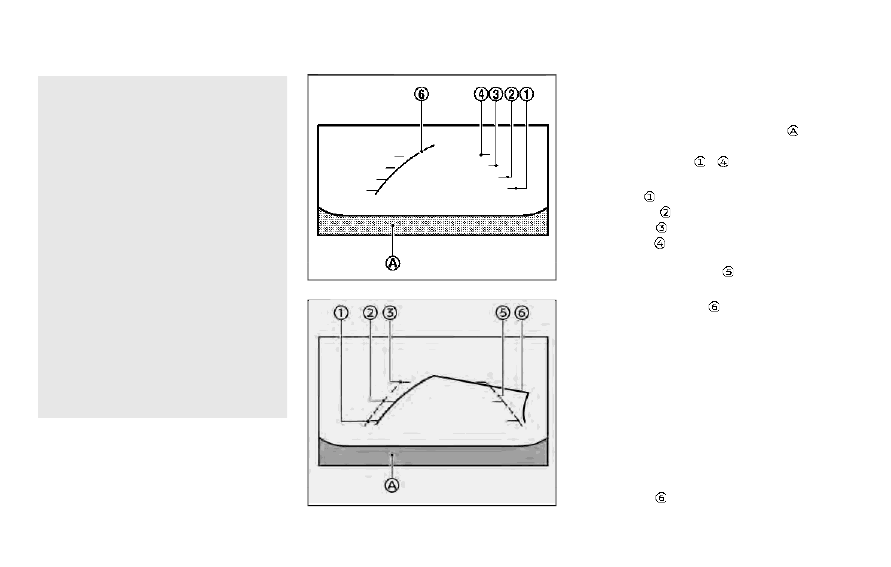

Predictive course lines

:

Indicate the predictive course when operat-
ing the vehicle. The predictive course lines
will move depending on how much the
steering wheel is turned. The predictive
course lines in the rear view will not be
displayed while the steering wheel is in the
straight ahead position.

NOTE:

When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the straight ahead
position, both the right and left predictive
course lines

are displayed. When the

steering wheel turns about 90 degrees or

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

more, a line is displayed only on the
opposite side of the turn.

WAE0245X

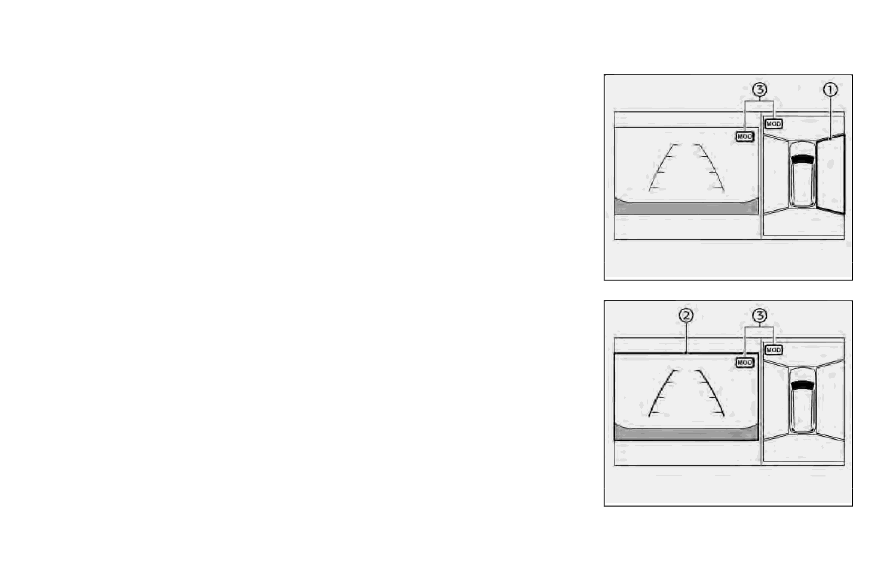

Bird’s-eye view:

The bird’s-eye view shows the overhead
view of the vehicle which helps confirm the
vehicle position and the predictive course to
a parking space.
The vehicle icon

shows the position of the

vehicle. Note that the distance between
objects viewed in the bird’s-eye view differs
from the actual distance.
The areas that the cameras cannot cover
are indicated in black.
After the ignition switch is placed in the ON
position, the unviewable area

is high-

lighted in yellow for a few seconds after the
bird’s-eye view is displayed.

Predictive course lines (

and

) indicate the

predictive course when operating the vehi-
cle. The predictive course lines (

and

) will

be displayed on the monitor when the
steering wheel is turned. The predictive
course lines (

and

) will move depending

on how much the steering wheel is turned.

WARNING

.

Objects in the bird’s-eye view will
appear farther than the actual dis-
tance.

.

Tall objects, such as a curb or vehicle,
may be misaligned or not displayed at
the seam of the views.

.

Objects that are above the camera
cannot be displayed.

.

The view for the bird’s-eye view may
be misaligned when the camera posi-
tion alters.

.

A line on the ground may be mis-
aligned and is not seen as being
straight at the seam of the views.
The misalignment will increase as the
line proceeds away from the vehicle.

Monitor, climate, audio, phone and voice recognition systems

4-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-8

Monitor, climate, audio, phone and voice recognition systems

JVH1141X

Front-side view:
Guiding lines:

Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line

shows the front

part of the vehicle.
The side-of-vehicle line

shows the vehicle

width including the outside mirror.
The extensions

of both the front

and

side

lines are shown with a green dotted

line.

CAUTION

The turn signal light may look like the
side-of-vehicle line. This is not a mal-
function.

WAE0668X

Front-wide view

WAE0217X

Rear-wide view

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front-wide/rear-wide view:

The front-wide view/rear-wide view shows
a wider area on the entire screen and allows
checking of the blind corners on the right and
left sides. The front-wide view/rear-wide
view displays an approximately 180-degree
area while the front view and the rear view
display an approximately 150-degree area.
The predictive course lines are not displayed
on the front-wide view /rear-wide view.

Distance guide lines

-

:

Indicate distances from the vehicle body.

.

Red line

: approx. 1.5 ft (0.5 m)

.

Yellow line

: approx. 3 ft (1 m)

.

Green line

: approx. 7 ft (2 m)

.

Green line

(front-wide view only):

approx. 10 ft (3 m)

Vehicle width guide lines

:

Indicate the approximate vehicle width.

Off-road mode (for 4WD models)

When the shift lever is out of the R (Reverse)
position, selecting the 4L position using the
4WD shift switch affects the Around View

®

Monitor display as follows:

.

Selecting the 4L position will activate the

Around View

®

Monitor. The front view/

front-side view split screen will be dis-
played.

.

When the ignition switch is placed in the

ON position with the 4L position se-
lected, the front view/front-side view
split screen will be displayed.

.

When the vehicle is shifted to the 4L

position with the bird’s-eye view dis-
played, the passenger side of the display
will change to the front-side view.

When in the off-road mode, the Around
View

®

Monitor will not return to the pre-

vious screen. The screen displayed on the
Around View

®

Monitor will automatically

return to the previous screen 3 minutes after
the vehicle was shifted out of the 4L
position.

Difference between predicted and
actual distances

The displayed guide lines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces
or projecting objects will be actually located
at distances different from those displayed
in the monitor relative to the guide lines
(refer to illustrations). When in doubt, turn
around and view the objects as you are
backing up, or park and exit the vehicle to
view the positioning of objects behind the
vehicle.

WAE0286X

Backing up on a steep uphill:

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
farther than it appears on the monitor.

Monitor, climate, audio, phone and voice recognition systems

4-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-10

Monitor, climate, audio, phone and voice recognition systems

WAE0287X

Backing up on a steep downhill:

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.

WAE0288X

Backing up near a projecting object:

The predictive course lines

do not touch

the object in the display. However, the
vehicle may hit the object if it projects over
the actual backing up course.

JVH1216X

Backing up behind a projecting object:

The position

is shown farther than the

position

in the display. However, the

position

is actually at the same distance

as the position

. The vehicle may hit the

object when backing up to the position

if

the object projects over the actual backing

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

up course.

How to park with predictive course
lines

WARNING

.

If the tires are replaced with different
sized tires, the predictive course lines
may not be displayed correctly.

.

On a snow-covered or slippery road,
there may be a difference between
the predictive course lines and the
actual course line.

.

If the battery is disconnected or
becomes discharged, the predictive
course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:

— Turn the steering wheel from lock

to lock while the engine is running.

— Drive the vehicle on a straight

road for more than 5 minutes.

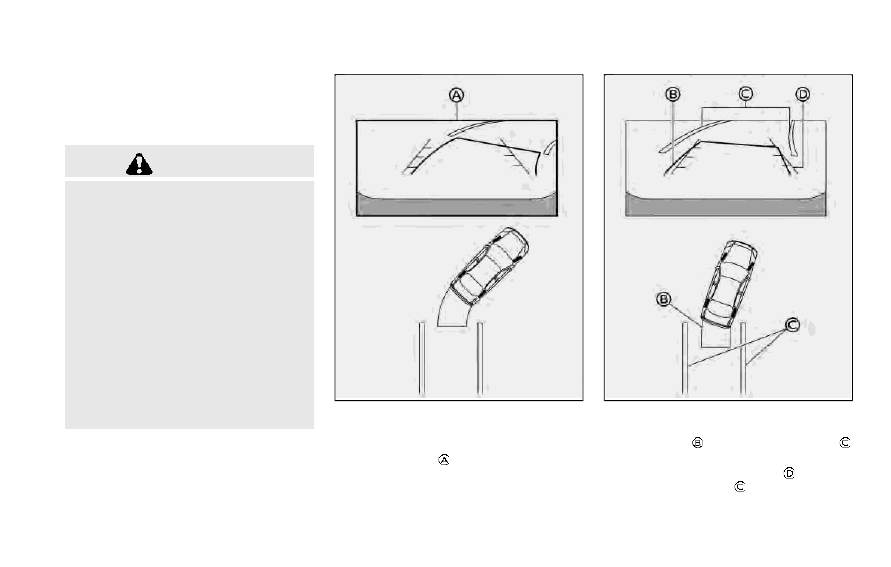

WAE0289X

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed

on the screen

when the shift lever is

moved to the R (Reverse) position.

WAE0290X

3. Slowly back up the vehicle adjusting the

steering wheel so that the predictive
course lines

enter the parking space

.

4. Maneuver the steering wheel to make

the vehicle width guide lines

parallel to

the parking space

while referring to

the predictive course lines.

Monitor, climate, audio, phone and voice recognition systems

4-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-12

Monitor, climate, audio, phone and voice recognition systems

5. When the vehicle is parked in the space

completely, move the shift lever to the P
(Park) position and apply the parking
brake.

WAE0781X

How to switch the display

The Around View

®

Monitor can display two

split views as well as a single view of the
front-wide view or rear-wide view. Push the
CAMERA button, change the shift lever
position or touch the "Change View" key
to switch between the available views.

AROUND VIEW

®

MONITOR SET-

TINGS

The Around View

®

Monitor settings can be

changed using the following procedures.
1. Push the MENU button on the INFINITI

controller.

2. Touch the "Settings" key on the touch

screen display.

3. Touch the "Camera" key.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Available setting items:

Setting item

Action

Display Settings

Brightness

Adjust display settings by touching the “+”/“-” key.

Contrast

Tint

Color

Black Level

Camera

Moving Object Detection

Turn the MOD system on/off. (See “Moving Object Detection (MOD)” (P.4-
22).)

Unviewable Area Reminder

When this item is turned on, the unviewable area is highlighted in yellow for
several seconds after the bird’s-eye view is displayed for the first time when the
ignition switch is placed in the ON position.

Predictive Course Lines

When this item is turned on, the predictive course lines are displayed in the
front, rear and bird’s-eye view screen.

Auto Show Sonar Image

The automatic sonar display can be turned on/off.

NOTE:

Do not adjust any of the Around View

®

Monitor settings while the vehicle is moving. Make sure the parking brake is firmly applied.

Monitor, climate, audio, phone and voice recognition systems

4-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-14

Monitor, climate, audio, phone and voice recognition systems

AROUND VIEW

®

MONITOR SYS-

TEM LIMITATIONS

WARNING

Listed below are the system limitations
for the Around View

®

Monitor. Failure

to operate the vehicle in accordance with
these system limitations could result in
serious injury or death.

.

Do not use the Around View

®

Moni-

tor with the outside mirrors in the
stored position, and make sure that
the liftgate is securely closed when
operating the vehicle using the
Around View

®

Monitor.

.

The apparent distance between ob-
jects viewed on the Around View

®

Monitor differs from the actual dis-
tance.

.

The cameras are installed on the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the vehicle that
covers the cameras.

.

When washing the vehicle with high
pressure water, be sure not to spray
it around the cameras. Otherwise,
water may enter the camera unit

causing water condensation on the
lens, a malfunction, fire or an electric
shock.

.

Do not strike the cameras. They are
precision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.

WAE0277X

There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the
bumper or on the ground may not be viewed

. When in the bird’s-eye view, a tall object

near the seam

of the camera viewing

areas will not appear in the monitor.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The following are operating limitations and
do not represent a system malfunction:

.

The screen displayed on the Around

View

®

Monitor will automatically return

to the previous screen 3 minutes after
the CAMERA button has been pushed
while the shift lever is in a position other
than the R (Reverse) position.

.

There may be a delay when switching

between views.

.

When the temperature is extremely high

or low, the screen may not display
objects clearly.

.

When strong light is directly shines on the

camera, objects may not be displayed
clearly.

.

The screen may flicker under fluorescent

light.

.

The colors of objects on the Around

View

®

Monitor may differ somewhat

from the actual color of objects.

.

Objects on the monitor may not be clear

and the color of the object may differ in a
dark environment.

.

There may be differences in sharpness

between each camera view of the bird’s-
eye view.

.

When activating the Around View

®

Monitor, the icons and the messages
may not be displayed for a while.

.

If dirt, rain or snow accumulates on the

camera, the Around View

®

Monitor may

not display objects clearly. Clean the
camera.

.

Do not use wax on the camera lens. Wipe

off any wax with a clean cloth that has
been dampened with a diluted mild
cleaning agent, then wipe with a dry
cloth.

WAE0670X

System temporarily unavailable

When the “

” icon is displayed on the

screen, there will be abnormal conditions in
the Around View

®

Monitor. This will not

hinder normal driving operation but the
system should be inspected. It is recom-
mended that you visit an INFINITI retailer
for this service.

Monitor, climate, audio, phone and voice recognition systems

4-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-16

Monitor, climate, audio, phone and voice recognition systems

WAE0671X

When the “

” icon is displayed on the

screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit
an INFINITI retailer for this service.

WAE0291X

SYSTEM MAINTENANCE

CAUTION

.

Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration.

.

Do not damage the camera as the
monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on any of
the cameras

, the Around View

®

Monitor

may not display objects clearly. Clean the
camera by wiping with a cloth dampened

with a diluted mild cleaning agent and then
wiping with a dry cloth.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and
instructions for proper use of the sonar
function as outlined in this section could
result in serious injury or death.

.

The sonar is a convenience feature. It
is not a substitute for proper parking.

.

This function is designed as an aid to
the driver in detecting large station-
ary objects to help avoid damaging
the vehicle.

.

The driver is always responsible for
safety during parking and other
maneuvers.

.

Always look around and check that it
is safe to move before parking.

.

Read and understand the limitations
of the sonar as contained in this
section.

The sonar function helps to inform the driver
of large stationary objects around the
vehicle when parking by issuing an audible
and visual alert.

WAE0768X

1. Touch screen display
2. Sonar indicator
3. MENU button
4. CAMERA button

Monitor, climate, audio, phone and voice recognition systems

4-17

CAMERA AIDING SONAR FUNCTION

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-18

Monitor, climate, audio, phone and voice recognition systems

SONAR SYSTEM OPERATION

The system gives the tone for front objects
when the shift lever is in the D (Drive)
position and both front and rear objects
when the shift lever is in the R (Reverse)
position.
When the camera image is shown on the
touch screen display, the system shows the
sonar indicator regardless of the shift lever
position.
The system is deactivated at speeds above 6
MPH (10 km/h). It is reactivated at lower
speeds.
The colors of the sonar indicators and the
distance guide lines in the front, front-wide,
rear and rear-wide views indicate different
distances to the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking and the rate of the tone increase.
When the vehicle is very close to the object,
the indicator stops blinking and turns red,
and the tone sounds continuously.
The intermittent tone will stop after 3
seconds when an object is detected by only
the sonar and the distance does not change.
The tone will stop when the object is no

longer near the vehicle.

WAE0782X

TURNING ON AND OFF THE SO-
NAR FUNCTION

When the “P” key

is touched, the indicator

light

on the key will turn off and the sonar

will turn off temporarily. The Moving Object
Detection (MOD) and the Back-up Collision
Intervention (BCI) systems will also be
turned off at the same time. See “Moving
Object Detection (MOD)” (P.4-22) and
“Back-up Collision Intervention (BCI)” (P.5-
53).
When the “P” key

is touched again, the

indicator light

will turn on and the sonar

will turn back on.
The Moving Object Detection (MOD) and

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

the Back-up Collision Intervention (BCI)
systems will also turn back on at the same
time.
In the cases below, the sonar will be turned
back on automatically:

.

When the shift lever is in the R (Reverse)

position.

.

When the CAMERA button is pushed

and a screen other than the camera view
is shown on the display.

.

When vehicle speed decreases below

approximately 5 MPH (8 km/h).

.

When the ignition switch is placed in the

OFF position and turned back to the ON
position again.

To prevent the sonar system from activating
altogether, use the sonar system settings
menu. (See “Sonar system settings” (P.4-
19).)
When both Sonar and the MOD system are
deactivated from the settings menu, the "P"
key

will disappear from the Around View

®

Monitor screen. (See “Sonar system set-
tings” (P.4-19) and “MOD function settings”
(P.4-25).)

SONAR SYSTEM SETTINGS

The camera aiding sonar function settings
can be changed using the following proce-
dures.
1. Push the MENU button on the INFINITI

controller.

2. Touch the "Settings" key on the touch

screen display.

3. Touch the "Parking Sonar" key.

Monitor, climate, audio, phone and voice recognition systems

4-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-20

Monitor, climate, audio, phone and voice recognition systems

Available setting items:

Setting item

Action

Parking Sonar

When this item is turned on, the front and rear sonar is activated.
When this item is turned off (indicator turns off), the front and rear sonar is deactivated. The amber markers are displayed at
the corners of the vehicle icon. When the Around View

®

Monitor is activated next time after placing the ignition switch in the

ON position, a gray sonar icon will briefly flash on the touch screen display, indicating that the sonar system is off.

Auto Show Sonar Image

When the sonar detects an object while this item is turned on, the Around View

®

Monitor will interrupt the current view in

the display to show the surround area of the vehicle.

Front Only

When this item is turned on, only the front sonar is activated. The amber markers are displayed at the rear corners of the
vehicle icon.

Distance

Adjust the sensitivity level of the sonar.

Volume

Adjust the tone volume of the sonar.

NOTE:

Do not adjust any of the Parking Sonar settings while the vehicle is moving. Make sure the parking brake is firmly applied.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SONAR SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for the sonar function. Failure to operate
the vehicle in accordance with these
system limitations could result in serious
injury or death.

.

Inclement weather or ultrasonic
sources such as an automatic car
wash, a truck’s compressed-air
brakes or a pneumatic drill may affect
the function of the system, including
reduced performance or a false acti-
vation.

.

The system is not designed to pre-
vent contact with small or moving
objects.

.

The system will not detect small
objects below the bumper, and may
not detect objects close to the bum-
per or on the ground.

.

The system may not detect the
following objects:

— Fluffy objects such as snow,

cloth, cotton, grass or wool.

— Thin objects such as rope, wire or

chain.

— Wedge-shaped objects.

.

If your vehicle sustains damage to the
bumper fascia, leaving it misaligned
or bent, the sensing zone may be
altered causing inaccurate measure-
ment of objects or false alarms.

CAUTION

Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.

See “Front and rear sonar system” (P.5-126)
for more information on the sonar system
and limitations.

System temporarily unavailable

When the amber markers are displayed at
the corners of the vehicle icon and the
function cannot be activated from the
Parking sonar settings menu (the setting
items are grayed out), the sonar system may
be malfunctioning.

SYSTEM MAINTENANCE

CAUTION

Keep the surface of the sonar (located on
the front and rear bumper fascia) free
from accumulations of snow, ice and dirt.
Do not scratch the surface of the sonar
when cleaning. If the sensors are cov-
ered, the accuracy of the sonar function
will be diminished.

Monitor, climate, audio, phone and voice recognition systems

4-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-22

Monitor, climate, audio, phone and voice recognition systems

WAE0767X

1. Touch screen display
2. MENU button
3. CAMERA button

WARNING

Failure to follow the warnings and
instructions for proper use of the Mov-
ing Object Detection system could result

in serious injury or death.

.

The MOD system is not a substitute
for proper vehicle operation and is
not designed to prevent contact with
the objects surrounding the vehicle.
When maneuvering, always use the
outside mirror and rearview mirror
and turn and check the surrounding
to ensure it is safe to maneuver.

.

The system is deactivated at speeds
above 6 MPH (10 km/h). It is reacti-
vated at lower speeds.

.

The MOD system is not designed to
detect the surrounding stationary
objects.

The Moving Object Detection (MOD) system
can inform the driver of the moving objects
surrounding the vehicle when driving out of
garages, maneuvering into parking lots and
in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown on the display.

MOVING OBJECT DETECTION (MOD)

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOD SYSTEM OPERATION

The MOD system will turn on automatically
under the following conditions:

.

When the shift lever is in the R (Reverse)

position.

.

When the CAMERA button is pushed to

activate the camera view on the display.

.

When vehicle speed decreases below

approximately 5 MPH (8 km/h) and the
camera screen is displayed.

The MOD system operates in the following
conditions when the camera view is dis-
played:

.

When the shift lever is in the P (Park) or N

(Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the
outside mirrors are moving in or out, in
the stowed position, or if either front
door is opened.

.

When the shift lever is in the D (Drive)

position and the vehicle speed is below
approximately 5 MPH (8 km/h), the
MOD system detects moving objects in
the front view or front-wide view.

.

When the shift lever is in the R (Reverse)

position and the vehicle speed is below
approximately 5 MPH (8 km/h), the
MOD system detects moving objects in

the rear view or rear-wide view.

The MOD system will not operate if the
liftgate is open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view.

WAE0661X

Bird’s-eye view

WAE0662X

Front view / rear view

Monitor, climate, audio, phone and voice recognition systems

4-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-24

Monitor, climate, audio, phone and voice recognition systems

WAE0663X

Rear and front-side views

WAE0783X

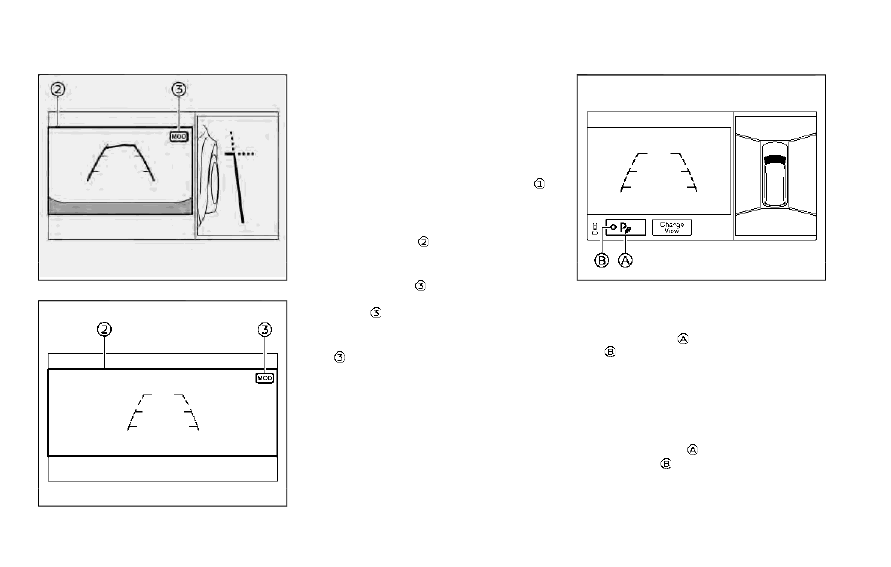

When the MOD system detects moving
objects near the vehicle, a chime will be
heard and a yellow frame will be displayed
on the view where the objects are detected.
While the MOD system continues to detect
moving objects, the yellow frame continues
to be displayed.
In the bird’s-eye view, the yellow frame

is

displayed on each camera image (front, rear,
right, left) depending on where moving
objects are detected.
The yellow frame

is displayed on each

view in the front view, front-wide view, rear
view and rear-wide view modes.
A green MOD icon

is displayed in the view

where the MOD system is operative. A white
MOD icon

is displayed in the view where

the MOD system is not operative.
If the MOD system is turned off, the MOD
icon

is not displayed.

WAE0782X

TURNING ON AND OFF THE MOD
SYSTEM

When the “P” key

is touched, the indicator

light

on the key will turn off and the MOD

system will turn off temporarily. The sonar
and the Back-up Collision Intervention (BCI)
systems will also be turned off at the same
time. See “Camera aiding sonar function”
(P.4-17) and “Back-up Collision Intervention
(BCI)” (P.5-53).
When the “P” key

is touched again, the

indicator light

will turn on and the MOD

system will turn back on.
The sonar and the Back-up Collision Inter-
vention (BCI) systems will also turn back on

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

at the same time.
To enable or disable the MOD system, use
the camera settings menu. See “MOD func-
tion settings” (P.4-25).

MOD FUNCTION SETTINGS

The MOD function settings can be changed
using the following procedures.
1. Push the MENU button on the INFINITI

controller.

2. Touch the “Settings” key on the touch

screen display.

3. Touch the “Camera” key.
4. Touch the “Camera” key.

Available setting items:

Moving Object Detection:

When this item is turned on, the MOD
system is activated. When this item is turned
off (indicator turns off), the MOD system is
deactivated.

WAE0784X

When the MOD system is deactivated, the
MOD icon

will disappear.

When the sonar is turned off on the settings
menu as well, the “P” key

will disappear.

MOD SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations
for MOD. Failure to operate the vehicle
in accordance with these system limita-
tions could result in serious injury or
death.

.

Do not use the MOD system when
towing a trailer. The system may not
function properly.

.

Excessive noise (for example, audio
system volume or open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.

.

The MOD system performance will be
limited according to environmental
conditions and surrounding objects
such as:

— When there is low contrast be-

tween background and the mov-
ing objects.

— When there is blinking source of

light.

— When strong light such as an-

other vehicle’s headlight or sun-
light is present.

— When camera orientation is not in

its usual position, such as when
mirror is folded.

— When there is dirt, water drops or

snow on the camera lens.

— When the position of the moving

objects in the display is not chan-
ged.

.

The MOD system might detect flow-
ing water droplets on the camera

Monitor, climate, audio, phone and voice recognition systems

4-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-26

Monitor, climate, audio, phone and voice recognition systems

lens, white smoke from the muffler,
moving shadows, etc.

.

The MOD system may not function
properly depending on the speed,
direction, distance or shape of the
moving objects.

.

If your vehicle sustains damage to the
parts where the camera is installed,
leaving it misaligned or bent, the
sensing zone may be altered and the
MOD system may not detect objects
properly.

.

When the temperature is extremely
high or low, the screen may not
display objects clearly. This is not a
malfunction.

WAE0291X

SYSTEM MAINTENANCE

CAUTION

.

Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration.

.

Do not damage the camera as the
monitor screen may be adversely
affected.

If dirt, rain or snow accumulates on any of
the cameras

, the MOD system may not

operate properly. Clean the camera by
wiping with a cloth dampened with a diluted

mild cleaning agent and then wiping with a
dry cloth.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WAE0636X

CENTER VENTILATORS

Open/close the ventilators by moving the
control to either direction.
Adjust the air flow direction of the ventila-
tors by moving the center knob (up/down,
left/right) until the desired position is
achieved.

WAE0170X

SIDE VENTILATORS

Open/close the ventilators by moving the
control to either direction.
Adjust the air flow direction of the ventila-
tors by moving the center knob (up/down,
left/right) until the desired position is
achieved.

SAA3055

REAR VENTILATORS

Adjust the air flow direction of the ventila-
tors by moving the center knob (up/down,
left/right) until the desired position is
achieved.

Monitor, climate, audio, phone and voice recognition systems

4-27

VENTILATORS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-28

Monitor, climate, audio, phone and voice recognition systems

WARNING

.

The air conditioner cooling function
operates only when the engine is
running.

.

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.

.

Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.

.

Do not adjust the heating and air
conditioning controls while driving so
that full attention may be given to
vehicle operation.

Start the engine and operate the climate
control system.

NOTE:

.

Odors from inside and outside the

vehicle can build up in the air conditioner
unit. Odor can enter the passenger

compartment through the ventilators.

.

When parking, set the heater and air

conditioner controls to turn off air
recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.

HEATER AND AIR CONDITIONER

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

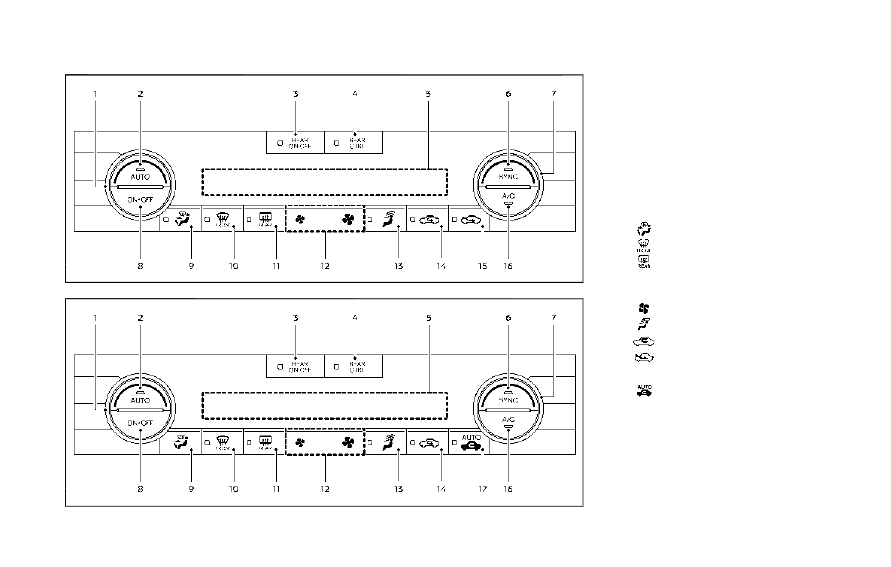

WAE0650X

Without Advanced Climate Control System (if so equipped)

WAE0770X

With Advanced Climate Control System (if so equipped)

1.

Temperature control dial (driver’s side)

2.

AUTO (automatic) button

3.

REAR ON·OFF button

4.

REAR CTRL (rear control) button

5.

Display screen

6.

SYNC (synchronize) button

7.

Temperature control dial (passenger’s
side)

8.

ON·OFF button

9.

(air flow control) button

10.

(front defroster) button

11.

(rear window defroster) button

(See “Rear window and outside mirror

defroster switch” (P.2-43).)

12.

(fan speed control) buttons

13.

Upper vent button

14.

(air recirculation) button

15.

(outside air circulation) button

16. A/C (air conditioner) button
17.

(auto-recirculation) button

Monitor, climate, audio, phone and voice recognition systems

4-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-30

Monitor, climate, audio, phone and voice recognition systems

AUTOMATIC AIR CONDITIONER

Automatic operation

Cooling and/or dehumidified heating
(AUTO):

This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button. (The indicator

light on the button will illuminate.)

2. Turn the temperature control dial on the

corresponding side to set the desired
temperature.

.

You can individually set temperatures

for the driver’s side and front passen-
ger’s side when the indicator light on
the SYNC button is not illuminated.

A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.

Heating (A/C OFF):

The air conditioner does not activate in this
mode. Use this mode when you only need to
heat.
1. Push the AUTO button. (The indicator

light on the button will illuminate.)

2. Push the A/C button. (The indicator light

on the button will turn off.)

3. Turn the temperature control dial on the

corresponding side to set the desired
temperature.

.

You can individually set temperatures

for the driver’s side and front passen-
ger’s side when the indicator light on
the SYNC button is not illuminated.

.

The temperature of the passenger

compartment will be maintained
automatically. Air flow distribution
and fan speed are also controlled
automatically.

NOTE:

.

Do not set the temperature lower than

the outside air temperature or the
system may not work properly.

.

Not recommended if windows fog up.

Dehumidified defrosting or defogging:

1. Push the

button. (The indicator light

on the button will illuminate.)

2. Turn the temperature control dial on the

corresponding side to set the desired
temperature.

.

To quickly remove ice from the outside

of the windows, use the

button to

set the fan speed to maximum.

.

As soon as possible after the wind-

shield is cleared, push the AUTO

button to return to the automatic
mode.

Manual operation

Fan speed control:

Push the

buttons to manually control

the fan speed.

Air intake control (Without Advanced Cli-
mate Control System):

.

Push the

button to recirculate inter-

ior air inside the vehicle. (The indicator
light on the button will illuminate.)

.

Push the

button to draw outside air

into the passenger compartment. (The
indicator light on the button will illumi-
nate.)

.

To control the air intake automatically,

push and hold either the

button or

the

button. The indicator light will

blink, and then the air intake will switch
to automatic control. When the auto-
matic control is set, the system auto-
matically alternates between the outside
air circulation and the air recirculation
modes. (The indicator light of the active
mode will illuminate.)

Air intake control (With Advanced Climate
Control System):

.

Push the

button to recirculate inter-

ior air inside the vehicle. (The indicator

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

light on the button will illuminate.) The
air recirculation mode cannot be acti-
vated when the air conditioner is in the
front defrosting mode.

.

Push the

button to draw outside air

into the passenger compartment. (The
indicator light on the button will turn
off.)

.

To control the air intake automatically,

push the

button. (The indicator light

on the button will illuminate.)

Air flow control:

Pushing the

button manually controls

air flow and selects the air outlet:

Air flows mainly from center and side
ventilators.

Air flows mainly from center and side
ventilators and foot outlets.

Air flows mainly from the foot outlet and
partly from the defroster.

Air flows mainly from the defroster and
foot outlets.

Synchronize temperature settings:

Push the SYNC button to turn on the SYNC
mode. (The indicator light on the button will
illuminate.)
When the SYNC mode is active, the driver’s
side temperature control dial will control the
driver’s side, front passenger’s side and rear
temperatures.

When the passenger’s side temperature
setting or the rear temperature setting is
changed, it will cancel the SYNC mode of the
operated individual zone. (The indicator light
on the SYNC button will turn off.)
Changing both the passenger’s side tem-
perature setting and the rear temperature
setting will completely turn off the SYNC
mode.

Turning the system on/off

Push the ON·OFF button.

Upper vent system

When the

button is pushed, the air flow

against the driver’s or passenger’s upper
body becomes gentle. (The indicator light on
the button will illuminate.)
In this mode, air from the upper ventilator
flows in order to control the cabin tempera-
ture without blowing air directly on the
occupants.
Push the

button when you want the air

conditioner to work quickly.
To turn the system off, push the

button

to turn the indicator light off.

Advanced Climate Control System
(if so equipped)

The Advanced Climate Control System

keeps the air inside of the vehicle clean,
using the ion control and the automatic air
intake control with exhaust gas detecting
sensor.

Ion control:

This unit generates highly concentrated
Plasmacluster

®

ions into the air blown from

the ventilators and reduces odor absorbed
into the interior trim.
The high-density Plasmacluster

®

ions gen-

erated in the air conditioner’s air stream not
only suppress airborne bacteria and reduce
the adherence of odors to the interior trim,
but also have a proven skin moisture pre-
serving effect.
When the air conditioner is turned on, the
system generates Plasmacluster

®

ions auto-

matically.
The amount of Plasmacluster

®

ions in-

creases according to the amount of air flow.
When the air flow is high,

is displayed on

the display screen and when the air flow is
low, the indication in the screen changes to

.

Plasmacluster

®

and Plasmacluster

®

ion are

registered trademarks of Sharp Corporation.

Exhaust gas/outside odor detection sensor:

This vehicle is equipped with an exhaust gas
detection sensor. When the automatic in-
take air control is ON, the sensor detects

Monitor, climate, audio, phone and voice recognition systems

4-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     6      7      8      9     ..
