LDP SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
the LDP system. Failure to follow the
warnings and instructions for proper use of
the LDP system could result in serious in-
jury or death.

The LDP system may activate if you
change lanes without first activating
your turn signal or, for example, if a con-
struction zone directs traffic to cross an
existing lane marker. If this occurs you
may need to apply corrective steering to
complete your lane change.

Because the LDP may not activate under
the road, weather, and lane marker con-
ditions described in this section, it may
not activate every time your vehicle be-
gins to leave its lane and you will need to
apply corrective steering.

When the LDP system is operating,
avoid excessive or sudden steering ma-
neuvers. Otherwise, you could lose con-
trol of the vehicle.

The LDP system will not operate at
speeds below approximately 37 mph (60
km/h) or if it cannot detect lane markers.

Do not use the LDP system under the
following conditions as it may not func-
tion properly:

During bad weather (rain, fog, snow,

etc.).

When driving on slippery roads, such

as on ice or snow.

When driving on winding or uneven

roads.

When there is a lane closure due to

road repairs.

When driving in a makeshift or tem-

porary lane.

When driving on roads where the lane

width is too narrow.

When driving without normal tire

conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).

When the vehicle is equipped with

nonoriginal brake parts or suspen-
sion parts.

When you are towing a trailer or

other vehicle.

On roads where there are multiple

parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; or lane mark-
ers covered with water, dirt, snow,
etc.

On roads where discontinued lane

markers are still detectable.

On roads where there are sharp

curves.

On roads where there are sharply

contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining after road repairs.
(The LDP system could detect these
items as lane markers.)

On roads where the traveling lane

merges or separates.

When the vehicle’s traveling direction

does not align with the lane marker.

When traveling close to the vehicle in

front of you, which obstructs the lane
camera unit detection range.

When rain, snow or dirt adheres to

the windshield in front of the lane
camera unit.

5-46

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the headlights are not bright

due to dirt on the lens or if the aiming
is not adjusted properly.

When strong light enters the lane

camera unit. (For example, the light
directly shines on the front of the ve-
hicle at sunrise or sunset.)

When a sudden change in brightness

occurs. (For example, when the ve-
hicle enters or exits a tunnel or under
a bridge.)

While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.

SYSTEM TEMPORARILY
UNAVAILABLE

Condition A:

The warning and assist functions of the LDP
system are not designed to work under the
following conditions:
• When you operate the lane change signal

and change the traveling lanes in the direc-
tion of the signal. (The LDP system will be
deactivated for approximately 2 seconds
after the lane change signal is turned off.)

• When the vehicle speed lowers to less than

approximately 37 mph (60 km/h).

After the above conditions have finished and
the necessary operating conditions are satis-
fied, the warning and assist functions will
resume.

Condition B:

The assist function of the LDP system is not
designed to work under the following condi-
tions (warning is still functional):
• When the brake pedal is depressed.
• When the steering wheel is turned as far as

necessary for the vehicle to change lanes.

• When the vehicle is accelerated during LDP

system operation.

• When the Intelligent Cruise Control (ICC)

approach warning occurs.

• When the hazard warning flashers are

operated.

• When driving on a curve at high speed.

After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDP system application of the
brakes will resume.

Condition C:

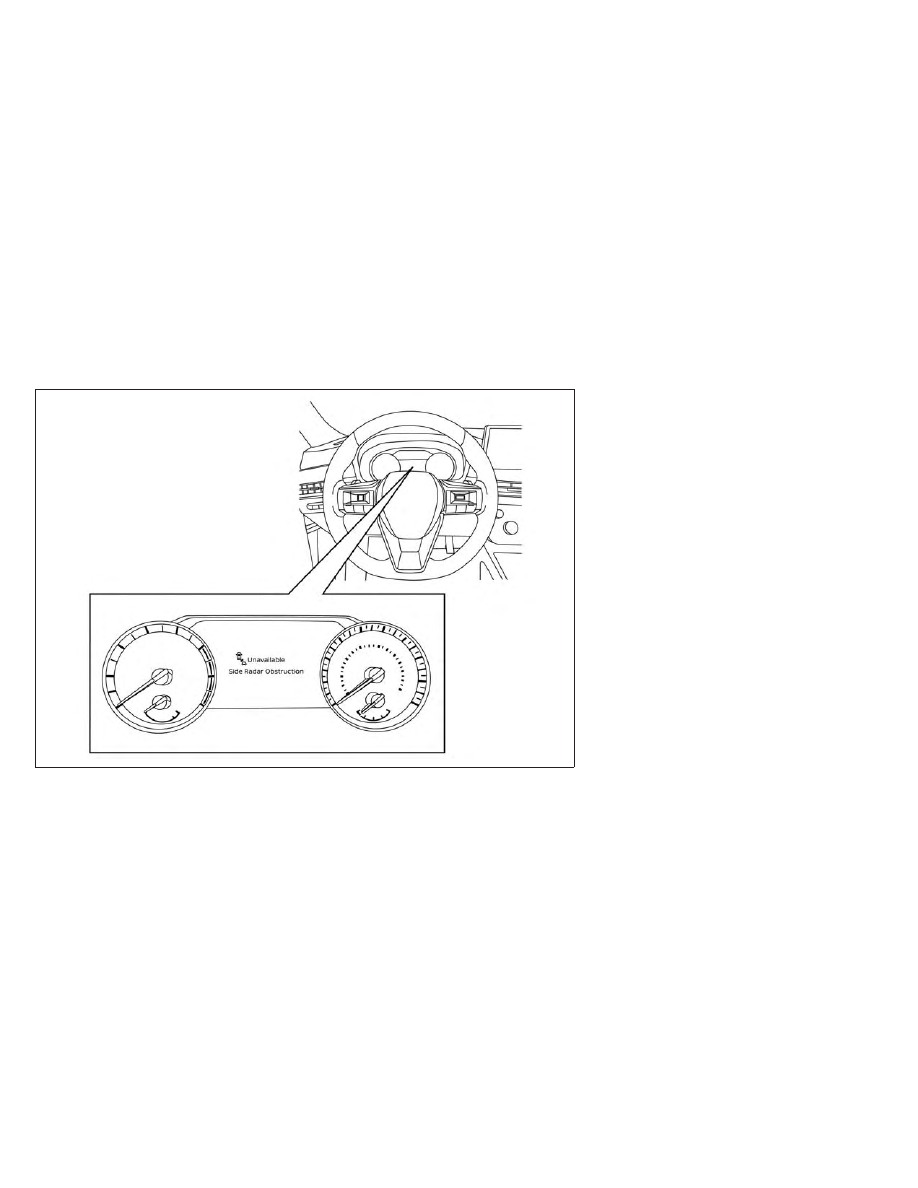

If the following messages appear in the ve-
hicle information display, the LDP system will
be turned off automatically.

• “Not Available Poor Road Conditions”

When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.

• “Currently not available”:

– When the VDC system is turned off.
– When the SNOW mode is selected.

Action to take:

When the above conditions no longer exist,
turn off the LDP system. Push the ProPILOT
Assist switch (for vehicles with ProPILOT
Assist) on the steering wheel again to turn the
LDP system back on.

Temporary

disabled

status

at

high

temperature:

If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then the LDP
system is turned on, the LDP system may
be deactivated automatically and the fol-
lowing message will appear on the vehicle
information display: “Unavailable: High Cabin
Temperature.”

Starting and driving

5-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM MALFUNCTION

If the LDP system malfunctions, it will cancel
automatically. The LDW indicator (orange)
and the “Not Available System Malfunction”
warning message will display. If the LDW
indicator (orange) and the warning message
appear in the display, pull off the road to a
safe location and stop the vehicle. Turn the
engine/motor off and restart the engine/
motor. If the LDW indicator (orange) and
warning message continue to appear, have
the LDP system checked. It is recommended
that you visit an INFINITI retailer for this
service.

SYSTEM MAINTENANCE

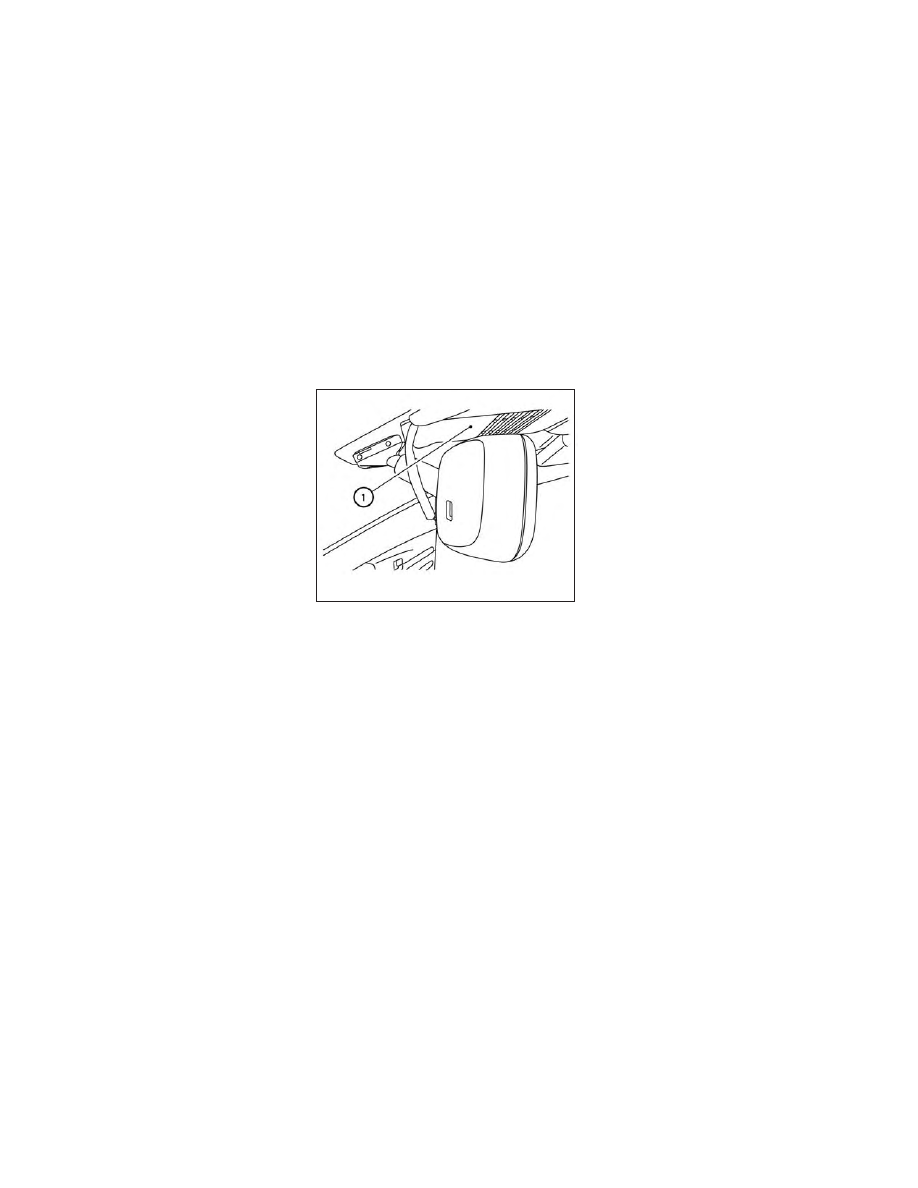

The lane camera unit

O

1

for the LDP system

is located above the inside mirror. To keep the
proper operation of the LDP system and pre-
vent a system malfunction, be sure to ob-
serve the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar-

ent material) or install an accessory near
the camera unit.

• Do not place reflective materials, such as

white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.

• Do not strike or damage the areas around

the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, it is recommended that
you visit an INFINITI retailer.

LSD3484

5-48

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the BSW system
could result in serious injury or death.

The BSW system is not a replacement for
proper driving procedures and is not de-
signed to prevent contact with vehicles
or objects. When changing lanes, always
use the side and rear mirrors and turn
and look in the direction your vehicle will
move to ensure it is safe to change lanes.
Never rely solely on the BSW system.

The BSW system helps alert the driver of
other vehicles in adjacent lanes when chang-
ing lanes.

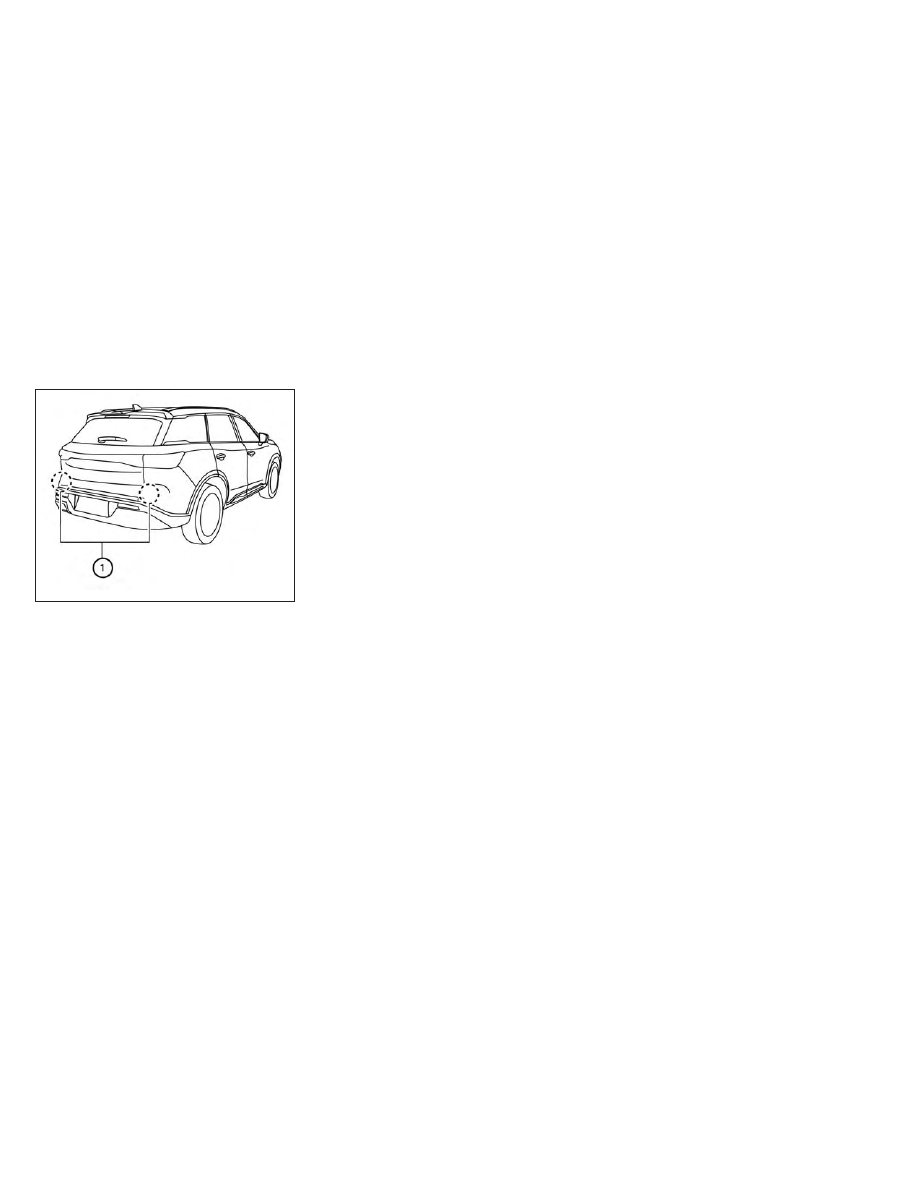

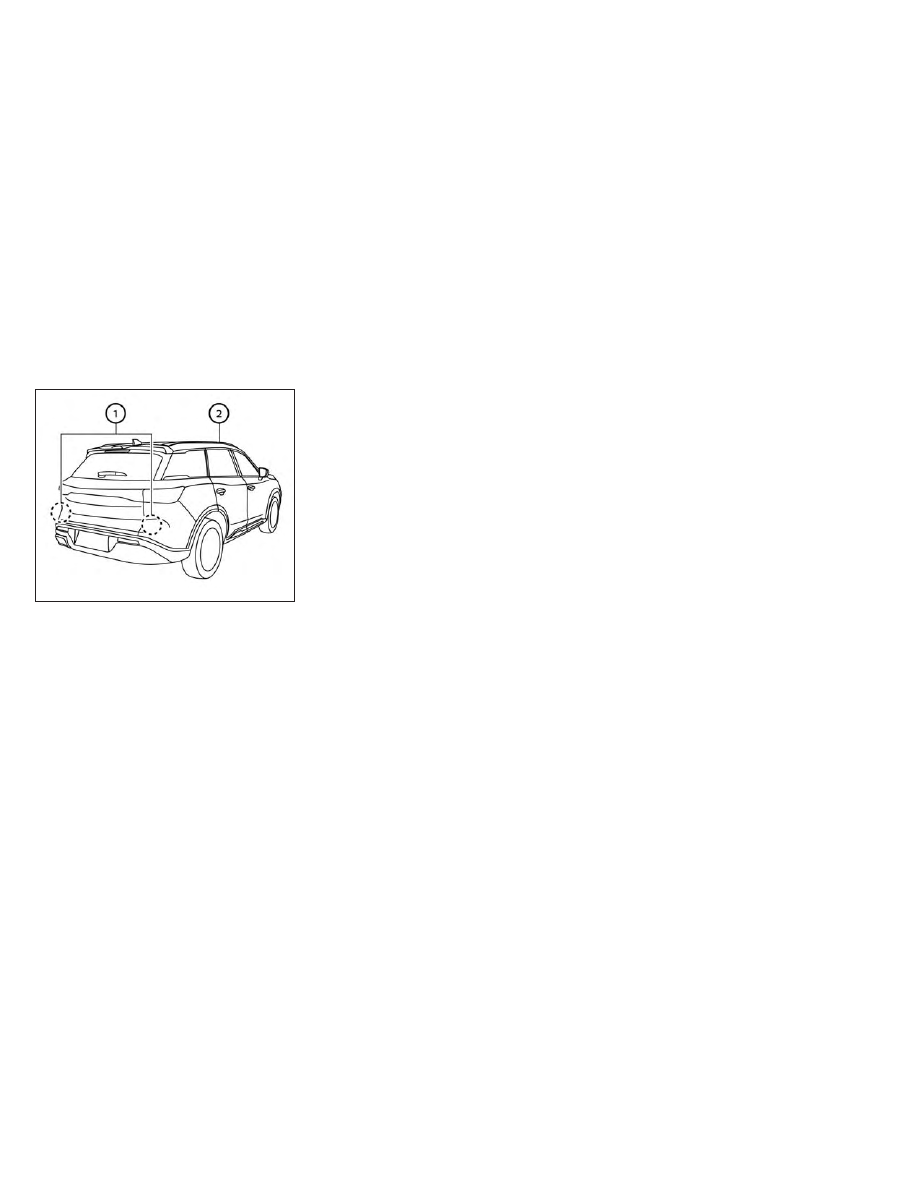

The BSW system uses radar sensors

O

1

in-

stalled near the rear bumper to detect other
vehicles in an adjacent lane.

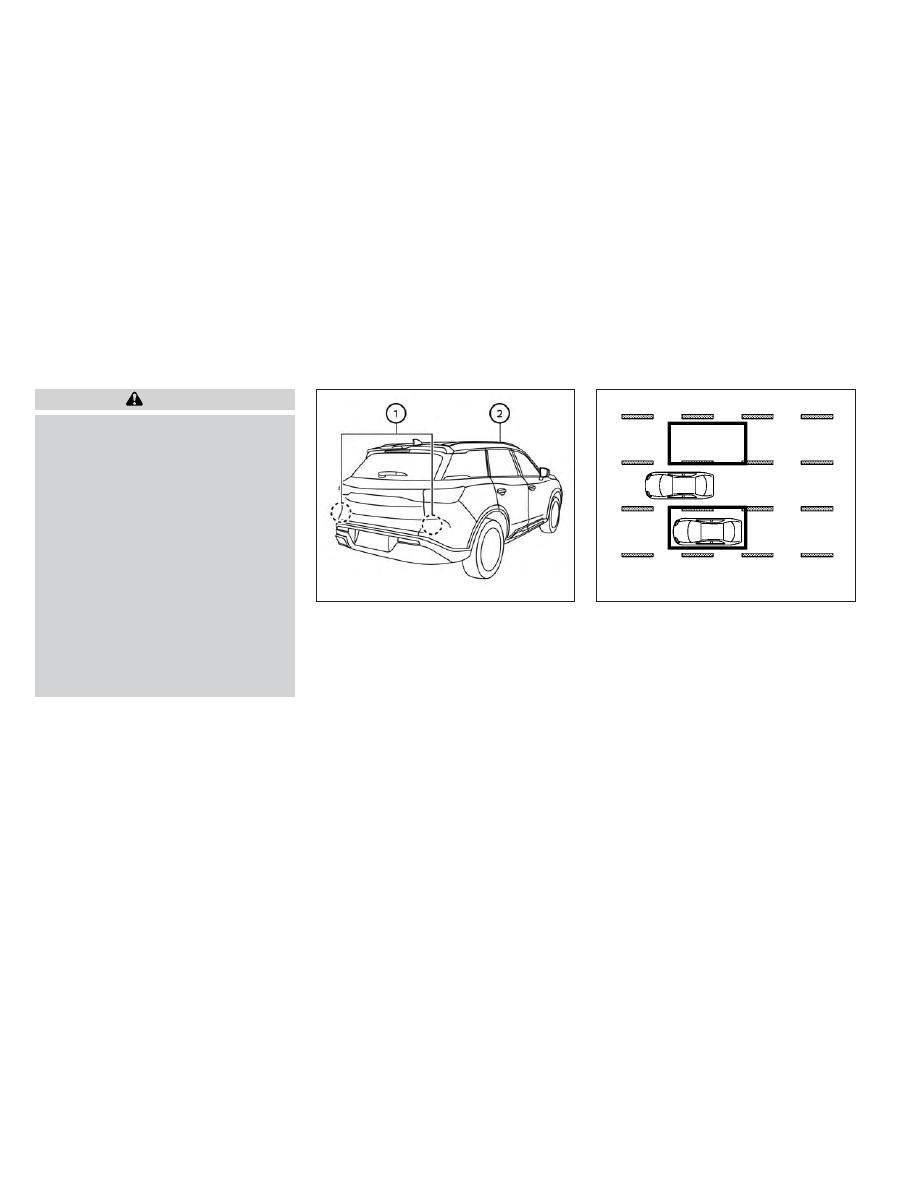

The radar sensors can detect vehicles on ei-
ther side of your vehicle within the detection

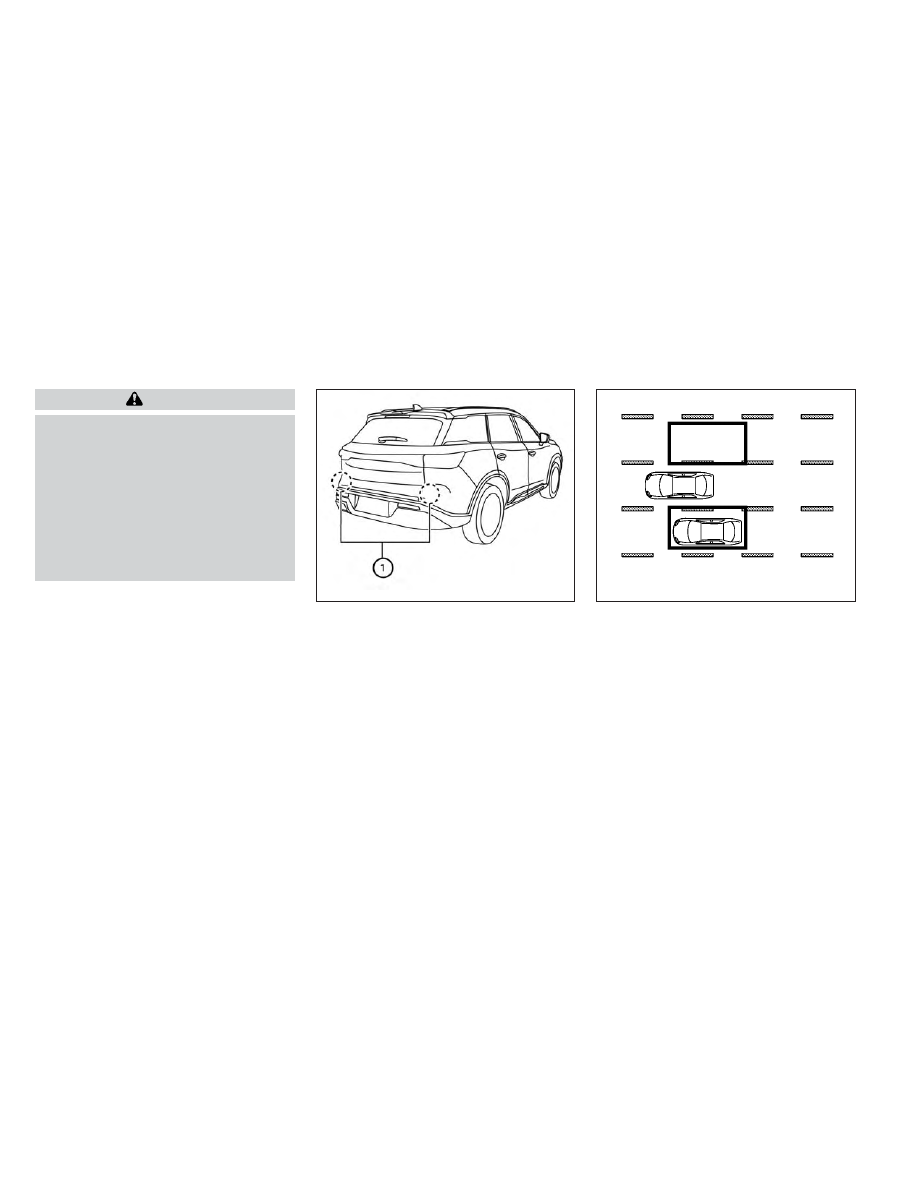

zone shown as illustrated. This detection
zone starts from the outside mirror of your
vehicle and extends approximately 10 ft
(3.0 m) behind the rear bumper, and approxi-
mately 10 ft (3.0 m) sideways.

LSD4407

SSD1030

Detection zone

BLIND SPOT WARNING (BSW)

Starting and driving

5-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

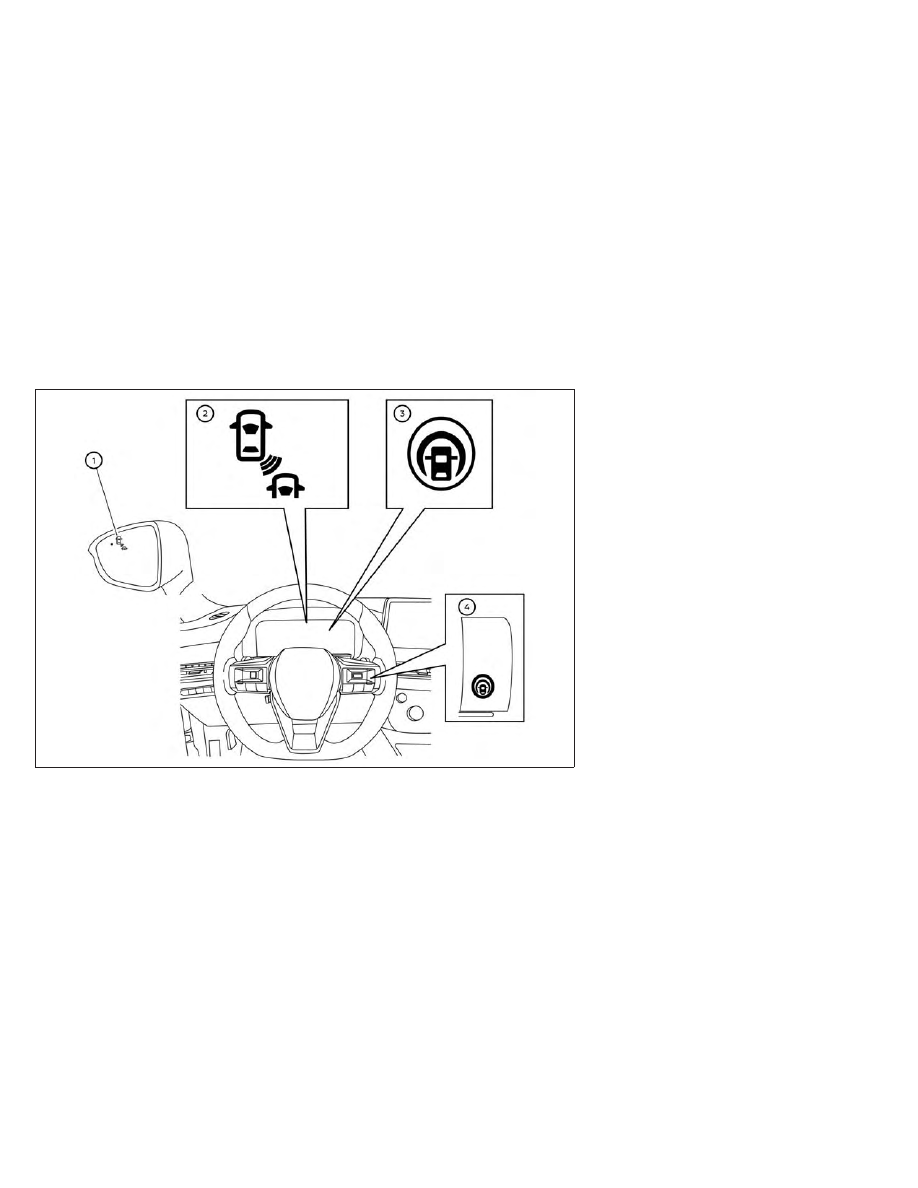

BSW SYSTEM OPERATION

1

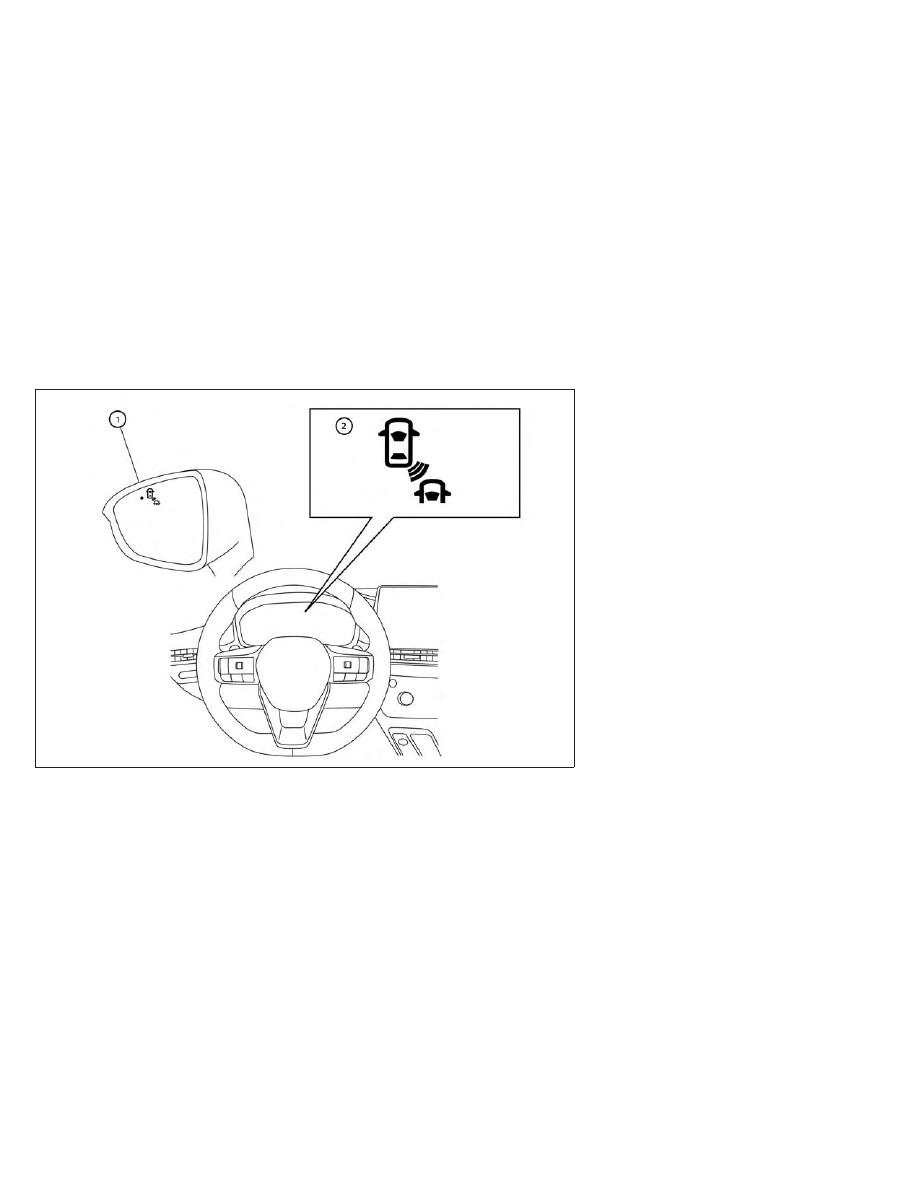

Side BSW/RCTA Indicator Light

2

BSW Indicator

LSD4509

For vehicles with the 7 inch (18 cm) display

5-50

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

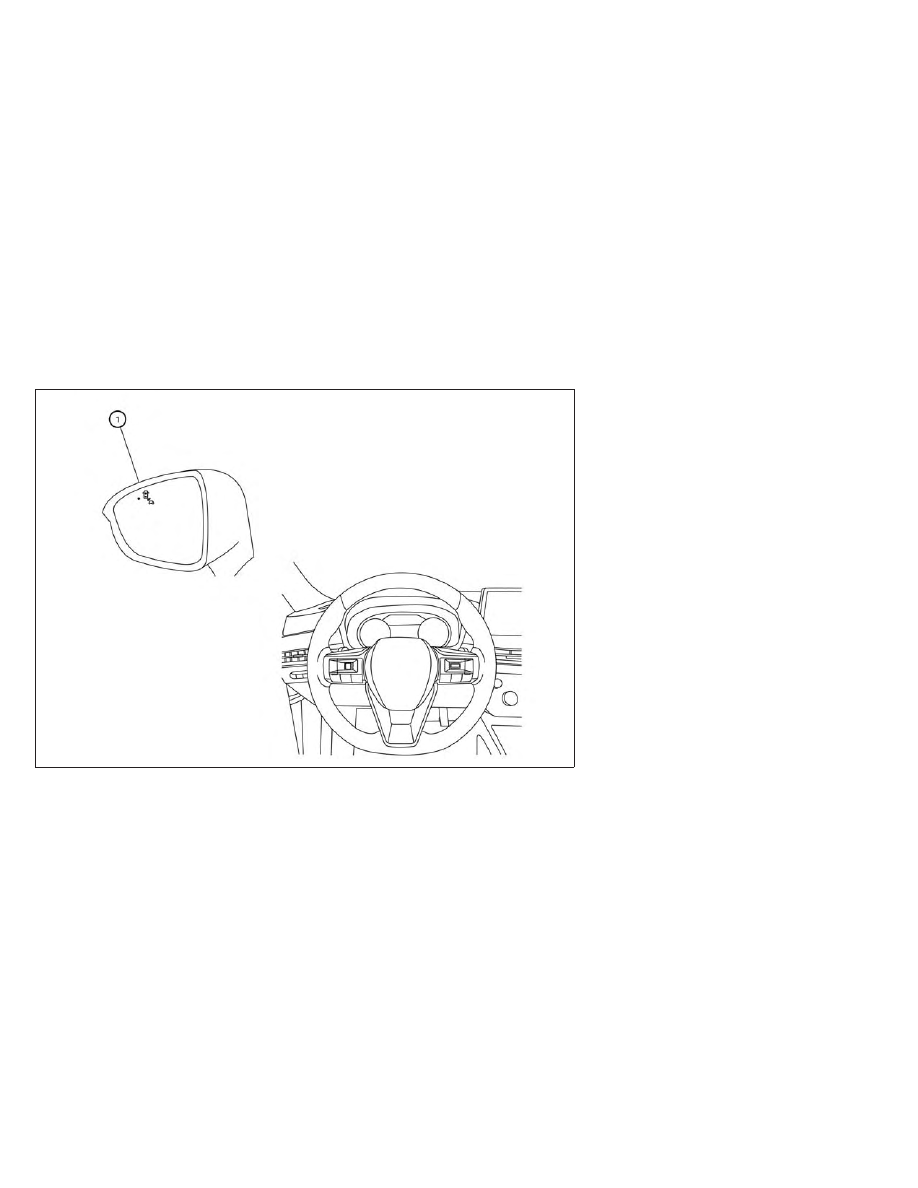

The BSW system operates above approxi-
mately 20 mph (32km/h).

If the radar sensors detect a vehicle in the
detection zone, the side BSW/RCTA indica-
tor light (1) illuminates. If the turn signal is
then activated, the system chimes (twice) and
the side BSW/RCTA indicator light flashes.
The side BSW/RCTA indicator light contin-
ues to flash until the detected vehicles leaves
the detection zone.

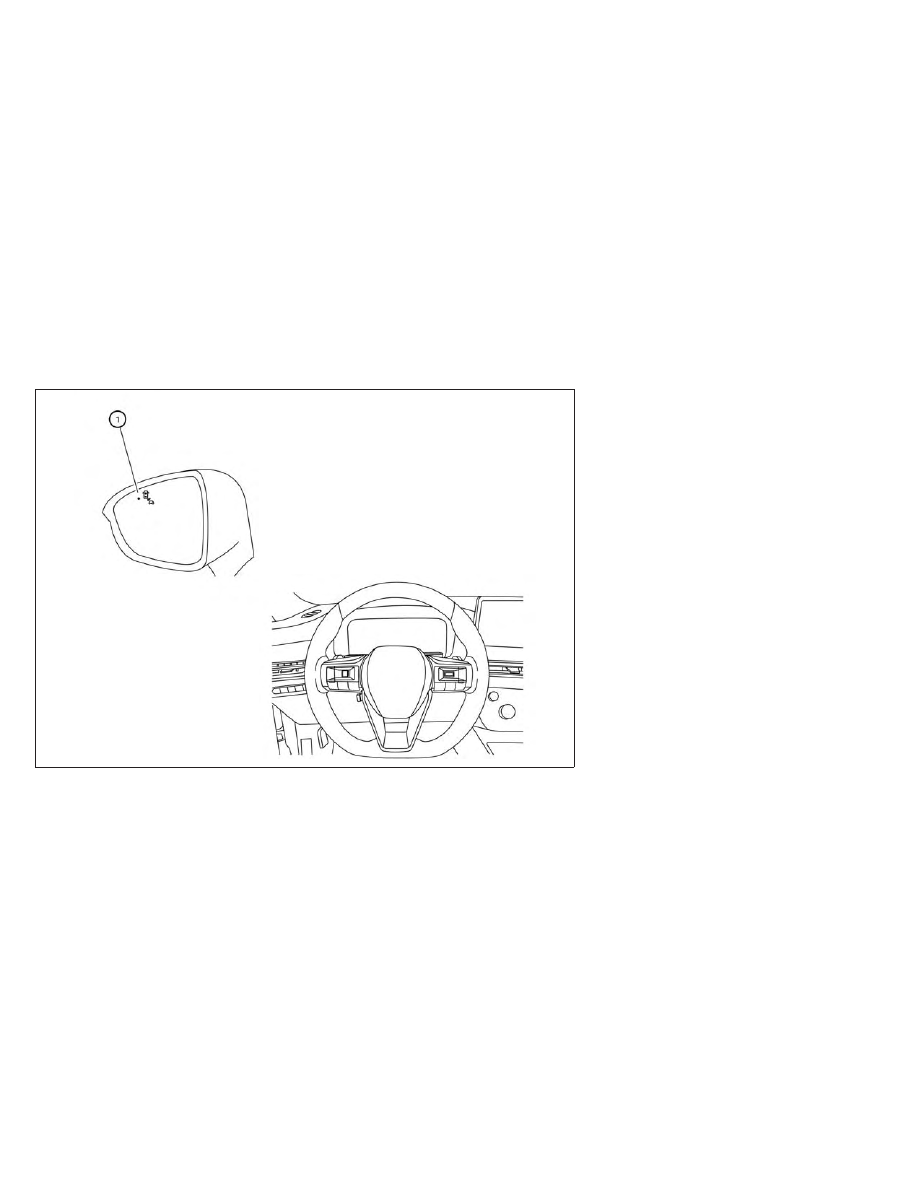

The side BSW/RCTA indicator light illumi-
nates for a few seconds when the ignition
switch is placed in the ON position.

The brightness of the side BSW/RCTA indi-
cator light is adjusted automatically depend-
ing on the brightness of the ambient light.

LSD4510

For vehicles with the 12.3 inch (31.2 cm) display

Starting and driving

5-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO ENABLE/DISABLE THE
BSW SYSTEM

Perform the following steps to enable or dis-
able the BSW system.

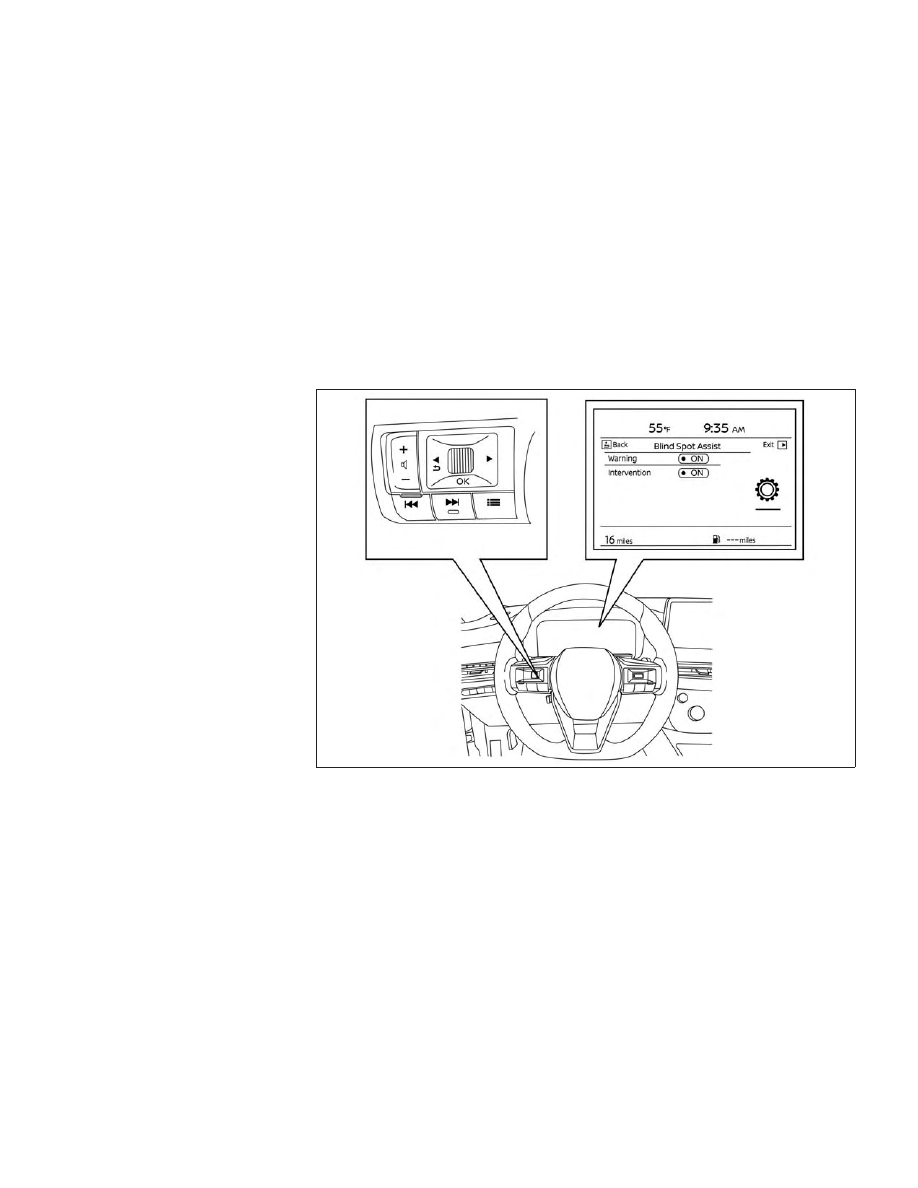

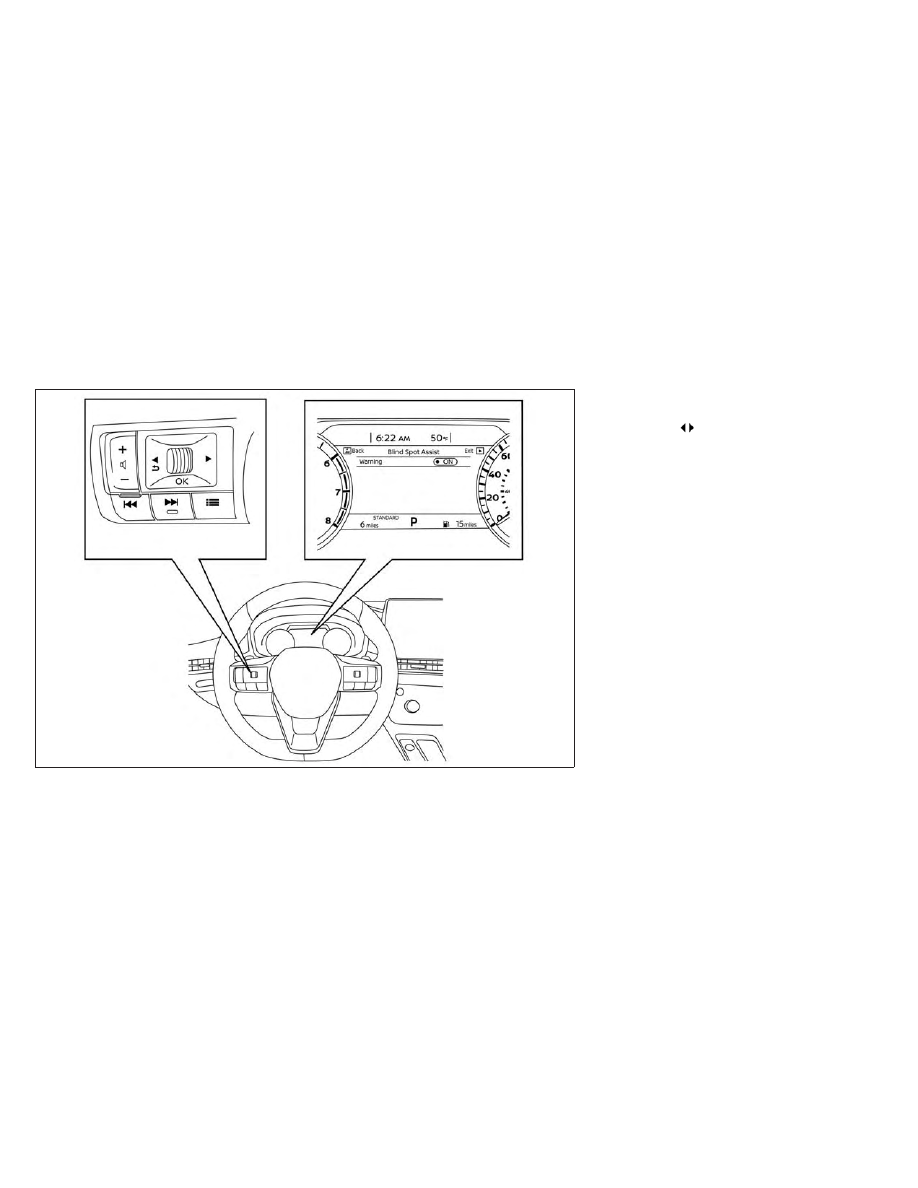

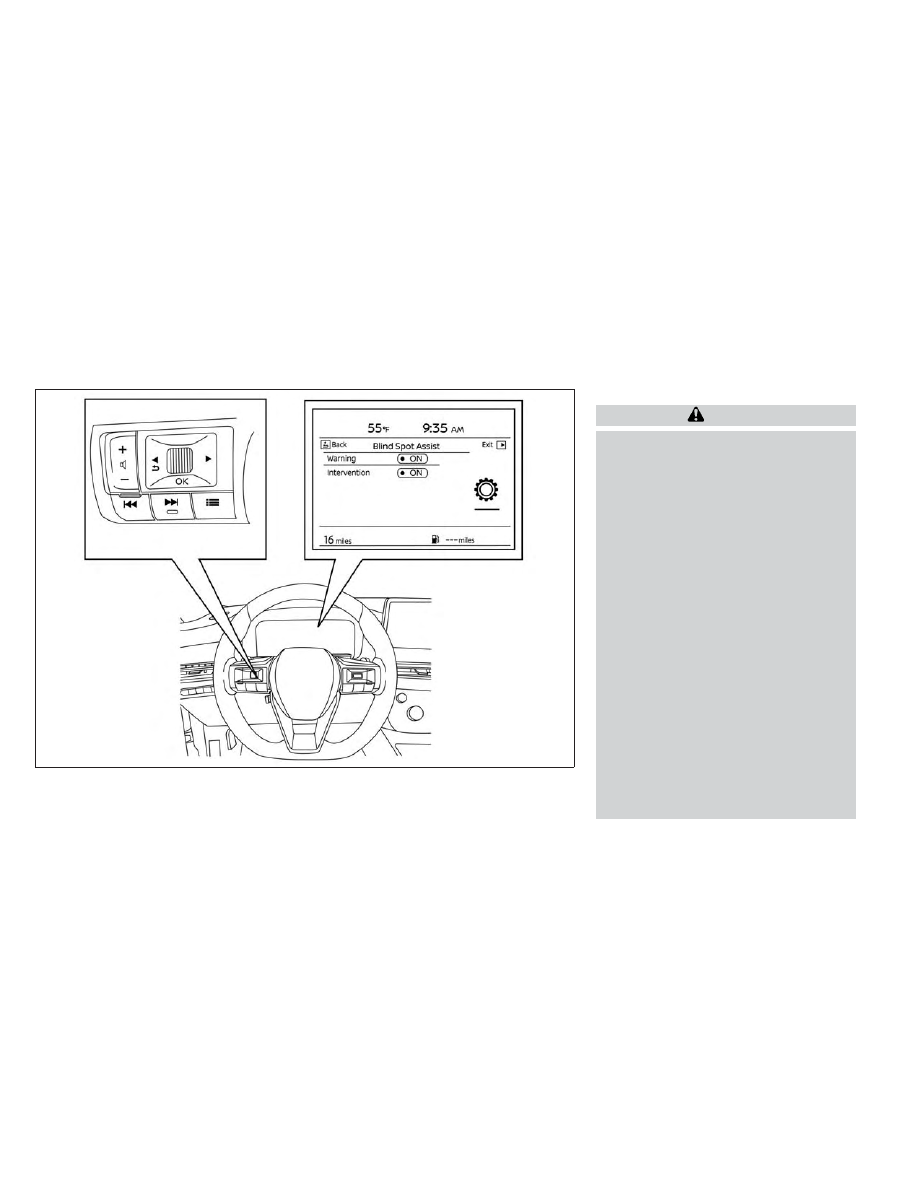

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.

2. Select “Blind Spot Assist” and press the

OK button.

3. Select “Warning” and press the OK button

to turn the system on or off.

NOTE:

• When enabling/disabling the system, the

system will retain current settings even if
the engine is restarted.

LSD4729

For vehicles with the 7 inch (18 cm) display

5-52

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BSW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
the BSW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

The BSW system cannot detect all ve-
hicles under all conditions.

The radar sensors may not be able to de-
tect and activate BSW when certain ob-
jects are present such as:

Pedestrian, bicycles, animals.

Vehicles such as motorcycles, low

height vehicles, or high ground clear-
ance vehicles.

Oncoming vehicles.

Vehicles remaining in the detection

zone when you accelerate from a
stop.

A vehicle merging into an adjacent

lane at a speed approximately the
same as your vehicle.

A vehicle approaching rapidly from

behind.

A vehicle which your vehicle over-

takes rapidly.

LSD4411

For vehicles with the 12.3 inch (31.2 cm) display

Starting and driving

5-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A vehicle that passes through the de-

tection zone quickly.

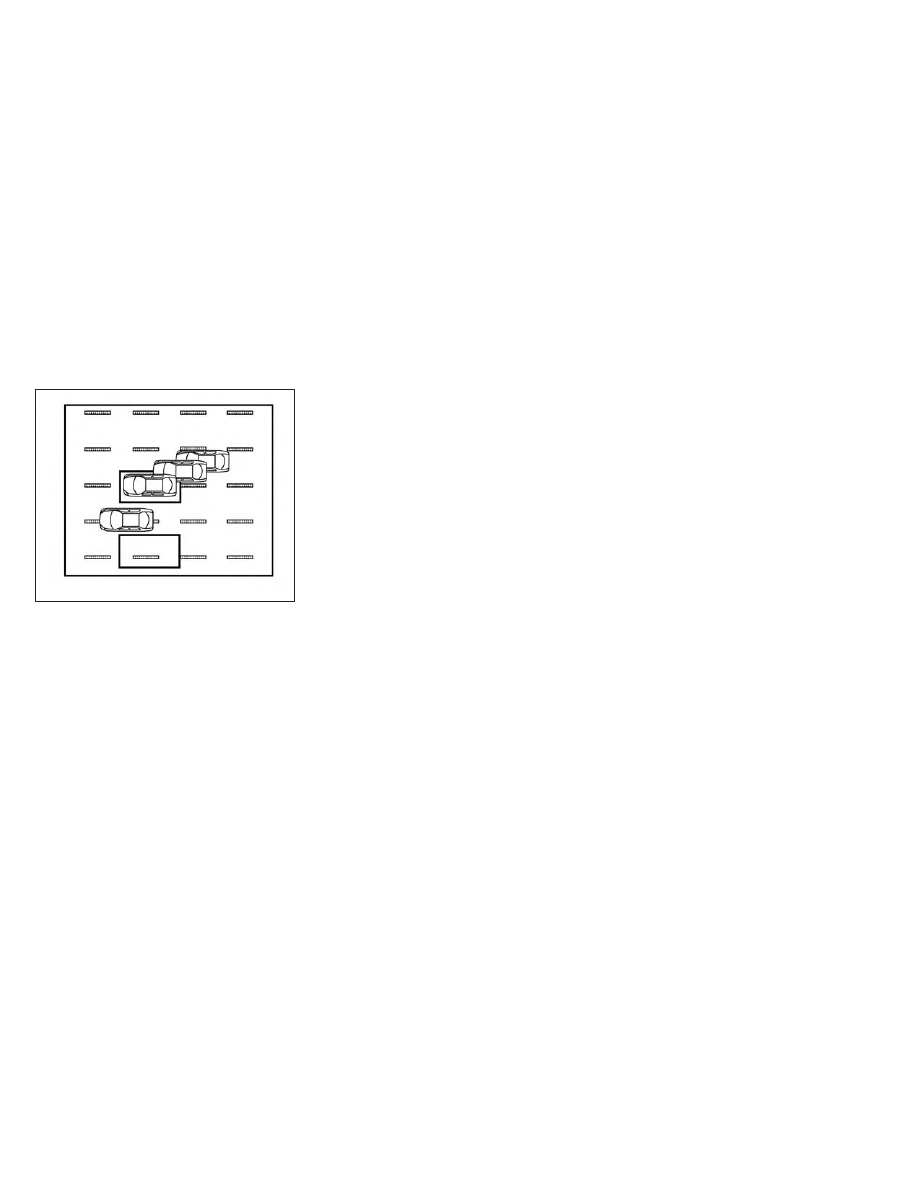

When overtaking several vehicles in a

row, the vehicles after the first ve-
hicle may not be detected if they are
traveling close together.

The radar sensors’ detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.

The radar sensors are designed to ignore
most stationary objects; however, ob-
jects such as guardrails, walls, foliage
and parked vehicles may occasionally be
detected. This is a normal operation
condition.

The following conditions may reduce the
ability of the radar to detect other ve-
hicles:

Severe weather

Road spray

Ice/frost/snow/dirt build-up on the

vehicle

Do not attach stickers (including trans-
parent material), install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.

Excessive noise (for example, audio sys-
tem volume, open vehicle window) will
interfere with the chime sound, and it
may not be heard.

BSW DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

LSD2299

Illustration 1 – Approaching from behind

5-54

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

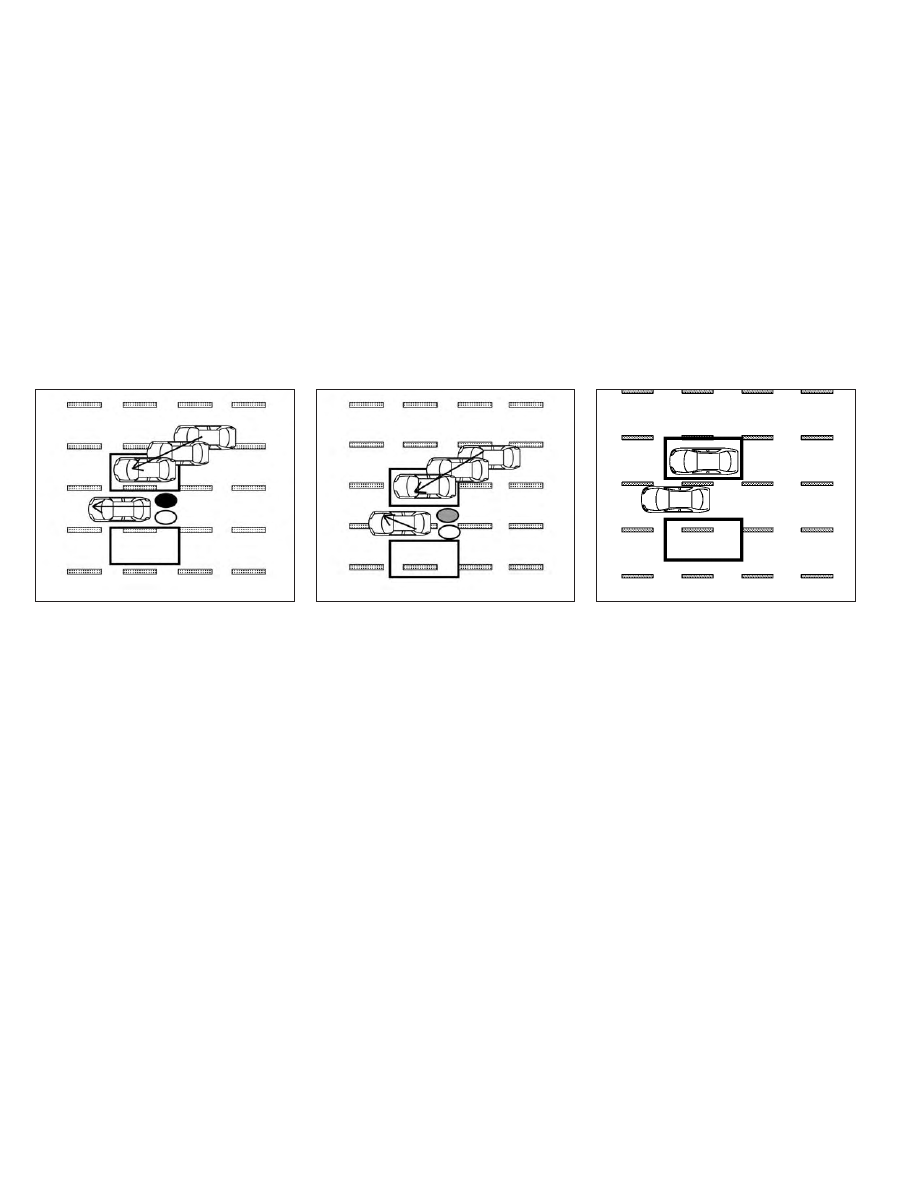

Another vehicle approaching from
behind

Illustration 1:

The side BSW/RCTA indicator

light illuminates if a vehicle enters the detec-
tion zone from behind in an adjacent lane.

NOTE:

• The radar sensors may not detect vehicles

which are approaching rapidly from behind.

Illustration 2:

If the driver activates the turn

signal when another vehicle is in the detec-
tion zone, then the system chimes (twice) and
the side BSW/RCTA indicator light flashes.

NOTE:

• The radar sensors may not detect vehicles

which

are

approaching

rapidly

from

behind.

• If the driver activates the turn signal be-

fore a vehicle enters the detection zone,
the side BSW/RCTA indicator light will
flash but no chime will sound when the
other vehicle is detected.

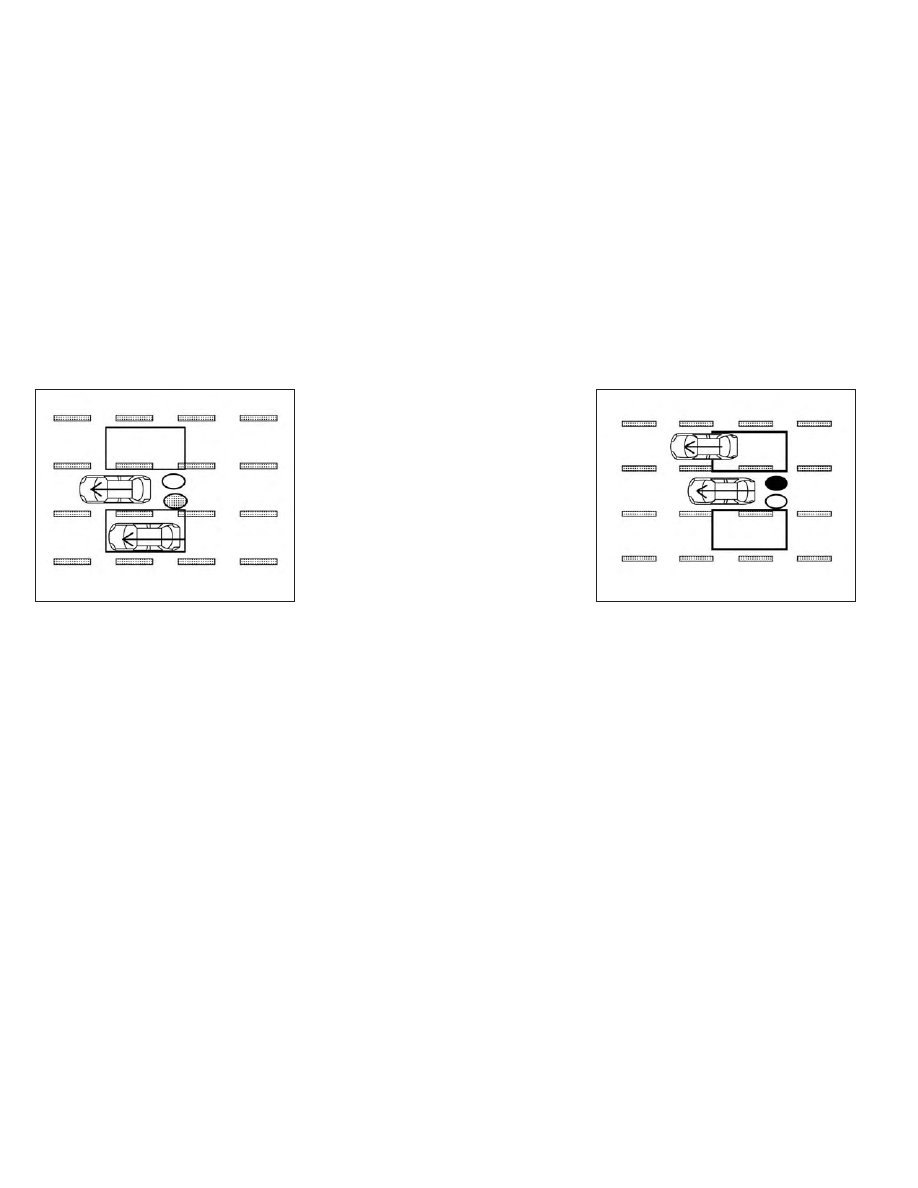

Overtaking another vehicle

Illustration 3:

The side BSW/RCTA indicator

light illuminates if you overtake a vehicle and
that vehicle stays in the detection zone for
approximately 2 seconds.

LSD2300

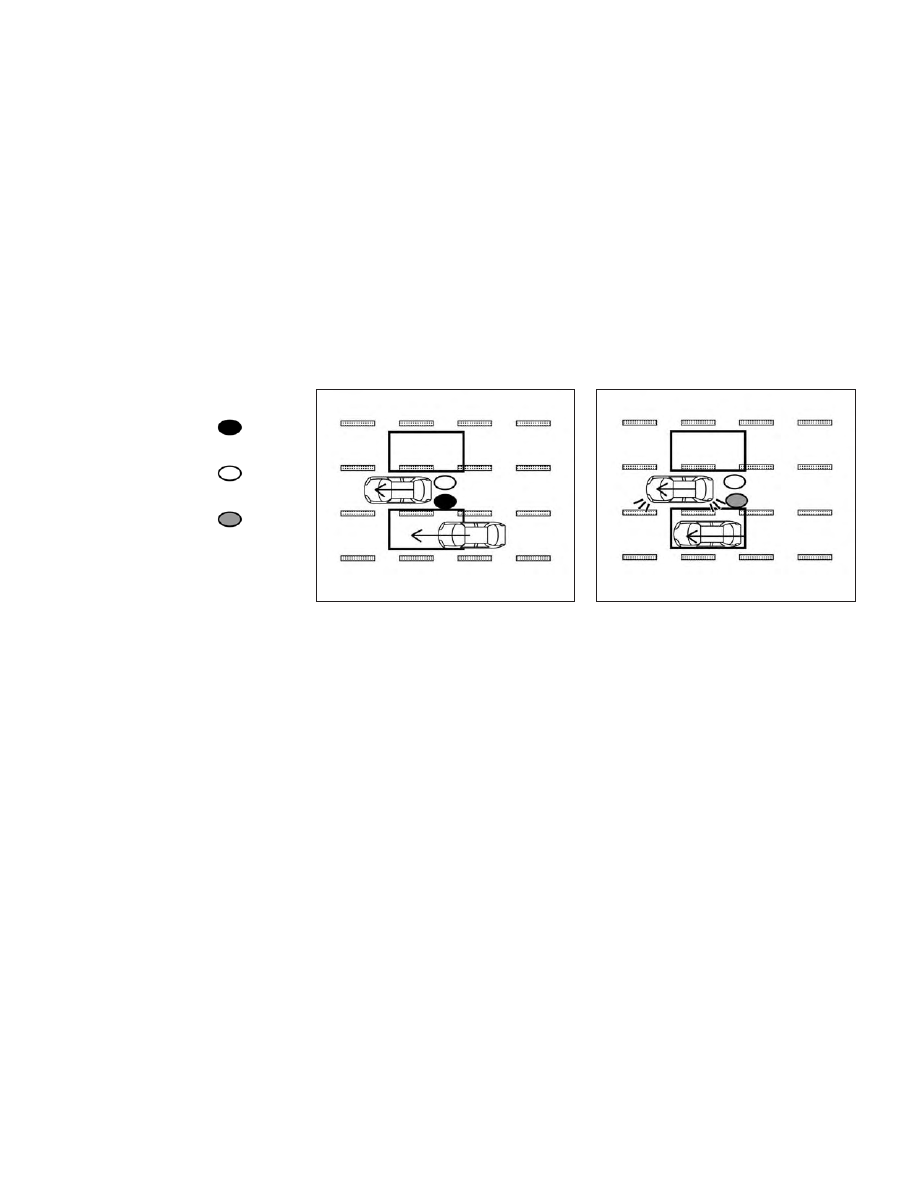

Illustration 2 – Approaching from behind

LSD2302

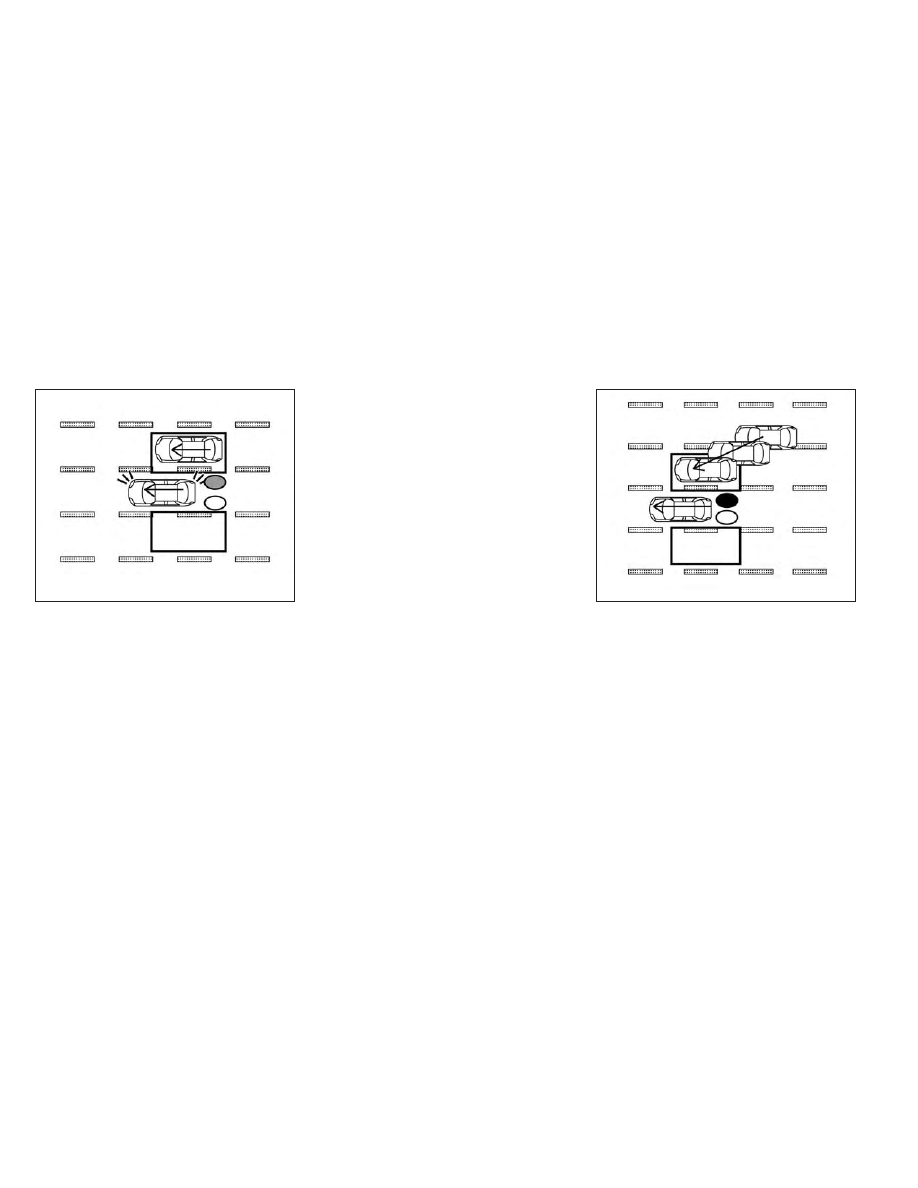

Illustration 3 – Overtaking another vehicle

Starting and driving

5-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

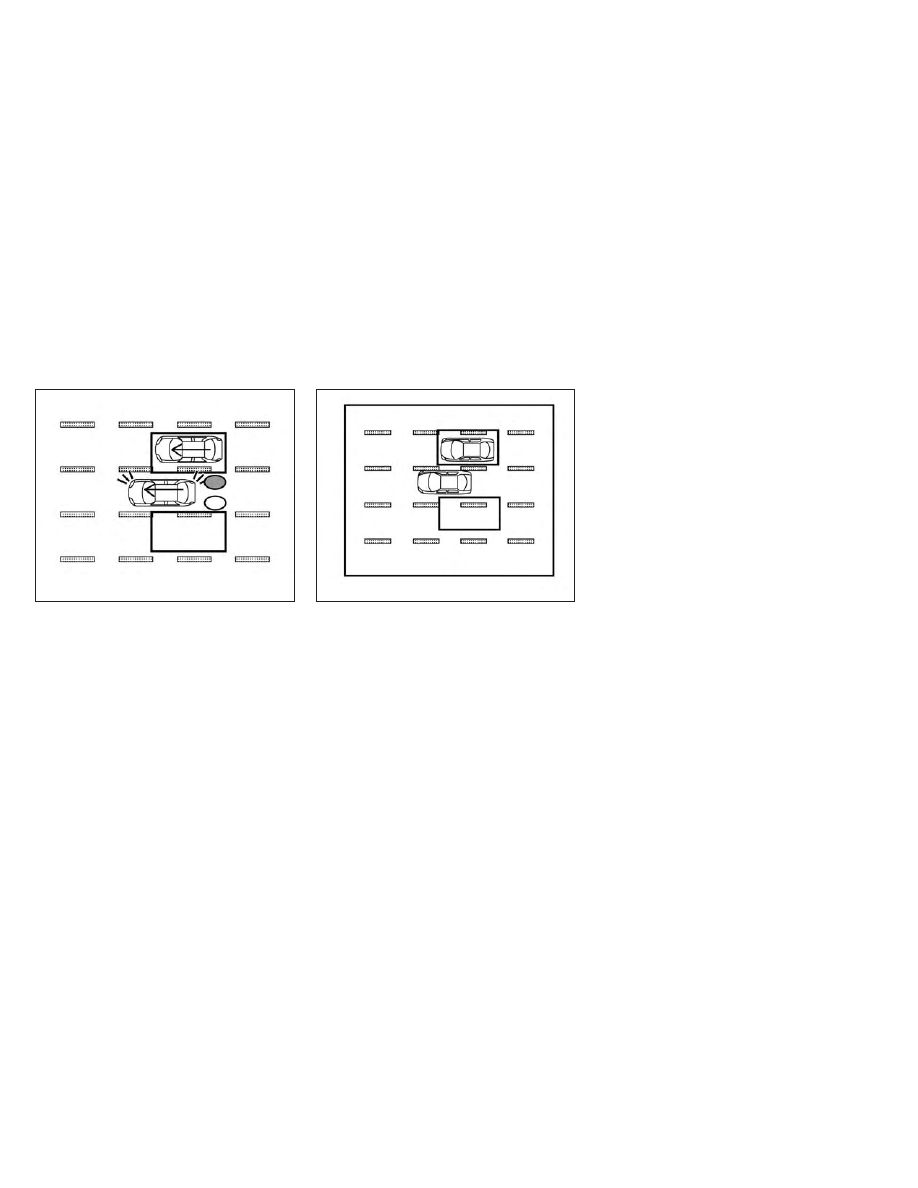

Illustration 4:

If the driver activates the turn

signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
side BSW/RCTA indicator light flashes.

NOTE:

• When overtaking several vehicles in a row,

the vehicles after the first vehicle may not
be detected if they are traveling close
together.

• The radar sensors may not detect slower

moving vehicles if they are passed quickly.

• If the driver activates the turn signal be-

fore a vehicle enters the detection zone,
the side BSW/RCTA indicator light will
flash but no chime will sound when the
other vehicle is detected.

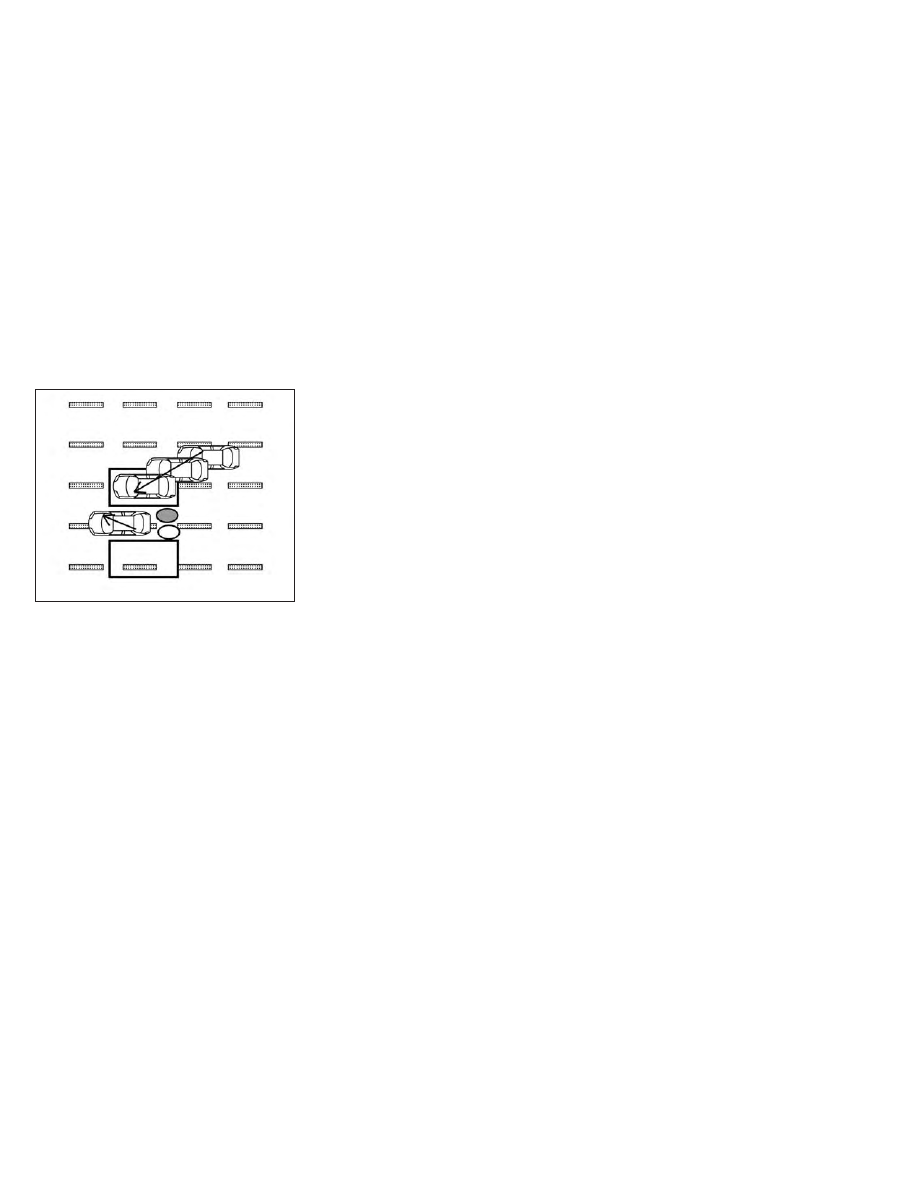

Entering from the side

Illustration 5:

The side BSW/RCTA indicator

light illuminates if a vehicle enters the detec-
tion zone from either side.

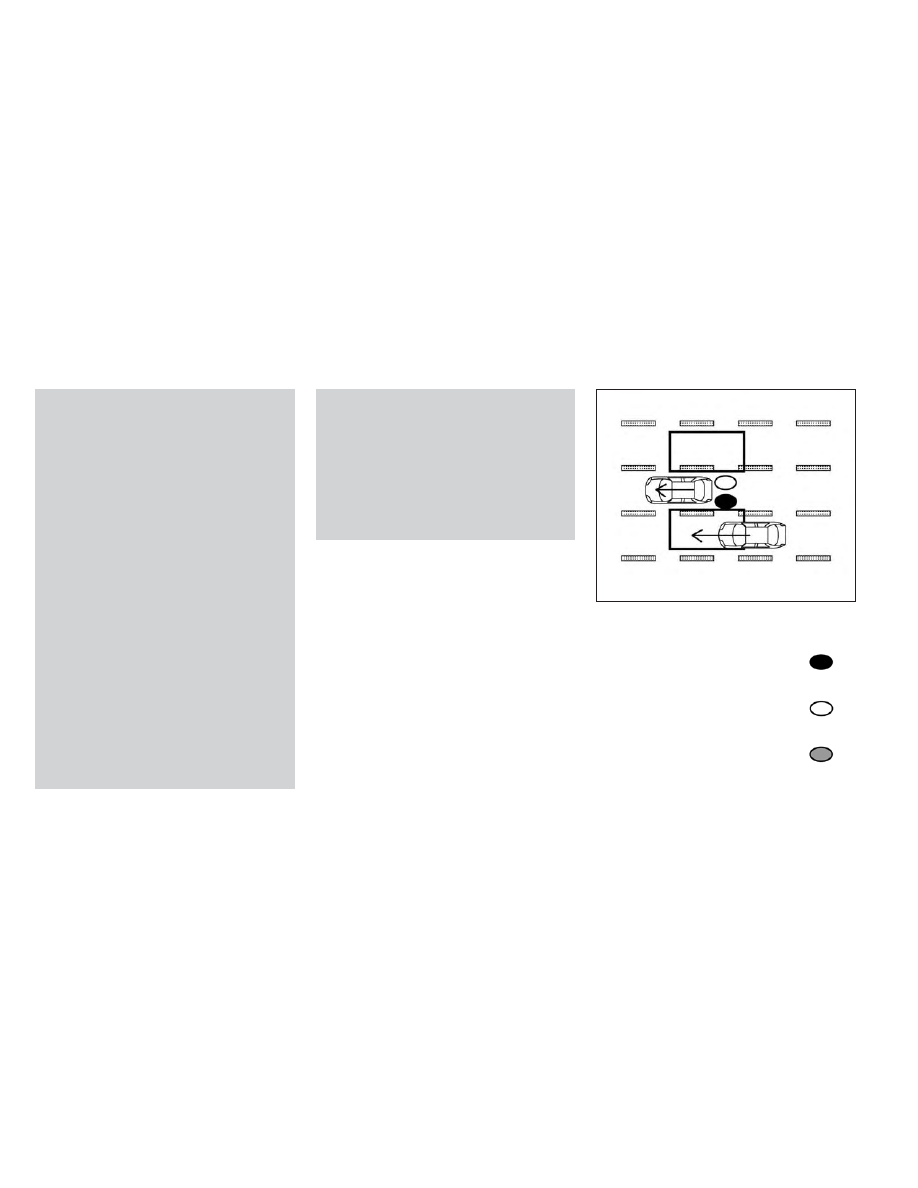

LSD2303

Illustration 4 – Overtaking another vehicle

LSD2305

Illustration 5 – Entering from the side

5-56

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

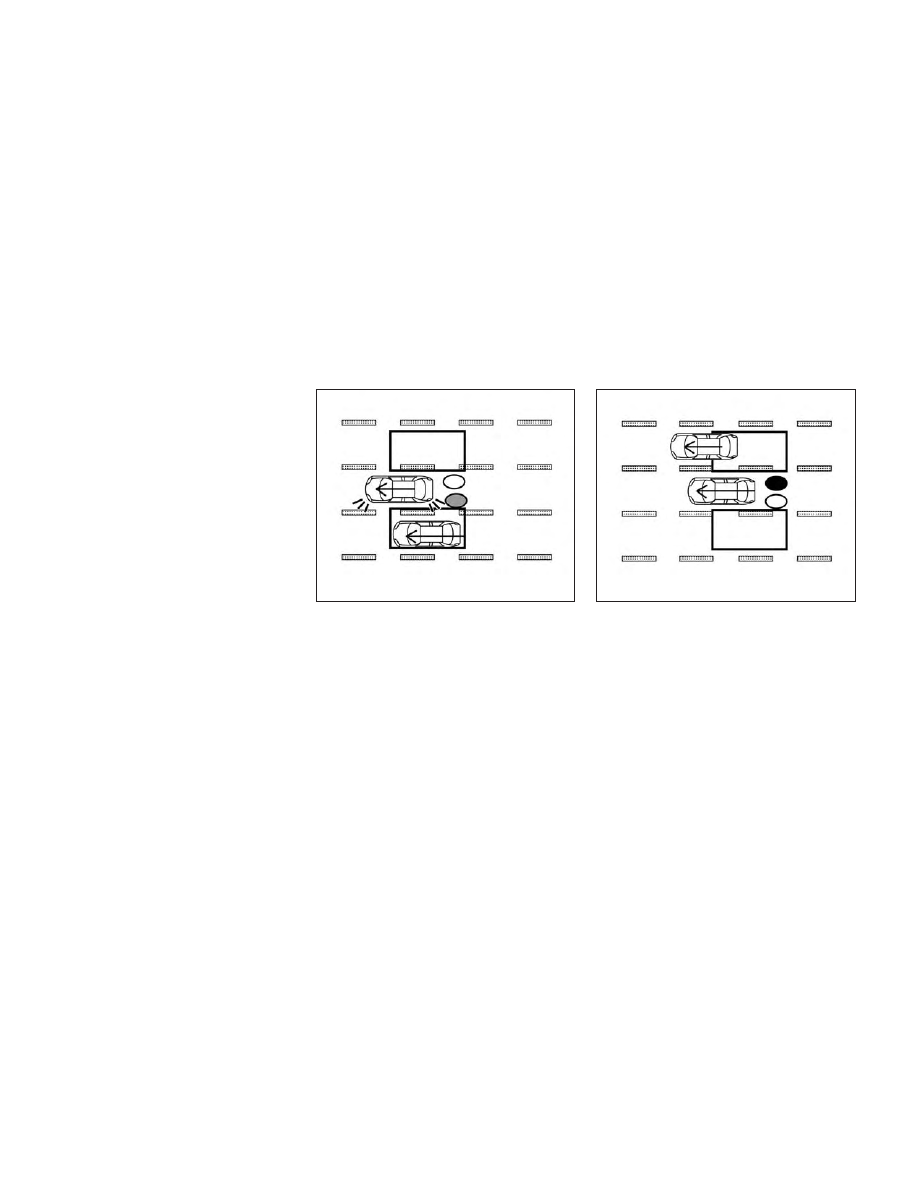

Illustration 6:

If the driver activates the turn

signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
side BSW/RCTA indicator light flashes.

NOTE:

• If the driver activates the turn signal be-

fore a vehicle enters the detection zone,
the side BSW/RCTA indicator light will
flash but no chime will sound when the
other vehicle is detected.

• The radar sensors may not detect a vehicle

which is traveling at about the same speed
as your vehicle when it enters the detec-
tion zone.

LSD2308

Illustration 6 – Entering from the side

Starting and driving

5-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM TEMPORARILY

UNAVAILABLE

When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear in the vehicle informa-
tion display.

The system is not available until the condi-
tions no longer exist.

The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.

NOTE:

If the BSW system stops working, the RCTA
and BSI systems (if so equipped) will also
stop working.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

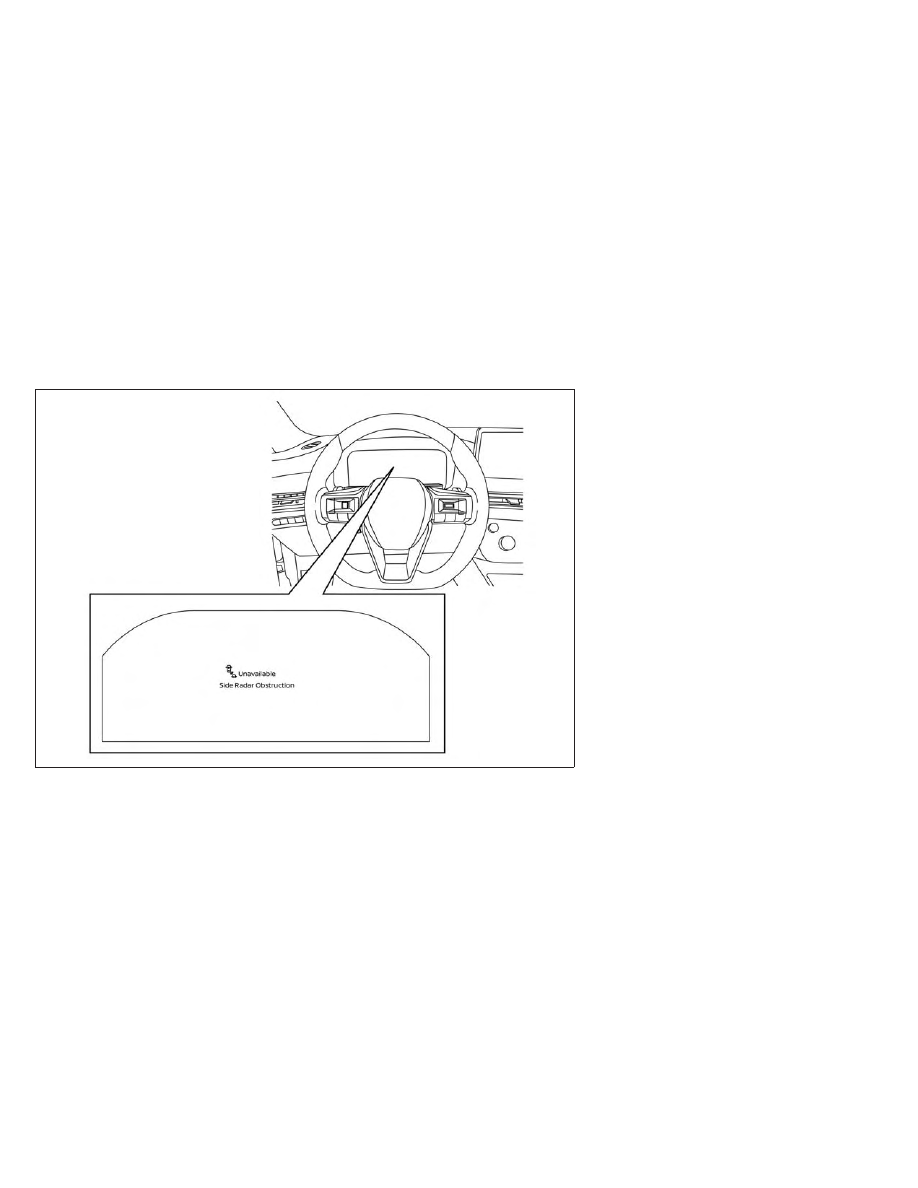

LSD4412

For vehicles with the 7 inch (18 cm) display

5-58

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Malfunction

If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message will appear in the vehicle
information display.

NOTE:

If the BSW system stops working, the RCTA
and BSI systems (if so equipped) will also
stop working.

Action to take:

Stop the vehicle in a safe location, press the
park button to engage the P (Park) position,
turn the engine off and restart the engine. If
the message continues to appear, have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.

LSD4413

For vehicles with the 12.3 inch (31.2 cm) display

Starting and driving

5-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM MAINTENANCE

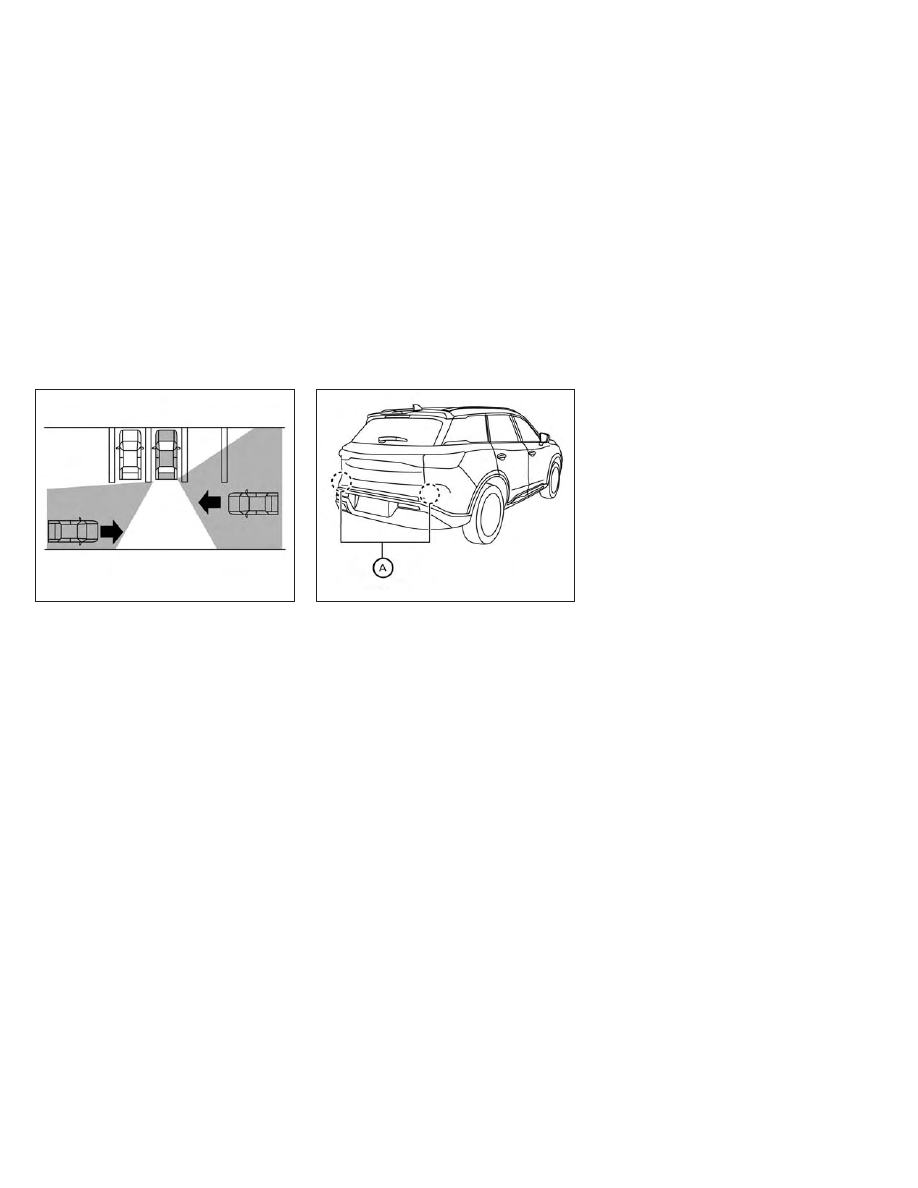

The two radar sensors

O

1

for the BSW and

RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.

The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.

Check for and remove objects obstructing
the area around the radar sensors.

Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.

Do not strike or damage the area around the
radar sensors. It is recommended that you
consult an INFINITI retailer if the area around
the radar sensors is damaged due to a
collision.

Radio frequency statement

For USA

FCC ID: LTQRN5TR

CAUTION TO USERS

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

This device complies with Part 15 of the FCC
Rules and with the RSS of the Industry
Canada. Operation is subject to the follow-
ing two conditions:

1.

This device may not cause harmful inter-
ference, and

2.

this device must accept any interference
received, including interference that may
cause undesired operation.

For Canada

IC: 3659A-RN5TR

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two
conditions:

(1) This device may not cause interference.

(2) This device must accept any interference,
including interference that may cause unde-
sired operation of the device.

L’émetteur/récepteur exempt de licence
contenu dans le présent appareil est con-
forme aux CNR d’Innovation, Sciences et
Développement économique Canada appli-
cables aux appareils radio exempts de li-
cence. L’exploitation est autorisée aux deux
conditions suivantes:

(1) L’appareil ne doit pas produire de
brouillage;

(2) L’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage
est

susceptible

d’en

compromettre

le

fonctionnement.

LSD4407

5-60

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the BSI system could
result in serious injury or death.

The BSI system is not a replacement for
proper driving procedure and is not de-
signed to prevent contact with vehicles
or objects. When changing lanes, always
use the side and rear mirrors and turn
and look in the direction you will move to
ensure it is safe to change lanes. Never
rely solely on the BSI system.

There is a limitation to the detection ca-
pability of the radar or the sonar. Not
every moving object or vehicle will be de-
tected. Using the BSI system under some
road, ground, lane marker, traffic or
weather conditions could lead to im-
proper system operation. Always rely on
your own operation to avoid accidents.

The BSI system helps alert the driver of other
vehicles in adjacent lanes when changing
lanes, and helps assist the driver to return the
vehicle to the center of the traveling lane.

The BSI system uses radar sensors

O

1

in-

stalled near the rear bumper to detect other
vehicles in an adjacent lane. In addition to the
radar sensors, the BSI system uses a camera

O

2

installed behind the windshield to monitor

the lane markers of your traveling lane.

The radar sensors can detect vehicles on ei-
ther side of your vehicle within the detection
zone shown as illustrated.

The detection zone starts from the outside
mirror of your vehicle and extends approxi-
mately 10ft (3.0m) behind the rear bumper,
and approximately 10ft (3.0 m) sideways.

LSD4414

SSD1030

Detection zone

BLIND SPOT INTERVENTION (BSI)
(if so equipped)

Starting and driving

5-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BSI SYSTEM OPERATION

1

Side indicator light

2

BSW indicator

3

Blind Spot Intervention (BSI) indicator

4

ProPILOT Assist switch

The BSI system operates above approxi-
mately 37 mph (60 km/h).

If the radar sensors detect a vehicle in the
detection zone, the side indicator light (1)
illuminates.

If the turn signal is then activated, the system
chimes (twice) and the side indicator light
flashes. The side indicator light continues to
flash until the detected vehicle leaves the
detection zone. The brightness of the side
indicator light is adjusted automatically de-
pending on the brightness of the ambient
light.

If the BSI system is ON and your vehicle
approaches a lane marker while another ve-
hicle is in the detection zone, the system
chimes (three times) and the side indicator
light flashes. The BSI system activates by
controlling the steering input of the vehicle
for a short period of time to help return the
vehicle back to the center of the driving lane.
The BSI system operates regardless of turn
signal usage.

LSD4511

5-62

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

• BSI warning and system application will

only be activated if the side indicator light
is already illuminated when your vehicle
approaches a lane marker. If another ve-
hicle comes into the detection zone after
your vehicle has crossed a lane marker, no
BSI warning or system application will be
activated. For additional information, see
“BSI driving situations” (P. 5-66).

• The BSI system is typically activated ear-

lier than the Lane Departure Prevention
(LDP) system when your vehicle is ap-
proaching a lane marker.

To turn on the BSI system, push the ProPI-
LOT Assist switch on the steering wheel af-
ter starting the engine. The BSI indicator will
illuminate. Push the ProPILOT Assist switch
again to turn off the BSI system. The BSI
indicator will turn off.

HOW TO ENABLE/DISABLE THE
BSI SYSTEM

LSD4411

Starting and driving

5-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

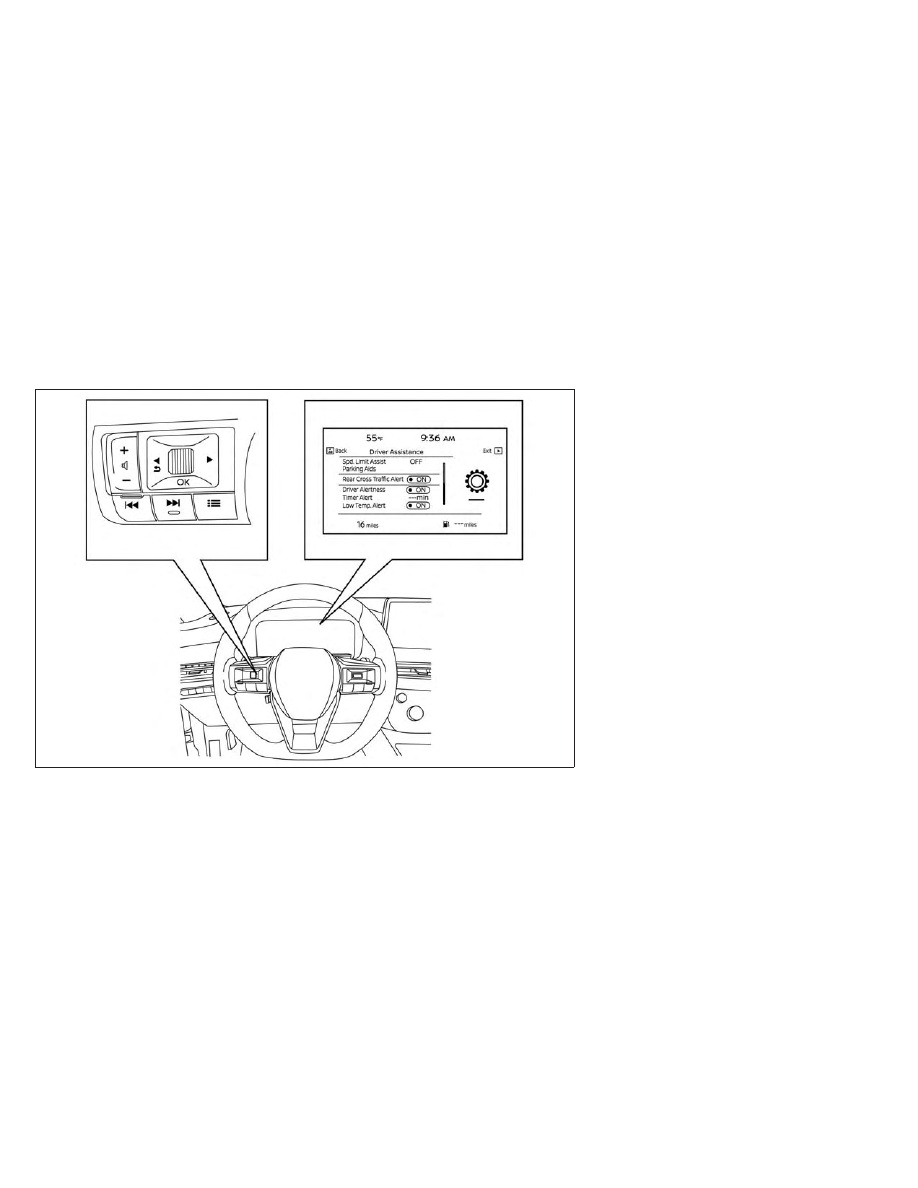

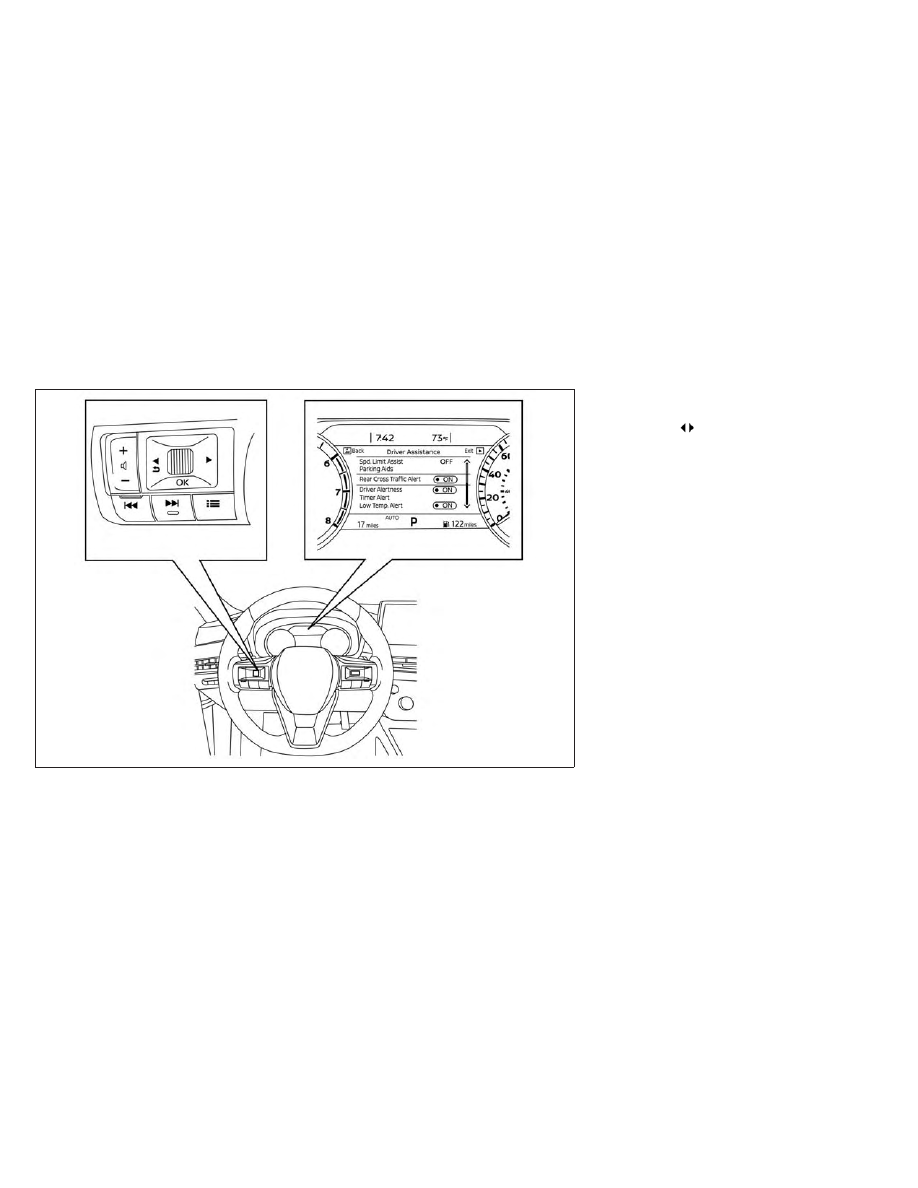

Perform the following steps to enable or dis-
able the BSI system:

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.

2. Select “Blind Spot Assist” and press the

OK button.

3. Select “Intervention” and use the OK but-

ton to turn the system on or off.

4. Push the ProPILOT Assist switch to turn

the system on or off.

NOTE:

Turning on the ProPILOT Assist system will
turn on the BSI and LDP system at the same
time. For additional information, see “ Lane
Departure Prevention (LDP)” (P. 5-43).
Turning the BSW system off will deactivate
the BSI system at the same time.

BSI SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
the BSI system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.

The BSI system cannot detect all vehicles
under all conditions.

The radar sensors may not be able to de-
tect and activate BSI when certain ob-
jects are present such as:

Pedestrians, bicycles, or animals.

Vehicles such as motorcycles, low

height vehicles, or high ground clear-
ance vehicles.

Vehicles remaining in the detection

zone when you accelerate from a
stop. For additional information, see
“BSI driving situations” (P. 5-66).

Oncoming vehicles.

A vehicle merging into an adjacent

lane at a speed approximately the
same as your vehicle.

A vehicle approaching rapidly from

behind.

A vehicle which your vehicle over-

takes rapidly.

A vehicle that passes through the de-

tection zone quickly.

The radar sensors’ detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.

The radar sensors are designed to ignore
most stationary objects; however, ob-
jects such as guardrails, walls, foliage
and parked vehicles may occasionally be
detected. This is a normal operation
condition.

The following conditions may reduce the
ability of the radar to detect other ve-
hicles:

Severe weather

Road spray

Ice/frost/dirt build-up on the vehicle

Do not attach stickers (including trans-
parent material), install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles.

5-64

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The camera may not detect lane markers
in the following situations and the BSI
system may not operate properly.

On roads where there are multiple

parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane markers
covered with water, dirt, snow, etc.

On roads where discontinued lane

markers are still detectable.

On roads where there are sharp

curves.

On roads where there are sharply

contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining after road repairs.

On roads where the traveling lane

merges or separates.

When the vehicle’s traveling direction

does not align with the lane markers.

When traveling close to the vehicle in

front of you, which obstructs the lane
camera unit detection range.

When rain, snow or dirt adheres to

the windshield in front of a lane cam-
era unit.

When the headlights are not bright

due to dirt on the lens or if aiming is
not adjusted properly.

When strong light enters a lane cam-

era unit. (For example: light directly
shines on the front of the vehicle at
sunrise or sunset.)

When a sudden change in brightness

occurs. (For example: when the ve-
hicle enters or exits a tunnel or under
a bridge.)

Do not use the BSI system under the fol-
lowing conditions because the system
may not function properly.

During bad weather (for example:

rain, fog, snow, etc.).

When driving on slippery roads, such

as on ice or snow, etc.

When driving on winding or uneven

roads.

When there is a lane closure due to

road repairs.

When driving in a makeshift or tem-

porary lane.

When driving on roads where the lane

width is too narrow.

When driving with a tire that is not

within normal tire conditions (e.g.,
tire wear, low tire pressure, installa-
tion of spare tire, tire chains, non-
standard wheels).

When the vehicle is equipped with

non-original brake parts or suspen-
sion parts.

When towing a trailer or other

vehicle.

Excessive noise (e.g., audio system vol-
ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.

Starting and driving

5-65

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BSI DRIVING SITUATIONS

Indicator on

Indicator off

Indicator flashing

Another vehicle approaching from
behind

Illustration 1: The side indicator light illumi-
nates if a vehicle enters the detection zone
from behind in an adjacent lane.

Illustration 2: If the driver activates the turn
signal then the system chimes a sound (twice)
and the side indicator light flashes.

LSD2299

Illustration 1 – Approaching from behind

LSD2300

Illustration 2 – Approaching from behind

5-66

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Illustration 3: If the BSI system is on and your
vehicle approaches a lane marker while an-
other vehicle is in the detection zone, the
system chimes (three times) and the side in-
dicator light flashes. Then the BSI system
activates to help return the vehicle back to
the center of the driving lane.

NOTE:

• The radar sensors may not detect vehicles

which are approaching rapidly from behind.

• If the driver activates the turn signal be-

fore a vehicle enters the detection zone,
the side indicator light will flash but no
chime will sound when the other vehicle is
detected.

Overtaking another vehicle

Illustration 4: The side indicator light illumi-
nates if you overtake a vehicle and that ve-
hicle stays in the detection zone for approxi-
mately 3 seconds.

LSD3775

Illustration 3 – Approaching from behind

LSD2302

Illustration 4– Overtaking another vehicle

Starting and driving

5-67

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Illustration 5: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes (twice) and the
side indicator light flashes.

Illustration 6: If the BSI system is on and your
vehicle approaches a lane marker while an-
other vehicle is in the detection zone, the
system chimes (three times) and the side in-
dicator light flashes. The BSI system acti-
vates to help return the vehicle back to the
center of the driving lane.

NOTE:

• When overtaking several vehicles in a row,

the vehicles after the first vehicle may not
be detected if they are traveling close
together.

• The radar sensors may not detect slower

moving vehicles if they are passed quickly.

LSD2303

Illustration 5– Overtaking another vehicle

LSD2072

Illustration 6– Overtaking another vehicle

5-68

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Entering from the side

Illustration 7: The side indicator light illumi-
nates if a vehicle enters the detection zone
from either side.

NOTE:

The radar sensors may not detect a vehicle
which is traveling at about the same speed as
your vehicle when it enters the detection
zone.

Illustration 8: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the side indicator light flashes and
a chime will sound twice.

NOTE:

If the driver activates the turn signal before
a vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when another vehicle is detected.

Illustration 9: If the BSI system is on and your
vehicle approaches the lane marker while an-
other vehicle is in the detection zone, the
system chimes (three times) and the side in-
dicator light flashes. The BSI system acti-
vates to help return the vehicle back to the
center of the driving lane.

LSD2305

Illustration 7– Entering from the side

LSD2308

Illustration 8– Entering from the side

SSD1094

Illustration 9– Entering from the side

Starting and driving

5-69

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Illustration 10: The BSI system will not oper-
ate if your vehicle is on a lane marker when
another vehicle enters the detection zone. In
this case only the BSW system operates.

NOTE:

• The radar sensors may not detect a vehicle

which is traveling at about the same speed
as your vehicle when it enters the detec-
tion zone.

• BSI will not operate or will stop operating

and only a warning chime will sound under
the following conditions:

– When the brake pedal is depressed.

– When the vehicle is accelerated during

BSI system operation.

– When steering quickly.
– When the ICC, PFCW or FEB with Pe-

destrian Detection warnings sound.

– When the hazard warning flashers are

operated.

– When driving on a curve at a high speed.
– When the BSW system is turned off.

SYSTEM TEMPORARILY
UNAVAILABLE

Under the following conditions, a chime will
sound, the following message will appear in
the vehicle information display and the BSI
system will be turned off automatically. The
BSI system will not be available until the con-
ditions no longer exist.
• “Not available Poor Road Conditions”

– When the VDC system (except TCS

function) or ABS operates.

• “Currently not available”

– When the VDC system is turned off.
– When the SNOW mode is selected

• “Unavailable High Cabin Temperature”:

If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F (40°C)).

• “Unavailable Side Radar Obstruction”:

When side radar blockage is detected.

Turn off the BSI system and turn it on again
when the above conditions no longer exist.

SYSTEM MALFUNCTION

When the BSI system malfunctions, it will be
turned off automatically, a chime will sound,
and the “Not available System Malfunction”
warning message with the BSW indicator
(orange) will appear in the vehicle information
display.

Action to take:

Stop the vehicle in a safe location, push the
park button to engage the P (Park) position,
turn the engine off and restart the engine. If
the “Not available System Malfunction”
warning message with the BSW indicator
(orange) continues to be displayed, have the
BSI system checked. It is recommended you
visit a certified INFINITI retailer for this
service.

LSD2051

Illustration 10: – Entering from the side

5-70

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM MAINTENANCE

The two radar sensors

O

1

for the BSI system

are located near the rear bumper. Always
keep the area near the radar sensors clean.

The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.

Check for and remove objects obstructing
the radar sensors.

Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.

Do not strike or damage the area around the
radar sensors.

It is recommended you visit a certified
INFINITI retailer if the area around the radar
sensors is damaged due to a collision.

The lane camera unit

O

2

for BSI system is

located above the inside mirror. To keep the
proper operation of BSI and prevent a system
malfunction,

be

sure

to

observe

the

following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar-

ent material) or install an accessory near
the camera unit.

• Do not place reflective materials, such as

white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.

• Do not strike or damage the areas around

the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. It is recommended that you
contact a certified INFINITI retailer if the
camera unit is damaged due to an accident.

Radio frequency statement

For USA

FCC ID: LTQRN5TR

CAUTION TO USERS

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

This device complies with Part 15 of the FCC
Rules and with the RSS of the Industry
Canada. Operation is subject to the follow-
ing two conditions:

1.

This device may not cause harmful inter-
ference, and

2.

this device must accept any interference
received, including interference that may
cause undesired operation.

For Canada

IC: 3659A-RN5TR

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two
conditions:

(1) This device may not cause interference.

LSD4414

Starting and driving

5-71

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(2) This device must accept any interference,
including interference that may cause unde-
sired operation of the device.

L’émetteur/récepteur exempt de licence
contenu dans le présent appareil est con-
forme aux CNR d’Innovation, Sciences et
Développement économique Canada appli-
cables aux appareils radio exempts de li-
cence. L’exploitation est autorisée aux deux
conditions suivantes:

(1) L’appareil ne doit pas produire de
brouillage;

(2) L’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage
est

susceptible

d’en

compromettre

le

fonctionnement.

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the RCTA system
could result in serious injury or death.

The RCTA system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. When backing out of a
parking space, always use the side and
rear mirrors and turn and look in the di-
rection your vehicle will move. Never rely
solely on the RCTA system.

Do not use the RCTA system when tow-
ing a trailer. The system may not func-
tion properly.

The RCTA system will assist you when back-
ing out from a parking space. When the ve-
hicle is in reverse, the system is designed to
detect other vehicles approaching from the
right or left of the vehicle. If the system de-
tects cross traffic, it will alert you.

REAR CROSS TRAFFIC ALERT
(RCTA)

5-72

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RCTA SYSTEM OPERATION

LSD4512

For vehicles with the 7 inch (18 cm) display

Starting and driving

5-73

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1

Side BSW/RCTA Indicator Light

The RCTA system can help alert the driver of
an approaching vehicle when the driver is
backing out of a parking space.

When the shift position is in R (Reverse) and
the vehicle speed is less than approximately
5 mph (8 km/h), the RCTA system is
operational.

If the radar detects an approaching vehicle
from either side, the system chimes (once)
and the side BSW/RCTA indicator light
flashes on the side the vehicle is approaching
from.

LSD4513

For vehicles with the 12.3 inch (31.2 cm) display

5-74

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The RCTA system uses radar sensors

O

A

in-

stalled on both sides near the rear bumper to
detect an approaching vehicle.

The radar sensors

O

A

can detect an ap-

proaching vehicle from up to approximately
66 ft. (20 m) away.

LSD2216

LSD4543

Starting and driving

5-75

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO ENABLE/DISABLE THE
RCTA SYSTEM

Perform the following steps to enable or dis-
able the RCTA system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.

2. Select “Rear Cross Traffic Alert” and press

the OK button to turn the system on or
off.

LSD4418

For vehicles with the 7 inch (18 cm) display

5-76

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

• When enabling/disabling the system, the

system setting will be retained even if the
engine is restarted.

LSD4419

For vehicles with the 12.3 inch (31.2 cm) display

Starting and driving

5-77

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     10      11      12      13     ..
