NOTE:

Do not adjust the Brightness, Contrast,
Black Level, Tint, and Color of the Around
View® Monitor while the vehicle is moving.
Make sure the parking brake is firmly
applied.

AROUND VIEW® MONITOR
SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these sys-
tem limitations could result in serious in-
jury or death.

Do not use the Around View® Monitor
with the outside mirrors in the stored po-
sition, and make sure that the liftgate is
securely closed when operating the ve-
hicle using the Around View® Monitor.

The apparent distance between objects
viewed on the Around View® Monitor
differs from the actual distance.

The cameras are installed on the front
grille, the outside mirrors and in the back
door finisher. Do not put anything on the
vehicle that covers the cameras.

When washing the vehicle with high
pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.

Do not strike the cameras. They are pre-
cision instruments. Doing so could cause
a malfunction or cause damage resulting
in a fire or an electric shock.

LHA5510

4-20

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the bum-
per or on the ground may not be viewed

O

1

.

When in the bird’s-eye view, a tall object near
the seam

O

2

of the camera viewing areas will

not appear in the monitor.

The following are operating limitations and
do not represent a system malfunction:
• There may be a delay when switching be-

tween views.

• When the temperature is extremely high or

low, the screen may not display objects
clearly.

• When strong light directly shines on the

camera, objects may not be displayed
clearly.

• The screen may flicker under fluorescent

light.

• The colors of objects on the Around View®

Monitor may differ somewhat from the ac-
tual color of objects.

• Objects on the Around View® Monitor may

not be clear and the color of the object may
differ in a dark environment.

• There may be differences in sharpness be-

tween each camera view of the bird's-eye
view.

• Do not use wax on the camera lens. Wipe

off any wax with a clean cloth that has
been dampened with a diluted mild clean-
ing agent, then wipe with a dry cloth.

System temporarily unavailable

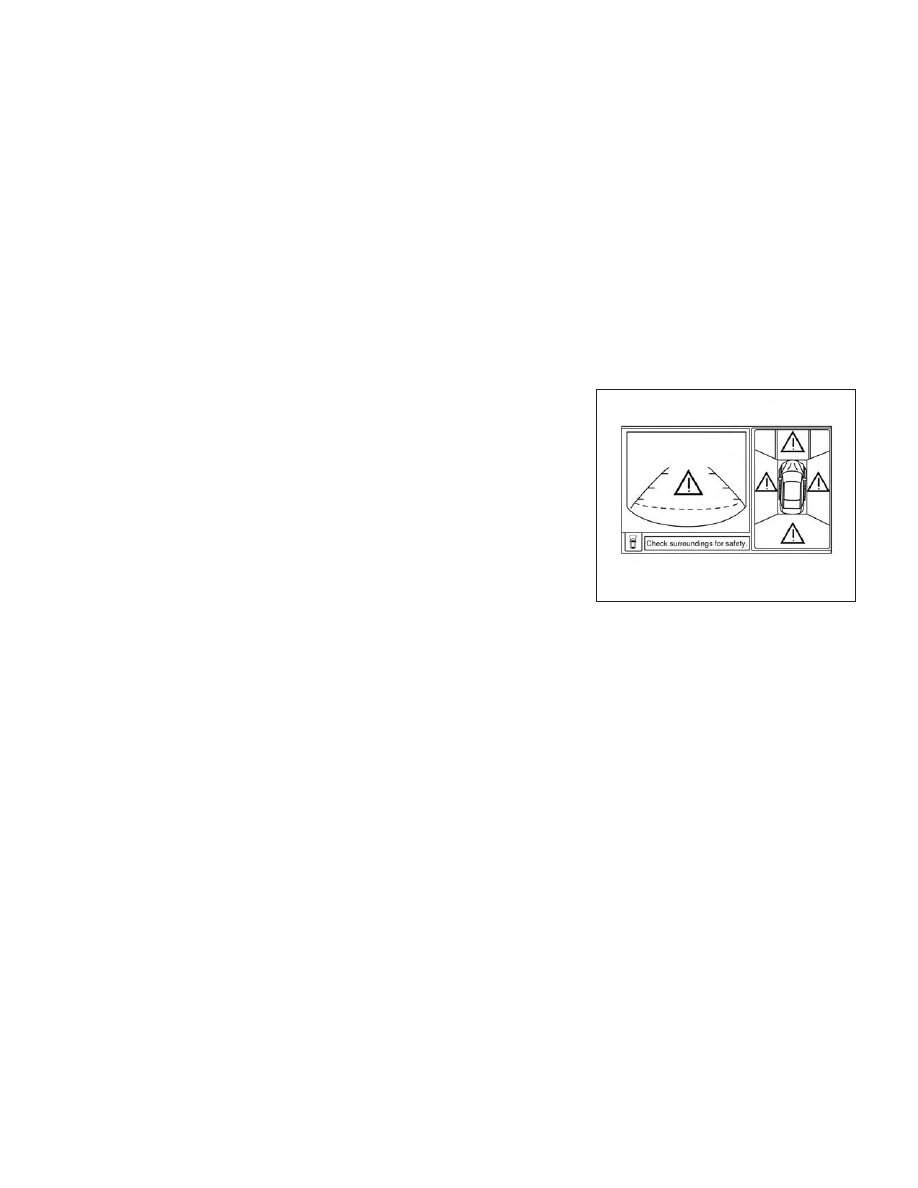

When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.

LHA5449

Monitor, climate, audio, phone and voice recognition systems

4-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the “[X]” icon is displayed on the
screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or thinner to
clean

the

camera.

This

will

cause

discoloration.

Do not damage the cameras as the moni-
tor screen may be adversely affected.

If dirt, rain or snow accumulates on any of the
cameras

O

1

, the Around View® Monitor may

not display objects clearly. Clean the camera
by wiping with a cloth dampened with a di-
luted mild cleaning agent and then wiping
with a dry cloth.

LHA5450

LHA5508

4-22

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

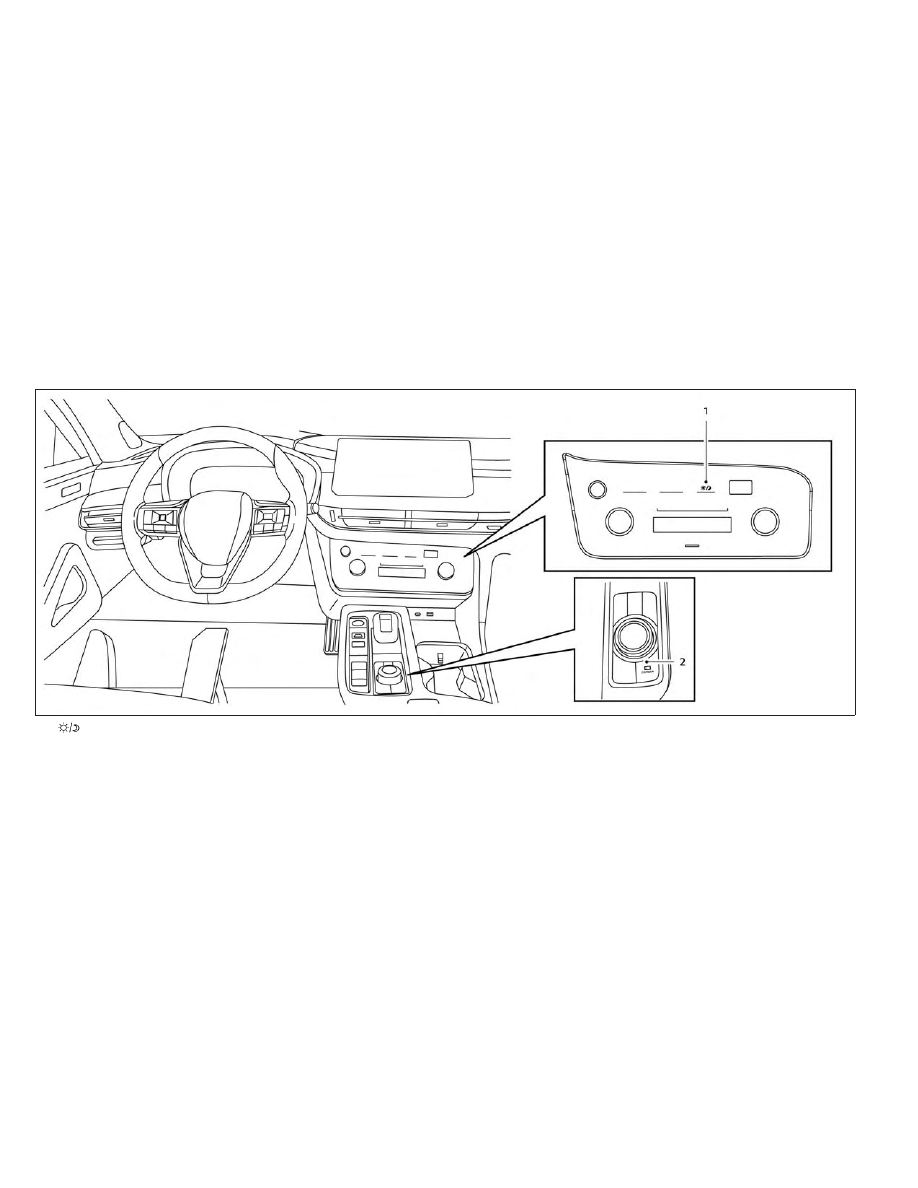

1.

button

2. CAMERA button

LHA5526

MOVING OBJECT DETECTION
(MOD) (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and in-
structions for proper use of the Moving
Object Detection system could result in
serious injury or death.

The MOD system is not a substitute for
proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.

The system is deactivated at speeds
above 6 mph (10 km/h). It is reactivated
at lower speeds.

The MOD system is not designed to de-
tect surrounding stationary objects.

The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.

The MOD system detects moving objects by
using image processing technology on the
image shown in the display.

MOD SYSTEM OPERATION

The MOD system will turn on automatically
under the following conditions:
• When the shift lever is in the R (Reverse)

position.

• When the CAMERA button is pressed to

activate the camera view on the display.

• When vehicle speed decreases below ap-

proximately 6 mph (10 km/h) and the cam-
era screen is displayed.

The MOD system operates in the following
conditions

when

the

camera

view

is

displayed:
• When the shift position is in the P (Park) or

N (Neutral) position and the vehicle is
stopped, the MOD system detects moving
objects in the bird’s-eye view. The MOD
system will not operate if the outside mir-
rors are moving in or out, in the stowed
position, or if either front door is opened.

LHA5451

Front and bird’s-eye views

4-24

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• When the shift lever is in the D (Drive) po-

sition and the vehicle speed is below ap-
proximately 6 mph (10 km/h), the MOD
system detects moving objects in the front
view.

• When the shift lever is in the R (Reverse)

position and the vehicle speed is below ap-
proximately 6 mph (10 km/h), the MOD
system detects moving objects in the rear
view. When activating the Around View®
Monitor, the guide lines, the icons and the
messages may not be displayed immedi-
ately. The MOD system will not operate if
the liftgate is open.

The MOD system does not detect moving
objects in the front-side view. The MOD icon
is not displayed on the screen when in this
view.

When the MOD system detects moving ob-
jects near the vehicle, a yellow frame will be
displayed on the view where the objects are
detected. While the MOD system continues
to detect moving objects, the yellow frame
continues to be displayed.

NOTE:

While the RCTA chime is beeping, the MOD
system does not chime.

In the bird’s-eye view, the yellow frame

O

1

is

displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected.

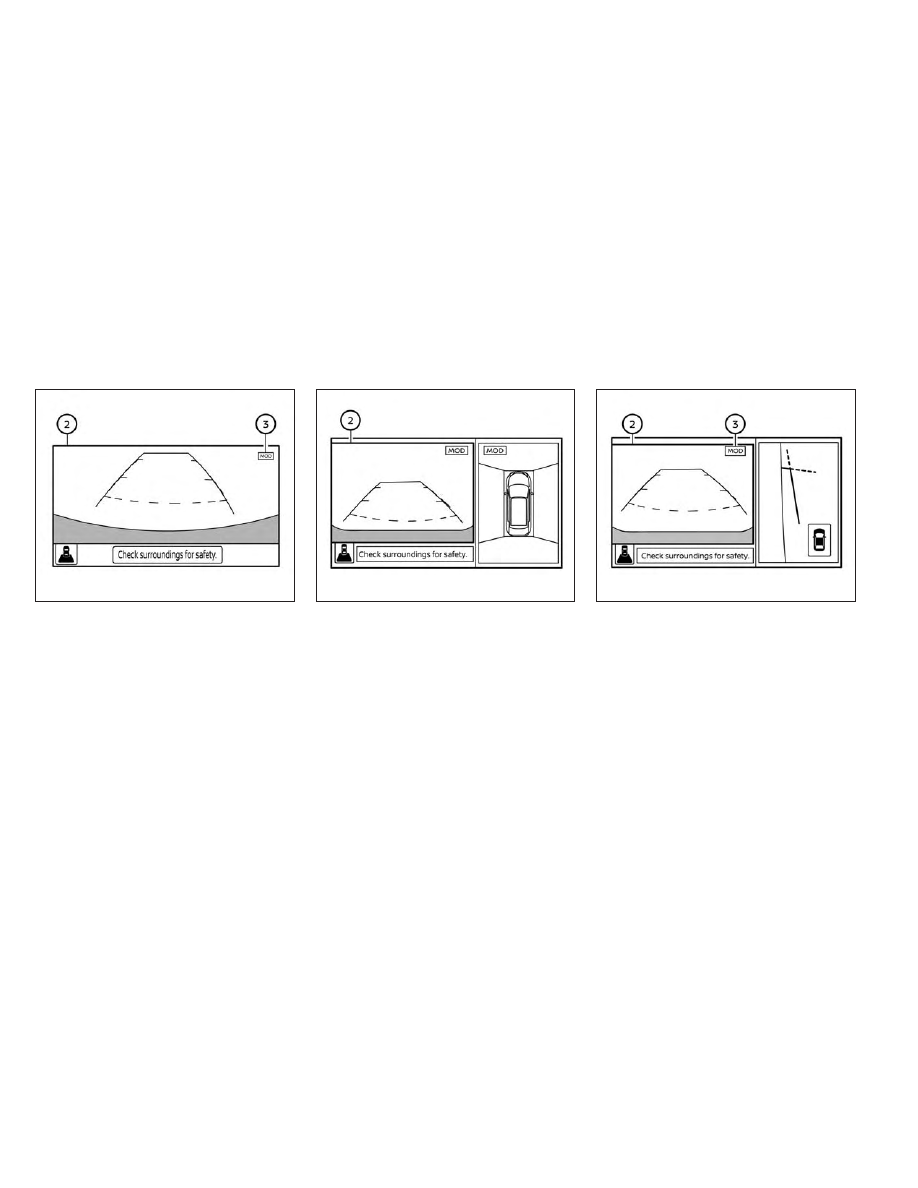

The yellow frame

O

2

is displayed on each

view in the front view and rear view modes.

A green MOD icon

O

3

is displayed in the view

where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.

If the MOD system is turned off, the MOD
icon

O

3

is not displayed.

LHA5454

Front-wide view

LHA5452

Rear and bird’s-eye views

LHA5453

Rear and front-side views

Monitor, climate, audio, phone and voice recognition systems

4-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TURNING MOD ON AND OFF

To turn the MOD system on or off:

1. Press the

or

button on the

steering wheel and select “Settings” in the
vehicle information display.

2. Using the scroll dial, select “Driver Assis-

tance” and press the OK button.

3. Select “Parking Aids”.

4. Toggle ON or OFF “Moving Object” using

the OK button.

MOD SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.

Do not use the MOD system when tow-
ing a trailer. The system may not func-
tion properly.

Excessive noise (for example, audio sys-
tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.

The MOD system performance will be
limited according to environmental con-
ditions and surrounding objects such as:

When there is low contrast between

background and the moving objects.

When there is a blinking source of

light.

When strong light such as another

vehicle’s headlight or sunlight is
present.

When camera orientation is not in its

usual position, such as when a mirror
is folded.

When there is dirt, water drops or

snow on the camera lens.

When the position of the moving ob-

jects in the display is not changed.

The MOD system might detect flowing
water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.

The MOD system may not function
properly depending on the speed, direc-
tion, distance or shape of the moving
objects.

If your vehicle sustains damage to the
parts where the camera is installed, leav-
ing it misaligned or bent, the sensing
zone may be altered and the MOD sys-
tem may not detect objects properly.

When the temperature is extremely high
or low, the screen may not display ob-
jects clearly. This is not a malfunction.

LHA5454

Rear-wide view

4-26

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

The green MOD icon will change to orange if
one of the following has occurred:

When the system is malfunctioning.

When

the

component

temperature

reaches a high level (icon will blink).

When the RearView camera has detected
a blockage (icon will blink).

If the icon light continues to illuminate or-
ange, have the MOD system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or thinner to
clean

the

camera.

This

will

cause

discoloration.

Do not damage the camera as the moni-
tor screen may be adversely affected.

If dirt, rain or snow accumulates on any of the
cameras

O

1

, the MOD system may not oper-

ate properly. Clean the camera by wiping
with a cloth dampened with a diluted mild
cleaning agent and then wiping with a dry
cloth.

LHA5508

Monitor, climate, audio, phone and voice recognition systems

4-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

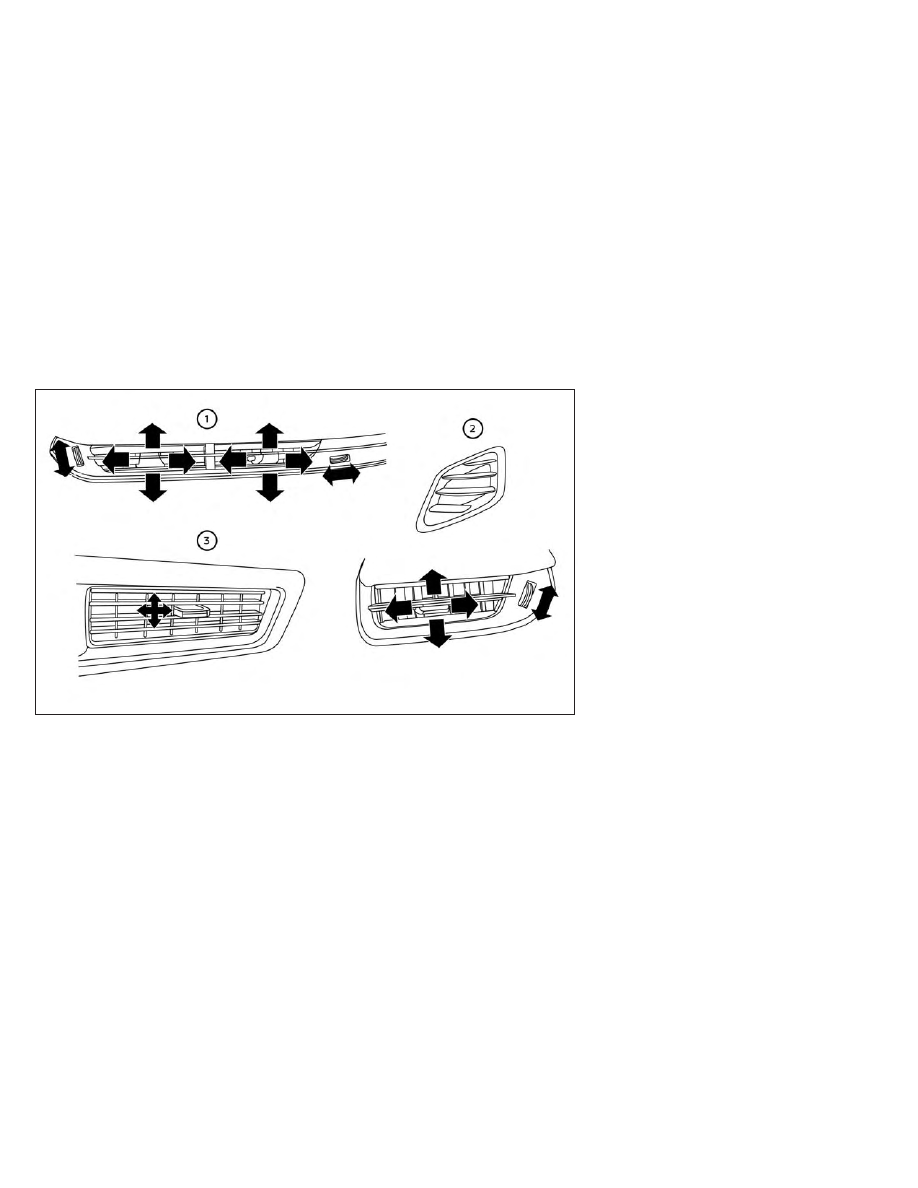

Adjust air flow direction for the center vents

O

1

, driver’s and passenger's side vents

O

2

,

and rear passenger compartment vents

O

3

by

moving the vent slide and/or vent assemblies.

Open or close the vents using the dial.

LHA5509

VENTS

4-28

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Heated steering wheel switch

(if so equipped)

2. Display screen
3. REAR CONTROL (rear climate display

screen) button

4. REAR ON-OFF button
5. REAR LOCK button

6.

REAR window and outside mirror

(if so equipped) defroster switch

7.

Heated seat switches (if so equipped)

8.

Climate controlled seat switches

(if so equipped)

9. SYNC button/ temperature control dial

(passenger's side)

10.

CLEAN (if so equipped)

11.

Air recirculation button

12.

Fresh air intake button

13.

Fan speed control buttons

14. MODE button
15. A/C (air conditioner) button
16. ON-OFF button
17.

Front defroster button

18. AUTO (automatic) climate control button/

temperature control dial (driver's side)

WARNING

The air conditioner cooling function op-
erates only when the engine is running.

Do not leave children or adults who
would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acci-
dentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.

Do not use the recirculation mode for
long periods as it may cause the interior
air to become stale and the windows to
fog up.

LHA5522

HEATER AND AIR CONDITIONER
(automatic)

Monitor, climate, audio, phone and voice recognition systems

4-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Start the engine and operate the controls to
activate the air conditioner.

NOTE:

• Odors from inside and outside the vehicle

can build up in the air conditioner unit.
Odor can enter the passenger compart-
ment through the vents.

• When parking, set the heater and air con-

ditioner controls to turn off air recircula-
tion to allow fresh air into the passenger
compartment. This should help reduce
odors inside the vehicle.

AUTOMATIC OPERATION

Cooling and/or dehumidified
heating (AUTO)

This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, in-
take air control, and fan speed are also con-
trolled automatically.

1. Press the AUTO button. (The indicator on

the button will illuminate and AUTO will
be displayed.)

2. Turn the temperature control dial to the left

or right to set the desired temperature.

• Adjust the temperature display to about

75°F (24°C) for normal operation.

• The temperature of the passenger com-

partment will be maintained automatically.
Air flow distribution, intake air control, and
fan speed are also controlled automatically.

• A visible mist may be seen coming from the

ventilators in hot, humid conditions as the
air is cooled rapidly. This does not indicate a
malfunction.

3. You can individually set driver's and front

passenger's side temperature using each
temperature control dial.

• To synchronize the driver’s and front pas-

senger’s temperature settings, press the
SYNC button. PASS SYNC text will appear
in the Climate display.

Dehumidified defrosting or
defogging

1. Press the

front defroster button on.

(The indicator light on the button will
come on.)

2. Turn the temperature control dial to set

the desired temperature.

• To quickly remove ice from the outside of the

windows, use the

fan speed control

buttons to set the fan speed to maximum.

• As soon as possible after the windshield is

clean, press the AUTO button to return to
the automatic mode.

• When the

front defroster button is

pressed, the air conditioner will automati-
cally be turned on at outside temperatures
above 36°F (2°C). The air recirculate mode
automatically turns off, allowing outside air
to be drawn into the passenger compart-
ment to further improve the defogging
performance.

Remote Engine Start with
Intelligent Climate Control (if so
equipped)

Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is placed in the ON posi-
tion. In Remote Engine Start defrosting
mode, the rear window defroster, heated
seats (if so equipped) and heated steering
wheel (if so equipped) may be activated
automatically.

4-30

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Voice Recognition logic

When the climate control system is on, the
front and rear fan speeds may be automati-
cally lowered so that commands are more
easily recognized. Fan speed can be adjusted
using the fan speed

decrease and

increase buttons, if desired.

MANUAL OPERATION

Fan speed control buttons

Press the

fan speed control buttons to

manually control the fan speed.

Press the AUTO button to return to auto-
matic control of the fan speed.

Temperature control dial

The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
left. To increase the temperature, turn the
dial to the right. Temperature can be adjusted
on the driver’s and passenger’s side.

Air recirculation

Press the

air recirculation button to

recirculate interior air inside the vehicle. The

indicator light on the button will come

on.

The air recirculation cannot be activated
when the air conditioner is in the

front

defrosting mode.

When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit
air recirculation mode, deselect the air recir-
culation button (indicator will turn off) to en-
ter fresh air mode.

Fresh air intake

Press the

fresh air intake button to

draw

outside

air

into

the

passenger

compartment.

A/C (air conditioner) button

Start the engine, press the

fan speed

control buttons to the desired position and
press the

button to turn on the air

conditioner. To turn off the air conditioner,
press the

button again.

The air conditioner cooling function oper-
ates only when the engine is running.

Air flow control

Press the MODE button to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the center
display:

Air flows from center and side
vents.

Air flows from center and side
vents and foot outlets.

Air flows mainly from foot outlets.

Air flows from defroster and foot
outlets.

Synchronize climate settings

Press the SYNC button to synchronize cli-
mate settings. SYNC text will appear in the
Climate display.

When rear climate is off, pressing SYNC will
synchronize only driver's and front passen-
ger's climate settings. When rear climate is
on, pressing SYNC will synchronize driver,
front passenger, and rear temperature, fan,
mode, and auto settings.

To change climate settings when SYNC is
active (the SYNC text is displayed):
• The driver's side temperature control but-

tons will control the driver, front passenger,
and rear (if rear climate is on) temperatures.

Monitor, climate, audio, phone and voice recognition systems

4-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• The fan speed control buttons will control

the front and rear climate fan speeds.

• The front AUTO (automatic) climate con-

trol on-off button will activate the front
and rear climate automatic settings.

• The mode switch will control the front and

rear airflow direction.

To exit SYNC:
• To remove the front passenger from SYNC,

turn the passenger’s side temperature dial.
The driver and rear settings remain in SYNC
until rear is removed from SYNC.

• To remove the rear from SYNC, change any

of the rear climate settings. The driver and
front passenger settings remain in SYNC
until the front passenger is removed from
SYNC.

• To reactivate SYNC press the SYNC

button.

To turn system off

Press the OFF button.

Rear window and outside mirror
(if so equipped) defroster switch

For additional information, see “Rear window
and outside mirror (if so equipped) defroster
switch” (P. 2-77).

Heated seat switches (if so
equipped)

For additional information, see “Heated seat
switches” (P. 2-85).

Heated steering wheel switch (if so
equipped)

For additional information, see “Heated
steering wheel switch” (P. 2-87).

Climate controlled seat switches
(if so equipped)

For additional information, see “Climate con-
trolled seat switches” (P. 2-84).

OPERATING TIPS

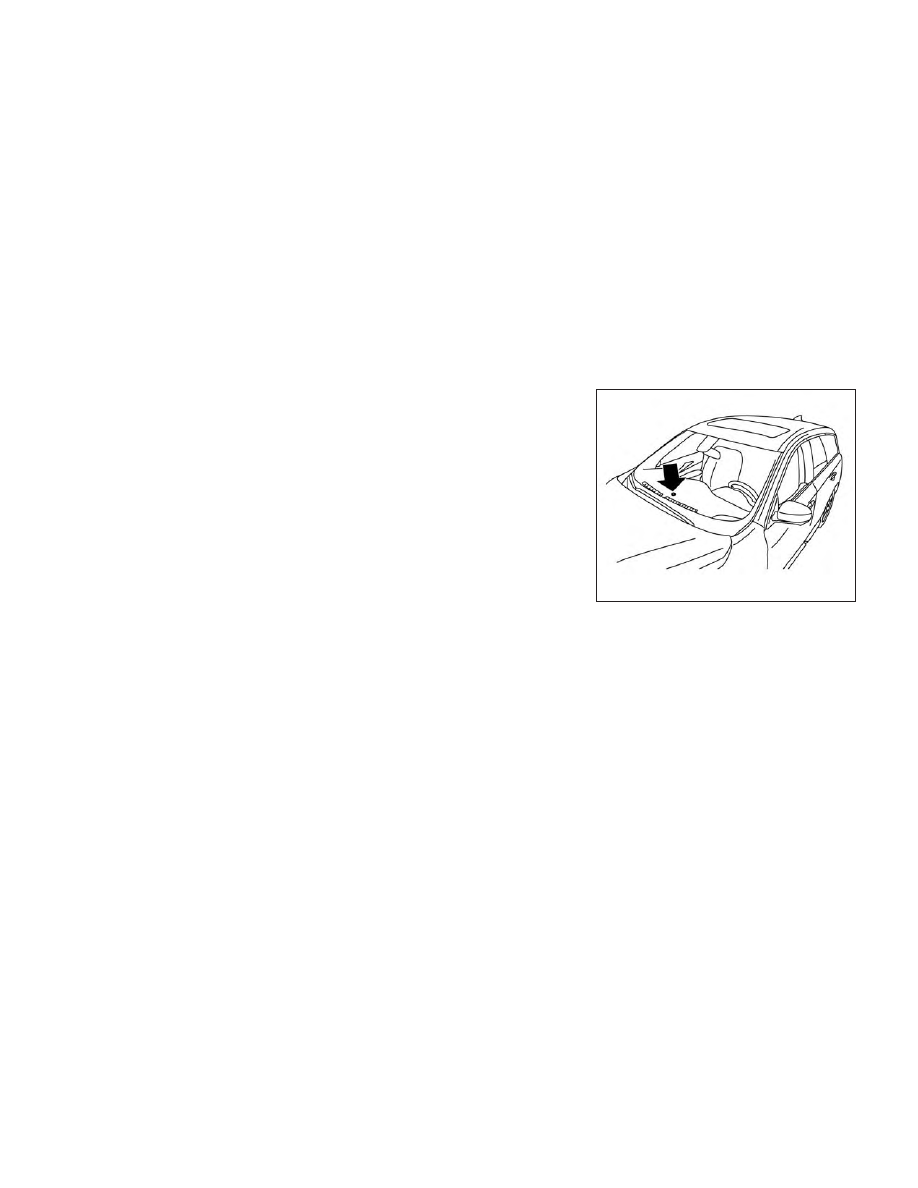

The sunload sensor, located on the top center
of the instrument panel, helps the system
maintain a constant temperature. Do not put
anything on or around this sensor.
• When the climate system is in automatic

operation and the engine coolant tempera-
ture and outside air temperature are low,
the air flow outlet may default to defroster
mode for a maximum of 2 minutes 30 sec-
onds. This is not a malfunction. After the
engine coolant temperature warms up, the
air flow outlet will return to foot mode and
operation will continue normally.

LHA5540

4-32

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• When the outside and interior cabin tem-

peratures are moderate to high, the intake
setting may default to turn off air recircu-
lation to allow fresh air into the passenger
compartment. You may notice air flow
from the foot mode, bi-level mode, or side
demist vent outlets for a maximum of 15
seconds. This may occur when the previous
climate setting was turned off. This is not a
malfunction. After the initial warm air is
expelled, the intake will return to automatic
control, the air flow outlet will return to
previous settings, and operation will con-
tinue normally. To exit, press any climate
control button.

• Keep the moonroof closed while the air

conditioner is in operation.

• If you feel that the air flow mode you have

selected and the outlets the air is coming
out do not match, select the

mode.

• When you change the air flow mode, you

may feel air flow from the foot outlets for
just a moment. This is not a malfunction.

AUTOMATIC CLIMATE
CONTROL SYSTEM (if so
equipped)

The Automatic Climate Control System
keeps the air inside of the vehicle clean, using
the automatic air recirculation control with
the exhaust gas/outside odor detecting sen-
sor with ion control. Touch the

recircu-

lation switch to activate.

Ion control (if so equipped):

The Automatic Climate Control System unit
generates highly concentrated Plasmaclus-
ter® ions into the air blown from the ventila-
tors to reduce odor absorbed into the interior
trim and to suppress airborne bacteria.

The Plasmacluster® icon on the Climate dis-
play indicates the status of the Plasmaclus-
ter® ion emission from the system and
changes with the amount of the air flow.

Automatic air recirculation control with the
exhaust gas/outside odor detection sensor
(if so equipped):

The Automatic Climate Control System
comes with an exhaust gas detection/
outside odor sensor. When the automatic air
circulation control is activated, the sensor de-
tects odors outside the vehicle such as pulp or
chemicals, and exhaust such as gasoline or

diesel. When such odors or gases are de-
tected the display and the system automati-
cally changes from fresh air mode to the re-
circulation mode.

When the automatic air recirculation is on, for
the first 5 minutes, the air recirculation mode
is selected to prevent dust, dirt, and pollen
from entering the vehicle and to clean the air
inside of the vehicle.

After 5 minutes, the sensor detects exhaust
gas and automatically alternates between
the air recirculation mode and the fresh air
mode.

The automatic air recirculation mode can be
activated under the following conditions.
• The air flow control is not in the front de-

froster mode (the indicator light on the

front defroster button is turned off).

• The outside temperature is about 32°F

(0°C) or more.

Monitor, climate, audio, phone and voice recognition systems

4-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

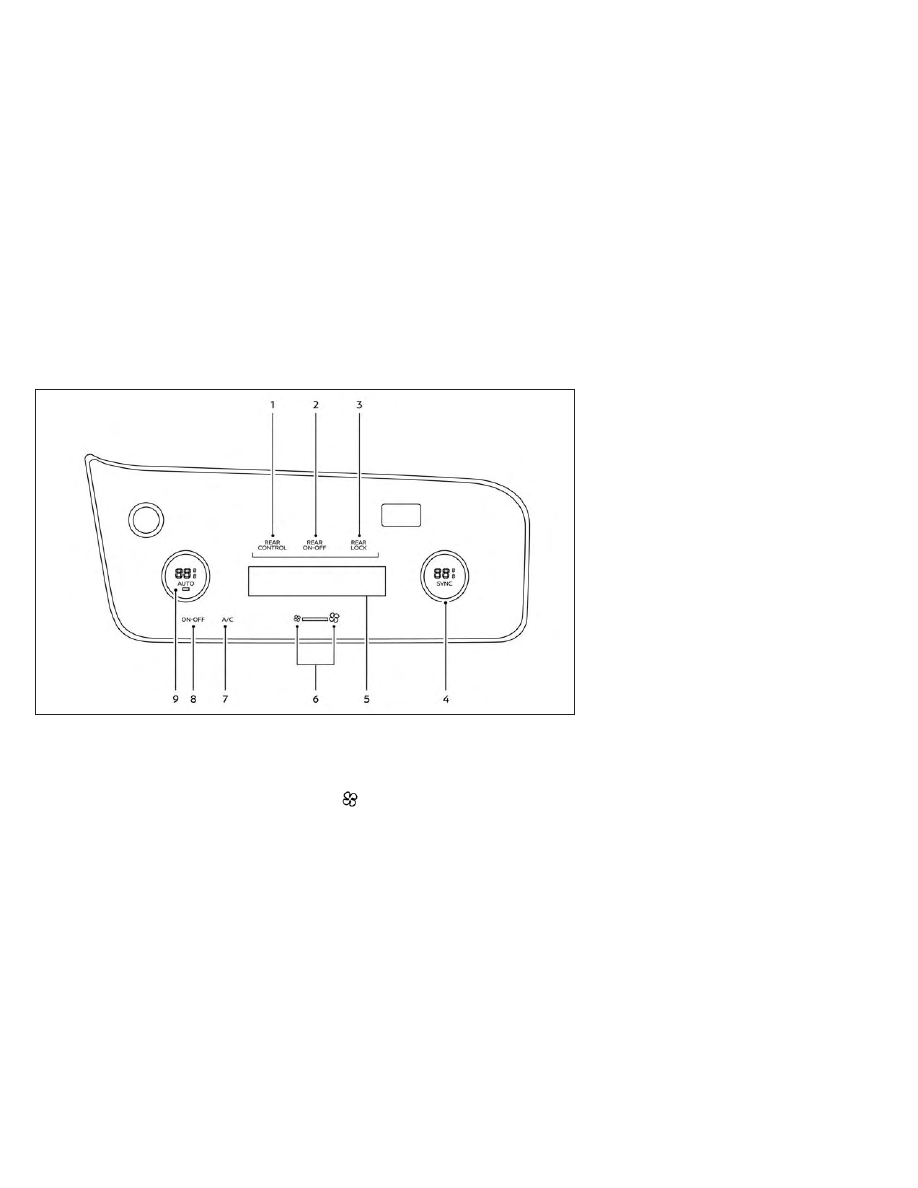

REAR AUTOMATIC AIR
CONDITIONING SYSTEM

1. REAR CONTROL button

2. REAR ON-OFF button

3. REAR LOCK button

4. SYNC button/ temperature control dial

(passenger’s side)

5. Display screen

6.

Fan speed control buttons

7. A/C (air conditioner) button

8. ON-OFF button

9. AUTO button/ temperature control dial

(driver’s side)

To turn on/off the rear automatic air condi-
tioning system with the front air conditioner
control panel, press the REAR ON-OFF
button.

The rear automatic air conditioning system
can be adjusted with the front air conditioner
control panel by pressing the REAR CON-
TROL button.

The front climate display will switch to the
REAR climate screen.

To adjust the front air conditioning system,
press the REAR CONTROL button

Automatic operation

1. Press the AUTO button. The AUTO indi-

cator button will illuminate.

2. Turn the temperature control dials to set

desired temperature.

Manual operation

Temperature control

Turn the temperature control dial to set the
desired temperature.

LHA5523

Front Controls

4-34

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fan speed control

Press the

Fan speed control buttons

to manually control the fan speed.

Rear Heating

1. Press the AUTO button. The AUTO indi-

cator button will illuminate on the front
display.

2. Turn the temperature control dial to set

the desired temperature.

Turning the system off

1. Press the REAR ON-OFF button on the

front display to turn the rear climate sys-
tem off. The indicator light will turn off.

2. Press the ON-OFF button. The rear cli-

mate will turn off and the control will
switch to front climate.

Locking the REAR controls

1. Press the REAR LOCK button on the front

climate control panel. LOCK will be dis-
played on the rear climate display screen.

2. The rear climate controls will be locked

and can only be adjusted using the front
controls.

Rear control buttons

1.

Fan speed (increase) button

2. Display screen

3.

Temperature (increase) button

4.

Temperature (decrease) button

5.

Heated 2nd row seat switches (if so

equipped)

6. ON-OFF button

7. Air flow control buttons

8. AUTO button

9.

Fan speed (decrease) button

The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches at the rear of the center
console.

The rear control buttons do not function
when the REAR LOCK button is on.

ON-OFF button

Turns rear automatic air

conditioning system on and off.

Fan speed control buttons

adjust the

rear fan speed up or down.

LHA5486

Rear Controls

Monitor, climate, audio, phone and voice recognition systems

4-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Heated 2nd row seat switches (if so
equipped)

For additional information, see

“Heated 2nd row seat switches” (P. 2-86).

Air flow control buttons

controls air flow

and selects the air outlet.

AUTO button

Turns rear automatic air

conditioning system on, AUTO mode on.

Temperature

increase and

de-

crease buttons

Adjusts the rear tempera-

ture up or down.

The air conditioner system in your INFINITI
vehicle is charged with a refrigerant designed
with the environment in mind.

This refrigerant does not harm the earth's
ozone layer.

Special charging equipment and lubricant is
required when servicing your INFINITI air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to your
air conditioner system. For additional infor-
mation, see “Air conditioner system refriger-
ant and oil recommendations” (P. 10-7).

It is recommended that you visit an INFINITI
retailer to service your “environmentally
friendly” air conditioner system.

WARNING

The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.

The vehicle is equipped with a shark fin an-
tenna and an antenna pattern is printed in-
side the rear window.

CAUTION

Do not place metalized film near the rear
window glass or attach any metal parts
to it. This may cause poor reception or
noise.

When cleaning the inside of the rear win-
dow, be careful not to scratch or damage
the rear window antenna. Lightly wipe
along the antenna with a dampened soft
cloth.

SERVICING AIR CONDITIONER

ANTENNA

4-36

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When installing a CB, ham radio or car phone
in your vehicle, be sure to observe the follow-
ing precautions; otherwise, the new equip-
ment may adversely affect the engine control
system and other electronic parts.

WARNING

A cellular phone should not be used for
any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of
cellular phones while driving.

If you must make a call while your vehicle
is in motion, the hands free cellular phone
operational

mode

is

highly

recom-

mended. Exercise extreme caution at all
times so full attention may be given to
vehicle operation.

If you are unable to devote full attention
to vehicle operation while talking on the
phone, pull off the road to a safe location
and stop your vehicle.

CAUTION

Keep the antenna as far away as possible
from the electronic control modules.

Keep the antenna wire more than 8 in
(20 cm) away from the electronic control
system harnesses. Do not route the an-
tenna wire next to any harness.

Adjust the antenna standing-wave ratio
as recommended by the manufacturer.

Connect the ground wire from the CB
radio chassis to the body.

For additional information, it is recom-
mended that you visit an INFINITI re-
tailer for servicing.

“Made for iPod”, “Made for iPhone” and
“Made for iPad” mean that an electronic ac-
cessory has been designed to connect spe-
cifically to iPod, iPhone or iPad, respectively,
and has been certified by the developer to
meet Apple performance standards. Apple is
not responsible for the operation of this de-
vice or its compliance with safety and regu-
latory standards. Please note that the use of
this accessory with iPod, iPhone or iPad may
affect wireless performance.

iPad, iPhone, iPod classic, iPod nano, iPod
shuffle and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other
countries. Lightning is a trademark of Apple
Inc.

CAR PHONE OR CB RADIO

iPod®/iPhone®

Monitor, climate, audio, phone and voice recognition systems

4-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5 Starting and driving

Precautions when starting and driving . . . . . . . . . . . .5-4

Exhaust gas (carbon monoxide) . . . . . . . . . . . . . . . .5-4
Three-way catalyst . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Tire Pressure Monitoring System (TPMS) . . . . . .5-5
On-pavement and off-road driving
precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8
Avoiding collision and rollover . . . . . . . . . . . . . . . . .5-8
Off-road recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9
Rapid air pressure loss . . . . . . . . . . . . . . . . . . . . . . . .5-9
Drinking alcohol/drugs and driving . . . . . . . . . . . 5-10
Driving safety precautions . . . . . . . . . . . . . . . . . . . 5-10
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) . . . . . . . . . . . .5-12

Push-button ignition switch . . . . . . . . . . . . . . . . . . . . 5-13

Operating range for engine start function . . . . 5-13
Push-button ignition switch operation . . . . . . . 5-13
Push-button ignition switch positions . . . . . . . . 5-14
Emergency engine shut off . . . . . . . . . . . . . . . . . . 5-14
INFINITI Intelligent Key battery
discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-15
INFINITI Vehicle Immobilizer System . . . . . . . . . .5-15

Before starting the engine . . . . . . . . . . . . . . . . . . . . . . 5-16
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16

Remote Engine Start (if so equipped) . . . . . . . . .5-17

Driving the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18

Automatic Transmission (A/T) . . . . . . . . . . . . . . . 5-18

Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25

Electronic parking brake (switch type) . . . . . . . . 5-25

Automatic brake hold . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27

How to activate/deactivate the
automatic brake hold function . . . . . . . . . . . . . . . 5-28
How to use the automatic brake hold
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-28

INFINITI Drive Mode Selector . . . . . . . . . . . . . . . . . . 5-29

STANDARD (2WD models)/AUTO
(AWD models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30
SPORT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30
SNOW mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30
PERSONAL mode . . . . . . . . . . . . . . . . . . . . . . . . . . 5-30
ECO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-32

Traffic Sign Recognition (TSR) (if so equipped) . . 5-34

System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-34
Turning the Traffic Sign Recognition
(TSR) system on and off . . . . . . . . . . . . . . . . . . . . . 5-35
System temporarily unavailable . . . . . . . . . . . . . . 5-36
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-36
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 5-36

Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 5-36

LDW system operation . . . . . . . . . . . . . . . . . . . . . . 5-37
How to enable/disable the LDW system . . . . . 5-39
LDW system limitations . . . . . . . . . . . . . . . . . . . . . 5-40
System temporarily unavailable . . . . . . . . . . . . . . 5-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-42
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 5-42

Lane Departure Prevention (LDP)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-43

LDP system operation . . . . . . . . . . . . . . . . . . . . . . . 5-44
How to enable/disable the LDP system . . . . . . 5-45
LDP system limitations . . . . . . . . . . . . . . . . . . . . . . 5-46
System temporarily unavailable . . . . . . . . . . . . . . 5-47
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-48
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 5-48

Blind Spot Warning (BSW) . . . . . . . . . . . . . . . . . . . . . 5-49

BSW system operation . . . . . . . . . . . . . . . . . . . . . . 5-50
How to enable/disable the BSW system . . . . . 5-52
BSW system limitations . . . . . . . . . . . . . . . . . . . . . 5-53
BSW driving situations . . . . . . . . . . . . . . . . . . . . . . 5-54
System temporarily unavailable . . . . . . . . . . . . . . 5-58
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 5-60

Blind Spot Intervention (BSI) (if so equipped) . . . . 5-61

BSI system operation . . . . . . . . . . . . . . . . . . . . . . . 5-62
How to enable/disable the BSI system . . . . . . . 5-63
BSI system limitations . . . . . . . . . . . . . . . . . . . . . . . 5-64
BSI driving situations . . . . . . . . . . . . . . . . . . . . . . . . 5-66
System temporarily unavailable . . . . . . . . . . . . . . 5-70
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-70
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . .5-71

Rear Cross Traffic Alert (RCTA) . . . . . . . . . . . . . . . . 5-72

RCTA system operation . . . . . . . . . . . . . . . . . . . . . 5-73
How to enable/disable the RCTA system . . . . 5-76
RCTA system limitations . . . . . . . . . . . . . . . . . . . . 5-78
System temporarily unavailable . . . . . . . . . . . . . . 5-80
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 5-82

Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . 5-83

Precautions on cruise control . . . . . . . . . . . . . . . . 5-83
Cruise control operations . . . . . . . . . . . . . . . . . . . . 5-83

ProPILOT Assist (if so equipped) . . . . . . . . . . . . . . . 5-84

ProPILOT Assist system operation . . . . . . . . . . 5-86
Turning the conventional (fixed speed)
cruise control mode on . . . . . . . . . . . . . . . . . . . . . . 5-90
Operating ProPILOT Assist . . . . . . . . . . . . . . . . . 5-90
How to enable/disable the Steering
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-96
Intelligent Cruise Control (ICC)
(for vehicles with ProPILOT Assist) . . . . . . . . . . 5-97
Steering Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-111
Conventional (fixed speed) cruise control
mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-117

Rear Automatic Braking (RAB) . . . . . . . . . . . . . . . . . 5-121

RAB system operation . . . . . . . . . . . . . . . . . . . . . 5-122
Turning the RAB system on/off . . . . . . . . . . . . 5-124
RAB system limitations . . . . . . . . . . . . . . . . . . . . . 5-125

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System malfunction . . . . . . . . . . . . . . . . . . . . . . . . 5-127
System maintenance . . . . . . . . . . . . . . . . . . . . . . . 5-127

Forward Emergency Braking (FEB) with
Pedestrian Detection . . . . . . . . . . . . . . . . . . . . . . . . . . 5-128

FEB with Pedestrian Detection system
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-129
Turning the FEB with Pedestrian
Detection system ON/OFF . . . . . . . . . . . . . . . . 5-131
FEB with Pedestrian Detection system
limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-133
System temporarily unavailable . . . . . . . . . . . . . 5-136
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . 5-138
System maintenance . . . . . . . . . . . . . . . . . . . . . . . 5-139

Predictive Forward Collision Warning
(PFCW) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-140

PFCW system operation . . . . . . . . . . . . . . . . . . . 5-143
Turning the PFCW system on/off . . . . . . . . . . 5-144
PFCW system limitations . . . . . . . . . . . . . . . . . . . 5-146
System temporarily unavailable . . . . . . . . . . . . . 5-152
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . 5-154
System maintenance . . . . . . . . . . . . . . . . . . . . . . . 5-155

Driver Attention Alert (DAA) (if so equipped) . . . 5-156

Driver Attention Alert (DAA) system
operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-157

How to enable/disable the Driver
Attention Alert (DAA) system . . . . . . . . . . . . . . . 5-158
Driver Attention Alert (DAA) system
limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-158

Break-in schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-159
Fuel efficient driving tips . . . . . . . . . . . . . . . . . . . . . . 5-160
Increasing fuel economy . . . . . . . . . . . . . . . . . . . . . . . 5-161
Intelligent All-Wheel Drive (AWD)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-161
Parking/parking on hills . . . . . . . . . . . . . . . . . . . . . . . 5-163
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-164
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-165

Brake precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5-165
Anti-lock Braking System (ABS) . . . . . . . . . . . . . 5-166
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-167

Active Brake Limited Slip (ABLS) system . . . . . . . 5-167
Vehicle Dynamic Control (VDC) system . . . . . . . . 5-168

Brake force distribution . . . . . . . . . . . . . . . . . . . . 5-169

Chassis Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-170

Active Trace Control . . . . . . . . . . . . . . . . . . . . . . . 5-170
Active Ride Control (if so equipped) . . . . . . . . . 5-171

Hill start assist system . . . . . . . . . . . . . . . . . . . . . . . . 5-171
Front and Rear Sonar System (if so equipped) . . 5-172

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-173
How to enable/disable the front and rear
sonar system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-175
Sonar limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-176
System temporarily unavailable . . . . . . . . . . . . . 5-177
System maintenance . . . . . . . . . . . . . . . . . . . . . . . 5-177

Idling Stop System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-178

Retrograde movement control function . . . . . 5-180
Idling Stop System display . . . . . . . . . . . . . . . . . . 5-180

Idling Stop OFF switch . . . . . . . . . . . . . . . . . . . . . 5-184

Cold weather driving . . . . . . . . . . . . . . . . . . . . . . . . . . 5-184

Freeing a frozen door lock . . . . . . . . . . . . . . . . . . 5-184
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-184
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-184
Draining of coolant water . . . . . . . . . . . . . . . . . . 5-184
Tire equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-185
Special winter equipment . . . . . . . . . . . . . . . . . . . 5-185
Driving on snow or ice . . . . . . . . . . . . . . . . . . . . . . 5-185

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not leave children or adults who
would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acci-
dentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

EXHAUST GAS (carbon monoxide)

WARNING

Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all win-
dows fully open, and have the vehicle in-
spected immediately.

Do not run the engine in closed spaces
such as a garage.

Do not park the vehicle with the engine
running for any extended length of time.

Keep the rear vent windows, liftgates,
doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:

1. Open all the windows.
2. Set the

air recirculation button

to off and the fan control dial to high
to circulate the air.

If electrical wiring or other cable connec-
tions must pass to a trailer through the
seal on the liftgate or the body, follow
the manufacturer's recommendation to
prevent carbon monoxide entry into the
vehicle.

The exhaust system and body should be
inspected by a qualified mechanic when-
ever:

a. The vehicle is raised for service.

b. You suspect that exhaust fumes are

entering

into

the

passenger

compartment.

c. You notice a change in the sound of

the exhaust system.

d. You have had an accident involving

damage to the exhaust system, un-
derbody, or rear of the vehicle.

THREE-WAY CATALYST

The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.

WARNING

The exhaust gas and the exhaust system
are very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.

Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.

PRECAUTIONS WHEN STARTING
AND DRIVING

5-4

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline will seriously re-
duce the three-way catalyst's ability to
help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause over rich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep driv-
ing if the engine misfires, or if noticeable
loss of performance or other unusual op-
erating conditions are detected. Have
the vehicle inspected promptly. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.

Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.

Do not race the engine while warming it
up.

Do not push or tow your vehicle to start
the engine.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitor-
ing System (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your tires
as soon as possible, and inflate them to the
proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.

Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea-
sons, including the installation of replace-
ment or alternate tires or wheels on the ve-
hicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunc-
tion telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels al-
low the TPMS to continue to function
properly.

Starting and driving

5-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Additional information:

• When using a wheel without the TPMS

such as the spare tire, the TPMS does not
monitor the tire pressure of the spare tire.

• The TPMS will activate only when the ve-

hicle is driven at speeds above 16 mph (25
km/h). Also, this system may not detect a
sudden drop in tire pressure (for example, a
flat tire while driving).

• The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure, the
vehicle must be driven at speeds above 16
mph (25 km/h) to activate the TPMS and
turn off the low tire pressure warning light.
Use a tire pressure gauge to check the tire
pressure.

• The “Tire Pressure Low — Add Air” warning

appears in the vehicle information display
when the low tire pressure warning light is
illuminated and low tire pressure is de-
tected. The “Tire Pressure Low - Add Air”
warning turns off when the low tire pres-
sure warning light turns off.

• The “Tire Pressure Low — Add Air” warning

appears each time the ignition switch is in
the ON position as long as the low tire
pressure warning light remains illuminated.

• The “Tire Pressure Low — Add Air” warning

does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

• Tire pressure rises and falls depending on

the heat caused by the vehicle’s operation
and the outside temperature. Do not re-
duce the tire pressure after driving because
the tire pressure rises after driving. Low
outside temperature can lower the tem-
perature of the air inside the tire which can
cause a lower tire inflation pressure. This
may cause the low tire pressure warning
light to illuminate. If the warning light illu-
minates, check the tire pressure for all four
tires.

• The Tire and Loading Information label is

located in the driver's door opening.

• You can also check the pressure of all tires

(except the spare tire) on the vehicle infor-
mation display screen. The order of the tire
pressure figures displayed on the screen
corresponds with the actual order of the
tire position.

For additional information, see “Low tire
pressure warning light” (P. 2-18),“Tire Pres-
sure Low — Add Air” (P. 2-67) and “Tire Pres-
sure Monitoring System (TPMS)” (P. 6-3).

WARNING

Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

If the low tire pressure warning light illu-
minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
off. If you have a flat tire, replace it with
a spare tire as soon as possible. For addi-
tional

information,

see

“Flat

tire”

(P. 6-3) for changing a flat tire.

5-6

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When using a wheel without TPMS such
as the spare tire, when a spare tire is
mounted or a wheel is replaced, tire pres-
sure will not be indicated, the TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain on
after 1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit an INFINITI retailer for this service.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.

CAUTION

The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.

Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the sig-
nals from the tire pressure sensors, and
the TPMS will not function properly.

Some devices and transmitters may tempo-
rarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate.

Some examples are:
• Facilities or electric devices using similar

radio frequencies are near the vehicle.

• If a transmitter set to similar frequencies is

being used in or near the vehicle.

• If a computer (or similar equipment) or a

DC/AC converter is being used in or near
the vehicle.

The low tire pressure warning light may illu-
minate in the following cases:
• If the vehicle is equipped with a wheel and

tire without TPMS.

• If the TPMS has been replaced and the ID

has not been registered.

• If the wheel is not originally specified by

INFINITI.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-

vice must accept any interference received,
including interference that may cause unde-
sired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two con-
ditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.

TPMS with Tire Inflation Indicator

When adding air to an under-inflated tire, the
TPMS with Tire Inflation Indicator provides
visual and audible signals outside the vehicle
to help you inflate the tires to the recom-
mended COLD tire pressure.

Starting and driving

5-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle set-up:

1. Park the vehicle in a safe and level place.

2. Apply the parking brake and push the park

button to engage the P (Park) position.

3. Place the ignition switch in the ON posi-

tion. Do not start the engine.

Operation:

1. Add air to the tire.

2. After a few seconds, the hazard indicators

will start flashing.

3. When the designated pressure is reached,

the horn beeps once and the hazard indi-
cators stop flashing.

4. Perform the above steps for each tire.

• If the tire is over-inflated more than ap-

proximately 4 psi (30 kPa), the horn
beeps and the hazard indicators flash
three times. To correct the pressure,
push the core of the valve stem on the
tire briefly to release pressure. When the
pressure reaches the designated pres-
sure, the horn beeps once.

• If the hazard indicator does not flash

within approximately 15 seconds after
starting to inflate the tire, it indicates
that the TPMS with Tire Inflation Indi-
cator is not operating.

• The TPMS will not activate the TPMS

with Tire Inflation Indicator under the
following conditions:
– If there is interference from an exter-

nal device or transmitter.

– The air pressure from the inflation de-

vice is not sufficient to inflate the tire.

– There is a malfunction in the TPMS.
– There is a malfunction in the horn or

hazard indicators.

– The identification code of the tire

pressure sensor is not registered to
the system.

– The battery of the tire pressure sensor

is low.

• If the TPMS with Tire Inflation Indicator

does not operate due to TPMS interfer-
ence, move the vehicle about 3 ft (1 m)
backward or forward and try again.

If the TPMS with Tire Inflation Indicator is
not working, use a tire pressure gauge.

ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS

Utility vehicles have a significantly higher
rollover rate than other types of vehicles.

They have higher ground clearance than pas-
senger cars to make them capable of per-
forming in a variety of on-pavement and off-
road applications. This gives them a higher

center of gravity than ordinary vehicles. An
advantage of higher ground clearance is a
better view of the road, allowing you to an-
ticipate problems. However, they are not de-
signed for cornering at the same speeds as
conventional 2-Wheel Drive vehicles any
more than low-slung sports cars are de-
signed to perform satisfactorily under off-
road conditions. If at all possible, avoid sharp
turns at high speeds. As with other vehicles of
this type, failure to operate this vehicle cor-
rectly may result in loss of control or vehicle
rollover.

In a rollover crash, an unbelted person is sig-
nificantly more likely to die than a person
wearing a seat belt.

For additional information, see “Driving
safety precautions” (P. 5-10).

AVOIDING COLLISION AND
ROLLOVER

WARNING

Failure to operate this vehicle in a safe and
prudent manner may result in loss of con-
trol or an accident.

5-8

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden steer-
ing maneuvers, because these driving prac-
tices could cause you to lose control of your
vehicle.

As with any vehicle, loss of control could re-
sult in a collision with other vehicles or ob-
jects or cause the vehicle to roll over, par-
ticularly if the loss of control causes the
vehicle to slide sideways.

Be attentive at all times, and avoid driving
when tired. Never drive when under the influ-
ence of alcohol or drugs (including prescrip-
tion or over-the-counter drugs which may
cause drowsiness). Always wear your seat
belt as outlined in the “Safety – Seats, seat
belts and supplemental restraint system” sec-
tion of this manual, and also instruct your
passengers to do so.

Seat belts help reduce the risk of injury in
collisions and rollovers.

In a rollover crash, an unbelted person is sig-
nificantly more likely to die than a person
wearing a seat belt.

OFF-ROAD RECOVERY

While driving, the right side or left side wheels
may unintentionally leave the road surface. If
this occurs, maintain control of the vehicle by
following the procedure below. Please note
that this procedure is only a general guide.
The vehicle must be driven as appropriate
based on the conditions of the vehicle, road
and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

4. When appropriate, slowly release the ac-

celerator pedal to gradually slow the
vehicle.

5. If there is nothing in the way, steer the

vehicle to follow the road while vehicle
speed is reduced. Do not attempt to drive
the vehicle back onto the road surface
until vehicle speed is reduced.

6. When it is safe to do so, gradually turn the

steering wheel until both tires return to
the road surface. When all tires are on the
road surface, steer the vehicle to stay in
the appropriate driving lane.

• If you decide that it is not safe to return

the vehicle to the road surface based on
vehicle,

road

or

traffic

conditions,

gradually slow the vehicle to a stop in a
safe place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged
due to hitting a curb or pothole. Rapid air
pressure loss can also be caused by driving on
under-inflated tires.

Rapid air pressure loss can affect the han-
dling and stability of the vehicle, especially at
highway speeds.

Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspecting the tires for wear and damage. For
additional information, see “Wheels and tires”
(P. 8-28). If a tire rapidly loses air pressure or
“blows-out” while driving, maintain control of
the vehicle by following the procedure below.
Please note that this procedure is only a gen-
eral guide. The vehicle must be driven as ap-
propriate based on the conditions of the ve-
hicle, road and traffic.

Starting and driving

5-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pressure.
Losing control of the vehicle may cause a
collision and result in personal injury.

The vehicle generally moves or pulls in
the direction of the flat tire.

Do not rapidly apply the brakes.

Do not rapidly release the accelerator
pedal.

Do not rapidly turn the steering wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

3. When appropriate, slowly release the ac-

celerator pedal to gradually slow the
vehicle.

4. Gradually steer the vehicle to a safe loca-

tion off the road and away from traffic if
possible.

5. Lightly apply the brake pedal to gradually

stop the vehicle.

6. Turn on the hazard warning flashers and

contact a roadside emergency service to
change the tire. For additional informa-
tion, see “Changing a flat tire” (P. 6-4).

DRINKING ALCOHOL/DRUGS
AND DRIVING

WARNING

Never drive under the influence of alcohol
or drugs. Alcohol in the bloodstream re-
duces coordination, delays reaction time
and impairs judgement. Driving after
drinking alcohol increases the likelihood of
being involved in an accident injuring your-
self and others. Additionally, if you are in-
jured in an accident, alcohol can increase
the severity of the injury.

INFINITI is committed to safe driving. How-
ever, you must choose not to drive under the
influence of alcohol. Every year thousands of
people are injured or killed in alcohol-related
accidents. Although the local laws vary on
what is considered to be legally intoxicated,
the fact is that alcohol affects all people dif-
ferently and most people underestimate the
effects of alcohol.

Remember, drinking and driving don't mix!
And that is true for drugs, too (over-the-
counter, prescription, and illegal drugs). Don't
drive if your ability to operate your vehicle is
impaired by alcohol, drugs, or some other
physical condition.

DRIVING SAFETY PRECAUTIONS

Your INFINITI is designed for both normal
and off-road use. However, avoid driving in
deep water or mud as your INFINITI is mainly
designed for leisure use, unlike a conventional
off-road vehicle.

Remember that 2-Wheel Drive (2WD) mod-
els are less capable than All-Wheel Drive
(AWD) models for rough road driving and
extrication when stuck in deep snow or mud,
or the like.

Please observe the following precautions:

WARNING

Spinning the front wheels on slippery
surfaces may cause the AWD warning
message to display and the AWD system
to automatically switch from the AWD
to the 2WD mode. This could reduce the
traction. Be especially careful when tow-
ing a trailer (AWD models).

5-10

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Drive carefully when off the road and
avoid dangerous areas. Every person
who drives or rides in this vehicle should
be seated with their seat belt fastened.
This will keep you and your passengers in
position when driving over rough terrain.

Do not drive across steep slopes. Instead
drive either straight up or straight down
the slopes. Off-road vehicles can tip over
sideways much more easily than they can
forward or backward.

Many hills are too steep for any vehicle.
If you drive up them, you may stall. If you
drive down them, you may not be able to
control your speed. If you drive across
them, you may roll over.

Do not shift gears while driving on
downhill grades as this could cause loss
of control of the vehicle.

Stay alert when driving to the top of a
hill. At the top there could be a drop-off
or other hazard that could cause an
accident.

If your engine stalls or you cannot make
it to the top of a steep hill, never attempt
to turn around. Your vehicle could tip or
roll over. Always back straight down in R
(Reverse) gear and apply brakes to con-
trol your speed.

Heavy braking going down a hill could
cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.

Unsecured cargo can be thrown around
when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers.

Secure heavy loads in the cargo area as
far forward and as low as possible. Do
not equip the vehicle with tires larger
than specified in this manual. This could
cause your vehicle to roll over.

Do not grip the inside or spokes of the
steering wheel when driving off-road.
The steering wheel could move suddenly
and injure your hands. Instead drive with
your fingers and thumbs on the outside
of the rim.

Before operating the vehicle, ensure that
the driver and all passengers have their
seat belts fastened.

Always drive with the floor mats in place
as the floor may become hot.

Lower your speed when encountering
strong crosswinds. With a higher center
of gravity, your INFINITI is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.

Do not drive beyond the performance ca-
pability of the tires, even with AWD
engaged.

For AWD equipped vehicles, do not at-
tempt to raise two wheels off the ground
and shift the transmission to any drive or
reverse position with the engine running.
Doing so may result in drivetrain damage
or unexpected vehicle movement which
could result in serious vehicle damage or
personal injury.

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing), or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity

personnel

that

your

vehicle

is

equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in drivetrain dam-
age or unexpected vehicle movement
which could result in serious vehicle dam-
age or personal injury.

Starting and driving

5-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.

Accelerating quickly, sharp steering ma-
neuvers or sudden braking may cause
loss of control.

If at all possible, avoid sharp turning ma-
neuvers, particularly at high speeds.
Your INFINITI vehicle has a higher center
of gravity than a passenger car. The ve-
hicle is not designed for cornering at the
same speeds as passenger cars. Failure
to operate this vehicle correctly could re-
sult in loss of control and/or a rollover
accident.

Always use tires of the same type, size,
brand, construction (bias, bias-belted, or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.

Be sure to check the brakes immediately
after driving in mud or water. For addi-
tional information, see “Brake precau-
tions” (P. 5-165).

Avoid parking your vehicle on steep hills.
If you get out of the vehicle and it rolls
forward, backward or sideways, you
could be injured.

Whenever you drive off-road through
sand, mud or water as deep as the wheel
hub, more frequent maintenance may be
required. For additional information, see
“Maintenance under severe operating
conditions” (P. 9-7).

INTELLIGENT ALL-WHEEL
DRIVE (AWD) DRIVING SAFETY
PRECAUTIONS (if so equipped)

WARNING

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.

This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.

For AWD equipped vehicles, do not at-
tempt to raise two wheels off the ground
and shift the transmission to any D
(Drive) or R (Reverse) position with the
engine running. Doing so may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing), or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity

personnel

that

your

vehicle

is

equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in drivetrain dam-
age or unexpected vehicle movement
which could result in serious vehicle dam-
age or personal injury.

When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.

5-12

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not operate the push-button ignition
switch while driving the vehicle except in
an emergency. (The engine will stop when
the ignition switch is pushed three con-
secutive times in quick succession or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while
the vehicle is being driven, this could lead
to a crash and serious injury.

Before operating the push-button ignition
switch, be sure to press the park button to
shift to the P (Park) position.

OPERATING RANGE FOR
ENGINE START FUNCTION

The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range

O

1

.

When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes nar-
rower and may not function properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even some-
one who does not carry the Intelligent Key, to
push the ignition switch to start the engine.

• The cargo room area is not included in the

operating range, but the Intelligent Key
may function.

• If the Intelligent Key is placed on the instru-

ment panel or inside the glove box, storage
bin or door pocket, the Intelligent Key may
not function.

• If the Intelligent Key is placed near the door

or window outside the vehicle, the Intelli-
gent Key may function.

If the battery of the Intelligent Key is dis-
charged, see “Intelligent Key battery dis-
charge” (P. 5-15).

PUSH-BUTTON IGNITION
SWITCH OPERATION

CAUTION

Do not leave the vehicle for extended pe-
riods of time when the ignition switch is
in the ON position and the engine is not
running. This can discharge the battery.

Use electrical accessories with the en-
gine running to avoid discharging the ve-
hicle battery. If you must use accessories
while the engine is not running, do not
use them for extended periods of time
and do not use multiple electrical acces-
sories at the same time.

LSD2020

PUSH-BUTTON IGNITION SWITCH

Starting and driving

5-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     8      9      10      11     ..
