3 Pre-driving checks and adjustments

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

INFINITI Intelligent Key . . . . . . . . . . . . . . . . . . . . . . .3-2
INFINITI Vehicle Immobilizer System
keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Locking with key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Locking with inside lock knob . . . . . . . . . . . . . . . . . .3-5
Locking with power door lock switch . . . . . . . . . .3-5
Automatic door locks . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Child safety rear door lock . . . . . . . . . . . . . . . . . . . . .3-6

INFINITI Intelligent Key System . . . . . . . . . . . . . . . . . . .3-6

Operating range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Door locks/unlocks precaution . . . . . . . . . . . . . . . .3-9
INFINITI Intelligent Key operation . . . . . . . . . . . . .3-9
How to use the remote keyless entry
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Warning signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . 3-16

Remote Engine Start (if so equipped) . . . . . . . . . . . 3-18

Remote Engine Start operating range . . . . . . . . 3-18
Remote starting the vehicle . . . . . . . . . . . . . . . . . . 3-19
Extending engine run time . . . . . . . . . . . . . . . . . . . 3-19
Canceling a Remote Engine Start . . . . . . . . . . . . 3-19
Conditions the Remote Engine Start will
not work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21

Operating the power liftgate . . . . . . . . . . . . . . . . 3-22
Motion-Activated Liftgate
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Liftgate release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Liftgate position setting . . . . . . . . . . . . . . . . . . . . . 3-26

Fuel-filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

Opening the fuel-filler door . . . . . . . . . . . . . . . . . . 3-27
How to refuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
When refueling from a portable fuel
container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

Manual operation (if so equipped) . . . . . . . . . . . 3-31
Automatic operation (if so equipped) . . . . . . . . . 3-31

Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32

Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Card holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Automatic anti-glare rearview mirror
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Smart rear view mirror (if so equipped) . . . . . . . 3-34
Outside mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI INTELLIGENT KEY

Your vehicle can only be driven with the Intel-
ligent Keys which are registered to your vehi-
cle’s Intelligent Key System components and
INFINITI

Vehicle

Immobilizer

System

components.

Never leave the keys in the vehicle.

As many as four Intelligent Keys can be reg-
istered and used with one vehicle. The new
keys must be registered prior to use with the
Intelligent Key System and INFINITI Vehicle
Immobilizer System of your vehicle. It is rec-
ommended that you visit an INFINITI retailer
for this service. Since the registration process
requires erasing all memory in the Intelligent
Key components when registering new keys,
be sure to take all Intelligent Keys that you
have to an INFINITI retailer.

A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle.
If you lose your keys, it is recommended that
you visit an INFINITI retailer for duplicates by
using the key number. INFINITI does not re-
cord key numbers so it is very important to
keep track of your key number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can be
duplicated without knowing the key number.

CAUTION

Listed below are conditions or occurrences
which will damage the Intelligent Key:

Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect system function.

Do not drop the Intelligent Key.

Do not strike the Intelligent Key sharply
against another object.

Do not change or modify the Intelligent
Key.

Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.

LPD2848

Type A (if so equipped)

1. Intelligent Keys (two sets)

2. Mechanical key

3. Key number plate (one plate)

LPD2889

Type B (if so equipped)

KEYS

3-2

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 140°F (60°C).

Do not attach the Intelligent Key with a
key holder that contains a magnet.

Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.

If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.

Mechanical key

The Intelligent Key contains the mechanical key.

To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.

To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.

Use the mechanical key to lock or unlock the
door and glove box.

CAUTION

Always carry the mechanical key installed
in the Intelligent Key slot.

For additional information, see “Doors”
(P. 3-4) and “Glove box” (P. 2-101).

Valet hand-off

When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.

To prevent the glove box from being opened
during valet hand-off, follow the procedure
below.

1. Remove the mechanical key from the In-

telligent Key.

2. Lock the glove box with the mechanical

key.

3. Hand the Intelligent Key to the valet and

keep the mechanical key with you.

For additional information, see “Glove box”
(P. 2-101).

INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS

Additional or replacement keys:

If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the

LPD2849

Pre-driving checks and adjustments

3-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.
Any virtual key accessories (if so equipped)
will also have to be reregistered. Any key that
is not given to the retailer at the time of
registration will no longer be able to start
your vehicle.

CAUTION

Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.

When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.

WARNING

Always have the doors locked while driv-
ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.

Before opening any door, always look for
and avoid oncoming traffic.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

LOCKING WITH KEY

To lock the door using the mechanical key,
turn the key toward the rear of the vehicle

O

2

.

This will only lock the corresponding door and
will not activate the security system. To arm
the security system, press the

button

on the Intelligent Key.

To unlock the corresponding door using the
mechanical key, turn the key toward the front
of the vehicle

O

1

. This will only unlock the

corresponding door and will not disarm the
security system.

LPD3272

Driver's side

DOORS

3-4

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For additional information, see “Security sys-
tems” (P. 2-71).

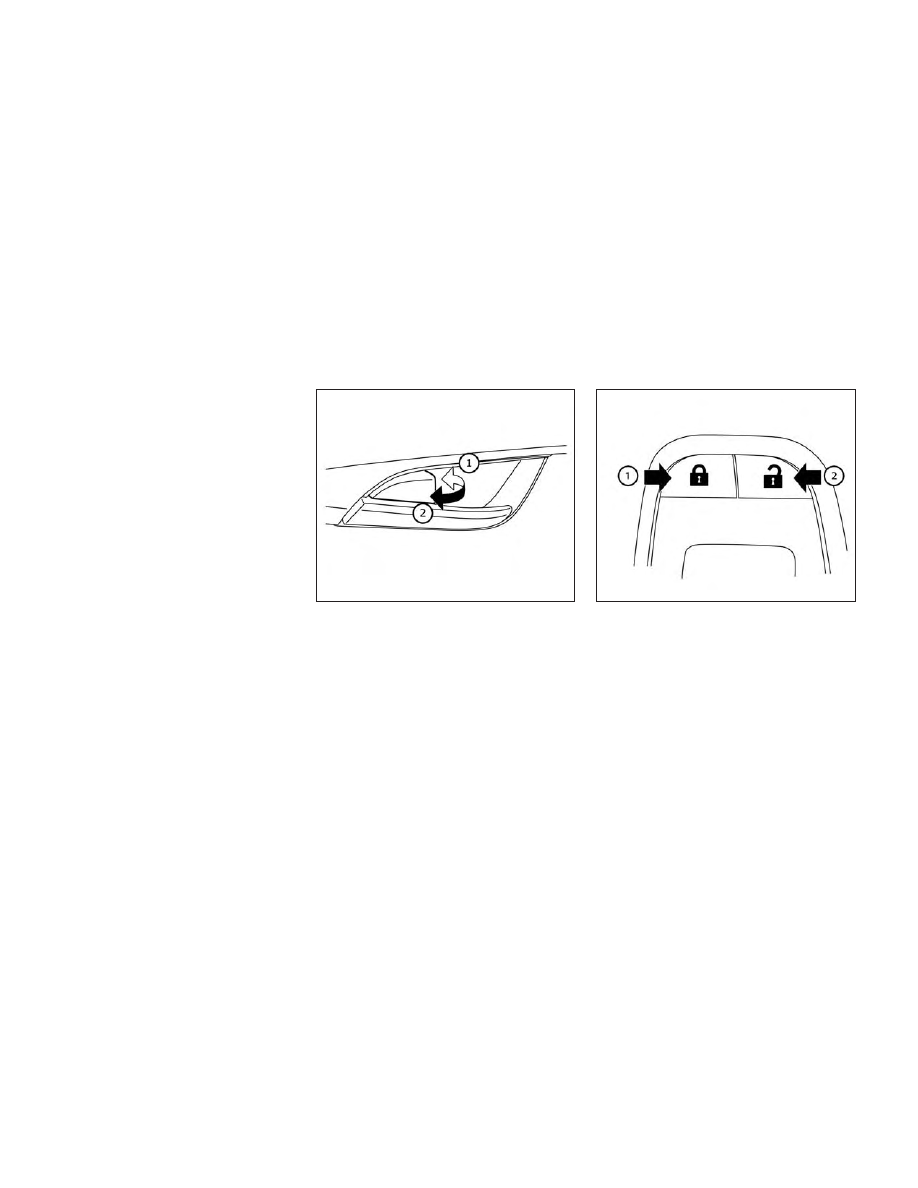

LOCKING WITH INSIDE LOCK
KNOB

To lock the door without the key, move the
inside lock knob to the lock position

O

1

, then

close the door.

To unlock the door without the key, move the
inside lock knob to the unlock position

O

2

.

LOCKING WITH POWER DOOR
LOCK SWITCH

To lock all the doors without a key, push the
door lock switch (driver's or front passenger's
side) to the lock position

O

1

. When locking

the door this way, be certain not to leave the
key inside the vehicle.

To unlock all the doors without a key, push
the door lock switch (driver's or front passen-
ger's side) to the unlock position

O

2

.

LPD2714

Inside lock

LPD3167

Pre-driving checks and adjustments

3-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lockout protection

When the power door lock switch is moved to
the lock position and any door is open, all
doors will lock. With the Intelligent Key left in
the vehicle and any door open, all doors will
unlock automatically and chime will sound
after the door is closed.

These functions help prevent the Intelligent
Key from being accidentally locked inside the
vehicle.

AUTOMATIC DOOR LOCKS

• All doors lock automatically when the ve-

hicle speed reaches 15 mph (24 km/h).

• All doors unlock automatically when the

transmission is placed in the P (Park) posi-
tion or when the ignition switch is placed in
the OFF position, depending on the option
selected in the “Vehicle Settings” menu.

NOTE:

The Auto Door Unlock function can be
changed using “Vehicle Settings” of the ve-
hicle information display. For additional in-
formation, see “Vehicle information display
7 inch (18 cm) Type A” (P. 2-22)
or “Vehicle
information display 12.3 inch (21 cm) Type
B” (P. 2-44).

CHILD SAFETY REAR DOOR
LOCK

Child safety locks help prevent the rear doors
from being opened accidentally, especially
when small children are in the vehicle.

The child safety lock levers are located on the
edge of the rear doors.

When the lever is in the LOCK position, the
door can be opened only from the outside.

WARNING

Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the Intel-
ligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.

The Intelligent Key system can operate all the
door locks using the remote control function
or touching the lock sensor on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.

Be sure to read the following before using the
Intelligent Key system.

LPD3254

INFINITI INTELLIGENT KEY SYSTEM

3-6

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Be sure to carry the Intelligent Key with
you when operating the vehicle.

Never leave the Intelligent Key in the ve-
hicle when you leave the vehicle.

The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions:
• When operating near a location where

strong radio waves are transmitted, such as
a TV tower, power station and broadcast-
ing station.

• When in possession of wireless equipment,

such as a cellular telephone, transceiver or
a CB radio.

• When the Intelligent Key is in contact with

or covered by metallic materials.

• When any type of radio wave remote con-

trol is used nearby.

• When the Intelligent Key is placed near an

electric appliance such as a personal
computer.

• When the vehicle is parked near a parking

meter.

In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.

Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one.

When the Intelligent Key battery is low, an
indicator illuminates in the vehicle informa-
tion display. For additional information, see
“Vehicle information display 7 inch (18 cm)
Type A” (P. 2-22) or “Vehicle information dis-
play 12.3 inch (21 cm) Type B” (P. 2-44).

Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.

For additional information, see “Battery re-
placement” (P. 8-24).

As many as four Intelligent Keys can be reg-
istered and used with one vehicle. For infor-
mation about the purchase and use of addi-
tional Intelligent Keys, it is recommended that
you visit an INFINITI retailer.

CAUTION

Listed below are conditions or occurrences
which will damage the Intelligent Key:

Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.

Do not drop the Intelligent Key.

Do not strike the Intelligent Key sharply
against another object.

Do not change or modify the Intelligent
Key.

Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.

Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 140°F (60°C).

Do not attach the Intelligent Key with a
key holder that contains a magnet.

Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.

Pre-driving checks and adjustments

3-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.

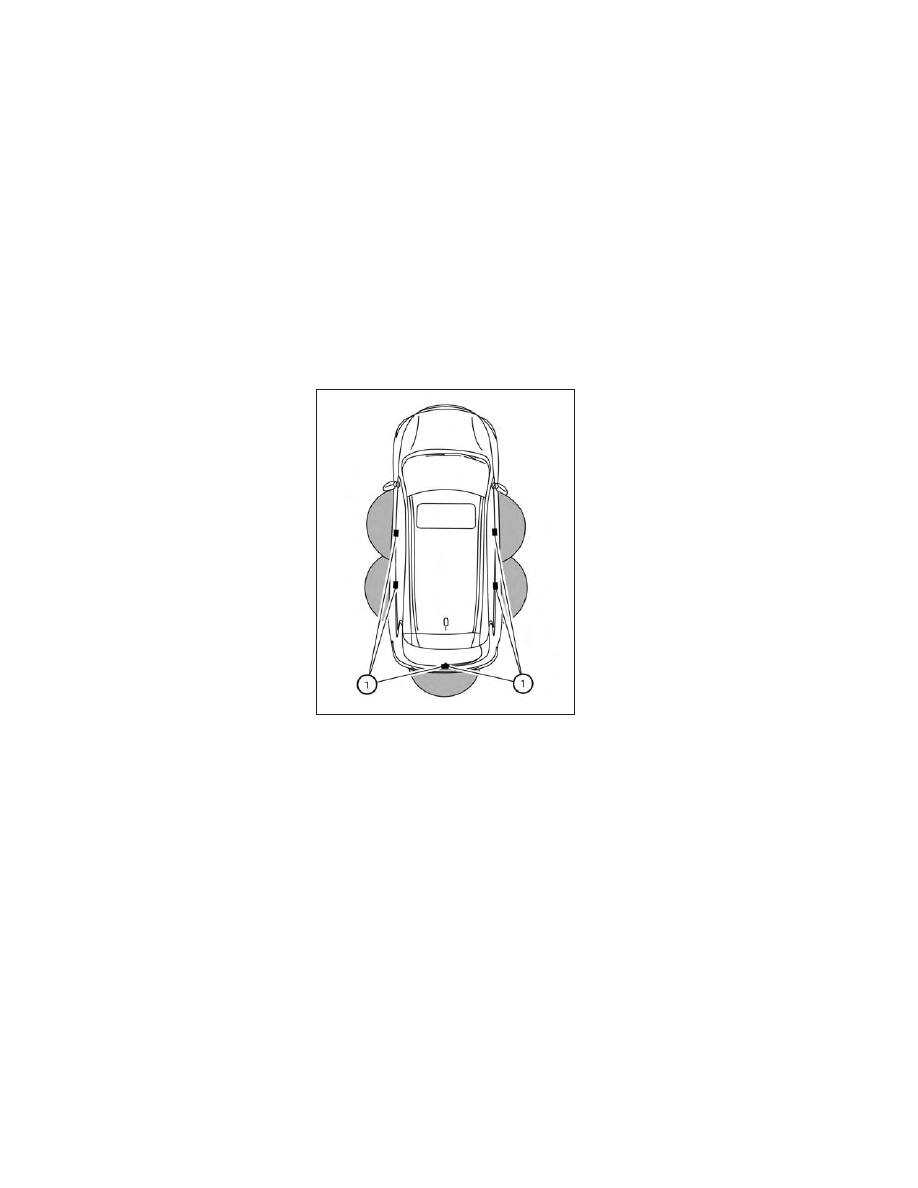

OPERATING RANGE

The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range from the lock sensors

O

1

.

When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower, and
the Intelligent Key may not function properly.

The operating range is within 31.5 in (80 cm)
from each lock sensor

O

1

.

If the Intelligent Key is too close to the door
glass, handle or rear bumper, the lock sensors
may not function.

When the Intelligent Key is within the operat-
ing range, it is possible for anyone, even
someone who does not carry the Intelligent
Key, to touch the lock sensor and the capaci-
tive sensor to lock or unlock the doors.

LPD3220

3-8

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DOOR LOCKS/UNLOCKS
PRECAUTION

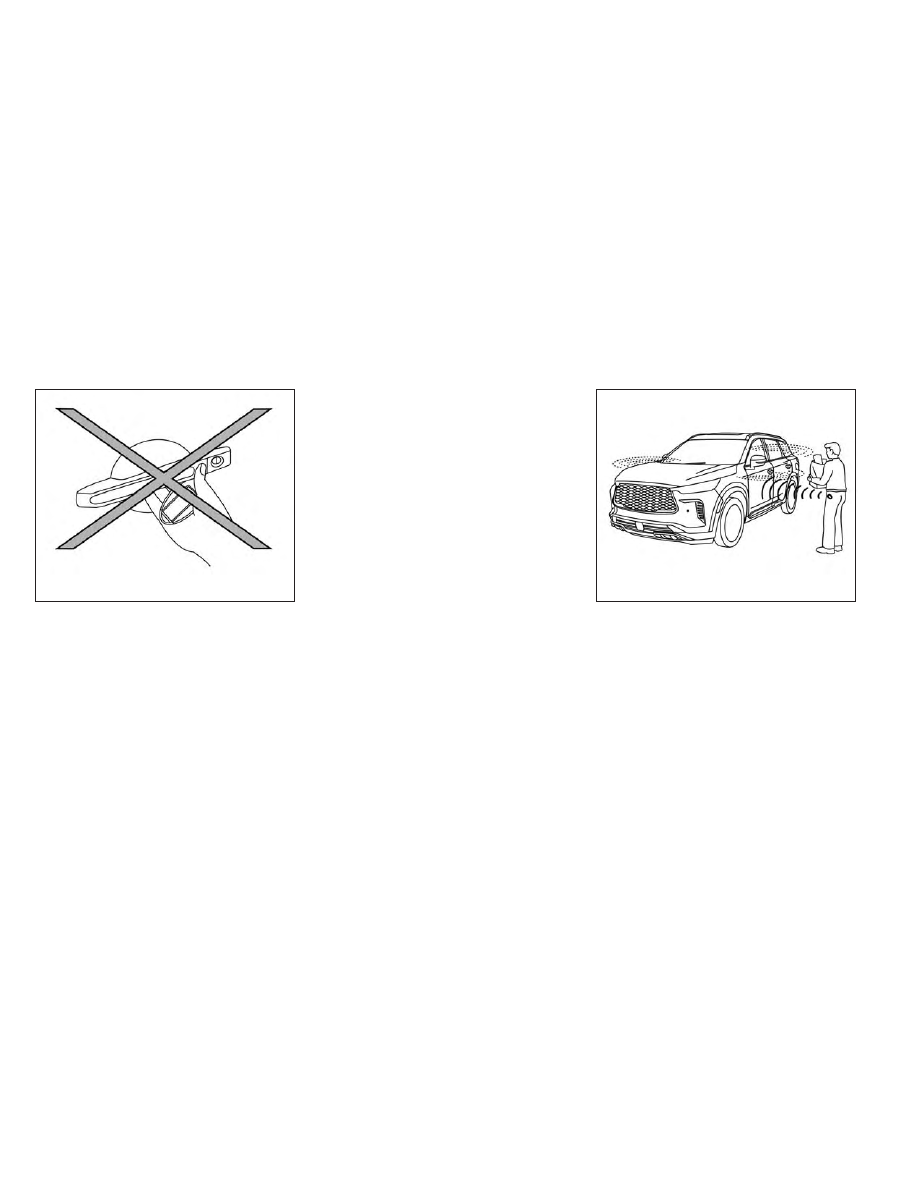

• Do not touch the door handle lock sensor

with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the Intel-
ligent Key is outside the vehicle.

• After locking with the door handle lock sen-

sor, verify the doors are securely locked by
testing them.

• To prevent the Intelligent Key from being

left inside the vehicle, make sure you carry
the Intelligent Key with you and then lock
the doors.

• Do not pull the door handle before touching

the door handle lock sensor. The door will
be unlocked but will not open. Release the
door handle once and pull it again to open
the door.

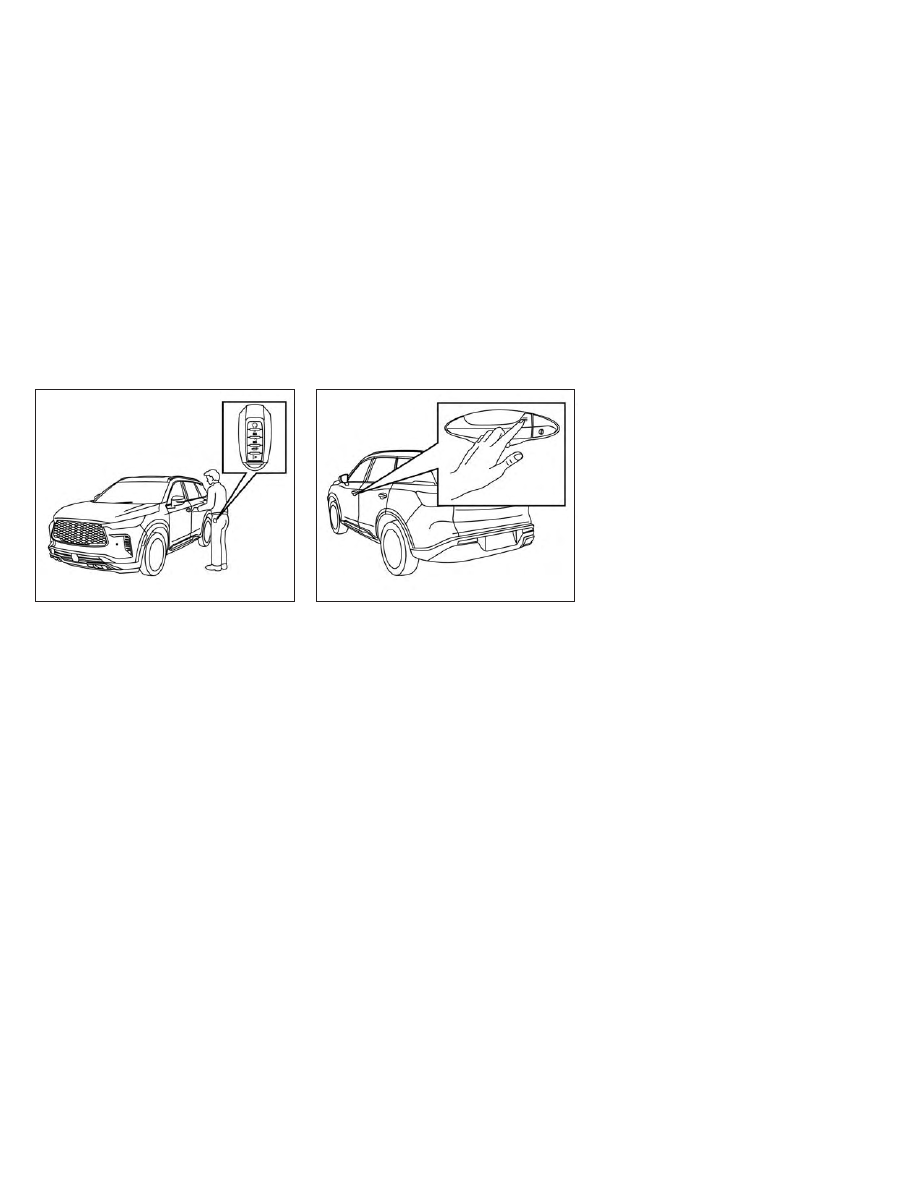

INFINITI INTELLIGENT KEY
OPERATION

You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag.

When you carry the Intelligent Key with you,
you can lock or unlock all doors by touching
the door handle lock and capacitive sensors
within the range of operation.

LPD2554

LPD3221

Pre-driving checks and adjustments

3-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Locking doors

1. Push the P (Park) button, place the igni-

tion switch in the LOCK position and make
sure you carry the Intelligent Key with you.

2. Close all doors

3. Push any door handle lock sensor while

carrying the Intelligent Key with you.

4. All doors and the rear liftgate will lock.

5. The hazard warning lights flash twice and

the outside chime sounds once.

NOTE:

• Lock sensors for all doors and liftgate can be

deactivated when the Ext. Door Switch fea-
ture is switched to OFF using the “Vehicle
Settings” menu on the vehicle information
display. For additional information, see
“Vehicle information display 7 inch (18 cm)
Type A” (P. 2-22)
or “Vehicle information
display 12.3 inch (21 cm) Type B” (P. 2-44).

• Doors do not lock with the door handle

lock sensor while the ignition switch is not
in the LOCK position.

• Doors do not lock by pushing the door

handle lock sensor while the driver’s door
is open.

• Doors do not lock with the door handle

lock sensor with the Intelligent Key inside
the vehicle and a beep sounds to warn you.
However, when an Intelligent Key is inside
the vehicle, doors can be locked with an-
other Intelligent Key.

• The lock sensor may not react immediately

when the door handle is wet from rain, etc.
Keep touching the lock senor until the
doors lock, or touch the lock sensor after
grasping the door handle.

• Touching the door lock sensor while wear-

ing gloves may delay or prevent lock op-
eration. Remove the gloves and touch the
lock sensor again.

• If the door handle becomes wet while the

electronic key is within the effective
range, the door may lock and unlock re-
peatedly. In this case, follow the following
correction procedures to wash the vehicle:
– Place the electronic key in a location

6 ft. (2 m) or more away from the ve-
hicle. (Take care to ensure that the key is
not stolen.)

– If the electronic key is inside the vehicle

and a door handle becomes wet during a
car wash, a buzzer will sound outside
the vehicle. To turn off the alarm, re-
move the key from the inside vehicle.

LPD3222

LPD3255

3-10

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• The lock sensor may not work properly if it

comes in contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to op-
erate it again.

• If the door handle becomes wet, such as

rain, the door may delay or prevent lock
operation. In this case, try to firmly touch
the sensor for at least 1 second.

WARNING

After locking the doors using the lock sen-
sor, make sure that the doors have been
securely locked by operating the door
handles within two seconds of locking.
Failure to follow these instructions may re-
sult in inadvertently unlocking the doors,
which may decrease the safety and secu-
rity of your vehicle.

CAUTION

When locking the doors using the lock
sensor, make sure to have the Intelligent
Key in your possession before operating
the lock sensor to prevent the Intelligent
Key from being left in the vehicle.

The lock sensor is operational only when
the Intelligent Key has been detected by
the Intelligent Key system.

Lockout protection

To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent
Key system.

When the driver’s side door is open, the doors
are locked, and then the Intelligent Key is put
inside the vehicle and all the doors are closed;
the lock will automatically unlock and the
door buzzer sounds.

NOTE:

The doors may not lock when the Intelligent
Key is in the same hand that is operating the
lock sensor to lock the door. Put the Intelligent
Key in a purse, pocket or your other hand.

CAUTION

The lockout protection may not function
under the following conditions:

When the Intelligent Key is placed on top
of the instrument panel.

When the Intelligent Key is placed inside
the glove box or a storage bin.

When the Intelligent Key is placed inside
the door pockets.

When the Intelligent Key is placed inside
or near metallic materials.

Unlocking doors

LPD3221

Pre-driving checks and adjustments

3-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

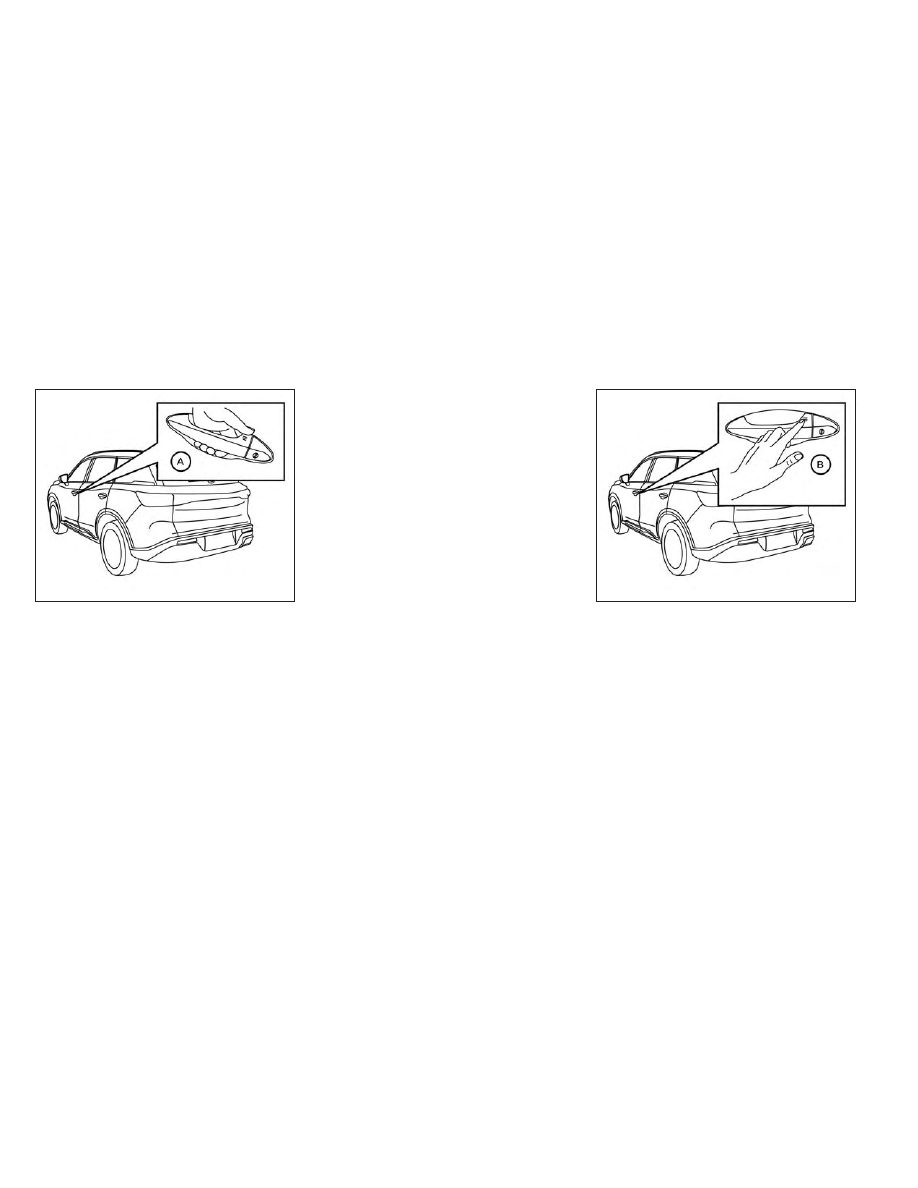

1. Carry the Intelligent Key.

2. Wrap your hand around the door handle

to activate the capacitive unlock sensor

O

A

.

• When unlocking from the driver’s door

handle, the driver’s door will unlock. Un-
wrap your hand from the driver’s door
handle and touch the lock sensor

O

B

within 60 seconds to unlock all doors.

• When unlocking from the passenger

door, rear doors or liftgate, all vehicle
doors will unlock.

• To allow driver and passenger doors to

unlock at the same time from driver’s
door handle, turn off the Selective Un-
lock feature in the vehicle settings menu.
For additional information, see “Vehicle
information display 7 inch (18 cm) Type
A” (P. 2-22) or “Vehicle information dis-
play 12.3 inch (21 cm) Type B” (P. 2-44).

3. The warning indicator lights flash once

and the outside buzzer sounds once.

NOTE:

• Lock sensors for all doors and liftgate can

be deactivated when the Ext. Door Switch
feature is switched to OFF using the “Ve-
hicle Settings” menu on the vehicle infor-
mation display. For additional informa-
tion, see “Vehicle information display 7
inch (18 cm) Type A” (P. 2-22)
or “Vehicle
information display 12.3 inch (21 cm) Type
B” (P. 2-44).

• Doors do not lock with the door handle

lock sensor while the ignition switch is not
in the LOCK position.

LPD3334

LPD3256

3-12

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• The lock sensor may not react immediately

when the door handle is wet from rain, etc.
Keep touching the lock sensor until the
doors unlock, or touch the lock sensor af-
ter grasping the door handle.

If a door handle is pulled while unlocking the
doors, that door may not be unlocked. Re-
turning the door handle to its original position
will unlock the door. If the door does not
unlock after returning the door handle, touch
the door handle lock sensor to unlock the
door.

All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after touching the lock
sensor:
• Opening any door.
• Pushing the ignition switch.

Using the interior lights

The interior lights timer illuminates for a pe-
riod of time when a door is unlocked and the
DOOR/OFF switch is pressed. The interior
lights can be turned off without waiting by
performing one of the following operations:
• Placing the ignition switch in the ON

position.

• Locking the doors with the Intelligent Key.

• Switching the DOOR/OFF switch to the

OFF position.

• Switching the Auto Room Lamp feature to

the OFF position using the “Vehicle Set-
tings” menu on the vehicle information
display. For additional information, see
“Vehicle information display 7 inch (18 cm)
Type A” (P. 2-22) or “Vehicle information
display 12.3 inch (21 cm) Type B” (P. 2-44).

For additional information, see “Interior
lights” (P. 2-114).

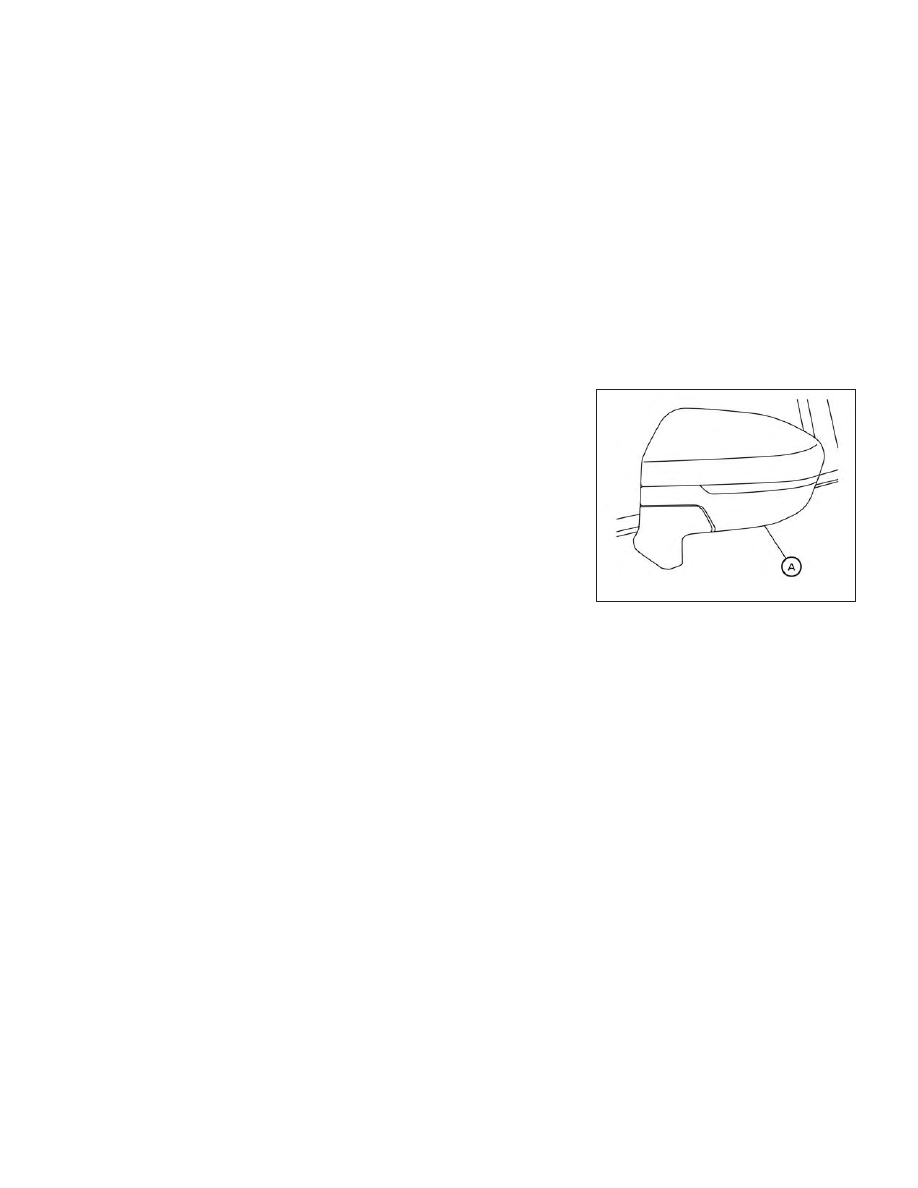

Outside mirror welcome lights

When you unlock the doors using the Intelli-
gent Key, capacitive unlock sensor, the out-
side mirror welcome lights

O

A

will illuminate

for a period of time. The welcome lights will
also illuminate when you open an unlocked
door without carrying the Intelligent Key with
you. When you lock the doors using the Intel-
ligent Key or lock sensor, the outside mirror
welcome lights fade out.

LPD3279

Driver’s and passenger’s side

Pre-driving checks and adjustments

3-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE THE REMOTE
KEYLESS ENTRY FUNCTION

The remote keyless entry function can oper-
ate all door locks using the remote keyless
function of the Intelligent Key. The remote
keyless function can operate at a distance of
33 ft (10 m) away from the vehicle. The op-
erating distance depends upon the conditions
around the vehicle.

The remote keyless entry function will not
function under the following conditions:
• When the Intelligent Key is not within the

operational range.

• When the doors or the rear liftgate are

open or not closed securely.

• When

the

Intelligent

Key

battery

is

discharged.

CAUTION

When locking the doors using the Intelli-
gent Key, be sure not to leave the key in the
vehicle.

Type A (if so equipped)

1.

(lock) button

2.

(unlock) button

3.

(liftgate) button

4.

(panic) button

Type B (if so equipped)

1.

(remote engine start) button

2.

(lock) button

3.

(unlock) button

4.

(liftgate) button

5.

(panic) button

Locking doors

1. Place the ignition switch in the LOCK

position.

2. Close all doors.

LPD3701

LPD3702

3-14

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Press the

button on the Intelligent

Key.

4. The hazard indicator lights flash twice and

the horn beeps once.

5. All doors will be locked.

WARNING

After locking the doors using the Intelli-
gent Key, be sure that the doors have been
securely locked by operating the door
handles within two seconds of locking.
Failure to follow these instructions may re-
sult in inadvertently unlocking the doors,
which may decrease the safety and secu-
rity of your vehicle.

Unlocking doors

1. Press the

button on the Intelligent

Key to unlock the driver’s door.

2. The hazard indicator lights flash once and

the driver’s door unlocks.

3. Press the

button again within 60

seconds to unlock all doors.

NOTE:

The unlocking operation can be changed in
Selective Unlock in “Vehicle Settings” of the
vehicle information display. For additional
information, see “Vehicle information dis-
play 7 inch (18 cm) Type A” (P. 2-22)
or “Ve-
hicle information display 12.3 inch (21 cm)
Type B” (P. 2-44).

All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pressing the
button:
• Opening any doors.
• Pushing the ignition switch.

Using the interior lights

The interior lights timer illuminates for a pe-
riod of time when a door is unlocked and the
DOOR/OFF switch is pressed. The interior
lights can be turned off without waiting by
performing one of the following operations:
• Placing the ignition switch in the ON

position.

• Locking the doors with the Intelligent Key.
• Switching the DOOR/OFF switch to the

OFF position.

• Switching the Auto Room Lamp feature to

the OFF position using the “Vehicle Set-
tings” menu on the vehicle information dis-
play. For additional information, see “Ve-
hicle information display 7 inch (18 cm)
Type A” (P. 2-22) or “Vehicle information
display 12.3 inch (21 cm) Type B” (P. 2-44).

For additional information, see “Interior
lights” (P. 2-114).

Opening windows

The Intelligent Key allows you to simultane-
ously open windows equipped with auto-
matic operation.
To open the windows, press the

button

on the Intelligent Key for

longer than 3 sec-

onds

after all doors are unlocked

The door windows will open while pressing
the

button on the Intelligent Key.

The door windows cannot be closed by using
the Intelligent Key.

Releasing the rear liftgate

The rear liftgate can be opened and closed by
performing the following:
• Press the

button for longer than 1

second to open the rear liftgate.

• Press the

button again for longer than

1 second to close the rear liftgate.

Pre-driving checks and adjustments

3-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the

button is pressed during the

open or close process, the liftgate motors will
stop. When the

button is pressed again

for longer than 1 second the liftgate will re-
verse direction.

Using the panic alarm

If you are near your vehicle and feel threat-
ened, you may activate the panic alarm to call
attention by pressing and holding the
button on the Intelligent Key for

longer than

0.5 seconds.

The panic alarm and headlights will stay on
for a period of time.

The panic alarm stops when:
• It has run for a period of time, or
• Any button is pressed on the Intelligent Key.
• The lock sensor is touched and the Intelli-

gent Key is in range of the door handle.

Answer back horn feature

If desired, the answer back horn feature can
be deactivated using the Intelligent Key.
When it is deactivated and the

button

is pressed, the hazard indicator lights flash

twice. When the

button is pressed, nei-

ther the hazard indicator lights nor the horn
operates.

NOTE:
If you change the answer back horn fea-
ture with the Intelligent Key, the vehicle
information display screen will show the
current mode after the ignition switch
has been cycled from the OFF to the ON
position. The vehicle information display
screen can also be used to change the an-
swer back horn mode.
For additional information, see “Vehicle
information display 7 inch (18 cm) Type A”
(P. 2-22)
or “Vehicle information display
12.3 inch (21 cm) Type B” (P. 2-44).

To deactivate:

Press and hold the

and

buttons

for at least 5 seconds.

The hazard indicator

lights will flash three times to confirm that the
answer

back

horn

feature

has

been

deactivated.

To activate:

Press and hold the

and

buttons

for at least 5 seconds once more.

The hazard

indicator lights will flash once and the horn
will sound once to confirm that the horn beep
feature has been reactivated.

Deactivating the horn beep feature does not
silence the horn if the alarm is triggered.

WARNING SIGNALS

To help prevent the vehicle from moving un-
expectedly by erroneous operation of the In-
telligent Key or to help prevent the vehicle
from being stolen, a chime or buzzer sounds
from inside and outside the vehicle and a
warning is displayed in the instrument panel.

When a chime or beep sounds or a warning is
displayed, be sure to check the vehicle and
the Intelligent Key.

For additional information, see “Trouble-
shooting guide” (P. 3-16), “Vehicle informa-
tion display 7 inch (18 cm) Type A” (P. 2-22) or
“Vehicle information display 12.3 inch (21 cm)
Type B” (P. 2-44).

TROUBLESHOOTING GUIDE

Verify the location of all Intelligent Keys that
are programmed for the vehicle. If another
Intelligent Key is in range or inside the vehicle,
the vehicle system may respond differently
than expected.

3-16

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Symptom

Possible Cause

Remedy

When shifting the shift position to the P
(Park) position

The “Push Ignition to OFF” warning ap-
pears in the display.

The ignition switch is in the ACC or ON
position.

Place the ignition switch in the OFF
position.

When opening the driver's door to get
out of the vehicle

The “Door Open” warning appears on the
display.

The ignition switch is in the ACC or ON
position.

Place the ignition switch in the OFF
position.

When closing the door after getting out
of the vehicle

The “No Key Detected” warning appears
on the display, the outside chime sounds
three times and the inside warning chime
sounds for approximately 3 seconds.

The ignition switch is in the ACC or ON
position.

Place the ignition switch in the OFF
position.

The “Rear Door Alert” (if so equipped)
warning message appears on the display,
the horn sounds three times twice, or a
“Check Back Seat For All Articles” (if so
equipped) warning appears on the dis-
play.

The Rear Door Alert is activated.

Check the back seat for all articles, press
the ENTER button to clear the “Rear
Door Alert” warning message.

When closing the door with the inside
lock knob turned to LOCK

The outside chime sounds for approxi-
mately 3 seconds and all the doors un-
lock.

The Intelligent Key is inside the vehicle.

Carry the Intelligent Key with you.

When touching the door handle lock
sensor or the

button on the Intel-

ligent Key to lock the door

The outside chime sounds for approxi-
mately 2 seconds.

The Intelligent Key is inside the vehicle.

Carry the Intelligent Key with you.

When pushing the ignition switch to
start the engine

The key low battery indicator appears on
the display.

The battery charge is low.

Replace the battery with a new one. For
additional information, see “Battery re-
placement” (P. 8-24).

When pushing the ignition switch

The “I-Key System Error: See Owner’s
Manual” warning message in the vehicle
information display appears.

It warns of a malfunction with the Intelli-
gent Key system.

It is recommended that you visit an
INFINITI retailer.

Pre-driving checks and adjustments

3-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The

button will be on the INFINITI

Intelligent Key if the vehicle has Remote En-
gine Start. This feature allows the engine to
start from outside the vehicle.

The following features may be affected
when the Remote Engine Start feature is
used:
• Vehicles with an automatic climate control

system may default to either a heating or
cooling mode depending on outside and
cabin temperatures. For additional infor-
mation, see “Remote Engine Start with In-
telligent Climate Control” in the (P. 4-30).

Laws in some local communities may restrict
or prohibit the use of Remote Engine Start, or
the amount of time a parked vehicle engine
may idle. For example, some laws require a
person using Remote Engine Start to have
the vehicle in view or may restrict idling time
except in freezing temperatures. Check local
regulations for any requirements.

Other conditions may affect the function of
the Remote Engine Start feature. For addi-
tional information, see “Conditions the Re-
mote Engine Start will not work” (P. 3-20).

Other conditions can affect the performance
of the Intelligent Key transmitter. For addi-
tional information, see “INFINITI Intelligent
Key” (P. 3-2).

REMOTE ENGINE START
OPERATING RANGE

WARNING

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

Do not use Remote Engine Start in closed
spaces such as a garage. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause un-
consciousness or death.

LPD2995

REMOTE ENGINE START (if so
equipped)

3-18

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

When the Intelligent Key battery is dis-
charged or other strong radio wave
sources are present near the operating lo-
cation, the Intelligent Key operating range
becomes narrower, and the Intelligent Key
may not function properly.

The Remote Engine Start function can only
be used when the Intelligent Key is within the
specified operating range from the vehicle.

The Remote Engine Start operating range is
approximately 197 ft (60 m) from the vehicle.

REMOTE STARTING THE
VEHICLE

To use the Remote Engine Start feature per-
form the following:

1. Aim the Intelligent Key at the vehicle.

2. Press the

button to lock all doors.

3. Within 5 seconds press and hold the

button until the turn signal lights flash and
the tail lamps turn on. If the vehicle is not
within view press and hold the

but-

ton for at least 2 seconds.

The following events will occur when the en-
gine starts:
• The parking lights will turn on and remain

on as long as the engine is running.

• The doors will be locked and the climate

control system may come on.

• The engine will continue to run for 10 min-

utes. Repeat the steps to extend the time
for an additional 10 minutes. For additional
information, see “Extending engine run
time” (P. 3-19).

Press and hold the brake pedal while switch-
ing the ignition to the ON position before
driving. For additional information, see “Driv-
ing the vehicle” (P. 5-18).

EXTENDING ENGINE RUN TIME

The Remote Engine Start feature can be ex-
tended one time by performing the steps
listed

in

“Remote

starting

the

vehicle”

(P. 3-19). Run time will be calculated as
follows:
• The first 10 minute run time will start when

the Remote Engine Start function is
performed.

• The second 10 minutes will start immedi-

ately when the Remote Engine Start func-
tion is performed again. For example, if the
engine has been running for 5 minutes, and
10 minutes are added, the engine will run
for a total of 15 minutes.

• Extending engine run time will bring you to

the two Remote Engine Start limit.

A maximum of two Remote Engine Starts, or
a single start with an extension, are allowed
between ignition cycles.

The vehicle must be driven at speeds of 4
mph (7 km/h) before the remote engine start
procedure can be used again.

CANCELING A REMOTE ENGINE
START

To cancel a Remote Engine Start, perform
one of the following:
• Aim the Intelligent Key at the vehicle and

press

until the parking lights turn off.

• Turn on the hazard warning flashers.
• Cycle the ignition switch on and then off.
• The extended engine run time has expired.
• The first 10 minute timer has expired.
• Opening the engine hood.
• Shifting the vehicle out of P (Park).

Pre-driving checks and adjustments

3-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• The alarm sounds due to illegal entry into

the vehicle.

• Pushing the ignition switch without the In-

telligent Key in the vehicle.

• Not pressing the brake pedal while pressing

the ignition switch with the Intelligent Key
in the vehicle.

CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK

The Remote Engine Start will not operate if
any of the following conditions are present:
• The ignition switch is placed in the ON

position.

• The hood is not securely closed.
• The hazard indicator lights are on.
• The engine is still running. The engine must

be completely stopped. Wait at least 6 sec-
onds if the engine goes from running to off.
This is not applicable when extending en-
gine run time.

• The

button is not pressed and held for

at least 2 seconds.

• The

button is not pressed and held

within 5 seconds of pressing the lock
button.

• The brake is pressed.
• The doors are not closed and locked.

• The liftgate is open.
• The I–Key System Error warning message

appears in the vehicle information display.

• The alarm sounds due to illegal entry into

the vehicle.

• Two Remote Engine Starts, or a single Re-

mote Engine Start with an extension, have
already been used.

• The vehicle is not in P (Park).
• There is a detected registered key already

inside of the vehicle.

The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, see
“Vehicle information display 7 inch (18 cm)
Type A” (P. 2-22) or “Vehicle information dis-
play 12.3 inch (21 cm) Type B” (P. 2-44).

3-20

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Pull the hood lock release handle

O

1

lo-

cated below the driver side instrument
panel. The hood will spring up slightly.

2. Push the lever

O

2

at the front of the hood

upward as illustrated with your fingertips
and raise the hood.

When closing the hood, lower it slowly and
make sure it locks into place.

WARNING

Make sure the hood is completely closed
and latched before driving. Failure to do
so could cause the hood to fly open and
result in an accident.

If you see steam or smoke coming from
the engine compartment, to avoid injury
do not open the hood.

WARNING

Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.

Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

Always be sure that hands and feet are
clear of the door frame to avoid injury
while closing the liftgate.

LPD3258

HOOD

LIFTGATE

Pre-driving checks and adjustments

3-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING THE POWER
LIFTGATE

WARNING

Make sure that all passengers have their
hands, etc., inside the vehicle before
closing the liftgate.

Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents.

NOTE:

To open, close or reverse the power liftgate,
push the park button to engage the P (Park)
position. Also, the power liftgate will not op-
erate if battery voltage is low.

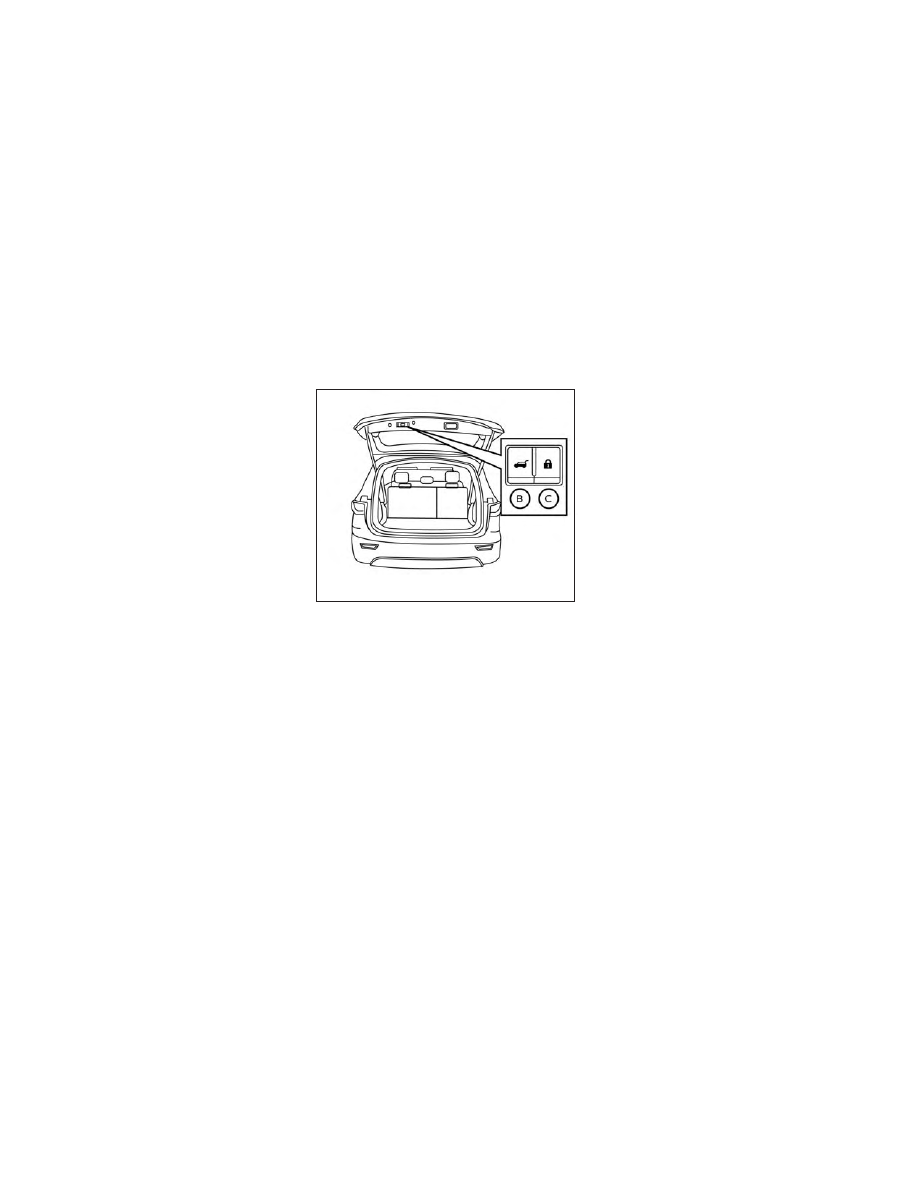

Power Open:

The power liftgate automatically moves from
the fully closed position to the fully open
position in approximately 5 – 8 seconds. The
power open feature can be activated by the
button on the Intelligent Key, the instrument
panel switch or the liftgate opener switch. A
chime sounds to indicate the power open
sequence has been started.

• When the vehicle is locked, the liftgate can

be opened by the instrument panel switch,
Intelligent Key or liftgate opener switch

O

A

(with the Intelligent Key in liftgate range).
The liftgate will individually unlock and
open. Once the liftgate is closed, the vehicle
will remain in the unlock status.

• The Intelligent Key button must be held for

1 second before the liftgate opens.

• The liftgate must be unlocked to open it

with the liftgate opener switch

O

A

and

without Intelligent Key in liftgate range.

LPD3259

LPD3260

Instrument panel switch

LPD3261

Liftgate opener switch

3-22

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A warning chime will sound if the shift posi-
tion is moved out of P (Park) and the vehicle is
beginning to move, during a power open
operation.

Power Close:

The power liftgate automatically moves from
the fully open position to the secondary po-
sition. When the liftgate reaches the second-
ary position, the cinching motor engages and
pulls the liftgate to its primary latch position.
Power close takes approximately 7 – 10 sec-
onds. The power close feature can be acti-
vated by the button on the Intelligent Key, the
instrument panel switch, the liftgate close
switch

O

B

or the liftgate lock switch

O

C

. A

chime sounds to indicate the power close
sequence has been started.

• If the liftgate opener switch

O

A

is activated

while the cinching motor is engaged, the
cinching motor will disengage and release
the latch.

• The Intelligent Key button must be held for

1 second before the liftgate closes.

• When the Intelligent Key is in range and the

liftgate lock switch

O

C

is activated the lift-

gate will begin to close and all doors will
lock.

Stop - Reverse:

During the open/close movement, the lift-
gate can be stopped if the Intelligent Key,
instrument panel or liftgate opener switch

O

A

, liftgate close switch

O

B

or liftgate lock

switch

O

C

is pushed. The liftgate can be re-

versed if the Intelligent Key, instrument panel,
liftgate opener switch

O

A

or liftgate lock

switch

O

C

is pushed again.

Auto Reverse:

If an obstacle is detected during power open
or power close, a warning chime will sound
and the liftgate will reverse direction and re-
turn to the full open or full close position. If a
second obstacle is detected, the liftgate mo-
tion will stop and the liftgate will enter
manual mode.

LPD3262

Liftgate close switch

Pre-driving checks and adjustments

3-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will
reverse direction and return to the full open
position.

NOTE:

If the pinch strip is damaged or removed, the
power close function will not operate.

WARNING

There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the liftgate.

If the liftgate power operation fails to close
correctly, it can still be manually closed and
secured. If the liftgate fails to open correctly
when the request switch is pressed, please
visit

your

local

INFINITI

retailer

for

assistance.

If the liftgate is not functioning, the gate may
be closed manually. If power operation does
not recover, please make an appointment
with your INFINITI retailer.

MOTION-ACTIVATED LIFTGATE
(if so equipped)

The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.

To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.

NOTE:

Tow hitches are available as an accessory for
this vehicle. Please visit an INFINITI retailer
for additional equipment required for this
accessory.

Proper operation technique

• While at the rear of the vehicle, begin mak-

ing a quick forward kicking motion.

• Raise your foot straight under the center of

the rear bumper then immediately return
your foot to the ground in a continuous
motion.

• The kicking motion should be straight,

smooth and consistent.

• After your kick motion is complete, step

back and allow the liftgate to open/close.

LPD3263

Activation zone

3-24

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Three beeps will sound and the liftgate will

begin moving within two seconds after the
kick.

CAUTION

Before performing the kicking motion,
steady your stance to prevent any loss of
balance. Also, while making the kicking
motion, take caution around hot exhaust
system parts. Otherwise, there may be
danger of injury.

WARNING

Prevent unintentional liftgate opening/
closing. There may be conditions when
opening/closing the liftgate is not desired.
Keep the Intelligent Key out of range of the
liftgate, (31.5 in or 80 cm), when washing
or working around the back of the vehicle.

CAUTION

Interference or malfunction can be
caused by parking in close proximity to
radio or satellite towers.

Intelligent Key interference could be
caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional infor-
mation, see “INFINITI Intelligent Key”
(P. 3-2).

LIFTGATE RELEASE

WARNING

Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.

Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).

To avoid personal injury, do not attempt
to activate the power liftgate if one or
both of the liftgate struts are removed.

LPD3264

DO: Quick forward kick and return while

the key fob is within range

LPD3265

DO NOT: Swing foot side to side or pause

during kick

Pre-driving checks and adjustments

3-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

If the power liftgate does not stay open
or if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.

Do not activate the power liftgate if one
or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.

Power liftgate release

If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:

1. Move the lever

O

A

as illustrated with a

suitable tool to open the liftgate.

It is recommended that you visit an INFINITI
retailer as soon as possible for repair.

LIFTGATE POSITION SETTING

The liftgate can be set to open to a specific
height (garage mode) by performing the fol-
lowing:

1. Open the liftgate using the liftgate opener

switch or the Intelligent Key.

2. Pull the liftgate down and move to the

desired height position (the liftgate will
have some resistance when being manu-
ally adjusted).

LPD3266

LPD3267

3-26

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Press and hold the power liftgate close

switch

O

B

located on the liftgate for more

than 3 seconds or until two beeps are
heard.

The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3 for setting the position of
the liftgate.

OPENING THE FUEL-FILLER
DOOR

To open the fuel-filler door, push the right
side of the fuel-filler door to release.

WARNING

Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled. Al-
ways stop the engine and do not smoke
or allow open flames or sparks near the
vehicle when refueling.

Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.

Never pour fuel into the throttle body to
attempt to start your vehicle.

Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:

Always place the container on the

ground when filling.

Do not use electronic devices when

filling.

Keep the pump nozzle in contact with

the container while you are filling it.

Use only approved portable fuel con-

tainers for flammable liquid.

LPD2725

FUEL-FILLER DOOR

Pre-driving checks and adjustments

3-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not use a fuel containing more than
15% ethanol in your vehicle. For addi-
tional information, see “Fuel recommen-
dation” (P. 10-4).

For additional information, see “Malfunc-
tion Indicator Light (MIL)” (P. 2-19).

If fuel is spilled on the vehicle body, flush
it away with water to avoid paint
damage.

HOW TO REFUEL

The fuel tank is not equipped with a fuel filler
cap. After opening the fuel-filler door, insert
the fuel pump nozzle directly into the fuel-
filler opening. When the fuel pump nozzle is
pulled out, the fuel filler opening will be
sealed.

To refuel:

Be sure to insert the fuel pump nozzle slowly
in to the fuel-filler opening as far as it will go
before fueling.

LPD3158

LPD3273

3-28

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Never move the nozzle during the refueling.

Pull out the nozzle approximately 5 seconds
after the fuel pump nozzle shuts off auto-
matically (initial shut-off).

Close the fuel-filler door after refueling.

If you need to refuel from a portable fuel
container, use the funnel supplied with your
vehicle. (see “When refueling from a portable
fuel container” (P. 3-30).

CAUTION

Do not attempt to open the flaps on the
fuel-filler opening using any tool other
than the fuel pump nozzle.

This fuel-filler opening is only conform-
able to normal fuel pump nozzles at gas
stations. Using a nozzle with a small di-
ameter may damage the opening and the
fuel system.

If fuel is spilled on the vehicle body, flush
it away with water to avoid paint
damage.

WARNING

Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled. Al-
ways stop the engine and do not smoke
or allow open flames or sparks near the
vehicle when refueling.

Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.

Never pour fuel into the throttle body to
attempt to start your vehicle.

Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:

Always place the container on the

ground when filling.

Do not use electronic devices when

filling.

Keep the pump nozzle in contact with

the container while you are filling it.

Use only approved portable fuel con-

tainers for flammable liquid.

Pre-driving checks and adjustments

3-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WHEN REFUELING FROM A
PORTABLE FUEL CONTAINER

If you need to refuel from a portable fuel
container, use the funnel

O

A

stored in the tool

bag (located under the luggage board).

Be sure to insert the funnel into the fuel-filler
opening slowly and fully. Insert the nozzle of
the portable fuel container into the opening
along the funnel and fill the fuel tank.

After refueling, remove the funnel from the
fuel-filler opening. Wipe the funnel clean and
return it to the tool bag.

CAUTION

Do not insert the nozzle of the portable
fuel container directly into the fuel-filler
opening. Doing so may damage the
opening and the fuel system.

Use only the funnel provided with your
vehicle. Otherwise the fuel-filler opening
and the fuel system may be damaged.

WARNING

Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.

Do not adjust the steering wheel any
closer to you than is necessary for proper
steering operation and comfort. The
driver's air bag inflates with great force.
If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the air bag if
you are up against it when it inflates.
Always sit back against the seatback and
as far away as practical from the steer-
ing wheel. Always use the seat belts.

LPD3275

STEERING WHEEL

3-30

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MANUAL OPERATION (if so
equipped)

Tilt and telescopic operation

Push the lock lever

O

1

down:

• Adjust the steering wheel up or down in

direction

O

2

to the desired position.

• Adjust the steering wheel forward or back-

ward in direction

O

3

to the desired position.

Pull the lock lever

O

1

up firmly to lock the

steering wheel in place.

AUTOMATIC OPERATION (if so
equipped)

Tilt and telescopic operation

To adjust the steering wheel move the switch

O

1

in the following directions:

• Adjust the steering wheel up or down in

direction

O

2

to the desired tilt position.

• Adjust the steering wheel forward or back-

ward in direction

O

3

to the desired tele-

scopic position.

CAUTION

For vehicles with memory seat: Failure to
reset the tilt and telescoping functions of
the steering wheel, after the vehicle’s bat-
tery has been discharged, may prevent the
steering

wheel

position

from

being

adjusted.

For vehicles with memory seat: Both the tilt
and telescopic steering operation must be
reset after the vehicle’s battery has been dis-
charged in order to prevent the tilt and tele-
scopic operation from locking in one position.
When the battery has been recharged or re-
placed, perform the following:
• For tilt operation: Adjust the switch

O

1

so

the steering wheel moves to the highest
position

O

2

that can be reached.

• For telescopic operation: Adjust the switch

O

1

so the steering wheel moves to the most

forward and backward position

O

3

that

can be reached.

Performing these operations resets the range
of the steering wheel’s tilt and telescopic
function.

LPD3169

LPD3170

Pre-driving checks and adjustments

3-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     6      7      8      9     ..
