• Do not apply strong light to the sensor of

Head Up Display. Doing so may cause a
malfunction.

The Emergency call (SOS) button is used in
combination with an INFINITI InTouch™ Ser-
vices subscription to call for assistance in
case of an emergency.

Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will
provide assistance based on the situation
described by the vehicle’s occupant. For ad-
ditional information, or to enroll your vehicle,
refer to www.InfinitiUSA.com/intouch, or
call 855–444–7244.

The Rear Door Alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.

The Rear Door Alert system is initially dis-
abled. The driver can enable the system using
the vehicle information display. For additional
information,

see

“Vehicle

information

display- 7 inch (18 cm) Type A” (P. 2-22) or
“Vehicle

information

display-

12.3

inch

(31cm) Type B” (P. 2-44).

When the system is enabled:
• The system is activated when a rear door is

opened and closed within 10 minutes of
the vehicle being driven. When the vehicle is
started and the system is activated, a visual
message appears in the vehicle information
display. For additional information, see
“Rear Door Alert is activated” (P. 2-38) or
“Rear Door Alert is activated” (P. 2-61).

• If a rear door is opened and closed but the

vehicle is not driven within approximately
10 minutes, the system will not be acti-
vated. A rear door must be opened and
closed and the car driven within 10 minutes
for the system to activate.

LIC4883

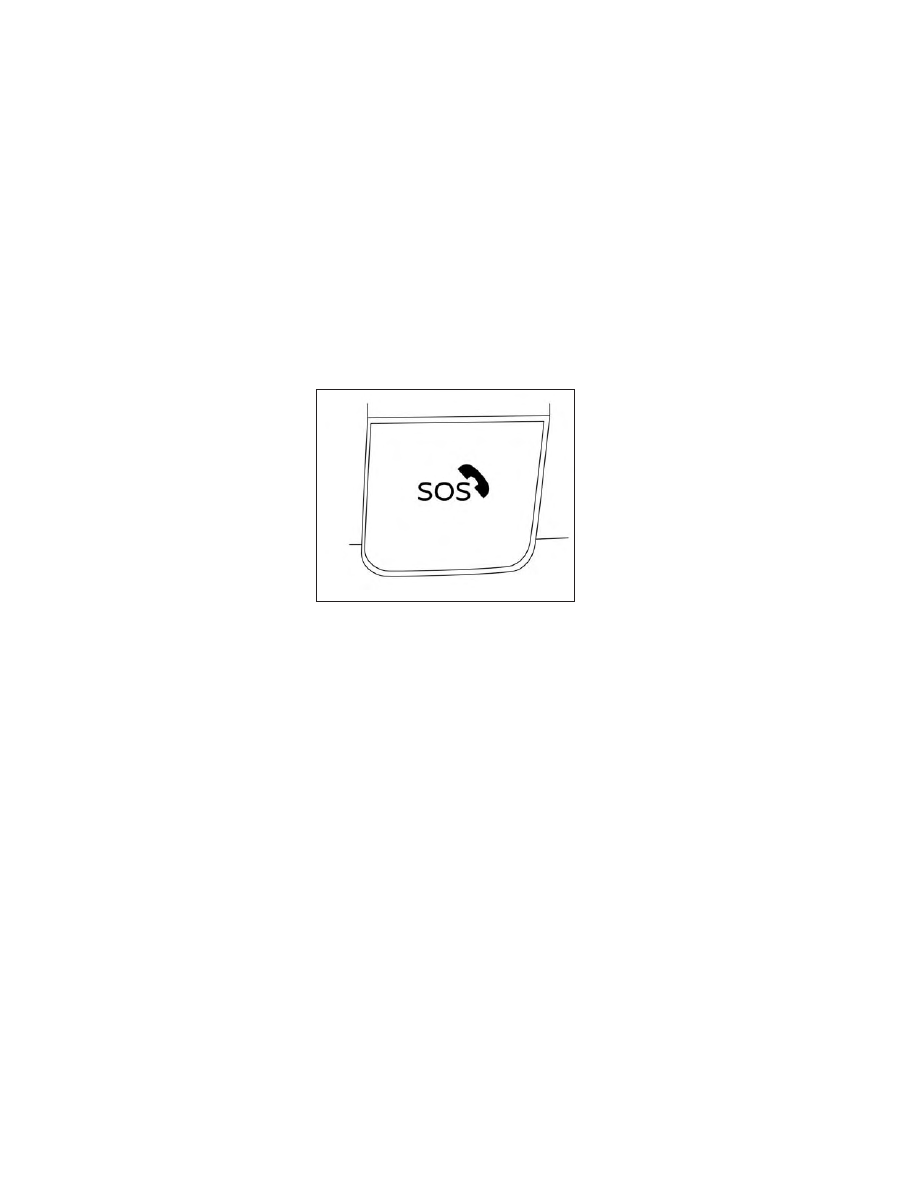

EMERGENCY CALL (SOS) BUTTON

REAR DOOR ALERT

2-92

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the Rear Door Alert system is acti-
vated:
• When the driver puts the vehicle in the P

(Park) position, a notification message ap-
pears in the vehicle information display
with the options to “Dismiss Message” or
“Disable Alert” if desired.

• Select “Disable Alert” to temporarily dis-

able for that stop.

• No selection or ‘Dismiss Message” will

keep the alert enabled for that stop.

• If the alert is enabled when a driver exits the

vehicle, a message will appear in the vehicle
information display that states “Check Rear
Seat for All Articles.”

If “Horn & Alert” setting is selected:

• An audible horn sound will occur after a

short time unless a rear door is opened
and closed within a short time to deacti-
vate the alert.

• If the doors are locked before the alert is

deactivated by opening a rear door, the
horn will sound.

• If the liftgate is opened before a rear

door is opened, the horn will be delayed
until after the liftgate is closed.

NOTE:

If “Alert Only” setting is selected, the mes-
sage alert will still be shown in the vehicle
information display but the horn will not
sound.

WARNING

If the driver selects “Disable Alert”, no
audible alert will be provided regardless
of rear door open/close status.

There may be times when there is an ob-
ject or passenger in the rear seat(s) but
the audible alert does not sound. For ex-
ample, this may occur if rear seat passen-
gers enter or exit the vehicle during a
trip.

The system does not directly detect ob-
jects or passengers in the rear seat(s).
Instead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).

NOTE:

There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).

For additional information, see “Rear Door
Alert is activated” (P. 2-38) or “Rear Door
Alert is activated” (P. 2-61).

Instruments and controls

2-93

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

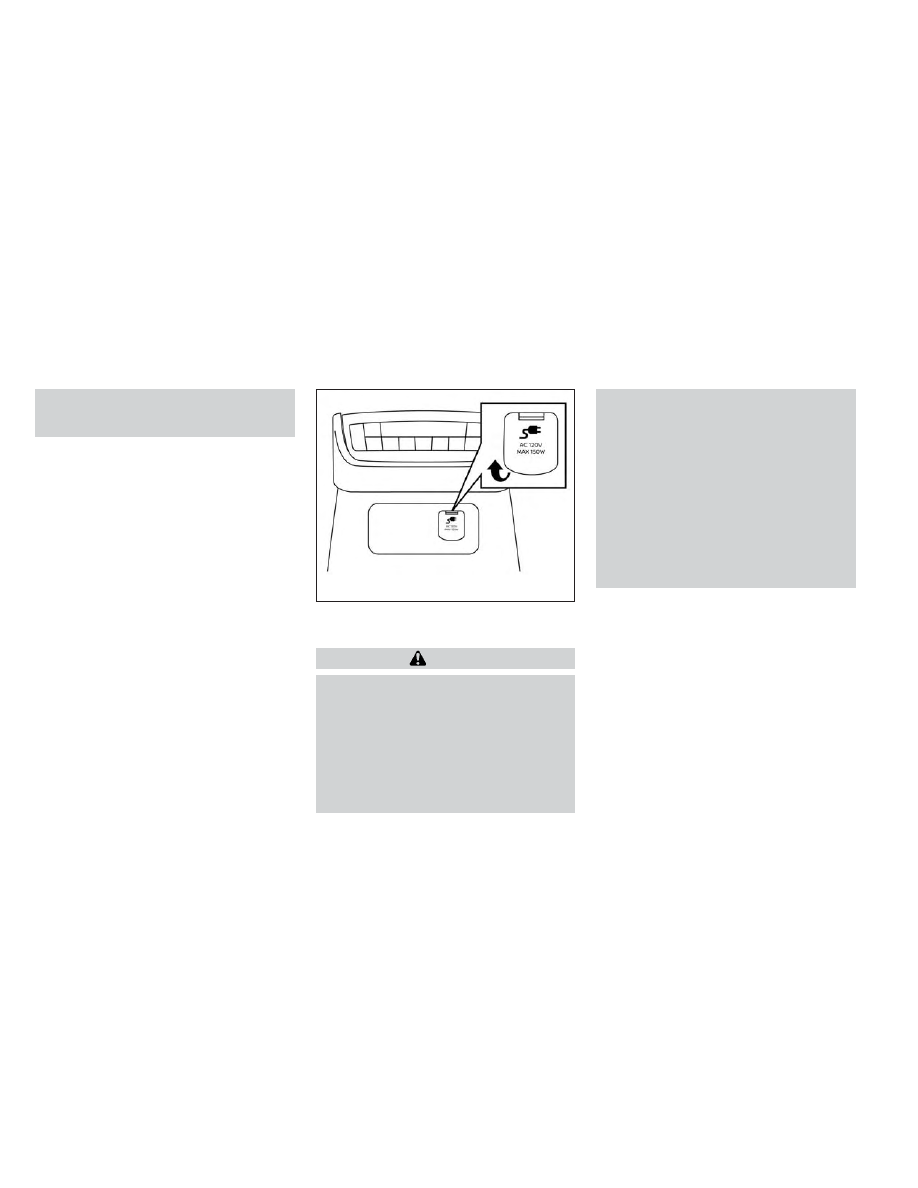

12V OUTLETS

The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.

The console power outlets are powered only
when the ignition switch is in the ACC or ON
position.

The power outlet in the cargo area is pow-
ered directly by the vehicle’s battery.

CAUTION

The outlet and plug may be hot during or
immediately after use.

Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit an INFINITI retailer for ad-
ditional information.

Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.

Do not use double adapters or more than
one electrical accessory.

Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.

Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.

Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.

Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.

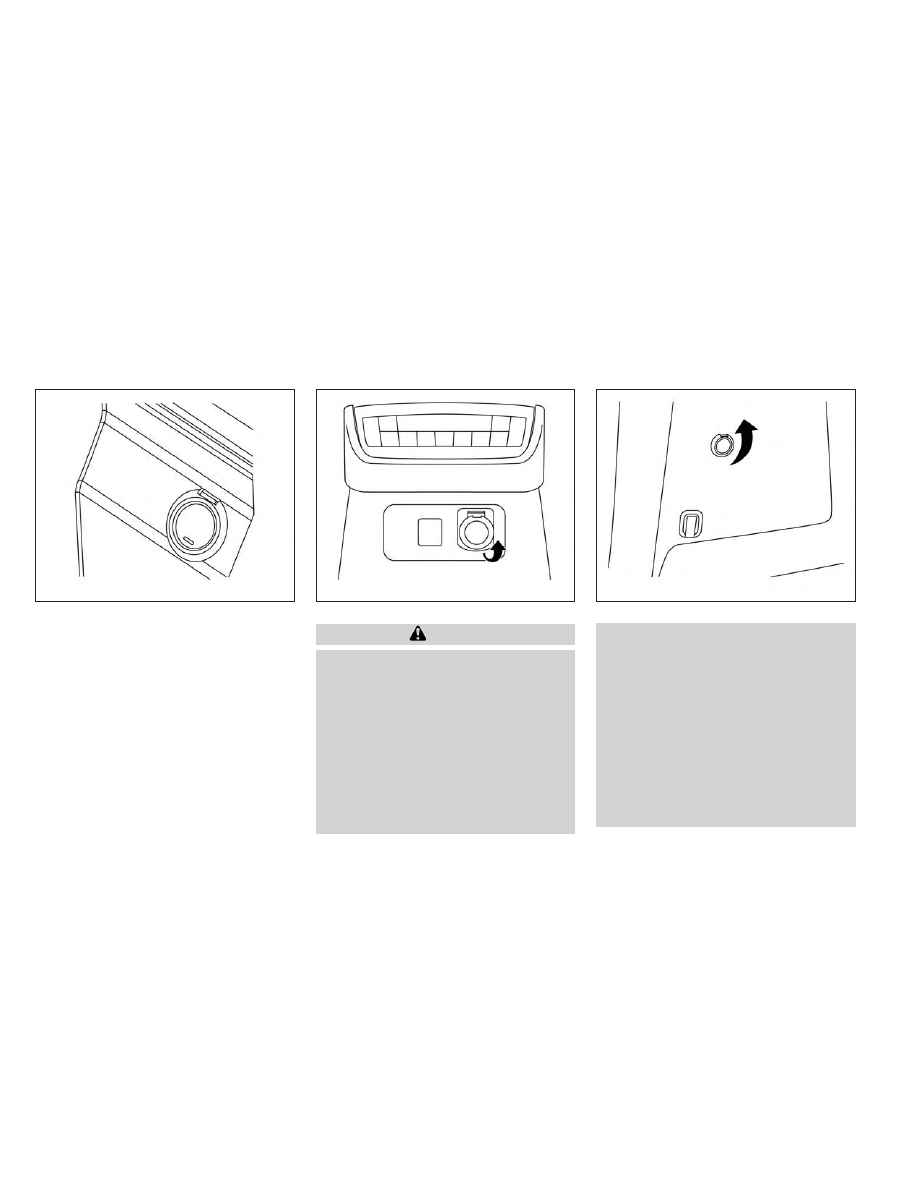

LIC4823

Center Console

LIC4811

2nd Row (if so equipped)

LIC4705

Cargo Area

POWER OUTLETS

2-94

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.

120V OUTLET (if so equipped)

CAUTION

The outlet and plug may be hot during or
immediately after use.

Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.

Do not use accessories that exceed a
120V, 150W power draw. Do not use
double adaptors or more than one elec-
trical accessory.

Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.

Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.

Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.

When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.

LIC4822

2nd Row

Instruments and controls

2-95

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

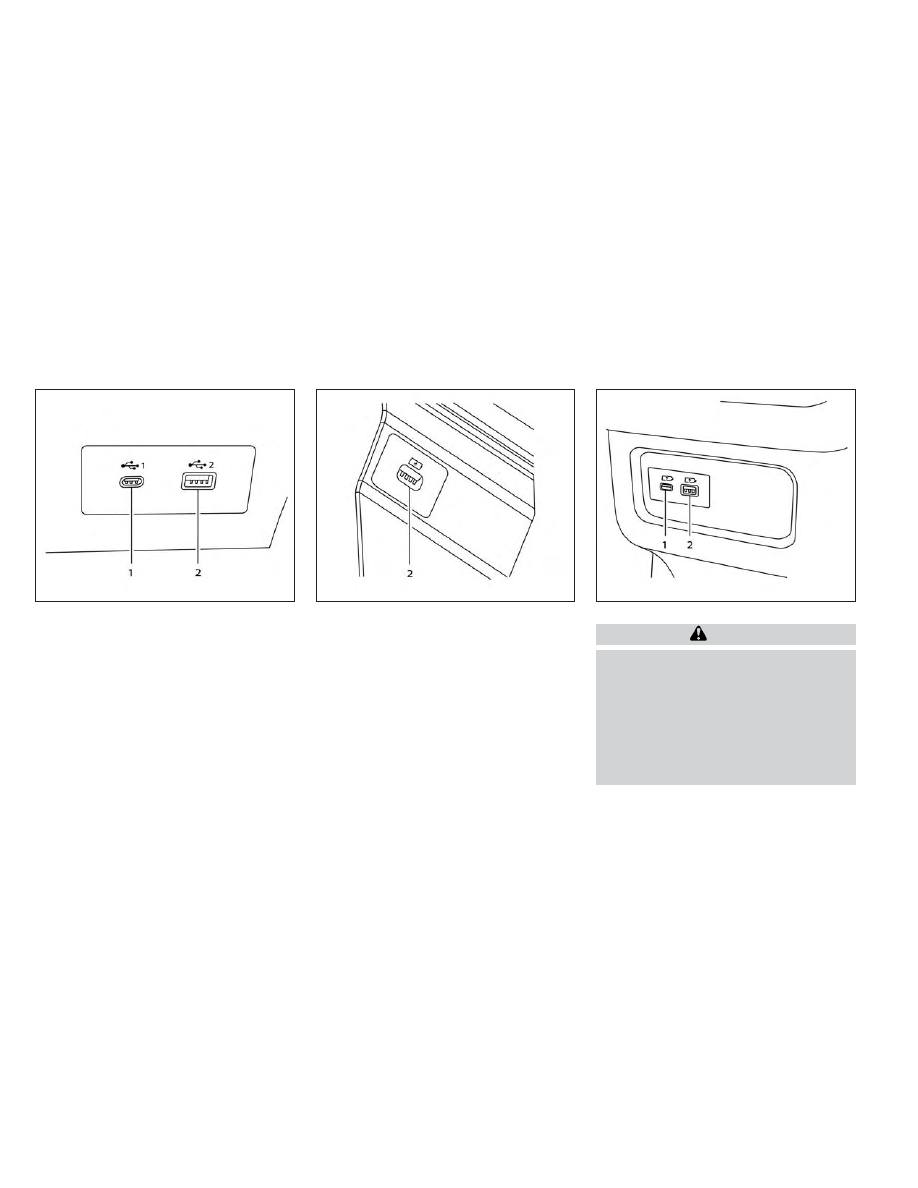

1. Type-C USB

2. Type-A USB

There are USB/iPod® charging ports located
in 1st row, two in the front media pocket
below the climate controls and one in the
console box, in the 2nd row on the back of the
center console and in the 3rd row by the cup
holders. These ports will charge compatible
devices.

NOTE:

• Not all of the USB/iPod® charging ports

will operate with the display screen. Only
the USB connection ports located under
the climate controls will allow operation of
USB/iPod® devices through the audio
system.

• For best results, it is recommended to use

the manufacturer cables, which are sold
separately. A USB Type-A to USB Type-C
adapter can also be purchased separately;
however, results may vary.

CAUTION

Do not force a USB device into the con-
nector. Inserting the USB device tilted or
up-side down into the connector may
damage the connector. Make sure that
the USB device is connected correctly
into the connector.

Do not use a reversible USB cable. Using
the reversible USB cable may damage
the connector.

LIC5029

1st row (below climate controls)

LIC5030

1st row (inside the console box)

LIC5031

2nd row

USB/iPod® CHARGING PORTS

2-96

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The wireless charger is located on the front
of the center console. Lay the smartphone on
the pad of the wireless charger. Charging will
start automatically. The smartphone will be
charged continuously while the ignition
switch is in the ON position.

WARNING

Never put metallic materials between
the wireless charger and a smartphone.

Those who use a pacemaker or other medi-
cal equipment should contact the electric
medical equipment manufacturer for the
possible influences before use.

Never put cloth over the smartphone
during charging process.

Never charge a smartphone when it is
wet.

Never put metallic materials or small
goods such as a cigarette lighter, Intelli-
gent Key or memory drive.

CAUTION

Do not put an RFID/NFC/credit card
between the wireless charger and a
smartphone. This could cause data cor-
ruption in the card.

Do not use the wireless charger with dust
accumulated or dirt on the pad.

Do not hit the surface of the wireless
charger.

Do not spill liquid (water, drinks, etc.) on
the charging pad.

Do not use grease, oil or alcohol for
cleaning charging pad.

LIC5032

3rd row

LIC4868

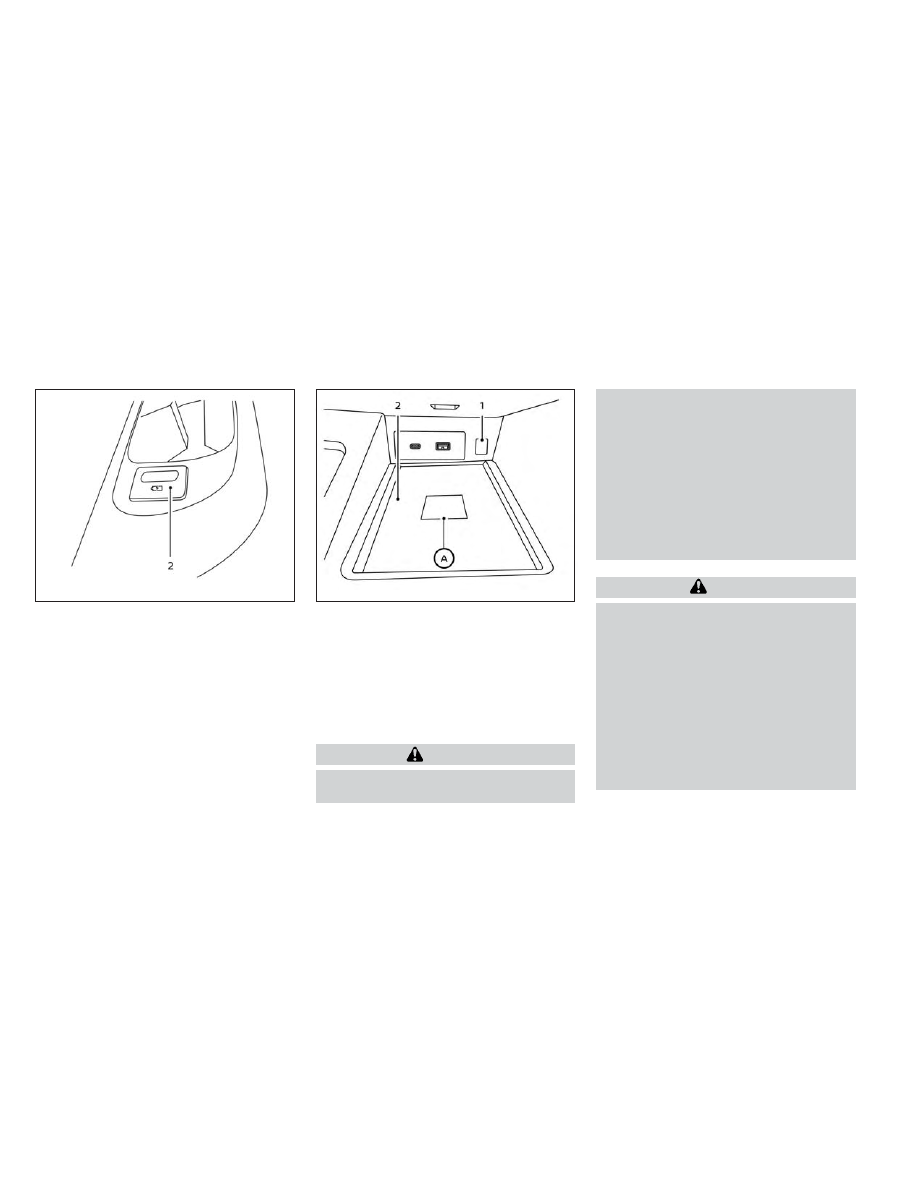

1. Indicator

2. Charging pad

WIRELESS CHARGER

Instruments and controls

2-97

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WIRELESS CHARGER
INDICATOR

The indicator ( 1 ) will illuminate in orange
when the charging process is started.

When the charging has completed, the indi-
cator illuminates in green.

If a malfunction occurs or the charging pro-
cess has stopped, the indicator will blink in
orange for 8 seconds then turn off.

WIRELESS CHARGER
OPERATION

To use the wireless charger, it is necessary to
seat the smartphone well within the charging
pad. To maximize charging performance, en-
sure the smartphone is fully seated on the
center of the charging pad over the "Qi" logo

O

A

. Because the location of the power re-

ceiver may vary depending on the smart-
phone, you will need to try and find the area
that suits your smartphone.

Because some smartphone cases or accesso-
ries may adversely affect charging, remove
them before wireless charging. Turn off the
vibration function of the smartphone before
wireless charging.

NOTE:

Only a Qi compatible smartphone can be
used.

The smartphone may be warmed during
charging process and the charging may
stop by the protection function of the
wireless charger. This is not a malfunction.
If this occurs, restart charging after the
smartphone cooled down. The indicator
will blink in orange then turn off.

The wireless charging process may be
stopped by the status of the smartphone
(battery temperature, etc.).

If a radio noise interference occurs during
charging process, put the smartphone
onto the center (“Qi” logo) position of the
wireless charger.

The wireless charging process will stop
during process of searching the Intelligent
Key.

The wireless charging process will not be
started when a USB (Universal Serial Bus)
cable is connected to the smartphone. The
indicator may illuminate in orange or blink
if the smartphone is put on the wireless
charger with a USB cable connected. How-
ever, charging is not performed.

Depending on the type of the smartphone,
the indicator may remain illuminated in or-
ange even when the charging process has
been completed.

FCC ID: BEJWC500MNM
IC: 2703H-WC500MNM
This device complies with part 15 of the FCC
Rules and RSS-Gen of IC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.
RF Radiation Exposure Statement: This
equipment complies with FCC RF Radiation
exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-
located or operating in conjunction with any
other antenna or transmitter.

2-98

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This equipment should be installed and oper-
ated with a minimum distance of 15cm be-
tween the radiator and your body.
ISED Compliance Statement
This device complies with RSS-Gen of IC
Rules
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications made to this de-
vice, not expressly approved by LG Vehicle
Components Company, will void the user’s
authority to operate the equipment.
ISED RF Radiation Exposure Statement:
This equipment complies with ISED RF Ra-
diation exposure limits set forth for an un-
controlled environment. This device and its
antenna must not be co-located or operating
in conjunction with any other antenna or
transmitter. This equipment should be in-
stalled to operate with a minimum distance
of 15 cm between the radiator and the end-
user’s body and arms.

The extended storage switch is used when
the vehicle is in transit from the factory. It is
located above the brake pedal underneath
the instrument panel. If any electrical equip-
ment does not operate, ensure the extended
storage switch is pushed fully in place, as
shown.

LIC4753

LIC3266

Pulled position

EXTENDED STORAGE SWITCH

Instruments and controls

2-99

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT-DOOR POCKETS

LOWER CONSOLE STORAGE
TRAY

LIC3268

Pushed position

LIC4870

LIC4711

STORAGE

2-100

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SEATBACK POCKETS

There is a seatback pocket located on the
back of the driver and passenger seats. The
pockets can be used to store maps.

WARNING

To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items:

Do not allow a passenger in the 2nd row
to push or pull on the seatback pocket or
head restraint.

Do not place heavy loads heavier than
9.1 lbs (4 kg) on the seatback, head re-
straint or in the seatback pocket.

GLOVE BOX

Open the glove box by pulling the handle. Use
the master key when locking or unlocking the
glove box.

WARNING

Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.

LIC1328

LIC4886

Instruments and controls

2-101

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONSOLE BOX

To open the console box, press down on the
latch. The latch will release.

To close, push the lid down until the lock
latches.

SECOND ROW CONSOLE (if so
equipped)

The second row console is removable. In or-
der to remove, locate the front panel opening
at the front of the center console.

Remove the front panel of the center console.

LIC3836

LIC4715

LIC4716

2-102

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pull up on the lever and lift up to remove
center console.

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push

O

1

and

release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.

CAUTION

Do not use for anything other than
sunglasses.

Do not leave sunglasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the sunglasses.

LIC4717

LIC3837

Instruments and controls

2-103

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

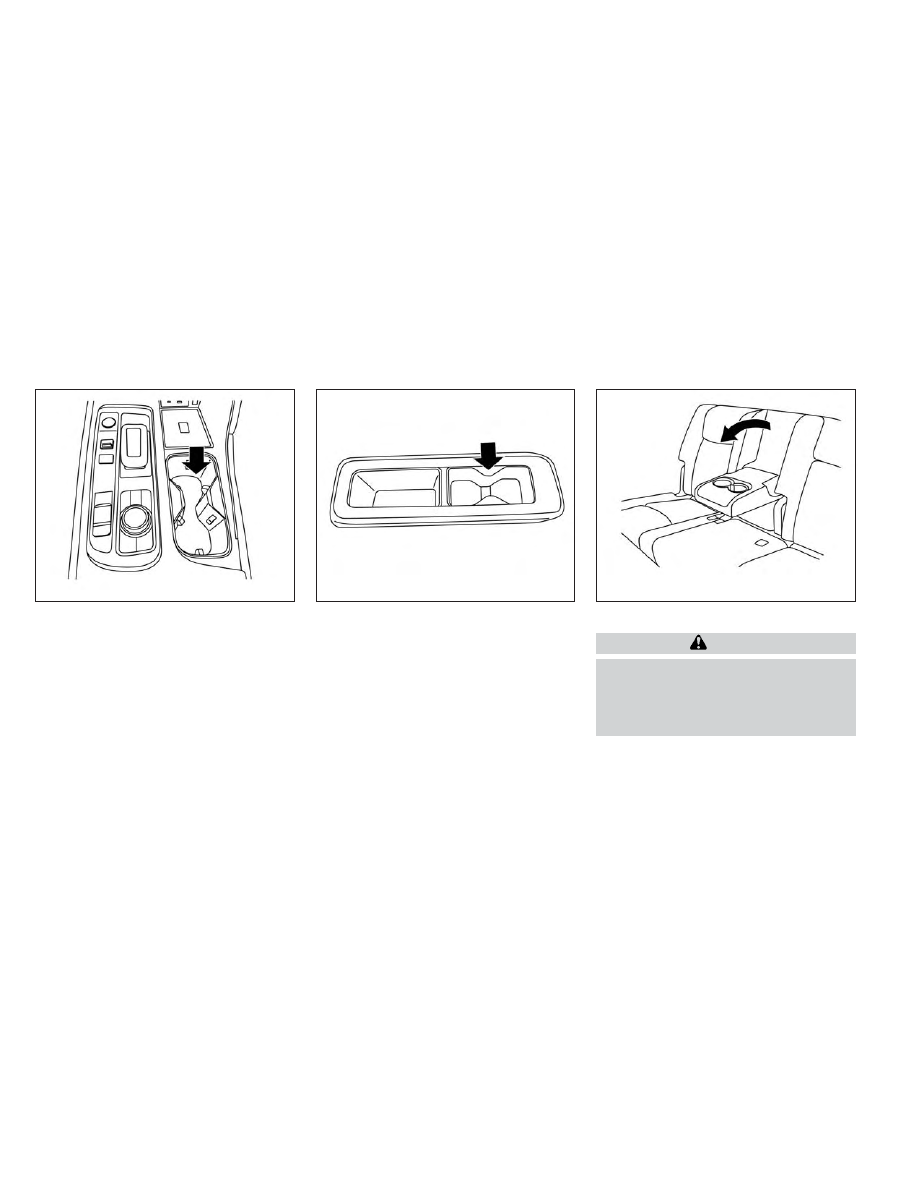

CUP HOLDERS

CAUTION

Do not recline the rear seatback when you
use the cup holders on the rear armrest.
Doing so may cause the beverages to spill
over, and if they are hot, they may scald the
passengers.

LIC4865

Front console

LIC4722

2nd row Captain’s (if so equipped)

LIC4867

2nd row bench (if so equipped)

2-104

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.

CAUTION

Use only soft cups in the cup holder. Hard
objects can injure you in an accident.

CAUTION

Do not use the bottle holder for any
other objects that could be thrown about
in the vehicle and possibly injure people
during sudden braking or an accident.

Do not use the bottle holder for open
liquid containers.

LIC4720

3rd row

LIC4870

Bottle holder — front

LIC4967

Bottle holder — rear

Instruments and controls

2-105

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CARGO AREA STORAGE BIN

To access the floor storage area pull up on
the strap to lift the luggage board.

LUGGAGE HOOKS

When securing items using luggage hooks
located on the upper side finisher do not ap-
ply a load over more than 6.5 lbs. (29 N) to a
single hook.

The cargo hooks that are located closer to
the floor should have loads less than 110 lbs.
(490 N) to a single hook.

The cargo hooks can be used to secure cargo
with ropes or other types of straps.

LIC4724

LIC4725

LTI2581

2-106

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

Use suitable ropes and hooks to secure
cargo.

Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.

Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.

The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.

Be sure everyone in your vehicle is in a
seat and using a seat belt properly.

ROOF RACK (if so equipped)

WARNING

Always install the crossbars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.

Roof rack cross bars should be evenly
distributed.

Do not exceed maximum roof rack cross-
bars load capacity and always distribute
the load uniformly.

Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.

Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the
crossbars.

CAUTION

Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.

Do not apply any load directly to the roof side
rails

O

A

. Crossbars

O

B

must be installed be-

fore applying load/cargo/luggage to the
roof of the vehicle.

INFINITI accessory crossbars may be avail-
able through an INFINITI retailer. It is recom-
mended that you visit an INFINITI retailer for
additional information.

LIC4202

Instruments and controls

2-107

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.

Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).

For additional information regarding GVWR
and GAWR, refer to:
• F.M.V.S.S. or C.M.V.S.S. certification label

(located on the driver’s door pillar).

POWER WINDOWS

WARNING

Make sure that all passengers have their
hands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver's or
passenger's door is opened during this period
of time, the power to the windows is
canceled.

Driver's side power window switch

The driver's side control panel is equipped
with switches to open or close all of the
windows.

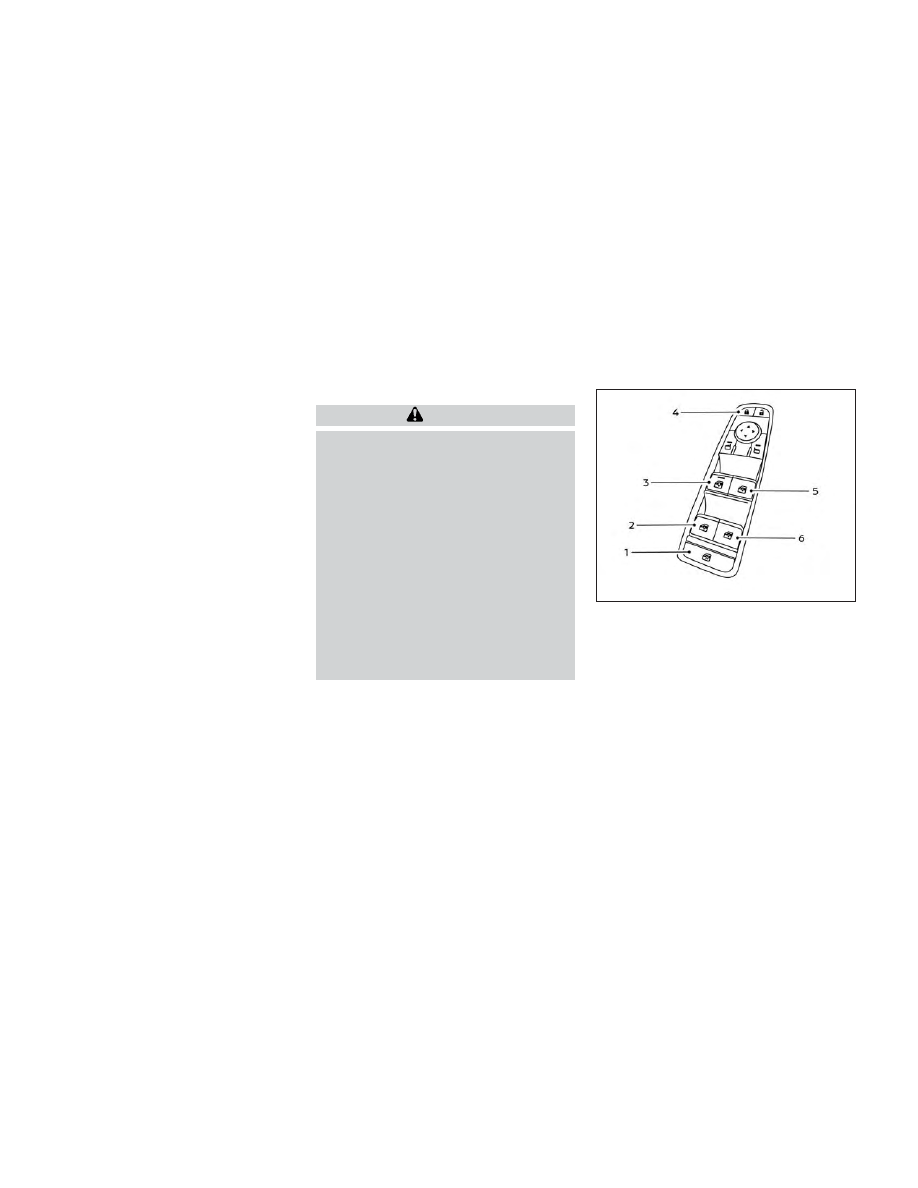

LIC4727

1. Window lock button

2. Left rear passenger side switch

3. Driver’s side switch

4. Power door lock/unlock switch

5. Front passenger side switch

6. Right rear passenger side switch

WINDOWS

2-108

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To open a window, push the switch to the
detent and continue to hold down until the
desired window position is reached. To close
a window, pull the switch to the detent and
continue to hold up until the desired window
position is reached.

Locking rear passengers' windows

When the window lock button is pushed (the
indicator illuminates), the rear passengers’
windows cannot be operated with the rear
passengers’ power window switch. The rear
passengers’ windows can only be operated
with the main switch (driver side switches).
To cancel the passenger’s window lock, push
the window lock button again.

Front passenger's power window
switch

The passenger's window switch operates
only the corresponding passenger's window.

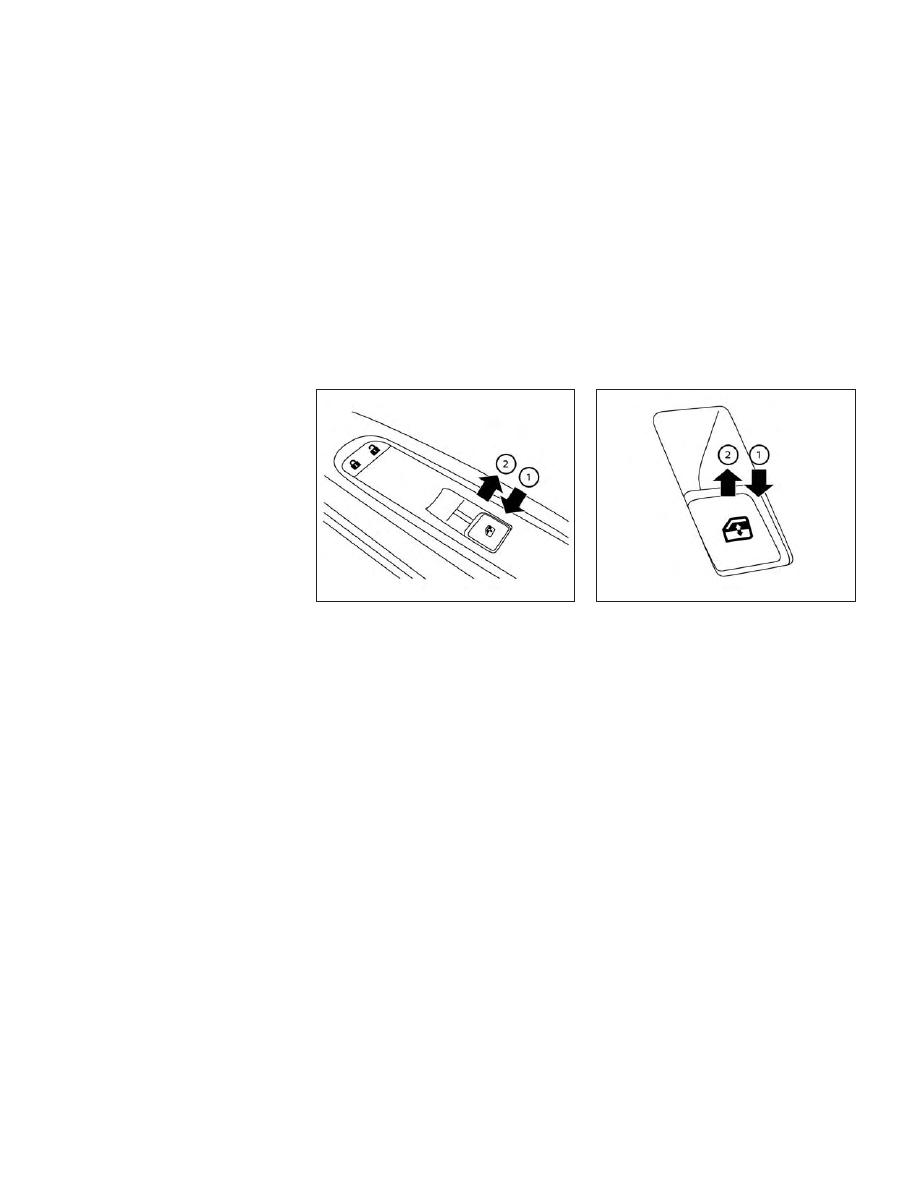

To open the window partially, push the
switch down

O

1

lightly until the desired win-

dow position is reached. To close the window
partially, pull the switch up

O

2

until the de-

sired window position is reached.

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
open the window, push the switch and hold it
down

O

1

. To close the window, pull the

switch up

O

2

.

LIC4915

LIC4729

Instruments and controls

2-109

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Automatic operation

To fully open a window equipped with auto-
matic operation, push the window switch
down to the second detent and release it; it
need not be held. The window automatically
opens all the way. To stop the window, lift
the switch up while the window is opening.

Auto-reverse function

The auto-reverse function can be activated
when a window is closed by automatic
operation.

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the window.

If the vehicle's battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate prop-
erly. If this occurs, please contact the retailer
to re-initialize the power window auto-
reverse system.

If the control unit detects something caught
in a window equipped with automatic opera-
tion, as it is closing, the window will be imme-
diately lowered.

When power window switch does
not operate

If the power window automatic function
(closing only) does not operate properly, per-
form the following procedure to initialize the
power window system:

1. Place the ignition switch in the ON

position.

2. Open the window more than halfway by

operating the power window switch.

3. Pull the power window switch and hold it

to close the window, and then hold the
switch more than 3 seconds after the win-
dow is closed.

4. Release the power window switch. Oper-

ate the window by the automatic function
to confirm the initialization is complete.
The power window automatically opens
or closes depending on if the automatic
down or up function is selected.

5. Perform steps 2 through 4 above for

other windows.

If the power window function does not oper-
ate properly after performing the above pro-
cedure have the system checked and re-
paired. It is recommended that you visit an
INFINITI retailer for this service.

LIC4730

2-110

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REAR DOOR SUNSHADE (if so
equipped)

The rear door sunshade is located within the
rear doors at the base of the window.
• To raise the sunshade, pull up the center

tab

O

1

.

• Hook the sunshade slots onto the tabs ex-

tending from the top of the window frame

O

2

.

CAUTION

Do not release the rear door sunshade
during operation. This could damage the
sunshade or cause injury.

Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. This
could cause improper operation or could
damage the sunshade.

Do not place objects on or near the rear
sunshade. This could cause improper op-
eration or could damage the sunshade.

NOTE:
To avoid damage to the sunshade, please
note the following:

• Do not pull or push the sunshade, other

than upwards.

• Do not pull or push the sunshade with the

sunshade hung on the hooks.

• Do not allow liquids or objects on the stor-

ing area of the sunshade.

WARNING

In an accident you could be thrown from
the vehicle through an open moonroof.
Always

use

seat

belts

and

child

restraints.

Do not allow anyone to stand up or ex-
tend any portion of their body of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.

CAUTION

Remove water drops, snow, ice or sand
from the moonroof before opening.

Do not place any heavy object on the
moonroof or surrounding area.

LIC4169

POWER MOONROOF

Instruments and controls

2-111

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUTOMATIC MOONROOF AND
SUNSHADE

Sliding sunshade and moonroof

When the sunshade switch is pushed to the
OPEN position

O

1

, the sunshade open. (If the

sunshade starts to open from the position
between close and half open, the sunshade
will stop half. When the switch is pushed
again, the sunshade will open fully.) When the
moonroof switch is pushed to the OPEN po-
sition

O

3

, the moonroof opens to the comfort

mode position. (If the sunshade is close, the

sunshade will open half first. When the
switch is pushed again, the moonroof will
open fully.)

When the moonroof switch is pushed to the
CLOSE position

O

4

, the moonroof will auto-

matically close. When the sunshade switch is
pushed to the CLOSE position

O

2

, the sun-

shade will close. (If the sunshade starts to
close from the position between full and half
open, the sunshade will stop half. When the
switch is pushed again, the sunshade will
close fully. However, if the moonroof is open
or tilted up, the sunshade will not close be-
yond half.)

To stop the sunshade or moonroof during the
operation, push the moonroof switch to ei-
ther of the OPEN

O

1

,

O

3

, CLOSE

O

2

,

O

4

or

UP

O

5

position.

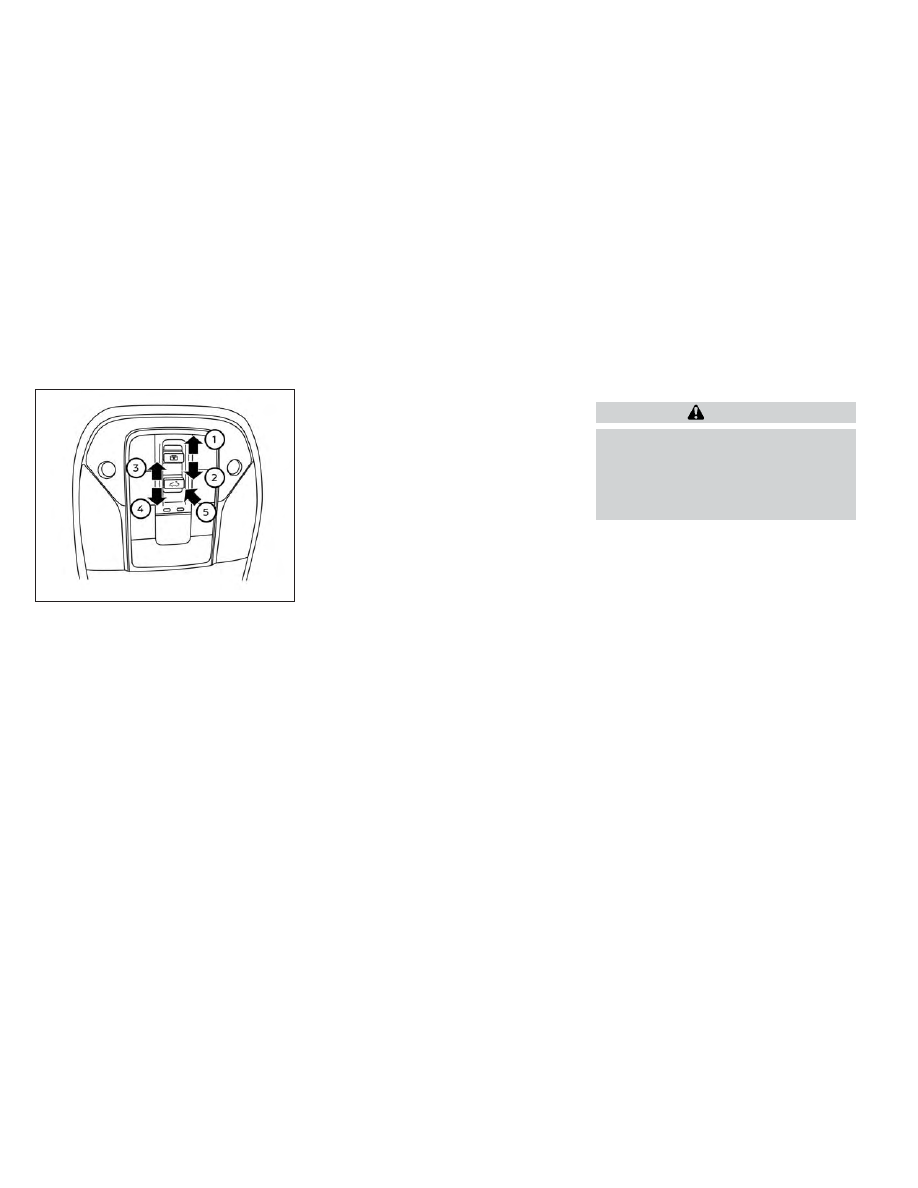

Tilting the moonroof

To tilt up the moonroof, push the moonroof
switch to the UP position

O

5

. To tilt down the

moonroof, push the switch to the CLOSE
position

O

4

.

Comfort mode

This is the position used when driving with
the moonroof open. When driving with the
moonroof fully open, wind noise may be very
loud. Use the comfort mode position when
driving.

Auto-reverse function

WARNING

There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the moonroof and
sunshade.

The

auto-reverse

function

enables

the

moonroof and sunshade to automatically re-
verse when something is caught in the moon-
roof and sunshade as it is closing. When the
control unit detects an obstacle, the moon-
roof and sunshade will open immediately.

Depending on the environment or driving
conditions, the auto-reverse function may
activate if an impact or load similar to some-
thing being caught in the moonroof and sun-
shade occurs.

If the auto-reverse function activates con-
secutively or the battery is discharged, the
moonroof and sunshade may not close prop-
erly. In this case, push and hold the switch
to the CLOSE position

O

4

to close the

moonroof.

LIC4912

2-112

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the moonroof switch does not operate

If the moonroof and sunshade do not operate
properly, perform the following procedure to
initialize the operation system.

1. If the moonroof and sunshade are open,

close them fully by repeatedly pushing the
moonroof switch to the CLOSE

O

2

and

O

4

position.

2. Push and hold the moonroof switch to the

CLOSE

O

4

position for 10 seconds.

3. After the moonroof and sunshade move

slightly to the closed position and then
move back a little, release the moonroof
switch.

4. Push and hold the moonroof switch to the

CLOSE

O

4

position, and the glass and

shade will move.

5. Release the moonroof switch. Then the

moonroof and sunshade will fully open
and then fully close.

6. Check if the moonroof switch operates

normally.

WARNING

The driver is always responsible for oper-
ating the moonroof properly, including the
operation by all passengers. Failure to fol-
low the warnings and instructions for
proper use of the moonroof could result in
serious injury or death.

Do not allow children to operate the
moonroof. Improper operation by chil-
dren may cause an accident. If children or
others get caught in the moonroof, it
could cause serious injury.

To help avoid risk of injury or death
through unintended operation of the
moonroof, place the ignition switch in
the OFF position when leaving the ve-
hicle, and do not leave children and the
Intelligent Key inside the vehicle.

Do not activate the auto-reverse func-
tion intentionally. If hands or face, etc.
get caught in the moonroof, it could
cause serious injury.

CAUTION

Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the sun-
shade when it is extending or retracting
causing improper operation or damage
to the sunshade.

Do not push the sunshade arm with your
hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result.

Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.

Do not hang any object on the arm rail as
this may result in improper operation or
damage the sunshade.

Do not forcefully pull the sunshade. Do-
ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.

If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked by an INFINITI retailer.

Instruments and controls

2-113

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The interior lights will automatically turn on
and stay on for a period of time when:
• The doors are unlocked by the Intelligent

Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.

• The doors and/or liftgate is opened.
• The switch is individually pushed.

When the on switch

O

1

is pushed, the interior

lights illuminate.

When the door/off switch

O

2

is pushed, the

interior lights do not illuminate unless indi-
vidually pushed.

NOTE:

The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

CONSOLE LIGHT

The console light

O

1

will turn on in the follow-

ing conditions:
• The Intelligent Key approaches the vehicle.
• The ignition is placed in the OFF position.

The console light

O

1

will turn off or decrease

in brightness in the following conditions:
• The ignition switch is in the ON position

and the door is closed.

• The doors are locked.

The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.

LIC3841

LIC4966

INTERIOR LIGHTS

2-114

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAP LIGHTS

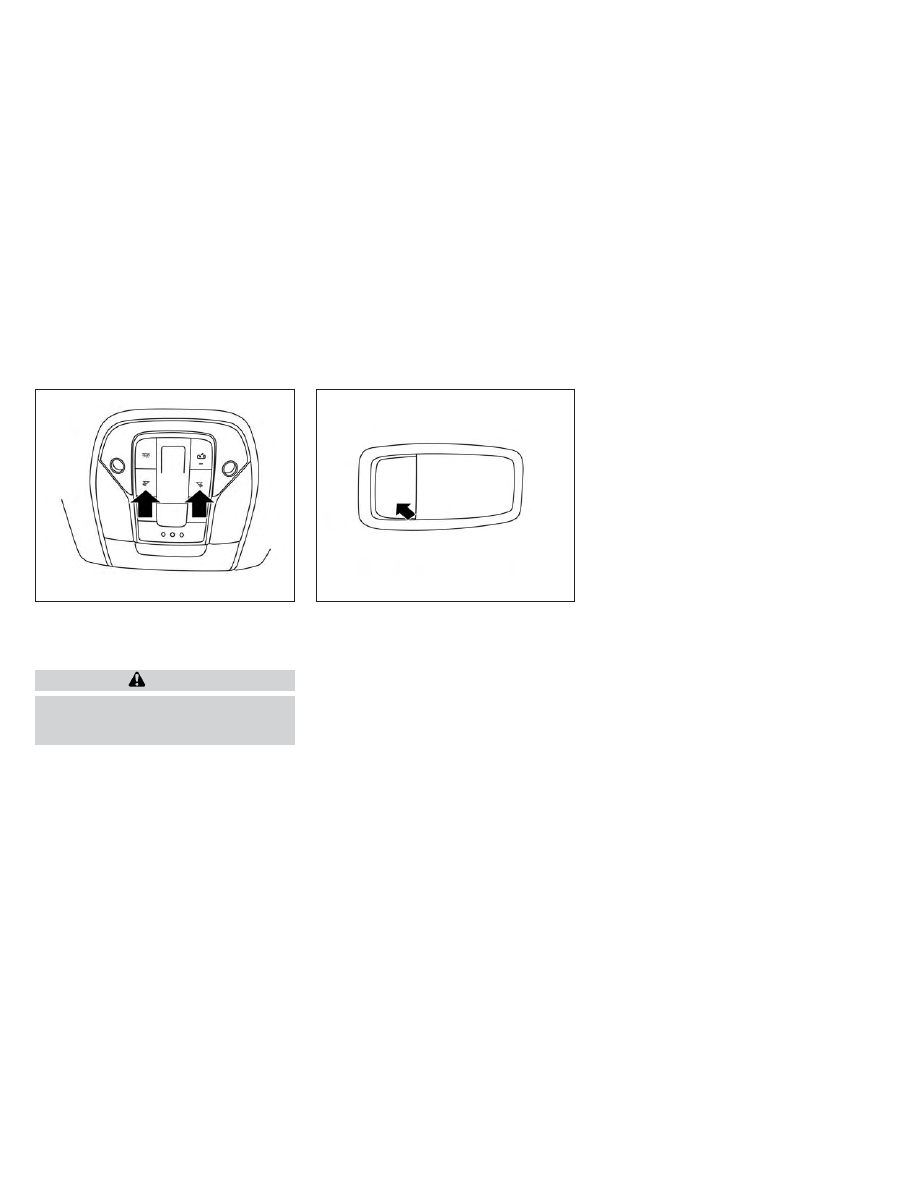

To turn the map lights on, push the switches.
To turn them off, push the switches again.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

PERSONAL LIGHTS

To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.

CARGO LIGHT

The light illuminates when the liftgate is
opened. When the liftgate is closed, the light
goes off.

The light will go off after a period of time if
the liftgate is left open, unless the ignition
switch is placed in the ON position.

For additional information, see “Exterior and
interior lights” (P. 8-26).

LIC3842

LIC3907

Rear personal lights

Instruments and controls

2-115

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.

HomeLink® Universal Transceiver:
• Will operate most Radio Frequency (RF)

devices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.

• Is powered by your vehicle's battery. No

separate batteries are required. If the vehi-
cle's battery is discharged or is disconnected,
HomeLink® will retain all programming.

When the HomeLink® Universal Transceiver is
programmed, retain the original transmitter
for future programming procedures (Example:
new vehicle purchases). Upon sale of the ve-
hicle, the programmed HomeLink® Universal
Transceiver buttons should be erased for se-
curity purposes. For additional information,
see “Programming HomeLink®” (P. 2-116).

WARNING

Do not use the HomeLink® Universal
Transceiver with any garage door opener
that lacks safety stop and reverse fea-
tures as required by federal safety stan-
dards. (These standards became effec-
tive for opener models manufactured
after April 1, 1982.) A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

During the programming procedure your
garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.,
that you are programming.

Your vehicle's engine should be turned
off while programming the HomeLink®
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause un-
consciousness or death.

NOTE:

If your vehicle is equipped with Smart Rear-
view Mirror, you may have to complete ad-
ditional programming to enable Two-Way
Communication. The mirror can provide the
status of your garage door (open/close).

PROGRAMMING HOMELINK®

The following steps show generic instruc-
tions on how to program a Homelink® but-
ton. If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web
site at: www.homelink.com/infiniti or call
1-800-355-3515.

NOTE:

It is also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to Homelink® for
quicker programming and accurate trans-
mission of the radio-frequency.

HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)

2-116

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1

Homelink® buttons (1–3)

2

Indicator light (appears above each
Homelink® button)

3

Status display (only Type A) (where the
current condition of the Homelink® is
displayed)

1. Press and release the HomeLink® button

that you would like to program. The
HomeLink® indicator light will flash in or-
ange slowly and “TRAINING” is displayed
on the lower right of the mirror (only Type
A) (if not, see “Clearing the programmed
information” (P. 2-121).

2. Position the hand-held transmitter (ga-

rage door opener remote) 1-3 inches
(2-8 cm) away from the HomeLink® but-
ton that you would like to program.

LIC4946

Type A (if so equipped)

LIC5025

Type B (if so equipped)

LIC4947

Type A (if so equipped)

Instruments and controls

2-117

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

Some hand-held transmitter (garage door
opener remote) may actually train better a
distance of 6–12 inches (15–20 cm). Keep
this in mind if you have difficulty with the
programming process.

3. While the HomeLink® indicator light is

flashing in orange, press and hold the
hand-held transmitter button. Continue
pressing the hand-held transmitter button
until

the

HomeLink®

indicator

light

changes from orange to green and
“TRAINED” is displayed on the lower right
of the mirror (only Type A). You may now
release the hand-held transmitter button.

NOTE:

Some devices to be programmed may require
you to replace the step 3 with the cycling pro-
cedure noted in “Programming HomeLink®
for Canadian customers and gate openers”
(P. 2-120).

4.

Wait until your garage door has stopped
moving

before completing the next steps.

5. Press the HomeLink® button and observe

the indicator light.

• If the indicator light remains constant

green, your device should operate when
the HomeLink® button is pressed. At
this point, if your device operates, pro-
gramming is complete.

• If the indicator light rapidly flashes in

green, firmly press,

hold for two sec-

onds

and release the HomeLink® but-

ton up to three times to complete the
programming process.

Do not press the

HomeLink® button rapidly.

At this

point if your device operates, program-
ming is complete. If the device does not
operate or operates but no door status
indicator with Two- Way Communica-
tion*1, continue with the next step of
the programming instructions.

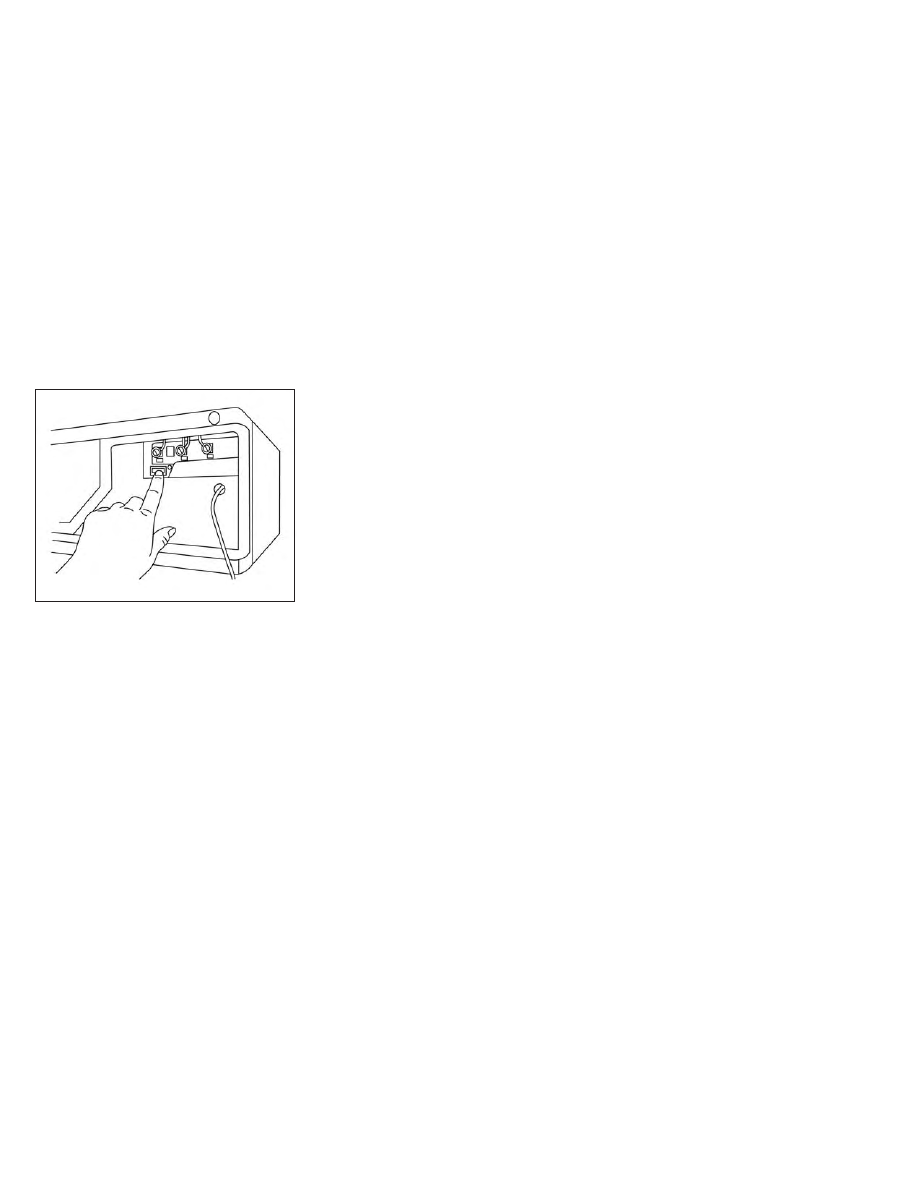

6. At the garage door opener motor (security

gate motor, etc.), locate the “Learn” or
“Set” button. This can usually be found
where the hanging antenna wire is at-
tached to the motor-head unit (see the
device’s manual to identify this button.).
The name and color of the button may
vary by manufacturer.

NOTE:

A ladder and/or second person may simplify
the following steps. Do not stand on your
vehicle to perform the next steps.

LIC5026

Type B (if so equipped)

2-118

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7. Firmly press and release the “Learn” or

“Set” button until the indicator illuminates.
Once the button is pressed, you have
approximately 30 seconds to initiate the
next step.

8. Return to the vehicle and firmly press,

hold for two seconds and release the
HomeLink® button up to three times.

Do

not press the HomeLink® button rapidly.

At this point programming is complete
and your device should operate when
the HomeLink® button is pressed and
released.

9. If you have any questions or are having

difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com/infiniti or call
1-800-355-3515.

*1: Programming Two-Way Communication

To check if your garage door opener is com-
patible with this feature, refer to the
homelink.com/compatible/two-way-
communication website. If your garage door
opener has this functionality, HomeLink®
mirror garage door status indicators may ap-
pear after completion of programming.

NOTE:

It is possible for the HomeLink® to stop
working with the garage door system
shortly after initial programming if the Two-
Way Communication programming is not
completed. If this is the case, following the
steps below will restore door operation.

1. In your vehicle, press and hold the trained

HomeLink® button for 2 seconds, then
release. Confirm that the garage door is
moving. When the garage door stops, you
will have one minute to complete the fol-
lowing steps:

NOTE:

A ladder and/or second person may simplify
the following steps. Do not stand on your
vehicle to perform the next steps.

2. On your garage door opener in your ga-

rage, locate the “Learn” or “Set” button
(usually near where the hanging antenna
wire is attached to the garage door
opener). If there is difficulty locating this
button, refer to the device’s owner’s
manual.

3. Press and release the “Learn” or “Set”

button.

4. A light on your garage door opener may

flash, and your two-way HomeLink® in-
dicators in your vehicle may flash, con-
firming completion of the process.

5. Pressing the trained HomeLink® button

will now activate your garage door. The
status indicators will show when the door
is moving.

6. Your

two-way

enrollment

is

now

complete.

LIC4798

Example

Instruments and controls

2-119

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

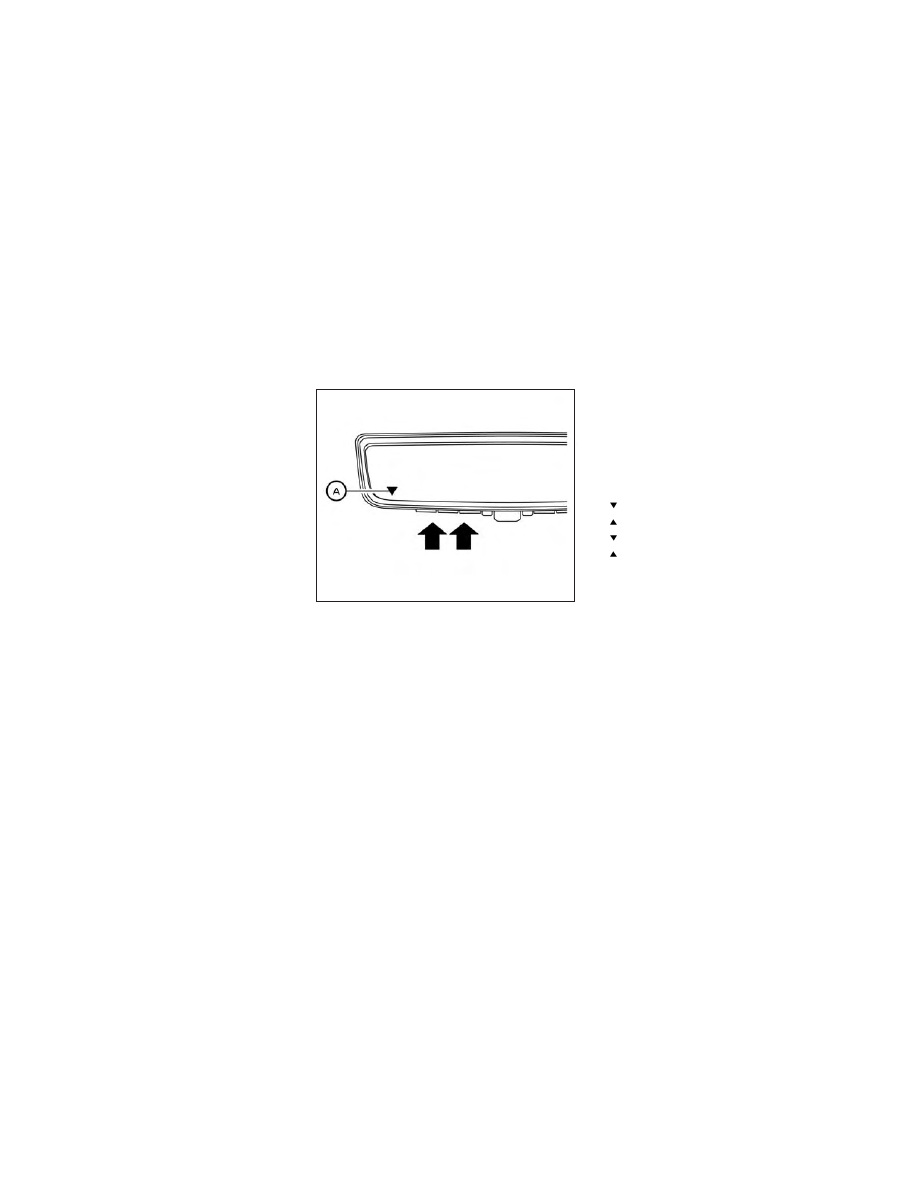

USING THE GARAGE DOOR
TWO-WAY COMMUNICATION

HomeLink® has the function of communicat-
ing with garage door opener systems. If your
garage door openers are compatible with
HomeLink®, the HomeLink® can:
• receive and display “closing” or “opening”

status from your garage door opener.

• recall and display the garage door being

“closed” or “opened”.

HomeLink® can receive the status from a
garage door opener at a range up to 820 ft
(250 m), but it varies depending on the envi-
ronment. You may need to reduce vehicle
speed to successfully receive the garage door
opener communication.

Using two-way communication

Press and hold the HomeLink® buttons (1
and 2) simultaneously for 2 seconds to recall
and display the last recorded garage door
status

communicated

to

HomeLink®.

HomeLink® will display the last recorded sta-
tus for 3 seconds.

If two-way communication programming is
successful, HomeLink® will display the status
of your garage door opener with the status
indicator

O

A

, which changes depending on

the status. The garage door opener status
indicator shows the garage door opener sta-
tus as follows:

Flashing in orange — Closing

Flashing in orange — Opening

Illuminating in green — Closed

Illuminating in green — Opened

The status indicator stops to flash after an
open/close signal is received or no signal is
received within 30 seconds from the garage
door opener.

PROGRAMMING HOMELINK®
FOR CANADIAN CUSTOMERS
AND GATE OPENERS

Canadian

radio-frequency

laws

require

transmitter signals to “time-out” (or quit) af-
ter several seconds of transmission – which
may not be long enough for HomeLink® to
pick up the signal during training. Similar to
this Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.

LIC4948

2-120

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you live in Canada or you are having diffi-
culties training a gate operator

or

garage

door opener by using the “Programming
HomeLink®” procedures,

replace

“Program-

ming HomeLink®”

step 3

with the following:

NOTE:

When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
device components.

Step 3: While the HomeLink® indicator light
is flashing in orange, press and release
(“cycling”) the hand-held transmitter button
every 2 seconds. Continue to press and re-
lease the hand-held transmitter button until
the HomeLink® indicator light changes from
orange to green. When the indicator light
illuminates in green, the hand-held transmit-
ter button may be released.

Proceed with “Programming HomeLink®”
step 4 to complete.

Remember to plug the device back in when
programming is completed.

OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER

The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device. To operate, firmly press
the appropriate programmed HomeLink®
button. The indicator light will illuminate in
green with three parenthesis

on the

mirror while the signal is being transmitted.

PROGRAMMING TROUBLE-
SHOOTING

If the HomeLink® does not quickly learn the
hand-held transmitter information:
• Replace the hand-held transmitter batter-

ies with new batteries.

• Position the hand-held transmitter with its

battery

area

facing

away

from

the

HomeLink® button.

• Press and hold both the HomeLink® button

and hand-held transmitter button in each
step without interruption.

• Position the hand-held transmitter 1 to 3 in

(2 to 8 cm) away from the HomeLink®
button. Hold the transmitter in that position
for up to 15 seconds. If HomeLink® is not
programmed within that time, try holding
the transmitter in another position – for
example, 6 to 12 in (15 to 20 cm) away,
keeping the HomeLink® button in view at
all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web
site at: www.homelink.com/infiniti or call
1-800-355-3515.

CLEARING THE PROGRAMMED
INFORMATION

The following procedure clears the pro-
grammed information from three buttons. In-
dividual buttons cannot be cleared. However,
individual buttons can be reprogrammed. For
additional information, see “Reprogramming
a single HomeLink® button” (P. 2-122).

Instruments and controls

2-121

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To clear all programming

1. Press and hold the two outer HomeLink®

buttons until the indicator light begins to
flash in green and “CLEARED” is displayed
on the mirror, in approximately 10 sec-
onds. Do not hold for longer than 20
seconds.

2. Release both buttons.

HomeLink® is now in the programming mode
and can be programmed at any time begin-
ning with “Programming HomeLink®” - Step
1.

REPROGRAMMING A SINGLE
HOMELINK® BUTTON

To reprogram a HomeLink® button, com-
plete the following:

1. Press and hold the desired HomeLink®

button.

DO NOT

release the button.

2. The indicator light will illuminate in green,

and after 20 seconds it will begin to flash
in orange and “TRAINING” is displayed on
the mirror.

3. Release the HomeLink® button and pro-

ceed with “ Programming HomeLink®” —
Step 3.

For

questions

or

comments,

contact

HomeLink® at: www.homelink.com/infiniti
or 1–800–355–3515.

The HomeLink® button has now been repro-
grammed. The new device can be activated
by pressing the HomeLink® button that was
just programmed. This procedure will not af-
fect any other programmed HomeLink®
buttons.

If a new device is not programmed to the
HomeLink® button, it will revert to the previ-
ously stored programming.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner's Manual of each device
or call the manufacturer or dealer of those
devices for additional information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two con-
ditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.

2-122

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

Instruments and controls

2-123

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
