Infiniti QX60 (2023 year). Manual in english - page 5





VDC Setting

The VDC Setting menu allows the user to enable or disable the Vehicle Dynamic Control (VDC) system.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

System

Allows the user to turn the VDC system on or off. For additional information, see “Vehicle Dynamic Control (VDC)
system” (P. 5-168).

Driver Assistance

The driver assistance menu allows the user to change the various driving aids, parking aids and braking features.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Lane Assist

Displays available lane options.

Warning

Allows user to turn the Lane Departure Warning (LDW) system on or off. For additional information, see “Lane Depar-
ture Warning (LDW)” (P. 5-36).

Blind Spot Assist

Displays available blind spot options.

Warning

Allows user to turn the Blind Spot Warning (BSW) system on or off. For additional information, see “Blind Spot
Warning (BSW)” (P. 5-49).

Emergency Assist

Displays available emergency brake options.

Front

Allows user to turn the front emergency braking system on or off. For additional information, see “Forward Emergency
Braking (FEB) with Pedestrian Detection” (P. 5-128) and “Predictive Forward Collision Warning (PFCW)” (P. 5-140).

Rear

Allows user to turn the rear emergency braking system on or off. For additional information, see “Rear Automatic
Braking (RAB)” (P. 5-121).

Parking Aids

Displays available parking aids.

Moving Object

Allows user to turn the Moving Object Detection (MOD) on or off. For additional information, see “Moving Object
Detection (MOD)” (P. 4-23).

Auto Show Sonar

Allows user to auto display the sonar. For additional information, see “Front and rear sonar system” (P. 5-172).

2-28

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Menu item

Explanation

Rear Sonar

Allows user to turn the rear sonar on or off.

Sonar Distance

Allows user to set the distance sensor range to Long/Medium/Short.

Sonar Volume

Allows the user to set the parking sensor volume to High/Medium/Low.

Rear Cross Traffic Alert

Allows user to turn the Rear Cross Traffic Alert (RCTA) system on or off. For additional information, see “Rear Cross
Traffic Alert (RCTA)” (P. 5-72).

Timer Alert

Allows user to set the timer alert.

Low Temp. Alert

Allows user to turn the low temperature alert on or off.

ECO Mode Setting

The ECO mode setting menu allows the user to change the settings for the ECO mode.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

ECO Customize

Displays available ECO mode settings.

Cruise Control

Allows user to turn the cruise control mode on or off. For additional information, see “Cruise Control” (P. 5-83).

Idling stop

Allows user to turn the Idling Stop System (ISS) on or off. For additional information, see “Idling Stop System”
(P. 5-178).

Air Conditioning

Allows user to turn the Air Conditioning mode on or off. For additional information, see “ECO Mode” (P. 5-32).

ECO Drive Assist

Displays available ECO information settings.

ECO Indicator

Allows user to turn the ECO indicator on or off.

ECO Drive Report

Allows user to turn the ECO Drive Report on or off.

View History

Displays the history report for the vehicle.

Tire Pres ECO advice

Allows user to turn the tire pressure ECO advice on or off.

Instruments and controls

2-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TPMS Setting

The TPMS settings menu allows the user to view or change the tire pressure units displayed in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Tire Pressure Unit

Allows user to select the tire pressure units that will display in the vehicle information display.

Clock

Allows user to adjust the clock settings and time within the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Display

Allows user to turn the display on or off.

Set Clock Manually

Allows user to set the clock manually.

Clock Format

Allows user to adjust the clock format to 24H or 12H.

Clock Mode

Allows user to adjust the clock mode to Auto, Manual or Time Zone.

Daylight Saving

Allows user to turn on or off the daylight saving mode.

Time Zone

Allows user to select a time zone.

2-30

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle Settings

The vehicle settings menu allows the user to change the settings for lights, wipers, locking, keys, and other vehicle settings.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Lighting

Displays the available lighting options.

Welcome Headlight

Allows user to turn the welcome headlight on or off.

Auto Room Lamp

Allows user to turn the auto room lamp on or off.

Accent Lighting

Allows user to adjust the accent lighting.

Brightness

Allows user to adjust the brightness of the accent lighting.

Front Seat Area

Allows user to turn the front seat area lighting on or off.

Rear Seat Area

Allows user to turn the rear seat area lighting on or off.

Light Sensitivity

Allows user to change when the light illuminate based on the brightness outside the vehicle.

Light Off Delay

Allows user to change the duration of time that the automatic headlights stay on after the vehicle is shut off.

Locking

Displays the available locking options.

Ext. Door Switch

Allows user to turn the exit door switch on or off.

Selective Unlock

Allows user to turn the selective unlock feature on or off. When this item is turned on (default), only the driver’s door is
unlocked after the driver’s door unlock operation. All the doors can be unlocked if the capacitive touch pad is pressed
within 60 seconds of the door handle capacitive unlock feature. When this feature is turned off, all the doors unlock
when the driver’s door unlock operation is performed once.

Auto Door Unlock

Allows the user to set the auto door unlock to Shift to P, Power OFF and OFF.

Horn beeps on lock

Allows the user to turn the horn beeps on lock feature on or off.

Wipers

Displays the available wiper options.

Speed Dependent

Allows user to turn the speed dependent wipers on or off.

Rain Sensor

Allows user to turn the rain sensor wipers on or off.

Reverse Link

Allows user to turn the reverse link feature on or off.

Personal Drive Mode

Displays the available INFINITI Drive Mode Selector options.

Instruments and controls

2-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Menu item

Explanation

Acceleration

Allows user to adjust the acceleration mode to SPORT, STANDARD or ECO.

Steering

Allows user to adjust the steering mode to SPORT or STANDARD.

Trace Control

Allows user to turn the Active Trace Control feature on or off.

Reset

Allows user to reset the INFINITI Drive Mode Selector settings.

Driving Position

Displays the available driving position options.

Exit Seat Slide

When the exit seat slide is on the driver’s seat will move backward for easy exit when the ignition switch is placed in the
OFF position and the driver’s door is opened. After getting into the vehicle and placing the ignition switch in the ON
position, the driver’s seat will move to the previous set position.
For additional information, see “Memory seat” (P. 3-43).

Exit Steering Up

When the exit steering up feature is turned on, the steering wheel moves upward for easy exit when the ignition switch
is in the OFF position and the driver’s door is opened. After getting into the vehicle and placing the ignition switch in
the ON position, the steering wheel moves to the previous position.
For additional information, see “Memory seat” (P. 3-43).

Rear Door Alert

Displays the available Rear Door Alert options.

Horn & Alert

When selected, the alert is displayed; and the horn sounds.

Alert Only

When selected, only the alert is displayed.

OFF

When selected, no alert or horn will be active.

2-32

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

The maintenance menu allows the user to set reminders for various vehicle maintenance items.

Some menu items shown below may not be equipped on your vehicle.

WARNING

The tire replacement indicator is not a substitute for regular tire checks, including tire pressure checks. For additional information, see
“Changing wheels and tires” (P. 8-39).
Many factors including tire inflation, alignment, driving habits and road conditions affect tire wear
and when tires should be replaced. Setting the tire replacement indicator for a certain driving distance does not mean your tires will last that
long. Use the tire replacement indicator as a guide only and always perform regular tire checks. Failure to perform regular tire checks,
including tire pressure checks could result in tire failure. Serious vehicle damage could occur and may lead to a collision, which could result in
serious personal injury or death.

Menu item

Explanation

Service

Allows user to reset the current interval. This should only be done after completing oil change maintenance.

Air Filter

Allows user to set a reminder at a specific interval or reset the current one.

Tire

This indicator appears when the customer set distance is reached for replacing tires. You can set or reset the distance
for replacing tires.

Other

This indicator appears when the customer set distance is reached for checking or replacing maintenance items other
than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. The
distance for checking or replacing the items can be set or reset.

Instruments and controls

2-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Customize Display

The customize display menu allows the user to customize the information that appears in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

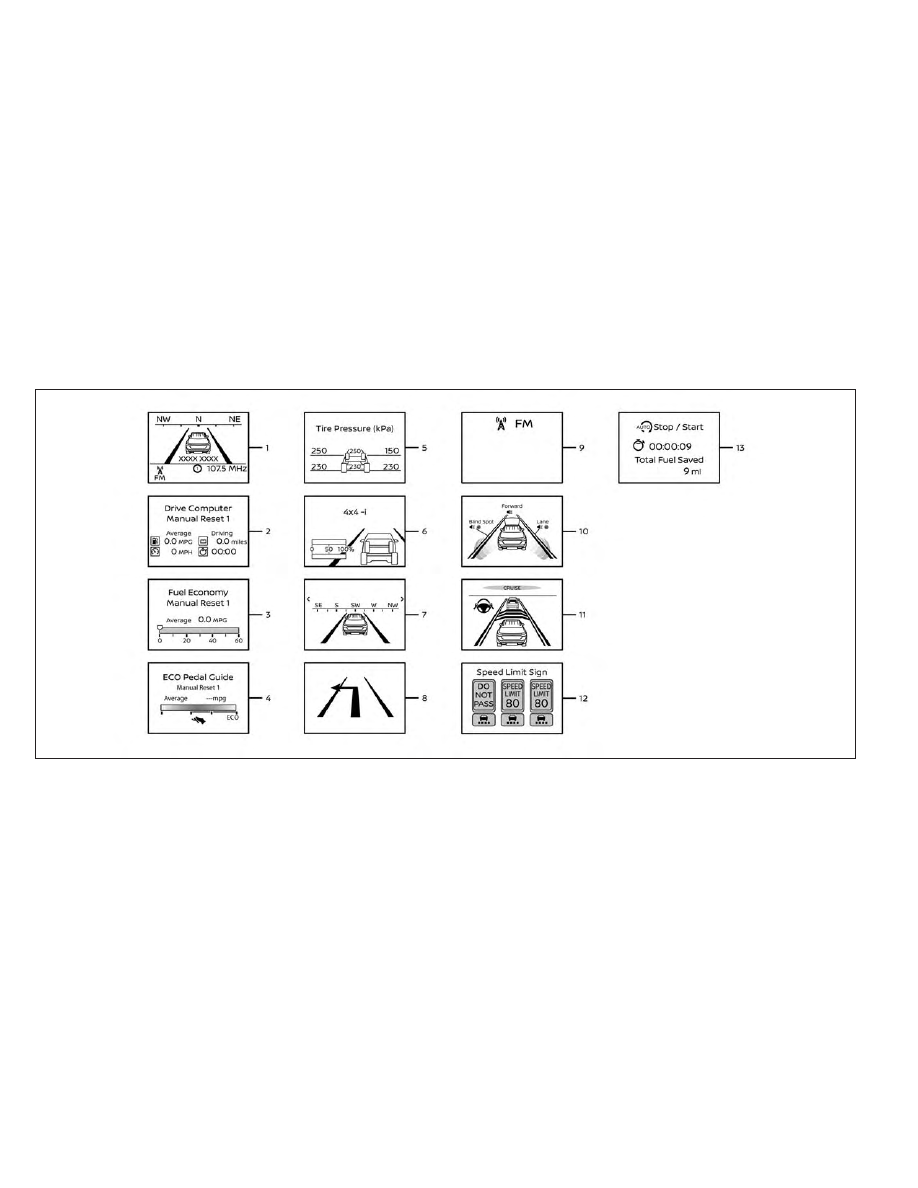

Main Menu Selection

Displays the available screens that can be shown in the vehicle information display.

Home

Allows user to turn the home screen on or off in the vehicle information display.

Blank

Allows user to turn the blank on or off in the vehicle information display.

Speed

Allows user to turn the speed screen on or off in the vehicle information display.

Drive Computer

Allows user to turn the drive computer screen on or off in the vehicle information display.

Fuel Economy

Allows user to turn the fuel economy screen on or off in the vehicle information display.

ECO Pedal Guide

Allows user to turn the ECO Pedal guide screen on or off in the vehicle information display.

TPMS

Allows user to turn the TPMS screen on or off in the vehicle information display.

Idling Stop

Allows user to turn the Idling stop screen on or off in the vehicle information display.

4x4–I

Allows user to turn the 4x4–I screen on or off in the vehicle information display.

Navigation

Allows user to turn the navigation screen on or off in the vehicle information display.

Audio

Allows user to turn the audio controls screen on or off in the vehicle information display.

Driving Aids

Allows user to turn the driving aids screen on or off in the vehicle information display.

Cruise

Allows user to turn the cruise control screen on or off in the vehicle information display.

Route Guidance

Displays the available route guidance settings.

Alerts

Allows user to turn the alerts on or off.

Transition (Cruise)

Allows user to turn the transition (cruise) on or off.

Welcome Effect

Displays the available welcome effect settings.

Gauges

Allows user to turn the gauges effect on or off.

Animation

Allows user to turn the animation effect on or off.

2-34

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Menu item

Explanation

Operation guidance

Displays the available operation guidance settings.

Lights

Allows user to turn the light mode guidance on or off.

Wiper

Displays the available wiper settings.

Front

Allows user to turn the front wiper guidance on or off.

Rear

Allows user to turn the rear wiper guidance on or off.

High Beam Assist

Allows user to turn the High Beam Assist on or off.

Seat Memory

Allows user to turn the seat memory on or off.

Cruise Control

Allows user to turn the cruise control on or off.

Unit/Language

The unit/language menu allows the user to change the units shown in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Mileage/Fuel

Displays the available mileage/fuel display units and allows user to select preferred unit for display.

Tire Pressure

Allows user to select the tire pressure display units.

Temperature

Allows user to select the temperature display units.

Language

Displays the available language options and allows user to select preferred language for display.

Instruments and controls

2-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Key-Linked Settings (if so equipped)

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Key-Linked Settings

Allows user to turn the key-linked settings on or off. This setting is enabled individually by each key. When enabled,
various settings in the vehicle information display and the driver position (if equipped) will return to the same set-
tings as the last time the linked key was used. When disabled for a key, no settings will be automatically changed
when that key is used. For additional information, see “Memory storage function” (P. 3-43).

Factory Reset

The factory reset menu allows the user to restore the vehicle information display settings to factory status.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Factory Reset

Allows user to reset the vehicle information display settings to the original factory settings. Once selected, the
user can confirm or cancel the reset.

2-36

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS

The following messages may appear in your
vehicle information display.

Engine start operation for
Intelligent Key system (if
I-Key battery level is low)

This indicator appears when the battery of
the Intelligent Key is low and when the Intel-
ligent Key system and the vehicle are not
communicating normally.

If this appears, touch the ignition switch with
the Intelligent Key while depressing the brake
pedal. For additional information, see “Bat-
tery replacement” (P. 8-24).

Key ID Incorrect

This warning appears when the ignition
switch is placed from the OFF position and
the Intelligent Key is not recognized by the
system. You cannot start the engine with an
unregistered key.

For additional information, see “INFINITI In-
telligent Key system” (P. 3-6).

I-Key System Error: See
Owner’s Manual

After the ignition switch is placed in the ON
position, this warning appears for a period of
time and then turns off.

The Key System Error message warns of a
malfunction with the Intelligent Key system.
If the warning appears while the engine is
stopped, it may be impossible to start the
engine.

If the warning appears while the engine is
running, you can drive the vehicle. However,
in these cases, have the system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.

Key low battery

This indicator appears when the Intelligent
Key battery is running out of power.

If this indicator appears, replace the battery
with a new one. For additional information,
see “Battery replacement” (P. 8-24).

No Key Detected

This warning appears when the Intelligent
Key is left outside the vehicle with the ignition
switch in the ON position. Make sure the
Intelligent Key is inside the vehicle.

For additional information, see “INFINITI In-
telligent Key system” (P. 3-6).

AFS System Error: See Owner’s Manual

This message may appear when the Adaptive
Front Lighting System (AFS) encounters an
error. For additional information, see “Adap-
tive Front Lighting System (AFS)” (P. 2-82).

Brightness indicator

This indicator shows the brightness adjust-
ment of the instrument panel. For additional
information, see “Instrument brightness con-
trol” (P. 2-83).

Caution Steep slope

This indicator appears, and a chime sounds
when the automatic brake hold function is
activated while the vehicle is on a steep hill.
Apply the foot brake to stop the vehicle mov-
ing. For additional information, see “Auto-
matic brake hold” (P. 5-27).

Chassis Control System Error See
Owner’s Manual

This warning appears if the chassis control
module detects a malfunction in the chassis
control system. Have the system checked. It
is recommended that you visit an INFINITI

Instruments and controls

2-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

retailer for this service. For additional infor-
mation, see “Chassis Control” (P. 5-170).

Check Back Seat For All Articles

When the system is enabled, this message
appears when the vehicle comes to a com-
plete stop, the vehicle is transitioned from the
D (Drive) position to P (Park) position, and the
driver exits the vehicle. This message alerts
the driver, after a period of time, to check for
items in the rear seat after the audible alert
has been provided.

NOTE:

This system is disabled until a driver enables
it using the vehicle information display. For
additional information, see “How to use the
vehicle information display” (P. 2-44).

For additional information, see “Rear Door
Alert” (P. 2-92).

Rear Door Alert is activated

When the system is enabled, this message
appears when the Rear Door Alert system is
active and can remind the driver to check the
back seat.
• Using the steering wheel switch, a driver

can select “Dismiss Message” to clear the
display for a period of time. If no selection is
made, this message automatically turns off
after a period of time.

• Using the steering wheel switch, a driver

can select “Disable Alert” to disable the
horn alert for the remainder of the current
trip.

WARNING

Selecting “Dismiss Message” during a stop
within a trip temporarily dismisses the
message for that stop without turning the
system off. Alerts can be provided for
other stops during the trip. Selecting “Dis-
able Alert” turns off the Rear Door Alert
system for the remainder of a trip and no
audible alert will be provided.

NOTE:

This system is disabled until a driver enables
it using the vehicle information display. For
additional information, see “How to use the
vehicle information display” (P. 2-44).

For additional information, see “Rear Door
Alert” (P. 2-92).

Door/Liftgate Open

This warning appears when a door or the
liftgate has been opened.

Headlight System Error: See Owner’s
Manual

This warning appears when there is an error
with the system. For additional information,
see “Headlight and turn signal switch”
(P. 2-77).

INFINITI Drive Mode Selector indicator

When a driving mode is selected using the
INFINITI Drive Mode Selector, the selected
mode indicator is displayed.
• PERSONAL
• SPORT
• STANDARD (2WD models)
• AUTO (AWD models)
• ECO
• SNOW

For additional information, see “INFINITI
Drive Mode Selector” (P. 5-29).

Low Fuel

This warning appears when the fuel level in
the fuel tank is getting low. Refuel as soon as
it is convenient, preferably before the fuel
gauge reaches 0 (Empty).

There will be a

small reserve of fuel in the tank when the fuel
gauge needle reaches 0 (Empty).

2-38

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Low Oil Pressure: See
Owner’s Manual

This warning appears in the message area of
the vehicle information display if low oil pres-
sure is detected. This gauge is not designed
to indicate low oil level.

The low oil pressure

warning is not designed to indicate a low oil
level.

Use the dipstick to check the oil level.

For additional information, see “Engine oil”
(P. 8-6).

Low Outside Temperature

This warning appears if the outside tempera-
ture is below 37°F (3°C). The temperature
can be changed to display in Celsius or Fahr-
enheit. For additional information, see “Driver
Assistance” (P. 2-28).

Low Washer Fluid

This warning appears when the windshield-
washer fluid is at a low level. Add windshield-
washer fluid as necessary. For additional in-
formation, see “Windshield-washer fluid”
(P. 8-11).

Neutral Hold Mode activated indicator

This indicator appears when the Neutral hold
mode is activated. To exit the Neutral hold
mode, place the vehicle in any other shift
position other than N (Neutral). For addi-
tional information, see “Neutral hold mode
function” (P. 5-21).

Neutral Hold Mode guidance indicator

This indicator appears after approximately
5 seconds when the shift position is in the N
(Neutral) position (Neutral hold mode is avail-
able). For additional information, see “Neu-
tral hold mode function” (P. 5-21).

Neutral Hold Mode was not activated
indicator

This indicator appears when the Neutral hold
mode is unavailable. To activate the Neutral
hold mode, wait for a while without shifting
and then perform the operations again. For
additional information, see “Neutral hold
mode function” (P. 5-21).

Parking Sensor Error: See Owner’s
Manual

This warning appears when there is an error
with the system. For additional information,
see “Front and rear sonar system” (P. 5-172).

Power will turn off to save the battery

This message appears in the vehicle informa-
tion display after a period of time if the igni-
tion switch is in the ON position and if the
vehicle is in P (Park). For additional informa-
tion, see “Push-button ignition switch posi-
tions” (P. 5-14).

Power turned off to save the battery

This message appears after the ignition
switch is automatically turned off. For addi-
tional information, see “Push-button ignition
switch positions” (P. 5-14).

Press brake pedal to prevent
rolling

This warning appears in the following situa-
tions:
• The driver tries to release the electronic

parking brake manually without depressing
the brake pedal.

• The vehicle is stopped on a steep hill and

there is a possibility of moving backward,
even if the electronic parking brake is
applied.

• This warning appears and chime sounds if

the vehicle moves while the automatic
brake hold function is activated. Apply the
foot brake to stop the vehicle moving.

Instruments and controls

2-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Press brake to operate switch

This indicator appears if the automatic brake
hold switch is pushed without depressing the
brake pedal while the automatic brake hold
function is activated. Depress the brake pedal
and push the switch to deactivate the auto-
matic brake hold function.

For additional information, see “Automatic
brake hold” (P. 5-27).

Push brake and start switch
to drive

This indicator appears when the shift position
is in the P (Park) position.

This indicator also appears when the vehicle
has been started using the Remote Engine
Start (if so equipped) function.

This indicator means that the engine will start
by pushing the ignition switch with the brake
pedal depressed. You can start the engine
from any position of the ignition switch.

Rear seat belt reminder

This rear seat belt reminder appears after
placing the ignition switch in the ON position.

If any of the rear passenger seat belts are not
fastened, the seat belt icon illuminates in red
to show which seat belt is not fastened.
When a rear passenger’s seat belt has been
securely fastened, the color of the corre-
sponding seat belt icon will change. The
warning will automatically turn off after ap-
proximately 65 seconds.

After the initial reminder is turned off (by 65
second timer or dismissing the warning in
vehicle information display) and the vehicle
speed is less than 10 mph (15 km/h), if any
rear seat belt is unfastened, the rear seat belt
reminder will display. The warning will auto-
matically turn off after approximately 95
seconds.

After the initial reminder is turned off (by 65
second timer or dismissing the warning in
vehicle information display) and the vehicle
speed is greater than 10 mph (15 km/h), if
any rear seat belt is unfastened, the rear seat
belt reminder will display and a warning
chime will sound every two seconds until the
corresponding seat belt is fastened. The
chime will automatically turn off after ap-
proximately 95 seconds. The rear seat belt
reminder will be displayed until it is dismissed
in the vehicle information display.

Reminder: Turn OFF
headlights

This warning appears when the headlights
are left in the ON position when exiting the
vehicle. Place the headlight switch in the OFF
or AUTO position. For additional informa-
tion, see “Headlight and turn signal switch”
(P. 2-77).

Shipping Mode On Push Storage Fuse

This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-
tional information, see “Extended storage
switch” (P. 2-99).

Steep Slope Apply foot brake

This indicator appears, and chime sounds if
the “Caution Steep slope” has appeared over
about 3 minutes. Then the parking brake will
automatically be applied and the brake force
of the automatic brake hold will be released,
and the vehicle may move or roll away unex-
pectedly. Apply the foot brake to stop the
vehicle moving.

For additional information, see “Automatic
brake hold” (P. 5-27).

2-40

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Timer Alert — Have a break?

This indicator appears when the set time is
reached. The time can be set up to six hours.
For additional information, see “Driver Assis-
tance” (P. 2-28).

Tire Pressure Low - Add Air

This warning appears when the low tire pres-
sure warning light in the meter illuminates
and low tire pressure is detected. The
warning appears each time the ignition
switch is placed in the ON position as long as
the low tire pressure warning light remains
illuminated. If this warning appears, stop the
vehicle and adjust the tire pressures of all four
tires to the recommended COLD tire pres-
sure shown on the Tire and Loading Informa-
tion label. For additional information, see
“Low tire pressure warning light” (P. 2-18)
and

“Tire

Pressure

Monitoring

System

(TPMS)” (P. 5-5).

TPMS Error: See Owner’s Manual

This warning appears when there is an error
with your TPMS. If this warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

Transmission Shift Position
indicator

This indicator shows the transmission shift
position.

When parked apply parking
brake

This message appears when a malfunction
occurs in the electric shift control system be-
low 6 mph (10 km/h).

Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

AWD Error: See Owner’s Manual

This warning appears when the Intelligent
All-Wheel Drive (AWD) system is not func-
tioning properly while the engine is running.
Reduce vehicle speed and have your vehicle
checked by an INFINITI retailer as soon as
possible. For additional information, see “In-
telligent All-Wheel Drive (AWD)” (P. 5-161).

AWD High Temp. Stop Vehicle

This warning appears when the oil tempera-
ture of the powertrain parts will increase due
to the difference in rotation between the
front and rear wheels is large (wheel slip),
such as when driving the vehicle on rough
roads, through sand or mud, or freeing a
stuck vehicle. If this warning is displayed, stop

the vehicle with the engine idling, as soon as it
is safe to do so. In these cases, the AWD
changes to 2WD to protect the powertrain
parts. Then if the warning turns off, you can
continue AWD driving.

Tire Size Incorrect: See Owner’s Manual

This warning may appear if there is a large
difference between the diameters of the
front and rear wheels. Pull off the road in a
safe area, with the engine idling. Check that
all the tire sizes, brand, construction and
tread patterns are the same, that the tire
pressure is correct and that the tires are not
excessively worn. If you have any problems,
please change tires or adjust to the correct
tire pressure. Do not select the SNOW mode
with the INFINITI Drive Mode Selector and
do not drive fast. For additional information,
see “Intelligent All-Wheel Drive (AWD)”
(P. 5-161).

Forward Emergency Braking
(FEB) with Pedestrian
Detection emergency warning
indicator

This indicator appears along, with an audible
warning, when the system detects the possi-
bility of a forward collision.

Instruments and controls

2-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For additional information, see “Forward
Emergency Braking (FEB) with Pedestrian
Detection” (P. 5-128).

Blind Spot Warning
(BSW)/Blind Spot
Intervention® (BSI) indicator

This indicator appears when the BSW or BSI
system is unavailable.

For additional information, see “Blind Spot
Warning (BSW)” (P. 5-49) or “Blind Spot In-
tervention® (BSI)” (P. 5-61).

Cruise control indicator

This indicator shows the cruise control sys-
tem status.

When cruise control is activated, a green
circle will illuminate to indicate it is set. The
vehicle information display will also display
the speed the cruise control was set at. If you
accelerate past the set speed, the speed will
blink until you either cancel cruise control or
go back to the set speed. If cruise control is on
and canceled, the speed will be displayed to
show the speed the vehicle will return to if the
resume button is activated.

Driver Attention Alert
Malfunction

This warning appears when the Driver Atten-
tion Alert (DAA) system is not functioning
properly. For additional information, see
“Driver Attention Alert (DAA)” (P. 5-156).

Driver Attention Alert— Take
a Break?

This alert appears when the system has de-
tected that the driver may be displaying fa-
tigue or a lack of attention.

Forward Driving Aids temporarily
disabled Front Sensor blocked See
Owner’s Manual

This message appears when the front radar
sensor may be obstructed due to:
• mud, dirt, snow, ice, etc.
• inclement weather (rain, fog, snow, etc.).

All forward driving aids are temporarily dis-
abled until the system detects that the front
radar sensor is no longer obstructed.

For additional information, see (if so equipped):
• Forward Emergency Braking (FEB) with

Pedestrian Detection (P. 5-128)

• ProPILOT Assist (P. 5-84)
• Predictive

Forward

Collision

Warning

(PFCW) (P. 5-140)

Idling Stop System

This indicator shows the Idling Stop System
status.

For addition information, see “Idling Stop
System” (P. 5-178).

Lane Departure Warning
(LDW) indicator

This indicator appears when the LDW system
is unavailable.

For additional information, see “Lane Depar-
ture Warning (LDW)” (P. 5-36).

Malfunction: See Owner’s Manual

This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly:
• Rear Automatic Braking (RAB)
• Traffic Sign Recognition (TSR)

If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

2-42

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Malfunction warning

This warning appears when one or more of
the following systems (if so equipped) mal-
function:
• Rear Cross Traffic Alert (RCTA)
• Forward Emergency Braking with Pedes-

trian Detection

• Predictive

Forward

Collision

Warning

(PFCW)

If one or more of these warning appears,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

Not Available System Malfunction

This warning appears when one or more of
the following systems (if so equipped) is not
functioning properly.
• ProPILOT
• Blind Spot Warning (BSW)
• Blind Spot Intervention® (BSI)
• Lane Departure Warning (LDW)
• Lane Departure Prevention (LDP)

If one or more of these warnings appear,
have the system checked. It is recommended
that you visit an INFINITI retailer for this
service.

For additional information, see “ProPILOT
Assist” (P. 5-84), “Blind Spot Intervention®
(BSI)” (P. 5-61), “Blind Spot Warning (BSW)”
(P. 5-49), “Lane Departure Warning (LDW)”
(P. 5-36) or “Lane Departure Prevention
(LDP)” (P. 5-43).

Rear Automatic Braking
(RAB) system warning
indicator

This indicator appears to indicate the status
of the Rear Automatic Braking (RAB) system.
For additional information, see “Rear Auto-
matic Braking (RAB)” (P. 5-121).

Unavailable: High Cabin Temperature

This message appears when the camera de-
tects an interior temperature of more than
104°F (40°C). For additional information,
see (if so equipped) “ProPILOT Assist”
(P. 5-84), “Lane Departure Prevention (LDP)”
(P. 5-43), “Lane Departure Warning (LDW)”
(P. 5-36) or “Blind Spot Intervention® (BSI)”
(P. 5-61).

Unavailable Side Radar Obstruction

This message appears when the Blind Spot
Warning (BSW) or Rear Cross Traffic Alert
(RCTA) systems become unavailable because
a radar blockage is detected. For additional
information, see (if so equipped) “Blind Spot
Warning (BSW)” (P. 5-49), “Blind Spot Inter-
vention (BSI)” (P. 5-61) or “Rear Cross Traffic
Alert (RCTA)” (P. 5-72).

Vehicle ahead detection
indicator

This indicator shows when the following sys-
tems are engaged and have detected a ve-
hicle:
• Forward Emergency Braking (FEB) with

Pedestrian Detection

• Predictive

Forward

Collision

Warning

(PFCW)

For additional information, see “Forward
Emergency Braking (FEB) with Pedestrian
Detection” (P. 5-128) or “Predictive Forward
Collision Warning (PFCW)” (P. 5-140).

Instruments and controls

2-43

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The vehicle information display is located to
the left of the speedometer. It displays such
items as:
• Vehicle settings
• Indicators and warnings
• Information/warning messages
• Tire pressure information
• Drive computer information
• Cruise control system information
• Driving Aids (if so equipped)
• ProPILOT Assist (if so equipped)
• INFINITI

Intelligent

Key

operation

information

• Audio information
• Compass and navigation information (if so

equipped)

• Shift position
• Distance to empty
• Odometer/twin trip odometer
• Clock and outside temperature
• Intelligent All-Wheel Drive (AWD) (if so

equipped)

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

The vehicle information display can be navi-
gated using the

,

buttons and

scroll dial located on the steering wheel.

1.

,

— navigate through the items in

the vehicle information display.

2. Scroll dial — Use the scroll dial to navigate

through the items and change or select an
item in the vehicle information display.
The scroll dial allows up or down naviga-
tion and press to select.

LIC4677

LIC4871

VEHICLE INFORMATION DISPLAY
12.3 INCH (31 cm) TYPE B (if so
equipped)

2-44

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Short cut menu button— Press this button

to open a shortcut menu.

4.

— go back to the previous menu

STARTUP DISPLAY

When the vehicle in placed in the ON position
the screens that display in the vehicle infor-
mation include:
• Active system status (if so equipped)
• Drive computer
• Fuel economy
• Distance to empty
• Tire pressure information
• Intelligent AWD (if so equipped)
• Navigation (if so equipped)
• Audio
• Warnings

Warnings will only display if there are any
present. For additional information on warn-
ings and indicators see “Vehicle information
display warnings and indicators” (P. 2-60).

To control what items display in the vehicle
information display, see “Customize Display”
(P. 2-58).

Instruments and controls

2-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TRIP COMPUTER

1. Home

The Home mode shows the following infor-
mation:
• Vehicle speed

• Navigation (if so equipped)
• Audio

The Home display will switch to the Audio
display by pressing the OK button.

LIC4921

2-46

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Drive Computer

Average fuel consumption:

The average fuel consumption shows the av-
erage fuel consumption since the last reset.

Average speed:

The average speed shows the average ve-
hicle speed since the last reset.

Trip odometer:

The trip odometer shows the total distance
the vehicle has been driven since the last
reset.

Elapsed time:

The elapsed time shows the time since the
last reset.

The Drive computer mode has three modes
of operation. You can switch between
Manual Reset1, Manual Reset2 or Auto Re-
fuel by pushing the scroll dial.

Manual Reset1 can be reset manually by us-
ing the scroll dial.

Manual Reset2 (if so equipped) can be reset
manually by using the scroll dial or will be
reset automatically each time the ignition
switch is placed in the OFF position.

Auto Refuel will be reset automatically each
time when refueling.

3. Fuel economy display

Current fuel consumption:

The Fuel economy display mode shows the
current fuel consumption.

Average fuel consumption:

The Fuel economy display mode shows the
average fuel consumption since the last reset.

The Fuel economy display mode has three
modes of operation. You can switch between
Manual Reset1, Manual Reset2 or Auto Re-
fuel by pushing the scroll dial.

Manual Reset1 can be reset manually by us-
ing the scroll dial.

Manual Reset2 (if so equipped) can be reset
manually by using the scroll dial or will be
reset automatically each time the ignition
switch is placed in the OFF position.

Auto Refuel will be reset automatically each
time when refueling.

4. Eco Pedal Guide

When the ECO mode is selected, you can
view ECO Pedal Guide function for improv-
ing fuel economy.

The ECO Pedal Guide mode has three modes
of operation. You can switch between

Manual Reset1, Manual Reset2 or Auto Re-
fuel by pushing the scroll dial.

Manual Reset1 can be reset manually by us-
ing the scroll dial.

Manual Reset2 (if so equipped) can be reset
manually by using the scroll dial or will be
reset automatically each time the ignition
switch is placed in the OFF position.

Auto Refuel will be reset automatically each
time when refueling.

For additional information, see “ECO Mode”
(P. 5-32).

5. Tire Pressures

The tire pressure mode shows the pressure of
all four tires while the vehicle is driven.

With the “Tire Pres ECO advice” function ON,
when the tire pressure is getting low, “Check
Tire Pressures for Best Fuel Economy” or
“Add air for Best Fuel Economy” appears. For
additional information, see “ECO Mode Set-
ting” (P. 2-54) or “Tire Pres ECO advice”
(P. 2-54).

When the “Tire Pressure Low — Add Air”
warning appears, the display can be switched
to the tire pressure mode by pushing the
scroll dial to reveal additional details on the
displayed warning.

Instruments and controls

2-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. Intelligent All-Wheel Drive
(AWD) torque distribution display
(if so equipped)

When the Intelligent AWD torque distribution
display is selected, you can view the distribu-
tion ratio of the transmission torque to the
front and rear wheels during driving.

7. Compass (if so equipped)

This display indicates the direction the vehicle
is heading.

8. Navigation (if so equipped)

When the route guidance is set in the naviga-
tion system, this item shows the navigation
route information.

9. Audio

The audio mode shows the status of audio
information.

10. Driver Assistance

The Driver Assistance mode shows the oper-
ating condition for the following systems:
• Forward

–– Forward Emergency Braking (FEB) with

Pedestrian Detection system

–– Predictive Forward Collision Warning

(PFCW)

• Lane:

–– Lane Departure Warning (LDW)
–– Lane Departure Prevention (LDP)

• Blind Spot:

–– Blind Spot Warning (BSW)
–– Blind Spot Intervention® (BSI) (if so

equipped)

For additional information, see “Blind Spot
Intervention® (BSI)” (P. 5-61), “Blind Spot
Warning (BSW)” (P. 5-49), “Lane Departure
Warning (LDW)” (P. 5-36), “Forward Emer-
gency Braking (FEB) with Pedestrian Detec-
tion” (P. 5-128), “Predictive Forward Collision
Warning (PFCW)” (P. 5-140) or “Lane Depar-
ture Prevention (LDP)” (P. 5-43).

11. ProPILOT Assist (if so
equipped)

The ProPILOT Assist mode shows operating
conditions for the following systems:
• Intelligent Cruise Control (ICC)
• Steering Assist

The display will also be shown when the Pro-
PILOT Assist is turned on. For additional in-
formation, see “ProPILOT Assist” (P. 5-84).

12. Traffic Sign Recognition (if so
equipped)

The Traffic Sign Recognition (TSR) system
provides the driver with information about
the most recently detected speed limit.

For additional information, see “Traffic Sign
Recognition (TSR) (P. 5-34).

13. Idling Stop System

The Idling Stop System provides the driver
with information about the amount of fuel
saved while using the system.

For additional information, see “Idling Stop
System” (P. 5-178).

2-48

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CHANGING THE METER SCREEN

VIEW

1.

Tachometer

2.

Engine coolant temperature gauge

3.

Personal display

4.

Speedometer

5.

Fuel gauge

For models with the full-screen display, the
meter screen view can be changed to expand
the vehicle information display.

To change the meter screen view:

1. Push the shortcut menu button

O

A

on the

left side of the steering wheel. “Shortcut
Menu” appears on the vehicle information
display.

2. Select “Change Meter View” by rotating

the scroll dial

O

B

and pushing it to change

the view.

OIL CONTROL SYSTEM (if so
equipped)

The oil control system can be accessed in the
Maintenance portion of the vehicle informa-
tion display settings.

Engine oil information informs the distance
to oil change. Never exceed one year or
10,000 miles (16,000 km) between oil
change intervals for the 3.5L 6 cylinder
(VQ35DD engine model).

LIC4917

Instruments and controls

2-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Display when
ignition is ON

Display timing

Action Required

Engine Oil Ser-
vice due in xxx
miles

Remaining oil
life is less than
940 miles
(1500 km).

Plan to have
your vehicle
serviced.

Engine Oil Ser-
vice due

Remaining oil
life is 0 miles (0
km).

Have your ve-
hicle serviced
within two
weeks or less
than 500 miles
(800 km).

The oil change interval cannot be adjusted
manually.

The distance to oil change interval is calcu-
lated depending on the driving conditions and
set automatically by the oil control system. A
reminder will be displayed when approaching
the end of the service interval.

When the Factory Reset option is selected in
the vehicle information display, the oil control
system will also be reset to initial value.
Please change the engine oil when Factory
Reset is selected.

CAUTION

If the oil replacement indicator is displayed,
change the engine oil within two weeks or
less than 500 miles (800 km).

Operating the vehicle with deteriorated oil
can damage the engine.

To reset oil control system:

1. Place the ignition switch in the ON

position.

2. Push the

and

buttons located

on the steering wheel until “Settings” dis-
plays in the vehicle information display.
Use the scroll dial to select “Maintenance”.
Then, press the scroll dial.

3. Select “Service” and press the scroll dial.

4. Press the scroll dial according to the reset

instructions displayed at the bottom of
the “Service” maintenance screen.

For additional information, see “Mainte-
nance” (P. 2-58).

SETTINGS

The setting mode allows you to change the
information displayed in the vehicle informa-
tion display:
• VDC Setting
• Driver Assistance
• Personal Display
• Head-Up Display (if so equipped)
• ECO Mode Setting
• TPMS Setting
• Clock
• Vehicle Settings
• Maintenance
• Customize Display
• Unit/Language
• Factory Reset

2-50

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VDC Setting

The VDC Setting menu allows the user to enable or disable the Vehicle Dynamic Control (VDC) system.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

System

Allows the user to turn the VDC system on or off. For additional information, see “Vehicle Dynamic Control (VDC)
system” (P. 5-168).

Driver Assistance

The driver assistance menu allows the user to change the various driving aids, parking aids and braking features.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Steering Assist

Allows user to turn the Steering Assist of the ProPILOT Assist system on or off. For additional information, see “Pro-
PILOT Assist” (P. 5-84).

Lane Assist

Displays available lane options.

Warning

Allows user to turn the Lane Departure Warning (LDW) system on or off. For additional information, see “Lane Depar-
ture Warning (LDW)” (P. 5-36).

Intervention

Allows user to turn Lane Departure Prevention (LDP) system on or off. For additional information, see “Lane Depar-
ture Prevention (LDP)” (P. 5-43).

Blind Spot Assist

Displays available blind spot options.

Warning

Allows user to turn the Blind Spot Warning (BSW) system on or off. For additional information, see “Blind Spot
Warning (BSW)” (P. 5-49).

Intervention

Allows user to turn the Blind Spot Intervention

®

(BSI) system on or off. For additional information, see “Blind Spot In-

tervention

®

(BSI)” (P. 5-61).

Instruments and controls

2-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Menu item

Explanation

Emergency Assist

Displays available emergency brake options.

Front

Allows user to turn the front emergency braking system on or off. For additional information, see “Forward Emergency
Braking (FEB) with Pedestrian Detection” (P. 5-128) and “Predictive Forward Collision Warning (PFCW)” (P. 5-140).

Rear

Allows user to turn the rear emergency braking system on or off. For additional information, see “Rear Automatic
Braking (RAB)” (P. 5-121).

Speed Limit Sign

Allows user to turn the Speed Limit Sign on or off. For additional information, see “Traffic Sign Recognition (TSR)”
(P. 5-34).

Speed Adjust by Route

Allows user to turn the speed adjust by route feature on or off.

Spd.Limit Assist

Allows user to turn the speed limit assist to OFF, Manual or Auto.

Parking Aids

Displays available parking aids.

Moving Object

Allows user to turn the Moving Object Detection (MOD) on or off. For additional information, see “Moving Object De-
tection (MOD)” (P. 4-23).

Auto Show Sonar

Allows user to auto display the sonar. For additional information, see “Front and rear sonar system” (P. 5-172).

Front Sonar

Allows user to turn the front sonar on or off.

Rear Sonar

Allows user to turn the rear sonar on or off.

Sonar Distance

Allows user to set the distance sensor range to Long/Medium/Short.

Sonar Volume

Allows the user to set the parking sensor volume to High/Medium/Low.

Rear Cross Traffic Alert

Allows user to turn the Rear Cross Traffic Alert (RCTA) system on or off. For additional information, see “Rear Cross
Traffic Alert (RCTA)” (P. 5-72).

Driver Alertness

Allows user to turn the Driver Attention Alert (DAA) system on or off. For additional information, see “Driver Attention
Alert (DAA)” (P. 5-156).

Timer Alert

Allows user to set the timer alert.

Low Temp. Alert

Allows user to turn the low temperature alert on or off.

2-52

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Personal Display

The Personal Display menu allows the user to set various screens in the personal display area in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Blank

Allows user to select the blank screen.

Navigation

Allows user to select the navigation screen.

Time to Destination

Allows user to select the time to destination screen.

Fuel Economy

Allows user to select the fuel economy screen.

Trip

Allows user to select the trip screen.

Gear position

Allows user to select the gear position screen.

Average speed

Allows user to select the average speed screen.

Head-Up Display (if so equipped)

The Head—Up Display menu allows the user to control the Head—Up Display feature.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Brightness

Allows user to change the brightness.

Height

Allows user to change the height.

Rotation

Allows user to change the rotation.

Contents selection

Displays the available content in the Head-Up Display.

Navigation

Allows user to turn the navigation on or off.

Driving Assist

Allows user to turn the driving assist on or off.

Speed Limit Sign

Allows user to turn the speed limit sign on or off.

Audio

Allows user to turn the audio on or off.

TEL/SMS

Allows user to turn the TEL/SMS on or off.

Reset

Allows user to reset the settings. Once selected, the user can confirm or cancel the reset.

Instruments and controls

2-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ECO Mode Setting

The ECO mode setting menu allows the user to change the settings for the ECO mode.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

ECO Customize

Displays available ECO mode settings.

Cruise Control

Allows user to turn the cruise control mode on or off. For additional information, see “Cruise Control” (P. 5-83).

Idling stop

Allows user to turn the Idling Stop System (ISS) on or off. For additional information, see “Idling Stop System”
(P. 5-178).

Air Conditioning

Allows user to turn the Air Conditioning mode on or off. For additional information, see “ECO Mode” (P. 5-32).

ECO Drive Assist

Displays available ECO information settings.

ECO Indicator

Allows user to turn the ECO indicator on or off.

ECO Drive Report

Allows user to turn the ECO Drive Report on or off.

View History

Displays the history report for the vehicle.

Tire Pres ECO advice

Allows user to turn the tire pressure ECO advice on or off.

TPMS Setting

The TPMS settings menu allows the user to view or change the tire pressure units displayed in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Tire Pressure Unit

Allows user to select the tire pressure units that will display in the vehicle information display.

2-54

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Clock

Allows user to adjust the clock settings and time within the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Display

Allows user to turn the display on or off.

Clock Mode

Allows user to adjust the clock mode to Auto, Manual or Time Zone.

Clock Format

Allows user to adjust the clock format to 24H or 12H.

Daylight Saving

Allows user to turn on or off the daylight saving mode.

Time Zone

Allows user to select a time zone.

Set Clock Manually

Allows user to set the clock manually.

Vehicle Settings

The vehicle settings menu allows the user to change the settings for lights, wipers, locking, keys, and other vehicle settings.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Lighting

Displays the available lighting options.

Welcome Headlight

Allows user to turn the welcome headlight on or off.

Auto Room Lamp

Allows user to turn the auto room lamp on or off.

Accent Lighting

Allows user to adjust the accent lighting.

Brightness

Allows user to adjust the brightness of the accent lighting.

Front Seat Area

Allows user to turn the front seat area lighting on or off.

Rear Seat Area

Allows user to turn the rear seat area lighting on or off.

Light Sensitivity

Allows user to change when the light illuminate based on the brightness outside the vehicle.

Light Off Delay

Allows user to change the duration of time that the automatic headlights stay on after the vehicle is shut off.

Locking

Displays the available locking options.

Instruments and controls

2-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Menu item

Explanation

Ext. Door Switch

Allows user to turn the exit door switch on or off.

Selective Unlock

Allows user to turn the selective unlock feature on or off. When this item is turned on (default), only the driver’s door is
unlocked after the driver’s door unlock operation. All the doors can be unlocked if the capacitive touch pad is pressed
within 60 seconds of the door handle capacitive unlock feature. When this feature is turned off, all the doors unlock
when the driver’s door unlock operation is performed once.

Auto Door Unlock

Allows the user to set the auto door unlock to Shift to P, IGN OFF and OFF.

Horn beeps on lock

Allows the user to turn the horn beeps on lock feature on or off.

Wipers

Displays the available wiper options.

Speed Dependent

Allows user to turn the speed dependent wipers on or off.

Rain Sensor

Allows user to turn the rain sensor wipers on or off.

Reverse Link

Allows user to turn the reverse link feature on or off.

Personal Drive Mode

Displays the available INFINITI Drive Mode Selector options.

Acceleration

Allows user to adjust the acceleration mode to SPORT, STANDARD or ECO.

Steering

Allows user to adjust the steering mode to SPORT or STANDARD.

Trace Control

Allows user to turn the Active Trace Control feature on or off.

Reset

Allows user to reset the INFINITI Drive Mode Selector settings.

Driving Position

Displays the available driving position options.

Exit Seat Slide

When the exit seat slide is on the driver’s seat will move backward for easy exit when the ignition switch is placed in the
OFF position and the driver’s door is opened. After getting into the vehicle and placing the ignition switch in the ON
position, the driver’s seat will move to the previous set position.
For additional information, see “Memory seat” (P. 3-43).

Exit Steering Up

When the exit steering up feature is turned on, the steering wheel moves upward for easy exit when the ignition switch
is in the OFF position and the driver’s door is opened. After getting into the vehicle and placing the ignition switch in
the ON position, the steering wheel moves to the previous position.
For additional information, see “Memory seat” (P. 3-43).

Rear Door Alert

Displays the available Rear Door Alert options.

Horn & Alert

When selected, the alert is displayed; and the horn sounds.

Alert Only

When selected, only the alert is displayed.

OFF

When selected, no alert or horn will be active.

2-56

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

The maintenance menu allows the user to set reminders for various vehicle maintenance items.

Some menu items shown below may not be equipped on your vehicle.

WARNING

The tire replacement indicator is not a substitute for regular tire checks, including tire pressure checks. For additional information, see
“Changing wheels and tires” (P. 8-39).
Many factors including tire inflation, alignment, driving habits and road conditions affect tire wear
and when tires should be replaced. Setting the tire replacement indicator for a certain driving distance does not mean your tires will last that
long. Use the tire replacement indicator as a guide only and always perform regular tire checks. Failure to perform regular tire checks,
including tire pressure checks could result in tire failure. Serious vehicle damage could occur and may lead to a collision, which could result in
serious personal injury or death.

Menu item

Explanation

Service

Allows user to reset the current interval. This should only be done after completing oil change maintenance.

Air Filter

Allows user to set a reminder at a specific interval or reset the current one.

Tire

This indicator appears when the customer set distance is reached for replacing tires. You can set or reset the distance
for replacing tires.

Other

This indicator appears when the customer set distance is reached for checking or replacing maintenance items other
than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. The
distance for checking or replacing the items can be set or reset.

Instruments and controls

2-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Customize Display

The customize display menu allows the user to customize the information that appears in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Main Menu Selection

Displays the available screens that can be shown in the vehicle information display.

Home

Allows user to turn the home screen on or off in the vehicle information display.

Blank

Allows user to turn the blank on or off in the vehicle information display.

Drive Computer

Allows user to turn the drive computer screen on or off in the vehicle information display.

Fuel Economy

Allows user to turn the fuel economy screen on or off in the vehicle information display.

TPMS

Allows user to turn the TPMS screen on or off in the vehicle information display.

4x4–I

Allows user to turn the 4x4–I screen on or off in the vehicle information display.

Idling stop

Allows user to turn the Idling stop screen on or off in the vehicle information display.

Compass

Allows user to turn the compass screen on or off in the vehicle information display.

Navigation

Allows user to turn the navigation screen on or off in the vehicle information display.

Speed Limit Sign

Allows user to turn the speed limit sign screen on or off in the vehicle information display.

Audio

Allows user to turn the audio controls screen on or off in the vehicle information display.

Driving Aids

Allows user to turn the driving aids screen on or off in the vehicle information display.

Cruise

Allows user to turn the cruise control screen on or off in the vehicle information display.

Route Guidance

Displays the available route guidance settings.

Alerts

Allows user to turn the alerts on or off.

Transition (Cruise)

Allows user to turn the transition (cruise) on or off.

Welcome Effect

Displays the available welcome effect settings.

Gauges

Allows user to turn the gauges effect on or off.

Animation

Allows user to turn the animation effect on or off.

2-58

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Menu item

Explanation

Operation guidance

Displays the available operation guidance settings.

Lights

Allows user to turn the light mode guidance on or off.

Wiper

Displays the available wiper settings.

Front

Allows user to turn the front wiper guidance on or off.

Rear

Allows user to turn the rear wiper guidance on or off.

High Beam Assist

Allows user to turn the High Beam Assist on or off.

Seat Memory

Allows user to turn the seat memory on or off.

Cruise Control

Allows user to turn the cruise control on or off.

Unit/Language

The unit/language menu allows the user to change the units shown in the vehicle information display.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Mileage/Fuel

Displays the available mileage/fuel display units and allows user to select preferred unit for display.

Tire Pressure

Allows user to select the tire pressure display units.

Temperature

Allows user to select the temperature display units.

Language

Displays the available language options and allows user to select preferred language for display.

Factory Reset

The factory reset menu allows the user to restore the vehicle information display settings to factory status.

Some menu items shown below may not be equipped on your vehicle.

Menu item

Explanation

Factory Reset

Allows user to reset the vehicle information display settings to the original factory settings. Once selected, the
user can confirm or cancel the reset.

Instruments and controls

2-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
