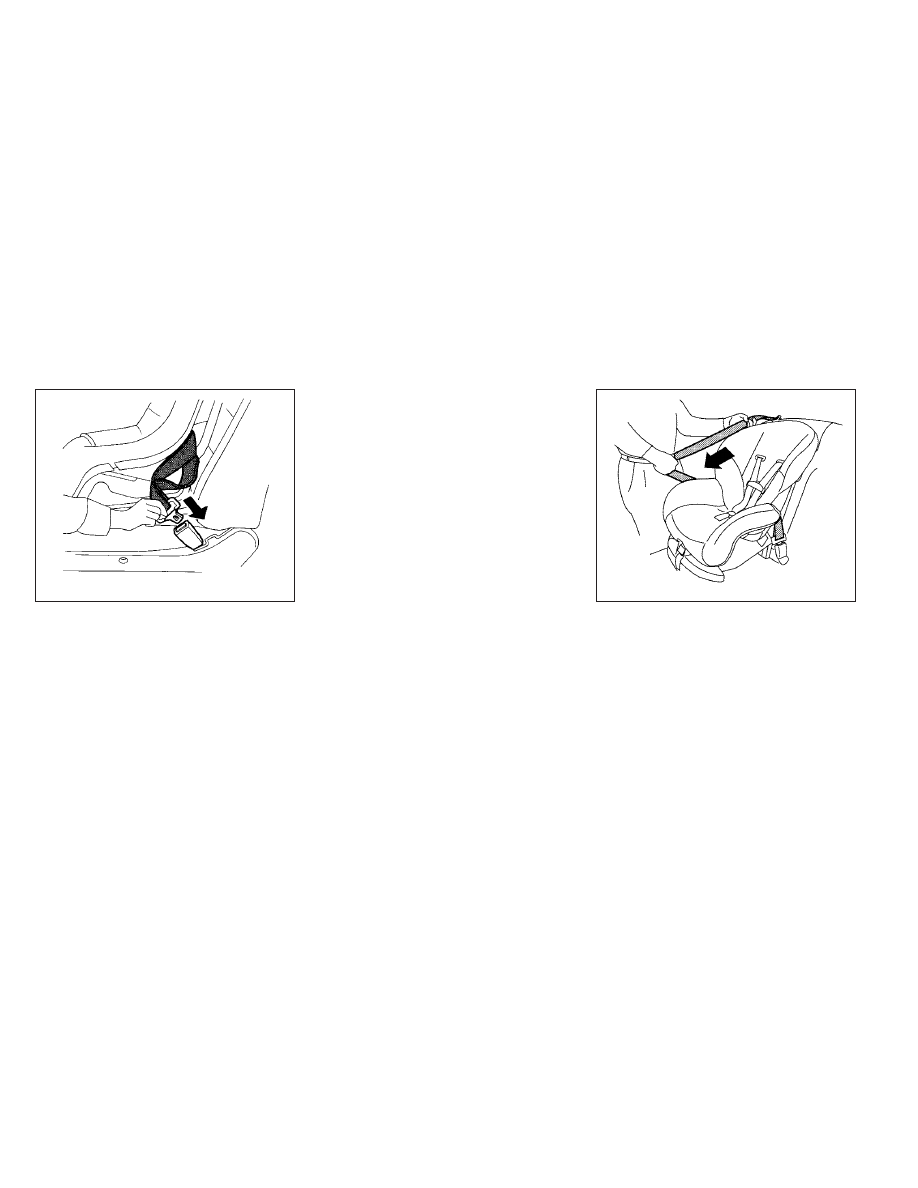

2. Route the seat belt tongue through the

child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.

3. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to the ELR mode when
the seat belt is fully retracted.

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

WRS0761

Rear-facing – step 2

LRS2395

Rear-facing – step 3

LRS2396

Rear-facing – step 4

1-40

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

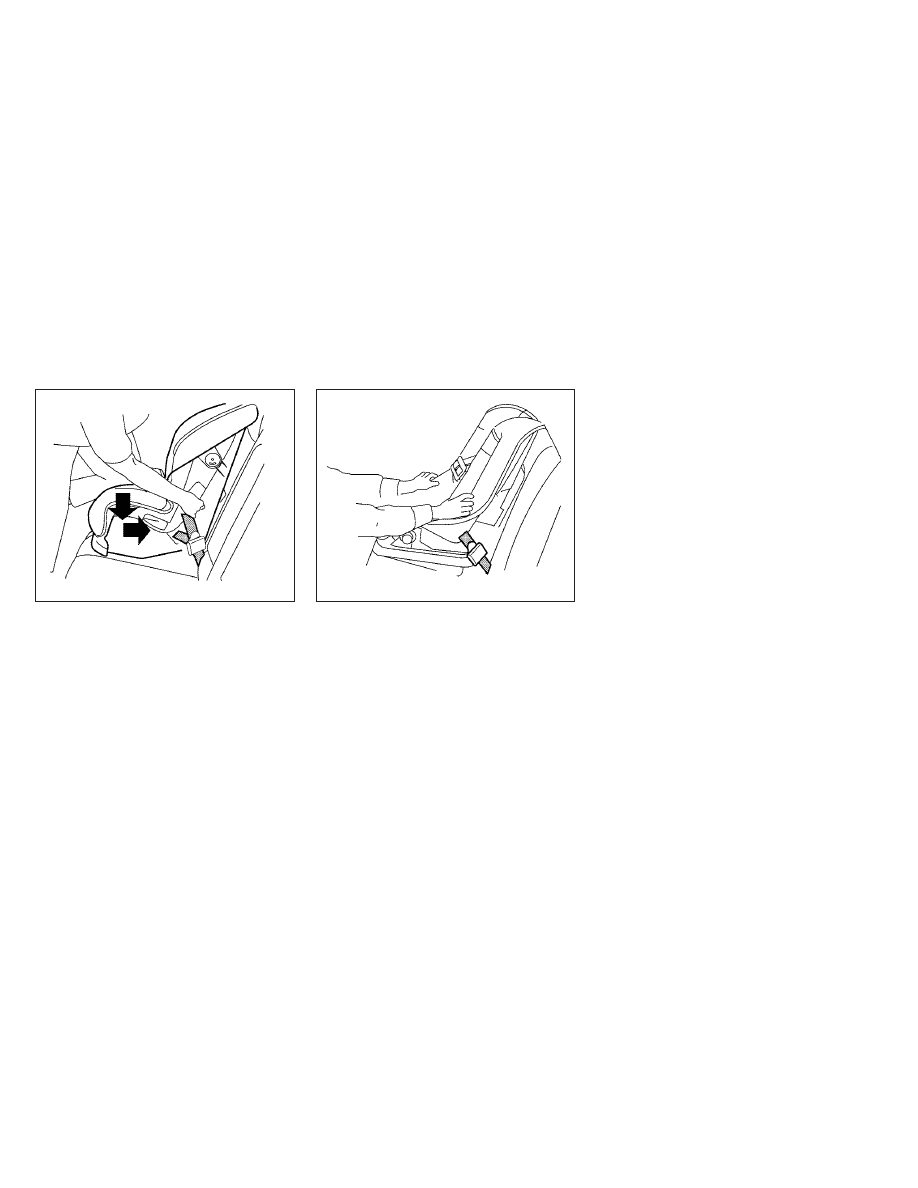

5. Remove any additional slack from the seat

belt; press downward and rearward firmly
in the center of the child restraint to com-
press the vehicle seat cushion and seat-
back while pulling up on the seat belt.

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

7. Check to make sure that the child restraint

is properly secured prior to each use. If the
seat belt is not locked, repeat steps 1
through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode (child
restraint mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING LATCH

For additional information, see “Child safety”
(P. 1-25) and “Child restraints” (P. 1-28) be-
fore installing a child restraint.

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.

Follow these steps to install a forward-
facing child restraint in the 2nd row seats
using the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer's instructions.

WRS0762

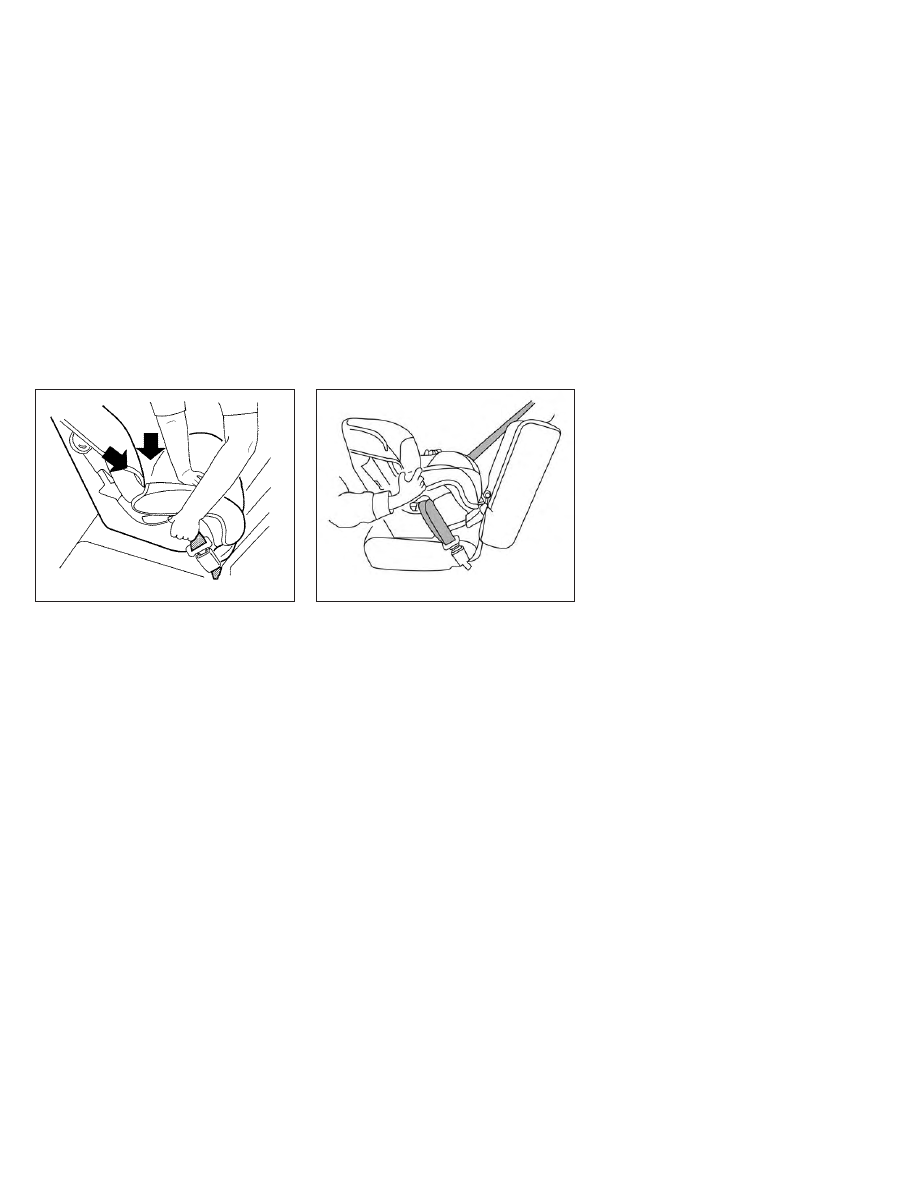

Rear-facing – step 5

LRS2397

Rear-facing – step 6

Safety-Seats, seat belts and supplemental restraint system

1-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Secure the child restraint anchor attach-

ments to the LATCH lower anchors.
Check to make sure the LATCH attach-
ment is properly attached to the lower
anchors.

If the child restraint is equipped with a top
tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point. For additional information,
see “Installing top tether strap” (P. 1-44).

Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.

3. The back of the child restraint should be

secured against the vehicle seatback.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place.

Be sure to reinstall the head

restraint/headrest when the child re-
straint is removed.

For additional infor-

mation, see “Head restraints/headrests”
(P. 1-12).

If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper child re-
straint fit, try another seating position or a
different child restraint.

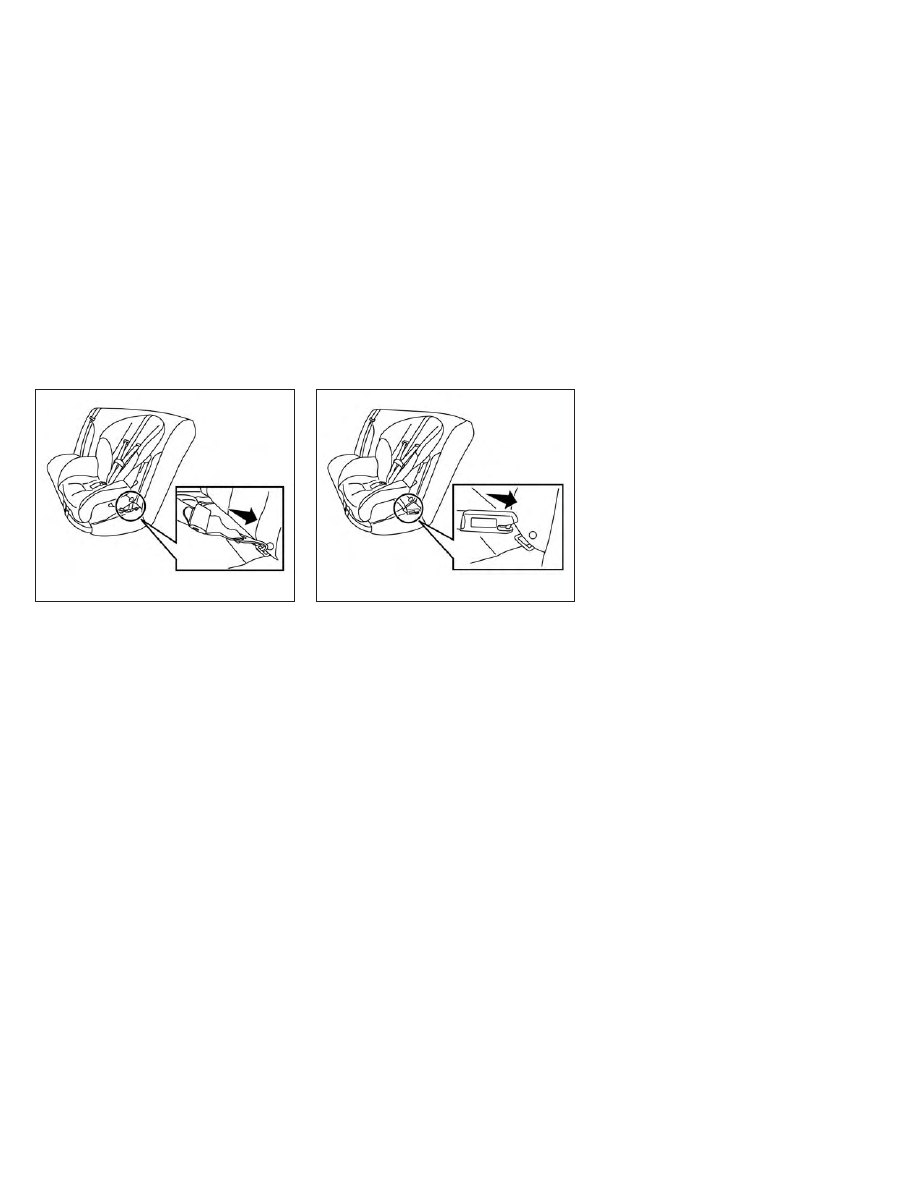

LRS2995

Forward-facing webbing-mounted – step 2

LRS2994

Forward-facing rigid-mounted – step 2

1-42

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. For child restraints that are equipped with

webbing-mounted attachments, remove
any additional slack from the anchor at-
tachments. Press downward and rear-
ward firmly in the center of the child re-
straint with your knee to compress the
vehicle seat cushion and seatback while
tightening the webbing of the anchor
attachments.

5. Tighten the tether strap according to the

manufacturer's instructions to remove
any slack.

6. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not move
more than 1 inch (25 mm), from side to
side. Try to tug it forward and check to see
if the LATCH attachment holds the re-
straint in place. If the restraint is not se-
cure, tighten the LATCH attachment as
necessary, or put the restraint in another
seat and test it again. You may need to try
a different child restraint. Not all child re-
straints fit in all types of vehicles.

7. Check to make sure the child restraint is

properly secured prior to each use. If the
child restraint is loose, repeat steps 3
through 6.

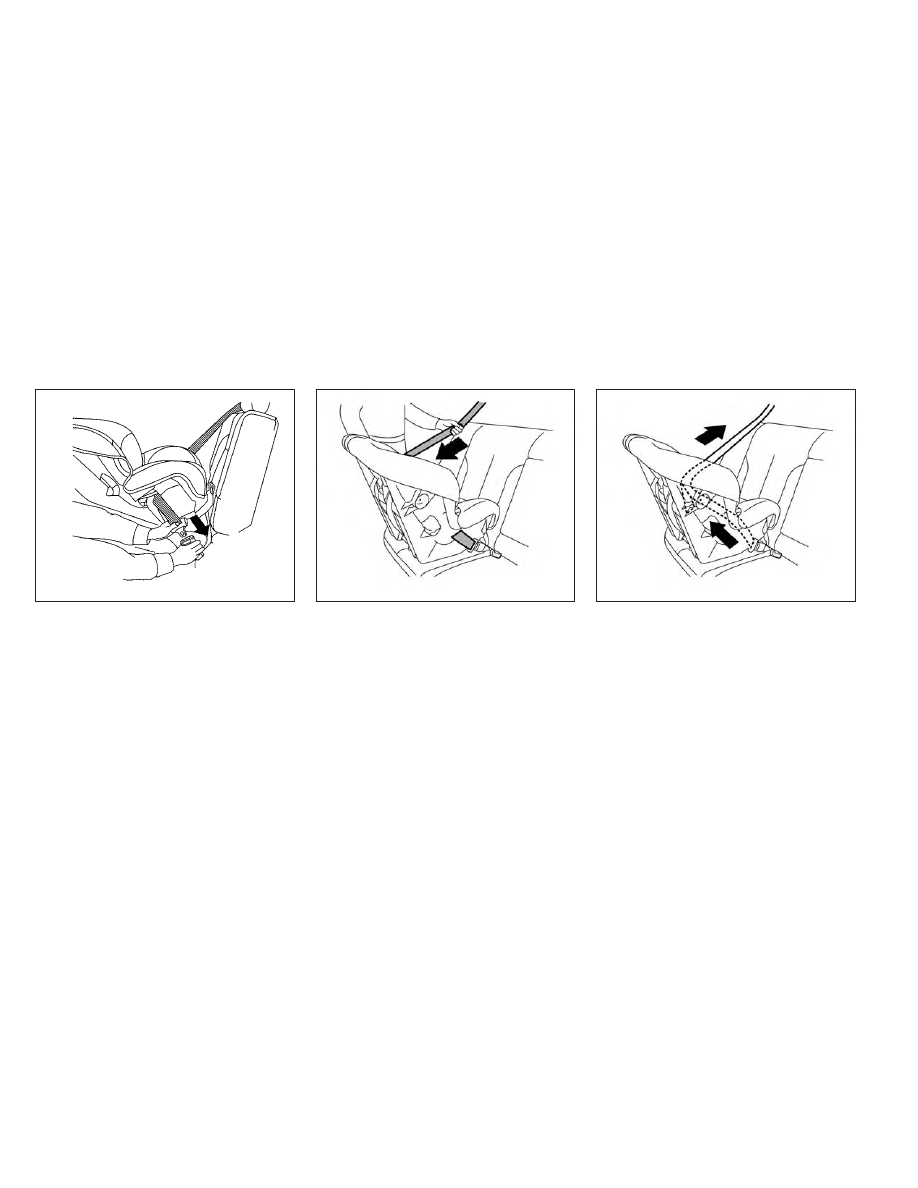

LRS0671

Forward-facing – step 4

WRS0697

Forward-facing – step 6

Safety-Seats, seat belts and supplemental restraint system

1-43

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

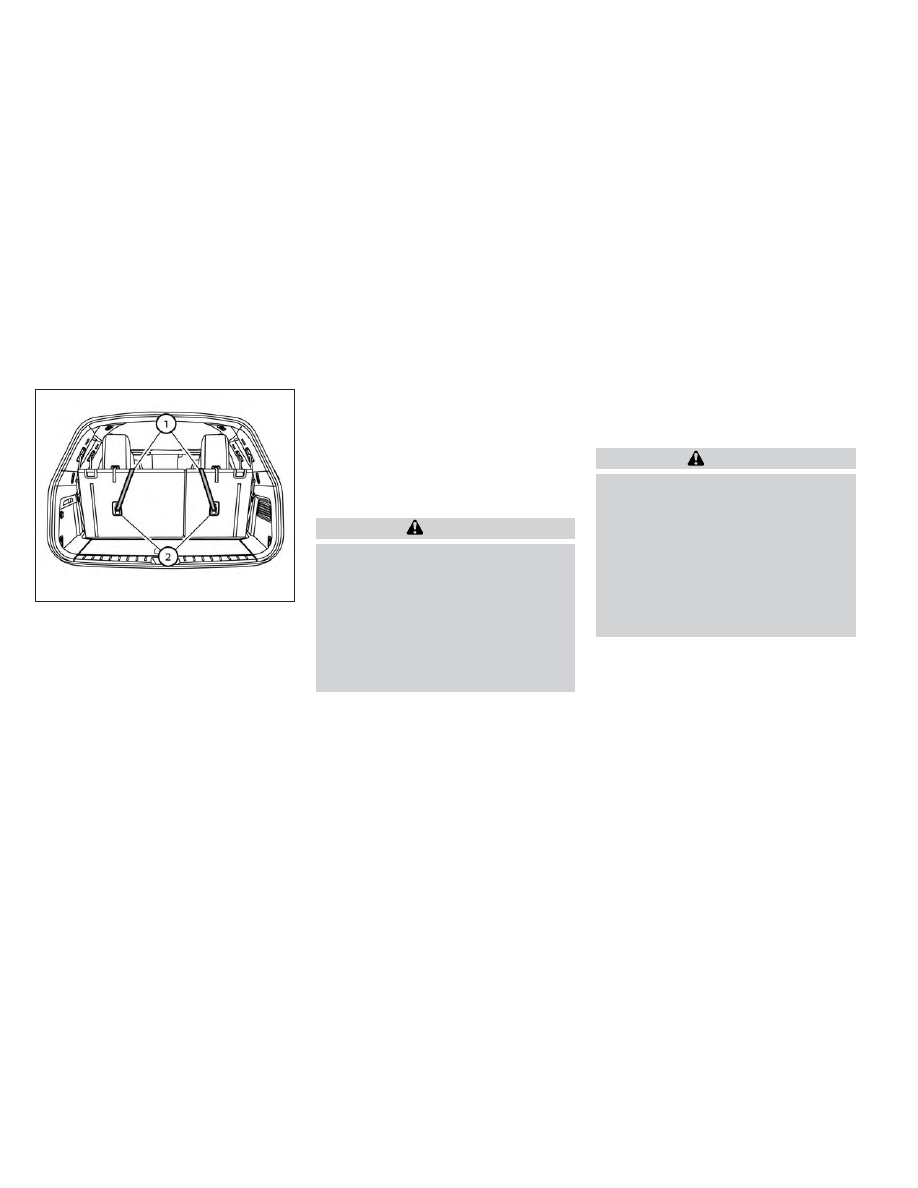

Installing top tether strap

1

Top tether strap

2

Anchor point

The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.

First, secure the child restraint with the
LATCH lower anchors.

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest and

store it in a secure place. Be sure to rein-
stall the head restraint/headrest when the
child restraint is removed. For additional
information

about

head

restraint/

headrest adjustment, removal and instal-
lation, see “Head restraints/headrests”
(P. 1-12).

2. Position the top tether strap

O

1

over the

seatback.

3. Secure the tether strap to the tether an-

chor point

O

2

as shown.

4. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

CENTER

SEATING

POSITION

(if

so

equipped)

1. Position the top tether strap

O

1

as shown.

2. Secure the tether strap to the tether an-

chor point

O

2

as shown.

3. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack. Make sure the head restraint/
headrest does not contact the top tether
strap.

LRS3040

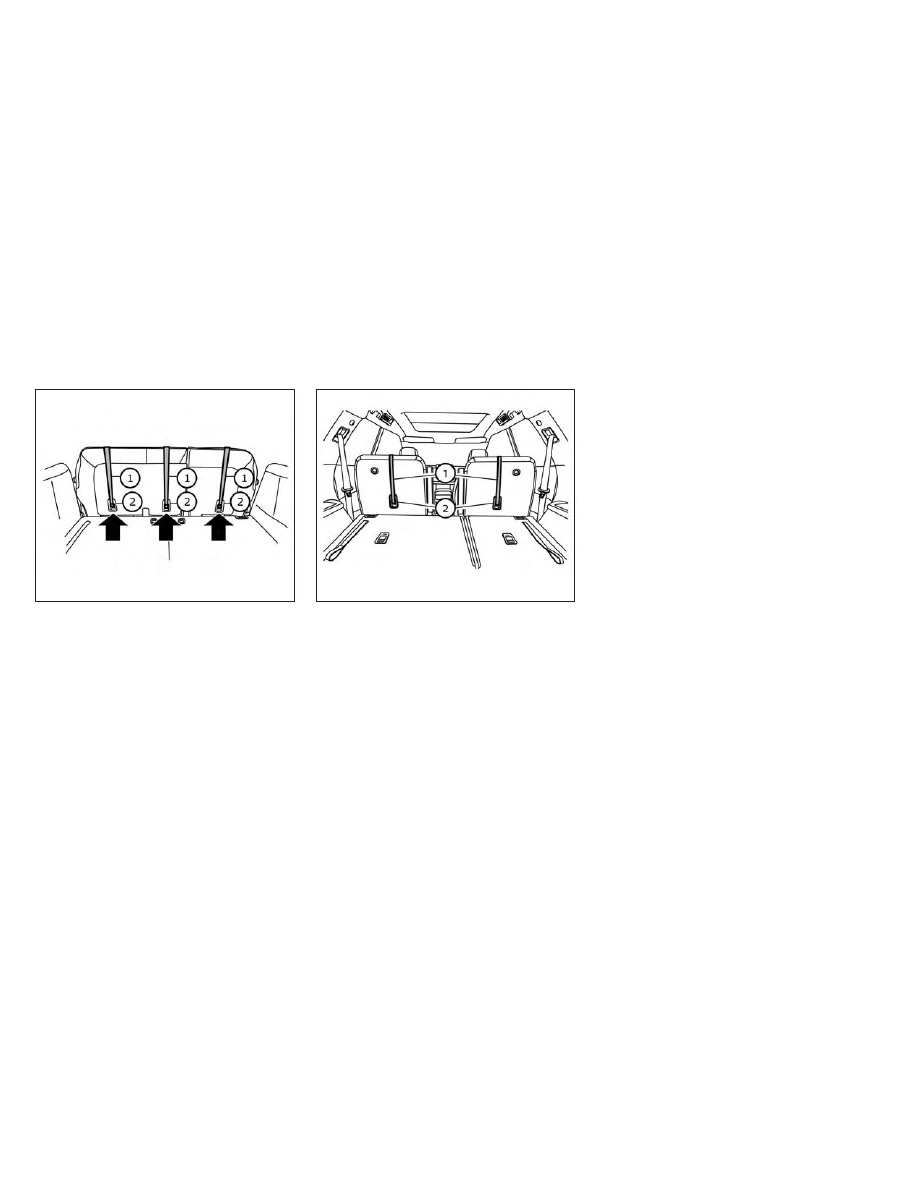

2nd row bench seat (if so equipped)

LRS3417

2nd row captain’s seats (if so equipped)

1-44

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1

Top tether strap

2

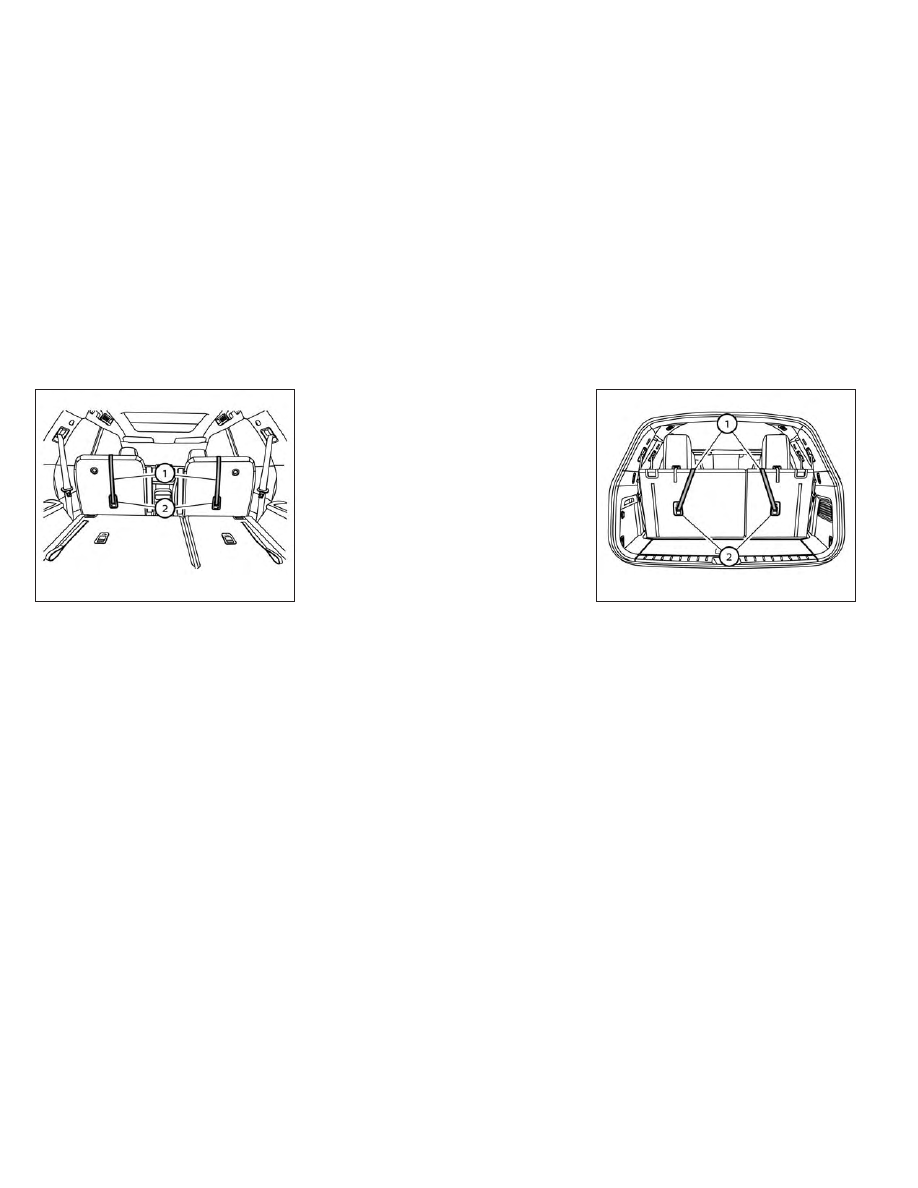

Anchor point

3rd row bench seat

First, secure the child restraint with the
LATCH lower anchors, as applicable.

1. Position the top tether strap

O

1

as shown.

2. Secure the tether strap to the tether an-

chor point

O

2

as shown.

3. Tighten the tether strap according to the

manufacturer's instructions to remove
any slack. Make sure the head restraint/
headrest does not contact the top tether
strap.

If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.

WARNING

Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION
USING THE SEAT BELTS

WARNING

The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure to
use the ALR mode will result in the child
restraint not being properly secured. The
restraint could tip over or be loose and
cause injury to a child in a sudden stop or
collision. Also, it can change the operation
of the front passenger air bag. For addi-
tional information, see “Front passenger
air bag and status light” (P. 1-65).

LRS3544

3rd row bench seat

Safety-Seats, seat belts and supplemental restraint system

1-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For additional information, see “Child safety”
(P. 1-25) and “Child restraints” (P. 1-28) be-
fore installing a child restraint.

Do not use the lower anchors if the combined
weight of the child and the child restraint
exceeds 65 lbs. (29.5 kg). If the combined
weight of the child and the child restraint is
greater than 65 lbs. (29.5 kg), use the vehi-
cle's seat belt (not the lower anchors) to in-
stall the child restraint. Be sure to follow the
child restraint manufacturer's instructions for
installation.

Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front passenger
seat:

1.

If you must install a child restraint in the
front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child re-
straints for infants must be used in the
rear-facing direction and, therefore,
must not be used in the front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

The back of the child restraint should be
secured against the vehicle seatback.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
child restraint fit. If the head restraint/
headrest is removed, store it in a secure
place.

Be sure to reinstall the head

restraint/headrest when the child re-
straint is removed.

For additional infor-

mation, see “Head restraints/headrests”
(P. 1-12).

If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper child re-
straint fit, try another seating position or a
different child restraint.

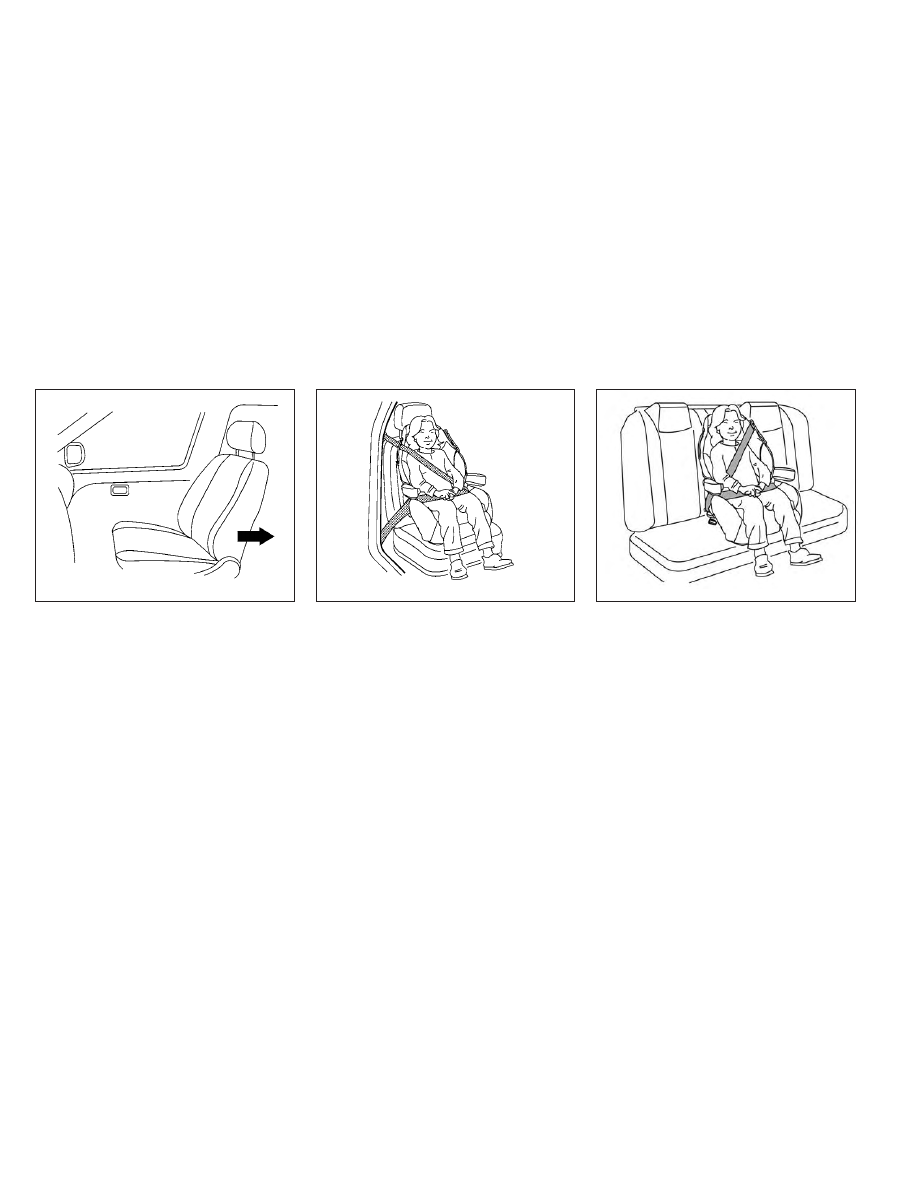

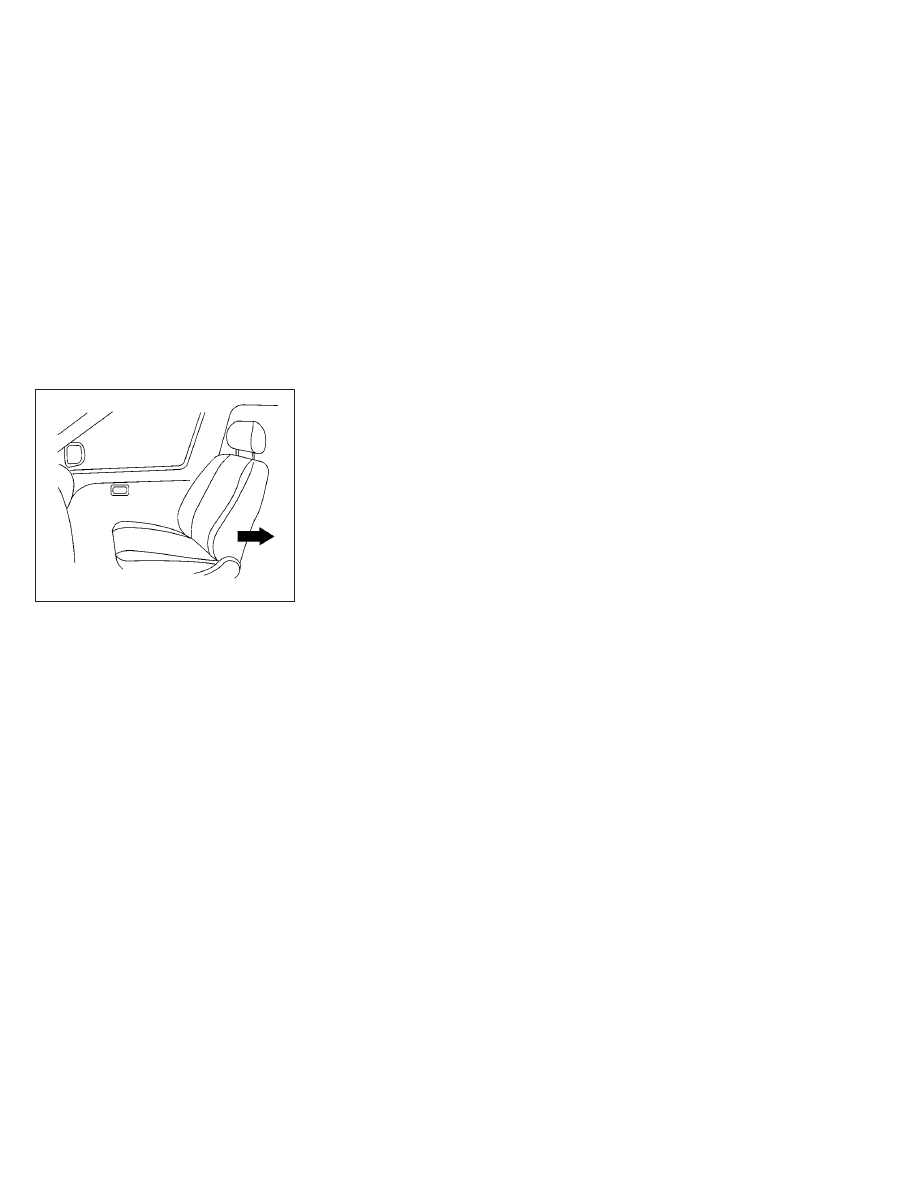

WRS0699

Forward-facing (front passenger seat) –

step 1

1-46

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Route the seat belt tongue through the

child restraint and insert it into the buckle
until you hear and feel the latch engage.
Be sure to follow the child restraint manu-
facturer’s instructions for belt routing.

If the child restraint is equipped with a top
tether strap, route the top tether strap
and secure the tether strap to the tether
anchor point (rear seat installation only).
For additional information, see “Installing
top tether strap” (P. 1-49).

Do not install child restraints that require
the use of a top tether strap in seating
positions that do not have a top tether
anchor.

4. Pull the shoulder belt until the belt is fully

extended. At this time, the seat belt re-
tractor is in the ALR mode (child restraint
mode). It reverts to ELR mode when the
seat belt is fully retracted.

WRS0680

Forward-facing – step 3

LRS0667

Forward-facing – step 4

Safety-Seats, seat belts and supplemental restraint system

1-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack in
the belt.

6. Remove any additional slack from the seat

belt; press downward and rearward firmly
in the center of the child restraint with
your knee to compress the vehicle seat
cushion and seatback while pulling up on
the seat belt.

7. Tighten the tether strap according to the

manufacturer's instructions to remove
any slack.

8. After attaching the child restraint, test it

before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The child
restraint should not move more than 1
inch (25 mm), from side to side. Try to tug
it forward and check to see if the belt
holds the restraint in place. If the restraint
is not secure, tighten the seat belt as nec-
essary, or put the restraint in another seat
and test it again. You may need to try a
different child restraint. Not all child re-
straints fit in all types of vehicles.

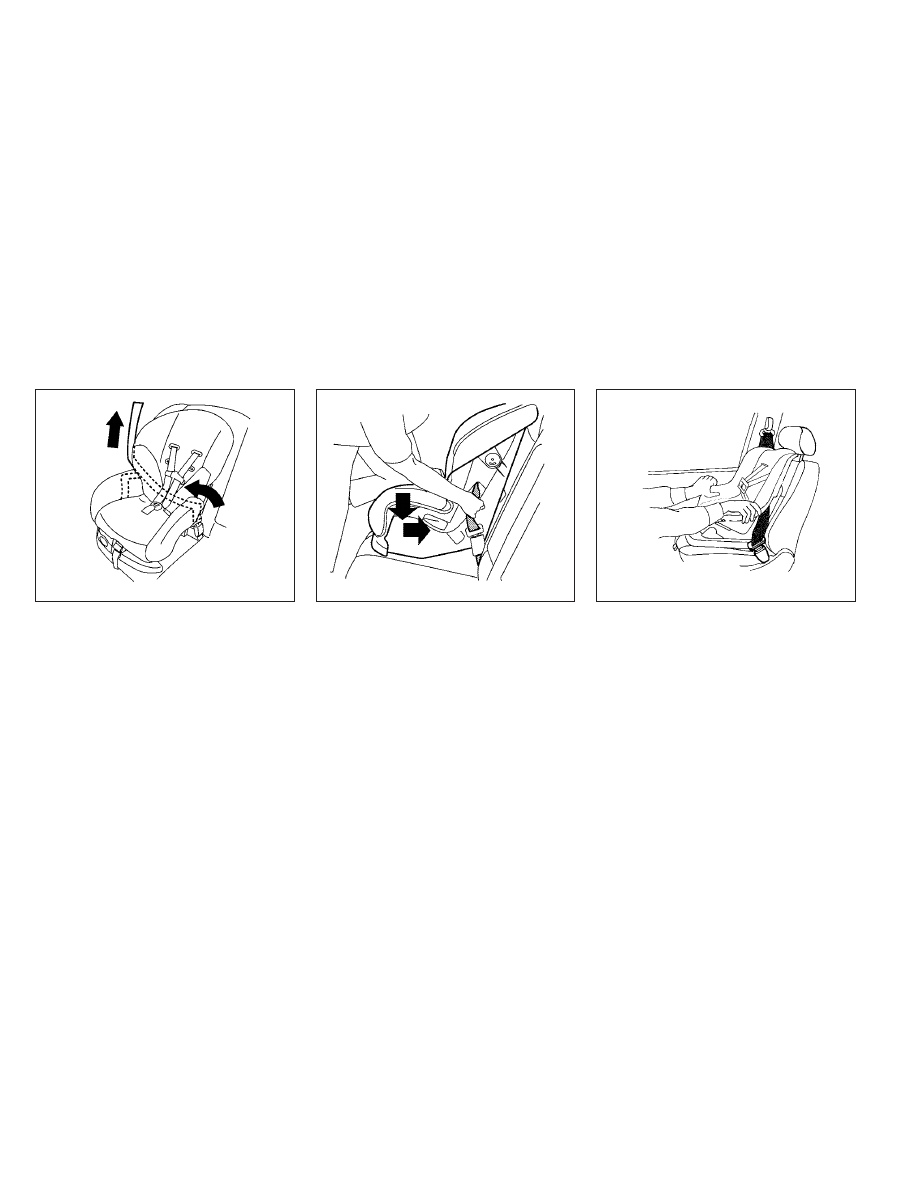

LRS0668

Forward-facing – step 5

WRS0681

Forward-facing – step 6

WRS0698

Forward-facing – step 8

1-48

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

9. Check to make sure the child restraint is

properly secured prior to each use. If the
seat belt is not locked, repeat steps 2
through 8.

10. If the child restraint is installed in the

front passenger seat, place the ignition
switch in the ON position. The front pas-
senger air bag status light

should

illuminate. If this light is not illuminated,
see “Front passenger air bag and status
light” (P. 1-65).

Move the child restraint

to another seating position.

Have the

system checked. It is recommended that
you visit an INFINITI retailer for this
service.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

Installing top tether strap

1

Top tether strap

2

Anchor point

The child restraint top tether strap must be
used when installing the child restraint with
seat belts.

First, secure the child restraint with the seat
belt.

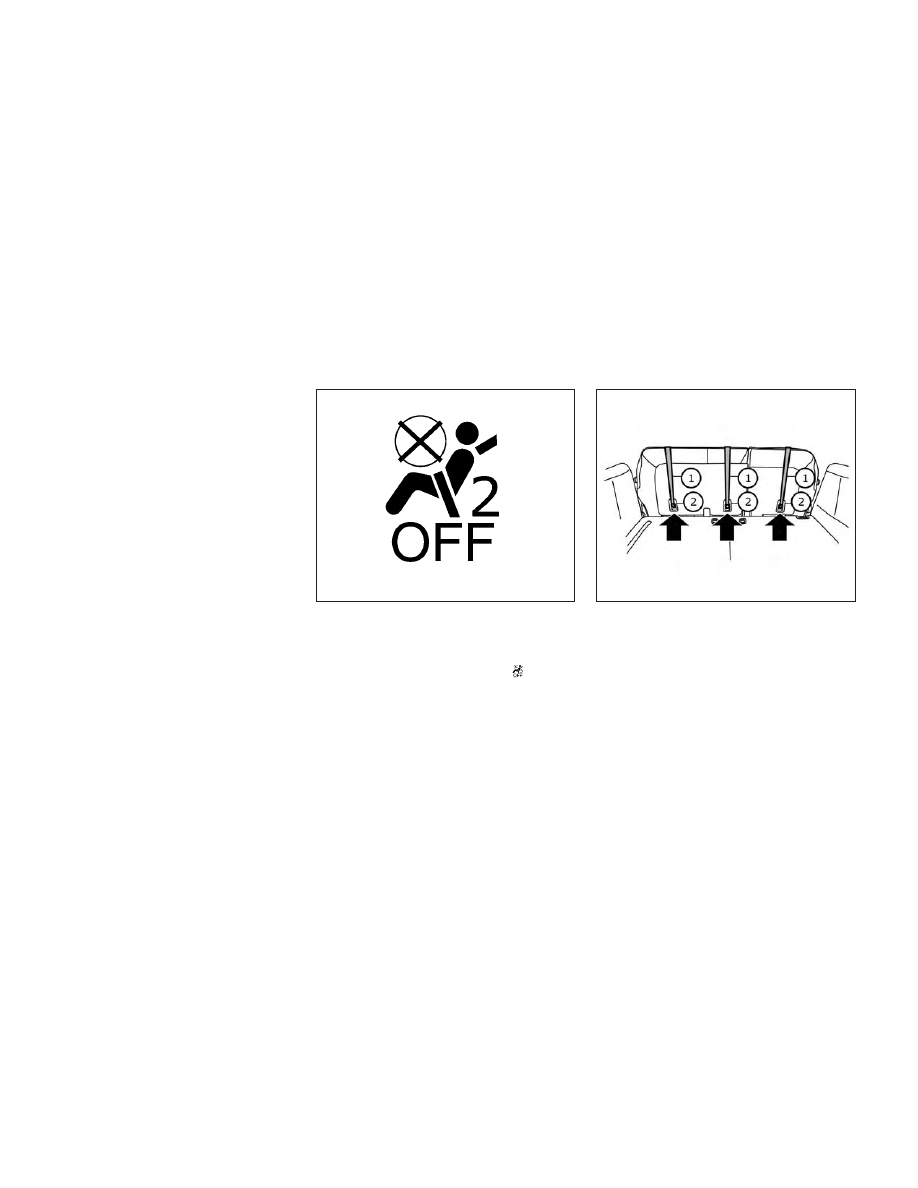

LRS0865

Forward-facing – step 10

LRS3040

2nd row bench seat (if so equipped)

Safety-Seats, seat belts and supplemental restraint system

1-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest and

store it in a secure place. Be sure to rein-
stall the head restraint/headrest when the
child restraint is removed. For additional
information

about

head

restraint/

headrest adjustment, removal and instal-
lation, see “Head restraints/headrests”
(P. 1-12).

2. Position the top tether strap

O

1

as shown.

3. Secure the tether strap to the tether an-

chor point

O

2

as shown.

4. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack.

CENTER

SEATING

POSITION

(if

so

equipped)

1. Position the top tether strap

O

1

as shown.

2. Secure the tether strap to the tether an-

chor point

O

2

as shown.

3. Tighten the tether strap according to the

manufacturer’s instructions to remove
any slack. Make sure the head restraint/
headrest does not contact the top tether
strap.

1

Top tether strap

2

Anchor point

3rd row bench seat

First, secure the child restraint with the seat
belt, as applicable.

1. Position the top tether strap

O

1

as shown.

2. Secure the tether strap to the tether an-

chor point

O

2

as shown.

LRS3417

2nd row captain’s seats (if so equipped)

LRS3544

3rd row bench seat

1-50

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Tighten the tether strap according to the

manufacturer's instructions to remove
any slack. Make sure the head restraint/
headrest does not contact the top tether
strap.

If you have any questions when installing a
top tether strap, it is recommended that you
visit an INFINITI retailer for this service.

WARNING

Child restraint anchorages are designed to
withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used to attach
adult seat belts, or other items or equip-
ment to the vehicle. Doing so could damage
the child restraint anchorages. The child re-
straint will not be properly installed using
the damaged anchorage, and a child could
be seriously injured or killed in a collision.

BOOSTER SEATS

For additional information on installing a
booster seat in your vehicle, follow the in-
structions outlined in this section.

Precautions on booster seats

WARNING

If a booster seat and seat belt are not used
properly, the risk of a child being injured or
killed in a sudden stop or collision greatly
increases:

Make sure the shoulder portion of the
belt is away from the child's face and
neck and the lap portion of the belt does
not cross the stomach.

Make sure the shoulder belt is not be-
hind the child or under the child's arm.

A booster seat must only be installed in a
seating position that has a lap/shoulder
belt.

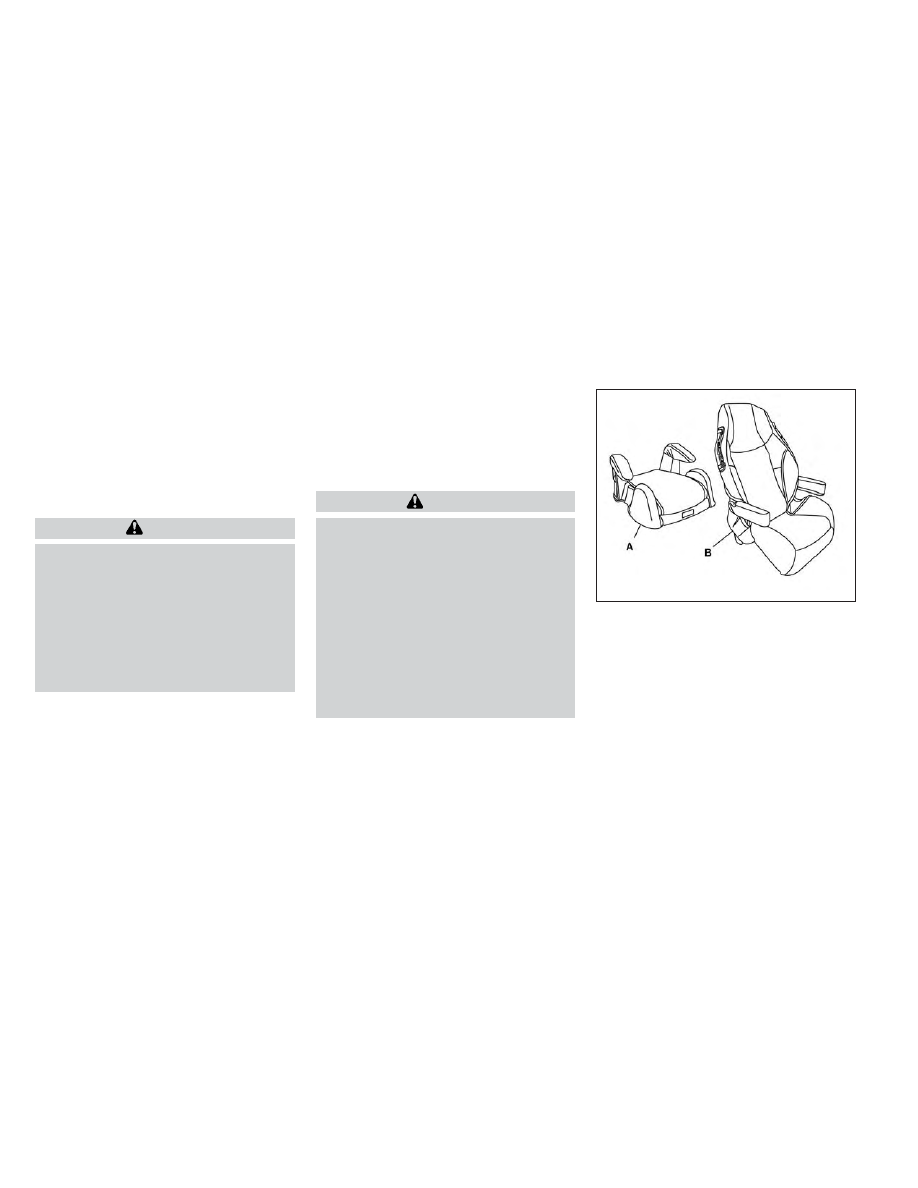

LRS2479

A. Low back booster seat

B. High back booster seat

Safety-Seats, seat belts and supplemental restraint system

1-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Booster seats of various sizes are offered by
several manufacturers. When selecting any
booster seat, keep the following points in
mind:
• Choose only a booster seat with a label

certifying that it complies with Federal Mo-
tor Vehicle Safety Standard 213 or Cana-
dian Motor Vehicle Safety Standard 213.

• Check the booster seat in your vehicle to be

sure it is compatible with the vehicle’s seat
and seat belt system.

• Make sure the child’s head will be properly

supported by the booster seat or vehicle
seat. The seatback must be at or above the
center of the child’s ears. For example, if a
low back booster seat is chosen, the vehicle
seatback must be at or above the center of
the child’s ears. If the seatback is lower than
the center of the child’s ears, a high back
booster seat should be used.

• If the booster seat is compatible with your

vehicle, place the child in the booster seat
and check the various adjustments to be
sure the booster seat is compatible with the
child. Always follow all recommended
procedures.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is be-
ing operated.

The instructions in this section apply to
booster seat installation in the rear seats or
the front passenger seat.

Booster seat installation

WARNING

To avoid injury to child, do not use the lap/
shoulder belt in the Automatic Locking Re-
tractor (ALR) mode when using a booster
seat with the seat belts.

For additional information, see “Child safety”
(P. 1-25), “Child restraints” (P. 1-28) and
“Booster seats” (P. 1-51) before installing a
child restraint.

Follow these steps to install a booster seat in
the 2nd or 3rd rows or in the front passenger
seat:

LRS0453

LRS0464

1-52

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

If you must install a booster seat in the
front seat, move the seat to the rearmost
position.

2. Position the booster seat on the seat.

Only place it in a front-facing direction.
Always follow the booster seat manufac-
turer’s instructions.

3. The booster seat should be positioned on

the vehicle seat so that it is stable.

If necessary, adjust or remove the head
restraint/headrest to obtain the correct
booster seat fit. If the head restraint/
headrest is removed, store it in a secure
place.

Be sure to reinstall the head

restraint/headrest when the booster
seat is removed.

For additional informa-

tion, see “Head restraints/headrests”
(P. 1-12).

If the seating position does not have an
adjustable head restraint/headrest and it
is interfering with the proper booster seat
fit, try another seating position or a differ-
ent booster seat.

4. Position the lap portion of the seat belt

low and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.

WRS0699

LRS0454

Front passenger position

LRS0451

2nd row center bench seat position

(if so equipped)

Safety-Seats, seat belts and supplemental restraint system

1-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Pull the shoulder belt portion of the seat

belt toward the retractor to take up extra
slack. Be sure the shoulder belt is posi-
tioned across the top, middle portion of
the child’s shoulder. Be sure to follow the
booster seat manufacturer’s instructions
for adjusting the seat belt routing.

6. Follow the warnings, cautions and in-

structions for properly fastening a seat
belt shown in “Three-point type seat belt
with retractor” (P. 1-21).

7. If the booster seat is installed in the front

passenger seat, place the ignition switch
in the ON position. The front passenger air
bag status light

may or may not

illuminate, depending on the size of the
child and the type of booster seat being
used. For additional information, see
“Front passenger air bag and status light”
(P. 1-65).

PRECAUTIONS ON SRS

This SRS section contains important infor-
mation concerning the following systems:
• Driver and front passenger supplemental

front-impact air bag (INFINITI Advanced
Air Bag System)

• Front seat-mounted side-impact supple-

mental air bag

• 2nd row outboard seat-mounted side-

impact supplemental air bag

• Front central seat-mounted side-impact

supplemental air bag (if so equipped)

• Roof-mounted curtain side-impact and

rollover supplemental air bag

• Driver and front passenger supplemental

knee air bag

• Seat belt with pretensioner(s) (front and

2nd row outboard seats)

Supplemental front-impact air bag system

The INFINITI Advanced Air Bag System can
help cushion the impact force to the head and
chest of the driver and front passenger in
certain frontal collisions.

LRS0452

2nd row outboard position

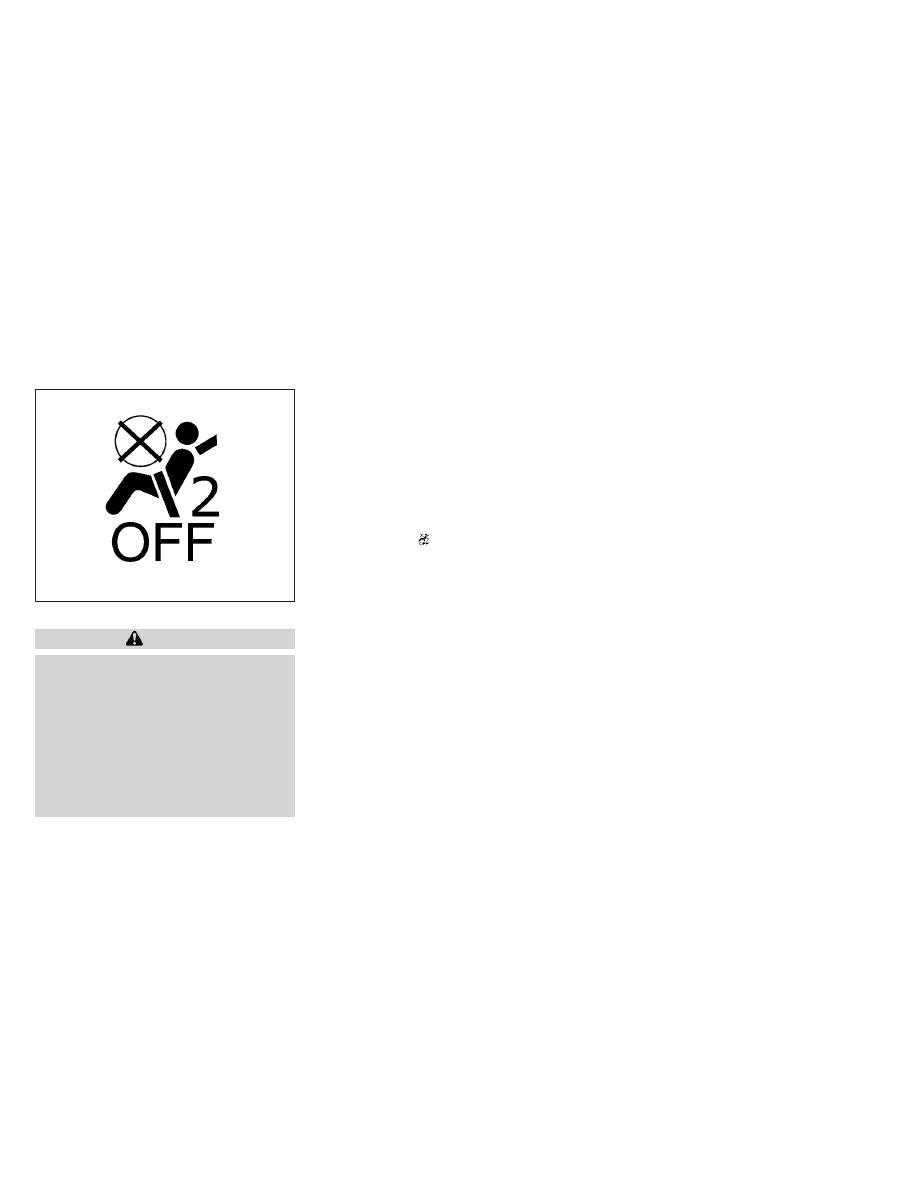

LRS0865

SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)

1-54

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front seat-mounted side-impact supple-
mental air bag system

This system can help cushion the impact
force to the chest area of the driver and front
passenger in certain side-impact collisions.
The side air bags are designed to inflate on
the side where the vehicle is impacted.

2nd row outboard seat-mounted side-
impact supplemental air bag system

This system can help cushion the impact
force to the chest area of the 2nd row out-
board seat passengers in certain side-impact
collisions. The side air bags are designed to
inflate on the side where the vehicle is
impacted.

Front central seat-mounted side-impact
supplemental air bag (if so equipped)

This system can help cushion the impact
force to the head area of the driver and front
passenger in certain side-impact and rollover
collisions. In a side-impact, this air bag is de-
signed to inflate during a vehicle impact from
either side.

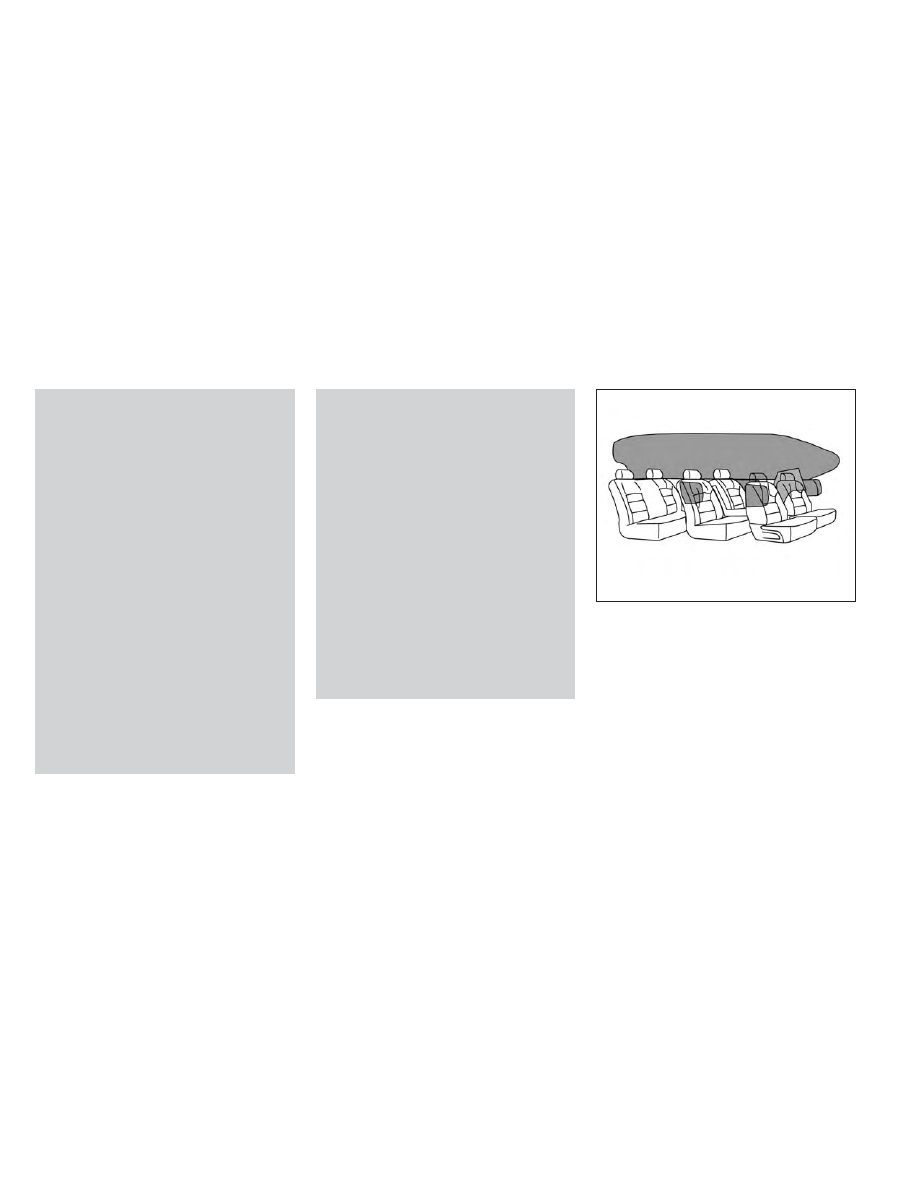

Roof-mounted curtain side-impact and roll-
over supplemental air bag system

This system can help cushion the impact
force to the head of occupants in front and
rear outboard seating positions in certain
side-impact or rollover collisions. In a side
impact, the curtain air bags are designed to
inflate on the side where the vehicle is im-
pacted. In a rollover, both curtain air bags are
designed to inflate and remain inflated for a
short time.

Driver and front passenger supplemental
knee air bags

This system can help cushion the impact
force to the driver’s and front passenger’s
knees in certain collisions.

The SRS is designed to

supplement

the crash

protection provided by the seat belts and is

not a substitute

for them. Seat belts should

always be correctly worn and the occupant
seated a suitable distance away from the
steering wheel, instrument panel and door
finishers. For additional information, see
“Seat belts” (P. 1-17).

The supplemental air bags operate only
when the ignition switch is placed in the ON
position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

Safety-Seats, seat belts and supplemental restraint system

1-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The front air bags ordinarily will not in-
flate in the event of a side impact, rear
impact, rollover, or lower severity fron-
tal collision. Always wear your seat belts
to help reduce the risk or severity of in-
jury in various kinds of accidents.

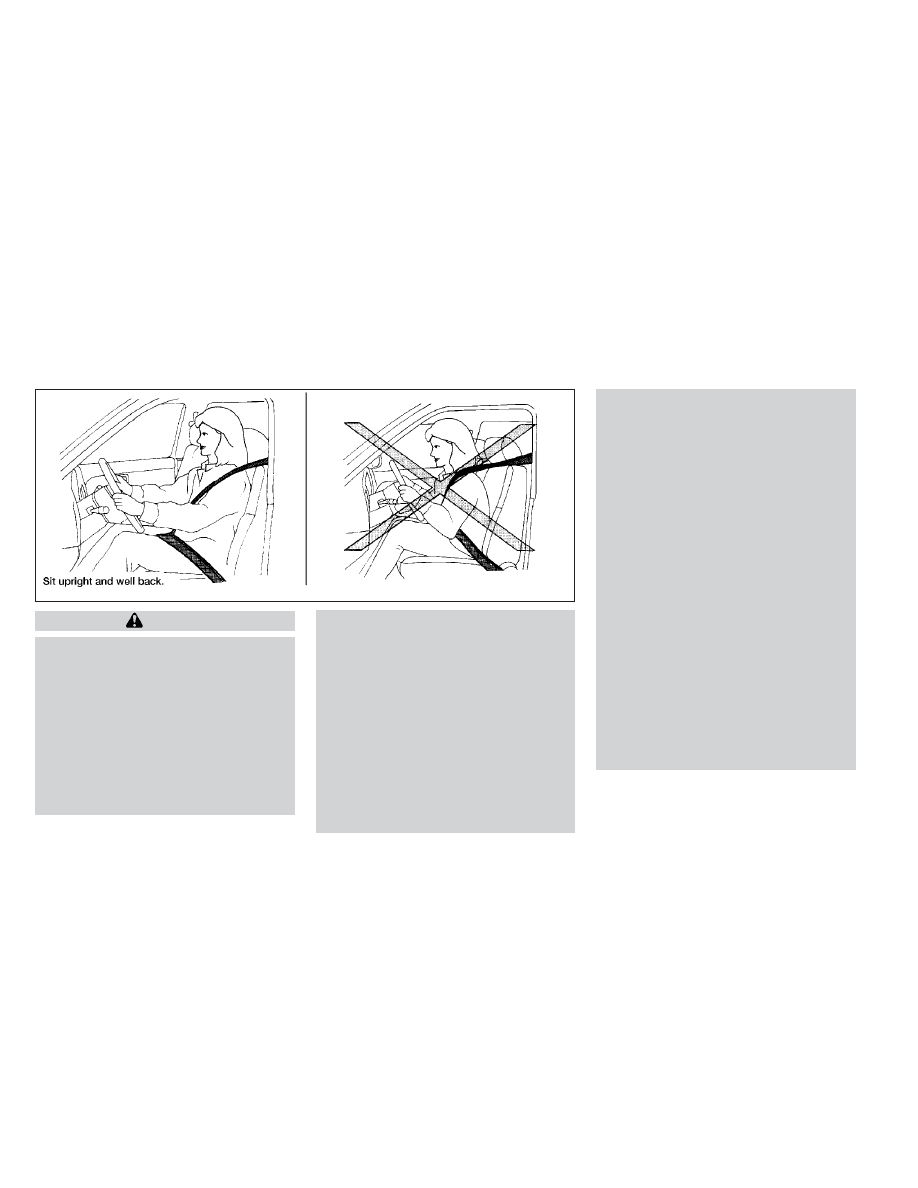

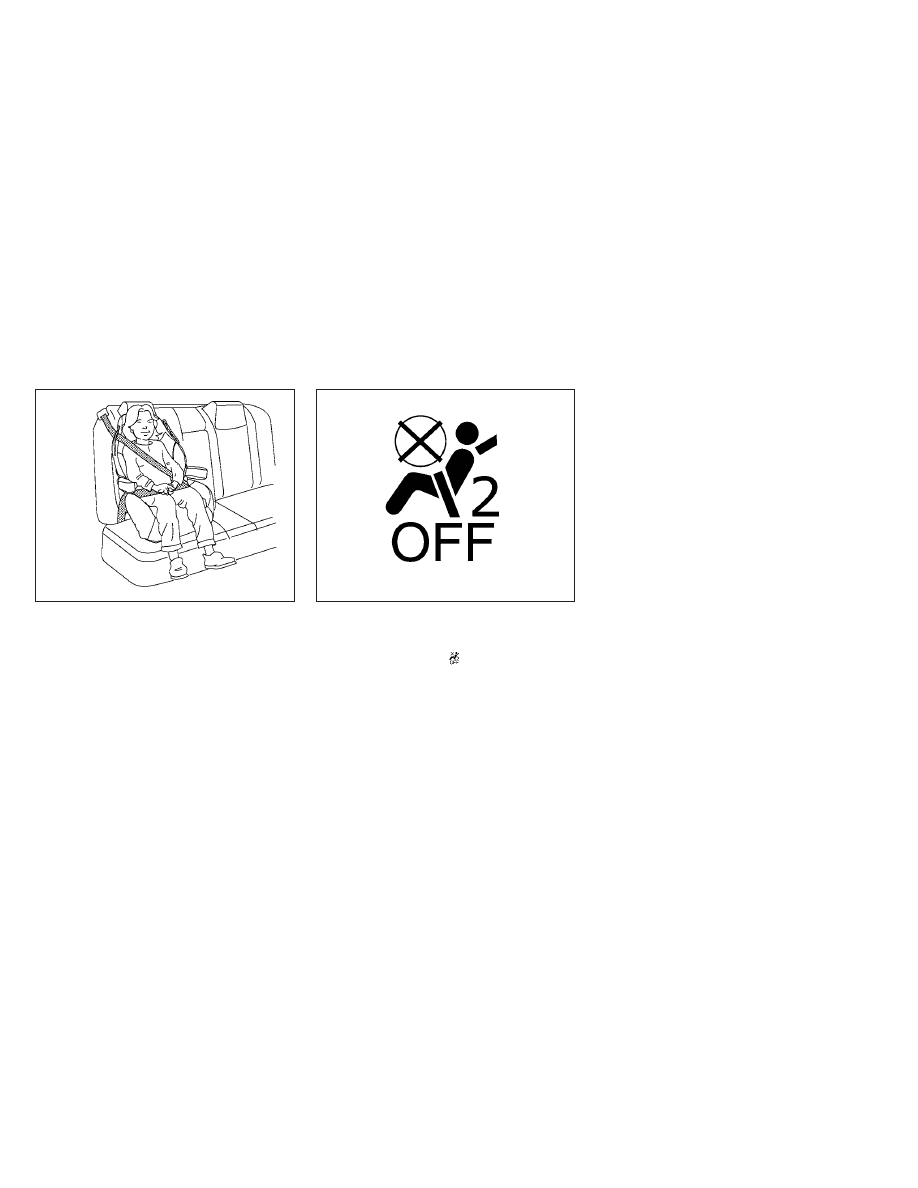

The front passenger air bag and front
passenger supplemental knee air bag will
not inflate if the passenger air bag status
light is lit. For additional information,
see “Front passenger air bag and status
light” (P. 1-65).

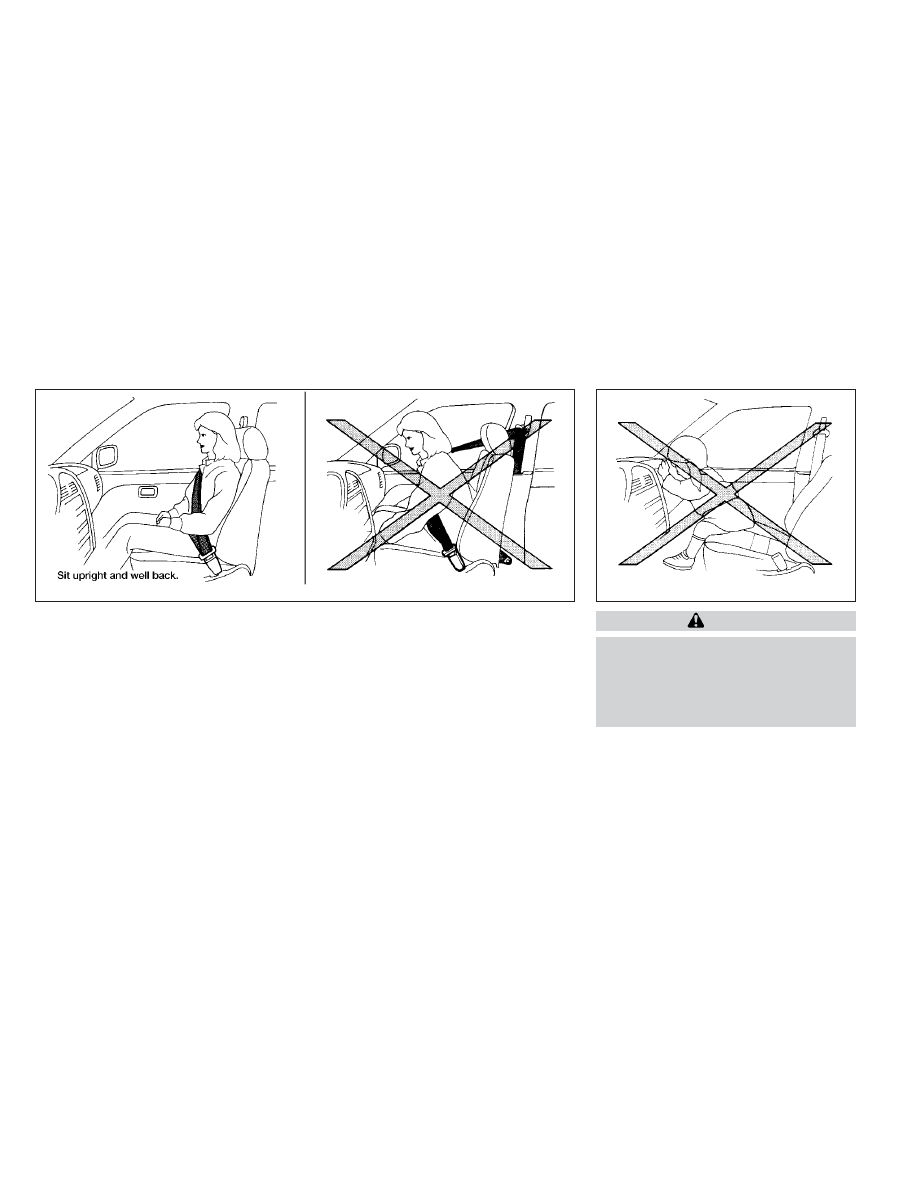

The seat belts and the front air bags are
most effective when you are sitting well
back and upright in the seat. The front air
bags inflate with great force. Even with
the INFINITI Advanced Air Bag System,
if you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the front air
bag if you are up against it when it in-
flates. Always sit back against the seat-
back and as far away as practical from
the steering wheel or instrument panel.
Always properly use the seat belts.

The driver and front passenger seat belt
buckles are equipped with sensors that
detect if the seat belts are fastened. The
INFINITI Advanced Air Bag System
monitors the severity of a collision and
seat belt usage then inflates the air bags
as needed. Failure to properly wear seat
belts can increase the risk or severity of
injury in an accident.

The front passenger seat is equipped
with an occupant classification sensor
(weight sensor) that turns the front pas-
senger air bag and front passenger
supplemental knee air bag OFF under
some conditions. This sensor is only used
in this seat. Failure to be properly seated
and wearing the seat belt can increase
the risk or severity of injury in an acci-
dent. For additional information, see
“Front passenger air bag and status
light” (P. 1-65).

Keep hands on the outside of the steer-
ing wheel. Placing them inside the steer-
ing wheel rim could increase the risk that
they are injured when the front air bag
inflates.

WRS0031

1-56

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

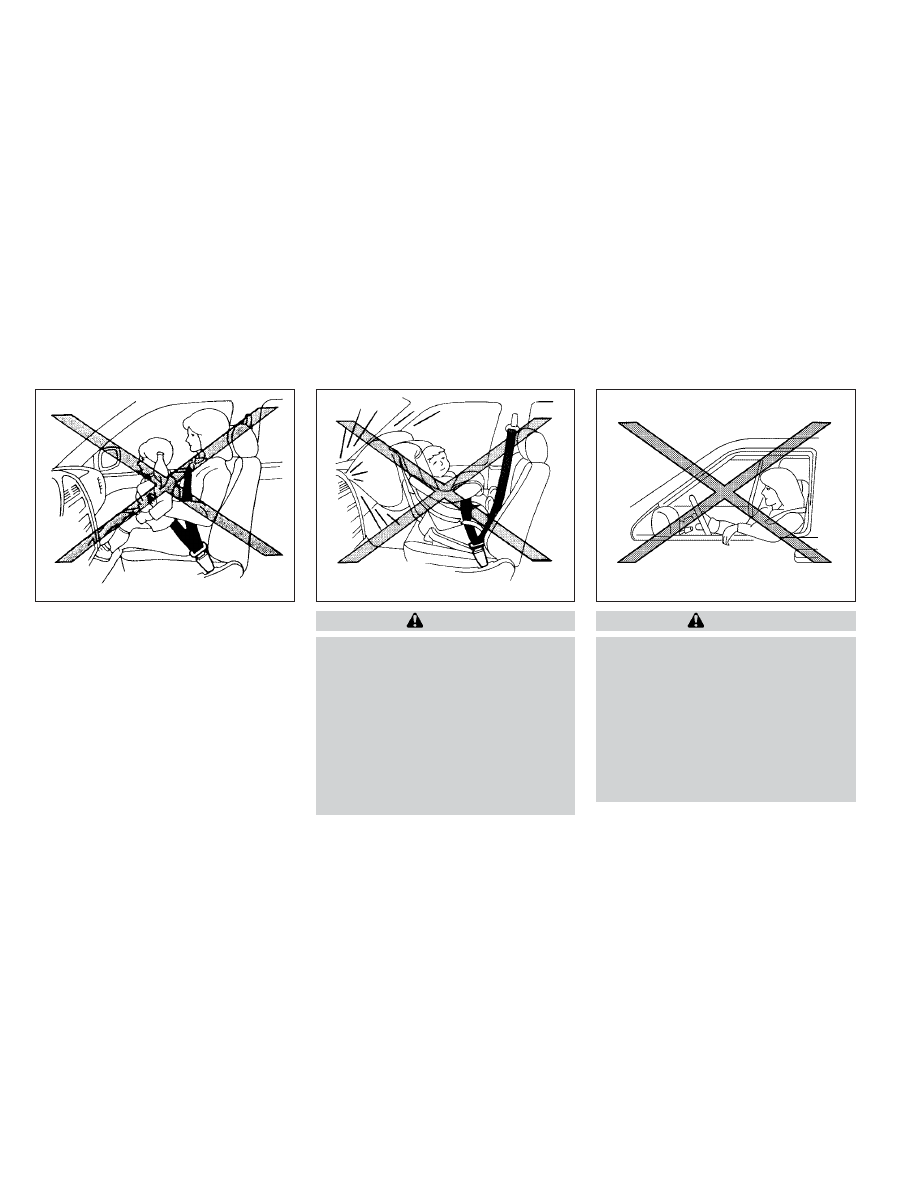

Never let children ride unrestrained or
extend their hands or face out of the
window. Do not attempt to hold them in
your lap or arms. Some examples of dan-
gerous riding positions are shown in the
illustrations.

ARS1133

ARS1041

Safety-Seats, seat belts and supplemental restraint system

1-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

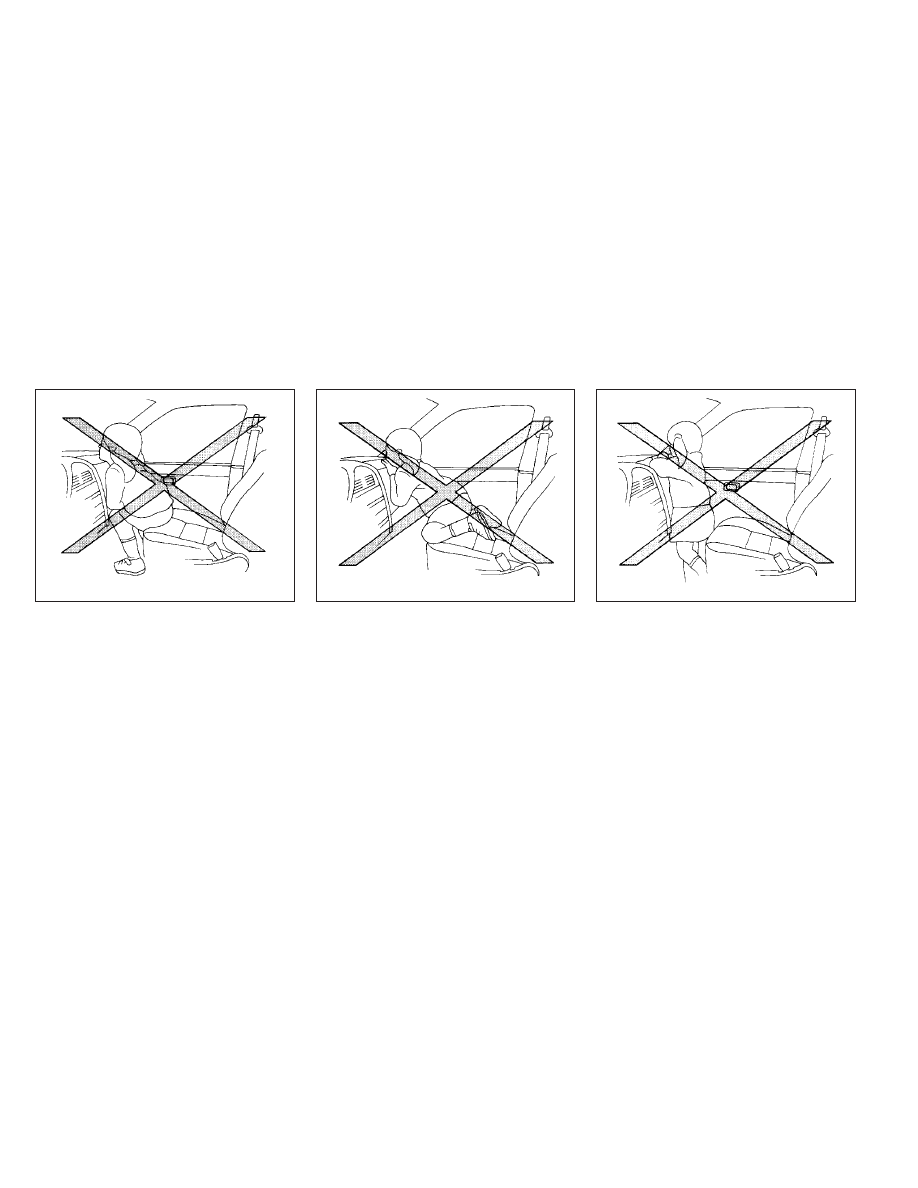

ARS1042

ARS1043

ARS1044

1-58

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Children may be severely injured or killed
when the front air bags, side air bags or
curtain air bags inflate if they are not
properly restrained. Pre-teens and chil-
dren should be properly restrained in the
rear seat, if possible.

Even with the INFINITI Advanced Air
Bag System, never install a rear-facing
child restraint in the front seat. An in-
flating front air bag could seriously injure
or kill your child. For additional informa-
tion, see “Child restraints” (P. 1-28).

WARNING

Front, front central and rear outboard
seat-mounted side-impact supplemental
air bags and roof-mounted curtain side-
impact and rollover supplemental air bags:

The side air bags and curtain air bags
ordinarily will not inflate in the event of a
frontal impact, rear impact, or lower se-
verity side collision. Always wear your
seat belts to help reduce the risk or se-
verity of injury in various kinds of
accidents.

ARS1045

ARS1046

WRS0431

Safety-Seats, seat belts and supplemental restraint system

1-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The seat belts, the side air bags and cur-
tain air bags are most effective when you
are sitting well back and upright in the
seat with both feet on the floor. The side
air bag and curtain air bag inflate with
great force. Do not allow anyone to place
their hand, leg or face near the side air
bag on the side of the seatback of the
front seat or near the side roof rails. Do
not allow anyone sitting in the front
seats or rear outboard seats to extend
their hand out of the window or lean

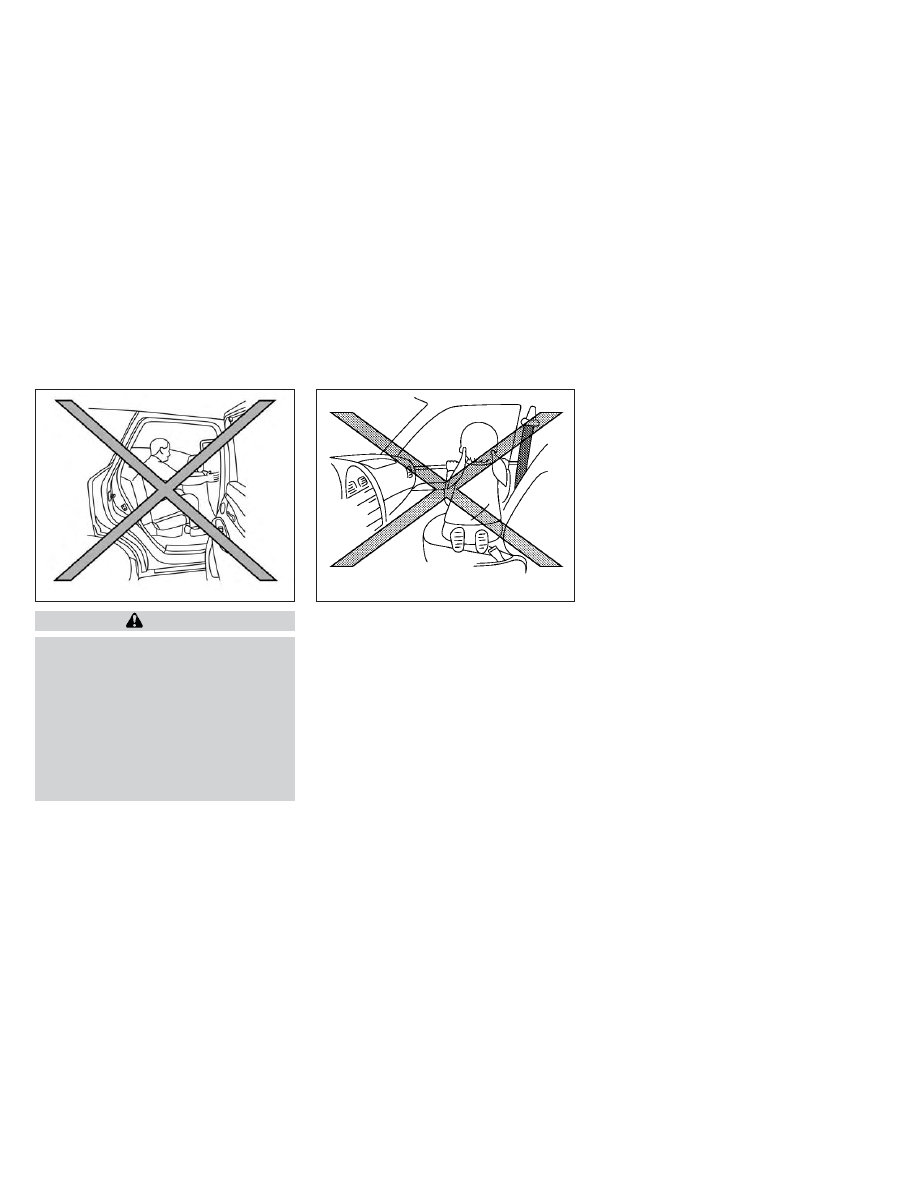

against the door. Some examples of dan-
gerous riding positions are shown in the
previous illustrations.

LRS3119

SSS0162

1-60

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

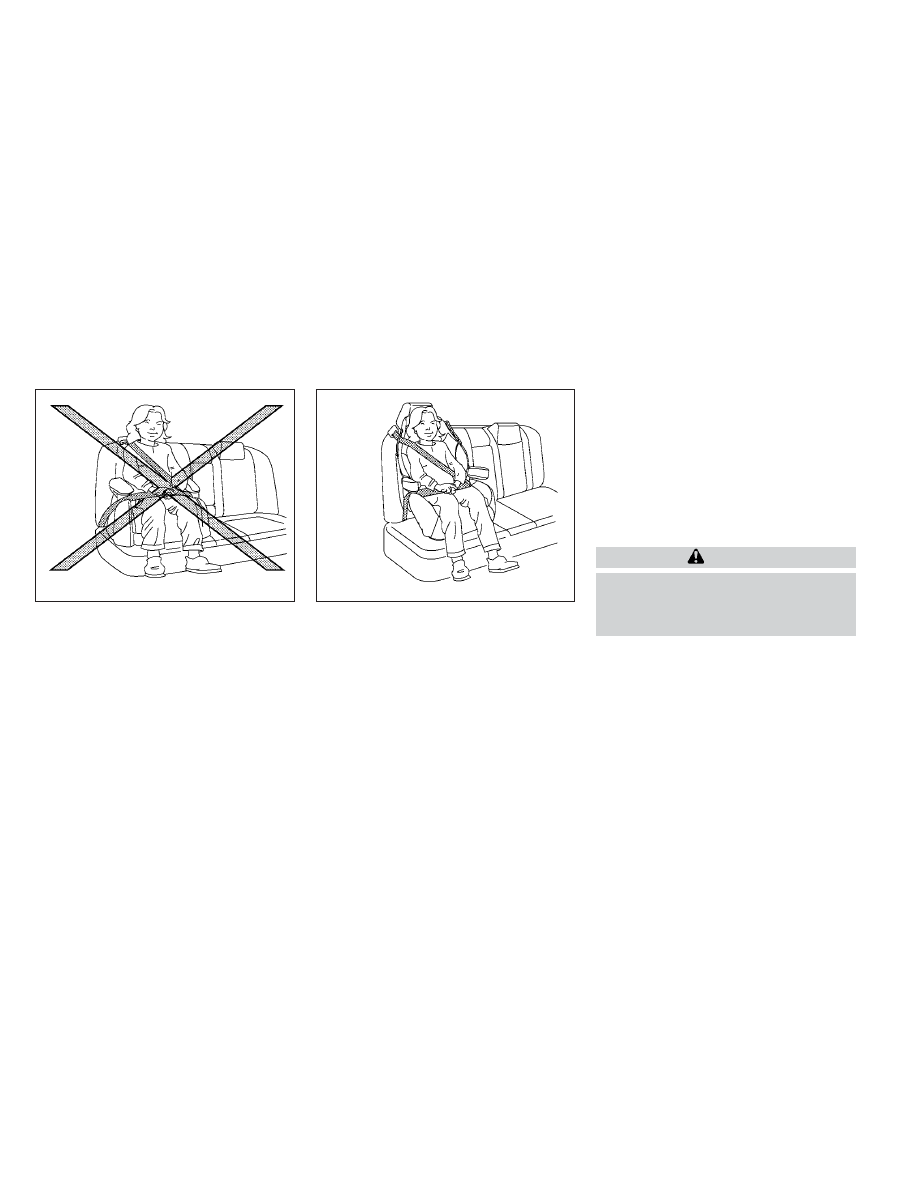

When sitting in the 2nd row rear seat, do
not hold onto the seatback of the front
seat. If the side air bag inflates, you may
be seriously injured. Be especially careful
with children, who should always be
properly restrained. Some examples of
dangerous riding positions are shown in
the illustrations.

Do not use seat covers on the front seat-
backs. They may interfere with side air
bag inflation.

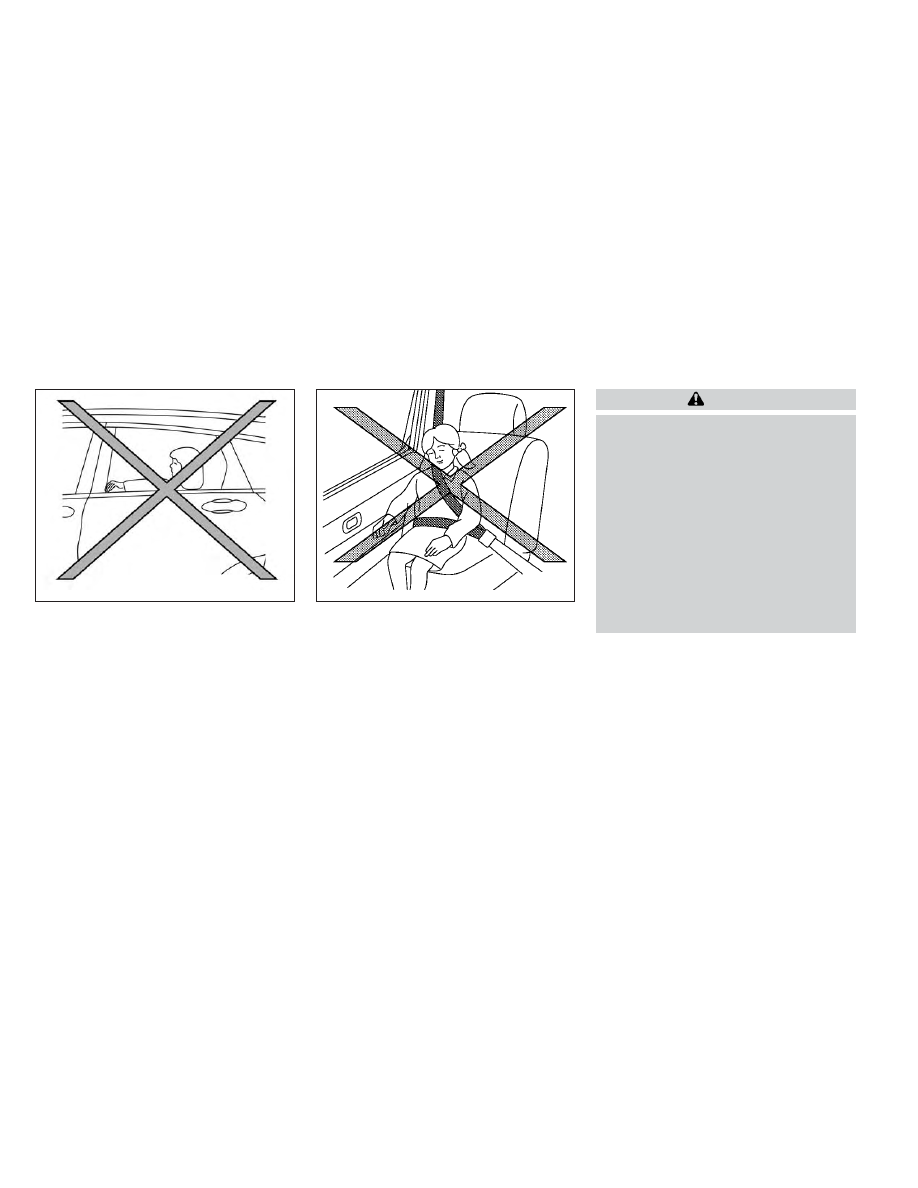

LRS3043

SSS0159

Safety-Seats, seat belts and supplemental restraint system

1-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

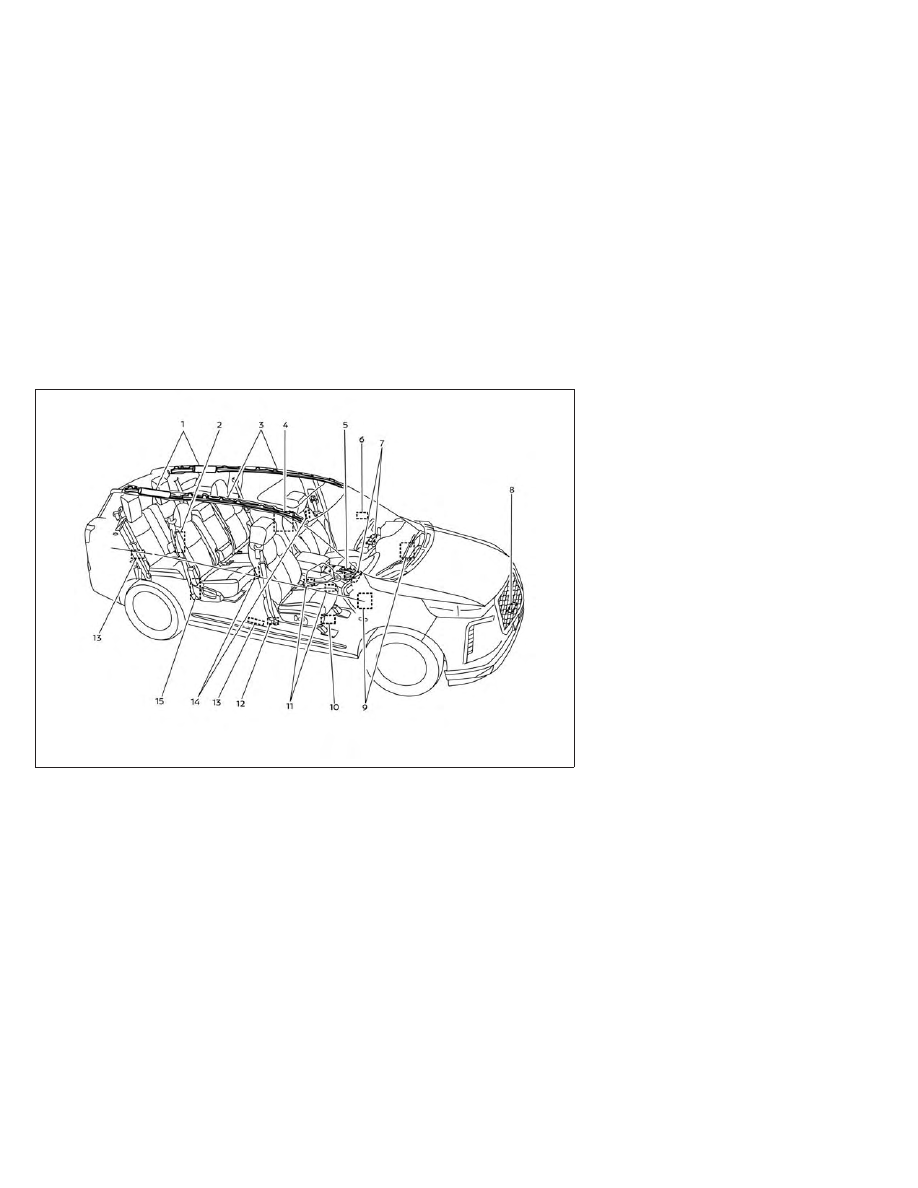

INFINITI Advanced Air Bag System

1. Roof-mounted curtain side-impact and

rollover supplemental air bag inflators

2. 2nd row outboard seat-mounted side im-

pact supplemental air bag modules (pas-
senger’s side shown; driver’s side similar)

3. Roof-mounted curtain side-impact and

rollover supplemental air bags

4. Front central seat-mounted side impact

supplemental air bag (if so equipped)

5. Air bag Control Unit (ACU)

6. Pressure sensors in door (driver's side

shown; front passenger side similar)

7. Supplemental

front-impact

air

bag

modules

8. Crash zone sensor

9. Driver and front passenger supplemental

knee air bags

10. Occupant classification system control

unit

11. Occupant classification sensor (weight

sensor – located on passenger seat
frame)

12. Seat belt with pretensioner(s) (front seats)

13. Satellite sensors (passenger’s side shown;

driver’s side similar)

14. Front seat-mounted side-impact supple-

mental air bag modules

15. Seat belt with pretensioner(s) (2nd row

outboard seats)

LRS3491

1-62

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items.

Do not allow a passenger in the rear seat
to push or pull on the seatback pocket.

Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.

Make sure that there is nothing pressing
against the rear of the seatback, such as
a child restraint installed in the rear seat
or an object stored on the floor.

Make sure that there is no object placed
under the front passenger seat.

Make sure that there is no object placed
between the seat cushion and the center
console or between the seat cushion and
the door.

If a forward-facing child restraint is in-
stalled in the front passenger seat, do
not position the front passenger seat so
the child restraint contacts the instru-
ment panel. If the child restraint does
contact the instrument panel, the sys-
tem may determine the seat is occupied
and the front passenger air bag and front
passenger supplemental knee air bag
may deploy in a collision. Also the front
passenger air bag status light may not
illuminate. For additional information,
see “Child restraints” (P. 1-28).

Confirm the operating condition with
the front passenger air bag status light.

If you notice that the front passenger air
bag status light is not operating as de-
scribed in this section, get the occupant
classification system checked. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.

Until you have confirmed with a retailer
that your passenger seat occupant clas-
sification system is working properly,
position the occupants in the rear seat-
ing positions.

Do not position the front passenger seat
so it contacts the rear seat. If the front
seat does contact the rear seat, the air
bag system may determine a sensor mal-
function has occurred and the front pas-
senger air bag status light may illuminate
and the supplemental air bag warning
light may flash.

This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements un-
der U.S. regulations. It is also permitted in
Canada.

All of the information, cautions and

warnings in this manual still apply and must
be followed.

The driver supplemental front-impact air bag
is located in the center of the steering wheel.
The front passenger supplemental front-
impact air bag is mounted in the dashboard
above the glove box. The front air bags are
designed to inflate in higher severity frontal
collisions, although they may inflate if the
forces in another type of collision are similar
to those of a higher severity frontal impact.
They may not inflate in certain frontal colli-
sions. Vehicle damage (or lack of it) is not
always an indication of proper front air bag
system operation.

Safety-Seats, seat belts and supplemental restraint system

1-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The INFINITI Advanced Air Bag System
monitors information from the crash zone
sensor, the Air bag Control Unit (ACU), seat
belt buckle sensor and occupant classifica-
tion sensor (weight sensor). Inflator opera-
tion is based on the severity of a collision and
seat belt usage for the driver. For the front
passenger, the occupant classification sensor
is also monitored. Based on information from
the sensor, only one front air bag may inflate
in a crash, depending on the crash severity
and whether the front occupants are belted
or unbelted. Additionally, the front passenger
air bag and front passenger supplemental
knee air bag may be automatically turned off
under some conditions, depending on the
weight detected on the passenger seat and
how the seat belt is used. If the front passen-
ger air bag and front passenger supplemental
knee air bag are OFF, the front passenger air
bag status light will be illuminated. For addi-
tional information, see “Front passenger air
bag and status light” (P. 1-65). One front air
bag inflating does not indicate improper per-
formance of the system.

If you have any questions about your air bag
system, it is recommended that you visit an
INFINITI retailer to obtain information about
the system. If you are considering modifica-
tion of your vehicle due to a disability, you

may also contact INFINITI. Contact informa-
tion is contained in the front of this Owner's
Manual.

When a front air bag inflates, a fairly loud
noise may be heard, followed by the release
of smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken to
not inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.

Front air bags, along with the use of seat
belts, help to cushion the impact force on the
face and chest of the front occupants. They
can help save lives and reduce serious injuries.
However, an inflating front air bag may cause
facial abrasions or other injuries. Front air
bags, other than the driver’s and front pas-
senger’s supplemental knee air bags, do not
provide restraint to the lower body.

Even with INFINITI Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as prac-
tical away from the steering wheel or instru-
ment panel. The front air bags inflate quickly
in order to help protect the front occupants.
Because of this, the force of the front air bag
inflating can increase the risk of injury if the
occupant is too close to, or is against, the
front air bag module during inflation.

The front air bags deflate quickly after a
collision.

The front air bags operate only when the
ignition switch is placed in the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

1-64

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front passenger air bag and status light

WARNING

The front passenger air bag and front pas-
senger supplemental knee air bag are de-
signed to automatically turn OFF under
some conditions. Read this section care-
fully to learn how it operates. Proper use of
the seat, seat belt and child restraints is
necessary for most effective protection.
Failure to follow all instructions in this
manual concerning the use of seats, seat
belts and child restraints can increase the
risk or severity of injury in an accident.

Status light

The front passenger seat is equipped with an
occupant classification sensor (weight sen-
sor) that turns the front passenger air bag
and front passenger supplemental knee air
bag on or off depending on the weight ap-
plied to the front passenger seat. The status
of the front passenger air bag and front pas-
senger supplemental knee air bag (ON or
OFF) is indicated by the front passenger air
bag status light

which is located on the

instrument panel.

After the ignition switch is placed in the ON
position, the front passenger air bag status
light on the instrument panel illuminates for
about 7 seconds and then turns off or re-
mains illuminated depending on the front
passenger seat occupied status. The light op-
erates as follows:

LRS0865

Safety-Seats, seat belts and supplemental restraint system

1-65

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONDITION

DESCRIPTION

PASSENGER AIR BAG
STATUS LIGHT (

)

FRONT PASSENGER AIR BAG AND FRONT PASSENGER

SUPPLEMENTAL KNEE AIR BAG STATUS

Empty

Empty front passenger seat

ON (illuminated)

INHIBITED

Nobody/Somebody

Bag or Child or Child Restraint or

Small Adult in front passenger seat

ON (illuminated)

INHIBITED

Adult

Adult in the front passenger seat

OFF (dark)

ACTIVATED

In addition to the above, certain objects
placed on the front passenger seat may also
cause the light to operate as described above
depending on their weight.

For additional information, see “Normal opera-
tion” (P. 1-67) and “Troubleshooting” (P. 1-68).

Front passenger air bag

The front passenger air bag and front pas-
senger supplemental knee air bag are de-
signed to automatically turn OFF when the
vehicle is operated under some conditions as
described below in accordance with U.S.
regulations. If the front passenger air bag and
front passenger supplemental knee air bag
are OFF, they will not inflate in a crash. The
driver air bag and other air bags in your ve-
hicle are not part of this system.

The purpose of the regulation is to help reduce
the risk of injury or death from an inflating air
bag to certain front passenger seat occupants,
such as children, by requiring the air bags to be

automatically turned OFF. Certain sensors are
used to meet the requirements.

The occupant classification sensor in this ve-
hicle is a weight sensor. It is designed to
detect an occupant and objects on the seat
by weight. For example, if a child is in the
front passenger seat, the INFINITI Advanced
Air Bag System is designed to turn the front
passenger air bag and front passenger
supplemental knee air bag OFF in accor-
dance with the regulations. Also, if a child
restraint of the type specified in the regula-
tions is on the seat, its weight and the child’s
weight can be detected and cause the air
bags to turn OFF.

Front passenger seat adult occupants who
are properly seated and using the seat belt as
outlined in this manual should not cause the
front passenger air bag and front passenger
supplemental knee air bag to be automati-
cally turned OFF. For small adults it may be
turned OFF, however, if the occupant takes
his/her weight off the seat cushion (for ex-

ample, by not sitting upright, by sitting on an
edge of the seat, or by otherwise being out of
position), this could cause the sensor to turn
the air bags OFF. Always be sure to be
seated and wearing the seat belt properly for
the most effective protection by the seat belt
and supplemental air bag.

INFINITI recommends that pre-teens and
children be properly restrained in a rear seat.
INFINITI also recommends that appropriate
child restraints and booster seats be properly
installed in a rear seat. If this is not possible,
the occupant classification sensor is designed
to operate as described above to turn the
front passenger air bag and front passenger
supplemental knee air bag OFF for specified
child restraints as required by the regulations.
Failing to properly secure child restraints and
to use the ALR mode may allow the restraint
to tip or move in a collision or sudden stop.
This can also result in the front passenger air
bag and front passenger supplemental knee
air bag inflating in a crash instead of being

1-66

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OFF. For additional information, see “Child
restraints” (P. 1-28).

If the front passenger seat is not occupied,
the front passenger air bag and front passen-
ger supplemental knee air bag are designed
not to inflate in a crash. However, heavy
objects placed on the seat could result in air
bag inflation, because of the object’s weight
detected by the occupant classification sen-
sor. Other conditions could also result in air
bag inflation, such as if a child is standing on
the seat, or if two children are on the seat,
contrary to the instructions in this manual.
Always be sure that you and all vehicle occu-
pants are seated and restrained properly.

Using the front passenger air bag status light,
you can monitor when the front passenger air
bag and front passenger supplemental knee
air bag are automatically turned OFF.

If an adult occupant is in the seat but the
front passenger air bag status light is illumi-
nated (indicating that the front passenger air
bag and front passenger supplemental knee
air bag are OFF), it could be that the person is
a small adult, or is not sitting on the seat
properly or not using the seat belt properly.

If a child restraint must be used in the front
seat, the front passenger air bag status light
may or may not be illuminated, depending on

the size of the child and the type of child
restraint being used. If the front passenger air
bag status light is not illuminated (indicating
that the front passenger air bag and front
passenger supplemental knee air bag might
inflate in a crash), it could be that the child
restraint or seat belt is not being used prop-
erly. Make sure that the child restraint is in-
stalled properly, the seat belt is used properly
and the occupant is positioned properly. If the
front passenger air bag status light is still not
illuminated, reposition the occupant or child
restraint in a rear seat.

If the front passenger air bag status light will
not illuminate even though you believe that
the child restraint, the seat belts and the oc-
cupant are properly positioned, it is recom-
mended that you take your vehicle to an
INFINITI retailer. An INFINITI retailer can
check system status by using a special tool.
However, until you have confirmed with a
retailer that your air bag is working properly,
reposition the occupant or child restraint in a
rear seat.

The INFINITI Advanced Air Bag System and
front passenger air bag status light will take a
few seconds to register a change in the front
passenger seat status. This is normal system
operation

and

does

not

indicate

a

malfunction.

If a malfunction occurs in the front passenger
air bag system, the supplemental air bag
warning light

, located in the meter and

gauges area of the instrument panel, will be
illuminated (blinking or steadily lit). Have the
system checked. It is recommended that you
visit an INFINITI retailer for this service.

Normal operation

In order for the occupant classification sen-
sor system to classify the front passenger
based on weight, please follow the precau-
tions and steps outlined below:

Precautions

• Make sure that there are no objects weigh-

ing over 9.1 lbs. (4 kg) hanging on the seat
or placed in the seatback pocket (if so
equipped).

• Make sure that a child restraint or other

object is not pressing against the rear of the
seatback.

• Make sure that a rear passenger is not

pushing or pulling on the back of the front
passenger seat.

• Make sure that the front passenger seat or

seatback is not forced back against an ob-
ject on the seat or floor behind it.

• Make sure that there is no object placed

under the front passenger seat.

Safety-Seats, seat belts and supplemental restraint system

1-67

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Steps

1. Adjust the seat as outlined in “Seats”

(P. 1-2). Sit upright, leaning against the
seatback, and centered on the seat cush-
ion with your feet comfortably extended
to the floor.

2. Make sure there are no objects on your

lap.

3. Fasten the seat belt as outlined in “Seat

belts” (P. 1-17). Front passenger seat belt
buckle status is monitored by the occu-
pant classification system, and is used as
an input to determine occupancy status.
So, it is highly recommended that the
front passenger fasten their seat belt.

4. Remain in this position for 30 seconds

allowing the system to classify the front
passenger before the vehicle is put into
motion.

5. Ensure proper classification by checking

the front passenger air bag status light.

NOTE:

This vehicle’s occupant classification sensor
system generally keeps the classification
locked during driving, so it is important that
you confirm that the front passenger is
properly classified prior to driving. However,
the occupant classification sensor may re-
calculate the weight of the occupant under
some conditions (both while driving and
when stopped), so front passenger seat oc-
cupants should continue to remain seated as
outlined above.

Troubleshooting

If you think the front passenger air bag status
light is incorrect:

1. If the light is ON with an adult occupying

the front passenger seat:

• Occupant is a small adult — the front pas-

senger air bag status light is functioning as
intended. The front passenger air bag and
front passenger supplemental knee air bag
are suppressed.

However, if the occupant is not a small adult,
then this may be due to the following condi-
tions that may be interfering with the weight
sensors:

• Occupant is not sitting upright, leaning

against the seatback, and centered on the
seat cushion with his/her feet comfortably
extended to the floor.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on the

back of the front passenger seat.

• Forcing the front seat or seatback against

an object on the seat or floor behind it.

• An object placed under the front passenger

seat.

• An object placed between the seat cushion

and center console or between the seat
cushion and the door.

If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

1-68

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

2. If the light is OFF with a small adult, child

or child restraint occupying the front pas-
senger seat.

This may be due to the following condi-
tions that may be interfering with the
weight sensors:

• Small adult or child is not sitting upright,

leaning against the seatback, and centered
on the seat cushion with his/her feet com-
fortably extended to the floor.

• The child restraint is not properly installed,

as outlined in “Child restraints” (P. 1-28).

• An object weighing over 9.1 lbs. (4 kg)

hanging on the seat or placed in the seat-
back pocket.

• A child restraint or other object pressing

against the rear of the seatback.

• A rear passenger pushing or pulling on the

back of the front passenger seat.

• Forcing the front seat or seatback against

an object on the seat or floor behind it.

• An object placed under the front passenger

seat.

• An object placed between the seat cushion

and center console.

If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute.

NOTE:

A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds
initially.

If the light is still OFF after this, the small
adult, child or child restraint should be repo-
sitioned in a rear seat and the vehicle should
be checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

3. If the light is OFF with no front passenger

and no objects on the front passenger
seat, the vehicle should be checked. It is
recommended that you visit an INFINITI
retailer as soon as possible.

Other supplemental front-impact air bag
precautions

WARNING

Do not place any objects on the steering
wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may be-
come dangerous projectiles and cause in-
jury if the front air bags inflate.

Immediately

after

inflation,

several

front air bag system components will be
hot. Do not touch them; you may se-
verely burn yourself.

No unauthorized changes should be
made to any components or wiring of the
supplemental air bag system. This is to
prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.

Do not make unauthorized changes to
your vehicle's electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the
front air bag system.

Safety-Seats, seat belts and supplemental restraint system

1-69

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tampering with the front air bag system
may result in serious personal injury.
Tampering includes changes to the
steering wheel and the instrument panel
assembly by placing material over the
steering wheel pad and above the instru-
ment panel or by installing additional
trim material around the air bag system.

Removing or modifying the front pas-
senger seat may affect the function of
the air bag system and result in serious
personal injury.

Modifying or tampering with the front
passenger seat may result in serious per-
sonal injury. For example, do not change
the front seats by placing material on the
seat cushion or by installing additional
trim material, such as seat covers, on the
seat that are not specifically designed to
assure proper air bag operation. Addi-
tionally, do not stow any objects under
the front passenger seat or the seat
cushion and seatback. Such objects may
interfere with the proper operation of
the

occupant

classification

sensor

(weight sensor).

No unauthorized changes should be
made to any components or wiring of the
seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.

It is recommended that you visit an
INFINITI retailer for work on and around
the front air bags. It is also recommended
that you visit an INFINITI retailer for in-
stallation of electrical equipment. The
Supplemental Restraint System (SRS)
wiring harnesses* should not be modified
or disconnected. Unauthorized electrical
test equipment and probing devices
should not be used on the air bag system.

A cracked windshield should be replaced
immediately by a qualified repair facility.
A cracked windshield could affect the
function of the supplemental air bag
system.

*The SRS wiring harness connectors are yel-
low and orange for easy identification.

When selling your vehicle, we request that
you inform the buyer about the front air bag
system and guide the buyer to the appropri-
ate sections in this Owner's Manual.

Front, 2nd row outboard, and front
central (if so equipped)
seat-mounted side-impact
supplemental air bag and
roof-mounted curtain side-impact
and rollover supplemental air bag
systems

The side air bags are located in the outside of
the seatback of the front and rear seats. The
front central air bag (if so equipped) is located
in the inside of the seatback of the driver’s
seat. The curtain air bags are located in the
side roof rails in all three rows.

All of the

information, cautions and warnings in this

LRS3400

1-70

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

manual must be followed.

The side air bags

and curtain air bags are designed to inflate in
higher severity side collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher sever-
ity impact. They are designed to inflate on the
side where the vehicle is impacted. They may
not inflate in certain side collisions.

Curtain air bags are also designed to inflate in
certain types of rollover collisions or near
rollovers. As a result, certain vehicle move-
ments (for example, during severe off-
roading) may cause the curtain air bags to
inflate.

Vehicle damage (or lack of it) is not always an
indication of proper side air bag and curtain
air bag operation.

When the side air bags and curtain air bags
inflate, a fairly loud noise may be heard, fol-
lowed by release of smoke. This smoke is not
harmful and does not indicate a fire. Care
should be taken not to inhale it, as it may
cause irritation and choking. Those with a
history of a breathing condition should get
fresh air promptly.

Side air bags, along with the use of seat belts,
help to cushion the impact force on the chest
of the front and rear outboard occupants.
The front central side air bag, along with the

use of seat belts helps cushion the impact
force on the head area of the front occu-
pants. Curtain air bags help to cushion the
impact force to the head of occupants in the
front and rear outboard seating positions in
all rows. They can help save lives and reduce
serious injuries. However, an inflating side air
bag or curtain air bag may cause abrasions or
other injuries. Side air bags and curtain air
bags do not provide restraint to the lower
body.

The seat belts should be correctly worn and
the driver, front passenger, and 2nd row out-
board occupants seated upright as far as
practical away from the side air bag. Rear
seat passengers should be seated as far
away as practical from the door finishers and
side roof rails. The side air bags and curtain
air bags inflate quickly in order to help protect
the occupants. Because of this, the force of
the side air bags and curtain air bags inflating
can increase the risk of injury if the occupant
is too close to, or is against, these air bag
modules during inflation. The side air bag will
deflate quickly after the collision is over. The
front central side air bag and curtain air bags
will remain inflated for a short period of time.

The side air bags and curtain air bags oper-
ate only when the ignition switch is placed in
the ON position.

After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.

WARNING

Do not place any objects near the seat-
back of the front seats. Also, do not place
any objects (an umbrella, bag, etc.) be-
tween the front door finisher and the
front seat. Such objects may become
dangerous projectiles and cause injury if
a side air bag inflates.

Right after inflation, several side air bag
and curtain air bag system components
will be hot. Do not touch them; you may
severely burn yourself.

No unauthorized changes should be
made to any components or wiring of the
side air bag and curtain air bag systems.
This is to prevent damage to or acciden-
tal inflation of the side air bag and cur-
tain air bag systems.

Do not make unauthorized changes to
your vehicle's electrical system, suspen-
sion system or side panel. This could af-
fect proper operation of the curtain air
bag systems.

Safety-Seats, seat belts and supplemental restraint system

1-71

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..     1      2      3      4      ..
