SEAT BELT WARNING LIGHT
AND CHIME

The light and chime remind you to fasten the
driver, front passenger and rear passenger
seat belts. A visual and audible alert will op-
erate in the following conditions:
• If the driver seat belt is not fastened.
• The front passenger’s seat belt is not fas-

tened and the seat is occupied by a passen-
ger for 7 seconds after the ignition switch is
placed in the ON position.

• The front passenger’s seat belt is not fas-

tened and objects or external force on the
passenger seat change the seat belt re-
minder classification to “occupied”.

• Any rear passenger seat belt is operated

from fastened to unfastened.

For additional information, see:
• “Seat belt warning light and chime” in this

section.

• “Rear seat belt warning” in this section.

The below situations could result in the seat
belt warning function operating, even with no
occupant present in the front passenger seat:
• Heavy objects placed on the seat.
• Someone pushing or pulling on the front

passenger seat.

• An object placed under the front passenger

seat.

• An object placed between the seat cushion

and center console or between the seat
cushion and the door.

• An object hanging on the seat or placed in

the seatback pocket.

• A child restraint or other object pressing

against the rear of the seatback.

The rear seat belt reminder may operate if the
rear seat belts are used without occupants.

SEAT BELT WARNING
LIGHT AND CHIME

• The light and chime remind you to fasten

the seat belts.

• The seat belt warning light will illuminate

when the ignition switch is pushed to the
ON position if the driver’s seat belt is not
fastened, or if the front passenger seat belt
is not fastened when occupied.

• The seat belt warning light will also illumi-

nate if a rear passenger seat belt is changed
from fastened to unfastened.

• If the driver’s seat belt is not fastened when

the ignition switch is pushed to the ON
position, the chime will sound shortly.

• If the vehicle is driven above 9 mph (15

km/h) in the conditions that illuminate the
seat belt warning light, the lamp will begin
to blink and the chime will sound for over
one minute, or until the seat belt is fastened
again.

LRS0786

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

The warning light and/or chime may acti-
vate if an object is placed in the unoccupied
front passenger seat. In this case, please
remove the object from the front passen-
ger seat.

The warning light and/or chime may acti-
vate if any seat belt is unfastened before
the vehicle comes to a complete stop.
Please remain fastened until the vehicle
has come to a complete stop.

Rear seat belt warning

• This warning includes display of the seat

belts for rear positions only. Rear seat belts
that are unfastened will appear red.

• If any rear seat belts are unfastened when

the ignition switch is pushed to the ON
position, this warning will display for about
one minute, or until dismissed.

• When a rear seat belt is changed from fas-

tened to unfastened, this warning will dis-
play for over one minute, or until dismissed,
and the seat belt warning light will turn on.

• If the vehicle is driven above 9 mph (15

km/h) during or after the status change,
this warning will display, the seat belt
warning light will blink, and the chime will
sound for over one minute. During this time,
the warning and chime cannot be dismissed
unless the rear seat belt is fastened again.
Once the seat belt warning light and chime
have turned off, the display will remain until
dismissed.

NOTE:

While it appears, this warning will also dis-
play the status of all doors and rear hatch.
Opening and closing a rear door while
stopped will reset this warning, similar to
pushing the ignition switch to the ON posi-
tion again.

Seat belt indicator and chime

• The indicator and chime remind you to fas-

ten the seat belts.

• The seat belt indicator appears when the

ignition switch is pushed to the ON position
if the driver’s seat belt is not fastened, or if
the front passenger seat belt is not fas-
tened when occupied.

• The seat belt indicator also appears if a rear

passenger seat belt is changed from fas-
tened to unfastened.

• If the driver’s seat belt is not fastened when

the ignition switch is pushed to the ON
position, the chime will sound shortly.

• If the vehicle is driven above 9 mph (15

km/h) in the conditions that illuminate the
seat belt indicator, the indicator will begin
to blink and the chime will sound for over
one minute, or until the seat belt is fastened
again.

NOTE:

The indicator and/or chime may activate if
an object is placed in the unoccupied front
passenger seat. In this case, please remove
the object from the front passenger seat.

The indicator and/or chime may activate if
any seat belt is unfastened before the ve-
hicle comes to a complete stop. Please re-
main fastened until the vehicle has come to
a complete stop.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The information contained within this supplement revises or adds to the

“INSTALLING FRONT LICENSE PLATE” section of the “TECHNICAL AND CONSUMER INFORMATION”

section in the 2023 INFINITI QX60 Owner’s Manual.

Read carefully and keep in the vehicle.

Printing: November 2022

Publication No. SU23EA 1L51U1

OWNER’S MANUAL SUPPLEMENT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

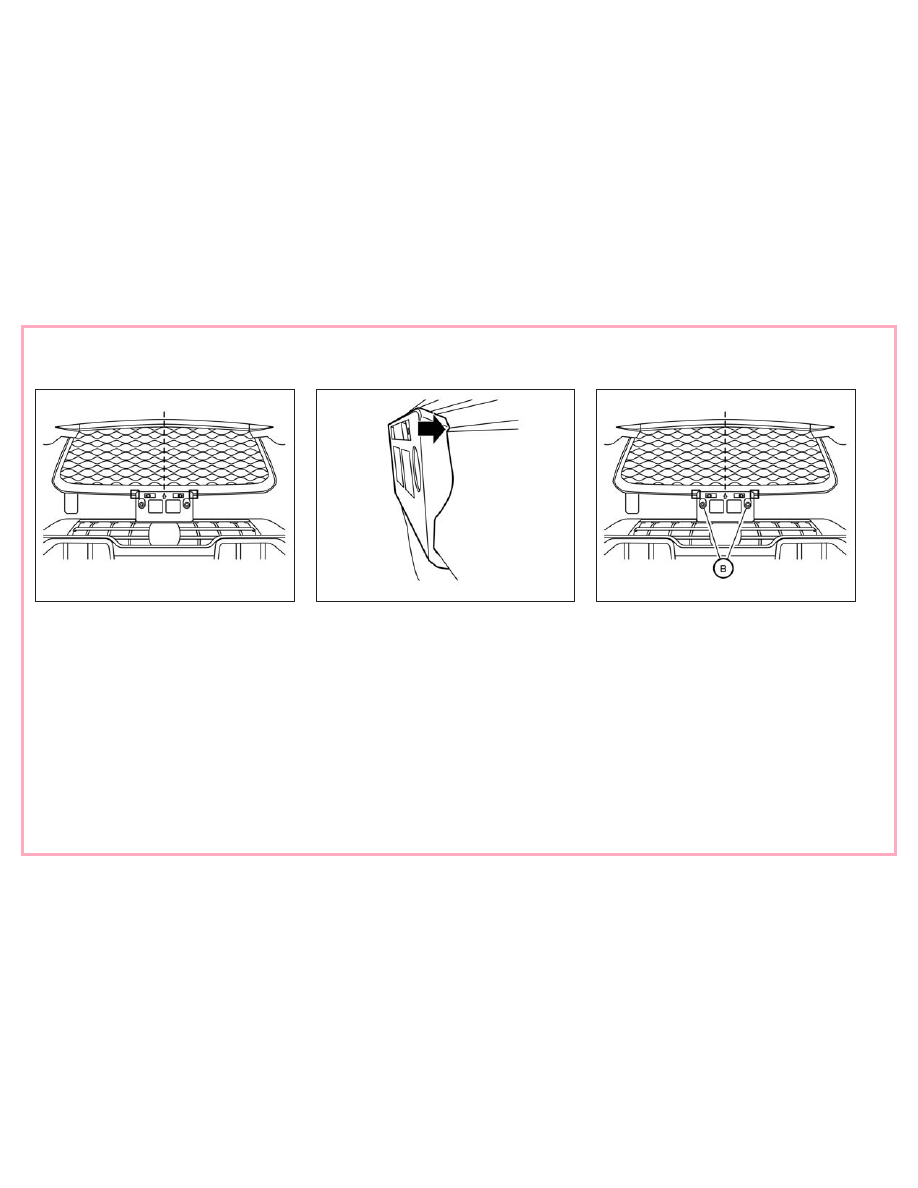

1. Hold the license bracket to the fascia and

vertically align with the notches on sides
and ensure the bracket fits properly on the
contour line (Figure A.) Find the center line
and align with arrow on the bracket.

2. Mark hole location

O

B

on the fascia once

the license bracket is held in position.

3. Remove the license plate bracket and drill

two 0.39 in (10 mm) holes in the locations
marked in the previous step.

LTI2588

LTI2711

Figure A

LTI2712

INSTALLING FRONT LICENSE PLATE

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Insert two screw grommets

O

C

into the

fascia.

5. Install the license plate bracket to the fas-

cia with two screws

O

D

.

WARNING

Please ensure that the front distance sen-
sor is unobstructed or blocked by large li-
cense plates or vanity plates. Blocking this
sensor can prevent the sensor from detect-
ing objects properly and may cause a mal-
function light to illuminate. If the malfunc-
tion light is illuminated some Safety Shield
systems will not function. If this happens
an accident could occur resulting in per-
sonal injury or death.

Ensure that the distance sensor

O

E

is not

covered or blocked.

LTI2580

LTI2713

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The information contained within this supplement revises or adds to the

“Precautions on Child Restraints” section of the “Safety-Seats, seat belts and supplemental

restraint system” section in the 2022–23 INFINITI QX60 Owner’s Manual.

Read carefully and keep in the vehicle.

Printing: October 2022

Publication No. SU22EA 3L51U0

OWNER’S MANUAL SUPPLEMENT

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PRECAUTIONS ON CHILD
RESTRAINTS

WARNING

Failure to follow the warnings and in-
structions for proper use and installation
of child restraints could result in serious
injury or death of a child or other passen-
gers in a sudden stop or collision:

The child restraint must be used and
installed properly. Always follow all
of the child restraint manufacturer's
instructions for installation and use.

Infants and children should never be
held on anyone's lap. Even the stron-
gest adult cannot resist the forces of
a collision.

Do not put a seat belt around both a
child and another passenger.

INFINITI recommends that all child re-
straints be installed in the rear seat.
Studies show that children are safer
when properly restrained in the rear
seat than in the front seat. If you must
install a forward-facing child restraint
in the front seat, see “Forward-facing
child restraint installation using the
seat belts” in this section.

Even with the INFINITI Advanced Air
Bag System, never install a rear-facing
child restraint in the front seat. An in-
flating air bag could seriously injure or
kill a child. A rear-facing child restraint
must only be used in the rear seat.

Be sure to purchase a child restraint
that will fit the child and vehicle. Some
child restraints may not fit properly in
your vehicle.

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage
the child restraint anchorages. The
child restraint will not be properly in-
stalled using the damaged anchorage,
and a child could be seriously injured
or killed in a collision.

Never use the anchor points for adult
seat belts, or other items.

A child restraint with a top tether strap
should not be used in the front passen-
ger seat.

Keep seatbacks as upright as possible
after fitting the child restraint.

ARS1098

WRS0256

CHILD RESTRAINTS

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Infants and children should always be
placed in an appropriate child re-
straint while in the vehicle.

When the child restraint is not in use,
keep it secured with the LATCH system
or a seat belt. In a sudden stop or colli-
sion, loose objects can injure occupants
or damage the vehicle.

A child restraint in a closed vehicle can
become very hot. Check the seating sur-
face and buckles before placing a child in
the child restraint.

2nd row one touch function should not be
used when a child restraint is occupied.

The 2nd row one touch buttons are en-
abled during vehicles speeds less than
1.2 mph (2 km/h). If either button is
pressed, the seat may unlatch even if the
seat is occupied, and may move or pitch.
If the seat is unlatched, occupant can be
seriously injured during driving.

To help avoid the risk of personal injury,
supervise children, people who require
the assistance of others, or pets occupy-
ing the second and third rows to prevent
pressing the one touch buttons that op-
erate the walk-in function.

This vehicle is equipped with a universal child
restraint anchor system, referred to as the
LATCH (Lower Anchors and Tethers for
CHildren) system. Some child restraints in-
clude rigid or webbing-mounted attachments
that can be connected to these anchors. For
additional information, see “LATCH (Lower
Anchors and Tethers for CHildren) system” in
this section.

If you do not have a LATCH compatible child
restraint, the vehicle seat belts can be used.

Several manufacturers offer child restraints
for infants and children of various sizes.
When selecting any child restraint, keep the
following points in mind:
• Choose only a restraint with a label certify-

ing that it complies with Federal Motor
Vehicle Safety Standard 213 or Canadian
Motor Vehicle Safety Standard 213.

• Check the child restraint in your vehicle to

be sure it is compatible with the vehicle's
seat and seat belt system.

• If the child restraint is compatible with your

vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child's height and weight.
Always follow all recommended proce-
dures.

• If the combined weight of the child and

child restraint is less than 65 lbs. (29.5 kg),
you may use either the LATCH anchors or
the seat belt to install the child restraint (not
both at the same time).

• If the combined weight of the child and child

restraint is greater than 65 lbs. (29.5 kg), use
the vehicle’s seat belt (not the lower anchors)
to install the child restraint.

• Be sure to follow the child restraint manu-

facturer’s instructions for installation.

All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child re-
straints be secured to the designated anchor
point on the vehicle.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CALIFORNIA PROPOSITION 65 WARNING

WARNING

Operating, servicing and maintaining a passenger vehicle or
off-highway motor vehicle can expose you to chemicals
including engine exhaust, carbon monoxide, phthalates, and
lead, which are known to the State of California to cause
cancer and birth defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust, do not idle the
engine except as necessary, service your vehicle in a well-
ventilated area and wear gloves or wash your hands
frequently when servicing your vehicle. For more information
go to www.P65Warnings.ca.gov/passenger-vehicle.

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles
(kilometers) of driving pleasure. Please read
through this manual before operating your
vehicle.

A separate Warranty Information Booklet is
included in your Owner’s literature portfolio.
The “Maintenance and schedules” section of
this manual explains details about maintain-
ing and servicing your vehicle. Always carry
it with you when you take your vehicle to an
INFINITI retailer. The Warranty Information
Booklet contents provide complete informa-
tion about all warranties covering this ve-
hicle, the requirements to keep the warranties
in effect as well as the INFINITI Roadside
Assistance program.

Additionally, a separate Customer Care and
Lemon Law Information Booklet will explain
how to resolve any concerns you may have
with your vehicle, as well as clarify your
rights under your state’s lemon law.

In addition to factory-installed options, your
vehicle may also be equipped with additional
accessories installed prior to delivery. It is
recommended that you visit an INFINITI re-
tailer for details concerning the particular ac-
cessories with which your vehicle is equipped.
It is important that you familiarize yourself
with all disclosures, warnings, cautions and
instructions concerning proper use of such
accessories prior to operating the vehicle
and/or accessory. It is recommended that
you visit an INFINITI retailer for details con-
cerning the particular accessories with which
your vehicle is equipped.

Before driving your vehicle, please read this
Owner's Manual carefully. This will ensure
familiarity with controls and maintenance re-
quirements, assisting you in the safe opera-
tion of your vehicle.

WARNING

IMPORTANT SAFETY INFORMATION
REMINDERS!

Follow these important driving rules to
help ensure a safe and comfortable trip for
you and your passengers!

NEVER drive under the influence of alco-
hol or drugs.

ALWAYS observe posted speed limits
and never drive too fast for conditions.

ALWAYS give your full attention to
driving and avoid using vehicle features
or taking other actions that could dis-
tract you.

ALWAYS use your seat belts and appro-
priate child restraint systems. Pre-teen
children should be seated in the rear seat.

ALWAYS provide information about the
proper use of vehicle safety features to
all occupants of the vehicle.

ALWAYS review this Owner’s Manual
for important safety information.

FOREWORD

READ FIRST—THEN DRIVE SAFELY

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For descriptions specified for all-wheel drive
models, an

AWD

mark is placed at the begin-

ning of the applicable sections/items.

As with other vehicles with features for off-
road use, failure to operate all-wheel drive
models correctly may result in loss of control
or an accident. For additional information,
see “Driving safety precautions” (P. 5-10).

ON-PAVEMENT AND OFF-ROAD DRIVING

This vehicle will handle and maneuver dif-
ferently from an ordinary passenger car be-
cause it has a higher center of gravity for
off-road use. As with other vehicles with
features of this type, failure to operate this
vehicle correctly may result in loss of con-
trol or an accident.

For additional information, see “On- pave-
ment and off-road driving precautions”
(P. 5-8),
“Avoiding collision and rollover”
(P. 5-8)
and “Driving safety precautions”
(P. 5-10).

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modi-
fication could affect its performance,
safety, emissions or durability and may
even violate governmental regulations. In
addition, damage or performance problems
resulting from modifications may not be
covered under INFINITI warranties.

WARNING

Installing an aftermarket On-Board Diag-
nostic (OBD) plug-in device that uses the
port during normal driving, for example re-
mote insurance company monitoring, re-
mote vehicle diagnostics, telematics or en-
gine

reprogramming,

may

cause

interference or damage to vehicle systems.
We do not recommend or endorse the use
of any aftermarket OBD plug-in devices,
unless specifically approved by INFINITI.
The vehicle warranty may not cover dam-
age caused by any aftermarket plug-in
device.

This manual includes information for all fea-
tures and equipment available on this model.
Features and equipment in your vehicle may
vary depending on model, trim level, options
selected, order, date of production, region or
availability. Therefore, you may find informa-
tion about features or equipment that are not
included or installed on your vehicle.

All information, specifications and illustra-
tions in this manual are those in effect at the
time of printing. INFINITI reserves the right
to change specifications, performance, de-
sign or component suppliers without notice
and without obligation. From time to time,
INFINITI may update or revise this manual to
provide Owners with the most accurate in-
formation currently available. Please care-
fully read and retain with this manual all revi-
sion updates sent to you by INFINITI to
ensure you have access to accurate and up-
to-date information regarding your vehicle.
Current versions of vehicle Owner's Manuals
and any updates can also be found in the
Owner section of the INFINITI website at

https://owners.infinitiusa.com/iowners/
navigation/manualsAndGuides

. If you have

questions concerning any information in your
Owner's Manual, contact INFINITI Con-
sumer Affairs. See the INFINITI CUSTOMER
CARE PROGRAM page in this Owner’s
Manual for contact information.

WHEN READING THE MANUAL

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IMPORTANT INFORMATION
ABOUT THIS MANUAL

You will see various symbols in this manual.
They are used in the following ways:

WARNING

This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the risk,
the procedures must be followed precisely.

CAUTION

This is used to indicate the presence of a
hazard that could cause minor or moderate
personal injury or damage to your vehicle.
To avoid or reduce the risk, the procedures
must be followed carefully.

If you see this symbol, it means

“Do not do

this”

or

“Do not let this happen.”

If you see a symbol similar to these in an
illustration, it means the arrow points to the
front of the vehicle.

Arrows in an illustration that are similar to
these indicate movement or action.

Arrows in an illustration that are similar to
these call attention to an item in the
illustration.

CALIFORNIA PERCHLORATE
ADVISORY

Some vehicle parts, such as lithium batteries,
may contain perchlorate material. The follow-
ing advisory is provided: “Perchlorate Mate-
rial – special handling may apply. For addi-
tional information, refer to www.dtsc.ca.gov/
hazardouswaste/perchlorate/”.

All rights reserved. No part of this Owner’s
Manual may be reproduced or stored in a
retrieval system, or transmitted in any form,
or by any means, electronic, mechanical, pho-
tocopying, recording or otherwise, without
the prior written permission of Nissan Motor
Co., Ltd.

APD1005

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI CARES . . .

Both INFINITI and your INFINITI retailer are
dedicated to serving all your automotive
needs. Your satisfaction with your vehicle
and your INFINITI retailer are our primary
concerns. Your INFINITI retailer is always
available to assist you with all your automo-
bile sales and service needs.

However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:

For U.S. customers

1-800-662-6200

For Canadian customers

1-800-361-4792

The Consumer Affairs Department will ask
for the following information:
– Your

name,

address,

and

telephone

number

– Vehicle identification number (on dash

panel)

– Date of purchase
– Current odometer reading
– Your INFINITI retailer's name
– Your comments or questions

OR

You can write to INFINITI with the informa-
tion on the left at:

For U.S. customers

INFINITI Division

Nissan North America, Inc.

Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
nnaconsumeraffairs@nissan-usa.com

For Canadian customers

INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com

If you prefer, visit us at:

www.infinitiUSA.com (for U.S. customers)

or

www.infiniti.ca (for Canadian customers)

We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.

INFINITI CUSTOMER CARE PROGRAM

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

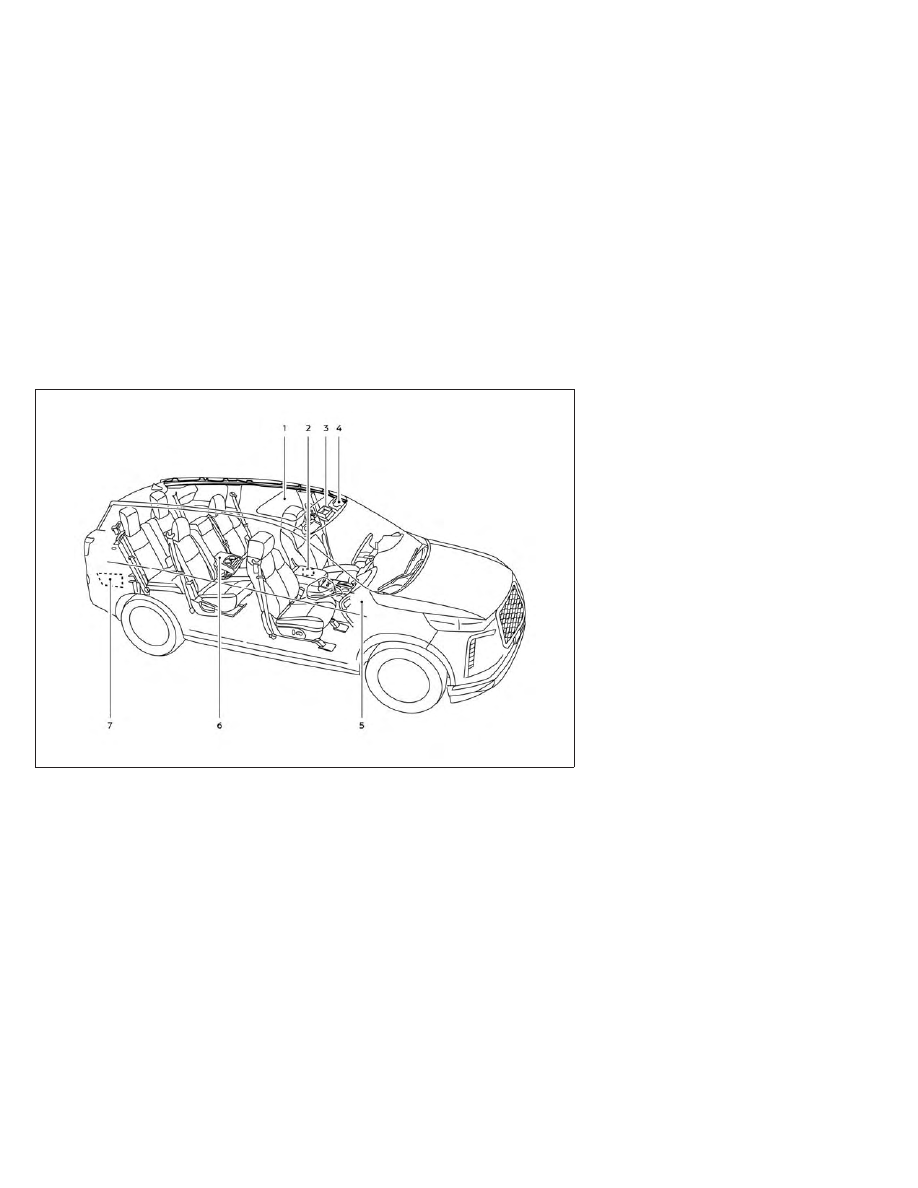

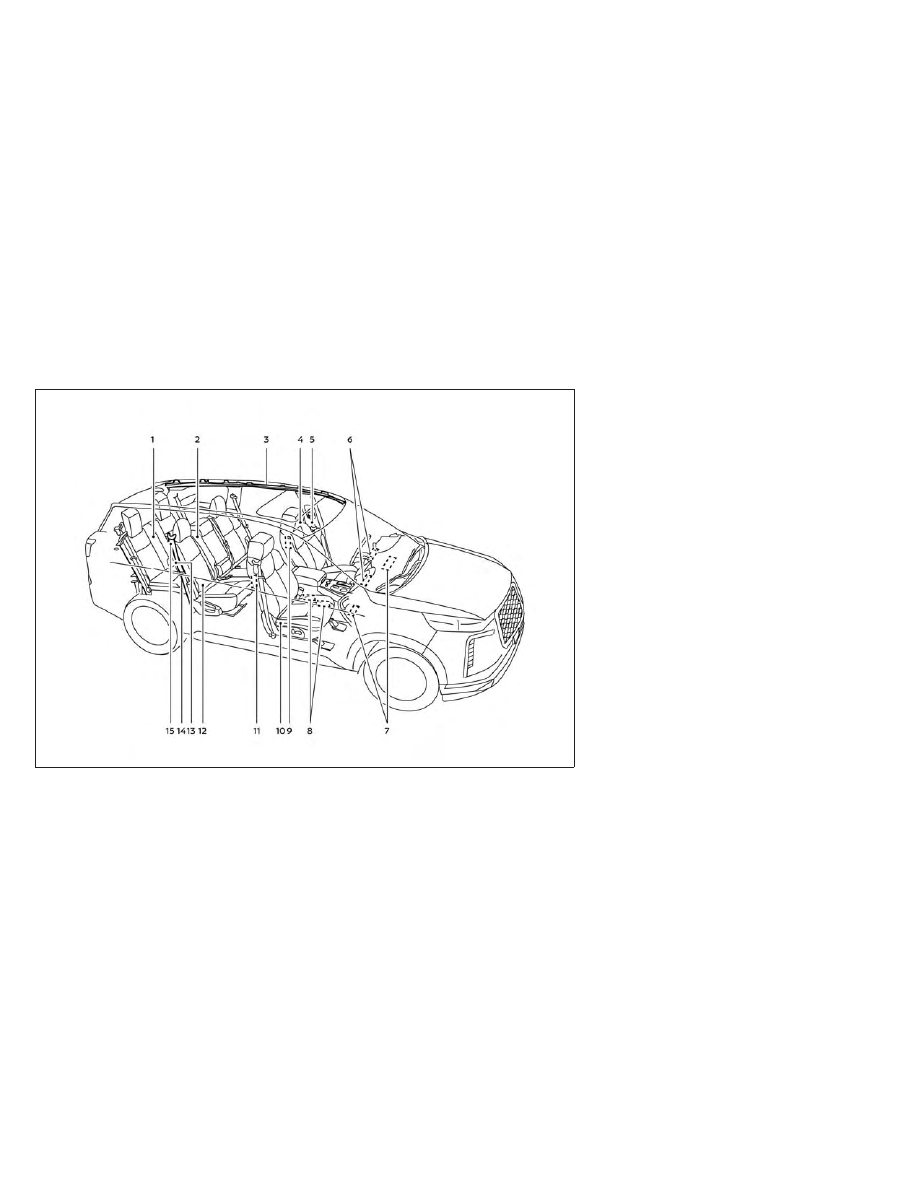

1.

Folding 3rd row bench (P. 1-7)

2.

Folding 2nd row bench (if so equipped)
(P. 1-5)

3.

Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-70)

4.

Head restraints/headrests (P. 1-16)

5.

Seat belts with pretensioner(s) and
shoulder height adjuster (P. 1-17, 1-24)

6.

Supplemental front air bags (P. 1-54)

7.

Driver supplemental knee air bag
(P. 1-72)
Front passenger supplemental knee air
bag (P. 1-72)

8.

Occupant classification sensor
(weight sensor) (P. 1-75)

9.

Front central seat-mounted side-impact
supplemental air bag (if so equipped)
(P. 1-70)

10. Seats (P. 1-2)
11.

Front seat-mounted side-impact
supplemental air bag (P. 1-70)

12.

LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-30)

13.

2nd row outboard seat-mounted
side-impact supplemental air bag
(P. 1-70)

14.

2nd row seat top tether strap anchor
(located on bottom of seatback) (P. 1-35)

15.

2nd row outboard seat belts with preten-
sioner(s) (P. 1-73)

Refer to the page number indicated in paren-
theses for operating details.

LII2708

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

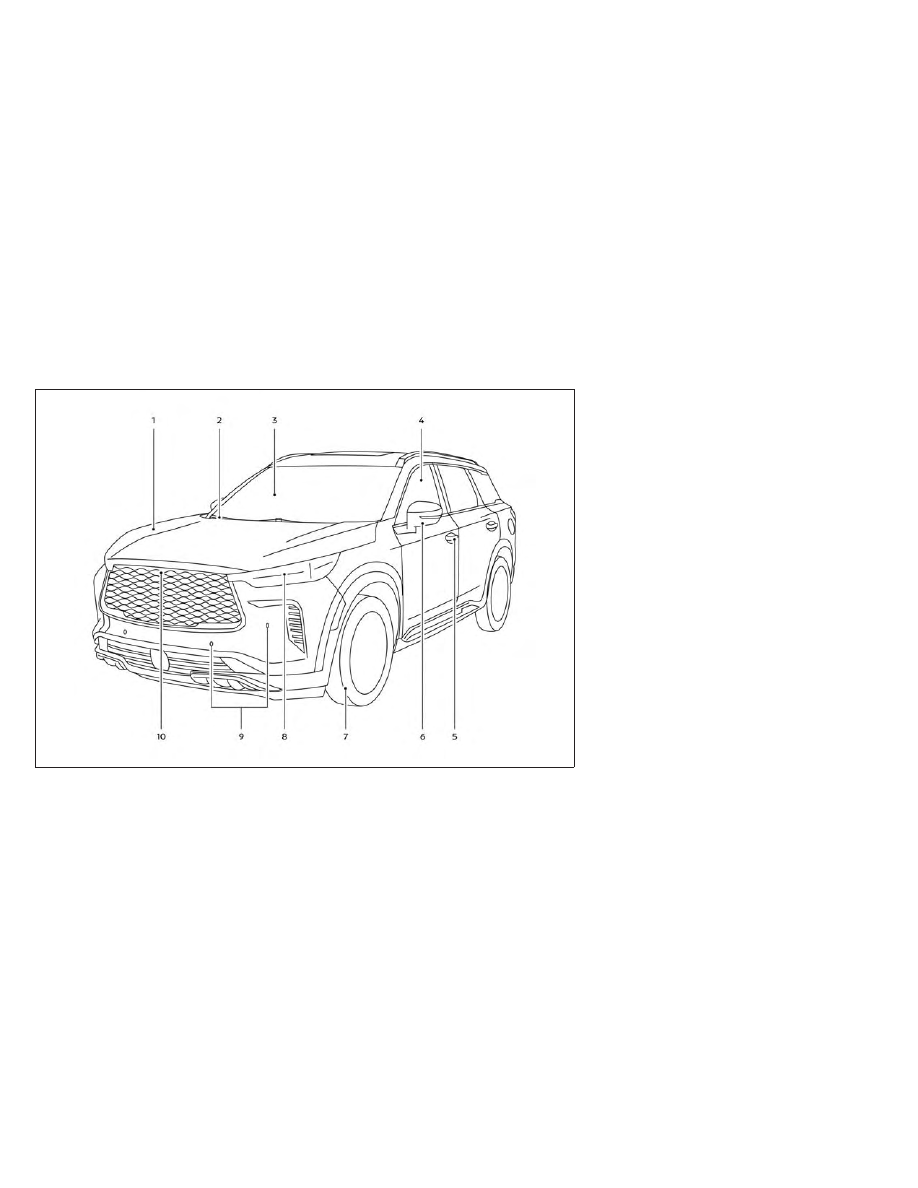

1.

Engine hood (P. 3-21)

2.

Wiper and washer switch (P. 2-73)
Wiper blades (P. 8-18)

3.

Windshield (P. 8-18)

4.

Power windows (P. 2-108)

5.

Door locks/Front and rear door
capacitive lock/unlock sensors (P. 3-4)
INFINITI Intelligent Key (P. 3-6)
Remote Engine Start (if so equipped)
(P. 3-18)
Keys (P. 3-2)

6.

Mirrors (P. 3-33)
Side camera (if so equipped) (P. 4-10)

7.

Tire pressure (P. 8-28)
Flat tire (P. 6-3)
Tire chains (P. 8-38)

8.

Replacing bulbs (P. 8-26)
Headlight and turn signal switch (P. 2-77)
LED Daytime Running Lights (DRL)
system (P. 2-82)

9.

Sonar sensors (if so equipped) (P. 5-172)

10. Front camera (if so equipped) (P. 4-10)

See the page number indicated in parenthe-
ses for operating details.

LII2709

EXTERIOR FRONT

Illustrated table of contents

0-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

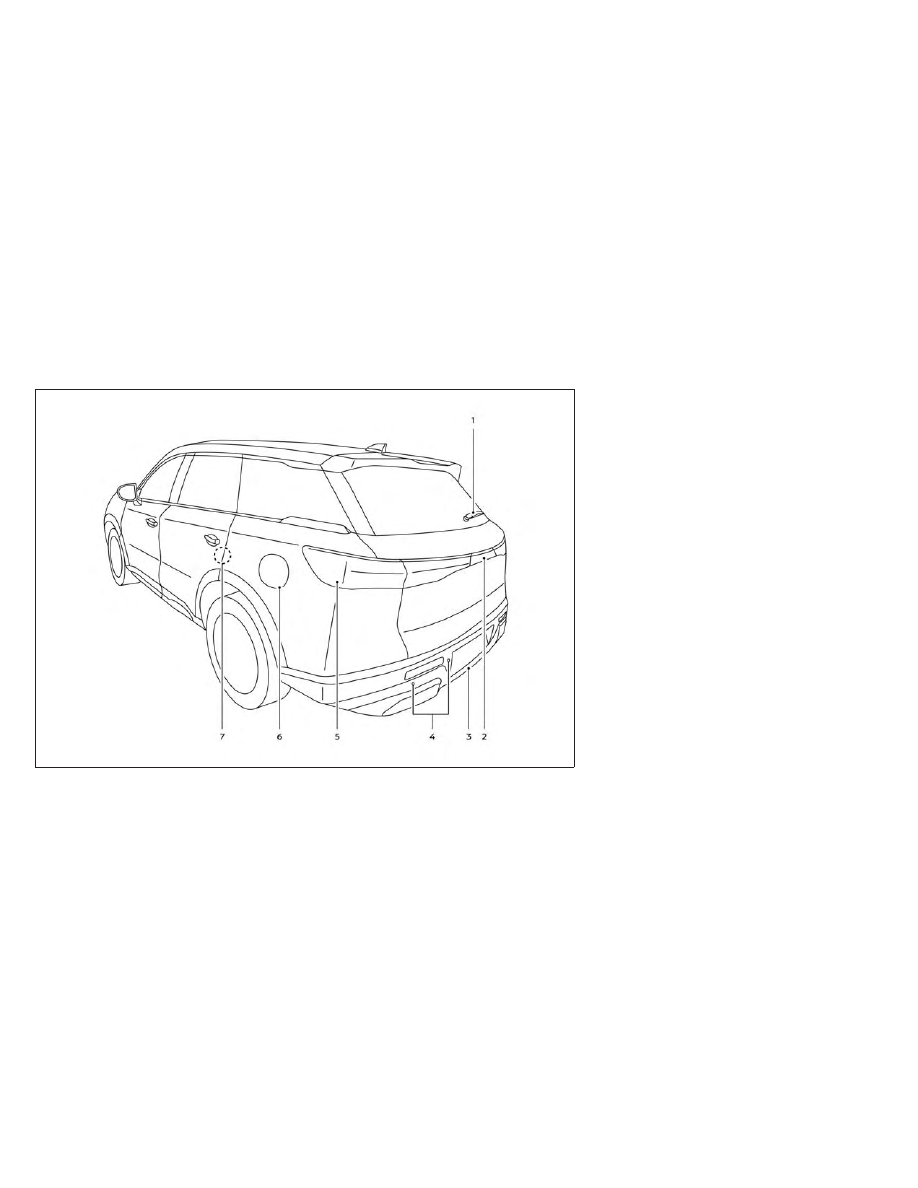

1.

Rear wiper and washer switch (P. 2-73)

2.

Liftgate release (P. 3-21)
Rearview camera (P. 4-3 or 4-10)

3.

Towing (if so equipped) (P. 10-20)

4.

Sonar sensors (P. 5-172)

5.

Replacing bulbs (P. 8-26)

6.

Fuel-filler door (P. 3-27)
Fuel recommendation (P. 10-4)

7.

Child safety rear door lock (P. 3-6)

Refer to the page number indicated in paren-
theses for operating details.

LII2710

EXTERIOR REAR

0-4

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Power moonroof (P. 2-111)
Panoramic sunshade (P. 2-111)

2.

Console box (P. 2-102)

3.

Map lights (P. 2-115)

4.

Sun visors (P. 3-32)

5.

Glove box (P. 2-101)

6.

Cup holders (P. 2-104)

7.

Luggage hooks (P. 2-106)

Refer to the page number indicated in paren-
theses for operating details.

LII2701

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

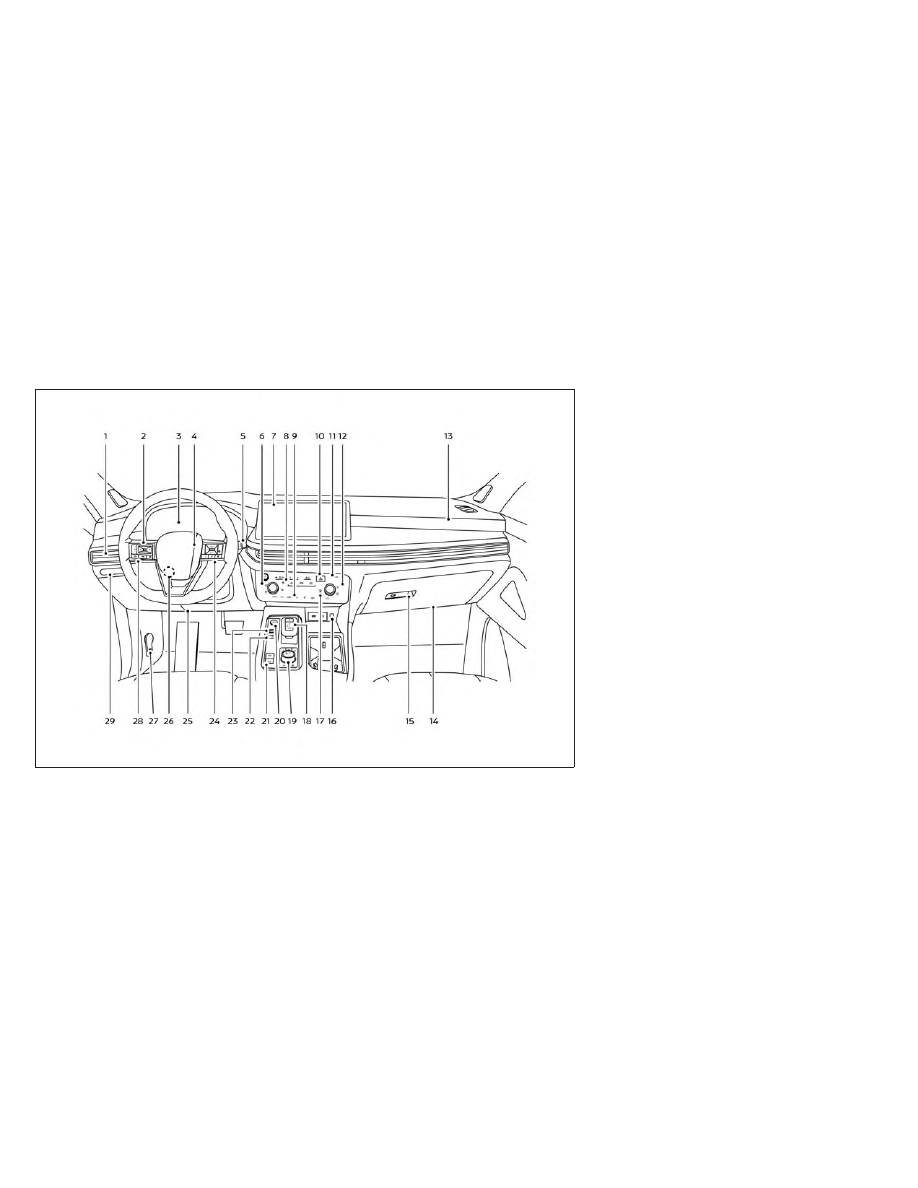

1.

Vent (P. 4-28)

2.

Headlight/turn signal switch (P. 2-77)
Instrument brightness control (P. 2-83)

3.

Meters and gauges (P. 2-6)
Warning and indicator lights (P. 2-12)
Vehicle information display (P. 2-22 or
2-44)

4.

Driver supplemental air bag (P. 1-54)
Horn (P. 2-84)

5.

Wiper and washer switch (P. 2-73)
Rear wiper and washer switch (P. 2-76)

6.

Driver side heated seat switch
(if so equipped) (P. 2-85)
Driver side climate controlled seat switch
(if so equipped) (P. 2-84)
Audio system controls*

7.

Center display*
Navigation system* (if so equipped)

8.

Heated steering wheel switch
(if so equipped) (P. 2-87)

9.

Automatic heater and air conditioner
controls (P. 4-29)

10.

Hazard warning flasher switch (P. 6-2)

11.

Front passenger air bag status light
(P. 1-65)

12.

Passenger side heated seat switch
(if so equipped) (P. 2-85)
Passenger side climate controlled seat
switch (if so equipped) (P. 2-84)

13.

Front passenger supplemental air bag
(P. 1-69)

14.

Front passenger supplemental knee air
bag (P. 1-72)

15.

Glove box (P. 2-101)

16.

Wireless charger (P. 2-97)

17.

Rear window and outside mirror
defroster switch (if so equipped) (P. 2-77)

18.

Shift lever (P. 5-19)

LII2702

INSTRUMENT PANEL

0-6

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

19.

Center multi-function control buttons*

20.

Push-button ignition switch (P. 5-13)

21.

Electronic parking brake (P. 5-25)
Automatic brake hold switch (P. 5-27)

22.

Idling Stop System switch (P. 5-178)

23.

INFINITI Drive Mode Selector (P. 5-29)

24.

Cruise control switches (if so equipped)
(P. 5-83)
ProPILOT Assist switches
(if so equipped) (P. 5-84)
Bluetooth® Hands-Free Phone System*

25.

Driver supplemental knee air bag
(P. 1-72)

26.

Tilt and telescopic steering wheel control
(P. 3-30)

27.

Hood release (P. 3-21)

28.

Control panel and vehicle information
display switches (P. 2-22 or 2-44)
Steering wheel switch for audio control*

29.

Liftgate instrument panel switch
(P. 3-22)
Steering Assist switch (if so equipped)
(P. 2-88)
Head Up Display (HUD) switch
(if so equipped) (P. 2-89)

*: Refer to the separate INFINITI InTouch

tm

Owner's Manual (if so equipped).

Refer to the page number indicated in paren-
theses for operating details.

Illustrated table of contents

0-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

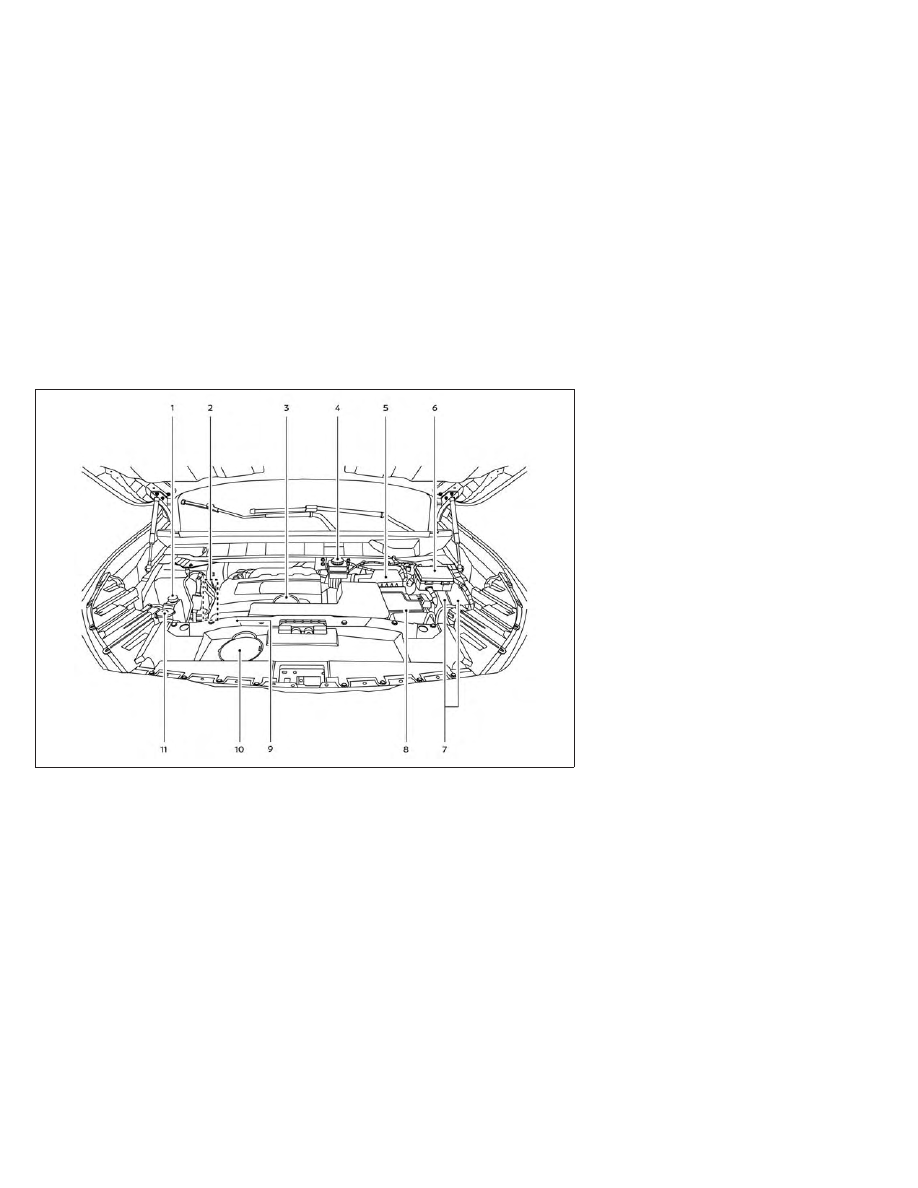

3.5L 6 cylinder (VQ35DD engine model)

1.

Engine coolant reservoir (P. 8-4)

2.

Drive belt location (P. 8-15)

3.

Engine oil filler cap (P. 8-6)

4.

Brake fluid reservoir (P. 8-11)

5.

Air cleaner (P. 8-17)

6.

Fuse box (P. 8-20)

7.

Fuse/Fusible link box (P. 8-20)

8.

Battery (P. 8-13)

9.

Engine oil dipstick (P. 8-6)

10. Radiator cap (P. 8-4)
11.

Windshield-washer fluid reservoir
(P. 8-11)

Refer to the page number indicated in paren-
theses for operating details.

NOTE:

Your vehicle may not be equipped with an
engine cover.

LDI3632

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning/

Indicator

light (red)

Name

Page

or

Brake warning

light

2-14

Charge warning

light

2-15

Electric shift con-

trol system

warning light (if so

equipped)

2-15

or

Electronic parking

brake indicator

light

2-15

Warning/

Indicator

light (red)

Name

Page

Engine oil pressure

warning light (if so

equipped)

2-15

Master warning

light (if so
equipped)

2-16

Seat belt warning

light (if so
equipped)

2-16

Steering Assist

Hands Off

warning light (if so

equipped)

2-16

Supplemental air

bag warning light

2-16

Warning/

Indicator

light

(yellow)

Name

Page

or

Anti-lock Braking

System (ABS)

warning light

2-17

Electric power

steering warning

light

2-17

Electronic parking

brake warning

light (if so
equipped)

2-17

Forward Emer-

gency Braking

(FEB) with Pedes-

trian Detection

system warning

light

2-17

WARNING AND INDICATOR LIGHTS

Illustrated table of contents

0-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning/

Indicator

light

(yellow)

Name

Page

Front passenger

air bag status light

2-18

Low tire pressure

warning light (if so

equipped)

2-18

Malfunction Indi-

cator Light (MIL)

(if so equipped)

2-19

Master warning

light (if so
equipped)

2-20

Rear Automatic

Braking (RAB)

warning light (if so

equipped)

2-20

Warning/

Indicator

light

(yellow)

Name

Page

Slip indicator light

2-20

Vehicle Dynamic

Control (VDC)

OFF indicator light

2-20

Warning/

Indicator

light

(other)

Name

Page

Automatic brake

hold indicator light

(white/green) (if so

equipped)

2-21

High Beam Assist

indicator light

(green) (if so

equipped)

2-21

Warning/

Indicator

light

(other)

Name

Page

High beam indica-

tor light (blue)

(if so equipped)

2-21

Low beam indica-

tor light (green)
(if so equipped)

2-21

Side light and

headlight indicator

light (green) (if so

equipped)

2-21

Turn signal/hazard

indicator lights

(green) (if so

equipped)

2-21

0-10

Illustrated table of contents

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1 Safety-Seats, seat belts and supplemental
restraint system

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

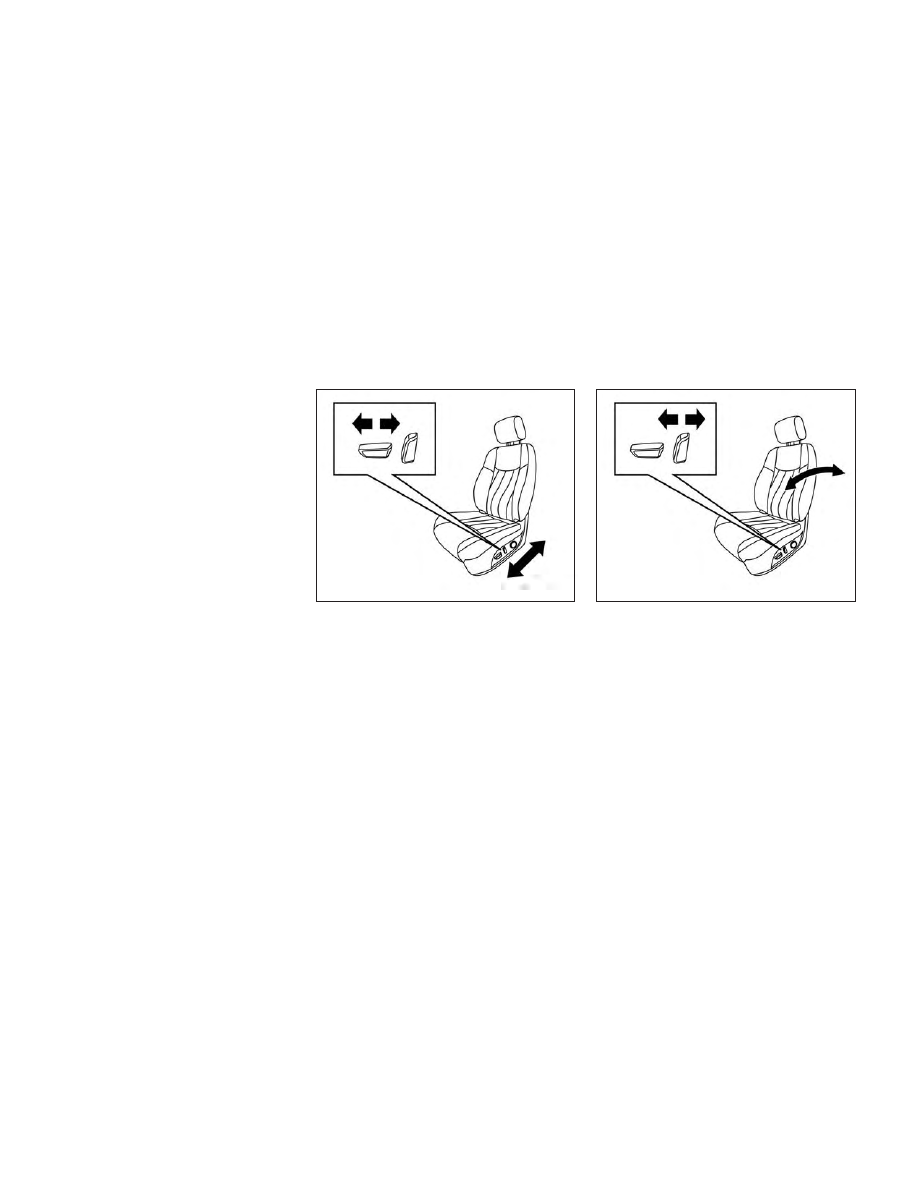

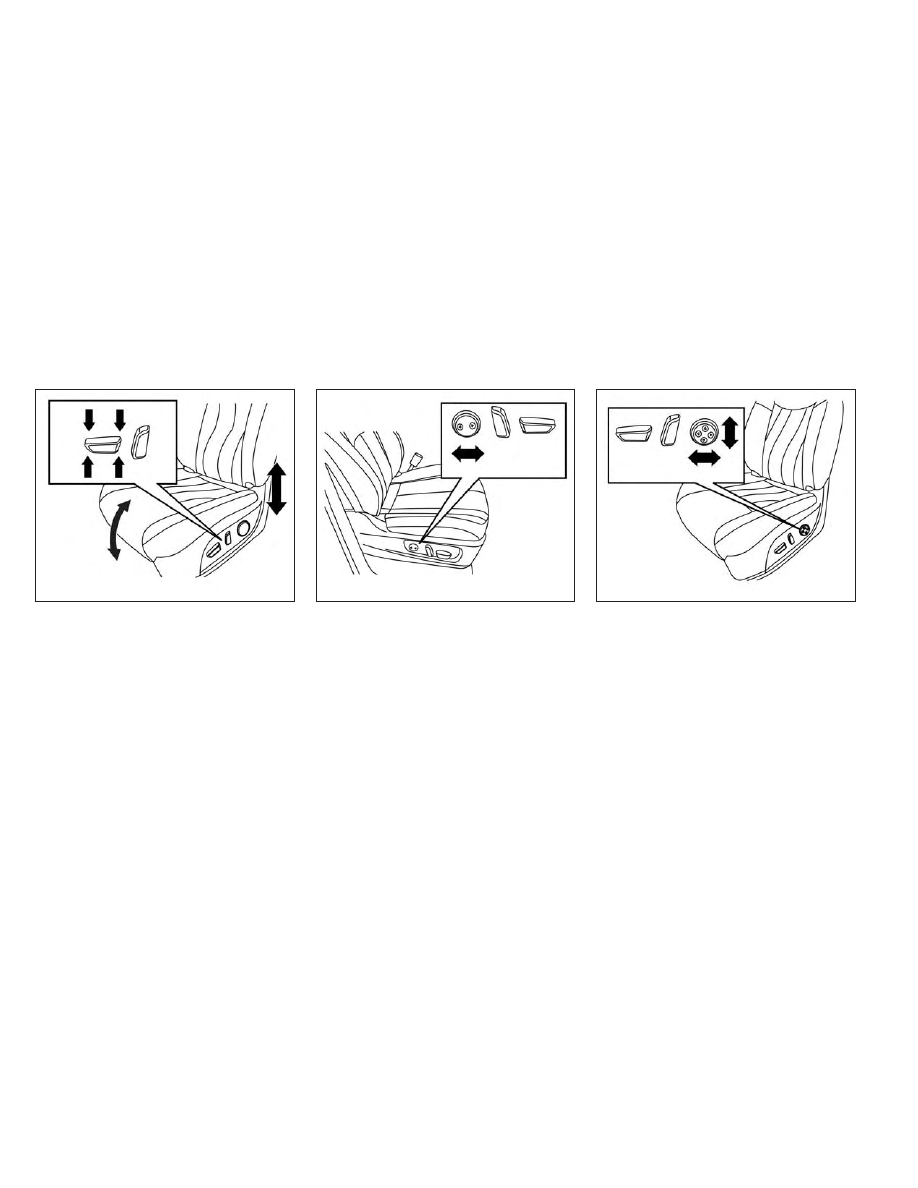

Front power seat adjustment . . . . . . . . . . . . . . . . . . 1-3
2nd row seat adjustment . . . . . . . . . . . . . . . . . . . . . . 1-5
3rd row bench seat adjustment . . . . . . . . . . . . . . . . 1-7
Armrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Flexible seating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Head restraints/headrests . . . . . . . . . . . . . . . . . . . . . .1-12

Adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13
Non-adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13
Remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15
Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15
Folding head restraint/headrest . . . . . . . . . . . . . .1-16

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17

Precautions on seat belt usage . . . . . . . . . . . . . . . 1-17
Seat belt warning light and chime . . . . . . . . . . . . 1-20
Pregnant women . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Injured persons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20
Pre-crash seat belts with comfort
function (front seats) (if so equipped) . . . . . . . . 1-20
Three-point type seat belt with retractor . . . . . .1-21

Seat belt extenders . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . .1-25

Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-25

Infants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
Larger children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-27

Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28

Precautions on child restraints . . . . . . . . . . . . . . . 1-28
LATCH (Lower Anchors and Tethers for
CHildren) system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-30
Rear-facing child restraint installation
using LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-37
Rear-facing child restraint installation
using the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 1-39
Forward-facing child restraint installation
using LATCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-41
Forward-facing child restraint installation
using the seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 1-45
Booster seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-51

Supplemental Restraint System (SRS) . . . . . . . . . . . 1-54

Precautions on SRS . . . . . . . . . . . . . . . . . . . . . . . . . 1-54
Supplemental air bag warning labels . . . . . . . . . .1-74
Supplemental air bag warning light . . . . . . . . . . .1-75

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.

For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat with both feet on the
floor and adjust the seat properly. For
additional information, see “Precautions
on seat belt usage” (P. 1-17).

After adjustment, gently rock in the seat
to make sure it is securely locked.

Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.

Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of control
of the vehicle.

The seatback should not be reclined any
more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and be-
ing injured is increased.

CAUTION

When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.

ARS1152

SEATS

1-2

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FRONT POWER SEAT
ADJUSTMENT

Operating tips

• The power seat motor has an auto-reset

overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.

• Do not operate the power seat switch for a

long period of time when the engine is off.
This will discharge the battery.

For additional information, see “Memory
seats” (P. 3-43).

Forward and backward

Moving the switch as shown will slide the
seat forward or backward to the desired
position.

Reclining

Move the recline switch as shown until the
desired angle is obtained.

The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, see
“Precautions on seat belt usage” (P. 1-17).
Also, the seatback can be reclined to allow
occupants to rest when the vehicle is parked.

LRS3599

LRS3600

Safety-Seats, seat belts and supplemental restraint system

1-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seat lifter and tilt (driver’s seat
shown; passenger’s seat similar)

Move the front part of the switch as shown
to adjust the angle of the seat cushion. Move
the back part of the switch as shown to
adjust the height of the seat.

Lumbar support (driver's and front
passenger’s seat)

Move the switch up or down to adjust the
height of the lumbar. Move the switch for-
ward to increase the lumbar support or rear-
ward to decrease the lumbar support.

NOTE:

Moving the switch forward increases the
lumbar support on the last height activated
position.

LRS3601

LRS3490

Passenger’s seat (Type A) (if so equipped)

LRS3489

Driver’s and passenger’s seat (Type B)

(if so equipped)

1-4

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2ND ROW SEAT ADJUSTMENT
Forward and backward

Pull the center of the bar

O

1

up and hold it

while you slide the seat forward or backward
to the desired position. Release the bar to
lock the seat in position.

Reclining

To recline the seatback, pull up on the lever

O

2

and lean back. To bring the seatback for-

ward, pull the lever

O

2

up and lean your body

forward. Release the lever to lock the seat-
back in position.

The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, see “Pre-
cautions on seat belt usage” (P. 1-17). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is parked.

WARNING

After adjustment, gently rock in the seat
to make sure it is securely locked.

Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide un-
der the lap belt and receive serious inter-
nal injuries.

For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and up-
right in the seat and adjust the seat belt
properly. For additional information,
see “Precautions on seat belt usage”
(P. 1-17).

LRS3380

2nd row captain’s seats (if so equipped)

LRS3381

2nd row bench seats (if so equipped)

Safety-Seats, seat belts and supplemental restraint system

1-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

One touch walk-in function

The 3rd row can be accessed from outside
the vehicle by using the seat release button
located at the base of the 2nd row seat

O

A

.

The 3rd row occupant can exit their seat from
inside the vehicle by using the secondary seat
release button located on the back of the 2nd
row seat

O

B

. If a child safety seat is installed

in the 2nd row seat, the 3rd row can be
accessed without removing the child safety
seat.

If the seat back is folded down, the one touch
function will be disabled. To pitch the seat,
you must return the seat back to the upright
position.

Multi-mode

WARNING

When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.

CAUTION

Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.

Do not drive with the 2nd row seat
tipped up.

Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path and
seatback is clear of all objects before
moving the seat.

To enter the 3rd row from outside the ve-
hicle, push the seat release button located at
the base of the 2nd row seat. To exit the 3rd
row from inside the vehicle, push the seat
release button located on the back of the 2nd

row seat. Activating this seat release switch
will pitch the 2nd row seat forward so you
will be able to slide the seat forward and
backward.

Slide the entire seat forward for access to the
3rd row.

To return the seat to a locked position, push
the upper seatback rearward until the seat is
locked.

Child seat access mode

The 2nd row seat can be slid forward for easy
entry or exit from the 3rd row bench seat
without a child safety seat being removed.

To enter the 3rd row from outside the ve-
hicle, push the seat release button located at
the base of the 2nd row seat. To exit the 3rd
row from inside the vehicle, push the seat
release button located on the back of the 2nd
row seat. Activating this seat release button
allows you to pitch and slide the seat forward
and backward.

Slide the entire seat forward for access to the
3rd row seats.

To return the seat to a locked position, push
the upper seatback rearward until the seat is
locked.

LRS3382

1-6

Safety-Seats, seat belts and supplemental restraint system

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not leave a child in the child safety
seat when operating the child seat ac-
cess mode.

The 2nd row one touch button is enabled
when the vehicle is stopped. If the button
is pressed the seat will unlatch and may
move.

To prevent personal injury supervise
children occupying the 2nd and 3rd rows
and prevent them from operating child
seat access mode.

When returning the seat to its original
position, confirm that the seat is locked
properly.

CAUTION

Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.

Do not drive with the 2nd row seat
tipped up.

Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is clear
of all objects before moving the seat.

Exiting the 3rd row

To exit the 3rd row from either seating posi-
tion, push the seatback release button. This
will release the seat, then slide the entire seat
forward.

The seatback release button will not operate
while the vehicle is moving.

To return the seat to a locked position, push
the upper seatback rearward until the seat
and track are locked.

WARNING

When returning the seat to its original po-
sition, confirm that the seat and seatback
are locked properly.

CAUTION

Be careful not to pinch your hand or foot or
bump your head when operating the
walk-in seat.

3RD ROW BENCH SEAT
ADJUSTMENT

Reclining

To recline the seatback, pull up on the latch
located on the outside corner of each seat-
back. Lean back until the desired angle is
obtained.

To bring the seatback forward again, pull up
on the latch and pull the seatback upright
until the desired angle is obtained.

The recline feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat

LRS3542

Safety-Seats, seat belts and supplemental restraint system

1-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

















Content      ..      1       2         ..



//////////////////////////////////////////
