When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch will illuminate.

Push the ignition switch center:
• once to change to ON.
• two times to change to OFF.

When the ignition switch cannot be placed in
the OFF position, proceed as follows:

1. Press the park button to shift to the P

(Park) position.

2. Push the ignition switch. The ignition

switch position will change to the ON
position.

3. Push the ignition switch again to the OFF

position.

The shift position can be shifted from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

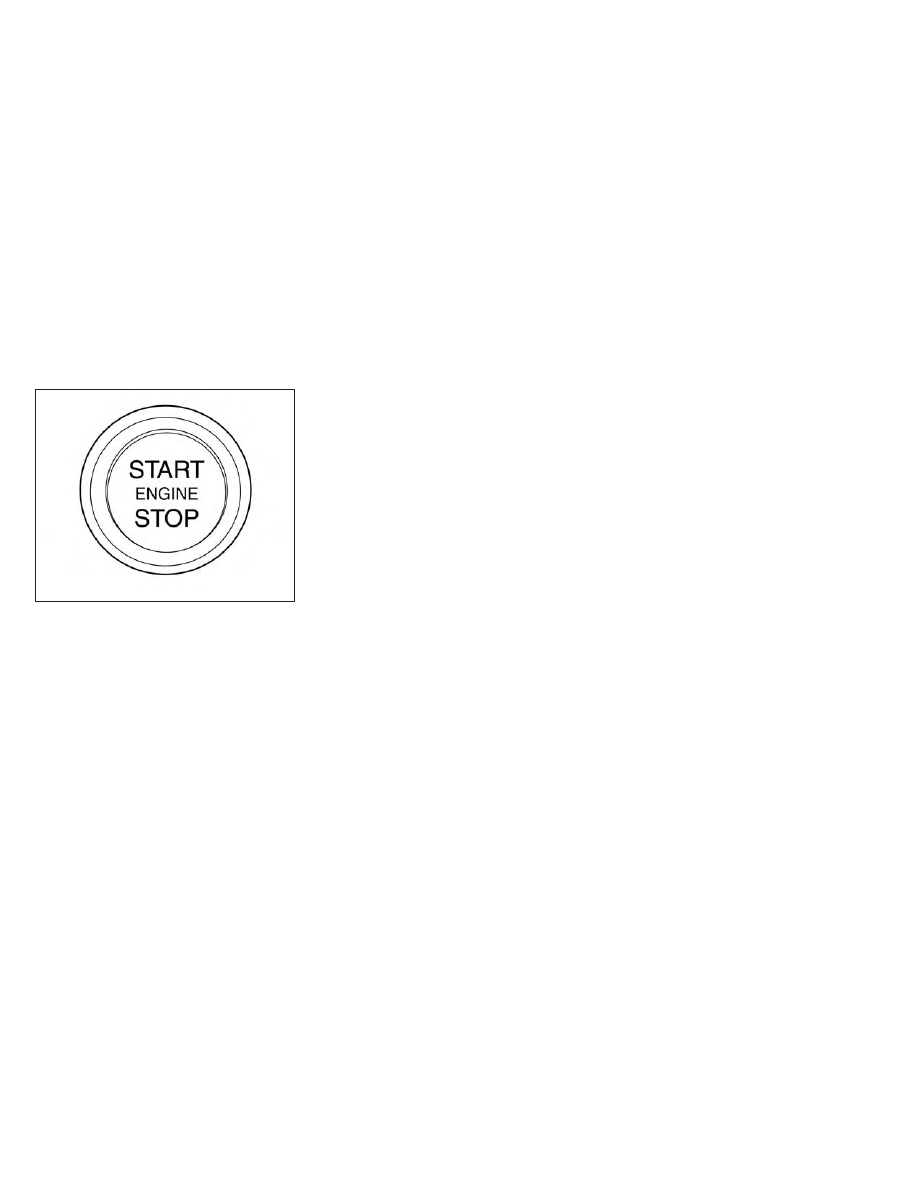

PUSH-BUTTON IGNITION
SWITCH POSITIONS

ON (Normal operating position)

The ignition system and the electrical acces-
sory power activate at this position without
the engine turned on.

The ON position has a battery saver feature
that will place the ignition switch in the OFF
position, if the vehicle is not running, after
some time under the following conditions:
• all doors are closed.
• the vehicle is in the P (Park) position.

OFF position

The engine is turned off in this position.

Auto ACC position

With the vehicle in the P (Park) position, the
Intelligent Key with you and the ignition
placed from ON to OFF, the radio can still be
used for a period of time, or until the driver’s
door is opened. After a period of time, func-
tions such as radio, navigation (if so
equipped),

and

Bluetooth®

Hands-Free

Phone System may be restarted by turning on
the audio system (see separate INFINITI In-
Touch® Owner’s Manual), or by pressing the
UNLOCK button on the Intelligent Key for up
to a total of 30 minutes.

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency situ-
ation while driving or when the Intelligent Key
battery is discharged, perform the following
procedure:
• Rapidly push the push-button ignition

switch 3 consecutive times in less than 1.5
seconds, or

• Push and hold the push-button ignition

switch for more than 2 seconds.

After engine shut-off, open the door to re-
turn to the normal condition.

LSD2645

5-14

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI INTELLIGENT KEY
BATTERY DISCHARGE

If the battery of the Intelligent Key is dis-
charged, or environmental conditions inter-
fere with the Intelligent Key operation, start
the engine according to the following proce-
dure:

1. Press the park button to shift to the P

(Park) position.

2. Firmly apply the foot brake.

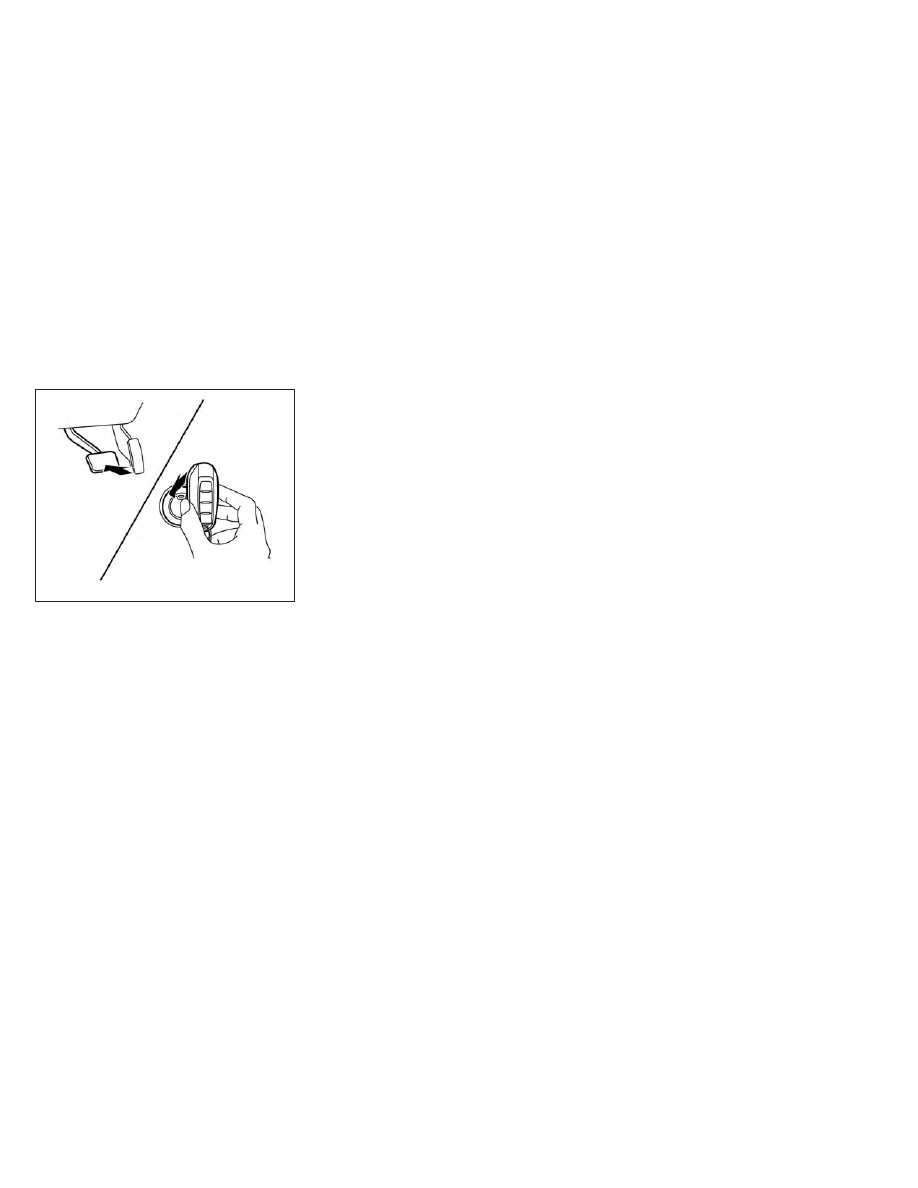

3. Touch the ignition switch with the Intelli-

gent Key as illustrated. (A chime will
sound.)

4. Push the ignition switch while depressing

the brake pedal within 10 seconds after
the chime sounds. The engine will start.

After step 3 is performed, when the ignition
switch is pushed without depressing the
brake pedal, the ignition switch position will
change to ON.

NOTE:

• When the ignition switch is pushed to the

ON position or the engine is started by the
above procedures, the “Key Battery Low”
warning appears (on the vehicle informa-
tion display) even if the Intelligent Key is
inside the vehicle. This is not a malfunc-
tion. To turn off the warning, touch the
ignition switch with the Intelligent Key
again.

• If the “Key Battery Low” warning appears,

replace the battery as soon as possible.
For additional information, see “Battery
replacement” (P. 8-24).

INFINITI VEHICLE IMMOBILIZER
SYSTEM

The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of the registered key.

If the engine does not start using the regis-
tered Intelligent Key, it may be due to inter-
ference caused by:
• Another Intelligent Key.
• Automated toll road device.
• Automated payment device.
• Other devices that transmit similar signals.

Start

the

engine

using

the

following

procedure:

1. Remove any items that may be causing

the interference away from the Intelligent
Key.

2. Start the engine again.

If this procedure allows the engine to start,
INFINITI recommends placing the registered
Intelligent Key separate from other devices to
avoid interference.

Statement related to section 15 of FCC rules
for INFINITI Vehicle Immobilizer System
(CONT ASSY-SMART KEYLESS)

LSD3277

Starting and driving

5-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FCC Notice:

For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

For Canada:
This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment Canada’s licence-exempt RSS(s). Op-
eration is subject to the following two con-
ditions: (1) This device may not cause
interference. (2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.

• Make sure the area around the vehicle is

clear.

• Check fluid levels such as engine oil, cool-

ant, brake fluid, and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.

• Check that all windows and lights are clean.
• Visually inspect tires for their appearance

and condition. Also check tires for proper
inflation.

• Check that all doors are closed.
• Position

seat

and

adjust

head

restraints/headrests.

• Adjust inside and outside mirrors.
• Fasten seat belts and ask all passengers to

do likewise.

• Check the operation of warning lights

when the ignition switch is placed in the ON
position. For additional information, see
“Warning lights, indicator lights and audible
reminders” (P. 2-12).

1. Apply the parking brake.

2. Confirm that the vehicle is in the P (Park)

position.

The starter is designed not to operate if
the shift lever is in any of the driving
positions.

3. Push the ignition switch to the ON posi-

tion. Depress the brake pedal and push
the ignition switch to start the engine.

To start the engine immediately, push and
release the ignition switch while depress-
ing the brake pedal with the ignition
switch in any position.

• If the engine is very hard to start in

extremely cold weather or when re-
starting, depress the accelerator pedal a
little (approximately 1/3 to the floor)
and while holding, crank the engine. Re-
lease the accelerator pedal when the
engine starts.

• If the engine is very hard to start be-

cause it is flooded, depress the accel-
erator pedal all the way to the floor and
hold it. Push the ignition switch to the
ON position to start cranking the en-
gine. After 5 or 6 seconds, stop cranking
by pushing the ignition switch to the
LOCK position. After cranking the en-
gine, release the accelerator pedal.

BEFORE STARTING THE ENGINE

STARTING THE ENGINE

5-16

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Crank the engine with your foot off the
accelerator pedal by depressing the
brake pedal and pushing the ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.

CAUTION

Do not operate the starter for more than
15 seconds at a time. If the engine does not
start, push the ignition switch to the OFF
position and wait 10 seconds before crank-
ing again, otherwise the starter could be
damaged.

4.

Warm-up:

Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at a
moderate speed for a short distance first,
especially

in

cold

weather.

In

cold

weather, keep the engine running for a
minimum of 2 - 3 minutes before shutting
it off. Starting and stopping the engine
over a short period of time may make the
vehicle more difficult to start.

5. To stop the engine, place the shift position

in the P (Park) position and push the igni-
tion switch to the OFF position.

NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of electronic

accessories that consume battery power
when the engine is not running (phone
chargers, GPS, DVD players, etc.).

2. The vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

REMOTE ENGINE START (if so
equipped)

Vehicles started with the Remote Engine
Start require the ignition switch to be placed
in the ON position before the shift position
can be moved from the P (Park) position. To
place the ignition switch in the ON position,
follow these steps:

1. Make sure that the Intelligent Key is on

you.

2. Apply the brake.

3. Push the ignition switch once to the ON

position.

For additional information, see “INFINITI In-
telligent Key” (P. 3-2).

Starting and driving

5-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUTOMATIC TRANSMISSION
(A/T)

WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual). Always depress the brake
pedal until shifting is completed. Failure
to do so could cause you to lose control
and have an accident.

Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.

Do not downshift abruptly on slippery
roads. This may cause a loss of control.

Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.

CAUTION

To avoid possible damage to your ve-
hicle; when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.

The A/T in your vehicle is electronically con-
trolled to produce maximum power and
smooth operation.

The recommended operating procedures for
this transmission are shown on the following
pages. Follow these procedures for maxi-
mum

vehicle

performance

and

driving

enjoyment.

Engine power may be automatically reduced
to protect the A/T if the engine speed in-
creases quickly when driving on slippery roads
or while being tested on some dynamometers.

Starting the vehicle

1. After starting the engine, fully depress the

foot brake pedal before moving the shift
position out of the P (Park) position.

This Automatic Transmission is designed
so that the foot brake pedal must be de-
pressed before shifting from P (Park) to
any driving position while the ignition
switch is in the ON position.
The shift position cannot be moved out of
the P (Park) position and into any of the
other positions if the ignition switch is
placed in the LOCK, OFF or AUTO ACC
position while the ready light illuminates.

2. Keep the foot brake pedal depressed and

move the shift lever to a driving position.

3. Release the parking brake and foot brake

pedal and then gradually start the vehicle
in motion.

WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive) or M
(Manual). Always depress the brake
pedal until shifting is completed. Failure
to do so could cause you to lose control
and have an accident.

DRIVING THE VEHICLE

5-18

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.

Do not downshift abruptly on slippery
roads. This may cause a loss of control.

Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.

WARM UP THE ENGINE — Due to the
higher idle speeds the engine is cold, ex-
tra caution must be exercised when
shifting the shift lever into driving posi-
tion immediately after starting the
engine.

CAUTION

To avoid possible damage to your ve-
hicle; when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.

Shifting

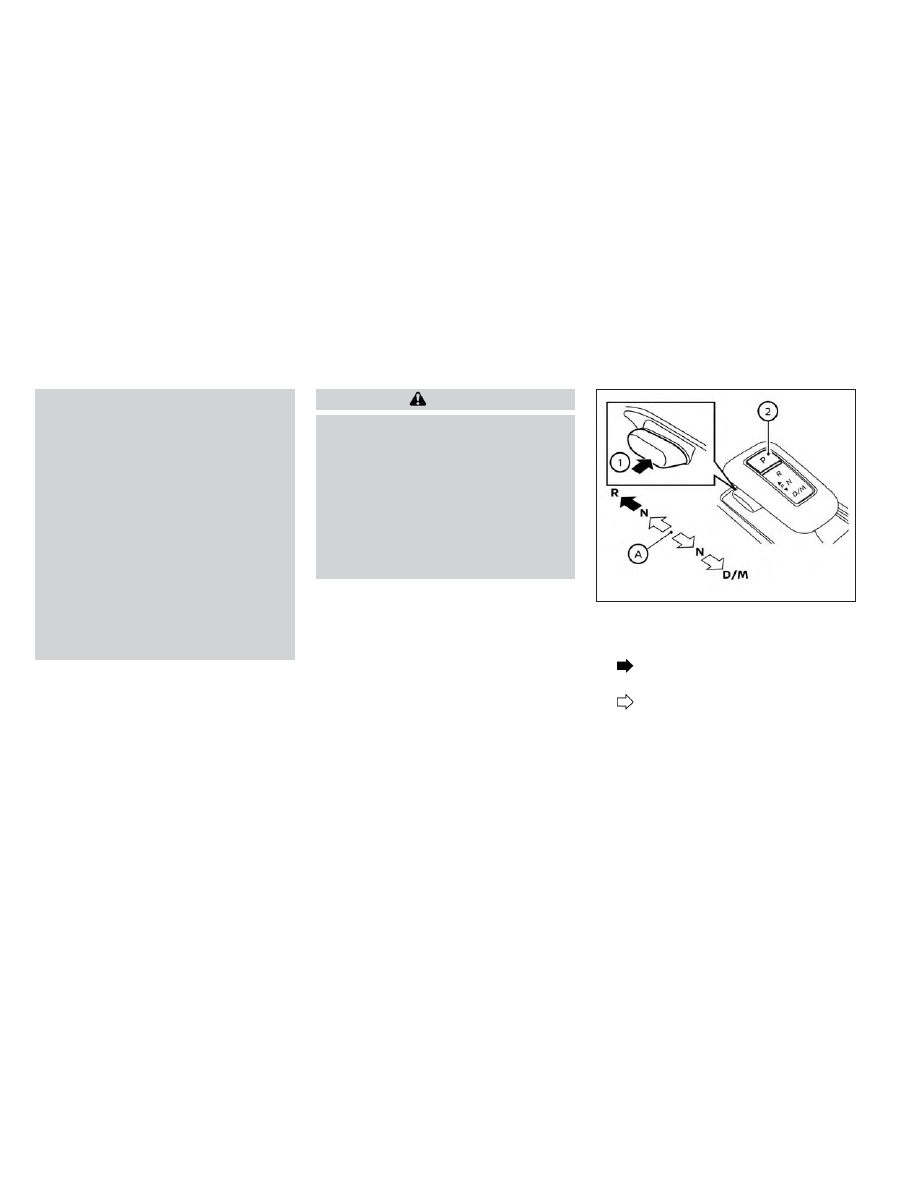

O

A

Home position (central position)

Press the button

O

1

to shift

Shift without pressing the button

O

1

Press the park button

O

2

to shift to the P

(Park) position.

After starting the engine, fully depress the
brake pedal, press the shift lever button

O

1

and

move the shift position from the P (Park) posi-
tion

O

2

to any of the desired shift positions.

LSD4395

Starting and driving

5-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Confirm that the vehicle is in the desired shift
position by checking the shift indicator lo-
cated on the shift lever or in the vehicle infor-
mation display.

WARNING

Apply the electronic parking brake if the
shift lever is in any position while the en-
gine is not running. Failure to do so could
cause the vehicle to move unexpectedly or
roll away and result in serious personal in-
jury or property damage.

CAUTION

Use the P (Park), R (Reverse) or D (Drive)
position only when the vehicle is com-
pletely stopped.

When switching to the desired shift po-
sition by operating the shift lever, check
that the shift lever returns to the home
position by releasing your hand from the
lever. Holding the shift lever in a mid-
way position may also damage the shift
control system.

Do not operate the shift lever while the
accelerator pedal is depressed. This may
cause a sudden start which could result in
an accident.

The following operations are not allowed
because excessive force would be ap-
plied to the transmission and this may
result in damage to the vehicle:

Moving the shift lever to the R (Re-
verse) position when driving forward

Moving the shift lever to the D
(Drive) position when reversing

If the vehicle is moving over 8 km/h (5mph)
when shifting to D (Drive) from R (Re-
verse), the N (Neutral) position will auto-
matically be selected. A buzzer will sound,
noting that D (Drive) was not selected.
When selecting D (Drive) while reversing
below 8 km/h (5 mph) the range will
change normally.

If these operations are attempted, a chime
sounds and the vehicle shifts to the N (Neu-
tral) position.

P (Park)

CAUTION

To prevent transmission damage, use the
P (Park) position only when the vehicle is
completely stopped.

Do not slide the shift lever while pressing
the park button. This may damage the
shift control system.

Use the P (Park) position when the vehicle is
parked or when starting the engine. Make
sure the vehicle is completely stopped before
pressing the park button to engage the P
(Park) position. For maximum safety, the
brake pedal must be depressed before en-
gaging the P (Park) position. Use this position
together with the electronic parking brake.
When parking on a hill, first depress the brake
pedal, apply the electronic parking brake and
then engage the P (Park) position. The park-
ing lock should not be used as a brake when
parking. In order to secure the vehicle, always
apply the electronic parking brake in addition
to the parking lock.

5-20

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In the event of a malfunction of the vehicle’s
electronics, the transmission may lock in the
P (Park) position. Have the vehicle’s electron-
ics checked immediately. It is recommended
that you visit an INFINITI retailer for this
service.

The P (Park) position is automatically en-
gaged if:
• You place the ignition switch in the OFF

position

• You unfasten the driver’s seat belt and

open the driver side door when the vehicle
is stationary or driving at very low speed
and the transmission is in the D (Drive) po-
sition, the N (Neutral) position, or the R
(Reverse) position.

CAUTION

To avoid A/T malfunction, you must
manually place the shift position in the P
(Park) position under the above conditions.

R (Reverse)

CAUTION

To prevent transmission damage, use the
R (Reverse) position only when the ve-
hicle is completely stopped and the brake
is pressed.

Use the R (Reverse) position to back up. Make
sure the vehicle is completely stopped before
selecting the R (Reverse) position.

The brake

pedal must be depressed and the shift lever
button pressed to move the shift lever from
the home position to R (Reverse). If the ve-
hicle is placed in R (Reverse) position while
the vehicle is moving forward, the chime will
sound and the vehicle will switch into the N
(Neutral) position.

NOTE:

If the vehicle is moving over 5 mph (8 km/h),
when shifting to D (Drive) from R (Reverse),
the N (Neutral) position will automatically
be selected. A buzzer will sound, noting that
D (Drive) was not selected. When selecting D
(Drive) while reversing below 5 mph (8 km/
h), the range will change normally.

N (Neutral)

Neither forward nor reverse gear is engaged
when the vehicle is completely stopped, and
the brake is pressed. The engine can be
started in this position. You may shift to the N
(Neutral) position and restart a stalled engine
while the vehicle is moving.

You can select this position by holding the
shift lever at this position for 0.5 seconds.

D (Drive)

Use this position for all normal forward driv-
ing when the vehicle is completely stopped,
and the brake is pressed. The A/T changes
gears automatically. All forward gears are
available.

If the vehicle is placed in the D

(Drive) position while the vehicle is revers-
ing, the chime will sound and the vehicle will
switch into the N (Neutral) position.

NOTE:

If the vehicle is moving over 5 mph (8 km/h)
when shifting to D (Drive) from R (Reverse),
the N (Neutral) position will automatically
be selected. A buzzer will sound, noting that
D (Drive) was not selected. When selecting D
(Drive) while reversing below 5 mph (8 km/
h), the range will change normally.

Neutral hold mode function (if so
equipped)

This function enables you to get out of the
vehicle when it is in the N (Neutral) position,
while the engine is running. While this func-
tion is activated, the vehicle can be moved by
pushing with hand (when car washing). When
using this function, release the electronic
parking brake.

Starting and driving

5-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Use this function on a level surface only.
Failure to do so may cause the vehicle to
move accidentally and could result in a
collision or serious personal injury.

Do not use this function for a purpose
other than car washing.

Do not turn the engine off after neutral
hold mode function is activated, other-
wise the N (Neutral) position will not be
kept and the vehicle will automatically
be placed in the P (Park) position.

If this function is not activated regard-
less of proper operation, transmission
may malfunction. It is recommended that
you visit an INFINITI retailer for this
service.

To activate the Neutral hold mode, perform
the following operations:

1. Push the ignition switch to start the

engine.

2. Release the electronic parking brake.

3. Depress and hold the brake pedal.

4. Push the P (Park) button.

5. Slide the shift lever to the N (Neutral)

position, and hold it for 0.5 second until
“N” appears in the vehicle information
display.

6. Slide the shift lever to the N (Neutral)

position again, and hold it for 0.5 seconds,
until a message “Neutral Hold Mode has
been activated” appears in the vehicle in-
formation display. For additional informa-
tion, see “Neutral Hold Mode activated”
(P. 2-39) or (P. 2-65).

7. The ignition switch has to be kept in the

ON position. Otherwise Neutral hold
mode is canceled and the P (Park) position
is engaged automatically.

To exit the Neutral hold mode, place the shift
lever in any position other than the N (Neu-
tral) position.

NOTE:

It is necessary to perform the steps 4
through 6 within approximately 5 seconds
to prevent incorrect operation.

When the shifter is changed to the N (Neu-
tral) position, approximately 5 seconds
later, a message will appear in the vehicle
information display. For additional infor-
mation, see “Neutral Hold Mode guidance”
(P. 2-39)
or (P. 2-65).

If the Neutral hold mode is unavailable, a
message will appear in the vehicle infor-
mation display. For additional informa-
tion, see “Neutral Hold Mode was not ac-
tivated” (P. 2-39)
or (P. 2-65). To activate
the Neutral hold mode, wait for a while
without shifting operation and then per-
form the operations again.

5-22

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Manual shift mode

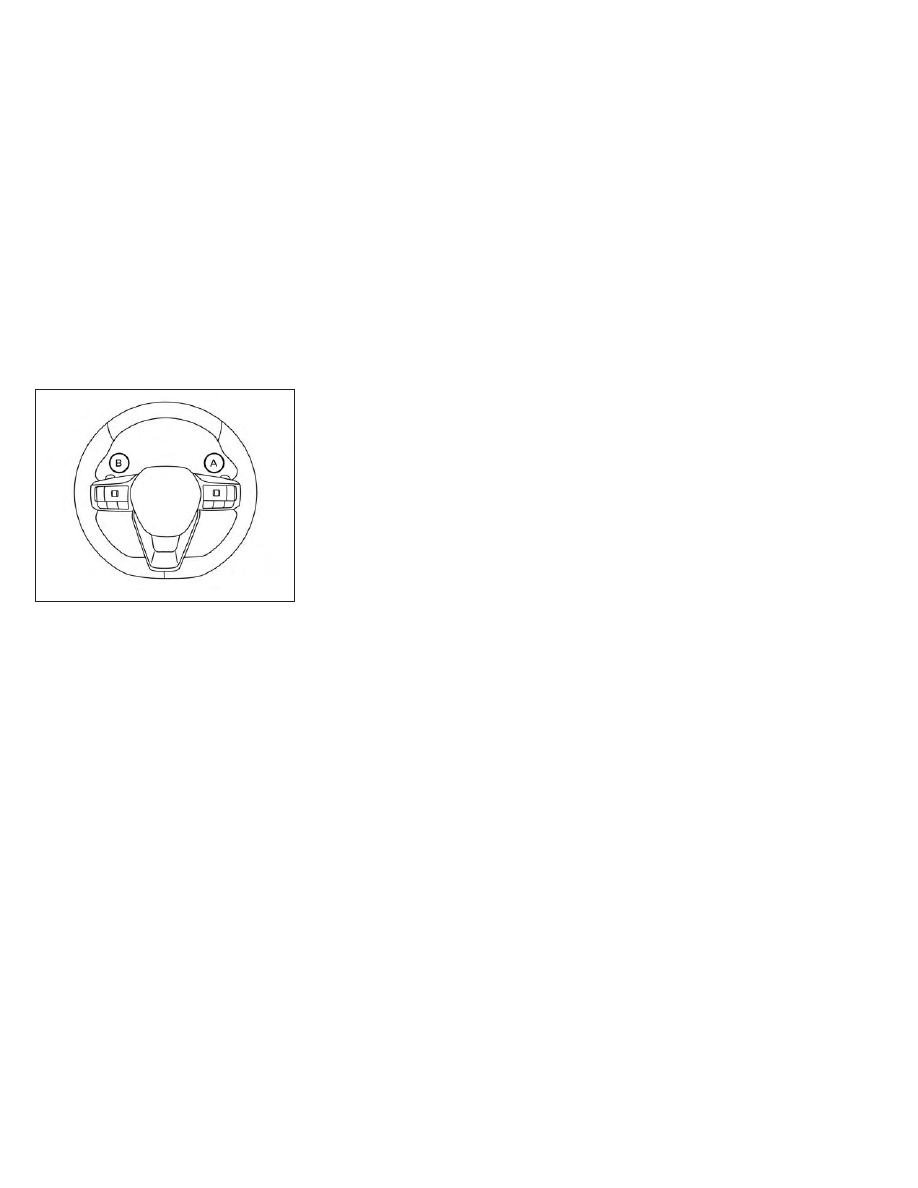

When the shift lever is shifted to the D (Drive)
position again with the vehicle in the D (Drive)
position while driving, the transmission en-
ters the manual shift mode. Shift ranges can
be selected manually by pulling the paddle
shifters on the steering wheel.

When shifting up, pull the right-side paddle
shifter (+)

O

A

. The transmission shifts to the

higher range.

When shifting down, pull the left-side paddle
shifter (−)

O

B

. The transmission shifts to the

lower range.

When canceling the manual shift mode, move
the shift lever to the D (Drive) position again.
The transmission returns to the normal driv-
ing mode.

When you pull the paddle shifter while in the
D (Drive) position, the transmission will shift
to the upper or lower range temporarily. The
transmission will automatically return to the
D (Drive) position after a short period of time.
If you want to return to the D (Drive) position
manually, pull and hold the paddle shifter for
about 1.5 seconds.

In the manual shift mode, the shift range is
displayed in the vehicle information display.

Shift ranges up or down one by one as
follows:

1M

2M

3M

4M

5M

6M

7M

8M

9M

9M (9th) and 8M (8th)

Use this position for all normal forward driv-
ing at highway speeds.

7M (7th), 6M (6th) and 5M (5th)

Use these positions when driving up long
slopes, or for engine braking when driving
down long slopes.

4M (4th), 3M (3rd) and 2M (2nd)

Use these positions for hill climbing or engine
braking on downhill grades.

1M (1st)

Use this position when climbing steep hills
slowly or driving slowly through deep snow,
or for maximum engine braking on steep
downhill grades.
• Remember not to drive at high speeds for

extended periods of time in lower than the
8th range. This reduces fuel economy.

• Pulling the same paddle shifter twice will

shift the ranges in succession. However, if
this motion is rapidly done, the second
shifting may not be completed properly.

In the manual shift mode, the transmission
may not shift to the selected gear. This
helps maintain driving performance and
reduces the chance of vehicle damage or
loss of control.

In the manual shift mode, the transmission
may shift up automatically to a higher
range than selected if the engine speed is
too high. When the vehicle speed de-
creases, the transmission automatically
shifts down and shifts to 1st gear before
the vehicle comes to a stop.

LSD4396

Starting and driving

5-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Accelerator downshift
— in D (Drive) position —

For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.

High fluid temperature protection
mode

This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.

Fail-safe

When the fail-safe operation occurs, please
note that the transmission will be locked in
any of the forward gears according to the
condition.

If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, see “Malfunction Indica-
tor Light (MIL)” (P. 2-19).
This will occur
even if all electrical circuits are functioning
properly. In this case, place the ignition
switch in the OFF position and wait for 10
seconds. Then push the switch back to the
ON position. The vehicle should return to its
normal operating condition. If it does not re-
turn to its normal operating condition, have
the transmission checked and repaired, if
necessary. It is recommended that you visit
an INFINITI retailer for this service.

WARNING

When the high fluid temperature protec-
tion mode or fail-safe operation occurs, ve-
hicle speed may be gradually reduced. The
reduced speed may be lower than other
traffic, which could increase the chance of
a collision. Be especially careful when driv-
ing. If necessary, pull to the side of the road
at a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.

5-24

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Be sure the parking brake is fully re-
leased before driving. Failure to do so
can cause brake failure and lead to an
accident.

Do not release the parking brake from
outside the vehicle.

Do not use the shift lever in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.

ELECTRONIC PARKING BRAKE
(switch type)

The electronic parking brake can be applied
or released by operating the parking brake
switch.

WARNING

Before leaving the vehicle, move the shift
position to the P (Park) position and
check that the electronic parking brake
warning light is illuminated to confirm
that the electronic parking brake is ap-
plied. The electronic parking brake
warning light will remain on for a period
of time after the driver’s door is locked.

CAUTION

When parking in an area where the outside
temperature is below 32°F (0°C), the park-
ing brake, if applied, may freeze in place
and may be difficult to release.

For safe parking, it is recommended that
you place the shift position in the P (Park)
position and securely block the wheels.

NOTE:

• To keep the electronic parking brake re-

leased after the engine is turned off, place
the ignition switch in the OFF position, de-
press the brake pedal and push down the
parking brake switch before opening the
driver’s door.

LSD4139

PARKING BRAKE

Starting and driving

5-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• If a malfunction occurs in the electronic

parking brake system (for example, due to
battery discharge), it is recommended that
you visit an INFINITI retailer.

• Under the following conditions the elec-

tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released:
– The braking force is applied by the auto-

matic brake hold function for 3 minutes
or longer.

– The vehicle is in the P (Park) position.
– The electronic parking brake is applied

manually.

– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF

position.

– A malfunction occurs in the automatic

brake hold function.

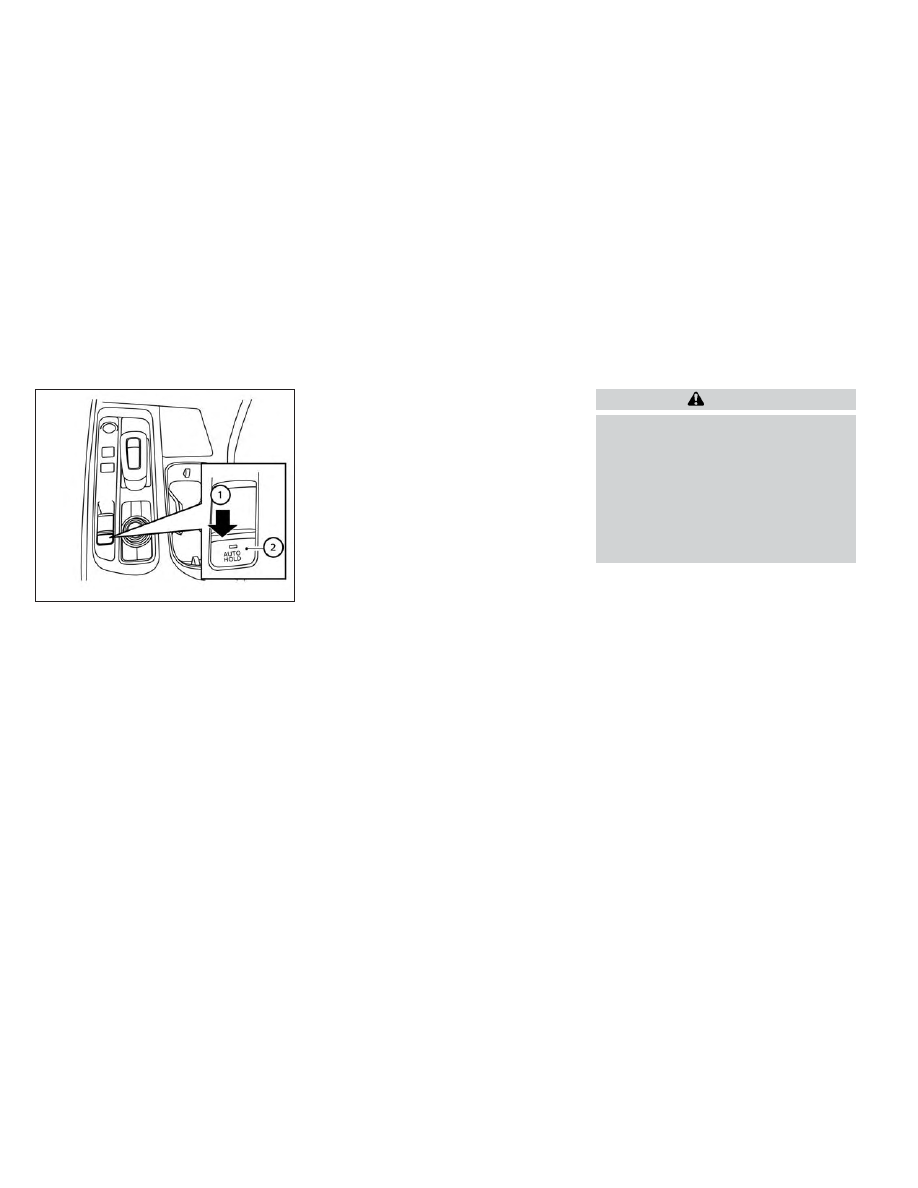

Manual operation

To apply:

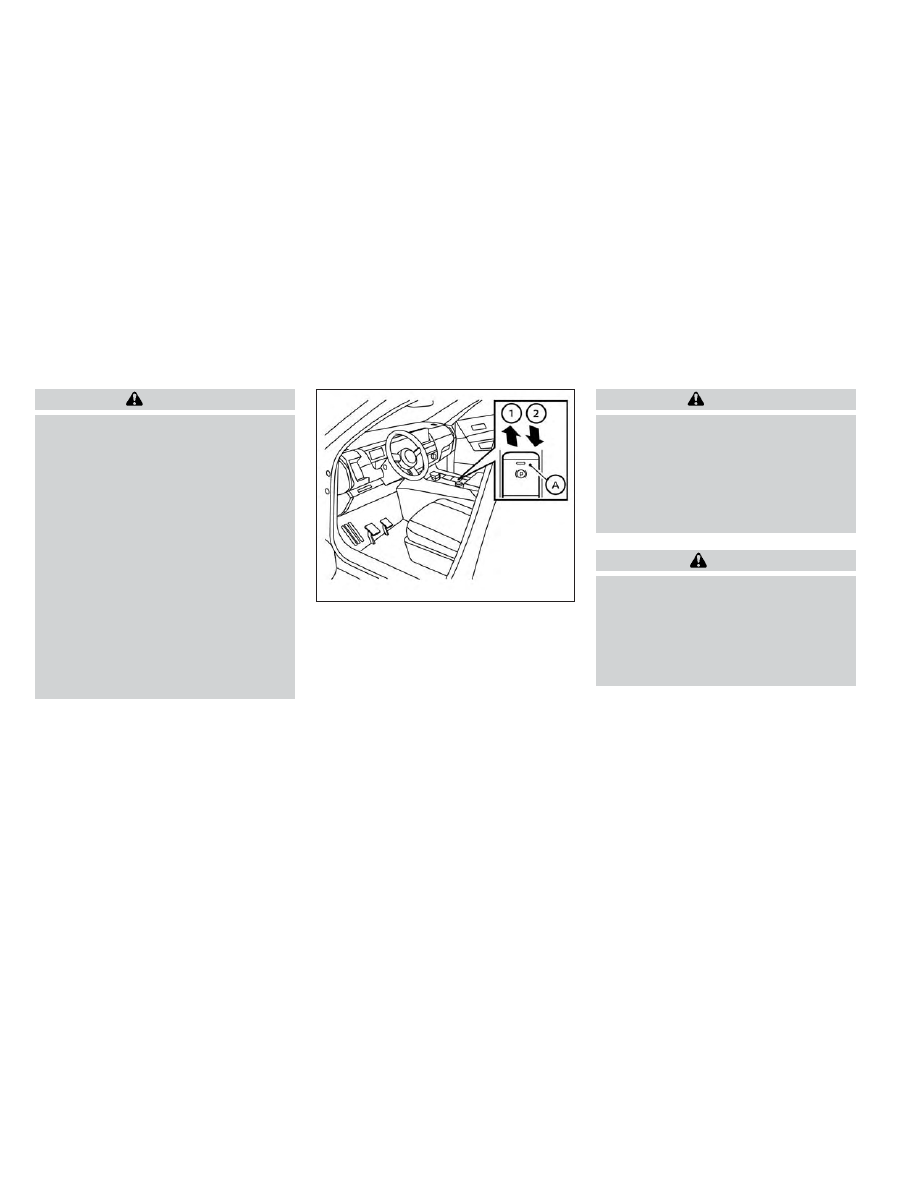

Pull the switch up

O

1

. The indicator

light

O

A

will illuminate.

To release:

With the ignition switch in the ON

position, depress the brake pedal and push
the switch down

O

2

. The indicator light

O

A

will turn off.

Before driving, check that the electronic
parking brake indicator light (

or PARK)

goes out. For additional information, see
“Warning lights, indicator lights and audible
reminders” (P. 2-12).

NOTE:

• A buzzer will sound if the vehicle is driven

without releasing the parking brake. For
additional information, see “Warning
lights, indicator lights and audible remind-
ers” (P. 2-12).

• While the electronic parking brake is ap-

plied or released, an operating sound is
heard from the lower side of the rear seat.
This is normal and does not indicate a
malfunction.

• When the electronic parking brake is fre-

quently applied and released in a short pe-
riod of time, the parking brake may not
operate in order to prevent the parking
brake system from overheating. If this oc-
curs, operate the electronic parking brake
switch again after waiting approximately
1 minute.

• If the electronic parking brake must be ap-

plied while driving in an emergency, pull up
and hold the parking brake switch. When
you release the parking brake switch, the
parking brake will be released.

• While pulling up the electronic parking

brake switch during driving, the parking
brake is applied and a chime sounds. The
electronic parking brake indicator light in
the meter and in the parking brake switch
illuminates. This does not indicate a mal-
function. The electronic parking brake in-
dicator light in the meter and in the park-
ing brake switch turns off when the
parking brake is released.

• When pulling the electronic parking brake

switch up with the ignition switch in the
OFF or AUTO ACC position, the parking
brake switch indicator light will continue
to illuminate for a short period of time.

5-26

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The automatic brake hold function maintains
the braking force without the driver having to
depress the brake pedal when the vehicle is
stopped at a traffic light or intersection. As
soon as the driver depresses the accelerator
pedal again, the automatic brake hold func-
tion is deactivated and the braking force is
released. The operating status of the auto-
matic brake hold can be displayed.

To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.

For additional information, see “Warning
lights, indicator lights and audible reminders”
(P. 2-12).

WARNING

The automatic brake hold function is not
designed to hold the vehicle on a steep
hill or slippery road. Never use the auto-
matic brake hold function when the ve-
hicle is stopped on a steep hill or slippery
road. Failure to do so may cause the ve-
hicle to move.

Warnings may appear to request that
the driver retake control by depressing
the brake pedal.

When the automatic brake hold function is
activated but fails to maintain the vehicle
at a standstill, depress the brake pedal to
stop the vehicle. If the vehicle unexpect-
edly moves due to outside conditions, the
chime may sound and automatic brake
hold warning may illuminate.

Be sure to deactivate the automatic
brake hold function when using a car
wash or towing your vehicle.

Make sure to place the shift position in
the P (Park) position and apply the park-
ing brake when parking your vehicle, en-
tering or exiting the vehicle, or loading
luggage. Failure to do so could cause the
vehicle to move or roll away unexpect-
edly and result in serious personal injury
or property damage.

If any of the following conditions occur,
the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.

A warning message appears.

The indicator light on the automatic

brake hold switch does not illuminate
when the switch is pushed.

Failure to operate the vehicle in accordance
with these conditions could cause the ve-
hicle to move or roll away unexpectedly and
result in serious personal injury or property
damage.

The automatic brake hold function will
not be activated if the Slip indicator
light, electronic parking brake warning
light or master warning light illuminate
and the chassis control system fault
message appears in the vehicle informa-
tion display.

Automatic brake hold function is oper-
ated by applying sufficient braking force
to hold the vehicle in its place, so there
are cases when this hold function is
maintained even if the accelerator pedal
is depressed. In this situation, it is ad-
vised to depress the brake pedal first,
then to turn off automatic brake hold
switch. This will cancel the hold function.

To maintain the braking force to keep
the vehicle to a standstill, a noise may be
heard. This is not a malfunction.

AUTOMATIC BRAKE HOLD

Starting and driving

5-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION

How to activate the automatic
brake hold function

1. With the ignition switch in the ON posi-

tion, push the automatic brake hold switch

O

1

. The indicator light on the automatic

brake hold switch

O

2

illuminates.

2. When the automatic brake hold function

goes into standby, the automatic brake
hold indicator light (white) illuminates.

To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.

NOTE:

The automatic brake hold function retains
the last state until the driver changes the
option even if the ignition switch is turned
off.

How to deactivate the automatic
brake hold function

While the automatic brake hold function is
activated, push the automatic brake hold
switch to turn off the automatic brake hold
indicator light and deactivate the automatic
brake hold function. To deactivate the auto-
matic brake hold function while the brake
force has been maintained by the automatic
brake hold function, depress the brake pedal
and push the automatic brake hold switch.

WARNING

Make sure to firmly depress and hold the
brake pedal when turning off the auto-
matic brake hold function while the brake
force is applied. When the automatic brake
hold function is deactivated, the brake
force will be released. This could cause the
vehicle to move or roll away unexpectedly.
Failure to prevent the vehicle from rolling
may result in serious personal injury or
property damage.

HOW TO USE THE AUTOMATIC
BRAKE HOLD FUNCTION

For additional information on using the auto-
matic brake hold function, refer to the in-
structions outlined in this section.

To maintain braking force
automatically

With the automatic brake hold function acti-
vated and the automatic brake hold indicator
light (white) illuminated, depress the braking
pedal to stop the vehicle. The indicator light
(green) illuminates. The brake force is auto-
matically applied without your foot de-
pressed on the brake pedal. While the brake
force is maintained, the automatic brake hold
indicator light (green) illuminates.

LSD4397

5-28

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The automatic brake hold indicator light
(green) will not illuminate if the brake pedal is
not pressed with sufficient force to hold the
vehicle or is released too quickly when the
vehicle is stopped.

Confirm automatic brake hold indicator light
(green) is illuminated before removing your
foot from the brake pedal.

To start the vehicle from a standstill

With the vehicle not in the P (Park) position or
in the N (Neutral) position, depress the accel-
erator pedal while the brake force is main-
tained. The brake force will automatically be
released to restart the vehicle.

The automatic brake hold indicator light
(white) illuminates and the automatic brake
hold returns to standby.

Parking

When the vehicle is in the P (Park) position
with the brake force maintained by the auto-
matic brake hold function, the parking brake
will automatically be applied and the brake
force of the automatic brake hold will be
released. The automatic brake hold indicator
light turns off. When the parking brake is
applied with the brake force maintained by
the automatic brake hold function, the brake

force of the automatic brake hold will be
released. The automatic brake hold indicator
light turns off.

NOTE:

• Under the following conditions, the elec-

tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released. The au-
tomatic brake hold indicator light turns
off.
– The braking force is applied by the auto-

matic brake hold function for 3 minutes
or longer.

– The vehicle is in the P (Park) position.
– The electronic parking brake is applied

manually.

– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF

position.

– A malfunction occurs in automatic brake

hold function.

• When the vehicle stops, but the brake

force is not automatically applied, depress
the brake pedal firmly until the automatic
brake

hold

indicator

light

(green)

illuminates.

Multiple driving modes can be selected by
using the INFINITI Drive Mode Selector.
PERSONAL, SPORT, STANDARD (2WD
model)/AUTO (AWD models), ECO and
SNOW.

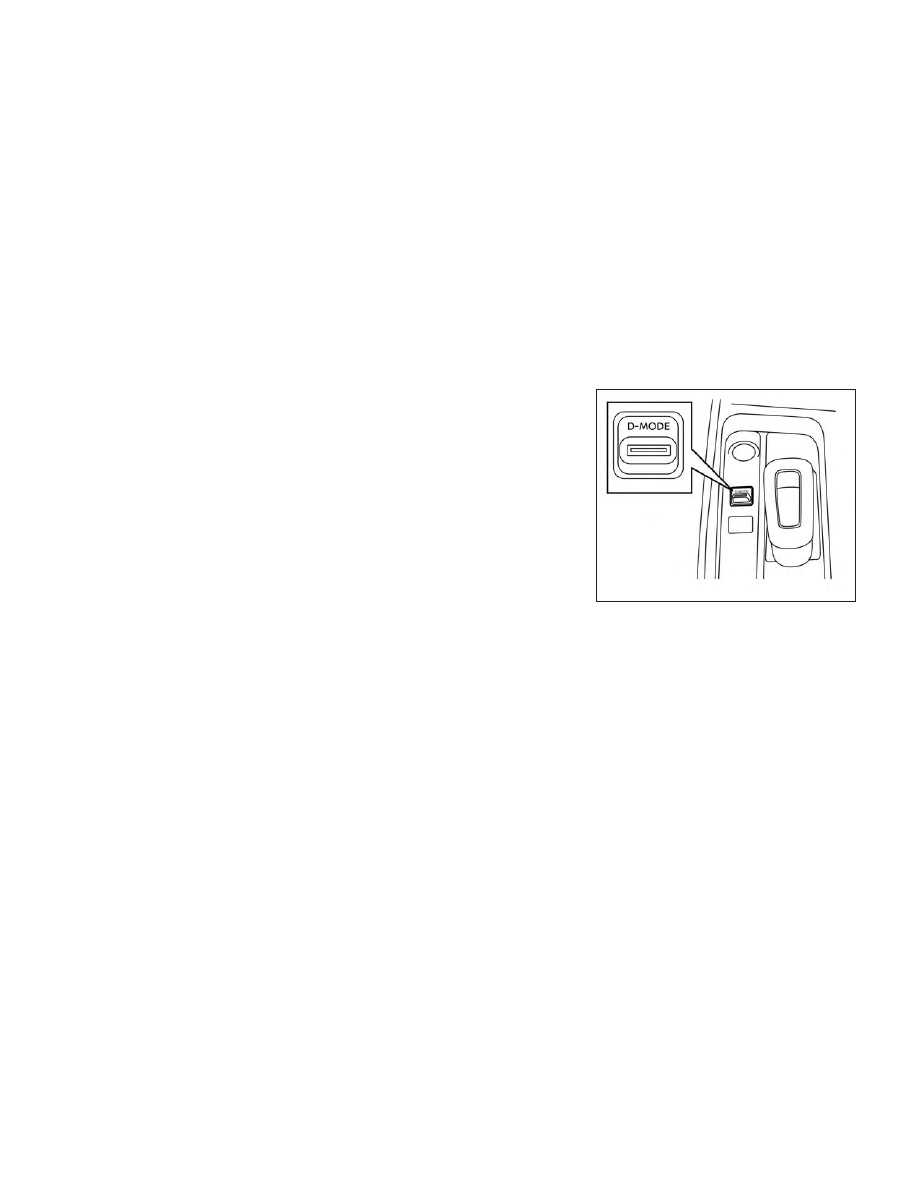

To change the mode push the INFINITI Drive
Mode Selector up or down.

LSD4398

INFINITI Drive Mode Selector

INFINITI DRIVE MODE SELECTOR

Starting and driving

5-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

• When the INFINITI Drive Mode Selector

selects a mode, the mode may not switch
immediately. This is not a malfunction.

• The current mode is displayed in the ve-

hicle information display. The mode list
will appear in the vehicle information dis-
play and you can select the mode.

• The mode list will be turned off in approxi-

mately 5 seconds after the mode is se-
lected. You can also clear the message by
pressing the OK button on the steering
wheel switch.

• If the driving mode cannot be switched us-

ing the INFINITI Drive Mode Selector
when the ignition switch is in the ON posi-
tion, have the system checked. It is recom-
mended that you visit an INFINITI retailer
for this service.

• The STANDARD (2WD models)/AUTO

(4WD models) mode will be selected first
each time the ignition switch is placed in
the ON position.

WARNING

Do not stare at the Drive Mode Selector or
the display while driving so that full atten-
tion may be given to vehicle operation.

STANDARD (2WD models)/AUTO
(AWD models)

This is the standard mode that is most suit-
able for normal driving.

SPORT MODE

Adjusts the engine points for a higher
response.

The setting of the steering system is adjusted
to moderately increase steering wheel effort
for a sporty feel.

NOTE:

In the SPORT mode, fuel economy may be
reduced.

SNOW MODE

This mode makes it easier to start and drive
on snowy roads and frozen roads.

CAUTION

Never drive on dry, hard surface roads in
the SNOW mode, as this will overload
the powertrain and may cause a serious
malfunction. Additionally, this will cause
premature tire wear and reduced fuel
economy. When the SNOW mode is se-
lected, small vibration in cornering may oc-
cur. This is not a malfunction.

PERSONAL MODE

This mode is used for adjusting the steering
mode and drive modes. Turn the PERSONAL
mode off for normal driving.

5-30

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

How to set the PERSONAL mode

Perform the following steps to set the PER-
SONAL mode:

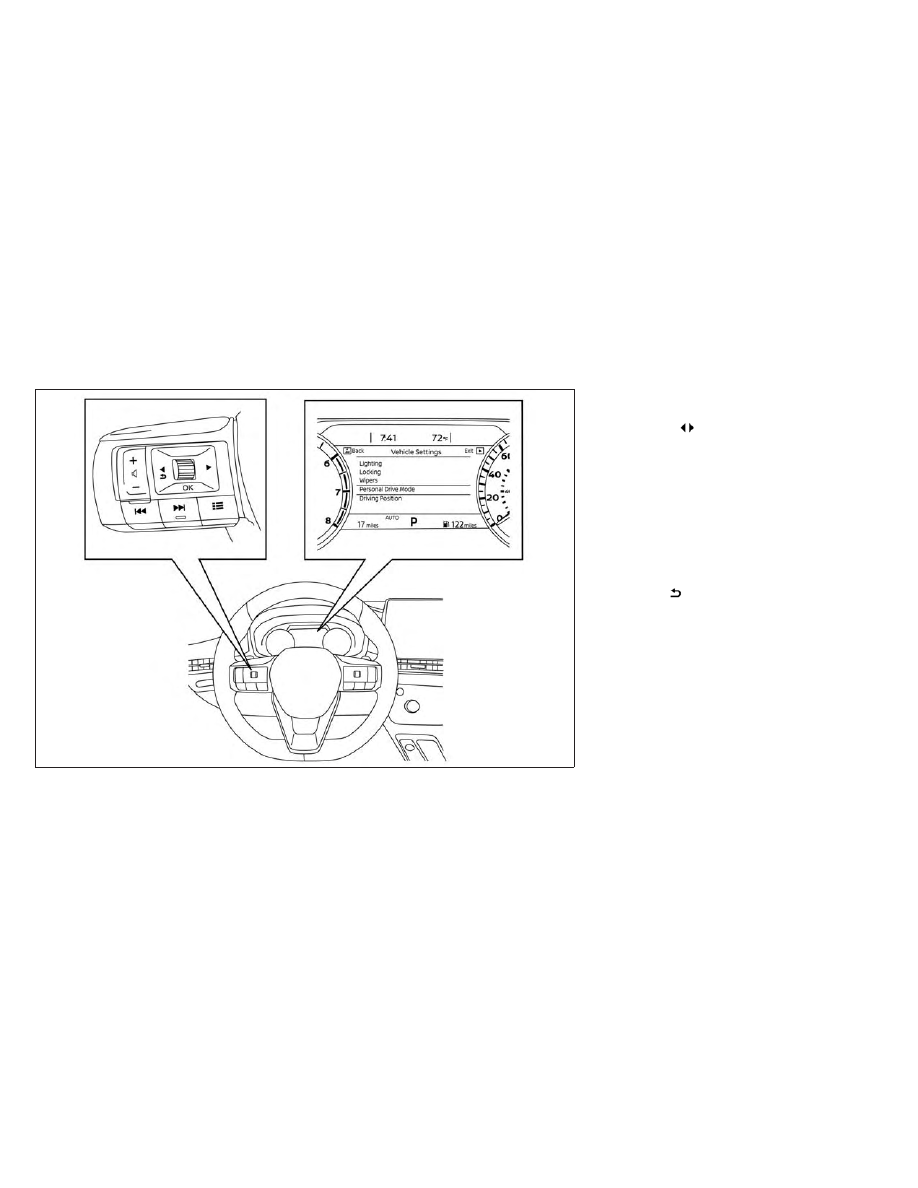

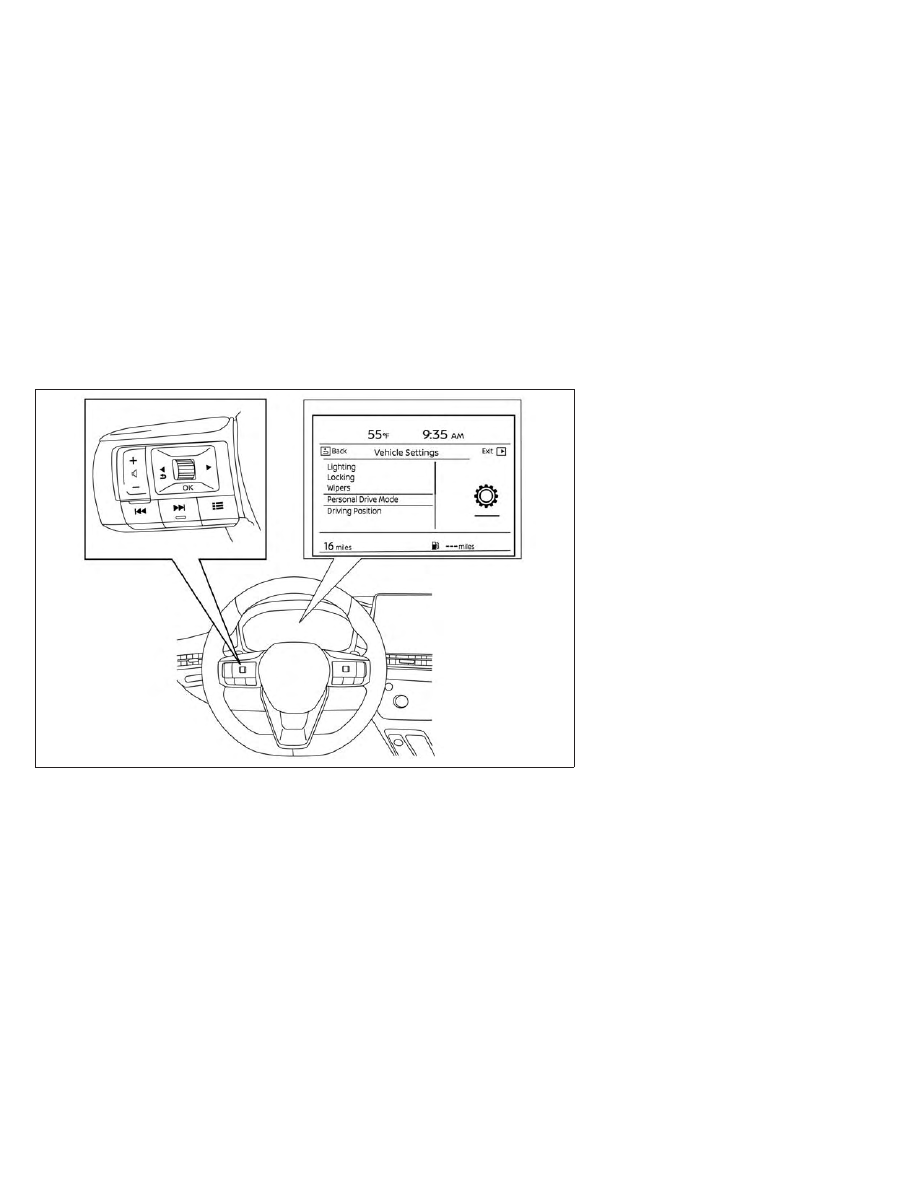

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Vehicle Set-
ting”. Then press the OK button.

2. Use the scroll dial to select “Personal Drive

Mode”. Then press the OK button.

3. Select “Acceleration”, “Steering” or “Trace

Control” and select each item. (See “Accel-
eration”, “Steering” or “Trace Control”
about the feature of each item.)

4. Press

to finish the PERSONAL

mode setting.

Acceleration:

“Acceleration” can be set to “SPORT”,
“STANDARD” or “ECO”.

Steering:

“Steering”

can

be

set

to

“SPORT”

or

“STANDARD”.

Trace Control:

“Trace Control” can be set to ON (enabled) or
OFF (disabled). For additional information,
see “Active Trace Control” (P. 5-170).

LSD4588

For vehicles with the 7 inch (18 cm) display

Starting and driving

5-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Reset:

Select “Reset” and select “Yes” to restore all
the PERSONAL mode settings to default.

NOTE:

The PERSONAL mode setting can be saved
for each user on the center display screen.

ECO MODE

Assists the driver’s ECO-driving. The engine
points

are

adjusted

for

improved

fuel

economy, providing such driving features as
smooth starting or constant cruising.

NOTE:

• Selecting the ECO mode will not necessar-

ily improve fuel economy as many driving
factors influence its effectiveness.

LSD4589

For vehicles with the 12.3 inch (31.2 cm) display

5-32

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation

Toggle the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display for 2 seconds and the
ECO drive indicator illuminates on the instru-
ment panel.

When the accelerator pedal is depressed
within the range of economy drive, the ECO
drive indicator illuminates in green. When the
accelerator pedal is depressed above the
range of economy drive, the color of the ECO
drive indicator changes to orange.

The ECO drive indicator will not illuminate in
the following cases:
• When the shift lever is in the R (Reverse)

position.

• When the vehicle speed is below 3 mph (4.8

km/h) or over 90 mph (144 km/h).

• When the Intelligent Cruise Control system

(if so equipped) is operated.

Eco Drive Report (if so equipped)

When the ignition switch is in the OFF posi-
tion, the ECO management display appears.

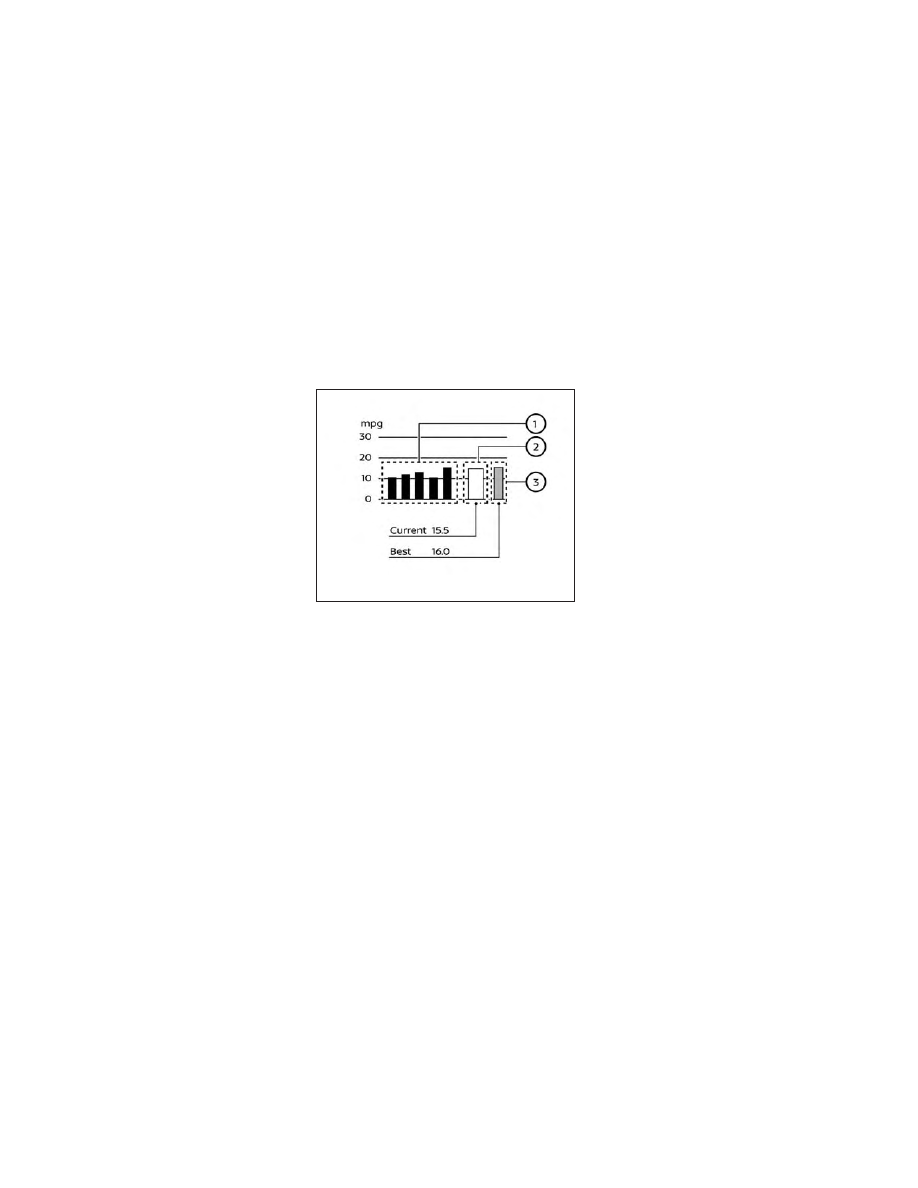

1

Previous 5 times (History)

2

Current fuel economy

3

Best fuel economy

The result of ECO evaluation is displayed 30
seconds after the ignition switch is placed in
the ON position and the vehicle is driven at
least 1/3 miles (500 meters).

1

The average fuel economy for the previ-
ous 5 times will be displayed.

2

The average fuel economy since the last
reset will be displayed.

3

The best fuel economy of the past history
will be displayed.

The ECO Drive Report can be set to be ON or
OFF.

LSD4103

Starting and driving

5-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

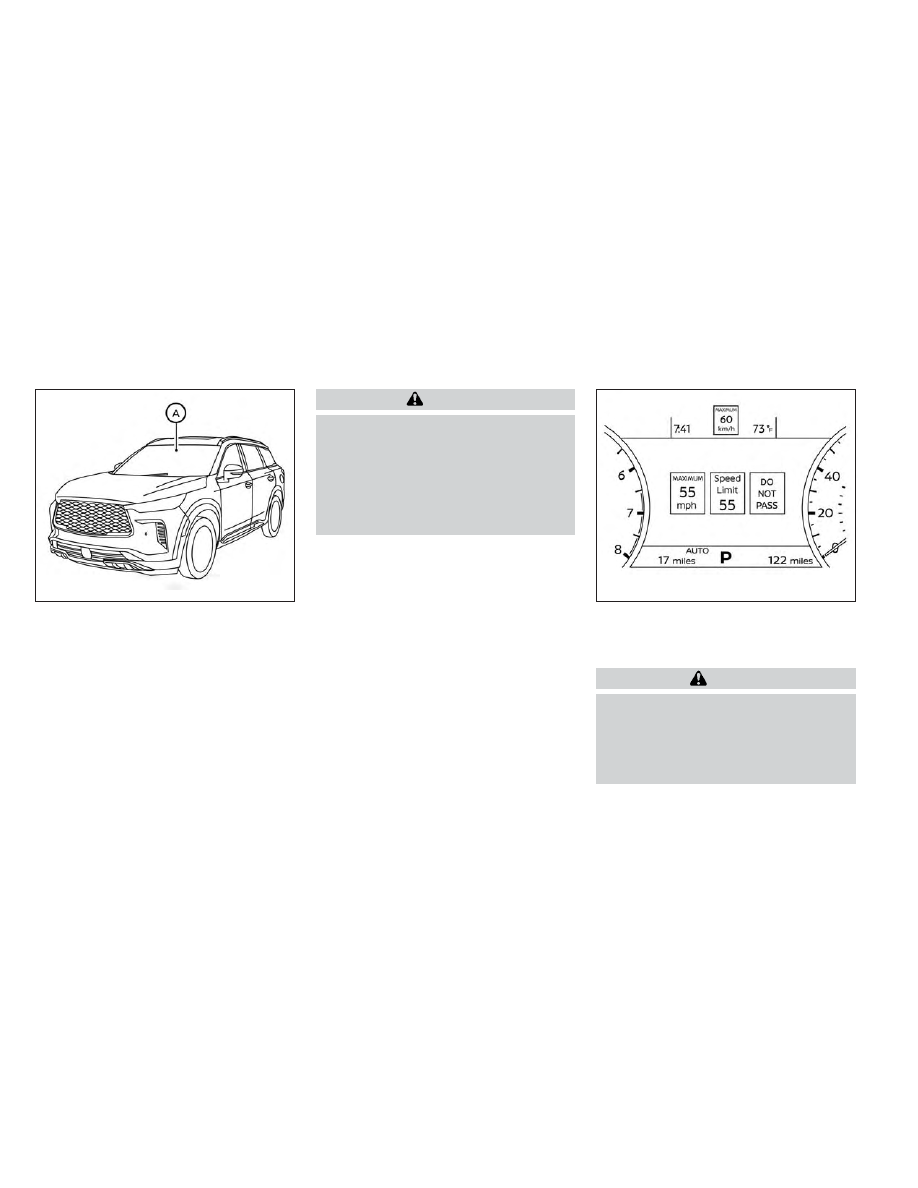

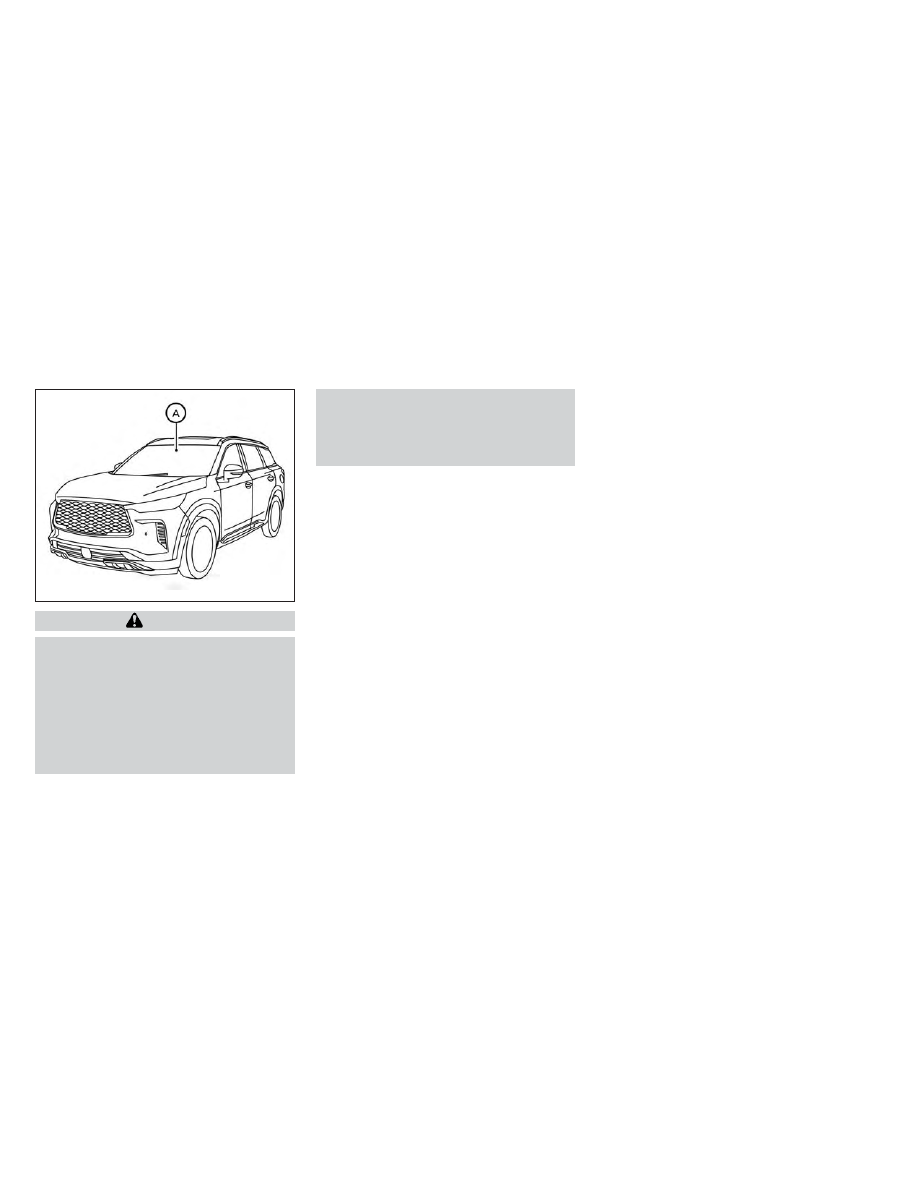

The TSR system provides the driver with in-
formation about the most recently detected
speed limit. The system captures the road

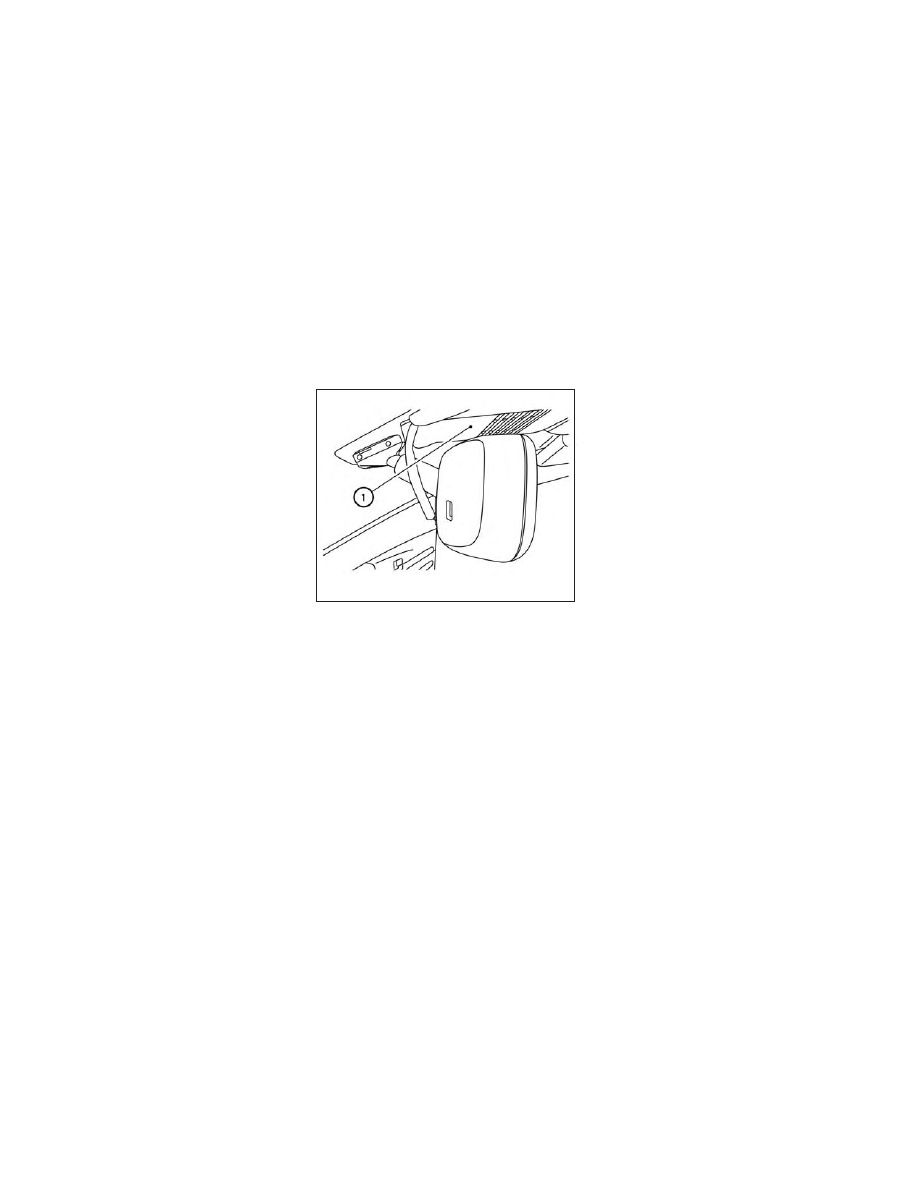

sign information with the multi-sensing front
camera unit

O

A

located on the windshield in

front of the inside rearview mirror and dis-
plays the detected signs in the vehicle infor-
mation display. For vehicles equipped with a
navigation system, the speed limit displayed
is based on a combination of navigation sys-
tem data and live camera recognition. TSR
information is always displayed at the top of
the vehicle information display, and option-
ally in the main central area of the display
screen.

WARNING

The TSR system is only intended to be a
support device to help provide the driver
with information. It is not a replacement
for the driver’s attention to traffic condi-
tions or responsibility to drive safely. It
cannot prevent accidents due to careless-
ness. It is the driver’s responsibility to stay
alert and drive safely at all times.

SYSTEM OPERATION

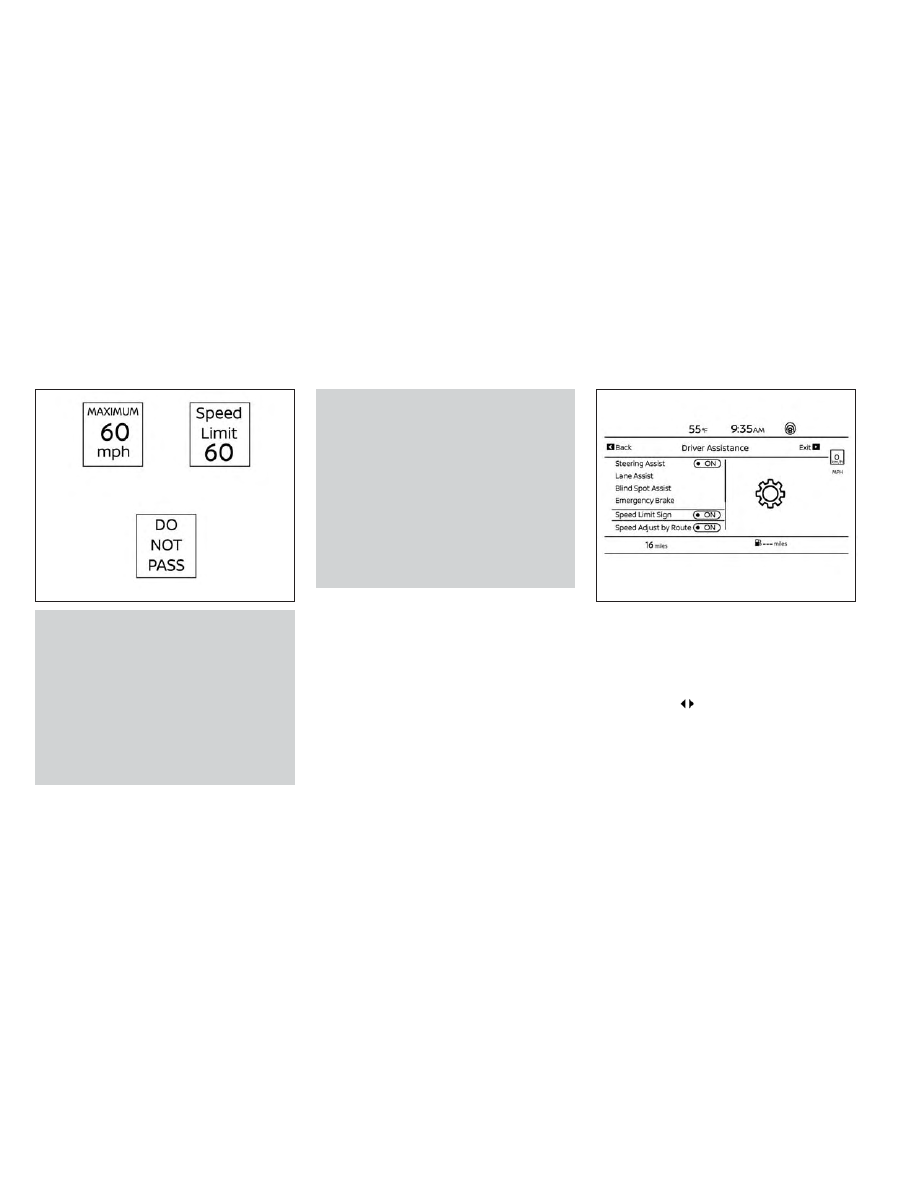

The Traffic Sign Recognition (TSR) system
displays the following types of road signs:

CAUTION

The TSR system is intended as an aid to
careful driving. It is the driver’s responsi-
bility to stay alert, drive safely, and ob-
serve all road regulations that currently
apply, including looking out for road
signs.

LSD4400

LSD4255

TRAFFIC SIGN RECOGNITION (TSR)
(if so equipped)

5-34

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The TSR system may not function prop-
erly under the following conditions:

When the road sign is not clearly vis-
ible, for example, due to damage or
weather conditions.

When rain, snow or dirt adheres to
the windshield in front of the multi-
sensing camera unit.

When the headlights are not bright,
for example, due to dirt on the lens or
if the aiming is not adjusted properly.

When strong light enters the camera
unit. (For example, the light directly
shines on the front of the vehicle at
sunrise or sunset.)

When a sudden change in brightness
occurs. (For example, when the ve-
hicle enters or exits a tunnel or under
a bridge.)

If there are deviations in relation to
the navigation, for example due to
changes in the road routing.

When overtaking buses or trucks
with speed stickers.

TURNING THE TRAFFIC SIGN
RECOGNITION (TSR) SYSTEM ON
AND OFF

Perform the following steps to enable or dis-
able the TSR system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.

2. Select “Speed Limit Sign” and press the

OK button to turn the system on or off.

LSD4307

LSD4257

Starting and driving

5-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM TEMPORARILY
UNAVAILABLE

If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then started, the
TSR system may be deactivated automati-
cally. The “Unavailable: High Cabin Tempera-
ture” warning message will appear in the ve-
hicle information display.

Action to take:

When the interior temperature is reduced, the
TSR system will resume operating automati-
cally.

SYSTEM MALFUNCTION

If the TSR system malfunctions, it will be
turned off automatically and the system
“Malfunction” warning message will appear
in the vehicle information display.

Action to take:

If the TSR “Malfunction” message appears,
pull off the road at a safe location and stop
the vehicle. Turn the engine off and restart
the engine. If the TSR “Malfunction” message
continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.

SYSTEM MAINTENANCE

The TSR system uses the same multi-sensing
front camera unit that is used by the Lane
Departure Warning (LDW) system, located in
front of the interior rearview mirror. For ad-
ditional information, see ”System mainte-
nance” (P. 5-42).

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the LDW system
could result in serious injury or death.

This system is only a warning device to
inform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It is
the driver’s responsibility to stay alert,
drive safely, keep the vehicle in the trav-
eling lane, and be in control of the vehicle
at all times.

LSD4400

LANE DEPARTURE WARNING (LDW)

5-36

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The LDW system will operate when the ve-
hicle is driven at speeds of approximately 37
mph (60 km/h) and above, and only when the
lane markings are clearly visible on the road.

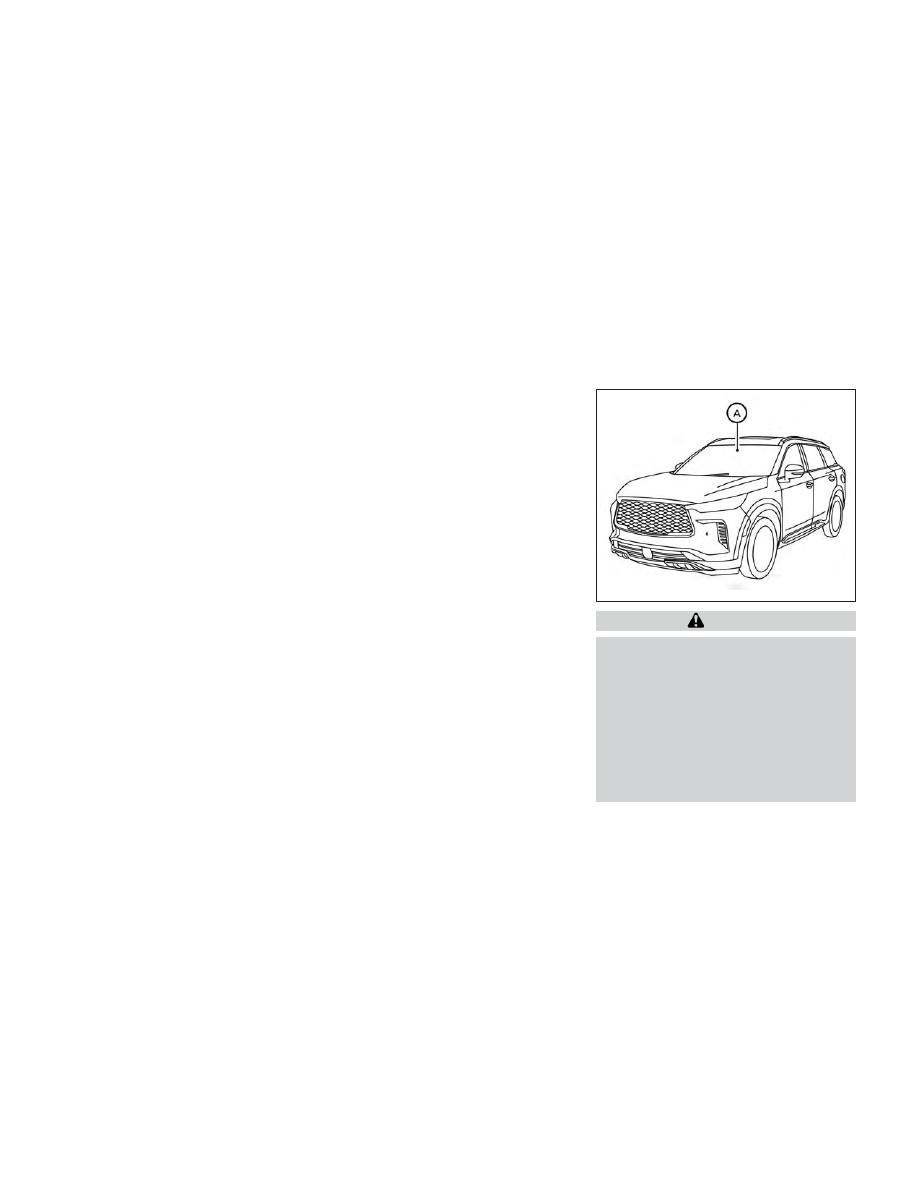

The LDW system monitors the lane markers
on the traveling lane using the camera unit

O

A

located above the inside mirror.

The LDW system warns the driver that the
vehicle is beginning to leave the driving lane
with an indicator and a steering wheel vibra-
tion. For additional information, see “LDW
system operation” (P. 5-37).

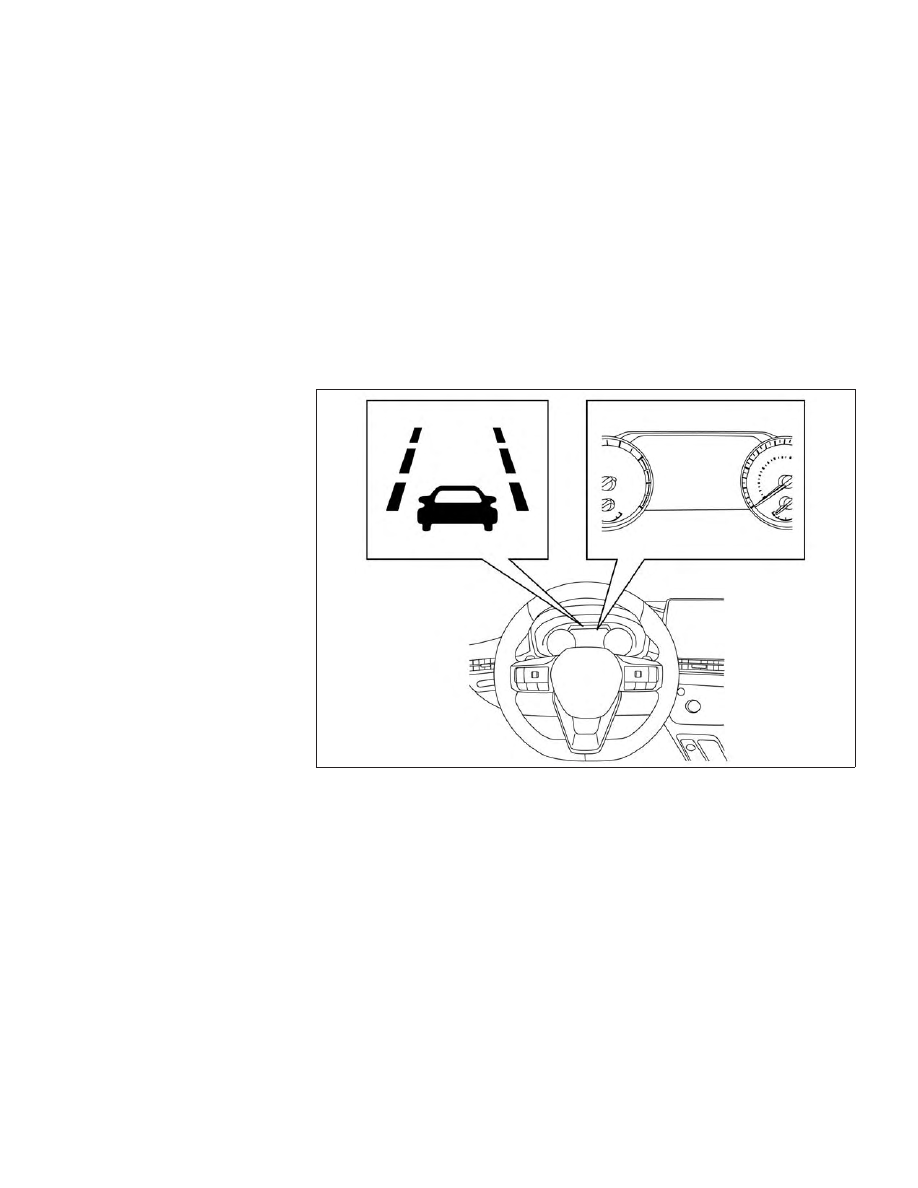

LDW SYSTEM OPERATION

LSD4401

For vehicles with the 7 inch (18 cm) display

Starting and driving

5-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

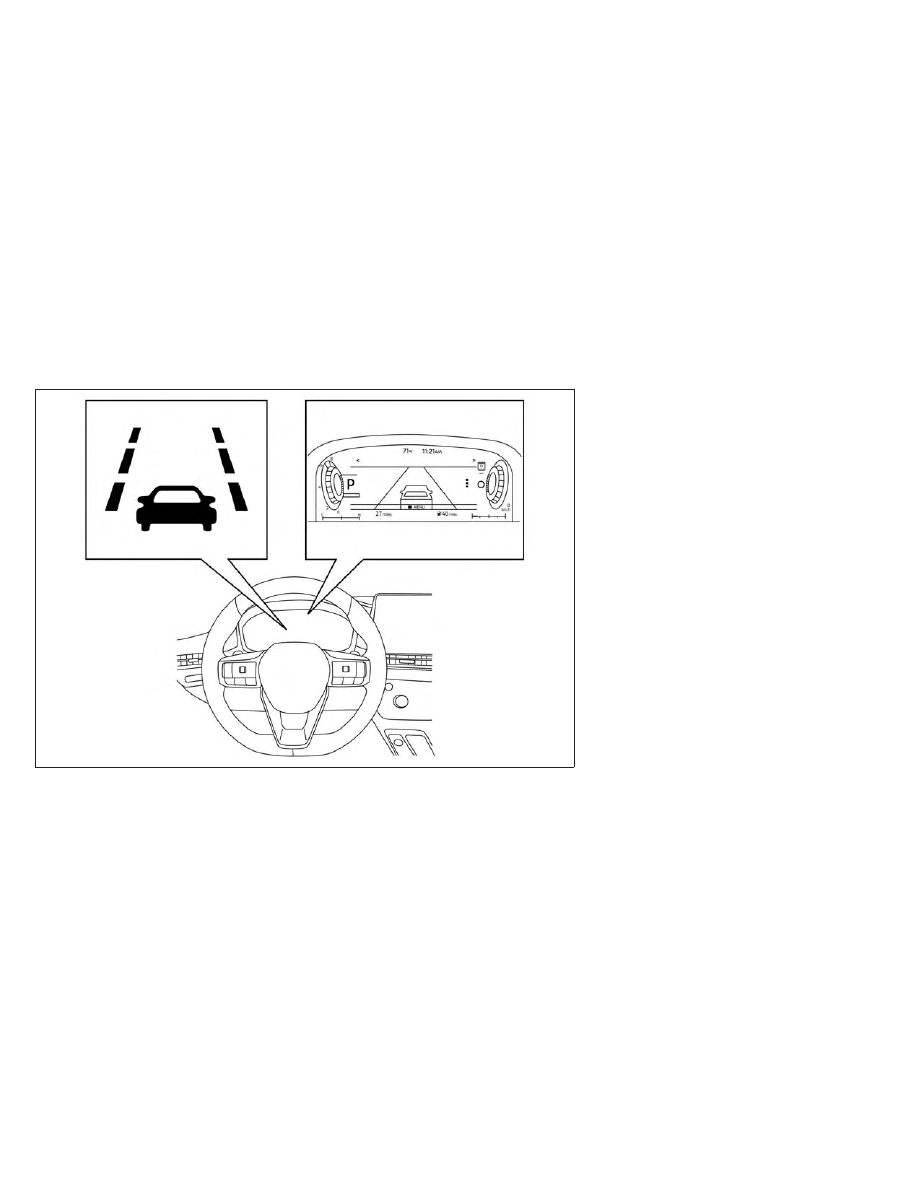

The LDW system provides a Lane Departure
Warning function when the vehicle is driven
at speeds of approximately 37 mph (60
km/h) and above and the lane markings are
clear. When the vehicle approaches either the
left or the right side of the traveling lane, the
steering wheel will vibrate and the LDW indi-
cator on the instrument panel will blink to
alert the driver.

The warning function will stop when the ve-
hicle returns inside of the lane markers.

LSD4402

For vehicles with the 12.3 inch (31.2 cm) display

5-38

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

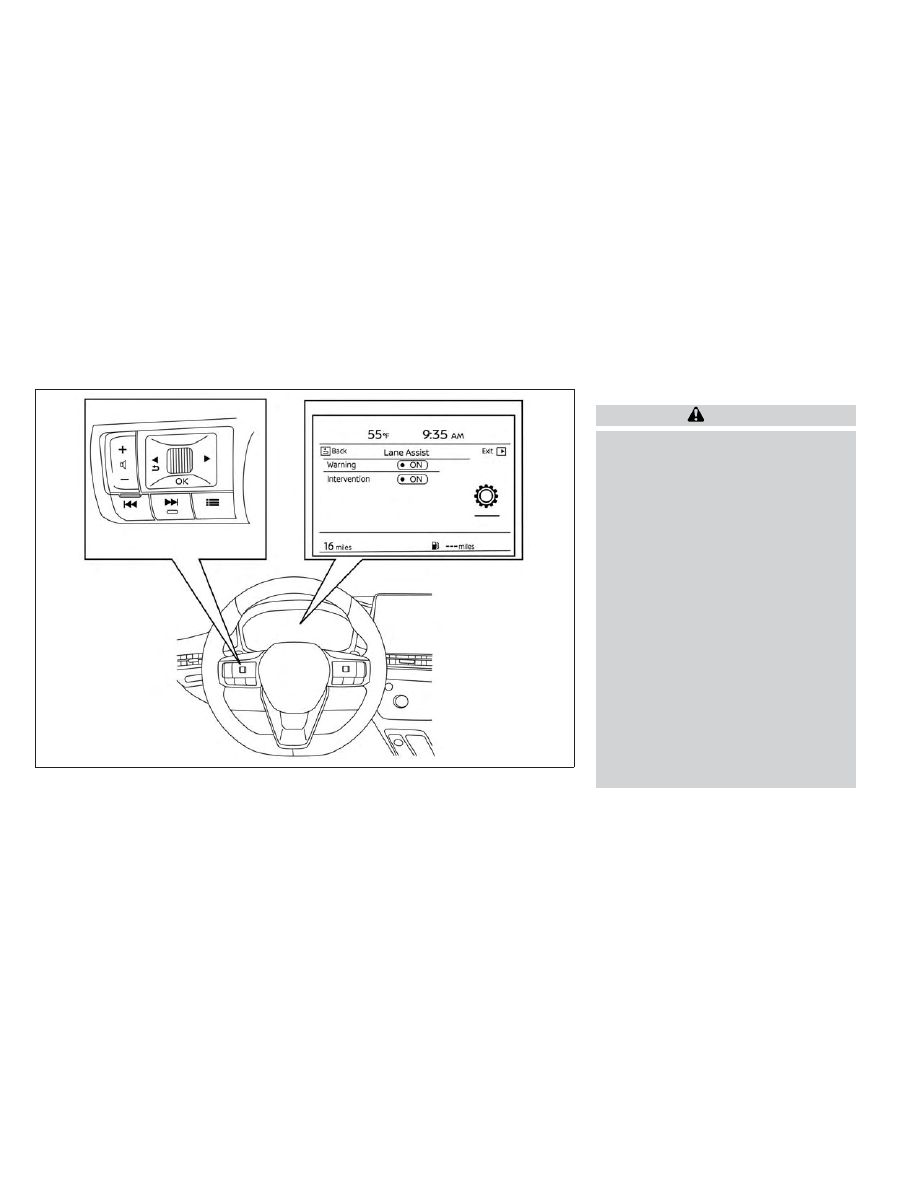

HOW TO ENABLE/DISABLE THE

LDW SYSTEM

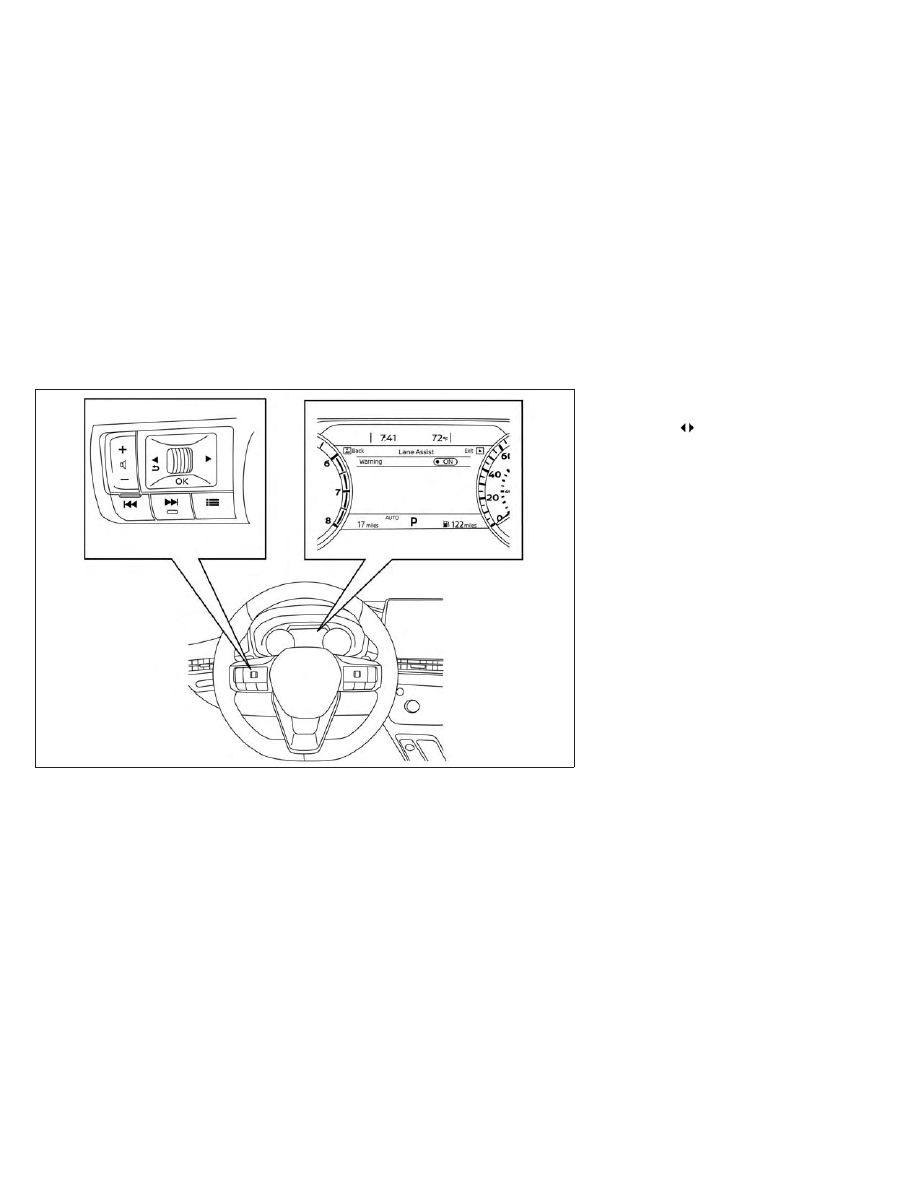

Perform the following steps to enable or dis-
able the LDW system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.

2. Select “Lane Assist” and press the OK

button.

3. Select “Warning” and press the OK button

to turn the system on or off.

LSD4728

For vehicles with the 7 inch (18 cm) display

Starting and driving

5-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LDW SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
the LDW system. Failure to follow the
warnings and instructions for proper use of
the LDW system could result in serious in-
jury or death.

The system will not operate at speeds
below approximately 37 mph (60 km/h)
or if it cannot detect lane markers.

Do not use the LDW system under the
following conditions as it may not func-
tion properly:

During bad weather (rain, fog, snow,

etc.).

When driving on slippery roads, such

as on ice or snow.

When driving on winding or uneven

roads.

When there is a lane closure due to

road repairs.

When driving in a makeshift or tem-

porary lane.

When driving on roads where the lane

width is too narrow.

LSD4404

For vehicles with the 12.3 inch (31.2 cm) display

5-40

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When driving without normal tire

conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, nonstandard
wheels).

When the vehicle is equipped with

non-original brake parts or suspen-
sion parts.

When you are towing a trailer or

other vehicle.

The system may not function properly
under the following conditions:

On roads where there are multiple

parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; or lane mark-
ers covered with water, dirt, snow,
etc.

On roads where the discontinued lane

markers are still detectable.

On roads where there are sharp

curves.

On roads where there are sharply

contrasting objects, such as shad-
ows, snow, water, wheel ruts, seams
or lines remaining after road repairs.
(The LDW system could detect these
items as lane markers.)

On roads where the traveling lane

merges or separates.

When the vehicle’s traveling direction

does not align with the lane marker.

When traveling close to the vehicle in

front of you, which obstructs the lane
camera unit detection range.

When rain, snow, dirt or an object ad-

heres to the windshield in front of the
lane camera unit.

When the headlights are not bright

due to dirt on the lens or if the aiming
is not adjusted properly.

When strong light enters the lane

camera unit. (For example, the light
directly shines on the front of the ve-
hicle at sunrise or sunset.)

When a sudden change in brightness

occurs. (For example, when the ve-
hicle enters or exits a tunnel or under
a bridge.)

SYSTEM TEMPORARILY
UNAVAILABLE

If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then started, the
LDW system may be deactivated automati-
cally and the following message will appear in
the vehicle information display: “Unavailable:
High Cabin Temperature."

When the interior temperature is reduced, the
LDW system will resume operating auto-
matically.

The LDW system is not designed to warn
under the following conditions:
• When you operate the lane change signal

and change traveling lanes in the direction
of the signal. (The LDW system will become
operable again approximately 2 seconds
after the lane change signal is turned off.)

• When the vehicle speed lowers to less than

approximately 37 mph (60 km/h).

After the above conditions have finished and
the necessary operating conditions are satis-
fied, the LDW functions will resume.

Starting and driving

5-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM MALFUNCTION

If the LDW system malfunctions, it will cancel
automatically and “Not Available System
Malfunction” will appear in the vehicle infor-
mation display. If “Not Available System Mal-
function” appears in the vehicle information
display, pull off the road to a safe location
and stop the vehicle. Place the shift position
in the P (Park) position and the ignition switch
in the OFF position and restart the engine/
motor. If “Not Available System Malfunction”
continues to appear in the vehicle informa-
tion display, have the system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.

SYSTEM MAINTENANCE

The lane camera unit

O

1

for the LDW system

is located above the inside mirror. To keep the
proper operation of the LDW system and
prevent a system malfunction, be sure to ob-
serve the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar-

ent material) or install an accessory near
the camera unit.

• Do not place reflective materials, such as

white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.

• Do not strike or damage the areas around

the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, it is recommended that
you visit an INFINITI retailer.

LSD3484

5-42

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the LDP system
could result in serious injury or death.

The LDP system will not steer the vehicle
or prevent loss of control. It is the driv-
er’s responsibility to stay alert, drive
safely, keep the vehicle in the traveling
lane, and be in control of the vehicle at all
times.

The LDP system is primarily intended for
use on well-developed freeways or high-
ways. It may not detect the lane markers
in certain road, weather, or driving
conditions.

The LDP system must be turned on with the
ProPILOT Assist switch on the steering
wheel, every time the ignition is placed in the
ON position.

The LDP system will operate when the ve-
hicle is driven at speeds of approximately 37
mph (60 km/h) and above, and only when the
lane markings are clearly visible on the road.

The LDP system warns the driver when the
vehicle has left the center of the traveling
lane with an indicator and a steering wheel
vibration. The system helps assist the driver
to return the vehicle to the center of the
traveling lane by applying the brakes to the
left or right wheels individually (for a short
period of time).

The LDP system monitors the lane markers
on the traveling lane using the camera unit

O

A

located above the inside mirror.

LSD4400

LANE DEPARTURE PREVENTION
(LDP) (if so equipped)

Starting and driving

5-43

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LDP SYSTEM OPERATION

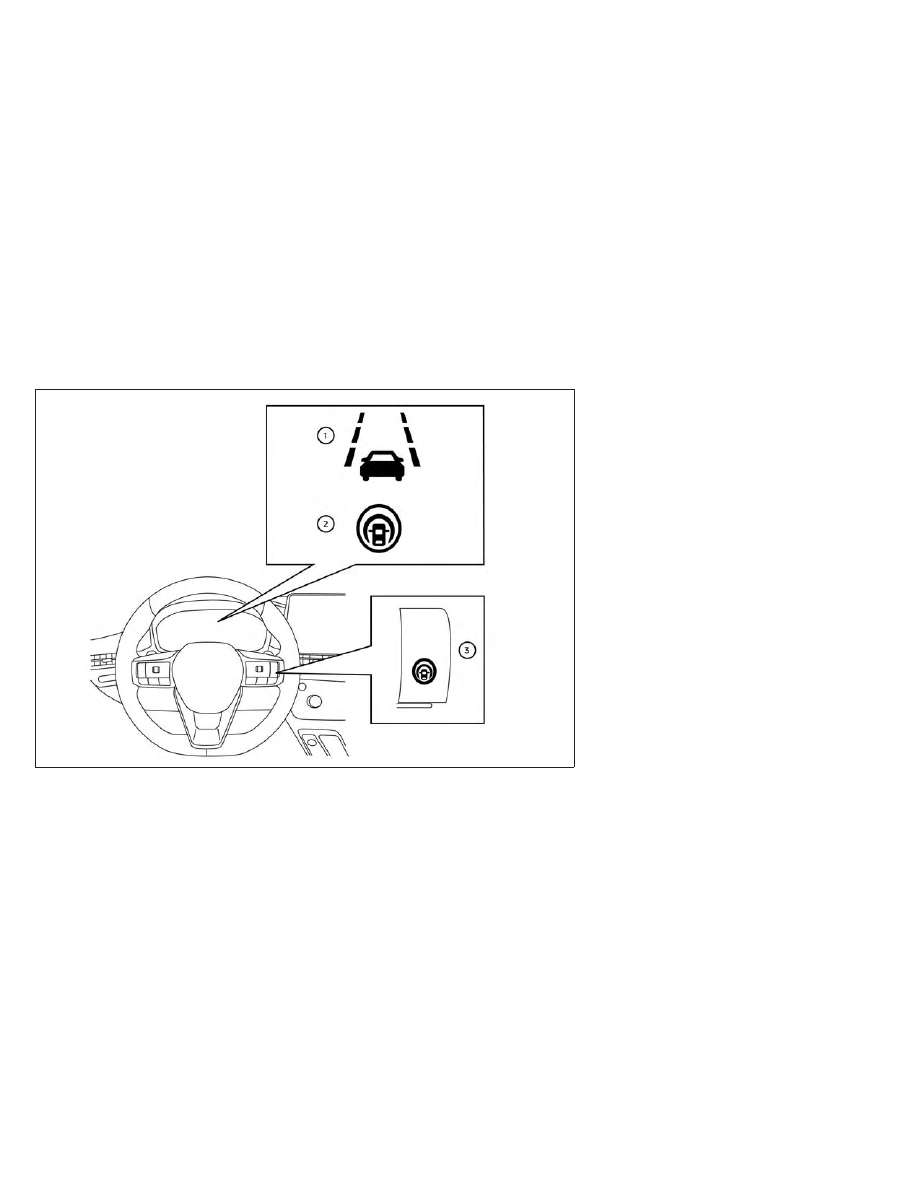

1

Lane

Departure

Warning

(LDW)

indicator

2

Lane Departure Prevention (LDP) indica-
tor (if so equipped)

3

ProPILOT Assist switch

The LDP system operates above approxi-
mately 37 mph (60 km/h). When the vehicle
approaches either the left or the right side of
the traveling lane, the steering wheel will vi-
brate and the LDW indicator (orange) on the
instrument panel will blink to alert the driver.
Then, the LDP system will automatically ap-
ply the brakes for a short period of time to
help assist the driver to return the vehicle to
the center of the traveling lane.

To turn on the LDP system, push the ProPI-
LOT Assist switch on the steering wheel af-
ter starting the engine/motor. The LDP indi-
cator on the instrument panel will illuminate.
Push the ProPILOT Assist switch again to
turn off the LDP system. The LDP indicator
will turn off.

LSD4447

5-44

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

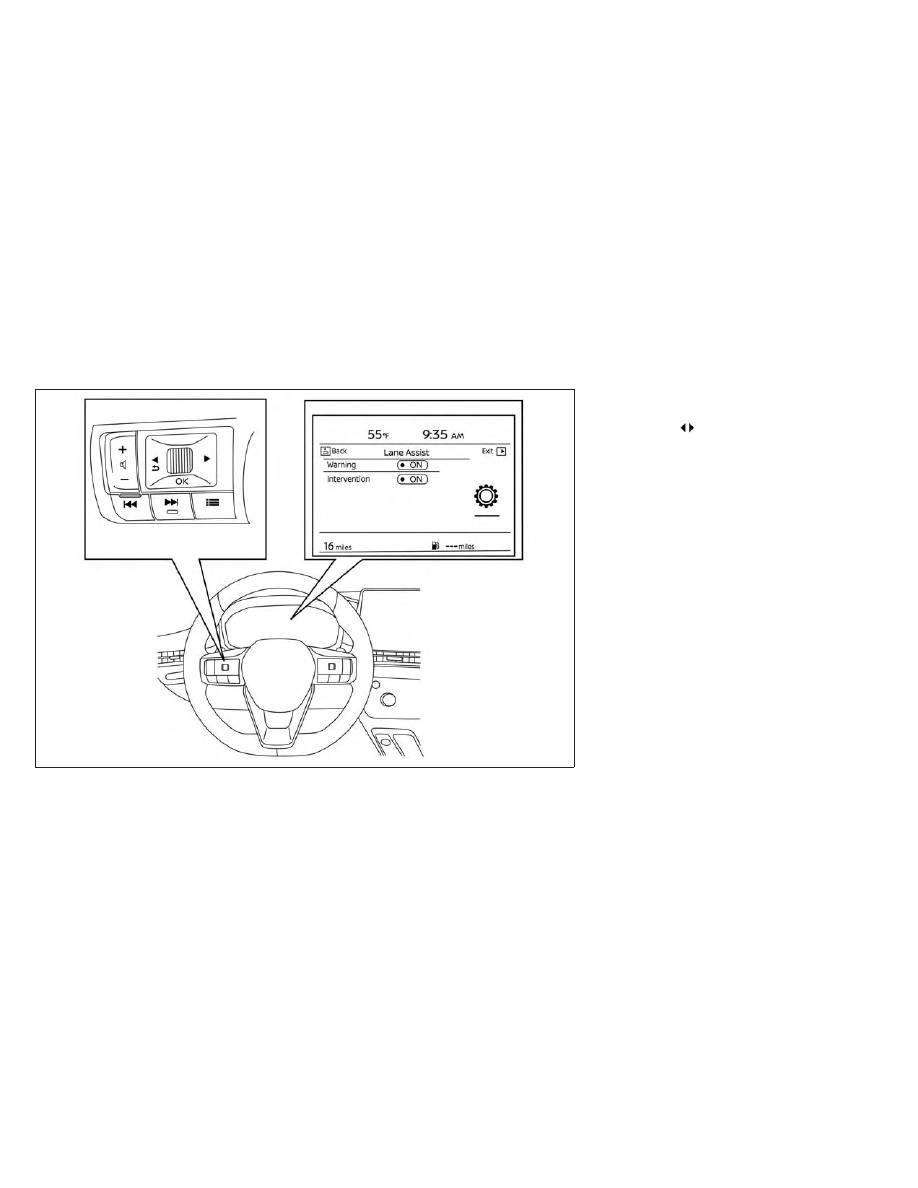

HOW TO ENABLE/DISABLE THE
LDP SYSTEM

Perform the following steps to enable or dis-
able the LDP system.

1. Press the

button until “Settings” dis-

plays in the vehicle information display.
Use the scroll dial to select “Driver Assis-
tance.” Then press the OK button.

2. Select “Lane Assist” and press the OK

button.

3. Select “Intervention” and press the OK

button.

4. Push the ProPILOT Assist switch to turn

the system on or off.

NOTE:

Turning on the ProPILOT Assist system will
turn on the LDP and BSI (if so equipped) sys-
tems at the same time. If the LDP system is
disabled in the settings menu, the LDP will
automatically be turned on when the Steering
Assist system is active. For additional infor-
mation, see “ProPILOT Assist” (P. 5-84).

LSD4406

Starting and driving

5-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
