Infiniti QX50 (2023 year). Manual in english - page 14





CAUTION

Continuously

Variable

Transmission

(CVT) models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.

Do not push start this vehicle. The three-
way catalyst may be damaged.

WARNING

Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.

To avoid the danger of being scalded,
never remove the coolant reservoir cap
while the engine is still hot. When the
coolant reservoir cap is removed, pres-
surized hot water will spurt out, possibly
causing serious injury.

Do not open the hood if steam is coming
out.

If your vehicle is overheating (indicated by an
extremely high temperature gauge reading),
or if you feel a lack of engine power, detect
abnormal noise, etc. take the following steps.

1. Move the vehicle safely off the road, apply

the parking brake.

2. Push the park button to shift to the P

(Park) position.

Do not stop the engine.

3. Turn off the air conditioner. Open all the

windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed.

4. Get out of the vehicle. Look and listen for

steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.

5. Open the engine hood.

WARNING

If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.

6. Visually check drive belts for damage or

looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the
engine.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

In case of emergency

6-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7. After the engine cools down, check the

coolant level in the engine coolant reser-
voir tank with the engine running. Add
coolant to the engine coolant reservoir
tank if necessary. Have your vehicle re-
paired. It is recommended that you visit an
INFINITI retailer for this service.

When towing your vehicle, all jurisdictions and
local regulations for towing must be followed.
Incorrect towing equipment could damage
your vehicle. Towing instructions are available
from an INFINITI retailer. Local service opera-
tors are generally familiar with the applicable
laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends
having a service operator tow your vehicle. It is
advisable to have the service operator care-
fully read the following precautions:

WARNING

Never ride in a vehicle that is being
towed.

Never get under your vehicle after it has
been lifted by a tow truck.

CAUTION

When towing, make sure that the trans-
mission, axles, steering system and pow-
ertrain are in working condition. Use dol-
lies or flatbed if any of the listed systems
are not working.

Always attach safety chains before
towing.

For additional information about towing your
vehicle behind a Recreational Vehicle (RV),
see “Flat towing for all–wheel drive vehicle”
(P. 10-31) or “Flat towing for front wheel
drive vehicle” (P. 10-32).

TOWING RECOMMENDED BY
INFINITI

INFINITI recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.

TOWING YOUR VEHICLE

6-8

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

All-Wheel Drive (AWD) models with
Continuously Variable Transmission
(CVT)

INFINITI recommends that towing dollies be
used when towing your vehicle or place the
vehicle on a flatbed truck as illustrated.

CAUTION

Never tow AWD models equipped with a
Continuously Variable Transmission (CVT)
with any of the wheels on the ground as
this may cause serious and expensive dam-
age to the transfer case and transmission.

NOTE:

If the battery is completely drained the
transmission will not manually shift to other
positions.

LCE2370

In case of emergency

6-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Two-Wheel Drive models with
Continuously Variable Transmission
(CVT)

INFINITI recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flatbed truck
as illustrated.

NOTE:

If the electronic parking brake is released,
the rear wheels can be grounded while tow-
ing. If the electronic parking brake is not
released, towing dollies should be used.
For additional information, see “Electronic
parking brake” (P. 5-24).

CAUTION

Never tow Continuously Variable Trans-
mission (CVT) models with the front
wheels on the ground or four wheels on
the ground (forward or backward), as
this may cause serious and expensive
damage to the transmission. If it is nec-
essary to tow the vehicle with the rear
wheels raised always use towing dollies
under the front wheels.

When

towing

Continuously

Variable

Transmission (CVT) models with the rear
wheels on the ground or on towing dollies:

Place the ignition switch in the OFF
position, and secure the steering
wheel in a straight-ahead position
with a rope or similar device. Never
secure the steering wheel by placing
the ignition switch in the LOCK posi-
tion. This may damage the steering
lock mechanism (for models with a
steering lock mechanism).

NOTE:

If the battery is completely drained the
transmission will not manually shift to other
positions.

LCE2371

6-10

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VEHICLE RECOVERY (freeing a
stuck vehicle)

WARNING

To avoid vehicle damage, serious personal
injury or death when recovering a stuck
vehicle:

Contact a professional towing service to
recover the vehicle if you have any ques-
tions regarding the recovery procedure.

Tow chains or cables must be attached
only to main structural members of the
vehicle.

Do not use the vehicle tie-downs to tow
or free a stuck vehicle.

Only use devices specifically designed for
vehicle recovery and follow the manu-
facturer's instructions.

Always pull the recovery device straight
out from the front of the vehicle. Never
pull at an angle.

Route recovery devices so they do not
touch any part of the vehicle except the
attachment point.

If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device designed
specifically for vehicle recovery. Always fol-
low the manufacturer's instructions for the
recovery device.

Rocking a stuck vehicle

WARNING

Stand clear of a stuck vehicle.

Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.

If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:

1. Turn off the Vehicle Dynamic Control

(VDC) system.

2. Make sure the area in front and behind the

vehicle is clear of obstructions.

3. Turn the steering wheel right and left to

clear an area around the front tires.

4. Slowly rock the vehicle forward and

backward.

• Shift back and forth between R (Re-

verse) and D (Drive).

• Apply the accelerator as little as pos-

sible to maintain the rocking motion.

• Release the accelerator pedal before

shifting between R (Reverse) and D
(Drive).

• Do not spin the tires above 35 mph

(55 km/h).

5. If the vehicle cannot be freed after a few

tries, contact a professional towing ser-
vice to remove the vehicle.

In case of emergency

6-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

6-12

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7 Appearance and care

Cleaning exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Waxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Removing spots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Underbody . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Aluminum alloy wheels . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
Tire dressings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Cleaning interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4

Leather cleaning kit (if so equipped) . . . . . . . . . . . . 7-5

Air fresheners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Power moonroof (if so equipped) . . . . . . . . . . . . . . 7-5
Floor mats (if so equipped) . . . . . . . . . . . . . . . . . . . . 7-6
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Cleaning the seat tracks . . . . . . . . . . . . . . . . . . . . . . . 7-7

Corrosion protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

Most common factors contributing to
vehicle corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Environmental factors influence the rate
of corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Protect your vehicle from corrosion . . . . . . . . . . . .7-8

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In order to maintain the appearance of your
vehicle, it is important to take proper care
of it.

To protect the paint surfaces, wash your ve-
hicle as soon as you can:
• After a rainfall to prevent possible damage

from acid rain.

• After driving on coastal roads.
• When contaminants such as soot, bird

droppings, tree sap, metal particles or bugs
get on the paint surface.

• When dust or mud builds up on the surface.

Whenever possible, store or park your vehicle
inside a garage or in a covered area.

When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.

Be careful not to scratch the paint surface
when putting on or removing the body cover.

WASHING

Wash dirt off with a wet sponge and plenty
of water. Clean the vehicle thoroughly using a
mild soap, a special vehicle soap or general
purpose dishwashing liquid mixed with clean,
lukewarm (never hot) water.

CAUTION

Do not concentrate water spray directly
on the sonar sensors (if so equipped) on
the bumper as this will result in damage
to the sensors. Do not use pressure
washers capable of spraying water over
1,200 psi (8,274 kPa) to wash your ve-
hicle. Use of high-pressure washers over
1,200 psi (8,274 kPa) can result in dam-
age to or removal of paint or graphics.
Avoid using a high-pressure washer
closer than 12 inches (30 cm) to the ve-
hicle. Always use a wide-angle nozzle
only, keep the nozzle moving and do not
concentrate the water spray on any one
area.

Do not use car washes that use acid in the
detergent. Some car washes, especially
brushless ones, use some acid for clean-
ing. The acid may react with some plastic
vehicle components, causing them to
crack. This could affect their appear-
ance, and also could cause them not to
function properly. Always check with
your car wash to confirm that acid is not
used.

Do not wash the vehicle with strong
household soap, strong chemical deter-
gents, gasoline or solvents.

Do not wash the vehicle in direct sunlight
or while the vehicle body is hot, as the
surface may become water-spotted.

Avoid using tight-napped or rough
cloths, such as washing mitts. Care must
be taken when removing caked-on dirt
or other foreign substances so the paint
surface is not scratched or damaged.

Rinse the vehicle thoroughly with plenty of
clean water.

Inside edges, seams and folds on the doors,
hatches and hood are particularly vulnerable
to the effects of road salt. Therefore, these
areas must be cleaned regularly. Take care
that the drain holes in the lower edge of the
door are open. Spray water under the body
and in the wheel wells to loosen the dirt and
wash away road salt.

A damp chamois can be used to dry the ve-
hicle to avoid water spots.

WAXING

Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove built-up
wax residue and to avoid a weathered ap-
pearance before re-applying wax.

An INFINITI retailer can assist you in choos-
ing the proper product.

CLEANING EXTERIOR

7-2

Appearance and care

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Wax your vehicle only after a thorough

washing. Follow the instructions supplied
with the wax.

• Do not use a wax containing any abrasives,

cutting compounds or cleaners that may
damage the vehicle finish.

Machine compounding or aggressive polish-
ing on a base coat/clear coat paint finish may
dull the finish or leave swirl marks.

REMOVING SPOTS

Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the surface of the paint to avoid lasting dam-
age or staining. Special cleaning products are
available at an INFINITI retailer or any auto-
motive accessory store. It is recommended
that you visit an INFINITI retailer for these
products.

UNDERBODY

In areas where road salt is used in winter, it is
necessary to clean the underbody regularly in
order to prevent dirt and salt from building up
and causing the acceleration of corrosion on
the underbody and suspension. Before the
winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.

GLASS

Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.

CAUTION

When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.

ALUMINUM ALLOY WHEELS

Wash the wheels regularly with a sponge
dampened in a mild soap solution, especially
during winter months in areas where road
salt is used. If not removed, road salt can
discolor the wheels.

CAUTION

Follow the directions below to avoid stain-
ing or discoloring the wheels:

Do not use a cleaner that uses strong acid
or alkali contents to clean the wheels.

Do not apply wheel cleaners to the
wheels when they are hot. The wheel
temperature should be the same as am-
bient temperature.

Rinse the wheel to completely remove
the cleaner within 15 minutes after the
cleaner is applied.

CHROME PARTS

Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.

CAUTION

Follow the directions below to avoid stain-
ing or discoloring the chrome parts:

Do not use a cleaner that uses strong acid
or alkali contents to clean the chrome
parts.

TIRE DRESSINGS

INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a
compound. This compound may come off the
tire while driving and stain the vehicle paint.

Appearance and care

7-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you choose to use a tire dressing, take the
following precautions:
• Use a water-based tire dressing. The coat-

ing on the tire dissolves more easily than
with an oil-based tire dressing.

• Apply a light coat of tire dressing to help

prevent it from entering the tire tread/
grooves (where it would be difficult to
remove).

• Wipe off excess tire dressing using a dry

towel. Make sure the tire dressing is com-
pletely removed from the tire tread/
grooves.

• Allow the tire dressing to dry as recom-

mended by tire dressing manufacturer.

This vehicle has new and unique surfaces on
the center console and door pull finishers. If
cleaning is required use mild soap and water.
However if mild soap and water won’t clean
the center console and door pull finishers, use
Genuine INFINITI Vinyl and Leather Cleaner
(or equivalent).

Occasionally remove loose dust from the in-
terior trim, plastic parts and seats using a
vacuum cleaner or soft bristled brush. Wipe
the vinyl and leather surfaces with a clean,
soft cloth dampened in mild soap solution,
then wipe clean with a dry, soft cloth.

Regular care and cleaning is required in order
to maintain the appearance of the leather.

Before using any fabric protector, read the
manufacturer's

recommendations.

Some

fabric protectors contain chemicals that may
stain or bleach the seat material.

Use a cloth dampened only with water to
clean the meter and gauge lens.

Use a slightly moist (with water) microfiber
cloth to clean the wood trim. If necessary, use
water with natural soap or wood dedicated
cleaning products, such as furniture polish.

WARNING

Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can dam-
age the seat or occupant classification sen-
sor. This can also affect the operation of
the air bag system and result in serious per-
sonal injury.

CAUTION

Never use benzine, thinner, or any similar
material on the interior surfaces or sur-
face damage may occur. Such damage
is not covered under the INFINITI
warranty.

Small dirt particles can be abrasive and
damaging to leather surfaces and should
be removed promptly. Do not use saddle
soap, car waxes, polishes, oils, cleaning
fluids, solvents, detergents or ammonia-
based cleaners as they may damage the
leather's natural finish.

Never use fabric protectors unless rec-
ommended by the manufacturer.

Do not use glass or plastic cleaner on me-
ter or gauge lens covers. It may damage
the lens cover.

CLEANING INTERIOR

7-4

Appearance and care

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not spill on or make contact with in-
terior surfaces while handling air fresh-
eners, aroma agents, cosmetics, sun-
screen, etc. They may cause permanent
discoloration, stain, crack, paint peeling,
etc. depending on the ingredients. If they
contact the interior surface, wipe them
off immediately using a soft cloth.

Do not use chlorine-based cleaning liquid
such as chlorine dioxide and hypochlo-
rous acid, which may cause the paint
peeling, corrosion, etc. If it is unavoid-
able to clean or sterilize interior surfaces,
use less than 75% ethanol. Wipe off
ethanol completely. If you leave it un-
cleaned, it may cause paint peeling, dis-
coloration, etc. Since ethanol is flam-
mable, be careful of fire.

Never use chloride solutions for cleaning
aluminum decoratives (if so equipped),
damage may occur.

LEATHER CLEANING KIT (if so
equipped)

Spray onto leather cleaning cloth, then gently
wipe the surface of the leather. Use a dry
towel to absorb any excess moisture.

Clean light-colored leather more frequently
because soiling on such surfaces is much
more visible.

Always follow the manufacturer’s instruc-
tions supplied with the leather cleaning kit.

You can obtain the leather cleaning kit from
an INFINITI retailer or other authorized repair
shop.

CAUTION

Do not leave the leather cleaning kit inside
the vehicle. The leather cleaning kit left in a
closed vehicle can become very hot.

AIR FRESHENERS

Most air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
• Hanging-type air fresheners can cause per-

manent discoloration when they contact
vehicle interior surfaces. Place the air fresh-
ener in a location that allows it to hang free
and not contact an interior surface.

• Liquid-type air fresheners typically clip on

the vents. These products can cause imme-
diate damage and discoloration when
spilled on interior surfaces.

Carefully read and follow the manufacturer's
instructions before using the air fresheners.

POWER MOONROOF (if so
equipped)

The sunshade is made from a tricot material.

CAUTION

To help prevent damaging the moonroof
while cleaning:

Do not rub the material with a cloth. Do-
ing so can damage the surface of the ma-
terial or cause a stain to spread.

Never use benzine, thinner or any similar
chemical to clean the sunshade. This may
discolor the moonroof and damage the
surface.

Clean water based stains by patting the
surface with a clean soft cloth dampened
in warm water. Press a clean dry cloth
onto the surface to remove as much
dampness as possible and then let air dry.

Clean oil based stains by patting the sur-
face with a clean soft cloth dampened in
warm water. Press a clean dry cloth onto
the surface to remove as much dampness
as possible and then let air dry.

Appearance and care

7-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FLOOR MATS (if so equipped)

WARNING

To avoid potential pedal interference that
may result in a collision, injury or death:

NEVER place a floor mat on top of an-
other floor mat in the driver front posi-
tion or install them upside down or
backwards.

Use only Genuine INFINITI floor mats or
equivalent floor mats, specifically de-
signed for use in your vehicle model and
model year.

Properly position the mats in the floor-
well using the floor mat positioning
hook. For additional information, see
"Floor mat installation" (P. 7-6).

Make sure the floor mat does not inter-
fere with pedal operation.

Periodically check the floor mats to make
sure they are properly installed.

After cleaning the vehicle interior, check
the floor mats to make sure they are
properly installed.

The use of Genuine INFINITI floor mats can
extend the life of your vehicle carpet and
make it easier to clean the interior. Mats
should be maintained with regular cleaning
and replaced if they become excessively
worn.

Floor mat installation

Your vehicle is equipped with floor mat re-
tainer clips. The number and shape of the
floor mat retainer clips for each seating posi-
tion varies depending on the vehicle.

When installing Genuine INFINITI floor mats,
follow the installation instructions provided
with the mat and the following:

1. With the ignition switch in the OFF posi-

tion, the shift position in P (Park) position
and with the parking brake fully applied,
position the floor mat in the floorwell so
that the floor mat grommet holes are
aligned with the retainer clips.

2. Secure the grommet holes into the clips

and ensure that the floor mat is properly
positioned.

3. Make sure the floor mat does not inter-

fere with pedal operation. With the igni-
tion switch still in the OFF position, the
shift position in the P (Park) position and
with the parking brake applied, fully apply
and release all pedals. The floor mat must
not interfere with pedal operation or pre-
vent the pedal from returning to its normal
position.

It is recommended that you visit an INFINITI
retailer for details about installing the floor
mats in your vehicle.

LAI2094

7-6

Appearance and care

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The illustration shows the location of the
floor mat retainer clips.

SEAT BELTS

The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap solu-
tion. Allow the belts to dry completely in
the shade before using them. For additional
information, see “Seat belt maintenance”
(P. 1-19).

WARNING

Do not allow wet seat belts to roll up in the
retractor. NEVER use bleach, dye or
chemical solvents to clean the seat belts,
since these materials may severely weaken
the seat belt webbing.

CLEANING THE SEAT TRACKS

CAUTION

Periodically clean the seat tracks to pre-
vent reduction of ability to move the seats.

Clean periodically with a high-powered
vacuum cleaner. Dirt and debris may reduce
the ability to adjust the seat. A wet cleansing
agent may be used if necessary.

MOST COMMON FACTORS
CONTRIBUTING TO VEHICLE
CORROSION

Most vehicle corrosion is caused by:
• The accumulation of moisture-retaining

dirt and debris in body panel sections, cavi-
ties, and other areas.

• Damage to paint and other protective

coatings caused by gravel and stone chips
or minor traffic collisions.

ENVIRONMENTAL FACTORS
INFLUENCE THE RATE OF
CORROSION

Moisture

Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle and should be removed for
drying to avoid floor panel corrosion.

Relative humidity

Corrosion will be accelerated in areas of high
relative humidity, especially those areas
where the temperatures stay above freezing
and where atmospheric pollution exists and
road salt is used.

LAI2095

Retainer clips

CORROSION PROTECTION

Appearance and care

7-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Temperature

High temperatures accelerate the rate of cor-
rosion to those parts which are not well
ventilated.

Air pollution

Industrial pollution, the presence of salt in the
air in coastal areas, or heavy road salt use
accelerates the corrosion process. Road salt
also accelerates the disintegration of paint
surfaces.

PROTECT YOUR VEHICLE FROM
CORROSION

• Wash and wax your vehicle often to keep

the vehicle clean.

• Always check for minor damage to the

paint and repair it as soon as possible.

• Keep drain holes at the bottom of the doors

open to avoid water accumulation.

• Check the underbody for accumulation of

sand, dirt or salt. If present, wash with wa-
ter as soon as possible.

• Avoid the use of chloride detergents on

interior decoration.

CAUTION

NEVER remove dirt, sand or other debris
from the passenger compartment by
washing it out with a hose. Remove dirt
with a vacuum cleaner or broom.

Never allow water or other liquids to
come in contact with electronic compo-
nents inside the vehicle as this may dam-
age them.

Chemicals used for road surface de-icing are
extremely corrosive. They accelerate corro-
sion and deterioration of underbody compo-
nents such as the exhaust system, fuel and
brake lines, brake cables, floor pan and
fenders.

In winter, the underbody must be cleaned
periodically.

For additional protection against rust and
corrosion, which may be required in some
areas, it is recommended that you consult an
INFINITI retailer.

7-8

Appearance and care

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8 Do-it-yourself

Maintenance precautions . . . . . . . . . . . . . . . . . . . . . . . .8-2
Engine compartment check locations . . . . . . . . . . . . .8-3
Engine cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Checking engine coolant level . . . . . . . . . . . . . . . . .8-5
Changing engine coolant . . . . . . . . . . . . . . . . . . . . . .8-5

Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-6

Checking engine oil level . . . . . . . . . . . . . . . . . . . . . . .8-6
Changing engine oil and oil filter . . . . . . . . . . . . . . .8-7

Continuously Variable Transmission (CVT) fluid . . . 8-10
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Windshield-washer fluid . . . . . . . . . . . . . . . . . . . . . . . . .8-11

Windshield-washer fluid reservoir . . . . . . . . . . . . .8-11

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

Variable voltage control system . . . . . . . . . . . . . . . . 8-14
Drive belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Replacing spark plugs . . . . . . . . . . . . . . . . . . . . . . . 8-15

Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

In-cabin microfilter . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17

Windshield wiper blades . . . . . . . . . . . . . . . . . . . . . . . . 8-17

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17

Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20

Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 8-20
Passenger compartment . . . . . . . . . . . . . . . . . . . . 8-21

Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22

INFINITI Intelligent Key . . . . . . . . . . . . . . . . . . . . . 8-22

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24
Fog lights (if so equipped) . . . . . . . . . . . . . . . . . . . 8-24
Exterior and interior lights . . . . . . . . . . . . . . . . . . . 8-25
Replacement procedures . . . . . . . . . . . . . . . . . . . . 8-26

Wheels and tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-27

Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-27
Tire labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32
Types of tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38
Changing wheels and tires . . . . . . . . . . . . . . . . . . . 8-38

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When performing any inspection or mainte-
nance work on your vehicle, always take care
to prevent serious accidental injury to your-
self or damage to the vehicle. The following
are general precautions which should be
closely observed.

WARNING

Park the vehicle on a level surface, apply
the parking brake securely and block the
wheels to prevent the vehicle from mov-
ing. Push the park button to engage the
P (Park) position.

Be sure the ignition switch is in the OFF
or LOCK position when performing any
parts replacement or repairs.

If you must work with the engine run-
ning, keep your hands, clothing, hair and
tools away from moving fans, belts and
any other moving parts.

It is advisable to secure or remove any
loose clothing and remove any jewelry,
such as rings, watches, etc. before work-
ing on your vehicle.

Always wear eye protection whenever
you work on your vehicle.

Your vehicle is equipped with an auto-
matic engine cooling fan. It may come on
at any time without warning, even if the
ignition switch is in the OFF position and
the engine is not running. To avoid injury,
always disconnect the negative battery
cable before working near the fan.

If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.

Never get under the vehicle while it is
supported only by a jack. If it is necessary
to work under the vehicle, support it
with safety stands.

Keep smoking materials, flame and
sparks away from the fuel tank and
battery.

Because the fuel lines on gasoline engine
models are under high pressure even
when the engine is off, it is recommended
that you visit an INFINITI retailer for ser-
vice of the fuel filter or fuel lines.

CAUTION

Do not work under the hood while the
engine is hot. Turn the engine off and
wait until it cools down.

Avoid contact with used engine oil and
coolant. Improperly disposed engine oil,
engine coolant and/or other vehicle flu-
ids can damage the environment. Always
conform to local regulations for disposal
of vehicle fluid.

Never leave the engine or Continuously
Variable Transmission (CVT) related
component

harnesses

disconnected

while the ignition switch is in the ON
position.

Never connect or disconnect the battery
or any transistorized component while
the ignition switch is in the ON position.

NOTE:

If the battery is completely drained the
transmission will not manually shift to other
positions.

This “Do-it-yourself” section gives instruc-
tions regarding only those items which are
relatively easy for an owner to perform.

MAINTENANCE PRECAUTIONS

8-2

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

A Genuine INFINITI service manual is also
available. For additional information, see
“Owner’s Manual/Service Manual order in-
formation” (P. 10-37).

You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could af-
fect warranty coverage.

If in doubt about any

servicing, it is recommended that you have it
done by an INFINITI retailer.

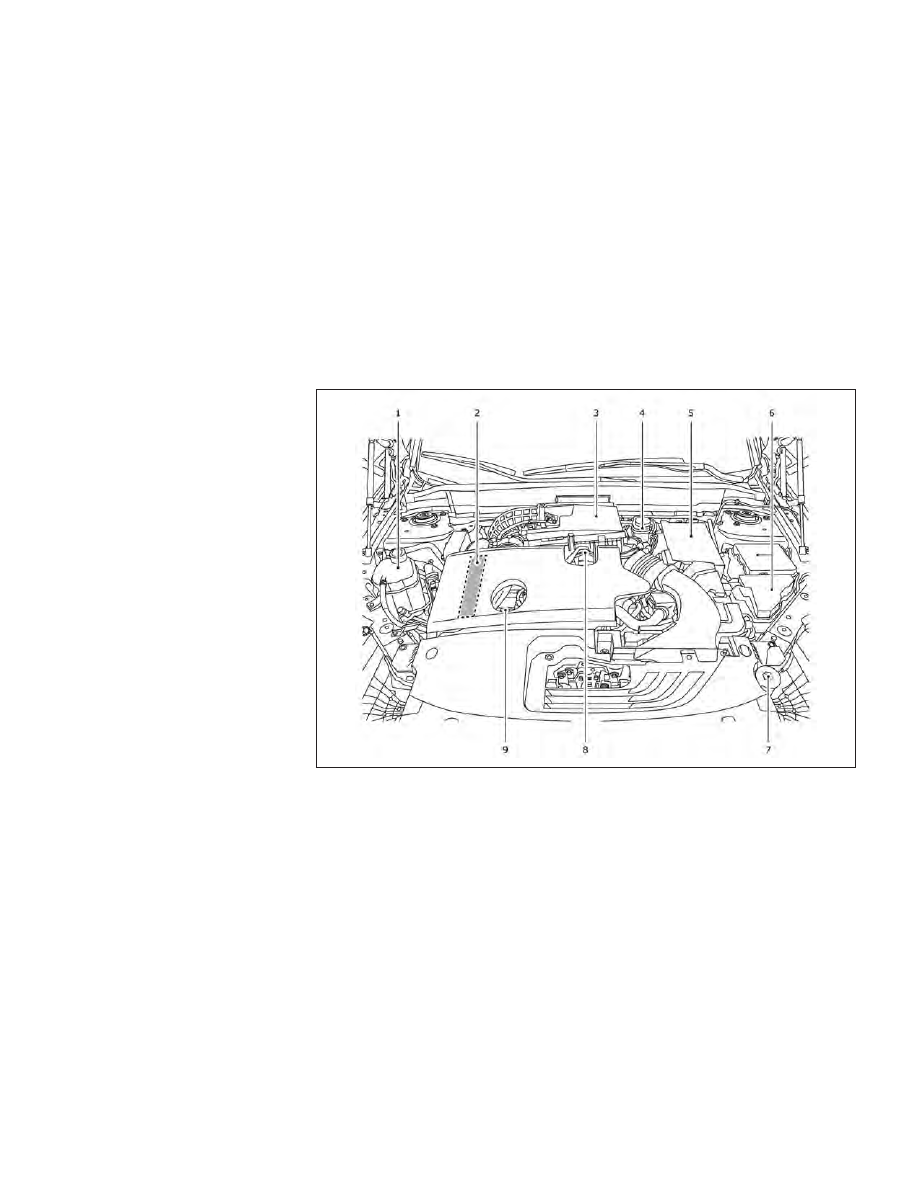

2.0L 4 cylinder (KR20DDET engine model)

1.

Engine coolant reservoir

2.

Drive belt location

3.

Air cleaner

4.

Brake fluid reservoir

5.

Battery

6.

Fuse/Fusible link box

7.

Windshield-washer fluid reservoir

LDI3173

ENGINE COMPARTMENT CHECK
LOCATIONS

Do-it-yourself

8-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8.

Engine oil filler cap

9.

Engine oil dipstick

NOTE:
Your vehicle may not be equipped with
an engine cover.

The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life Antifreeze/
Coolant (blue) and 50% water to provide
year-round antifreeze and coolant protec-
tion. The antifreeze solution contains rust
and corrosion inhibitors. Additional engine
cooling system additives are not necessary.

WARNING

Never remove the coolant reservoir cap
when the engine is hot. Wait until the
engine and radiator cool down. Serious
burns could be caused by high pressure
fluid escaping from the radiator. For ad-
ditional information on precautions, see
“If your vehicle overheats” (P. 6-7).

The coolant reservoir is equipped with a
pressure type coolant reservoir cap. To
prevent engine damage, use only a
Genuine NISSAN coolant reservoir cap.

CAUTION

Never use any cooling system additives
such as radiator sealer. Additives may
clog the cooling system and cause dam-
age to the engine, transmission and/or
cooling system.

When adding or replacing coolant, be
sure to use only Genuine NISSAN Long
Life

Antifreeze/Coolant

(blue)

or

equivalent. Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is pre-diluted
to provide antifreeze protection to -34°
F (-37° C). If additional freeze protection
is needed due to weather where you op-
erate your vehicle, add Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
concentrate following the directions on
the container. If an equivalent coolant
other than Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is used, fol-
low the coolant manufacturer’s instruc-
tions to maintain minimum antifreeze
protection to -34° F (-37° C). The use of
other types of coolant solutions other
than

Genuine

NISSAN

Long

Life

Antifreeze/Coolant (blue) or equivalent
may damage the engine cooling system.

ENGINE COOLING SYSTEM

8-4

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The life expectancy of the factory-fill
coolant is 105,000 miles (168,000 km)
or 7 years. Mixing any other type of cool-
ant other than Genuine NISSAN Long
Life

Antifreeze/Coolant

(blue)

(or

equivalent coolant), including Genuine
NISSAN Long Life Antifreeze/Coolant
(green), or the use of non-distilled water
may reduce the life expectancy of the
factory-fill coolant. For additional infor-
mation, see the “Maintenance and
schedules” section of this manual.

CHECKING ENGINE COOLANT
LEVEL

Check the coolant level

in the reservoir when

the engine is cold.

If the coolant level is below

the MIN level

O

B

, add coolant to the MAX

level

O

A

.

This

vehicle

contains

Genuine

NISSAN

Long Life Antifreeze/Coolant (blue). The life
expectancy of the factory-fill coolant is
105,000 miles (168,000 km) or 7 years.
Mixing any other type of coolant or the use of
non-distilled water will reduce the life expec-

tancy of the factory-fill coolant. For addi-
tional information, see the “Maintenance and
schedules” section of this manual.

If the cooling system frequently requires
coolant, have it checked. It is recommended
that you visit an INFINITI retailer for this
service.

For additional information on the location of
the engine coolant reservoir, see “Engine
compartment check locations” (P. 8-3).

CHANGING ENGINE COOLANT

An INFINITI retailer can change the engine
coolant. The service procedure can be found
in the INFINITI Service Manual.

Improper servicing can result in reduced
heater performance and engine overheating.

WARNING

To avoid the danger of being scalded,
never change the coolant when the en-
gine is hot.

Never remove the coolant reservoir cap
when the engine is hot. Serious burns
could be caused by high pressure fluid
escaping from the radiator.

LDI3157

Do-it-yourself

8-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Avoid direct skin contact with used cool-
ant. If skin contact is made, wash thor-
oughly with soap or hand cleaner as soon
as possible.

Keep coolant out of the reach of children
and pets.

Engine coolant must be disposed of properly.
Check your local regulations.

CHECKING ENGINE OIL LEVEL

1. Park the vehicle on a level surface and

apply the parking brake.

2. Start the engine and let it idle until it

reaches operating temperature.

3. Turn off the engine.

Wait more than 10

minutes for the oil to drain back into the
oil pan.

4. Remove the dipstick and wipe it clean.

Reinsert it all the way.

5. Remove the dipstick again and check the

oil level. It should be between the H (High)
and L (Low) marks

O

B

. This is the normal

operating oil level range. If the oil level is
below the L (Low) mark

O

A

, remove the oil

filler cap and pour recommended oil
through the opening.

Do not fill oil level

above H (High) mark

O

C

.

6. Recheck the oil level with the dipstick.

It is normal to add some oil between oil main-
tenance intervals or during the break-in pe-
riod, depending on the severity of operating
conditions.

LDI3158

LDI0371

ENGINE OIL

8-6

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Oil level should be checked regularly. Oper-
ating the engine with an insufficient
amount of oil can damage the engine, and
such damage is not covered by warranty.

CHANGING ENGINE OIL AND OIL
FILTER

For additional information on engine oil and
oil filter change, refer to the instructions out-
lined in this section.

Vehicle set-up

1. Park the vehicle on a level surface and

apply the parking brake.

2. Run the engine until it reaches operating

temperature.

3. Turn the engine off and wait for 15 minutes.

4. Raise and support the vehicle using a suit-

able floor jack and safety jack stands.

• Place the safety jack stands under the ve-

hicle jack-up points.

• A suitable adapter should be attached to

the jack stand saddle.

CAUTION

Make sure the correct lifting and support
points are used to avoid vehicle damage.

LDI3443

O

1

Oil filler cap

Do-it-yourself

8-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

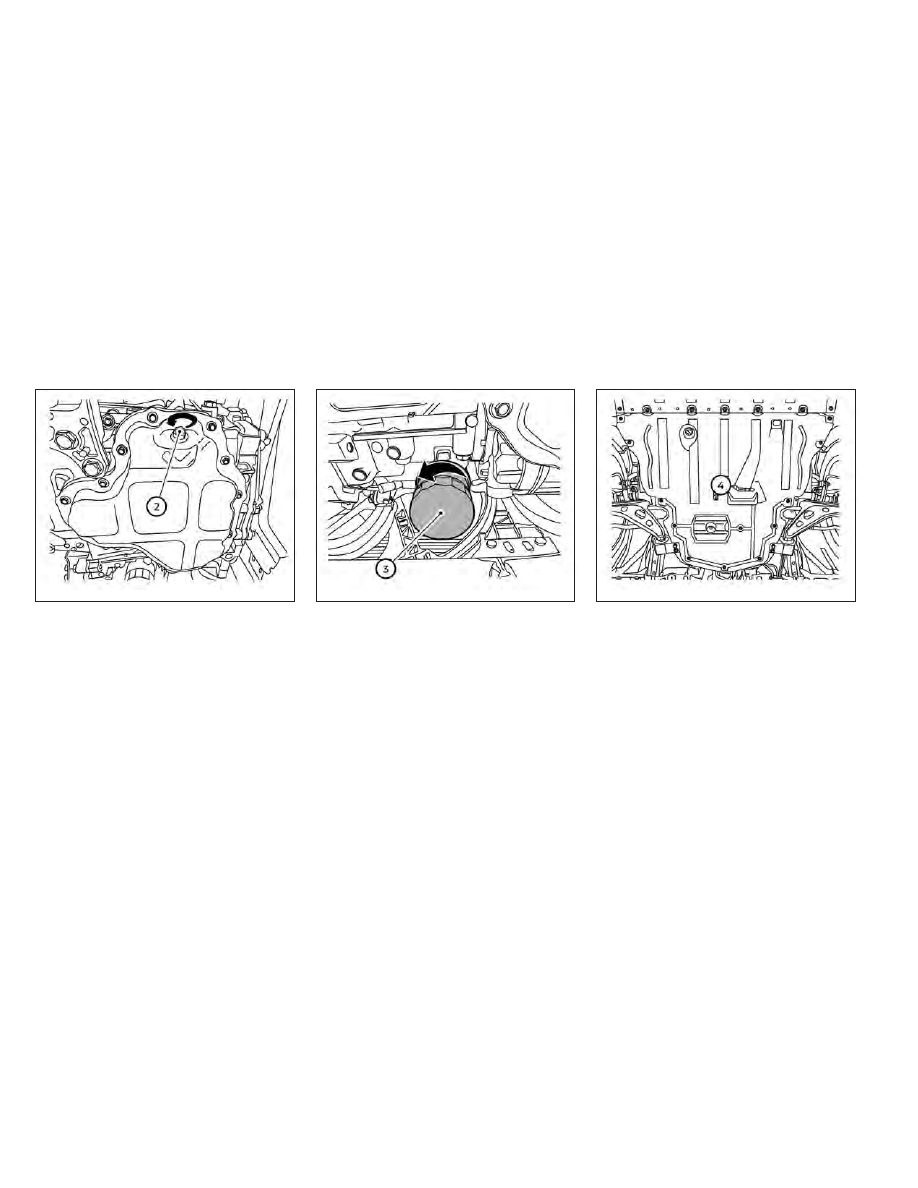

LDI3376

O

2

Oil drain plug

LDI3377

O

3

Oil filter

LDI3444

O

4

Under engine protector

8-8

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Removal of engine protectors

1. Remove

clips

O

A

and

under-engine

protector.

Engine oil and filter

1. Place a large drain pan under the drain

plug and oil filter.

2. Remove the oil filler cap.

3. Remove the drain plug with a wrench by

turning it counterclockwise and com-
pletely drain the oil.

CAUTION

Be careful not to burn yourself, as the en-
gine oil is hot.

WARNING

Prolonged and repeated contact with
used engine oil may cause skin cancer.

Try to avoid direct skin contact with
used oil. If skin contact is made, wash
thoroughly with soap or hand cleaner as
soon as possible.

Keep used engine oil out of reach of
children.

4. Loosen the oil filter with an oil filter

wrench by turning it counterclockwise.
Remove the oil filter by turning it by hand.

5. Wipe the engine oil filter mounting sur-

face with a clean rag.

CAUTION

Be sure to remove any old gasket material
remaining on the sealing surface of the en-
gine. Failure to do so could lead to an oil
leak and engine damage.

The dipstick must be inserted in place to
prevent oil spillage from the dipstick hole
when filling the engine with oil.

6. Coat the gasket on the new filter with

clean engine oil.

7. Screw in the oil filter clockwise until a

slight resistance is felt, then tighten addi-
tionally more than 2/3 turn.

Oil filter tightening torque:

11 to 15 ft-lb (14.7 to 20.6 N·m)

8. Clean and re-install the drain plug with a

new washer. Securely tighten the drain
plug with a wrench. Do not use excessive
force.

Drain plug tightening torque:

22 to 29 ft-lb (29.4 to 39.2 N·m)

9. Refill the engine with the recommended

oil through the oil filler opening, and install
the oil filler cap securely.

For additional information about drain and
refill capacity, see “Recommended fluids/
lubricants and capacities” (P. 10-2). The drain
and refill capacity depends on the oil tem-
perature and drain time. Use these specifica-
tions for reference only. Always use the dip-
stick to determine the proper amount of oil in
the engine.

LDI3445

Do-it-yourself

8-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10. Start the engine and check for leakage

around the drain plug and the oil filter.
Correct as required. Turn the engine off
and wait more than 15 minutes. Check
the oil level with the dipstick. Add engine
oil if necessary.

After the operation

1. Reinstall engine protectors in reverse or-

der of removal.

2. Lower the vehicle carefully to the ground.

3. Reset the oil control system. For addi-

tional information, see “Oil control sys-
tem” (P. 2-24)

• Dispose of waste oil and filter properly.
• Check your local regulations.

CAUTION

INFINITI recommends using Genuine
NISSAN CVT Fluid NS-3 (or equivalent)
ONLY in INFINITI CVTs. Do not mix with
other fluids.

Do not use Automatic Transmission
Fluid (ATF) or manual transmission fluid
in an INFINITI CVT, as it may damage the
CVT. Damage caused by the use of fluids
other than as recommended is not cov-
ered under INFINITI's New Vehicle Lim-
ited Warranty outlined in your Warranty
Information Booklet.

Using fluids that are not equivalent to
Genuine NISSAN CVT Fluid NS-3 may
also damage the CVT. Damage caused by
the use of fluids other than as recom-
mended is not covered under INFINITI's
New Vehicle Limited Warranty outlined
in your Warranty Information Booklet.

When checking or replacement of CVT fluid is
required, it is recommended that you visit an
INFINITI retailer for this service.

WARNING

Use only new fluid from a sealed con-
tainer. Old, inferior or contaminated
fluid may damage the brake system. The
use of improper fluids can damage the
brake system and affect the vehicle's
stopping ability.

Clean the filler cap before removing.

Brake fluid is poisonous and should be
stored carefully in marked containers
out of reach of children.

LDI3161

CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID

BRAKE FLUID

8-10

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid is
spilled, immediately wash the surface with
water.

Check the fluid level in the reservoir. If the
brake fluid is below the MIN line

O

B

, the

brake warning light will illuminate. Add brake
fluid up to the MAX line

O

A

. For additional

information on the recommended type of
brake fluid, see “Recommended fluids/
lubricants and capacities” (P. 10-2).

If the brake fluid must be added frequently,
the brake system should be thoroughly
checked. It is recommended that you visit an
INFINITI retailer for this service.

For additional information on the location of
the brake fluid reservoir, see “Engine com-
partment check locations” (P. 8-3).

WINDSHIELD-WASHER FLUID
RESERVOIR

Fill the windshield-washer fluid reservoir pe-
riodically. Add windshield-washer fluid when
the “Low Washer Fluid” warning message
shows on the vehicle information display.

To fill the windshield-washer fluid reservoir,
lift the cap off the reservoir and pour the
windshield-washer fluid into the reservoir
opening.

Add a washer solvent to the washer for bet-
ter cleaning. In the winter season, add a

windshield-washer

antifreeze.

Follow

the

manufacturer's instructions for the mixture
ratio.

Refill the reservoir more frequently when
driving

conditions

require

an

increased

amount of windshield-washer fluid.

Recommended fluid is Genuine NISSAN
Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent.

CAUTION

Do not substitute engine antifreeze
coolant for windshield-washer fluid.
This may result in damage to the paint.

Do not fill the windshield-washer fluid
reservoir with washer fluid concentrates
at full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the windshield-washer fluid
reservoir.

Pre-mix washer fluid concentrates with
water to the manufacturer's recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.

LDI3162

WINDSHIELD-WASHER FLUID

Do-it-yourself

8-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Caution symbols for battery

WARNING

O

1

No smoking, No exposed flames, No

Sparks

Do not expose the battery to flames or electrical sparks. Hydrogen gas generated by the battery is

explosive. Explosive gases can cause blindness or injury.

O

2

Shield eyes

Handle the battery cautiously. Always wear eye protection glasses to protect against explosion or

battery acid.

O

3

Keep away from children

Never allow children to handle the battery. Keep the battery out of the reach of children.

O

4

Battery acid

Do not allow battery fluid to contact your skin, eyes, fabrics, or painted surfaces. After touching a bat-

tery or battery cap, immediately wash your hands thoroughly. If the battery fluid gets into your eyes, or

onto your skin or clothing, flush with water immediately for at least 15 minutes and seek medical atten-

tion. Battery fluid is acid. If the battery fluid gets into your eyes or onto your skin, it could cause loss of

your eyesight or burns.

O

5

Note operating instructions

Before handling the battery, read this instruction carefully to ensure correct and safe handling.

O

6

Explosive gas

Hydrogen gas generated by battery fluid is explosive. Explosive gases can cause blindness or injury.

BATTERY

8-12

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• If the battery is labeled "do not open" it is

maintenance free and battery fluid should
not be checked. It is recommended that you
visit an INFINITI retailer or a qualified spe-
cialist workshop to confirm the battery's
performance.

• Keep the battery surface clean and dry.

Clean the battery with a solution of baking
soda and water.

• Make certain the terminal connections are

clean and securely tightened.

• If the vehicle is not to be used for 30 days

or longer, disconnect the negative (-) bat-
tery terminal cable to prevent discharge.

NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of electronic

accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.)

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

WARNING

Do not expose the battery to flames, an
electrical spark or a cigarette. Hydrogen
gas generated by the battery is explo-
sive. Explosive gases can cause blindness
or injury. Do not allow battery fluid to
contact your skin, eyes, fabrics or
painted surfaces. Sulfuric acid can cause
blindness or injury. After touching a bat-
tery or battery cap, do not touch or rub
your eyes. Thoroughly wash your hands.
If the acid contacts your eyes, skin or
clothing, immediately flush with water
for at least 15 minutes and seek medical
attention.

When working on or near a battery, al-
ways wear suitable eye protection and
remove all jewelry.

Battery posts, terminals and related ac-
cessories contain lead and lead com-
pounds. Wash hands after handling.

Keep battery out of the reach of children.

Do not tip the battery.

NOTE:

Do not try to open the top of the battery.

This battery is not equipped with removable
vent caps.

Vehicles operated in high temperatures or
under severe conditions might present bat-
tery liquid loss. It is recommended that you
visit an INFINITI retailer for a proper battery
diagnosis and service in case of required.

LDI3595

Do-it-yourself

8-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

JUMP STARTING

If jump starting is necessary, see “Jump start-
ing” (P. 6-5). If the engine does not start by
jump starting, the battery may have to be
replaced. It is recommended that you visit an
INFINITI retailer for this service.

CAUTION

Do not ground accessories directly to the
battery terminal. Doing so will bypass
the variable voltage control system and
the vehicle battery may not charge
completely.

Use electrical accessories with the en-
gine running to avoid discharging the ve-
hicle battery.

NOTE:

If the battery is completely drained the
transmission will not manually shift to other
positions.

Your vehicle is equipped with a variable volt-
age control system. This system measures
the amount of electrical discharge from the
battery and controls voltage generated by
the generator.

The current sensor

O

A

is located near the

battery along the negative battery cable. If
you add electrical accessories to your vehicle,
be sure to ground them to a suitable body
ground such as the frame or engine block
area.

LDI3589

VARIABLE VOLTAGE CONTROL
SYSTEM

8-14

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1.

Automatic tensioner pulley

2.

Generator pulley

3.

Water pump pulley

4.

Air conditioner compressor pulley

5.

Crankshaft pulley

WARNING

Be sure the ignition switch is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.

1. Visually inspect the belt for signs of un-

usual wear, cuts, or fraying. If the belt is
in poor condition, have it replaced. It is
recommended that you visit an INFINITI
retailer for this service.

2. Have the belt checked regularly for

condition.

REPLACING SPARK PLUGS
Iridium-tipped spark plugs

It is not necessary to replace iridium-tipped

O

A

spark plugs as frequently as conventional

type spark plugs because they last much lon-
ger. Follow the maintenance log shown in the
"Maintenance and schedules" section of this
manual. Do not service iridium-tipped spark
plugs by cleaning or regapping.

Always replace spark plugs with recom-
mended or equivalent ones.

WDI0638

SDI1895

DRIVE BELT

SPARK PLUGS

Do-it-yourself

8-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.

CAUTION

Be sure to use the correct socket to remove
the spark plugs. An incorrect socket can
damage the spark plugs.

If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.

WARNING

Operating the engine with the air cleaner
filter off can cause you or others to be
burned. The air cleaner filter not only
cleans the intake air, it also stops the
flame if the engine backfires. If the air
cleaner is not installed and the engine
backfires, you could be burned. Never
drive with the air cleaner filter off. Be
cautious working on the engine when the
air cleaner is off.

Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result in
serious injury.

To remove the filter from the air cleaner, push
the clips

O

A

and pull the cover upward.

The viscous paper type filter element should
not be cleaned and reused. Replace it accord-
ing to the maintenance log shown in the
“Maintenance and schedules” section of this
manual.

When replacing the air filter, wipe the inside
of the air cleaner housing and the cover with
a damp cloth.

NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is seated in
the housing and latch the clips

O

A

.

LDI3165

AIR CLEANER

8-16

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

IN-CABIN MICROFILTER

The in-cabin microfilter restricts the entry of
airborne dust and pollen particles and re-
duces some objectionable outside odors. The
filter is located behind the glove box. For
additional information on change intervals,
see the "Maintenance and schedules" section
of this manual.

If replacement is required, it is recommended
that you visit an INFINITI retailer for this
service.

CLEANING

If your windshield is not clear after using the
windshield-washer or if a wiper blade chat-
ters when running, wax or other material may
be on the blade or windshield.

Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blades with clear water.
If your windshield is still not clear after clean-
ing the blades and using the wiper, replace
the blades.

CAUTION

Worn windshield wiper blades can damage
the windshield and impair driver vision.

REPLACING

Replace the wiper blades if they are worn.

To replace the windshield wiper blades, fol-
low the procedure below:

1. When the ignition switch is ON or within

60 seconds after placing the ignition
switch from the ON to OFF position,
place the windshield wiper and washer
lever into the OFF position.

2. Rapidly lift the windshield wiper and

washer lever

O

A

upwards twice within 0.5

seconds. This action will cause the wipers
to automatically take the service position.

LDI3250

WINDSHIELD WIPER BLADES

Do-it-yourself

8-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Once the wipers are in the service posi-

tion, push the release tab

O

C

.

4. Move the wiper blade down

O

B

and

remove.

5. Insert the new wiper blade onto the wiper

arm until it clicks into place.

6. Rotate the wiper blade so the dimple is in

the groove.

7. Finally, lift the windshield wiper and

washer lever to the mist position

O

D

once

and release. This action will cause the
wipers to resume the set position.

CAUTION

After wiper blade replacement, return
the wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.

Make sure the wiper blades contact the
glass; otherwise the arms may be dam-
aged from wind pressure.

If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle

O

F

.

This

may

cause

clogging

or

improper

windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin

O

E

.

LDI2785

LDI3251

LDI3189

8-18

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     12      13      14      15     ..
