Infiniti QX50 (2023 year). Manual in english - page 15





Rear window wiper blade

If checking or replacement is required, it is
recommended that you visit an INFINITI re-
tailer for this service.

If the brakes do not operate properly, it is
recommended that you have the brakes
checked. It is recommended that you visit an
INFINITI retailer for this service.

Self-adjusting brakes

Your vehicle is equipped with self-adjusting
brakes.

The front and rear disc-type brakes self-
adjust every time the brake pedal is applied.

WARNING

Have your brake system checked if the
brake pedal height does not return to nor-
mal. It is recommended that you visit an
INFINITI retailer for this service.

Brake pad wear indicators

The disc brake pads on your vehicle have
audible wear indicators. When a brake pad
requires replacement, a high pitched scraping
or screeching sound will be heard when the
vehicle is in motion. The noise will be heard
whether or not the brake pedal is depressed.
Have the brakes checked as soon as possible
if the wear indicator sound is heard.

Under some driving or climate conditions, oc-
casional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does
not affect the function or performance of the
brake system.

Proper brake inspection intervals should be
followed.

For additional information regard-

ing brake inspections, refer to the appropri-
ate maintenance schedule information in the
"Maintenance and schedules" section of this
manual.

BRAKES

Do-it-yourself

8-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If any electrical equipment does not operate,
check for an open fuse.

Fuses are used in the passenger and engine
compartment. Spare fuses are provided and
can be found in the passenger compartment
fuse box.

When installing a fuse make sure the fuse is
installed in the fuse box securely.

ENGINE COMPARTMENT

WARNING

Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover. This could damage the electrical
system or electronic control units or cause
a fire.

If any electrical equipment does not come on,
check for an open fuse.

1. Be sure the ignition switch and the head-

light switch are OFF.

2. Open the engine hood.

3. Remove the fuse box cover by pushing the

tabs and lifting the cover up.

4. Remove the fuse with the fuse puller. The

fuse puller is located in the fuse block in
the passenger compartment.

LDI2997

LDI3174

FUSES

8-20

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. If the fuse is open

O

A

, replace it with a

new fuse

O

B

.

6. If a new fuse also opens, have the electri-

cal system checked and repaired. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.

Fusible links

If the electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace with only Genuine NISSAN
parts.

PASSENGER COMPARTMENT

WARNING

Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover. This could damage the electrical
system or electronic control units or cause
a fire.

If any electrical equipment does not operate,
check for an open fuse.

NOTE:

The fuse box is located on the driver's side of
the instrument panel.

1. Be sure the ignition switch and the head-

light switch are OFF.

2. Remove the fuse box cover

O

A

with a

suitable tool. Use a cloth to avoid damag-
ing the trim.

3. Locate the fuse that needs to be replaced.

4. Remove the fuse with the fuse puller

O

B

.

LDI3200

LDI3167

Do-it-yourself

8-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. If the fuse is open

O

C

, replace it with an

equivalent good fuse

O

D

.

6. Push the fuse box cover to install.

If a new fuse also opens, have the electrical
system checked and repaired. It is recom-
mended that you visit an INFINITI retailer for
this service.

NOTE:

Your vehicle may not be equipped with all
fuses listed on the fuse label.

CAUTION

Be careful not to allow children to swallow
the battery or removed parts.

INFINITI INTELLIGENT KEY

LDI3203

LDI3308

BATTERY REPLACEMENT

8-22

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replace the battery in the Intelligent Key as
follows:

1. Remove the mechanical key from the In-

telligent Key.

2. Insert a small flathead screwdriver

O

A

into

the slit

O

B

of the corner and twist it to

separate the upper part from the lower
part. Place a cloth over the screwdriver to
protect the casing.

3. Replace the battery with a new one.

Recommended

battery:

CR2032

or

equivalent.

• Do not touch the internal circuit and electric

terminals as doing so could cause a
malfunction.

• Hold the battery by the edges. Holding the

battery across the contact points will seri-
ously deplete the storage capacity.

• Make sure that the + side faces the bottom

of the lower part.

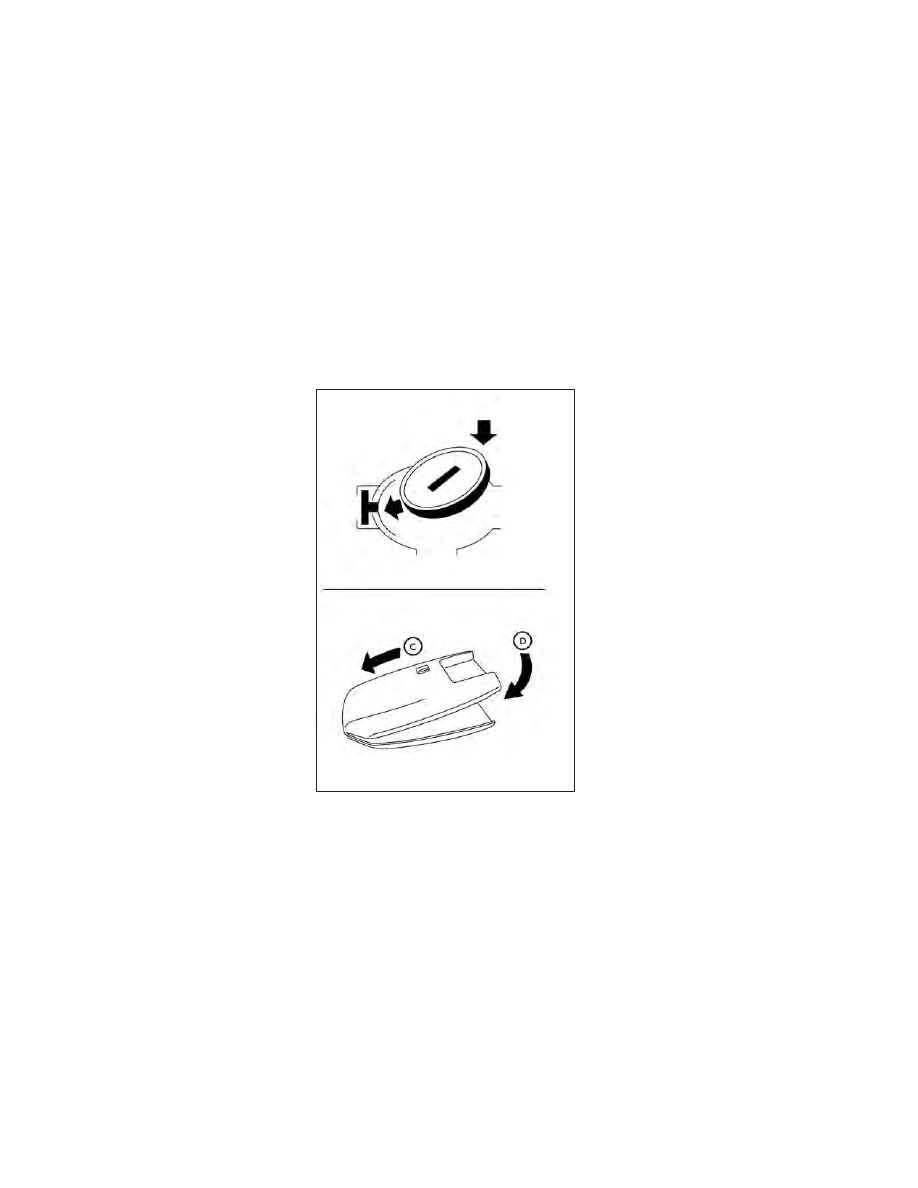

4. Close the lid securely as illustrated with

O

C

and

O

D

.

5. Operate

the

buttons

to

check

the

operation.

If you need assistance with replacement, it is
recommended that you visit an INFINITI re-
tailer for this service.

LDI3309

Do-it-yourself

8-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FCC Notice:

For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.

Note:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

For Canada:
This

device

contains

license-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment

Canada’s

license-exempt

RSS(s).

Operation is subject to the following two
conditions: (1) This device may not cause in-
terference. (2) This device must accept any
interference, including interference that may
cause undesired operation of the device.

HEADLIGHTS

For additional information on headlight bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the LED headlight bulb

If LED headlight bulb replacement is re-
quired, it is recommended that you visit an
INFINITI retailer for this service.

FOG LIGHTS (if so equipped)

For additional information on fog light bulb
replacement, refer to the instructions out-
lined in this section.

Replacing the LED fog light bulb

If LED fog light bulb replacement is required,
it is recommended that you visit an INFINITI
retailer for this service.

LIGHTS

8-24

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

EXTERIOR AND INTERIOR LIGHTS

Item

Wattage (W)

Bulb No.

Headlight assembly*

High/Low

Park/Daytime running

Turn

Side marker

Fog light (if so equipped)

Door mirror turn signal light*

Map light assembly*

Dome lights*

Map lights*

Courtesy light (if so equipped)*

Vanity mirror light*

2

SAE #37

Footwell light*

Welcome light*

Personal light*

Glove box light*

1

Front step lights*

5

168

Rear step lights (if so equipped)*

5

168

Cargo lights*

5

High-mounted stop light*

Rear combination light

Tail*

Stop*

Turn*

Backup (reversing) assembly*

Tail*

Turn*

Backup*

License plate light*

* It is recommended that you visit an INFINITI retailer for replacement.

Always check with the Parts Department at
an INFINITI retailer for the latest parts
information.

Do-it-yourself

8-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

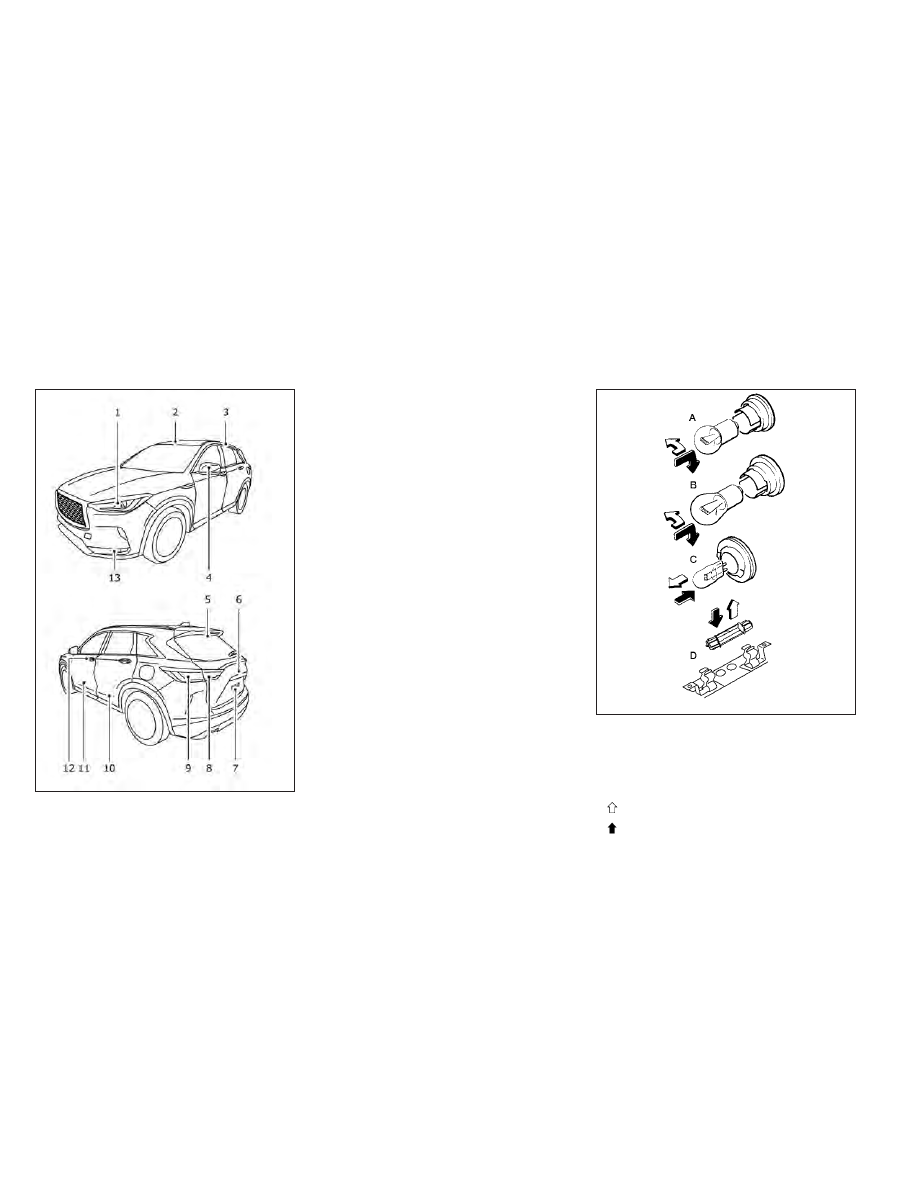

1.

Headlight assembly

2.

Map light assembly

3.

Personal light

4.

Door mirror turn signal light

5.

High-mounted stop light

6.

Cargo light

7.

License plate light

8.

Backup (reversing) assembly

9.

Rear combination light

10.

Rear step light (if so equipped)

11.

Front step light

12.

Welcome light

13.

Fog light (if so equipped)

REPLACEMENT PROCEDURES

All other lights are either type A, B, C or D.
When replacing a bulb, first remove the lens,
light and/or cover using a cloth and suitable
tool.

Indicates bulb removal

Indicates bulb installation

LDI3204

WDI0263

8-26

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you have a flat tire, see “Flat tire” (P. 6-3).

TIRE PRESSURE

Tire Pressure Monitoring System
(TPMS)

WARNING

Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS).
It monitors tire pressure of all tires
except the spare. When the low tire
pressure warning light is lit and the
“Tire Pressure Low – Add Air” warning
appears in the vehicle information dis-
play, one or more of your tires is sig-
nificantly under-inflated. If equipped,
the system also displays pressure of all

tires (except the spare tire) on the dis-
play screen by sending a signal from a
sensor that is installed in each wheel.

The TPMS will activate only when the
vehicle is driven at speeds above 16
mph (25 km/h). Also, this system may
not detect a sudden drop in tire pres-
sure (for example a flat tire while
driving).

For additional information, see “Low
tire pressure warning light” (P. 2-14),
“Tire Pressure Monitoring System
(TPMS)” (P. 5-5) and “Flat tire” (P. 6-3).

Tire inflation pressure

Check the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on
the F.M.V.S.S./C.M.V.S.S. certifica-

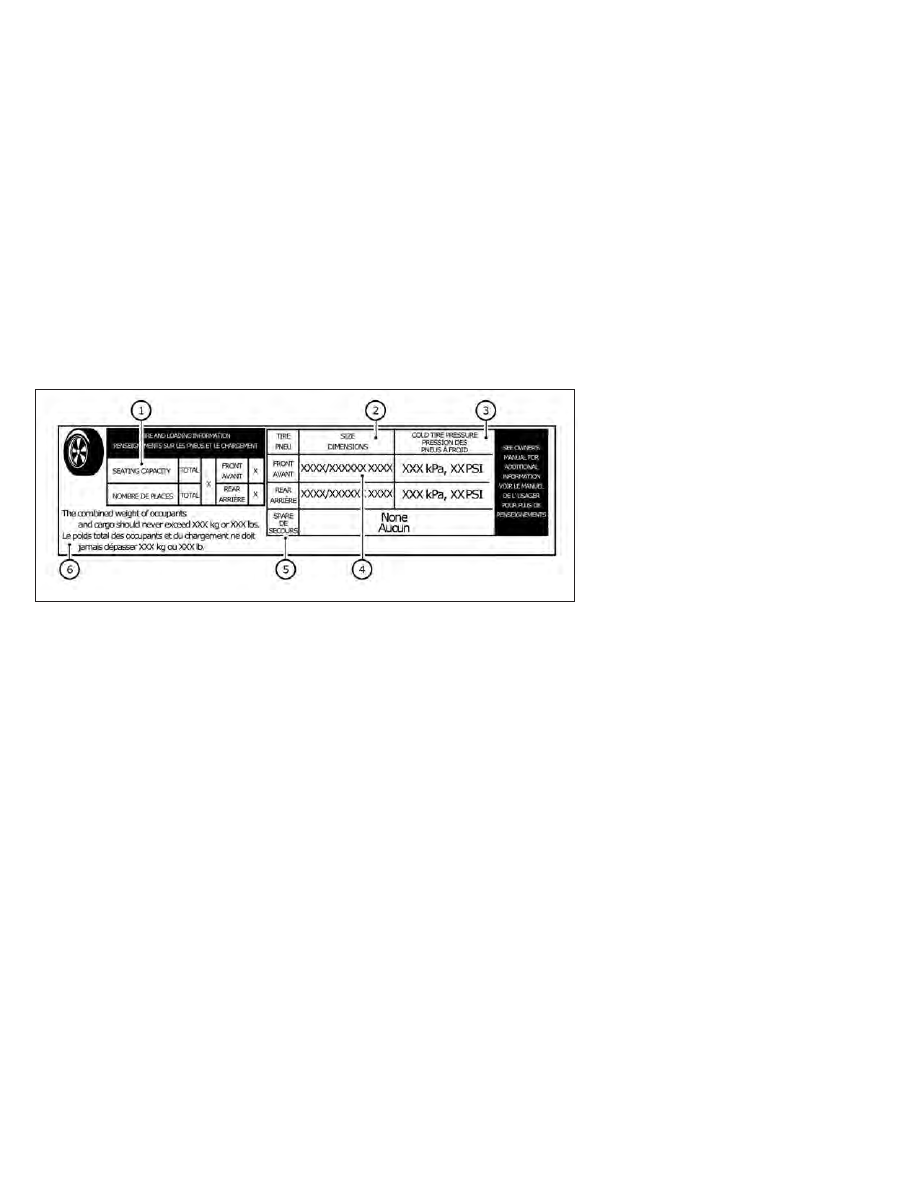

tion label or the Tire and Loading In-
formation label under the “Cold Tire
Pressure” heading. The Tire and Load-

ing Information label is affixed to the
driver side center pillar. Tire pressures
should be checked regularly because:
• Most tires naturally lose air over

time.

• Tires can lose air suddenly when

driven over potholes or other objects
or if the vehicle strikes a curb while
parking.

The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.

TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
see “TPMS with tire inflation indicator”
(P. 5-7).

WHEELS AND TIRES

Do-it-yourself

8-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.

WARNING

Improperly inflated tires can fail
suddenly and cause an accident.

The Gross Vehicle Weight Rating
(GVWR)

is

located

on

the

F.M.V.S.S./C.M.V.S.S.

certifica-

tion label. The vehicle weight ca-
pacity is indicated on the Tire and
Loading Information label. Do not
load your vehicle beyond this ca-
pacity. Overloading your vehicle
may result in reduced tire life, un-
safe operating conditions due to
premature tire failure, or unfavor-
able handling characteristics and
could also lead to a serious acci-
dent. Loading beyond the specified
capacity may also result in failure
of other vehicle components.

Before taking a long trip, or when-
ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.

For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in
the Warranty Information Booklet.

8-28

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tire and Loading Information label

1

Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.

2

Original tire size: The size of the
tires originally installed on the ve-
hicle at the factory.

3

Cold tire pressure: Inflate the tires
to this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked
for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate
speeds. The recommended cold
tire inflation is set by the manufac-
turer to provide the best balance
of tire wear, vehicle handling,
driveability, tire noise, etc., up to
the vehicle's GVWR.

4

Tire size - see “Tire labeling”
(P. 8-32).

5

Spare tire size.

6

Vehicle load limit: see “Vehicle
loading information” (P. 10-17).

LDI3172

Do-it-yourself

8-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Checking tire pressure

WARNING

Driving at high speeds, 100 mph
(160 km/h) or higher sustained
where it is legal to do so, can cause
tires to have excessive heat build
up, which may result in a tire fail-
ure causing loss of control, crash,
injuries or even death.

Some high-speed rated tires re-
quire inflation pressure adjust-
ment for high-speed operation.
When speed limits and road condi-
tions allow vehicle driving at high
speeds, make sure tires are rated
to support high speed operation,
tires are in optimal conditions and
pressure is adjusted to correct
cold inflation pressure for high
speed operation.

If your vehicle is equipped with
P235/55RF19 or P255/45RF20
tire sizes, tires require adjustment
to the inflation pressure when
driving the vehicle at speeds of
100 mph (160 km/h) or higher
where it is legal to do so. Set the
cold inflation pressure to 36 psi
(250 kPa).

After vehicle high speed operation
has ended, readjust the tire pres-
sure to the recommended cold
inflation pressure. For additional
information, see "Checking tire
pressure" (P. 8-30).

1. Remove the valve stem cap from

the tire.

2. Press the pressure gauge squarely

onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape. If the
hissing sound of air escaping from
the tire is heard while checking the
pressure, reposition the gauge to
eliminate this leakage.

3. Remove the gauge.

4. Read the tire pressure on the

gauge stem and compare to the
specification shown on the Tire
and Loading Information label.

LDI0393

8-30

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Add air to the tire as needed. If too

much air is added, press the core of
the valve stem briefly with the tip
of the gauge stem to release pres-
sure. Recheck the pressure and add
or release air as needed.

6. Install the valve stem cap.

7. Check the pressure of all other

tires, including the spare.

8. Check the pressure when driving

the vehicle at speeds of 100 mph
(160 km/h) or higher where it is
legal to do so.

Size

Cold Tire Inflation

Pressure

psi

kPa

Front and
Rear
Original
Tire:
P235/
55RF19

33

230

Front and
Rear
Original
Tire:
P255/
45RF20

33

230

Spare Tire:

none

Recommended tire inflation pressures
at speeds of 100 mph (160 km/h) or
higher where it is legal to do so.

Size

Cold Tire Inflation

Pressure

psi

kPa

Front and
Rear
Original
Tire:
P235/
55RF19

36

250

Front and
Rear
Original
Tire:
P255/
45RF20

36

250

Spare Tire:

none

Do-it-yourself

8-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TIRE LABELING

Federal law requires tire manufactur-
ers to place standardized information
on the sidewall of all tires. This infor-
mation identifies and describes the
fundamental characteristics of the tire
and also provides the Tire Identifica-
tion Number (TIN) for safety standard
certification. The TIN can be used to
identify the tire in case of a recall.

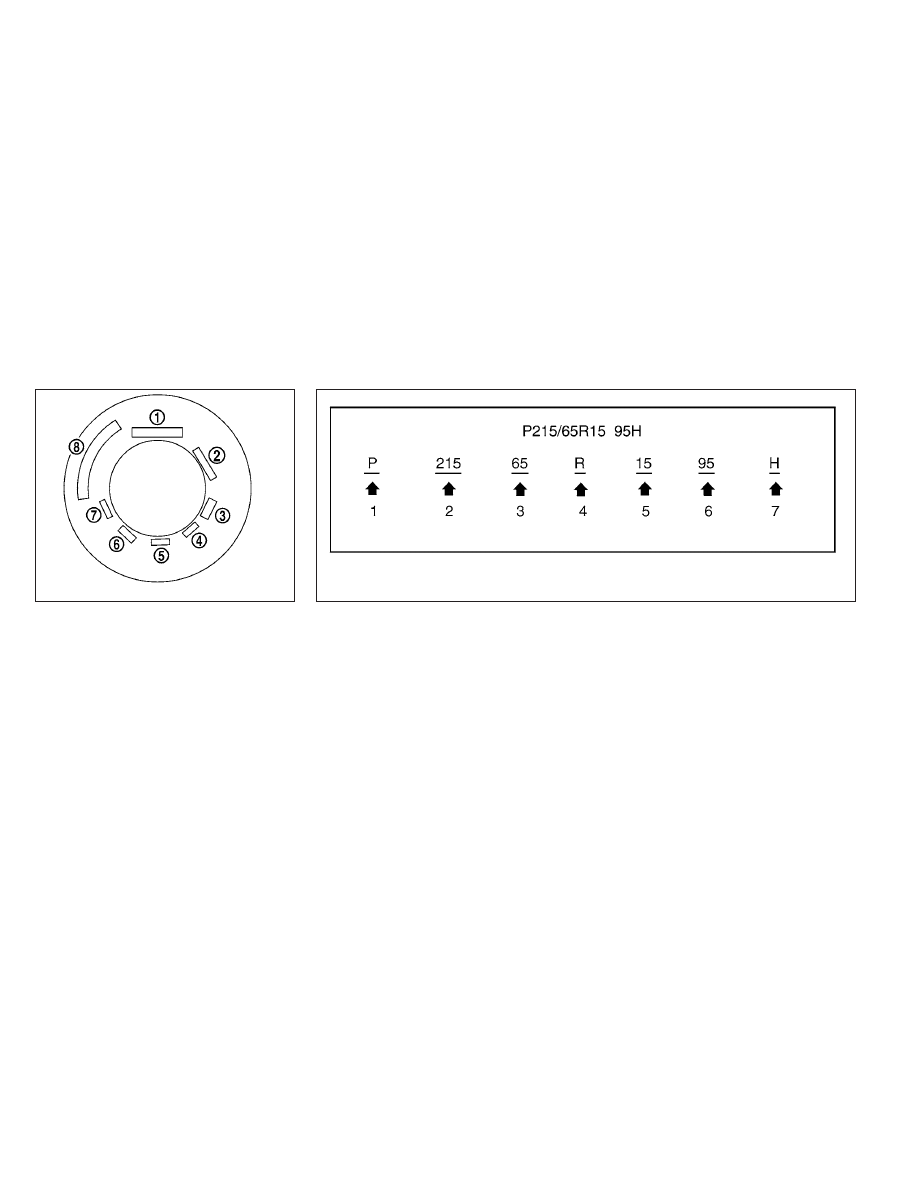

O

1

Tire size (example: P215/65R15

95H)

1. P: The “P” indicates the tire is de-

signed for passenger vehicles (not
all tires have this information).

2. Three-digit number (215): This

number gives the width in millime-
ters of the tire from sidewall edge
to sidewall edge.

3. Two-digit number (65): This num-

ber, known as the aspect ratio,
gives the tire's ratio of height to
width.

4. R: The “R” stands for radial.

5. Two-digit number (15): This num-

ber is the wheel or rim diameter in
inches.

WDI0394

Example

WDI0395

Example

8-32

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6. Two- or three-digit number (95):

This number is the tire's load index.
It is a measurement of how much
weight each tire can support.

7. H: Tire speed rating. You should not

drive the vehicle faster than the tire
speed rating.

O

2

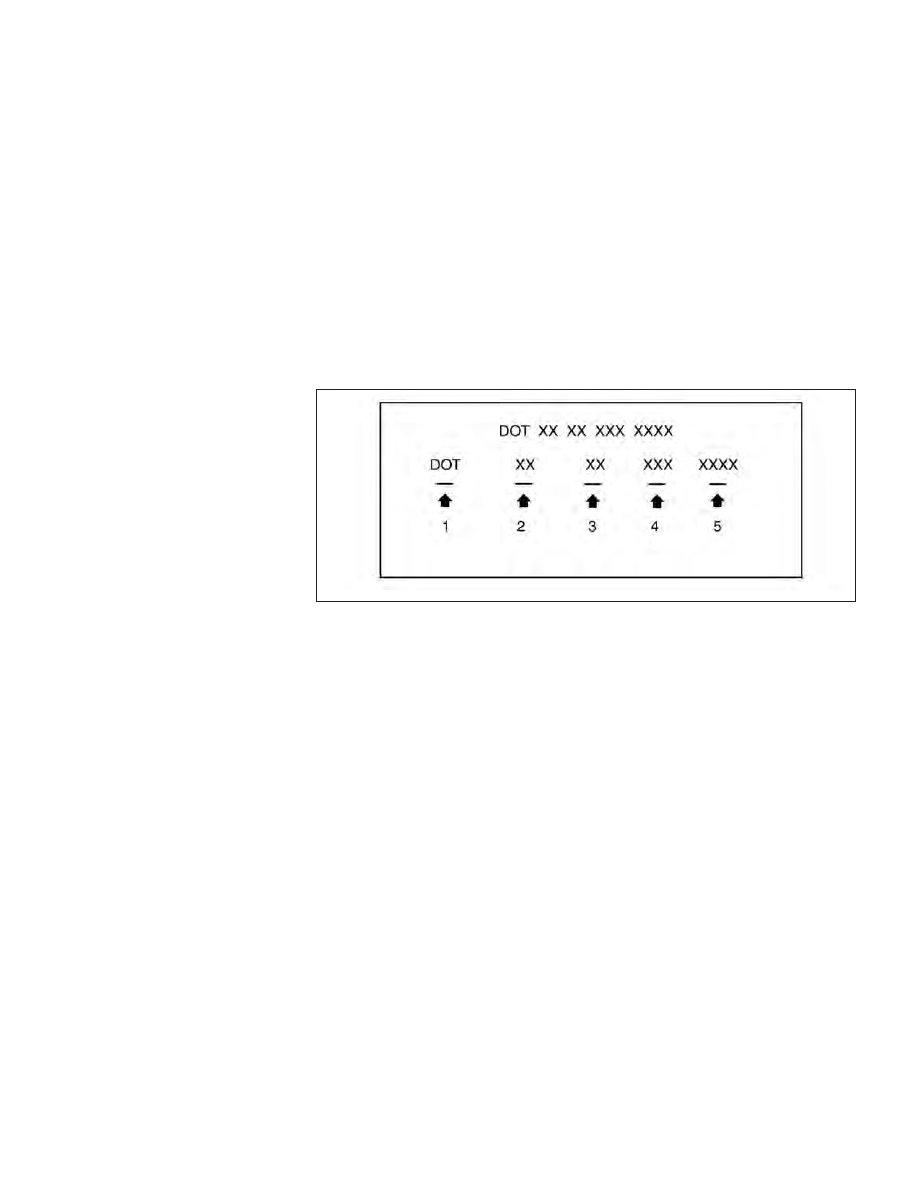

TIN (Tire Identification Number)

for a new tire (example: DOT XX XX
XXX XXXX)

1. DOT: Abbreviation for the “Depart-

ment Of Transportation”. The sym-
bol can be placed above, below or
to the left or right of the Tire Iden-
tification Number.

2. Two-digit code: Manufacturer's

identification mark.

3. Two-digit code: Tire size.

4. Three-digit code: Tire type code

(Optional).

5. Four numbers represent the week

and year the tire was built. For ex-
ample, the numbers 3103 means
the 31st week of 2003. If these
numbers are missing then look on
the other sidewall of the tire.

LDI2786

Example (Type A) (if so equipped)

Do-it-yourself

8-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O

2

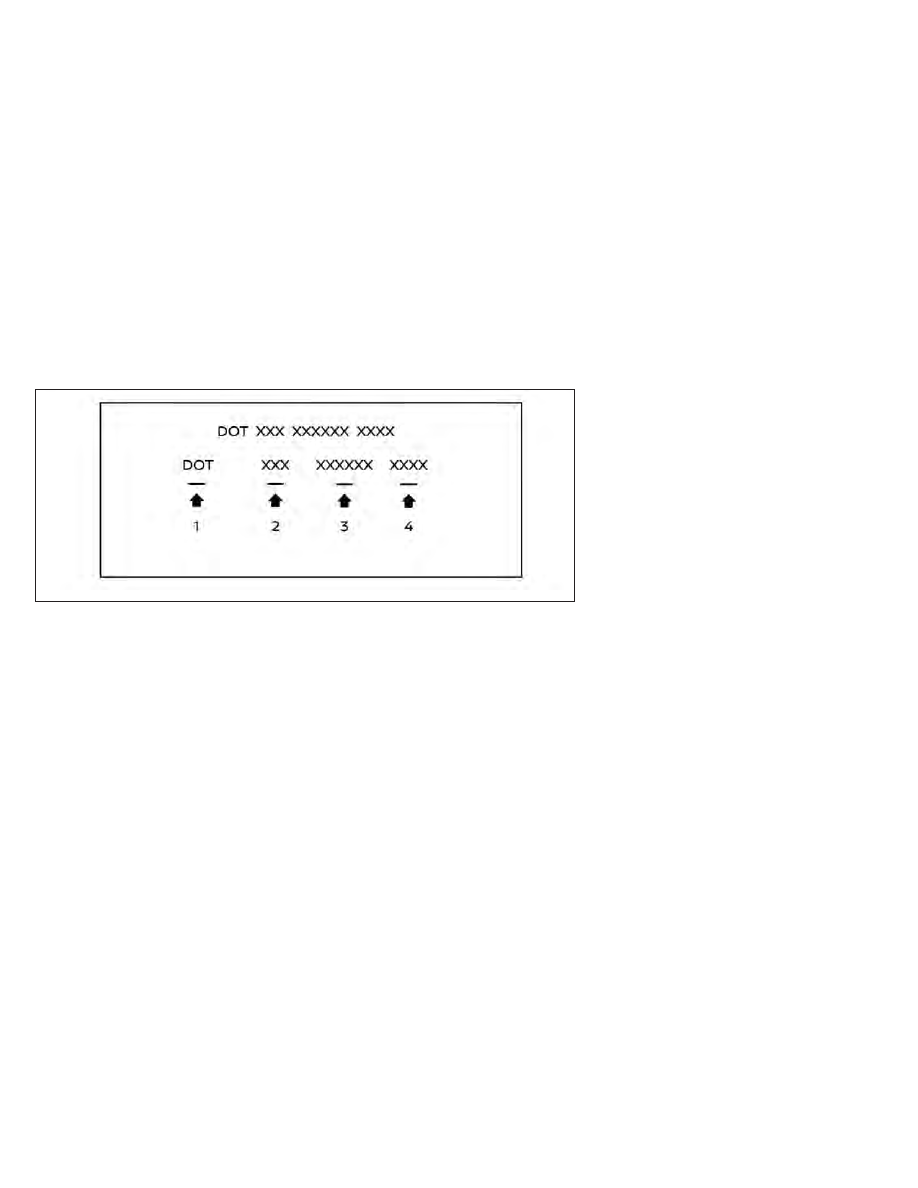

TIN (Tire Identification Number)

for a new tire (example: DOT XXX
XXXXXX XXXX)

1. DOT: Abbreviation for the “Depart-

ment Of Transportation”. The sym-
bol can be placed above, below or
to the left of the Tire Identification
Number.

2. Three-digit code: Manufacturer's

identification mark.

3. Six-digit code: Descriptive code

used to identify significant charac-
teristics of the tire.

4. Four numbers represent the week

and year the tire was built. For ex-
ample, the numbers 3103 means
the 31st week of 2003.

O

3

Tire ply composition and material

The number of layers or plies of
rubber-coated fabric in the tire. Tire

manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester and others.

O

4

Maximum permissible inflation

pressure

This number is the greatest amount of
air pressure that should be put in the
tire. Do not exceed the maximum per-
missible inflation pressure.

O

5

Maximum load rating

This number indicates the maximum
load in kilograms and pounds that can
be carried by the tire. When replacing
the tires on the vehicle, always use a
tire that has the same load rating as
the factory installed tire.

O

6

Term of “tubeless” or “tube type”

Indicates whether the tire requires an
inner

tube

(“tube

type”)

or

not

(“tubeless”).

LDI3639

Example (Type B) (if so equipped)

8-34

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

O

7

The word “radial”

The word “radial” is shown if the tire
has radial structure.

O

8

Manufacturer or brand name

Manufacturer

or

brand

name

is

shown.

Other Tire-related Terminology

In addition to the many terms that are
defined throughout this section, In-
tended Outboard Sidewall is (1) the
sidewall that contains a whitewall,
bears white lettering or bears manu-
facturer, brand, and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical tire
that has a particular side that must
always face outward when mounted
on a vehicle.

TYPES OF TIRES

WARNING

When changing or replacing tires, be sure
all four tires are of the same type (i.e.,
Summer, All Season or Snow) and con-
struction. An INFINITI retailer may be
able to help you with information about
tire

type,

size,

speed

rating

and

availability.

Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the low tire pressure
warning system.

Always use tires of the same type, size,
brand, construction and tread pattern on
all four wheels. Failure to do so may re-
sult in a circumference difference be-
tween tires on the front and rear axles
which can cause the Vehicle Dynamic
Control (VDC) system to malfunction re-
sulting in personal injury or death, exces-
sive tire wear and may damage the
transmission, transfer case and differen-
tial gears.

For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.

All-Wheel Drive (AWD) models

CAUTION

ONLY use spare tires specified for the
AWD model.

If excessive tire wear is found, it is recom-
mended that all four tires be replaced with
tires of the same size, brand, construction
and tread pattern. The tire pressure and
wheel alignment should also be checked and
corrected as necessary. It is recommended
that you visit an INFINITI retailer for this
service.

All season tires

INFINITI specifies All Season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S on the tire sidewall. Snow tires
have better snow traction than All Season
tires and may be more appropriate in some
areas.

Do-it-yourself

8-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Summer tires

INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is sub-
stantially reduced in snow and ice. Summer
tires do not have the tire traction rating
“M&S” on the tire sidewall.

If you plan to operate your vehicle in snowy or
icy conditions, INFINITI recommends the use
of SNOW tires or ALL SEASON tires on all
four wheels.

Snow tires

If snow tires are needed, it is necessary to
select tires equivalent in size and load rating
to the original equipment tires. If you do not,
it can adversely affect the safety and han-
dling of your vehicle.

Generally, snow tires have lower speed rat-
ings than factory equipped tires and may not
match the potential maximum vehicle speed.
Never exceed the maximum speed rating of
the tire.

If you install snow tires, they must be the
same size, brand, construction and tread pat-
tern on all four wheels.

For additional traction on icy roads, studded
tires may be used. However, some U.S. states

and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction ca-
pabilities of studded snow tires on wet or dry
surfaces may be poorer than that of non-
studded snow tires.

Run–flat tires

Your vehicle is equipped with run-flat tires
and is not equipped with a spare tire, or a jack
and tool kit. The jack and tool kit may be
purchased at the dealer. Please consult an
INFINITI retailer for additional information.
You can continue driving to a safe location
even if the run-flat tires are punctured. Al-
ways use run-flat tires of the specified size on
all four wheels. Mixing tire sizes or construc-
tion may reduce vehicle handling stability. If
necessary, it is recommended that you visit an
INFINITI retailer for this service.

Frequently check the tire pressure and adjust
pressure of each tire properly. The tire pres-
sure can be also checked in the vehicle infor-
mation display.

It can be difficult to tell if a run-flat tire is
under-inflated or flat. Check the tire pres-
sures as described in this section. If the tire
becomes under-inflated while driving, the
low tire pressure warning light will illuminate
and the “Tire Pressure Low – Add Air”

warning appears in the vehicle information
display. If the tire becomes flat while driving,
the low tire pressure warning light and the
“Flat Tire – Visit dealer" warning will appear.

Low tire pressure:

If the vehicle is being driven with low tire
pressure, the low tire pressure warning light
will illuminate and the “Tire Pressure Low –
Add Air” warning appears in the vehicle infor-
mation display.

Flat tire:

If the vehicle is being driven with one or more
flat tires, the low tire pressure warning light
will illuminate continuously and a chime will
sound for 10 seconds. A “Flat-Tire – Visit
dealer" warning also appears in the vehicle
information display.

The chime will only sound at the first indica-
tion of a flat tire and the warning light will
illuminate continuously. When the flat tire
warning is activated, have the system reset
and the tire checked and replaced if neces-
sary. It is recommended that you visit an
INFINITI retailer for this service. Even if the
tire is inflated to the specified COLD tire
pressure, the warning light will continue to
illuminate until the system is reset. It is recom-
mended that you visit an INFINITI retailer for
this service.

8-36

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the low tire pressure warning light illumi-
nates continuously and the “Flat Tire – Visit
dealer" warning appears in the vehicle infor-
mation display:
• Do not exceed 50 mph (80 km/h).
• Increase your following distance to allow

for increased stopping distances.

• Avoid sudden maneuvers, hard cornering

and hard braking.

WARNING

Although you can continue driving with a
punctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tire.

Do not drive at speeds above 50 mph (80
km/h) and do not drive more than ap-
proximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature, ve-
hicle load, road conditions and other
factors.

Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the vehicle.

If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.

CAUTION

Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.

Avoid driving over any projection or pot-
hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.

Do not enter an automated car wash
with a punctured run-flat tire.

Have the punctured tire inspected by an
INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as
possible if the tire is seriously damaged.

Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may dam-
age the transmission, transfer case and
differential gears (AWD models).

ONLY use spare tires specified for the
AWD model.

If excessive tire wear is found, it is rec-
ommended that all four tires be replaced
with tires of the same size, brand, con-
struction and tread pattern. The tire
pressure and wheel alignment should
also be checked and corrected as neces-
sary. It is recommended that you visit an
INFINITI retailer for this service.

Do-it-yourself

8-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TIRE CHAINS

CAUTION

Tire chains/cables should not be installed
on P255/45RF20 size tires. Installation of
the tire chains/cables on P255/45RF20
size tires will cause damage to the vehicle.
If you plan to use tire chains/cables, you
should install P235/55RF19 size tires on
your vehicle.

Use of tire chains may be prohibited accord-
ing to location. Check the local laws before
installing tire chains. When installing tire
chains, make sure they are the proper size for
the tires on your vehicle and are installed
according to the chain manufacturer's sug-
gestions.

Use only SAE class “S” chains.

Class

“S” chains are used on vehicles with restricted
tire to vehicle clearance. Vehicles that can use
Class “S” chains are designed to meet the
minimum clearances between the tire and the
closest vehicle suspension or body compo-
nent required to accommodate the use of a
winter traction device (tire chains or cables).
The minimum clearances are determined
using the factory equipped tire size. Other
types may damage your vehicle. Use chain
tensioners when recommended by the tire
chain manufacturer to ensure a tight fit.

Loose end links of the tire chain must be
secured or removed to prevent the possibility
of whipping action damage to the fenders or
underbody. If possible, avoid fully loading
your vehicle when using tire chains. In addi-
tion, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.

Do not use tire chains on dry roads. Driving
with chains in such conditions can cause
damage to the various mechanisms of the
vehicle due to some overstress.

CHANGING WHEELS AND TIRES
Tire rotation

INFINITI recommends rotating the
tires every 7,500 miles (12,000 km).

For additional information on tire re-
placing procedures, see “Flat tire”
(P. 6-3).

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

WDI0258

8-38

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tight-
ened to specifications at all times. It is
recommended that wheel nuts be
tightened to specification at each tire
rotation interval.

WARNING

After rotating the tires, check and
adjust the tire pressure.

Do not include the spare tire in the
tire rotation.

For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in
the Warranty Information Booklet.

Tire wear and damage

1. Wear indicator

2. Location mark

WARNING

Tires should be periodically in-
spected for wear, cracking, bulg-
ing or objects caught in the tread.
If excessive wear, cracks, bulging
or deep cuts are found, the tire(s)
should be replaced.

The original tires have built-in
tread wear indicators. When the
wear indicators are visible, the
tire(s) should be replaced.

Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician because some
tire damage may not be obvious.
Replace the tires as necessary to
prevent tire failure and possible
personal injury.

Improper service of the spare tire
may result in serious personal in-
jury. If it is necessary to repair the
spare tire, it is recommended that
you visit an INFINITI retailer for
this service.

For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in
the Warranty Information Booklet.

WDI0259

Do-it-yourself

8-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing wheels and tires

When replacing a tire, use the same size,
tread design, speed rating and load carrying
capacity as originally equipped. For addi-
tional information, see “Wheels and tires”
(P. 10-10).

WARNING

The use of tires other than those recom-
mended or the mixed use of tires of dif-
ferent brands, construction (bias, bias-
belted or radial), or tread patterns can
adversely affect the ride, braking, han-
dling, VDC system, ground clearance,
body-to-tire clearance, tire chain clear-
ance, speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and could
result in serious personal injury.

For 2WD models, if your vehicle was
originally equipped with four tires that
were the same size and you are only re-
placing two of the four tires, install the
new tires on the rear axle. Placing new
tires on the front axle may cause loss of
vehicle control in some driving condi-
tions and cause an accident and personal
injury.

If the wheels are changed for any reason,
always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake
discs. Such interference can lead to de-
creased braking efficiency and/or early
brake pad wear. For additional informa-
tion on wheel off-set dimensions, see
“Wheels and tires” (P. 10-10).

When using a wheel without the TPMS,
such as the spare tire, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain on
after 1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit an INFINITI retailer for this service.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

The TPMS sensor may be damaged if it is
not handled correctly. Be careful when
handling the TPMS sensor.

When replacing the TPMS sensor, the ID
registration may be required. It is recom-
mended that you visit an INFINITI re-
tailer for ID registration.

Do not use a valve stem cap that is not
specified by INFINITI. The valve stem cap
may become stuck.

Be sure that the valve stem caps are cor-
rectly fitted. Otherwise the valve may be
clogged up with dirt and cause a mal-
function or loss of pressure.

Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without
warning.

The use of retread tires is not recom-
mended.

For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.

8-40

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Wheel balance

Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.

Wheel balance service should be performed
with the wheels off the vehicle. Spin balanc-
ing the wheels on the vehicle could lead to
mechanical damage.

For additional information regarding tires,
refer to “Important Tire Safety Informa-
tion” (US) or “Tire Safety Information”
(Canada) in the Warranty Information
Booklet.

Care of wheels

• Wash the wheels when washing the vehicle

to maintain their appearance.

• Clean the inner side of the wheels when the

wheel is changed or the underside of the
vehicle is washed.

• Do not use abrasive cleaners when wash-

ing the wheels.

• Inspect wheel rims regularly for dents or

corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.

• INFINITI recommends waxing the road

wheels to protect against road salt in areas
where it is used during winter.

Do-it-yourself

8-41

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

8-42

Do-it-yourself

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Some day-to-day and regular maintenance is
essential to maintain your vehicle good me-
chanical condition, as well as its emissions
and engine performance.

It is the owner's responsibility to make sure
that the scheduled maintenance, as well as
general maintenance, is performed.

As the vehicle owner, you are the only one
who can ensure that your vehicle receives
proper maintenance. You are a vital link in the
maintenance chain.

GENERAL MAINTENANCE

General maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for
proper vehicle operation. It is your responsi-
bility to perform these procedures regularly
as prescribed.

Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.

These checks or inspections can be done by
yourself, a qualified technician or, if you pre-
fer, an INFINITI retailer.

SCHEDULED MAINTENANCE

The maintenance items listed in this section
are required to be serviced at regular inter-
vals. However under severe driving condi-
tions, additional or more frequent mainte-
nance will be required.

WHERE TO GO FOR SERVICE

If maintenance service is required or your
vehicle appears to malfunction, have the sys-
tems checked and serviced. It is recom-
mended that you visit an INFINITI retailer for
this service.

INFINITI technicians are well-trained spe-
cialists and are kept up-to-date with the lat-
est service information through technical bul-
letins, service tips and training programs.
They are fully qualified to work on INFINITI
vehicles

before

work begins.

If your vehicle is involved in a collision, it is
recommended that you ask your INFINITI
retailer where the nearest INFINITI Certified
Collision

Center

is

located,

or

go

to

http://collision.infinitiusa.com.

You can be confident that an INFINITI retail-
er’s service department can perform the ser-
vice needed to meet the maintenance re-
quirements on your vehicle.

During the normal day-to-day operation of
the vehicle, general maintenance should be
performed regularly as prescribed in this sec-
tion. If you detect any unusual sounds, vibra-
tions or smells, be sure to check for the cause
or have it checked promptly. In addition, it is
recommended that you visit an INFINITI re-
tailer if you think that repairs are required.

When performing any checks or maintenance
work, closely observe the “Maintenance pre-
cautions” in the “Do-it-yourself” section of
this manual.

EXPLANATION OF GENERAL
MAINTENANCE ITEMS

WARNING

Failure to follow the procedures listed
within this section may result in personal
injury.

Additional information on the following
items with “ * ” is found in the “Do-it-
yourself” section of this manual.

Outside the vehicle

The maintenance items listed here should be
performed from time to time, unless other-
wise specified.

MAINTENANCE REQUIREMENTS

GENERAL MAINTENANCE

9-2

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Doors and engine hood:

Check that the doors

and engine hood operate properly. Also en-
sure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary
latch keeps the hood from opening when the
primary latch is released.

When driving in areas using road salt or
other corrosive materials, check lubrication
frequently.

Check that the gas stays or struts properly
and securely hold the hood, trunk, or rear
hatch in a fully open position. If the hood,
trunk, or rear hatch is not held open, have the
gas stays or struts replaced.

Lights*:

Clean the headlights on a regular

basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and other
lights are all operating properly and installed
securely. Also check headlight aim.

Road wheel nuts (lug nuts)*:

When checking

the tires, make sure no wheel nuts are miss-
ing, and check for any loose wheel nuts.
Tighten if necessary.

Tire rotation*:

Rotate tires at the specified

interval shown in the maintenance schedule.

Tires*:

Check the pressure with a gauge often

and always prior to long distance trips. If nec-
essary, adjust the pressure in all tires, including
the spare, to the pressure specified. Check
carefully for damage, cuts or excessive wear.

Tire Pressure Monitoring System (TPMS)
tire pressure sensor:

It is recommended that

you replace TPMS tire pressure sensor as-
sembly when the tires are replaced due to
wear or age.

Wheel alignment and balance:

If the vehicle

should pull to either side while driving on a
straight and level road, or if you detect un-
even or abnormal tire wear, there may be a
need for wheel alignment.

If the steering wheel or seat vibrates at nor-
mal highway speeds, wheel balancing may be
needed.

For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada) in
the INFINITI Warranty Information Booklet.

Windshield:

Clean the windshield on a regular

basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility. It is recommended that you have

a damaged windshield repaired by an INFINITI
retailer, or an INFINITI Certified Collision Cen-
ter. To locate a collision center in your area,
refer to http://collision.infinitiusa.com.

Windshield wiper blades*:

Check for cracks

or wear if they do not wipe properly.

Inside the vehicle

The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.

Accelerator pedal:

Check the pedal for

smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.

Brake pedal:

Check the pedal for smooth op-

eration. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, have your vehicle checked immediately.
It is recommended that you visit an INFINITI
retailer for this service. Keep the floor mat
away from the pedal.

Brakes:

Check that the brakes do not pull the

vehicle to one side when applied.

Maintenance and schedules

9-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continuously Variable Transmission (CVT) P
(Park) position mechanism:

On a fairly steep

hill check that the vehicle is held securely with
the shift position in the P (Park) position
without applying any brakes.

Parking brake:

Check the parking brake op-

eration regularly. The vehicle should be se-
curely held on a fairly steep hill with only the
parking brake applied. If the parking brake
does not securely hold the vehicle, it is recom-
mended that you visit an INFINITI retailer for
service.

Seat belts:

Check that all parts of the seat

belt system (for example, buckles, anchors,
adjusters and retractors) operate properly
and smoothly, and are installed securely.
Check the belt webbing for cuts, fraying,
wear or damage.

Seats:

Check seat position controls such as

seat adjusters, seatback recliner, etc., to en-
sure they operate smoothly and all latches
lock securely in every position. Check that the
head restraints/headrests move up and
down smoothly and the locks (if so equipped)
hold securely in all latched positions.

Steering wheel:

Check for changes in the

steering system, such as excessive free play,
hard steering or strange noises.

Warning lights and chimes:

Make sure all

warning lights and chimes are operating
properly.

Windshield defroster:

Check that the air

comes out of the defroster outlets properly
and in sufficient quantity when operating the
heater or air conditioner.

Windshield wiper and washer*:

Check that

the wipers and washer operate properly and
that the wipers do not streak.

Under the hood and vehicle

The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).

Battery (for maintenance free batteries)*:

This vehicle is equipped with a sealed main-
tenance free battery. It is recommended that
you visit an INFINITI retailer for this service.

NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:

1. Installation or extended use of electronic

accessories that consume battery power
when the engine is not running (Phone
chargers, GPS, DVD players, etc.).

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

Brake fluid level*:

Make sure that the brake

fluid level is between the MAX and MIN lines
on the reservoir.

Engine coolant level*:

Check the coolant level

when the engine is cold.

Engine drive belt*:

Make sure the drive belt is

not frayed, worn, cracked or oily.

Engine oil level*:

Check the level after parking

the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil
to drain back into the oil pan.

Exhaust system:

Make sure there are no

loose supports, cracks or holes. If the sound
of the exhaust seems unusual or there is a
smell of exhaust fumes, immediately have the
exhaust system inspected. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, see “Ex-
haust gas (carbon monoxide)” (P. 5-4).

Fluid leaks:

Check under the vehicle for fuel,

oil, water or other fluid leaks after the vehicle
has been parked for a while. Water dripping
from the air conditioner after use is normal.

9-4

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If you should notice any leaks or if fuel fumes
are evident, check for the cause and have it
corrected immediately.

Radiator and hoses:

Check the front of the

radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure
the hoses have no cracks, deformation, rot or
loose connections.

Underbody:

The underbody is frequently ex-

posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, oth-
erwise rust may form on the floor pan, frame,
fuel lines and around the exhaust system. At
the end of winter, the underbody should be
thoroughly flushed with plain water, being
careful to clean those areas where mud and
dirt may accumulate. For additional informa-
tion, see “Cleaning exterior” (P. 7-2).

Windshield-washer fluid*:

Check that there

is adequate fluid in the reservoir.

The following descriptions are provided to
give you a better understanding of the sched-
uled maintenance items that should be regu-
larly checked or replaced. The maintenance
schedule indicates at which mileage/time in-
tervals each item requires service.

In addition to scheduled maintenance, your
vehicle requires that some items be checked
during normal day-to-day operation. For ad-
ditional information, see “General mainte-
nance” (P. 9-2).

Items marked with

“*”

are recommended by

INFINITI for reliable vehicle operation. You
are not required to perform maintenance on
these items in order to maintain the warran-
ties which come with your INFINITI. Other
maintenance items and intervals are required.

When applicable, additional information can
be found in the “Do-it-yourself” section of
this manual.

NOTE:

INFINITI does not advocate the use of non-
OEM approved aftermarket flushing sys-
tems and strongly advises against perform-
ing these services on an INFINITI product.
Many of the aftermarket flushing systems
use non-OEM approved chemicals or sol-
vents, the use of which has not been vali-
dated by INFINITI.
For recommended fuel, lubricants, fluids,
grease, and refrigerant, see “Recommended
fluids/lubricants and capacities” (P. 10-2).

EMISSION CONTROL SYSTEM
MAINTENANCE:

Engine Drive belt*:

Check engine drive belt

for wear, fraying or cracking and for proper
tension. Replace any damaged drive belt.

Engine air filter:

Replace at specified inter-

vals. When driving for prolonged periods in
dusty conditions, check/replace the filter
more frequently.

Engine coolant*:

Replace coolant at the

specified interval. When adding or replacing
coolant, be sure to use only Genuine NISSAN
Long

Life

Antifreeze/Coolant

(blue)

or

EXPLANATION OF SCHEDULED
MAINTENANCE ITEMS

Maintenance and schedules

9-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

equivalent with the proper mixture. (For ad-
ditional information on the proper mixture for
your area, see “Engine cooling system”
(P. 8-4).)

NOTE: Mixing any other type of coolant or
the use of non-distilled water may reduce
the recommended service interval of the
coolant.

Engine oil and oil filter:

Replace engine oil

and oil filter at the specified intervals. For
recommended oil grade and viscosity, see
“Recommended fluids/lubricants and capaci-
ties” (P. 10-2).

Engine valve clearance*:

Inspect only if valve

noise increases. Adjust valve clearance if
necessary.

Evaporative emissions control vapor lines*:

Check vapor lines for leaks or looseness.
Tighten connections or replace parts as
necessary.

Fuel lines/connections*:

Check the fuel

hoses, piping and connections for leaks,
looseness, or deterioration. Tighten connec-
tions or replace parts as necessary.

Spark plugs:

Replace at specified intervals.

Install new plugs of the same type as origi-
nally equipped.

CHASSIS AND BODY
MAINTENANCE:

Brake lines and cables:

Visually inspect for

proper installation. Check for chafing, cracks,
deterioration, and signs of leaking. Replace
any

deteriorated

or

damaged

parts

immediately.

Brake pads and rotors:

Check for wear, de-

terioration and fluid leaks. Replace any dete-
riorated or damaged parts immediately.

Exhaust system:

Visually inspect the exhaust

pipes, muffler and hangers for leaks, cracks,
deterioration, and damage. Tighten connec-
tions or replace parts as necessary.

In-cabin microfilter:

Replace at specified in-

tervals. When driving for prolonged periods in
dusty conditions, replace the filter more
frequently.

Propeller shaft(s):

Check for damage, loose-

ness, and grease leakage. (AWD)

Steering gear and linkage, axle and suspen-
sion parts, drive shaft boots:

Check for dam-

age, looseness, and leakage of oil or grease.
Under severe driving conditions, inspect more
frequently.

Tire rotation:

Rotate tires at the specified

interval shown in the maintenance schedule.
When rotating tires, check for damage and
uneven wear. Replace if necessary.

Transmission fluid/oil, differential oil and
transfer case oil:

Visually inspect for signs of

leakage at specified intervals.

Replace at specified intervals.

9-6

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 90,000 miles (144,000
km)/144 months. For most people, the
odometer reading will indicate when service
is needed. However, if you drive very little,
your vehicle should be serviced at the regular
time intervals shown in the schedule.

After 90,000 miles (144,000 km)/144
months, continue maintenance at the same
mileage/time intervals.

ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS

Additional maintenance items for severe op-
erating conditions

should be performed on

vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following
conditions:
• Repeated short trips of less than 5 miles

(8 km).

• Repeated short trips of less than 10 miles

(16 km) with outside temperatures remain-
ing below freezing.

• Operating in hot weather in stop-and-go

“rush hour” traffic.

• Extensive idling and/or low speed driving

for long distances, such as police, taxi or
door-to-door delivery use.

• Driving in dusty conditions.
• Driving on rough, muddy or salt spread

roads.

• Towing a trailer, using a camper or using a

car-top carrier.

If your vehicle is mainly operated under the
severe conditions, follow the severe use
maintenance intervals shown in the mainte-
nance schedule.

MAINTENANCE SCHEDULES

Maintenance and schedules

9-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OIL CONTROL SYSTEM

Your vehicle is equipped with oil control sys-
tem. It calculates engine oil and filter change
intervals based on driving conditions. Driving
in the following severe conditions will shorten
the engine oil and filter change interval.

How driving conditions affect OCS display
timing

Conditions

Driving Scene

Display timing

Light

• Freeway driving
• City driving (flat/moderate hills)
• No towing or heavy loads
• No extended engine idling

Normal

Extreme

• Repeated short trips of less than 5 miles (8 km).
• Repeated short trips of less than 10 miles (16 km) with outside temperatures remaining below freezing.
• Operating in hot weather in stop-and-go “rush hour” traffic.
• Extensive idling and/or low speed driving for long distances, such as police, taxi or door-to-door delivery use.
• Towing a trailer or caravan, or using a car-top carrier.
• Driving with frequent use of braking or in mountainous areas.
• Sustained high speed driving.

Early

CAUTION

If the oil replacement indicator is dis-
played, change the engine oil within two
weeks or less than 500 miles (800 km).

Operating your vehicle with deterio-
rated oil can damage the engine.

If your oil replacement indicator resets
prematurely or becomes inoperative,
please change the oil within six months
or 3,750 miles (6,000 km) from your last
oil change.

9-8

Maintenance and schedules

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15      16     ..
