Infiniti QX50 (2023 year). Manual in english - page 13





• Do not attach metallic objects near the

sensor area (brush guard, etc.). This could
cause failure or malfunction.

• Do not alter, remove or paint the front

bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.

Radio frequency statement

For USA/Canada

Model: ARS4–A

IC: 4135A-ARS4A

FCC ID: OAYARS4A

This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject
to the following two conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interference

received, including interference that may
cause undesired operation.

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:

1. L’appareil ne doit pas produire de brouil-

lage, et

2. L’utilisateur de l’appareil doit accepter

tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en com-
promettre le fonctionnement.

Radiofrequency radiation exposure
Information:

This equipment complies with FCC and IC
radiation exposure limits set forth for an un-
controlled environment.

This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.

This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.

Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps.

FCC Notice

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

Starting and driving

5-131

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle. Failure to follow these recom-
mendations may result in shortened engine
life and reduced engine performance.

• Avoid driving for long periods at constant

speed, either fast or slow, and do not run
the engine over 4,000 rpm.

• Do not accelerate at full throttle in any

gear.

• Avoid quick starts.
• Avoid hard braking as much as possible.
• Do not tow a trailer for the first 500 miles

(805 kilometers). Your engine, axle or other
parts could be damaged.

Follow these easy-to-use Fuel Efficient Driv-
ing Tips to help you achieve the most fuel
economy from your vehicle.

1.

Use Smooth Accelerator and Brake Pedal
Application

• Avoid rapid starts and stops.
• Use smooth, gentle accelerator and

brake application whenever possible.

• Maintain constant speed while com-

muting and coast whenever possible.

2.

Maintain Constant Speed

• Look ahead to try and anticipate and

minimize stops.

• Synchronizing your speed with traffic

lights allows you to reduce your number
of stops.

• Maintaining a steady speed can mini-

mize red light stops and improve fuel
efficiency.

3.

Use Air Conditioning (A/C) at Higher Ve-
hicle Speeds

• Below 40 mph (64 km/h), it is more

efficient to open windows to cool the
vehicle due to reduced engine load.

• Above 40 mph (64 km/h), it is more

efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.

• Recirculating the cool air in the cabin

when the A/C is on reduces cooling
load.

4.

Drive at Economical Speeds and Distances

• Observing the speed limit and not ex-

ceeding 60 mph (97 km/h) (where legally
allowed) can improve fuel efficiency due
to reduced aerodynamic drag.

• Maintaining a safe following distance

behind other vehicles reduces unneces-
sary braking.

• Safely monitoring traffic to anticipate

changes in speed permits reduced brak-
ing and smooth acceleration changes.

• Select a gear range suitable to road

conditions.

5.

Use Cruise Control

• Using cruise control during highway

driving helps maintain a steady speed.

• Cruise control is particularly effective in

providing fuel savings when driving on
flat terrains.

6.

Plan for the Shortest Route

• Utilize a map or navigation system to

determine the best route to save time.

BREAK-IN SCHEDULE

FUEL EFFICIENT DRIVING TIPS

5-132

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

7.

Avoid Idling

• Shutting off your engine when safe for

stops exceeding 30–60 seconds saves
fuel and reduces emissions.

8.

Buy an Automated Pass for Toll Roads

• Automated passes permit drivers to use

special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.

9.

Winter Warm Up

• Limit idling time to minimize impact to

fuel economy.

• Vehicles typically need no more than

30 seconds of idling at start-up to ef-
fectively circulate the engine oil before
driving.

• Your vehicle will reach its ideal operat-

ing temperature more quickly while driv-
ing versus idling.

10.

Keeping your Vehicle Cool

• Park your vehicle in a covered parking

area or in the shade whenever possible.

• When entering a hot vehicle, opening

the windows will help to reduce the in-
side temperature faster, resulting in re-
duced demand on your A/C system.

• Keep your engine tuned up.
• Follow

the

recommended

scheduled

maintenance.

• Keep the tires inflated to the correct pres-

sure. Low tire pressure increases tire wear
and lowers fuel economy.

• Keep all the wheels in correct alignment.

Improper alignment increases tire wear and
lowers fuel economy.

• Use the recommended viscosity engine oil.

For additional information, see “Engine oil
and oil filter recommendations” (P. 10-6).

If any malfunction occurs in the Intelligent
AWD system while the engine is running,
messages are displayed in the meter.

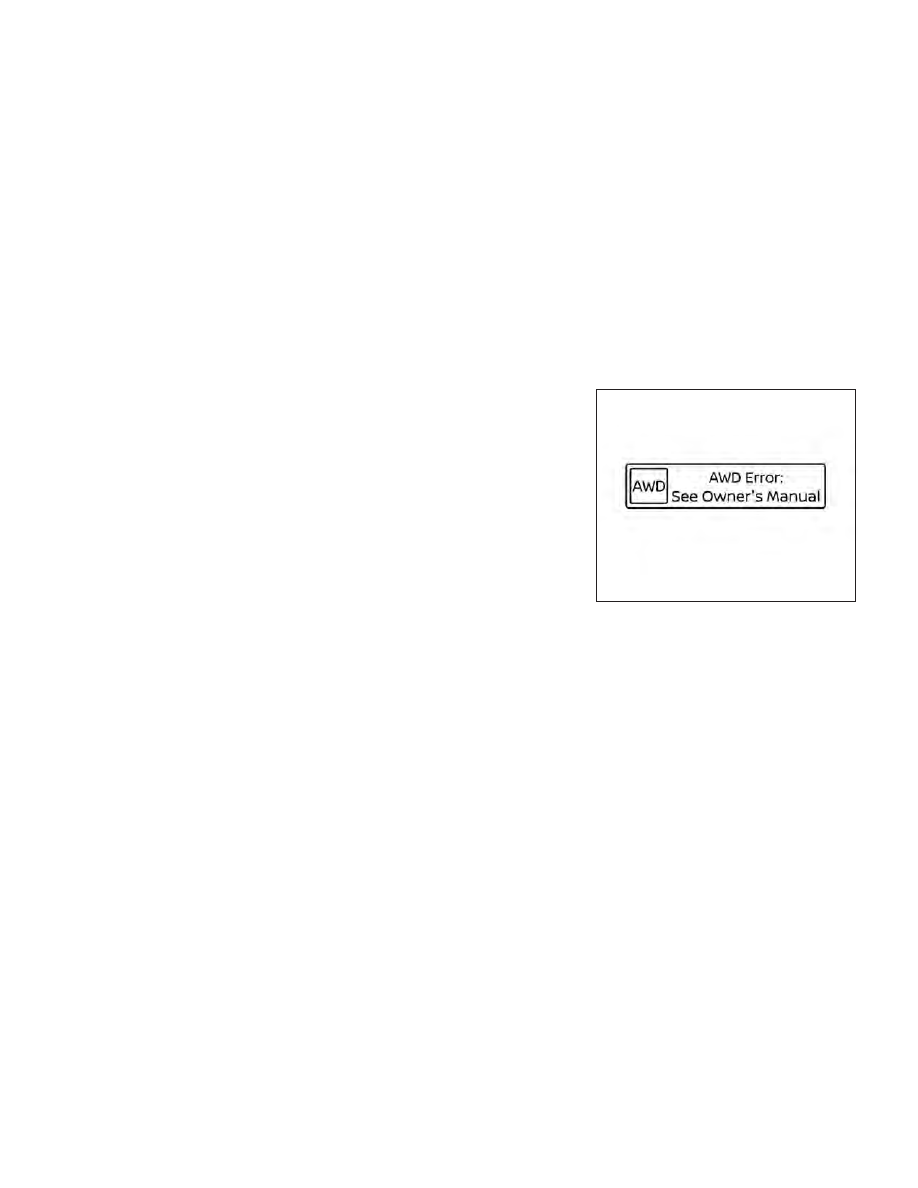

If the AWD error warning message is dis-
played, there may be a malfunction in the
Intelligent AWD system. Reduce vehicle
speed and have your vehicle checked as soon
as possible. It is recommended that you visit
an INFINITI retailer for this service.

LSD4617

INCREASING FUEL ECONOMY

INTELLIGENT ALL-WHEEL DRIVE
(AWD) (if so equipped)

Starting and driving

5-133

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The AWD high temperature message may be
displayed while trying to free a stuck vehicle
due to increased oil temperature. The driving
mode may change to 2-Wheel Drive (2WD).
If this message is displayed, stop the vehicle
with the engine idling, as soon as it is safe to
do so. Then if the message turns off, you can
continue driving.

The tire size message may be displayed if
there is a large difference between the diam-
eters of front and rear wheels. Pull off the
road in a safe area, with the engine idling.
Check that all tire sizes are the same, that the
tire pressure is correct and that the tires are
not excessively worn.

If any warning messages continue to be dis-
played, have your vehicle checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.

WARNING

Do not drive beyond the performance ca-
pability of the tires. Accelerating quickly,
sharp steering maneuvers or sudden
braking may cause loss of control, even
with Intelligent AWD engaged.

For AWD equipped vehicles, do not at-
tempt to raise two wheels off the ground
and shift the transmission to any drive or
reverse position with the engine running.
Doing so may result in drivetrain damage
or unexpected vehicle movement which
could result in serious personal injury or
vehicle damage.

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing) or similar equipment even if the
other two wheels are raised off the
ground. Make sure that you inform the
test facility personnel that your vehicle is
equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in drivetrain dam-
age or unexpected vehicle movement
which could result in serious personal in-
jury or vehicle damage.

LSD4618

LSD4619

5-134

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not operate the engine on a free roller
when any of the wheels are raised.

If you use the free roller, rotate four
wheels with the same speed without
raising any wheels.

If an AWD warning message is displayed
while driving there may be a malfunction
in the AWD system. Reduce the vehicle
speed immediately and have your vehicle
checked as soon as possible. It is recom-
mended that you visit an INFINITI re-
tailer for this service.

The powertrain may be damaged if you
continue driving when the AWD tem-
perature or tire size incorrect messages
are displayed.

If the AWD high temperature message is
displayed while you are driving, pull off
the road in a safe area, and idle the en-
gine. The driving mode will change to
2WD to prevent the AWD system from
malfunctioning. If the warning message
turns off, you can drive again.

If the tire size incorrect message is dis-
played while you are driving, pull off the
road in a safe area with the engine idling.
Check that all tire sizes are the same,
that the tire pressure is correct and that
the tires are not excessively worn.

If a warning message continues to be dis-
played after the above operations, have
your vehicle checked as soon as possible.
It is recommended that you visit an
INFINITI retailer for this service.

Starting and driving

5-135

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.

Safe parking procedures require that
both the parking brake be set and the
transmission placed into P (Park). Fail-
ure to do so could cause the vehicle to
move unexpectedly or roll away and re-
sult in an accident. Make sure the shift
lever has been pushed as far forward as it
can go and cannot be moved without de-
pressing the foot brake pedal.

Never leave the engine running while the
vehicle is unattended.

Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls or make the
vehicle move. Unattended children could
become involved in serious accidents.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.

1. Apply the electronic parking brake.

2. Press the Park button to place the vehicle

in the P (Park) position.

3. To help prevent the vehicle from rolling

into traffic when parked on an incline, it is
a good practice to turn the wheels as
illustrated.

• HEADED DOWNHILL WITH CURB

O

A

:

Turn the wheels into the curb and move
the vehicle forward until the curb side
wheel gently touches the curb.

• HEADED UPHILL WITH CURB

O

B

:

Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.

WSD0050

PARKING/PARKING ON HILLS

5-136

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• HEADED UPHILL OR DOWNHILL,

NO CURB

O

C

:

Turn the wheels toward the side of the
road so the vehicle will move away from
the center of the road if it moves.

4. Place the ignition switch in the LOCK

position.

ELECTRIC POWER STEERING
TYPE

WARNING

If the engine is not running or is turned
off while driving, the power assist for the
steering will not work. Steering will be
harder to operate.

When the power steering warning light
illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of the
vehicle, but the steering will be harder to
operate. Have the power steering sys-
tem checked. It is recommended that you
visit an INFINITI retailer for this service.

The power steering system is designed to
provide power assist while driving to operate
the steering wheel with light force.

When the steering wheel is operated repeat-
edly or continuously while parking or driving
at a very low speed, the power assist for the
steering wheel will be reduced. This is to pre-
vent overheating of the power steering sys-
tem and protect it from getting damaged.

While the power assist is reduced, steering
wheel operation will become heavy. When
the temperature of the power steering sys-
tem goes down, the power assist level will
return to normal. Avoid repeating such steer-
ing wheel operations that could cause the
power steering system to overheat.

You may hear a sound when the steering
wheel is operated quickly. However, this is
not a malfunction.

If the power steering warning light illumi-
nates while the engine is running, it may indi-
cate the power steering system is not func-
tioning properly and may need servicing.
Have the power steering system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.

When the power steering warning light illu-
minates with the engine running, there will be
no power assist for the steering, but you will
still have control of the vehicle. At this time,
greater steering effort is required to operate
the steering wheel, especially in sharp turns
and at low speeds.

For additional information, see “Power steer-
ing warning light” (P. 2-16).

POWER STEERING

Starting and driving

5-137

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DIRECT ADAPTIVE STEERING®
TYPE

WARNING

When the power steering warning light
illuminates with the engine running, the
power assist for the steering will cease
operation. You will still have control of
the vehicle, but the steering will be
harder to operate.

If wheels or tires other than the INFINITI
recommended ones are used, Direct
Adaptive Steering® may not operate
properly and the power steering warning
light may illuminate.

Do not modify the vehicle’s suspension
parts such as shock absorbers, struts,
springs, stabilizer bars, bushings and
wheels are not INFINITI recommended
for your vehicle or are extremely deterio-
rated, Direct Adaptive Steering may not
operate properly and the power steering
warning light may illuminate.

Do not modify the vehicle’s steering. If
steering parts are not INFINITI recom-
mended for your vehicle or are extremely
deteriorated, Direct Adaptive Steering
may not operate properly and the power
steering warning light may illuminate.

If the Vehicle Dynamic Control (VDC)
OFF indicator light illuminates, the
power steering warning light may also
illuminate at the same time. Stop the ve-
hicle in a safe location, turn the engine
off and restart the engine. If the power
steering warning light continues to illu-
minate, have the system checked. It is
recommended that you visit an INFINITI
retailer for this service. For additional in-
formation, see “Vehicle Dynamic Control
(VDC) system” (P. 5-142).

CAUTION

Do not place the ignition switch in the
ON position while the steering wheel or a
tire is removed.

Do not turn the steering wheel as much
as possible while the ignition switch is
any position other than the ON position.

Installing an accessory on the steering
wheel, or changing the steering wheel,
may reduce the steering performance.

Direct Adaptive Steering is designed to con-
trol the steering force and steering angle ac-
cording to the vehicle speed and amount of
turning of the steering wheel.

The steering characteristic can be selected
using the INFINITI Drive Mode Selector. For
additional information, see “INFINITI Drive
Mode Selector” (P. 5-29).

If the VDC system is turned off, the setting of
steering becomes Standard mode.

If the power steering warning light illumi-
nates while the engine is running, it may indi-
cate that Direct Adaptive Steering is not
functioning properly and may need servicing.
Have the system checked. It is recommended
that you visit an INFINITI retailer for this
service. For additional information, see
“Power steering warning light” (P. 2-16)

When the power steering warning light illu-
minates with the engine running, the power
assist for the steering will cease operation.
You will still have control of the vehicle. How-
ever, greater steering effort will be needed,
especially in sharp turns and at low speeds.

If Direct Adaptive Steering is malfunctioning,
the steering wheel may turn slightly even
when driving on a straight road.

Under the following conditions, the steering
wheel may turn slightly even when driving on
a straight road. This is due to a protection
mechanism for Direct Adaptive Steering. The

5-138

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

steering wheel will return to the normal posi-
tion after the protection mechanism is
deactivated.

Condition A:

• When the engine is stalled or likely to be

stalled

• When the steering wheel is held in the full

lock position or when the front tire touches
an obstruction

• When the battery is discharged

To return the steering wheel to the normal
position, stop the vehicle in a safe location
and stop operating the steering wheel. Then
drive the vehicle for a short period of time.

Condition B:

• When the steering wheel is operated re-

peatedly or continuously while parking or
driving at a very low speed. In this case, the
power assist for the steering wheel will be
reduced.

To return the steering wheel to the normal
position, stop the vehicle in a safe location
and wait for a period of time, without oper-
ating the steering wheel, until the tempera-
ture of Direct Adaptive Steering cools down.
Avoid repeated steering wheel operations
that could cause Direct Adaptive Steering to
overheat.

When the vehicle is tested on the 2–wheel
dynamometer, the power steering warning
light may illuminate. To turn off the power
steering warning light, stop the vehicle in a
safe location, turn the engine off, restart the
engine, and then drive the vehicle for a period
of time.

The following conditions do not indicate a
malfunction of Direct Adaptive Steering:
• You may notice wider steering play when

the ignition switch is in the OFF or AUTO
ACC position compared to when it is in the
ON position.

• After the engine is started, the steering

wheel may turn slightly even when driving a
straight road. To return to the normal posi-
tion, drive the vehicle on a straight road for
a period of time.

• After the engine is started, the steering

wheel may move if the steering wheel was
turned to the fully locked position while the
ignition switch was in the OFF position.

• After the vehicle is tested on the 4–wheel

dynamometer, the steering wheel may turn
slightly even when driving on a straight
road. To return the steering wheel to the
normal position, drive the vehicle on a
straight road for a period of time.

You may hear a noise under the following
conditions. However, this is not a malfunc-
tion.
• When the engine is started or stopped.
• When the steering wheel is turned in the full

lock position.

Starting and driving

5-139

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The brake system has two separate hydraulic
circuits. If one circuit malfunctions, you will
still have braking at two wheels.

BRAKE PRECAUTIONS

Vacuum assisted brakes

The brake booster aids braking by using en-
gine vacuum. If the engine stops, you can
stop the vehicle by depressing the brake
pedal. However, greater foot pressure on the
brake pedal will be required to stop the ve-
hicle and stopping distance will be longer.

Using the brakes

Avoid resting your foot on the brake pedal
while driving. This will overheat the brakes,
wear out the brake pads faster, and reduce
gas mileage.

To help reduce brake wear and to prevent the
brakes from overheating, reduce speed and
downshift to a lower gear before going down
a slope or long grade. Overheated brakes
may reduce braking performance and could
result in loss of vehicle control.

WARNING

While driving on a slippery surface, be
careful when braking, accelerating or
downshifting. Abrupt braking or accel-
erating could cause the wheels to skid
and result in an accident.

If the engine is not running or is turned
off while driving, the power assist for the
brakes will not work. Braking will be
harder.

Wet brakes

When the vehicle is washed or driven through
water, the brakes may get wet. As a result,
your braking distance will be longer and the
vehicle may pull to one side during braking.

To dry the brakes, drive the vehicle at a safe
speed while lightly pressing the brake pedal
to heat up the brakes. Do this until the brakes
return to normal. Avoid driving the vehicle
at high speeds until the brakes function
correctly.

Parking brake break-in

Break in the parking brake shoes whenever
the stopping effect of the parking brake is
weakened or whenever the parking brake
shoes and/or rotors are replaced, in order to
assure the best brake performance.

This procedure is described in the INFINITI
Service Manual. It is recommended that you
visit an INFINITI retailer for this service.

ANTI-LOCK BRAKING SYSTEM
(ABS)

WARNING

The ABS is a sophisticated device, but it
cannot prevent accidents resulting from
careless or dangerous driving tech-
niques. It can help maintain vehicle con-
trol during braking on slippery surfaces.
Remember that stopping distances on
slippery surfaces will be longer than on
normal surfaces even with ABS. Stop-
ping distances may also be longer on
rough, gravel or snow covered roads, or
if you are using tire chains. Always main-
tain a safe distance from the vehicle in
front of you. Ultimately, the driver is
responsible for safety.

BRAKE SYSTEM

5-140

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tire type and condition may also affect
braking effectiveness.

When replacing tires, install the speci-

fied size of tires on all four wheels.

When installing a spare tire, make

sure that it is the proper size and type
as specified on the Tire and Loading
Information label. For additional
information, see “Tire and Loading
Information label” (P. 8-29).

For additional information, see “Wheels

and tires” (P. 8-27).

The ABS controls the brakes so the wheels do
not lock during hard braking or when braking
on slippery surfaces. The system detects the
rotation speed at each wheel and varies the
brake fluid pressure to prevent each wheel
from locking and sliding. By preventing each
wheel from locking, the system helps the
driver maintain steering control and helps to
minimize swerving and spinning on slippery
surfaces.

Using the system

Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady
pressure, but do not pump the brakes. The

Anti-lock Braking System will operate to pre-
vent the wheels from locking up. Steer the
vehicle to avoid obstacles.

WARNING

Do not pump the brake pedal. Doing so may
result in increased stopping distances.

Self-test feature

The Anti-lock Braking System (ABS) includes
electronic sensors, electric pumps, hydraulic
solenoids and a computer. The computer has
a built-in diagnostic feature that tests the
system each time you start the engine and
move the vehicle at a low speed in forward or
reverse. When the self-test occurs, you may
hear a “clunk” noise and/or feel a pulsation in
the brake pedal. This is normal and does not
indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then
operates normally but without anti-lock
assistance.

If the ABS warning light illuminates during
the self-test or while driving, have the vehicle
checked. It is recommended that you visit an
INFINITI retailer for this service.

Normal operation

The Anti-lock Braking System (ABS) operates
at speeds above 3 - 6 mph (5 - 10 km/h). The
speed varies according to road conditions.
When the ABS senses that one or more
wheels are close to locking up, the actuator
rapidly applies and releases hydraulic pres-
sure. This action is similar to pumping the
brakes very quickly. You may feel a pulsation
in the brake pedal and hear a noise from
under the hood or feel a vibration from the
actuator when it is operating. This is normal
and indicates that the ABS is operating prop-
erly. However, the pulsation may indicate
that road conditions are hazardous and extra
care is required while driving.

BRAKE ASSIST

When the force applied to the brake pedal
exceeds a certain level, the Brake Assist is
activated generating greater braking force
than a conventional brake booster even with
light pedal force.

WARNING

The Brake Assist is only an aid to assist
braking operation and is not a collision
warning or avoidance device. It is the driv-
er’s responsibility to stay alert, drive safely
and be in control of the vehicle at all times.

Starting and driving

5-141

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The VDC system uses various sensors to
monitor driver inputs and vehicle motion. Un-
der certain driving conditions, the VDC sys-
tem helps to perform the following functions:
• Controls brake pressure to reduce wheel

slip on one slipping drive wheel so power is
transferred to a non-slipping drive wheel
on the same axle.

• Controls brake pressure and engine output

to reduce drive wheel slip based on vehicle
speed (traction control function).

• Controls

brake

pressure

at

individual

wheels and engine output to help the driver
maintain control of the vehicle in the fol-
lowing conditions:

Understeer (vehicle tends to not follow the
steered path despite increased steering input)
Oversteer (vehicle tends to spin due to certain
road or driving conditions)

The VDC system can help the driver to main-
tain control of the vehicle, but it cannot pre-
vent loss of vehicle control in all driving
situations.

When the VDC system operates, the
indicator light in the instrument panel flashes
to note the following:
• The road may be slippery or the system may

determine some action is required to help
keep the vehicle on the steered path.

• You may feel a pulsation in the brake pedal

and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.

• Adjust your speed and driving to the road

conditions.

For additional information, see “Slip indicator
light” (P. 2-17) and ”Vehicle Dynamic Control
(VDC) OFF indicator light” (P. 2-17).

If a malfunction occurs in the system, the

and

indicator lights come on in the

instrument panel. The VDC system automati-
cally turns off when these indicator lights are
on.

The lower display is used to turn off the VDC
system. When the VDC system is turned off,
the

indicator light, the RAB system

warning light, and the FEB with Pedestrian
Detection system warning light illuminate to
indicate the VDC, FEB with Pedestrian De-
tection, and RAB systems are off.

When the lower display is used to turn off the
system, the VDC system still operates to pre-
vent one drive wheel from slipping by trans-
ferring power to a non-slipping drive wheel.
The

indicator light flashes if this occurs.

All other VDC functions are off and the
indicator light will not flash.

The VDC system is automatically reset to on
when the ignition switch is placed in the OFF
position then back to the ON position.

The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle forward or in re-
verse at a slow speed. When the self-test oc-
curs, you may hear a clunk noise and/or feel a
pulsation in the brake pedal. This is normal and
is not an indication of a malfunction.

WARNING

The VDC system is designed to help the
driver maintain controllability but does
not prevent accidents due to abrupt
steering operation at high speeds or by
careless or dangerous driving tech-
niques. Reduce vehicle speed and be es-
pecially careful when driving and corner-
ing on slippery surfaces and always drive
carefully.

VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM

5-142

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not modify the vehicle's suspension.
If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not INFINITI
recommended for your vehicle or are ex-
tremely deteriorated, the VDC system
may not operate properly. This could ad-
versely affect vehicle handling perfor-
mance, and the

indicator light may

flash or both the

and

indicator

lights may illuminate.

If brake related parts such as brake pads,
rotors and calipers are not INFINITI rec-
ommended or are extremely deterio-
rated, the VDC system may not operate
properly and both the

and the

indicator lights may illuminate.

If engine control related parts are not
INFINITI recommended or are extremely
deteriorated, both the

and

indicator lights may illuminate.

When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly
and the

indicator light may flash or

both the

and

indicator lights

may illuminate. Do not drive on these
types of roads.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the

indicator light may flash

or both the

and

indicator

lights may illuminate. This is not a mal-
function. Restart the engine after driv-
ing onto a stable surface.

If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the

indicator light may flash or both

the

and

indicator lights may

illuminate.

The VDC system is not a substitute for
winter tires or tire chains on a snow cov-
ered road.

BRAKE FORCE DISTRIBUTION

During braking while driving through turns,
the system optimizes the distribution of force
to each of the four wheels depending on the
radius of the turn.

WARNING

The VDC system is designed to help the
driver maintain controllability but does
not prevent accidents due to abrupt
steering operation at high speeds or by
careless or dangerous driving tech-
niques. Reduce vehicle speed and be es-
pecially careful when driving and corner-
ing on slippery surfaces and always drive
carefully.

Do not modify the vehicle’s suspension.
If suspension parts such as shock ab-
sorbers, struts, springs, stabilizer bars,
bushings and wheels are not INFINITI
recommended for your vehicle or are ex-
tremely deteriorated, the VDC system
may not operate properly. This could ad-
versely affect vehicle handling perfor-
mance, and the

indicator light may

flash or both the

and

indicator

lights may illuminate.

Starting and driving

5-143

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If brake related parts such as brake pads,
rotors and calipers are not INFINITI rec-
ommended or are extremely deterio-
rated, the VDC system may not operate
properly and both the

and the

indicator lights may illuminate.

If engine control related parts are not
INFINITI recommended or are extremely
deteriorated, both the

and

indicator lights may illuminate.

When driving on extremely inclined sur-
faces such as higher banked corners, the
VDC system may not operate properly
and the

indicator light may flash or

both the

and

indicator lights

may illuminate. Do not drive on these
types of roads.

When driving on an unstable surface
such as a turntable, ferry, elevator or
ramp, the

indicator light may flash

or both the

and

indicator

lights may illuminate. This is not a mal-
function. Restart the engine after driv-
ing onto a stable surface.

If wheels or tires other than the INFINITI
recommended ones are used, the VDC
system may not operate properly and
the

indicator light may flash or both

the

and

indicator lights may

illuminate.

The VDC system is not a substitute for
winter tires or tire chains on a snow cov-
ered road.

The chassis control is an electric control mod-
ule that includes the following functions:
• Active Trace Control
• Active Engine Brake
• Active Ride Control

ACTIVE TRACE CONTROL

This Active Trace Control senses driving
based

on

the

driver’s

steering

and

acceleration/braking patterns, and controls
brake pressure at individual wheels to aid
tracing at corners and help smooth vehicle
response.

When the lower display is used to turn off the
Vehicle Dynamic Control system, the Active
Trace Control system is also turned off.

When the PERSONAL mode is selected, the
Active Trace Control can be set to ON (en-
abled) or OFF (disabled).

CHASSIS CONTROL

5-144

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the Active Trace Control is operated
and the “Chassis Control” mode is selected in
the vehicle information display, the Active
Trace Control graphics are shown in the ve-
hicle information display.

If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Trace Control is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

WARNING

The Active Trace Control may not be effec-
tive depending on the driving condition. Al-
ways drive carefully and attentively.

When the Active Trace Control is operating,
you may feel a pulsation in the brake pedal
and hear a noise. This is normal and indicates
that the Active Trace Control is operating
properly.

You may also feel deceleration when the Ac-
tive Trace Control is operating. However, this
is not a malfunction.

Even if the Active Trace Control is set to OFF,
some functions will remain on to assist the
driver (for example: avoidance scenes).

ACTIVE ENGINE BRAKE

The Active Engine Brake function adds subtle
deceleration by controlling Continuously
Variable Transmission (CVT) gear ratio, de-
pending on the cornering condition calcu-
lated from the driver's steering input and
plural sensors. This benefit is for easier trace-
ability and less workload of adjusting speed
with braking at corners.

The Active Engine Brake also adds subtle
deceleration with gear ratio control accord-
ing to the driver's brake pedal operation.

When the lower display is used to turn off the
Vehicle Dynamic Control system, the Active
Engine Brake system is also turned off.

When the PERSONAL mode is selected, the
Active Engine Brake can be set to ON (en-
abled) or OFF (disabled).

When the Active Engine Brake is operated at
corners and the “Chassis Control” mode is
selected in the vehicle information display,
the Active Engine Brake graphics are shown
in the vehicle information display.

LSD4792

Starting and driving

5-145

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Engine Brake is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

WARNING

The Active Engine Brake may not be effec-
tive depending on the driving condition.
Always drive carefully and attentively.

When the Active Engine Brake is operating,
the needle of the tachometer will rise up and
you may hear an engine noise. This is normal
and indicates that the Active Engine Brake is
operating properly.

You may also feel deceleration when the
Active Engine Brake is operating. However,
this is not a malfunction.

ACTIVE RIDE CONTROL

This system senses upper body motion
(based on wheel speed information) and con-
trols four wheel brake pressure. This will en-
hance ride comfort in an effort to restrain
uncomfortable upper body movement when
passing over undulated road surfaces.

When the lower display is used to turn off the
Vehicle Dynamic Control system, the Active
Ride Control is also turned off.

When the Active Ride Control is operated
and the “Chassis Control” mode is selected in
the vehicle information display, the Active
Ride Control graphics are shown in the ve-
hicle information display.

If the chassis control warning message ap-
pears in the vehicle information display, it
may indicate that the Active Ride Control is
not functioning properly. Have the system
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.

When the Active Ride Control is operating,
you may hear noise and sense slight decel-
eration. This is normal and indicates that the
Active Ride Control is operating properly.

WARNING

Never rely solely on the hill start assist
system to prevent the vehicle from mov-
ing backward on a hill. Always drive
carefully and attentively. Depress the
brake pedal when the vehicle is stopped
on a steep hill. Be especially careful when
stopped on a hill on frozen or muddy
roads. Failure to prevent the vehicle
from rolling backwards may result in a
loss of control of the vehicle and possible
serious injury or death.

The hill start assist system is not de-
signed to hold the vehicle at a standstill
on a hill. Depress the brake pedal when
the vehicle is stopped on a steep hill. Fail-
ure to do so may cause the vehicle to roll
backwards and may result in a collision or
serious personal injury.

The hill start assist system may not pre-
vent the vehicle from rolling backwards
on a hill under all load or road conditions.
Always be prepared to depress the brake
pedal to prevent the vehicle from rolling
backwards. Failure to do so may result in
a collision or serious personal injury.

HILL START ASSIST SYSTEM

5-146

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When the vehicle is stopped on a hill, the hill
start assist system automatically keeps the
brakes applied to help prevent the vehicle
from rolling backward in the time it takes the
driver to release the brake pedal and apply
the accelerator.

The hill start assist system will operate auto-
matically under the following conditions:
• The transmission is shifted to a forward or

reverse gear.

• The vehicle is stopped completely on a hill

by applying the brake. The maximum hold-
ing time is 2 seconds. After 2 seconds the
vehicle will begin to roll back and the hill
start assist system will stop operating
completely.

The hill start assist system will not operate
when the shift lever is placed in the N (Neu-
tral), the Park button is pressed to place the
vehicle in the P (Park) position or on a flat and
level road.

The Hill Start Assist function status can be
checked in the “Chassis Control” mode in the
vehicle information display. For additional in-
formation, see “Vehicle information display”
(P. 2-19).

The sonar system sounds a tone to inform the
driver of obstacles near the bumper.

When the sonar system is turned on, the
sonar view will automatically appear in the
center display when the camera is activated.

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the sonar system
could result in serious injury or death.

The sonar system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects.

LSD4794

LSD2993

FRONT AND REAR SONAR SYSTEM
(if so equipped)

Starting and driving

5-147

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The driver is always responsible for
safety during parking and other maneu-
vers. Always look around and check that
it is safe to do so before parking.

This function is designed as an aid to the
driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.

If your vehicle sustains damage to the bum-
per fascia, leaving it misaligned or bent, the
sensing zone may be altered causing inaccu-
rate measurement of obstacles or false
alarm.

CAUTION

Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard.

Keep the sonar sensors (located on the
bumper fascias) free from snow, ice and
large accumulations of dirt. Do not clean
the sensors with sharp objects. If the
sensors are covered, the accuracy of the
sonar function will be diminished.

SYSTEM OPERATION

The system informs with a visual and audible
signal of front obstacles when the shift lever
is in the D (Drive) position and both front and
rear obstacles when the shift lever is in the R
(Reverse) position.

Sonar Operation Table

FR Sensor

RR Sensor

Range

Sound Display Sound Display

P

x

x

R

o

o

o

o

N

x

x

D

o

o

x

o – Display/Beep when detect
† – Display on camera view
x – No Display and Beep

The system is deactivated at speeds above
6 mph (10 km/h). It is reactivated at lower
speeds.

The intermittent tone will stop after 3 sec-
onds when an obstacle is detected by only
the corner sensor and the distance does not
change. The tone will stop when the obstacle
get away from the vehicle.

When the object is detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking increases. When the vehicle is very
close to the object, the indicator stops blink-
ing and turns red, and the tone sounds
continuously.

5-148

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

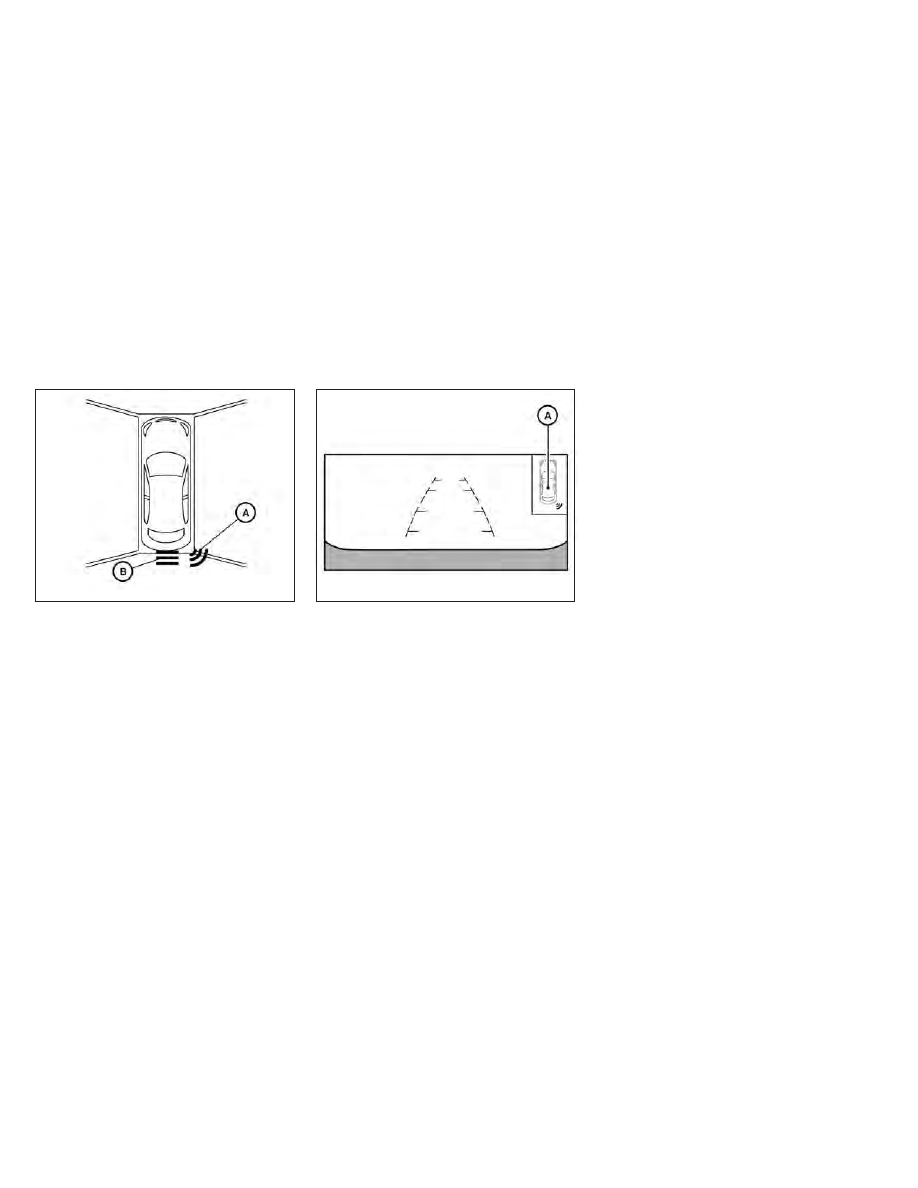

When the corner of the vehicle moves closer
to an object, the corner sonar indicator

O

A

appears. When the center of the vehicle
moves close to an object, the center sonar (if
so equipped) indicator

O

B

appears.

The system indicators

O

A

will appear when

the vehicle moves closer to an object.

LSD2136

LSD2137

Starting and driving

5-149

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO ENABLE/DISABLE THE
SONAR SYSTEM

The system is automatically activated when
the ignition is in the ON position and the shift
lever is in the R (Reverse) position.

Perform the following steps to enable or dis-
able the sonar system:

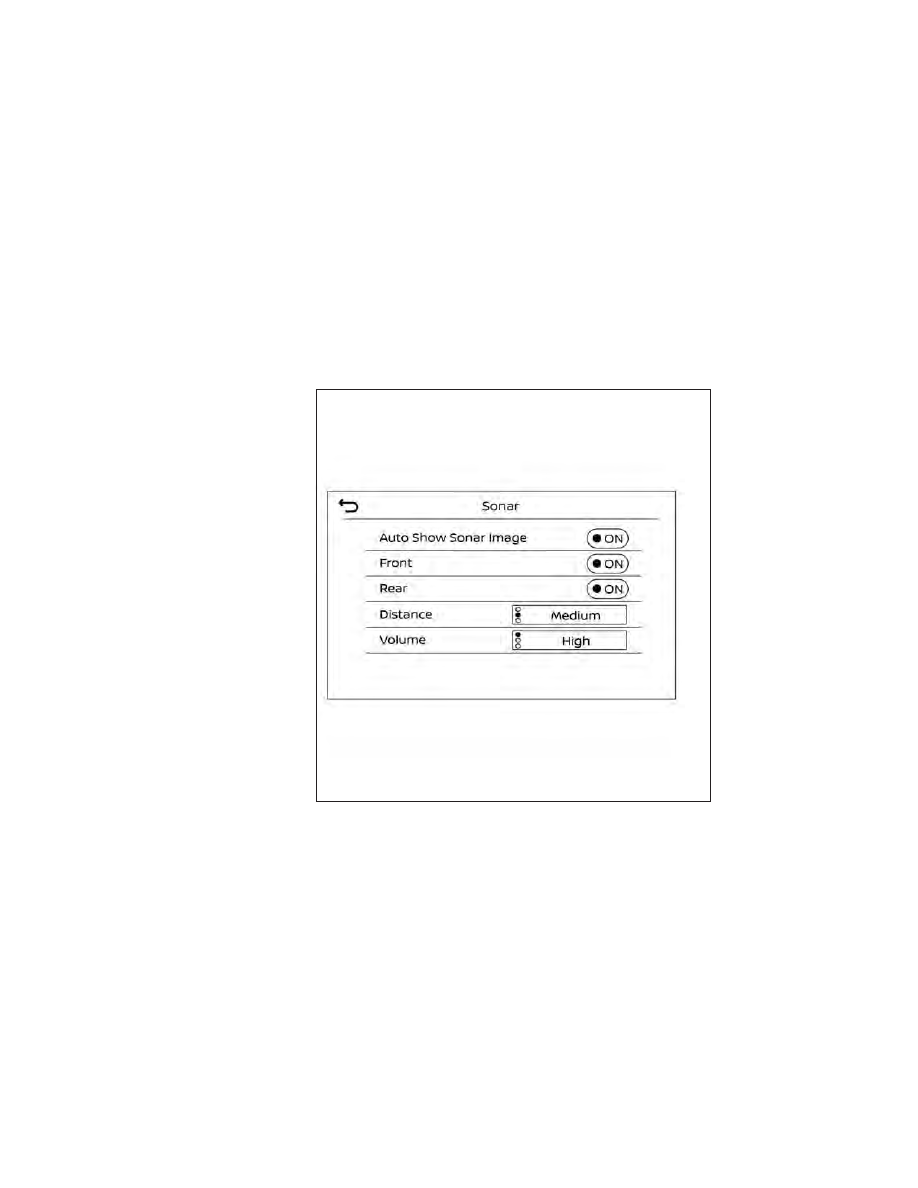

Type A (if so equipped):

1. Press the MENU button below the lower

display screen.

2. Select “Settings.”

3. Select “Parking Sonar”

4. Select “Front” to turn the front sonar sen-

sors on or off.

• Select “Rear” to turn the rear sonar sensors

on or off.

LSD3577

Type A (if so equipped)

5-150

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

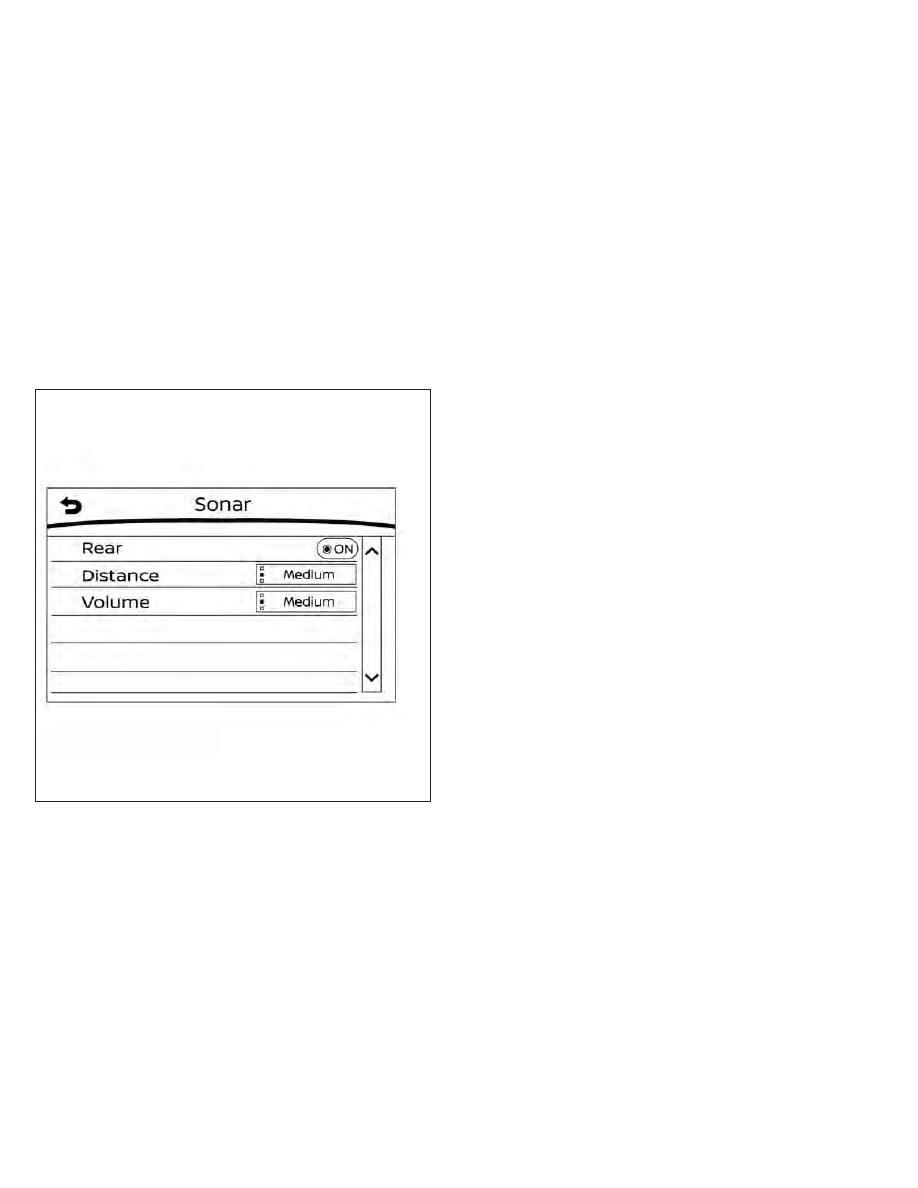

Type B (if so equipped):

1. Press the MENU button below the lower

display screen.

2. Select “Settings.”

3. Select “Parking Sonar”

4. Select “Rear” to turn the Rear Sonar Sys-

tem on or off.

LSD3578

Type B (if so equipped)

Starting and driving

5-151

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SONAR LIMITATIONS

WARNING

Listed below are the system limitations for
the sonar system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

The system is deactivated at speeds
above 6 mph (10 km/h). It is reactivated
at lower speeds.

Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem; this may include reduced perfor-
mance or a false activation.

The system is not designed to prevent
contact with small or moving objects. Al-
ways move slowly. The system will not
detect small objects below the bumper or
on the ground.

The system may not detect the following
objects: fluffy objects such as snow,
cloth, cotton, glass-wool, etc.; thin ob-
jects such as rope, wire and chain, etc.; or
wedge-shaped objects.

The system may not detect objects at
speeds above 3 mph (5 km/h) and may
not detect certain angular or moving
objects.

Do not attach stickers (including trans-
parent material), install accessories, or
apply anything blocking the sensors.
These conditions may reduce the ability
of the system.

SYSTEM TEMPORARILY
UNAVAILABLE

When sonar blockage is detected, the system
will be deactivated automatically.

The system is not available until the condi-
tions no longer exist.

The sonar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the sonar sensors.

Action to take:

When the above conditions no longer exist,
the system will resume automatically.

SYSTEM MAINTENANCE

The sonar sensors are located on the front
and rear bumpers. Always keep the area near
the sonar sensors clean.

The sonar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.

The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the sonar sensors.

LSD2993

5-152

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Check for and remove objects obstructing
the area around the sonar sensors.

Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the sonar sensors.

Do not strike or damage the area around the
sonar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the sonar sensors is damaged due to a
collision.

FREEING A FROZEN DOOR LOCK

To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock be-
comes frozen, heat the key before inserting it
into the key hole, or use the INFINITI Intelli-
gent Key.

ANTIFREEZE

In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper winter
protection. For additional information, see
“Engine cooling system” (P. 8-4).

BATTERY

If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see “Battery” (P. 8-12).

DRAINING OF COOLANT WATER

If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For additional information, see
“Changing engine coolant” (P. 8-5).

TIRE EQUIPMENT

1. SUMMER tires have a tread designed to

provide superior performance on dry
pavement. However, the performance of
these tires will be substantially reduced in
snowy and icy conditions. If you operate
your vehicle on snowy or icy roads,
INFINITI recommends the use of MUD &
SNOW or ALL SEASON TIRES on all four
wheels. It is recommended that you visit
an INFINITI retailer for the tire type, size,
speed rating and availability information.

2. For additional traction on icy roads, stud-

ded tires may be used. However, some
U.S. states and Canadian provinces pro-
hibit their use. Check local, state and pro-
vincial laws before installing studded tires.

Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.

3. Tire chains may be used. For additional

information, see “Tire chains”(P. 8-38).

COLD WEATHER DRIVING

Starting and driving

5-153

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIAL WINTER EQUIPMENT

It is recommended that the following items
be carried in the vehicle during winter:
• A scraper and stiff-bristled brush to re-

move ice and snow from the windows and
wiper blades.

• A sturdy, flat board to be placed under the

jack to give it firm support.

• A shovel to dig the vehicle out of

snowdrifts.

• Extra washer fluid to refill the windshield-

washer fluid reservoir.

DRIVING ON SNOW OR ICE

WARNING

Wet ice (32°F, 0°C and freezing rain),
very cold snow or ice can be slick and very
hard to drive on. The vehicle will have
much less traction or “grip” under these
conditions. Try to avoid driving on wet
ice until the road is salted or sanded.

Whatever the condition, drive with
caution. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.

Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.

Allow greater following distances on
slippery roads.

Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.

Do not use the cruise control on slippery
roads.

Snow can trap dangerous exhaust gases
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.

ACTIVE NOISE CANCELLATION

LSD2959

Front Microphone

ACTIVE NOISE CANCELLATION/
ACTIVE SOUND ENHANCEMENT

5-154

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

This system uses microphones

O

1

located

inside the vehicle to detect engine booming
noise. The system then automatically gener-
ates a noise canceling sound through the
speakers and woofer (if so equipped) to re-
duce engine booming noise.

NOTE:
To operate the active noise cancellation
system properly:

• Do not cover the speakers or woofer (if so

equipped).

• Do not cover the microphones.
• Do not change or modify speakers includ-

ing the woofer (if so equipped) and any
audio related components such as the
amplifier.

• Do not make any modification including

sound deadening or modifications around
the microphones or speakers.

ACTIVE SOUND ENHANCEMENT

Active sound enhancement enhances exist-
ing engine sounds according to the engine
speed and driving modes through the speak-
ers and woofer (if so equipped).

LSD2960

Rear Microphone

Starting and driving

5-155

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

5-156

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Push the switch on to warn other drivers
when you must stop or park under emer-
gency conditions. All turn signal lights flash.

WARNING

If stopping for an emergency, be sure to
move the vehicle well off the road.

Do not use the hazard warning flashers
while moving on the highway unless un-
usual circumstances force you to drive so
slowly that your vehicle might become a
hazard to other traffic.

Turn signals do not work when the haz-
ard warning flasher lights are on.

The flashers will operate with the ignition
switch placed in any position.

Some jurisdictions may prohibit the use of
the hazard warning flasher switch while
driving.

In the event of a roadside emergency, road-
side assistance service is available to you.
Please refer to your Warranty Information
Booklet (U.S.) or the Warranty & Roadside
Assistance Information Booklet (Canada) for
details.

LIC0394

HAZARD WARNING FLASHER
SWITCH

ROADSIDE ASSISTANCE PROGRAM

6-2

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
– Rapidly push the push-button ignition

switch three consecutive times in less than
1.5 seconds, or

– Push and hold the push-button ignition

switch for more than 2 seconds.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

This vehicle is equipped with Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires. When the low tire pres-
sure warning light is lit, and the “Tire Pressure
Low - Add Air” warning appears in the vehicle
information display, one or more of your tires
is significantly under-inflated. The system
also displays pressure of all tires (except the
spare tire) on the vehicle information display
screen by sending a signal from a sensor that
is installed in each wheel. If the vehicle is
being driven with low tire pressure, the TPMS
will activate and warn you of it by the low tire
pressure warning light. This system will acti-
vate only when the vehicle is driven at speeds
above 16 mph (25 km/h). For additional in-
formation, see “Warning lights, indicator
lights and audible reminders” (P. 2-9) and
“Tire Pressure Monitoring System (TPMS)”
(P. 5-5).

WARNING

Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

If the low tire pressure warning light illu-
minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
OFF. If the light still illuminates while
driving after adjusting the tire pressure,
a tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire,
replace it with a replacement tire as soon
as possible. If no tires are flat and all tires
are properly inflated, have the vehicle
checked. It is recommended that you
visit an INFINITI retailer for this service.

EMERGENCY ENGINE SHUT OFF

FLAT TIRE

In case of emergency

6-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When using a wheel without TPMS such
as the spare tire, the TPMS will not func-
tion and the low tire pressure warning
light will flash for approximately 1 min-
ute. The light will remain on after 1 min-
ute. Have your tires replaced and/or
TPMS system reset as soon as possible.
It is recommended that you visit an
INFINITI retailer for these services.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.

RUN-FLAT TIRES

This vehicle is equipped with run-flat tires.
Run-flat tires can be used temporarily if they
are punctured. When the “Flat Tire — Visit
dealer” warning appears in the vehicle infor-
mation display, one or more of your tires is
punctured. For additional information, see
“Run-flat tires” (P. 8-36).

For additional information, refer to the tire
safety information in the Warranty Informa-
tion Booklet.

WARNING

Although you can continue driving with a
punctured run-flat tire, remember that
vehicle handling stability is reduced,
which could lead to an accident and per-
sonal injury. Also, driving a long distance
at high speeds may damage the tires.

Do not drive at speeds above 50 mph
(80 km/h) and do not drive more than
approximately 93 miles (150 km) with a
punctured run-flat tire. The actual dis-
tance the vehicle can be driven on a flat
tire depends on outside temperature,
vehicle load, road conditions and other
factors.

Drive safely at reduced speeds. Avoid
hard cornering or braking, which may
cause you to lose control of the vehicle.

If you detect any unusual sounds or vi-
brations while driving with a punctured
run-flat tire, pull off the road to a safe
location and stop the vehicle as soon as
possible. The tire may be seriously dam-
aged and need to be replaced.

CAUTION

Never install tire chains on a punctured
run-flat tire, as this could damage your
vehicle.

Avoid diving over any projection or pot-
hole, as the clearance between the ve-
hicle and the ground is smaller than
normal.

Do not enter an automated car wash
with a punctured run-flat tire.

Have the punctured tire inspected by an
INFINITI retailer or other authorized re-
pair shop. Replace the tire as soon as
possible if the tire is seriously damaged.

6-4

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To start your engine with a booster battery,
the instructions and precautions below must
be followed.

WARNING

If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also dam-
age your vehicle.

Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery.

Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a corro-
sive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.

Keep battery out of the reach of children.

The booster battery must be rated at 12
volts. Use of an improperly rated battery
can damage your vehicle.

Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.

Do not attempt to jump start a frozen
battery. It could explode and cause seri-
ous injury.

Your vehicle has an automatic engine
cooling fan. It could come on at any time.
Keep hands and other objects away from
it.

JUMP STARTING

In case of emergency

6-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Always follow the instructions below. Fail-
ure to do so could result in damage to the
charging system and cause personal injury.

1. If the booster battery is in another vehicle,

position the two vehicles to bring their
batteries near each other.

Do not allow the two vehicles to touch.

2. Apply the parking brake. Push the park

button to shift to the P (Park) position.
Switch off all unnecessary electrical sys-
tems (lights, heater, air conditioner, etc.).

3. Place the ignition switch to the LOCK or

OFF position.

4. Connect the jumper cables in the se-

quence illustrated (

O

A

,

O

B

,

O

C

,

O

D

).

CAUTION

Always connect positive (+) to positive
(+) and negative (−) to body ground (for
example, strut mounting bolt, engine lift
bracket, etc.) — not to the battery.

Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal.

5. Start the engine of the booster vehicle and

let it run for a few minutes.

6. Keep the engine speed of the booster ve-

hicle at about 2,000 rpm and start the
engine of the vehicle being jump started.

CAUTION

Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 3 to 4
seconds before trying again.

7. After starting the engine, carefully discon-

nect the negative cable and then the posi-
tive cable.

LCE2223

6-6

In case of emergency

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     11      12      13      14     ..
