Infiniti QX50 (2023 year). Manual in english - page 12





When an object that obstructs the

camera

unit

detection

range

is

attached

When excessively heavy baggage is

loaded in the rear seat or luggage
area of your vehicle

When the vehicle load capacity is

exceeded

When towing a trailer or other vehicle

Excessive noise will interfere with the
warning chime sound, and the beep may
not be heard.

For the ProPILOT Assist system to oper-
ate properly, the windshield in front of
the camera must be clean. Replace worn
wiper blades. The correct size wiper
blades must be used to help make sure
the windshield is kept clean. Only use
Genuine

INFINITI

wiper

blades,

or

equivalent wiper blades, that are specifi-
cally designed for use on your vehicle
model and model year. It is recommended
that you visit your INFINITI retailer for
the correct parts for your vehicle.

Steering Assist temporary standby

Automatic standby due to driving operation:

When the driver activates the turn signal, the
Steering Assist is temporarily placed in a
standby mode. (The Steering Assist restarts
automatically when the operating conditions
are met again.)

Automatic standby:

In the following cases, a warning message is
displayed along with the chime, and the
Steering Assist is placed in a temporary
standby mode. (The Steering Assist restarts
automatically when the operating conditions
are met again.)
• When lane markers on both sides are no

longer detected

• When a vehicle ahead is no longer detected

under approximately 37 mph (60 km/h)

Steering Assist cancel

Under the following conditions, the Steering
Assist cancels, and the Steering Assist status
indicator and the Steering Assist indicator
turn off:
• When unusual lane markers appear in the

traveling lane or when the lane marker can-
not be correctly detected for some time due
to certain conditions (for example, a snow

rut, the reflection of light on a rainy day, the
presence of several unclear lane markers)

• When the windshield wiper operates in the

high (HI) speed operation (the Steering As-
sist is disabled when the wiper operates for
more than approximately 10 seconds)

Action to take:

Turn the ICC system off using the CANCEL
switch. When the conditions listed above are
no longer present, turn the ICC system on
again.

Steering Assist malfunction

When the system malfunctions, it turns off
automatically. The Steering Assist status
warning illuminates (orange). A chime may
sound depending on the situation.

Action to take:

Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off, restart the engine, resume driving,
and set the Intelligent Cruise Control system
again. If the warning (orange) continues to
illuminate, the Steering Assist is malfunction-
ing. Although the vehicle is still drivable under
normal conditions, have the system checked.
It is recommended that you visit an INFINITI
retailer for this service.

Starting and driving

5-99

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

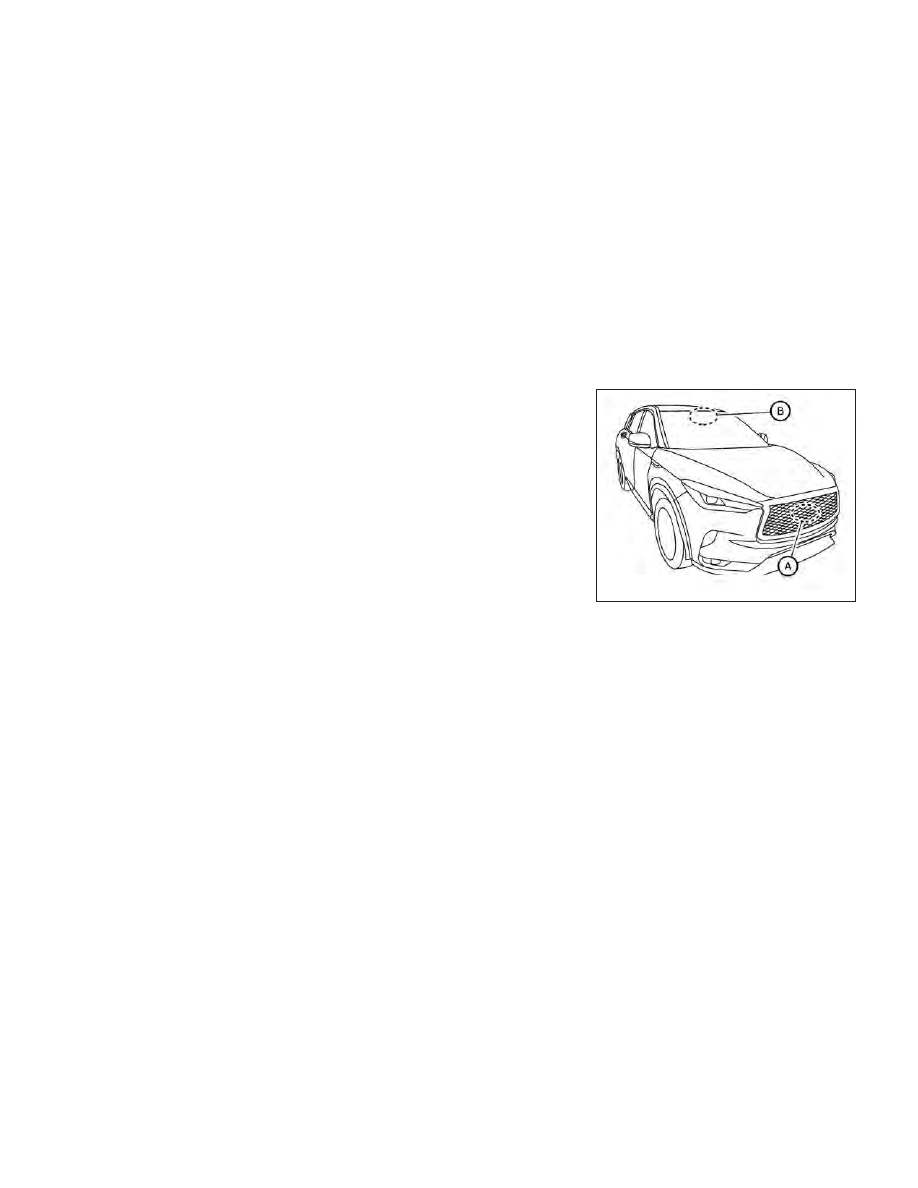

Steering Assist maintenance

The camera sensor is located above the in-
side mirror.

To keep the proper operation of the system
and prevent a system malfunction, be sure to
observe the following:
• Always keep the windshield clean.
• Do not attach a sticker (including transpar-

ent material) or install an accessory near
the camera unit.

• Do not place reflective materials, such as

white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s capability
of detecting the lane markers.

• Do not strike or damage the areas around

the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit.

If the camera unit is damaged due to an
accident, it is recommended that you visit an
INFINITI retailer.

Radio frequency statement

For USA/Canada

Model: ARS4–A

IC: 4135A-ARS4A

FCC ID: OAYARS4A

This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject
to the following two conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interference

received, including interference that may
cause undesired operation.

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:

1. L’appareil ne doit pas produire de brouil-

lage, et

2. L’utilisateur de l’appareil doit accepter

tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en com-
promettre le fonctionnement.

Radiofrequency radiation exposure
Information:

This equipment complies with FCC and IC
radiation exposure limits set forth for an un-
controlled environment.

This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.

This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.

Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps.

FCC Notice

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

5-100

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONVENTIONAL (fixed speed)
CRUISE CONTROL MODE

NOTE:

ProPILOT Assist provides no approach
warnings, automatic braking, or steering as-
sist in the conventional (fixed speed) cruise
control mode.

This mode allows driving at a speed between
25 to 90 mph (40 to 144 km/h) without
keeping your foot on the accelerator pedal.

WARNING

In the conventional (fixed speed) cruise
control mode, a warning chime does not
sound to warn you if you are too close to
the vehicle ahead, as neither the pres-
ence of the vehicle ahead nor the vehicle-
to-vehicle distance is detected.

Pay special attention to the distance be-
tween your vehicle and the vehicle ahead
of you or a collision could occur.

Always confirm the setting in the ICC
system display.

Do not use the conventional (fixed
speed) cruise control mode when driving
under the following conditions:

When it is not possible to keep the

vehicle at a set speed

In heavy traffic or in traffic that var-

ies in speed

On winding or hilly roads

On slippery roads (rain, snow, ice,

etc.)

In very windy areas

Doing so could cause a loss of vehicle
control and result in an accident.

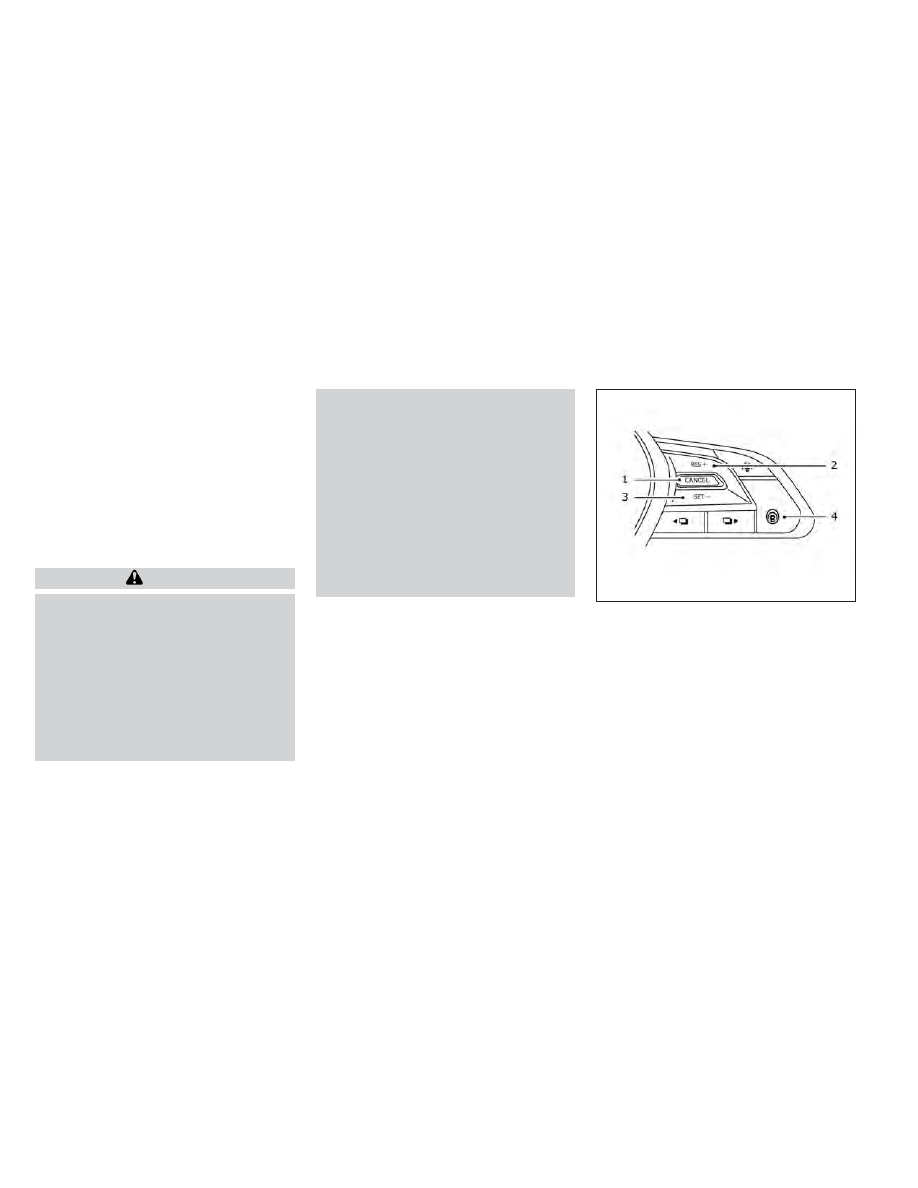

Conventional (fixed speed) cruise
control switches

1. CANCEL switch:

Deactivates the system without erasing
the set speed

2. RES+ switch:

Resumes set speed or increases speed
incrementally

3. SET- switch:

Sets desired cruise speed or reduces speed
incrementally

4. ProPILOT Assist switch:

Master switch to activate the system

LSD3076

Starting and driving

5-101

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

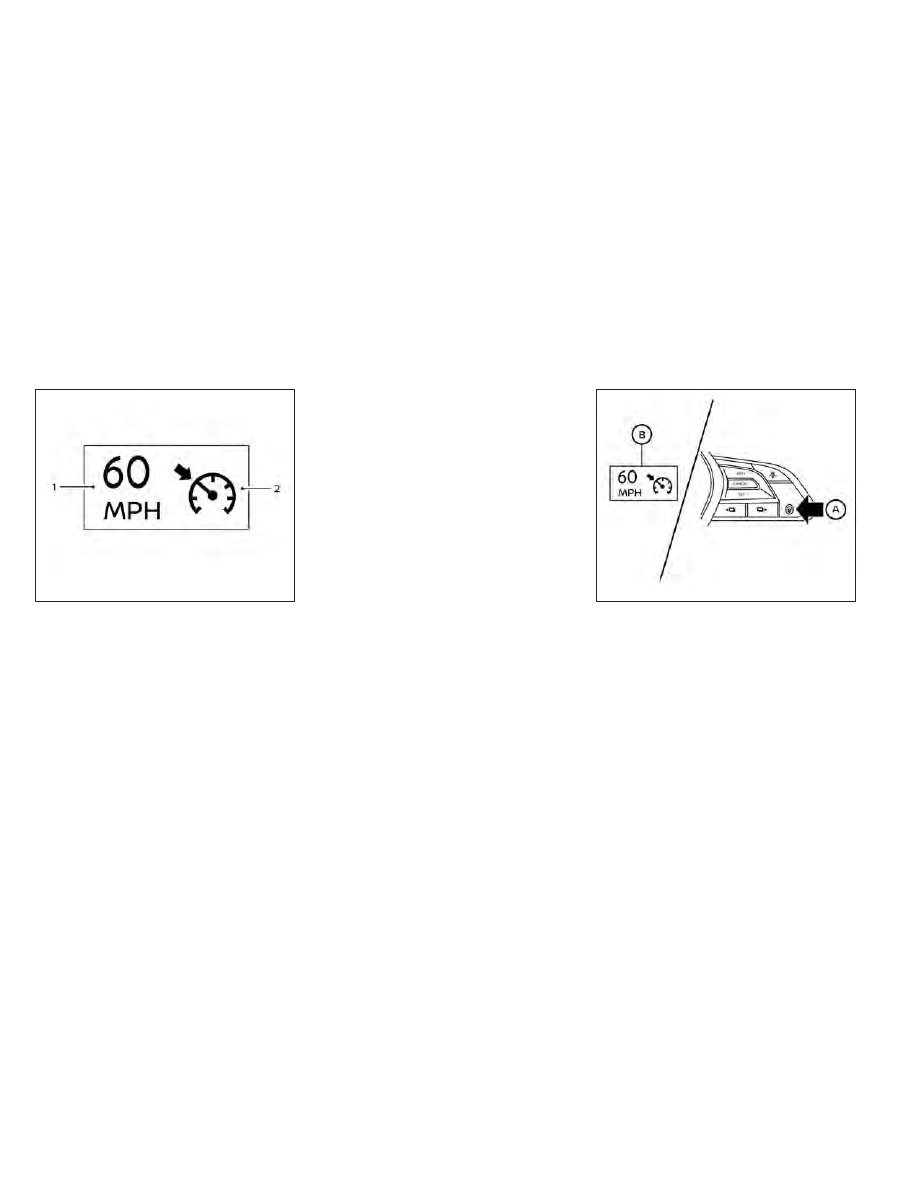

Conventional (fixed speed) cruise
control mode display and indicators

The display is located in the vehicle informa-
tion display.

1. Set vehicle speed indicator:

This indicator indicates the set vehicle
speed. For Canadian models, the speed is
displayed in km/h.

2. Cruise indicator:

This indicator indicates the condition of
the ICC system depending on a color.

• Cruise control ON indicator (gray): Indi-

cates that the ProPILOT Assist switch is on

• Cruise control SET indicator (green): Indi-

cates that the cruising speed is set

• Cruise control warning (yellow): Indicates

that there is a malfunction in the ICC
system

Operating conventional (fixed
speed) cruise control mode

To turn on the conventional (fixed speed)
cruise control mode, push and hold the Pro-
PILOT Assist switch

O

A

for longer than about

1.5 seconds.

When pushing the ProPILOT Assist switch
on, the conventional (fixed speed) cruise con-
trol mode display and indicators

O

B

are dis-

played in the vehicle information display.
After you hold the ProPILOT Assist switch
on for longer than about 1.5 seconds, the ICC
system display turns off. The cruise indicator

LSD3623

LSD3624

5-102

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

appears. You can now set your desired cruis-
ing speed. Pushing the ProPILOT Assist
switch again will turn the system completely
off. When the ignition switch is placed in the
OFF position, the system is also automati-
cally turned off.

To use the ICC system again, quickly push
and release the ProPILOT Assist switch
(vehicle-to vehicle distance control mode) or
push and hold it (conventional cruise control
mode) again to turn it on.

CAUTION

To avoid accidentally engaging cruise con-
trol, make sure to turn the ProPILOT Assist
switch off when not using the ICC system.

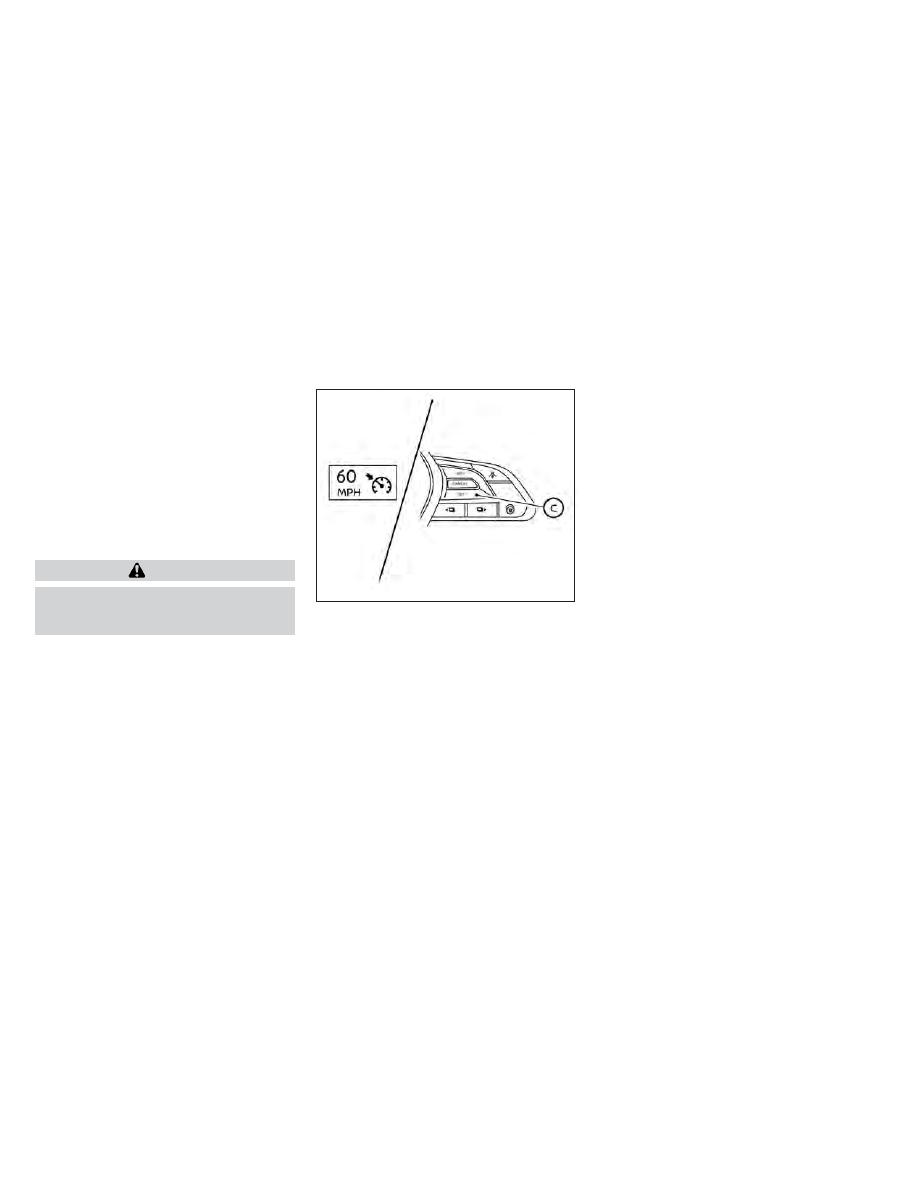

To set cruising speed, accelerate your vehicle
to the desired speed, push the SET-

O

C

switch and release it. (The color of the cruise
indicator changes to green and set vehicle
speed indicator comes on.) Take your foot off
the accelerator pedal. Your vehicle will main-
tain the set speed.
• To pass another vehicle, depress the accel-

erator pedal. When you release the pedal,
the vehicle will return to the previously set
speed.

• The vehicle may not maintain the set speed

when going up or down steep hills. If this
happens, manually maintain vehicle speed.

To cancel the preset speed, use any of the
following methods:

1. Push the CANCEL switch. The vehicle

speed indicator will turn off.

2. Tap the brake pedal. The vehicle speed

indicator will turn off.

3. Turn the ProPILOT Assist switch off.

Both the cruise indicator and vehicle
speed indicator will turn off.

To reset at a faster cruising speed, use one of
the following three methods:

1. Depress the accelerator pedal. When the

vehicle attains the desired speed, push
and release the SET- switch.

2. Push and hold the RES+ switch. When the

vehicle attains the desired speed, release
the switch.

3. Push, then quickly release the RES+ switch.

Each time you do this, the set speed will
increase by about 1 mph (1 km/h).

To reset at a slower cruising speed, use one
of the following three methods:

1. Lightly tap the brake pedal. When the ve-

hicle attains the desired speed, push the
SET- switch and release it.

LSD3625

Starting and driving

5-103

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Push and hold the SET- switch. Release

the switch when the vehicle slows down
to the desired speed.

3. Push, then quickly release the SET- switch.

Each time you do this, the set speed will
decrease by about 1 mph (1 km/h).

To resume the preset speed, push and release
the RES+ switch. The vehicle will resume the
last set cruising speed when the vehicle speed
is over 25 mph (40 km/h).

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the RAB system
could result in serious injury or death.

The RAB system is a supplemental aid to
the driver. It is not a replacement for
proper driving procedures. Always use
the side and rear mirrors and turn and
look in the direction you will move before
and while backing up. Never rely solely
on the RAB system. It is the driver’s
responsibility to stay alert, drive safely,
and be in control of the vehicle at all
times.

Inclement weather or ultrasonic sources
such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem; this may include reduced perfor-
mance or a false activation.

There is a limitation to the RAB system
capability. The RAB system is not effec-
tive in all situations.

The RAB system can assist the driver when
the vehicle is backing up and approaching
objects directly behind the vehicle.

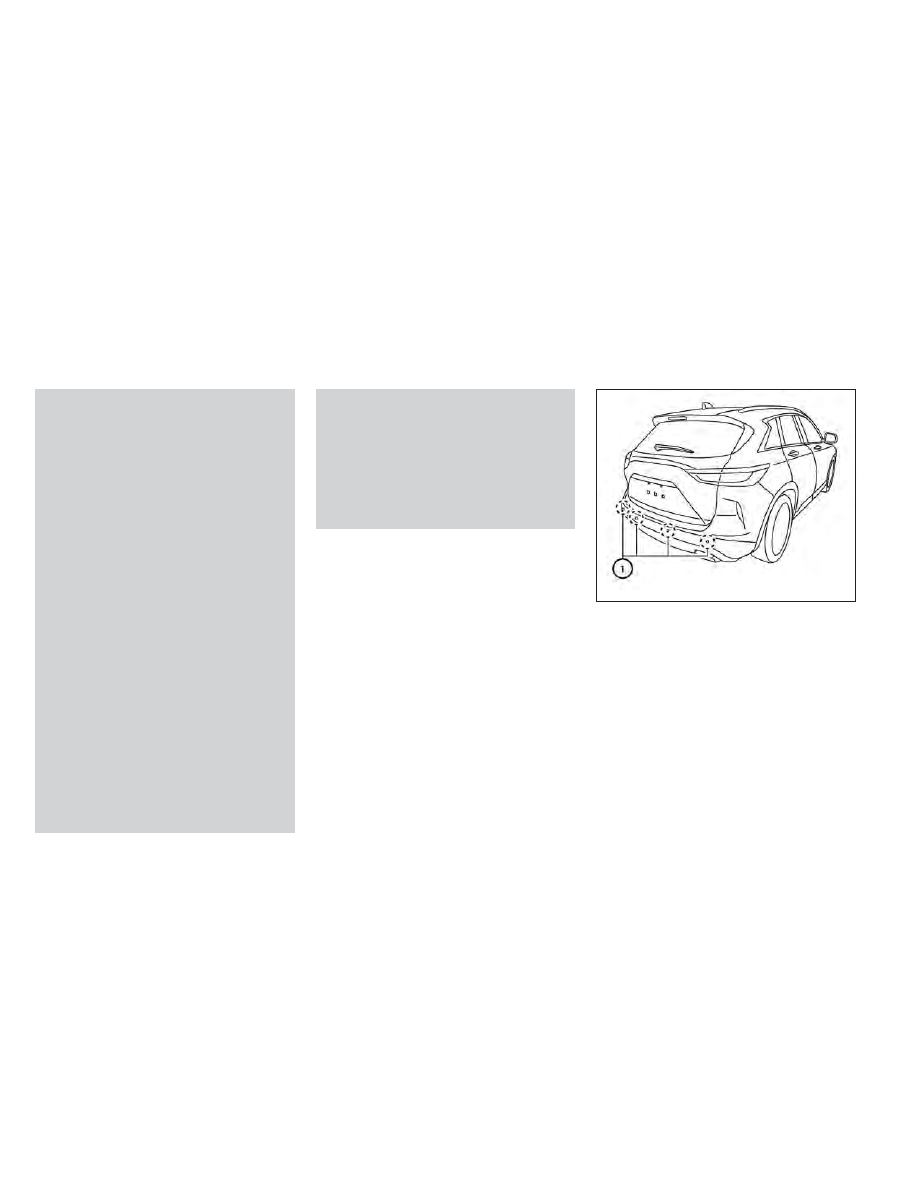

The RAB system detects obstacles behind
the vehicle using the parking sensors

O

1

lo-

cated on the rear bumper.

NOTE:

You can temporarily cancel the sonar func-
tion in the vehicle, but the RAB system will
continue to operate. For additional infor-
mation, see “Front and rear sonar system”
(P. 5-147).

LSD3559

REAR AUTOMATIC BRAKING (RAB)

5-104

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

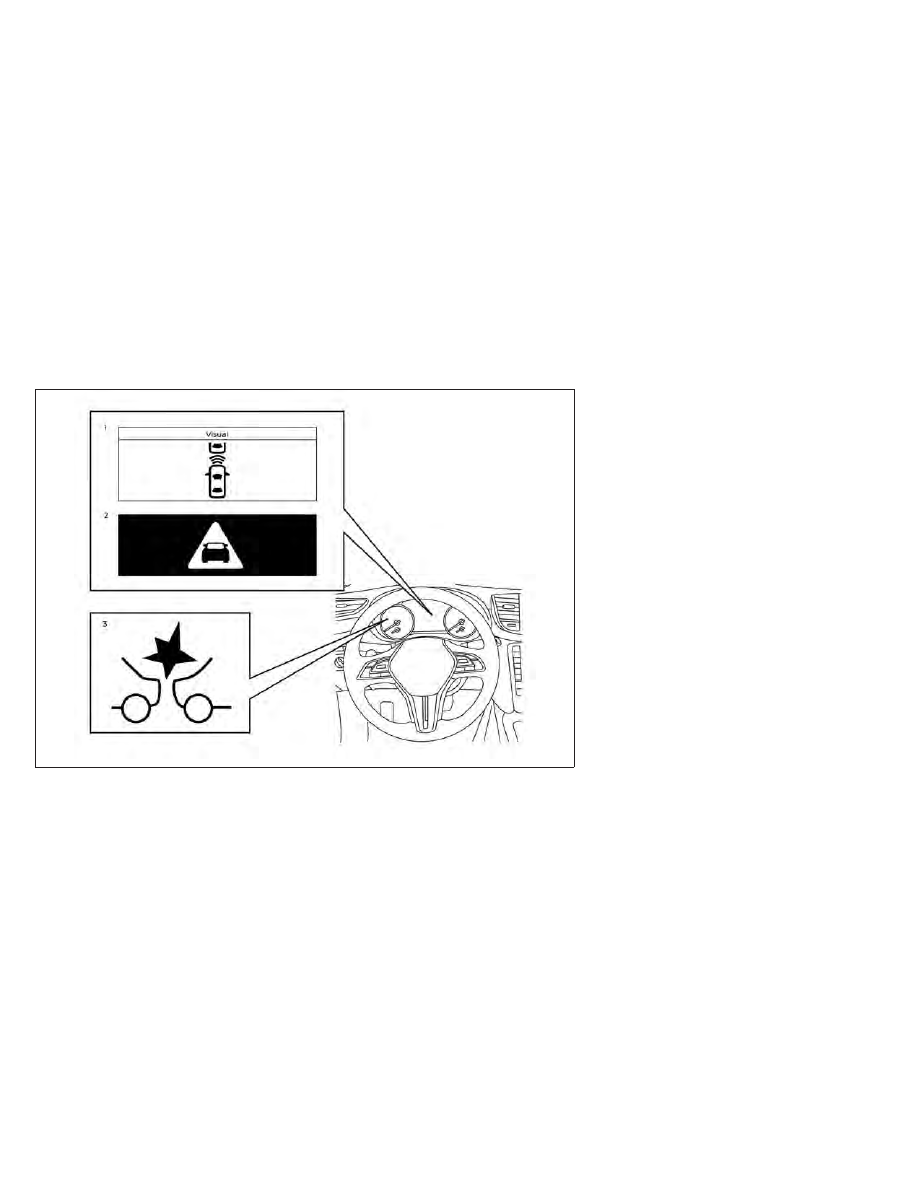

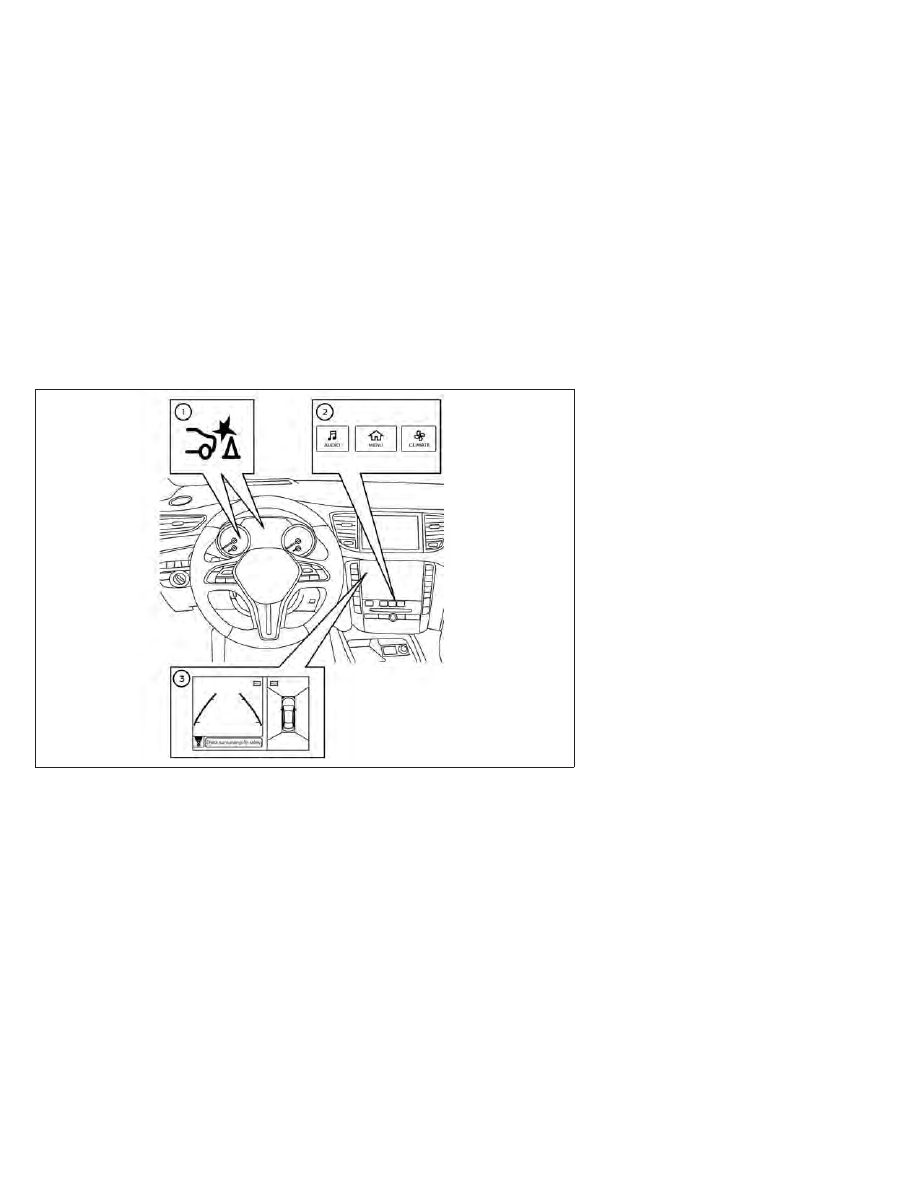

RAB SYSTEM OPERATION

1

RAB system warning light and RAB sys-
tem warning indicator

2

Lower display buttons

3

Center display (if so equipped)

When the shift lever is in the R (Reverse)
position and the vehicle speed is less than
approximately 9 mph (15 km/h), the RAB
system operates.

If a risk of a collision with an obstacle is
detected when your vehicle is backing up, the
RAB system warning indicator will flash in the
vehicle information display, a red frame will
appear in the center display (for vehicles with
the Around View® Monitor system), and the
system will chime three times. The system will
then automatically apply the brakes. After
the automatic brake application, the driver
must depress the brake pedal to maintain
brake pressure.

NOTE:

• The brake lights of the vehicle come on

when braking is performed by the RAB
system.

• When the brakes operate, a noise may be

heard. This is not a malfunction.

LSD4823

Starting and driving

5-105

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

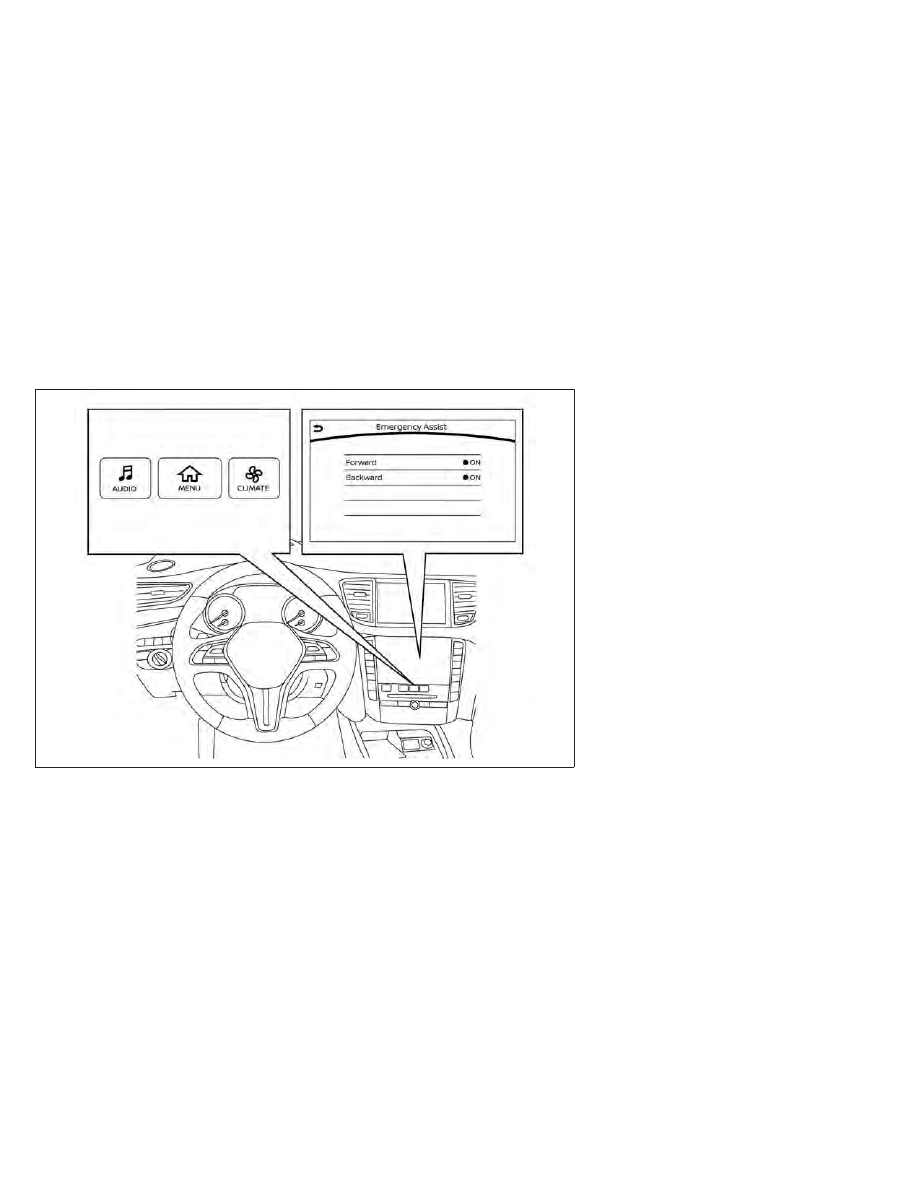

TURNING THE RAB SYSTEM
ON/OFF

Perform the following steps to turn the RAB
system ON or OFF.

1. Press the MENU button below the lower

display screen.

2. Select “Driver Assistance.”

3. Select “Emergency Assist.”

4. Select “ON” to turn the “Backward” sys-

tem on or off.

When the RAB system is turned off, the RAB
system warning light illuminates.

NOTE:

The RAB system will be automatically
turned on when the engine is restarted.

LSD4824

5-106

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RAB SYSTEM LIMITATIONS

WARNING

Listed below are the system limitations for
the RAB system. Failure to follow the
warnings and instructions for proper use of
the RAB system could result in serious in-
jury or death.

When the vehicle approaches an ob-
stacle while the accelerator or brake
pedal is depressed, the function may not
operate or the start of operation may be
delayed. The RAB system may not oper-
ate or may not perform sufficiently due
to vehicle conditions, driving conditions,
the traffic environment, the weather,
road surface conditions, etc. Do not wait
for the system to operate. Operate the
brake pedal by yourself as soon as
necessary.

If it is necessary to override RAB opera-
tion, strongly press the accelerator pedal.

Always check your surroundings and
turn to check what is behind you before
and while backing up. The RAB system
detects stationary objects behind the
vehicle. The RAB system does not detect
the following objects:

Moving objects

Low objects

Narrow objects

Wedge-shaped objects

Objects close to the bumper (less than

approximately 1 ft [30 cm])

Objects that suddenly appear

Thin objects such as rope, wire, chain,

etc.

The RAB system may not operate for the
following obstacles:

Obstacles located high off the ground

Obstacles in a position offset from

your vehicle

Obstacles, such as spongy materials or

snow, that have soft outer surfaces
and can easily absorb a sound wave

The RAB system may not operate in the
following conditions:

There is rain, snow, ice, dirt, etc., at-

tached to the sonar sensors.

A loud sound is heard in the area

around the vehicle.

The surface of the obstacle is diago-

nal to the rear of the vehicle.

The RAB system may unintentionally op-
erate in the following conditions:

There is overgrown grass in the area

around the vehicle.

There is a structure (e.g., a wall, toll

gate equipment, a narrow tunnel, a
parking lot gate) near the side of the
vehicle.

There are bumps, protrusions, or

manhole covers on the road surface.

The vehicle drives through a draped

flag or a curtain.

There is an accumulation of snow or

ice behind the vehicle.

An ultrasonic wave source, such as

another vehicle’s sonar, is near the
vehicle.

Once the automatic brake control oper-
ates, it does not operate again if the ve-
hicle approaches the same obstacle.

The automatic brake control can only
operate for a short period of time. There-
fore, the driver must depress the brake
pedal.

In the following situations, the RAB sys-
tem may not operate properly or may not
function sufficiently:

The vehicle is driven in bad weather

(rain, fog, snow, etc.).

The vehicle is driven on a steep hill.

The vehicle’s posture is changed (e.g.,

when driving over a bump).

Starting and driving

5-107

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The vehicle is driven on a slippery

road.

The vehicle is turned sharply by turn-

ing the steering wheel fully.

Snow chains are used.

Wheels or tires other than INFINITI

recommended are used.

The brakes are cold at low ambient

temperatures or immediately after
driving has started.

The braking force becomes poor due

to wet brakes after driving through a
puddle or washing the vehicle.

Turn the RAB system off in the following
conditions to prevent the occurrence of
an unexpected accident resulting from
sudden system operation:

The vehicle is towed.

The vehicle is carried on a flatbed truck.

The vehicle is on the chassis dyna-

mometer.

The vehicle drives on an uneven road

surface.

Suspension parts other than those

designated

as

Genuine

INFINITI

parts are used. (If the vehicle height
or the vehicle body inclination is
changed, the system may not detect
an obstacle correctly.)

The vehicle is towing an object (if so

equipped).

If a vehicle is using an accessory like a

bike rack, or cargo carrier that blocks
the sensors.

Excessive noise (e.g., audio system vol-
ume, an open vehicle window) will inter-
fere with the chime sound, and it may not
be heard.

SYSTEM MALFUNCTION

If the RAB system malfunctions, it will be
turned off automatically, the RAB system
warning light will illuminate, and the “System
fault” warning message will appear in the
vehicle information display.

Action to take

If the warning light illuminates, park the ve-
hicle in a safe location, turn the engine off,
and restart the engine. If the warning light
continues to illuminate, have the RAB system
checked. It is recommended that you visit an
INFINITI retailer for this service.

NOTE:

If the RAB system cannot be operated tempo-
rarily, the RAB system warning light blinks.

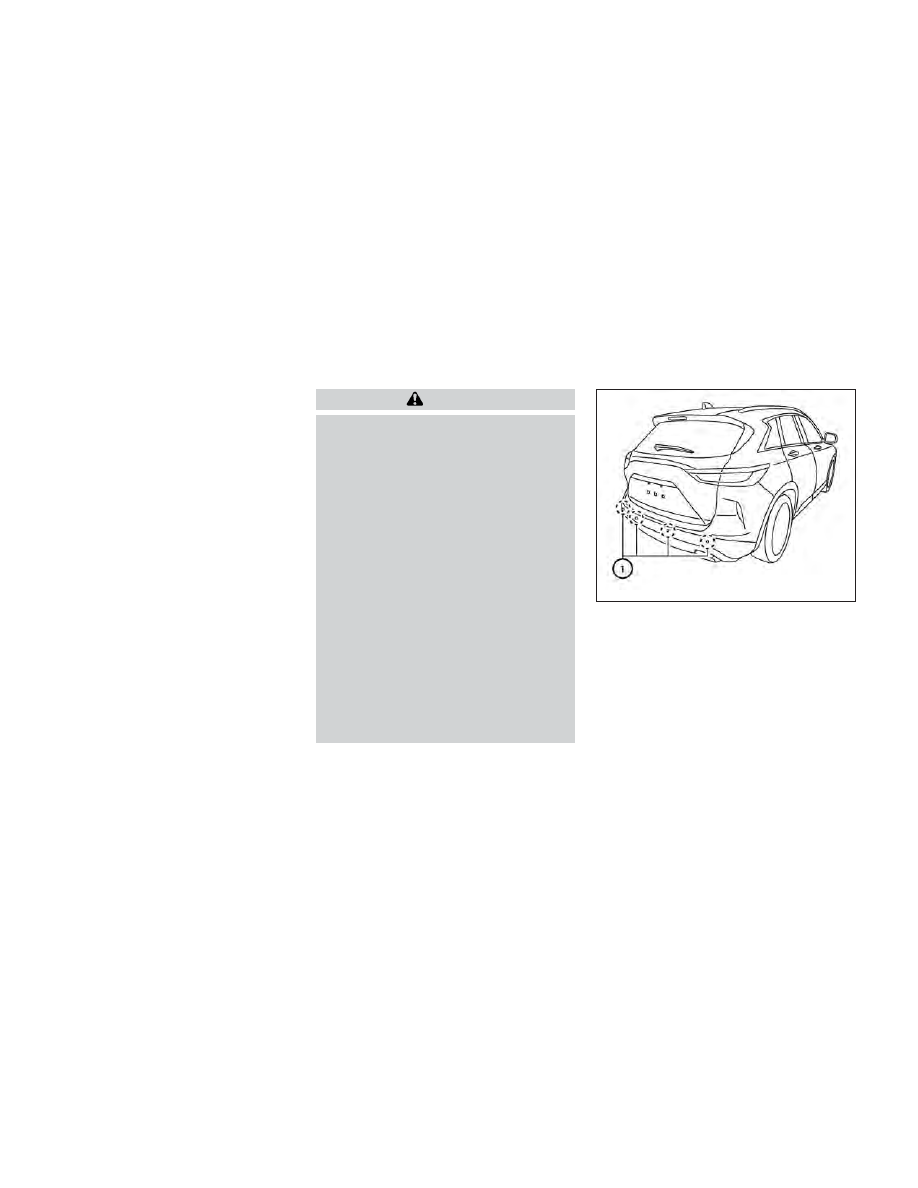

SYSTEM MAINTENANCE

Observe the following items to ensure proper
operation of the system:
• Always keep the parking sensors

O

1

clean.

• If the parking sensors are dirty, wipe them

off with a soft cloth while being careful to
not damage them.

• Do not subject the area around the parking

sensors

O

1

to strong impact. Also, do not

remove or disassemble the parking sensors.

LSD3559

5-108

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the parking sensors and peripheral areas
are deformed in an accident, etc., have the
sensors checked. It is recommended that
you visit an INFINITI retailer for this service.

• Do not install any stickers (including trans-

parent stickers) or accessories on the park-
ing sensors

O

1

and their surrounding areas.

This may cause a malfunction or improper
operation.

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the FEB with Pedes-
trian Detection system could result in seri-
ous injury or death.

The FEB with Pedestrian Detection sys-
tem is a supplemental aid to the driver. It
is not a replacement for the driver’s at-
tention to traffic conditions or responsi-
bility to drive safely. It cannot prevent
accidents due to carelessness or danger-
ous driving techniques.

The FEB with Pedestrian Detection sys-
tem does not function in all driving, traf-
fic, weather and road conditions.

The FEB with Pedestrian Detection system
can assist the driver when there is a risk of a
forward collision with the vehicle ahead in the
traveling lane or with a pedestrian ahead in
the traveling lane.

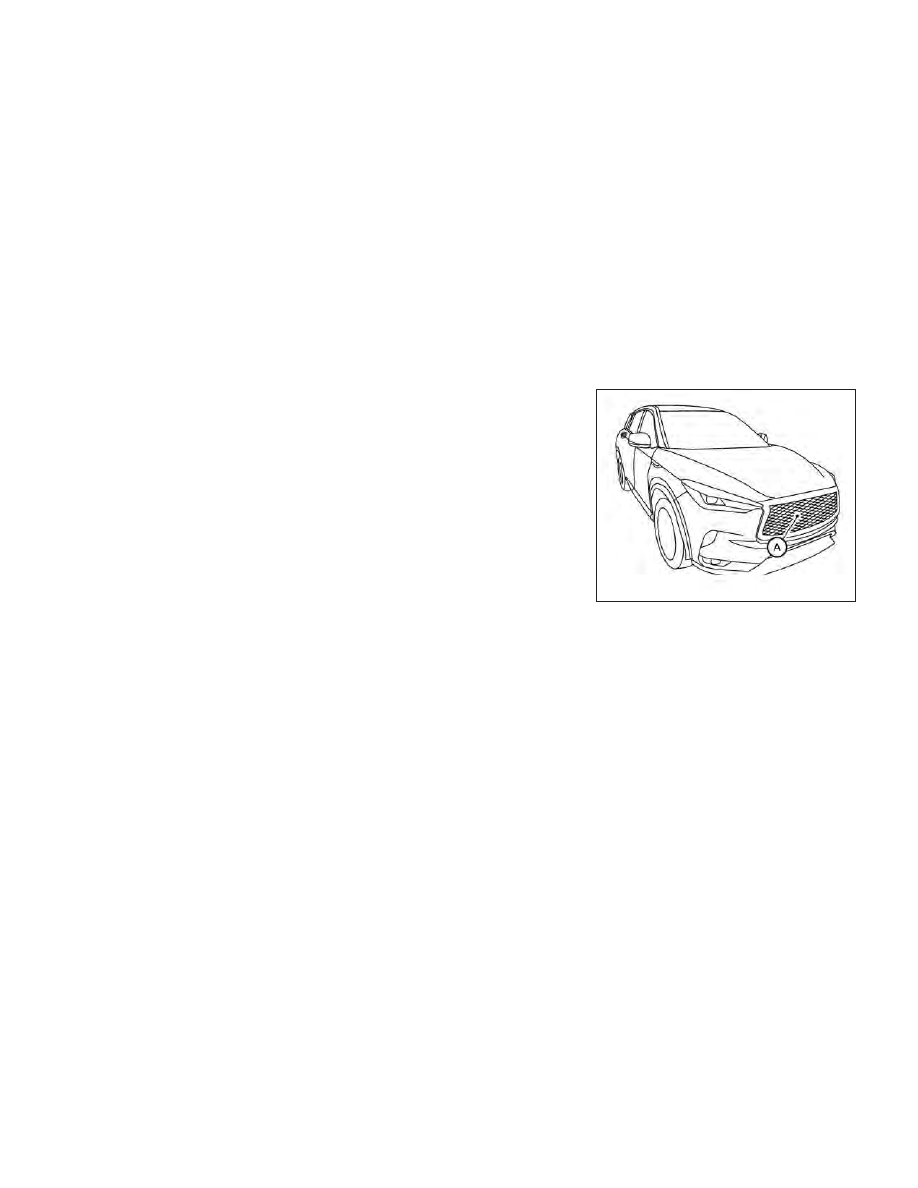

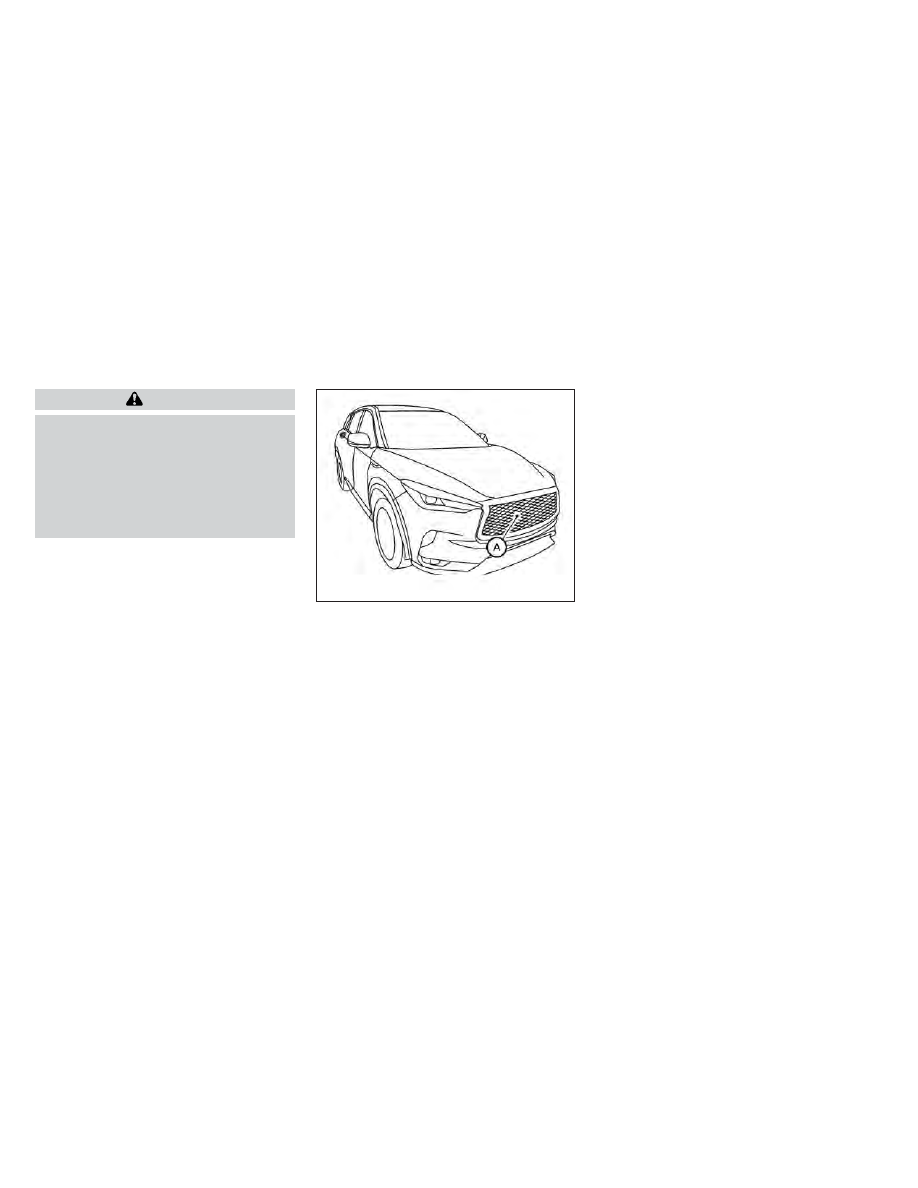

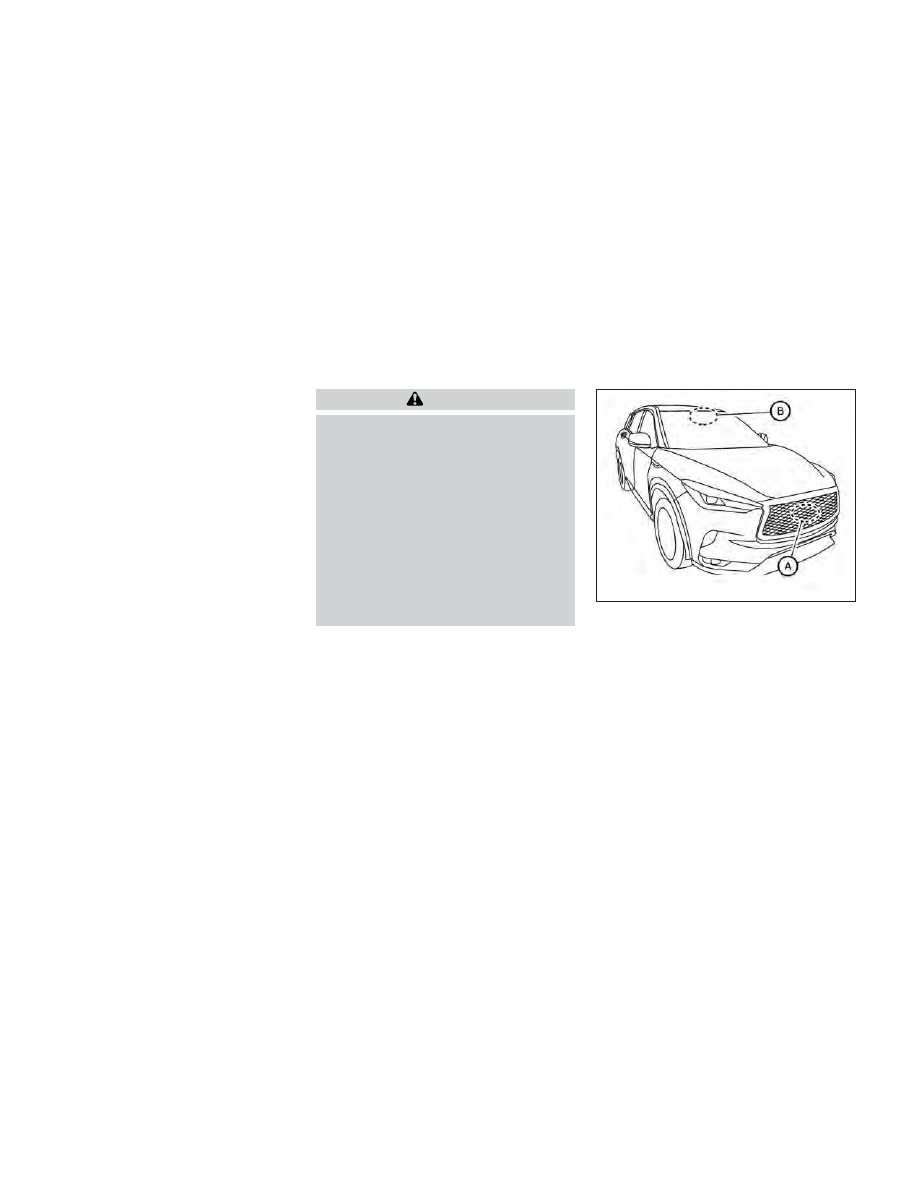

The FEB with Pedestrian Detection system
uses a radar sensor

O

A

located on the front of

the vehicle to measure the distance to the
vehicle ahead in the same lane. For pedestri-
ans, the FEB with Pedestrian Detection sys-
tem uses a camera

O

B

installed behind the

windshield in addition to the radar sensor.

LSD2954

FORWARD EMERGENCY BRAKING
(FEB) WITH PEDESTRIAN
DETECTION SYSTEM

Starting and driving

5-109

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

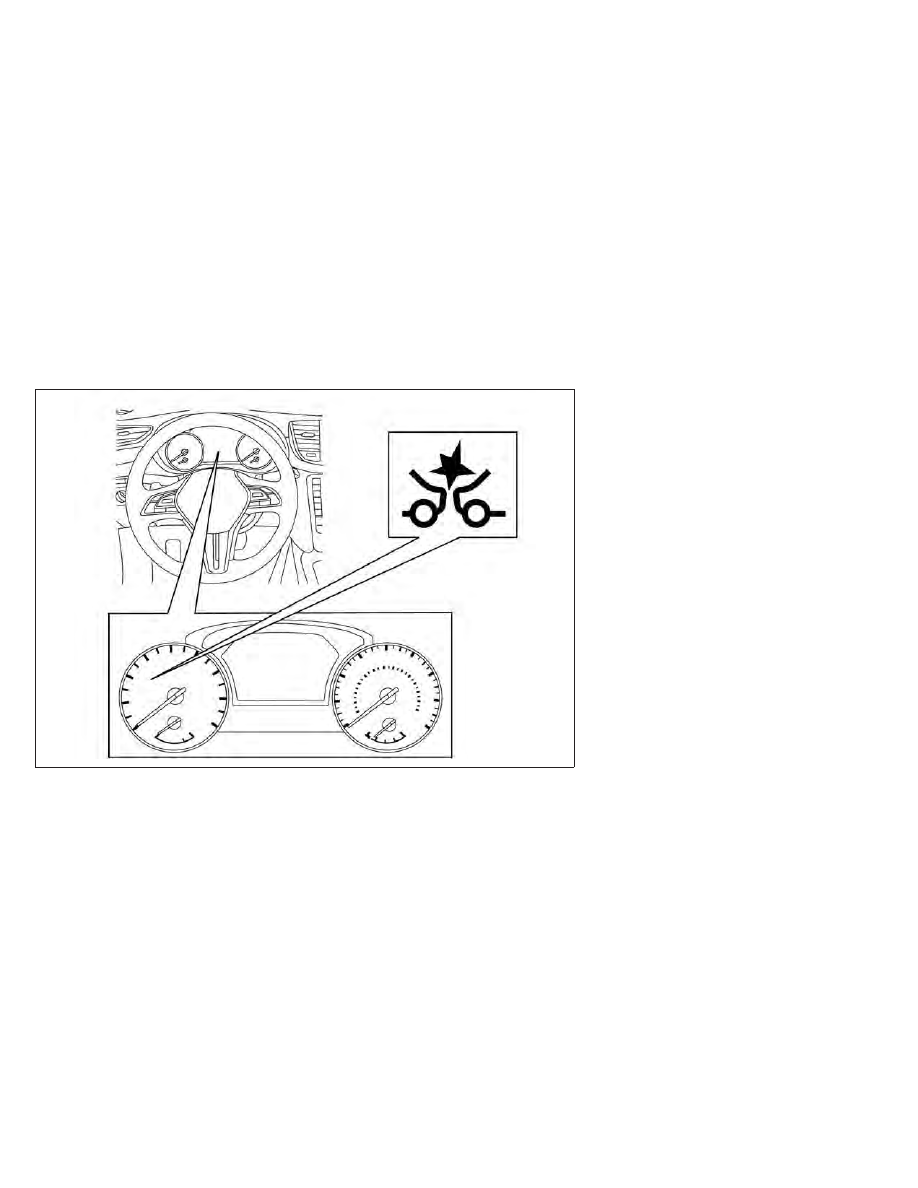

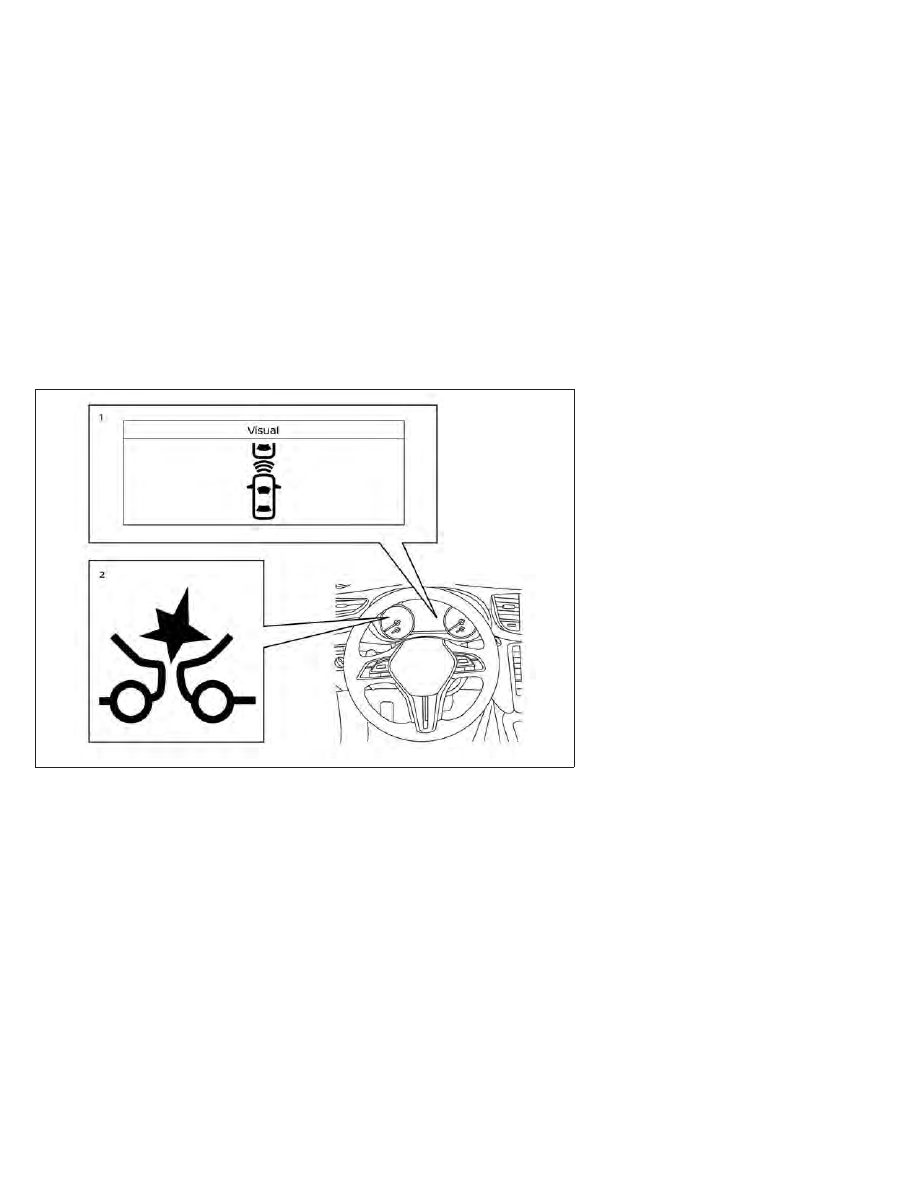

SYSTEM OPERATION

1. Vehicle ahead detection indicator

2. FEB with Pedestrian Detection emergency

warning indicator

3. FEB with Pedestrian Detection system

warning light

The FEB with Pedestrian Detection system
operates at speeds above approximately
3 mph (5 km/h). For the pedestrian detection
function, the FEB with Pedestrian Detection
system operates at speeds between approxi-
mately 6 – 37 mph (10 – 60 km/h).

If a risk of a forward collision is detected, the
FEB with Pedestrian Detection system will
firstly provide the warning to the driver by
flashing the vehicle ahead detection indicator
(yellow) in the vehicle information display and
providing an audible alert. If the driver applies
the brakes quickly and forcefully after the
warning, and the FEB with Pedestrian De-
tection system detects that there is still the
possibility of a forward collision, the system
will automatically increase the braking force.

If the driver does not take action, the FEB
with Pedestrian Detection system issues the
second visual (flashing) (red and white) and
audible warning. If the driver releases the
accelerator pedal, then the system applies
partial braking. If the risk of a collision be-
comes imminent, the FEB with Pedestrian
Detection system applies harder braking
automatically.

LSD3919

5-110

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

While the FEB with Pedestrian Detection
system is operating, you may hear the sound
of brake operation. This is normal and indi-
cates that the FEB with Pedestrian Detection
system is operating properly.

NOTE:

The vehicle’s brake lights come on when any
braking is performed by the FEB with Pedes-
trian Detection system.

Depending on vehicle speed and distance to
the vehicle or pedestrian ahead, as well as
driving and roadway conditions, the system
may help the driver avoid a forward collision
or may help mitigate the consequences if a
collision should be unavoidable. If the driver is
handling the steering wheel, accelerating or
braking, the FEB with Pedestrian Detection
system will function later or will not function.

The automatic braking will cease under the
following conditions:
• When the steering wheel is turned to avoid

a collision.

• When the accelerator pedal is depressed.
• When there is no longer a vehicle or a pe-

destrian detected ahead.

If the FEB with Pedestrian Detection system
has stopped the vehicle, the vehicle will re-
main at a standstill for approximately 2 sec-
onds before the brakes are released.

Starting and driving

5-111

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TURNING THE FEB WITH
PEDESTRIAN DETECTION

SYSTEM ON/OFF

Perform the following steps to enable or dis-
able the FEB with Pedestrian Detection
system.

1. Press the MENU button below the lower

display screen.

2. Select “Driver Assistance.”

3. Select “Emergency Assist.”

4. Select “ON” to turn the “Forward” system

on or off.

When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.

NOTE:

• The FEB with Pedestrian Detection sys-

tem will be automatically turned on when
the engine is restarted.

• The Predictive Forward Collision Warning

(PFCW) system (if so equipped) is inte-
grated into the FEB with Pedestrian De-
tection system. There is not a separate se-
lection in the lower display for the PFCW
system. When the FEB with Pedestrian
Detection is turned off, the PFCW system
is also turned off.

LSD4824

5-112

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.

The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.

The FEB with Pedestrian Detection sys-
tem does not detect the following:

Pedestrians that are small (for ex-
ample, children), in a sitting posi-
tion, operating toys/skateboards, on
scooters or in wheelchairs, or not in an
upright standing or walking position.

Animals of any size.

Obstacles (for examples, cargo or de-
bris) on the roadway or roadside.

Oncoming or crossing vehicles.

Vehicles where the tires are difficult
to see or the shape of the rear of the
vehicle is unclear or obstructed.

Parked vehicles.

The FEB with Pedestrian Detection sys-
tem has some performance limitations.

If a stationary vehicle is in the vehi-
cle’s path, the FEB with Pedestrian
Detection system will not function
when the vehicle approaches the sta-
tionary vehicle at speeds over ap-
proximately 50 mph (80 km/h).

Pedestrian detection will not func-
tion when the vehicle is driven at
speeds over approximately 37 mph
(60 km/h) or below approximately
6 mph (10km/h).

For pedestrians, the FEB with Pedes-
trian Detection system will not issue the
first warning.

The FEB with Pedestrian Detection sys-
tem may not function properly or detect
a vehicle or pedestrian ahead in the fol-
lowing conditions:

In poor visibility conditions (such as
rain, snow, fog, dust storms, sand
storms, smoke, and road spray from
other vehicles).

If dirt, ice, snow, fog or other material
is covering the radar sensor area or
camera area of windshield.

If strong light (for example, sunlight
or high beams) enters the front cam-
era or a sudden change in brightness
occurs (for example, entering a tun-
nel or driving in lightning).

In dark or dimly lit conditions, such as
at night or in tunnels, including cases
where your vehicle’s headlights are
off or dim, or the tail lights of the
vehicle ahead are off.

When the direction of the camera is
misaligned.

When driving on a steep downhill
slope, on roads with sharp curves,
and/or bumpy or dirt roads.

If there is interference by other radar
sources.

When your vehicle’s position or
movement is changed quickly or sig-
nificantly (for example, lane change,
turning vehicle, abrupt steering, sud-
den acceleration or deceleration).

Starting and driving

5-113

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When your vehicle or the vehicle or
pedestrian ahead moves quickly or
significantly such that the system
cannot detect and react in time (for
example, pedestrian moving quickly
toward the vehicle at close range, ve-
hicle cutting in, changing lanes, mak-
ing a turn, steering abruptly, sudden
acceleration or deceleration).

When the vehicle or pedestrian is off-
set from the vehicle’s forward path.

If the speed difference between the
two vehicles is small.

The pedestrian’s profile is partially
obscured or unidentifiable; for ex-
ample, due to transporting luggage,
pushing a stroller, wearing bulky or
very loose-fitting clothing or acces-
sories, or being in a unique posture
(such as raising hands).

There is poor contrast of a person to
the background, such as having
clothing color or pattern which is
similar to the background.

For approximately 15 seconds after
starting the engine.

If the vehicle ahead has a unique or
unusual shape, extremely low or high
clearance heights, or unusual cargo
loading or is narrow (for example, a
motorcycle).

When the vehicle or pedestrian is lo-
cated near a traffic sign, a reflective
area (for example, water on road), or
is in a shadow.

When

multiple

pedestrians

are

grouped together.

When the view of the pedestrian is
obscured by a vehicle or other object.

While towing a trailer or other
vehicle.

The system performance may be de-
graded in the following conditions:

The vehicle is driven on a slippery
road.

The vehicle is driven on a slope.

Excessively heavy baggage is loaded
in the rear seat or the cargo area of
your vehicle.

The system is designed to automatically
check the sensor’s (radar and camera)
functionality, within certain limitations.
The system may not detect some forms
of obstruction of the sensor area such as
ice, snow or stickers, for example. In
these cases, the system may not be able
to warn the driver properly. Be sure that
you check, clean and clear sensor areas
regularly.

In some road and traffic conditions, the
FEB with Pedestrian Detection system
may unexpectedly apply partial braking.
When acceleration is necessary, depress
the accelerator pedal to override the
system.

The FEB with Pedestrian Detection sys-
tem may operate when a pattern, object,
shadow or lights are detected that are
similar to the outline of vehicles or pe-
destrians, or if they are the same size and
position as a vehicle or motorcycle’s tail
lights.

The system may keep operating when
the vehicle ahead is turning right or left.

The system may operate when your ve-
hicle is approaching and passing a vehicle
ahead.

Depending on the road shape (curved
road, entrance and exit of the curve,
winding road, lane regulation, under
construction, etc.), the system may
operate temporarily for the oncoming
vehicle in front of your vehicle.

5-114

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.

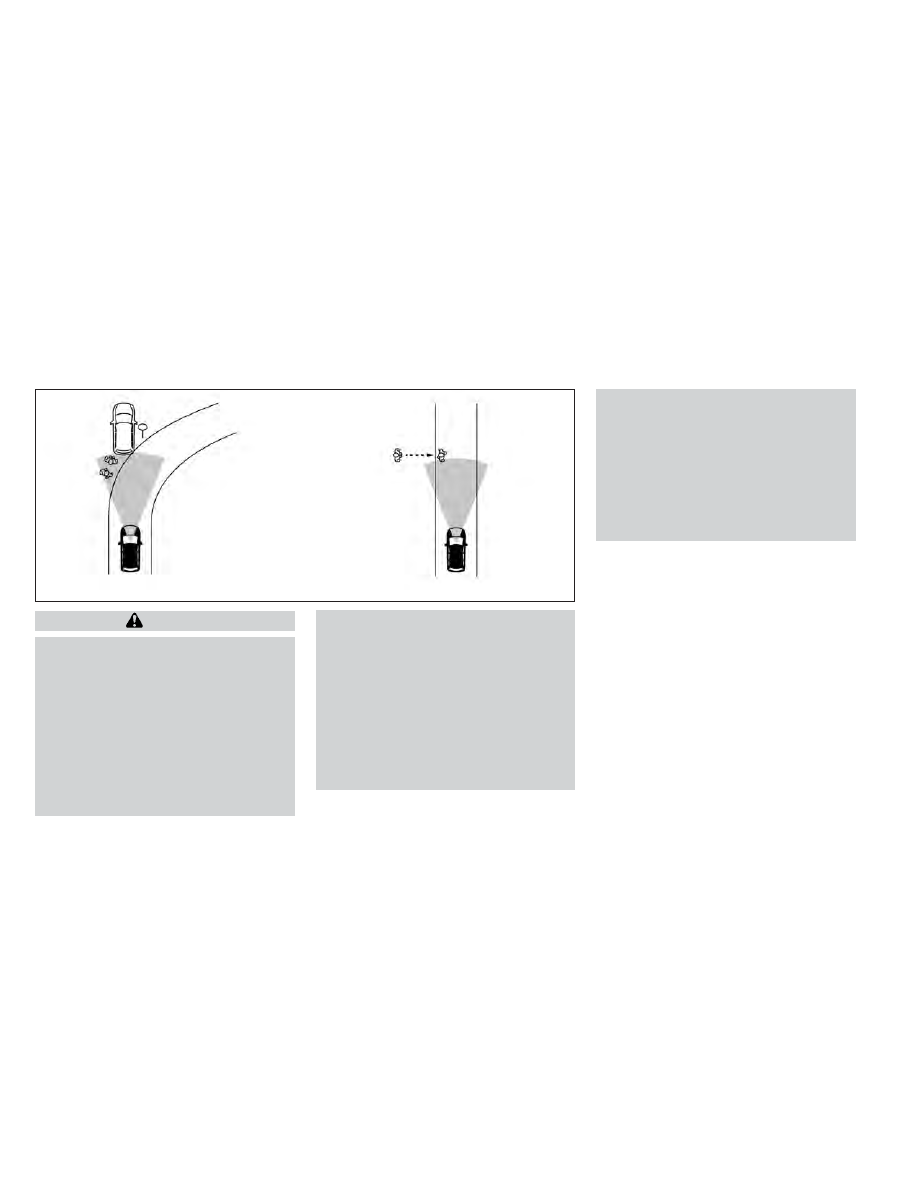

The FEB with Pedestrian Detection sys-
tem may react to:

objects on the roadside (traffic sign,
guardrail, pedestrian, motorcycle,
vehicle, etc.)

pedestrians when driving on the nar-
row alleys, etc.

pedestrians who temporarily pro-
trude into or approaching the driving
lane to avoid the obstacles on the
road shoulder

objects above road (low bridge, traf-
fic sign, etc.)

objects on the road surface (railroad
track, grate, steel plate, etc.)

objects in the parking garage (beam,
pillar, etc.)

pedestrians or motorcycles approach-
ing the travelling lane

vehicles, pedestrians, motorcycles or
objects in adjacent lanes or close to
the vehicle

oncoming pedestrians

objects on the road (such as trees)

Braking distances increase on slippery
surfaces.

Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.

LSD4248

Starting and driving

5-115

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

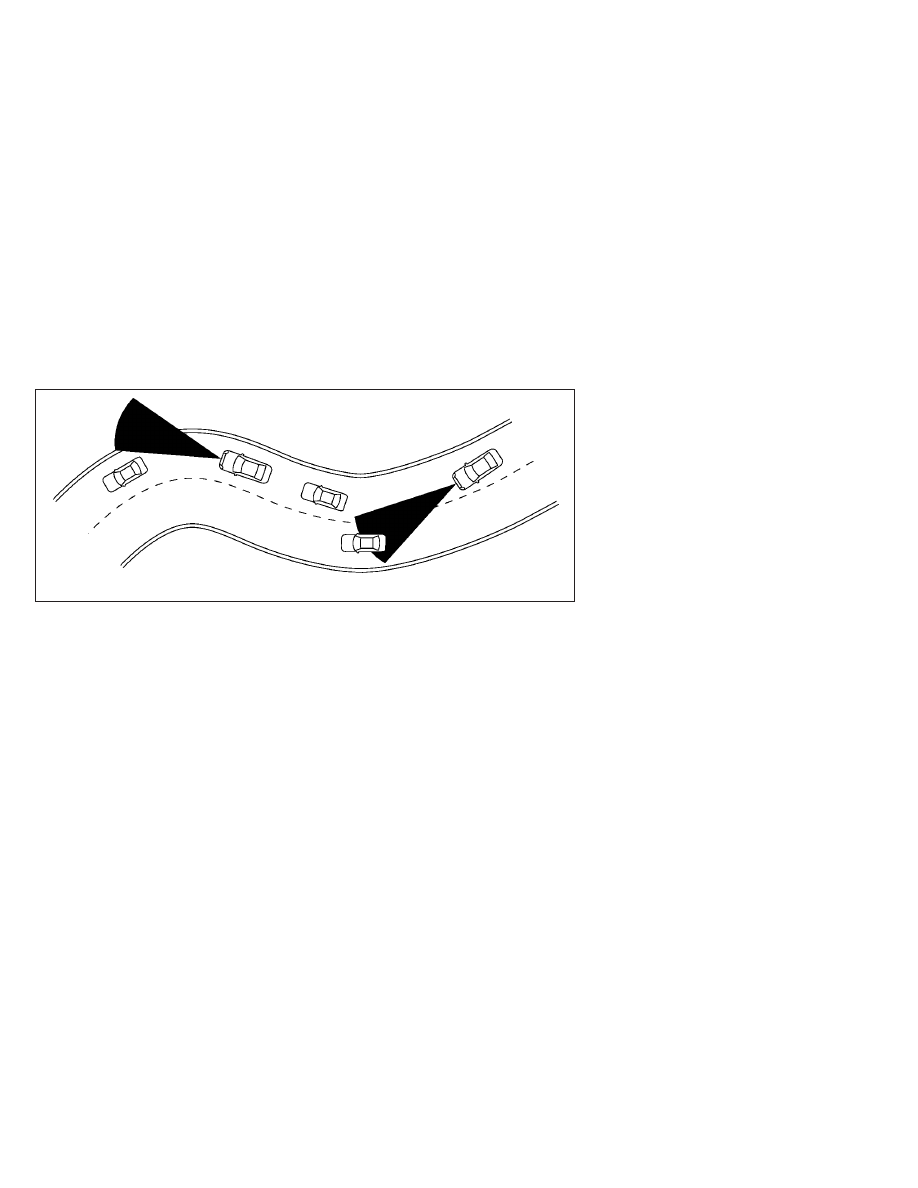

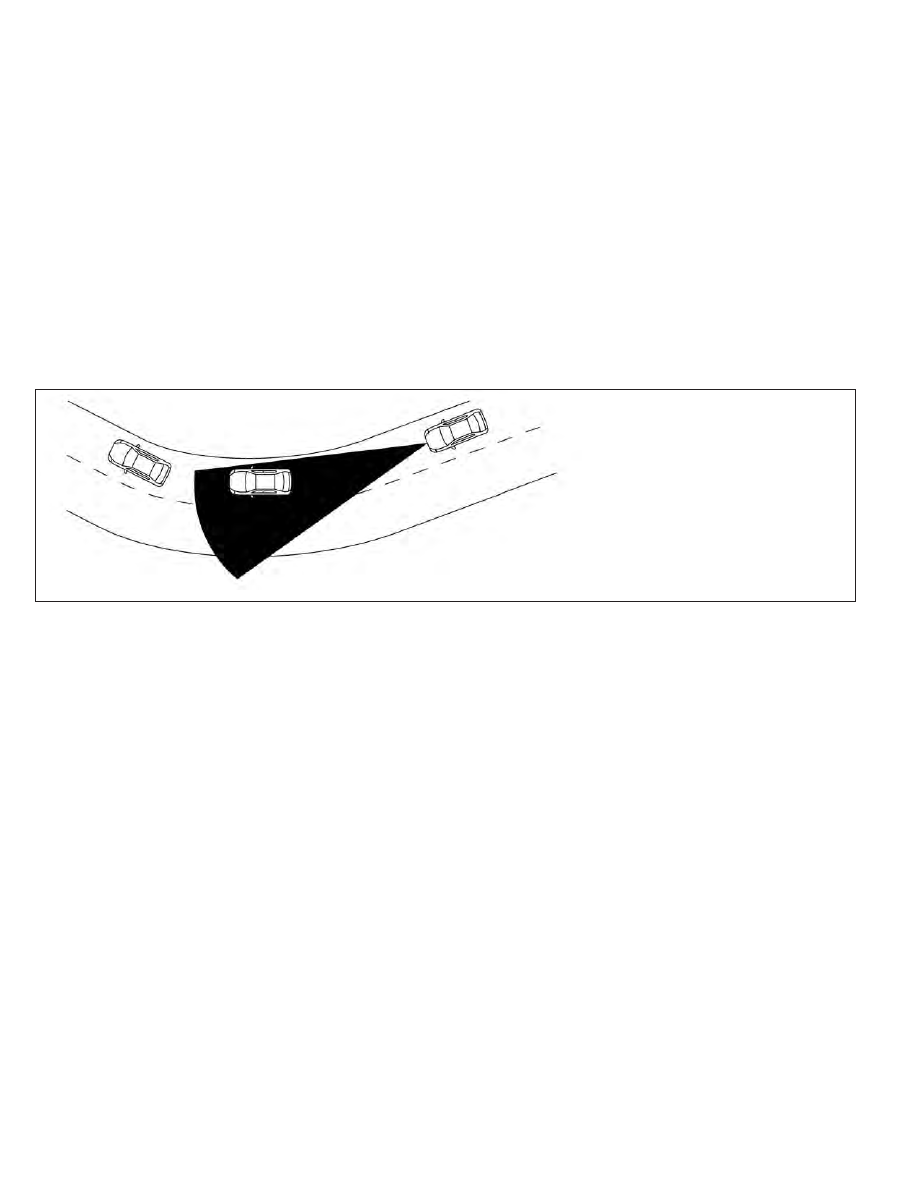

When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the sensor may
detect vehicles in a different lane, or may
temporarily not detect a vehicle traveling
ahead. This may cause the system to work
inappropriately.

The detection of vehicles may also be af-
fected by vehicle operating (steering maneu-
ver or traveling position in the lane, etc.) or
vehicle condition. If this occurs, the system
may warn you by blinking the system indica-
tor and sounding the chime unexpectedly.

You will have to manually control the proper
distance away from the vehicle traveling
ahead.

SSD0253

5-116

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM TEMPORARILY

UNAVAILABLE

Condition A:

In the following conditions, the FEB with
Pedestrian Detection system warning light
blinks and the system will be turned off
automatically.
• The radar sensor picks up interference from

another radar source.

• The camera area of the windshield is

misted or frozen.

• Strong light is shining from the front.
• The cabin temperature is over approxi-

mately 104°F (40°C) in direct sunlight.

• The camera area of the windshield glass is

continuously covered with dirt, etc.

Action to take

When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.

NOTE:

When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON.
If dirt appears on this area have it checked.
It is recommended that you visit an INFINITI
retailer for this service.

LSD3920

Starting and driving

5-117

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Condition B:

In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate, the system will be turned off au-
tomatically and the “Forward Driving Aids
temporarily disabled Front Sensor blocked
See Owner’s Manual” warning message will
appear in the vehicle information display.
• The sensor area of the front bumper is

covered with dirt or is obstructed.

Action to take

If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift po-
sition in the P (Park) position and turn the
engine off. Clean the radar sensor area of the
front bumper or the camera area of the wind-
shield with a soft cloth, and restart the engine.
If the warning light continues to illuminate,
have the FEB with Pedestrian Detection sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.

Condition C:

When driving on roads with limited road struc-
tures or buildings (for example, long bridges,
deserts, snow fields, driving next to long walls).

Action to take

When the above conditions no longer exist,
the FEB with pedestrian detection system
will resume automatically.

NOTE:

If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.

SYSTEM MALFUNCTION

If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.

Action to take

If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.

NOTE:

If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.

SYSTEM MAINTENANCE

The radar sensor

O

A

is located on the front of

the vehicle. The camera

O

B

is located on the

upper side of the windshield.

To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
• Always keep sensor areas of the front

bumper and windshield clean.

• Do not strike or damage the areas around

the sensors (ex. Bumper, windshield).

LSD2954

5-118

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Do not cover or attach stickers, or install

any accessory near the sensors. This could
block sensor signals, and/or cause failure
or malfunction.

• Do not attach metallic objects near the ra-

dar sensor (brush guard, etc.). This could
cause failure or malfunction.

• Do not place reflective materials, such as

white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit's detection
capability.

• Do not alter, remove or paint the front

bumper. Before customizing or restoring
the front bumper, it is recommended that
you visit an INFINITI retailer.

Radio frequency statement

For USA/Canada

Model: ARS4–A

IC: 4135A-ARS4A

FCC ID: OAYARS4A

This device complies with Part 15 of the FCC
Rules and with Industry Canada licence-
exempt RSS standard(s). Operation is subject
to the following two conditions:

1. This device may not cause harmful inter-

ference, and

2. This device must accept any interference

received, including interference that may
cause undesired operation.

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:

1. L’appareil ne doit pas produire de brouil-

lage, et

2. L’utilisateur de l’appareil doit accepter

tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en com-
promettre le fonctionnement.

Radiofrequency radiation exposure
Information:

This equipment complies with FCC and IC
radiation exposure limits set forth for an un-
controlled environment.

This equipment should be installed and oper-
ated with minimum distance of 30 cm be-
tween the radiator and your body.

This transmitter must not be co-located or
operating in conjunction with any other an-
tenna or transmitter.

Cet équipement est conforme aux limites
d’exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un
minimum de 30 cm de distance entre la
source de rayonnement et votre corps.

FCC Notice

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

Starting and driving

5-119

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.

The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.

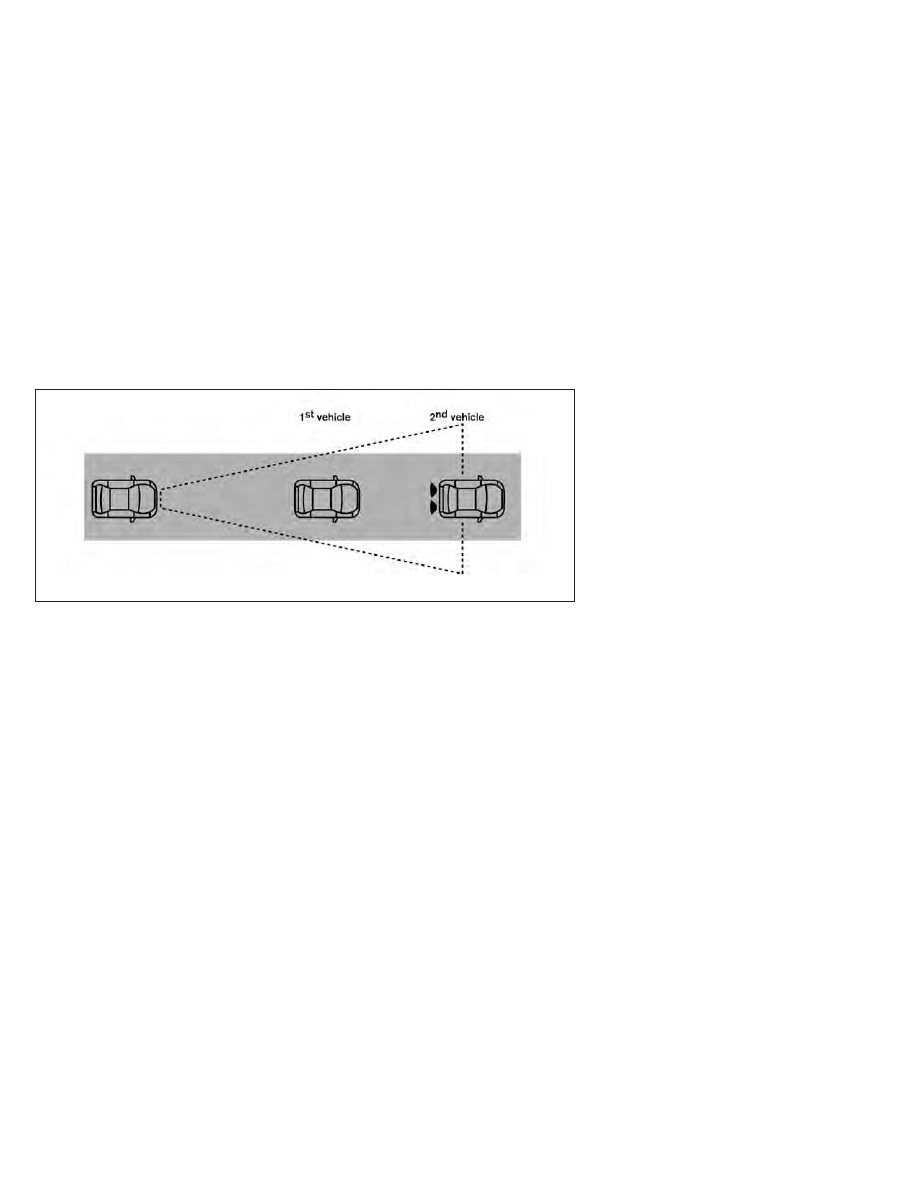

The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane.

The PFCW system uses a radar sensor

O

A

located on the front of the vehicle to measure
the distance to the vehicle ahead in the same
lane.

LSD2952

PREDICTIVE FORWARD COLLISION
WARNING (PFCW)

5-120

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Vehicle ahead detection indicator

2. FEB with Pedestrian Detection system

warning light

LSD3921

Starting and driving

5-121

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PFCW SYSTEM OPERATION

The PFCW system operates at speeds above
approximately 3 mph (5 km/h).

If there is a potential risk of a forward colli-
sion, the PFCW system will warn the driver
by blinking the vehicle ahead detection indi-
cator, and sounding an audible alert.

LSD2263

5-122

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TURNING THE PFCW SYSTEM

ON/OFF

Perform the following steps to turn the
PFCW system on or off.

1. Press the MENU button below the lower

display screen.

2. Select “Driver Assistance.”

3. Select “Emergency Assist.”

4. Select “ON” to turn the “Forward” system

on or off.

When the PFCW system is turned off, the
FEB with Pedestrian Detection system
warning light illuminates.

NOTE:

• The PFCW system will be automatically

turned on when the engine is restarted.

• The PFCW system (if so equipped) is inte-

grated into the FEB with Pedestrian De-
tection system. There is not a separate se-
lection in the lower display for the PFCW
system. When the FEB with Pedestrian
Detection is turned off, the PFCW system
is also turned off.

LSD4824

Starting and driving

5-123

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PFCW SYSTEM LIMITATIONS

LSD2312

Illustration A

5-124

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Listed below are the system limitations for
the PFCW system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

The PFCW system cannot detect all ve-
hicles under all conditions.

The radar sensor does not detect the fol-
lowing objects:

Pedestrians, animals or obstacles in
the roadway

Oncoming vehicles

Crossing vehicles

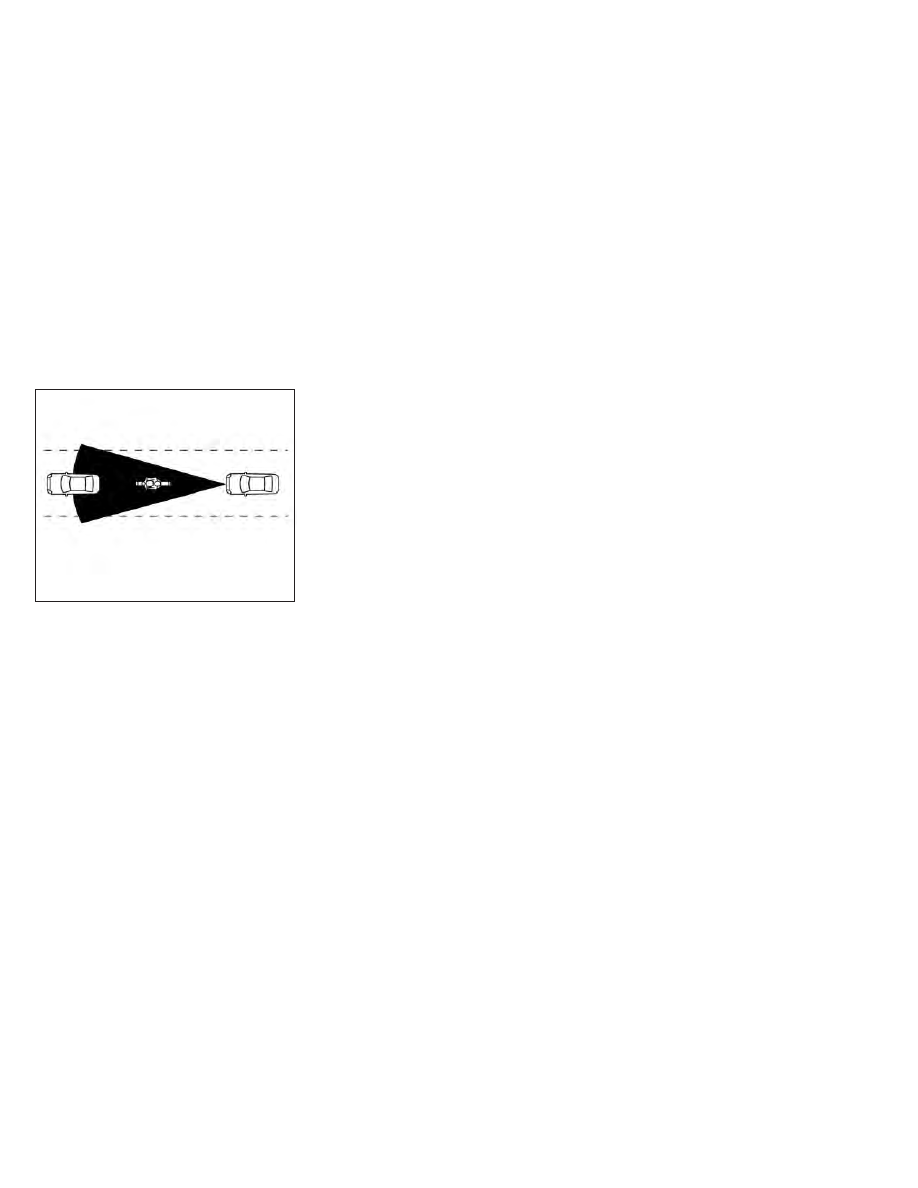

(Illustration A) The PFCW system does
not function when a vehicle ahead is a
narrow vehicle, such as a motorcycle.

The radar sensor may not detect a ve-
hicle ahead in the following conditions:

Snow or heavy rain.

Dirt, ice, snow or other material cov-
ering the radar sensor.

Interference by other radar sources.

Snow or road spray from traveling
vehicles.

Driving in a tunnel.

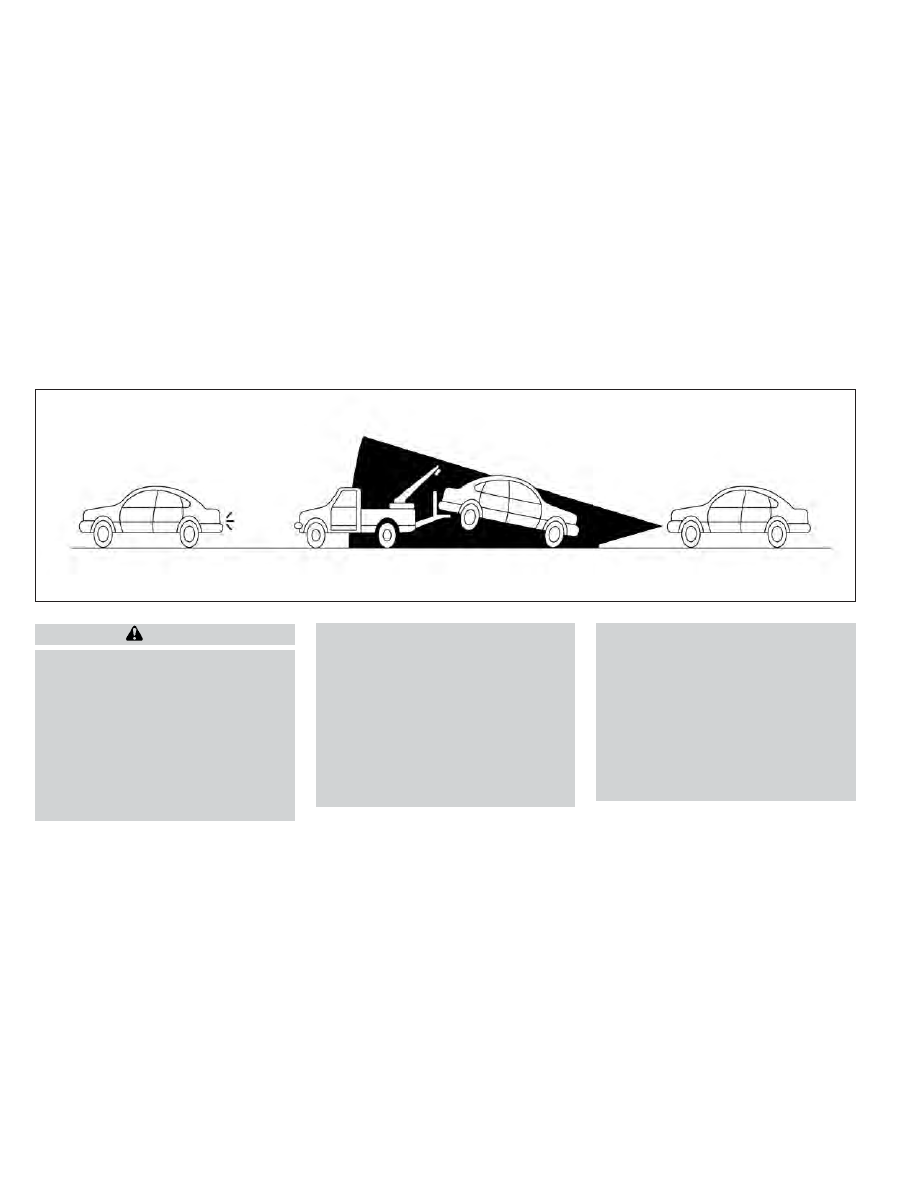

(Illustration B) When the vehicle
ahead is being towed.

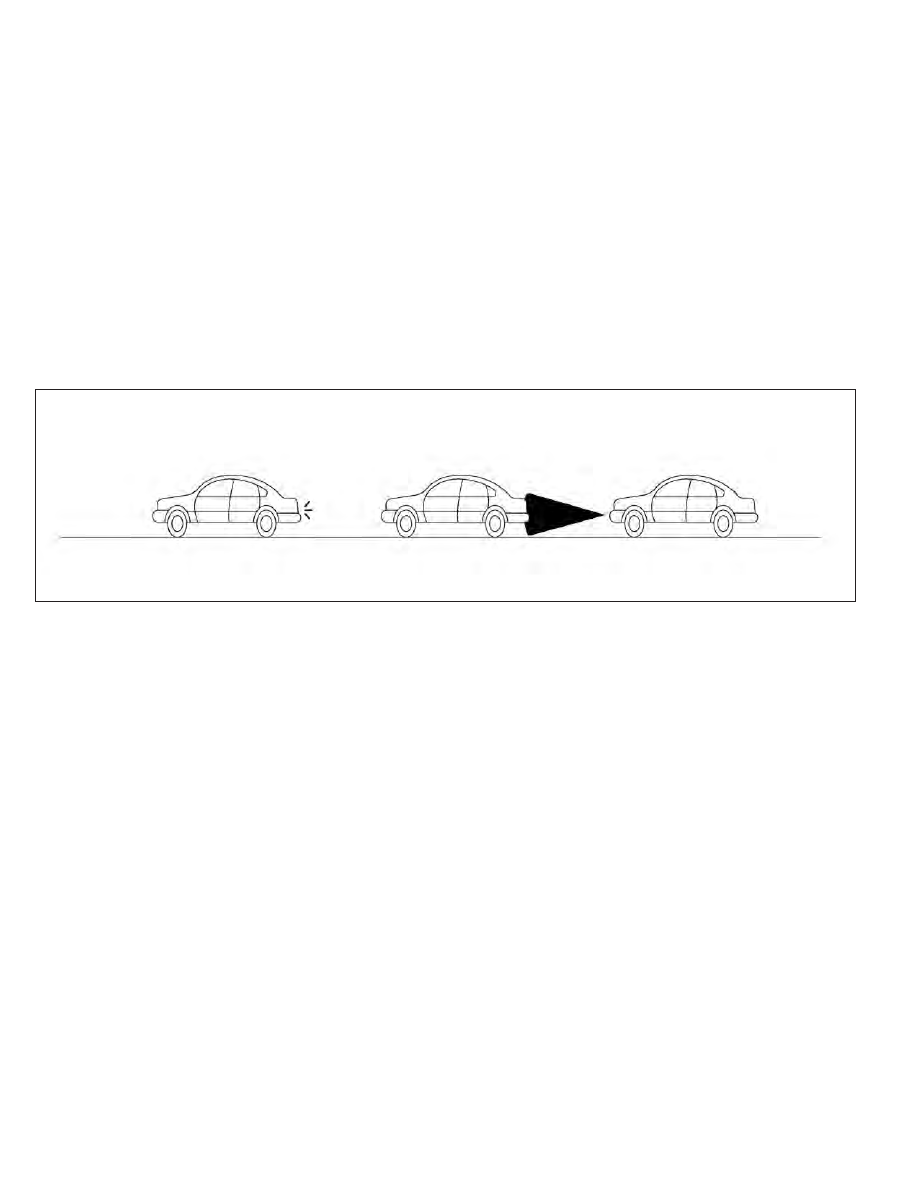

(Illustration C) When the distance to
the vehicle ahead is too close, the beam
of the radar sensor is obstructed.

(Illustration D) When driving on a
steep downhill slope or roads with
sharp curves.

LSD2265

Illustration B

Starting and driving

5-125

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The system is designed to automatically
check the sensor’s functionality, within
certain limitations. The system may not
detect some forms of obstruction of the
sensor area such as ice, snow, stickers,
etc. In these cases, the system may not
be able to warn the driver properly. Be
sure that you check, clean and clear the
sensor area regularly.

Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.

5-126

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LSD2266

Illustration C

Starting and driving

5-127

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LSD2313

Illustration D

5-128

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM TEMPORARILY
UNAVAILABLE

Condition A

When the radar sensor picks up interference
from another radar source, making it impos-
sible to detect a vehicle ahead, the PFCW
system is automatically turned off.

The FEB with Pedestrian Detection system
warning light (orange) will illuminate.

Action to take

When the above conditions no longer exist,
the PFCW system will resume automatically.

Condition B

When the sensor area of the front bumper is
covered with dirt or is obstructed, making it
impossible to detect a vehicle ahead, the
PFCW system is automatically turned off.

The FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
“Forward Driving Aids temporarily disabled
Front Sensor blocked See Owner’s Manual”
warning message will appear in the vehicle
information display.

LSD3920

Starting and driving

5-129

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Action to take

If the warning light (orange) comes on, stop
the vehicle in a safe place, press the Park
button to place the vehicle in the P (Park)
position and turn the engine off. Clean the
radar cover on the lower grille with a soft
cloth, and restart the engine. If the warning
light continues to illuminate, have the PFCW
system checked. It is recommended that you
visit an INFINITI retailer for this service.
• When driving on roads with limited road

structures or buildings (for example, long
bridges, deserts, snow fields, driving next to
long walls).

Action to take:

When the above conditions no longer exist
the PFCW system will resume automatically

NOTE:

If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.

SYSTEM MALFUNCTION

If the PFCW system malfunctions, it will be
turned off automatically, a chime will sound,
the FEB with Pedestrian Detection system
warning light (orange) will illuminate and the
warning message [Malfunction] will appear
in the vehicle information display.

Action to take

If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the PFCW sys-
tem checked. It is recommended that you visit
an INFINITI retailer for this service.

SYSTEM MAINTENANCE

The sensor

O

A

is located on the front of the

vehicle.

To keep the system operating properly, be
sure to observe the following:
• Always keep the sensor area of the front

bumper clean.

• Do not strike or damage the areas around

the sensor.

• Do not cover or attach stickers or similar

objects on the front bumper near the sensor
area. This could cause failure or malfunction.

LSD2952

5-130

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     10      11      12      13     ..
