Infiniti QX50 (2023 year). Manual in english - page 9





-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not leave children or adults who
would normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acci-
dentally injure themselves or others
through inadvertent operation of the
vehicle. Also, on hot, sunny days, tem-
peratures in a closed vehicle could
quickly become high enough to cause se-
vere or possibly fatal injuries to people or
animals.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

EXHAUST GAS (carbon monoxide)

WARNING

Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all win-
dows fully open, and have the vehicle in-
spected immediately.

Do not run the engine in closed spaces
such as a garage.

Do not park the vehicle with the engine
running for any extended length of time.

Keep the rear vent windows, liftgates,
doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:

1. Open all the windows.
2. Set the

air recirculation button

to off and the fan control dial to high
to circulate the air.

If electrical wiring or other cable connec-
tions must pass to a trailer through the
seal on the liftgate or the body, follow
the manufacturer's recommendation to
prevent carbon monoxide entry into the
vehicle.

The exhaust system and body should be
inspected by a qualified mechanic when-
ever:

a. The vehicle is raised for service.
b. You suspect that exhaust fumes are

entering into the passenger compart-
ment.

c. You notice a change in the sound of

the exhaust system.

d. You have had an accident involving

damage to the exhaust system, un-
derbody, or rear of the vehicle.

THREE-WAY CATALYST

The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.

WARNING

The exhaust gas and the exhaust system
are very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.

PRECAUTIONS WHEN STARTING
AND DRIVING

5-4

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not stop or park the vehicle over
flammable materials such as dry grass,
waste paper or rags. They may ignite and
cause a fire.

CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline will seriously re-
duce the three-way catalyst's ability to
help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause over rich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep driv-
ing if the engine misfires, or if noticeable
loss of performance or other unusual op-
erating conditions are detected. Have
the vehicle inspected promptly. It is rec-
ommended that you visit an INFINITI
retailer for this service.

Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-
way catalyst.

Do not race the engine while warming it
up.

Do not push or tow your vehicle to start
the engine.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size
than the size indicated on the vehicle placard
or tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitor-
ing System (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check all your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.

Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of the
TPMS low tire pressure telltale.

Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the
system detects a malfunction, the telltale will
flash for approximately one minute and then
remain continuously illuminated. This se-
quence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illumi-
nated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of rea-
sons, including the installation of replace-
ment or alternate tires or wheels on the ve-
hicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunc-
tion telltale after replacing one or more tires
or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.

Starting and driving

5-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Additional information:

• When using a wheel without the TPMS

such as the spare tire, the TPMS does not
monitor the tire pressure of the spare tire.

• The TPMS will activate only when the ve-

hicle is driven at speeds above 16 mph
(25 km/h). Also, this system may not detect
a sudden drop in tire pressure (for example,
a flat tire while driving).

• The low tire pressure warning light does

not automatically turn off when the tire
pressure is adjusted. After the tire is in-
flated to the recommended pressure, the
vehicle must be driven at speeds above 16
mph (25 km/h) to activate the TPMS and
turn off the low tire pressure warning light.
Use a tire pressure gauge to check the tire
pressure.

• The “Tire Pressure Low — Add Air” warning

appears in the vehicle information display
when the low tire pressure warning light is
illuminated and low tire pressure is de-
tected. The “Tire Pressure Low - Add Air”
warning turns off when the low tire pres-
sure warning light turns off.

• The “Tire Pressure Low — Add Air” warning

appears each time the ignition switch is in
the ON position as long as the low tire
pressure warning light remains illuminated.

• The “Tire Pressure Low — Add Air” warning

does not appear if the low tire pressure
warning light illuminates to indicate a
TPMS malfunction.

• Tire pressure rises and falls depending on

the heat caused by the vehicle’s operation
and the outside temperature. Do not re-
duce the tire pressure after driving because
the tire pressure rises after driving. Low
outside temperature can lower the tem-
perature of the air inside the tire which can
cause a lower tire inflation pressure. This
may cause the low tire pressure warning
light to illuminate. If the warning light illu-
minates, check the tire pressure for all four
tires.

• The Tire and Loading Information label is

located in the driver's door opening.

• You can also check the pressure of all tires

(except the spare tire) on the vehicle infor-
mation display screen. The order of the tire
pressure figures displayed on the screen
corresponds with the actual order of the
tire position.

For additional information, see “Low tire
pressure warning light” (P. 2-14) and “Tire
Pressure Low — Add Air” (P. 2-28).

WARNING

Radio waves could adversely affect elec-
tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.

If the low tire pressure warning light illu-
minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
off. If you have a flat tire, replace it with
a replacement tire as soon as possible.
(For additional information, see “Flat
tire” (P. 6-3)
for changing a flat tire.)

5-6

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When using g a wheel without the TPMS
such as the spare tire, when a spare tire is
mounted or a wheel is replaced, tire pres-
sure will not be indicated, the TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain on
after 1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit an INFINITI retailer for this service.

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.

CAUTION

The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow.

Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the sig-
nals from the tire pressure sensors, and
the TPMS will not function properly.

Some devices and transmitters may tempo-
rarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate.

Some examples are:
• Facilities or electric devices using similar

radio frequencies are near the vehicle.

• If a transmitter set to similar frequencies is

being used in or near the vehicle.

• If a computer (or similar equipment) or a

DC/AC converter is being used in or near
the vehicle.

The low tire pressure warning light may illu-
minate in the following cases:
• If the vehicle is equipped with a wheel and

tire without TPMS.

• If the TPMS has been replaced and the ID

has not been registered.

• If the wheel is not originally specified by

INFINITI.

FCC Notice:

For USA:

This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-

vice must accept any interference received,
including interference that may cause unde-
sired operation.

Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s author-
ity to operate the equipment.

For Canada:

This

device

contains

licence-exempt

transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Develop-
ment

Canada’s

licence-exempt

RSS(s).

Operation is subject to the following two
conditions: (1) This device may not cause in-
terference. (2) This device must accept any
interference, including interference that may
cause undesired operation of the device.

TPMS with Tire Inflation Indicator

When adding air to an under-inflated tire, the
TPMS with Tire Inflation Indicator provides
visual and audible signals outside the vehicle
to help you inflate the tires to the recom-
mended COLD tire pressure.

Starting and driving

5-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle set-up:

1. Park the vehicle in a safe and level place.

2. Apply the parking brake and press the park

button to engage the P (Park) position.

3. Place the ignition switch in the ON posi-

tion. Do not start the engine.

Operation:

1. Add air to the tire.

2. After a few seconds, the hazard indicators

will start flashing.

3. When the designated pressure is reached,

the horn beeps once and the hazard indi-
cators stop flashing.

4. Perform the above steps for each tire.

• If the tire is over-inflated more than ap-

proximately 4 psi (30 kPa), the horn
beeps and the hazard indicators flash
three times. To correct the pressure,
push the core of the valve stem on the
tire briefly to release pressure. When the
pressure reaches the designated pres-
sure, the horn beeps once.

• If the hazard indicator does not flash

within approximately 15 seconds after
starting to inflate the tire, it indicates
that the TPMS with Tire Inflation Indi-
cator is not operating.

• The TPMS will not activate the TPMS

with Tire Inflation Indicator under the
following conditions:
– If there is interference from an exter-

nal device or transmitter.

– The air pressure from the inflation de-

vice is not sufficient to inflate the tire.

– There is a malfunction in the TPMS.
– There is a malfunction in the horn or

hazard indicators.

– The identification code of the tire

pressure sensor is not registered to
the system.

– The battery of the tire pressure sensor

is low.

• If the TPMS with Tire Inflation Indicator

does not operate due to TPMS interfer-
ence, move the vehicle about 1 m (3 ft)
backward or forward and try again.

If the TPMS with Tire Inflation Indicator is
not working, use a tire pressure gauge.

ON-PAVEMENT AND OFF-ROAD
DRIVING PRECAUTIONS

Utility vehicles have a significantly higher
rollover rate than other types of vehicles.

They have higher ground clearance than pas-
senger cars to make them capable of per-
forming in a variety of on-pavement and off-
road applications. This gives them a higher

center of gravity than ordinary vehicles. An
advantage of higher ground clearance is a
better view of the road, allowing you to an-
ticipate problems. However, they are not de-
signed for cornering at the same speeds as
conventional 2-Wheel Drive vehicles any
more than low-slung sports cars are de-
signed to perform satisfactorily under off-
road conditions. If at all possible, avoid sharp
turns at high speeds. As with other vehicles of
this type, failure to operate this vehicle cor-
rectly may result in loss of control or vehicle
rollover.

In a rollover crash, an unbelted person is sig-
nificantly more likely to die than a person
wearing a seat belt.

For additional information, see “Driving safety
precautions” (P. 5-10).

AVOIDING COLLISION AND
ROLLOVER

WARNING

Failure to operate this vehicle in a safe and
prudent manner may result in loss of con-
trol or an accident.

Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid excessive
speed, high speed cornering, or sudden steer-

5-8

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ing maneuvers, because these driving prac-
tices could cause you to lose control of your
vehicle.

As with any vehicle, loss of control could re-
sult in a collision with other vehicles or ob-
jects or cause the vehicle to roll over, par-
ticularly if the loss of control causes the
vehicle to slide sideways.

Be attentive at all times, and avoid driving
when tired. Never drive when under the influ-
ence of alcohol or drugs (including prescrip-
tion or over-the-counter drugs which may
cause drowsiness). Always wear your seat
belt as outlined in the “Safety – Seats, seat
belts and supplemental restraint system” sec-
tion of this manual, and also instruct your
passengers to do so.

Seat belts help reduce the risk of injury in
collisions and rollovers.

In a rollover crash, an unbelted person is sig-
nificantly more likely to die than a person
wearing a seat belt.

OFF-ROAD RECOVERY

While driving, the right side or left side wheels
may unintentionally leave the road surface. If
this occurs, maintain control of the vehicle by
following the procedure below. Please note
that this procedure is only a general guide.

The vehicle must be driven as appropriate
based on the conditions of the vehicle, road
and traffic.

1. Remain calm and do not overreact.

2. Do not apply the brakes.

3. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

4. When appropriate, slowly release the ac-

celerator pedal to gradually slow the
vehicle.

5. If there is nothing in the way, steer the

vehicle to follow the road while vehicle
speed is reduced. Do not attempt to drive
the vehicle back onto the road surface
until vehicle speed is reduced.

6. When it is safe to do so, gradually turn the

steering wheel until both tires return to
the road surface. When all tires are on the
road surface, steer the vehicle to stay in
the appropriate driving lane.

• If you decide that it is not safe to return

the vehicle to the road surface based on
vehicle,

road

or

traffic

conditions,

gradually slow the vehicle to a stop in a
safe place off the road.

RAPID AIR PRESSURE LOSS

Rapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged
due to hitting a curb or pothole. Rapid air
pressure loss can also be caused by driving on
under-inflated tires.

Rapid air pressure loss can affect the han-
dling and stability of the vehicle, especially at
highway speeds.

Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspecting the tires for wear and damage. For
additional information, see “Wheels and tires”
(P. 8-27). If a tire rapidly loses air pressure or
“blows-out” while driving, maintain control of
the vehicle by following the procedure below.
Please note that this procedure is only a gen-
eral guide. The vehicle must be driven as ap-
propriate based on the conditions of the ve-
hicle, road and traffic.

WARNING

The following actions can increase the
chance of losing control of the vehicle if
there is a sudden loss of tire air pressure.
Losing control of the vehicle may cause a
collision and result in personal injury.

Starting and driving

5-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The vehicle generally moves or pulls in
the direction of the flat tire.

Do not rapidly apply the brakes.

Do not rapidly release the accelerator
pedal.

Do not rapidly turn the steering wheel.

1. Remain calm and do not overreact.

2. Maintain a firm grip on the steering wheel

with both hands and try to hold a straight
course.

3. When appropriate, slowly release the ac-

celerator pedal to gradually slow the
vehicle.

4. Gradually steer the vehicle to a safe loca-

tion off the road and away from traffic if
possible.

5. Lightly apply the brake pedal to gradually

stop the vehicle.

6. Turn on the hazard warning flashers and

contact a roadside emergency service to
change the tire. For additional informa-
tion, see “Flat tire” (P. 6-3).

DRINKING ALCOHOL/DRUGS
AND DRIVING

WARNING

Never drive under the influence of alcohol
or drugs. Alcohol in the bloodstream re-
duces coordination, delays reaction time
and impairs judgement. Driving after
drinking alcohol increases the likelihood of
being involved in an accident injuring your-
self and others. Additionally, if you are in-
jured in an accident, alcohol can increase
the severity of the injury.

INFINITI is committed to safe driving. How-
ever, you must choose not to drive under the
influence of alcohol. Every year thousands of
people are injured or killed in alcohol-related
accidents. Although the local laws vary on
what is considered to be legally intoxicated,
the fact is that alcohol affects all people dif-
ferently and most people underestimate the
effects of alcohol.

Remember, drinking and driving don't mix!
And that is true for drugs, too (over-the-
counter, prescription, and illegal drugs). Don't
drive if your ability to operate your vehicle is
impaired by alcohol, drugs, or some other
physical condition.

DRIVING SAFETY PRECAUTIONS

Your INFINITI is designed for both normal
and off-road use. However, avoid driving in
deep water or mud as your INFINITI is mainly
designed for leisure use, unlike a conventional
off-road vehicle.

Remember that 2-Wheel Drive (2WD) mod-
els are less capable than All-Wheel Drive
(AWD) models for rough road driving and
extrication when stuck in deep snow or mud,
or the like.

Please observe the following precautions:

WARNING

Spinning the front wheels on slippery
surfaces may cause the AWD warning
message to display and the AWD system
to automatically switch from the AWD
to the 2WD mode. This could reduce the
traction. Be especially careful when tow-
ing a trailer (AWD models).

Drive carefully when off the road and
avoid dangerous areas. Every person
who drives or rides in this vehicle should
be seated with their seat belt fastened.
This will keep you and your passengers in
position when driving over rough terrain.

5-10

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Do not drive across steep slopes. Instead
drive either straight up or straight down
the slopes. Off-road vehicles can tip over
sideways much more easily than they can
forward or backward.

Many hills are too steep for any vehicle.
If you drive up them, you may stall. If you
drive down them, you may not be able to
control your speed. If you drive across
them, you may roll over.

Do not shift gears while driving on
downhill grades as this could cause loss
of control of the vehicle.

Stay alert when driving to the top of a
hill. At the top there could be a drop-off
or other hazard that could cause an
accident.

If your engine stalls or you cannot make
it to the top of a steep hill, never attempt
to turn around. Your vehicle could tip or
roll over. Always back straight down in R
(Reverse) gear and apply brakes to con-
trol your speed.

Heavy braking going down a hill could
cause your brakes to overheat and fade,
resulting in loss of control and an acci-
dent. Apply brakes lightly and use a low
gear to control your speed.

Unsecured cargo can be thrown around
when driving over rough terrain. Prop-
erly secure all cargo so it will not be
thrown forward and cause injury to you
or your passengers.

Secure heavy loads in the cargo area as
far forward and as low as possible. Do
not equip the vehicle with tires larger
than specified in this manual. This could
cause your vehicle to roll over.

Do not grip the inside or spokes of the
steering wheel when driving off-road.
The steering wheel could move suddenly
and injure your hands. Instead drive with
your fingers and thumbs on the outside
of the rim.

Before operating the vehicle, ensure that
the driver and all passengers have their
seat belts fastened.

Always drive with the floor mats in place
as the floor may become hot.

Lower your speed when encountering
strong crosswinds. With a higher center
of gravity, your INFINITI is more af-
fected by strong side winds. Slower
speeds ensure better vehicle control.

Do not drive beyond the performance ca-
pability of the tires, even with AWD
engaged.

For AWD equipped vehicles, do not at-
tempt to raise two wheels off the ground
and shift the transmission to any drive or
reverse position with the engine running.
Doing so may result in drivetrain damage
or unexpected vehicle movement which
could result in serious vehicle damage or
personal injury.

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing) or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity

personnel

that

your

vehicle

is

equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in drivetrain dam-
age or unexpected vehicle movement
which could result in serious vehicle dam-
age or personal injury.

When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.

Accelerating quickly, sharp steering ma-
neuvers or sudden braking may cause
loss of control.

Starting and driving

5-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If at all possible, avoid sharp turning ma-
neuvers, particularly at high speeds.
Your INFINITI vehicle has a higher center
of gravity than a passenger car. The ve-
hicle is not designed for cornering at the
same speeds as passenger cars. Failure
to operate this vehicle correctly could re-
sult in loss of control and/or a rollover
accident.

Always use tires of the same type, size,
brand, construction (bias, bias-belted, or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.

Be sure to check the brakes immediately
after driving in mud or water. For addi-
tional information, see “Brake precau-
tions” (P. 5-140).

Avoid parking your vehicle on steep hills.
If you get out of the vehicle and it rolls
forward, backward or sideways, you
could be injured.

Whenever you drive off-road through
sand, mud or water as deep as the wheel
hub, more frequent maintenance may be
required. For additional information, see
“Additional maintenance items for se-
vere operating conditions” (P. 9-7).

INTELLIGENT ALL-WHEEL
DRIVE (AWD) DRIVING SAFETY
PRECAUTIONS (if so equipped)

WARNING

Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.

Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Install tire chains on the front
wheels when driving on slippery roads
and drive carefully.

This vehicle is not designed for off-road
(rough road) use. Do not drive on sandy
or muddy roads that tires may get stuck
in.

For AWD equipped vehicles, do not at-
tempt to raise two wheels off the ground
and shift the transmission to any D
(Drive) or R (Reverse) position with the
engine running. Doing so may result in
drivetrain damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.

Do not attempt to test an AWD
equipped vehicle on a 2-wheel dyna-
mometer (such as the dynamometers
used by some states for emissions test-
ing) or similar equipment even if the
other two wheels are raised off the
ground. Make sure you inform test facil-
ity

personnel

that

your

vehicle

is

equipped with AWD before it is placed
on a dynamometer. Using the wrong test
equipment may result in drivetrain dam-
age or unexpected vehicle movement
which could result in serious vehicle dam-
age or personal injury.

When a wheel is off the ground due to an
unlevel surface, do not spin the wheel
excessively.

5-12

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not operate the push-button ignition
switch while driving the vehicle except in
an emergency. (The engine will stop when
the ignition switch is pushed three con-
secutive times in quick succession or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while
the vehicle is being driven, this could lead
to a crash and serious injury.

When the ignition switch is pushed without
depressing the brake pedal, the ignition
switch will change as follows:

Push the ignition switch center:
• Once to change to ON.
• Two times to change to OFF.

The ignition switch will automatically return
to the LOCK position when any door is either
opened or closed with the switch in the OFF
position.

The ignition lock is designed so that the igni-
tion switch cannot be placed in the OFF po-
sition until the shift position is in the P (Park)
position.

When the ignition switch cannot be placed in
the OFF position, proceed as follows:

1. Press the Park button to place the vehicle

in the P (Park) position.

2. Push the ignition switch. The ignition

switch position will change to the ON
position.

3. Push the ignition switch again to the OFF

position.

The shift position can be shifted from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.

If the battery of the vehicle is discharged, the
ignition switch cannot be moved from the
LOCK position.

Some indicators and warnings for operation
are displayed on the vehicle information dis-
play. For additional information, see “Vehicle
information display” (P. 2-19).

LSD2911

PUSH-BUTTON IGNITION SWITCH

Starting and driving

5-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

OPERATING RANGE

The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range.

When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes nar-
rower and may not function properly.

If the Intelligent Key is within the operating
range, it is possible for anyone, even some-
one who does not carry the Intelligent Key, to
push the ignition switch to start the engine.

The operating range of the engine start func-
tion is inside of the vehicle

O

1

.

• The luggage area is not included in the

operating range, but the Intelligent Key
may function.

• If the Intelligent Key is placed on the instru-

ment panel or inside the glove box, storage
bin or door pocket, the Intelligent Key may
not function.

• If the Intelligent Key is placed near the door

or window outside the vehicle, the Intelli-
gent Key may function.

PUSH-BUTTON IGNITION
SWITCH POSITIONS

LOCK (Normal parking position)

The ignition switch can only be locked in this
position.

The ignition switch will be unlocked when it is
placed in the ON position while carrying the
Intelligent Key.

The ignition switch will lock when any door is
opened or closed with the ignition switched
off.

ON (Normal operating position)

This position turns on the ignition system and
electrical accessories.

ON has a battery saver feature that will place
the ignition switch in the OFF position, if the
vehicle is not running, after some time under
the following conditions:
• All doors are closed.
• The vehicle is in P (Park) position.

The battery saver feature will be canceled if
any of the following occur:
• Any door is opened.
• The shift position is shifted out of the P

(Park) position.

• The ignition switch changes position.

CAUTION

Do not leave the vehicle with the ignition
switch in the ON position when the engine
is not running for an extended period. This
can discharge the battery.

OFF

The ignition switch is in the OFF position
when the engine is turned off using the igni-
tion switch. No lights will illuminate on the
ignition switch.

LSD2020

5-14

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AUTO ACC

With the vehicle in the P (Park) position, the
Intelligent Key with you and the ignition
switch placed from the ON position to the
OFF position, the radio can still be used for a
period of time, or until the driver’s door is
opened.

After a period of time, functions such as ra-
dio, navigation, and Bluetooth® Hands-Free
Phone System may be restarted by pressing
the POWER button/VOLUME control knob
or the key fob unlock button. For additional
information, see the “Monitor, climate, audio,
phone

and

voice

recognition

systems”

(P. 4-2).

EMERGENCY ENGINE SHUT OFF

To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
• Rapidly push the ignition switch three con-

secutive times in less than 1.5 seconds, or

• Push and hold the ignition switch for more

than 2 seconds.

INFINITI INTELLIGENT KEY
BATTERY DISCHARGE

If the battery of the Intelligent Key is dis-
charged or environmental conditions inter-
fere with the Intelligent Key operation, start
the engine according to the following proce-
dure:

1. Press the Park button to place the vehicle

in the P (Park) position.

2. Firmly apply the foot brake.

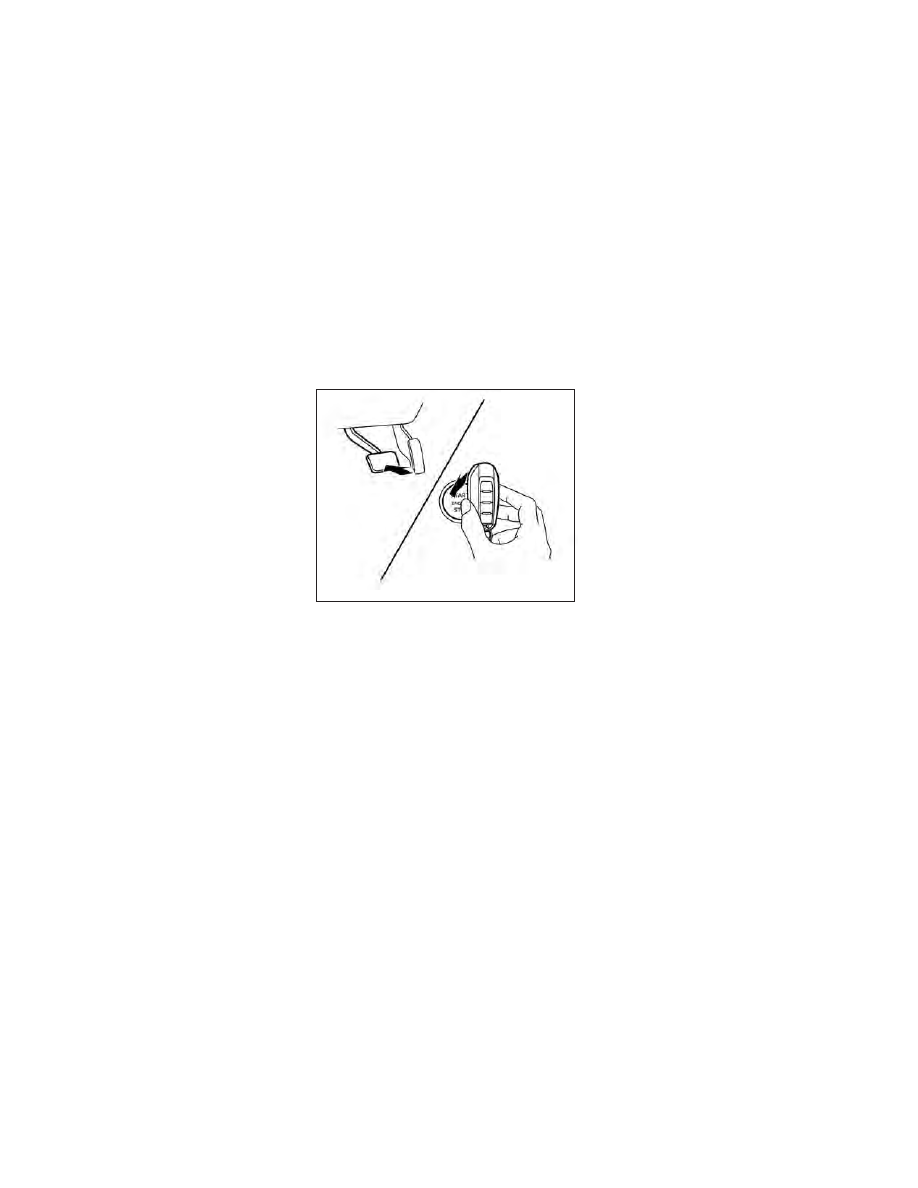

3. Touch the ignition switch with the Intelli-

gent Key as illustrated. (A chime will sound.)

4. Push the ignition switch while depressing

the brake pedal within 10 seconds after
the chime sounds. The engine will start.

After step 3 is performed, when the ignition
switch is pushed without depressing the
brake pedal, the ignition switch position will
change to ON.

NOTE:

• When the ignition switch is placed in the

ON position or the engine is started by the
above procedure, the Intelligent Key bat-
tery discharge indicator may appear in the
vehicle information display even when the
Intelligent Key is inside the vehicle. This is
not a malfunction. To turn off the Intelli-
gent Key battery discharge indicator,
touch the ignition switch with the Intelli-
gent Key again.

• If the Intelligent Key battery discharge in-

dicator appears, replace the battery as
soon as possible. For additional informa-
tion, see “Battery replacement” (P. 8-22).

LSD3572

Starting and driving

5-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI VEHICLE IMMOBILIZER
SYSTEM

The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of the registered key.

If the engine fails to start using the registered
key, it may be due to interference caused by
another registered key, an automated toll
road device or automated payment device on
the key ring. Restart the engine using the
following procedures:

1. Leave the ignition switch in the ON posi-

tion for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position and wait approximately
5 seconds.

3. Repeat steps 1 and 2.

4. Restart the engine while holding the de-

vice (which may have caused the interfer-
ence) separate from the registered key.

If the no start condition re-occurs, INFINITI
recommends placing the registered key on a
separate key ring to avoid interference from
other devices.

• Make sure the area around the vehicle is

clear.

• Check fluid levels such as engine oil, cool-

ant, brake fluid, and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.

• Check that all windows and lights are clean.
• Visually inspect tires for their appearance

and condition. Also check tires for proper
inflation.

• Check that all doors are closed.
• Position seat and adjust head restraints/

headrests.

• Adjust inside and outside mirrors.
• Fasten seat belts and ask all passengers to

do likewise.

• Check the operation of warning lights

when the ignition switch is placed in the ON
position. For additional information, see
“Warning lights, indicator lights and audible
reminders” (P. 2-9)

1. Apply the parking brake.

2. Press the Park button to place the vehicle

in P (Park) or move the shift lever to N
(Neutral). P (Park) is recommended.

The starter is designed not to operate if
the shift lever is in any of the driving
positions.

3. Push the ignition switch to the ON posi-

tion. Depress the brake pedal and push
the ignition switch to start the engine.

To start the engine immediately, push and
release the ignition switch while depress-
ing the brake pedal with the ignition
switch in any position.

• If the engine is very hard to start in

extremely cold weather or when re-
starting, depress the accelerator pedal a
little (approximately 1/3 to the floor)
and while holding, crank the engine. Re-
lease the accelerator pedal when the
engine starts.

• If the engine is very hard to start be-

cause it is flooded, depress the accel-
erator pedal all the way to the floor and
hold it. Push the ignition switch to the
ON position to start cranking the en-
gine. After 5 or 6 seconds, stop cranking
by pushing the ignition switch to the

BEFORE STARTING THE ENGINE

STARTING THE ENGINE

5-16

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOCK position. After cranking the en-
gine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the
brake pedal and pushing the ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.

CAUTION

Do not operate the starter for more than
15 seconds at a time. If the engine does not
start, push the ignition switch to the OFF
position and wait 10 seconds before crank-
ing again, otherwise the starter could be
damaged.

4.

Warm-up:

Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at a
moderate speed for a short distance first,
especially

in

cold

weather.

In

cold

weather, keep the engine running for a
minimum of 2 - 3 minutes before shutting
it off. Starting and stopping the engine
over a short period of time may make the
vehicle more difficult to start.

5. To stop the engine, place the shift position

in the P (Park) position and push the igni-
tion switch to the OFF position.

NOTE:
Care should be taken to avoid situations
that can lead to potential battery dis-
charge and potential no-start conditions
such as:

1. Installation or extended use of electronic

accessories that consume battery power
when the engine is not running (phone
chargers, GPS, DVD players, etc.).

2. The vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

REMOTE ENGINE START

Vehicles started with the Remote Engine
Start require the ignition switch to be placed
in the ON position before the shift position
can be shifted from the P (Park) position. To
place the ignition switch in the ON position,
follow these steps:

1. Make sure that the Intelligent Key is on

you.

2. Apply the brake.

3. Push the ignition switch once to the ON

position.

For additional information, see “INFINITI In-
telligent Key” (P. 3-6).

Starting and driving

5-17

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)

WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual shift mode). Always depress the
brake pedal until shifting is completed.
Failure to do so could cause you to lose
control and have an accident.

Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.

Do not downshift abruptly on slippery
roads. This may cause a loss of control.

Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.

Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.

CAUTION

To avoid possible damage to your ve-
hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

Do not hang items on the shift lever. This
may cause an accident due to a sudden
start.

The CVT in your vehicle is electronically con-
trolled to produce maximum power and
smooth operation.

The recommended operating procedures for
this transmission are shown on the following
pages. Follow these procedures for maxi-
mum

vehicle

performance

and

driving

enjoyment.

Engine power may be automatically reduced
to protect the CVT if the engine speed in-
creases quickly when driving on slippery
roads or while being tested on some
dynamometers.

Starting the vehicle

1. After starting the engine, fully depress the

foot brake pedal before moving the shift
position out of the P (Park) position.

This Continuously Variable Transmission
is designed so that the foot brake pedal
must be depressed before shifting from P
(Park) to any driving position while the
ignition switch is in the ON position.
The shift position cannot be shifted out of
the P (Park) position and into any of the
other positions if the ignition switch is
placed in the OFF position.

2. Keep the foot brake pedal depressed and

move the shift lever to a driving position.

3. Release the parking brake and foot brake

pedal and then gradually start the vehicle
in motion.

WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse), D (Drive), or M
(Manual shift mode). Always depress the
brake pedal until shifting is completed.
Failure to do so could cause you to lose
control and have an accident.

DRIVING THE VEHICLE

5-18

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.

Do not downshift abruptly on slippery
roads. This may cause a loss of control.

Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D (Drive)
position while the vehicle is reversing.
This could cause an accident or damage
the transmission.

CAUTION

To avoid possible damage to your ve-
hicle, when stopping the vehicle on an
uphill grade, do not hold the vehicle by
depressing the accelerator pedal. The
foot brake should be used for this
purpose.

Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.

Do not hang items on the shift lever. This
may cause an accident due to a sudden
start.

Shifting

O

A

Home position (central position)

To move the shift lever

Press the button

O

1

to shift

Shift without pressing the button

O

1

Shift to PARK

Push the park button

O

2

Shift to REVERSE

1. Push the shift lever button

O

1

2. Move the shift lever from the home posi-

tion to the R (Reverse) position

Shift to NEUTRAL

–– From P (Park) and D (Drive)

Without pushing the shift lever button,
push the shift lever forward (1 notch)
from the home position and hold 0.5
seconds.

–– From P (Park) and R (Reverse)

Without pushing the shift lever button,
pull the shift lever backward (1 notch)
from the home position and hold 0.5
seconds.

Shift to DRIVE

Pull the shift lever from the home position
to D (Drive) position

WARNING

Apply the electronic parking brake if the
shift lever is in any position while the en-
gine is not running. Failure to do so could
cause the vehicle to move unexpectedly or
roll away and result in serious personal in-
jury or property damage.

LSD4395

Starting and driving

5-19

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Use the P (Park), R (Reverse) or D (Drive)
position only when the vehicle is com-
pletely stopped.

When switching to the desired shift po-
sition by operating the shift lever, check
that the shift lever returns to the home
position by releasing your hand from the
lever. Holding the shift lever in a mid-
way position may also damage the shift
control system.

Do not operate the shift lever while the
accelerator pedal is depressed. This may
cause a sudden start which could result in
an accident.

The following operations are not allowed
because excessive force would be ap-
plied to the transmission and this may
result in damage to the vehicle:

Moving the shift lever to the R (Re-
verse) position when driving forward

Moving the shift lever to the D
(Drive) position when reversing

If the vehicle is moving over 8 km/h (5mph)
when shifting to D (Drive) from R (Re-
verse), the N (Neutral) position will auto-
matically be selected. A buzzer will sound,
noting that D (Drive) was not selected.

When selecting D (Drive) while reversing
below 8 km/h (5 mph) the range will
change normally.

If these operations are attempted, a chime
sounds and the vehicle shifts to the N (Neu-
tral) position.

P (Park)

CAUTION

To prevent transmission damage, use the
P (Park) position only when the vehicle is
completely stopped.

Do not slide the shift lever while pressing
the park button. This may damage the
shift control system.

Use the P (Park) position when the vehicle is
parked or when starting the engine. Make
sure the vehicle is completely stopped before
pressing the park button to engage the P
(Park) position. For maximum safety, the
brake pedal must be depressed before en-
gaging the P (Park) position. Use this position
together with the electronic parking brake.
When parking on a hill, first depress the brake
pedal, apply the electronic parking brake and
then engage the P (Park) position. The park-
ing lock should not be used as a brake when

parking. In order to secure the vehicle, always
apply the electronic parking brake in addition
to the parking lock.

In the event of a malfunction of the vehicle’s
electronics, the transmission may lock in the
P (Park) position. Have the vehicle’s electron-
ics checked immediately. It is recommended
that you visit an INFINITI retailer for this
service.

The P (Park) position is automatically en-
gaged if:
• You place the ignition switch in the OFF

position

• You unfasten the driver’s seat belt and

open the driver side door when the vehicle
is stationary or driving at very low speed
and the transmission is in the D (Drive)
position, the N (Neutral) position, the R
(Reverse) position, or the M (Manual)
position.

CAUTION

To avoid CVT malfunction, you must
manually place the shift position in the P
(Park) position under the above conditions.

5-20

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

R (Reverse)

CAUTION

To prevent transmission damage, use the R
(Reverse) position only when the vehicle is
completely stopped and the brake is
pressed.

Use the R (Reverse) position to back up. Make
sure the vehicle is completely stopped before
selecting the R (Reverse) position.

The brake

pedal must be depressed and the shift lever
button pressed to move the shift lever from
the home position to R (Reverse). If the ve-
hicle is placed in R (Reverse) position while
the vehicle is moving forward, the chime will
sound and the vehicle will switch into the N
(Neutral) position.

NOTE:

If the vehicle is moving over 8 km/h (5 mph)
when shifting to D (Drive) from R (Reverse),
the N (Neutral) position will automatically
be selected. A buzzer will sound, noting that
D (Drive) was not selected. When selecting D
(Drive) while reversing below 8 km/h (5
mph), the range will change normally.

N (Neutral)

Neither forward nor reverse gear is engaged
when the vehicle is completely stopped, and
the brake is pressed. The engine can be
started in this position. You may shift to the N
(Neutral) position and restart a stalled engine
while the vehicle is moving.

You can select this position by holding the
shift lever at this position for 0.5 seconds.

D (Drive)

Use this position for all normal forward driv-
ing when the vehicle is stopped, and the
brake is pressed.. The CVT changes gears
automatically. All forward gears are avail-
able.

If the vehicle is placed in the D (Drive)

position while the vehicle is reversing, the
chime will sound and the vehicle will switch
into the N (Neutral) position.

NOTE:

If the vehicle is moving over 8 km/h (5 mph)
when shifting to D (Drive) from R (Reverse),
the N (Neutral) position will automatically
be selected. A buzzer will sound, noting that
D (Drive) was not selected. When selecting D
(Drive) while reversing below 8 km/h (5
mph), the range will change normally.

Neutral hold mode function

This function enables you to get out of the
vehicle when it is in the N (Neutral) position,
while the engine is running. While this func-
tion is activated, the vehicle can be moved by
pushing with hand (when car washing). When
using this function, release the electronic
parking brake.

WARNING

Use this function on a level surface only.
Failure to do so may cause the vehicle to
move accidentally and could result in a
collision or serious personal injury.

Do not use this function for a purpose
other than car washing.

Do not turn the engine off after neutral
hold mode function is activated, other-
wise the N (Neutral) position will not be
kept and the vehicle will automatically
be placed in the P (Park) position.

If this function is not activated regard-
less of proper operation, transmission
may malfunction. It is recommended that
you visit an INFINITI retailer for this
service.

Starting and driving

5-21

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To activate the Neutral hold mode, perform
the following operations:

1. Push the ignition switch to start the

engine.

2. Release the electronic parking brake.

3. Depress and hold the brake pedal.

4. Press the P (Park) button.

5. Slide the shift lever to the N (Neutral)

position, and hold it for 0.5 second until
“N” appears in the vehicle information
display.

6. Slide the shift lever to the N (Neutral)

position again, and hold it for 0.5 seconds,
until a message “Neutral Hold Mode has
been activated” appears in the vehicle in-
formation display. For additional informa-
tion, see “Neutral Hold Mode activated
indicator” (P. 2-26).

7. The ignition switch has to be kept in the

ON position. Otherwise Neutral hold
mode is canceled and the P (Park) position
is engaged automatically.

To exit the Neutral hold mode, place the shift
lever in any position other than the N (Neu-
tral) position.

NOTE:

It is necessary to perform the steps 4
through 6 within approximately 5 seconds
to prevent incorrect operation.

When the shifter is changed to the N (Neu-
tral) position, approximately 5 seconds
later, a message will appear in the vehicle
information display. For additional infor-
mation, see “Neutral Hold Mode guidance
indicator” (P. 2-27).

If the Neutral hold mode is unavailable, a
message will appear in the vehicle infor-
mation display. For additional informa-
tion, see “Neutral Hold Mode was not ac-
tivated indicator” (P. 2-27).
To activate
the Neutral hold mode, wait for a while
without shifting operation and then per-
form the operations again.

Manual shift mode

When the shift lever is shifted to the D (Drive)
position again with the vehicle in the D (Drive)
position while driving, the transmission en-
ters the manual shift mode. Shift ranges can
be selected manually by pulling the paddle
shifters on the steering wheel.

When shifting up, pull the right-side paddle
shifter (+)

O

A

. The transmission shifts to the

higher range.

When shifting down, pull the left-side paddle
shifter (−)

O

B

. The transmission shifts to the

lower range.

LSD2914

5-22

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When canceling the manual shift mode, move
the shift lever to the D (Drive) position again.
The transmission returns to the normal driv-
ing mode.

When you pull the paddle shifter while in the
D (Drive) position, the transmission will shift
to the upper or lower range temporarily. The
transmission will automatically return to the
D (Drive) position after a short period of time.
If you want to return to the D (Drive) position
manually, pull and hold the paddle shifter for
about 1.5 seconds.

In the manual shift mode, the shift range is
displayed in the vehicle information display.

Shift ranges up or down one by one as
follows:

1M

2M

3M

4M

5M

6M

7M

8M

8 (8th)

Use this position for all normal forward driv-
ing at highway speeds.

7 (7th), 6 (6th) and 5 (5th)

Use this position when driving up long slopes,
or for engine braking when driving down long
slopes.

4 (4th), 3 (3rd) and 2 (2nd)

Use these positions for hill climbing or engine
braking on downhill grades.

1 (1st)

Use this position when climbing steep hills
slowly or driving slowly through deep snow,
or for maximum engine braking on steep
downhill grades.
• Remember not to drive at high speeds for

extended periods of time in lower than the
8th range. This reduces fuel economy.

• Pulling the same paddle shifter twice will

shift the ranges in succession. However, if
this motion is rapidly done, the second
shifting may not be completed properly.

In the manual shift mode, the transmission
may not shift to the selected gear. This
helps maintain driving performance and
reduces the chance of vehicle damage or
loss of control.

In the manual shift mode, the transmission
may shift up automatically to a higher
range than selected if the engine speed is
too high. When the vehicle speed de-
creases, the transmission automatically
shifts down and shifts to 1st gear before
the vehicle comes to a stop.

Accelerator downshift
— in D (Drive) position —

For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.

High fluid temperature protection
mode

This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.

Fail-safe

When the fail-safe operation occurs, the
Continuously Variable Transmission will not
be shifted into the selected driving position.

Starting and driving

5-23

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may come on to indicate
the fail-safe mode is activated. For addi-
tional information, see “Malfunction Indica-
tor Light (MIL)” (P. 2-15).
This will occur
even if all electrical circuits are functioning
properly. In this case, place the ignition
switch in the OFF position and wait for
10 seconds. Then place the ignition switch
back in the ON position. The vehicle should
return to its normal operating condition. If it
does not return to its normal operating con-
dition, have the transmission checked and re-
paired, if necessary. It is recommended that
you visit an INFINITI retailer for this service.

WARNING

When the high fluid temperature protec-
tion mode or fail-safe operation occurs, ve-
hicle speed may be gradually reduced. The
reduced speed may be lower than other
traffic, which could increase the chance of
a collision. Be especially careful when driv-
ing. If necessary, pull to the side of the road
at a safe place and allow the transmission
to return to normal operation, or have it
repaired if necessary.

WARNING

Be sure the parking brake is fully re-
leased before driving. Failure to do so
can cause brake failure and lead to an
accident.

Do not release the parking brake from
outside the vehicle.

Do not use the shift lever in place of the
parking brake. When parking, be sure the
parking brake is fully engaged.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.

The electronic parking brake can be applied
or released automatically or by operating the
parking brake switch.

AUTOMATIC OPERATION

The electronic parking brake is automatically
released as soon as the vehicle starts and the
accelerator pedal is depressed.

The driver’s seat belt needs to be fastened.

WARNING

The electronic parking brake will not be
automatically applied when the engine is
stopped without using the ignition
switch (for example, by engine stalling).
Without the vehicle stationary, the elec-
tronic parking brake will not be auto-
matically applied even if the engine is
turned off with the ignition switch.

LSD2915

ELECTRONIC PARKING BRAKE

5-24

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Before leaving the vehicle, press the Park
button to place the vehicle in the P (Park)
position and check that the electronic
parking brake indicator light is illumi-
nated to confirm that the electronic
parking brake is applied. The electronic
parking brake indicator light will remain
on for a period of time after the driver’s
door is locked.

CAUTION

When parking in an area where the outside
temperature is below 32°F (0°C), the park-
ing brake, if applied, may freeze in place
and may be difficult to release.

For safe parking, it is recommended that
you place the shift position in the P (Park)
position and securely block the wheels.

NOTE:

• If a malfunction occurs in the electronic

parking brake system (for example, due to
battery discharge), it is recommended that
you visit an INFINITI retailer.

• Under the following conditions the elec-

tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released:
– The braking force is applied by the auto-

matic brake hold function for 3 minutes
or longer.

– The vehicle is in the P (Park) position.
– The electronic parking brake is applied

manually.

– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF

position.

– A malfunction occurs in the automatic

brake hold function.

MANUAL OPERATION

The electronic parking brake will not be auto-
matically applied if the engine is stopped
without using the ignition switch (for ex-
ample, by engine stalling). In such a case, you
have to apply the parking brake manually.

To apply:

Pull the switch up

O

1

. The indicator

light

O

A

will illuminate.

To release:

With the ignition switch in the ON

position, depress the brake pedal and push
the switch down

O

2

. The indicator light

O

A

will turn off.

Before driving, check that the electronic
parking brake indicator light (red) (if so
equipped)

or

goes out. For addi-

tional information, see “Warning lights, indi-
cator lights and audible reminders” (P. 2-9).

NOTE:

• A buzzer will sound if the vehicle is driven

without releasing the parking brake. For
additional information, see “Warning
lights, indicator lights and audible remind-
ers” (P. 2-9).

• While the electronic parking brake is ap-

plied or released, an operating sound is
heard from the lower side of the rear seat.
This is normal and does not indicate a
malfunction.

• When the electronic parking brake is fre-

quently applied and released in a short pe-
riod of time, the parking brake may not
operate in order to prevent the parking
brake system from overheating. If this oc-
curs, operate the electronic parking brake
switch again after waiting approximately
1 minute.

• If the electronic parking brake must be ap-

plied while driving in an emergency, pull up
and hold the parking brake switch. When
you release the parking brake switch, the
parking brake will be released.

Starting and driving

5-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• While pulling up the electronic parking

brake switch during driving, the parking
brake is applied and a chime sounds. The
electronic parking brake indicator light
(red) in the meter and in the parking brake
switch illuminates. This does not indicate a
malfunction. The electronic parking brake
indicator light (red) in the meter and in the
parking brake switch turns off when the
parking brake is released.

• When pulling the electronic parking brake

switch up with the ignition switch in the
OFF or AUTO ACC position, the parking
brake switch indicator light will continue
to illuminate for a short period of time.

WHEN TOWING A TRAILER

Depending on the weight of the vehicle and
trailer and the steepness of the slope, there
may be a tendency for the vehicle to move
backwards when starting from a standstill.
When this occurs, you can use the parking
brake switch in the same way as a conven-
tional lever type parking brake.

Before starting on sloping roads when tow-
ing a trailer, be sure to read the following to
prevent the vehicle from moving backwards
unintentionally.
• Release the parking brake switch as soon

as the engine is delivering enough torque to
the wheels.

The automatic brake hold function maintains
the braking force without the driver having to
depress the brake pedal when the vehicle is
stopped at a traffic light or intersection. As
soon as the driver depresses the accelerator
pedal again, the automatic brake hold func-
tion is deactivated and the braking force is
released. The operating status of automatic
brake hold can be displayed.

To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.

WARNING

The automatic brake hold function is not
designed to hold the vehicle on a steep
hill or slippery road. Never use the auto-
matic brake hold when the vehicle is
stopped on a steep hill or slippery road.
Failure to do so may cause the vehicle to
move.

Warnings may appear to request that
the driver retake control by depressing
the brake pedal.

When the automatic brake hold function
is activated but fails to maintain the ve-
hicle at a standstill, depress the brake
pedal to stop the vehicle. If the vehicle
unexpectedly moves due to outside con-
ditions, the chime may sound and warn-
ings may appear.

Be sure to deactivate the automatic
brake hold function when using a car
wash or towing your vehicle.

Make sure to push the park button to
shift to the P (Park) position and apply
the parking brake when parking your ve-
hicle, entering or exiting the vehicle, or
loading luggage. Failure to do so could
cause the vehicle to move or roll away
unexpectedly and result in serious per-
sonal injury or property damage.

WARNING

If any of the following conditions occur,
the automatic brake hold function may
not function. Have the system checked
promptly. It is recommended that you
visit an INFINITI retailer for this service.

A warning message appears.

The indicator light on the automatic

brake hold switch does not illuminate
when the switch is pushed.

AUTOMATIC BRAKE HOLD

5-26

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Failure to operate the vehicle in accordance
with these conditions could cause the vehicle
to move or roll away unexpectedly and result
in serious personal injury or property damage.

The automatic brake hold function will
not be activated if the Slip indicator
light, electronic parking brake warning
light or master warning light illuminate
and the chassis control system fault
message appears in the vehicle informa-
tion display.

To maintain the braking force to keep
the vehicle to a standstill, a noise may be
heard. This is not a malfunction.

Automatic brake hold function is oper-
ated by applying sufficient braking force
to hold the vehicle in its place, so there
are cases when this hold function is
maintained even if the accelerator pedal
is depressed. In this situation, it is ad-
vised to depress the brake pedal first,
then to turn off automatic brake hold
switch. This will cancel the hold function.

HOW TO ACTIVATE/
DEACTIVATE THE AUTOMATIC
BRAKE HOLD FUNCTION

For additional information on activating and
deactivating the automatic brake hold func-
tion, refer to the instructions outlined in this
section.

How to activate the automatic
brake hold function

1. With the ignition switch in the ON posi-

tion, push the automatic brake hold switch

O

1

. The indicator light on the automatic

brake hold switch

O

2

illuminates.

2. When the automatic brake hold function

goes into standby, the automatic brake
hold indicator light (white) illuminates.

To use the automatic brake hold function, the
following conditions need to be met:
• The driver’s seat belt is fastened.
• The electronic parking brake is released.
• The vehicle is not in the P (Park) position.
• The vehicle is not parked on a steep hill.

NOTE:

The automatic brake hold function retains
the last state until the driver changes the
option even if the ignition switch off.

How to deactivate the automatic
brake hold function

While the automatic brake hold function is
activated, push the automatic brake hold
switch to turn off the automatic brake hold
indicator light and deactivate the automatic
brake hold function. To deactivate the auto-
matic brake hold function while the brake
force has been maintained by the automatic
brake hold function, depress the brake pedal
and push the automatic brake hold switch.

LSD4803

Starting and driving

5-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Make sure to firmly depress and hold the
brake pedal when turning off the auto-
matic brake hold function while the brake
force is applied. When the automatic brake
hold function is deactivated, the brake
force will be released. This could cause the
vehicle to move or roll away unexpectedly.
Failure to prevent the vehicle from rolling
may result in serious personal injury or
property damage.

HOW TO USE THE AUTOMATIC
BRAKE HOLD FUNCTION

For additional information on using the auto-
matic brake hold function, refer to the in-
structions outlined in this section.

To maintain braking force
automatically

With the automatic brake hold function acti-
vated and the automatic brake hold indicator
light (white) illuminated on the meter, depress
the braking pedal to stop the vehicle, and the
indicator light (green) illuminates. The brake
force is automatically applied without your
foot depressed on the brake pedal. While the
brake force is maintained, the automatic
brake hold indicator light (green) illuminates.

Automatic brake hold indicator light (green)
will not illuminate if the brake pedal is not
pressed with sufficient force to hold the ve-
hicle or is released too quickly when the ve-
hicle is stopped.

Confirm automatic brake hold indicator light
(green) is illuminated before removing your
foot from the brake pedal.

To start the vehicle from a standstill

With the vehicle not in the P (Park) or the N
(Neutral) position, depress the accelerator
pedal while the brake force is maintained. The
brake force will automatically be released to
restart the vehicle.

The automatic brake hold indicator light
(white) illuminates and the automatic brake
hold returns to standby.

Parking

When the vehicle is in the P (Park) position with
the brake force maintained by the automatic
brake hold function, the parking brake will au-
tomatically be applied and the brake force of
the automatic brake hold will be released. The
automatic brake hold indicator light turns off.
When the parking brake is applied with the
brake force maintained by the automatic brake

hold function, the brake force of the automatic
brake hold will be released. The automatic
brake hold indicator light turns off.

NOTE:

• Under the following conditions, the elec-

tronic parking brake will automatically be
applied and the braking force of the auto-
matic brake hold will be released. The au-
tomatic brake hold indicator light turns
off.

– The braking force is applied by the auto-

matic brake hold function for 3 minutes
or longer.

– The vehicle is in the P (Park) position.
– The electronic parking brake is applied

manually.

– The driver’s seat belt is unfastened.
– The driver’s door is opened.
– The ignition switch is placed in the OFF

position.

– A malfunction occurs in automatic brake

hold function.

• When the vehicle stops, but the brake force

is not automatically applied, depress the
brake pedal firmly until the automatic brake
hold indicator light (green) illuminates.

5-28

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Automatic brake hold function
display

The automatic brake hold function status is
shown by color in the “Chassis Control” mode
in the vehicle information display. For addi-
tional information, see “Vehicle information
display” (P. 2-19).

Also depending on the driving situations, some
warnings or indicators may be displayed in the
vehicle information display. For additional in-
formation, see “Vehicle information display
warnings and indicators” (P. 2-24)

Multiple driving modes can be selected by us-
ing the INFINITI Drive Mode Selector (STAN-
DARD, SPORT, ECO and PERSONAL).

NOTE:

• When the INFINITI Drive Mode Selector

selects a mode, the mode may not switch
quickly. This is not a malfunction.

• The mode list will be turned off in approxi-

mately 5 seconds after the mode is selected.

• If the driving mode cannot be switched us-

ing the INFINITI Drive Mode Selector
when the ignition switch is in the ON posi-
tion, have the system checked. It is recom-
mended you visit an INFINITI retailer for
this service.

STANDARD MODE

STANDARD mode is recommended for nor-
mal driving. Push the INFINITI Drive Mode
Selector until “STANDARD” appears in the
vehicle information display. STANDARD
mode will also be displayed in the upper
display.

This mode will be selected first each time the
engine is started.

SPORT MODE

The SPORT mode adjusts the engine and
transmission to enhance performance. Push
the INFINITI Drive Mode Selector switch to
the SPORT position. “SPORT” appears in the
vehicle information display. SPORT mode will
also be displayed in the upper display.

NOTE:

In the SPORT mode, fuel economy may be
reduced.

LSD3922

LSD4804

INFINITI Drive Mode Selector

INFINITI DRIVE MODE SELECTOR

Starting and driving

5-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

PERSONAL MODE

PERSONAL mode is used for adjusting the
steering mode and drive modes. Turn the
PERSONAL mode off for normal driving.
Push the INFINITI Drive Mode Selector
switch until “PERSONAL” appears in the ve-
hicle information display. PERSONAL mode
will also be displayed in the upper display. For
additional information, refer to the INFINITI
InTouch® Owner’s Manual.

How to set the PERSONAL mode

Perform the following steps to set the PER-
SONAL mode:

1. Press the MENU button

O

1

and select

“INFINITI Drive Mode Selector” on the
lower display.

2. Select “Engine/Transmission,” “Steering,”

“Active Trace Control” or “Active Engine
Brake” and select each item. (See “Engine/
Transmission,” “Steering,” “Active Trace
Control” or “Active Engine Brake” about
the feature of each item.)

3. Select “Back” or press the MENU button

to finish the PERSONAL mode setting.

Engine/Transmission:

“Engine/Transmission” can be set to “Stan-
dard,” “Sport” or “Eco.”

Steering (models with Direct Adaptive
Steering®):

Multiple combinations of steering mode and
steering response can be set.

Mode

Response

Sport

Dynamic+

Dynamic

Default

Standard

Default

Steering (models without Direct Adaptive
Steering®):

“Steering” can be set to “Sport” or “Standard.”

Active Trace Control:

“Active Trace Control” can be set to ON
(enabled) or OFF (disabled). For additional
information, see “Active Trace Control”
(P. 5-144).

LSD2982

5-30

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Active Engine Brake:

“Active Engine Brake” can be set to ON (en-
abled) or OFF (disabled). For additional infor-
mation, see “Active Engine Brake” (P. 5-145).

Reset Drive Mode Settings to Default:

Touch to restore all the PERSONAL mode
settings to default.

ECO MODE

The ECO mode adjusts the engine and trans-
mission to enhance fuel economy.

NOTE:

Selecting this drive mode will not necessarily
improve fuel economy as many driving fac-
tors influence its effectiveness.

Operation

Push the Drive Mode Selector switch to the
ECO position. “ECO” appears in the vehicle
information display and the ECO drive indi-
cator light illuminates on the instrument
panel. ECO mode will also be displayed in the
upper display.

When the accelerator pedal is depressed
within the range of economy drive, the ECO
drive indicator light illuminates in green.
When the accelerator pedal is depressed
above the range of economy drive, the ECO
drive indicator light turns off.

The ECO drive indicator light will not illumi-
nate in the following cases:
• When the shift lever is in the R (Reverse)

position.

• When the vehicle speed is below 3 mph

(4.8 km/h) or over 90 mph (144 km/h).

• When the Intelligent Cruise Control system

(if so equipped) is operated.

Eco Drive Report (if so equipped)

When the ignition switch is in the OFF posi-
tion, the ECO management display appears.

1

Previous 5 times (History)

2

Current fuel economy

3

Best fuel economy

LSD4103

Starting and driving

5-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The result of ECO evaluation is displayed 30
seconds after the ignition switch is placed in
the ON position and the vehicle is driven at
least 1/3 miles (500 meters).

1

The average fuel economy for the previ-
ous 5 times will be displayed.

2

The average fuel economy since the last
reset will be displayed.

3

The best fuel economy of the past history
will be displayed.

The ECO Drive Report can be set to be ON or
OFF.

The TSR system provides the driver with in-
formation about the most recently detected
speed limit. The system captures the road
sign information with the multi-sensing front
camera unit

O

1

located on the windshield in

front of the inside rearview mirror and dis-
plays the detected signs in the vehicle infor-
mation display. For vehicles equipped with a
navigation system, the speed limit displayed
is based on a combination of navigation sys-
tem data and live camera recognition. TSR
information is always displayed at the top of
the vehicle information display, and option-
ally in the main central area of the display
screen.

WARNING

The TSR system is only intended to be a
support device to help provide the driver
with information. It is not a replacement
for the driver’s attention to traffic condi-
tions or responsibility to drive safely. It
cannot prevent accidents due to careless-
ness. It is the driver’s responsibility to stay
alert and drive safely at all times.

LSD2823

TRAFFIC SIGN RECOGNITION (TSR)
(if so equipped)

5-32

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SYSTEM OPERATION

The Traffic Sign Recognition (TSR) system
displays the following types of road signs:

O

A

Speed sign detected (in Canada)

O

B

Speed sign detected (in USA)

O

C

Speed sign detected (no speed limit

detected)

O

D

“Do not pass” sign detected

CAUTION

The TSR system is intended as an aid to
careful driving. It is the driver’s responsi-
bility to stay alert, drive safely, and ob-
serve all road regulations that currently
apply, including looking out for road
signs.

The TSR system may not function prop-
erly under the following conditions:

When the road sign is not clearly vis-
ible, for example, due to damage or
weather conditions.

When rain, snow or dirt adheres to
the windshield in front of the multi-
sensing camera unit.

When the headlights are not bright,
for example, due to dirt on the lens or
if the aiming is not adjusted properly.

When strong light enters the camera
unit. (For example, the light directly
shines on the front of the vehicle at
sunrise or sunset.)

When a sudden change in brightness
occurs. (For example, when the ve-
hicle enters or exits a tunnel or under
a bridge.)

In areas not covered by the naviga-
tion system.

If there are deviations in relation to
the navigation, for example due to
changes in the road routing.

When overtaking buses or trucks
with speed stickers.

LSD3330

LSD3378

Starting and driving

5-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TURNING THE TRAFFIC SIGN
RECOGNITION (TSR) SYSTEM ON
AND OFF

Perform the following steps to enable or dis-
able the TSR system.

1. Press the MENU button

O

1

below the

lower display screen.

2. Select “Driver Assistance.”

3. Select “Traffic Sign Assist.”

4. Select “ON” to turn the “Traffic Sign Rec-

ognition” system on or off.

SYSTEM TEMPORARILY
UNAVAILABLE

If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 104°F [40°C]) and then started, the
TSR system may be deactivated automati-
cally. The “Not Available: High Camera
Temp.” warning message will appear in the
vehicle information display.

Action to take:

When the interior temperature is reduced,
the TSR system will resume operating
automatically.

SYSTEM MALFUNCTION

If the TSR system malfunctions, it will be
turned off automatically and the system
“Malfunction” warning message will appear
in the vehicle information display.

Action to take:

If the TSR “Malfunction” message appears,
pull off the road at a safe location and stop
the vehicle. Turn the engine off and restart
the engine. If the TSR “Malfunction” message
continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.

SYSTEM MAINTENANCE

The TSR system uses the same multi-sensing
front camera unit that is used by the Lane
Departure Warning (LDW) system, located
in front of the interior rearview mirror. For
additional information, see ”System mainte-
nance” (P. 5-39).

LSD2965

5-34

Starting and driving

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     7      8      9      10     ..
