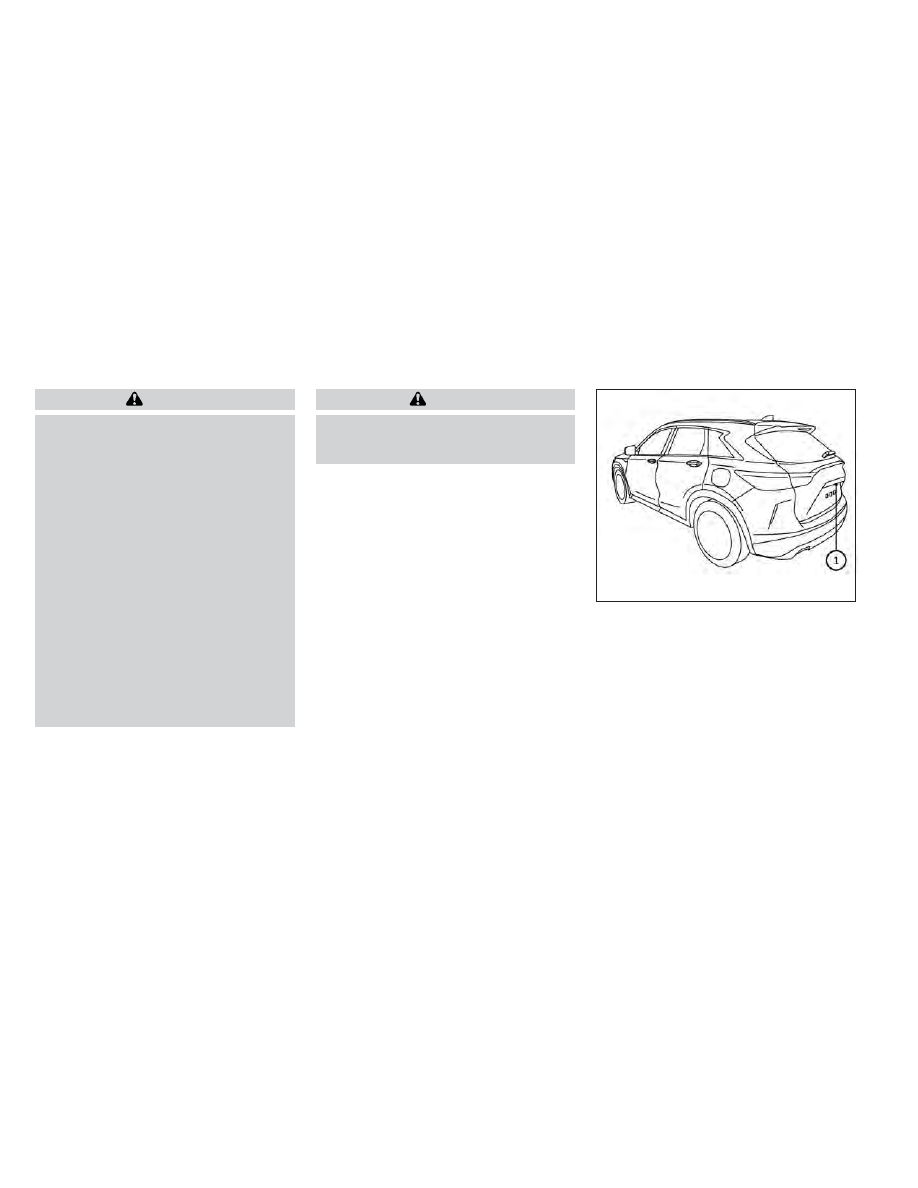

MOTION-ACTIVATED LIFTGATE
(if so equipped)

The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.

To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.

NOTE:

Tow hitches are available as an accessory for
this vehicle. If a tow hitch is installed, the
liftgate electronic control unit (ECU) needs
to be replaced with an ECU programmed
with towing logic for the Motion-Activated
Liftgate to function properly.

Proper operation technique

• While at the rear of the vehicle, begin mak-

ing a quick forward kicking motion.

• Raise your foot straight under the center of

the rear bumper then immediately return
your foot to the ground in a continuous
motion.

• The kicking motion should be straight,

smooth and consistent.

• After your kick motion is complete, step

back and allow the liftgate to open/close.

• Three beeps will sound and the liftgate will

begin moving within two seconds after the
kick.

CAUTION

Before performing the kicking motion,
steady your stance to prevent any loss of
balance. Also, while making the kicking
motion, take caution around hot exhaust
system parts. Otherwise, there may be
danger of injury.

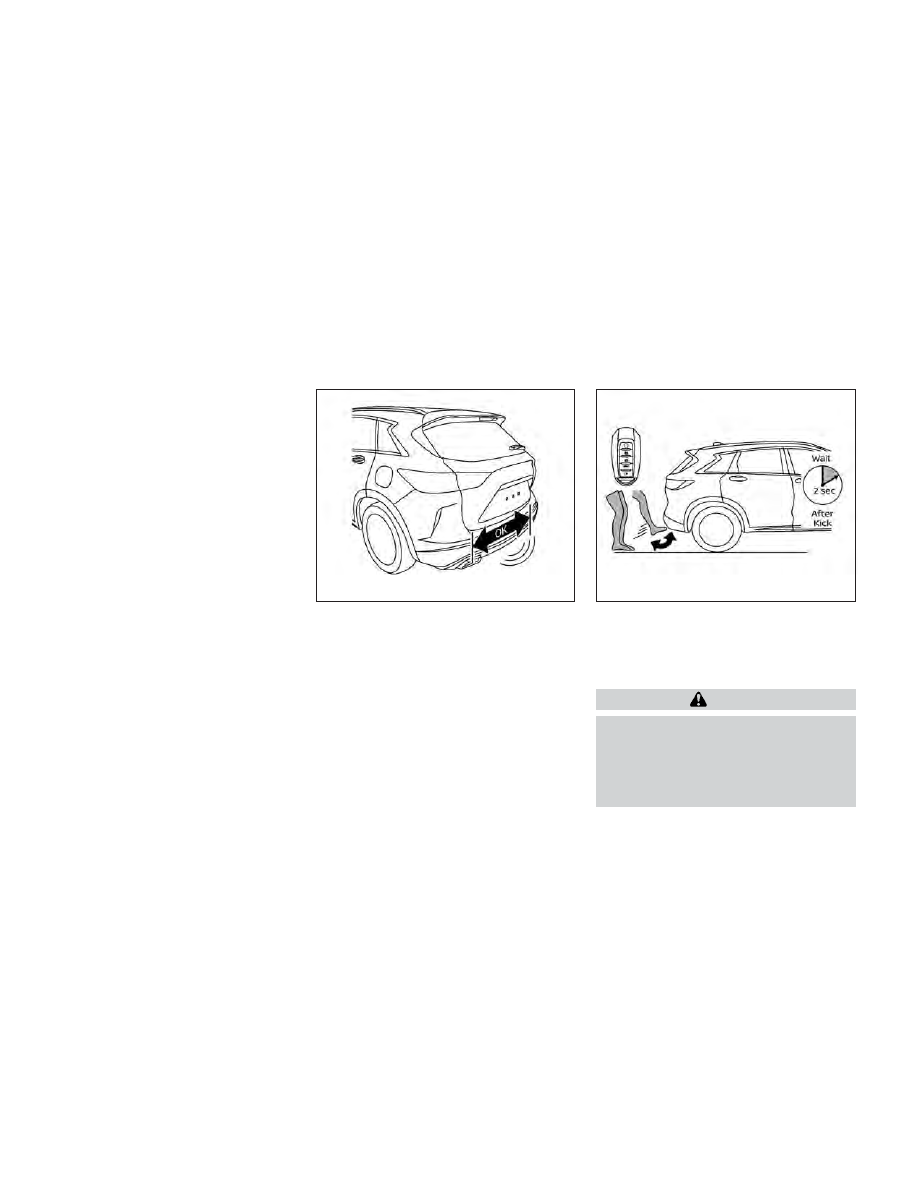

LPD2765

Activation zone

LPD3033

DO: Quick forward kick and return while

the key fob is within range

Pre-driving checks and adjustments

3-25

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Prevent unintentional liftgate opening/
closing. There may be conditions when
opening/closing the liftgate is not desired.
Keep the Intelligent Key out of range of the
liftgate, (31.5 in or 80 cm), when washing
or working around the back of the vehicle.

CAUTION

Interference or malfunction can be
caused by parking in close proximity to
radio or satellite towers.

Intelligent Key interference could be
caused if you have your key fob stored
next to your cell phone or any RF-
enabled smart card. For additional infor-
mation, see “INFINITI Intelligent Key”
(P. 3-2).

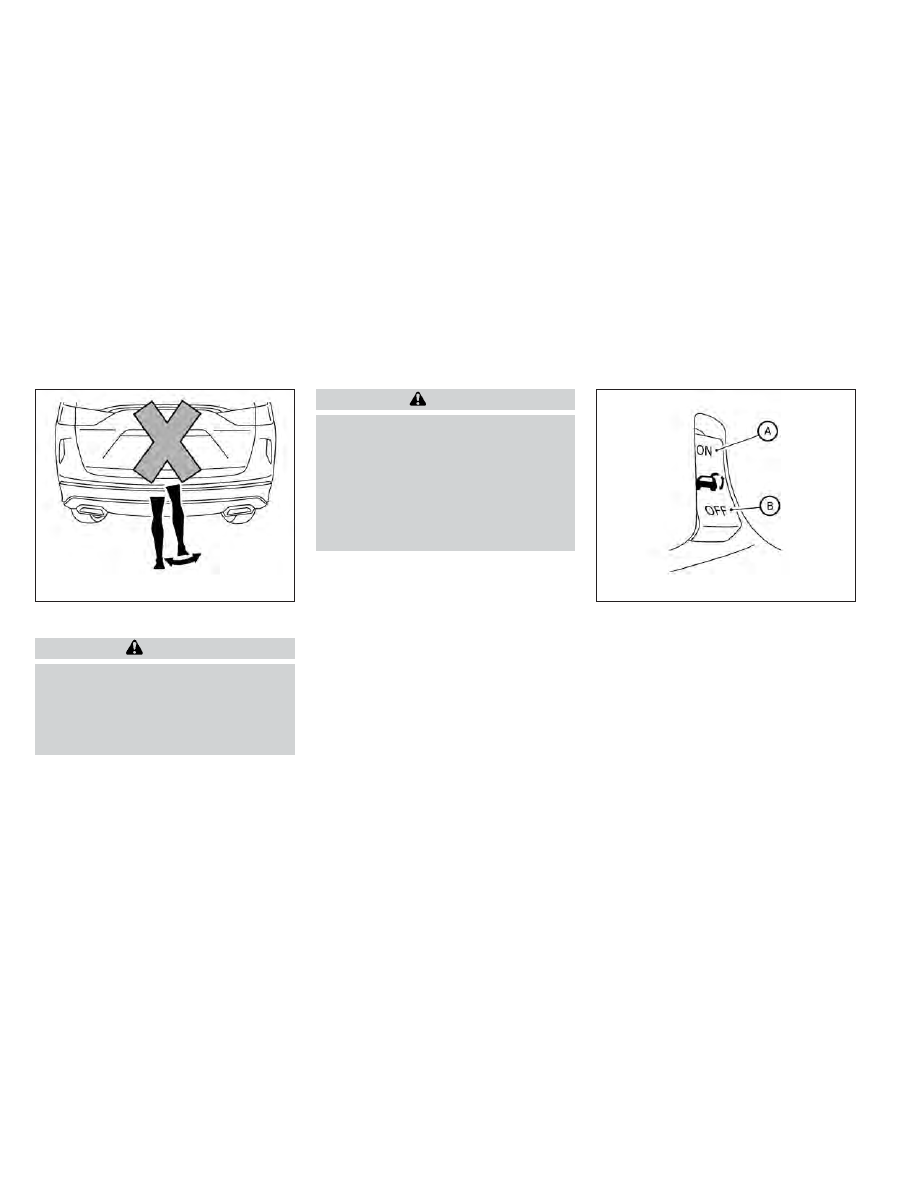

POWER LIFTGATE MAIN SWITCH

The power liftgate operation can be turned
ON

O

A

or OFF

O

B

by the power liftgate main

switch located in the glove box.

When the power liftgate main switch is
pushed to the OFF position, the power
operation is not available by the power lift-
gate switch or liftgate request switch on the
liftgate.

LPD2767

DO NOT: Swing foot side to side or pause

during kick

LPD2723

3-26

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power operation is only available when the
power liftgate main switch is in the OFF po-
sition by pressing the liftgate button on the
key fob.

Motion-Activated Liftgate (if so equipped)
will not function when the power liftgate
main switch is in the OFF position.

LIFTGATE RELEASE

WARNING

Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.

Do not drive with the liftgate open. This
could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, see “Exhaust gas (carbon
monoxide)” (P. 5-4).

To avoid personal injury, do not attempt
to activate the power liftgate if one or
both of the liftgate struts are removed.

CAUTION

If the power liftgate does not stay open
or if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.

Do not activate the power liftgate if one
or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.

Keep the power liftgate main switch (if
so equipped) in the OFF position when
washing or working around the back of
the vehicle (with Intelligent Key) to pre-
vent inadvertent opening/closing.

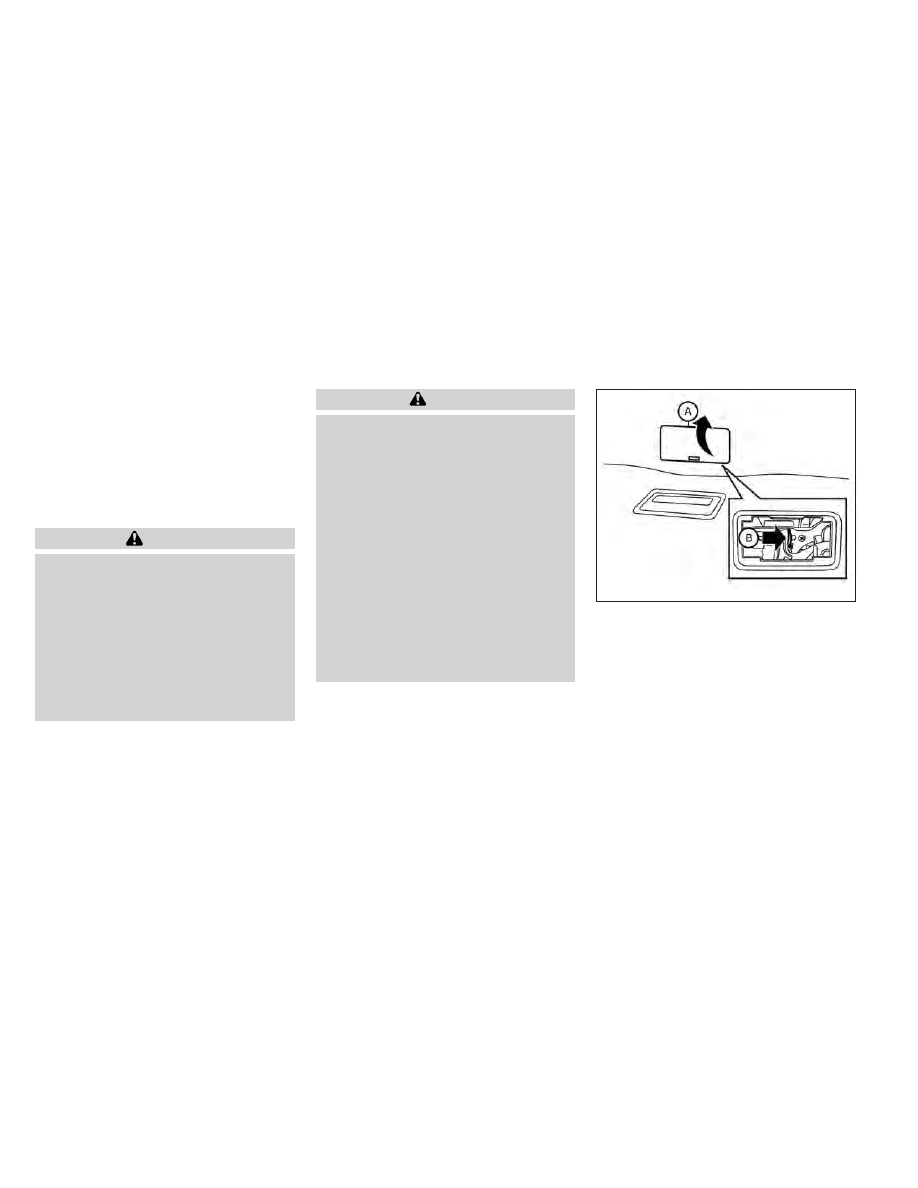

Power liftgate release

If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:

1. Remove the cover

O

A

on the inside of the

liftgate.

2. Move the lever

O

B

as illustrated to open

the liftgate.

It is recommended that you visit an INFINITI
retailer as soon as possible for repair.

LPD2749

Pre-driving checks and adjustments

3-27

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

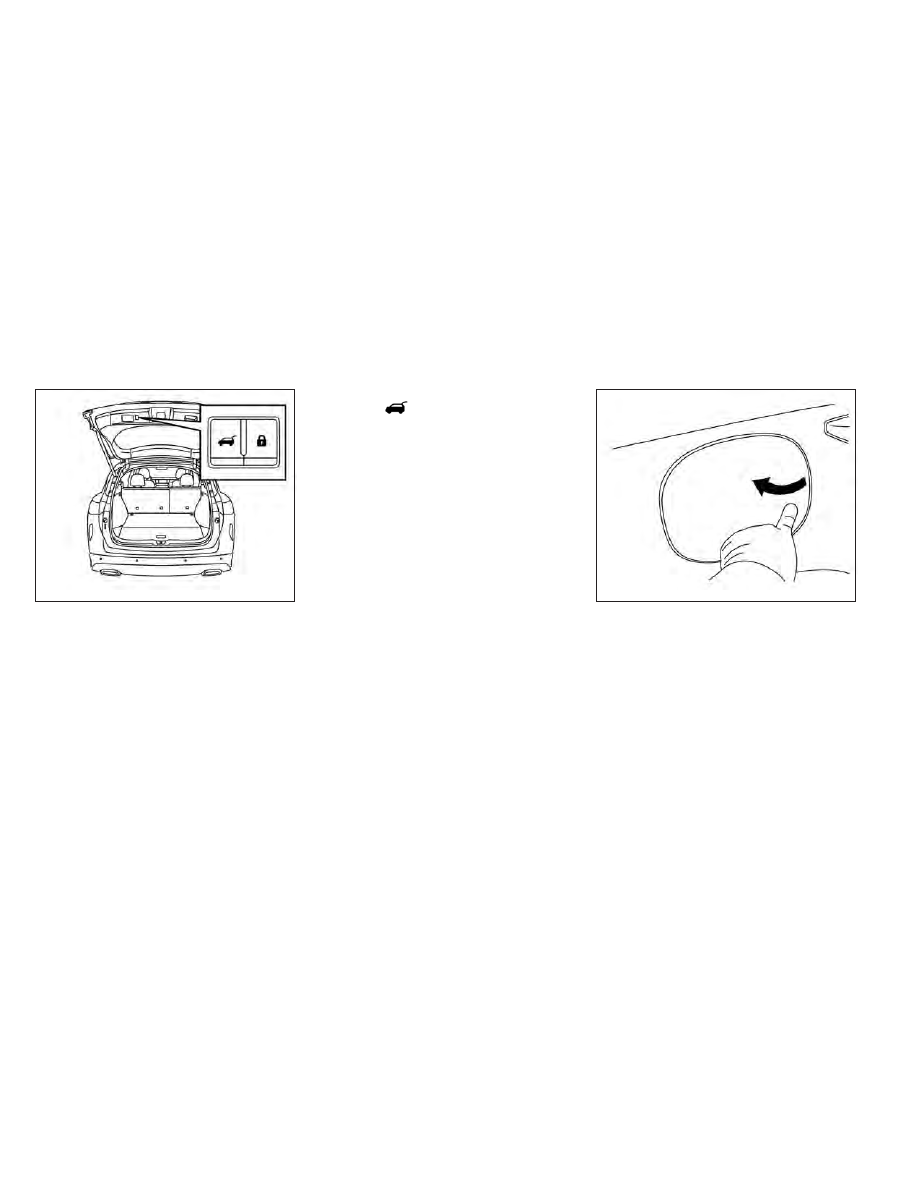

LIFTGATE POSITION SETTING

The liftgate can be set to open to a specific
height (garage mode) by performing the fol-
lowing:

1. Open the liftgate using the request switch

or the Intelligent Key.

2. Pull the liftgate down and move to the

desired height position (the liftgate will
have some resistance when being manu-
ally adjusted).

3. Push and hold the power liftgate close

switch

located on the liftgate for

more than 3 seconds or until two beeps
are heard.

The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3.

OPENING THE FUEL-FILLER
DOOR

The fuel-filler door automatically unlocks
when the driver's door is unlocked.

1. Unlock the fuel-filler door using one of the

following operations:
• Unlock the driver’s door with the Intelli-

gent Key.

• Push the power door lock switch to the

unlock position.

LPD3354

LPD2725

FUEL-FILLER DOOR

3-28

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Touch the one touch unlock sensor while

carrying the Intelligent Key with you. For
additional information, see “Unlocking
doors and fuel-filler door” (P. 3-12).

2. To open the fuel-filler door, push the right

side of the fuel-filler door to release.

To lock, close the fuel-filler door securely and
lock the doors.

FUEL-FILLER CAP

WARNING

Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled. Al-
ways stop the engine and do not smoke
or allow open flames or sparks near the
vehicle when refueling.

Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.

Use only an original equipment type fuel-
filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emis-
sion control system. An incorrect cap can
result in a serious malfunction and pos-
sible injury. It could also cause the
Malfunction Indicator Light (MIL) to
come on.

Never pour fuel into the throttle body to
attempt to start your vehicle.

Do not fill a portable fuel container in the
vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:

Always place the container on the

ground when filling.

Do not use electronic devices when

filling.

Keep the pump nozzle in contact with

the container while you are filling it.

Use only approved portable fuel con-

tainers for flammable liquid.

CAUTION

Do not use a fuel containing more than
15% ethanol in your vehicle. For addi-
tional information, see “Fuel recommen-
dation” (P. 10-4).

The Loose Fuel Cap warning message will
be displayed if the fuel-filler cap is not
properly tightened. It may take a few driv-
ing trips for the message to be displayed.
Failure to tighten the fuel-filler cap prop-
erly after the Loose Fuel Cap warning
is displayed may cause the Malfunction
Indicator Light (MIL) to illuminate.

Failure to tighten the fuel-filler cap
properly may cause the

Malfunc-

tion Indicator Light (MIL) to illuminate.
If the

light illuminates because the

fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive
the vehicle. The

light should turn off

after a few driving trips. If the

light

does not turn off after a few driving
trips, have the vehicle inspected. It is rec-
ommended that you visit an INFINITI
retailer for this service.

Pre-driving checks and adjustments

3-29

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For additional information, see “Malfunc-
tion Indicator Light (MIL)” (P. 2-15).

If fuel is spilled on the vehicle body, flush
it away with water to avoid paint
damage.

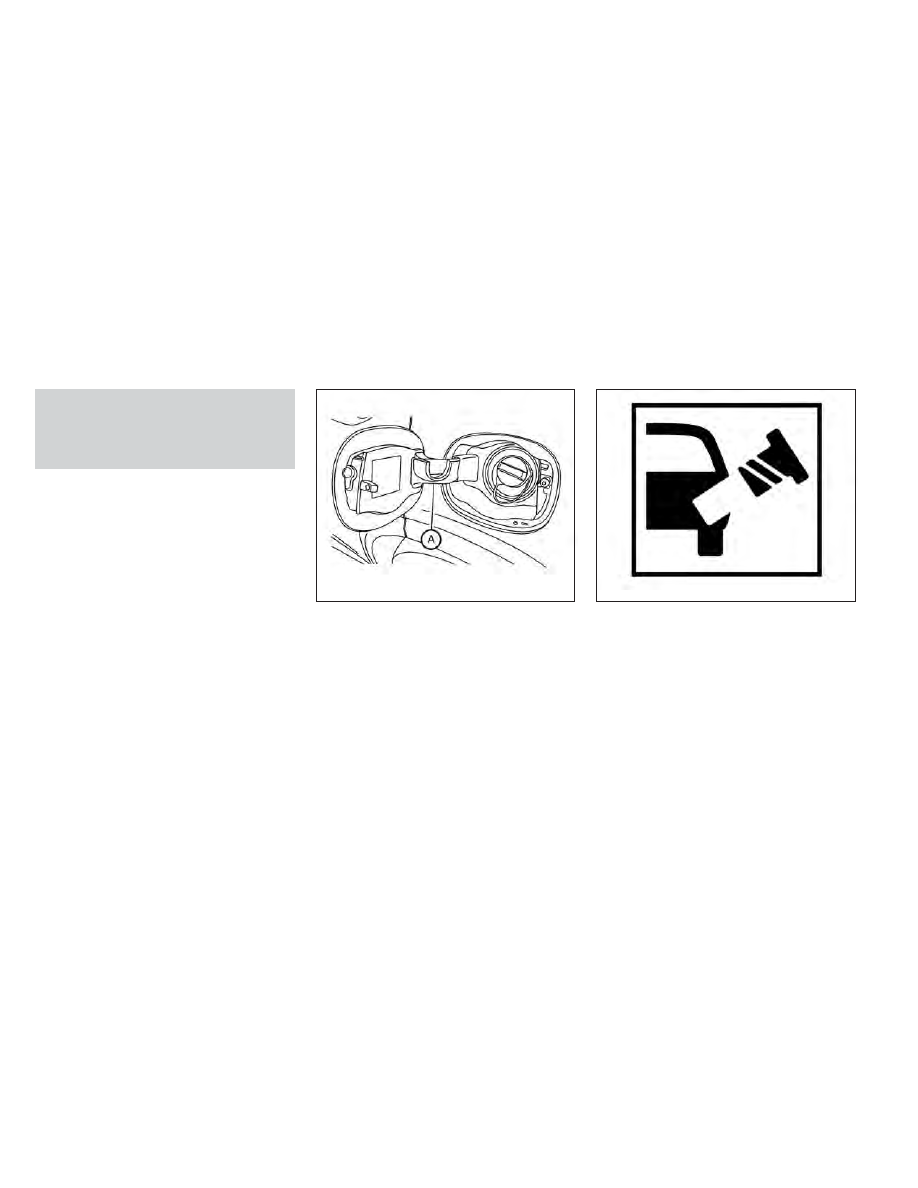

To remove the fuel-filler cap:

1. Turn the fuel-filler cap counterclockwise

to remove.

2. Put the fuel-filler cap on the cap holder

O

A

while refueling.

To install the fuel-filler cap:

1. Insert the fuel-filler cap straight into the

fuel-filler tube.

2. Turn the fuel-filler cap clockwise until a

single click is heard.

Loose Fuel Cap warning

The Loose Fuel Cap warning will appear in
the vehicle information display when the
fuel-filler cap is not tightened correctly after
the vehicle has been refueled. It may take a
few driving trips for the message to be dis-
played. To turn off the warning, perform the
following:

1. Remove and install the fuel-filler cap as

soon as possible. For additional informa-
tion, see “Fuel-filler cap” (P. 3-29).

LPD2726

LPD2985

3-30

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Tighten the fuel-filler cap until it a single

click is heard.

3. Press the

button on the steering

wheel for about 1 second to turn off the
Loose Fuel Cap warning message in the
vehicle information display.

WARNING

Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.

Do not adjust the steering wheel any
closer to you than is necessary for proper
steering operation and comfort. The
driver's air bag inflates with great force.
If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, you are at greater risk of injury or
death in a crash. You may also receive
serious or fatal injuries from the air bag if
you are up against it when it inflates.
Always sit back against the seatback and
as far away as practical from the steer-
ing wheel. Always use the seat belts.

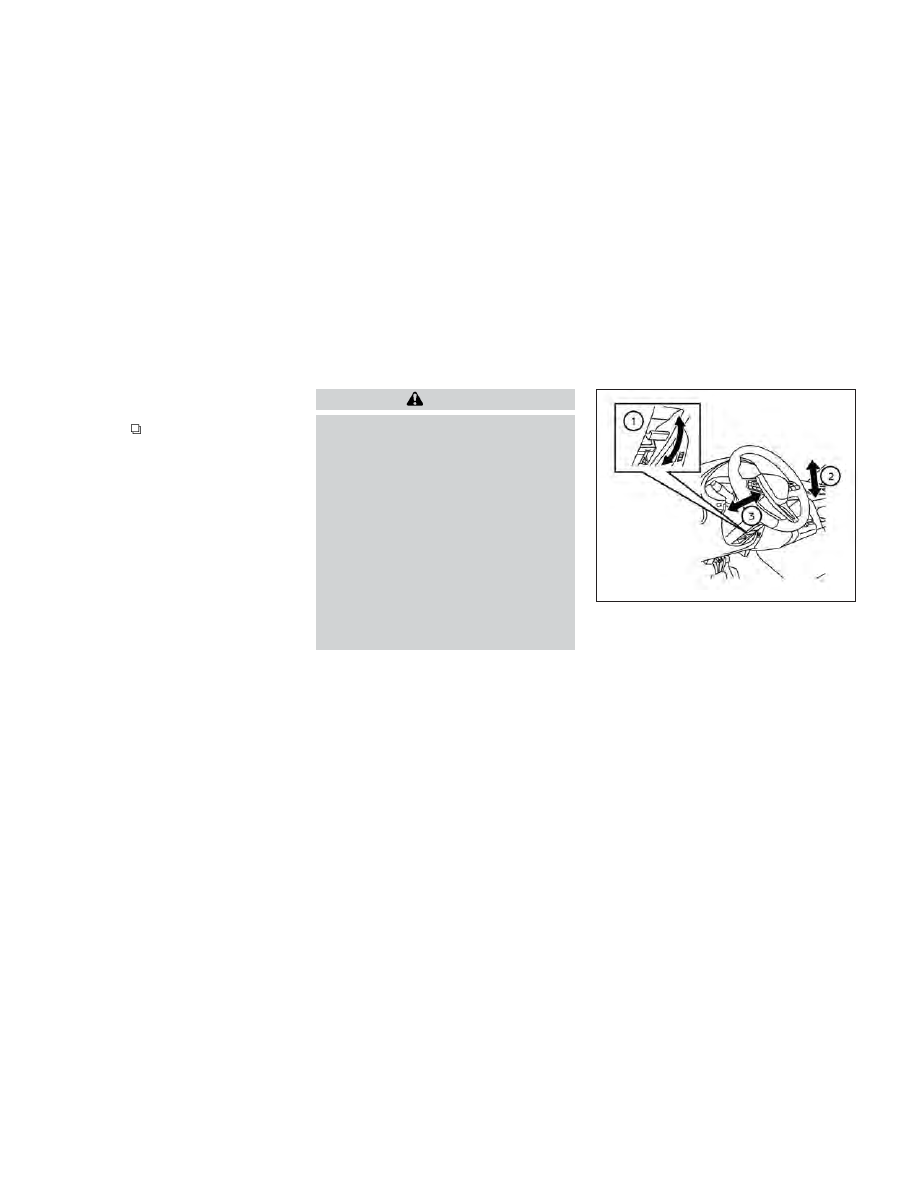

MANUAL OPERATION (if so
equipped)

Tilt and telescopic operation

Push the lock lever

O

1

down:

• Adjust the steering wheel up or down in

direction

O

2

to the desired position.

• Adjust the steering wheel forward or back-

ward in direction

O

3

to the desired position.

Pull the lock lever

O

1

up firmly to lock the

steering wheel in place.

LPD3377

STEERING WHEEL

Pre-driving checks and adjustments

3-31

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

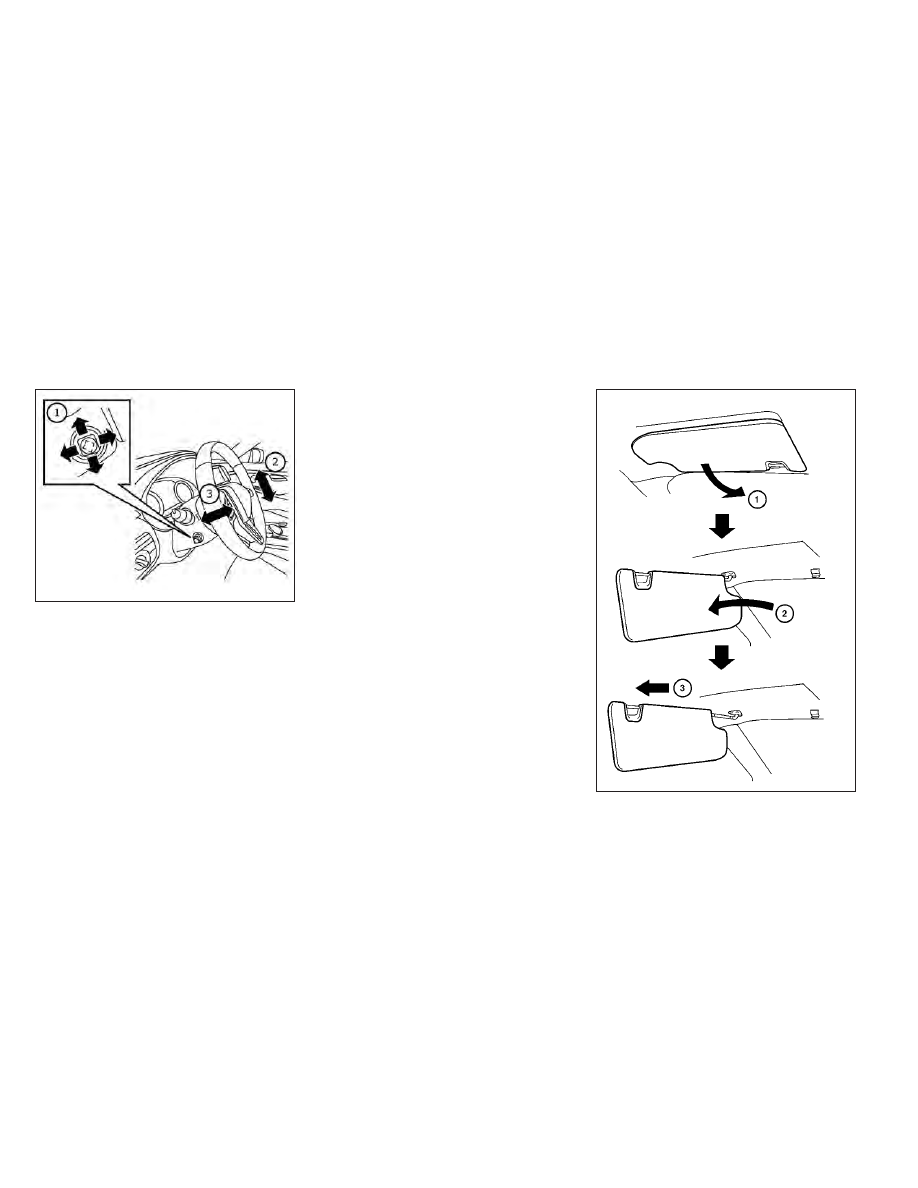

AUTOMATIC OPERATION (if so
equipped)

Tilt and telescopic operation

To adjust the steering wheel move the switch

O

1

in the following directions:

• Adjust the steering wheel up or down in

direction

O

2

to the desired tilt position.

• Adjust the steering wheel forward or back-

ward in direction

O

3

to the desired tele-

scopic position.

Entry/Exit function (if so equipped)

The memory seat system will make the steer-
ing wheel move up automatically when the
driver's door is opened and the ignition switch
is in the LOCK position. This lets the driver get
into and out of the seat more easily. The
steering wheel moves back into position
when the driver's door is closed and the igni-
tion switch is pushed.

For additional information, see “Memory
seat” (P. 3-37).

LPD2752

WPD0344

SUN VISORS

3-32

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. To block glare from the front, swing down

the sun visor

O

1

.

2. To block glare from the side, remove the

sun visor from the center mount and
swing the visor to the side

O

2

.

3. Slide the extension

O

3

sun visor in or out

as needed.

CAUTION

Do not store the sun visor before return-
ing the extension to its original position.

Do not pull the extension sun visor forc-
ibly downward.

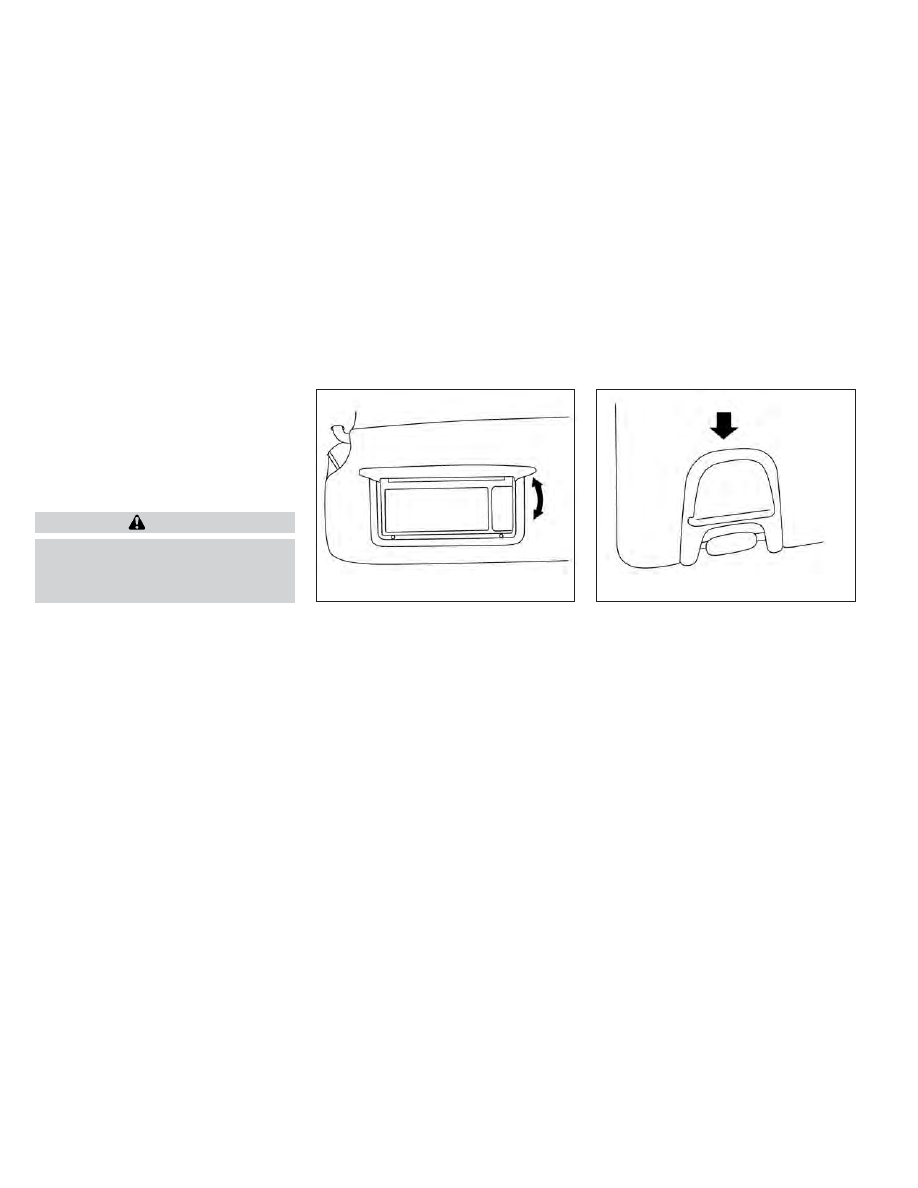

VANITY MIRRORS

To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The
vanity mirror will illuminate when the mirror
cover is open.

CARD HOLDER

To use the card holder, slide card into the clip.
Do not view information while operating the
vehicle.

LPD2583

LPD2340

Driver’s and passenger’s side

Pre-driving checks and adjustments

3-33

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

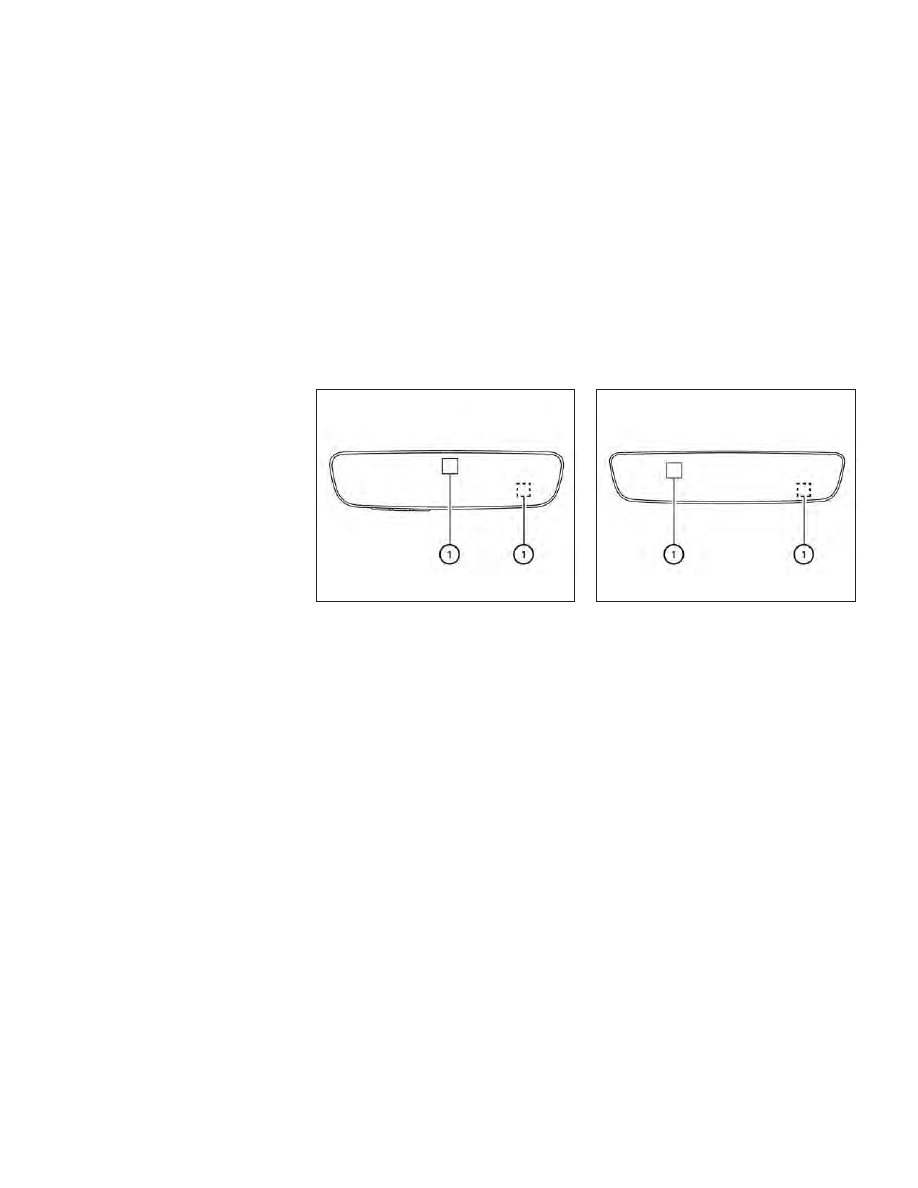

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR

The inside mirror is designed so that it auto-
matically dims during nighttime conditions
and according to the intensity of the head-
lights of the vehicle following you. The auto-
matic anti-glare feature is activated when
the ignition switch is in the ON position.

NOTE:

Do not hang any objects over the sensors

O

1

or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.

Type A (if so equipped)

For additional information on HomeLink® Uni-
versal Transceiver operation, see “HomeLink®
Universal Transceiver” (P. 2-80).

NOTE:

Do not hang any objects over the sensors

O

1

or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.

Type B (if so equipped)

NOTE:

Do not hang any objects over the sensors

O

1

or apply glass cleaner to the sensors. Doing
so will reduce the sensitivity of the sensors,
resulting in improper operation.

LPD3328

LPD3329

MIRRORS

3-34

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

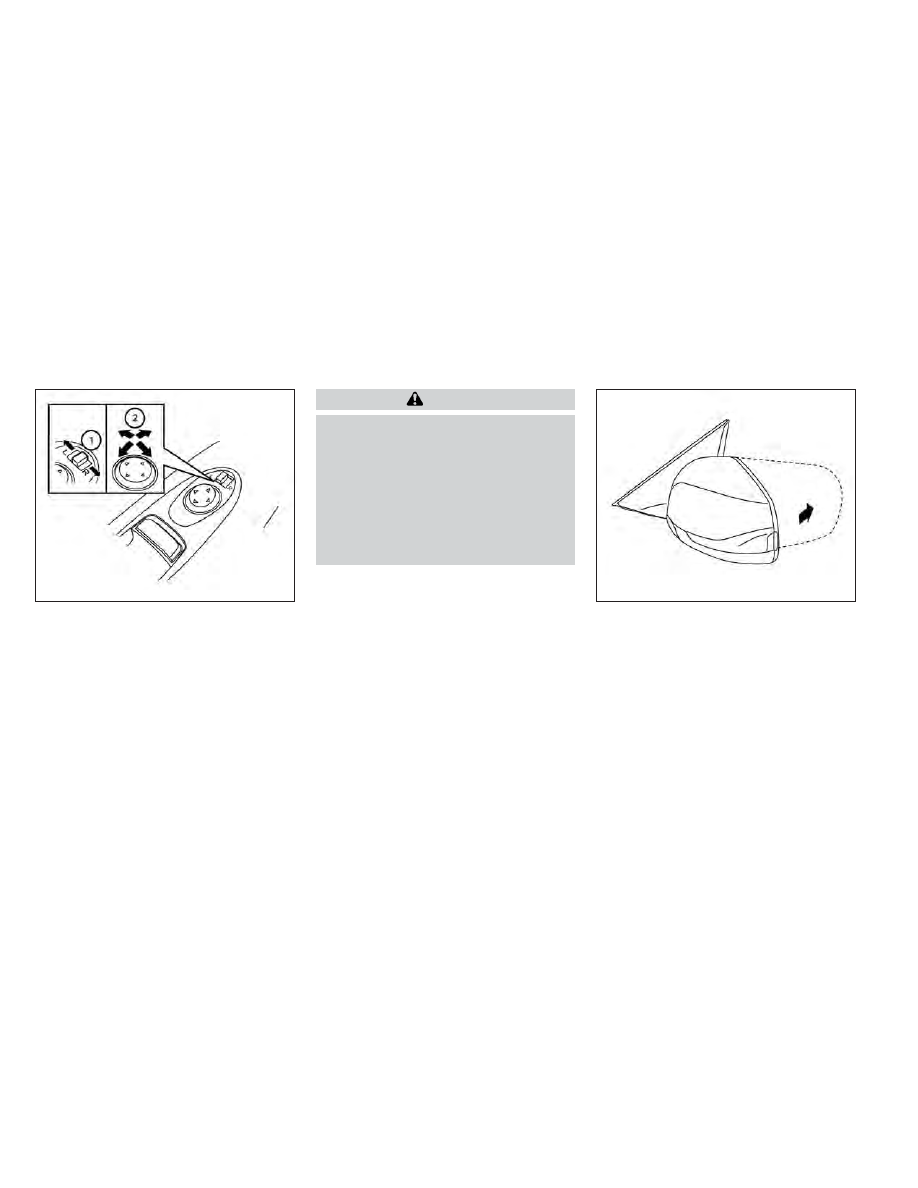

OUTSIDE MIRRORS

The outside mirror remote control will oper-
ate only when the ignition switch is in the ON
position.

Move the small switch

O

1

to select the left or

right mirror. Adjust each mirror to the desired
position using the large switch

O

2

. Move the

small switch

O

1

to the center (neutral)

position to prevent accidentally moving the
mirror.

WARNING

Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.

Do not adjust the mirrors while driving.
You could lose control of your vehicle and
cause an accident.

Manual folding outside mirrors
(if so equipped)

Pull the outside mirror toward the door to
fold it.

LPD3035

LPD3034

Pre-driving checks and adjustments

3-35

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power folding outside mirrors (if so
equipped)

CAUTION

Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.

Do not drive with the mirrors stored. You
will be unable to see behind the vehicle.

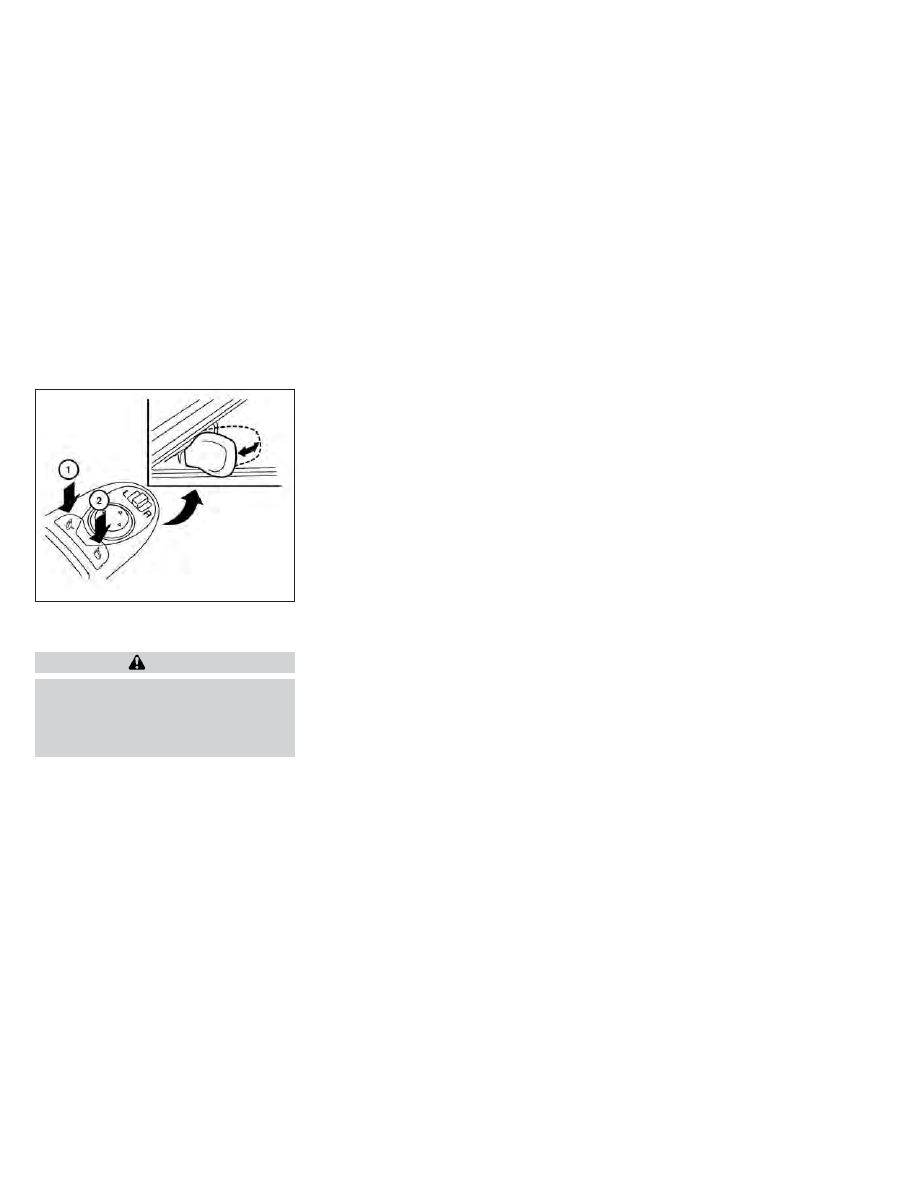

Push the switch

O

2

to open or the switch

O

1

to close the mirrors.

If one of the mirrors are manually operated or
bumped, the mirror body can become loose
at the pivot point. To correct electronic mirror
operation, cycle the mirrors by pushing the
switch

O

1

until completely closed, then push

the switch

O

2

until the mirrors are in the open

position.

Automatic folding outside mirrors
(if so equipped)

The outside mirrors fold automatically when
the vehicle is locked with the Intelligent Key
or by using the request switch. The outside
mirrors unfold automatically when the igni-
tion switch is placed in the ON position and
the power folding mirror switch is in position

O

2

.

Automatic anti-glare outside mirror
(if so equipped)

The outside mirror will automatically dim dur-
ing nighttime conditions to reduce the glare
from the headlights of trailing vehicles. The
automatic anti-glare feature operates only
when the ignition switch is placed in the ON
position.

The automatic anti-glare feature will be on
when starting the vehicle. The indicator light
on the automatic anti-glare rearview mirror
will illuminate when the automatic anti-glare
feature is operating.

For additional information, see “Automatic
anti-glare rearview mirror” (P. 3-34).

Heated mirrors

The electric control type outside mirrors can
be heated to defrost, defog, or de-ice for
improved visibility. For additional informa-
tion, see “Rear window defroster, outside
mirror defroster (if so equipped), and wiper
deicer (if so equipped) switch” (P. 2-39).

Reverse tilt-down feature (if so
equipped)

The reverse tilt-down feature will turn both
outside mirror surfaces downward to provide
better rear visibility close to the vehicle when
the mirror control switch is in either the L or R
position.

The mirrors automatically return to their origi-
nal position when you shift out of R (Reverse).

LPD2303

3-36

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:
• The shift lever is moved to any position

other than R (Reverse).

• The outside mirror control switch is set to

the neutral or center position.

• The ignition switch is placed in the OFF

position.

NOTE:

If the outside mirror control switch is in the
center position, the mirror surface will NOT
turn downward when the shift lever is
moved to R (Reverse).

For additional information, see “Memory
seat” (P. 3-37).

The memory seat system has two features:
• Memory storage function
• Entry/exit function

MEMORY STORAGE FUNCTION

Two positions for the driver's seat, steering
column (if so equipped), and outside mirrors
can be stored in the memory seat system.
Follow these procedures to set the memory
system.

NOTE:

The vehicle should be stopped while setting
the memory.

LPD2729

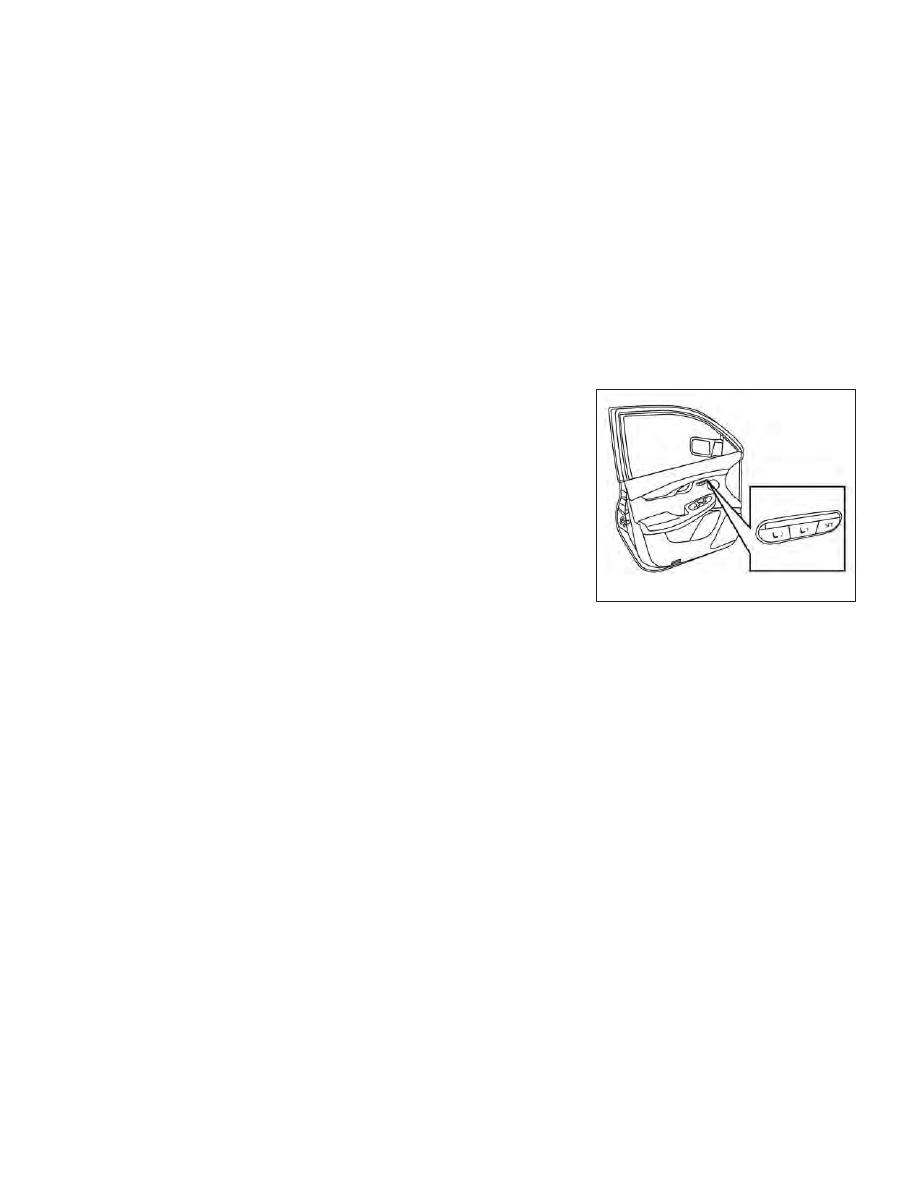

MEMORY SEAT (if so equipped)

Pre-driving checks and adjustments

3-37

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Adjust the driver's seat, steering column

(if so equipped), and outside mirrors to the
desired positions by manually operating
each adjusting switch. For additional in-
formation, see “Seats” (P. 1-2), “Steering
wheel” (P. 3-31) and “Outside mirrors”
(P. 3-35).

2. Push the SET switch and, within 5 sec-

onds, push the memory switch (1 or 2).
The indicator light for the pushed memory
switch will come on and stay on for ap-
proximately 5 seconds.

The chime will sound when the memory is
stored.

NOTE:

If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.

Confirming memory storage

• Push the SET switch.
• If a memory position has been stored in the

switch (1 or 2) then the indicator light for
the respective switch will stay on for ap-
proximately 5 seconds.

Linking log-in function to a stored
memory position

The log-in function can be linked to a stored
memory

position

with

the

following

procedure.

1. Place the ignition switch in the ON posi-

tion while carrying the Intelligent Key that
was registered to the vehicle with a log-in
function.

NOTE:

Make sure the Intelligent Keys are far apart.
Otherwise, the vehicle may detect the
wrong Intelligent Key.

2. Adjust the position of the driver’s seat,

steering column (if so equipped) and out-
side mirrors. For additional information,
see “Seats” (P. 1-2), “Steering wheel”
(P. 3-31) and “Outside mirrors” (P. 3-35).

3. Place the ignition switch in the OFF

position.

The next time you log in (selecting the user on
the display) after placing the ignition switch in
the ON position while carrying the Intelligent
Key, the system will automatically adjust to
the memorized driving position.

For additional information, see “Log-in func-
tion” (P. 3-18) and the separate INFINITI In-
Touch™ Owner’s Manual.

ENTRY/EXIT FUNCTION

This system is designed so that the driver's
seat and steering column (if so equipped) will
automatically move when the vehicle is en-
gaged in the P (Park) position. This allows the
driver to easily get in and out of the driver’s
seat.

The driver’s seat will slide backward and the
steering column (if so equipped) will move up
when the ignition is switched to OFF and the
driver’s door is opened.

The driver’s seat and steering wheel will re-
turn to the previous position when the igni-
tion is switched to ON.

The entry/exit function can be adjusted or
canceled through the “Comfort & Conve-
nience” options of the “Settings” menu in the
lower touch-screen display by performing the
following:
• Switch the Lift Steering upon Exit from ON

to OFF.

• Switch the Slide Driver Seat Back on Exit

from ON to OFF.

3-38

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

For additional information, refer to the sepa-
rate INFINITI InTouch® Owner’s Manual.

Restarting the entry/exit function

If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:

1. Drive the vehicle over 25 mph (40 km/h).

OR

2. Open and close the driver's door more

than two times with the ignition switch in
the OFF position.

The entry/exit function should now work
properly.

SETTING MEMORY FUNCTION

The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.
• Climate control system
• Navigation system
• Audio system

To use the memory function, set the climate,
navigation and audio systems to the driver's
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver's individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.

To engage the memorized settings, perform
the following:

1. Carry the Intelligent Key that is linked to

the memorized settings.

2. Unlock the doors by pushing the driver’s

door handle request switch or the
button on the Intelligent Key.

3. Place the ignition switch in the ON posi-

tion. The settings linked to the Intelligent
Key will start.

For additional information on using the cli-
mate control system, see “Heater and air con-
ditioner (automatic)” (P. 4-35).

For additional information, see “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual or the sepa-
rate INFINITI InTouch® Owner’s Manual.

SYSTEM OPERATION

The memory seat system will not work or will
stop operating under the following conditions:
• When the vehicle speed is above 4 mph

(7 km/h).

• When any of the memory switches are

pushed while the memory seat system is
operating.

• When the switch for the driver’s seat and

steering column (if so equipped) is pushed
while the memory seat system is operating.

• When the seat has already been moved to

the memorized position.

• When no seat position is stored in the

memory switch.

• When the shift position is moved from P

(Park) to any other position.

The memory seat system can be adjusted and
canceled. It is recommended you visit an
INFINITI retailer for this service.

Pre-driving checks and adjustments

3-39

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEMO

3-40

Pre-driving checks and adjustments

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Monitor, climate, audio, phone and voice
recognition systems

INFINITI InTouch® Owner’s Manual . . . . . . . . . . . . . .4-2
RearView Monitor (if so equipped) . . . . . . . . . . . . . . . .4-3

RearView Monitor system operation . . . . . . . . . . .4-4
How to read the displayed lines . . . . . . . . . . . . . . . .4-5
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
How to park with predicted course lines . . . . . . .4-7
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
How to turn on and off predicted course
lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
RearView Monitor system limitations . . . . . . . . . .4-9
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Around View® Monitor (if so equipped) . . . . . . . . . .4-11

Around View® Monitor system operation . . . . 4-13
Difference between predicted and actual
distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-17
How to park with predicted course lines . . . . . 4-19
How to switch the display . . . . . . . . . . . . . . . . . . . 4-20
Around View® Monitor settings . . . . . . . . . . . . . 4-20
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Around View® Monitor system
limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Camera aiding sonar (parking sensor) (if so
equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

Sonar system operation . . . . . . . . . . . . . . . . . . . . . 4-25
Turning on and off the sonar function . . . . . . . . 4-26
Sonar system limitations . . . . . . . . . . . . . . . . . . . . 4-28
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Moving Object Detection (MOD) (if so
equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

MOD system operation . . . . . . . . . . . . . . . . . . . . . 4-30
Turning MOD on and off . . . . . . . . . . . . . . . . . . . . 4-32
MOD system limitations . . . . . . . . . . . . . . . . . . . . . 4-32
System maintenance . . . . . . . . . . . . . . . . . . . . . . . . 4-33

Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Heater and air conditioner (automatic) . . . . . . . . . . 4-35

Automatic operation . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Manual operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
CLIMATE setting screen . . . . . . . . . . . . . . . . . . . . 4-39
Rear climate control (if so equipped) . . . . . . . . . 4-41

Heater and air conditioner settings (if so
equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Servicing air conditioner . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43

Roof Mounted Antenna . . . . . . . . . . . . . . . . . . . . . 4-43

Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
iPod®/iPhone® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Refer to the digital INFINITI InTouch® Own-
er’s manual using the QR code on this page,
or your printed INFINITI InTouch® Owner’s
manual (if so equipped). This manual includes
the following information:
• INFINITI InTouch® Services
• Navigation system (if so equipped)
• Audio system
• Apple CarPlay®
• Android Auto™
• Bluetooth® Hands-Free Phone system
• Viewing information

• Other settings
• Voice recognition
• General system information

LHA5687

INFINITI INTOUCH® OWNER’S
MANUAL

4-2

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

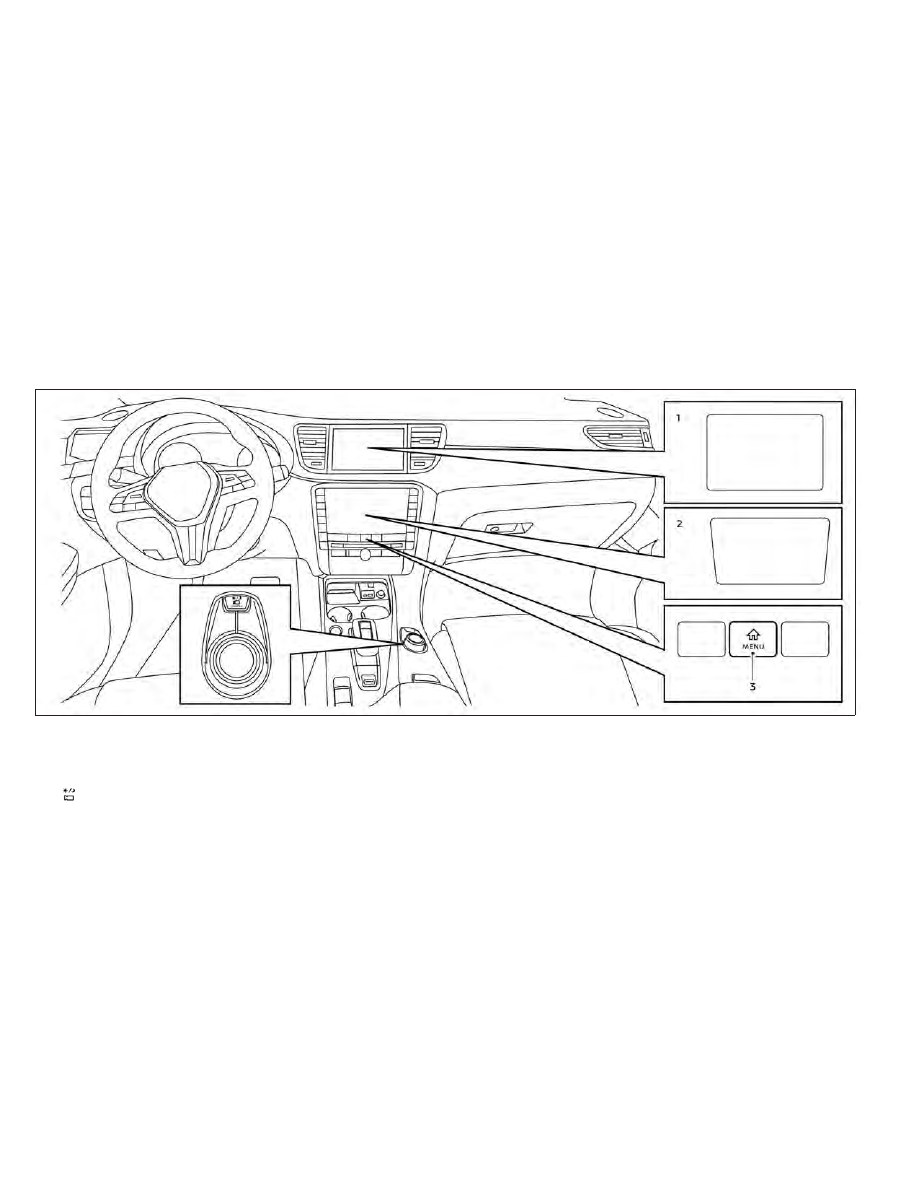

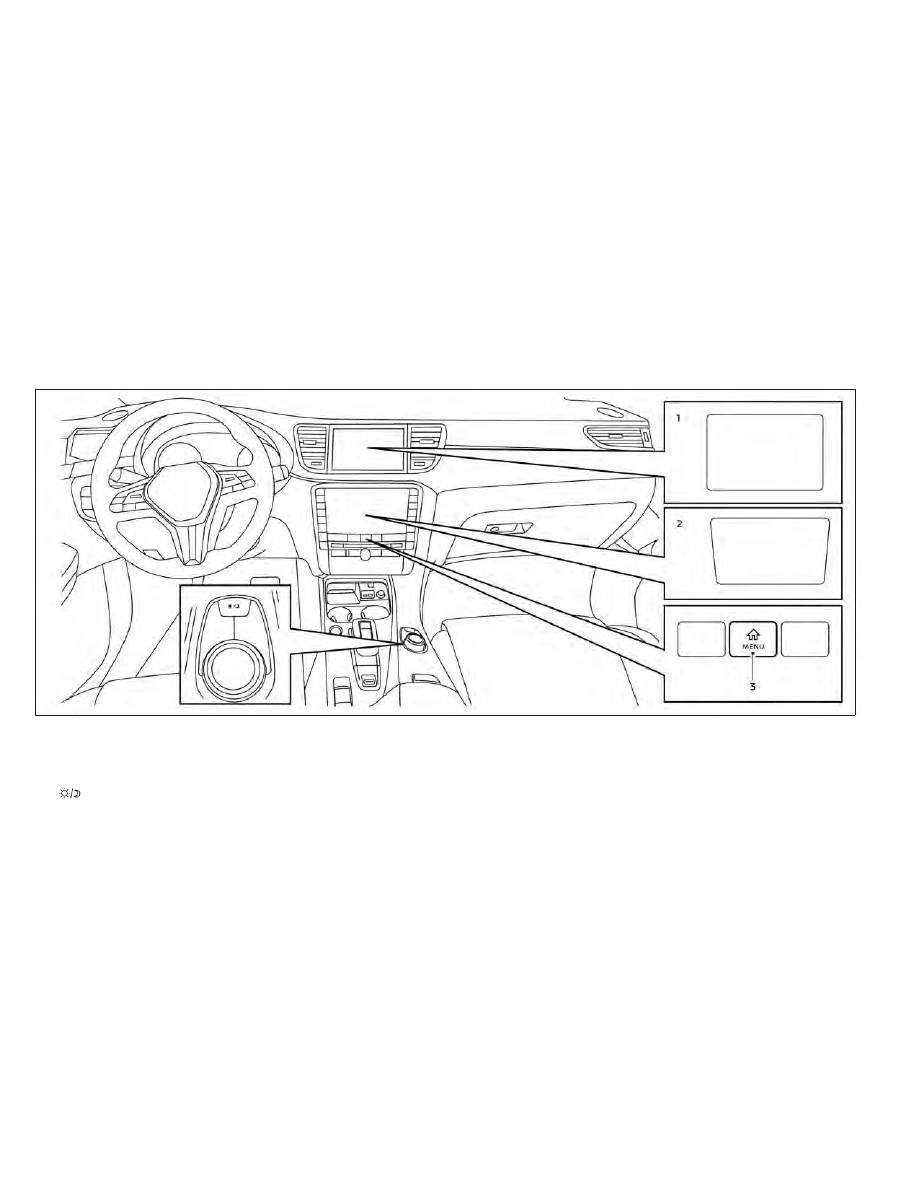

1. Upper touch-screen display (upper display)

2. Lower touch-screen display (lower display)

3. MENU button

4.

button

LHA5710

REARVIEW MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-3

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and in-
structions for proper use of the Rear-
View Monitor system could result in se-
rious injury or death.

RearView Monitor is a convenience fea-
ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.

The system is designed as an aid to the
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.

The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.

CAUTION

Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera.

The RearView Monitor system automatically
shows a rear view of the vehicle in the upper
touch-screen display (upper display) when
the shift lever is shifted into the R (Reverse)
position. When activating the RearView
Monitor, the guide lines, the icons and the
messages may not be displayed immediately.
The radio can still be heard while the Rear-
View Monitor is active.

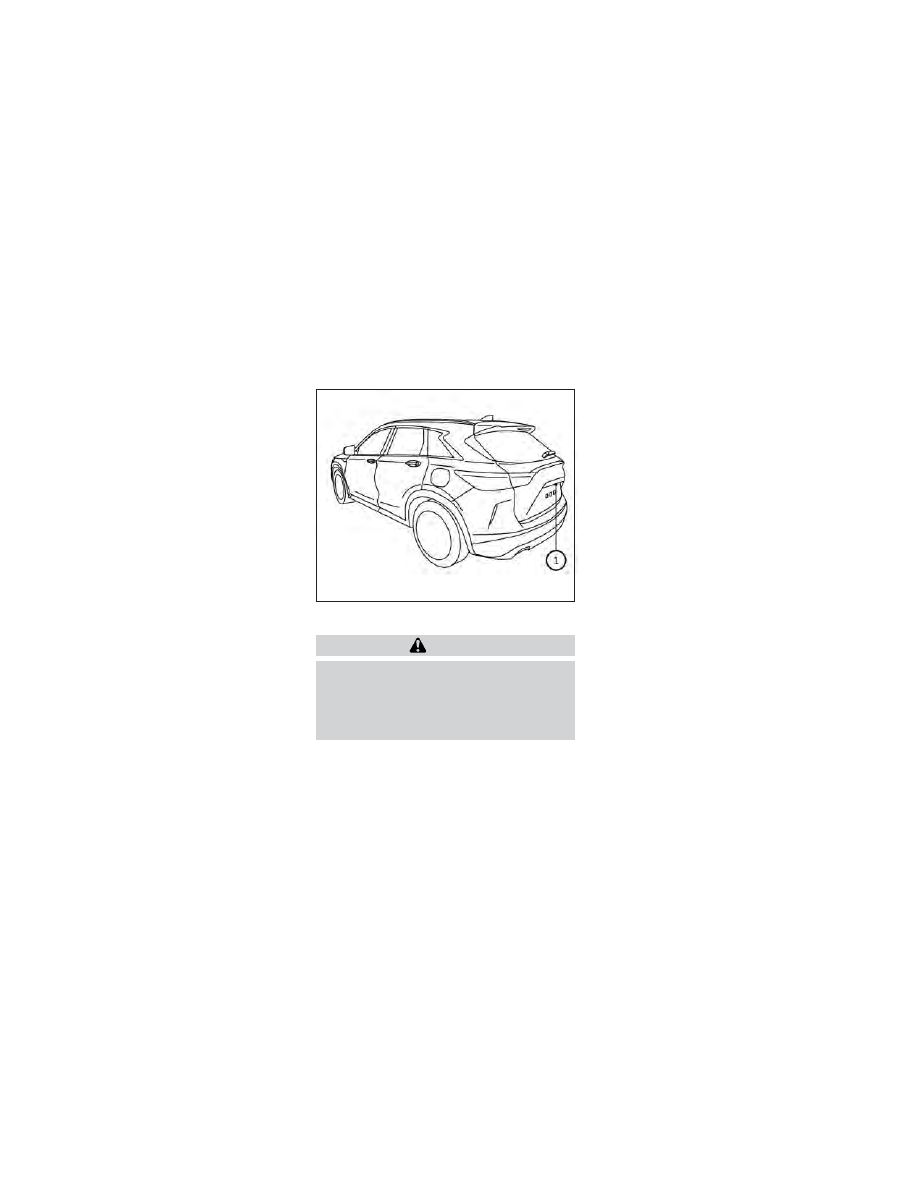

To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s license plate

O

1

.

REARVIEW MONITOR SYSTEM
OPERATION

With the engine running, move the shift lever
to the R (Reverse) position to operate the
RearView Monitor. When activating the
RearView Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.

LHA4552

4-4

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

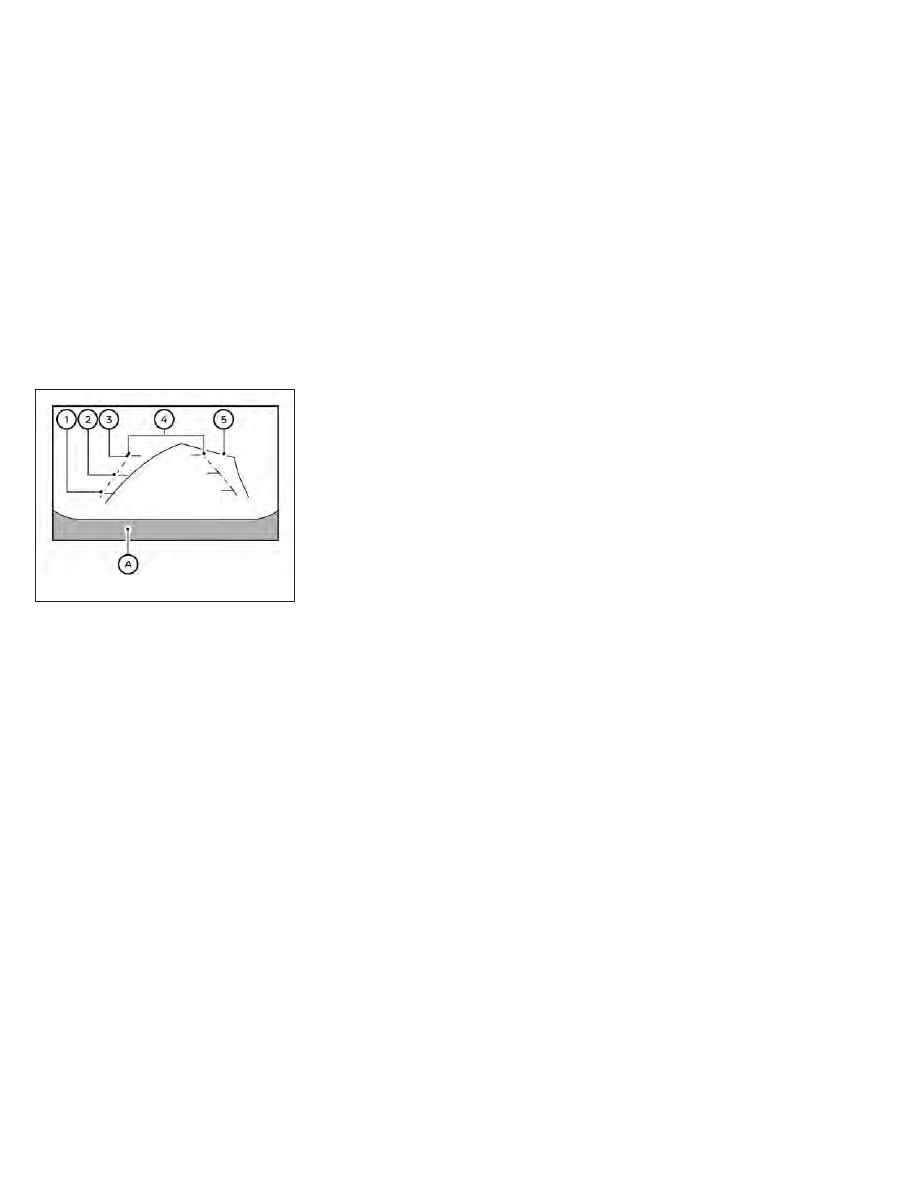

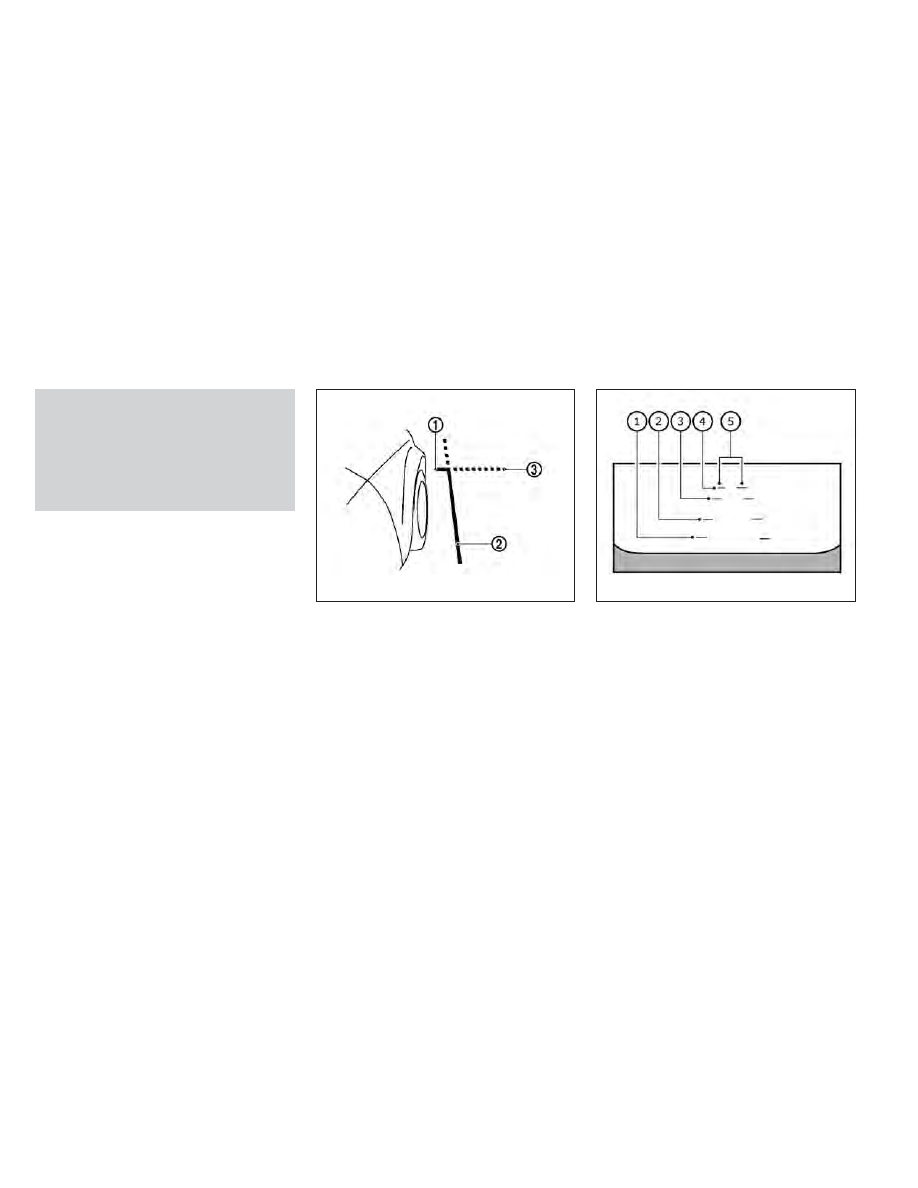

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle width
and distances to objects with reference to
the vehicle body line

O

A

are displayed on the

monitor.

Distance guide lines

Indicate distances from the vehicle body.
• Red line

O

1

: approx. 1.5 ft (0.5 m)

• Yellow line

O

2

: approx. 3 ft (1 m)

• Green line

O

3

: approx. 7 ft (2 m)

Vehicle width guide lines

O

4

Indicate the vehicle width when backing up.

Predicted course lines

O

5

Indicate the predicted course when backing
up. The predicted course lines will be dis-
played on the monitor when the shift lever is
in the R (Reverse) position and the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and will not be displayed
while the steering wheel is in the straight-
ahead position.

The vehicle width guide lines and the width of
the predicted course lines are wider than the
actual width and course.

DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES

The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.

LHA4805

Monitor, climate, audio, phone and voice recognition systems

4-5

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

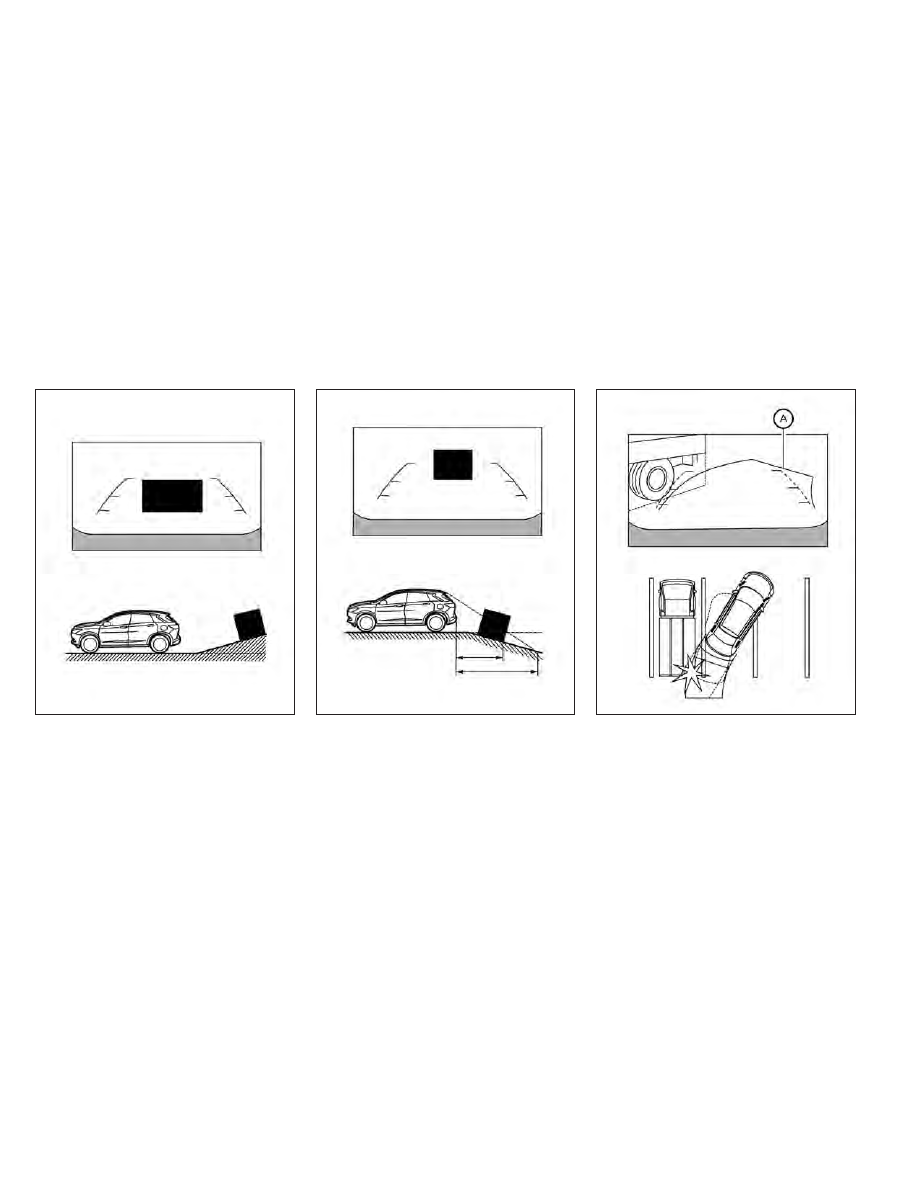

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the upper display.

Backing up on a steep downhill

When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the upper display.

Backing up near a projecting object

The predicted course lines

O

A

do not touch

the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.

LHA5287

LHA5288

LHA4995

4-6

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

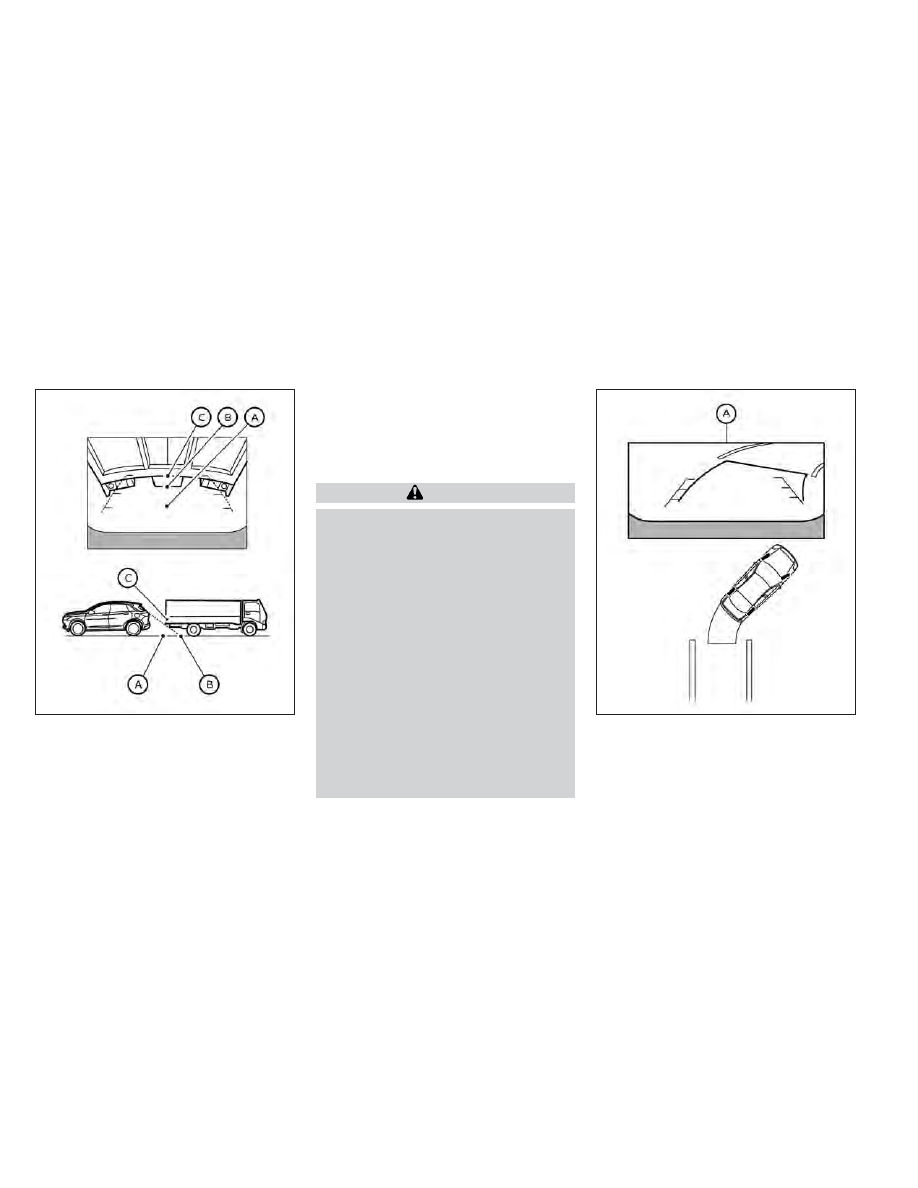

Backing up behind a projecting
object

The position

O

C

is shown farther than the

position

O

B

in the display. However, the po-

sition

O

C

is actually at the same distance as

the position

O

A

. The vehicle may hit the object

when backing up to the position

O

A

if the

object projects over the actual backing up
course.

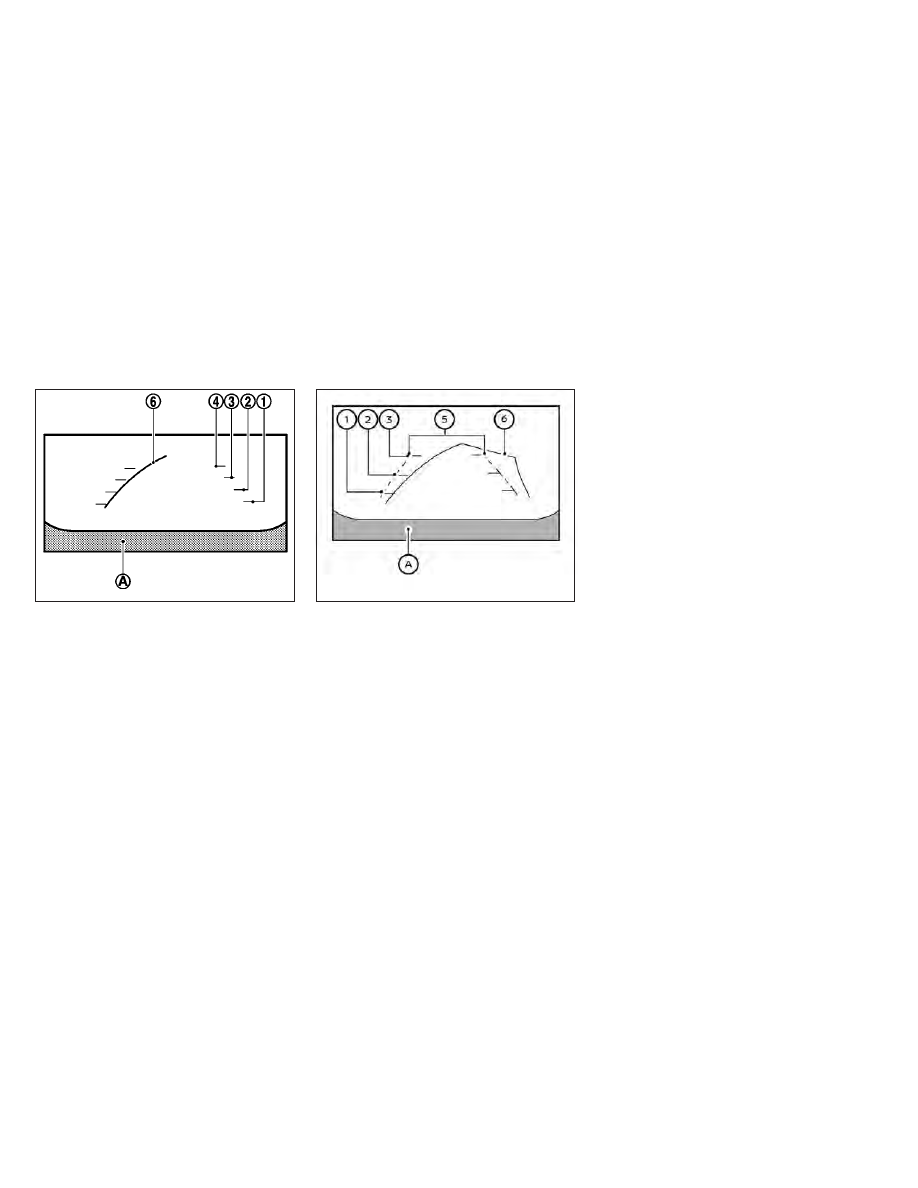

HOW TO PARK WITH
PREDICTED COURSE LINES

WARNING

If the tires are replaced with different
sized tires, the predicted course lines
may be displayed incorrectly.

On a snow-covered or slippery road,
there may be a difference between the
predicted course line and the actual
course line.

If the battery is disconnected or becomes
discharged, the predicted course lines may
be displayed incorrectly. If this occurs,
please perform the following procedures:

Turn the steering wheel from lock to
lock while the engine is running.

Drive the vehicle on a straight road
for more than 5 minutes.

When the steering wheel is turned with
the ignition switch in the ON position,
the predicted course lines may be dis-
played incorrectly.

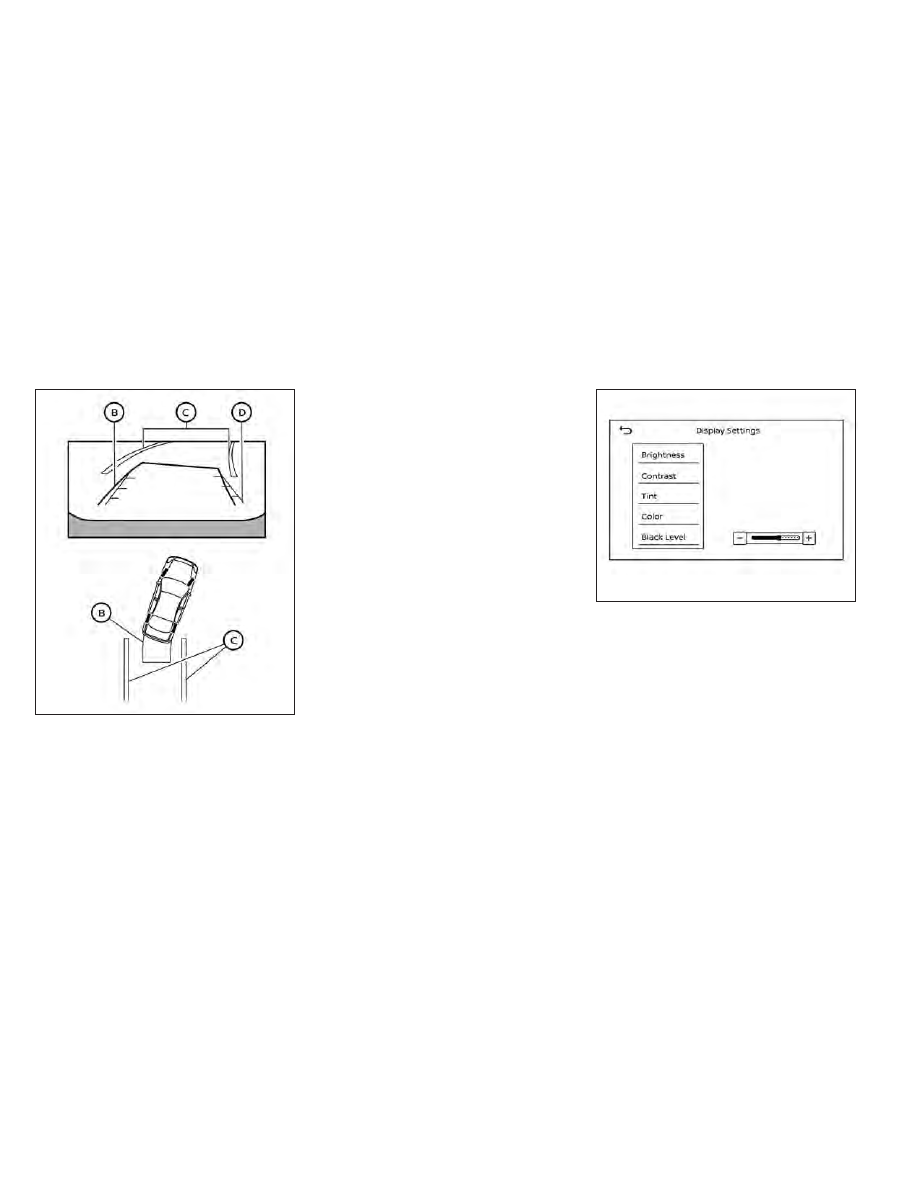

1. Visually check that the parking space is

safe before parking your vehicle.

2. The rear view of the vehicle is displayed on

the screen

O

A

when the shift lever is

moved to the R (Reverse) position. When
activating the RearView Monitor, the
guide lines, the icons and the messages
may not be displayed immediately.

LHA5289

LHA5043

Monitor, climate, audio, phone and voice recognition systems

4-7

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Slowly back up the vehicle adjusting the

steering wheel so that the predicted
course lines

O

B

enter the parking space

O

C

.

4. Maneuver the steering wheel to make the

vehicle width guide lines

O

D

parallel to the

parking space

O

C

while referring to the

predicted course lines.

5. When the vehicle is parked in the space

completely, press the P (Park) button lo-
cated near the shift lever to place the
vehicle in the P (Park) position and apply
the parking brake.

ADJUSTING THE SCREEN

The RearView Monitor settings can be
changed with the following procedure on the
upper display.

1. Press the MENU button while the Rear-

View Monitor screen is shown on the up-
per display.

2. Touch the “Settings” key and then the

“Camera” key.

LHA4770

LHA5228

4-8

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Touch the “Display Settings” key. Select a

preferred item, “Brightness”, “Contrast”,
Tint”, “Color”, and “Black Level” of the
RearView Monitor and adjust the value by
touching the “+” or “-” key.

You can also press the

button and either

turn or move the INFINITI controller to adjust
the day/night settings. Pressing the
button again will switch the screen to AUTO
mode. While the adjustment screen is shown
on the upper display you can also touch either
“+” or “-” key.

The upper and lower display screens can be
turned on or off by pressing and holding the

button.

NOTE:

Do not adjust the Brightness, Contrast, Tint,
Color, and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.

HOW TO TURN ON AND OFF
PREDICTED COURSE LINES

To toggle on and off the predicted course
lines while in the P (Park) position:

1. Press the MENU button.

2. Touch the “Settings” key.

3. Touch the “Camera” key.

4. Touch the “Predicted Course Lines” key to

turn the feature on or off.
When the predicted course lines are
turned on, the indicator light is on.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations for
RearView Monitor. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.

The system cannot completely eliminate
blind spots and may not show every
object.

Underneath the bumper and the corner
areas of the bumper cannot be viewed on
the RearView Monitor because of its
monitoring range limitation. The system
will not show small objects below the
bumper, and may not show objects close
to the bumper or on the ground.

Objects viewed in the RearView Monitor
differ from actual distance because a
wide-angle lens is used.

Objects in the RearView Monitor will ap-
pear visually opposite compared to when
viewed in the rearview and outside
mirrors.

Use the displayed lines as a reference.
The lines are highly affected by the num-
ber of occupants, fuel level, vehicle posi-
tion, road conditions and road grade.

Make sure that the liftgate is securely
closed when backing up.

Do not put anything on the rearview
camera. The rearview camera is installed
above the license plate.

When washing the vehicle with high
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.

Do not strike the camera. It is a precision
instrument. Otherwise, it may malfunc-
tion or cause damage resulting in a fire or
an electric shock.

Monitor, climate, audio, phone and voice recognition systems

4-9

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The following are operating limitations and
do not represent a system malfunction:
• When the temperature is extremely high or

low, the screen may not clearly display
objects.

• When strong light directly shines on the

camera, objects may not be displayed
clearly.

• Vertical lines may be seen in objects on the

screen. This is due to strong reflected light
from the bumper.

• The screen may flicker under fluorescent

light.

• The colors of objects on the RearView

Monitor may differ somewhat from the ac-
tual color of objects.

• Objects on the monitor may not be clear in

a dark environment.

• There may be a delay when switching be-

tween views.

• If dirt, rain or snow accumulate on the cam-

era, the RearView Monitor may not display
objects clearly. Clean the camera.

• Do not use wax on the camera lens. Wipe

off any wax with a clean cloth dampened
with a diluted mild cleaning agent, then
wipe with a dry cloth.

SYSTEM MAINTENANCE

CAUTION

Do not use alcohol, benzine or thinner
to clean the camera. This will cause
discoloration.

Do not damage the camera as the moni-
tor screen may be adversely affected.

If dirt, rain or snow accumulates on the cam-
era

O

1

, the RearView Monitor may not dis-

play objects clearly. Clean the camera by wip-
ing it with a cloth dampened with a diluted
mild cleaning agent and then wiping it with a
dry cloth.

LHA4552

4-10

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1. Upper touch-screen display (upper display)

2. Lower touch-screen display (lower display)

3. MENU button

4.

CAMERA button

LHA5712

AROUND VIEW® MONITOR (if so
equipped)

Monitor, climate, audio, phone and voice recognition systems

4-11

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to follow the warnings and in-
structions for the proper use of the
Around View® Monitor system could re-
sult in serious injury or death.

The Around View® Monitor is a conve-
nience feature and is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
The four corners of the vehicle in particu-
lar, are areas where objects do not al-
ways appear in the bird’s-eye, front, or
rear views. Always check your surround-
ings to be sure that it is safe to move
before operating the vehicle. Always op-
erate the vehicle slowly.

The driver is always responsible for safety
during parking and other maneuvers.

CAUTION

Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera.

The Around View® Monitor system is de-
signed as an aid to the driver in situations
such as slot parking or parallel parking.

The monitor displays various views of the
position of the vehicle in a split screen format.
Not all views are available at all times.

Available views:

• Front View

An approximately 150–degree view of the
front of the vehicle.

• Rear View

An approximately 150–degree view of the
rear of the vehicle.

• Bird's-Eye View

The surrounding views of the vehicle from
above.

• Front-Side View

The view around and ahead of the front
passenger's side wheel.

• Front-Wide View

An approximately 180–degree view of the
front the vehicle.

• Rear-Wide View

An approximately 180–degree view of the
rear of the vehicle.

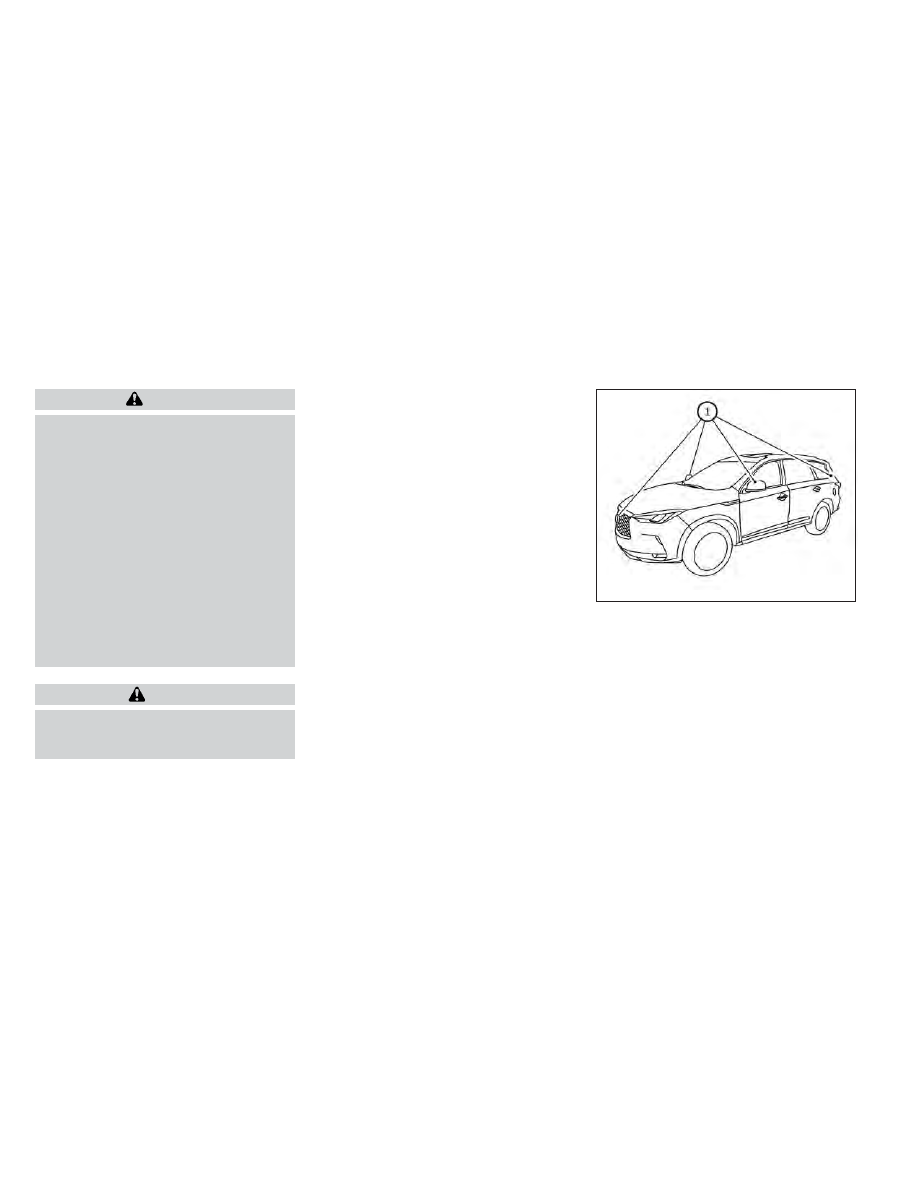

To display the multiple views, the Around
View® Monitor system uses cameras located
in the front grille, on the vehicle’s outside
mirrors and one just above the vehicle’s li-
cense plate

O

1

.

LHA4554

4-12

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

AROUND VIEW® MONITOR
SYSTEM OPERATION

With the engine running, move the shift lever
to the R (Reverse) position or press the
CAMERA button to operate the Around
View® Monitor. When activating the Around
View® Monitor, the guide lines, the icons
and the messages may not be displayed
immediately.

When the camera is first activated with the
bird’s-eye view in the display, a red icon will
flash on the upper display. This indicates that
the sonar system is activated. For additional
information on the front and rear sonar sys-
tem, see “Front and rear sonar system”
(P. 5-147).

Available views

WARNING

The distance guide lines and the vehicle
width lines should be used as a reference
only when the vehicle is on a paved, level
surface. The apparent distance viewed
on the monitor may be different than the
actual distance between the vehicle and
displayed objects.

Use the displayed lines and the bird’s-
eye view as a reference. The lines and the
bird’s-eye view are greatly affected by
the number of occupants, cargo, fuel
level, vehicle position, road condition
and road grade.

If the tires are replaced with different
sized tires, the predicted course lines and
the bird's-eye view may be displayed
incorrectly.

When driving the vehicle up a hill, objects
viewed in the monitor are further than
they appear. When driving the vehicle
down a hill, objects viewed in the monitor
are closer than they appear.

Objects in the rear view will appear visu-
ally opposite compared to when viewed
in the monitor and outside mirrors.

Use the mirrors or actually look to prop-
erly judge distances to other objects.

On a snow-covered or slippery road,
there may be a difference between the
predicted course lines and the actual
course line.

The vehicle width and predicted course
lines are wider than the actual width and
course.

The displayed lines will appear slightly
off to the right, because the rearview
camera is not installed in the rear center
of the vehicle.

Monitor, climate, audio, phone and voice recognition systems

4-13

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Front and rear view

Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body line

O

A

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body:
• Red line

O

1

: approximately 1.5 ft (0.5 m)

• Yellow line

O

2

: approximately 3 ft (1 m)

• Green line

O

3

: approximately 7 ft (2 m)

• Green line

O

4

: approximately 10 ft (3 m)

(if so equipped)

Vehicle width guide lines

O

5

Indicate the approximate vehicle width when
backing up.

Predicted course lines

O

6

Indicate the predicted course when operating
the vehicle. The predicted course lines will be
displayed on the monitor when the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and may not be displayed
while the steering wheel is in the straight-
ahead position.

The front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h).

NOTE:

When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the straight-ahead posi-
tion, both the right and left predicted course
lines

O

6

are displayed. When the steering

wheel turns about 90 degrees or more, a line
is displayed only on the opposite side of the
turn.

SAA1840

Front view

LHA4992

Rear view

4-14

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

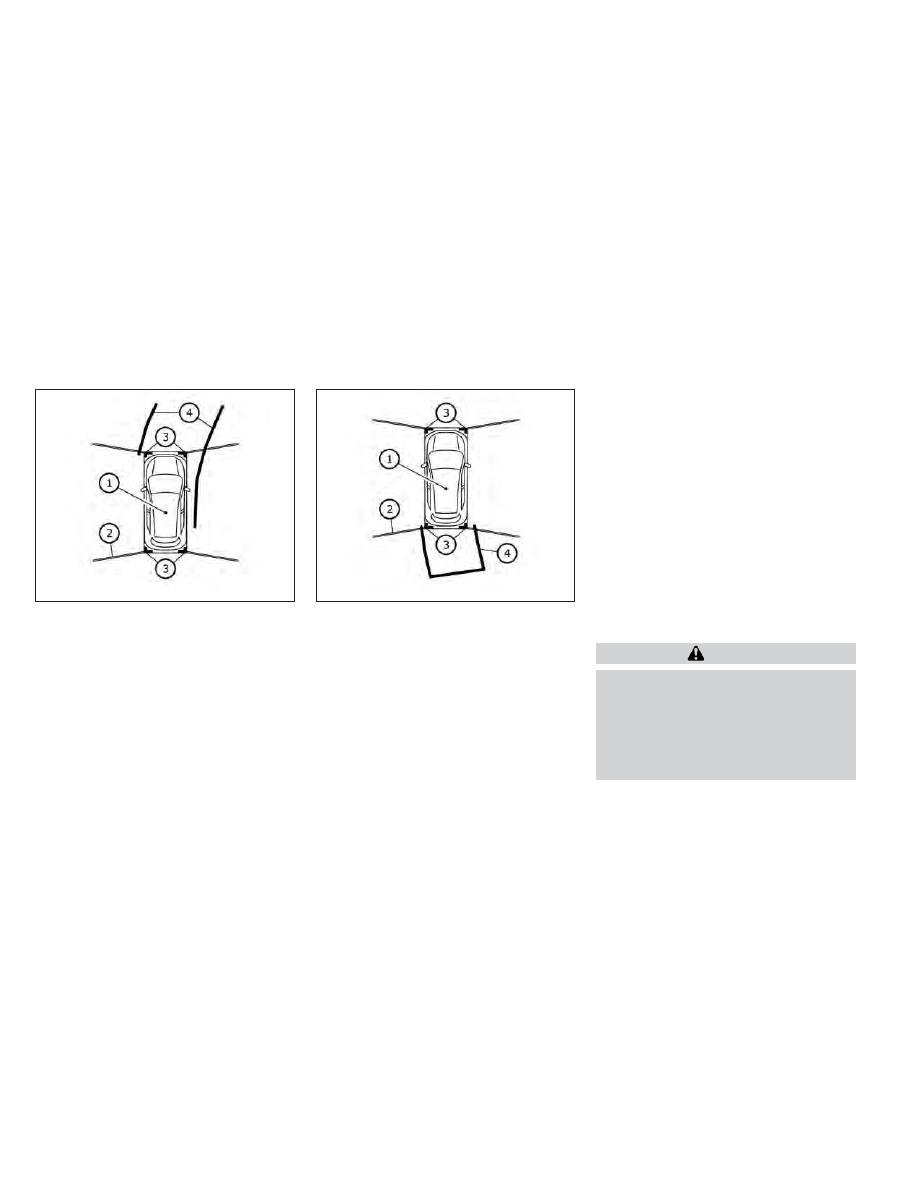

Bird’s-eye view

The bird's-eye view shows the overhead view
of the vehicle, which helps confirm the vehicle
position and the predicted course to a park-
ing space.

The vehicle icon

O

1

shows the position of the

vehicle. Note that the apparent distance be-
tween objects viewed in the bird's-eye view
may differ somewhat from the actual dis-
tance to the vehicle.

The areas that the cameras cannot cover

O

2

are indicated in black.

The non-viewable area

O

2

is highlighted in

yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only the
first time after the ignition switch is placed in
the ON position.

In addition, the non-viewable corners are dis-
played in red and will blink for the first 3 sec-
onds

O

3

to remind the drivers to be cautious.

Predicted course lines

O

4

indicate the pre-

dicted course when operating the vehicle.
The predicted course lines will be displayed
on the monitor when the steering wheel is

turned. The predicted course lines will move
depending on how much the steering wheel is
turned.

When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, the two green
predicted course lines are shown in front of
the vehicle.

When the steering wheel turns about 90 de-
grees or more, one green predicted course
line is shown in front of the vehicle and the
other predicted course line is shown at the
side of the vehicle.

When the monitor displays the rear view, the
predicted course lines are shown at the back
of the vehicle.

WARNING

Objects in the bird's-eye view will appear
further than the actual distance.

Tall objects, such as a curb or vehicle,
may be misaligned or not displayed at
the seam of the views.

Objects that are above the camera can-
not be displayed.

LHA4534

Front view

LHA4535

Rear view

Monitor, climate, audio, phone and voice recognition systems

4-15

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The view of the bird's-eye view may be
misaligned when the camera position
alters.

A line on the ground may be misaligned
and is not seen as being straight at the
seam of the views. The misalignment will
increase as the line proceeds away from
the vehicle.

Front-side view

Guiding lines

Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.

The front-of-vehicle line

O

1

shows the front

part of the vehicle.

The side-of-vehicle line

O

2

shows the ap-

proximate vehicle width including the outside
mirrors.

The extensions

O

3

of both the front

O

1

and

side

O

2

lines are shown with a green dotted

line.

Front-wide and rear-wide view

The front-wide and rear-wide views show a
wider area on the entire screen and allows
the checking of the blind corners on right and
left sides. The rear-wide view displays an
approximately 180-degree area while the
front-view and rear-view display an approxi-
mately 150-degree area. The predicted
course lines are not displayed when using the
front-wide and rear-wide view.

LHA2652

LHA4555

Front-wide view

4-16

Monitor, climate, audio, phone and voice recognition systems

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     5      6      7      8     ..
