Adaptive Front lighting System
(AFS) (if so equipped)

The Adaptive Front lighting System (AFS) will
automatically adjust the headlights (low
beam) toward the turning direction to im-
prove the driver’s view. When the headlight
switch is ON and the driver operates the
steering wheel in a turn, the AFS system will
be activated.

The AFS will operate:
• when the headlight switch is ON.
• when the shift position is in any position

other than P (Park) or R (Reverse).

• when the vehicle is driven at above 16 mph

(25 km/h) for the left-side headlight. Note
that the right-side low beam headlight will
swivel but the left side will not swivel when
the vehicle is at a stop and the steering
wheel is turned. The vehicle must attain a
speed above 16 mph (25 km/h) before AFS
activates the left-side headlight.

AFS will also adjust the headlight to a proper
axis automatically, depending on the number
of occupants in the vehicle, the load the ve-
hicle is carrying and the road conditions.

If the AFS OFF indicator blinks or the vehicle
information display shows an AFS system
error message after the ignition switch has

been pushed to the ON position, this may
indicate that the AFS is not functioning prop-
erly. Have the system checked. It is recom-
mended you visit an INFINITI retailer for this
service. When the engine is started, the head-
lights will vibrate to check the system condi-
tion. This is not a malfunction.

Automatic headlight aiming control
(if so equipped)

Your vehicle is equipped with an automatic
headlight levelling system. The headlight axis
is controlled automatically.

INFINITI recommends that you consult the
local regulations on the use of lights.

LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM

The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position or AUTO position
with bright ambient light. When you turn the
headlight switch to the

position for full

illumination, the LED lights switch from LED
DRL system to the park function.

If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.

It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is nec-
essary at dusk to turn on your headlights.
Failure to do so could cause an accident
injuring yourself and others.

Instruments and controls

2-45

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

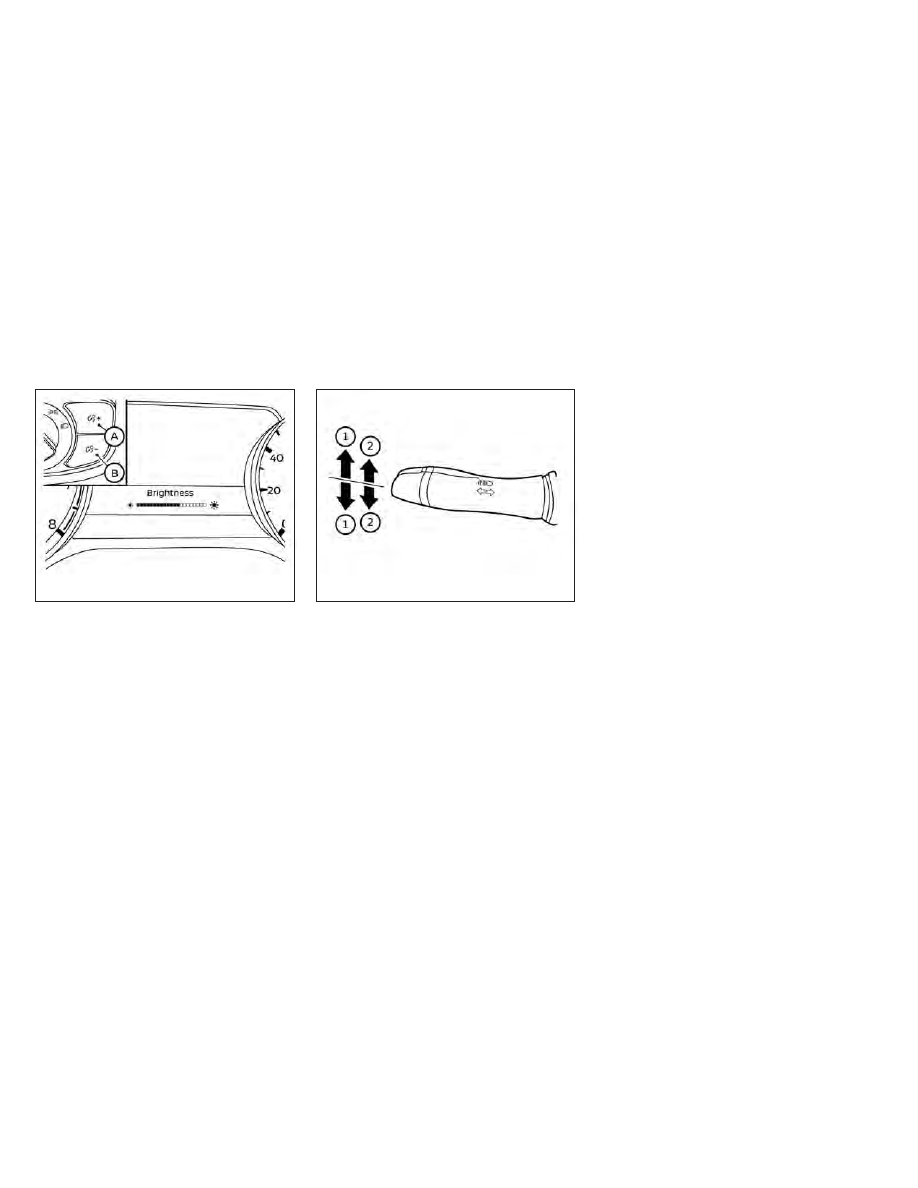

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button

O

A

to increase the bright-

ness of instrument panel lights.

Press the “-” button

O

B

to decrease the

brightness of instrument panel lights.

TURN SIGNAL SWITCH
Turn signal

1

Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automati-
cally.

Lane change signal

2

Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, to signal a lane change. Hold the
lever until the lane change is completed.

Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.

Choose the appropriate method to signal a
lane change based on road and traffic
conditions.

LIC4267

LIC3823

2-46

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

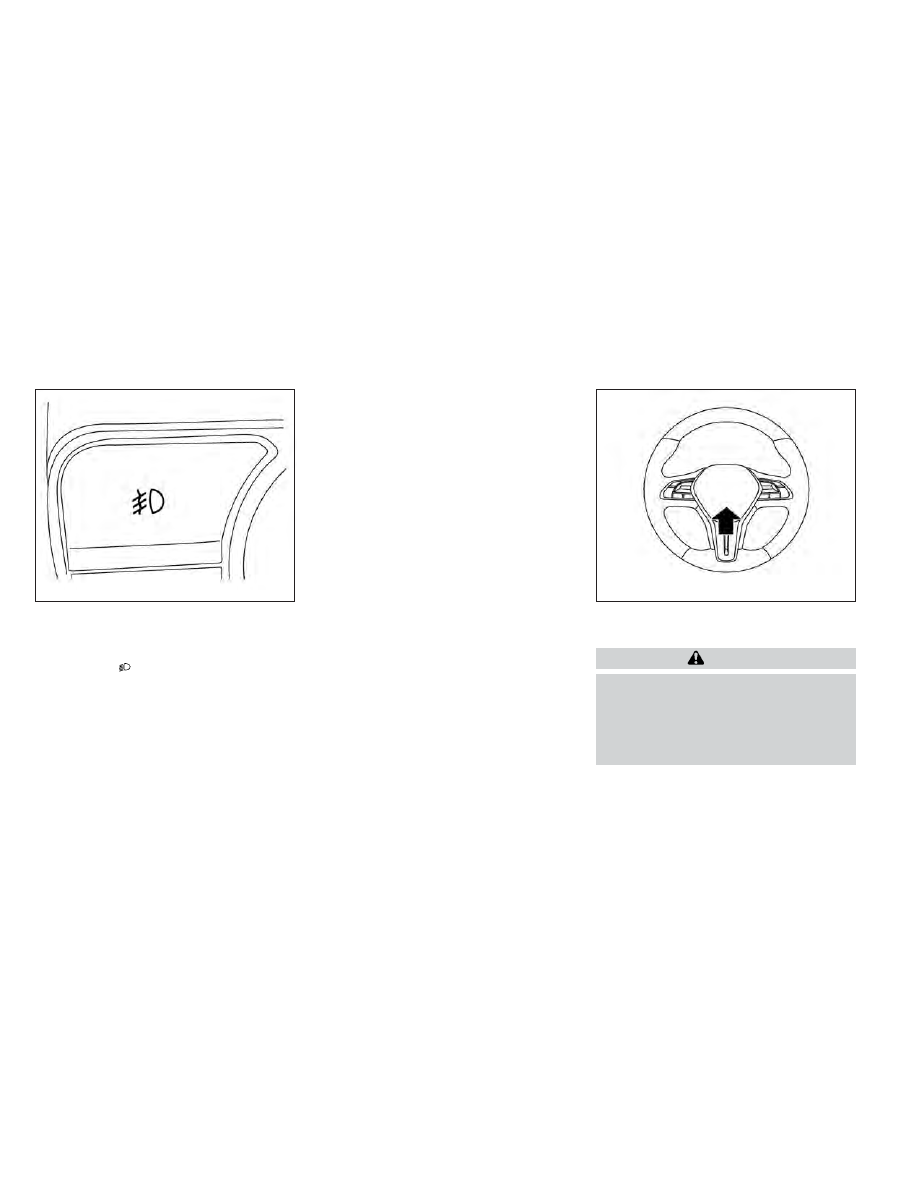

FOG LIGHT SWITCH (if so
equipped)

To turn the fog lights on, turn the headlight
switch to the

position, then push the fog

light switch on.

To turn the fog lights on with the headlight
switch in the AUTO position, the headlights
must be on, then push the fog light switch on.

To turn the fog lights off, push the fog light
switch again.

The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high
beam headlights are selected.

To sound the horn, push near the horn icon on
the steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.

LIC3824

LIC4757

HORN

Instruments and controls

2-47

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not use or allow occupants to use the
climate controlled seats if you or the occu-
pants cannot monitor seat temperatures
or have an inability to feel pain in those
body parts in contact with the seat. Use of
the climate controlled seats by such people
could result in serious injury.

CAUTION

The battery could run down if the climate
control seat is operated while the engine
is not running.

Do not use the climate control seat for
extended periods or when no one is using
the seat.

Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
objects. This may result in damage to the
climate controlled seat.

Any liquid spilled on the seat should be
removed immediately with a dry cloth.

When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.

If any malfunctions are found or the cli-
mate controlled seat does not operate,
turn the switch off and have the system
checked. It is recommended that you
visit an INFINITI retailer for this service.

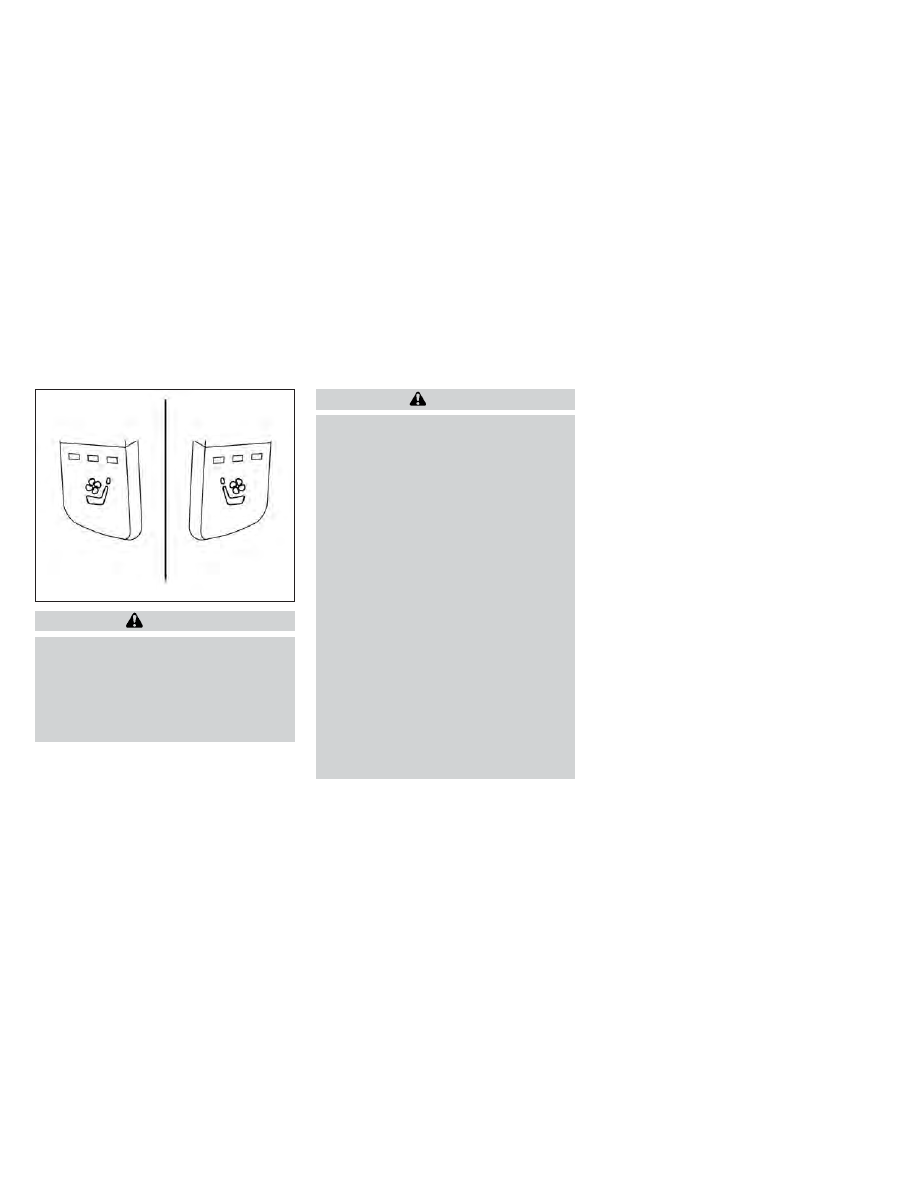

The climate controlled seat cools down the
front seat by blowing cool air from under the
surface of the seat. The climate control
switch is located on the center console.

The climate controlled seat can be operated
as follows:

1. Place the ignition switch in the ON

position.

2. Push the climate controlled seat switches

to cool the seat. The indicator light on the
corresponding switch will illuminate.

3. Adjust the desired amount of air by push-

ing the switch again. The climate con-
trolled seat blower remains on low speed
for approximately 60 seconds after push-
ing the switch on.

4. When the vehicle's interior is warmed or

cooled, or before you leave the vehicle, be
sure to turn off the climate controlled
seats. To turn off the climate controlled
seats, push the switch until the indicator
light does not illuminate.

LIC3905

CLIMATE CONTROLLED SEAT
SWITCHES (if so equipped)

2-48

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.

CAUTION

The battery could run down if the seat
heater is operated while the engine is not
running.

Do not use the seat heater for extended
periods or when no one is using the seat.

Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.

Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.

When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.

If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.

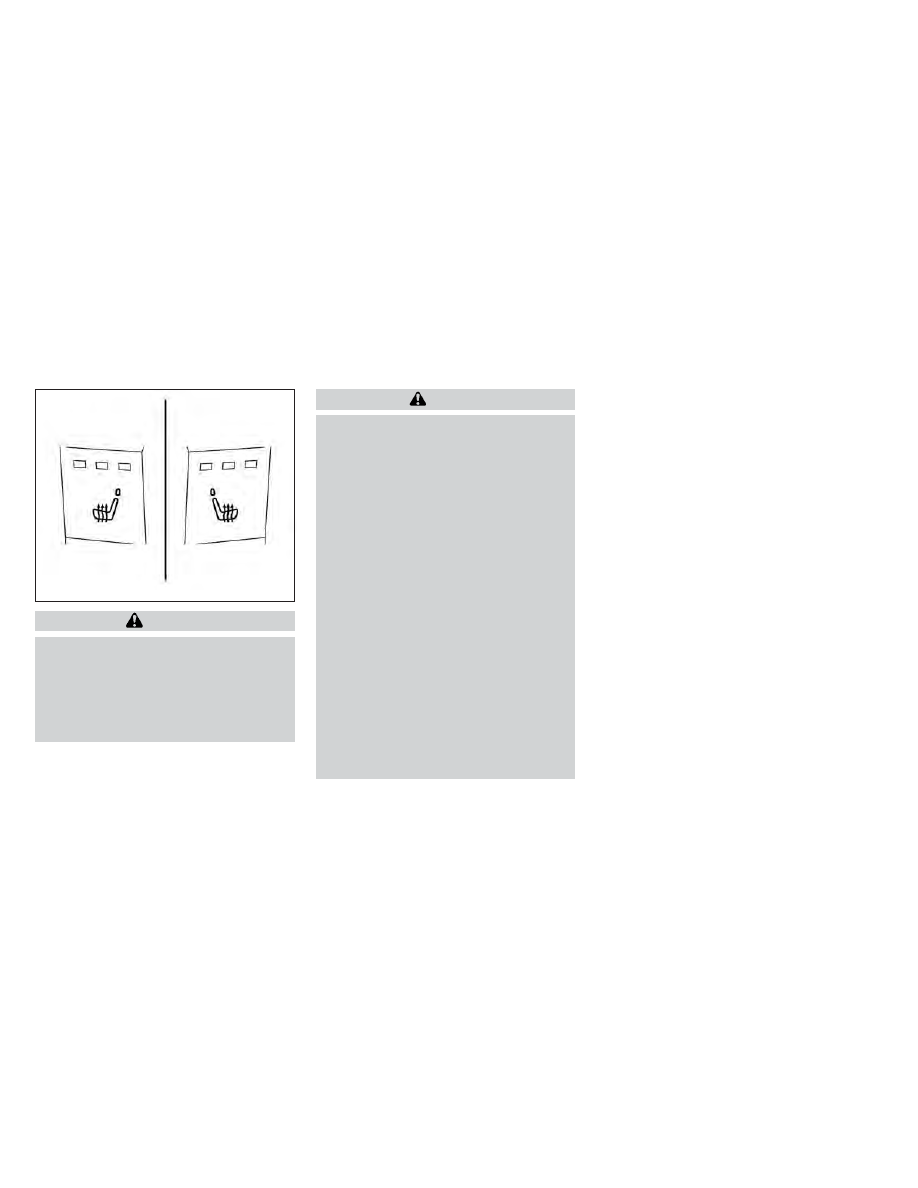

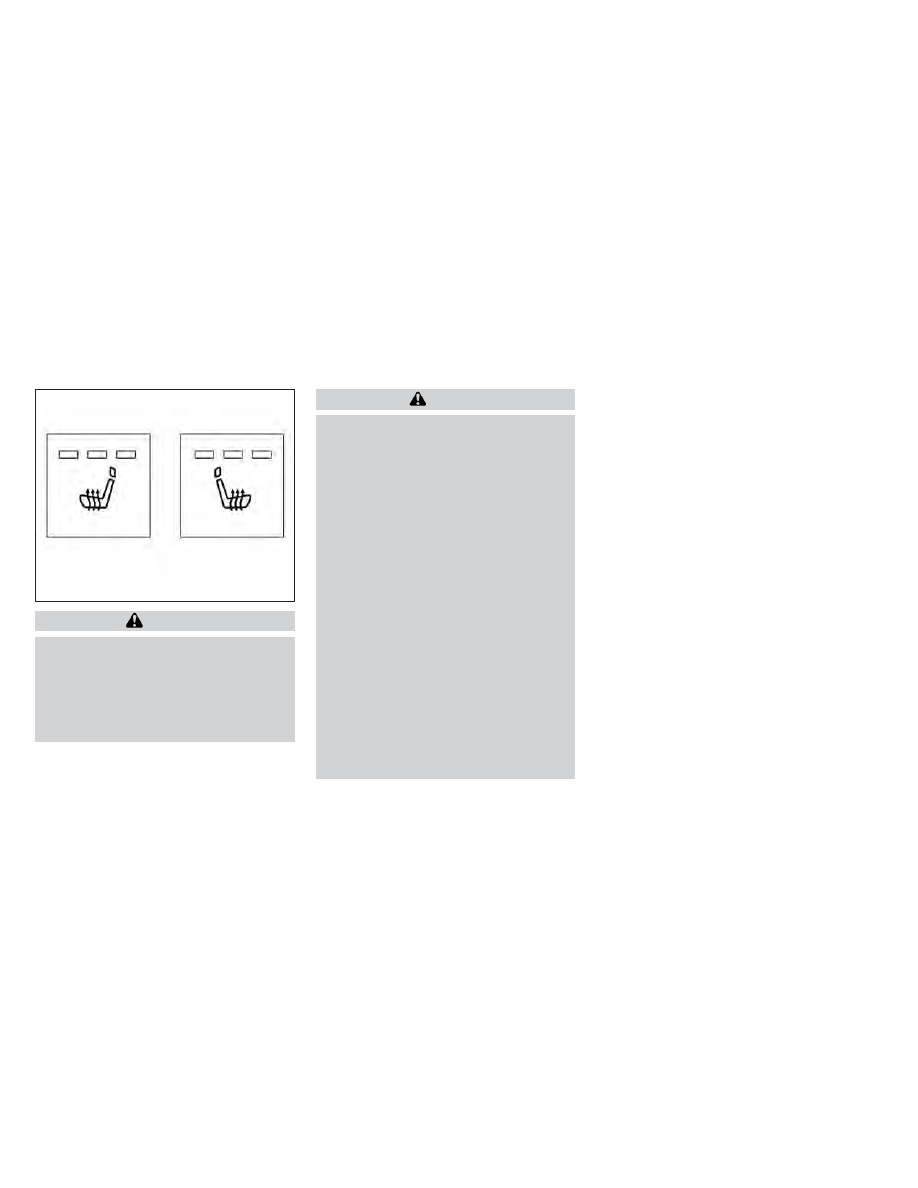

Switch operation:

The front seats are warmed by built-in heaters.
The switches are located on the center console
and can be operated independently of each
other.

1. Place the ignition switch in the ON

position.

2. Push the heated seat switch and select

the desired heat range.

• For high heat, push the switch once.
• For medium heat, push the switch twice.
• For low heat, push the switch three times.
• The indicator light will illuminate when the

heater is on.

3. To turn off the heater, push the heated

seat switch again. Make sure that the in-
dicator light turns off.
The heater is controlled by a control mod-
ule, automatically turning the heater on
and off.
The indicator light will remain on as long
as the switch is on.
When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.

NOTE:

For additional information, see “Heater and
air conditioner (automatic)” (P. 4-35).

LIC3906

HEATED SEATS (if so equipped)

Instruments and controls

2-49

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or
have an inability to feel pain in body parts
that contact the seat. Use of the seat
heater by such people could result in seri-
ous injury.

CAUTION

The battery could run down if the seat
heater is operated while the engine is not
running.

Do not use the seat heater for extended
periods or when no one is using the seat.

Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.

Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater.

Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.

When cleaning the seat, never use gaso-
line, benzine, thinner, or any similar
materials.

If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked.
It is recommended that you visit an
INFINITI retailer for this service.

Switch operation:

The rear seats are warmed by built-in heaters.
The switches are located on the center con-
sole and can be operated independently of
each other.
1. Place the ignition switch in the ON

position.

2. Push the heated seat switch and select

the desired heat range.

• For high heat, push the switch once.
• For medium heat, push the switch twice.
• For low heat, push the switch three times.
• The indicator light will illuminate when the

heater is on.

3. To turn off the heater, push the heated

seat switch again. Make sure that the in-
dicator light turns off.
The heater is controlled by a control mod-
ule, automatically turning the heater on
and off.
The indicator light will remain on as long
as the switch is on.
When the seat is warmed, or before you
leave the vehicle, be sure to turn the
switch off.

NOTE:

For additional information, see “Heater and
air conditioner (automatic)” (P. 4-35).

LIC4697

HEATED 2ND ROW SEAT SWITCHES
(if so equipped)

2-50

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The Steering Assist switch is used to turn on
and off the Steering Assist system that is
activated using the settings menu of the ve-
hicle information display.

The Steering Assist system controls the
steering system to help keep your vehicle
near the center of the lane when driving.
For additional information, see “ProPILOT
Assist” (P. 5-73).

WARNING

The front sonar system is a convenience
but it is not a substitute for proper
driving.

The rear sonar system is a convenience
but it is not a substitute for proper back-
ing. Always turn and check that it is safe
to do so before backing up. Always back
up slowly.

The front sonar system:
• is active when the ignition switch is in the

ON position and the shift lever is in a for-
ward gear position.

• a beeping tone is emitted when the sensors

detect obstacles within 3 ft (1.0 m) of the
front bumper.

The rear sonar system:
• is active when the ignition is in the ON

position and the shift lever is in R (Reverse).

• a beeping tone is emitted when the sensors

detect obstacles within 4.9 ft (1.5 m) of the
rear bumper.

The front and rear sonar system may be en-
abled by pushing the front and rear sonar
switch. Push the switch again to disable the
system.

The system will automatically reset the next
time the ignition switch is turned on.

For additional information, see “Front and
rear sonar system” (P. 5-147).

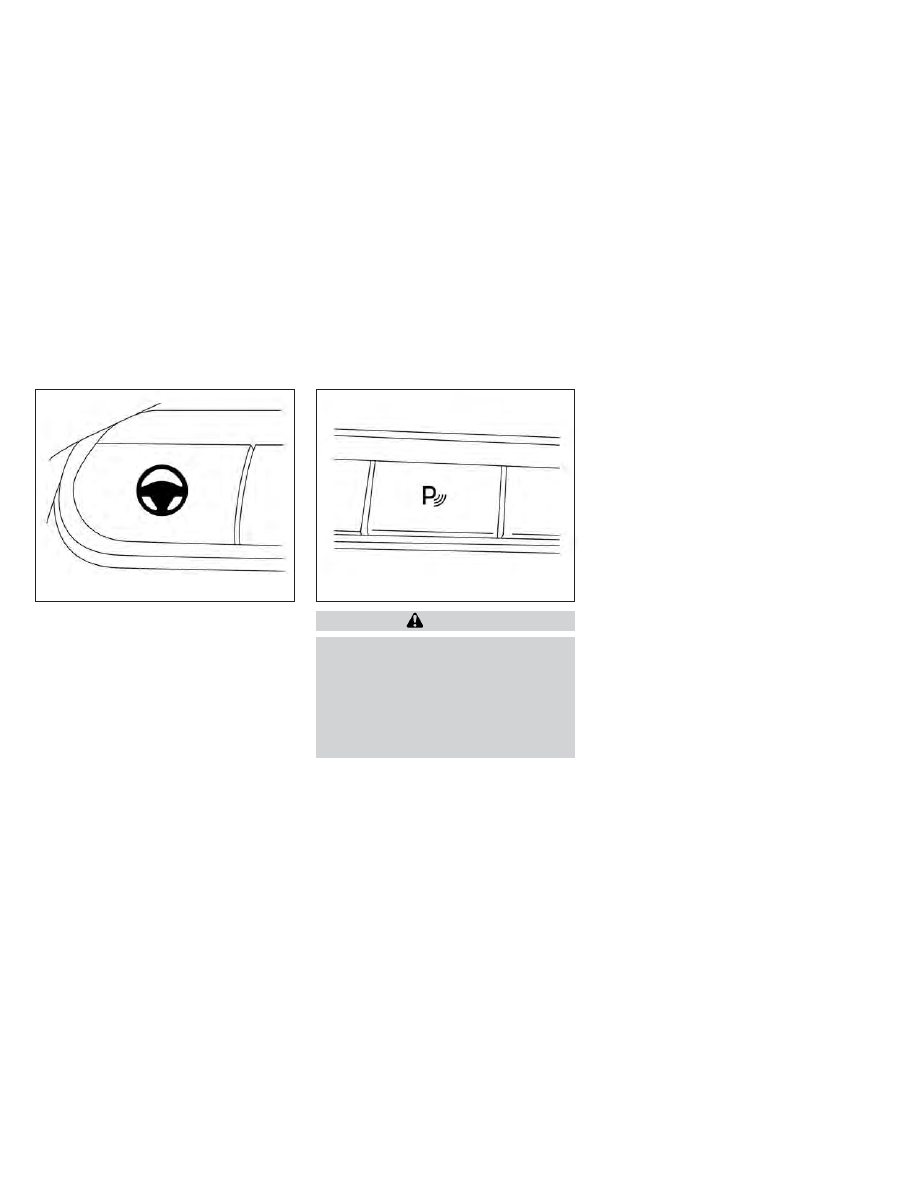

LIC4495

LIC4270

STEERING ASSIST SWITCH

FRONT AND REAR SONAR SYSTEM
SWITCH (if so equipped)

Instruments and controls

2-51

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Failure to properly adjust the brightness
and position of the displayed image may
interfere with the drivers ability to see
through the windshield which could
cause an accident leading to severe in-
jury or death.

Do not use the head up display for ex-
tended periods of time as that can cause
you to not see other vehicles, pedestri-
ans or objects, which could cause an ac-
cident leading to severe injury or death.

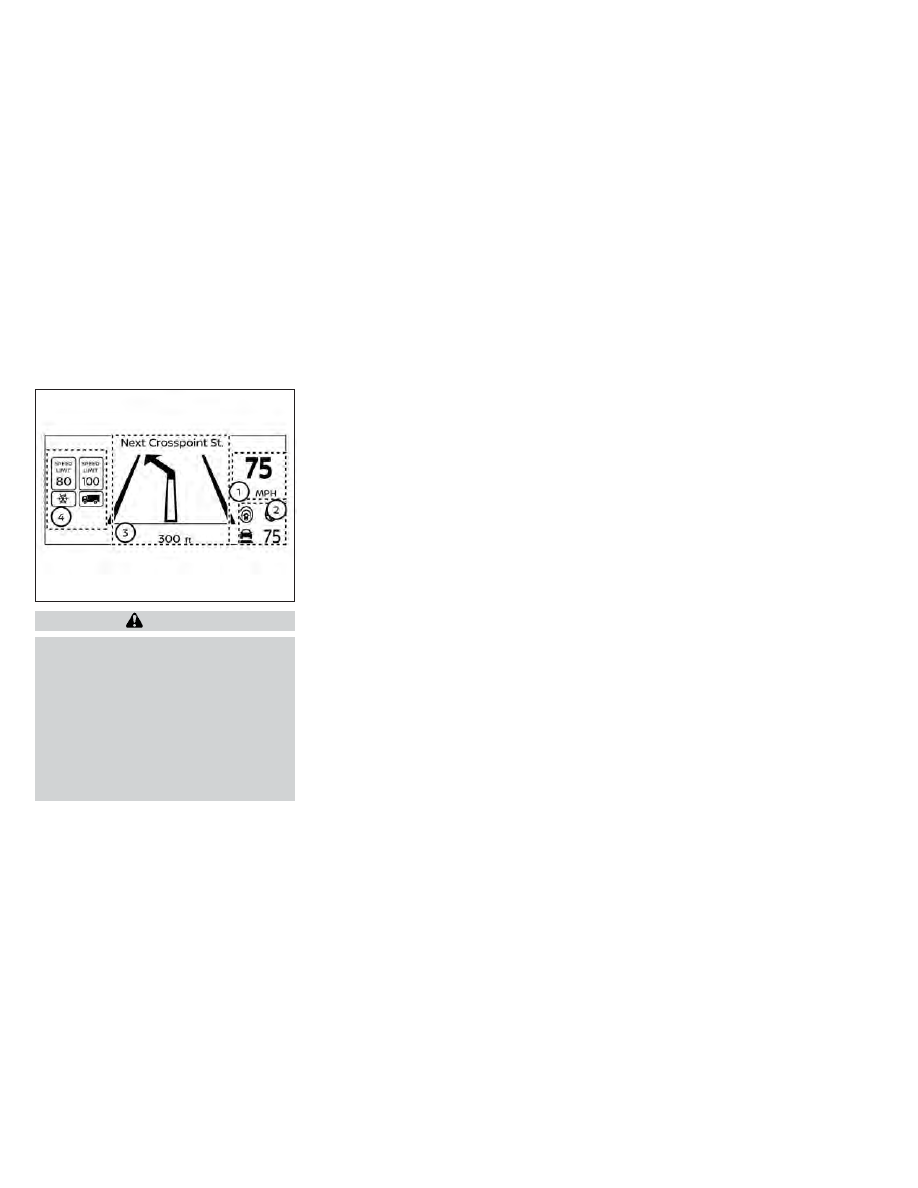

The HUD can display one or more of the
following features (if so equipped):

1

Vehicle speed display

2

Driving Aids

3

Navigation/Warning

4

Traffic Sign Recognition

NOTE:

• Do not place any type of liquid on or near

the projector. Doing so may cause mal-
function of the equipment.

• Do not touch any internal parts of the pro-

jector. Doing so may cause malfunction of
the equipment.

• To prevent scratches to the projector

glass, do not place any sharp objects on or
near the projector opening.

• Do not place any objects on the instrument

panel which may obstruct the display of
the HUD.

• When wearing polarized sunglasses it may

be difficult to recognize the display.

• Depending on weather conditions (rain,

snow, sun light, temperature), it may be
difficult to recognize the display.

• If juices are spilled, wipe with a dry soft

cloth* lightly. (*clean cloth, eyeglass cleaner,
etc.)

• If they are not removed completely, wipe

with water first and then wipe with a dry
cloth. Otherwise, water stains may remain.

• It is not recommended to use acids or alka-

lis (acidic/alkaline detergents, etc.) and
organic solvents (ethanol, etc.), since the
screen quality may deteriorate by the
residue.

• It is not recommended to use tissues and

wet wipes since they may damage the
screen.

• If the displayed image appears distorted, it

is recommended that you have the system
checked by an INFINITI retailer or qualified
workshop.

• The HUD has a special windshield to allow

the image to be displayed clearly. If your
windshield needs replacing, it is recom-
mended that you visit an INFINITI retailer.

LIC4268

HEAD UP DISPLAY (HUD) (if so
equipped)

2-52

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HOW TO USE THE HUD

To turn the HUD system on, push the HUD
switch. To turn the HUD off, push the switch
again.

If the HUD system is turned off, it will remain
off even if the vehicle is restarted.

To adjust the HUD settings when the system
is on:

1. Press the MENU button below the lower

display.

2. Touch the “Settings” key and then the

“Head Up Display” key.

3. Adjust the positioning of the HUD on the

windshield by touching the arrows, and
the brightness by touching the brightness
keys. To change what items are shown in
the HUD, touch the “Display items” key.
The following items (if so equipped) may
be turned on or off:

– Driving Assistance
– Navigation
– Traffic Sign Recognition

NOTE:

The emergency information may appear
even if the display contents are turned off.

DRIVER ASSISTANCE/
NAVIGATION LINKING

The HUD will display driver assistance and
navigation information

O

3

.

The driver assistance display will display
warning situations for the following systems:
• FEB with Pedestrian Detection
• LDW
• PFCW
• Hands-free warning (for vehicles with Pro-

PILOT Assist) (if so equipped)

The Navigation System linking display will
display the following items:
• Intersection names
• Arrows indicating turning direction
• Distance to the next intersection

LIC3829

Instruments and controls

2-53

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Display brightness

The brightness of the display may be con-
trolled by the Navigation System. The bright-
ness will also be adjusted automatically ac-
cording to the exterior ambient lighting
brightness.

NOTE:

• A sensor

O

1

is built into the Head Up Dis-

play to control the brightness of the
image. Make sure the sensor is clear of
obstructions or the display may become
dark and difficult to recognize.

• Do not apply strong light to the sensor of

Head Up Display. Doing so may cause a
malfunction.

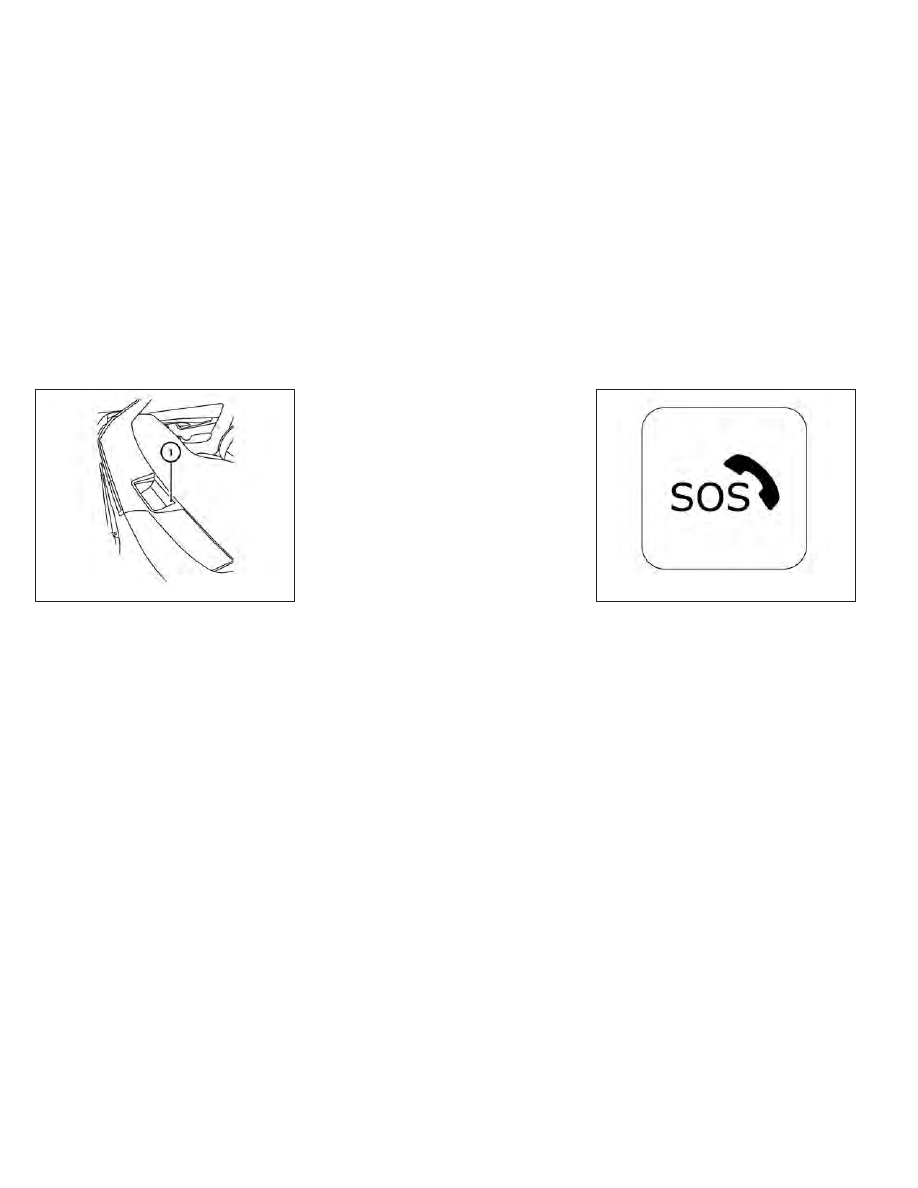

The Emergency call (SOS) button is used in
combination with an INFINITI InTouch®
Services subscription to call for assistance in
case of an emergency.

Pressing the button will (with a paid subscrip-
tion) reach a response specialist that will
provide assistance based on the situation
described by the vehicle’s occupant. For ad-
ditional information, or to enroll your vehicle,
refer to www.InfinitiUSA.com/intouch, or
call 855–444–7244.

LIC4264

LIC3830

EMERGENCY CALL (SOS) BUTTON

2-54

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

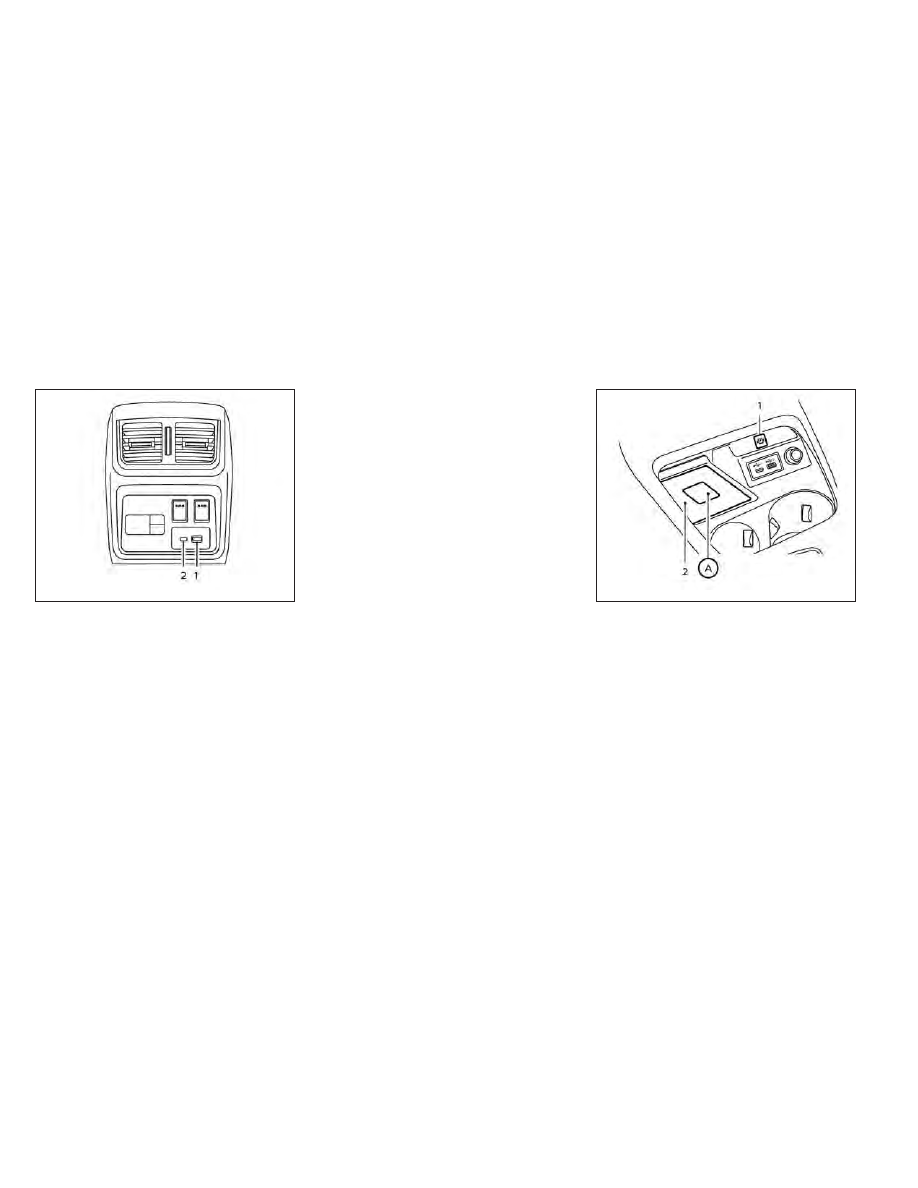

1. Type-A USB

2. Type-C USB

There are USB/iPod® charging ports located
in the rear seat area on the back of the center
console. These ports will charge compatible
devices.

NOTE:

The USB/iPod® charging ports will not
operate with the display screen. Only the
USB connection port located beneath the
instrument panel will operate USB/iPod®
devices.

For best results, it is recommended to use
the manufacturer cables, which are sold
separately. A USB Type-A to USB Type-C
adapter (or vice versa) can also be pur-
chased separately; however, results may
vary.

The wireless charger is located on the front
of the center console. Lay the smartphone on
the pad of the wireless charger. Charging will
start automatically. The smartphone will be
charged continuously while the ignition
switch is in the ON position.

LIC5028

Rear seat

LIC5071

1. Indicator

2. Charging pad

USB/iPod® CHARGING PORTS

WIRELESS CHARGER

Instruments and controls

2-55

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

Never put metallic materials between
the wireless charger and a smartphone.

Those who use a pacemaker or other
medical equipment should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

Never put cloth over the smartphone
during charging process.

Never charge a smartphone when it is
wet.

Never put metallic materials or small
goods such as a cigarette lighter, Intelli-
gent Key or memory drive.

CAUTION

Do not put an RFID/NFC/credit card
between the wireless charger and a
smartphone. This could cause data cor-
ruption in the card.

Do not use the wireless charger with dust
accumulated or dirt on the pad.

Do not hit the surface of the wireless
charger.

Do not spill liquid (water, drinks, etc.) on
the charging pad.

Do not use grease, oil or alcohol for
cleaning charging pad.

WIRELESS CHARGER
INDICATOR

The indicator ( 1 ) will illuminate in orange
when the charging process is started.

When the charging has completed, the indi-
cator illuminates in green.

If a malfunction occurs or the charging pro-
cess has stopped, the indicator will blink in
orange for 8 seconds then turn off.

WIRELESS CHARGER
OPERATION

To use the wireless charger, it is necessary to
seat the smartphone well within the charging
pad. To maximize charging performance, en-
sure the smartphone is fully seated on the
center of the charging pad over the "Qi" logo

O

A

. Because the location of the power re-

ceiver may vary depending on the smart-
phone, you will need to try and find the area
that suits your smartphone.

Because some smartphone cases or accesso-
ries may adversely affect charging, remove
them before wireless charging. Turn off the
vibration function of the smartphone before
wireless charging.

NOTE:

Only a Qi compatible smartphone can be
used.

The smartphone may be warmed during
charging process and the charging may
stop by the protection function of the
wireless charger. This is not a malfunction.
If this occurs, restart charging after the
smartphone cooled down. The indicator
will blink in orange then turn off.

The wireless charging process may be
stopped by the status of the smartphone
(battery temperature, etc.).

If a radio noise interference occurs during
charging process, put the smartphone
onto the center (“Qi” logo) position of the
wireless charger.

The wireless charging process will stop
during process of searching the Intelligent
Key.

2-56

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The wireless charging process will not be
started when a USB (Universal Serial Bus)
cable is connected to the smartphone. The
indicator may illuminate in orange or blink
if the smartphone is put on the wireless
charger with a USB cable connected. How-
ever, charging is not performed.

Depending on the type of the smartphone,
the indicator may remain illuminated in or-
ange even when the charging process has
been completed.

FCC ID: BEJWC500MNM
IC: 2703H-WC500MNM
This device complies with part 15 of the FCC
Rules and RSS-Gen of IC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment.

RF Radiation Exposure Statement: This
equipment complies with FCC RF Radiation
exposure limits set forth for an uncontrolled
environment.
This device and its antenna must not be co-
located or operating in conjunction with any
other antenna or transmitter.
This equipment should be installed and oper-
ated with a minimum distance of 15cm be-
tween the radiator and your body.
ISED Compliance Statement
This device complies with RSS-Gen of IC
Rules
Operation is subject to the following two
conditions:
(1) This device may not cause harmful inter-
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
Changes or modifications made to this de-
vice, not expressly approved by LG Vehicle
Components Company, will void the user’s
authority to operate the equipment.

ISED RF Radiation Exposure Statement:
This equipment complies with ISED RF
Radiation exposure limits set forth for an
uncontrolled environment. This device and
its antenna must not be co-located or oper-
ating in conjunction with any other antenna
or transmitter. This equipment should be in-
stalled to operate with a minimum distance
of 15 cm between the radiator and the end-
user’s body and arms.

Instruments and controls

2-57

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

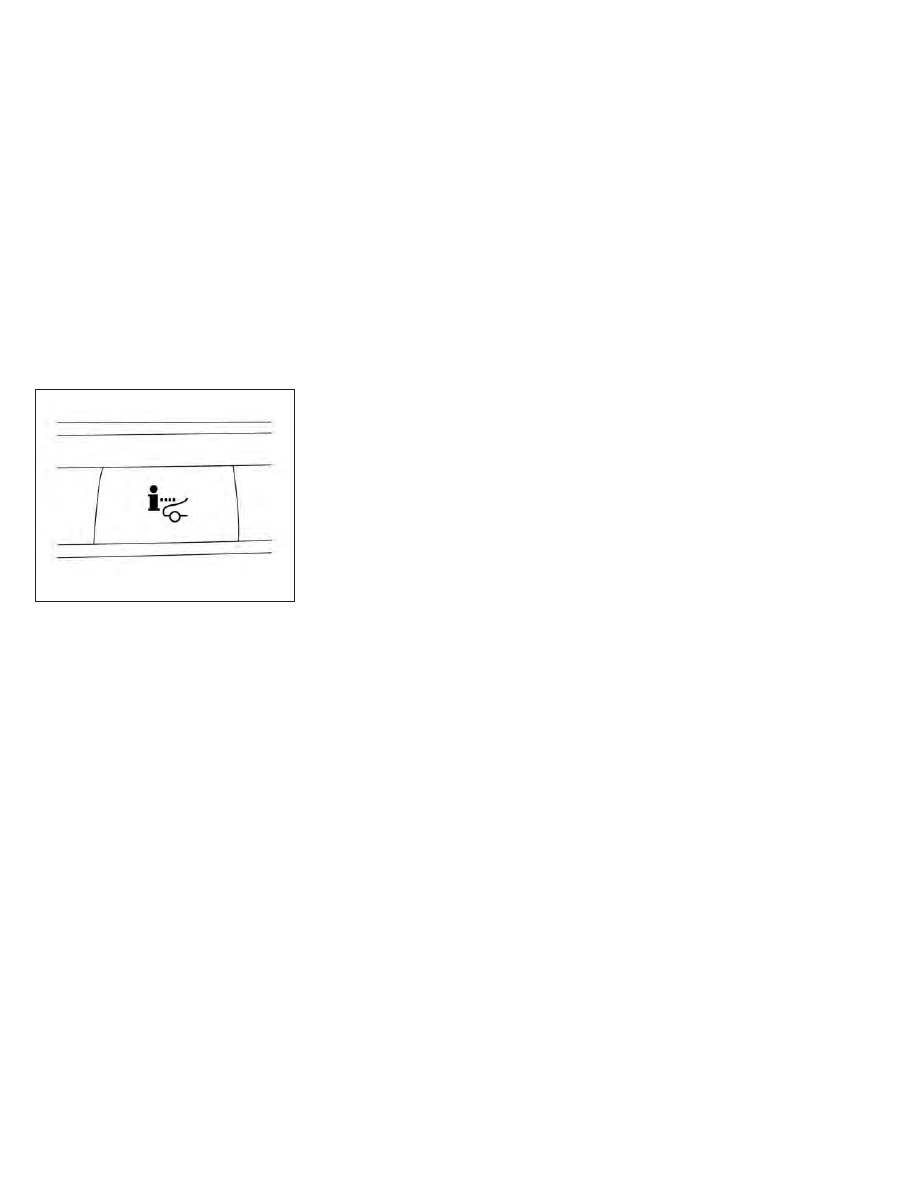

The Rear Door Alert system functions under
certain conditions to indicate there may be an
object or passenger in the rear seat(s). Check
the seat(s) before exiting the vehicle.

The Rear Door Alert system is initially dis-
abled. The driver can enable the system using
the lower display. For additional information,
see “Vehicle information display warnings
and indicators” (P. 2-24).

When the system is enabled:
• The system is activated when a rear door is

opened and closed within 10 minutes of
the vehicle being driven. When the driver
door is closed and the system is activated, a
visual message appears in the vehicle infor-
mation display. For additional information,
see “Rear Door Alert is activated (P. 2-25)

• If a rear door is opened and closed but the

vehicle is not driven within approximately
10 minutes, the system will not be acti-
vated. A rear door must be opened and
closed and the car driven within 10 minutes
for the system to activate.

When the Rear Door Alert system is acti-
vated:
• When the driver puts the vehicle in the P

(Park) position, a notification message ap-
pears in the vehicle information display
with the options to “Dismiss Message” or
“Disable Alert” if desired.

• Select “Disable Alert” to temporarily dis-

able for that stop.

• No selection or ‘Dismiss Message” will

keep the alert enabled for that stop.

• If the alert is enabled when a driver exits the

vehicle, a message will appear in the vehicle
information display that states “Check
Back Seat For All Articles.”

If “Horn & Alert” setting is selected:

• An audible horn sound will occur after a

short time unless a rear door is opened
and closed within a short time to deacti-
vate the alert.

• If the doors are locked before the alert is

deactivated by opening a rear door, the
horn will sound.

• If the liftgate is opened before a rear

door is opened, the horn will be delayed
until after the liftgate is closed.

NOTE:

If “Alert Only” setting is selected, the mes-
sage alert will still be shown in the vehicle
information display but the horn will not
sound.

WARNING

If the driver selects “Disable Alert”, no
audible alert will be provided regardless
of rear door open/close status.

There may be times when there is an ob-
ject or passenger in the rear seat(s) but
the audible alert does not sound. For ex-
ample, this may occur if rear seat passen-
gers enter or exit the vehicle during a
trip.

The system does not directly detect ob-
jects or passengers in the rear seat(s).
Instead, it can detect when a rear door is
opened and closed, indicating that there
may be something in the rear seat(s).

NOTE:

There may be times when the horn sounds
but there are no objects or passengers in the
rear seat(s).

For additional information, see “Rear Door
Alert is activated (P. 2-25).

REAR DOOR ALERT

2-58

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

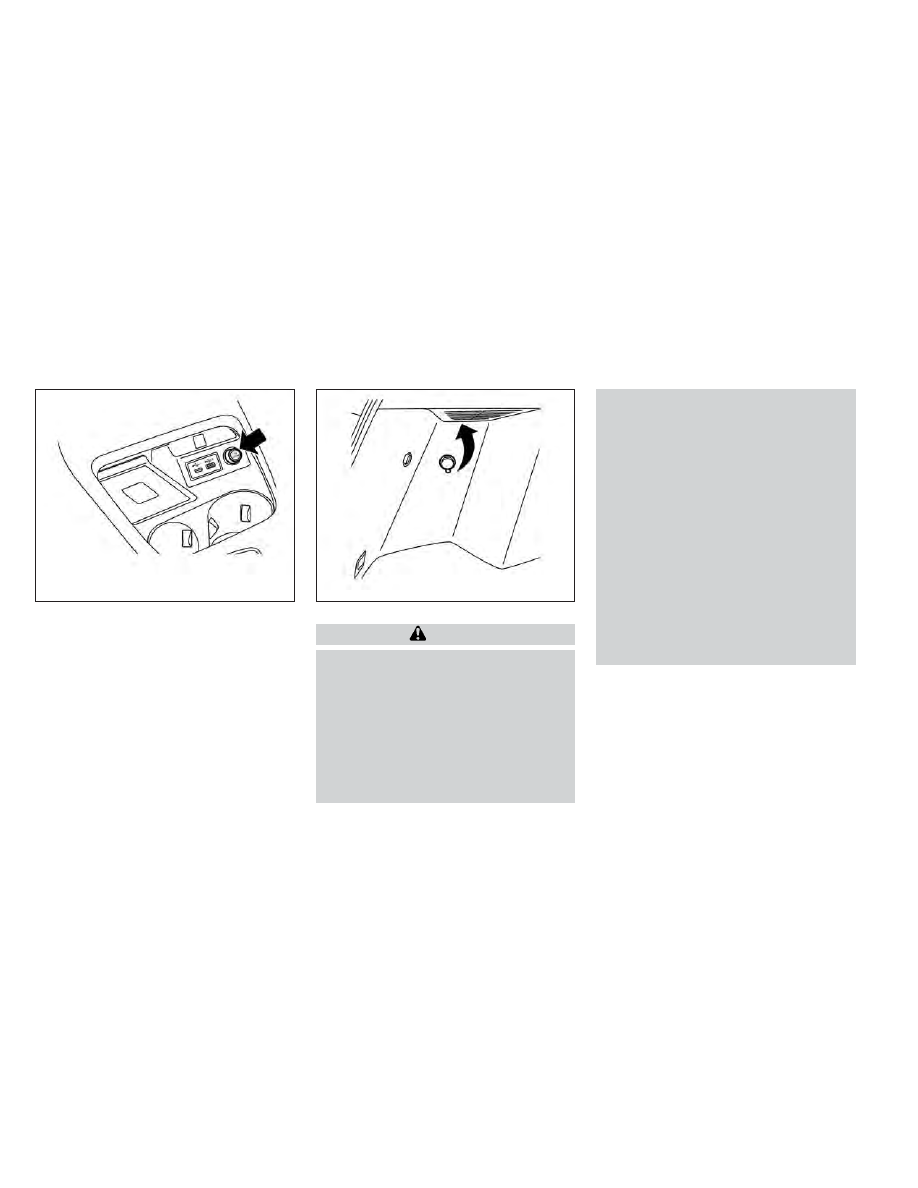

12V OUTLETS

The power outlets are for powering electrical
accessories such as cellular telephones. They
are rated at 12 volt, 120W (10A) maximum.

The instrument panel and luggage area
power outlets are powered only when the
ignition switch is in the AUTO ACC or ON
position.

CAUTION

The outlet and plug may be hot during or
immediately after use.

Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit an INFINITI retailer for ad-
ditional information.

Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw.

Do not use double adapters or more than
one electrical accessory.

Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.

Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.

Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned off.

Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.

When not in use, be sure to close the cap.
Do not allow water or any other liquid to
contact the outlet.

LIC5072

Instrument Panel

LIC3833

Cargo Area

POWER OUTLETS

Instruments and controls

2-59

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

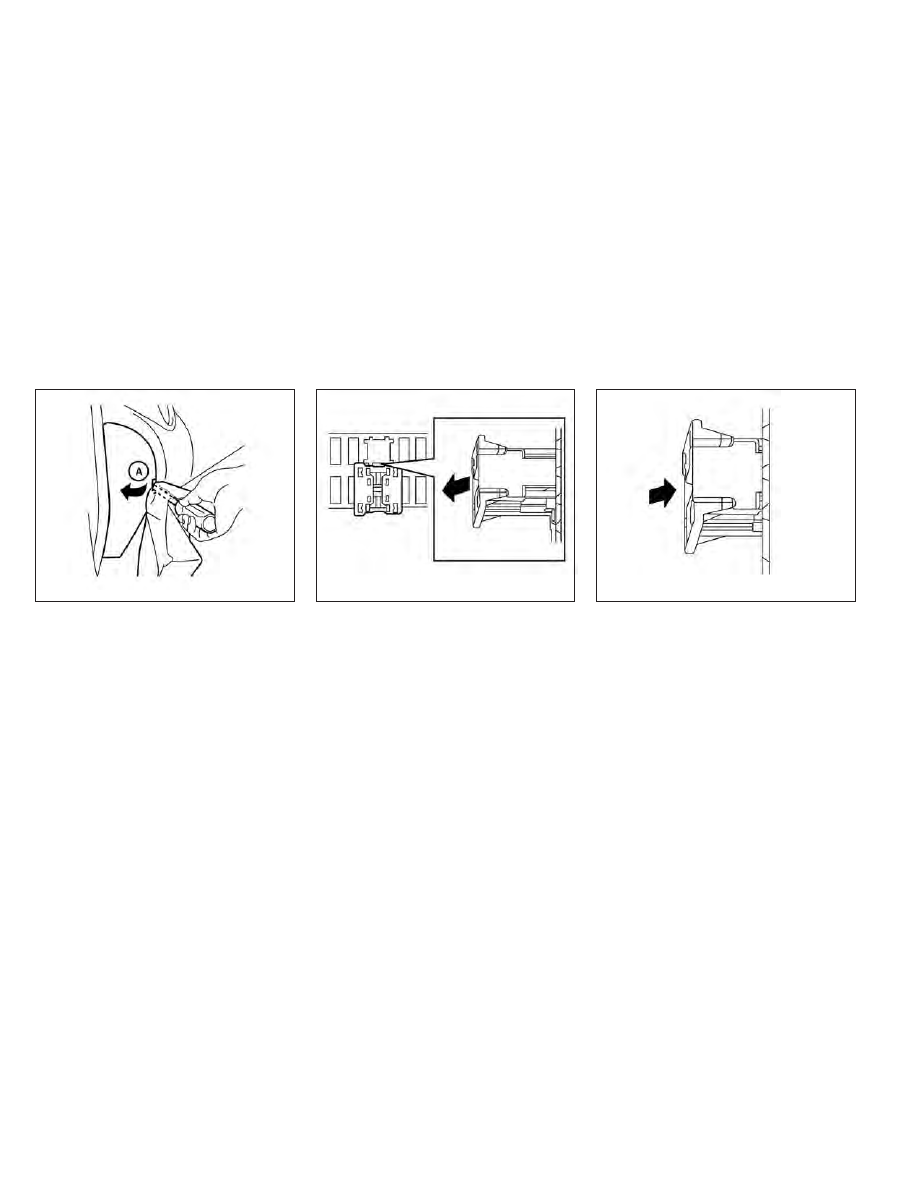

The extended storage switch is used when
shipping the vehicle. It is located in the fuse
panel on the driver’s side of the instrument
panel. If any electrical equipment does not
operate, ensure the extended storage switch
is pushed fully in place, as shown.

To inspect the extended storage switch, en-
sure the ignition switch and headlight switch
are off, remove the fuse box cover

O

A

using a

suitable tool in combination with a cloth to
avoid damaging the trim.

LIC3359

LIC3266

OFF position

LIC3268

ON position

EXTENDED STORAGE SWITCH

2-60

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

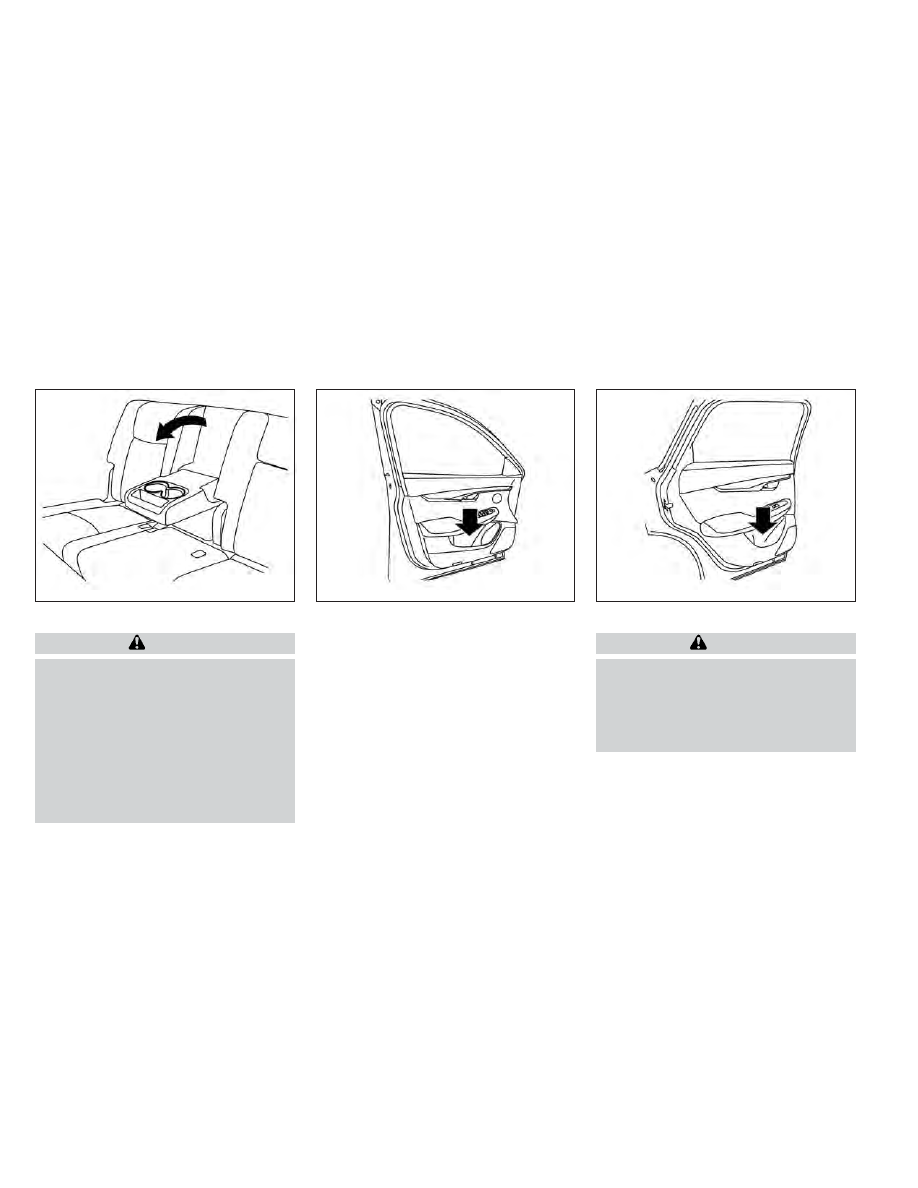

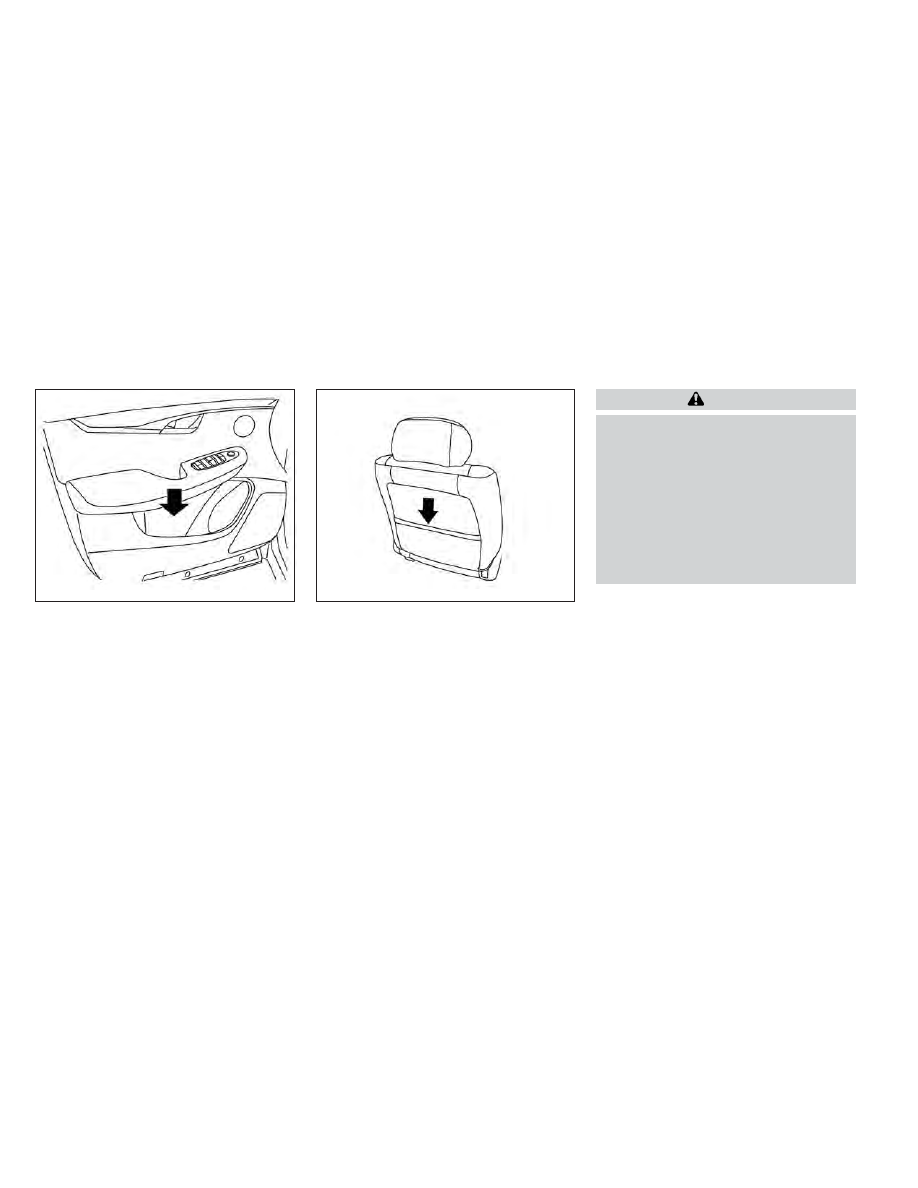

FRONT-DOOR POCKETS

SEATBACK POCKETS

The seatback pockets may be located on the
back of the driver’s and/or passenger’s seats.
The pockets can be used to store maps.

WARNING

To ensure proper operation of the driver’s
and/or front passenger's INFINITI Ad-
vanced Air Bag System (if so equipped),
please observe the following items:

Do not allow a passenger in the rear seat
to push or pull on the seatback pocket or
head restraint/head rest.

Do not place heavy loads heavier than
9.1 lbs. (4 kg) on the seatback, head
restraint/head rest or in the seatback
pocket.

LIC3834

LIC1328

STORAGE

Instruments and controls

2-61

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

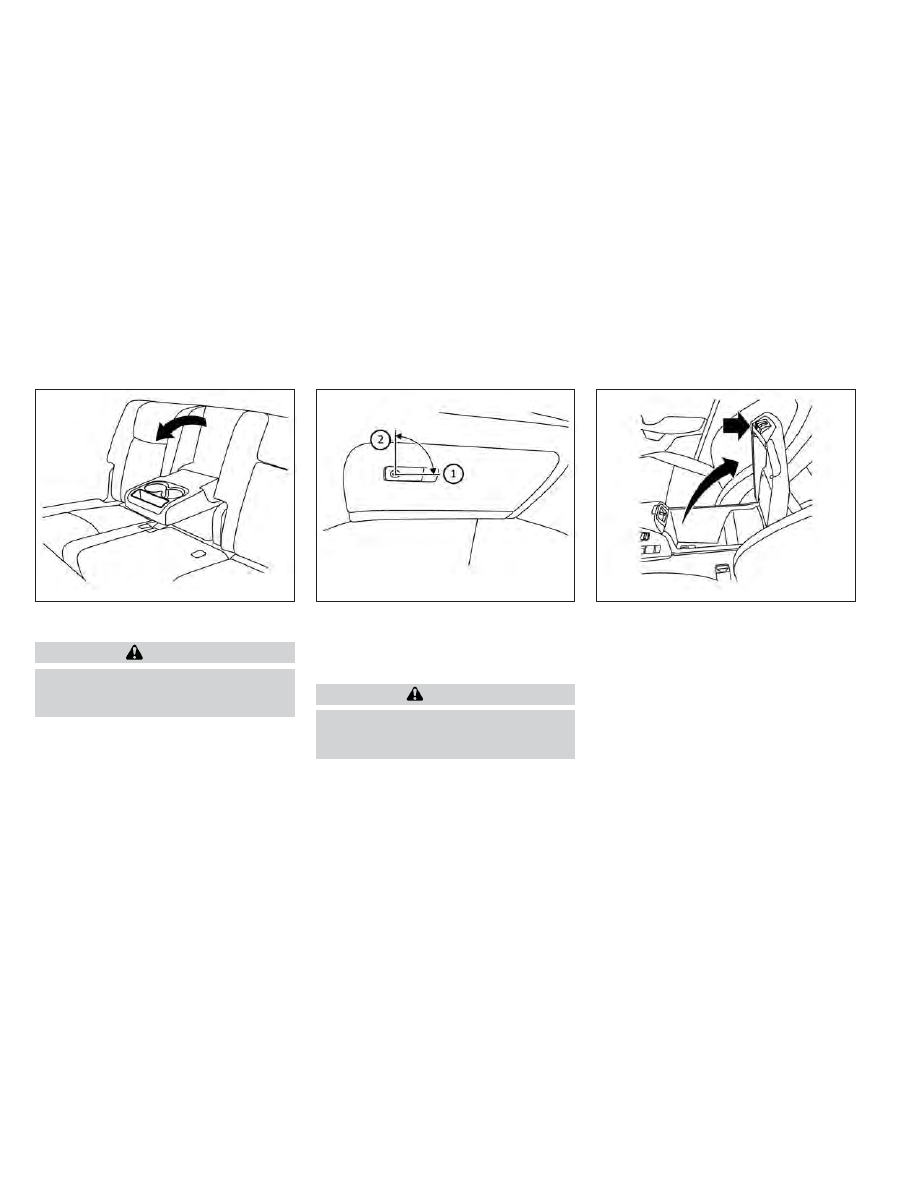

STORAGE TRAYS

WARNING

Do not place sharp objects in the trays to
help prevent injury in an accident or sudden
stop.

GLOVE BOX

Open the glove box by pulling the handle. Use
the master key when locking

O

1

or unlocking

O

2

the glove box.

WARNING

Keep glove box lid closed while driving to
help prevent injury in an accident or a sud-
den stop.

CONSOLE BOX

To open the console box, press down on the
latch. The latch will release.

To close, push the lid down until the lock
latches.

LIC2214

Rear armrest

LIC3902

LIC3836

2-62

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

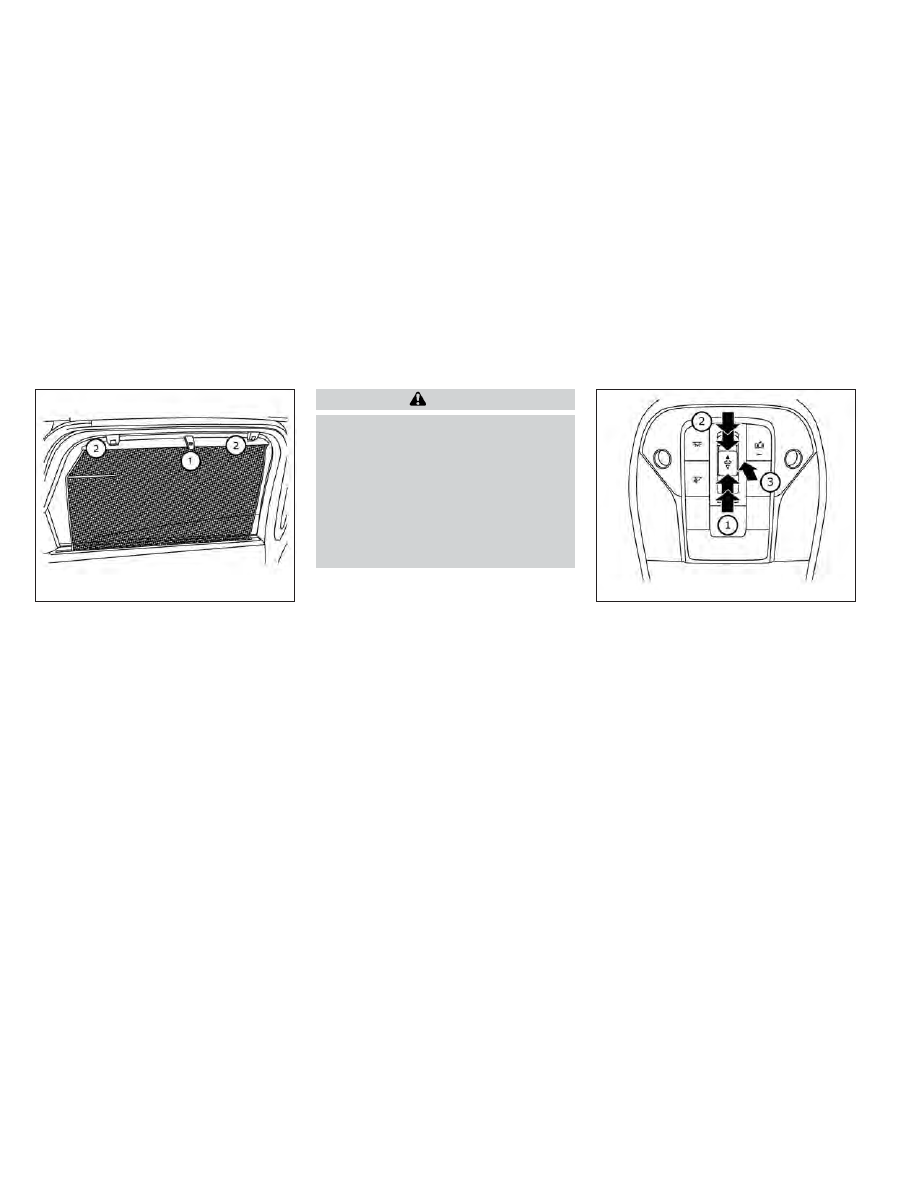

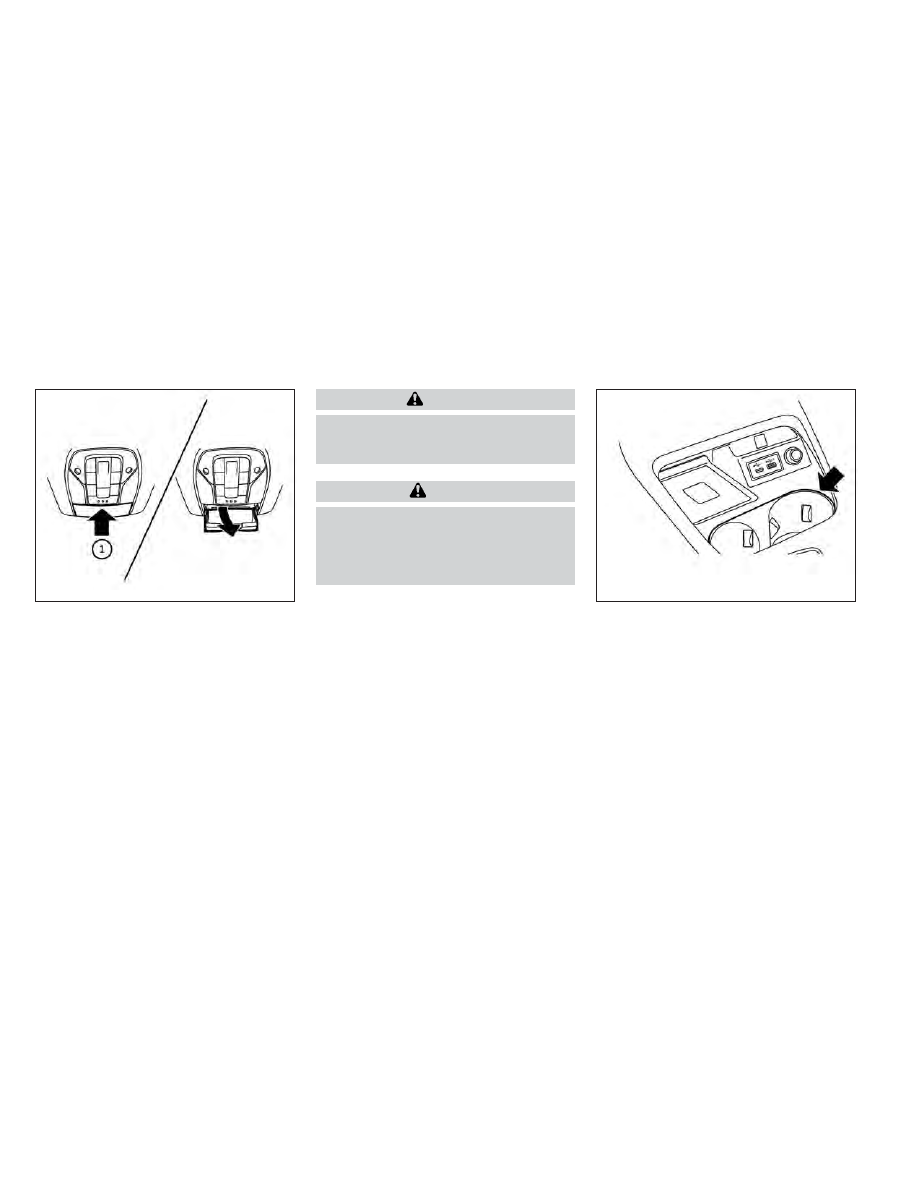

OVERHEAD SUNGLASSES
STORAGE

To open the sunglasses holder, push

O

1

and

release.

Only store one pair of sunglasses in the
holder.

WARNING

Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.

CAUTION

Do not use for anything other than
sunglasses.

Do not leave sunglasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the sunglasses.

CUP HOLDERS

The front console cup holders are equipped
with a rubber mat, which may be removed.

LIC3837

LIC5073

Front console

Instruments and controls

2-63

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION

Do not recline the rear seatback when
you use the cup holders on the rear arm-
rest. Doing so may cause the beverages
to spill over, and if they are hot, they may
scald the passengers.

Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.

Use only soft cups in the cup holder. Hard
objects can injure you in an accident.

CAUTION

Do not use bottle holder for any other
objects that could be thrown about in the
vehicle and possibly injure people during
sudden braking or an accident.

Do not use bottle holder for open liquid
containers.

LIC2212

Rear

LIC3839

Bottle holder — front

LIC3840

Bottle holder — rear

2-64

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

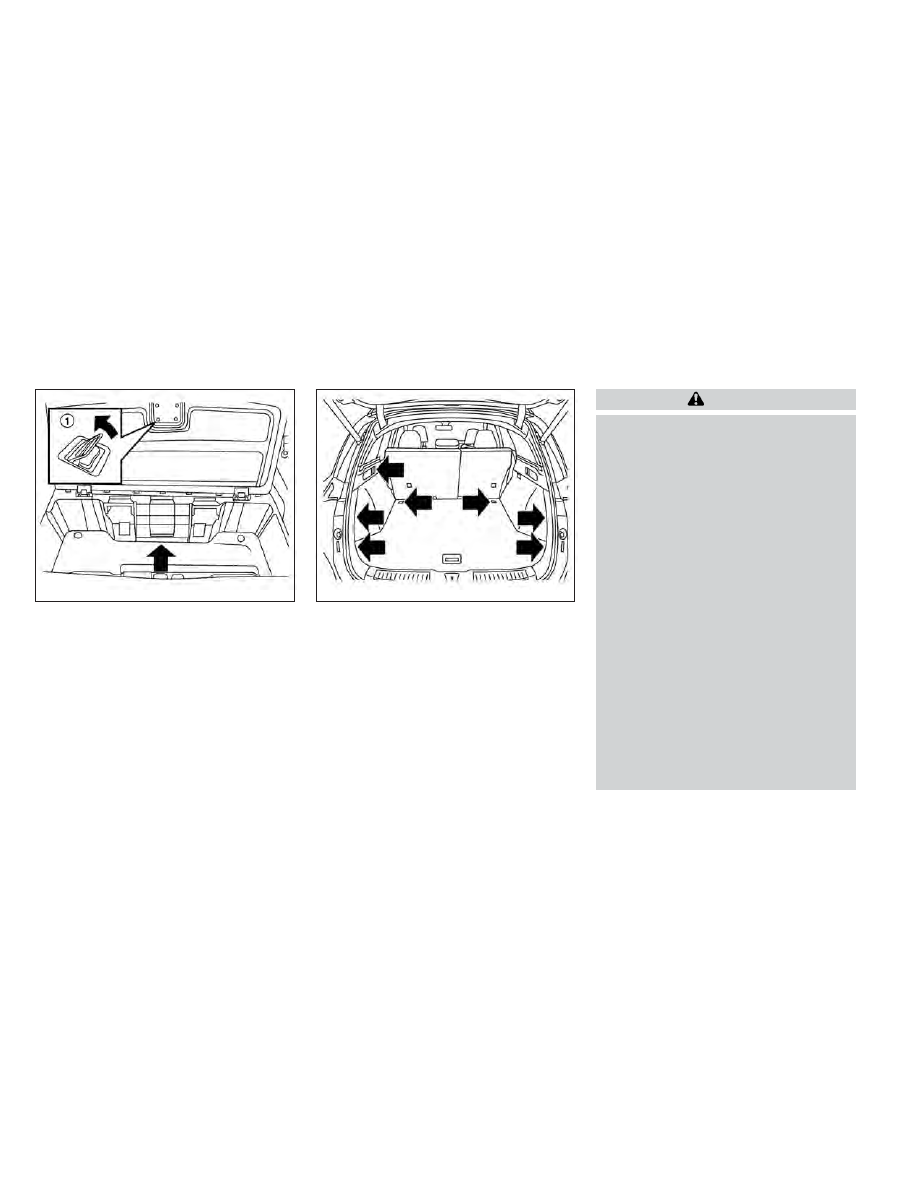

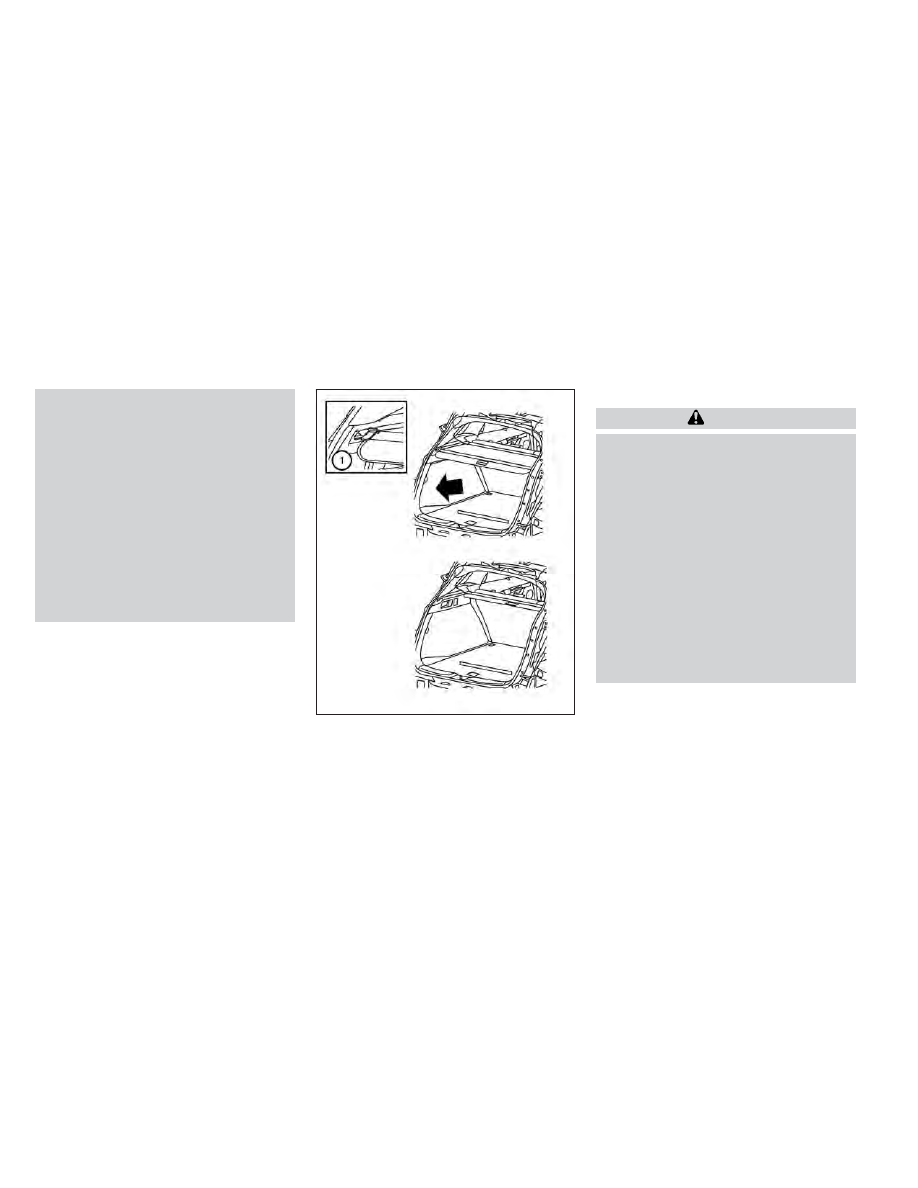

CARGO AREA STORAGE BIN

To access the floor storage area, pull up on
the handle

O

1

to lift the luggage board.

LUGGAGE HOOKS

When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.

The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.

The luggage hooks can be used to secure
cargo with ropes or other types of straps.

WARNING

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

Use suitable ropes and hooks to secure
cargo.

Never allow anyone to ride in the lug-
gage area. It is extremely dangerous to
ride in a cargo area inside of a vehicle. In a
collision, people riding in these areas are
more likely to be seriously injured or
killed.

Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts.

The child restraint top tether strap may
be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.

Be sure everyone in your vehicle is in a
seat and using a seat belt properly.

LIC2244

LIC4172

Instruments and controls

2-65

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

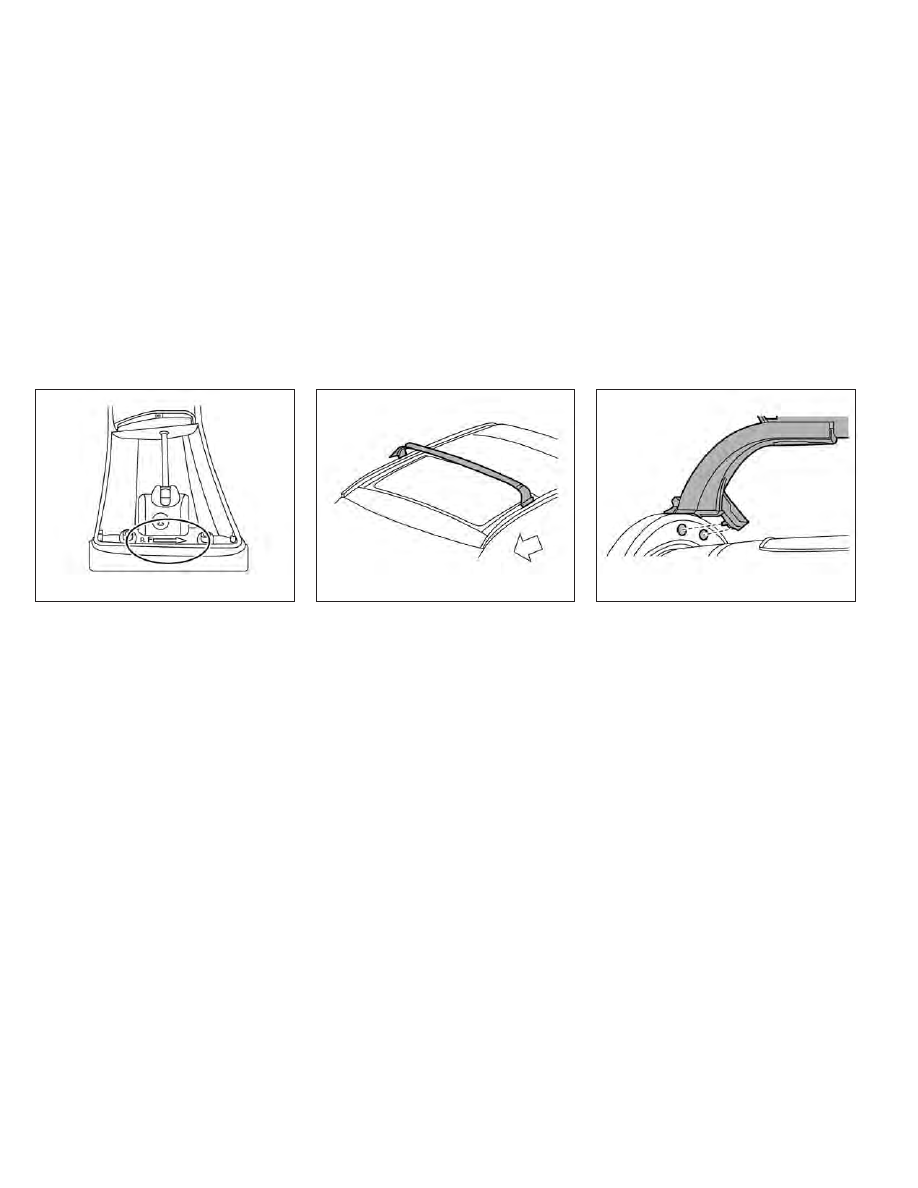

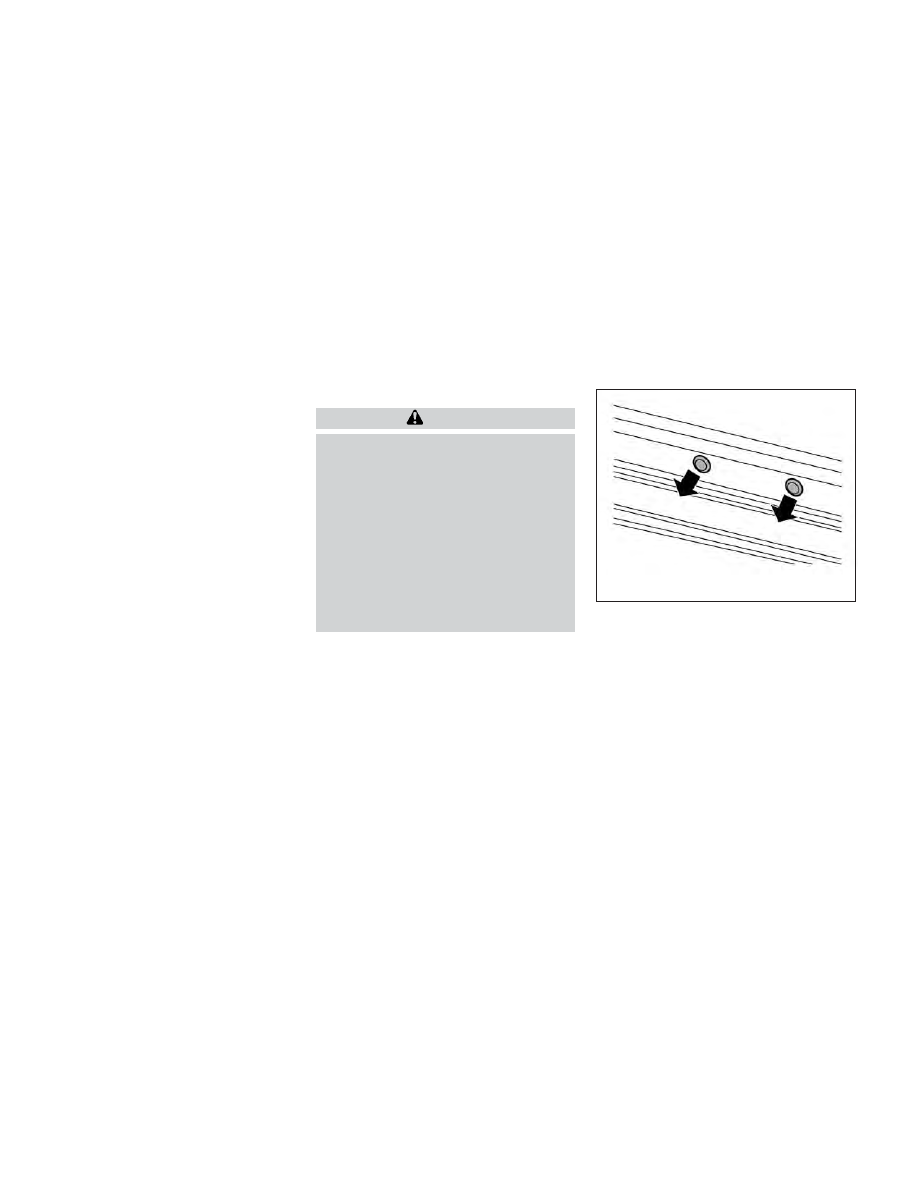

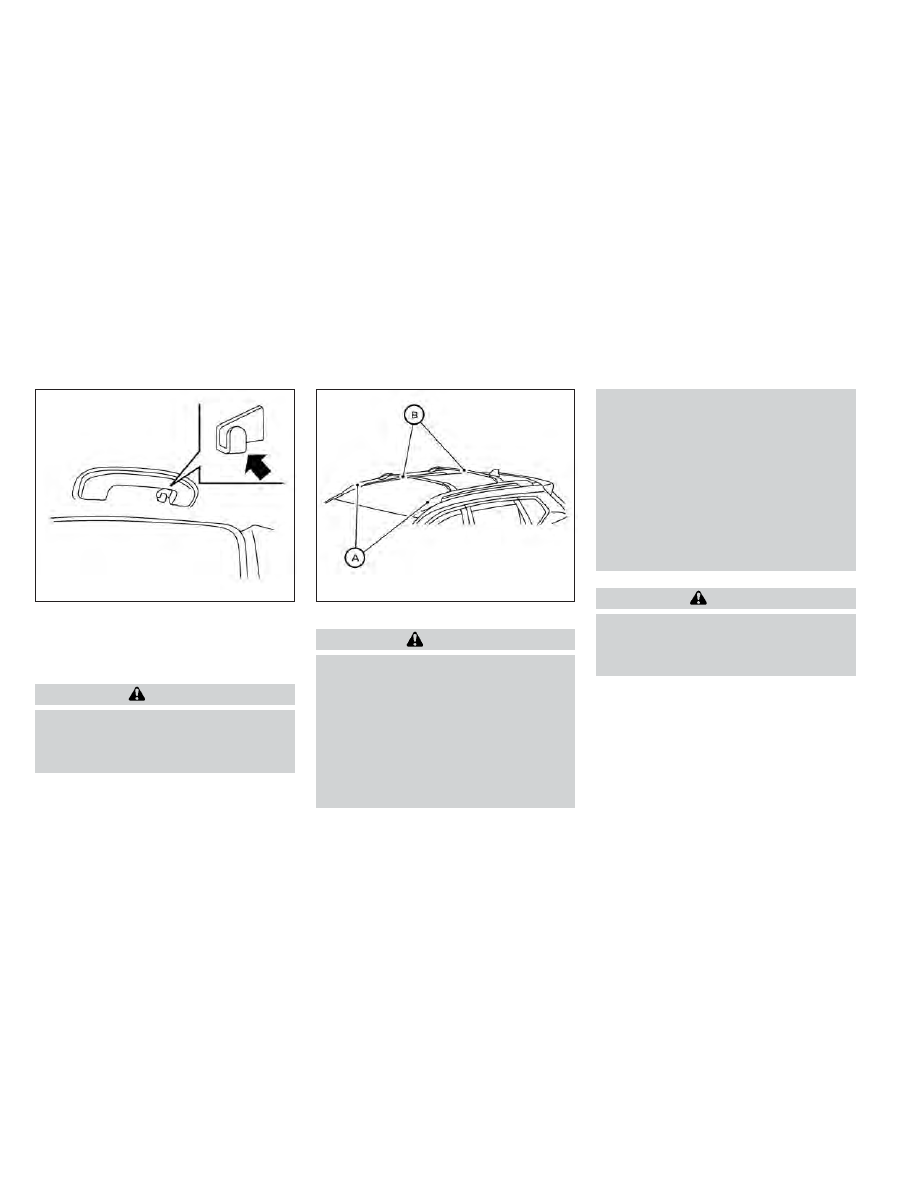

COAT HOOKS

The coat hooks, located on the rear assist
grips, may be used to store coats and other
articles of clothing.

CAUTION

Do not apply a total load of more than 7.3
lbs. (3.3 kg) to the side pillar coat hook or
33 lbs. (15 kg) to the rear assist grip coat
hook.

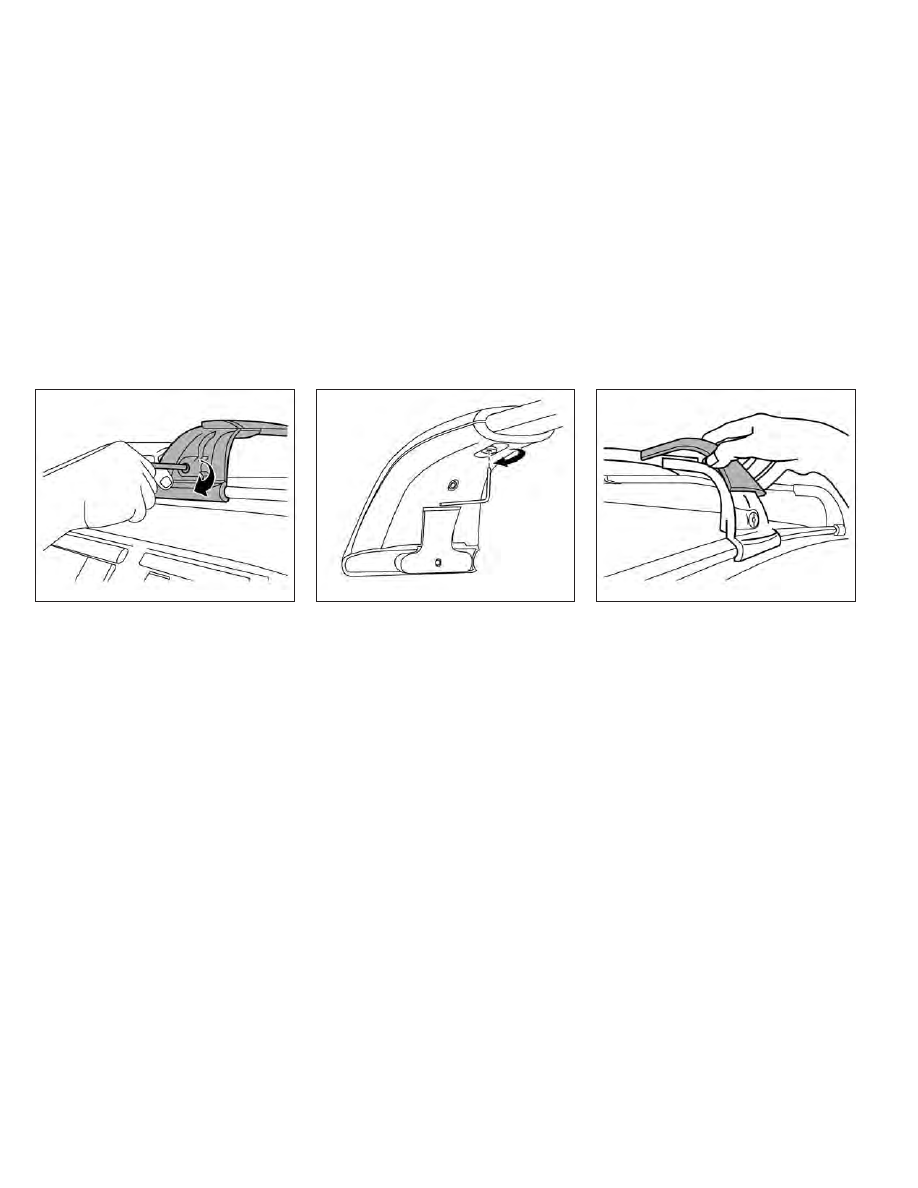

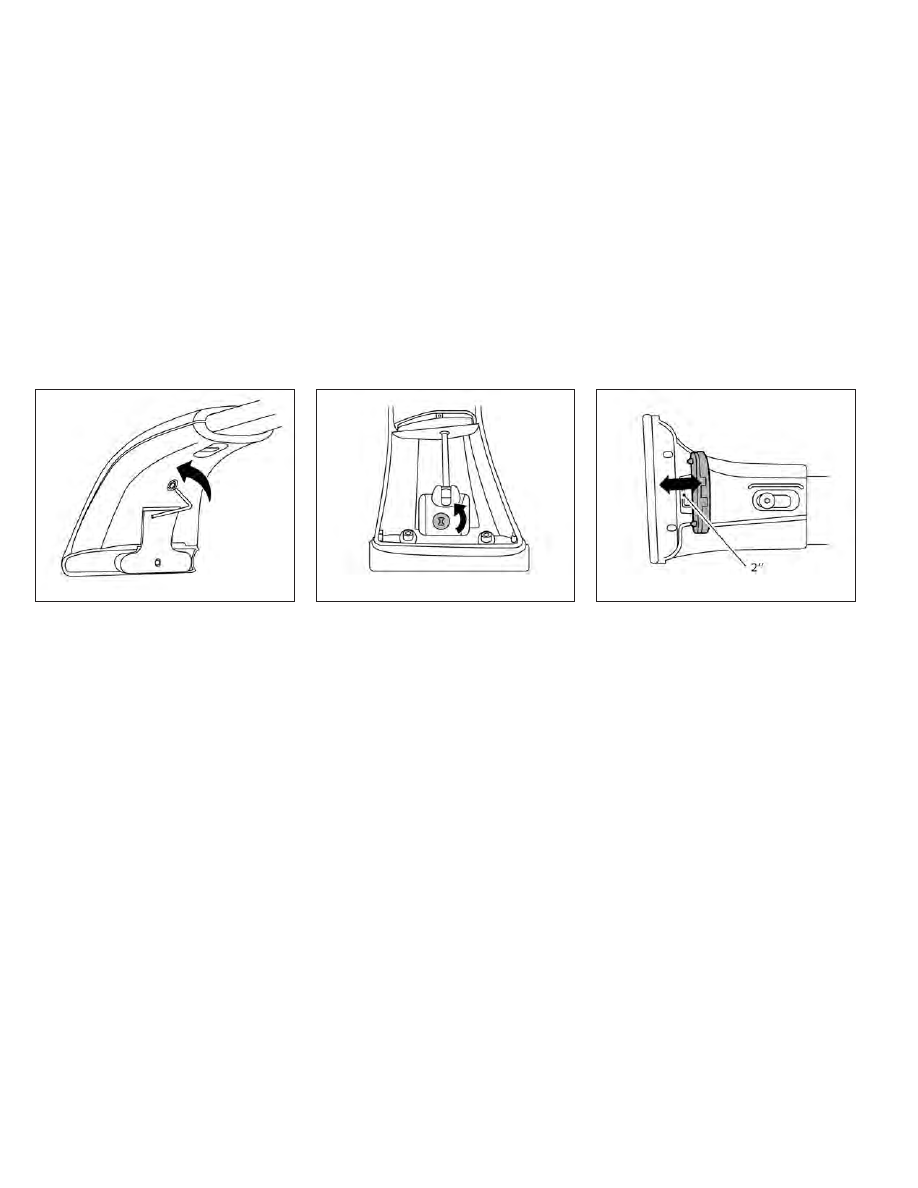

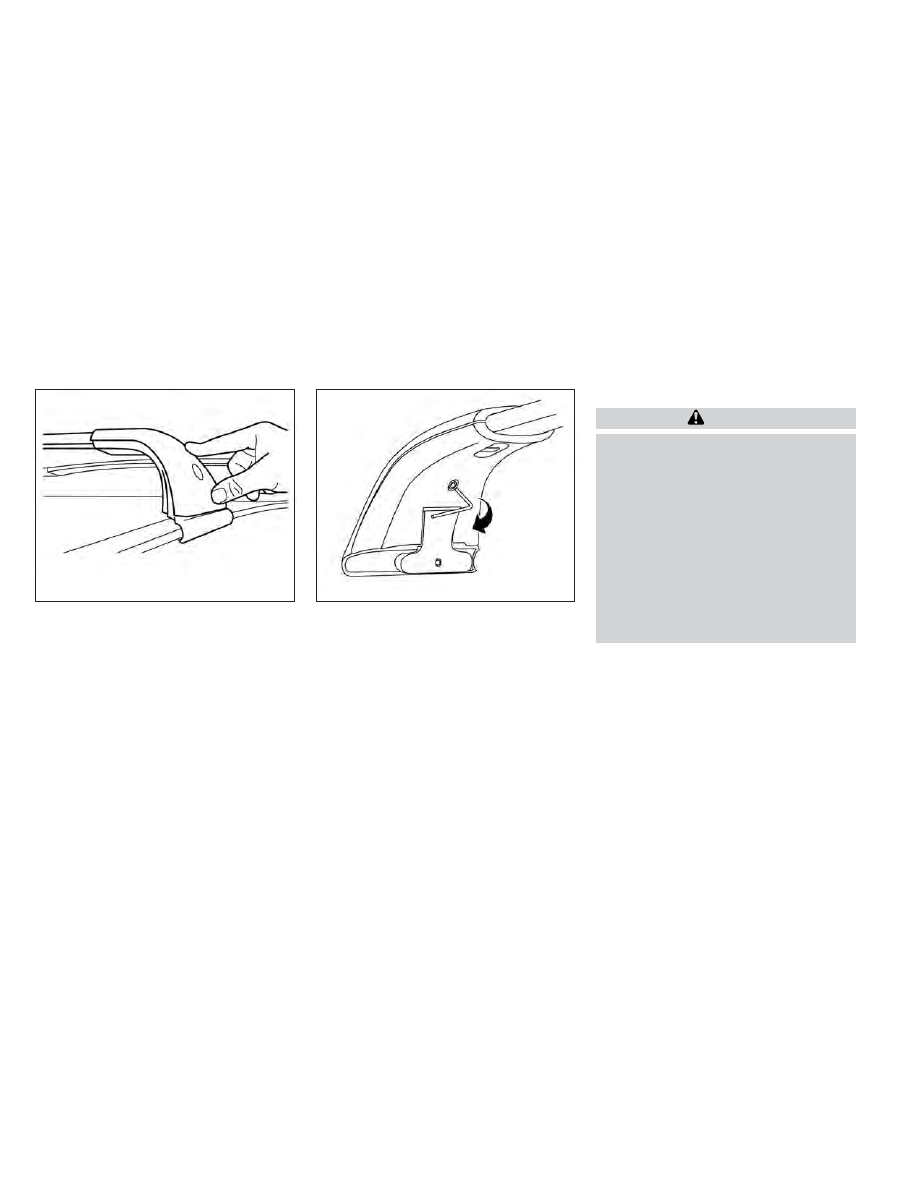

ROOF RACK (if so equipped)

WARNING

Always install the crossbars onto the
roof side rails before loading cargo of
any kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.

Roof rack cross bars should be evenly
distributed.

Do not exceed maximum roof rack cross-
bars load capacity and always distribute
the load uniformly.

Heavy loading of the crossbars has the
potential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal injury.

Drive extra carefully when the vehicle is
loaded at or near the cargo carrying ca-
pacity, especially if the significant portion
of that load is carried on the crossbars.

CAUTION

Use care when placing or removing items
from the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.

Do not apply any load directly to the roof side
rails

O

A

. Crossbars

O

B

must be installed be-

fore applying load/cargo/luggage to the
roof of the vehicle.

LIC4173

LIC4202

2-66

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INFINITI accessory crossbars may be avail-
able through an INFINITI retailer. It is recom-
mended that you visit an INFINITI retailer for
additional information.

The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.

Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).

For additional information regarding GVWR
and GAWR, refer to:
• F.M.V.S.S. or C.M.V.S.S. certification label

(located on the driver’s door pillar).

Installing crossbars (if so equipped)

WARNING

It is recommended that you have the roof
rack crossbars installed by an INFINITI
retailer.

Make sure the moonroof (if so equipped)
is in the closed position during the instal-
lation process.

Protect the painted area on the vehicle’s
roof under the crossbars by placing a
piece of cloth under the cross bars to pre-
vent scratch damage.

Do not load the crossbars more than the
rated load capacity and always distrib-
ute the load uniformly.

The roof rack crossbars may be installed or
removed. Use an L shaped allen key to install
and remove the crossbars.

1. Manually remove the protective covers
from the roof side rails.

LIC3890

Instruments and controls

2-67

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Using an allen key, unturn the screw to
remove the plastic cover.

3. Use an allen key to loosen the clamp screw.

4. Open the clamp approximately two inches
to minimize potential scratching of the roof
side rails.

LIC4561

LIC4593

LIC3893

2-68

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Determine crossbar orientation by locating
the arrow that points to the front of the
vehicle.

6. Align the pins on the passenger and driver
side inner clamp with the holes in the roof
side rails.

7. While holding the inner clamp, use an allen
key to tighten the clamping screw.

LIC3894

LIC3895

LIC4594

Instruments and controls

2-69

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8. Tighten both the driver and passenger side
clamping screw.

NOTE:

Using an allen key, tighten to 10 N•m
(7.4 ft.-lbs.).

9. Tighten both the driver and passenger side
shoulder screw.

NOTE:

Using an allen key, tighten to 10 N•m
(7.4 ft.-lbs.).

10. Assemble the plastic cover. Slide the cover
over the crossbar.

LIC4595

LIC4562

LIC3898

2-70

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

11. Ensure the cover is in the final position.

12. Using an allen key, tighten the screw to
assemble plastic cover.

Using a torque wrench, tighten to 2 N•m
(1.48 ft.-lbs.).

NOTE:

After assembling both the front and rear
crossbars, wiggle the crossbars by hand to
check for loose parts. If either crossbar is
loose, remove the crossbars and repeat steps
1–12 carefully.
To remove crossbars, reverse the installa-
tion steps.

CARGO COVER (if so equipped)

WARNING

Do not place objects on the cargo cover
while the vehicle is parked or in motion,
no matter how small. The object on the
cargo cover could cause an injury in an
accident or sudden stop, and/or the
cargo cover can become damaged.

Do not leave the cargo cover in the ve-
hicle with it disengaged from the holder.

Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.

LIC3899

LIC4596

Instruments and controls

2-71

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Properly secure cargo and do not allow it
to contact the top tether strap when it is
attached to the top tether anchor. Cargo
that is not properly secured or cargo that
contacts the top tether strap may dam-
age the top tether strap during a colli-
sion. If the cargo cover contacts the top
tether strap when it is attached to the
top tether anchor, remove the cargo
cover from the vehicle or secure it on the
cargo floor below its attachment loca-
tion. If the cargo cover is not removed, it
may damage the top tether strap during
a collision. Your child could be seriously
injured or killed in a collision if the child
restraint top tether strap is damaged.

The cargo cover keeps the luggage compart-
ment contents hidden from the outside.

To close the cargo cover, remove the cover
from the grooves

O

1

and retract.

To open the cargo cover, extend the cover
into the grooves

O

1

to lock into place.

POWER WINDOWS

WARNING

Make sure that all passengers have their
hands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.

To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your ve-
hicle. Additionally, the temperature in-
side a closed vehicle on a warm day can
quickly become high enough to cause a
significant risk of injury or death to
people and pets.

The power windows operate when the igni-
tion switch is placed in the ON position or
for a period of time after the ignition switch
is placed in the OFF position. If the driver's
or passenger's door is opened during this
period of time, the power to the windows is
canceled.

LIC3971

WINDOWS

2-72

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

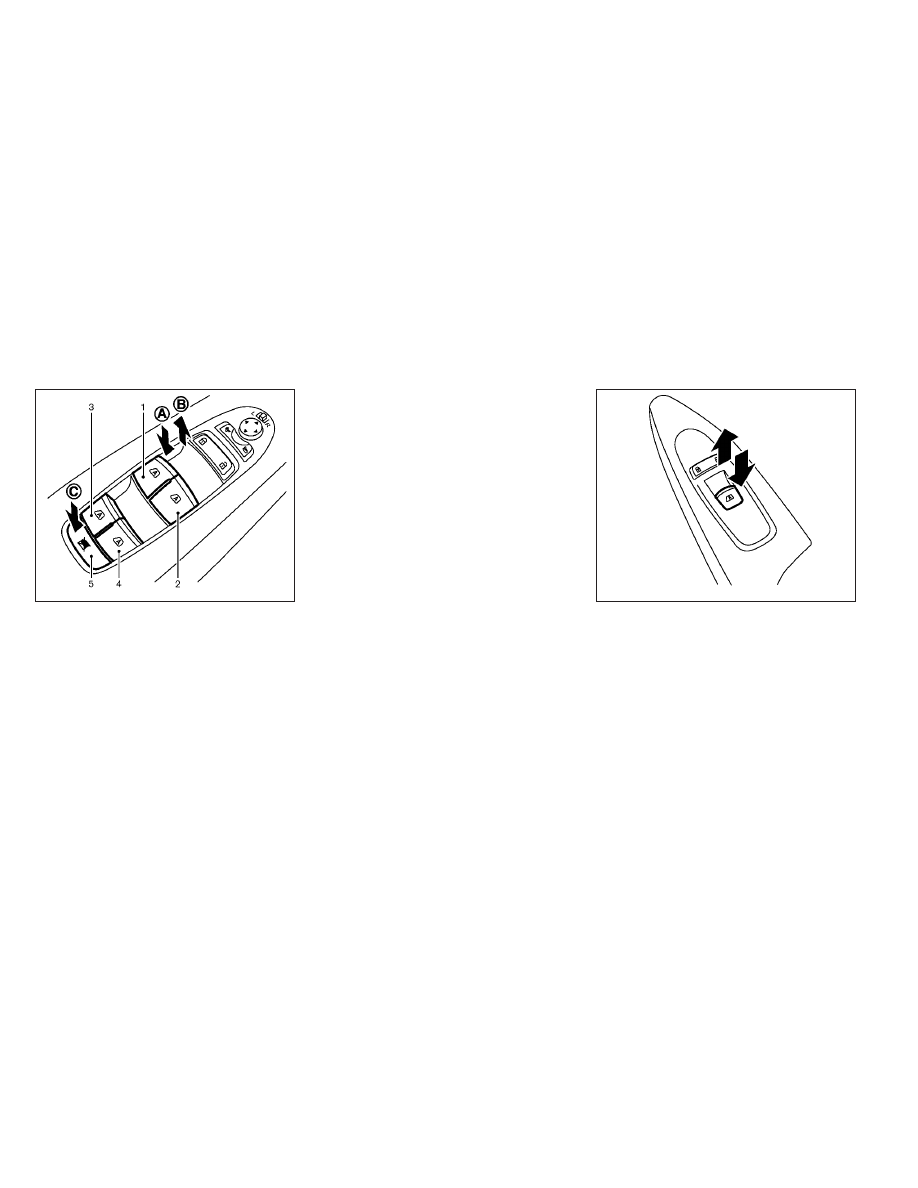

Driver's side power window switch

The driver's side control panel is equipped
with switches to open or close the front and
rear passenger windows.

The window can be partially opened by push-
ing the switch

O

A

down lightly until the de-

sired window position is reached. To close
the window partially, pull the switch

O

B

up

until the desired window position is reached.

Locking passengers' windows

When the window lock button

O

C

is de-

pressed, only the driver's side window can be
opened or closed. Press it again to cancel the
window lock function.

Front passenger's power window
switch

The passenger's window switch operates
only the corresponding passenger's window.
To open the window partially, push the
switch down lightly until the desired window
position is reached. To close the window
partially, pull the switch up until the desired
window position is reached.

SIC4352

1. Driver side automatic switch

2. Front passenger side automatic switch

3. Left rear passenger automatic switch

4. Right rear passenger automatic switch

5. Window lock button

SIC4353

Instruments and controls

2-73

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear power window switch

The rear power window switches open or
close only the corresponding windows. To
partially open the window, push the switch
down lightly until the desired window posi-
tion is reached. To partially close the window,
pull the switch up lightly until the desired
window position is reached.

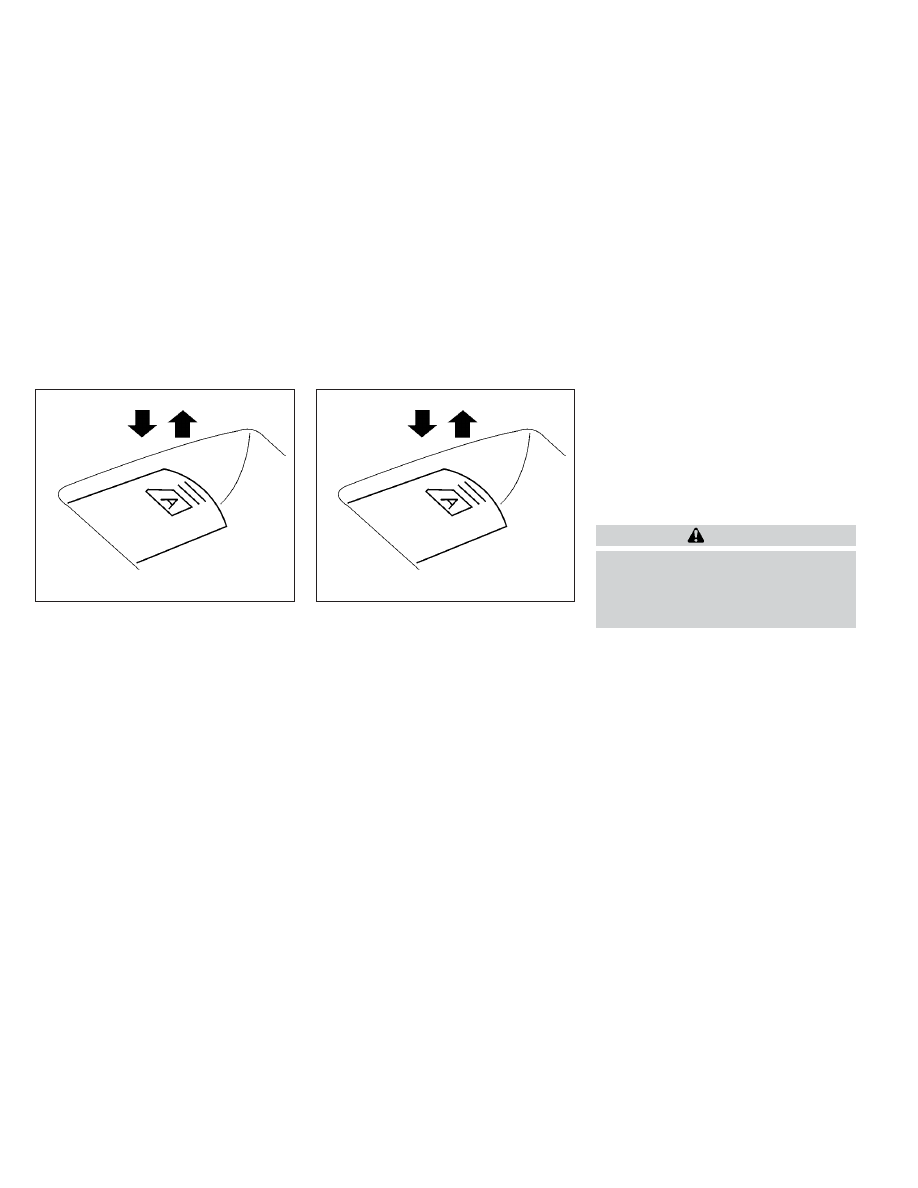

Automatic operation

To fully open a window equipped with auto-
matic operation, push the window switch
down to the second detent and release it; it
need not be held. The window automatically
opens all the way. To stop the window, lift
the switch up while the window is opening.

To fully close a window equipped with auto-
matic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.

Auto-reverse function

The auto-reverse function can be activated
when a window is closed by automatic
operation.

Depending on the environment or driving
conditions, the auto-reverse function may be
activated if an impact or load similar to some-
thing being caught in the window occurs.

WARNING

There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the window.

If the vehicle's battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate prop-
erly. If this occurs, it is recommended that you
visit an INFINITI retailer to re-initialize the
power window auto-reverse system.

If the control unit detects something caught
in a window equipped with automatic opera-
tion as it is closing, the window will be imme-
diately lowered.

LIC0410

LIC0410

2-74

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

REAR DOOR SUNSHADE (if so
equipped)

The rear door sunshade is located within the
rear doors at the base of the window.
• To raise the sunshade, pull up the center

tab

O

1

.

• Hook the sunshade slots onto the tabs ex-

tending from the top of the window frame

O

2

.

CAUTION

Do not release the rear door sunshade
during operation. This could damage the
sunshade or cause injury.

Do not forcefully pull the sunshade.
Doing so may elongate the sunshade.
This could cause improper operation or
could damage the sunshade.

Do not place objects on or near the rear
sunshade. This could cause improper op-
eration or could damage the sunshade.

NOTE:
To avoid damage to the sunshade, please
note the following:

• Do not pull or push the sunshade, other

than upwards.

• Do not pull or push the sunshade with the

sunshade hung on the hooks.

• Do not allow liquids or objects on the stor-

ing area of the sunshade.

POWER MOONROOF

The front moonroof is a power moonroof,
the rear moonroof is fixed glass. The power
moonroof will only operate when the ignition
switch is placed in the ON position. The
moonroof is operational for a period of time,
even if the ignition switch is placed in the OFF
position. If the driver's door or the front pas-
senger's door is opened during this period of
time, the power to the moonroof is canceled.

LIC4169

LIC3912

MOONROOF (if so equipped)

Instruments and controls

2-75

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Sliding the moonroof

To slide the moonroof:
• To fully open the moonroof, push the

switch

O

1

toward the open position until it

reaches the second detent. If the switch

O

1

is pushed to the first detent, only the sun-
shade will open.

• To fully close the moonroof, push the

switch

O

2

toward the close position until it

reaches the second detent. If the switch

O

2

is pushed to the first detent, the moonroof
will close but the sunshade will remain
open.

• To stop the moonroof during operation,

push the

O

1

,

O

2

or

O

3

switch to the desired

position.

Tilting the moonroof

To tilt up, push the moonroof switch

O

3

. To

tilt down the moonroof, push the switch

O

3

,

or the switch

O

2

to the first detent. When the

switch

O

2

is pushed to the second detent, the

moonroof will tilt down and the sunshade will
close.

Resetting the moonroof switch

If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system.

1. If the moonroof and sunshade are open,

close them fully by repeatedly pushing the
moonroof switch to the close

O

2

position.

2. Push and hold the moonroof switch to the

close position

O

2

at the first detent.

3. After holding the switch for 10 seconds,

the moonroof and sunshade move slightly
to the closed position and then move back
a little.

4. The moonroof and sunshade will fully

open and then fully close automatically.

5. Release the switch. Check if the moonroof

switch operates normally.

If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.

Auto-reverse function (when closing
or tilting down the moonroof)

The auto-reverse function can be activated
when the moonroof and sunshade are closed
or tilted down by automatic operation when

the ignition switch is placed in the ON posi-
tion or for a period of time after the ignition
switch is placed in the OFF position.

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.

When closing

If the control unit detects something caught
in the moonroof and sunshade as it moves to
the front, the moonroof and sunshade will
immediately open backward.

When tilting down

If the control unit detects something caught
in the moonroof as it tilts down, the moon-
roof will immediately tilt up.

2-76

Instruments and controls

CarManuals2.com

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
